Model Details

1012-4.5

Printer Friendly
1012-4.5

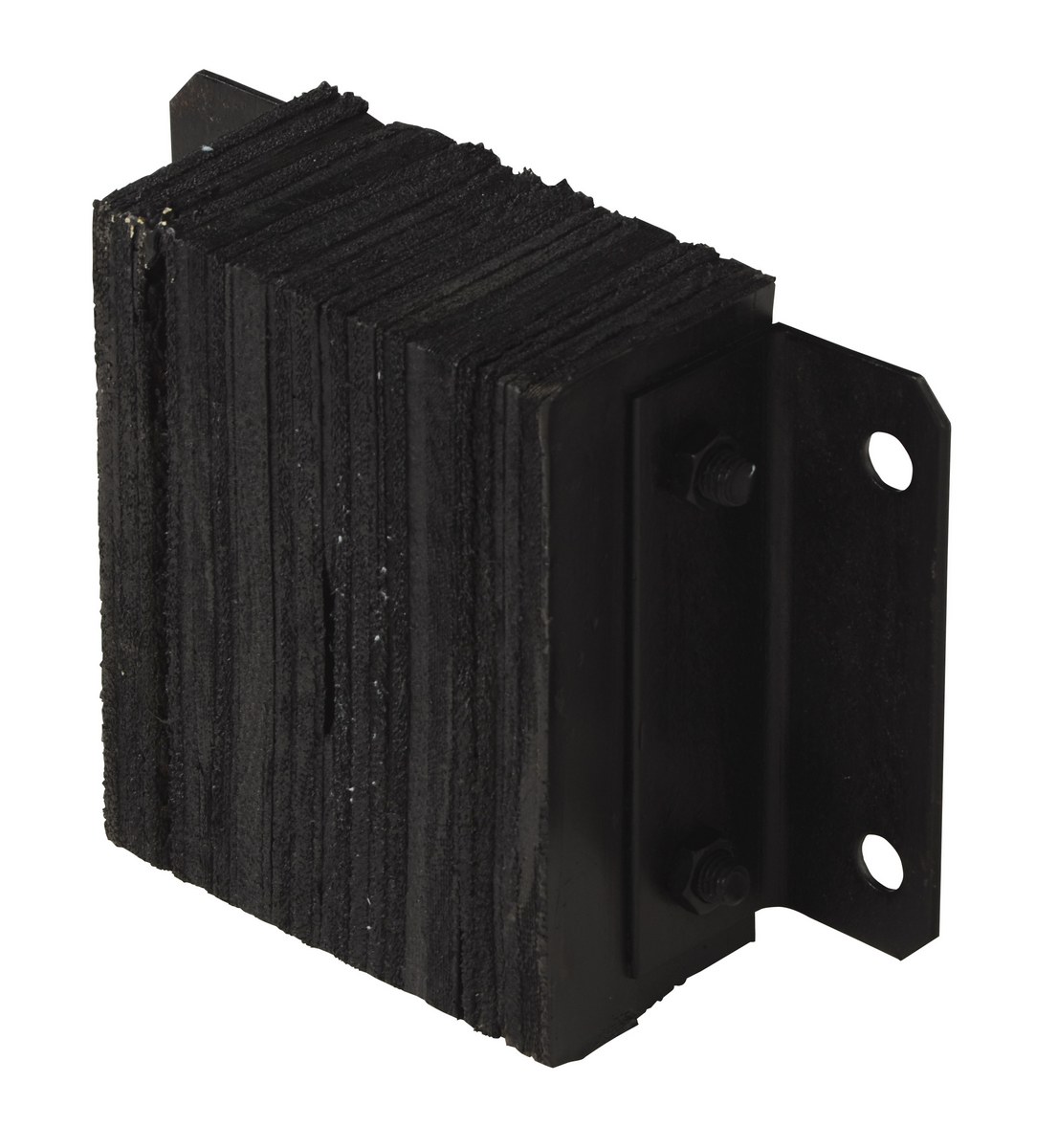

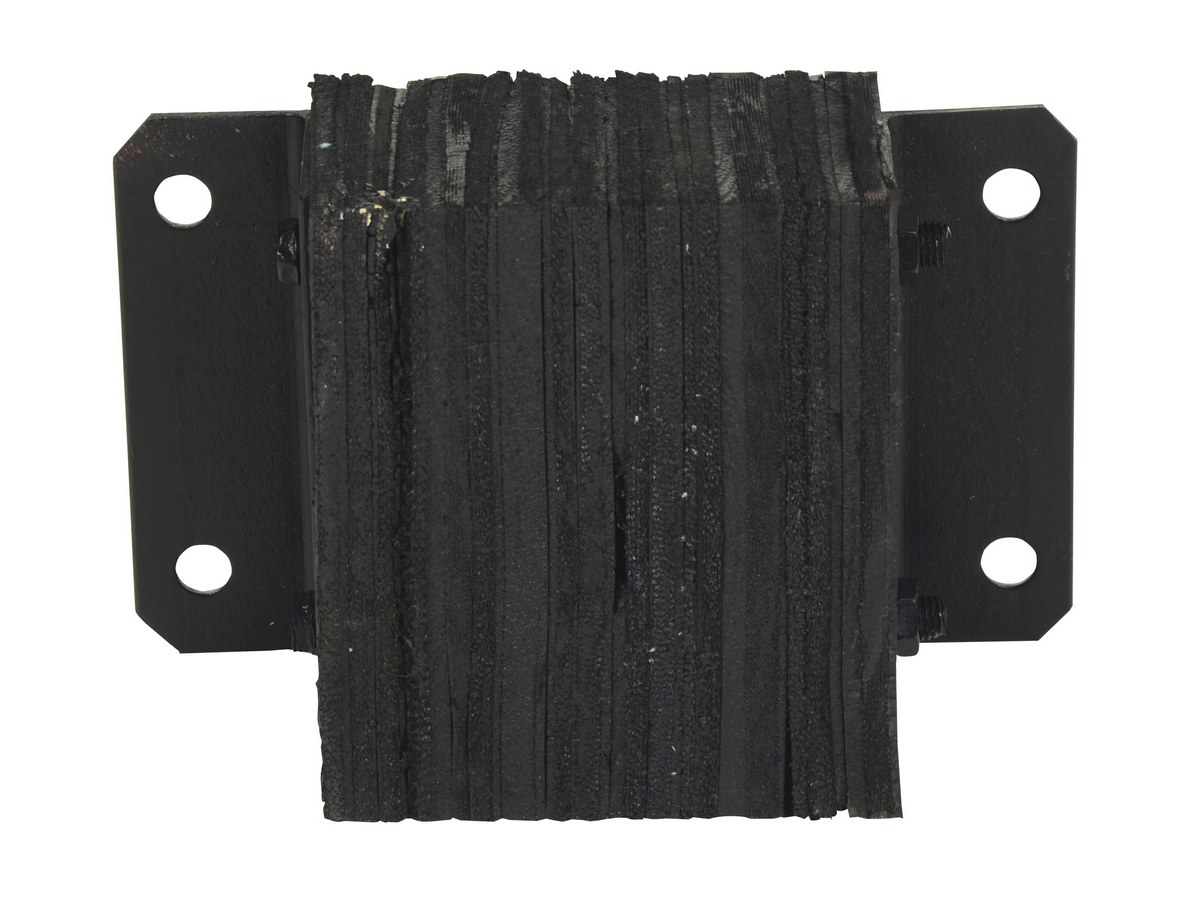

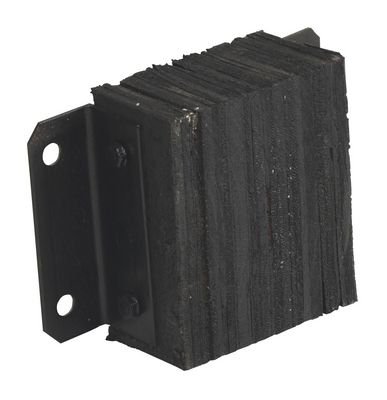

Laminated Rubber Dock Bumper 10 In. x 12 In. x 4-1/2 In. Black

The laminated Dock Bumper provides durable, economical protection for loading docks and trailers. This unit is constructed of fabric reinforced rubber from recycled truck tires. The pads are laminated between painted structural angles and held together with steel tie rods. The width is bolt hole center to bolt hole center. Installation hardware sold separately.

  • Manufactured with laminated sheets of rubber compressed between steel angles for strength and durability
  • Designed for use on loading docks to protect trailers and dock area
  • Bolt or weld bumper to the dock for quick and easy installation
  • Made from recycled truck tires for long lasting use
Total Ship Wt.(lbs.): 22 (only 1 package) Size: 12"W x 4.5"L x 10"H Color: Black

Rubber Height (in.): 10 Rubber Width (in.): 8 Bolt Hole Center to Bolt Hole Center Width (in.): 12
Rubber Projection (in.): 4-1/2 Steel Tie Rod Diameter (in.): 3/4 Bolt Hole Diameter (in.): 13/16
Holes (qty.): 4

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Marketing Specs.

MFG Model # (Series)
1012-4.5
Product Name
Laminated Rubber Dock Bumper 10 In. x 12 In. x 4-1/2 In. Black
UPC
691215000123
GTIN
00691215000123
Taxonomy 1
Material Handling
Taxonomy 2
Loading Dock Equipment
Taxonomy 3
Bumpers
Assembled Depth (in.)
4.5
Assembled Width(in.)
12
Assembled Height(in.)
10
Assembled Weight(lbs.)
22
Color/Finish
Black
Material
Fabric Reinforced Rubber
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
China
Approval Drawing Required? Y/N
N
Assembly
Assembled

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
14
Package Width (in.)
10
Package Height (in.)
5
Package Weight (in.)
22
Freight Class
70
NMFC Code
Shock absorbers
NMFC Number
129941
LTL Freight
Parcel Additional Handling Required
UNSPSC
24101805
HTSUS Number
4016940000
USMCA HS
4016.94
Origin Criterion
NO
Certification Indicator
NO
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
No
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
1 Year Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2025 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: 1012-4.5
1012-4.5

Laminated Rubber Dock Bumper 10 In. x 12 In. x 4-1/2 In. Black

The laminated Dock Bumper provides durable, economical protection for loading docks and trailers. This unit is constructed of fabric reinforced rubber from recycled truck tires. The pads are laminated between painted structural angles and held together with steel tie rods. The width is bolt hole center to bolt hole center. Installation hardware sold separately.

  • Manufactured with laminated sheets of rubber compressed between steel angles for strength and durability
  • Designed for use on loading docks to protect trailers and dock area
  • Bolt or weld bumper to the dock for quick and easy installation
  • Made from recycled truck tires for long lasting use
Dimensions: 12"W x 4.5"L x 10"H Sell UOM: EA-Each Color: Black
Material: Fabric Reinforced Rubber UPC: 691215000123 GTIN: 00691215000123
Warranty: -- Shipping Weight: 22 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: China
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Rubber Height (in.): 10 Rubber Width (in.): 8 Bolt Hole Center to Bolt Hole Center Width (in.): 12
Rubber Projection (in.): 4-1/2 Steel Tie Rod Diameter (in.): 3/4 Bolt Hole Diameter (in.): 13/16
Holes (qty.): 4
