Model Details

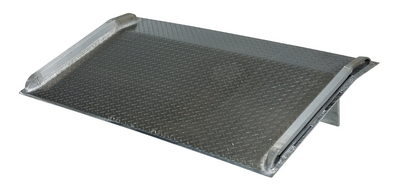

The Aluminum truck dock board is engineered and built to maximize safety while handling heavy fork trucks and loads. Locking legs prevent movement during loading and unloading operations. Locking legs are uneven to allow the dock board to sit canted, while not in use, for easier pickup by fork trucks. Welded aluminum safety curbs prevent accidental runoffs and provide visible driving lane. When using three-wheeled fork trucks order dock board with capacity at least four-times the lifting capacity of fork truck. The width of the dock board should be at least 15 (in.) wider than the load or equipment passing between the curbs. Bend is 11 degrees and 9" from the edge and the legs are 12" from the edge. Manufactured in compliance with OSHA.
Uniform Capacity (lb.): 6000 | Height Difference (in.): 8 degree/17 percent: 8 | Height Difference (in.): 11 degrees/19 percent: 11 |
Bend Degree: 11 | Bend Distance from Edge (in.): 9 | Leg Distance from Edge (in.): 12 |
Usable Width (in.): 67-1/2 | Usable Length (in.): 66 | Edge Type: Beveled |
Equipped With: Welded Aluminum Locking Legs | Surface Type: Raised-Diamond Treadplate | Plate Thickness (in.): 3/8 |
Curb Height (in.): 2-3/4 | Curb Width (in.): 2-1/4 | OSHA : 1910.30 (a) |
ANSI : MH 30.2 |
Details For Model: BTA-06007266 |
|||||||||||||||||||||||||||||||||
Aluminum Truck Dock Board 72 In. x 66 In. 6000 Lb. Capacity SilverThe Aluminum truck dock board is engineered and built to maximize safety while handling heavy fork trucks and loads. Locking legs prevent movement during loading and unloading operations. Locking legs are uneven to allow the dock board to sit canted, while not in use, for easier pickup by fork trucks. Welded aluminum safety curbs prevent accidental runoffs and provide visible driving lane. When using three-wheeled fork trucks order dock board with capacity at least four-times the lifting capacity of fork truck. The width of the dock board should be at least 15 (in.) wider than the load or equipment passing between the curbs. Bend is 11 degrees and 9" from the edge and the legs are 12" from the edge. Manufactured in compliance with OSHA.
|
|||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||
