Model Details

CART-23-10-M

Printer Friendly
CART-23-10-M

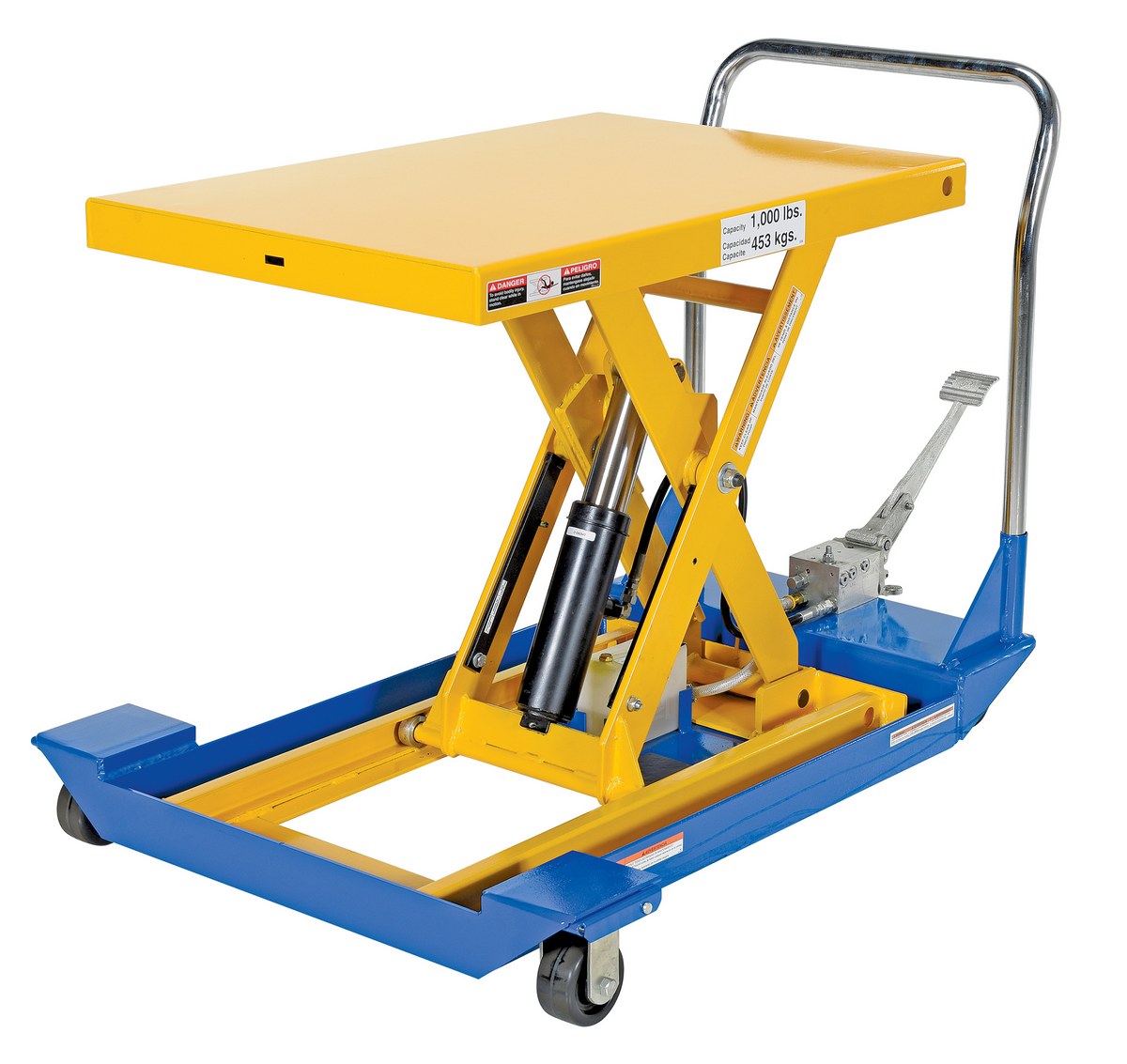

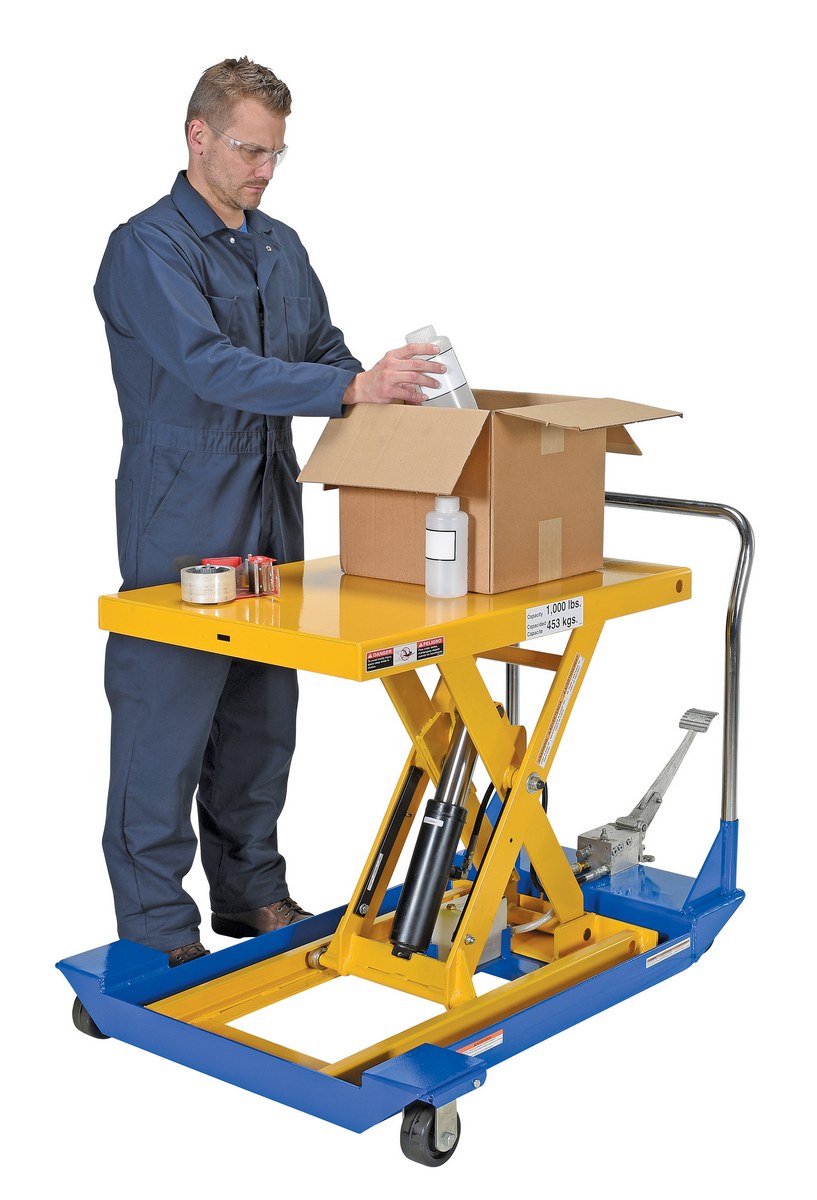

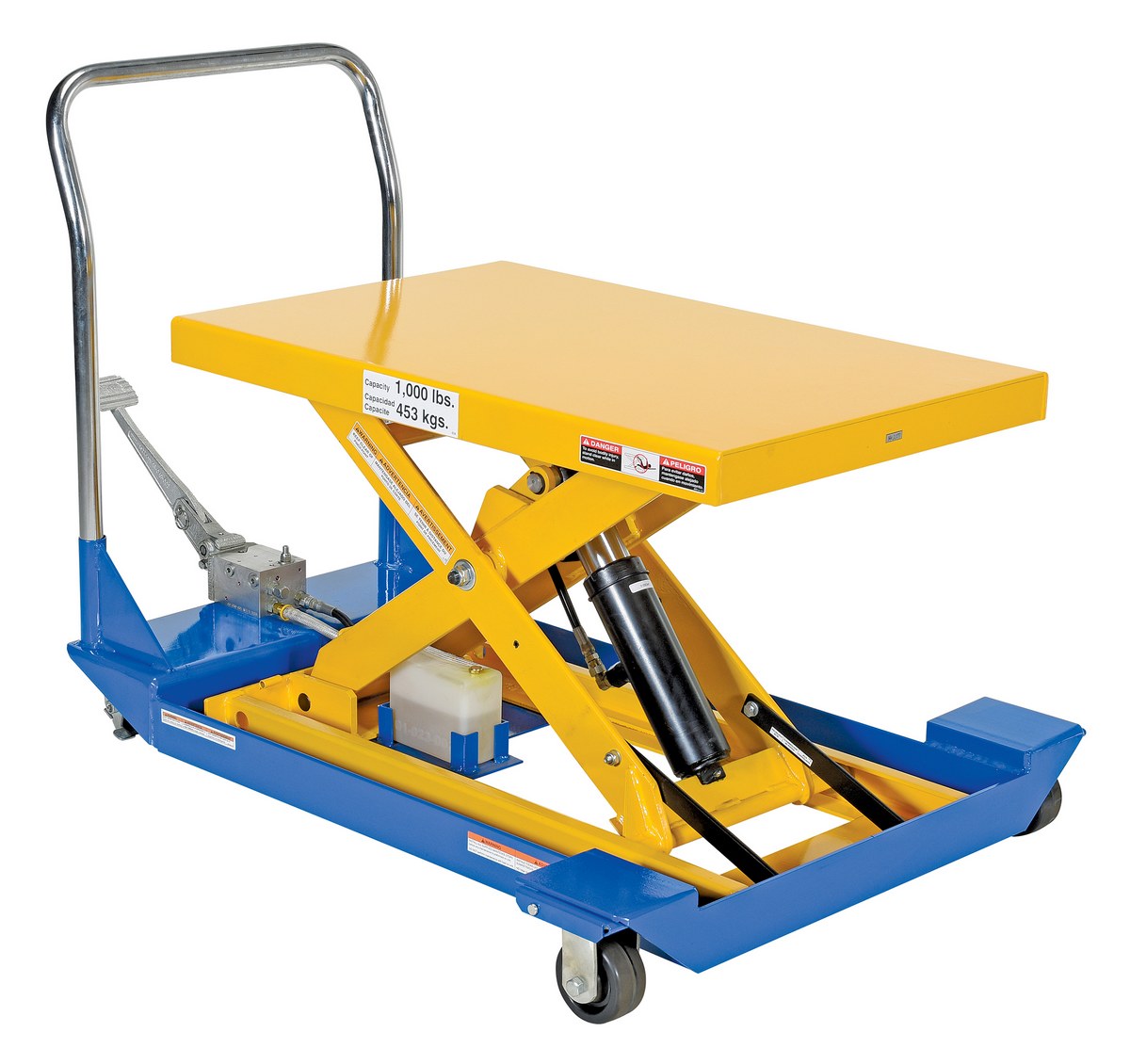

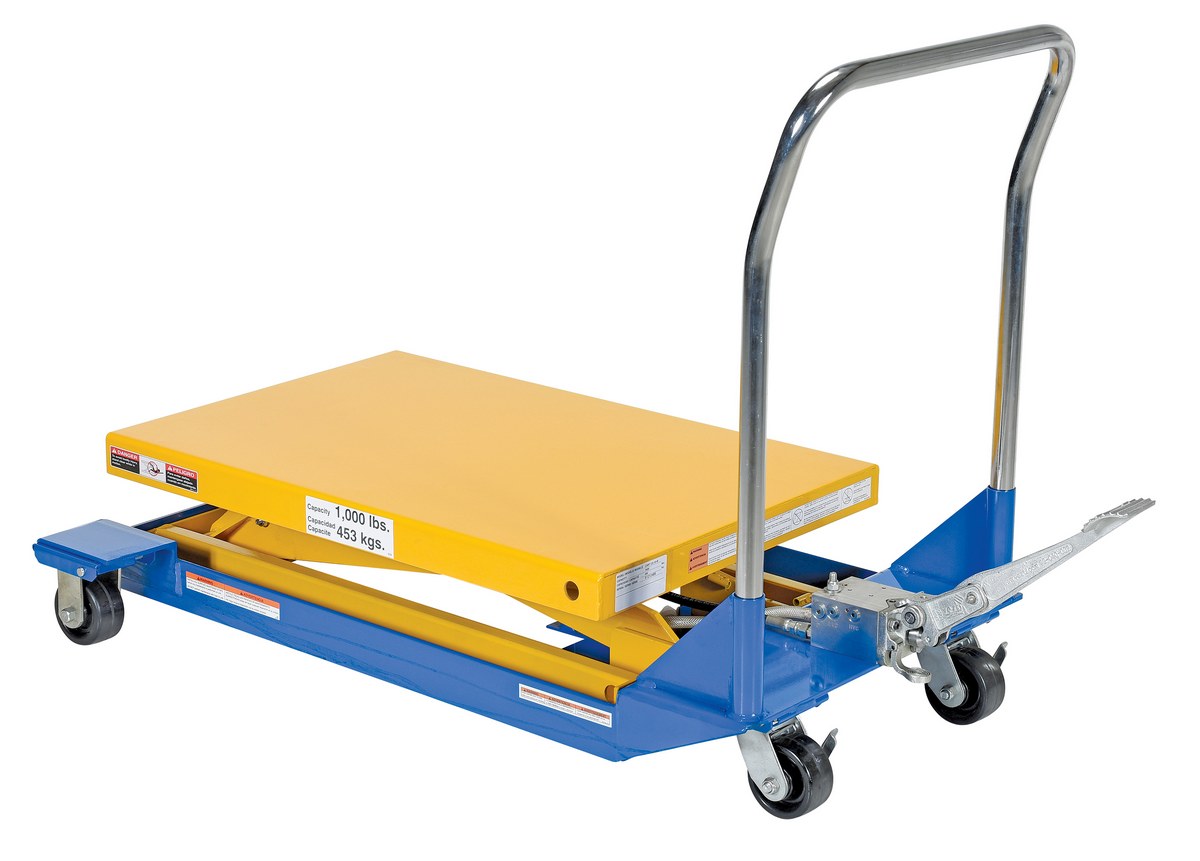

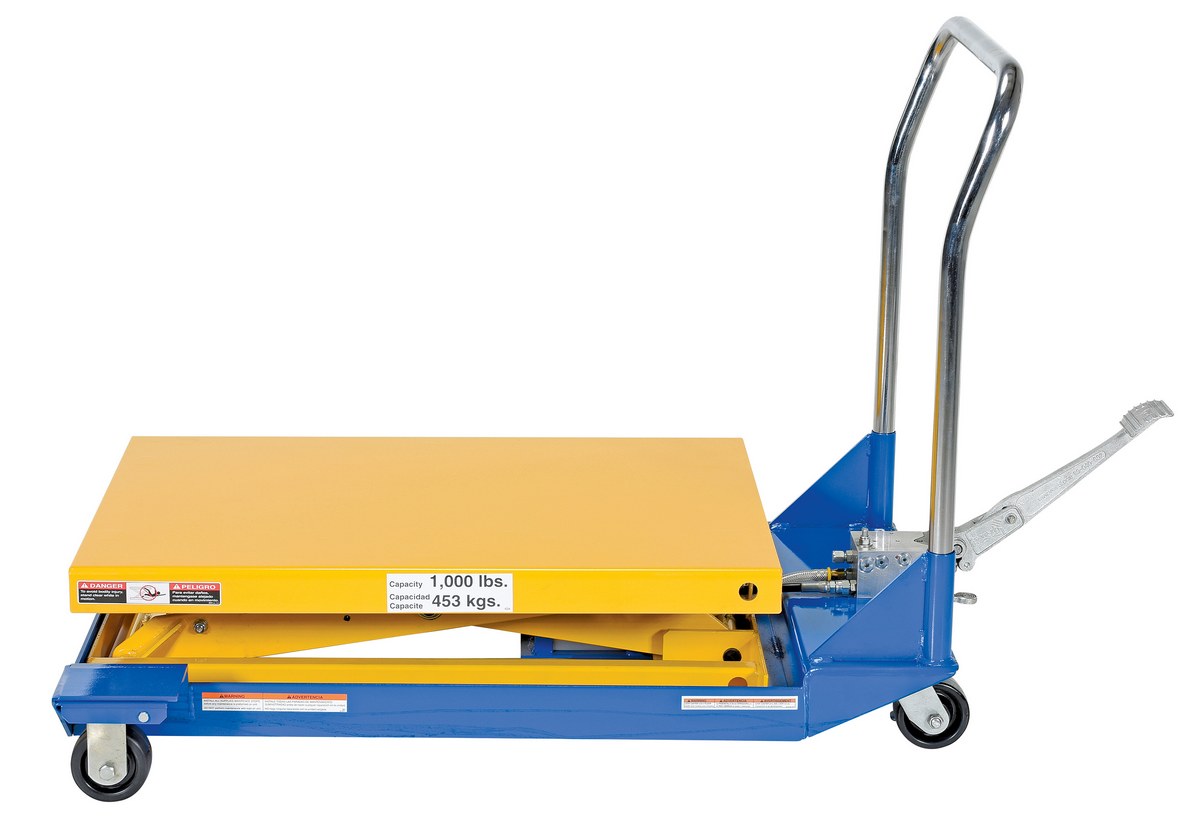

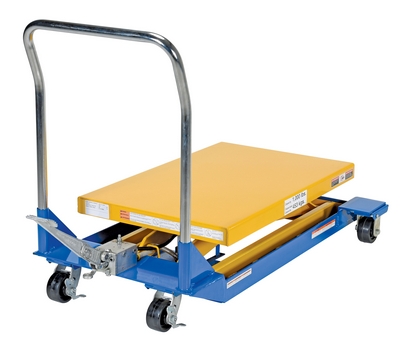

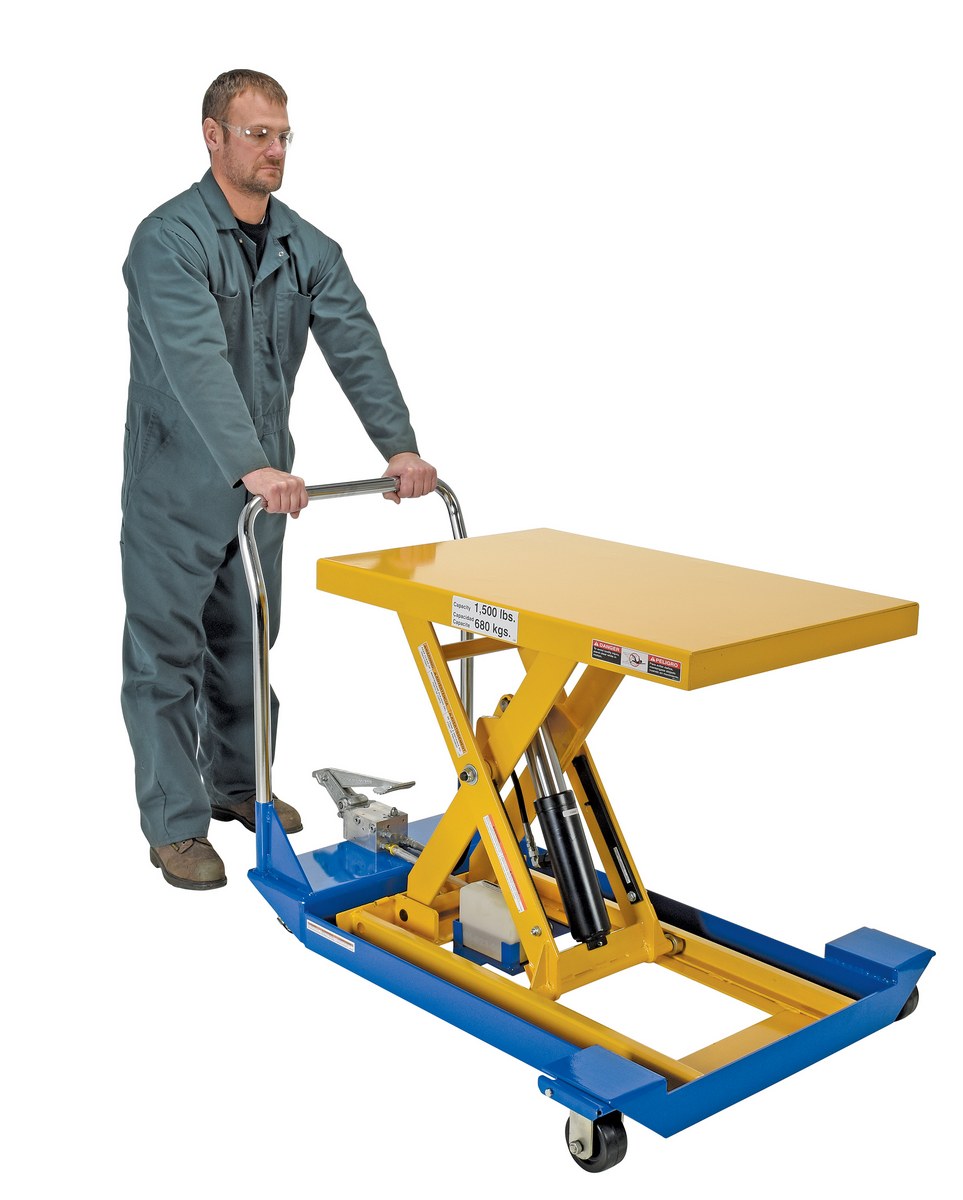

Steel Foot Pump Scissor Cart 36 In. x 24 In. 1000 Lb. Capacity Blue / Yellow

The manually powered Scissor Cart table provides an unparalleled support in lifting, palletizing, loading, and unloading applications. The cart is raised or lowered with a manual two-speed foot pump. The unit rolls smoothly on two rigid and two swivel phenolic casters with brakes. The push handle is removable. Features an internal safety velocity fuse in each cylinder.

  • Solid steel constructions offers long lasting rugged use
  • Push handle is removable for user convenience
  • Phenolic casters with brakes make transportation easy
  • Platform perimeter pinch-point guard is OSHA compliant
Total Ship Wt.(lbs.): 395 (only 1 package) Size: 36"W x 58.875"L x 36"H Color: Blue / Yellow

Uniform Capacity (lb.): 1,000 Platform Width (in.): 24 Platform Length (in.): 36
Lowered Height (in.): 11 Raised Height (in.): 33-1/2 Pumps at Low/High Speed (qty.): 54/27
Caster Quantity/Diameter/Width (in.): (4) 4 x 2 Caster Material: Phenolic Caster Type: (2) Rigid (2) Swivel with Brakes
Operation: Foot Pump Foot Pump Type: 2-Speed Auto Shift

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: CART-23-10-M
CART-23-10-M

Steel Foot Pump Scissor Cart 36 In. x 24 In. 1000 Lb. Capacity Blue / Yellow

The manually powered Scissor Cart table provides an unparalleled support in lifting, palletizing, loading, and unloading applications. The cart is raised or lowered with a manual two-speed foot pump. The unit rolls smoothly on two rigid and two swivel phenolic casters with brakes. The push handle is removable. Features an internal safety velocity fuse in each cylinder.

  • Solid steel constructions offers long lasting rugged use
  • Push handle is removable for user convenience
  • Phenolic casters with brakes make transportation easy
  • Platform perimeter pinch-point guard is OSHA compliant
Dimensions: 36"W x 58.875"L x 36"H Sell UOM: EA-Each Color: Blue / Yellow
Material: Steel UPC: 691215010344 GTIN: 00691215010344
Warranty: -- Shipping Weight: 395 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 1,000 Platform Width (in.): 24 Platform Length (in.): 36
Lowered Height (in.): 11 Raised Height (in.): 33-1/2 Pumps at Low/High Speed (qty.): 54/27
Caster Quantity/Diameter/Width (in.): (4) 4 x 2 Caster Material: Phenolic Caster Type: (2) Rigid (2) Swivel with Brakes
Operation: Foot Pump Foot Pump Type: 2-Speed Auto Shift
