CART-32-10-DC

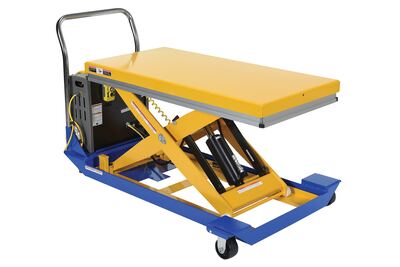

Steel DC Powered Scissor Cart 48 In. x 32 In. 1000 Lb. Capacity Blue / Yellow

The DC powered Scissor Cart table provides an unparalleled support in lifting, palletizing, loading, and unloading applications. The cart is raised or lowered with a DC powered motor. The unit rolls smoothly on two rigid and two swivel phenolic casters with brakes. The internal DC powered electric motor and battery is included on DC units. The built-in battery charger is AC powered and is included. Push buttons to raise and lower lift are located on a hand control with a coil cord, which is standard. The platform is equipped with perimeter pinch-point guard for OSHA compliance. The push handle is removable. Features an internal safety velocity fuse in each cylinder.

  • Solid steel constructions offers long lasting rugged use
  • Push handle is removable for user convenience
  • Phenolic casters with brakes make transportation easy
  • Platform perimeter pinch-point guard is OSHA compliant
Total Ship Wt.(lbs.): 527 (only 1 package) Size: 36"W x 59"L x 9"H Color: Blue / Yellow

Uniform Capacity (lb.): 1000 Platform Width (in.): 32 Platform Length (in.): 48
Lowered Height (in.): 10-1/2 Raised Height (in.): 42-1/2 Lift Speed (sec.): 15
Caster Quantity/Diameter/Width (in.): (4) 4 x 2 Caster Material: Phenolic Caster Type: (2) Rigid (2) Swivel with Brakes
DC Motor Voltage: 12 Battery Quantity: 1 Electric Motor Watts: 1600
AC Battery Charger Voltage: 115 Removable Handle Height (in): 36 Control: 2-Button Pendant

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: CART-32-10-DC
CART-32-10-DC

Steel DC Powered Scissor Cart 48 In. x 32 In. 1000 Lb. Capacity Blue / Yellow

The DC powered Scissor Cart table provides an unparalleled support in lifting, palletizing, loading, and unloading applications. The cart is raised or lowered with a DC powered motor. The unit rolls smoothly on two rigid and two swivel phenolic casters with brakes. The internal DC powered electric motor and battery is included on DC units. The built-in battery charger is AC powered and is included. Push buttons to raise and lower lift are located on a hand control with a coil cord, which is standard. The platform is equipped with perimeter pinch-point guard for OSHA compliance. The push handle is removable. Features an internal safety velocity fuse in each cylinder.

  • Solid steel constructions offers long lasting rugged use
  • Push handle is removable for user convenience
  • Phenolic casters with brakes make transportation easy
  • Platform perimeter pinch-point guard is OSHA compliant
Dimensions: 36"W x 59"L x 9"H Sell UOM: EA-Each Color: Blue / Yellow
Material: Steel UPC: 691215129411 GTIN: 00691215129411
Warranty: -- Shipping Weight: 527 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 1000 Platform Width (in.): 32 Platform Length (in.): 48
Lowered Height (in.): 10-1/2 Raised Height (in.): 42-1/2 Lift Speed (sec.): 15
Caster Quantity/Diameter/Width (in.): (4) 4 x 2 Caster Material: Phenolic Caster Type: (2) Rigid (2) Swivel with Brakes
DC Motor Voltage: 12 Battery Quantity: 1 Electric Motor Watts: 1600
AC Battery Charger Voltage: 115 Removable Handle Height (in): 36 Control: 2-Button Pendant
