Model Details

CART-600-LT

Printer Friendly
CART-600-LT

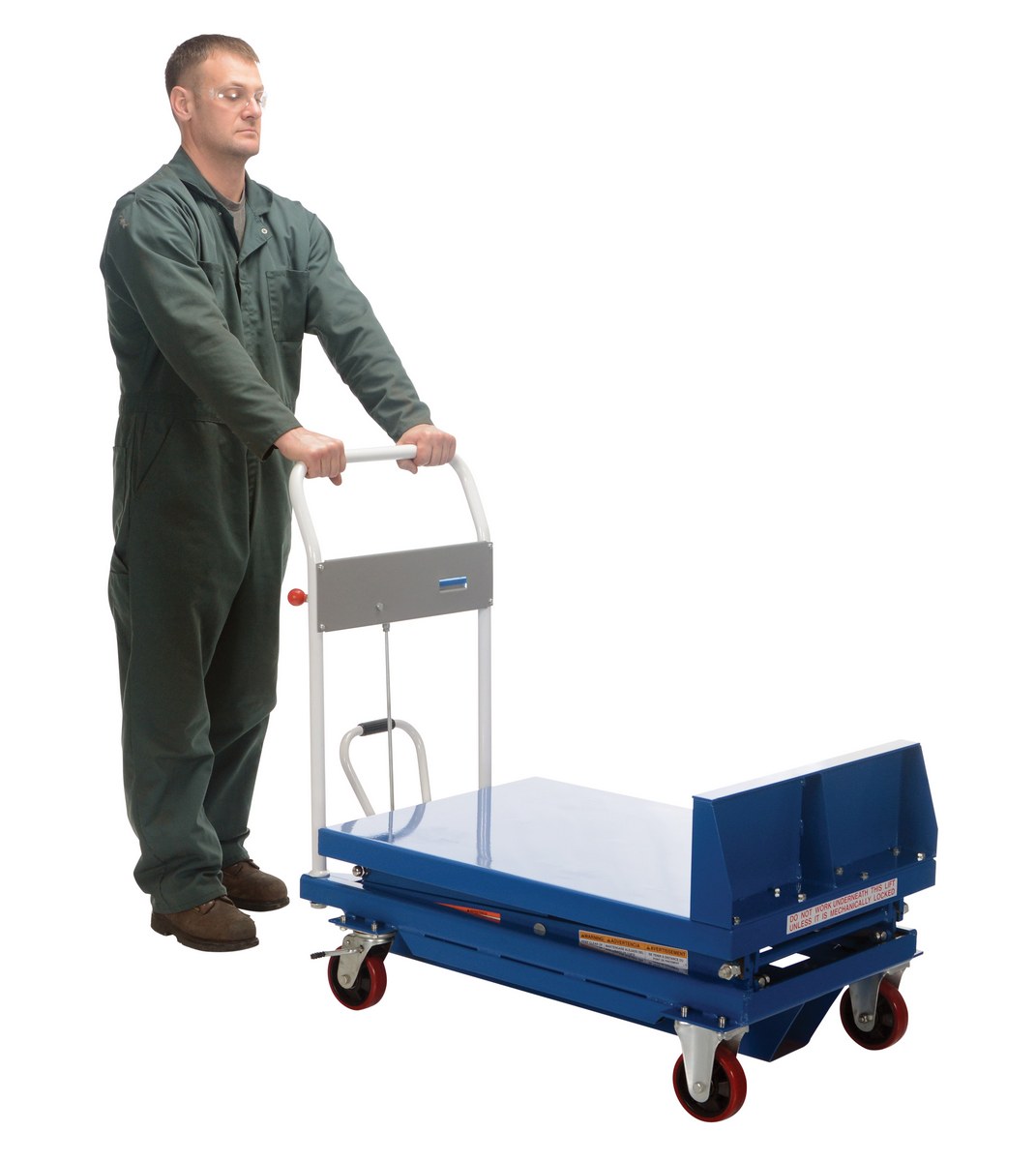

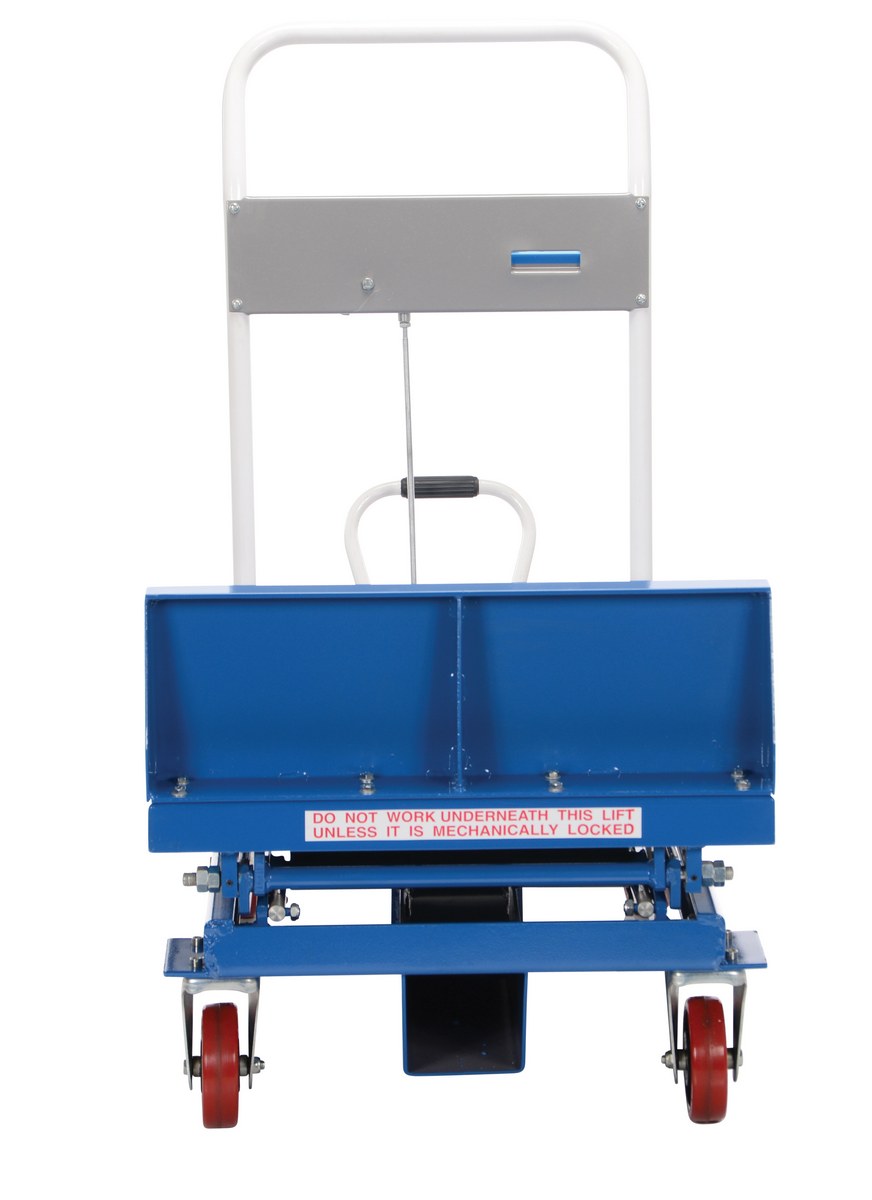

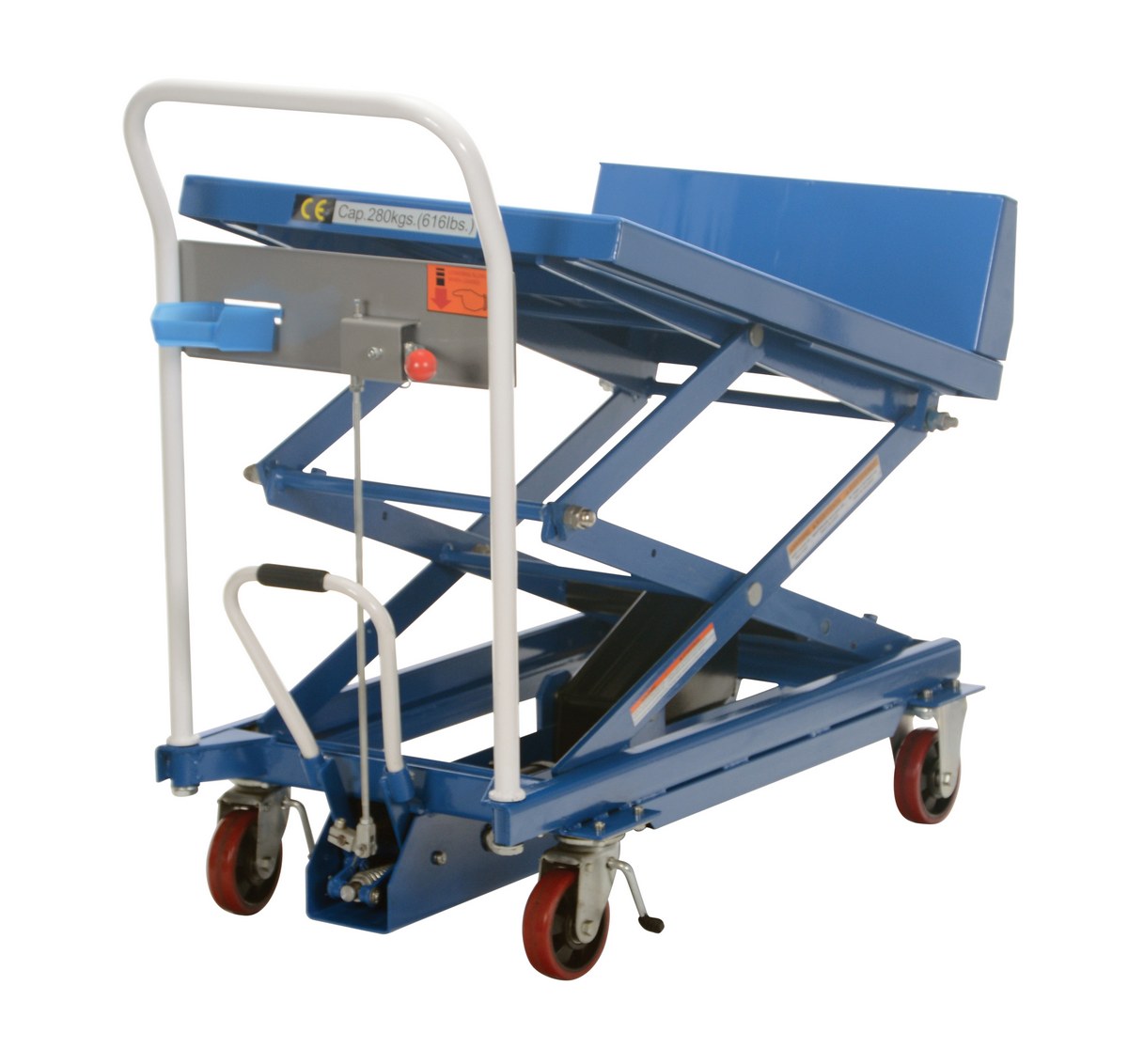

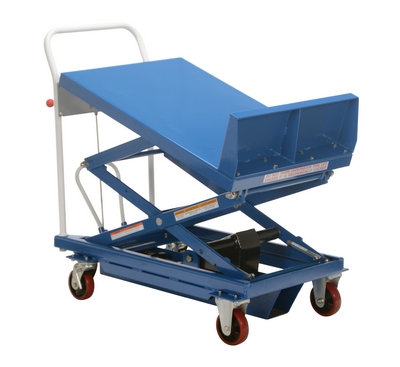

Steel Lift and Tilt Cart with Sequence Select 24 In. x 36 In. 600 Lb. Capacity Blue

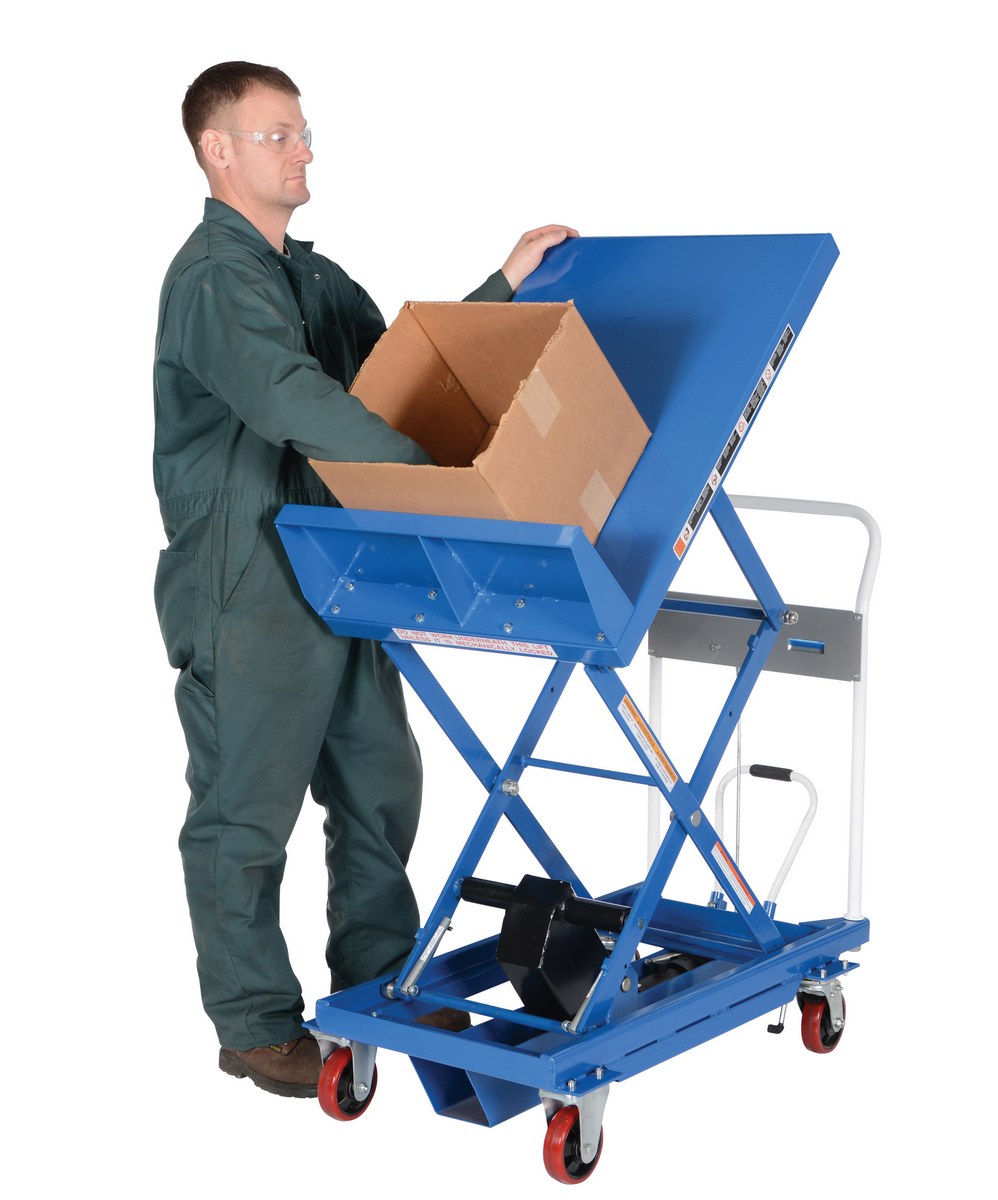

The Lift and Tilt Cart with sequence select is elevated by means of a foot actuated hydraulic cylinder. As the table is raised, it simultaneously tilts to an angle. The unit has a built in retaining lip that keeps containers in place. The unit rolls on polyurethane casters, two rigid and two swivel with brakes. Features an internal safety velocity fuse in each cylinder.

  • Unique lift design quickly raises & lowers material
  • Ergonomic cart design improves user safety
  • Caster construction provides easy portability when loaded
  • Steel construction offers long lasting rugged use
Total Ship Wt.(lbs.): 355 (only 1 package) Size: 23.625"W x 39.375"L x 39.375"H Color: Blue

Uniform Capacity (lb.): 600 Platform Width (in.): 24 Platform Length (in.): 36
Lowered Height (in.): 14 Raised Height (in.): 35 Maximum Tilt Degree: 45
Caster Quantity/Diameter/Width (in.): (4) 5 x 2 Caster Material: Poly-on-Poly

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: CART-600-LT
CART-600-LT

Steel Lift and Tilt Cart with Sequence Select 24 In. x 36 In. 600 Lb. Capacity Blue

The Lift and Tilt Cart with sequence select is elevated by means of a foot actuated hydraulic cylinder. As the table is raised, it simultaneously tilts to an angle. The unit has a built in retaining lip that keeps containers in place. The unit rolls on polyurethane casters, two rigid and two swivel with brakes. Features an internal safety velocity fuse in each cylinder.

  • Unique lift design quickly raises & lowers material
  • Ergonomic cart design improves user safety
  • Caster construction provides easy portability when loaded
  • Steel construction offers long lasting rugged use
Dimensions: 23.625"W x 39.375"L x 39.375"H Sell UOM: EA-Each Color: Blue
Material: Steel UPC: 691215010474 GTIN: 00691215010474
Warranty: -- Shipping Weight: 355 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: China
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 600 Platform Width (in.): 24 Platform Length (in.): 36
Lowered Height (in.): 14 Raised Height (in.): 35 Maximum Tilt Degree: 45
Caster Quantity/Diameter/Width (in.): (4) 5 x 2 Caster Material: Poly-on-Poly
