Model Details

CART-800-D-TS

Printer Friendly
CART-800-D-TS

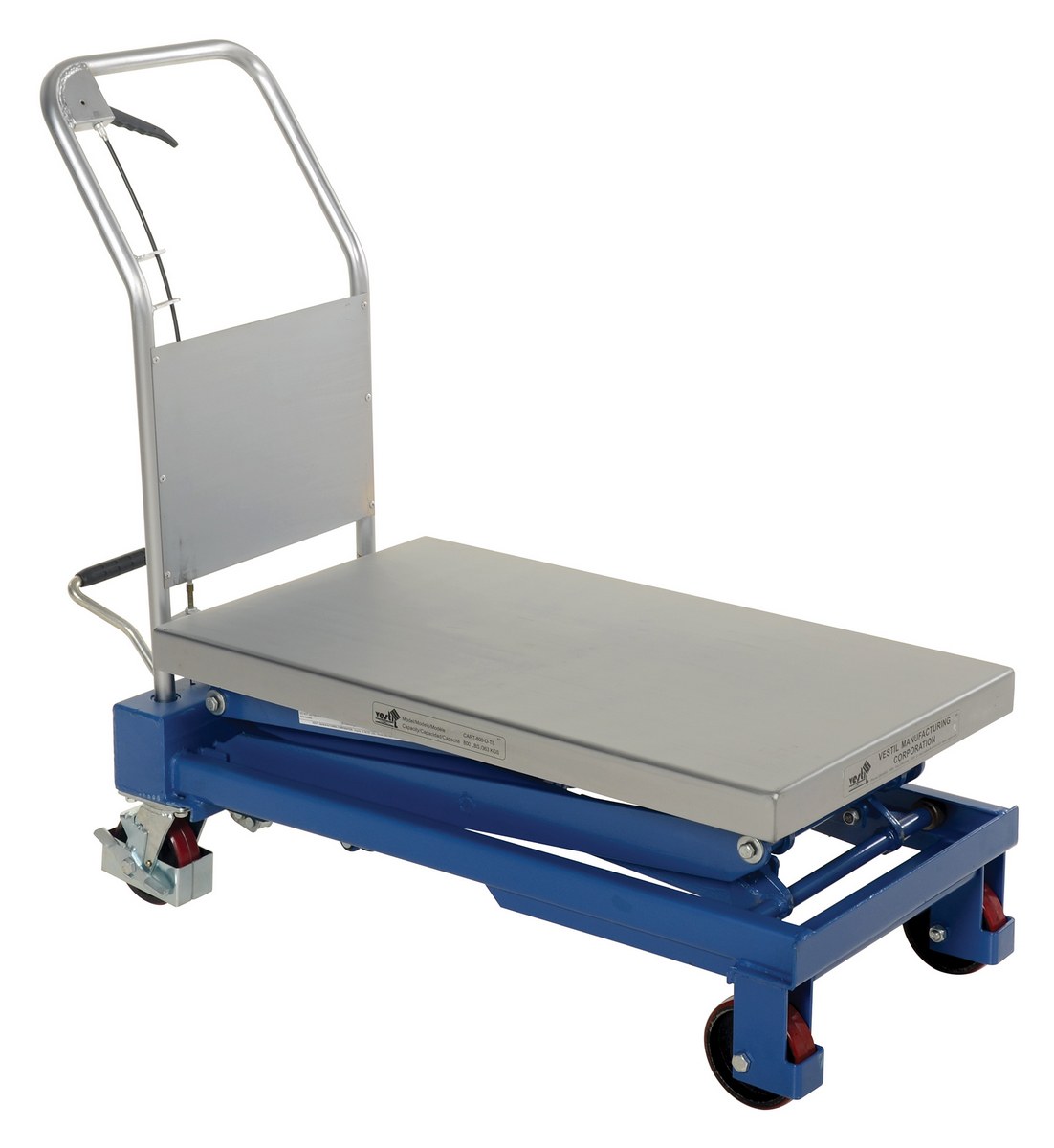

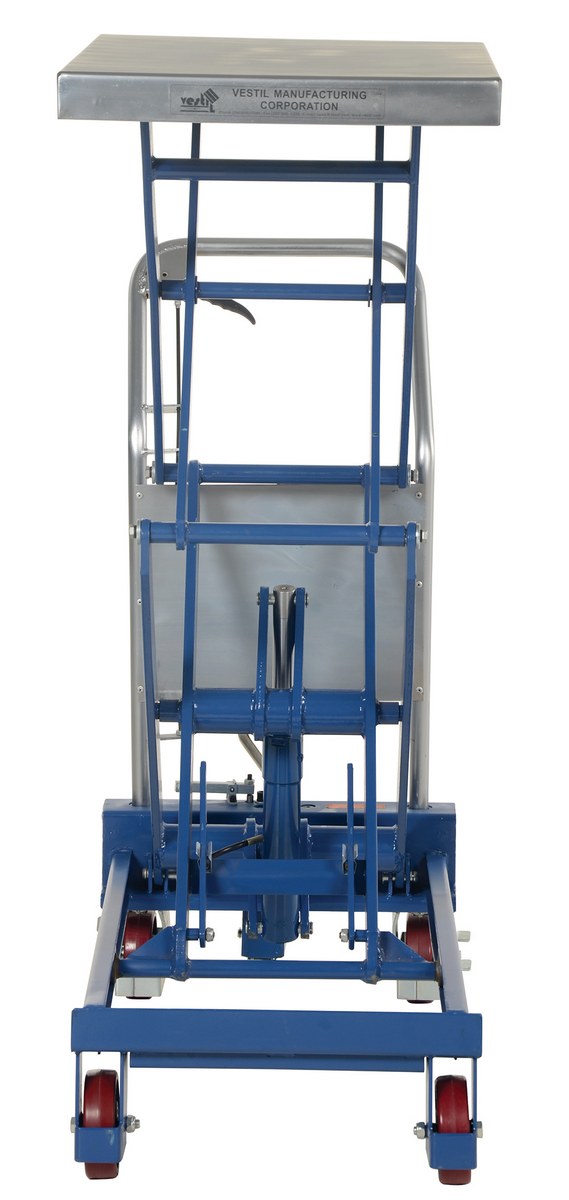

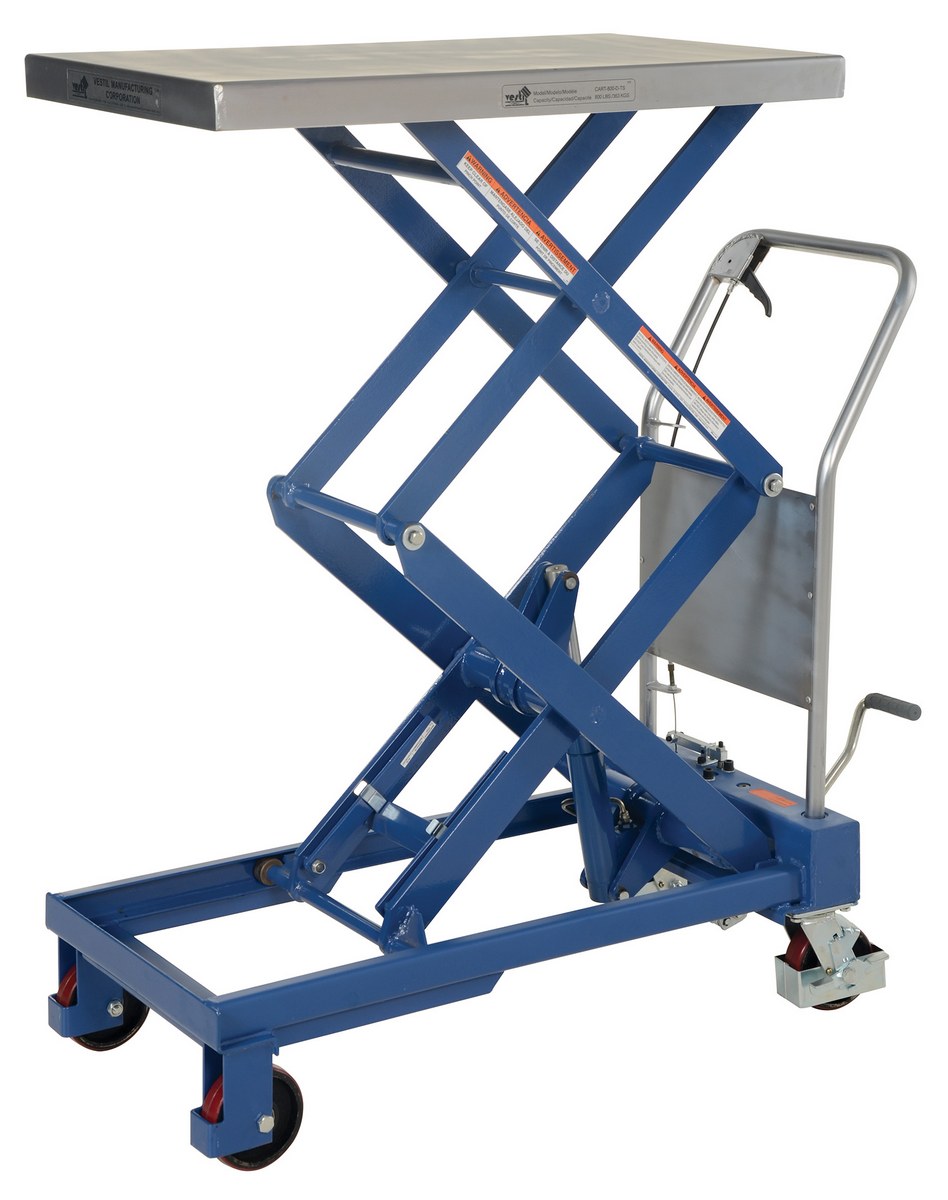

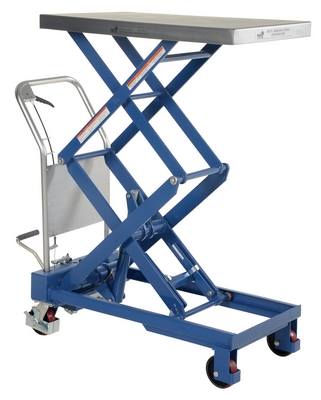

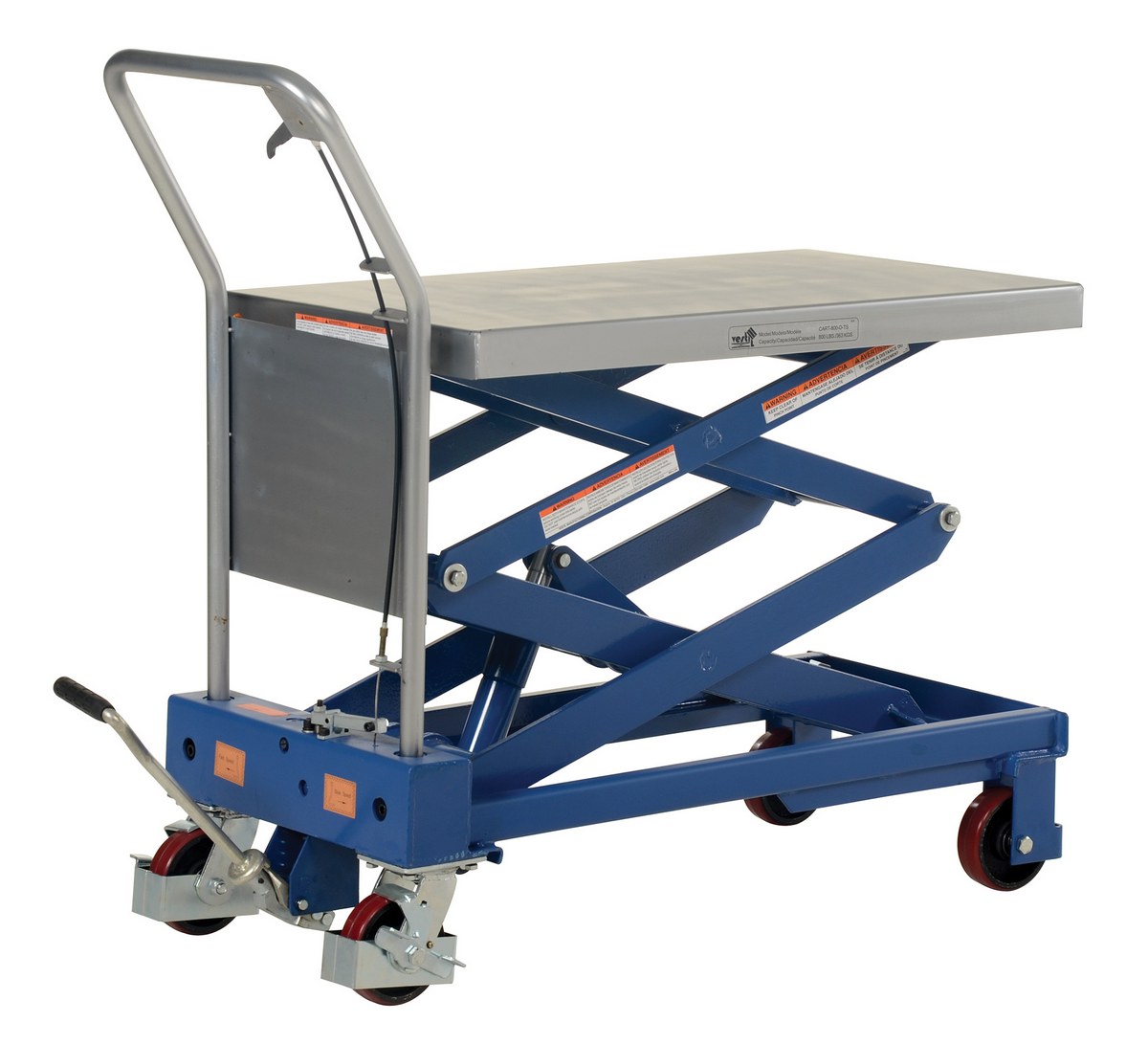

Steel Double Scissor Hydraulic Elevating Cart 32-1/2 In. x 20 In. 800 Lb. Capacity Silver

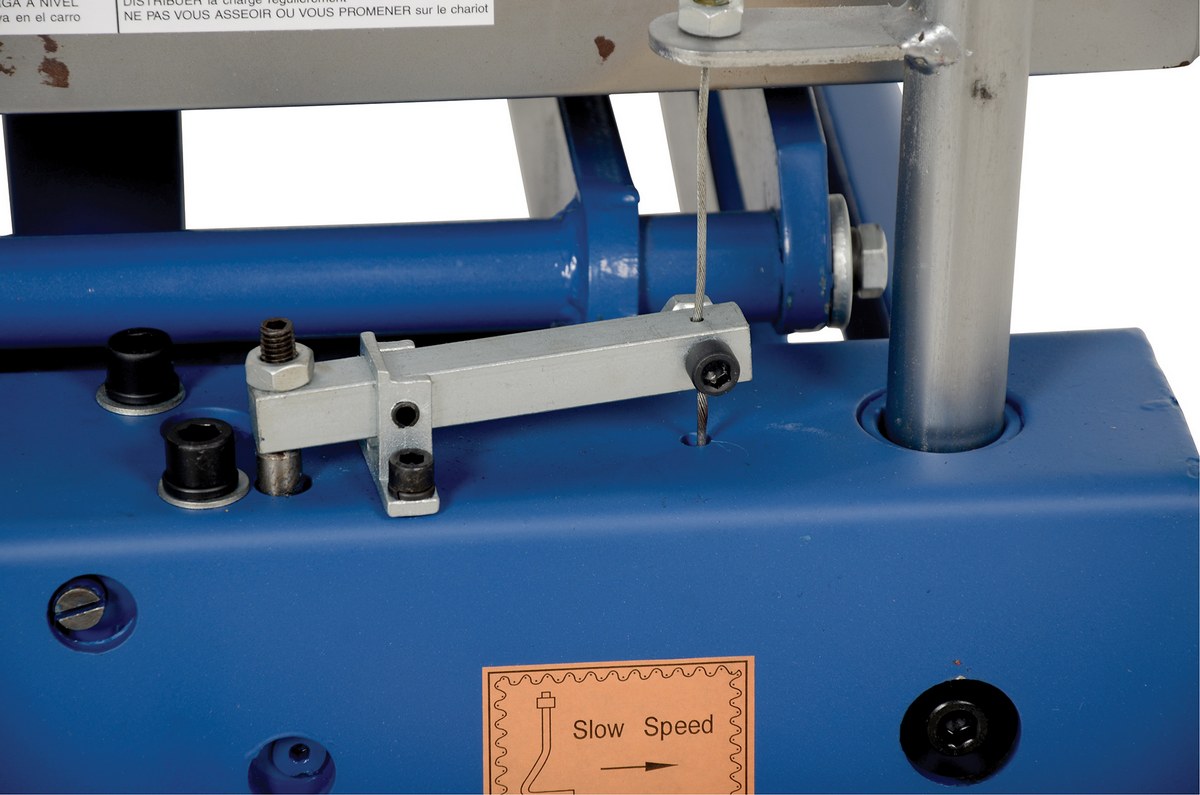

The Hydraulic elevating cart minimizes worker bending and lifting through its ergonomic design and portability. Material can be easily loaded onto a cart from a table, lowered to a safe transporting height, and raised to unload at destination. The foot pump includes a soft-lowering down valve. The unit moves easily on four polyurethane casters; two swivel with brakes and two rigid. Features a two-speed foot pump. Features an internal safety velocity fuse in each cylinder.

  • Unique lift design quickly raises & lowers material
  • Ergonomic cart design improves user safety
  • Caster construction provides easy portability when loaded
  • Steel construction offers long lasting rugged use
Total Ship Wt.(lbs.): 292 (only 1 package) Size: 19.75"W x 52.625"L x 52"H Color: Blue

Uniform Capacity (lb.): 800 Platform Width (in.): 20 Platform Length (in.): 35-1/2
Lowered Height (in.): 15-1/2 Raised Height (in.): 51-7/8 Caster Quantity/Diameter/Width (in.): (4) 5 x 2
Caster Quantity/Type: (2) Rigid (2) Swivel with Brakes Foot Pump Speed: Two Caster Material: Poly-on-Poly
Scissor Number: 2 Elevation per Stroke (in.): 3/4

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: CART-800-D-TS
CART-800-D-TS

Steel Double Scissor Hydraulic Elevating Cart 32-1/2 In. x 20 In. 800 Lb. Capacity Silver

The Hydraulic elevating cart minimizes worker bending and lifting through its ergonomic design and portability. Material can be easily loaded onto a cart from a table, lowered to a safe transporting height, and raised to unload at destination. The foot pump includes a soft-lowering down valve. The unit moves easily on four polyurethane casters; two swivel with brakes and two rigid. Features a two-speed foot pump. Features an internal safety velocity fuse in each cylinder.

  • Unique lift design quickly raises & lowers material
  • Ergonomic cart design improves user safety
  • Caster construction provides easy portability when loaded
  • Steel construction offers long lasting rugged use
Dimensions: 19.75"W x 52.625"L x 52"H Sell UOM: EA-Each Color: Blue
Material: Steel UPC: 691215010498 GTIN: 00691215010498
Warranty: -- Shipping Weight: 292 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: China
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 800 Platform Width (in.): 20 Platform Length (in.): 35-1/2
Lowered Height (in.): 15-1/2 Raised Height (in.): 51-7/8 Caster Quantity/Diameter/Width (in.): (4) 5 x 2
Caster Quantity/Type: (2) Rigid (2) Swivel with Brakes Foot Pump Speed: Two Caster Material: Poly-on-Poly
Scissor Number: 2 Elevation per Stroke (in.): 3/4
