Model Details
Full featured electric hydraulic scissor lift tables are used by all types of manufacturing and warehouse facilities. Safety features include an electric toe guard to protect pinch points during the lowering of the table, safety velocity fuse to maintain platform height in the event of hose or fitting failure, 24V AC push-button hand control, maintenance prop, and upper travel limit switch to stop the table at maximum height. A 2HP, 460V, 3 phase, 60 Hz totally enclosed motor is standard with additional voltage options available. This unit has a 3000 psi hydraulic component rating.
Uniform Capacity (lb.): 1,000 | Travel Time (sec.): 7 | Vertical Travel (in.): 36 |
Voltage/Phase: 460/3 | Hertz: 60 | Motor Horsepower: 2 |
Hydraulic Component Rating (psi): 3000 | Cord Length (in.): 96 | Push Button Hand Control: 24V AC |
Raised Height (in.): 43 | Lowered Height (in.): 7 | Platform Width/Length (in.): 48-3/8 X 48-3/8 |
Frame and Deck Material: Stainless Steel | Greasable Pins and Roller Material: Stainless Steel | Scissor Legset Material: Carbon Steel with Powder Coat White Finish |
Stainless Steel Finish: Unpolished Mill Finish | Overall Length (in.): 51 |

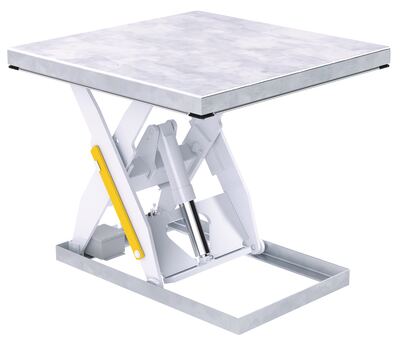

Details For Model: EHLT-4848-1-43-PSS |
||||||||||||||||||||||||||||||||||
Partially Stainless Steel Electric Hydraulic Lift Table 48 In. x 48 In. 1000 Lb. Capacity White/SilverFull featured electric hydraulic scissor lift tables are used by all types of manufacturing and warehouse facilities. Safety features include an electric toe guard to protect pinch points during the lowering of the table, safety velocity fuse to maintain platform height in the event of hose or fitting failure, 24V AC push-button hand control, maintenance prop, and upper travel limit switch to stop the table at maximum height. A 2HP, 460V, 3 phase, 60 Hz totally enclosed motor is standard with additional voltage options available. This unit has a 3000 psi hydraulic component rating.
|
||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||
