FPG-A-20-10

Printer Friendly
Available
FPG-A-20-10
FPG-A-20-10

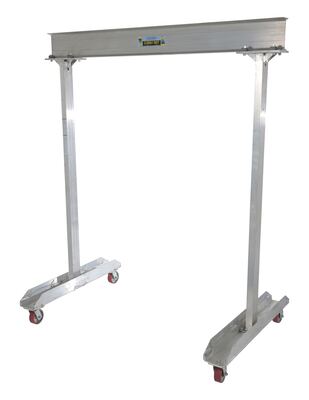

Aluminum Portable Work Area Gantry Crane 47-3/4"L x 120"W x 91-13/16"H Beam 2,000 Lb. Capacity Silver

Built to dependably make the workplace a safer environment, this gantry crane minimizes the manual handling needed for large, oversized material. The unchangeable height and width dimensions of the unit, provides a level of consistency needed when contending with heavy objects. With a portable design, the crane can simply be wheeled to a new location without the need for the unit to be deconstructed. This crane is not to be moved when loaded.

  • Non-adjustable, fixed height design
  • Rust resistant aluminum construction
  • 5" poly on steel casters
  • To be used on flat surfaces only
Assembled Wt.(lbs.): 177 Assembled Size: 120"W x 47.75"L x 91.8125"H

Total Ship Wt.(lbs.): 212 (only 1 package) Package 1 Size: 29"W x 120"D x 15"H Color: Silver

Uniform Capacity (lb.): 2,000 Under I-Beam to Ground Length (in.): 85-13/16 Between Upright Width (in.): 101-3/8
Overall I-Beam Length (in.): 120 Usable I-Beam Length (in.): 96-1/4 Overall Width (in.): 47-3/4
Overall Height (In.): 91-13/16 Caster Quantity/Diameter/Width (in.): (4) 5x2 Caster Material: Poly-on-Steel
Caster Type: Swivel with Brake Usable Height (in.): 85-13/16 I-Beam Height (in.): 6
Flange Width (in.): 3-5/16

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

1 Year Limited Warranty

Details For Model: FPG-A-20-10
Available
FPG-A-20-10

Aluminum Portable Work Area Gantry Crane 47-3/4"L x 120"W x 91-13/16"H Beam 2,000 Lb. Capacity Silver

Built to dependably make the workplace a safer environment, this gantry crane minimizes the manual handling needed for large, oversized material. The unchangeable height and width dimensions of the unit, provides a level of consistency needed when contending with heavy objects. With a portable design, the crane can simply be wheeled to a new location without the need for the unit to be deconstructed. This crane is not to be moved when loaded.

  • Non-adjustable, fixed height design
  • Rust resistant aluminum construction
  • 5" poly on steel casters
  • To be used on flat surfaces only
Dimensions: 120"W x 47.75"L x 91.8125"H Sell UOM: EA-Each Color: Silver
Material: Aluminum UPC: 691215376747 GTIN: 00691215376747
Warranty: -- Shipping Weight: 212 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: US
Assembly: Assembly required Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 2,000 Under I-Beam to Ground Length (in.): 85-13/16 Between Upright Width (in.): 101-3/8
Overall I-Beam Length (in.): 120 Usable I-Beam Length (in.): 96-1/4 Overall Width (in.): 47-3/4
Overall Height (In.): 91-13/16 Caster Quantity/Diameter/Width (in.): (4) 5x2 Caster Material: Poly-on-Steel
Caster Type: Swivel with Brake Usable Height (in.): 85-13/16 I-Beam Height (in.): 6
Flange Width (in.): 3-5/16
