Model Details

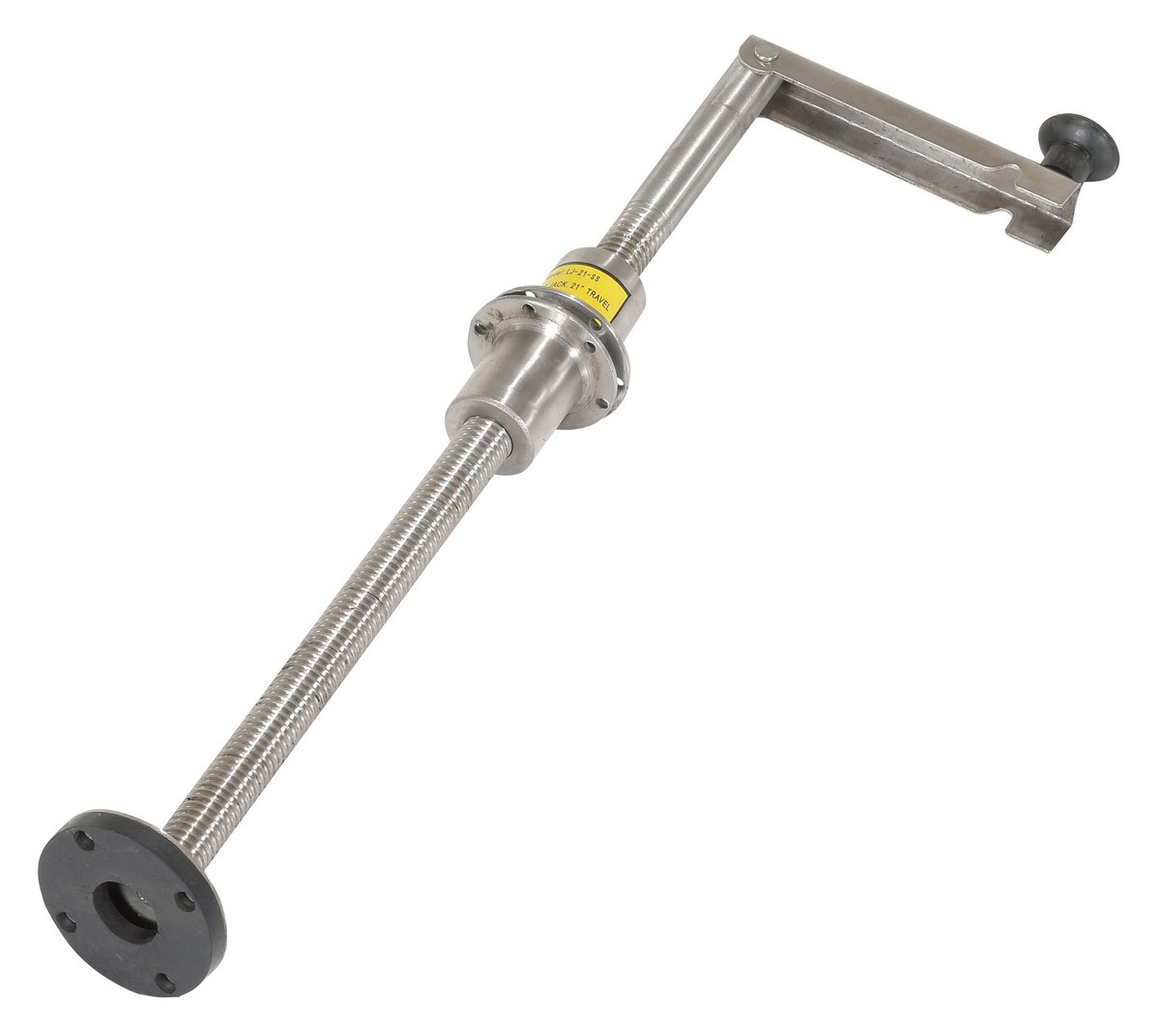

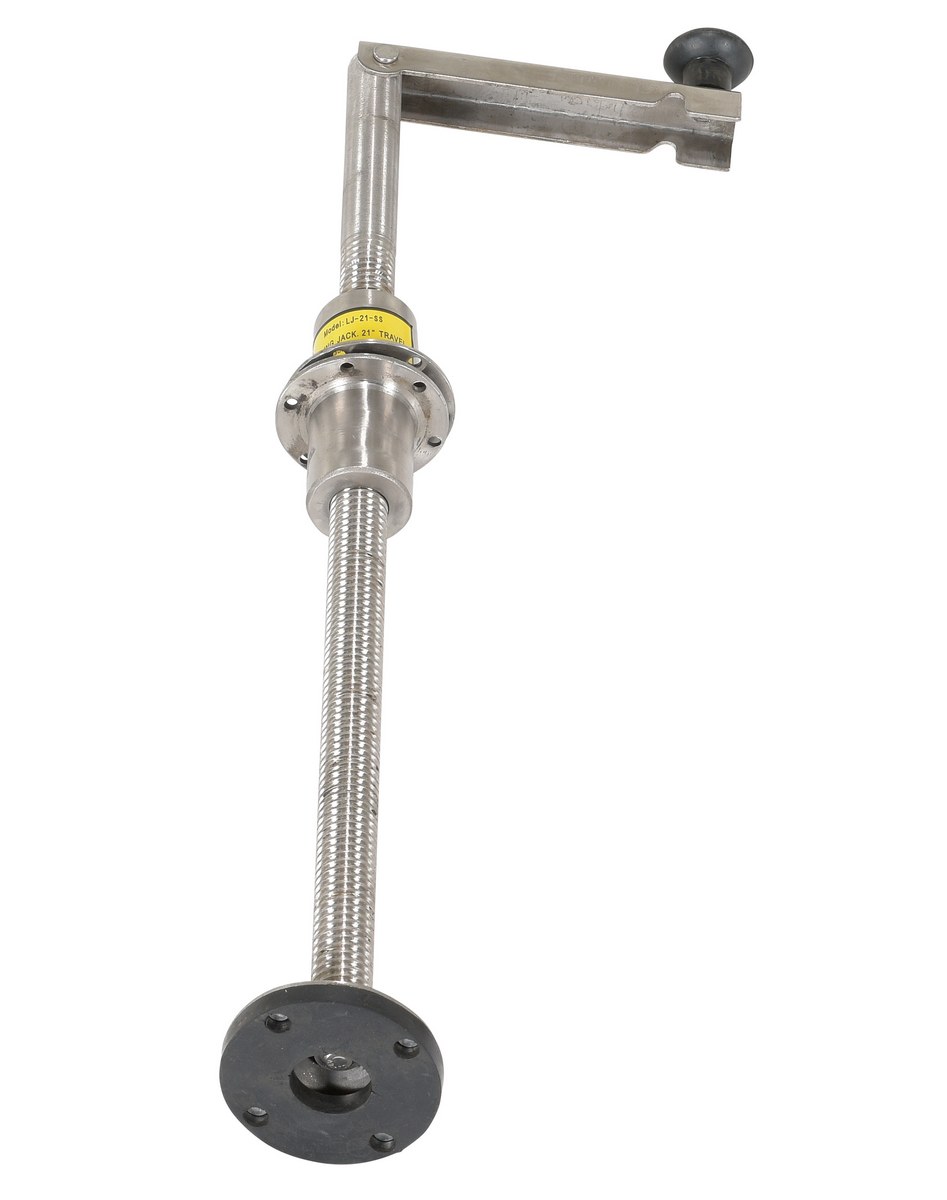

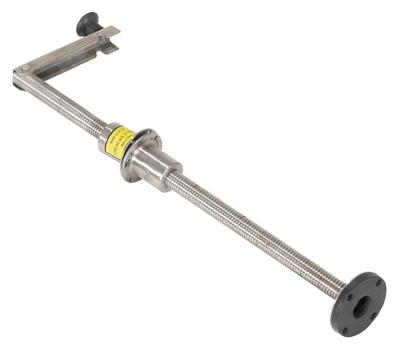

This leveling jack is designed for permanent installation, screw-style jack hold platforms and other equipment in place and stabilize them at the required height. Drill a one and one quarter inch (1-1/4") diameter hole through the platform to be leveled and bolt the platform between the upper and lower flanges of the jack's divided housing. Jack has a handle that folds down when not in use. Swivel base has a slip-resistant rubber pad on the bottom (replacement pads available).
Uniform Capacity (lb.): 5,000 | Handle Length (in.): 8-1/2 | Swivel Base Diameter (in.): 3-7/8 |
Screw Diameter (in.): 1-1/4 | Lift Rate Per Crank Revolution (in.): 1/4 | Minimum Extended Height (in.): 4-1/2 |
Maximum Extended Height (in.): 25-1/2 | Screw Travel (in.): 21 | Thread Size (millimeter): 4 |
Holding Capacity (pounds): 10,000 | Jaw Opening (in.): 15-1/4 |
Details For Model: LJ-21-SS |
||||||||||||||||||||||||||||
Stainless Steel Leveling Jack 30 In. 5000 Lb. Capacity SilverThis leveling jack is designed for permanent installation, screw-style jack hold platforms and other equipment in place and stabilize them at the required height. Drill a one and one quarter inch (1-1/4") diameter hole through the platform to be leveled and bolt the platform between the upper and lower flanges of the jack's divided housing. Jack has a handle that folds down when not in use. Swivel base has a slip-resistant rubber pad on the bottom (replacement pads available).
|
||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||
