Model Details
Double mast fully powered electric stacker transports loads throughout warehouse facilities quickly and with less effort. High torque drive and lift motor handles heavy-duty jobs. Ergonomic handle features easy-to-operate throttle with infinite adjustment of forward and reverse speeds, lift/lower controls, proprietary safety-enhancing emergency reverse function, and horn. Includes an electromagnetic disc brake with automatic dead-man feature that activates when user releases the handle. Powered lifter has two lead acid deep cycle batteries, integral battery charger, and battery level gauge. Horn included. Stacker rolls smoothly on poly-on-steel steer and load wheels. 3-4 hour operation at full charge - 8 hours when used intermittently.
Uniform Capacity at 0 in to 62 in Raised Height (lb.): 2200 | Uniform Capacity at 62 in to 118 in Raised Height (lb.): 1500 | Fork Width Min./Max. (in.): 8.3 - 26-3/4 |
Fork Length (in.): 42 | Individual Fork Width (in.): 4 | Fork Center (in.): 13-1/2 |
Lowered Height (in.): 2-1/8 | Raised Height (in.): 118 | Battery: (2) 12V |
Drive Motor: DC 24V | Lift Motor: DC 24V | Front Rigid Caster Diameter/Width (in.): 4x3 |
Rear Swivel Caster Diameter/Width(in.): 6x2 | Rear Drive Wheel Diameter/Width (in.): 10x3 |
Details For Model: S-118-AA-DM |
|||||||||||||||||||||||||||||||

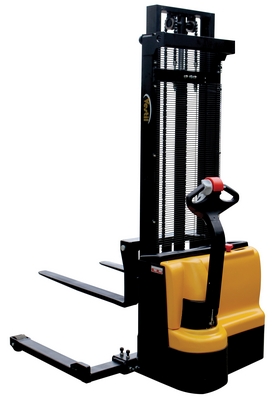

Steel Adjustable Double Mast Stacker 118 In. Raised Height 2200 Lb. Capacity Black / YellowDouble mast fully powered electric stacker transports loads throughout warehouse facilities quickly and with less effort. High torque drive and lift motor handles heavy-duty jobs. Ergonomic handle features easy-to-operate throttle with infinite adjustment of forward and reverse speeds, lift/lower controls, proprietary safety-enhancing emergency reverse function, and horn. Includes an electromagnetic disc brake with automatic dead-man feature that activates when user releases the handle. Powered lifter has two lead acid deep cycle batteries, integral battery charger, and battery level gauge. Horn included. Stacker rolls smoothly on poly-on-steel steer and load wheels. 3-4 hour operation at full charge - 8 hours when used intermittently.
|
|||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||
