Model Details
Vinyl strip doors help control noise, dust, fumes, and smoke while minimizing drafts, reducing illnesses, and accidents. The strip doors offer visual clarity without sacrificing safety. The material design also deters UV rays during direct sunlight when applied to load docks and external doorways . The simple low cost design is easy to maintain. Standard material design meets USDA requirements and is great for refrigeration applications up to -10 degrees Fahrenheit. All doors are shipped pre-assembled and ready for installation. Installation hardware not included. Custom door sizes and material available, contact factory.
Mounting Design: Header | Overlap Style: Full | PVC/Vinyl Thickness (in.): 0.16 |
Strip Width (in.): 16 | Opening Width (in.): 168 | Opening Height (in.): 120 |
Tensile Strength (PSI): 2635 | Maximum Tensile Elongation (percent): 388 | Graves Tear Load (lb.): 35.4 |
Graves Tear Extension (in.): 2.07 | Load at 100% Elongation (lbs.): 32.2 | Strength at 100% Elongation (PSI): 1181 |
Stiffness in Flexure - 23 degrees Celsius (PSI): 1805 | Brittleness Temperature by Impact (degrees Celsius): .35 | Recommended Operating Temperature - Range (degrees Fahrenheit): -10 to 140 |
Specific Gravity: 1.22 | Haze Transmittance (percent): 6.30 | Luminous Transmittance (percent): 82.80 |
Details For Model: TG-1600-F-H-168-120 |
|||||||||||||||||||||||||||||||||||

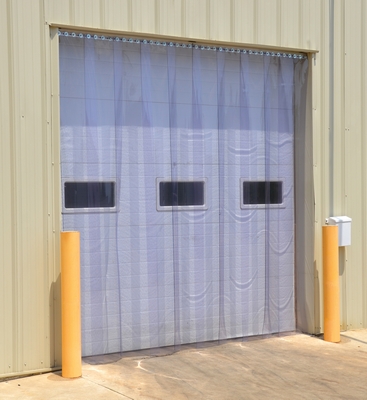

PVC Vinyl Strip Door 4/25 In. Full Overlap Header Mount 168 In. x 120 In. ClearVinyl strip doors help control noise, dust, fumes, and smoke while minimizing drafts, reducing illnesses, and accidents. The strip doors offer visual clarity without sacrificing safety. The material design also deters UV rays during direct sunlight when applied to load docks and external doorways . The simple low cost design is easy to maintain. Standard material design meets USDA requirements and is great for refrigeration applications up to -10 degrees Fahrenheit. All doors are shipped pre-assembled and ready for installation. Installation hardware not included. Custom door sizes and material available, contact factory.
|
|||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||
