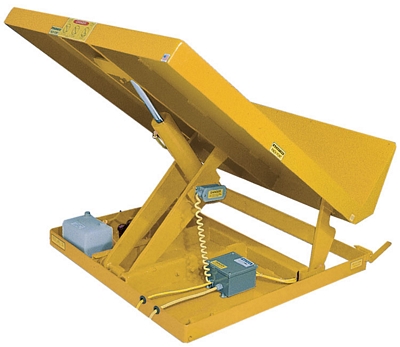

The single scissor lift & tilt table is designed to position containers within easy reach of assembly line workers and machine operators. The unique design reduces fatigue by minimizing repetitive bending and stretching required to obtain components from containers. This scissor table comes with a high lip on the tilt side which makes it ideal for parts transfer and assembly. The selector pedal allows the operator to lift while tilting, or tilt then lift. The motor is totally enclosed standard with optional voltages available. Other standard features include: a two-button handheld control, integrated maintenance lock, pressure plated pump, pressure compensated flow valve, lowering valve, independent oil return, and an adjustable upward travel switch. Scissor table must be lagged to the floor.
Uniform Capacity (lb.): 4000 | Platform Width (in.): 36 | Platform Length (in.): 48 |
Level Height (in.): 8 | Maximum Tilt Degree: 40 | Power Unit: Internal |
Lip Height (in.): 12 | Motor Horsepower: 2 | Voltage/Phase: 115/1 |
Hertz: 60 |
Details For Model: UNI-3648-4-YEL-115-1 |
|||||||||||||||||||||||||||
Steel Lift Table 36 In x 48 In AC Powered 115 Volt 1 Phase 4,000 Lb. Capacity YellowThe single scissor lift & tilt table is designed to position containers within easy reach of assembly line workers and machine operators. The unique design reduces fatigue by minimizing repetitive bending and stretching required to obtain components from containers. This scissor table comes with a high lip on the tilt side which makes it ideal for parts transfer and assembly. The selector pedal allows the operator to lift while tilting, or tilt then lift. The motor is totally enclosed standard with optional voltages available. Other standard features include: a two-button handheld control, integrated maintenance lock, pressure plated pump, pressure compensated flow valve, lowering valve, independent oil return, and an adjustable upward travel switch. Scissor table must be lagged to the floor.
|
|||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||
