VHPS-2000-AA-118

Printer Friendly
Available
VHPS-2000-AA-118
VHPS-2000-AA-118 VHPS-2000-AA-118 VHPS-2000-AA-118 VHPS-2000-AA-118 VHPS-2000-AA-118 VHPS-2000-AA-118 VHPS-2000-AA-118 VHPS-2000-AA-118 VHPS-2000-AA-118 VHPS-2000-AA-118

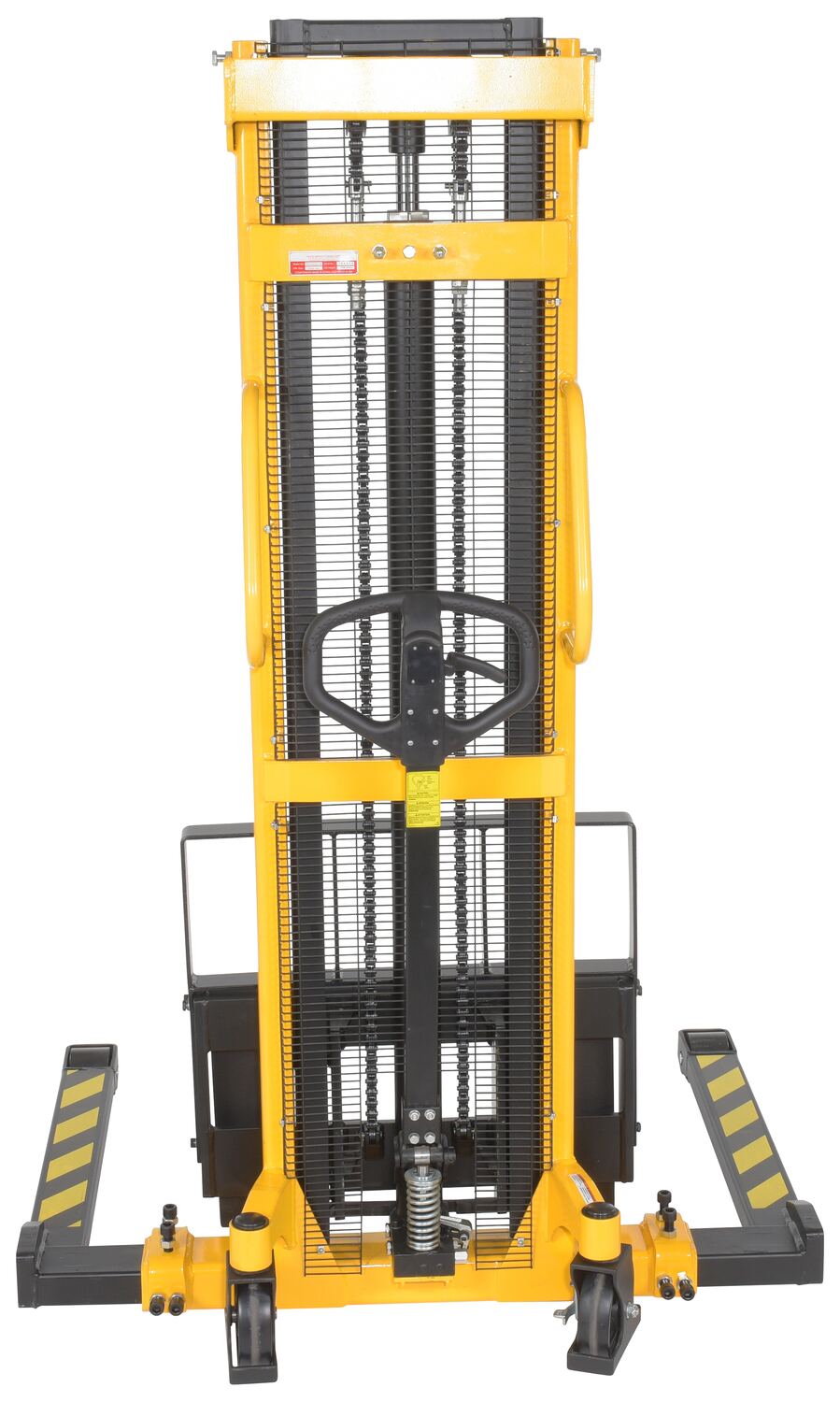

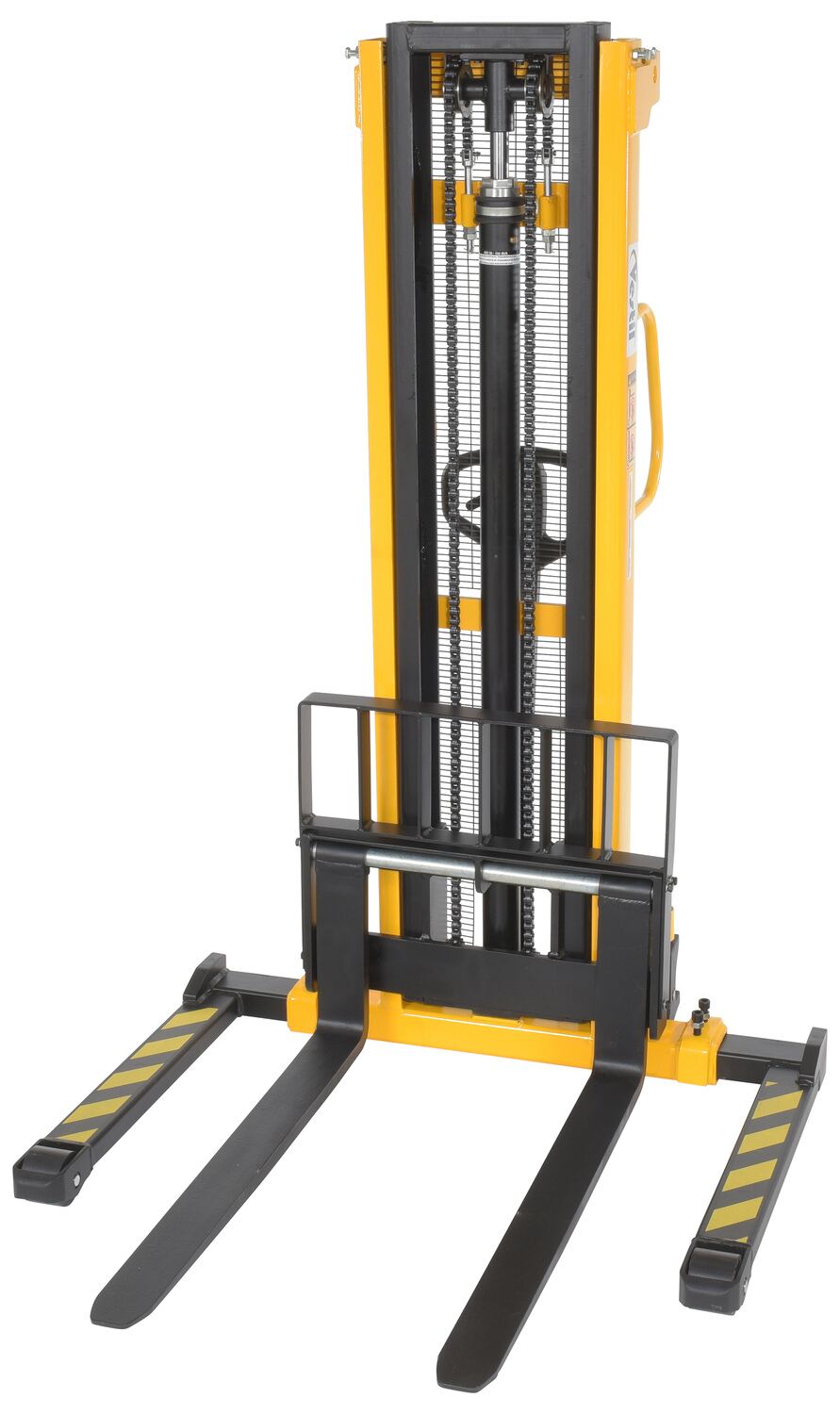

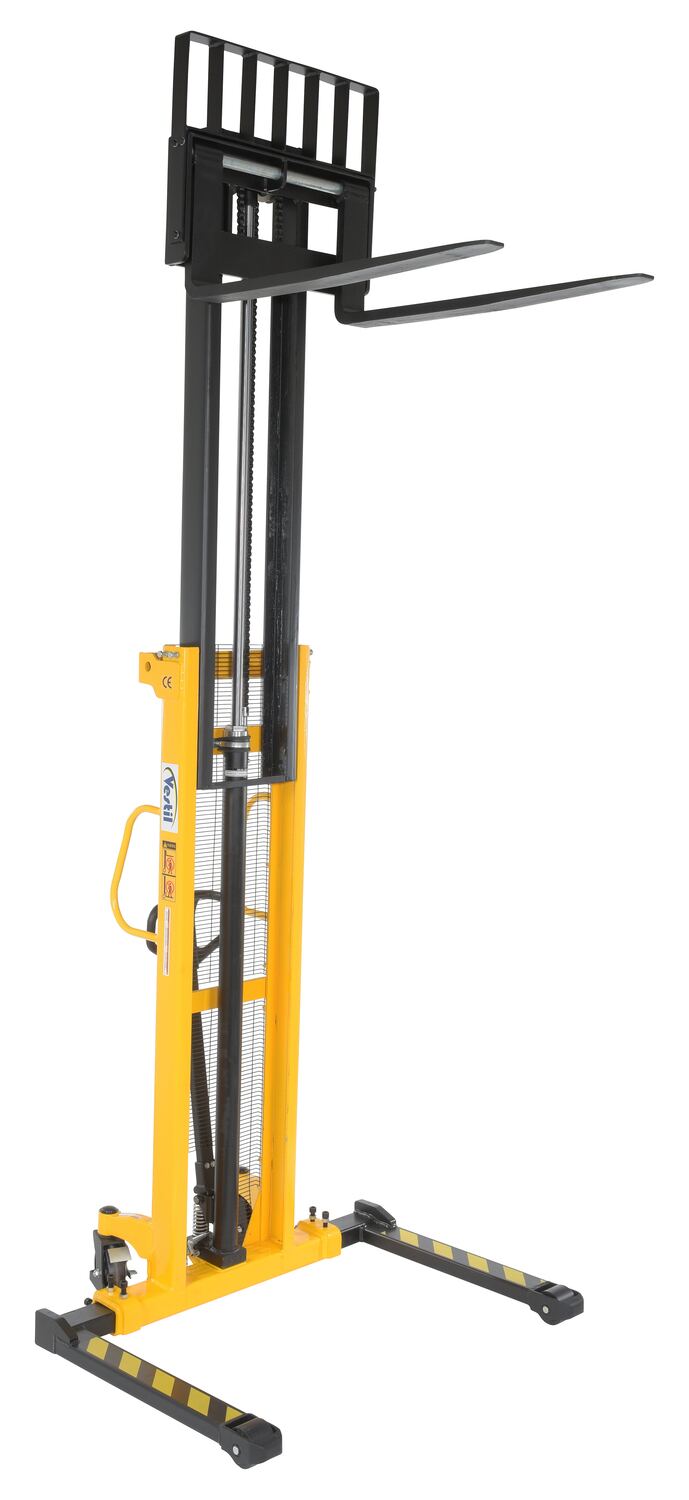

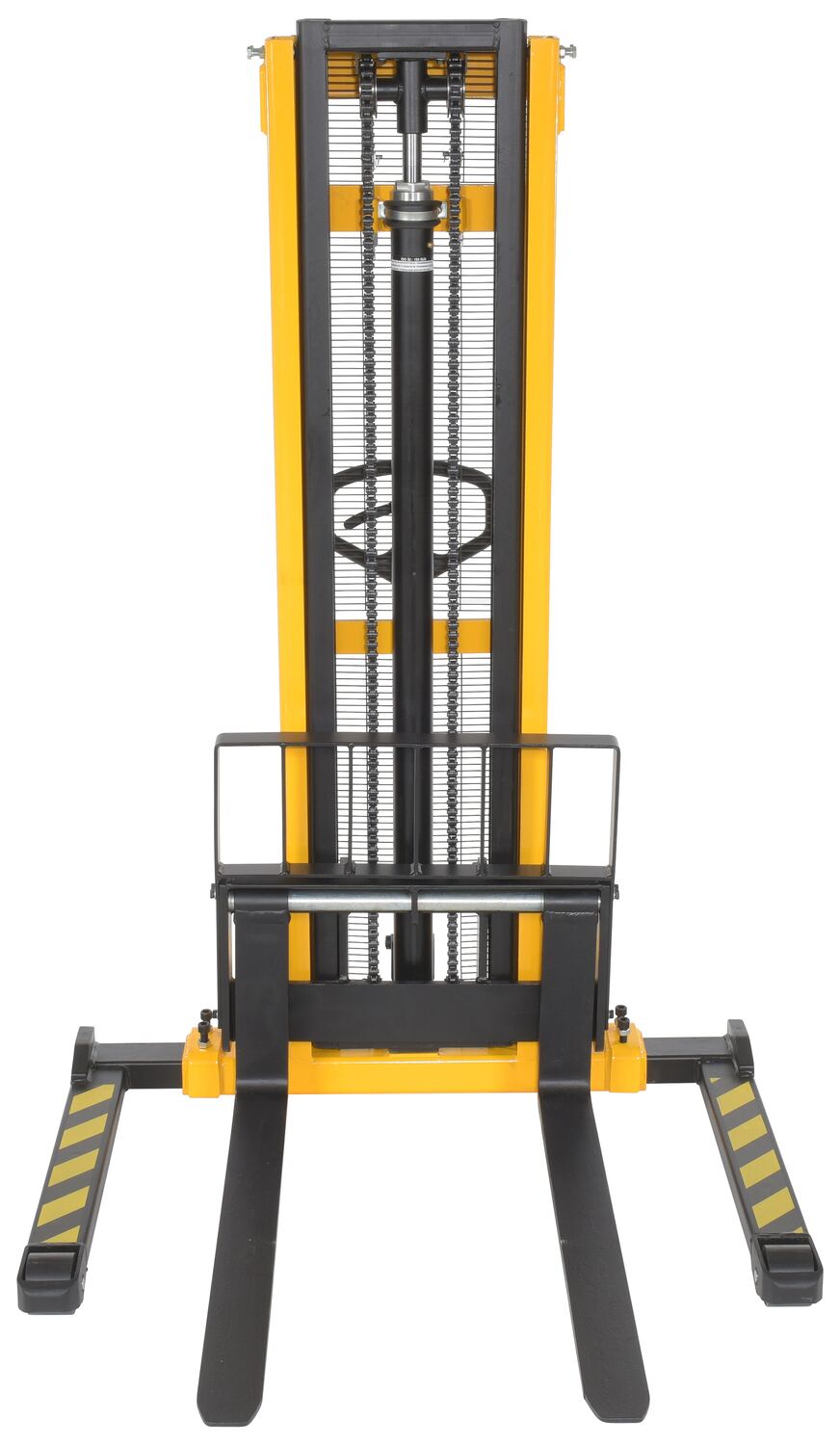

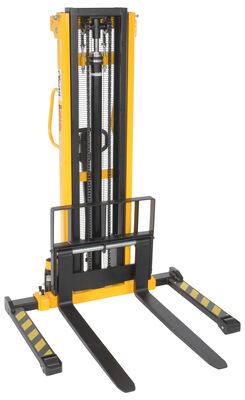

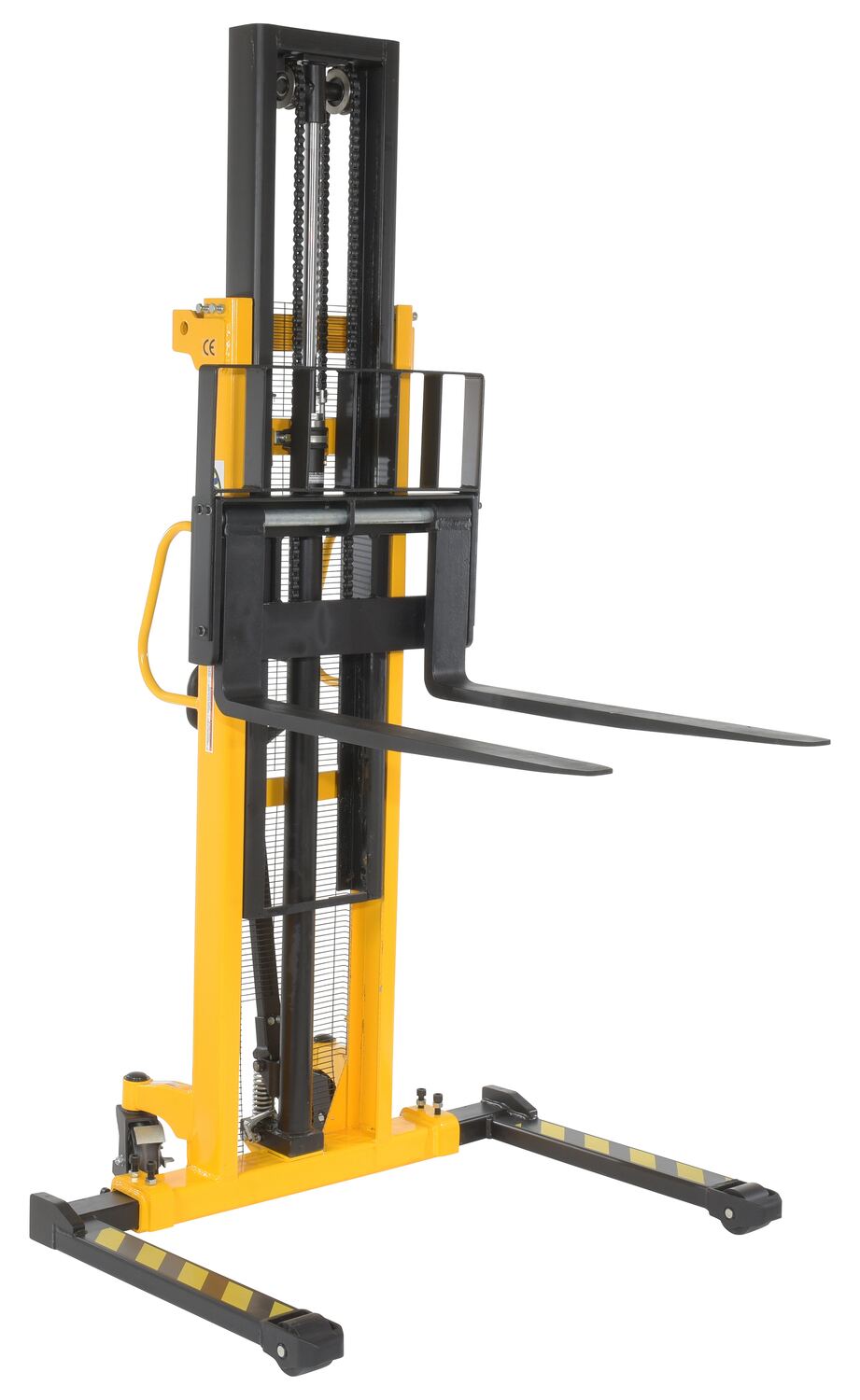

Steel Stacker Manual Pump 2 - 118 In. 1,500 - 2,000 Lb. Capacity Black / Yellow

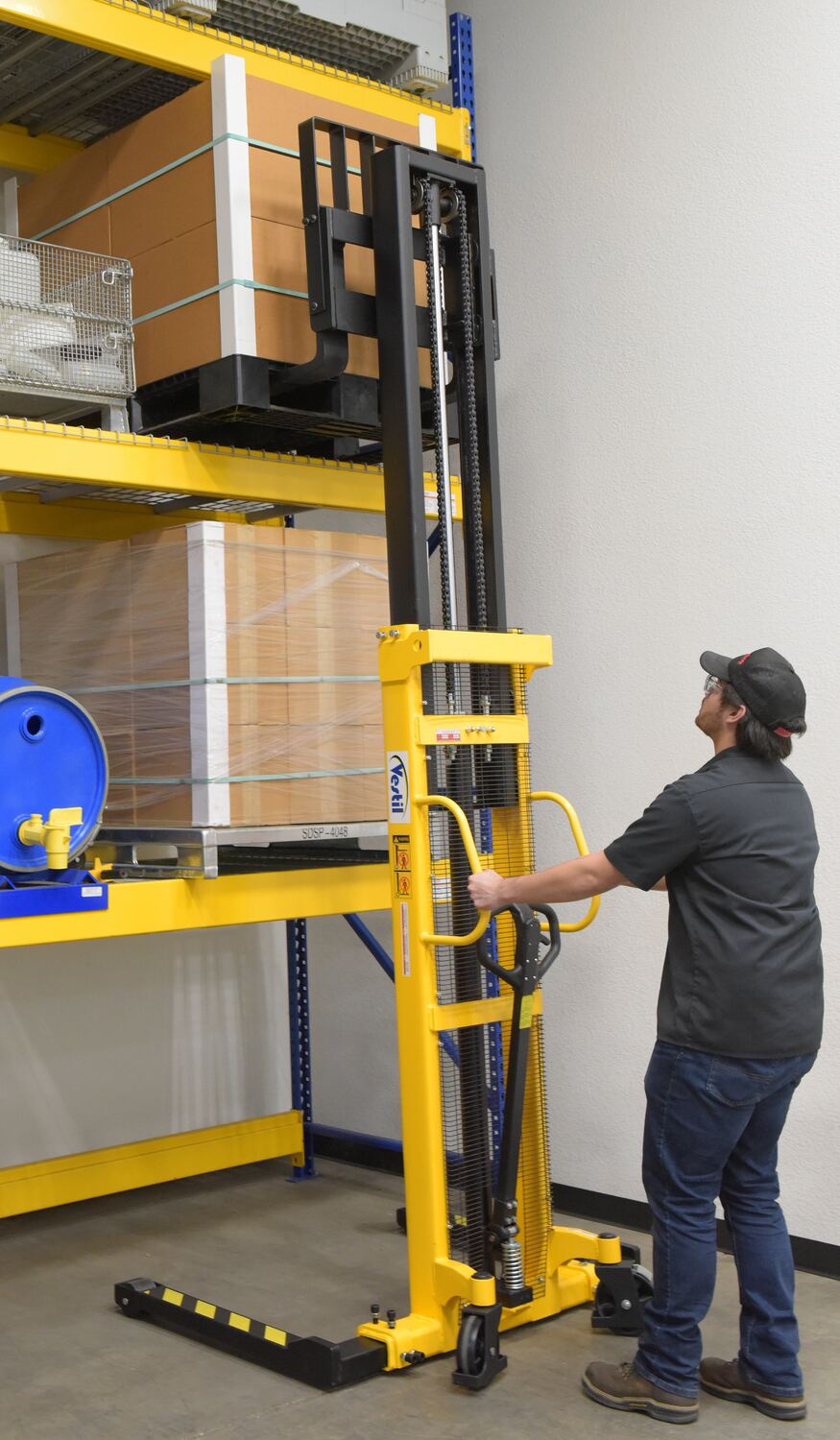

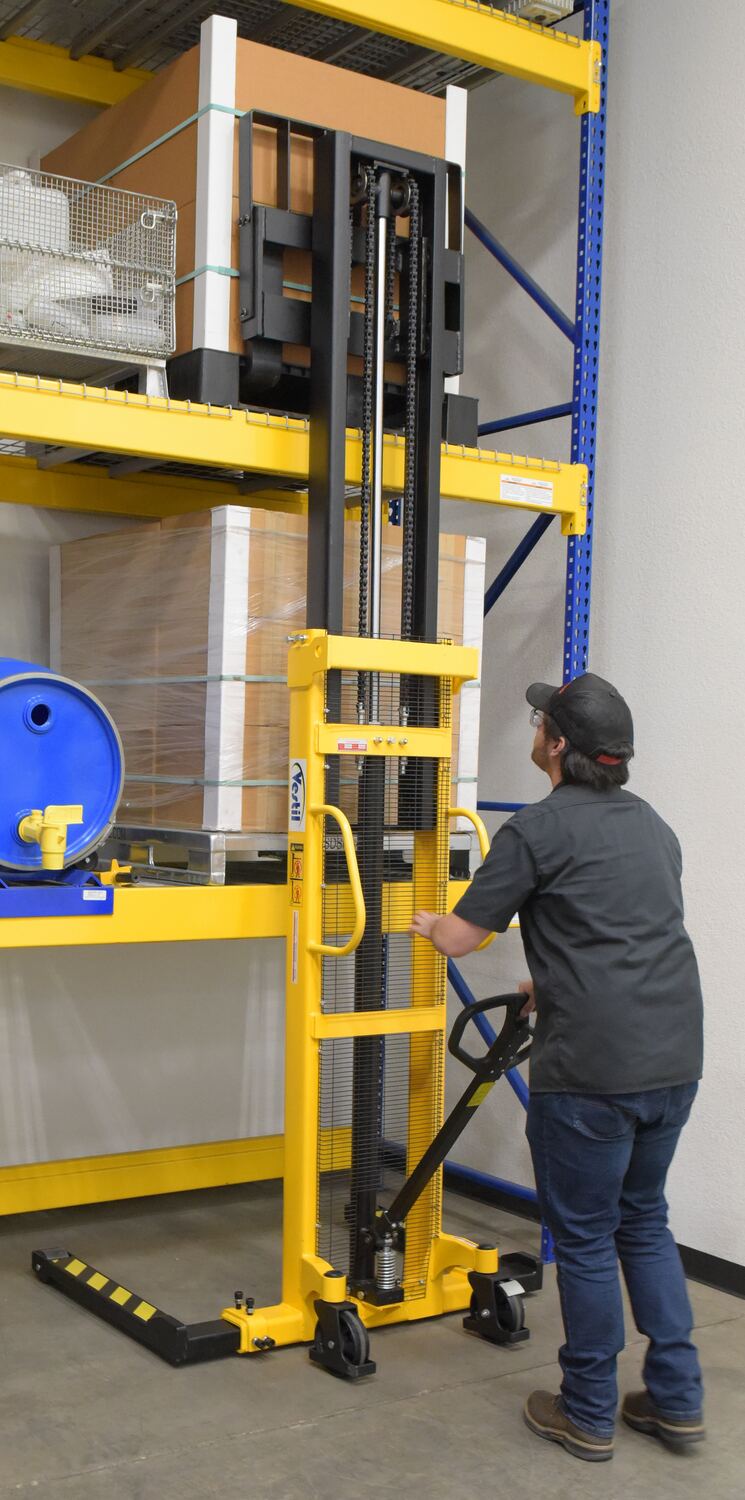

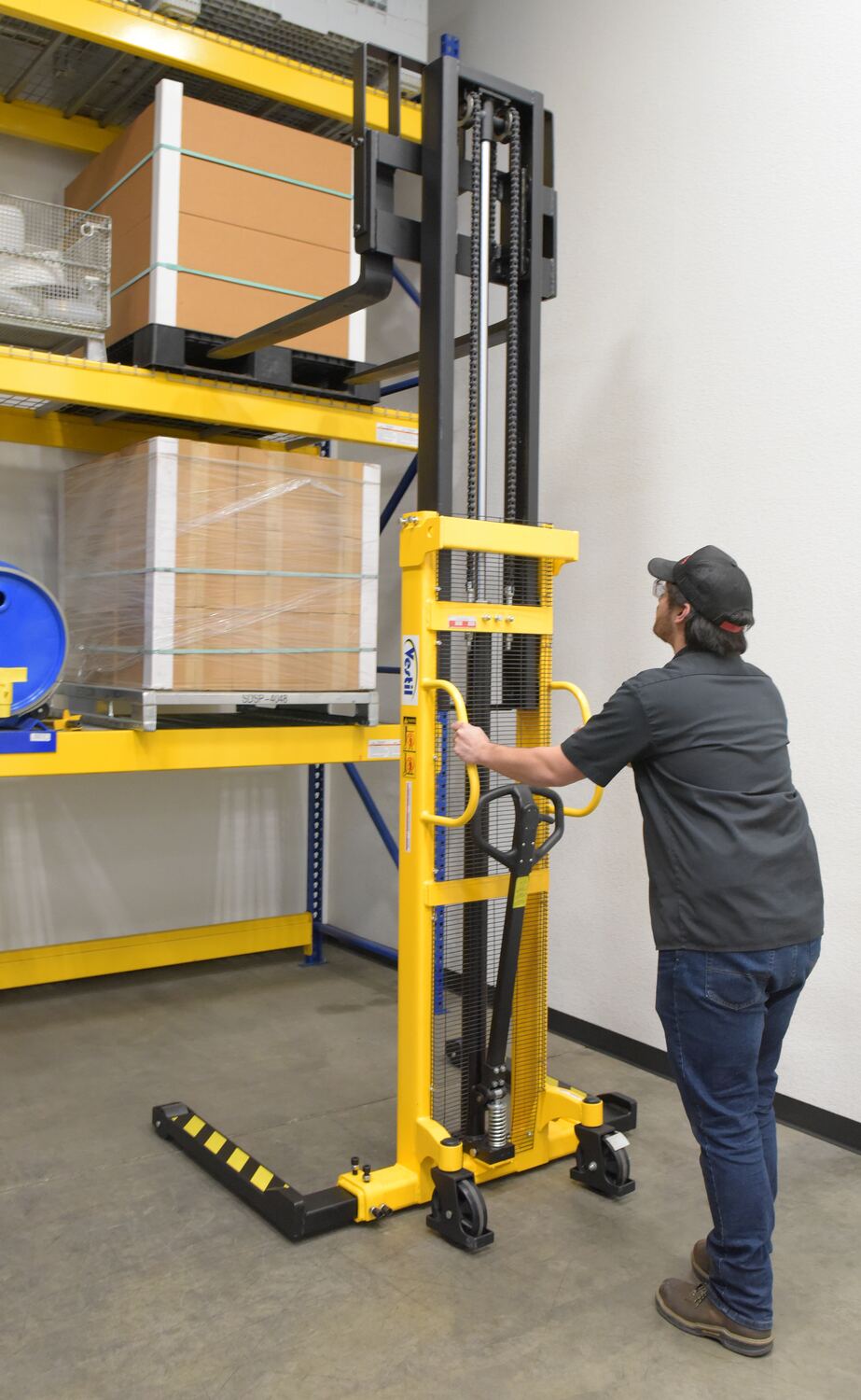

Manual Hydraulic hand pump stackers are sturdy and compact to fit through standard height doors. Forks are raised by manual hydraulic hand pump operation and released by a lever situated on the handle. 1" lift per handle pump. Two rigid and two swivel wheels standard.

  • Unique design is maintenance free and easy to use
  • Full height push handle allows for easy steering
  • Manual design offers easier and safer lifting

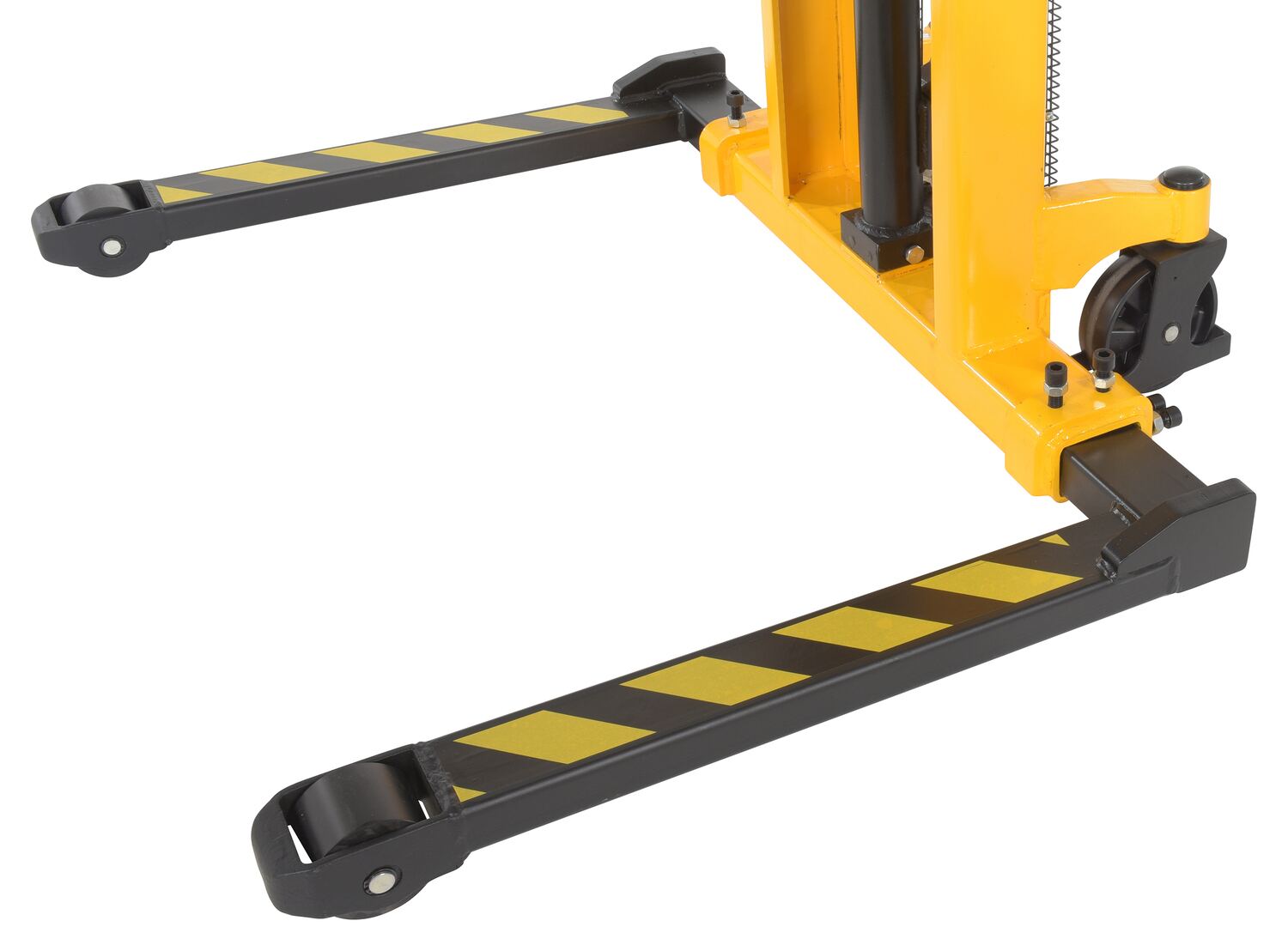

  • Adjustable forks maintain stability and can be maneuvered to fit the desired position
Assembled Wt.(lbs.): 926 Assembled Size: 57.875"W x 62"L x 78.5"H

Total Ship Wt.(lbs.): 996 (only 1 package) Package 1 Size: 65"W x 68"D x 88"H Color: Black / Yellow

Capacity (lb.) at 0 - 62 (in.): 2,000 Capacity (lb.) at 62 - 118 (in.): 1,500 Service Range (in): 2-1/8 to 118
Fork Length (in): 42 Fork Width (in): 4 Adjustable Straddle Leg Range (in.): 40 to 50
Adjustable Fork Spacing Range (in.): 7-7/8 to 27 Mast: Single Operation: Hand Pump
Rear Caster Quantity/Diameter/Width (in.): (2) 7 x 2 Rear Caster Type: Poly on Steel Front Caster Quantity/Diameter/Width (in.): (2) 4 x 3
Front Caster Type: Poly on Steel Pumps to Raise to Max Height (qty.): 136 Stroke per Pump (in.): 7/8
Time to Lower w/o Load (sec.): 33 Time to Lower w/ Load (sec.): 36 Steering Wheel Size (in.): 7 x 2

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

1 Year Limited Warranty

Details For Model: VHPS-2000-AA-118
Available
VHPS-2000-AA-118

Steel Stacker Manual Pump 2 - 118 In. 1,500 - 2,000 Lb. Capacity Black / Yellow

Manual Hydraulic hand pump stackers are sturdy and compact to fit through standard height doors. Forks are raised by manual hydraulic hand pump operation and released by a lever situated on the handle. 1" lift per handle pump. Two rigid and two swivel wheels standard.

  • Unique design is maintenance free and easy to use
  • Full height push handle allows for easy steering
  • Manual design offers easier and safer lifting
  • Adjustable forks maintain stability and can be maneuvered to fit the desired position
Dimensions: 57.875"W x 62"L x 78.5"H Sell UOM: -- Color: Black / Yellow
Material: -- UPC: -- GTIN: --
Warranty: -- Shipping Weight: 996 Quickship Item? --
Can It Ship UPS? -- Option? -- Origin: --
Assembly: -- Packaging: -- Drawing Required? --
Capacity (lb.) at 0 - 62 (in.): 2,000 Capacity (lb.) at 62 - 118 (in.): 1,500 Service Range (in): 2-1/8 to 118
Fork Length (in): 42 Fork Width (in): 4 Adjustable Straddle Leg Range (in.): 40 to 50
Adjustable Fork Spacing Range (in.): 7-7/8 to 27 Mast: Single Operation: Hand Pump
Rear Caster Quantity/Diameter/Width (in.): (2) 7 x 2 Rear Caster Type: Poly on Steel Front Caster Quantity/Diameter/Width (in.): (2) 4 x 3
Front Caster Type: Poly on Steel Pumps to Raise to Max Height (qty.): 136 Stroke per Pump (in.): 7/8
Time to Lower w/o Load (sec.): 33 Time to Lower w/ Load (sec.): 36 Steering Wheel Size (in.): 7 x 2
