VHPS-2000-AA-35

Printer Friendly
Available
VHPS-2000-AA-35
VHPS-2000-AA-35 VHPS-2000-AA-35 VHPS-2000-AA-35 VHPS-2000-AA-35 VHPS-2000-AA-35 VHPS-2000-AA-35 VHPS-2000-AA-35 VHPS-2000-AA-35 VHPS-2000-AA-35

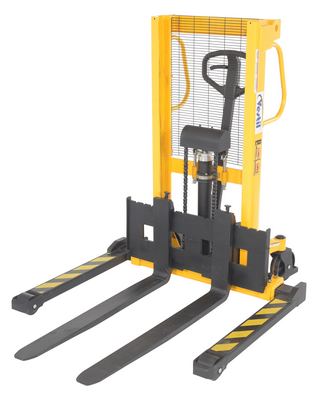

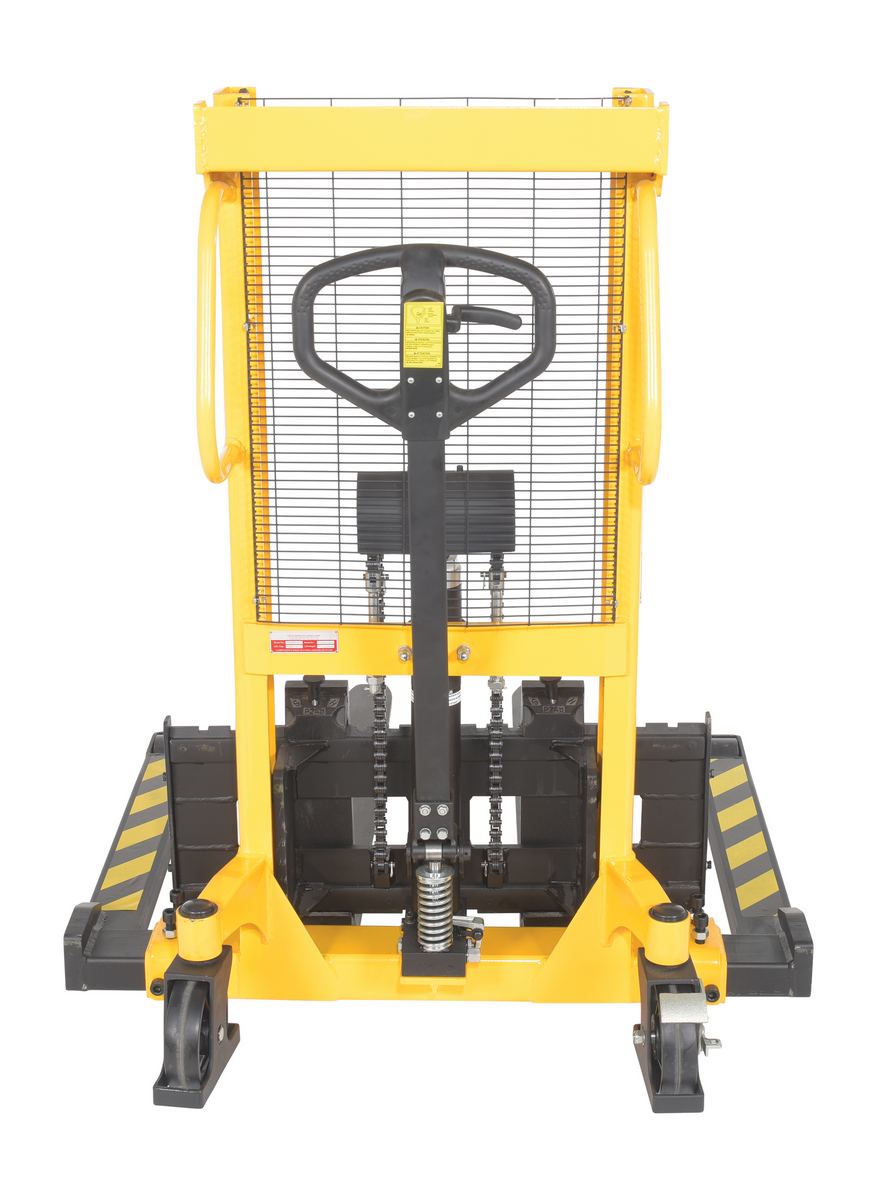

Stacker Manual Pump 3 - 35 In. 2,000 Lb. Capacity Black / Yellow

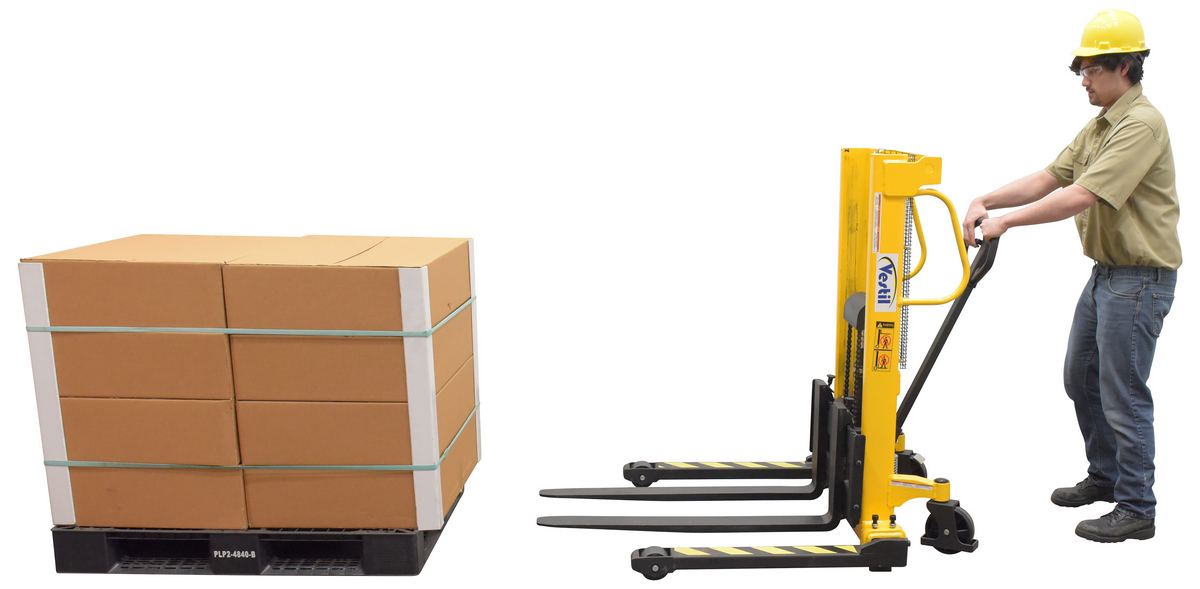

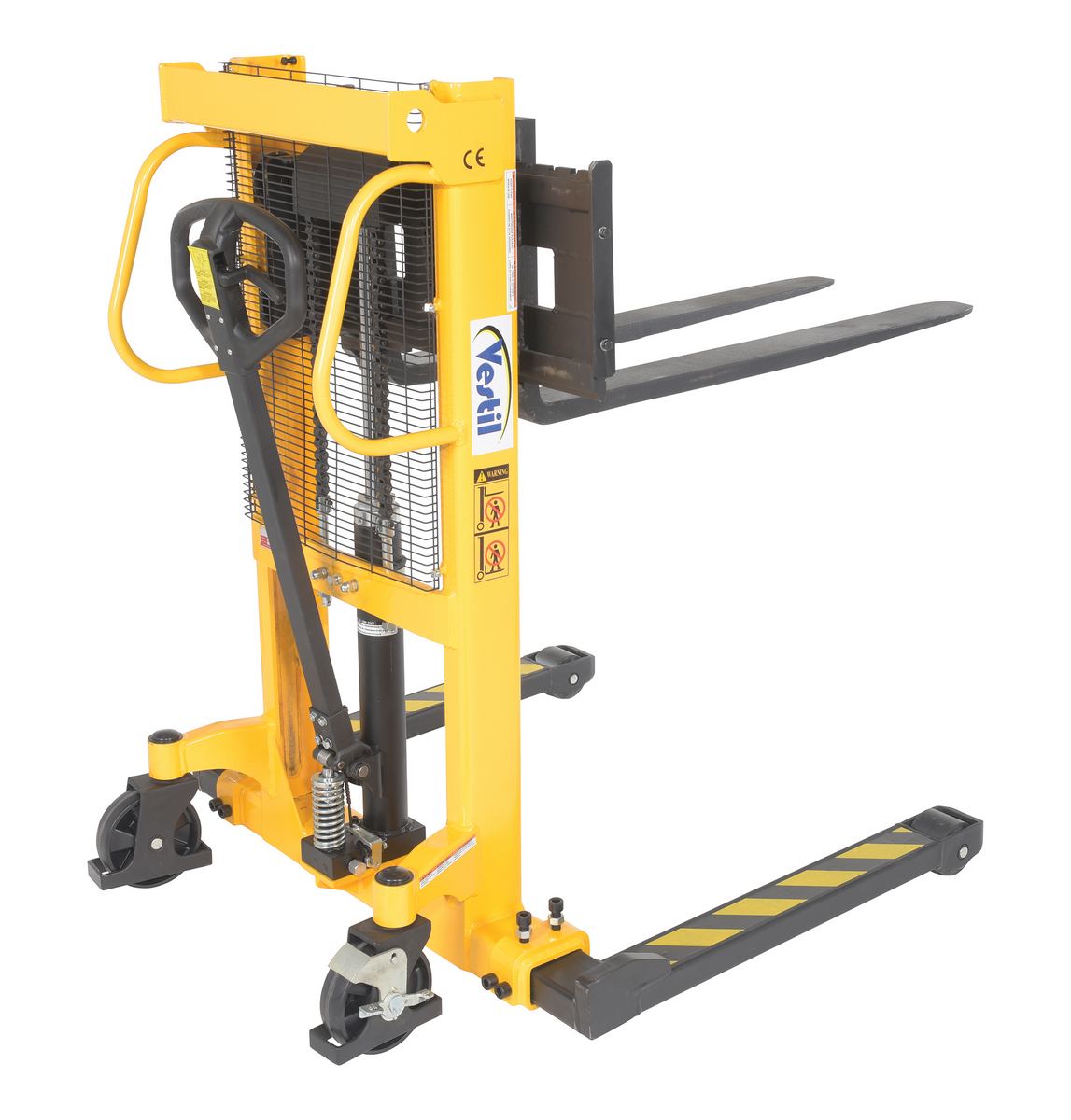

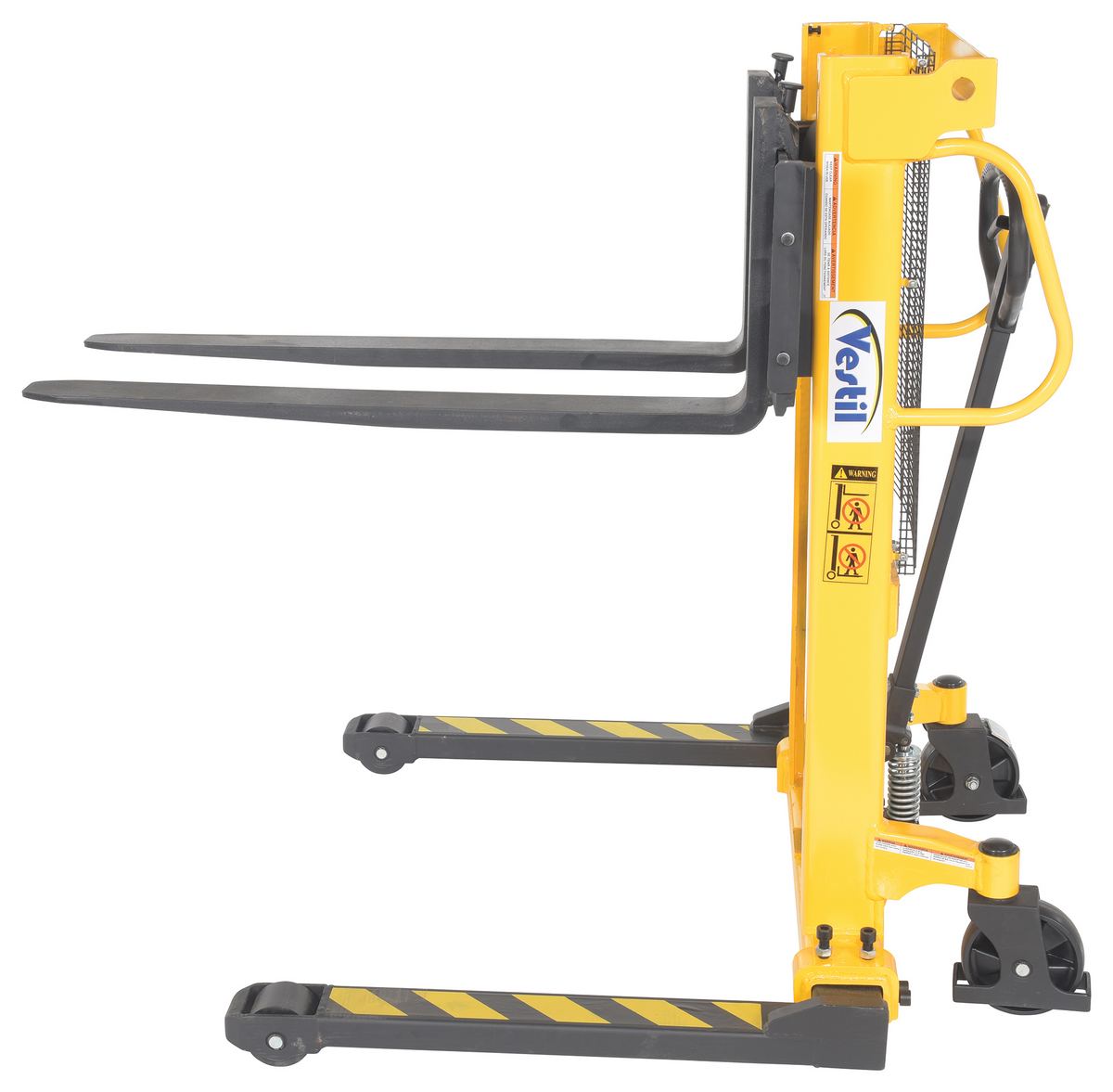

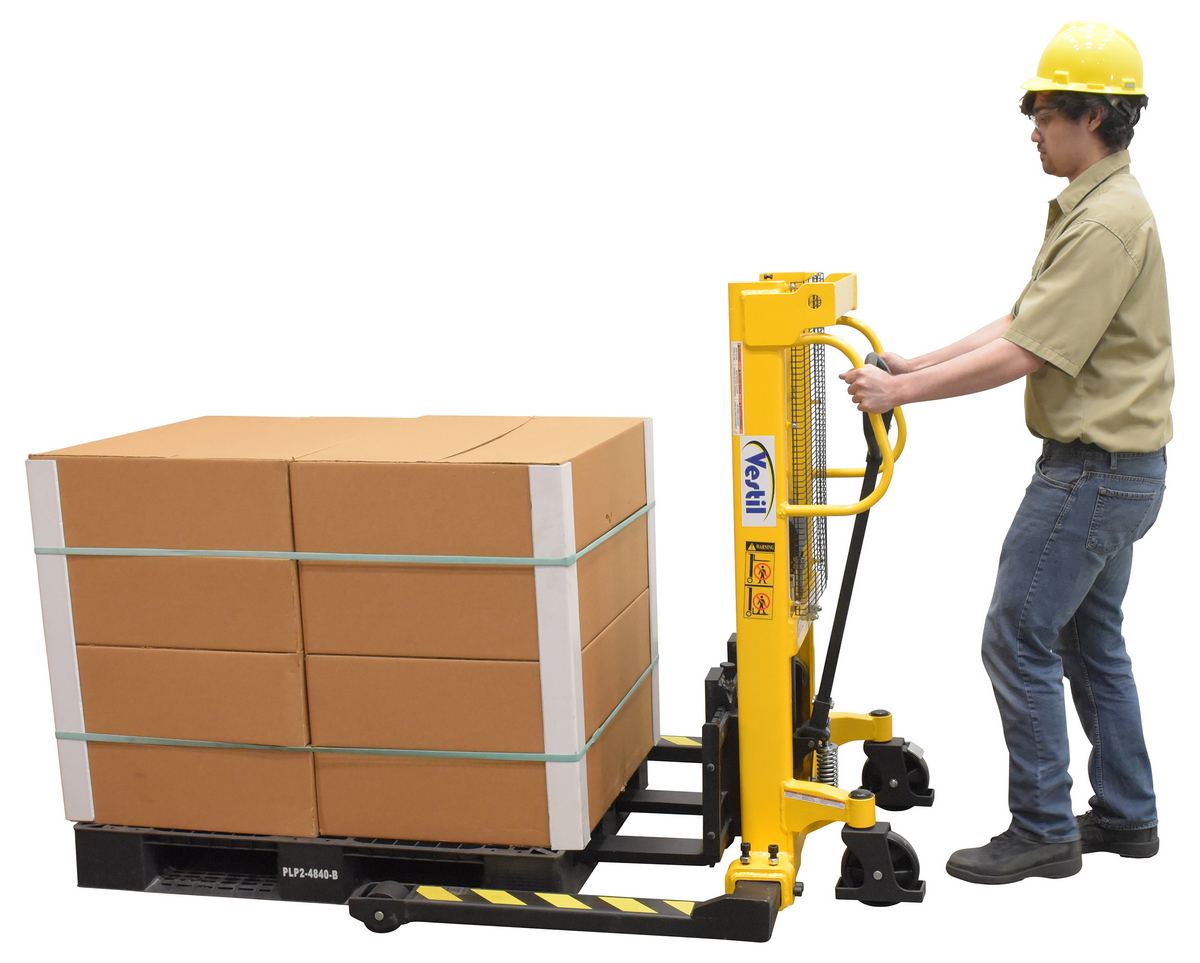

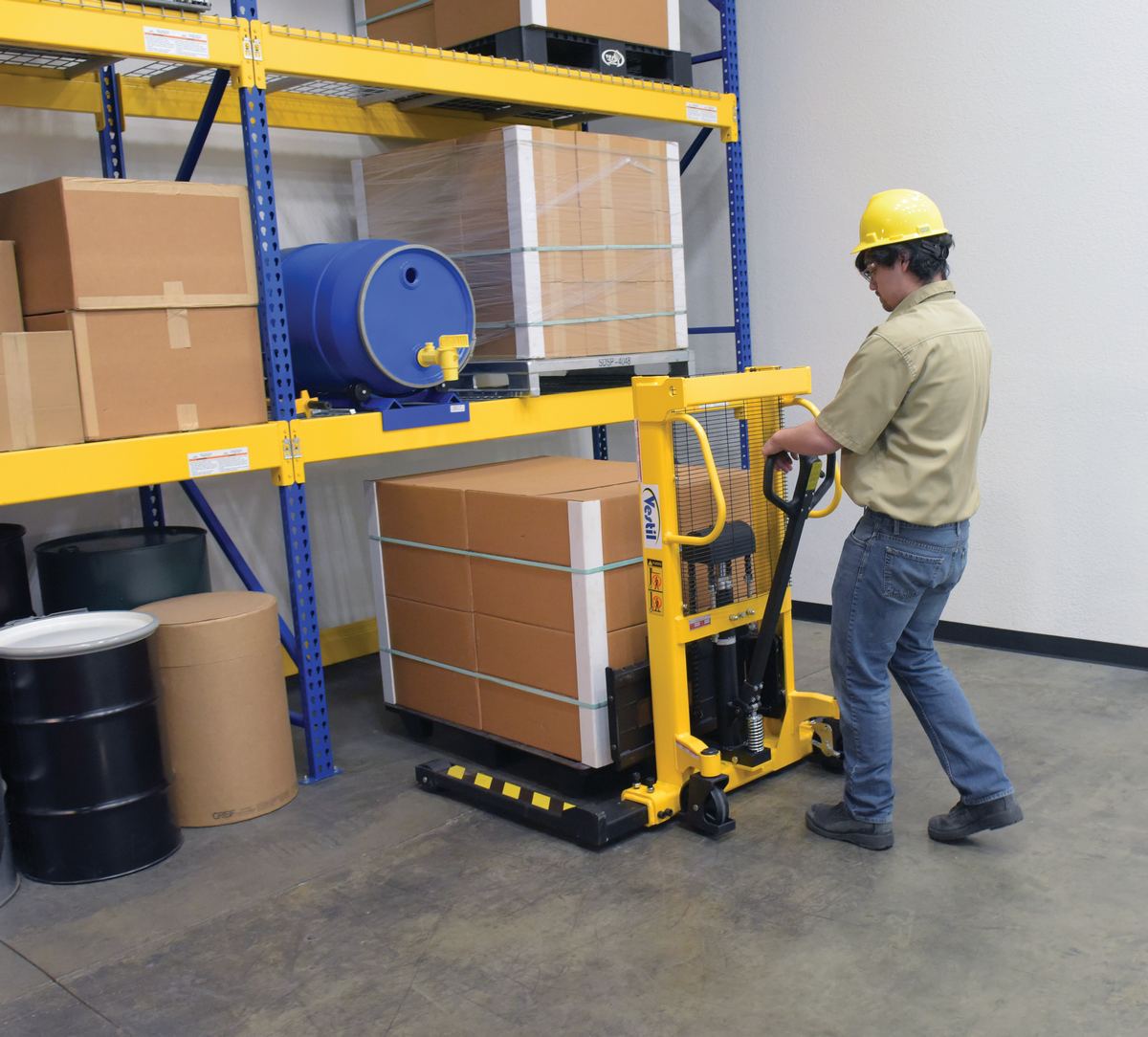

Manual Hydraulic hand pump stackers are sturdy and compact to fit through standard height doors. Forks are raised by manual hydraulic hand pump operation and released by a lever situated on the handle. 1" lift per handle pump. Two rigid and two swivel wheels standard.

  • Manual lift design for precise positioning

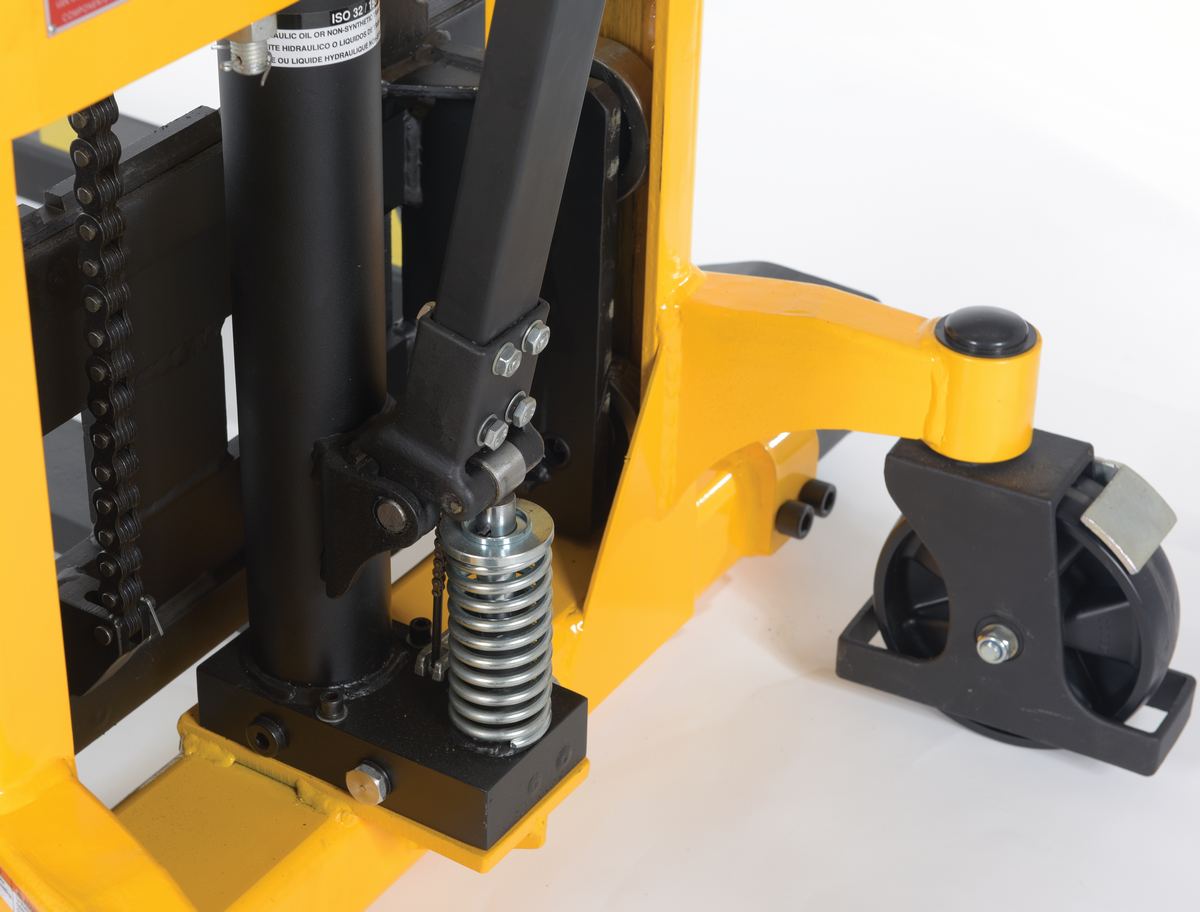

  • Casters with brakes for safety

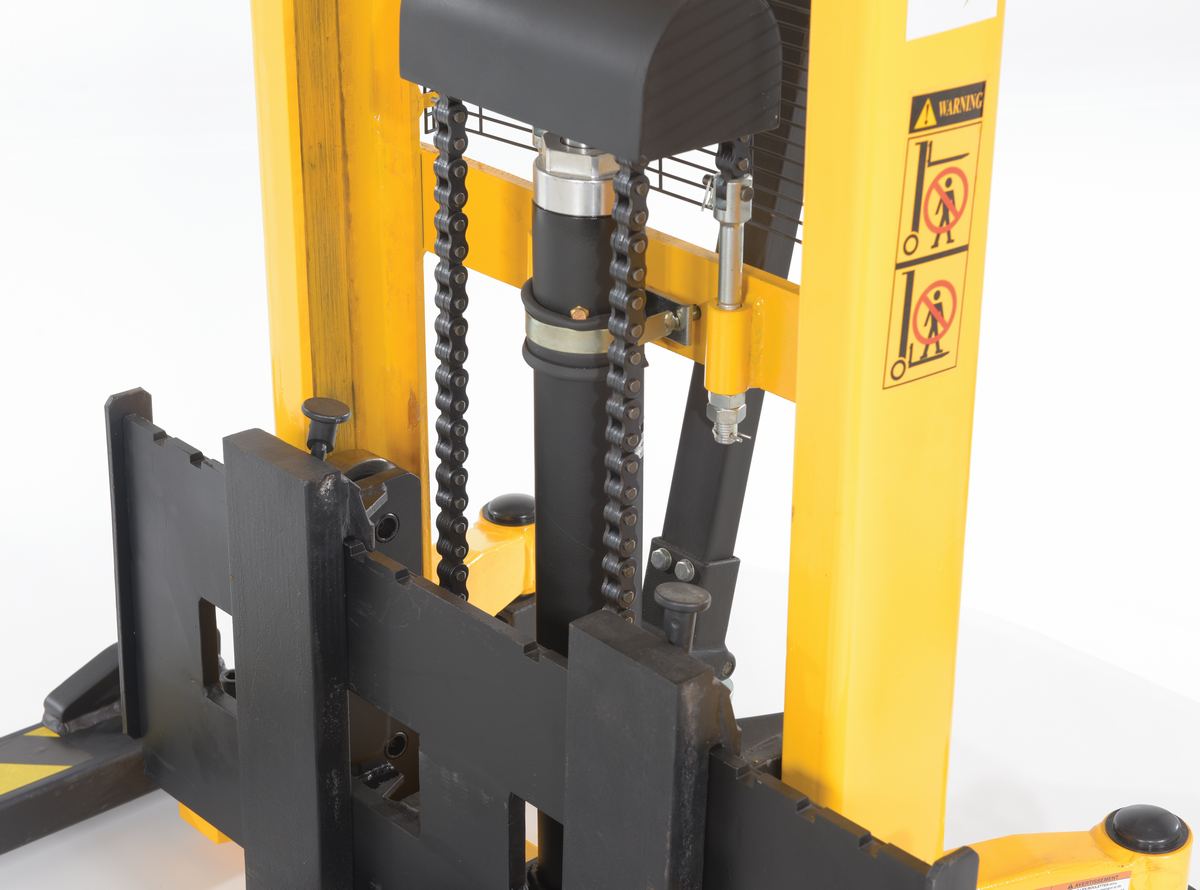

  • Adjustable forks for lifting an assortment of products
  • Large load capacity
Assembled Wt.(lbs.): 515 Assembled Size: 57.875"W x 61.25"L x 55"H

Total Ship Wt.(lbs.): 764 (only 1 package) Package 1 Size: 60"W x 73"D x 60"H Color: Black / Yellow

Uniform Capacity (lb.): 2,000 Service Range (in.): 3 to 35-1/2 Fork Length (in.): 42
Fork Width (in.): 3-15/16 Adjustable Straddle Leg Range (in.): 46 to 57-7/8 (OD) Adjustable Fork Spacing Range (in.): 7-7/8 to 26-3/4 (OD)
Mast: Single Operation: Hand Pump Rear Caster Quantity/Diameter/Width (in.): (2) 7 x 2
Rear Caster Material: Poly on Steel Front Caster Quantity/Diameter/Width (in.): (2) 4 x 2.91 Front Caster Material: Poly on Steel
Pumps to Raise to Max Height (qty.): 40 Stroke per Pump (in.): 7/8 Time to Lower w/o Load (sec.): 10
Time to Lower w/ Load (sec.): 11.25 Overall Mast Height (in.): 55 Steering Wheel Size (in.): 7 x 2

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

1 Year Limited Warranty

Details For Model: VHPS-2000-AA-35
Available
VHPS-2000-AA-35

Stacker Manual Pump 3 - 35 In. 2,000 Lb. Capacity Black / Yellow

Manual Hydraulic hand pump stackers are sturdy and compact to fit through standard height doors. Forks are raised by manual hydraulic hand pump operation and released by a lever situated on the handle. 1" lift per handle pump. Two rigid and two swivel wheels standard.

  • Manual lift design for precise positioning
  • Casters with brakes for safety
  • Adjustable forks for lifting an assortment of products
  • Large load capacity
Dimensions: 57.875"W x 61.25"L x 55"H Sell UOM: -- Color: Black / Yellow
Material: -- UPC: -- GTIN: --
Warranty: -- Shipping Weight: 764 Quickship Item? --
Can It Ship UPS? -- Option? -- Origin: --
Assembly: -- Packaging: -- Drawing Required? --
Uniform Capacity (lb.): 2,000 Service Range (in.): 3 to 35-1/2 Fork Length (in.): 42
Fork Width (in.): 3-15/16 Adjustable Straddle Leg Range (in.): 46 to 57-7/8 (OD) Adjustable Fork Spacing Range (in.): 7-7/8 to 26-3/4 (OD)
Mast: Single Operation: Hand Pump Rear Caster Quantity/Diameter/Width (in.): (2) 7 x 2
Rear Caster Material: Poly on Steel Front Caster Quantity/Diameter/Width (in.): (2) 4 x 2.91 Front Caster Material: Poly on Steel
Pumps to Raise to Max Height (qty.): 40 Stroke per Pump (in.): 7/8 Time to Lower w/o Load (sec.): 10
Time to Lower w/ Load (sec.): 11.25 Overall Mast Height (in.): 55 Steering Wheel Size (in.): 7 x 2
