Model Details
The coil ram/lifter is used to easily maneuver many types of coiled material. To accommodate multiple core sizes and capacities select different diameter ram poles. With a sturdy steel construction, the carriage mounted unit is class II with a spring loaded lock pin to secure the unit to fork truck carriage.
Uniform Capacity (lb.): 5,500 | Usable Ram Length (in.): 48 | Ram Diameter (in.): 5-5/8 |
Mount Style: Fork, Inverted | Usable Fork Pocket Width (in.): 7-1/2 | Usable Fork Pocket Height (in.): 2-1/2 |
Fork Center (in.): 24 | Maximum Coil Width (in.): 17-1/2 | Horizontal Center of Gravity (in.): 11-1/8 |
Vertical Center of Gravity (in.): 15-1/4 |
Details For Model: CCF-48-5 |
|||||||||||||||||||||||||||

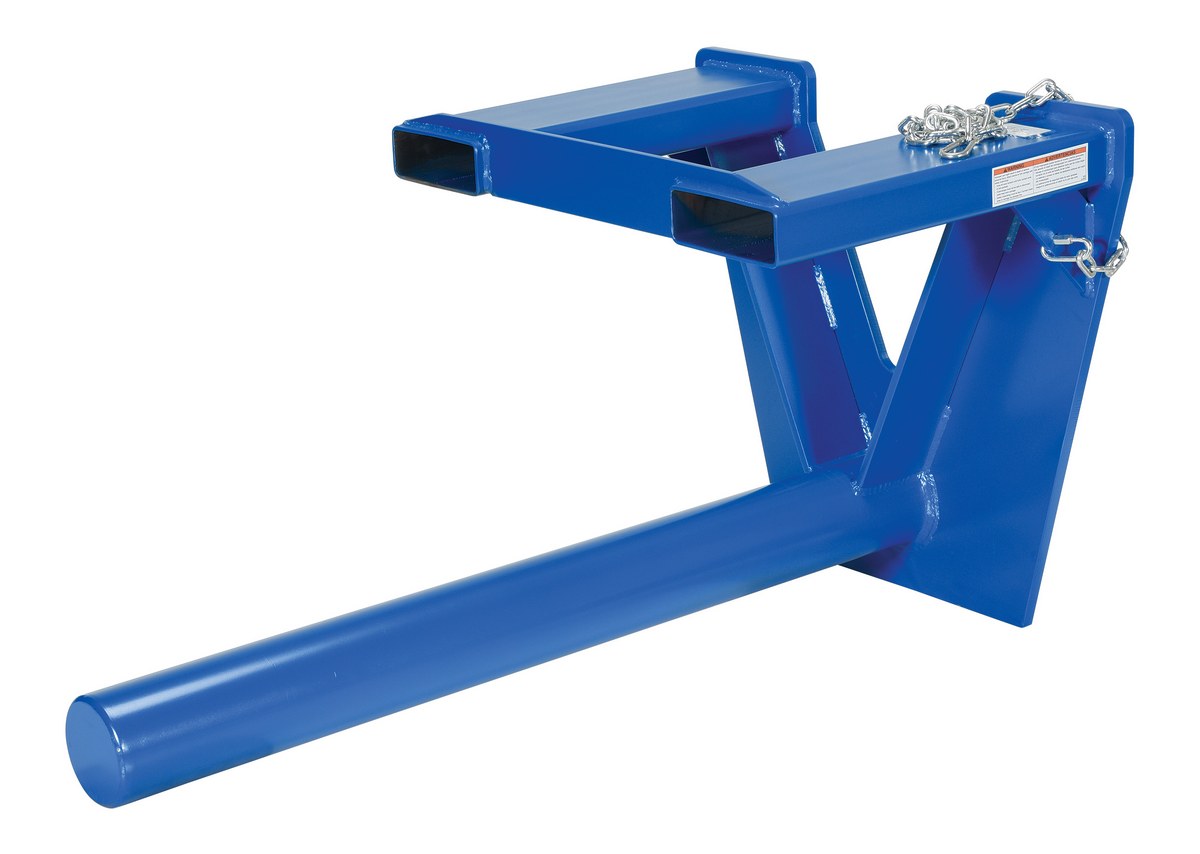

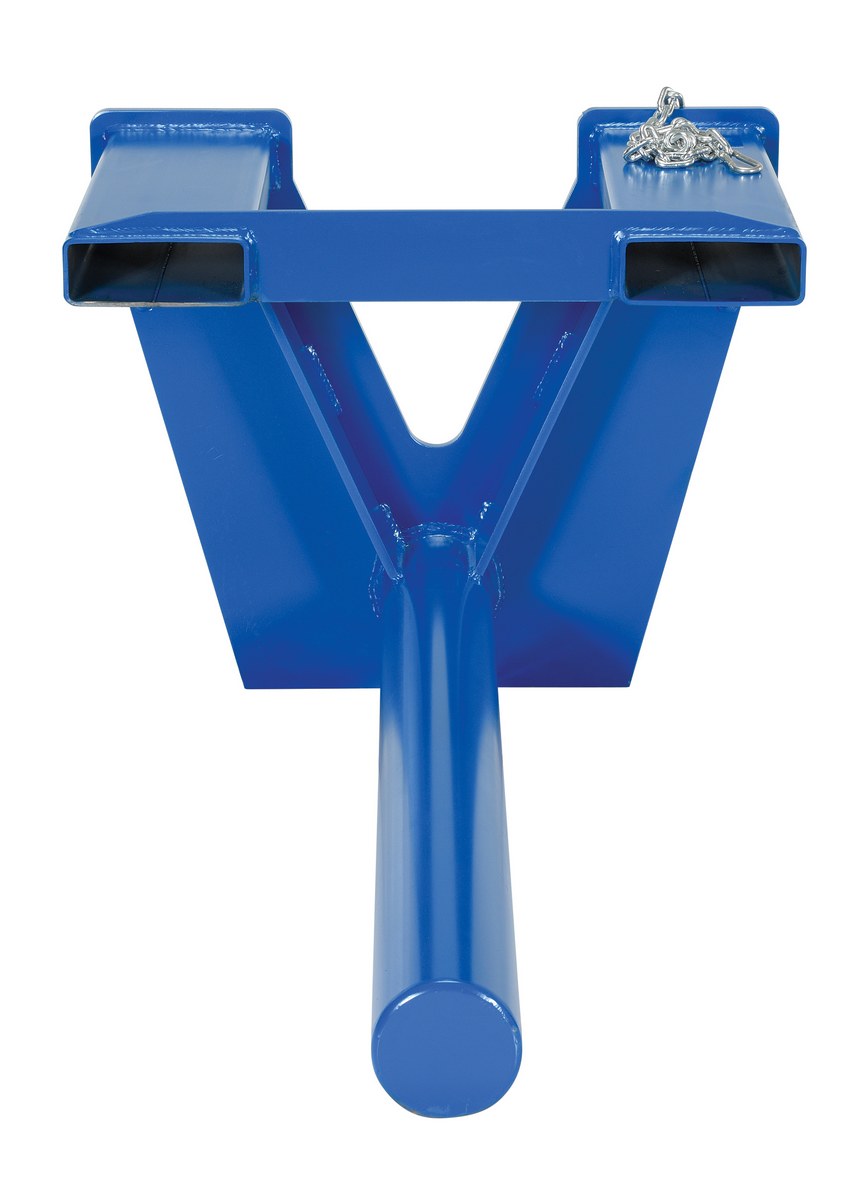

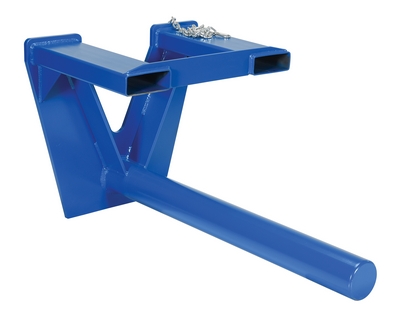

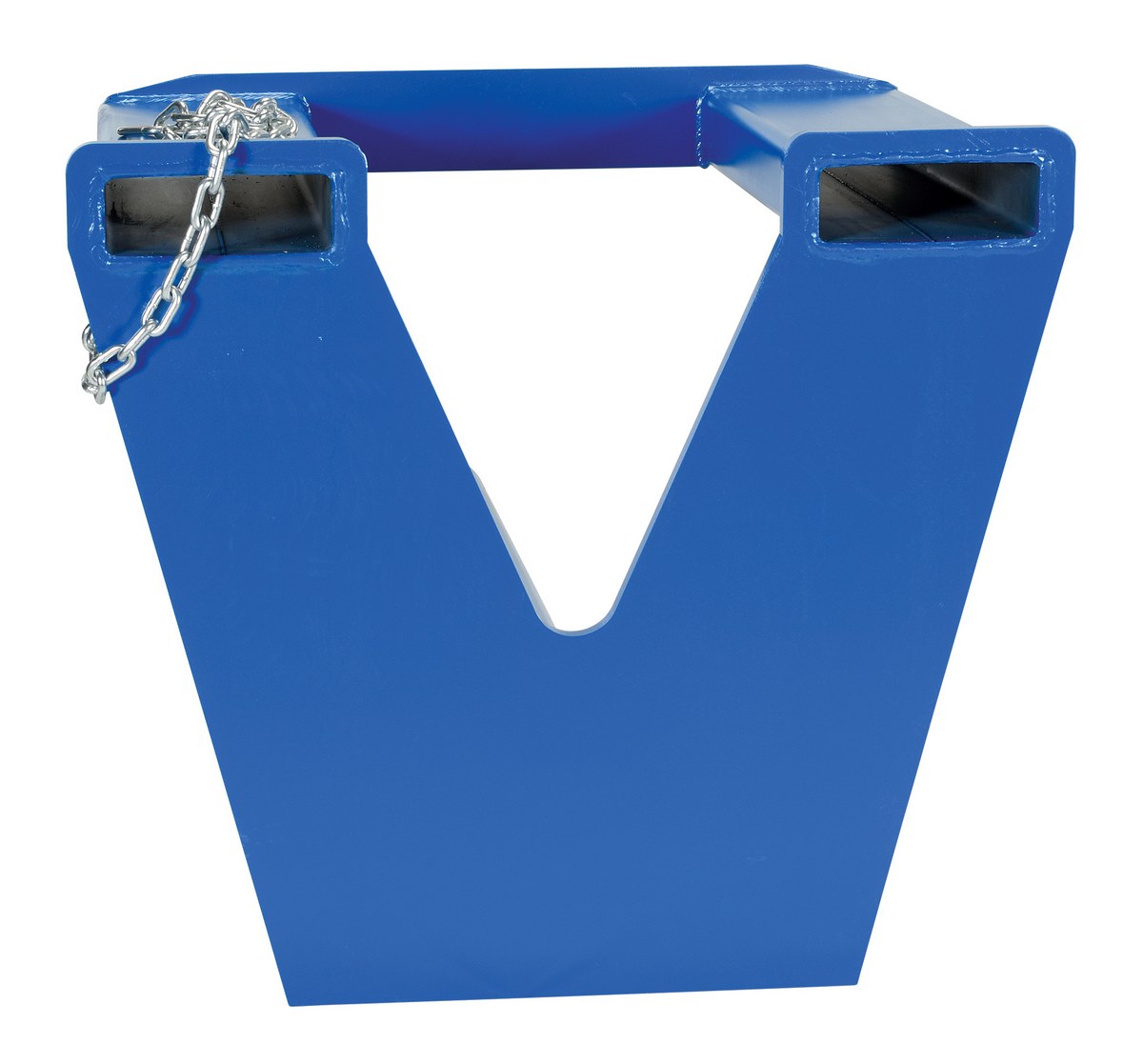

Steel Coil Lifter Fork Mounted Inverted 48 In 5500 Lb Capacity BlueThe coil ram/lifter is used to easily maneuver many types of coiled material. To accommodate multiple core sizes and capacities select different diameter ram poles. With a sturdy steel construction, the carriage mounted unit is class II with a spring loaded lock pin to secure the unit to fork truck carriage.
|
|||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||
