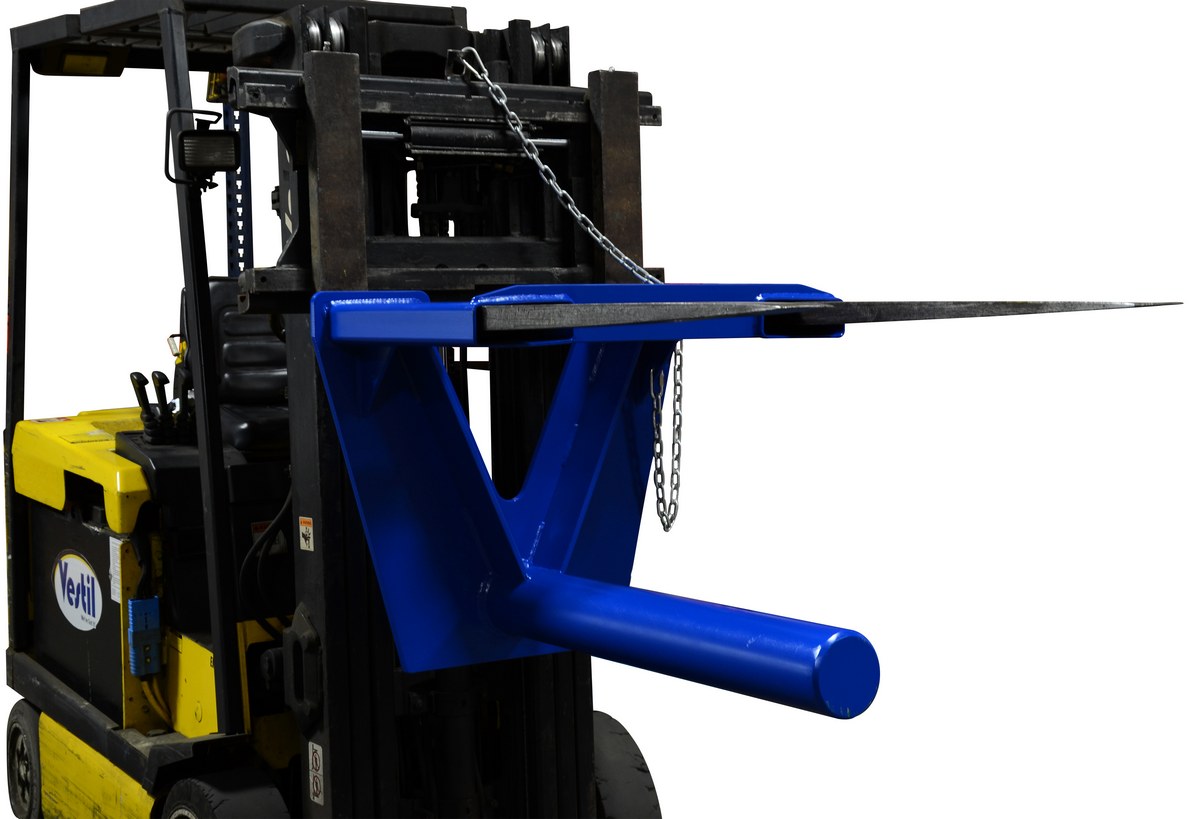

Coil Rams/LiftersThe Coil Lifter is used to easily maneuver many types of coiled material. The Coil Lifter is available in both carriage mount and fork mount. To accommodate multiple core sizes and capacities, units can be ordered with either a 4-1/2" or 5-5/8" diameter rams. Sturdy steel construction and painted blue. Fork mounted units feature 7-1/2" wide x 2-1/2" tall (usable) fork pockets on 24" centers while the carriage mounted units are secured to the fork truck carriage with a spring loaded lock pin.
- Unique design easily maneuvers many types of coiled material
- Painted blue coat provides a long lasting tough finish
- Safety device secures unit to fork truck
- Sturdy steel construction provides long lasting rugged use

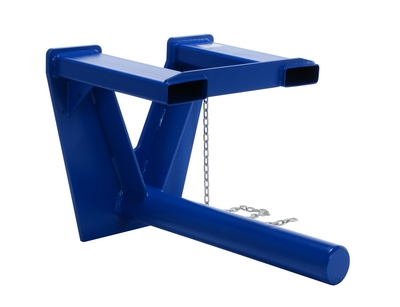

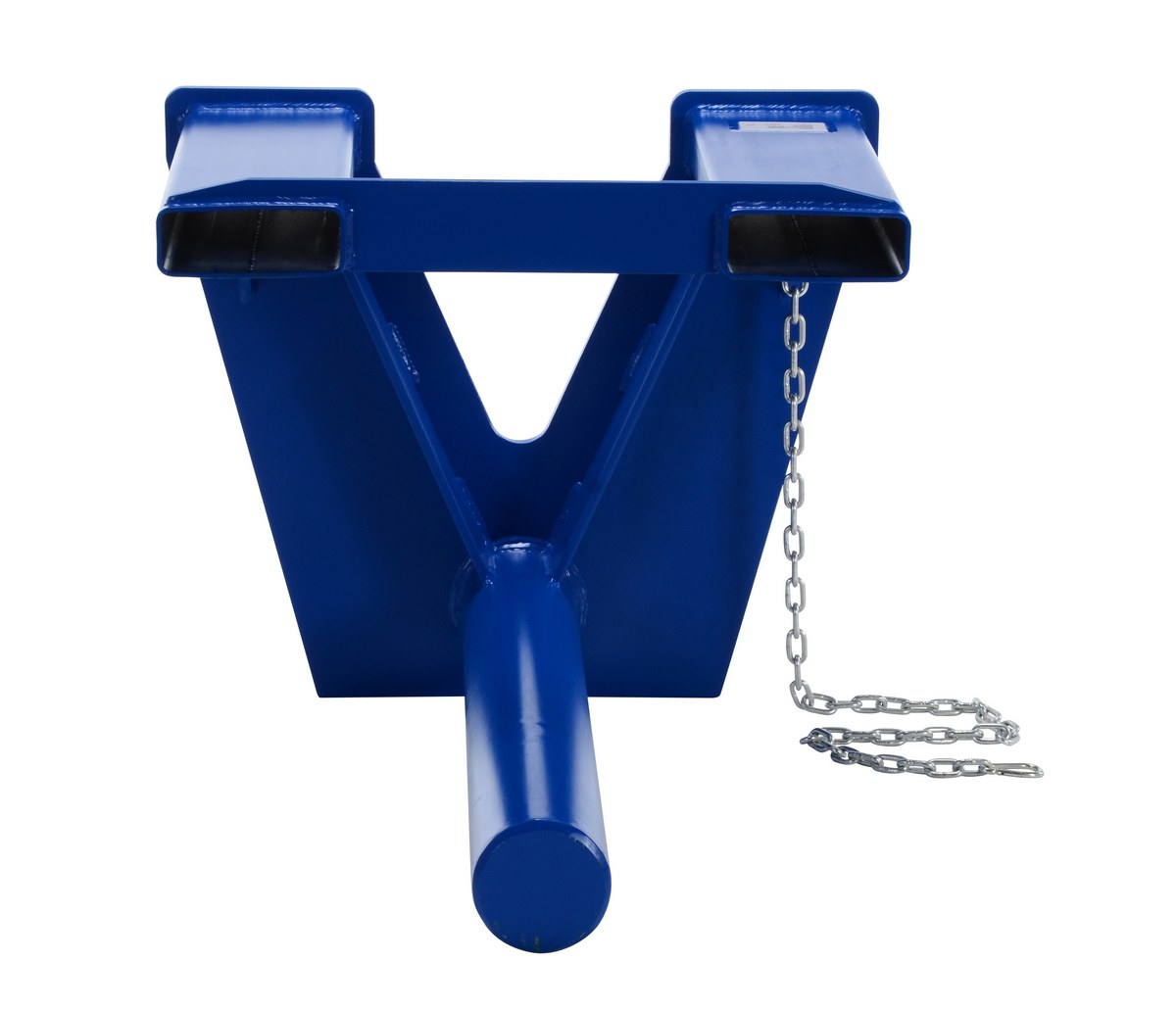

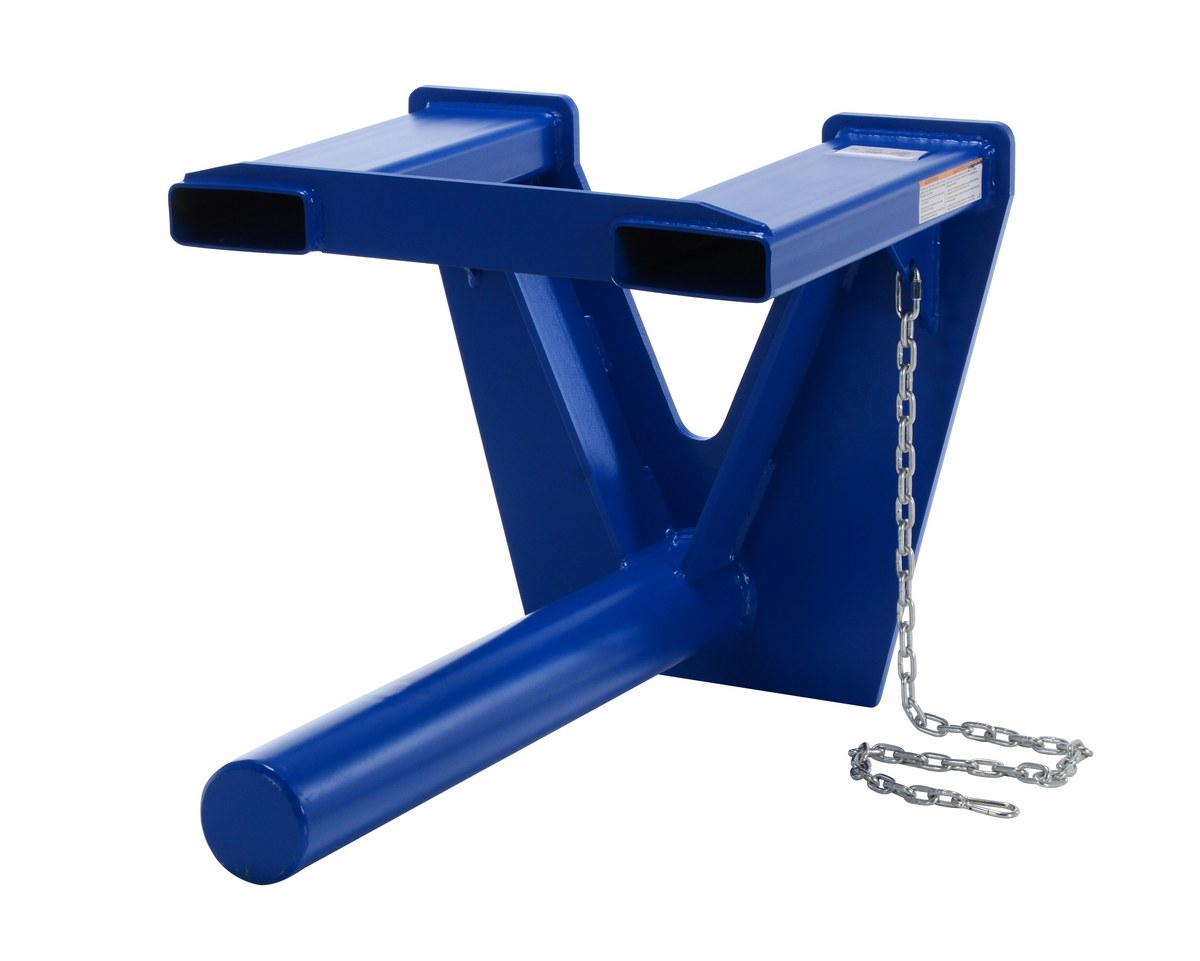

Fork Mounted (CCF)
**NOTE**
Never exceed load center rating per fork truck manuafacturer's guidlines. Do not use this fork truck attachment if load will exceed fork truck manuafacturer's Load Center Rating. See Engineering Drawing below to see each Model's Load Center Rating.
Additional Models In This Family
CCF-60-4
CCF-48-5
CCF-24-5
CCF-36-5
CCF-60-4
CCF-36-4
CCF-60-5
CCF-60-5
CCF-60-4
CCF-60-5
CCF-36-5
CCF-60-4
CCF-36-5
CCF-60-5
CCF-48-5
| Model # | Description | Attributes | Net Wt. (lbs) |
||||
|---|---|---|---|---|---|---|---|

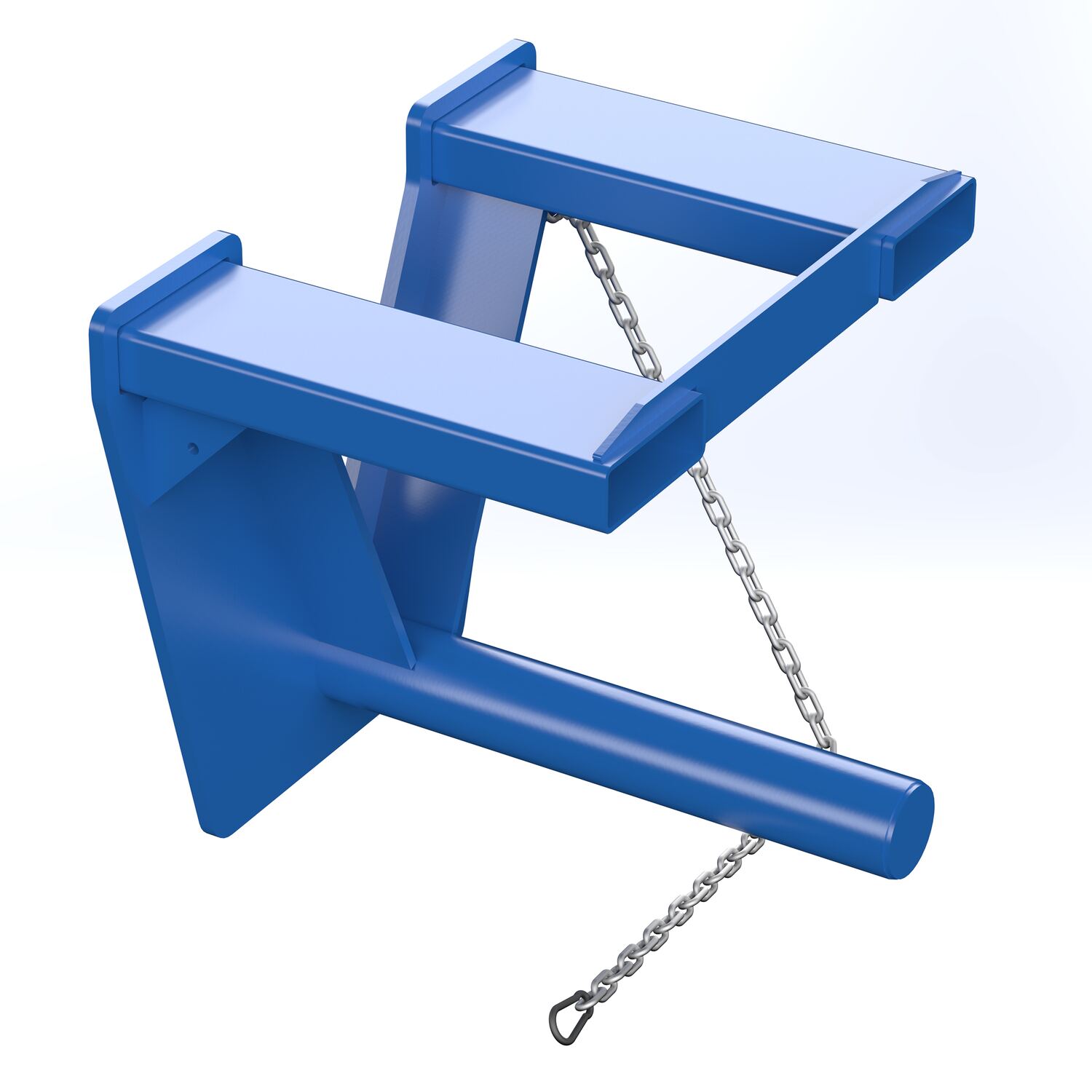

| CCF-24-4 |  | 90 Days Limited Warranty | Steel Coil Lifter Fork Mounted Inverted 24 In 3000 Lb Capacity Blue | Uniform Capacity (lb.): 3,000 Usable Ram Length (in.): 24 | 285 | ||

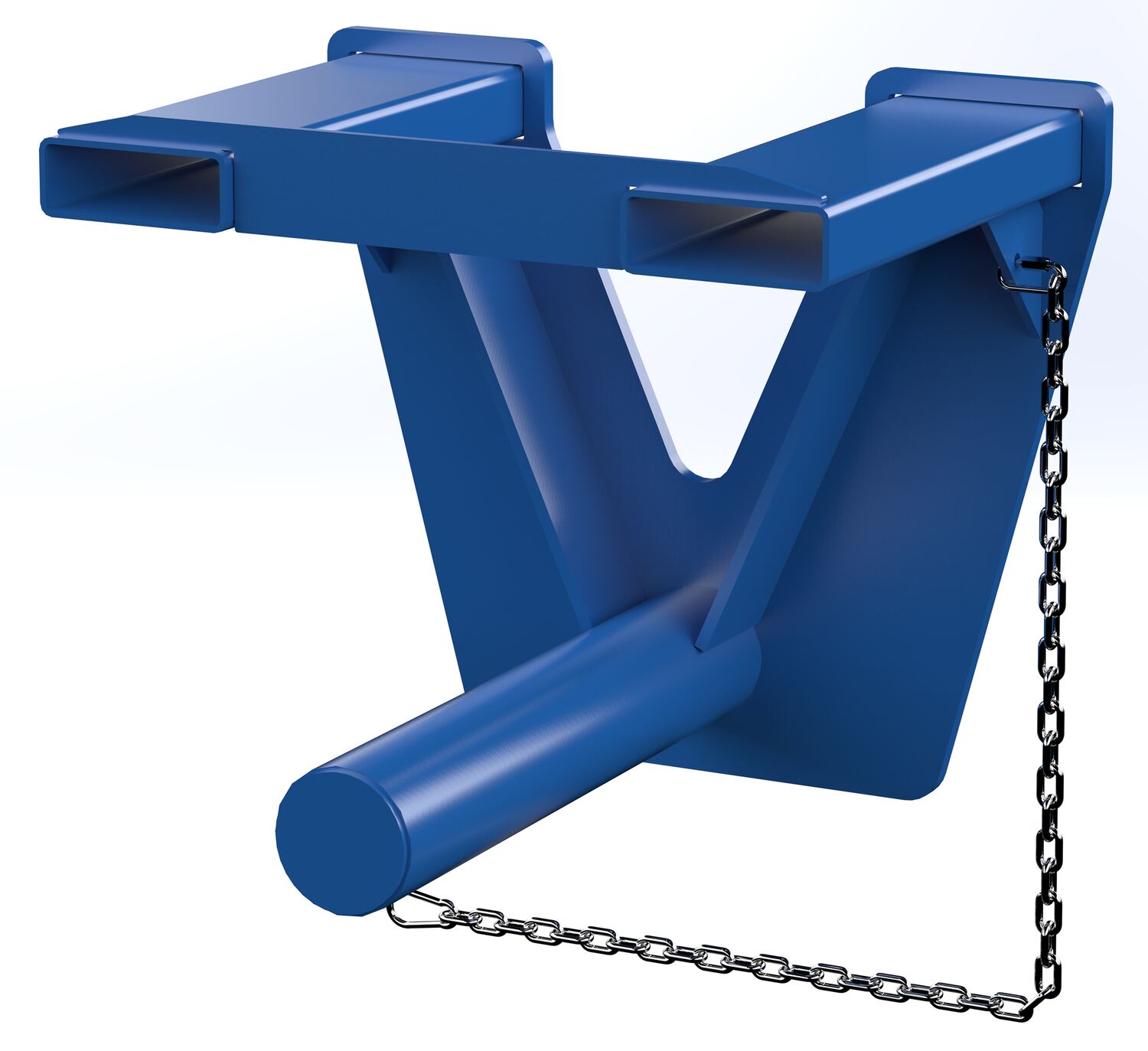

| CCF-24-5 | | 90 Days Limited Warranty | Steel Coil Lifter Fork Mounted Inverted 24 In 5500 Lb Capacity Blue | Uniform Capacity (lb.): 5,500 Usable Ram Length (in.): 24 | 295 | ||

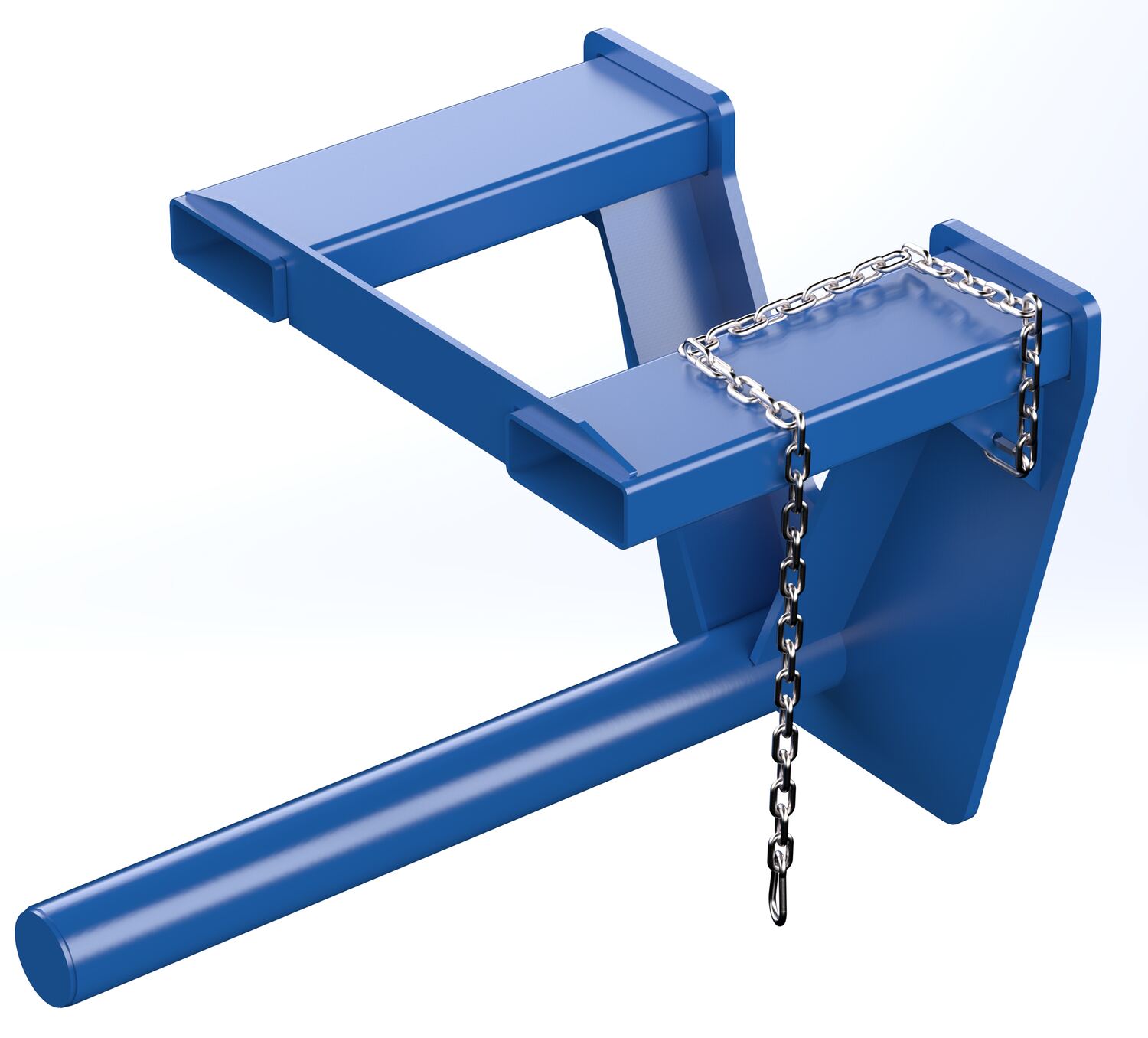

| CCF-36-4 | | 90 Days Limited Warranty | Steel Coil Lifter Fork Mounted Inverted 36 In 3000 Lb Capacity Blue | Uniform Capacity (lb.): 3,000 Usable Ram Length (in.): 36 | 295 | ||
| CCF-36-5 | | 90 Days Limited Warranty | Steel Coil Lifter Fork Mounted Inverted 36 In 5500 Lb Capacity Blue | Uniform Capacity (lb.): 5,500 Usable Ram Length (in.): 36 | 305 | ||

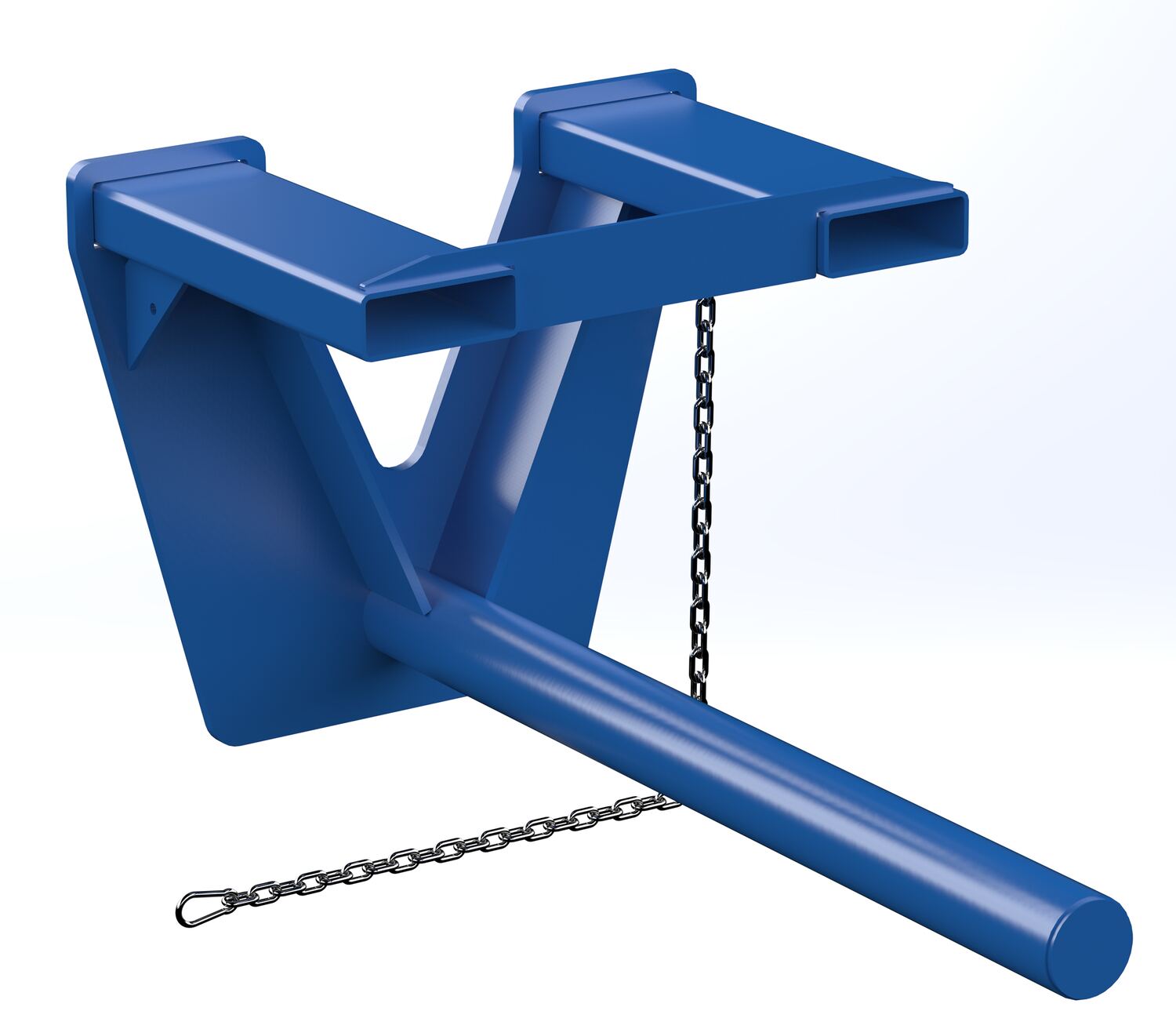

| CCF-48-4 |  | 90 Days Limited Warranty | Steel Coil Lifter Fork Mounted Inverted 48 In 3000 Lb Capacity Blue | Uniform Capacity (lb.): 3,000 Usable Ram Length (in.): 48 | 305 | ||

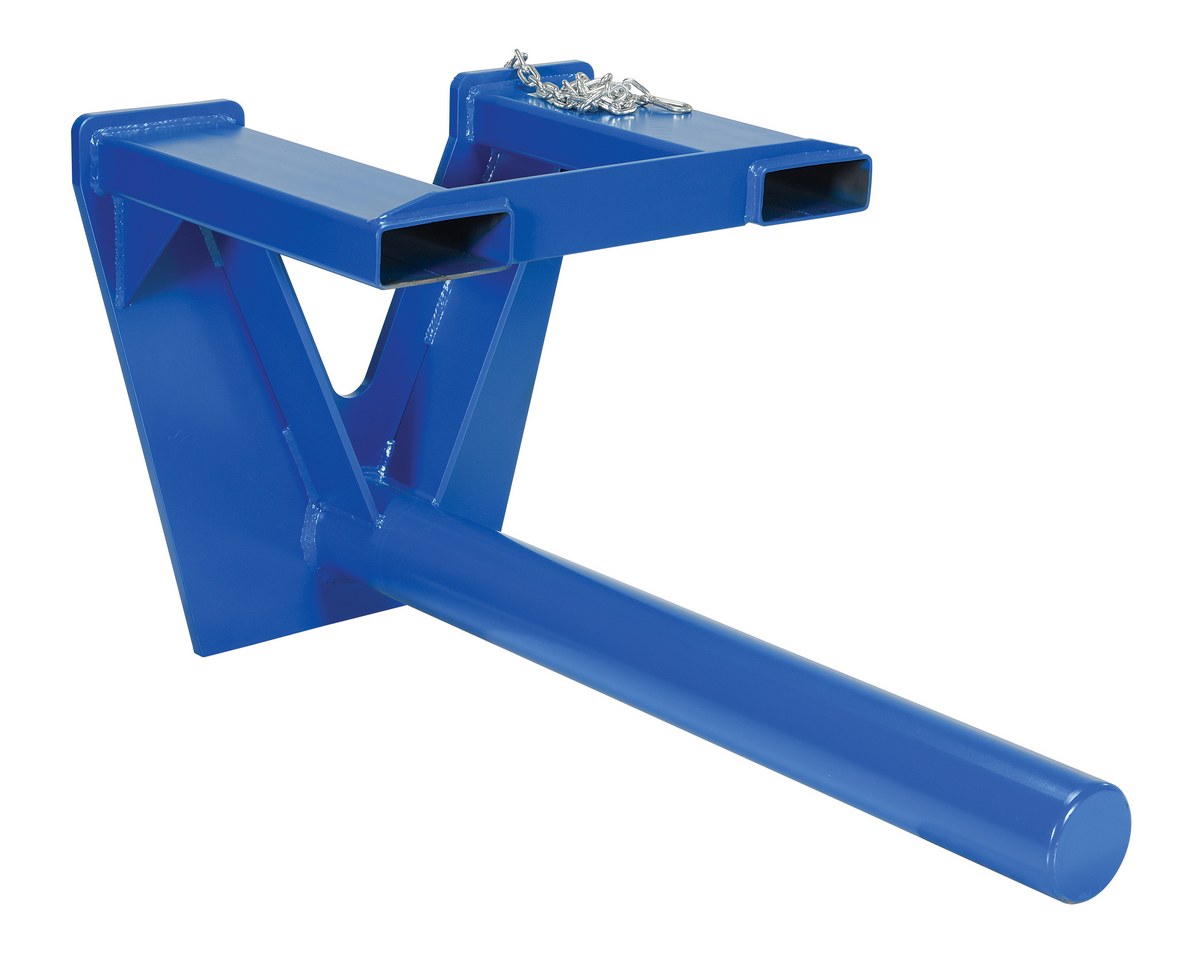

| CCF-48-5 | | 90 Days Limited Warranty | Steel Coil Lifter Fork Mounted Inverted 48 In 5500 Lb Capacity Blue | Uniform Capacity (lb.): 5,500 Usable Ram Length (in.): 48 | 340 | ||

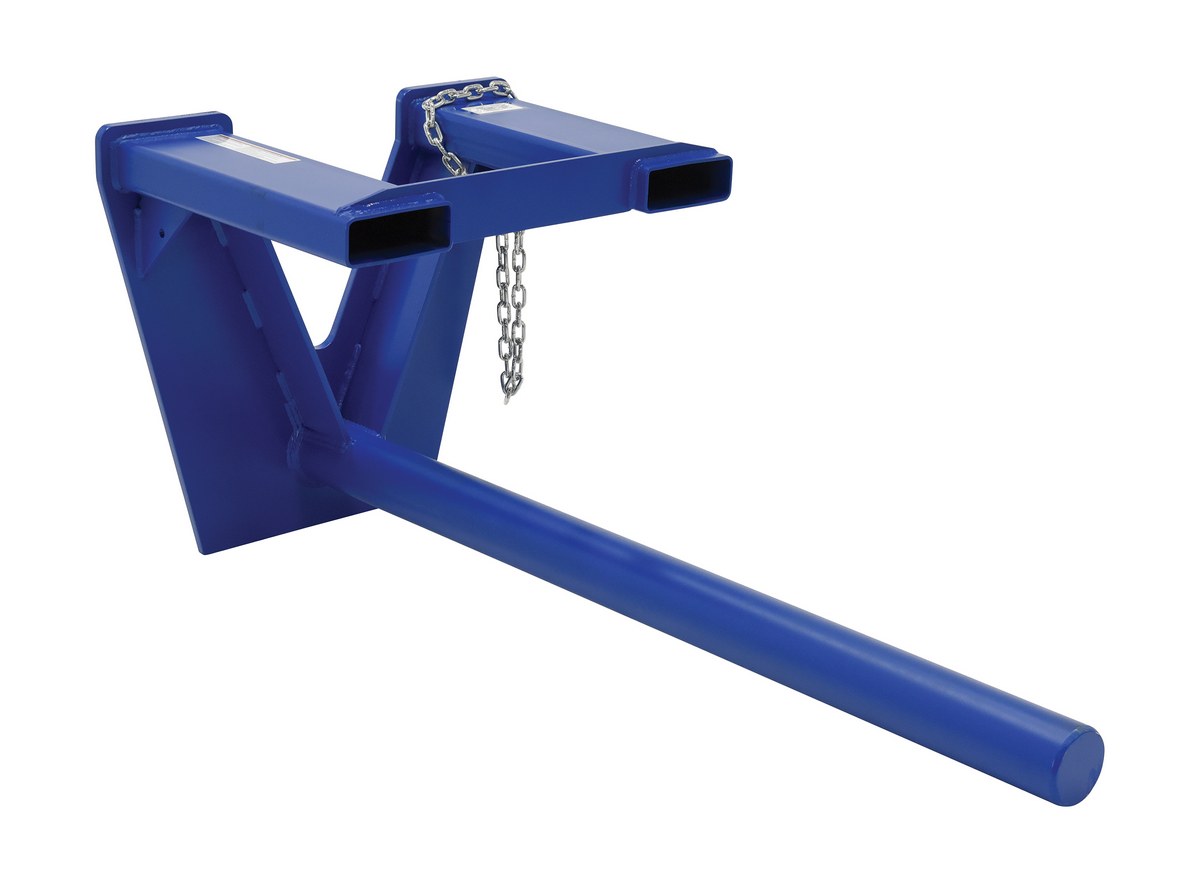

| CCF-60-4 | | 90 Days Limited Warranty | Steel Coil Lifter Fork Mounted Inverted 60 In 3000 Lb Capacity Blue | Uniform Capacity (lb.): 3,000 Usable Ram Length (in.): 60 | 325 | ||

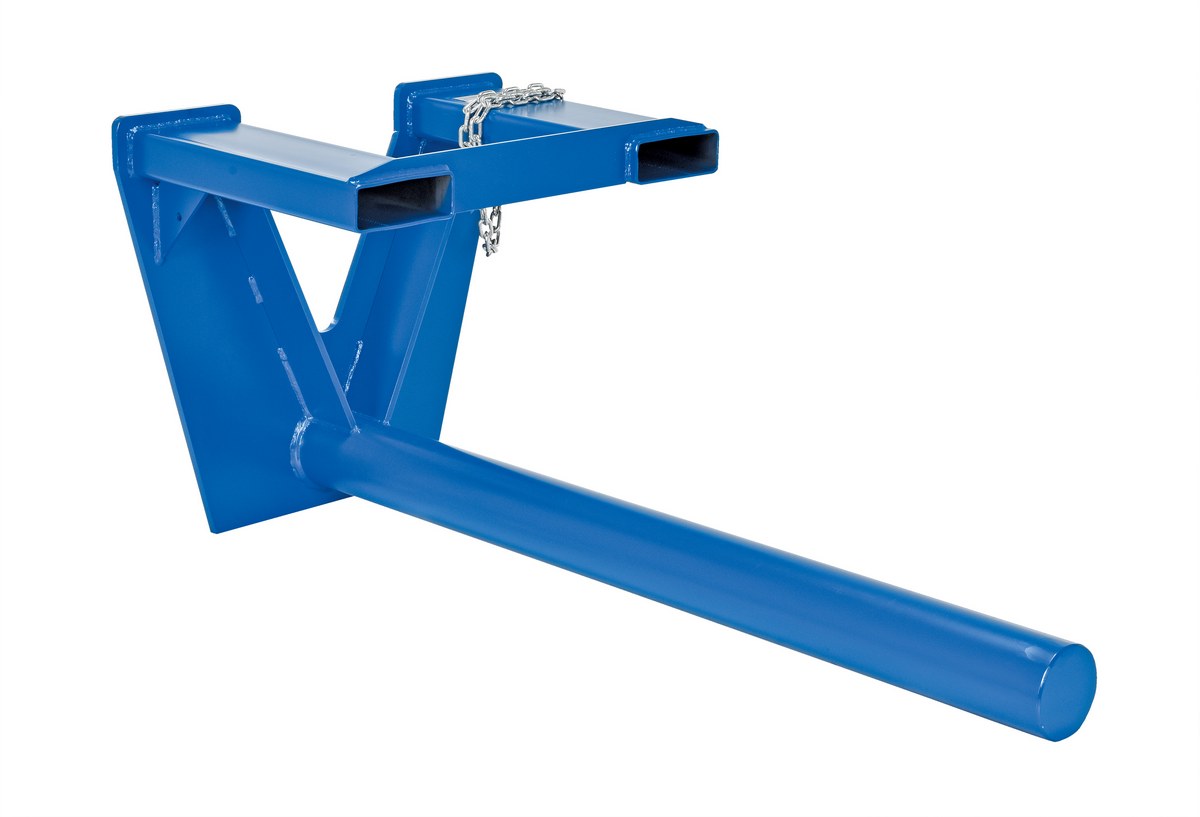

| CCF-60-5 |  | 90 Days Limited Warranty | Steel Coil Lifter Fork Mounted Inverted 60 In 5500 Lb Capacity Blue | Uniform Capacity (lb.): 5,500 Usable Ram Length (in.): 60 | 351 |
