Model Details

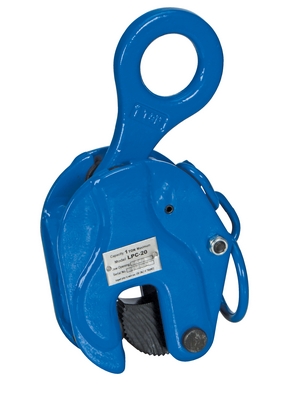

LPC-20

LPC-20

Steel Vertical Positive Locking Plate Clamp 10 In. x 3 In. x 5 In. 2000 Lb. Capacity Blue

The vertical positive locking plate clamp grips a sheet until release ring is pulled. Serrated gripper is hardened tool steel. Forged head and gear. Lift only one (1) clean, oil free plate at a time. Safety factor is 2 to 1. Not designed to use on stainless steel or aluminum plates. For use with materials with a surface hardness to 30 RC (300 HB).

  • Heavy-duty steel construction offers long lasting reliable use
  • Unique design lifts plate material in a vertical position
  • Locking mechanism offers maximum safety
  • Meets ASME B30.20 specifications
Total Ship Wt.(lbs.): 9 (only 1 package) Size: 3"W x 10"L x 5"H Color: Blue

Uniform Working Load Limit (lb.): 2,000 Minimum Uniform Plate Weight (lb.): 400 Minimum Plate Thickness (in.): zero
Maximum Plate Thickness (in.): 0.80 Throat Depth (in.): 2.3 Bale Opening Degree (in.): 1.75

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?

Parcel - Can Go UPS

Image Gallery

PDF Documents

Details For Model: LPC-20


LPC-20

Steel Vertical Positive Locking Plate Clamp 10 In. x 3 In. x 5 In. 2000 Lb. Capacity Blue

The vertical positive locking plate clamp grips a sheet until release ring is pulled. Serrated gripper is hardened tool steel. Forged head and gear. Lift only one (1) clean, oil free plate at a time. Safety factor is 2 to 1. Not designed to use on stainless steel or aluminum plates. For use with materials with a surface hardness to 30 RC (300 HB).

  • Heavy-duty steel construction offers long lasting reliable use
  • Unique design lifts plate material in a vertical position
  • Locking mechanism offers maximum safety
  • Meets ASME B30.20 specifications
Dimensions: 3"W x 10"L x 5"H Sell UOM: EA-Each Color: Blue
Material: Steel UPC: 691215054553 GTIN: 00691215054553
Warranty: -- Shipping Weight: 9 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: China
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Working Load Limit (lb.): 2,000 Minimum Uniform Plate Weight (lb.): 400 Minimum Plate Thickness (in.): zero
Maximum Plate Thickness (in.): 0.80 Throat Depth (in.): 2.3 Bale Opening Degree (in.): 1.75
