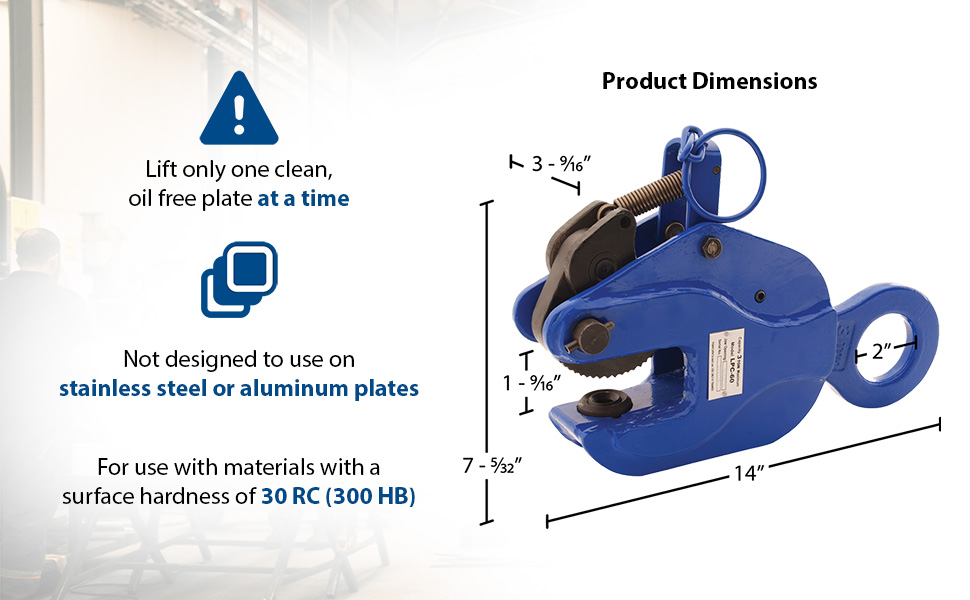

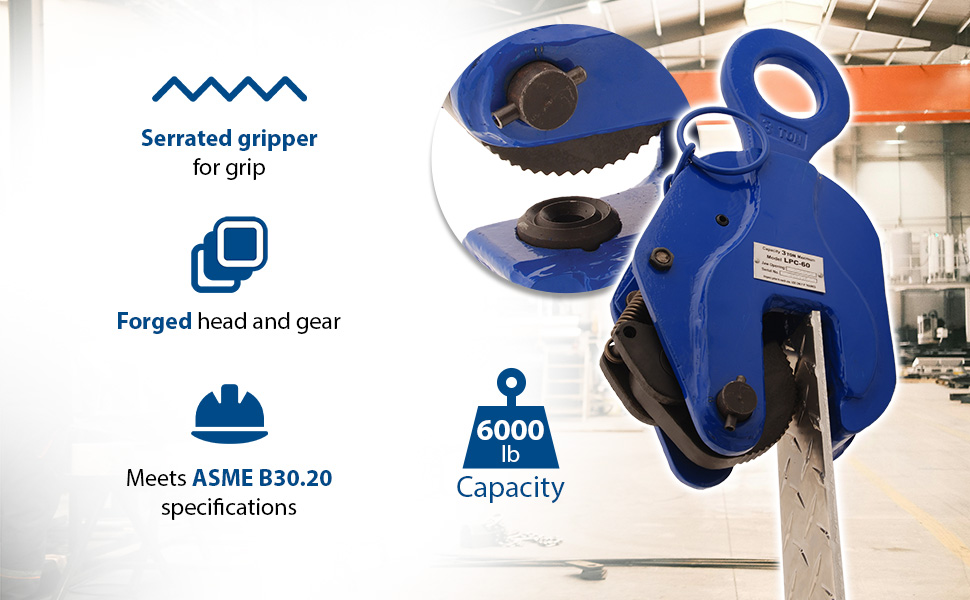

Positive Locking Plate ClampsGrips sheet until release ring is pulled. Serrated gripper is hardened tool steel. Forged head and gear. Safety factor is 2 to 1. Power coated finish. Designed to meet ASME B30.20 standards. Do not use plate clamps to lift loads less than 20% of rated capacity. Lift only one plate at a time. Plate must be clean and free of oil. Not designed to use on stainless steel or aluminum plates. For use with materials with a surface hardness to 30 RC (300 HB).
- Heavy-duty steel construction offers long lasting reliable use
- Unique design lifts plate material in a vertical position
- Locking mechanism offers maximum safety
- Meets ASME B30.20 specifications
Vertical Plate Clamps
Horizontal Plate Clamps
Heavy-Duty Die Lifting Tongs
All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
| Model # | Description | Attributes | Net Wt. (lbs) |
||||
|---|---|---|---|---|---|---|---|

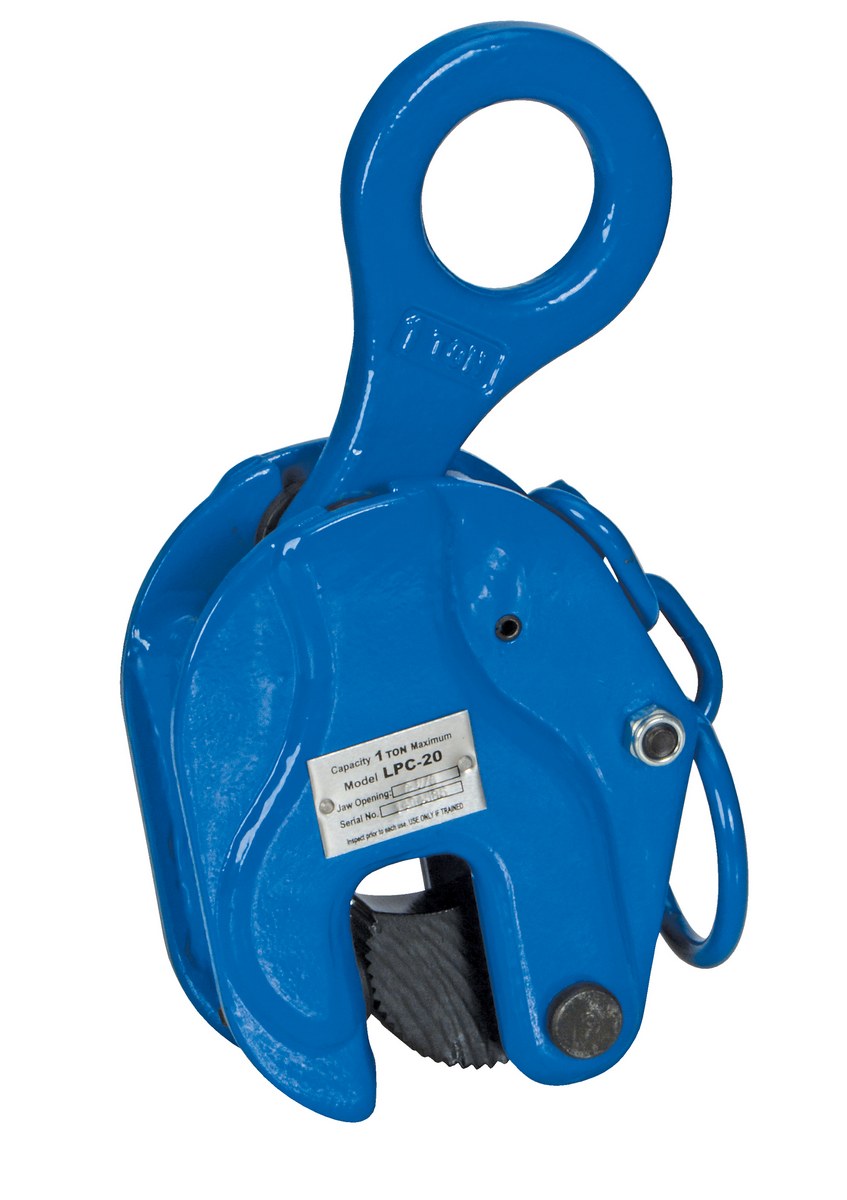

| LPC-20 |  | 90 Days Limited Warranty | Steel Vertical Positive Locking Plate Clamp 10 In. x 3 In. x 5 In. 2000 Lb. Capacity Blue | Uniform Working Load Limit (lb.): 2,000 Minimum Uniform Plate Weight (lb.): 400 | 9 | ||

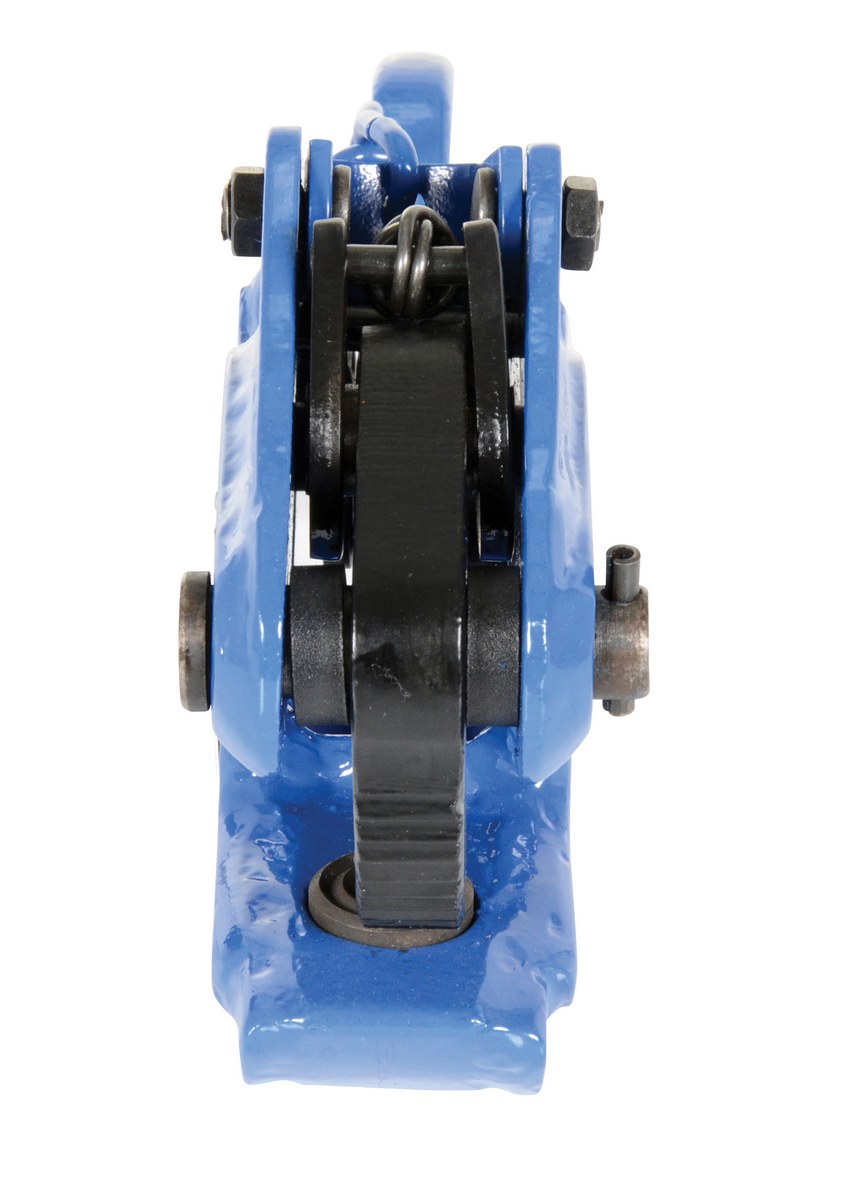

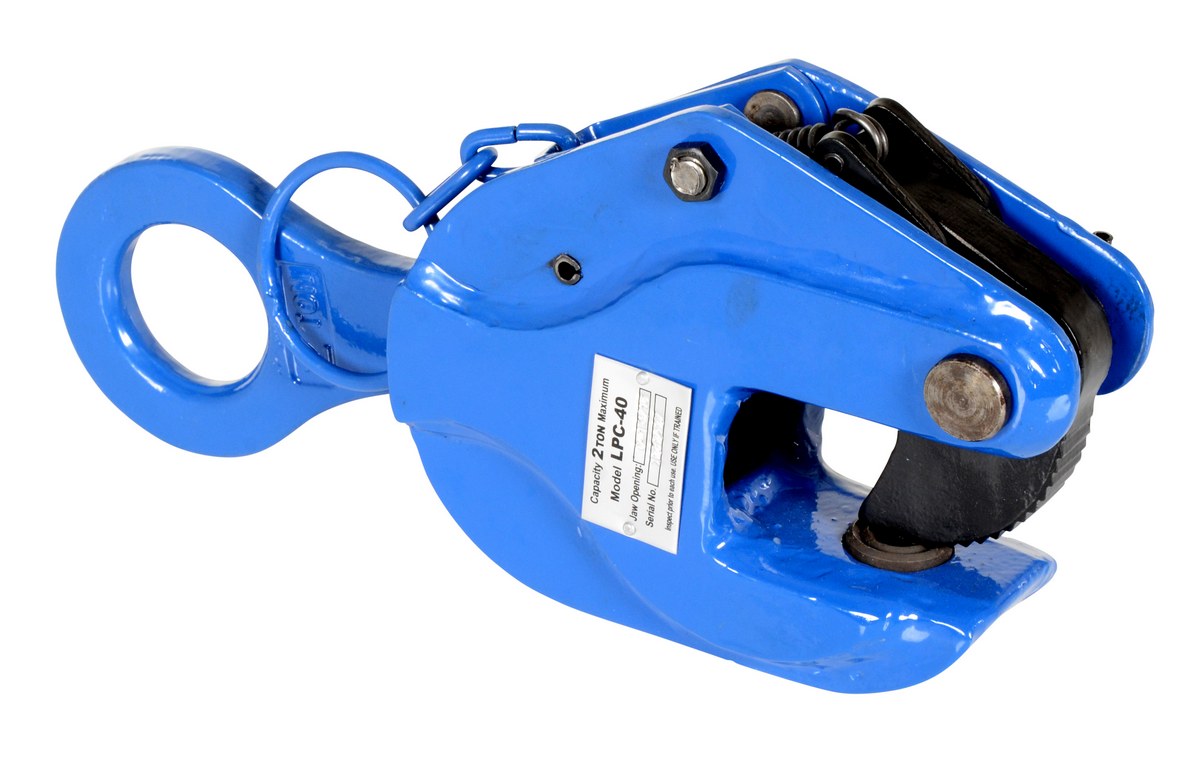

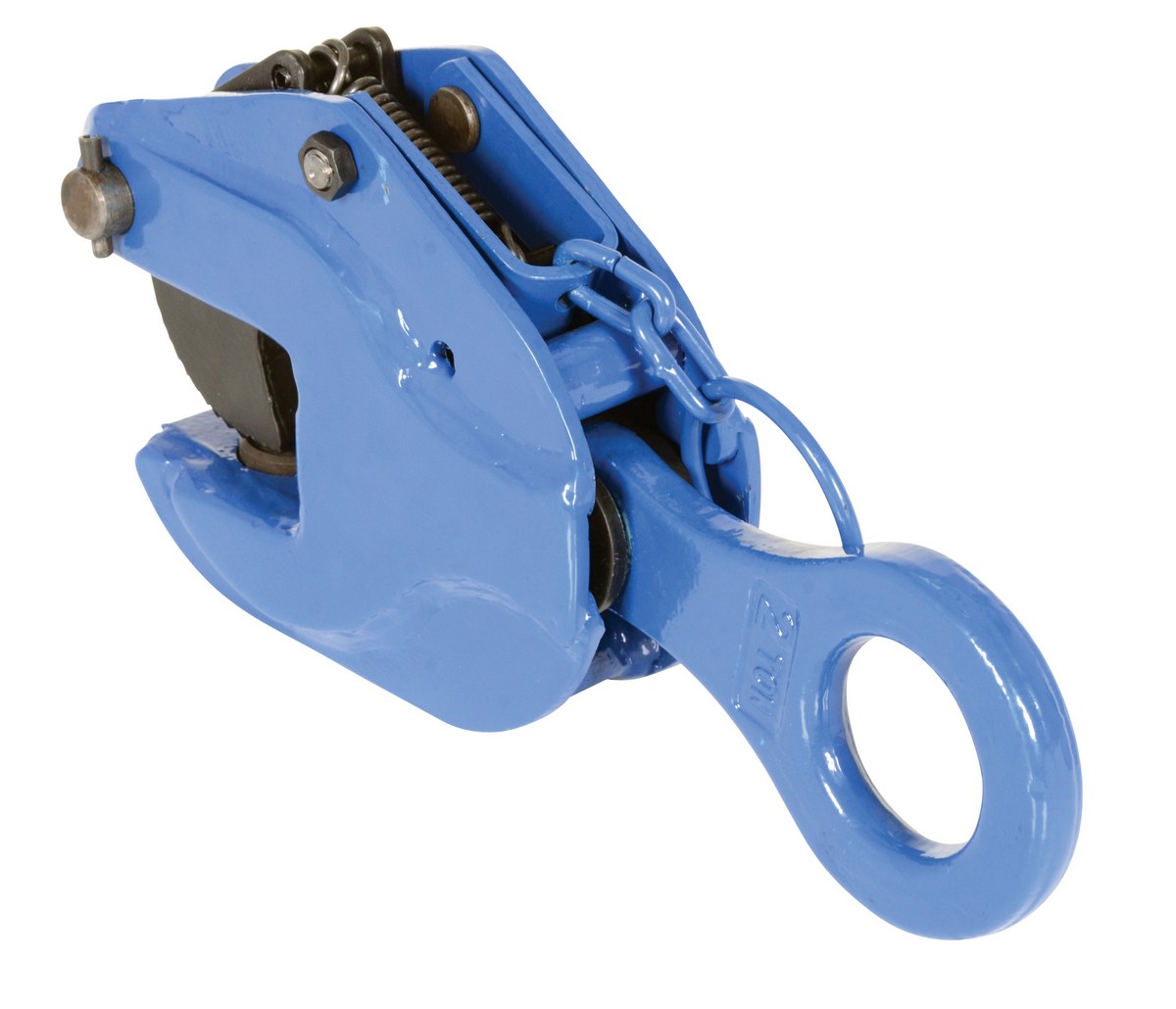

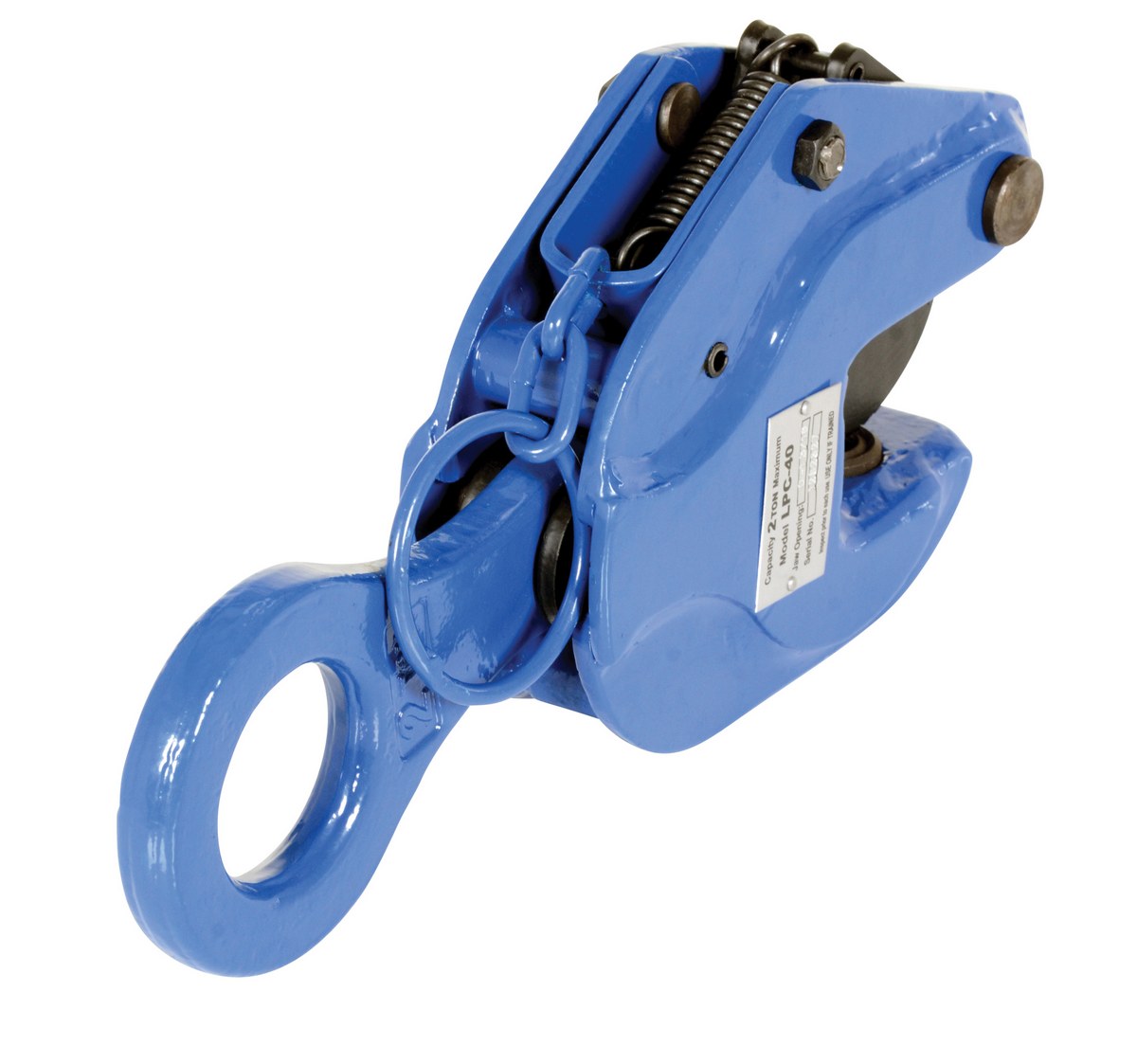

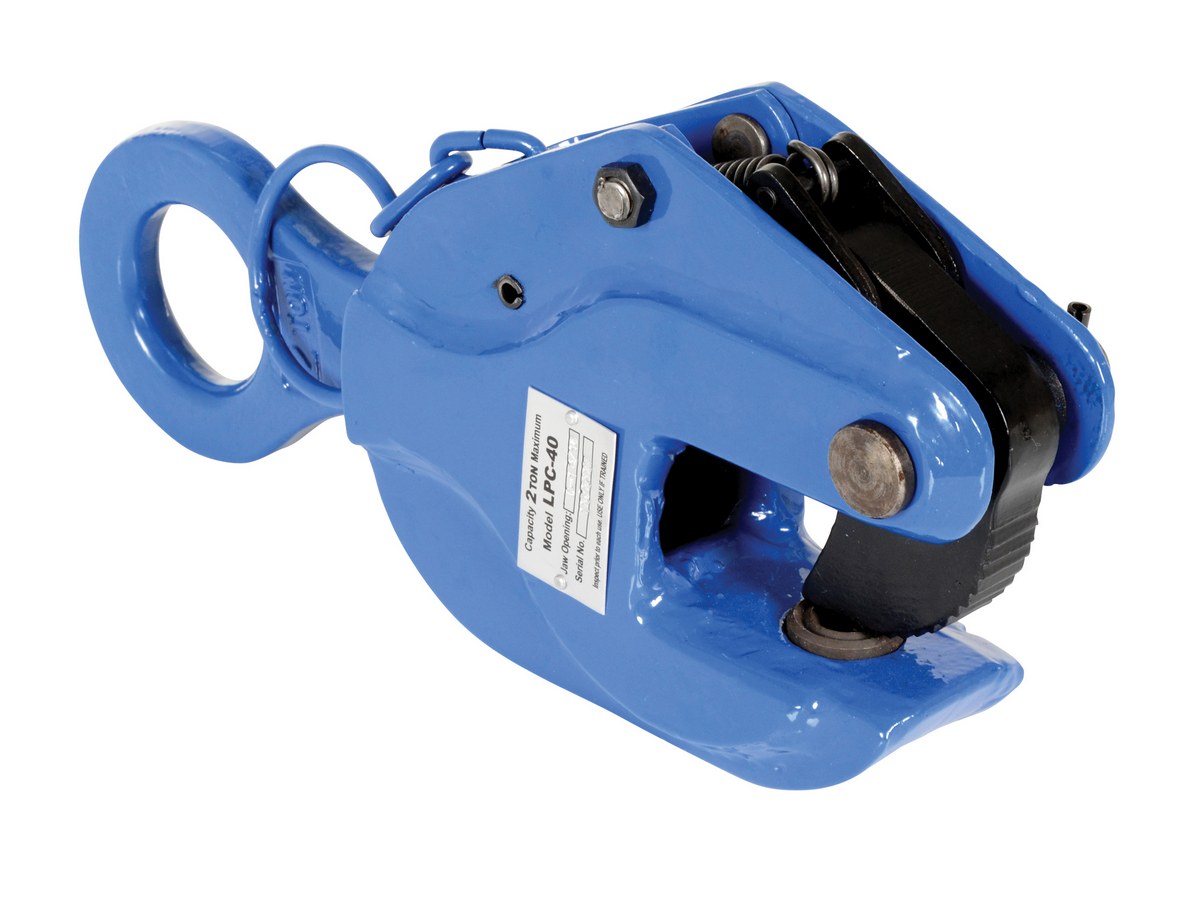

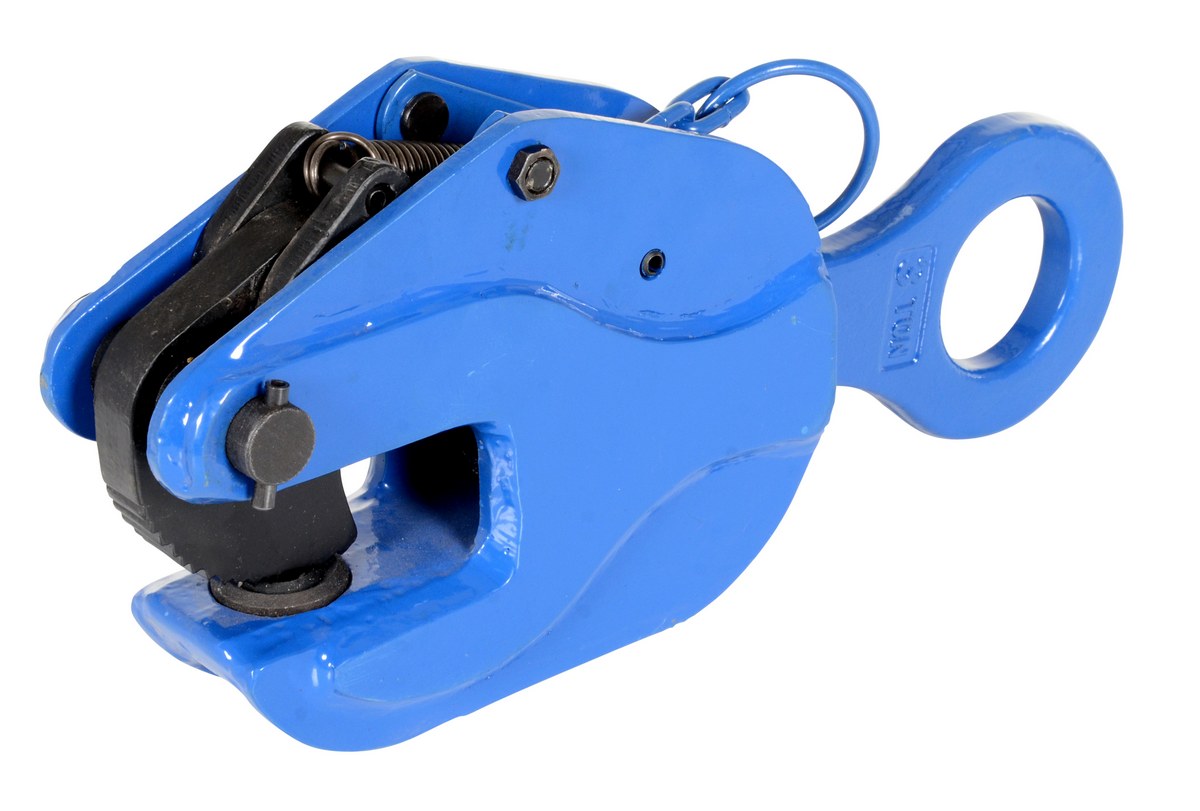

| LPC-40 |  | 90 Days Limited Warranty | Steel Vertical Positive Locking Plate Clamp 12 In. x 3-1/2 In. x 7-1/2 In. 4000 Lb. Capacity Blue | Uniform Working Load Limit (lb.): 4,000 Min Uniform Plate Weight (lb.): 800 | 13 | ||

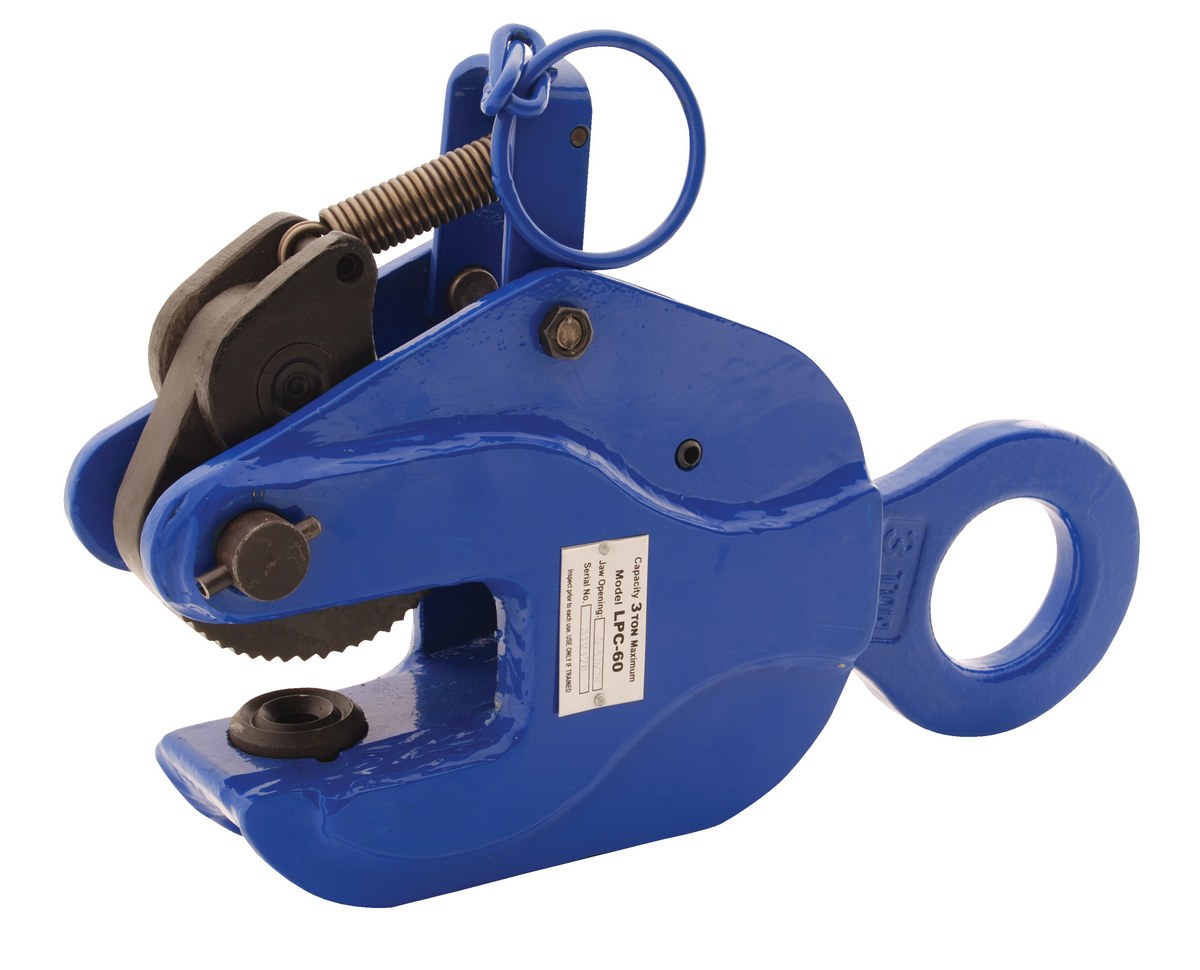

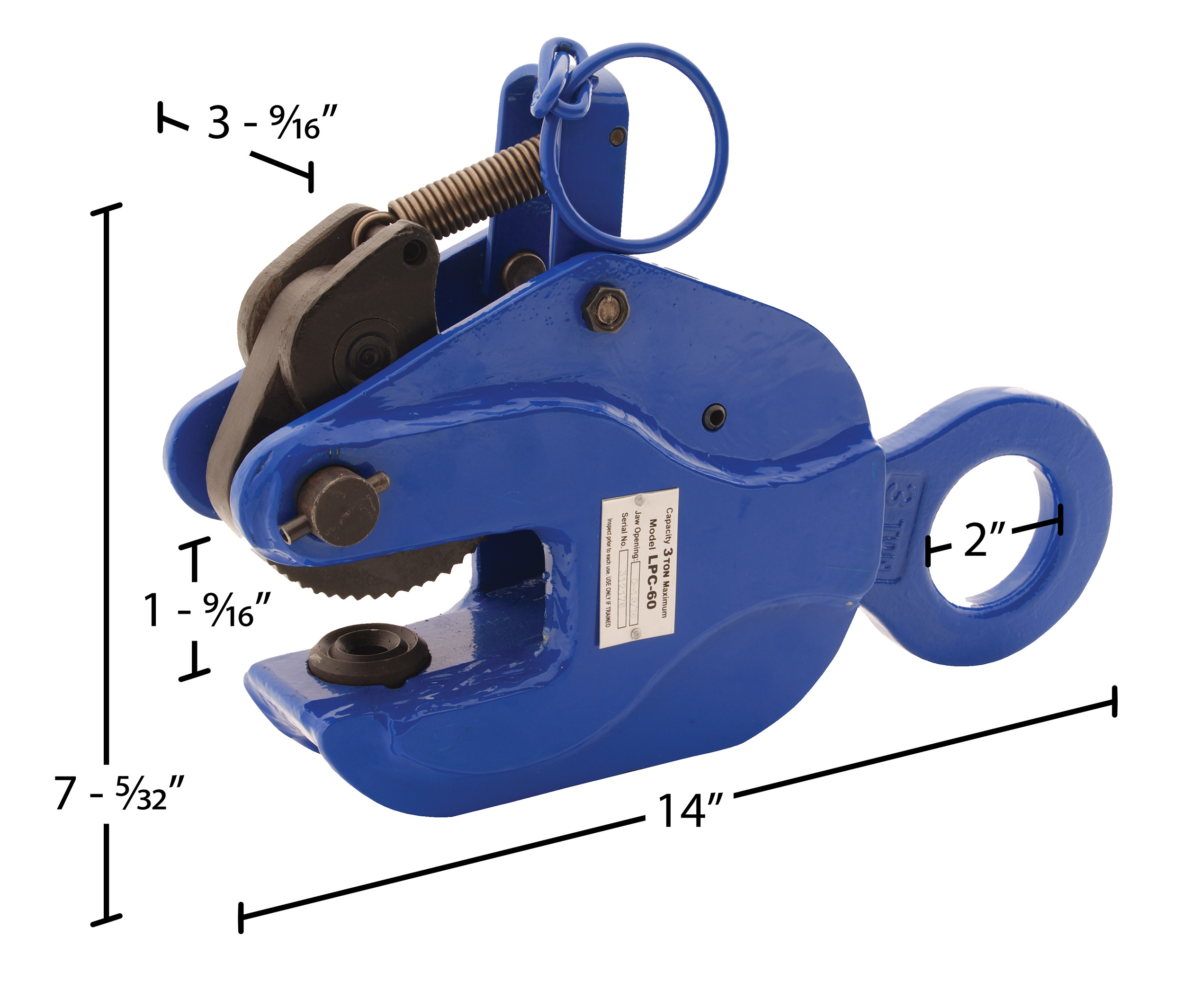

| LPC-60 |  | 90 Days Limited Warranty | Steel Vertical Positive Locking Plate Clamp 15 In. x 4 In. x 8 In. 6000 Lb. Capacity Blue | Uniform Working Load Limit (lb.): 6,000 Min Uniform Plate Weight (lb.): 1,200 | 21 |
KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Working Load Limit (lb.): 2,000
Minimum Uniform Plate Weight (lb.): 400
Uniform Working Load Limit (lb.): 2,000
Minimum Uniform Plate Weight (lb.): 400
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Working Load Limit (lb.): 4,000
Min Uniform Plate Weight (lb.): 800
Uniform Working Load Limit (lb.): 4,000
Min Uniform Plate Weight (lb.): 800
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Working Load Limit (lb.): 6,000
Min Uniform Plate Weight (lb.): 1,200
Uniform Working Load Limit (lb.): 6,000
Min Uniform Plate Weight (lb.): 1,200
