Electric Powered Tuggers

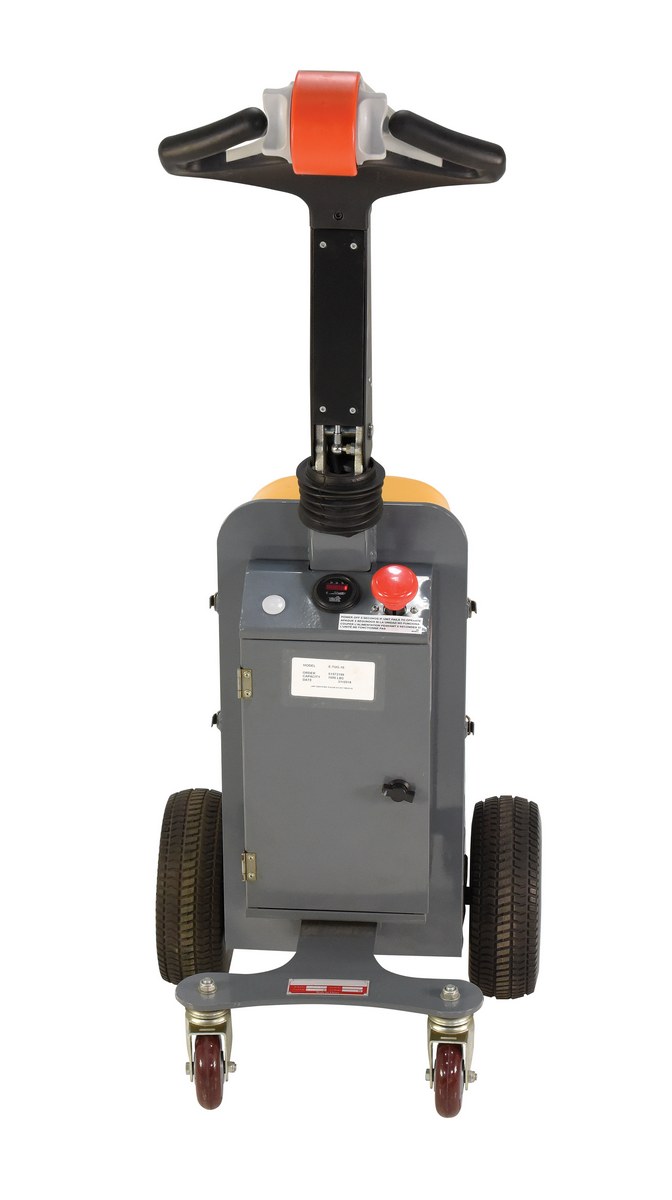

model: E-TUG-10

Electric Powered Tuggers

SERIES: E-TUG, E-TUG-HD 28Products 18Options

Battery Powered Electric Tuggers for Industrial Cart and Trailer Pulling

Battery powered electric tuggers provide a safe and efficient solution for moving carts, trailers, hoppers, dumpsters, and heavy rolling loads in warehouses, hospitals, airports, manufacturing facilities, and retail environments. Designed to reduce operator strain and improve material handling productivity, these powered tow units help eliminate the physical demands associated with manual pushing and pulling.

Key Features & Benefits

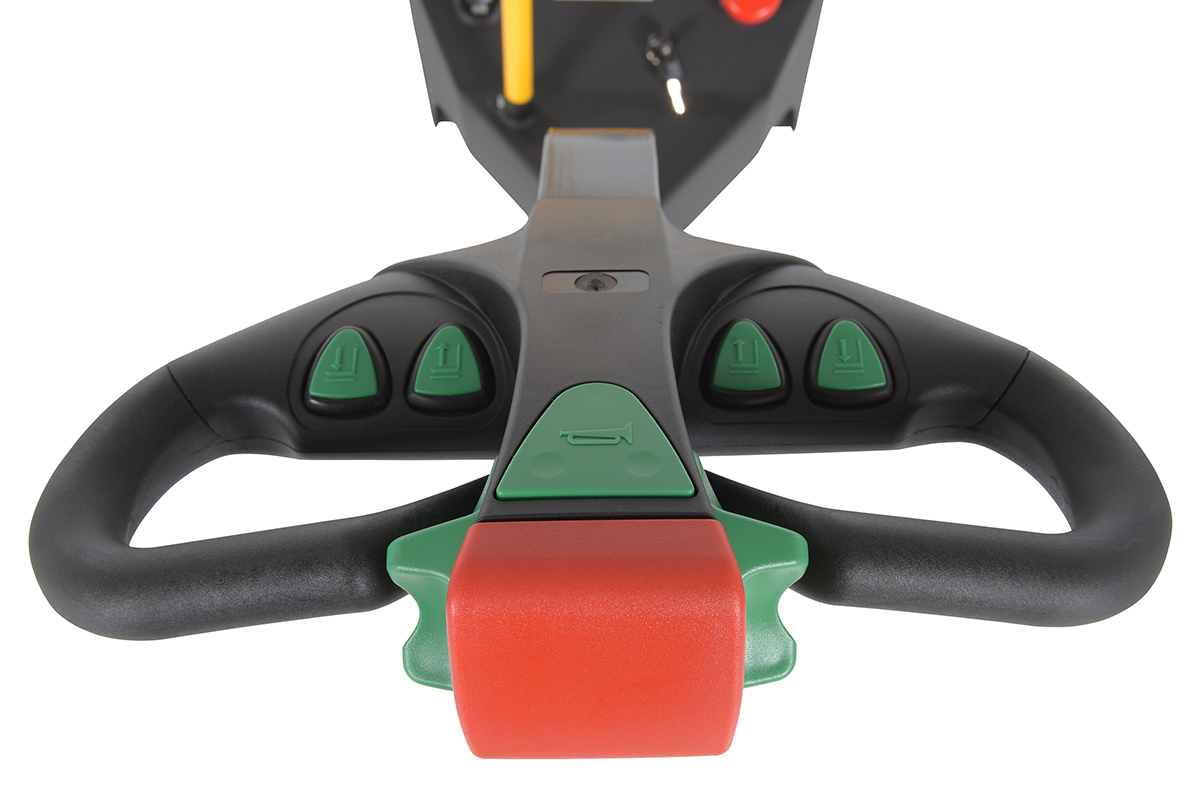

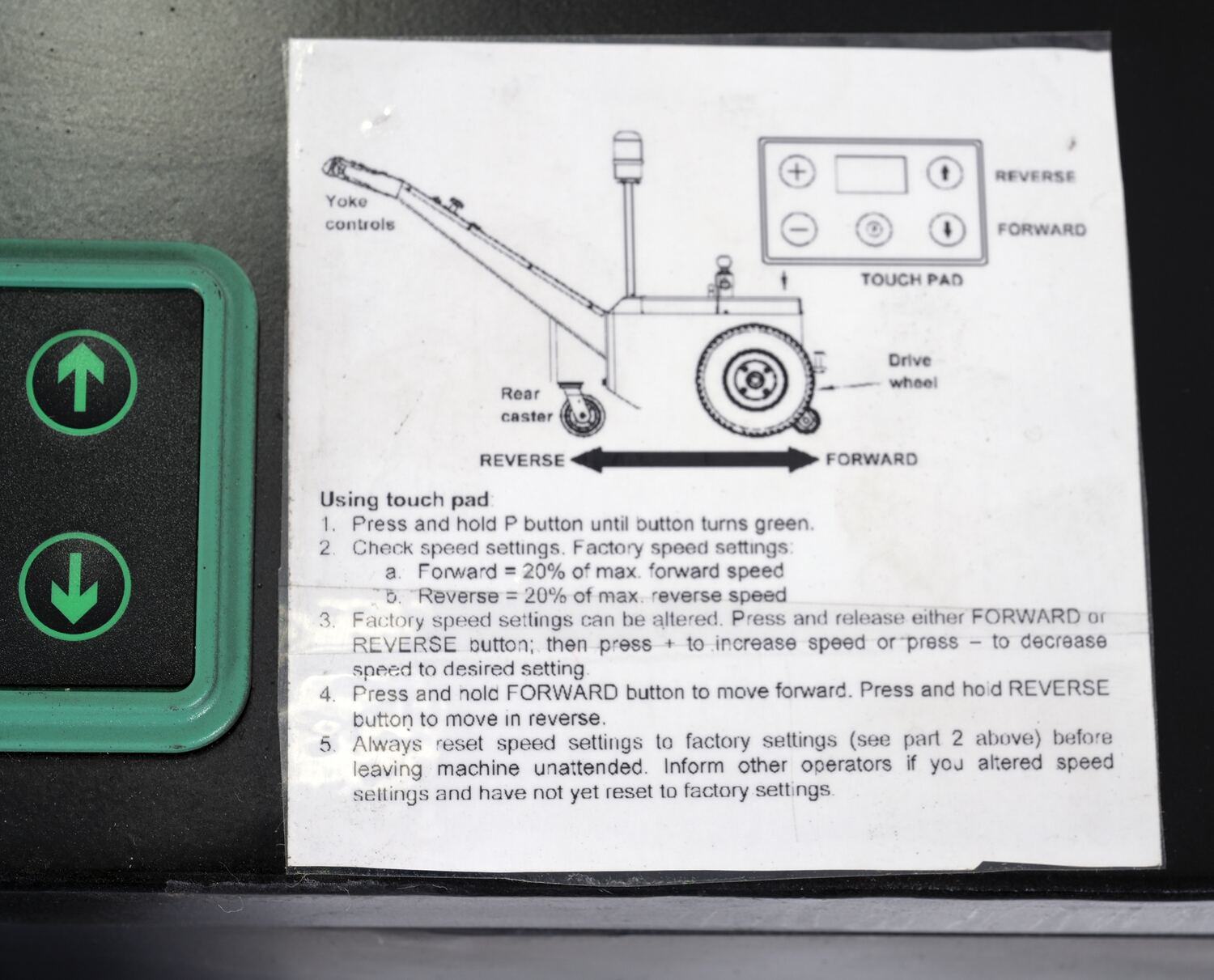

Powered by high-torque 24V DC drive systems, these electric tuggers deliver smooth and controlled movement for both light-duty and heavy-duty towing applications. Ergonomic controls feature variable forward and reverse speeds, integrated horn functions, and easy-to-operate throttles for enhanced maneuverability and operator comfort. An electromagnetic disc brake with automatic dead-man activation improves safety by engaging when the handle is released. Standard onboard battery chargers and battery level indicators simplify charging and daily operation.

Applications & Configurations

Available in multiple towing capacities and heavy-duty configurations, these industrial tugger units support a wide variety of material handling tasks. Optional hitch systems, ball mounts, pin hitches, roller push attachments, rubber bumpers, and multi-mover accessories allow users to customize the tugger for specialized carts, trailers, RV applications, and industrial transport systems. Heavy-duty models provide enhanced pulling performance for demanding commercial and industrial operations.

24V DC POWERED

Move loads without excessive stress or strain on the user's body!

New 12,000 Lb. model & Fifth Wheel Hitch RV model!
model E-TUG-HD-120	model E-TUG-HD-100-RV

Contact Vestil For A Quote On Custom Attachments

E-TUG-HD shown with E-TUG-HD-RPB-19 Rubber Bumper Attachment

Electric Powered Tuggers

model: E-TUG-10

	Model #				Description	Attributes	Net Wt. (lbs)

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= New Images Coming Soon! = Dimension Image = Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below

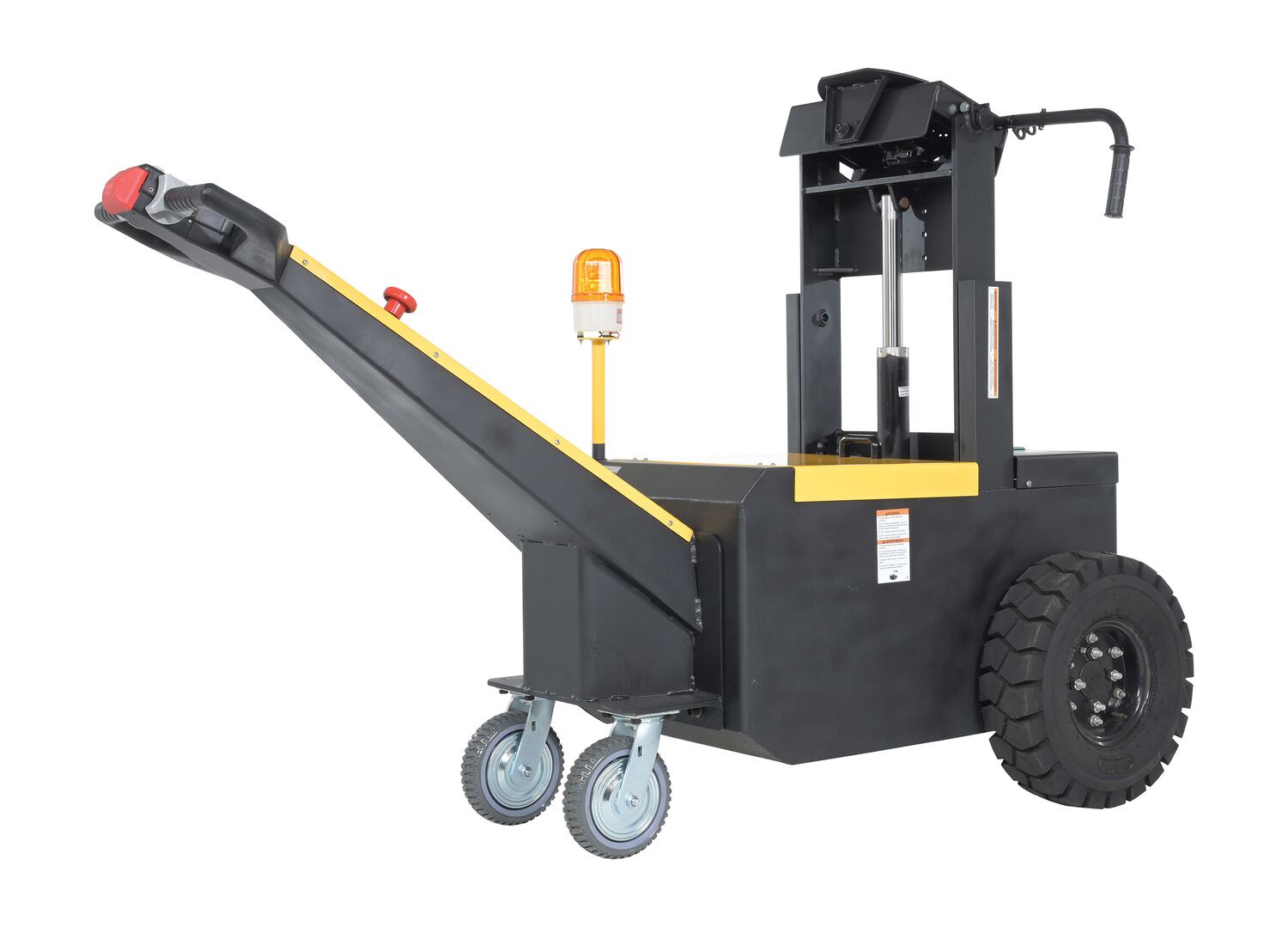

E-TUG-HD-100-RV

E-TUG-HD-RPB-19

E-TUG-HD-SLPINH

For More Details of the Option Click the Red Model Button

Model	Image	Details	Icons	Wt.

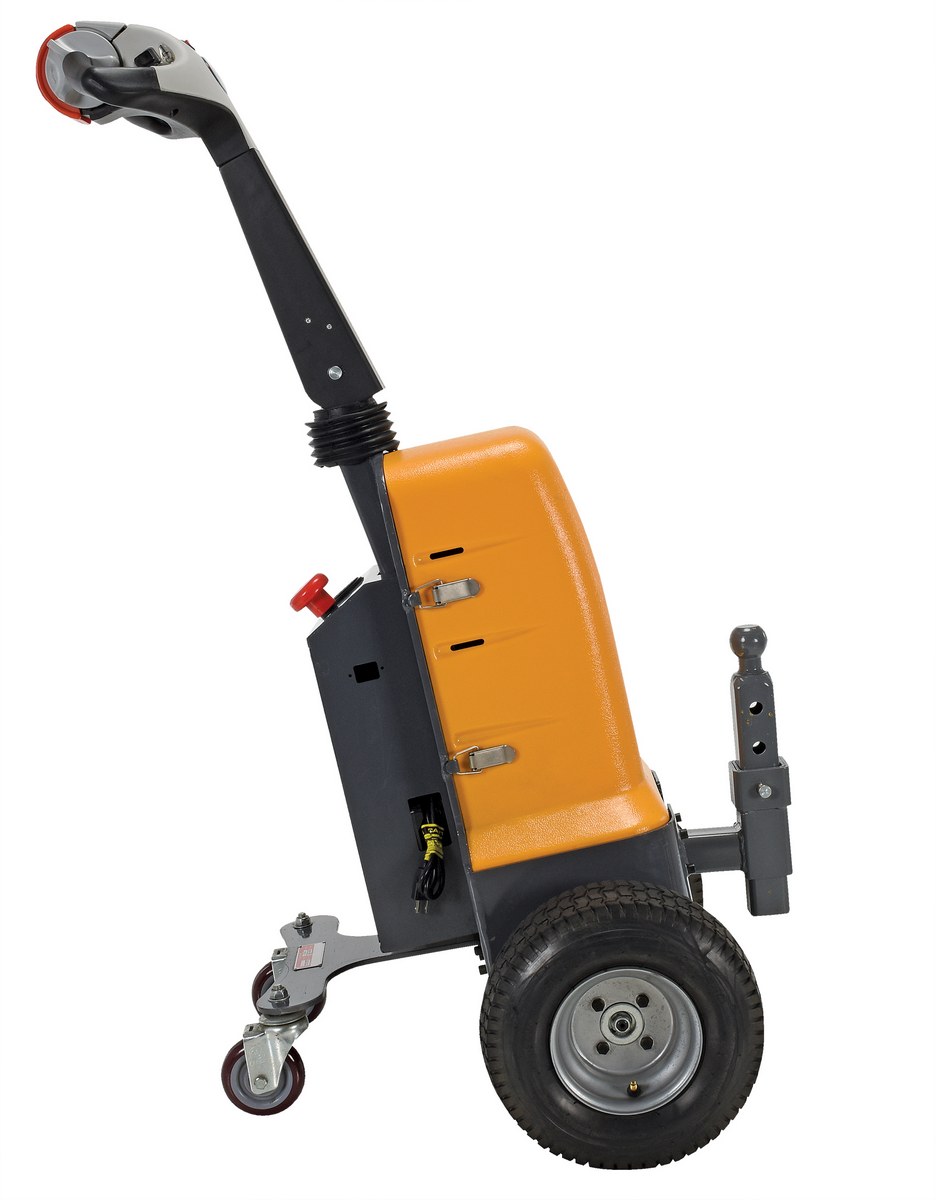

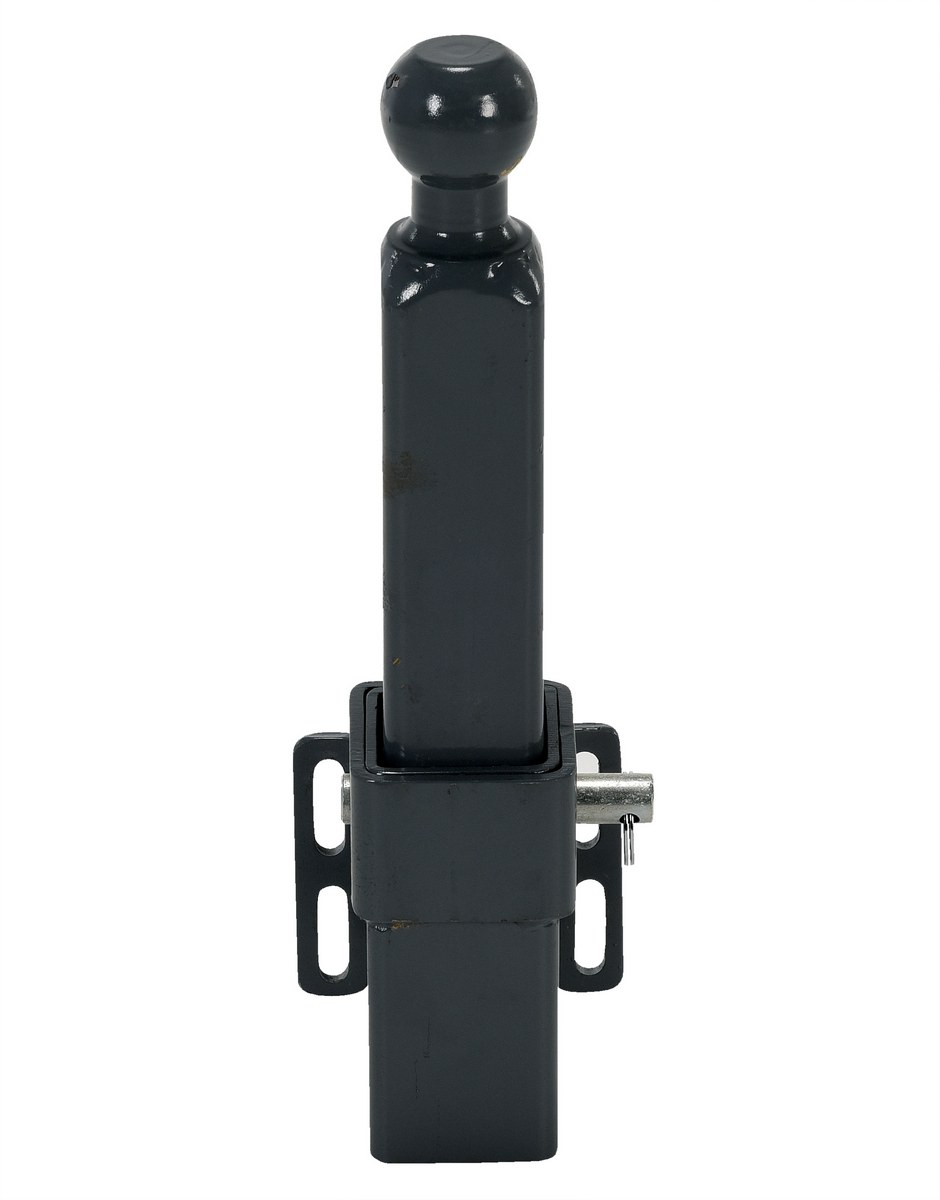

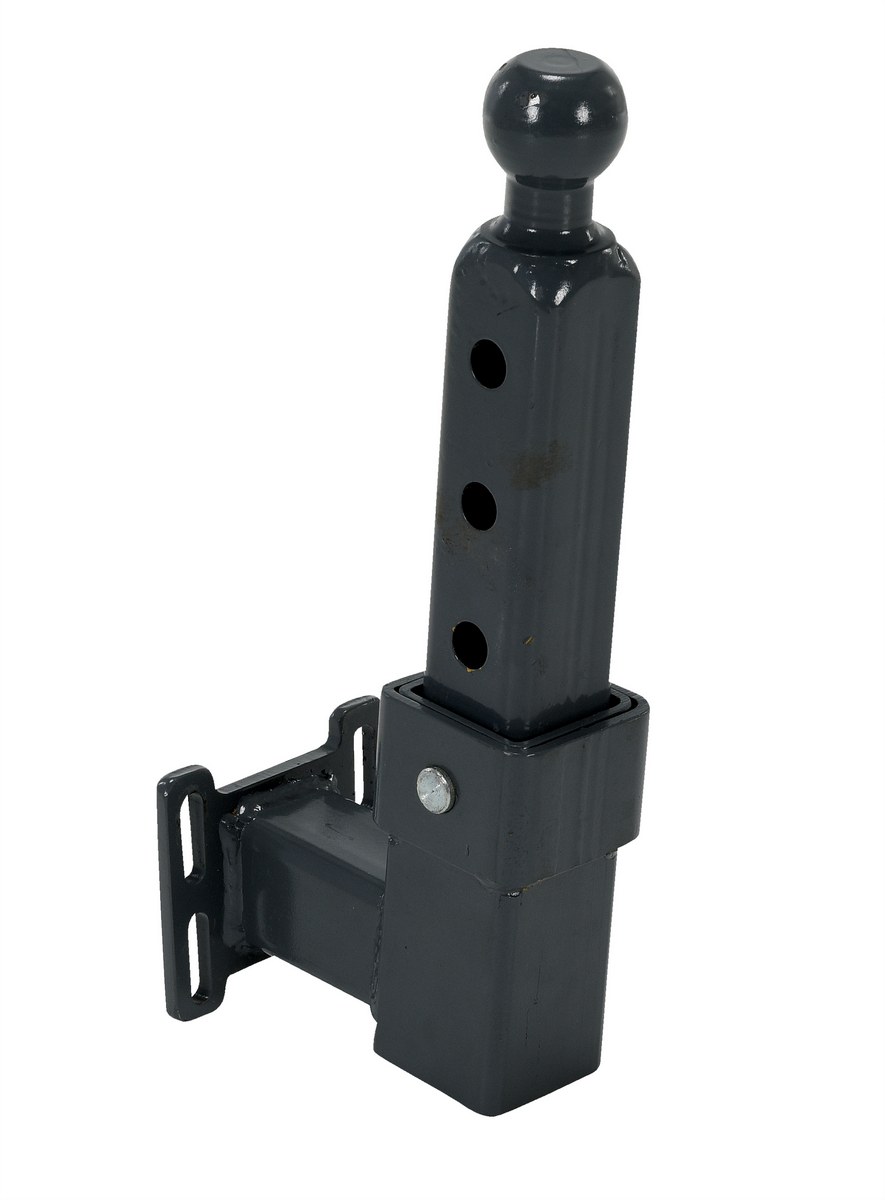

E-TUG-ABMH		Steel Adjustable Ball Mount Hitch For E-Tug Models	90 Days Limited Warranty	12

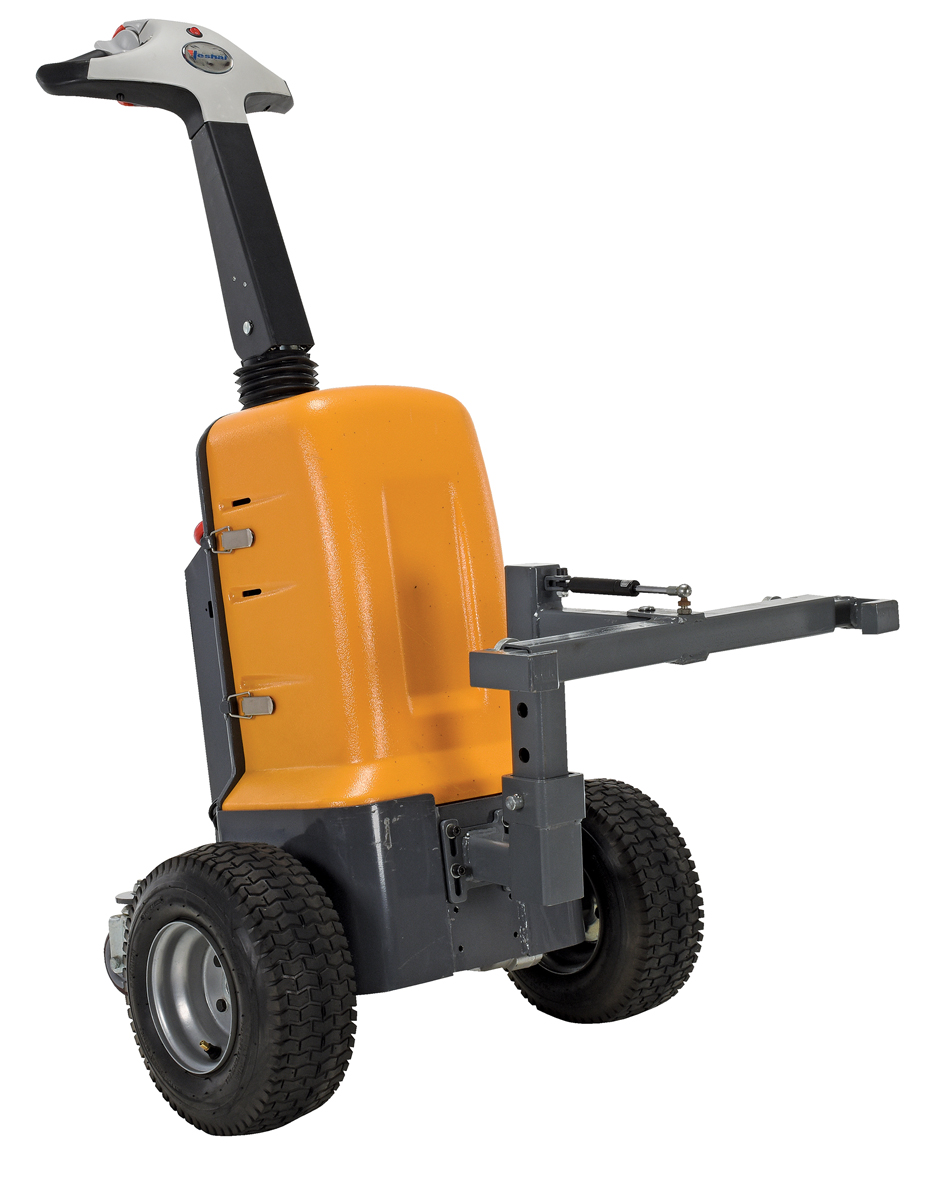

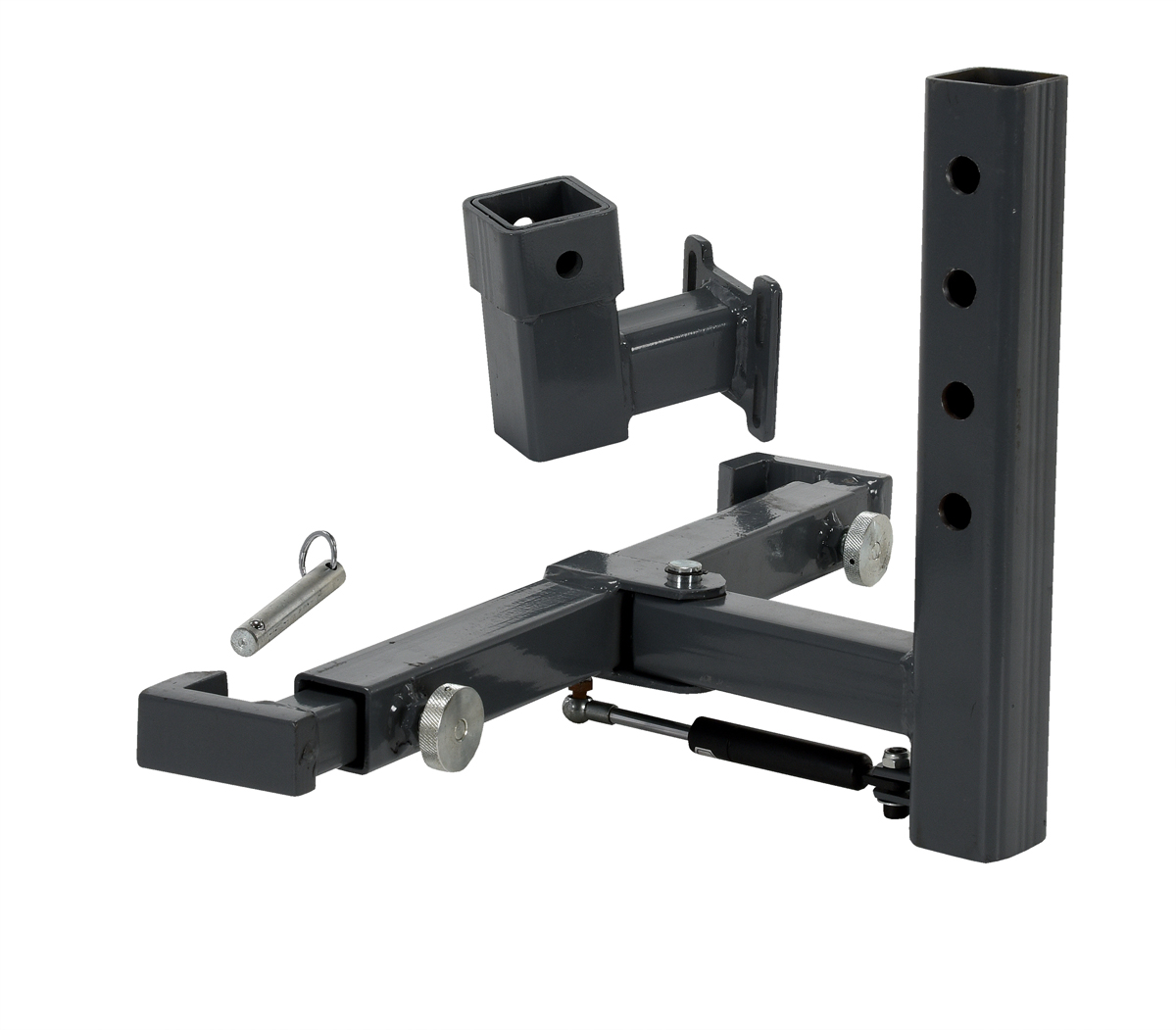

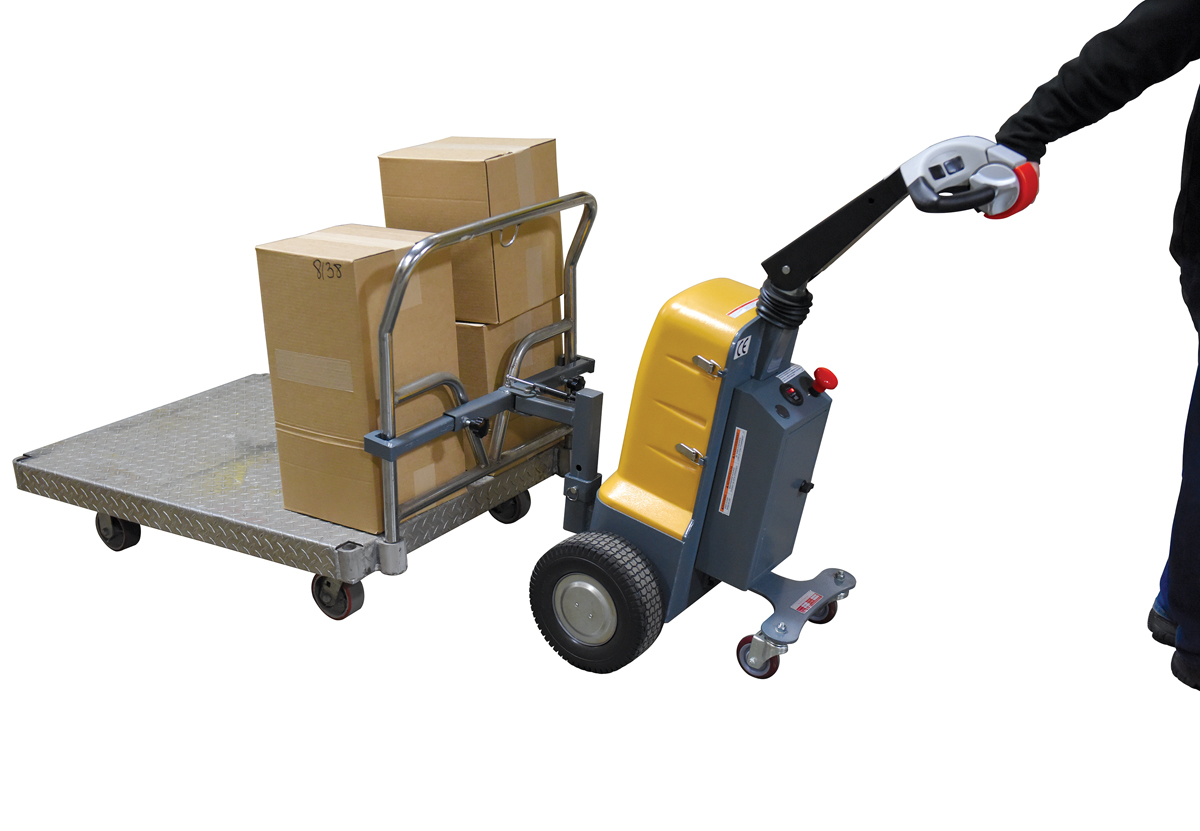

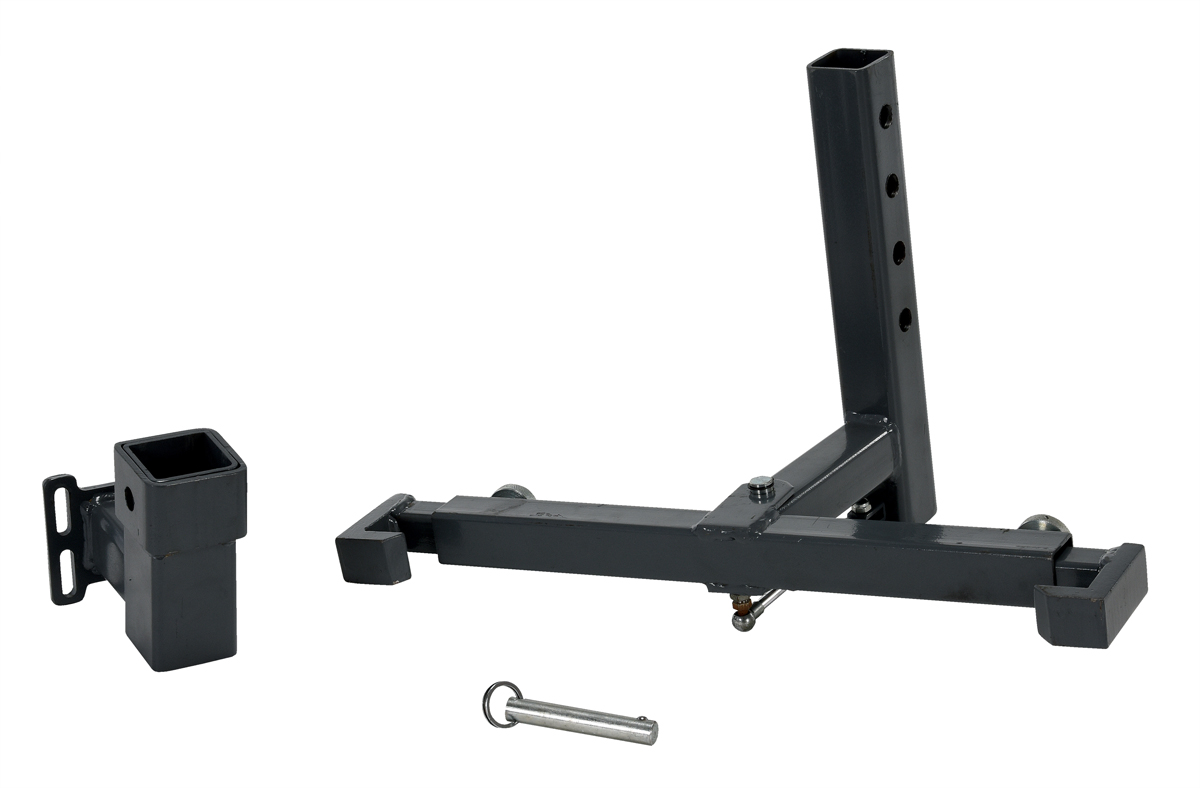

E-TUG-ADSH		Steel Adjustable Double Sided Hook For E-Tug Models	90 Days Limited Warranty	22

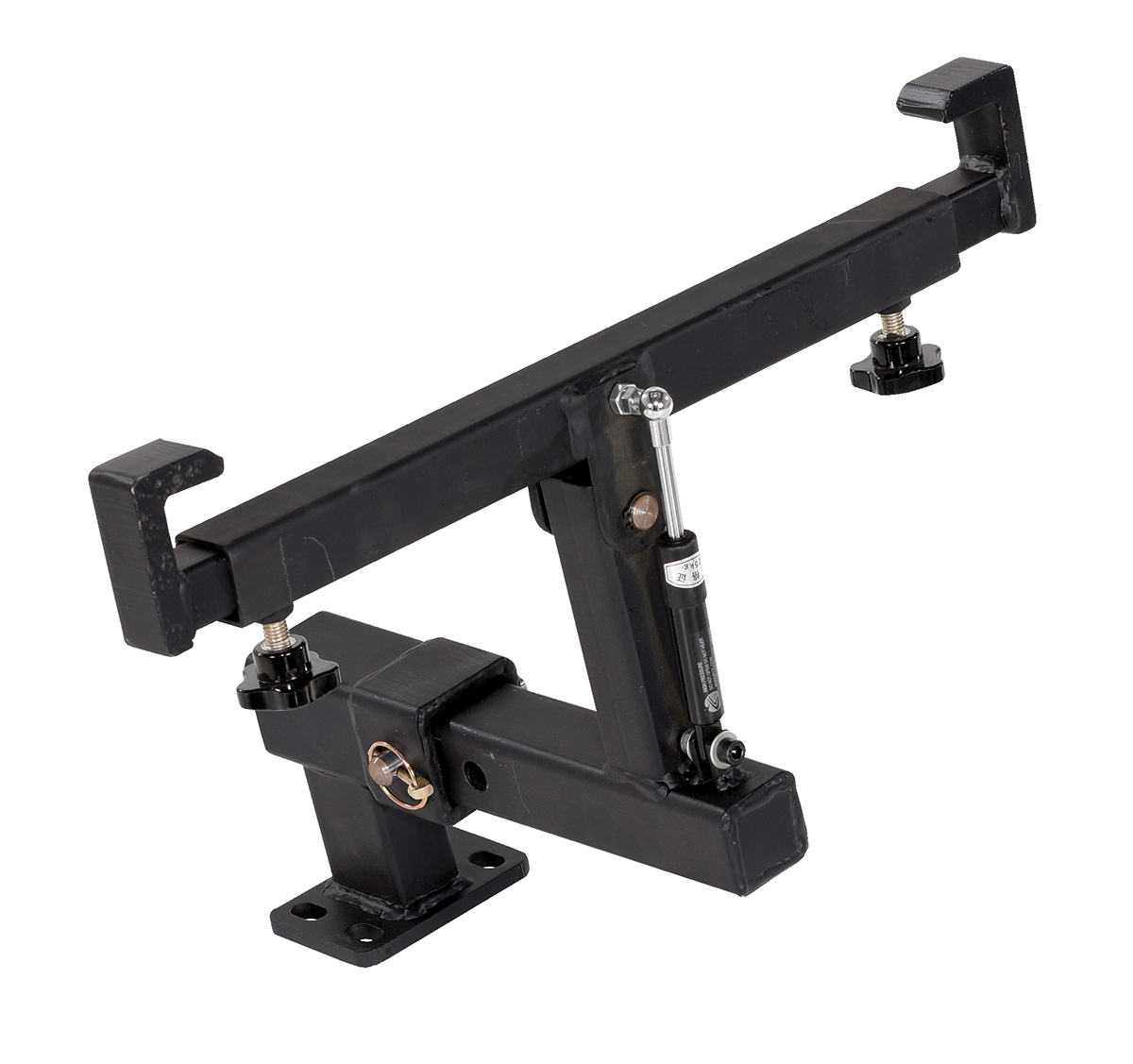

E-TUG-HD-ADSH		Steel Adjustable Double Sided Hook For E-Tug-HD Models Black	90 Days Limited Warranty	25

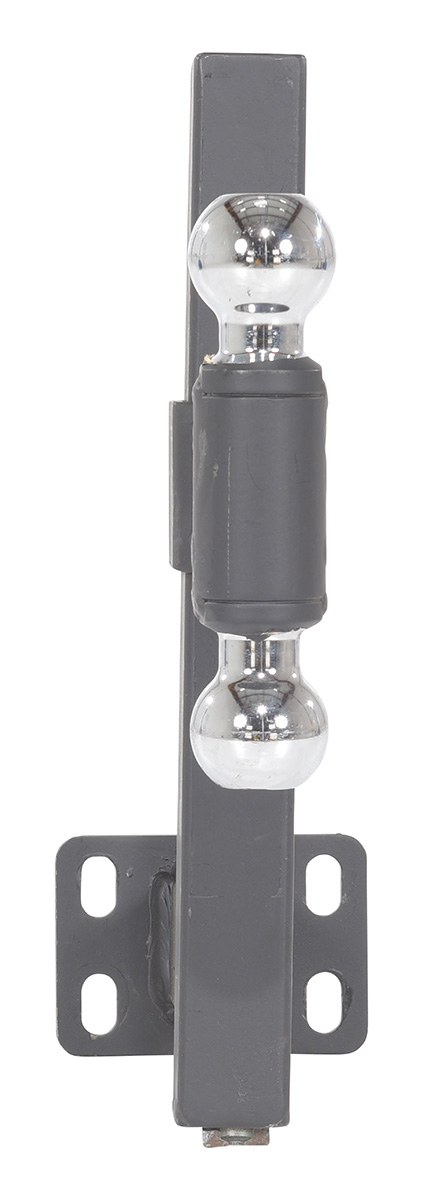

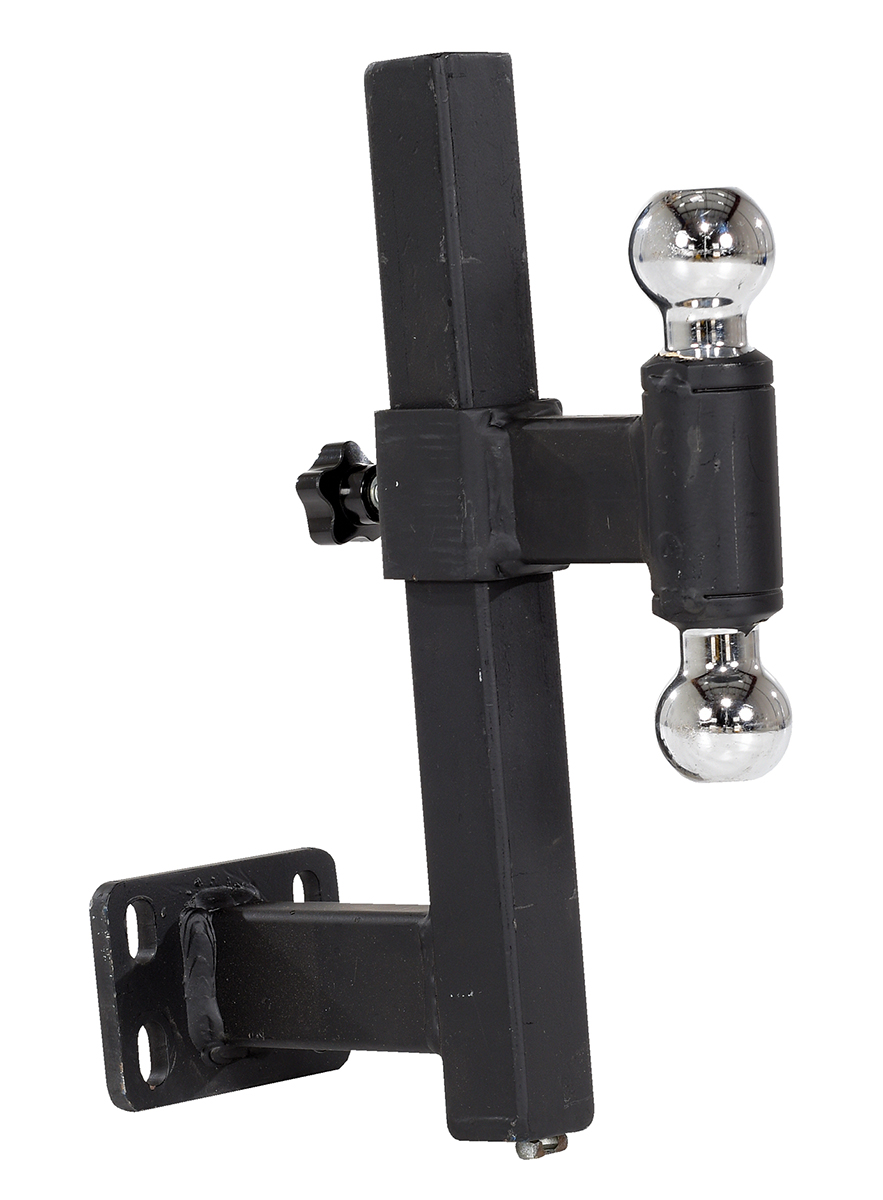

E-TUG-HD-DABH		Steel Double Ball Hitch Mount For E-Tug-HD Models Black	90 Days Limited Warranty	13

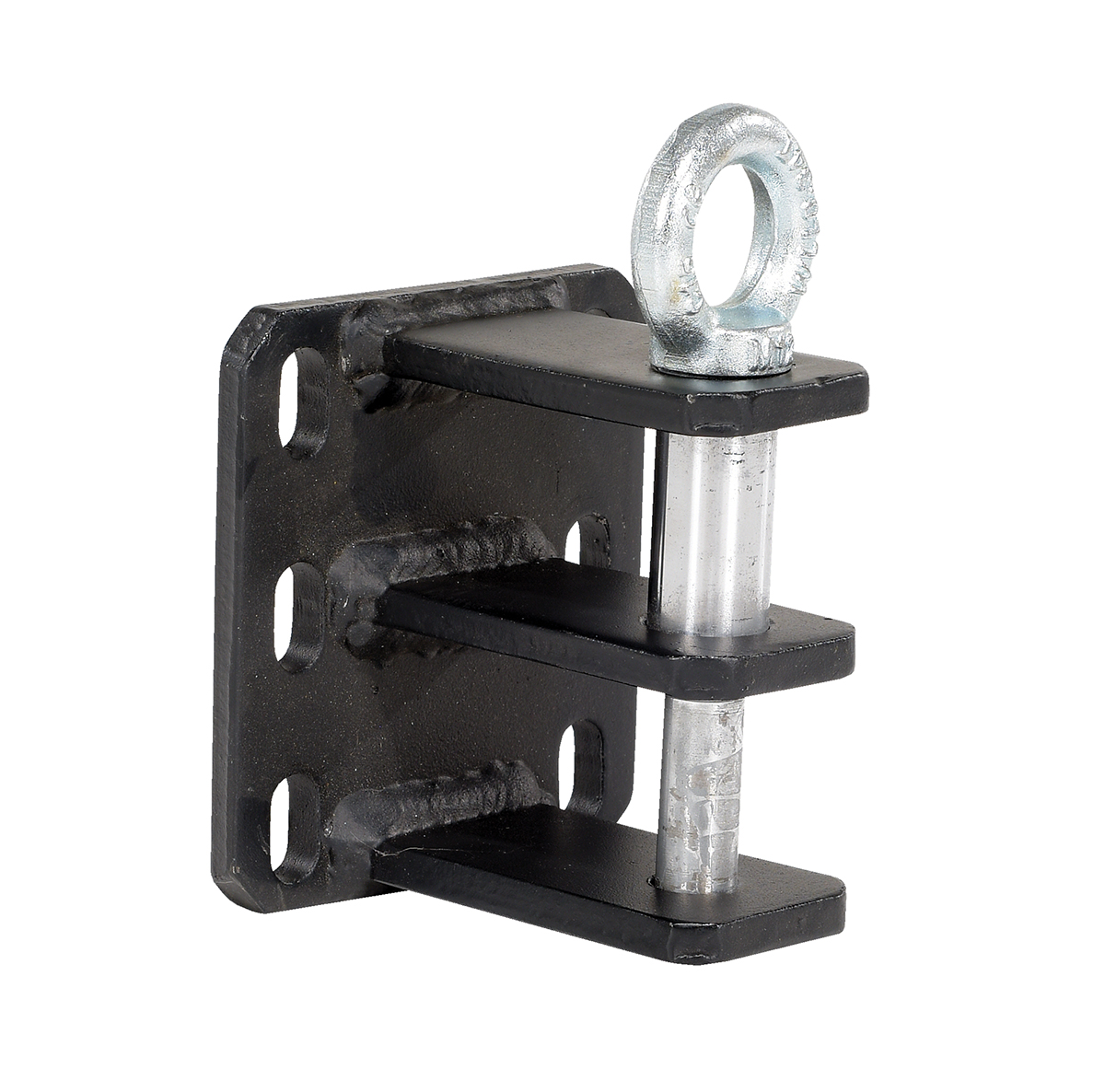

E-TUG-HD-DPINH		Steel Double Pin Hitch For E-Tug-HD Models Black	90 Days Limited Warranty	8

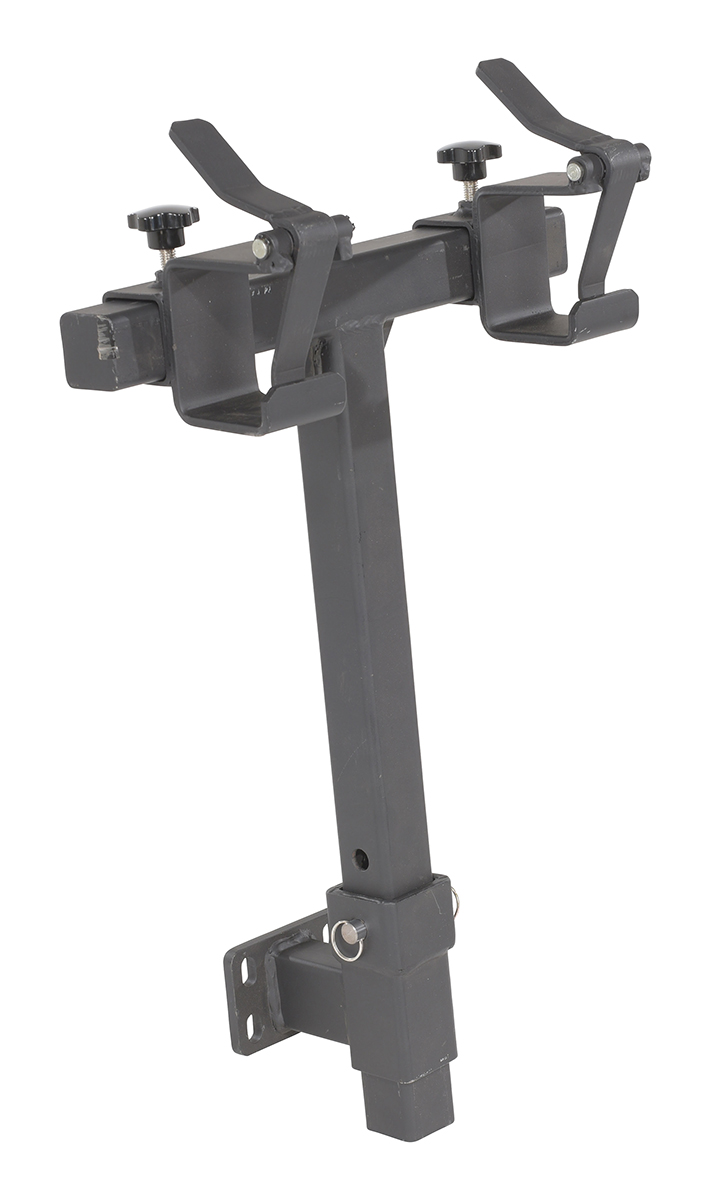

E-TUG-HD-MM		Steel Multi Mover For E-Tug-HD Models Black	90 Days Limited Warranty	31
E-TUG-HD-PINH		Steel Pin Hitch For E-Tug-HD Models Black/Silver	90 Days Limited Warranty	6
E-TUG-HD-RP-16		Steel Roller/Pusher Attachment 16 In. Width For E-Tug-HD Mod…	90 Days Limited Warranty	76

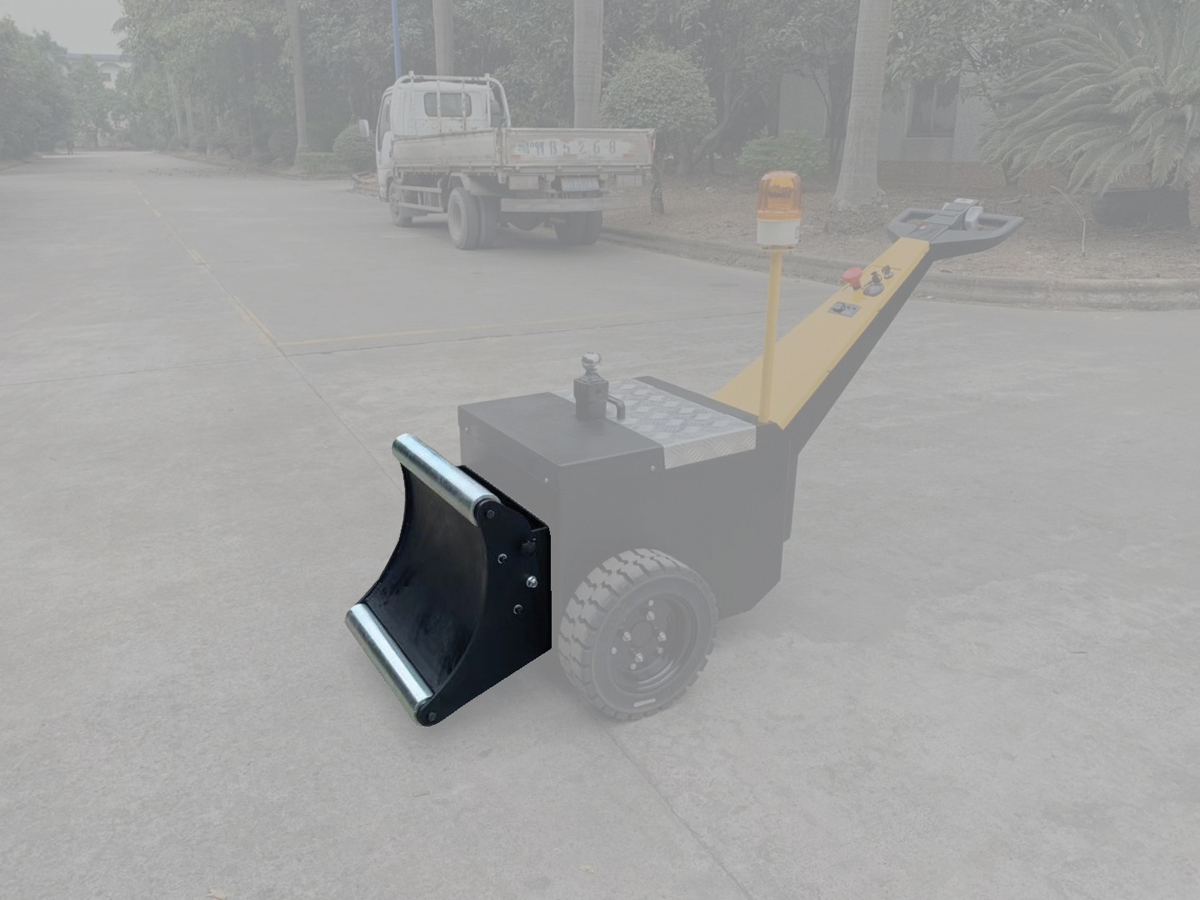

E-TUG-HD-RP-20		Steel Roller/Pusher Attachment 20 In. Width For E-Tug-HD Mod…	90 Days Limited Warranty	93

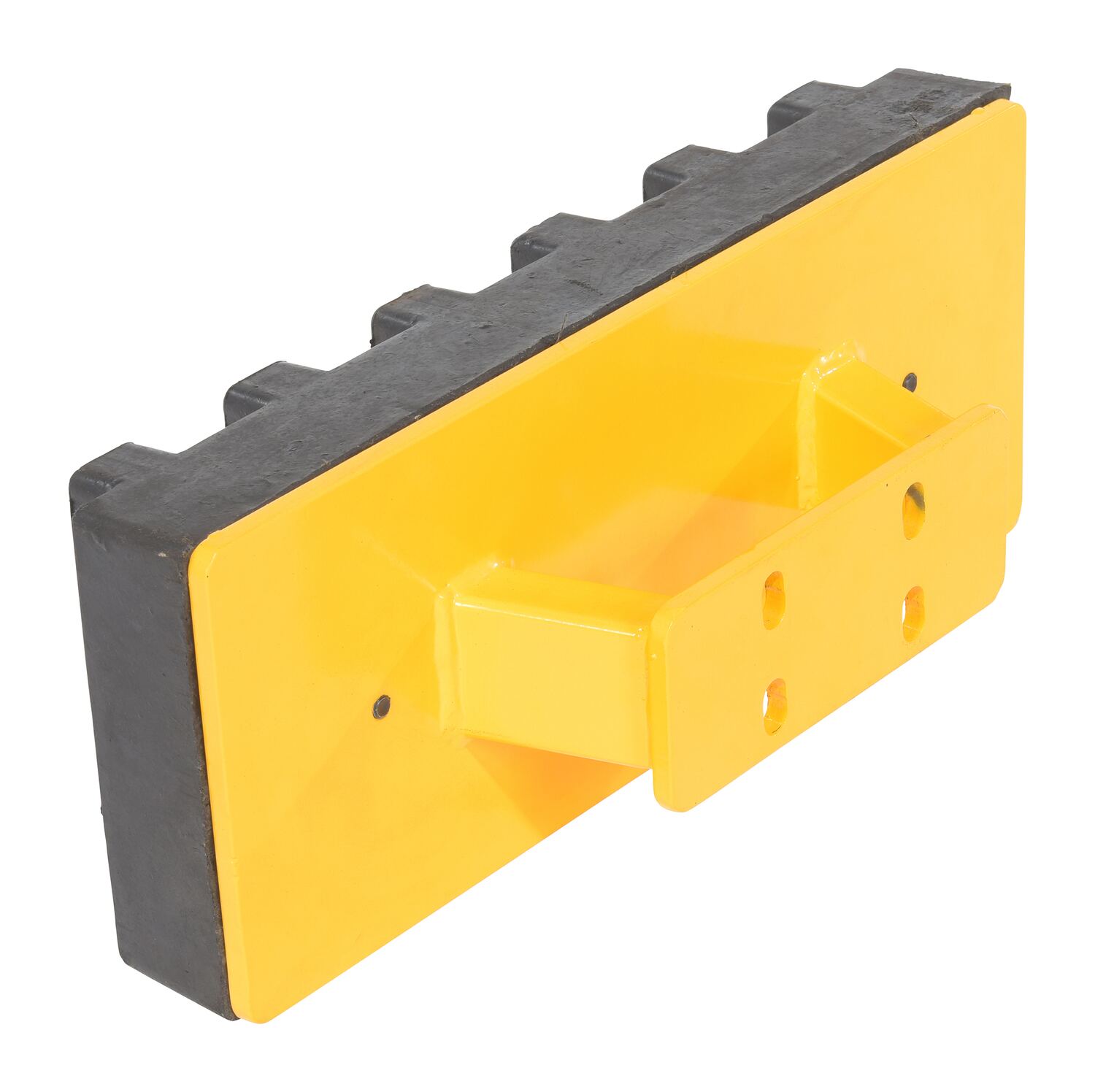

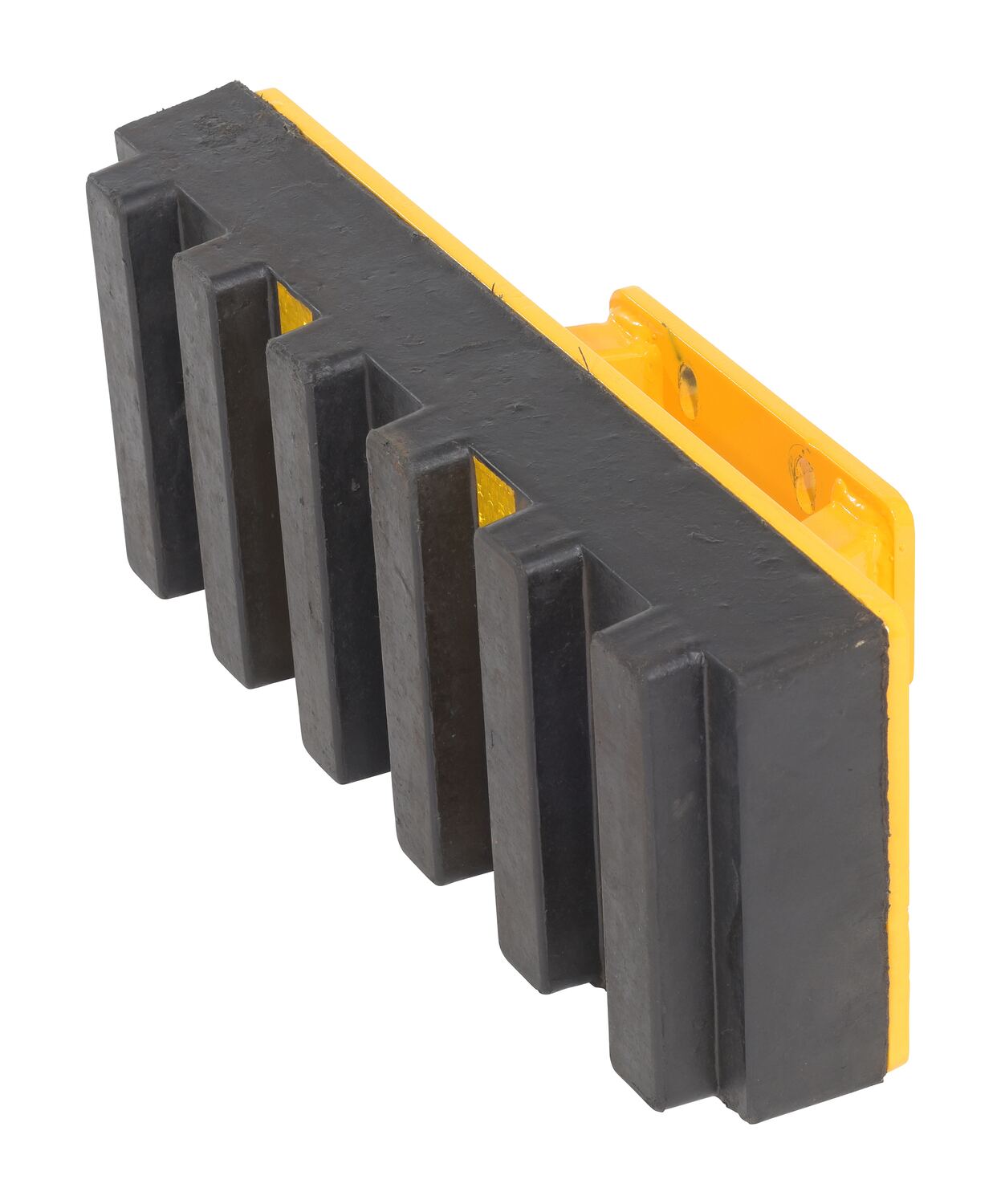

E-TUG-HD-RPB-19		Rubber Bumper Attachment 19 In.	90 Days Limited Warranty NEW	21

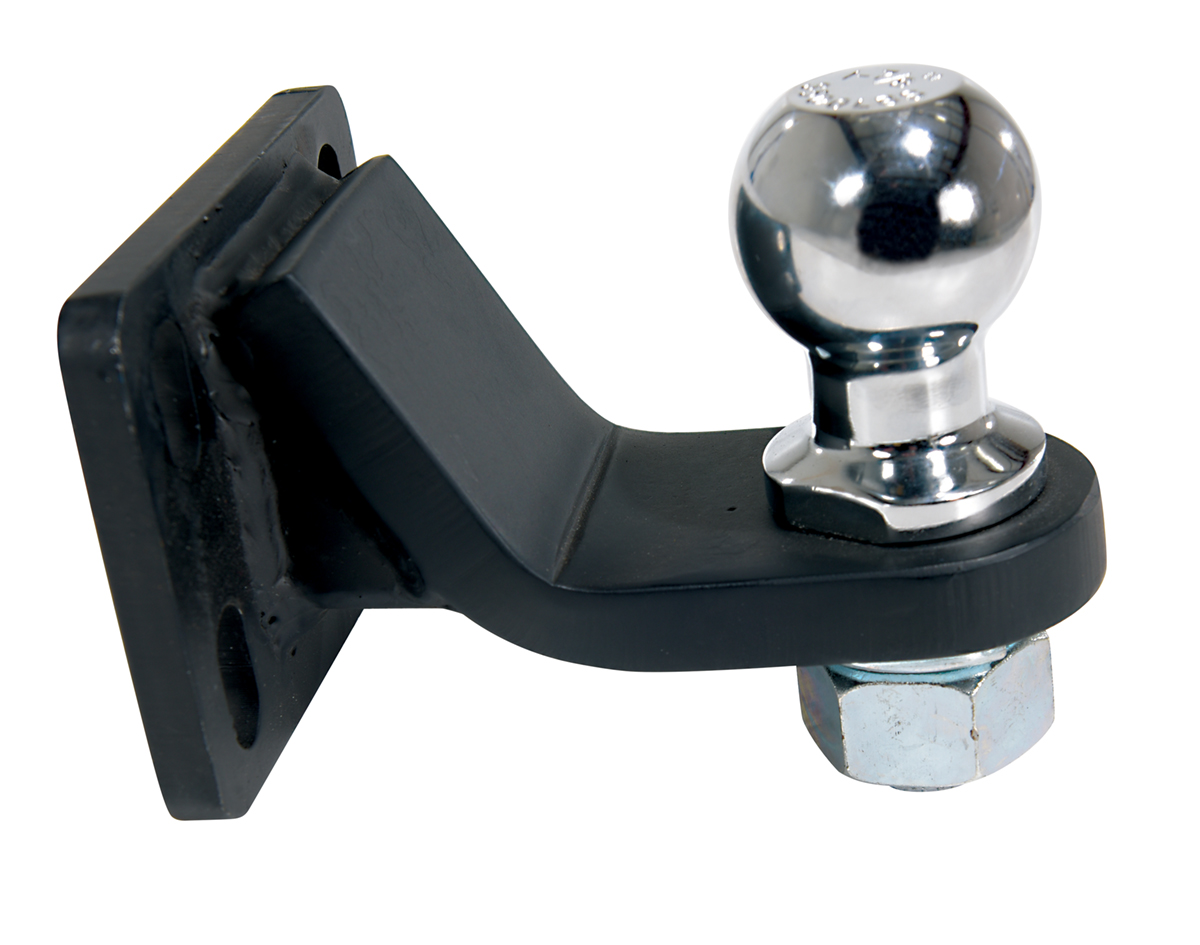

E-TUG-HD-SBH-4		Steel Single Ball Hitch Mount 4 In. Length For E-Tug-HD Mode…	90 Days Limited Warranty	8

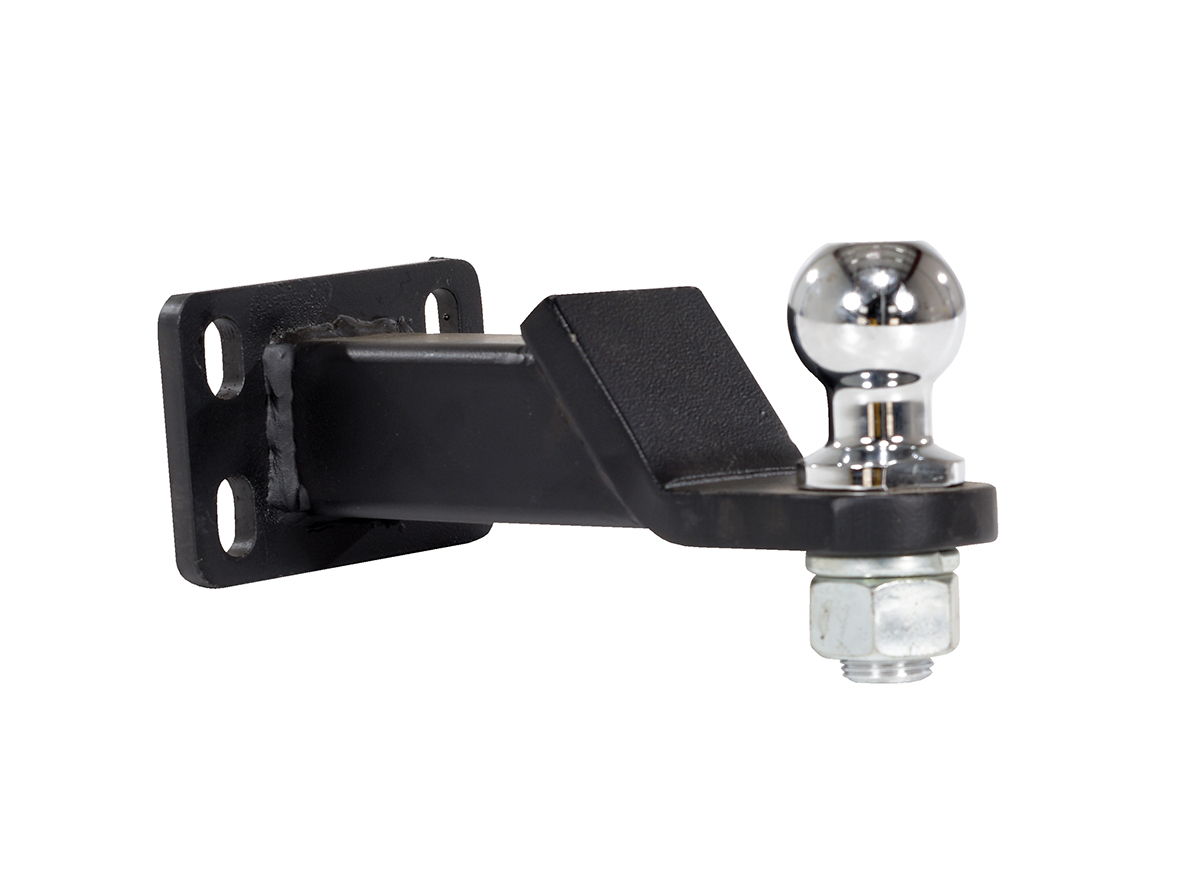

E-TUG-HD-SBH-8		Steel Single Ball Hitch Mount 8 In. Length For E-Tug-HD Mode…	90 Days Limited Warranty	9

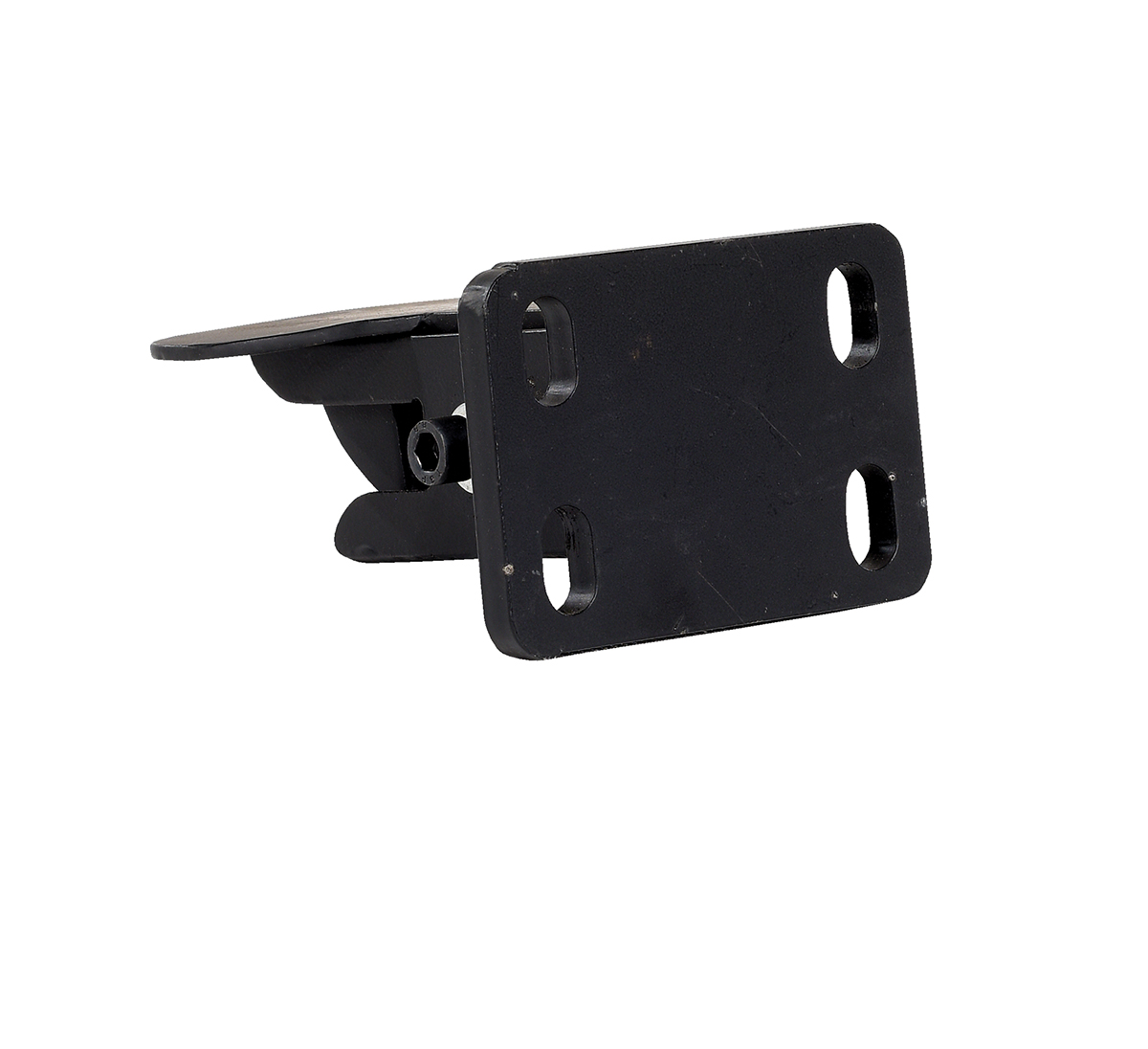

E-TUG-HD-SLH		Steel Self Locking Hitch For E-Tug-HD Models Black	90 Days Limited Warranty	5

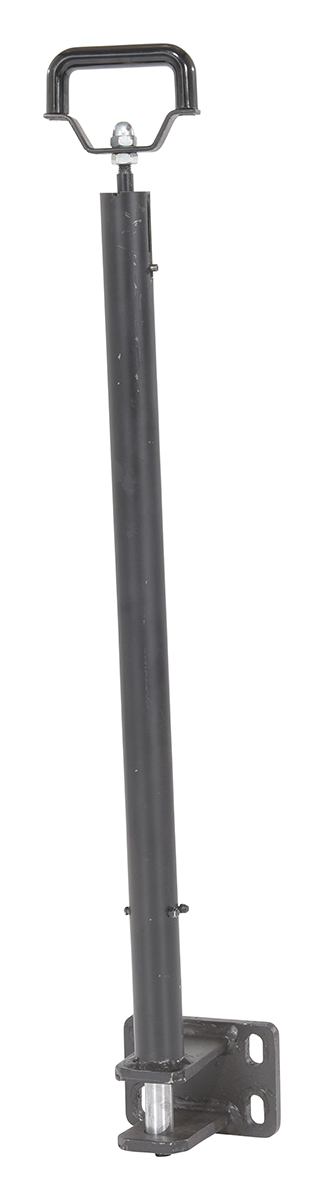

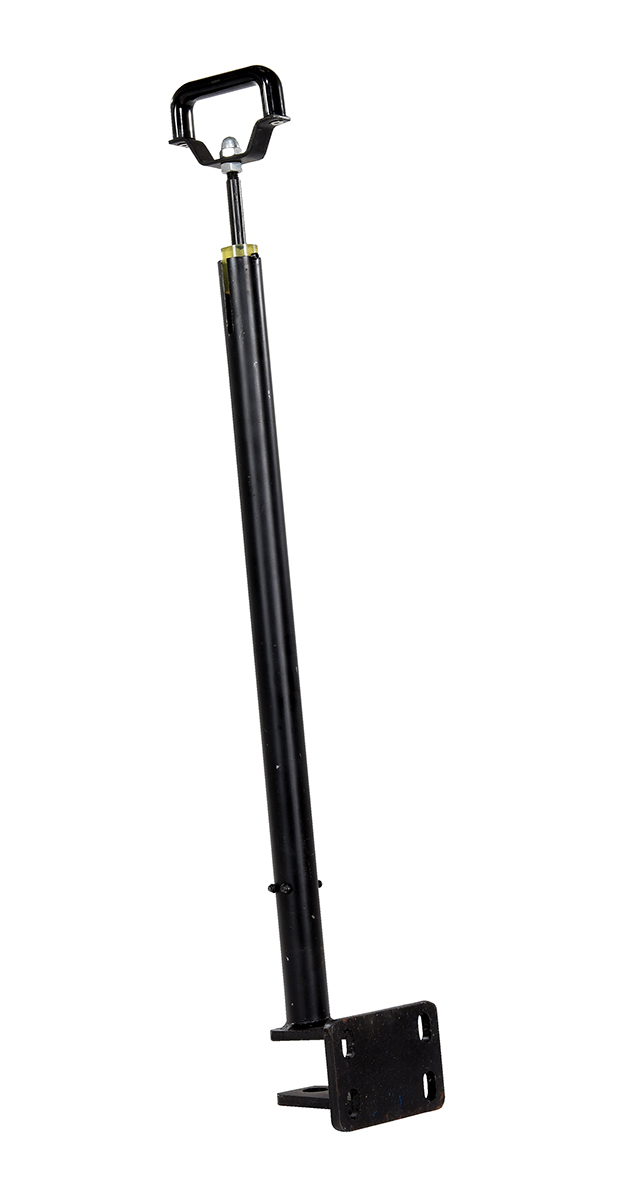

E-TUG-HD-SLPINH		Steel Spring Loaded Pin Hitch For E-Tug-HD Models Black	90 Days Limited Warranty	12

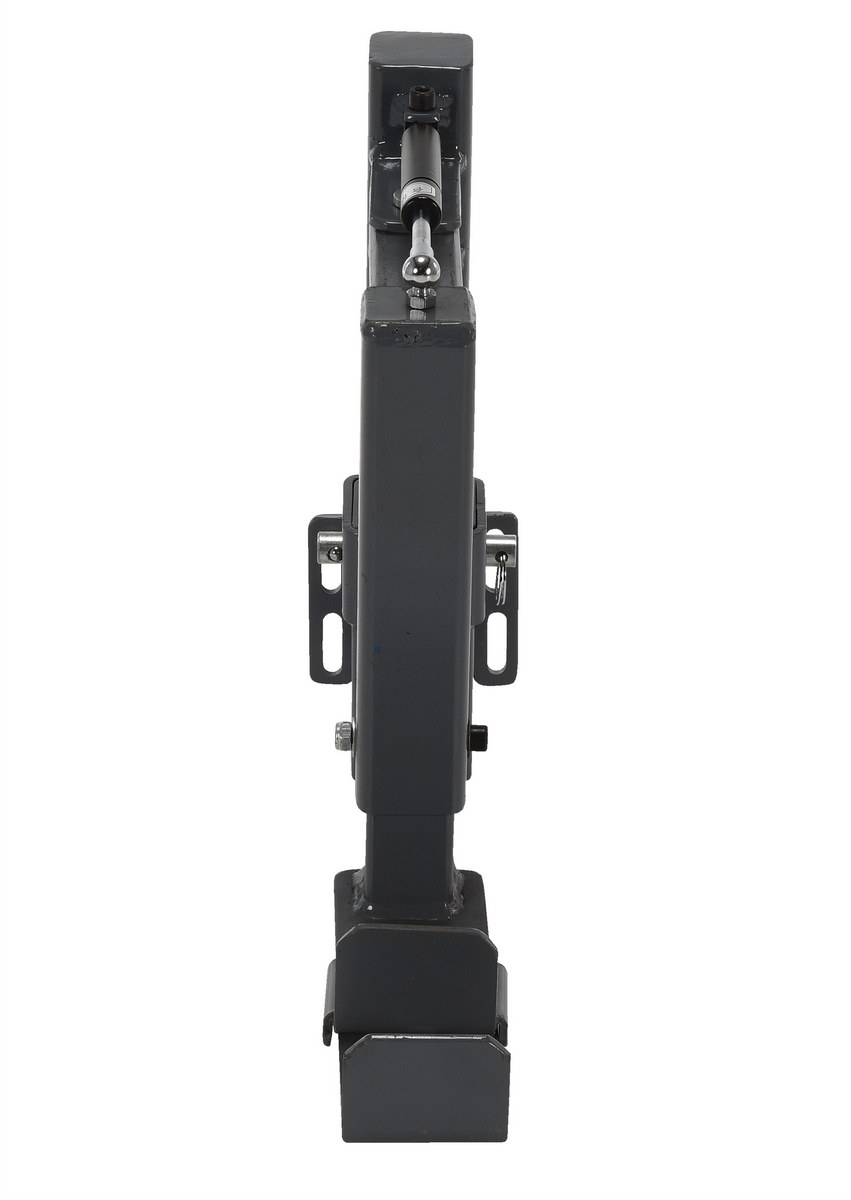

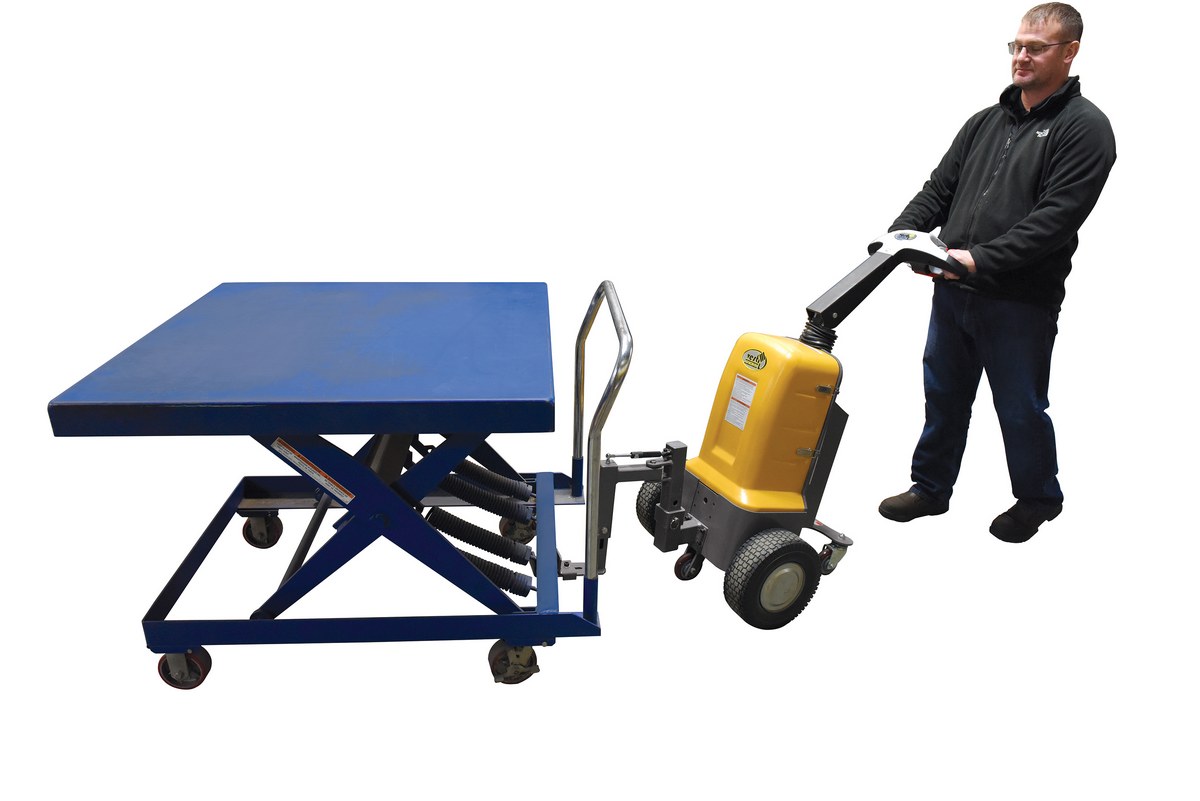

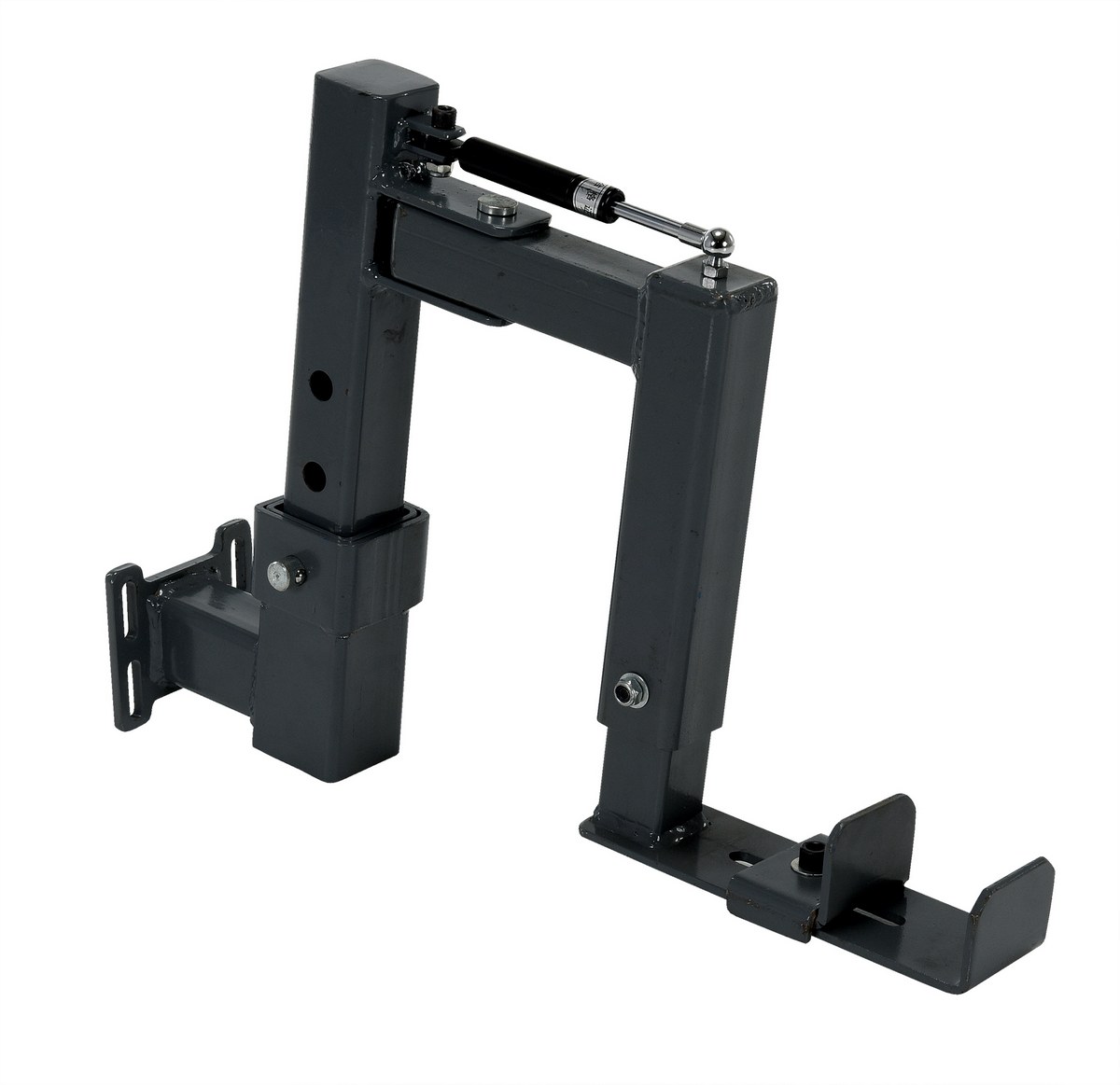

E-TUG-MCLA		Steel Spring Loaded Manual Channel Lift For E-Tug Models Bla…	90 Days Limited Warranty	22

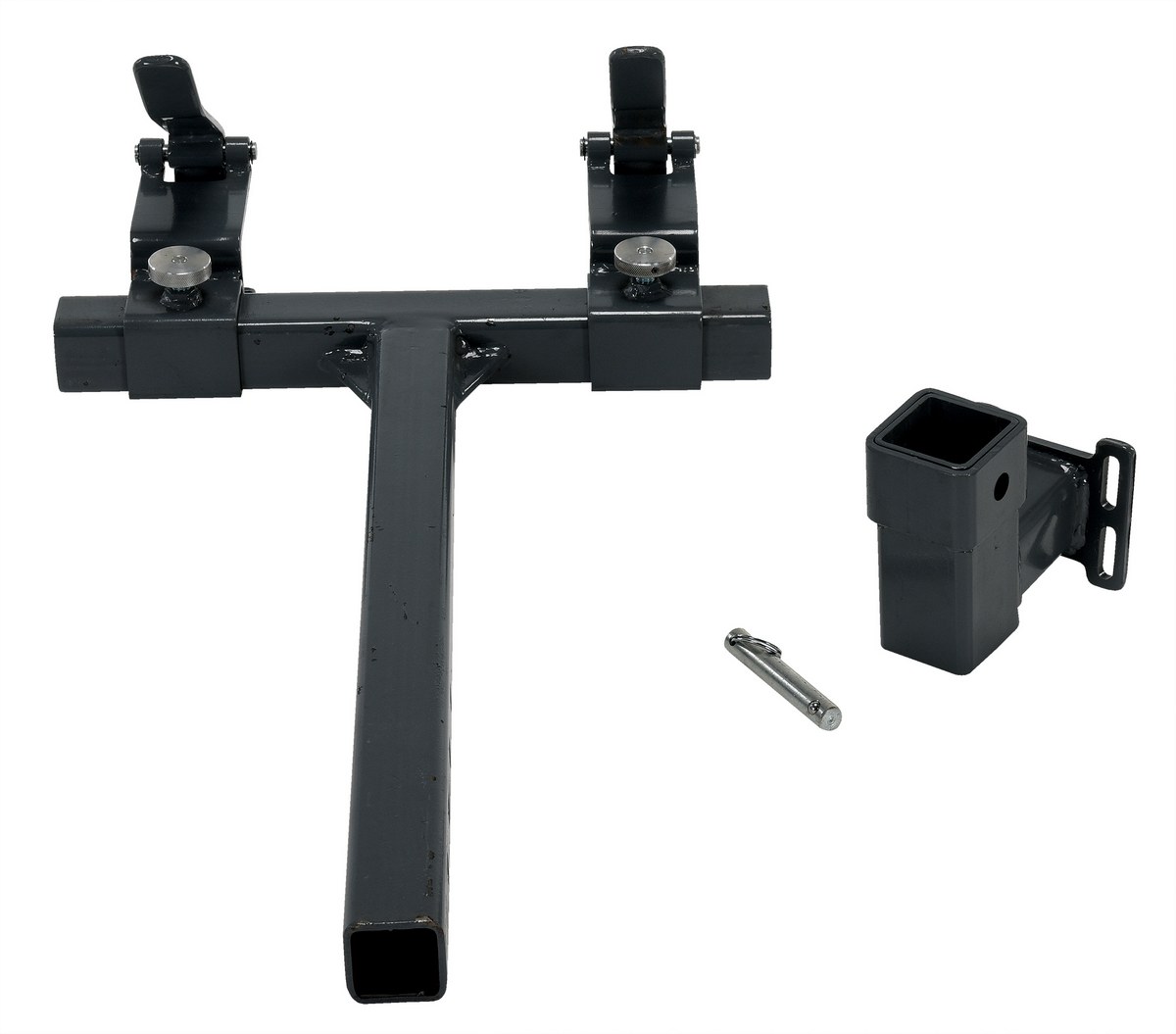

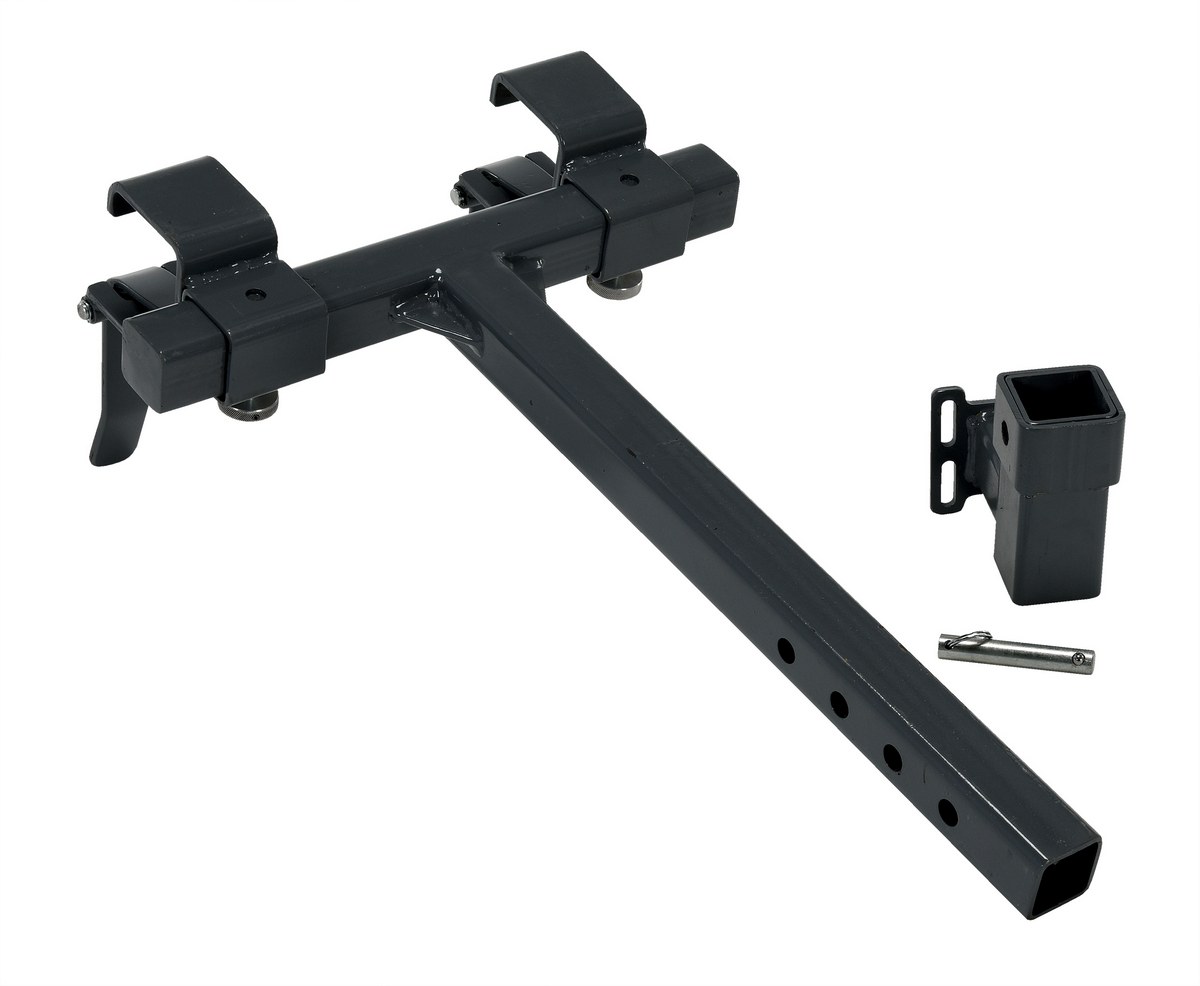

E-TUG-MM		Steel Multi Mover For E-Tug Models Black	90 Days Limited Warranty	31

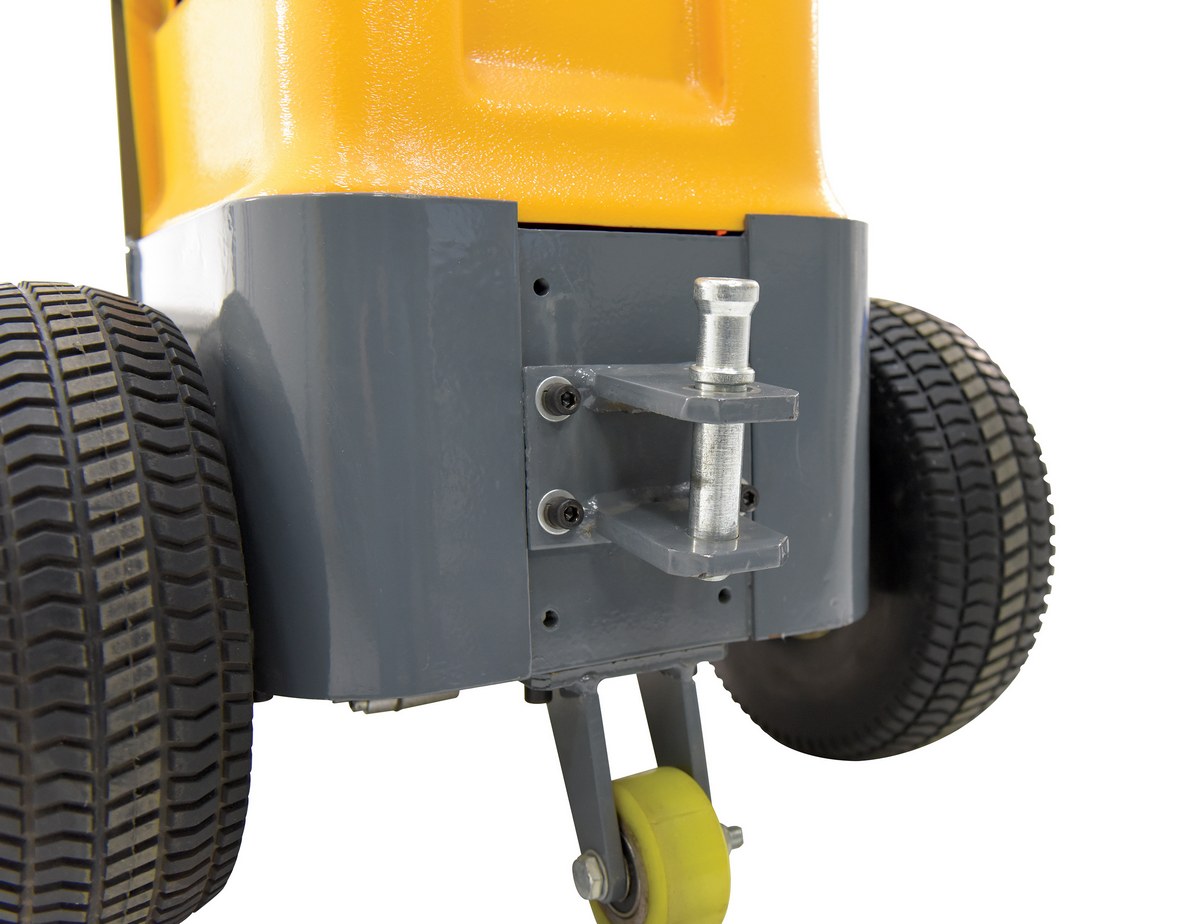

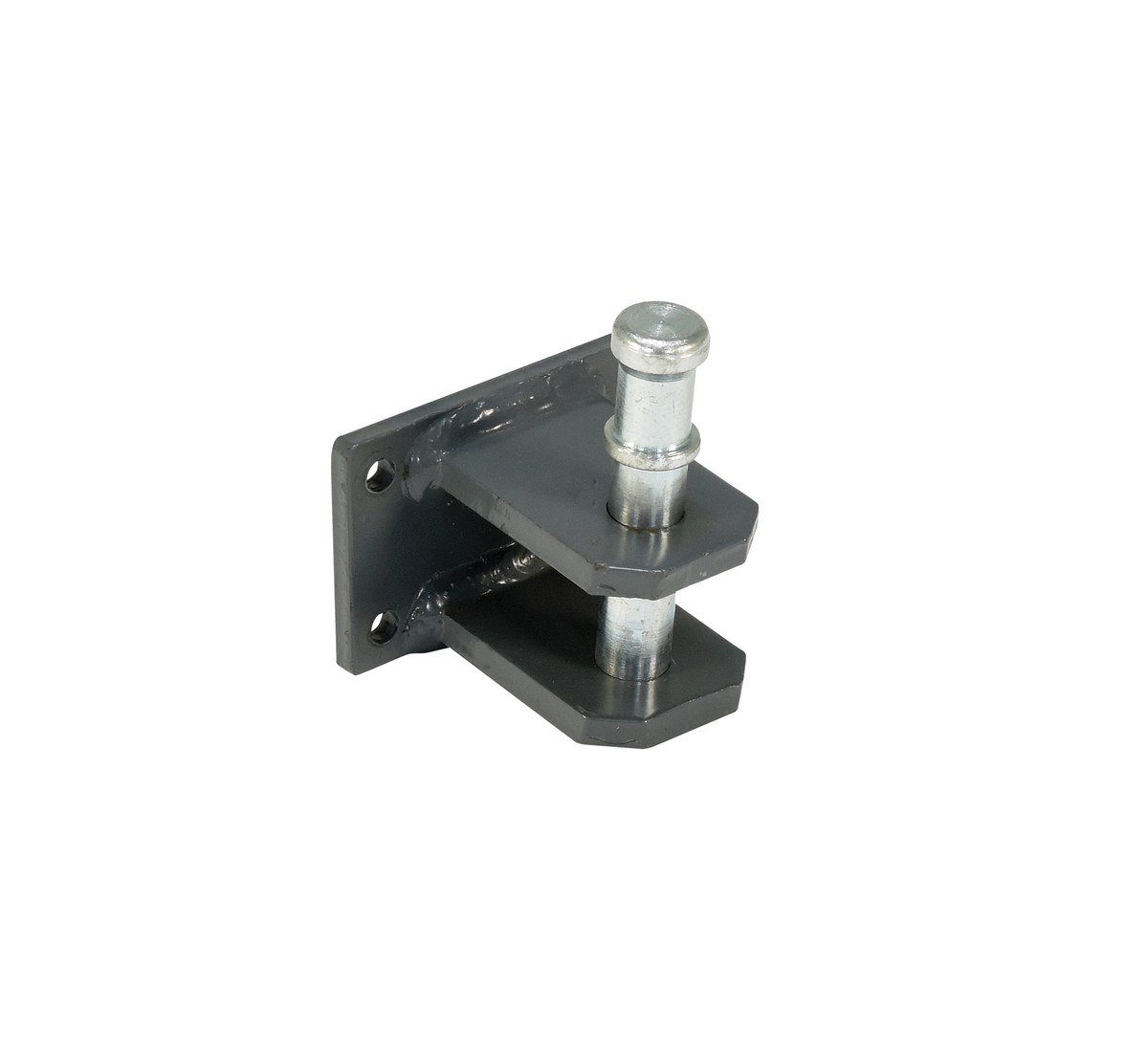

E-TUG-PINH		Steel Pin Hitch For E-Tug Models Black/Silver	90 Days Limited Warranty	4

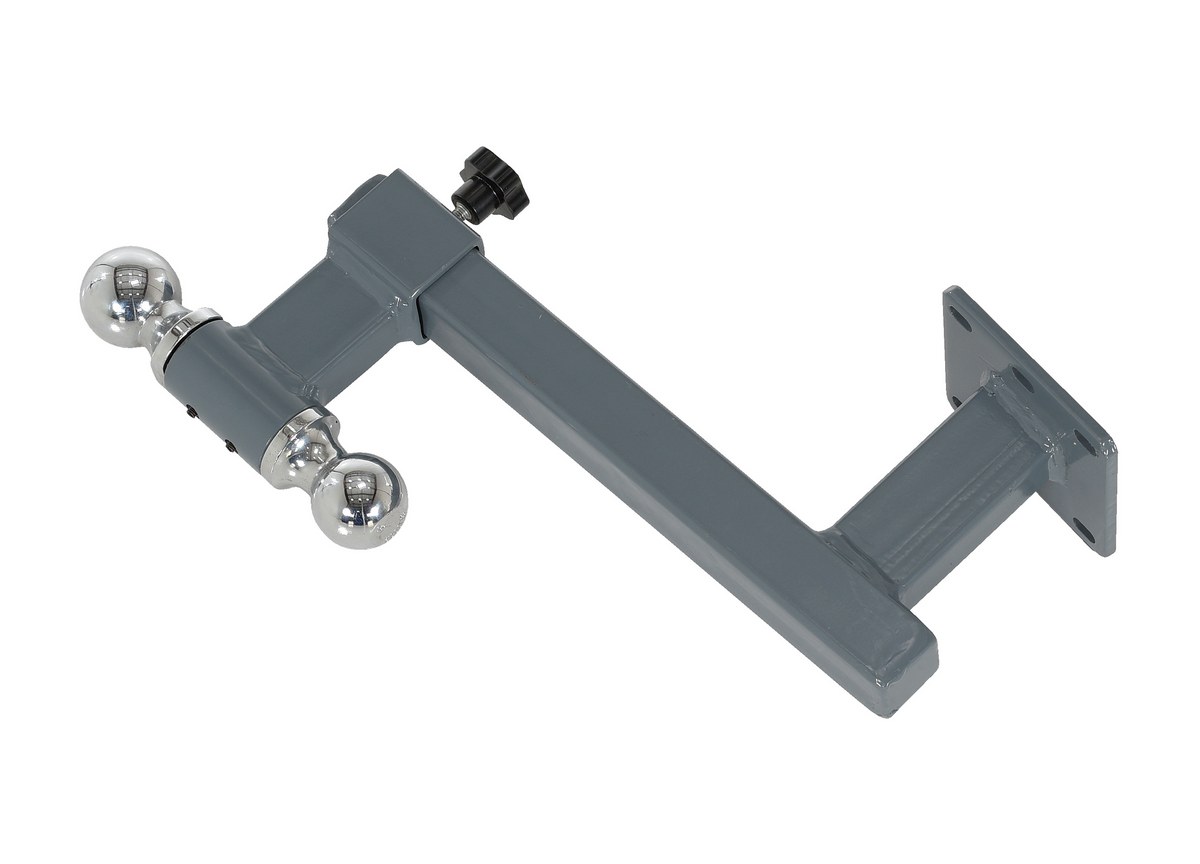

E-TUG-SABH		Steel Adjustable Single Side Hook Double Ball Hitch Mount Fo…	90 Days Limited Warranty	14

.

If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above

PDFs will open in a new window when clicked.

Manuals

E-TUG

E-TUG-HD

Survey Sheets

No Survey Sheets For This Product

Engineering Drawings

E-TUG-10

E-TUG-20

E-TUG-30

E-TUG-HD-100

E-TUG-HD-30

E-TUG-HD-50

E-TUG-HD-70

E-TUG-HD-SLH

E-TUG-MCLA

Testing Certificates

E-TUG-10

E-TUG-20

E-TUG-30

E-TUG-ABMH

E-TUG-ADSH

E-TUG-HD-100

E-TUG-HD-100-RV

E-TUG-HD-120

E-TUG-HD-180

E-TUG-HD-30

E-TUG-HD-50

E-TUG-HD-70

E-TUG-HD-ADSH

E-TUG-HD-DABH

E-TUG-HD-DPINH

E-TUG-HD-MM

E-TUG-HD-PINH

E-TUG-HD-RP-16

E-TUG-HD-RP-20

E-TUG-HD-SBH-4

E-TUG-HD-SBH-8

E-TUG-HD-SLH

E-TUG-HD-SLPINH

E-TUG-MCLA

E-TUG-MM

E-TUG-PINH

E-TUG-SABH

SDS Sheets

Valve-Regulated Lead Acid Battery Series
E-TUG-10 SDS

Hydraulic Oil
E-TUG-10 SDS

Valve-Regulated Lead Acid Battery Series
E-TUG-20 SDS

Hydraulic Oil
E-TUG-20 SDS

Valve-Regulated Lead Acid Battery Series
E-TUG-30 SDS

Hydraulic Oil
E-TUG-30 SDS

Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid
E-TUG-HD-30 SDS

Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid
E-TUG-HD-50 SDS

Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid
E-TUG-HD-70 SDS

Hydraulic Oil
E-TUG-HD-100-RV SDS

Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid
E-TUG-HD-100-RV SDS

Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid
E-TUG-HD-100 SDS

Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid
E-TUG-HD-120 SDS

Other PDFs

MODEX Welded Security Cart Brochure

HD Electric Powered Tuggers - New Sizes Mailing Brochure

Enhanced Product Content

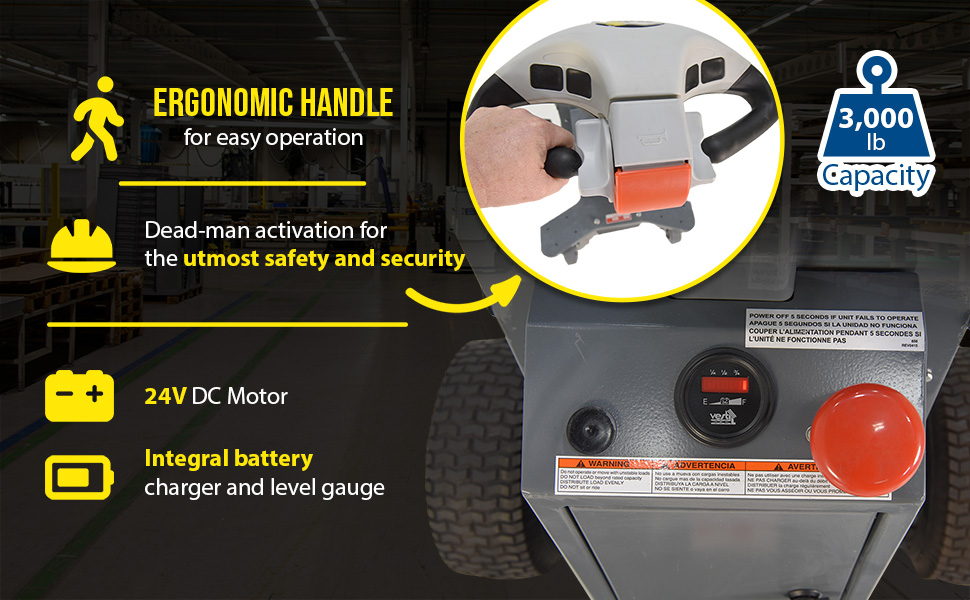

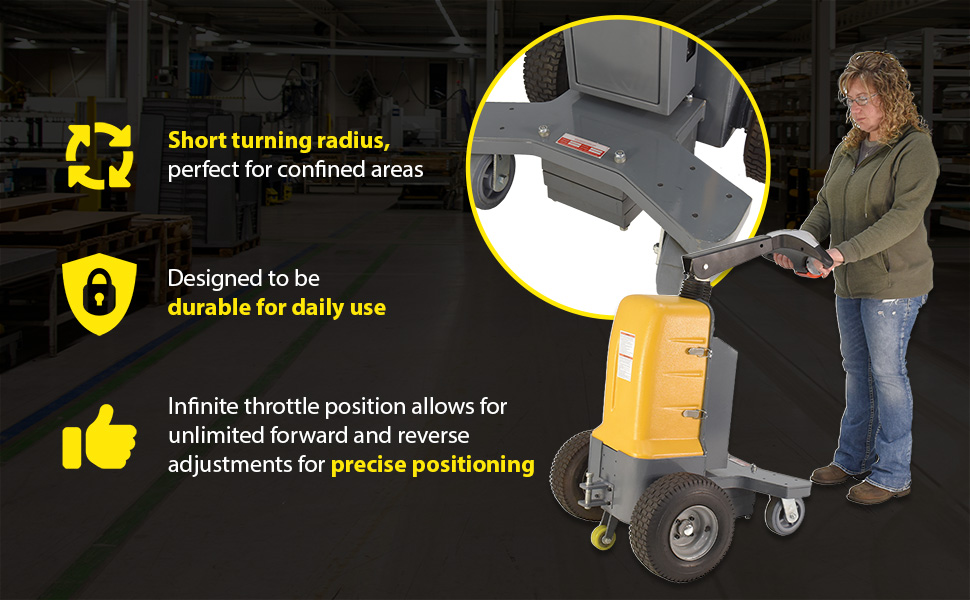

E-TUG-30

E-TUG-30 - A+ Content 1

E-TUG-30 - A+ Content 2

E-TUG-30 - A+ Content 3

Attachments can be found under the Options Tab below

Applications

Trucking Companies

Warehouses

Do It Yourself

Moving Companies

Postal Services

Loading Docks

Packaging Areas

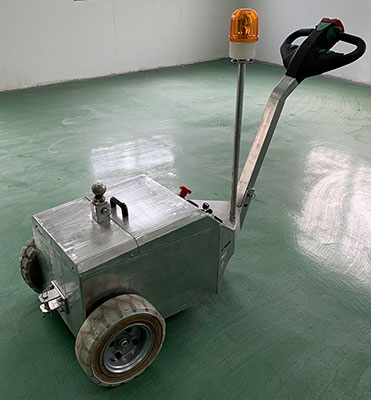

Reference #: CF-5937 SS Electric Tugger

Reference #: CF-5937 SS Electric Tugger

Reference #: CF-5937 SS Electric Tugger

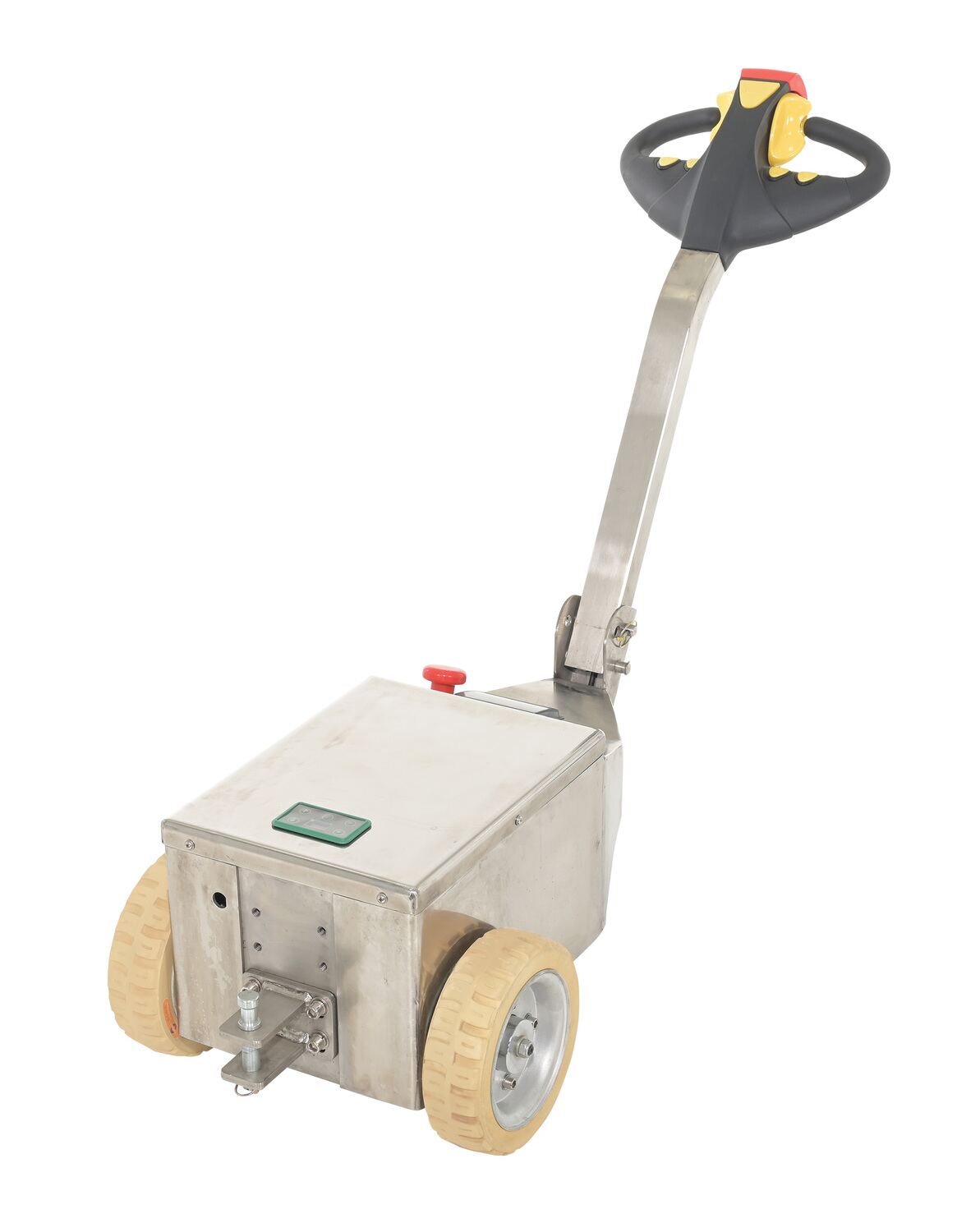

Special Stainless Steel Electric Tugger

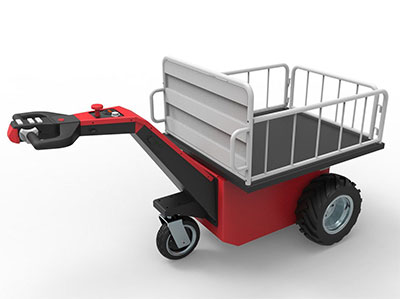

Reference #: CF-6349 Tugger with Dump Option

Reference #: CF-6349 Tugger with Dump Option

Reference #: CF-6349 Tugger with Dump Option
Special Tugger with Dump Option

For more Specialty Designs similar to these... Click Here

Print Friendly

Related or Similar Products:

More From Trailer Movers

Hitch Trailer Mover

Hitch Trailer Mover

Electric Powered Tuggers

Battery Powered Electric Tuggers for Industrial Cart and Trailer Pulling

Battery powered electric tuggers provide a safe and efficient solution for moving carts, trailers, hoppers, dumpsters, and heavy rolling loads in warehouses, hospitals, airports, manufacturing facilities, and retail environments. Designed to reduce operator strain and improve material handling productivity, these powered tow units help eliminate the physical demands associated with manual pushing and pulling.

Key Features & Benefits

Powered by high-torque 24V DC drive systems, these electric tuggers deliver smooth and controlled movement for both light-duty and heavy-duty towing applications. Ergonomic controls feature variable forward and reverse speeds, integrated horn functions, and easy-to-operate throttles for enhanced maneuverability and operator comfort. An electromagnetic disc brake with automatic dead-man activation improves safety by engaging when the handle is released. Standard onboard battery chargers and battery level indicators simplify charging and daily operation.

Applications & Configurations

Available in multiple towing capacities and heavy-duty configurations, these industrial tugger units support a wide variety of material handling tasks. Optional hitch systems, ball mounts, pin hitches, roller push attachments, rubber bumpers, and multi-mover accessories allow users to customize the tugger for specialized carts, trailers, RV applications, and industrial transport systems. Heavy-duty models provide enhanced pulling performance for demanding commercial and industrial operations.

24V DC POWERED

Move loads without excessive stress or strain on the user's body!

New 12,000 Lb. model & Fifth Wheel Hitch RV model!
model E-TUG-HD-120	model E-TUG-HD-100-RV

Contact Vestil For A Quote On Custom Attachments

E-TUG-HD shown with E-TUG-HD-RPB-19 Rubber Bumper Attachment

Model #		Description	Attributes	Net Wt. (lbs)

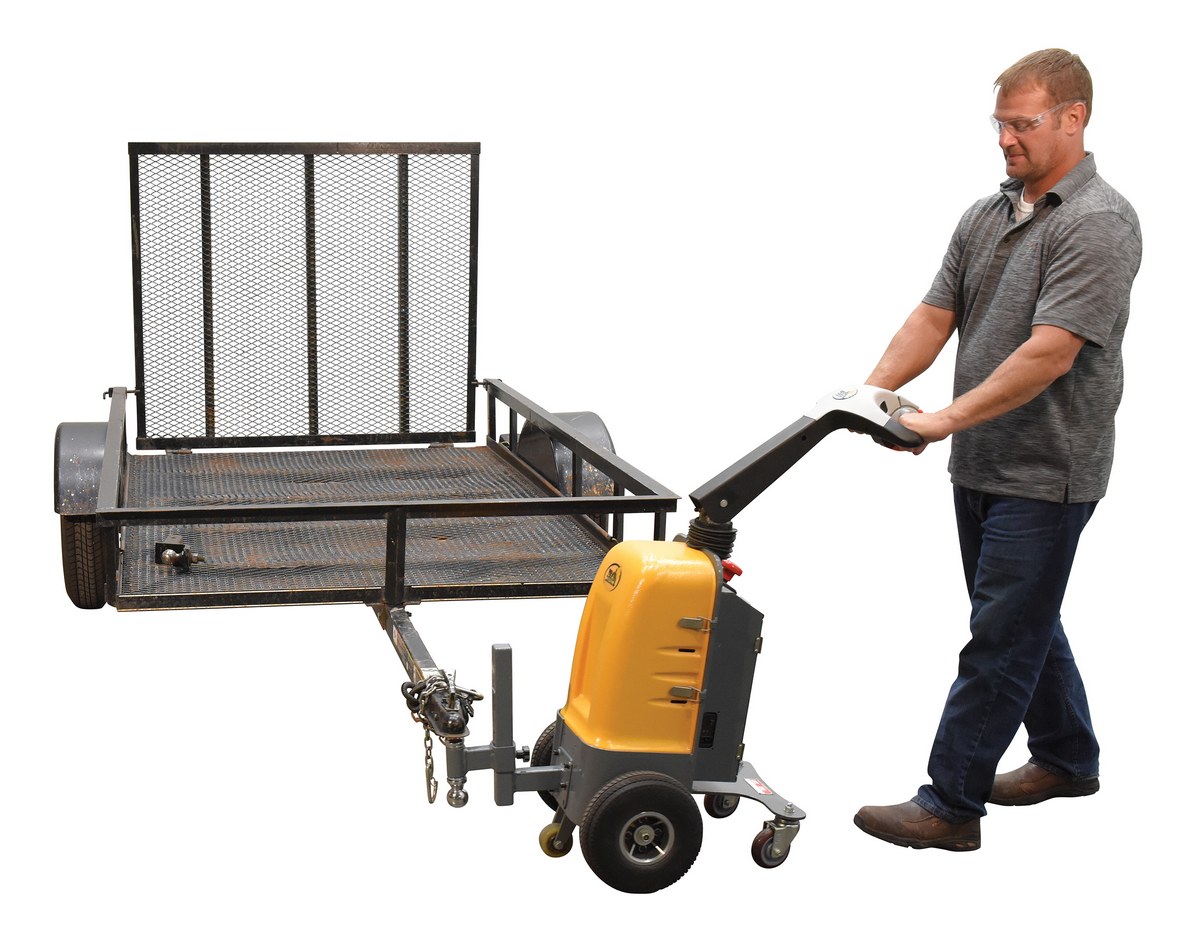

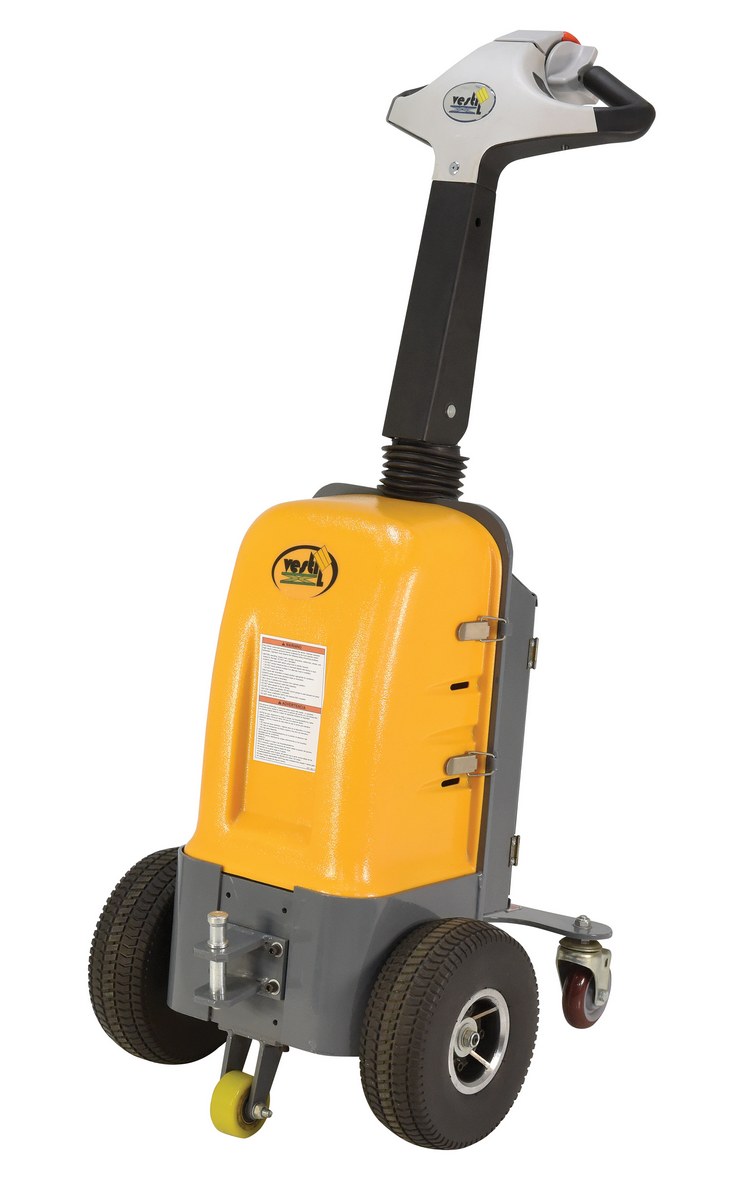

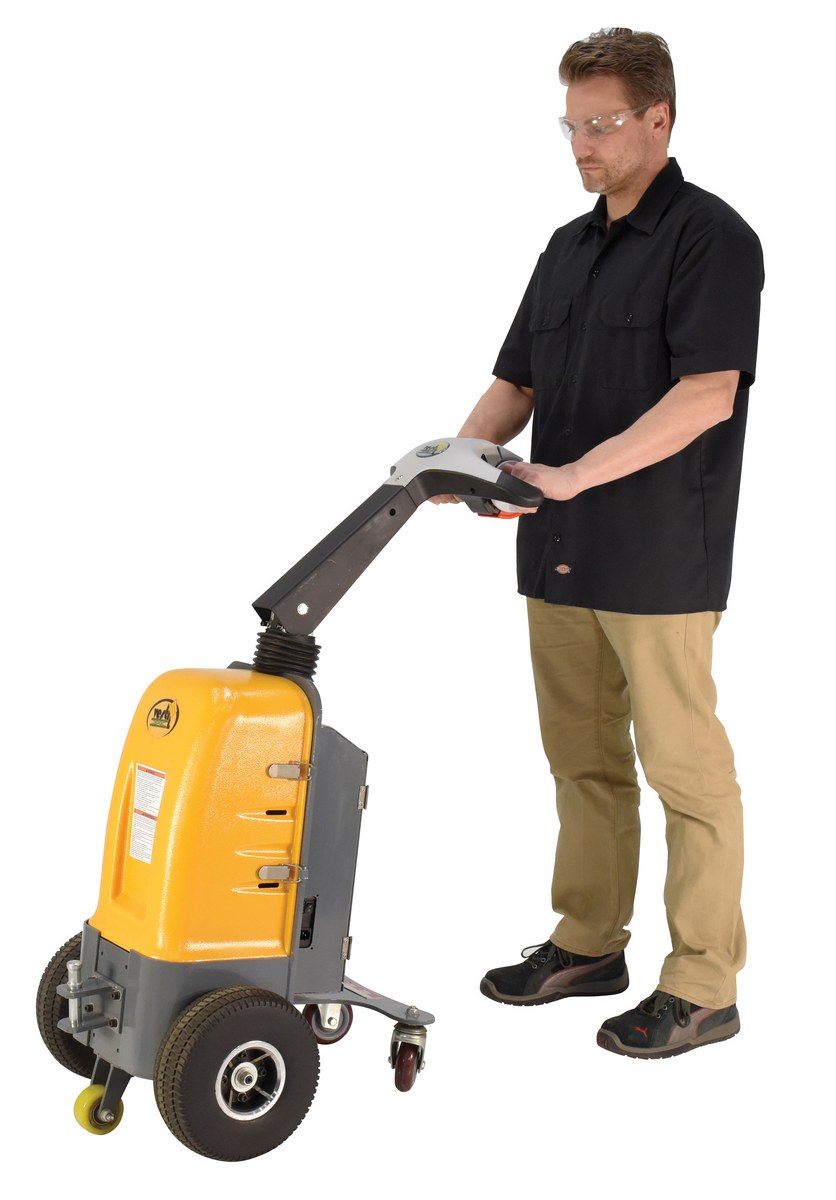

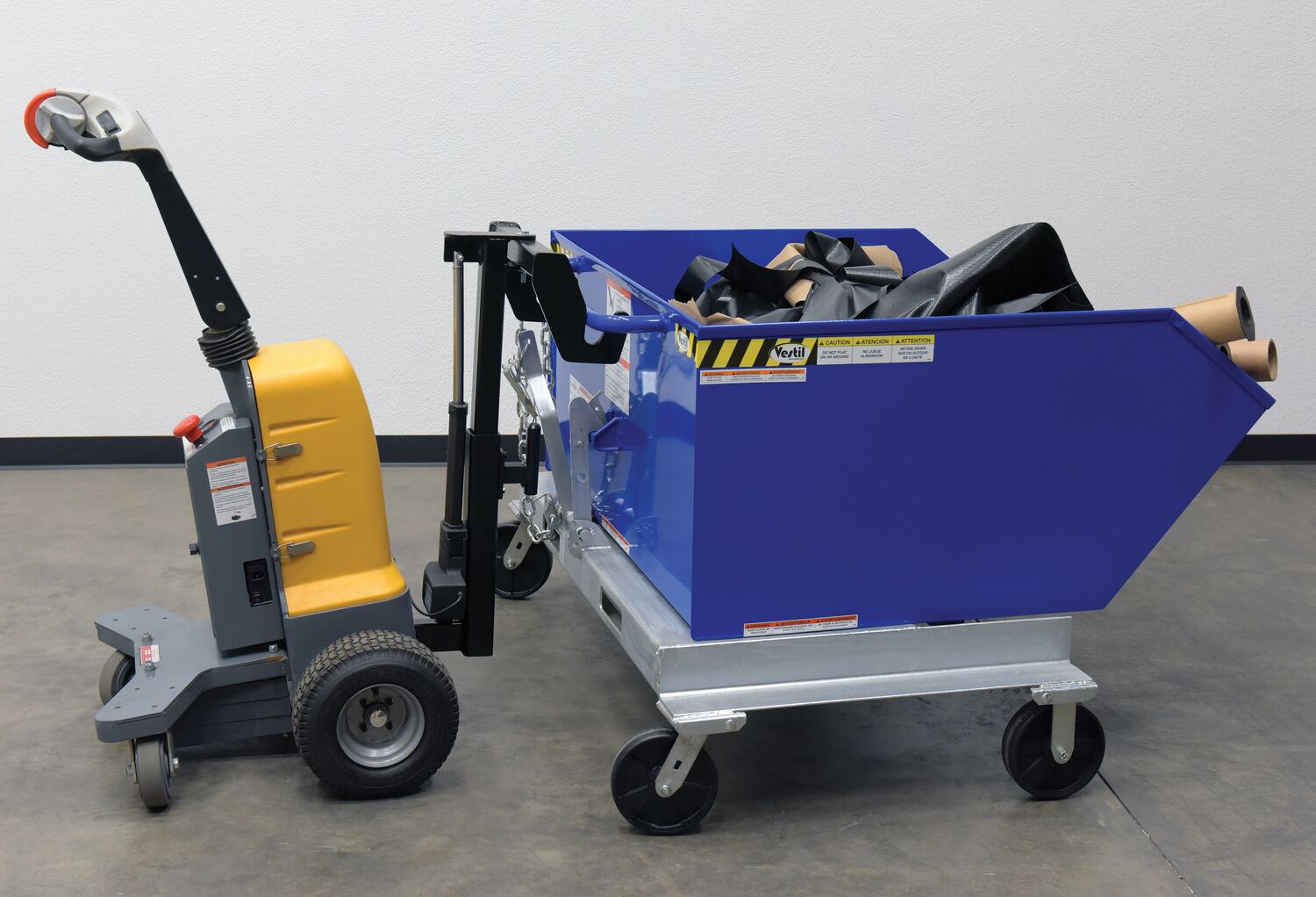

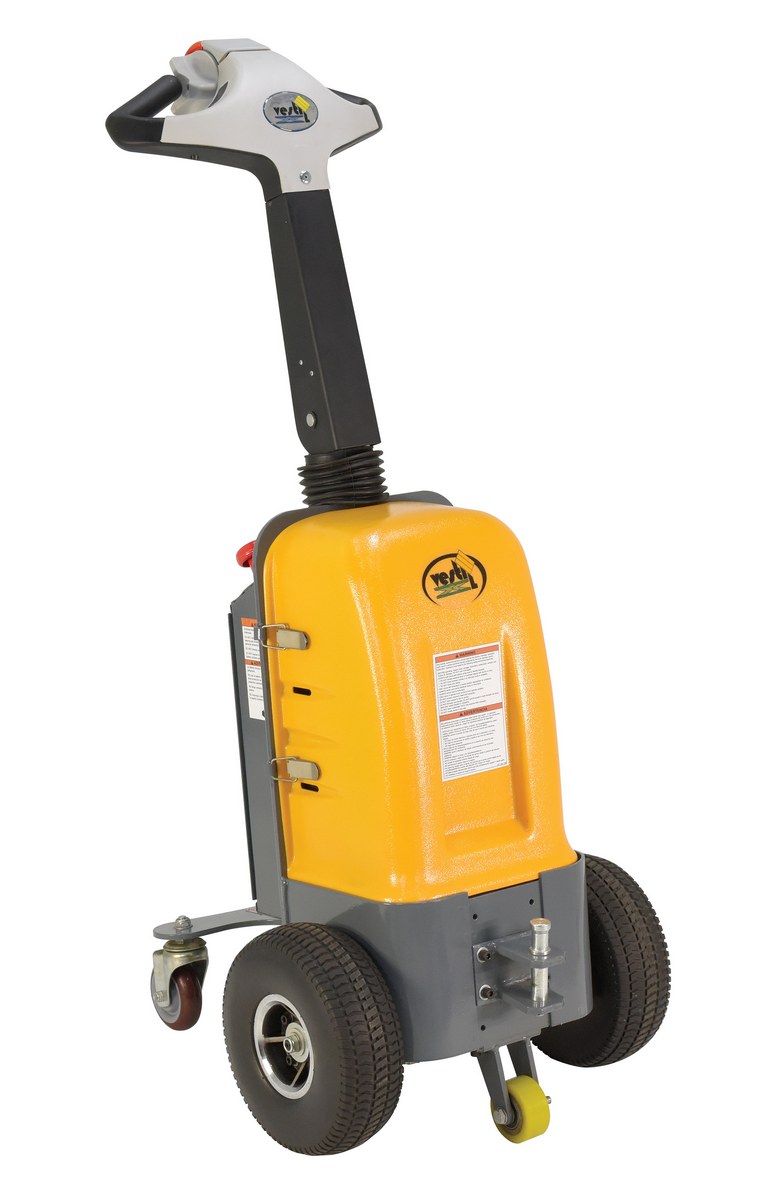

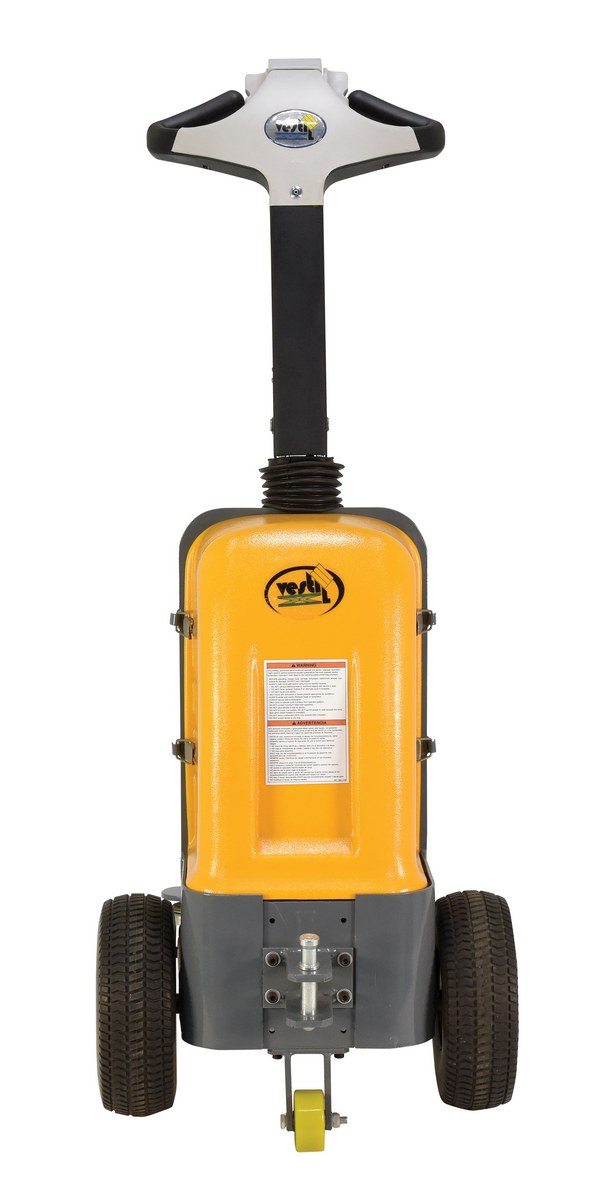

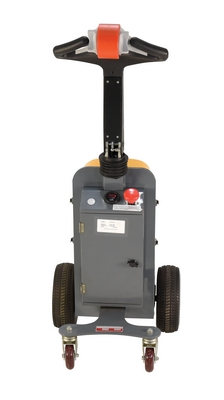

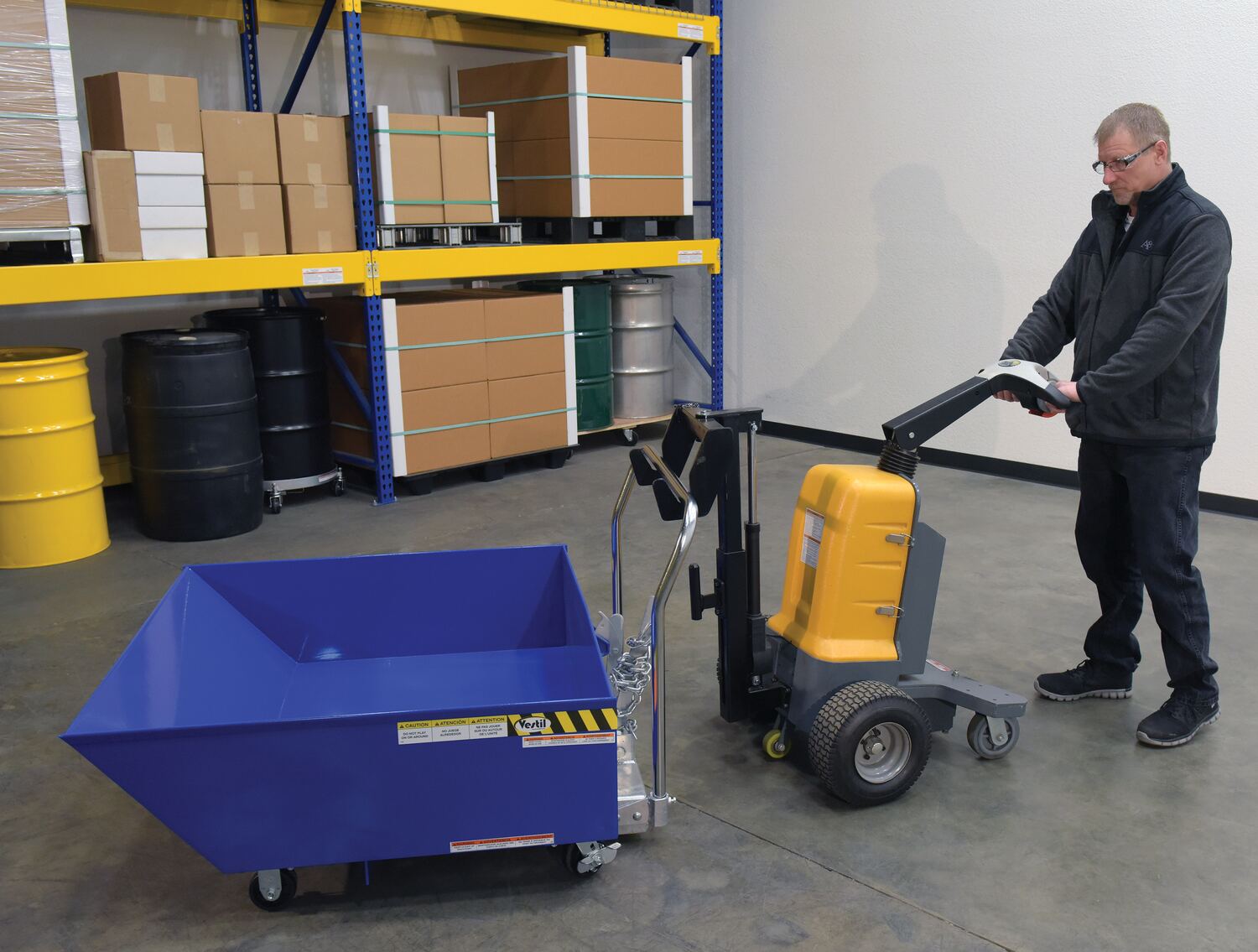

E-TUG-10		Steel Electric Powered Tugger 1000 Lb. Pull Capacity Yellow/Black	Uniform Pull Capacity (lb.): 1,000 Drive Motor: 24V DC	258

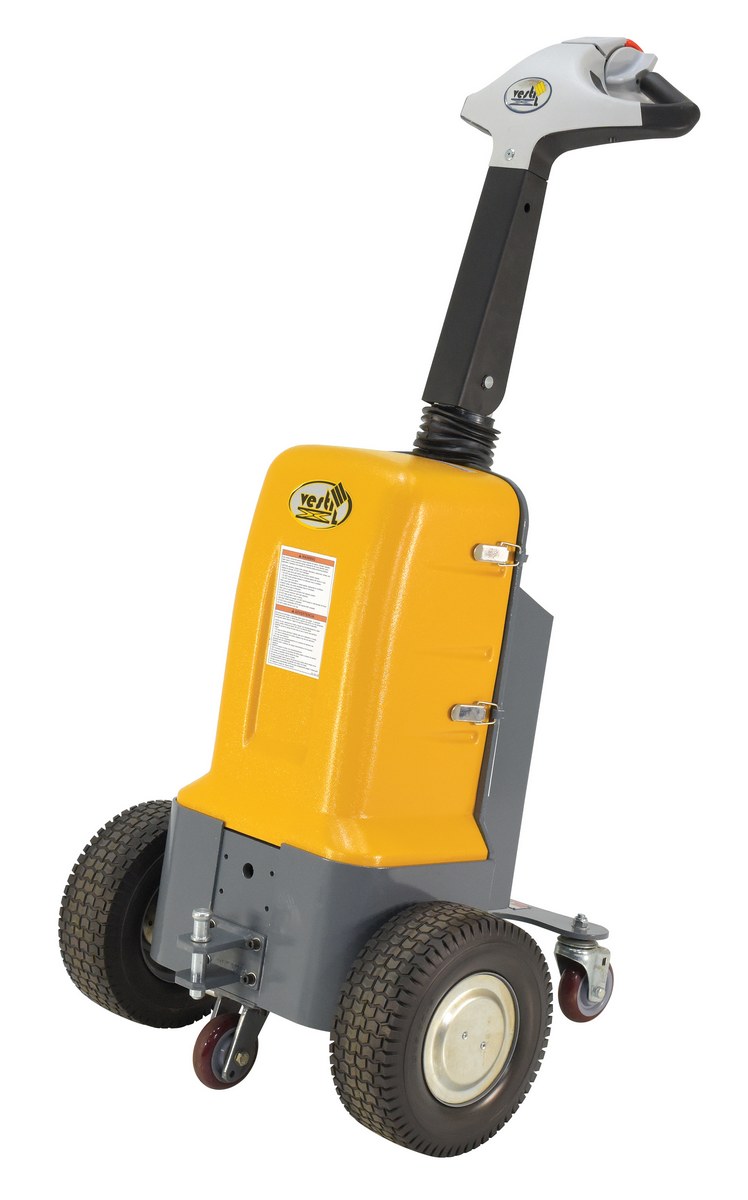

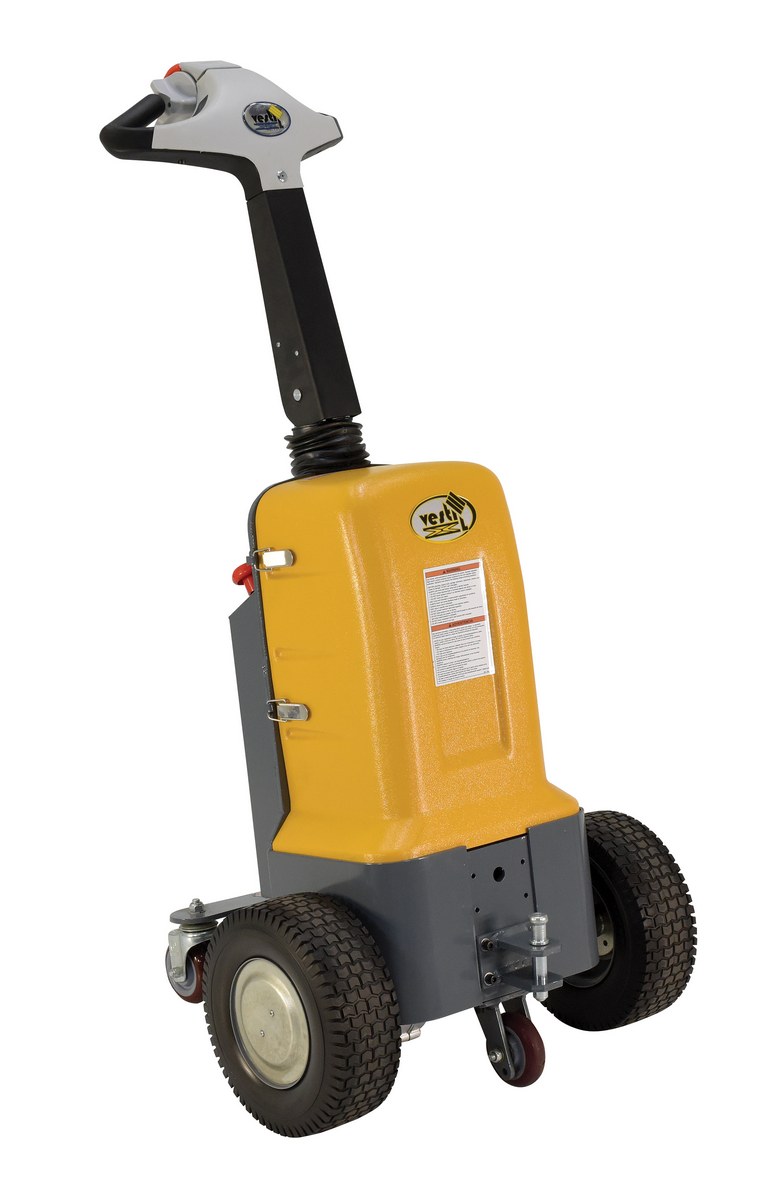

E-TUG-20		Steel Electric Powered Tugger 2000 Lb. Pull Capacity Yellow/Black	Uniform Pull Capacity (lb.): 2,000 Drive Motor: 24V DC	282

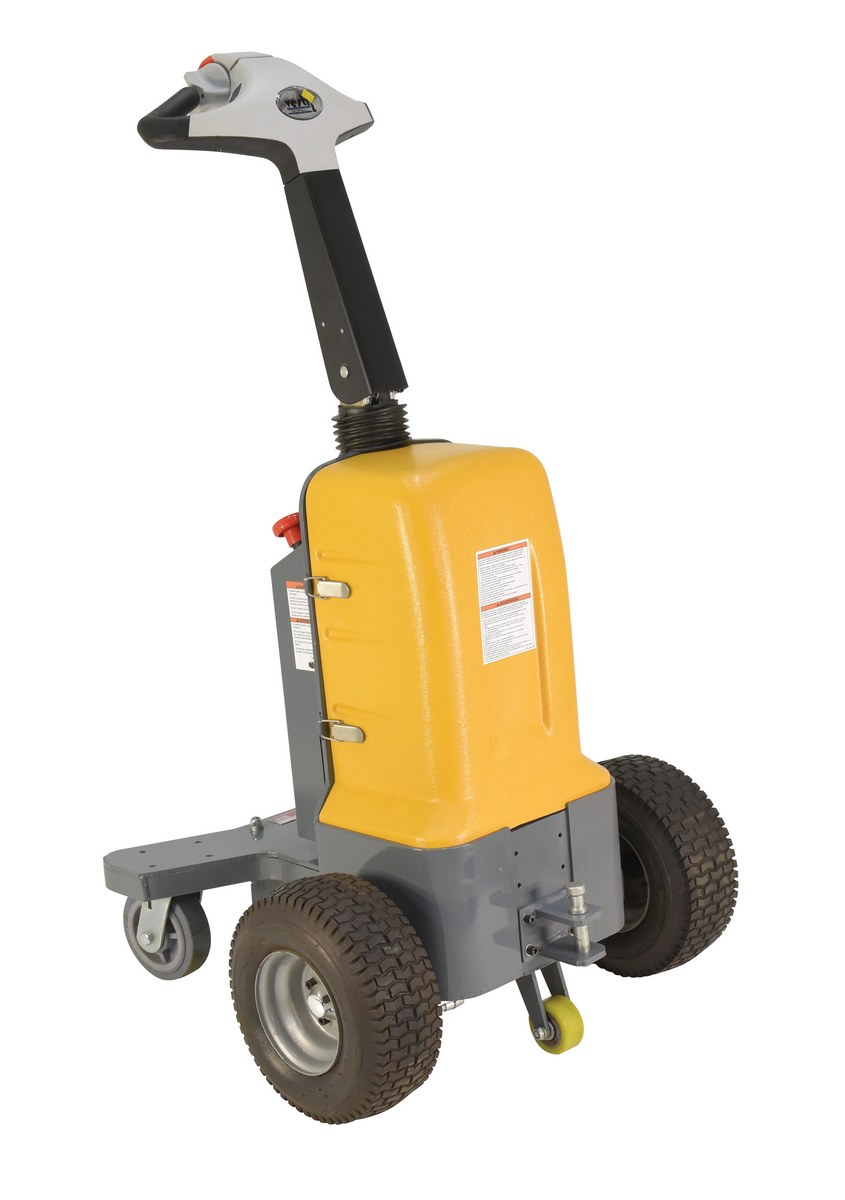

E-TUG-30		Electric Powered Tugger with 3000 Lb. Pull Capacity Yellow/Black	Uniform Pull Capacity (lb.): 3,000 Drive Motor: 24V DC	434

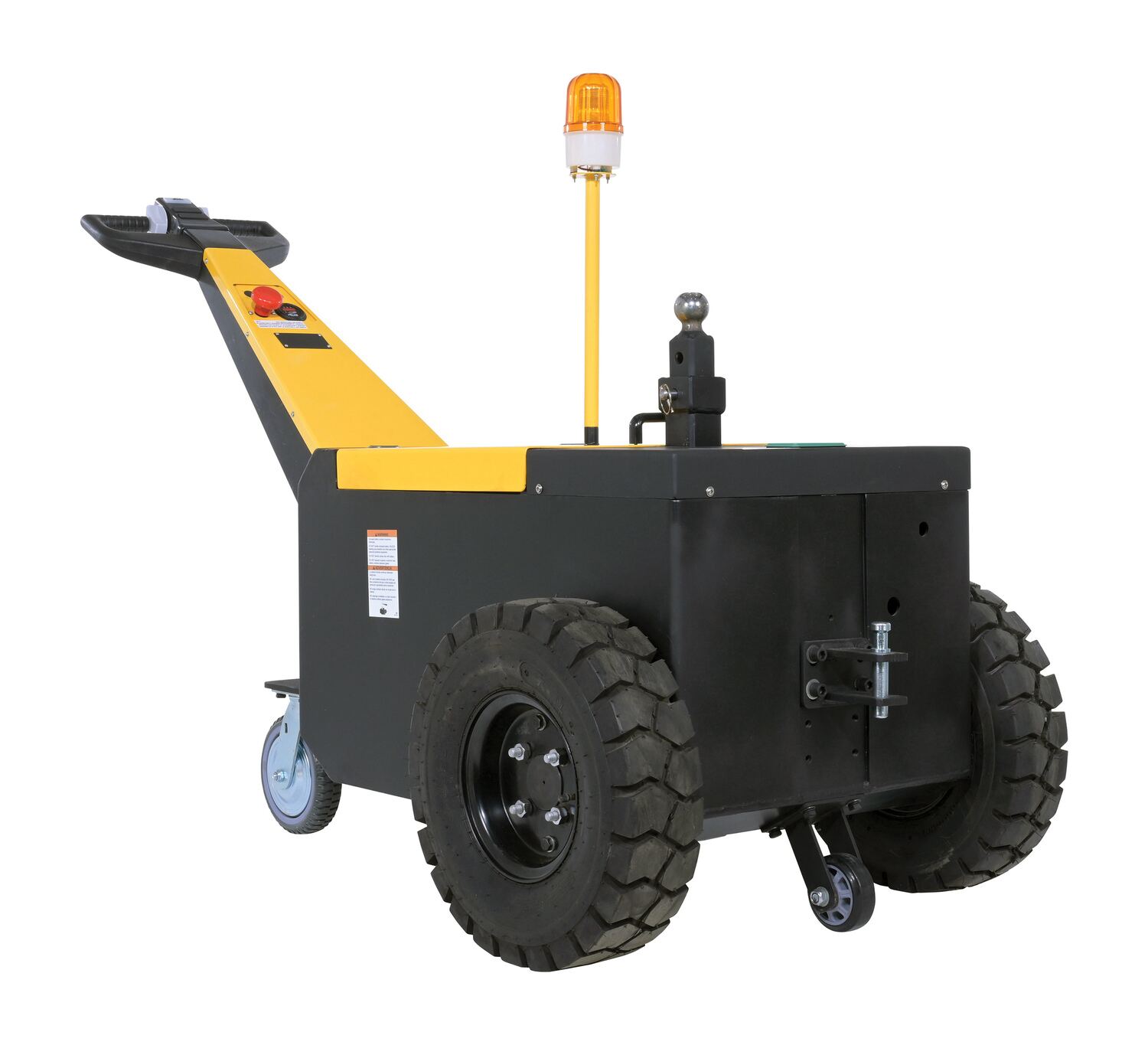

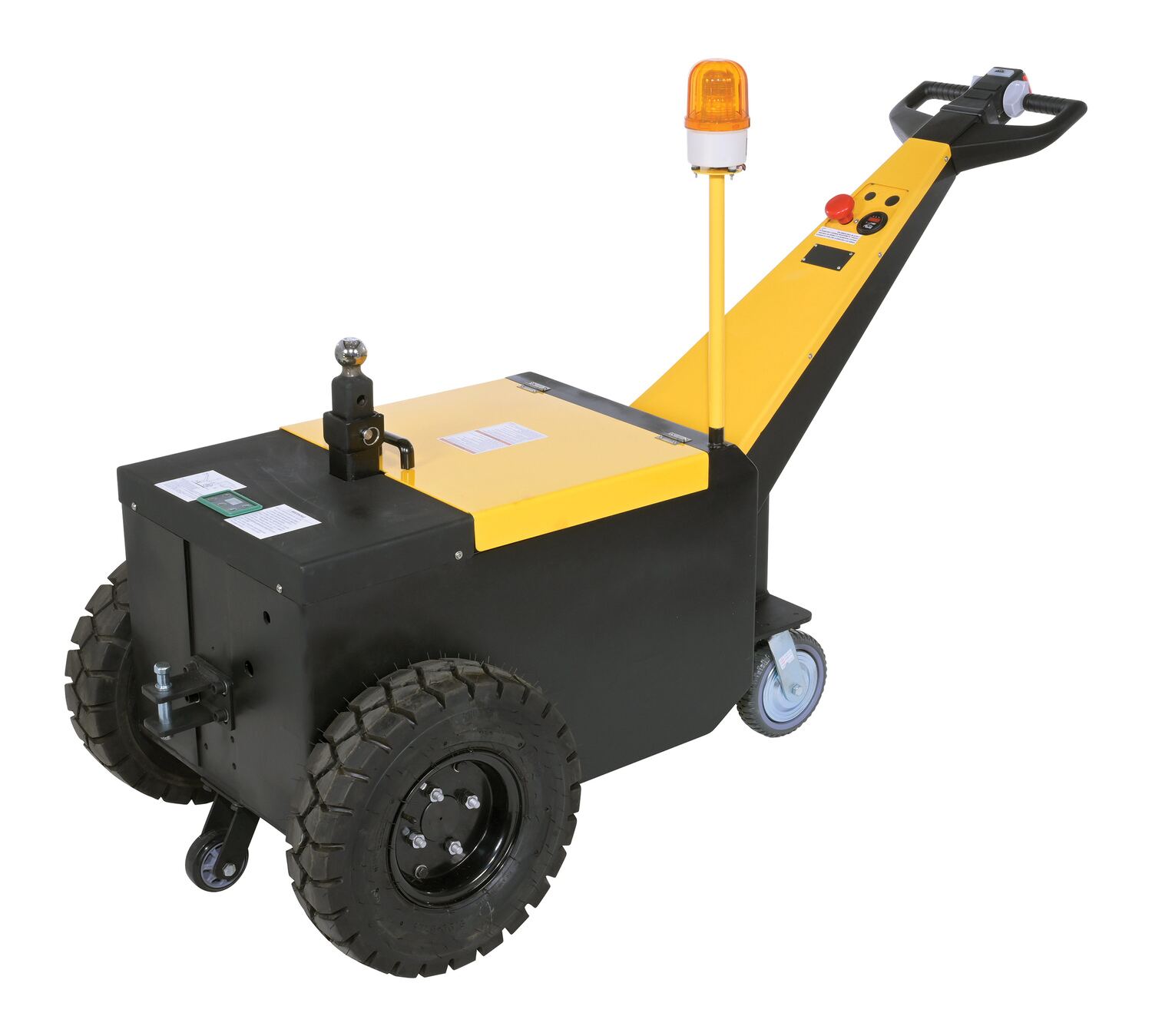

E-TUG-HD-100		Steel Heavy Duty Electric Powered Tugger 10,000 Lb. Pulling Capacity Yellow	Uniform Capacity (lb.): 10,000 Drive Motor: 24V DC	1072

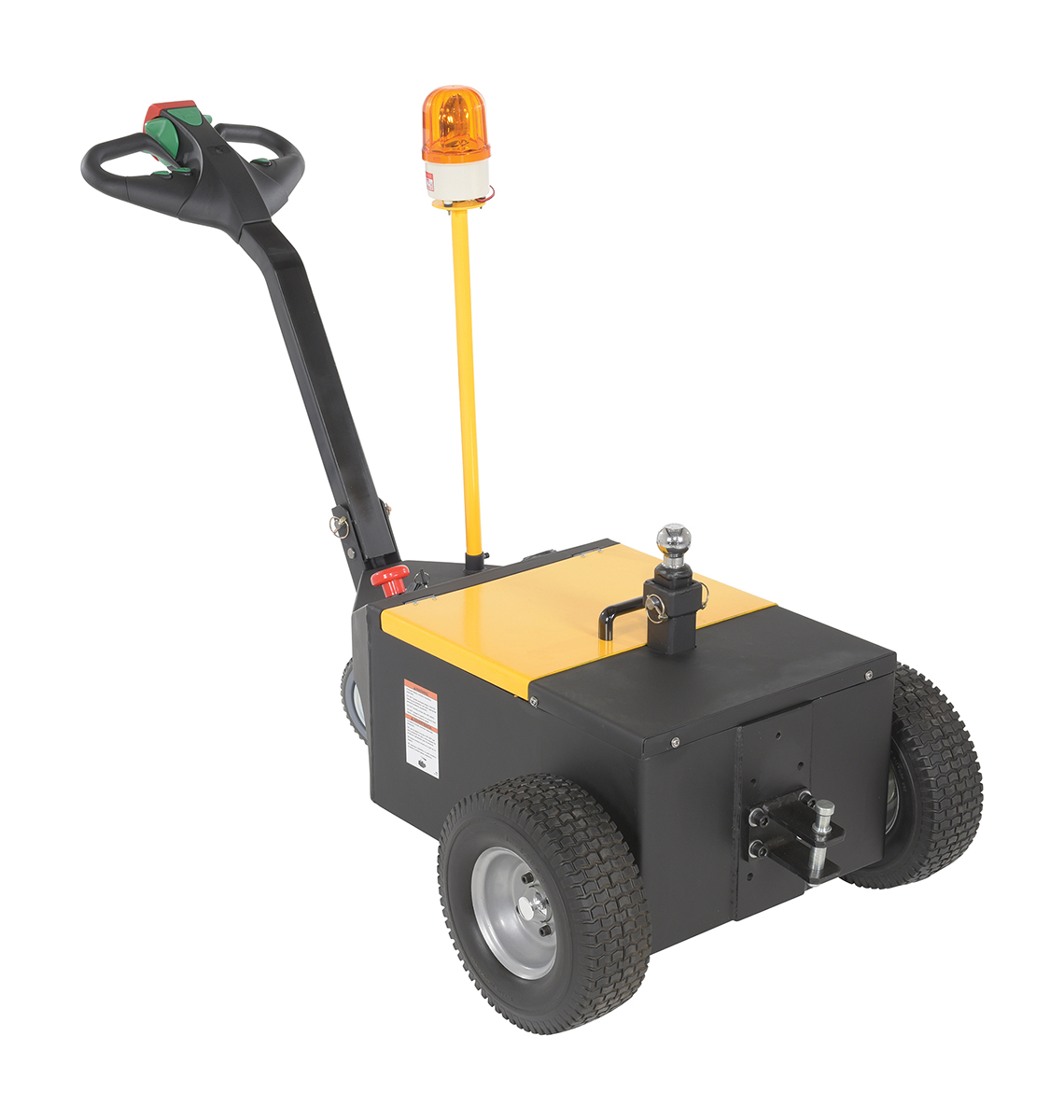

E-TUG-HD-30		Steel Heavy Duty Electric Powered Tugger 3000 Lb. Pull Capacity Yellow/Black	Uniform Capacity (lb.): 3,000 Drive Motor: 24V DC	420

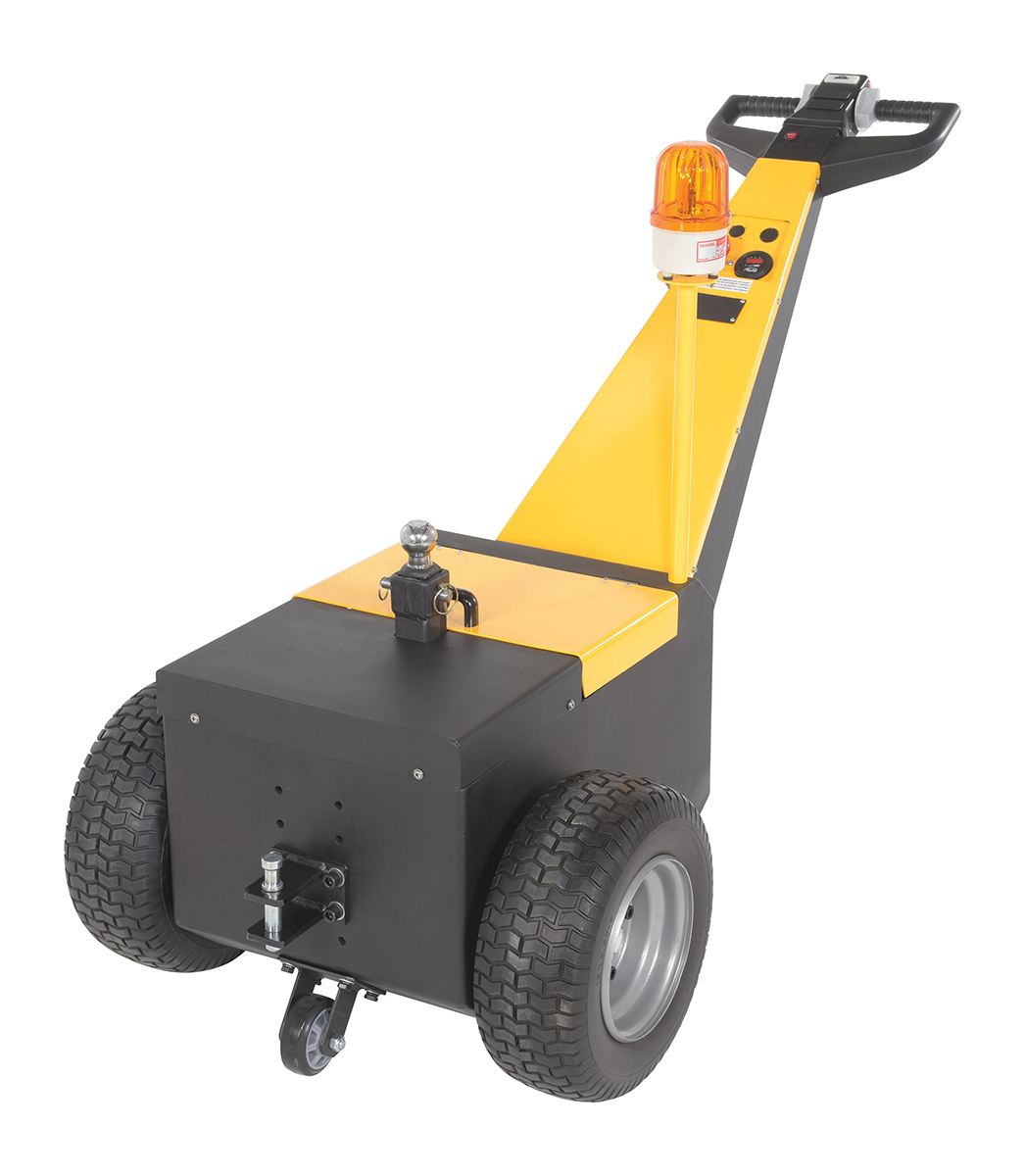

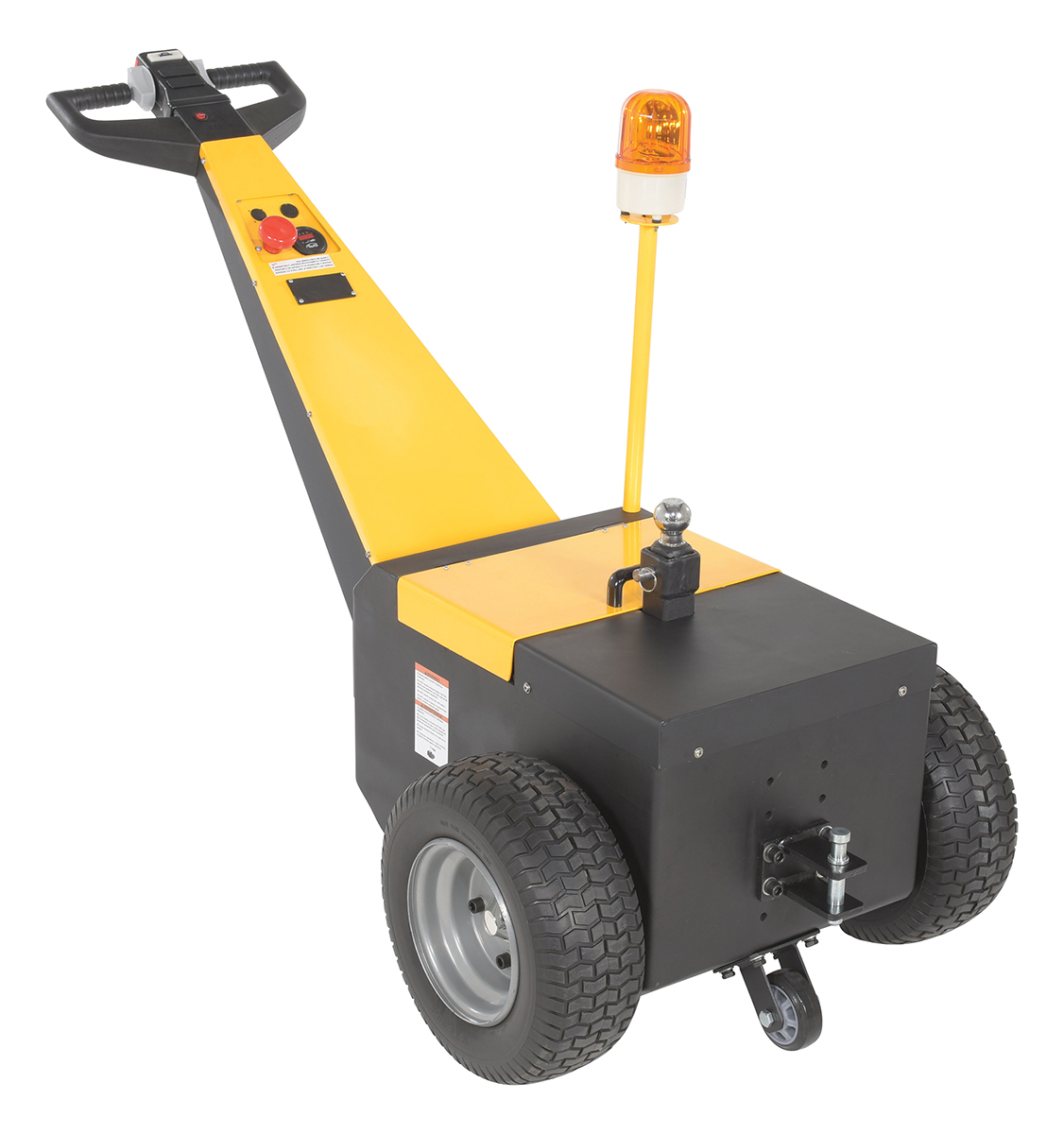

E-TUG-HD-50		Steel Heavy Duty Electric Powered Tugger 5000 Lb. Pull Capacity Yellow/Black	Uniform Capacity (lb.): 5,000 Drive Motor: 24V DC	606

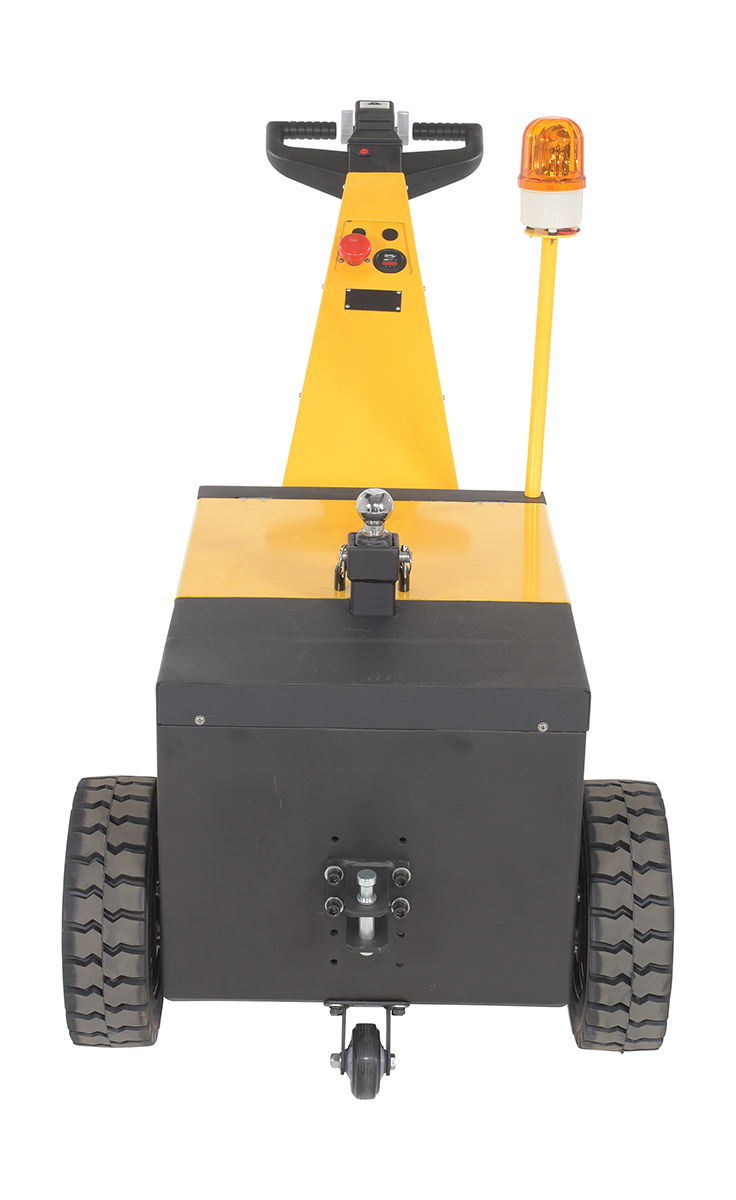

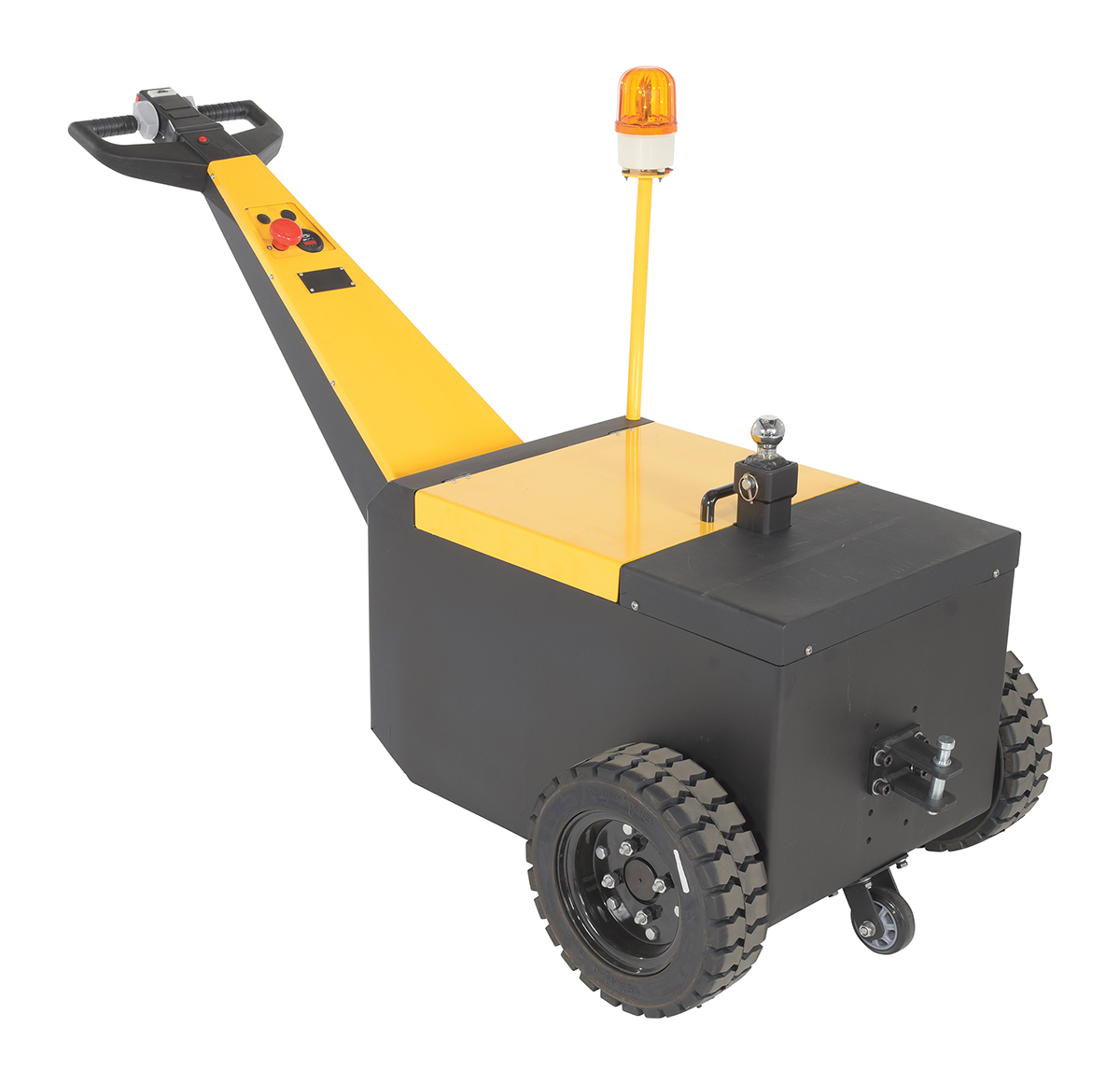

E-TUG-HD-70		Steel Heavy Duty Electric Powered Tugger 7000 Lb. Pull Capacity Yellow/Black	Uniform Capacity (lb.): 7,000 Drive Motor: 24V DC	1012

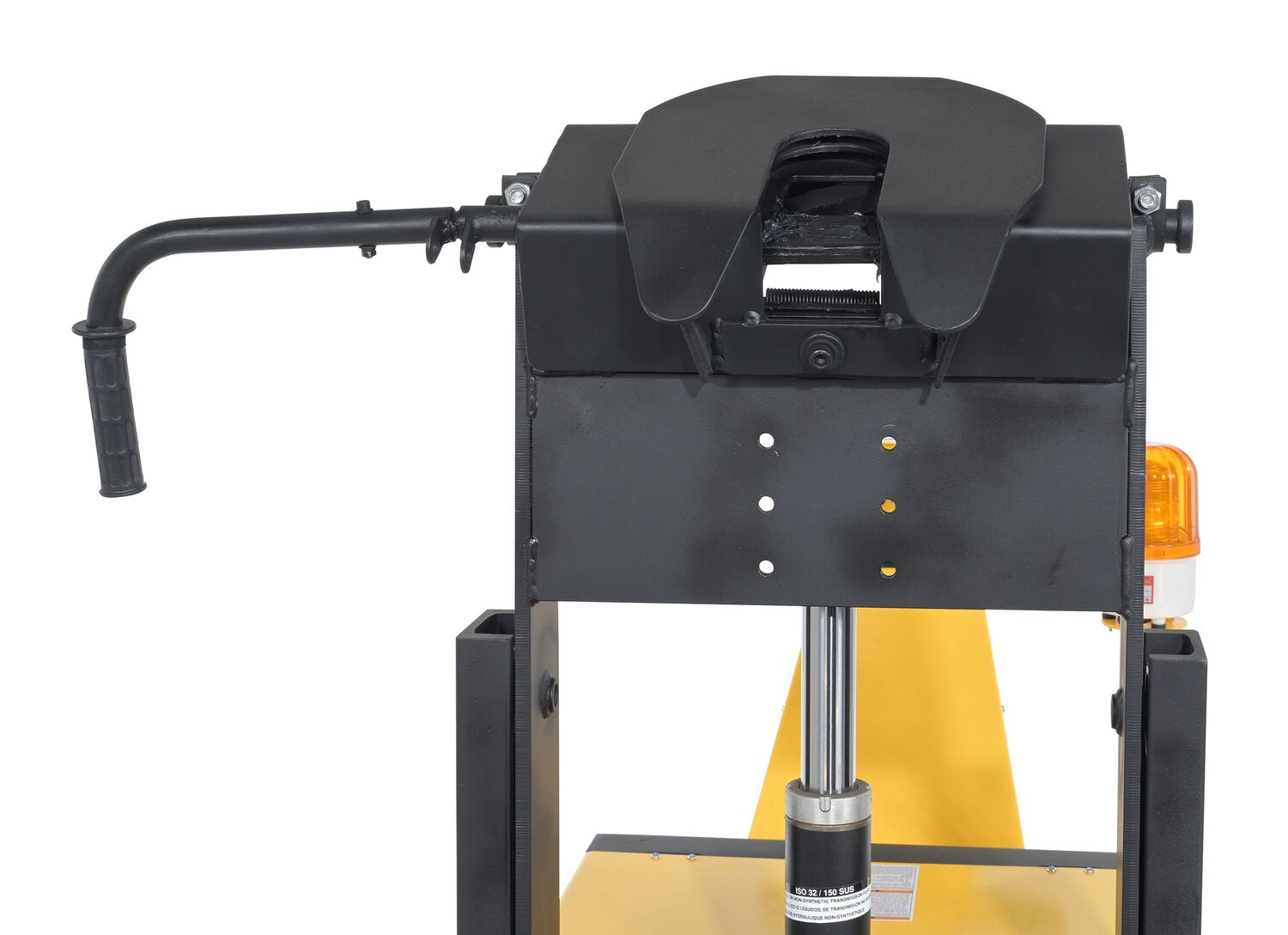

E-TUG-HD-100-RV		Steel Heavy Duty Electric Powered Tugger With Fifth Wheel Attachment 10,000 Lb. Pulling Capacity Yellow	Uniform Capacity (lb.): 10,000 Drive Motor: 24V DC	1300

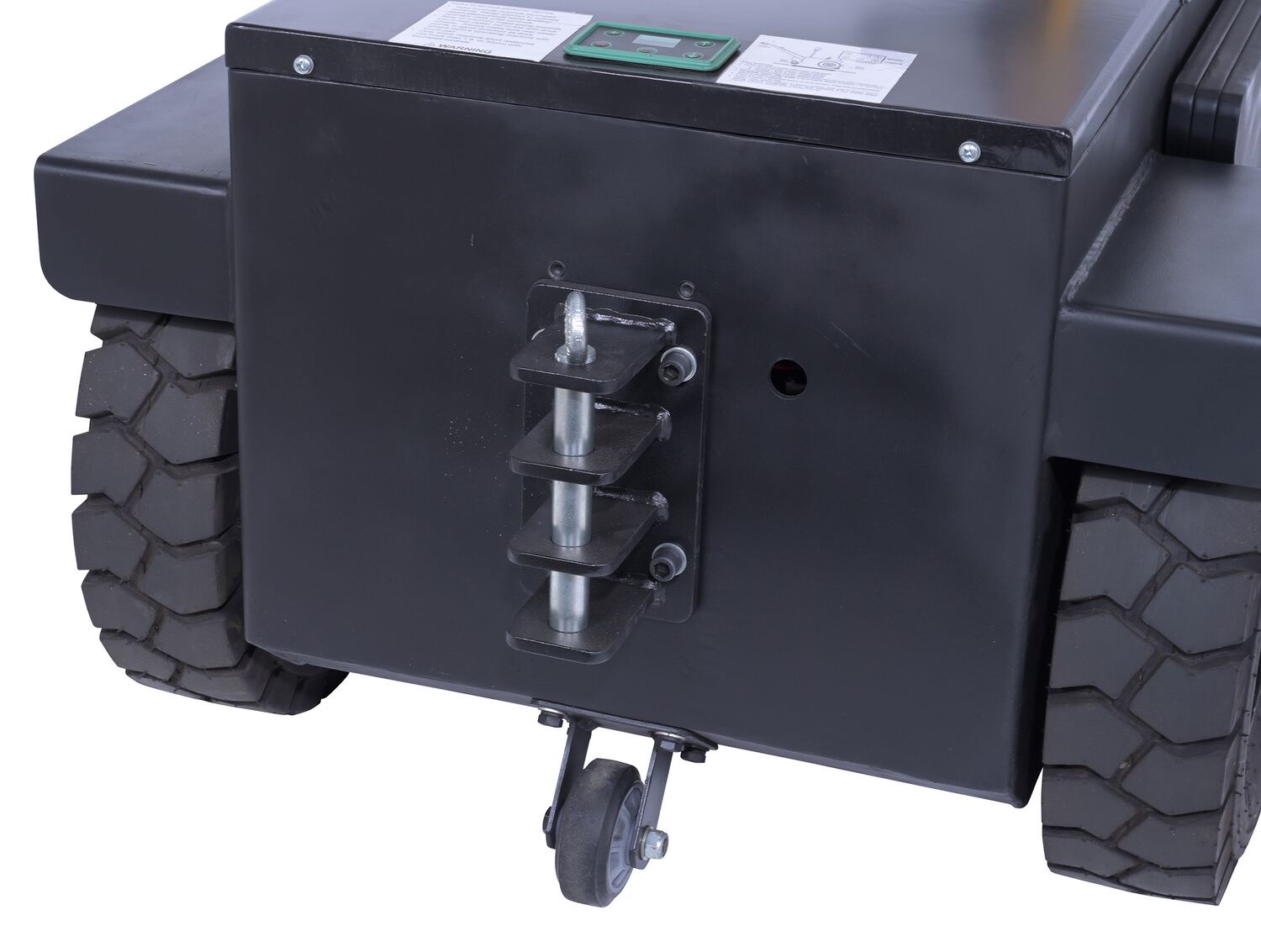

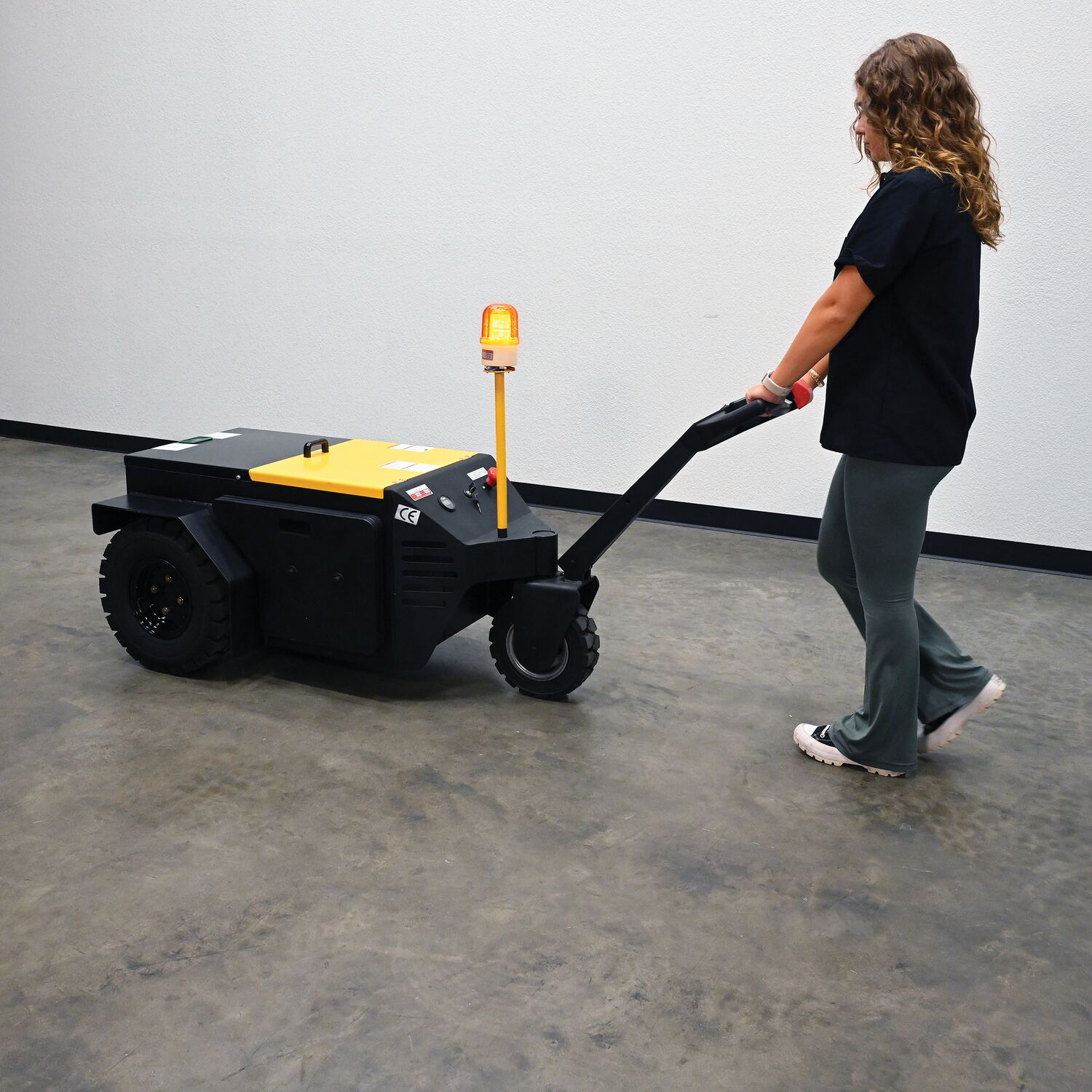

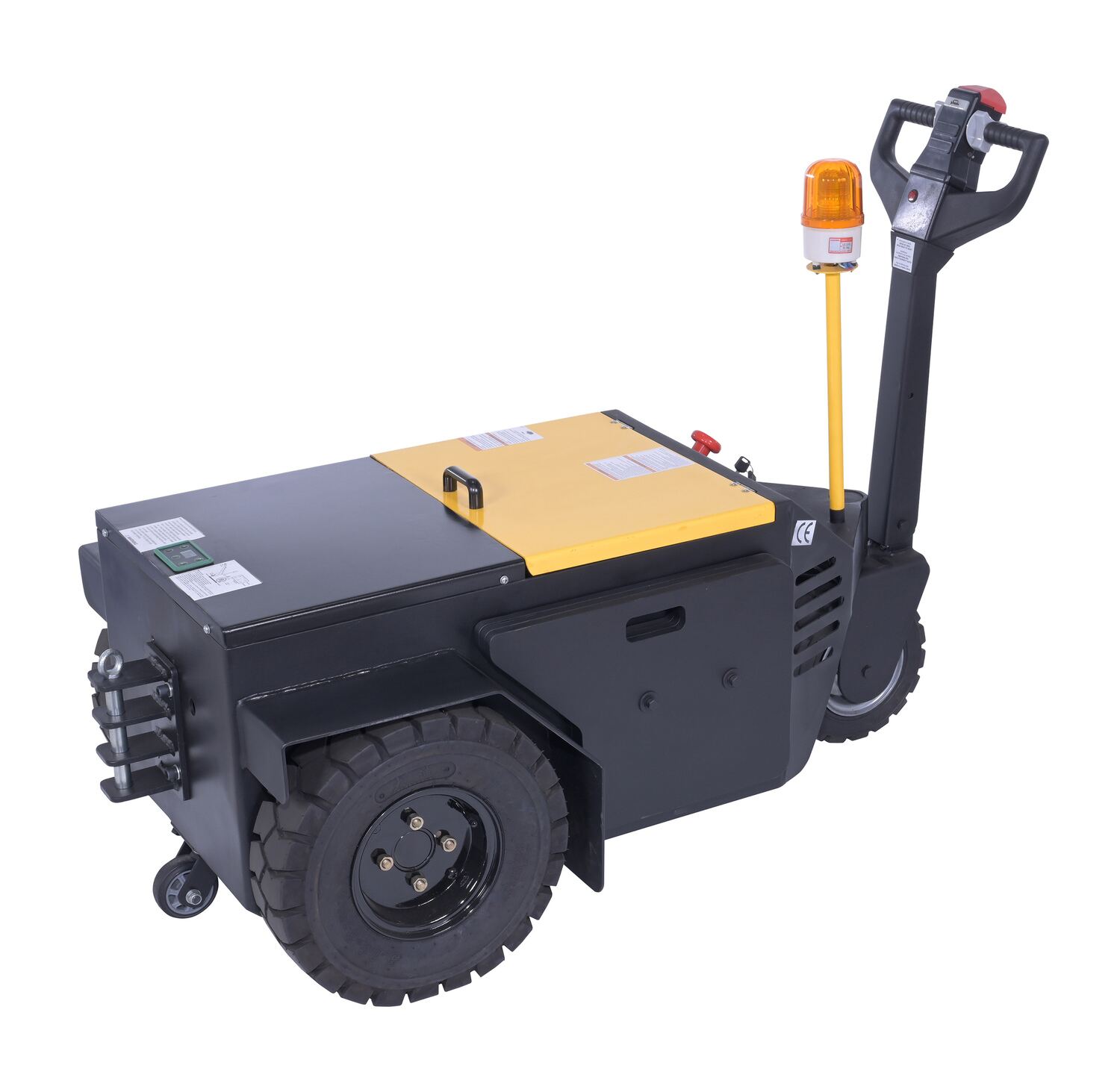

E-TUG-HD-120		Steel Heavy Duty Electric Powered Tugger 12,000 Lb. Pulling Capacity Yellow	Uniform Capacity (lb.): 12,000 Drive Motor: 24V DC	1190

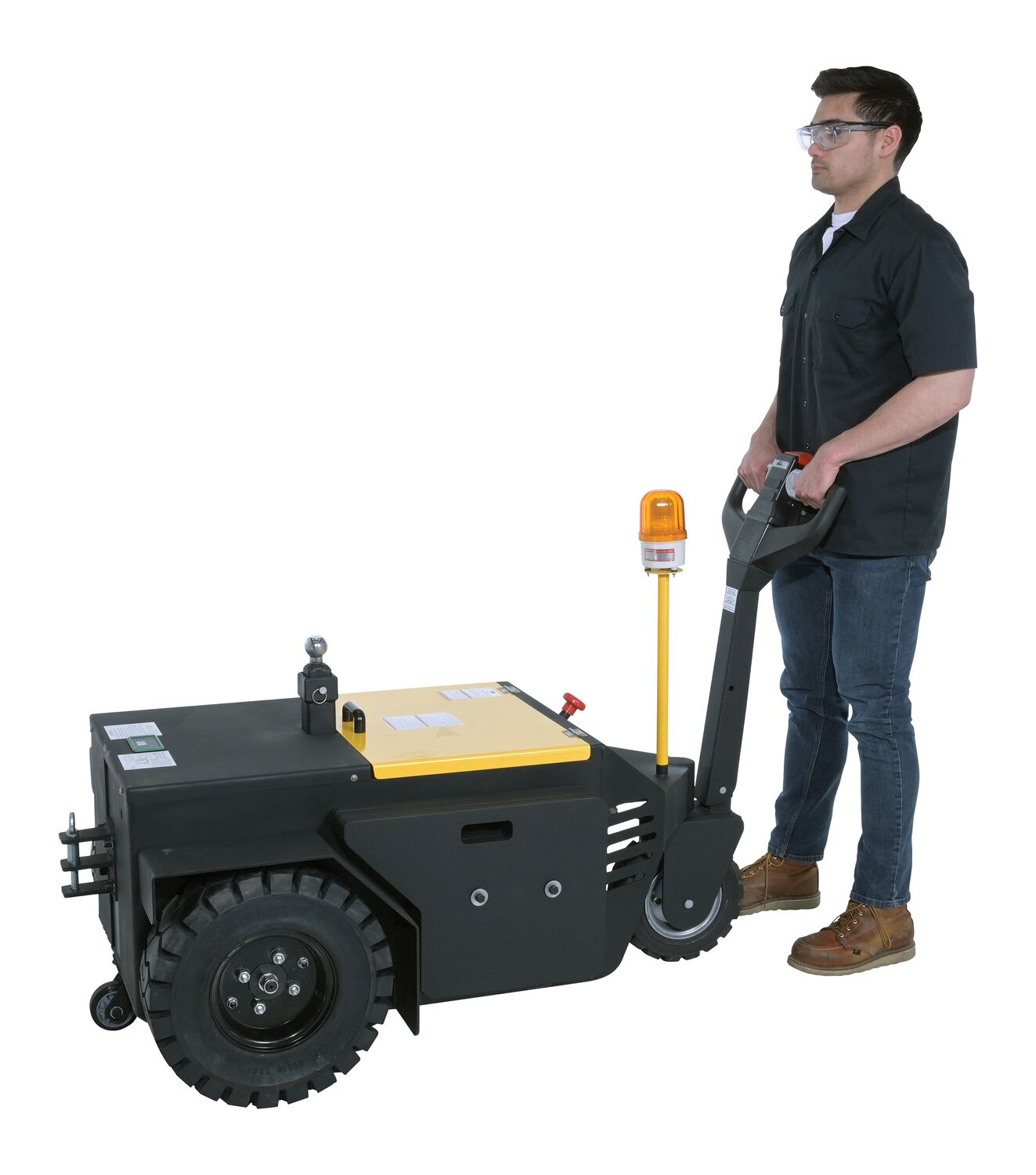

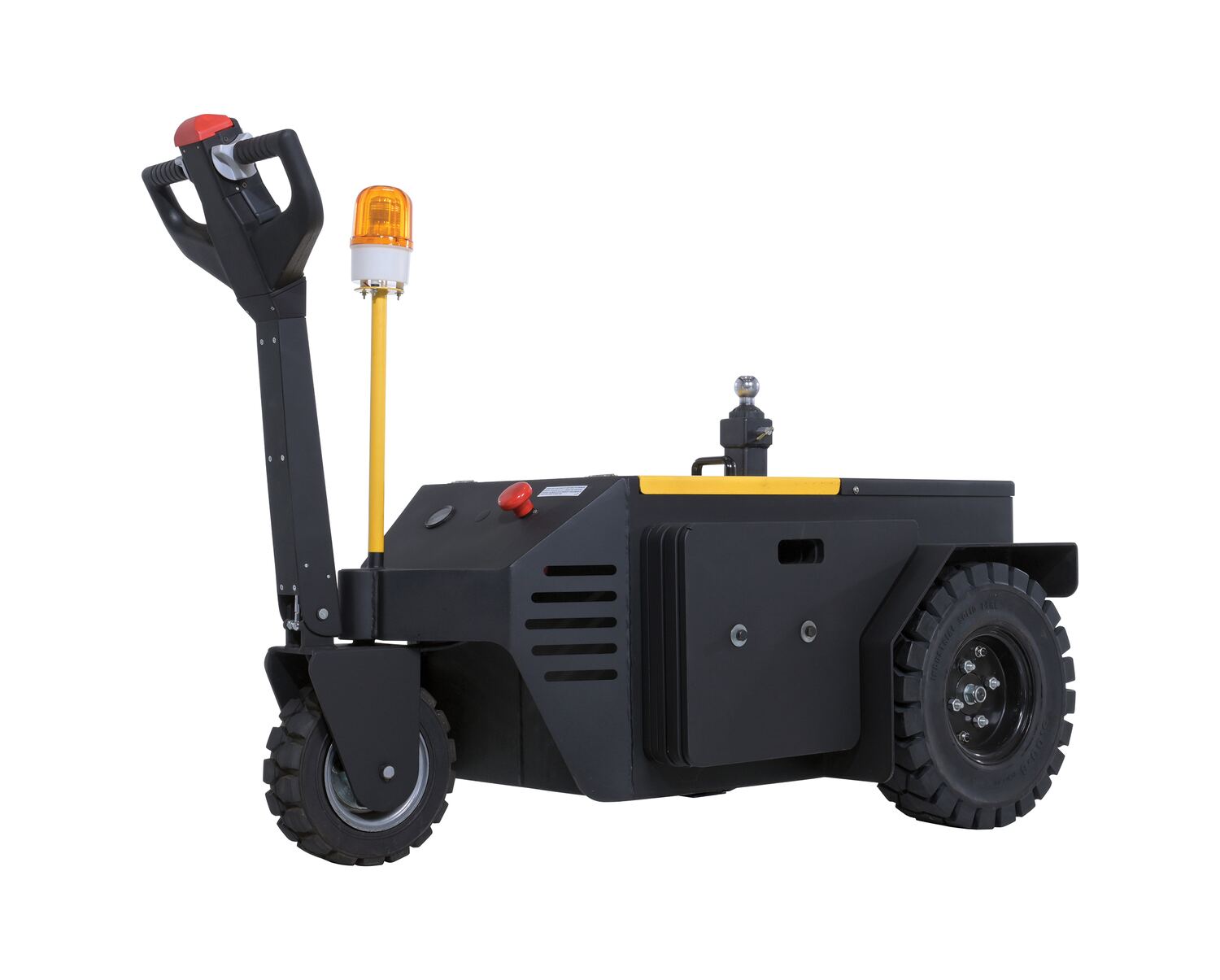

E-TUG-HD-180		Steel Heavy Duty Electric Powered Tugger 18,000 Lb. Pulling Capacity Black	Uniform Capacity (lb.): 18,000 Drive Motor: 24V DC	1550
