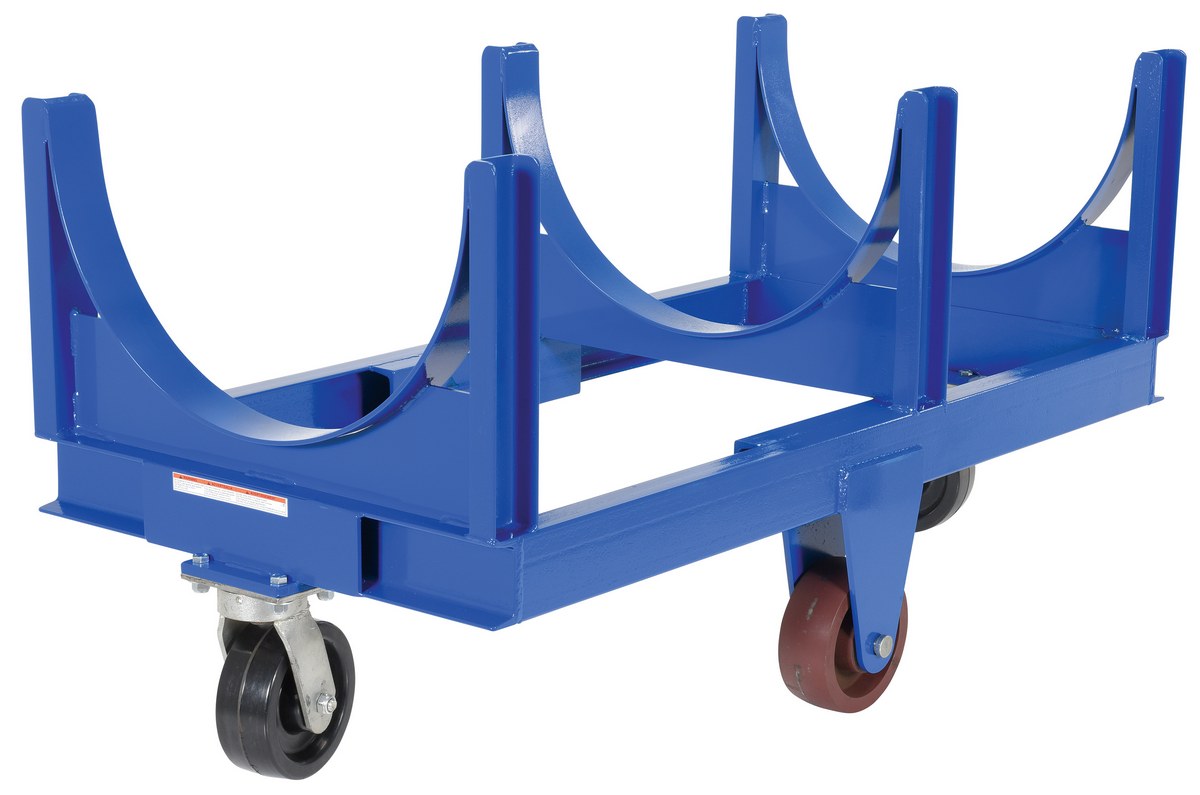

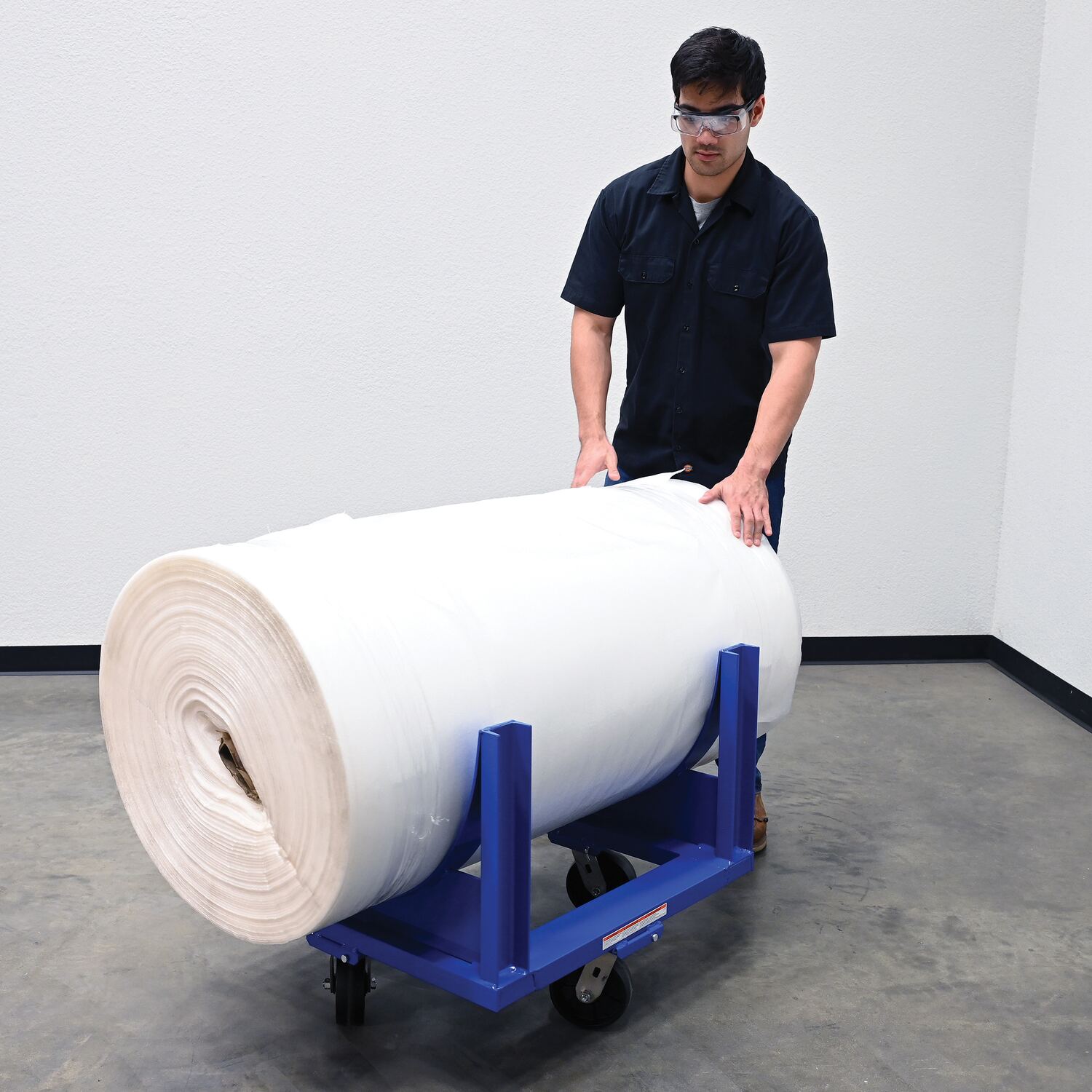

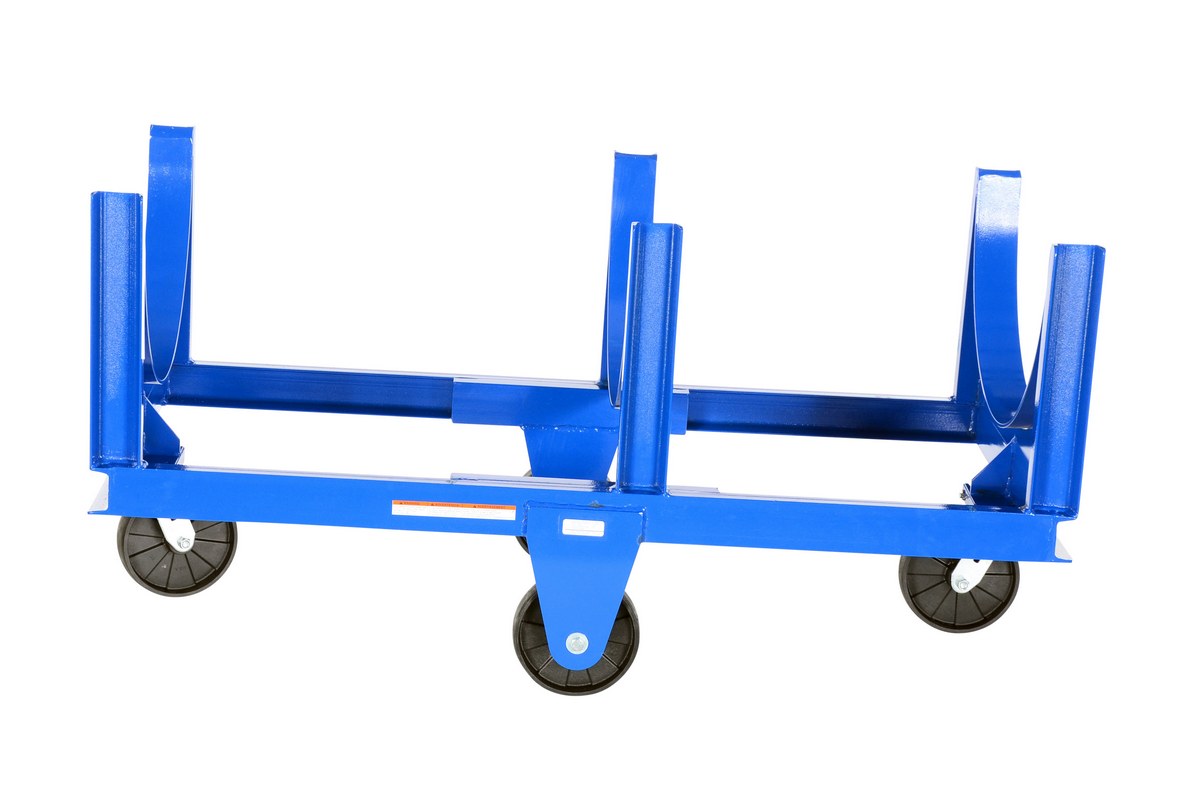

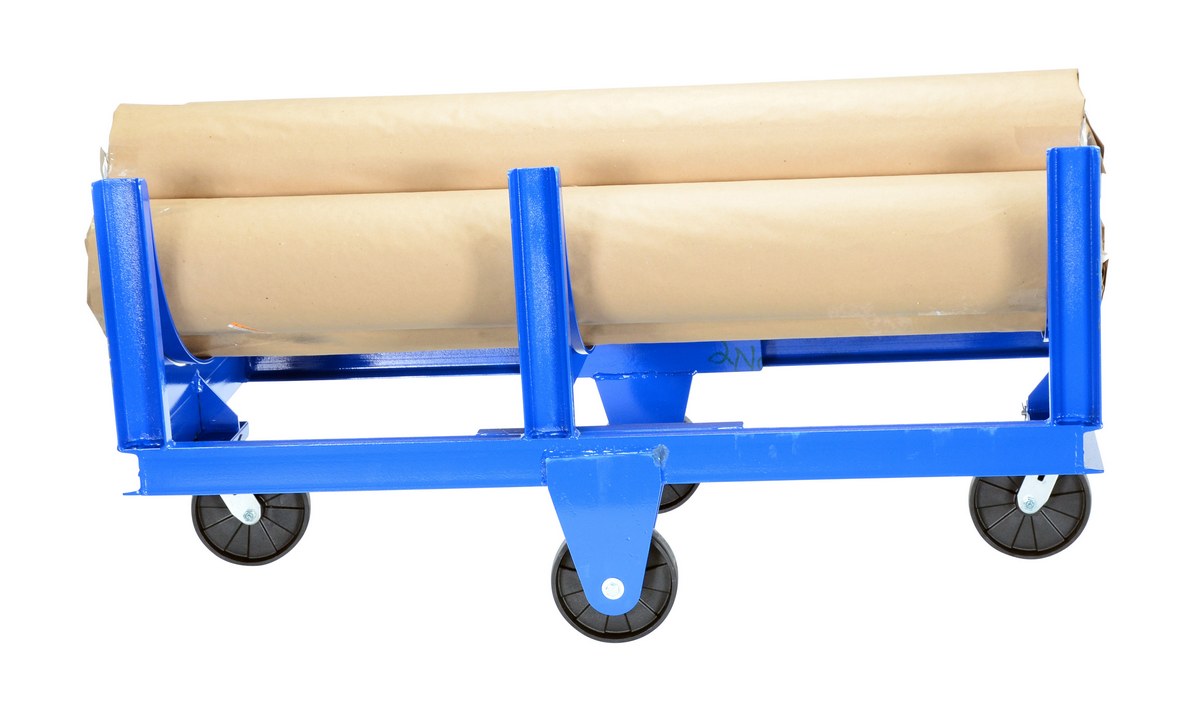

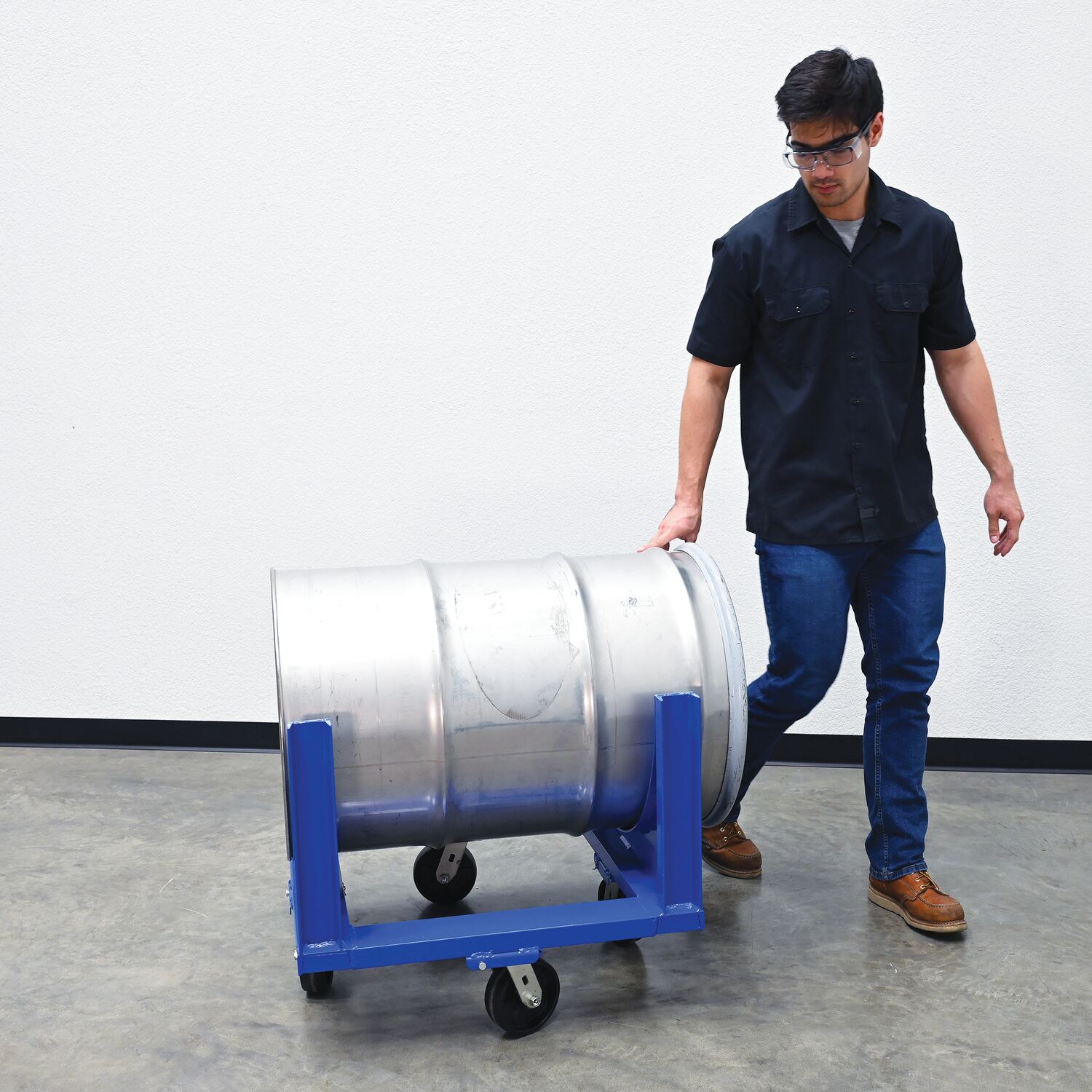

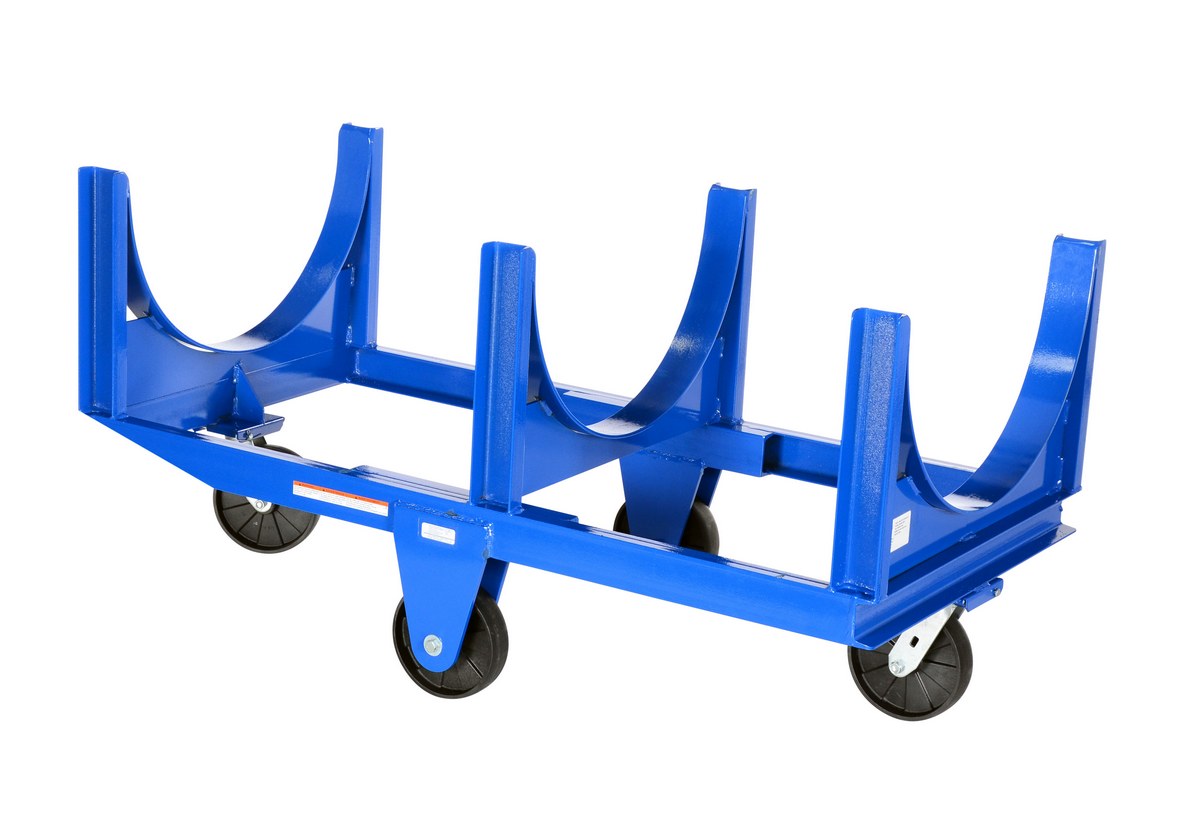

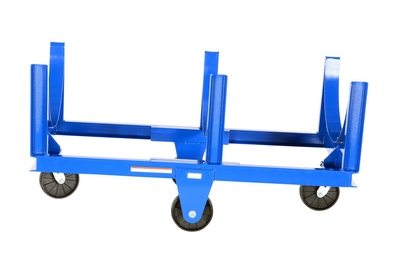

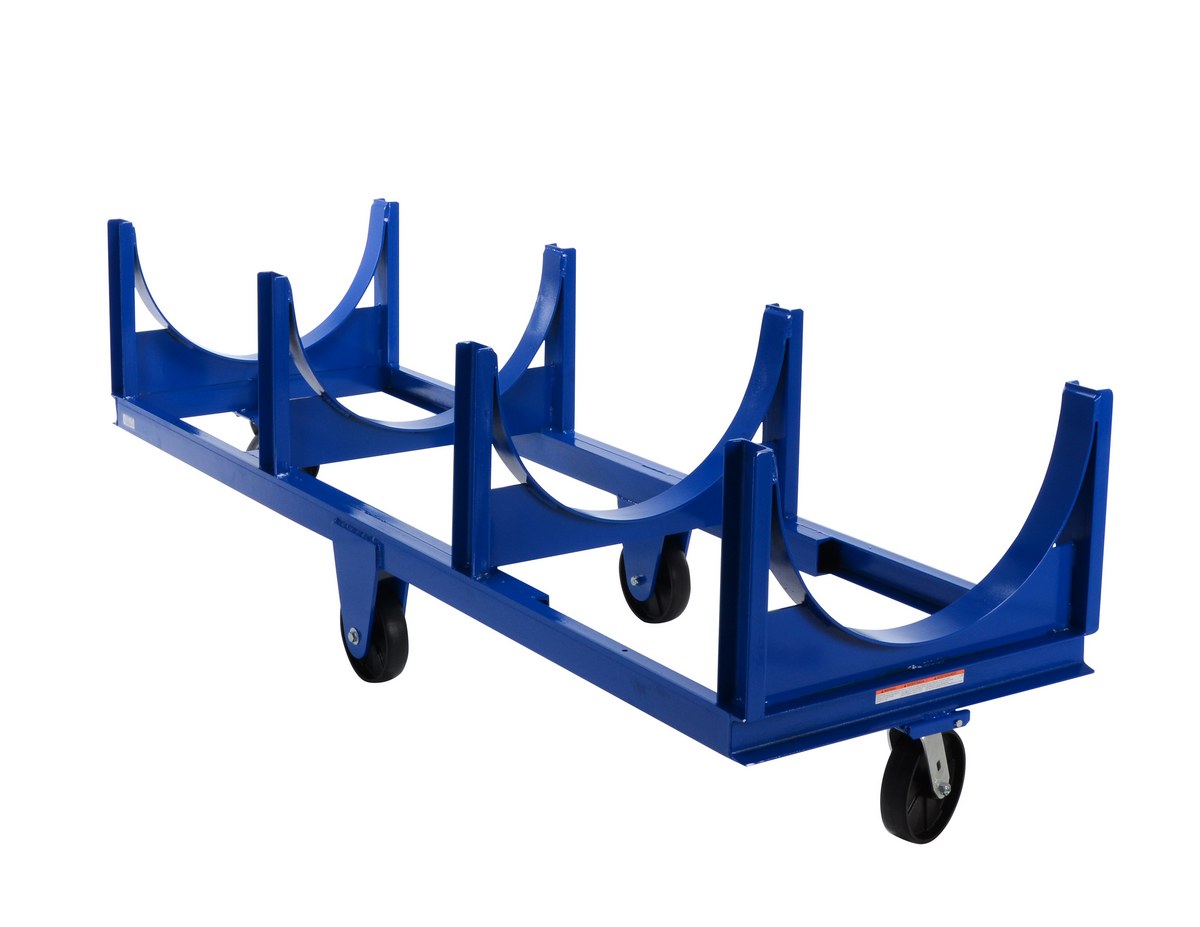

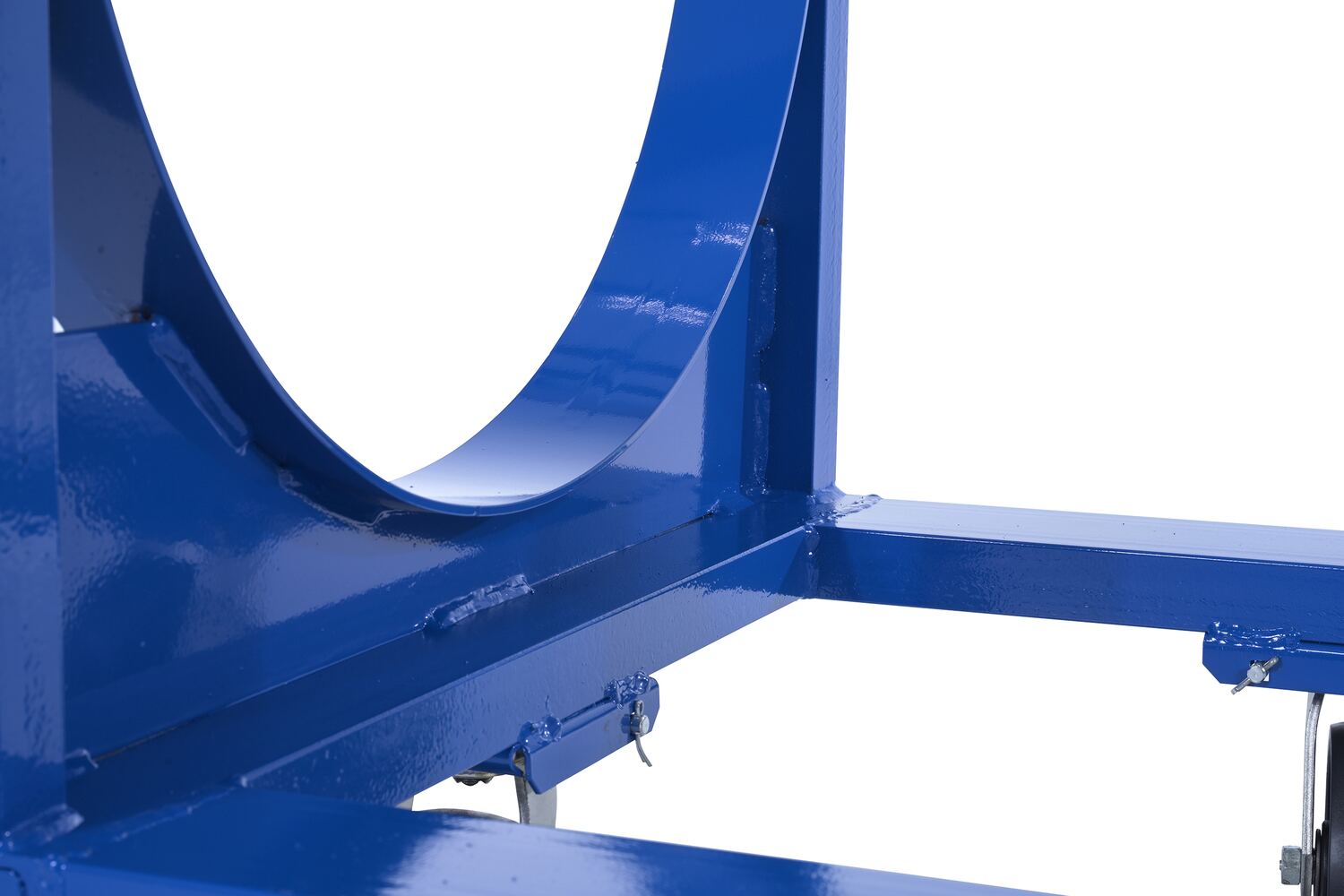

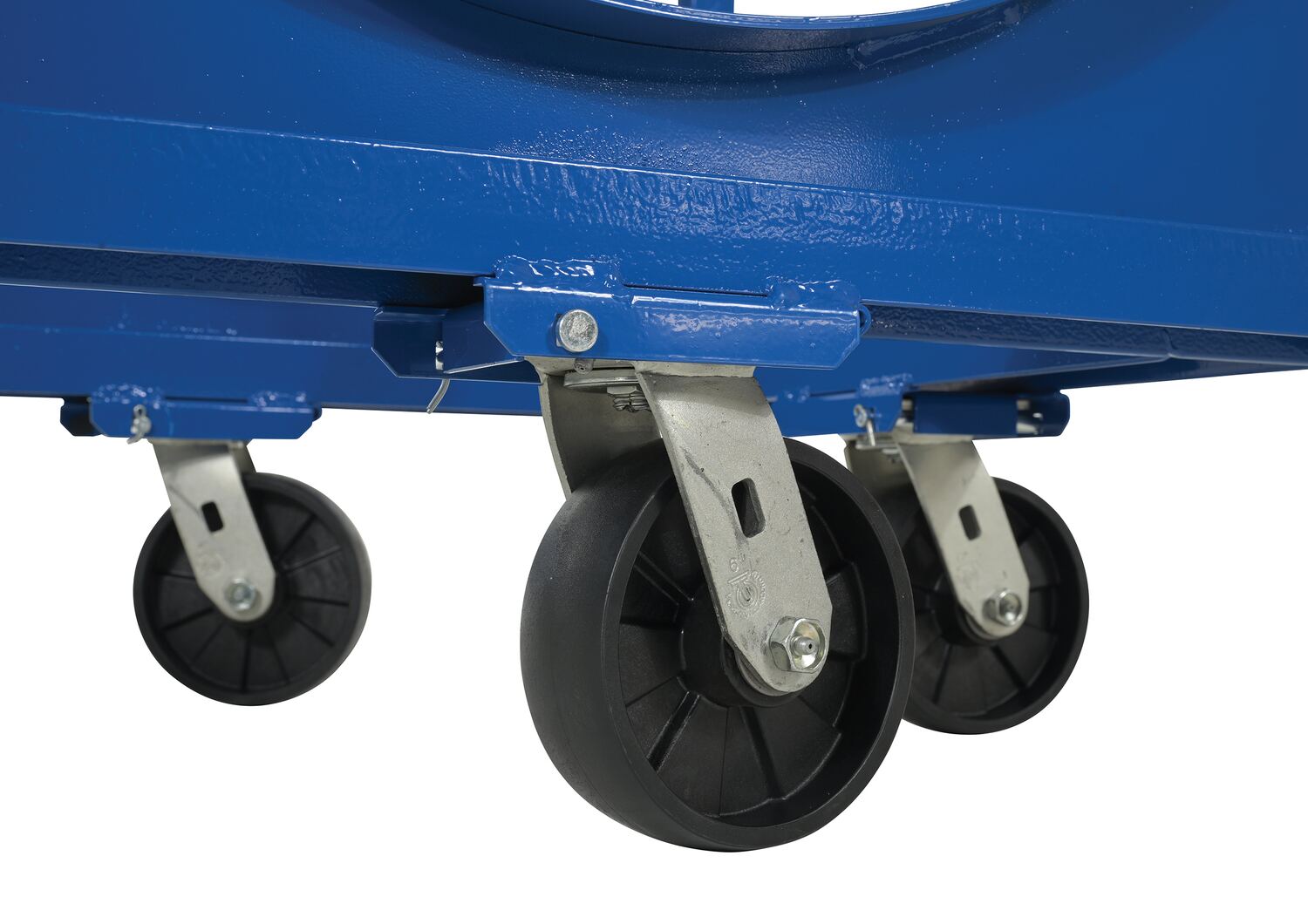

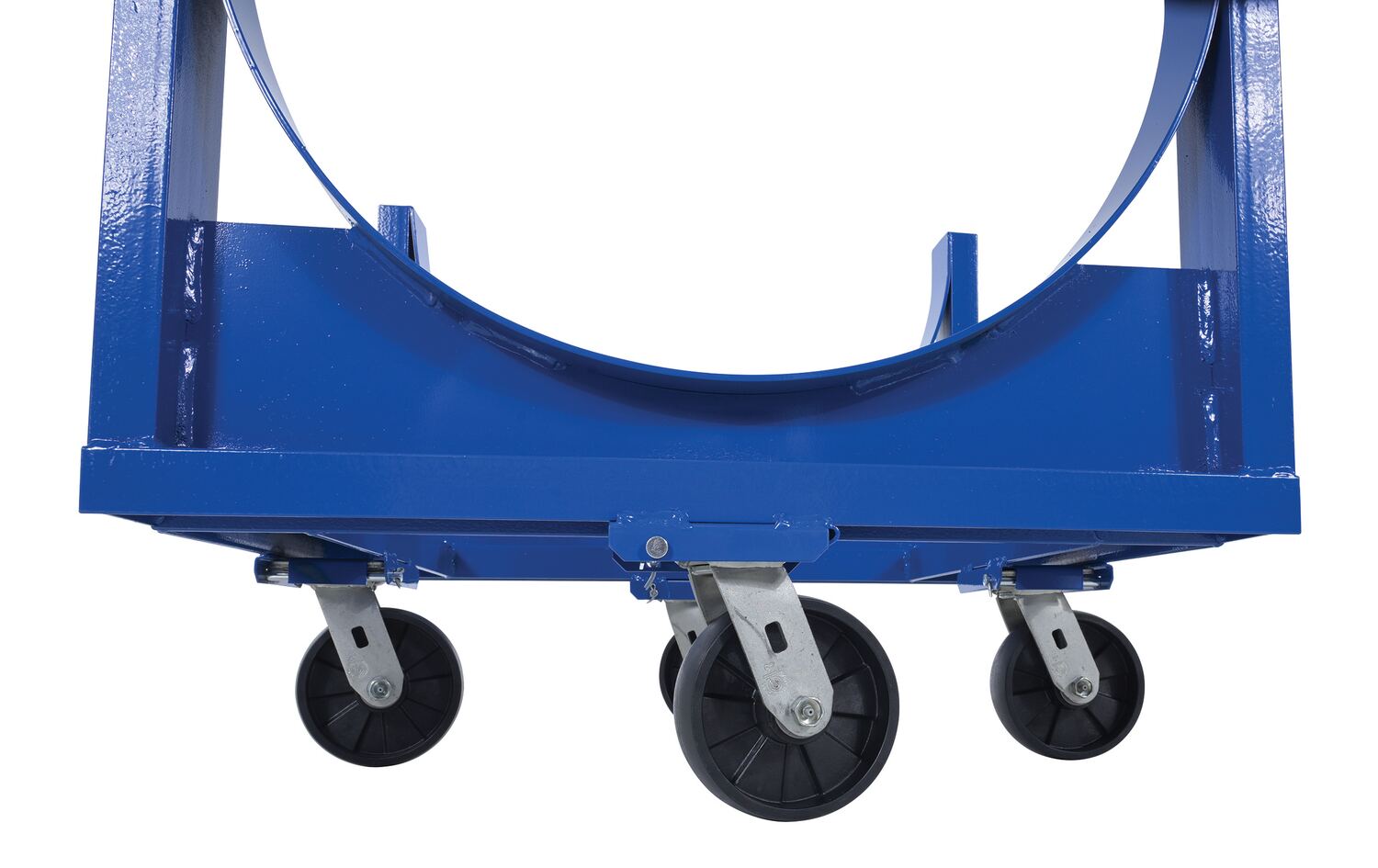

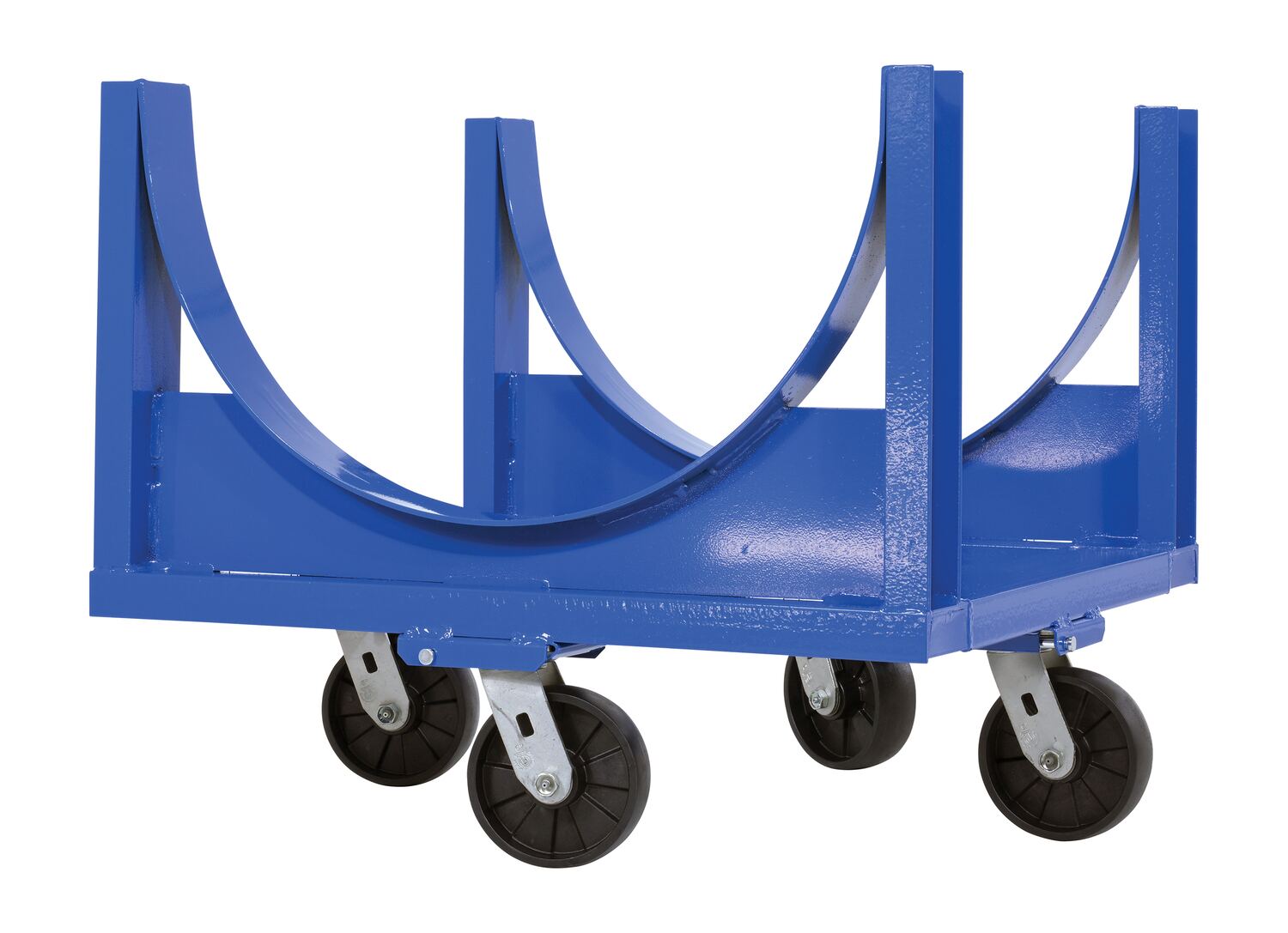

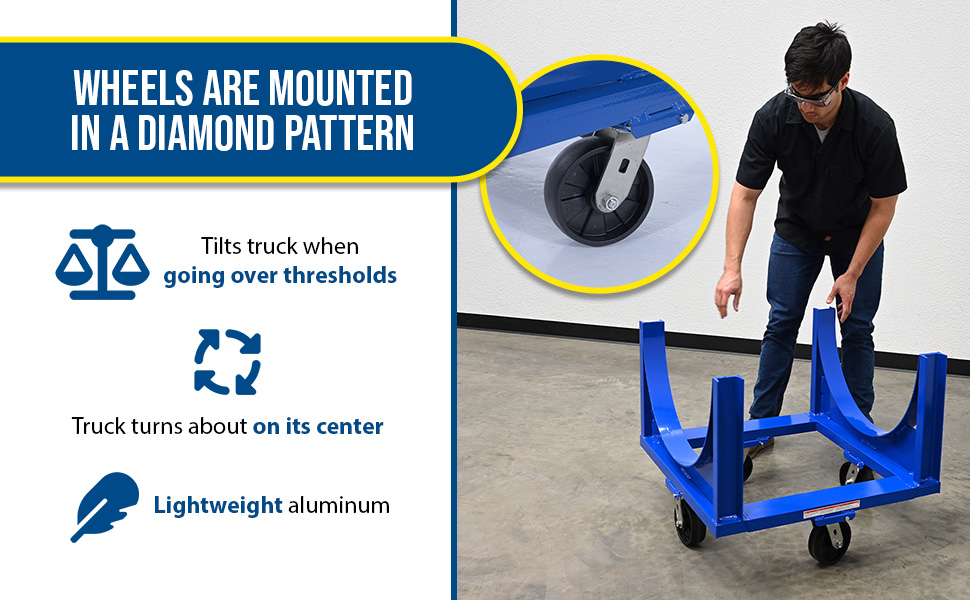

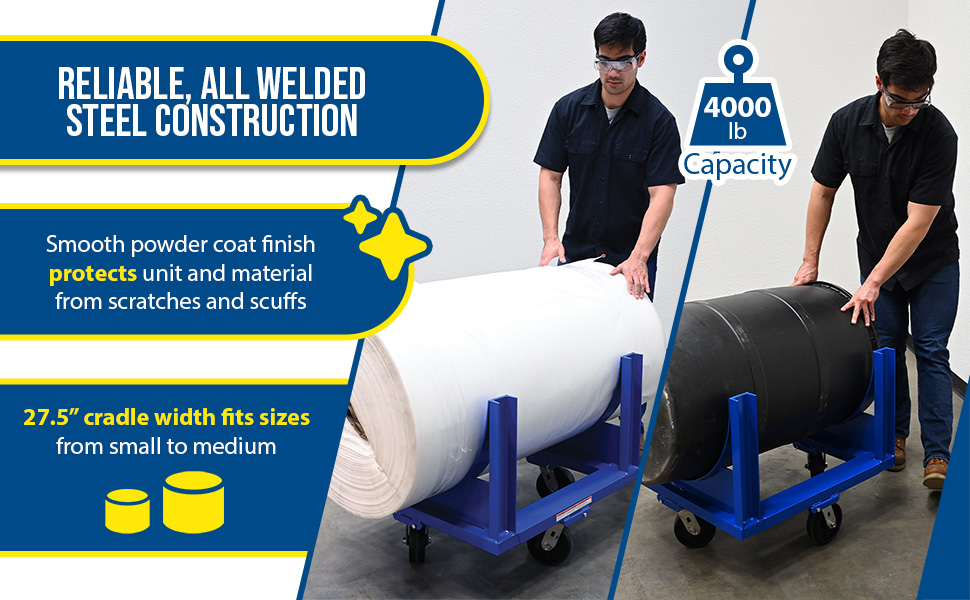

Heavy-Duty Cradle CartsMove and store pipe, channel, bar stock, barrels, or drums with these Heavy-Duty Cradle Carts. A large open design that makes loading and unloading by fork trucks and slings easy. All welded construction. Wheels are mounted in a diamond pattern to allow the truck to tilt when going over thresholds and turnabout on its own center. The 4,000 pound units roll on (2) rigid and (2) swivel glass filled nylon casters with the exception of models DCC-17 rolls on four (4) swivel (hard rubber) and DCC-80 rolls on four (4) swivel glass filled nylon. The 10,000 pound carts roll on (2) rigid steel and (2) swivel phenolic casters. Powder coat finish standard on steel cart.
All Wheel Steer Truck
Portable Parts BinAdditional Models In This Family
DCC-2896-4
DCC-28120-10
DCC-2896-10
DCC-2860-10
DCC-2860-10
DCC-2896-4
DCC-28120-10
DCC-2896-4
DCC-2896-10
DCC-2860-4
DCC-2860-4
DCC-28120-10
DCC-2896-10
DCC-2860-10
DCC-2860-4
| Model # | Description | Attributes | Net Wt. (lbs) |
||||
|---|---|---|---|---|---|---|---|

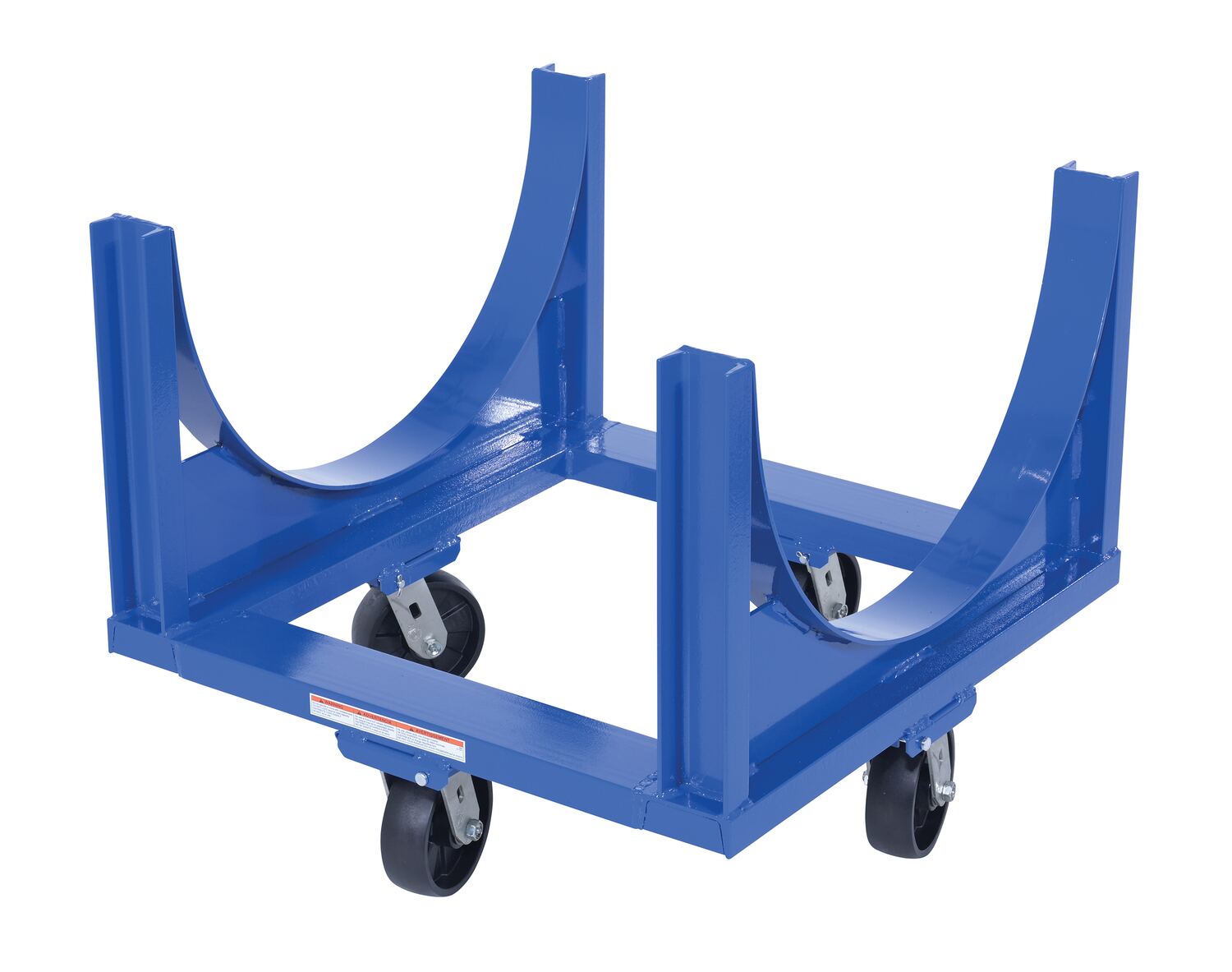

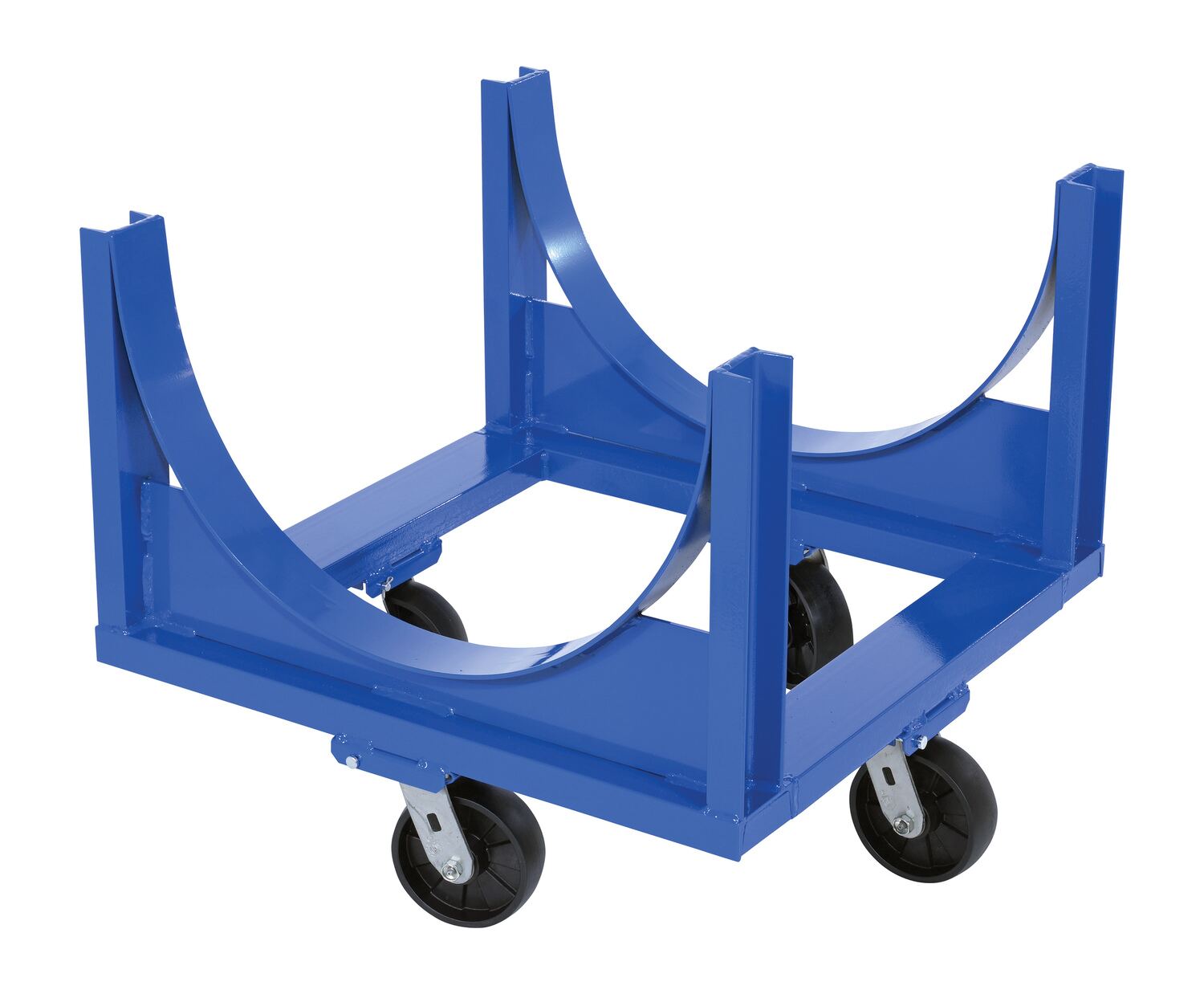

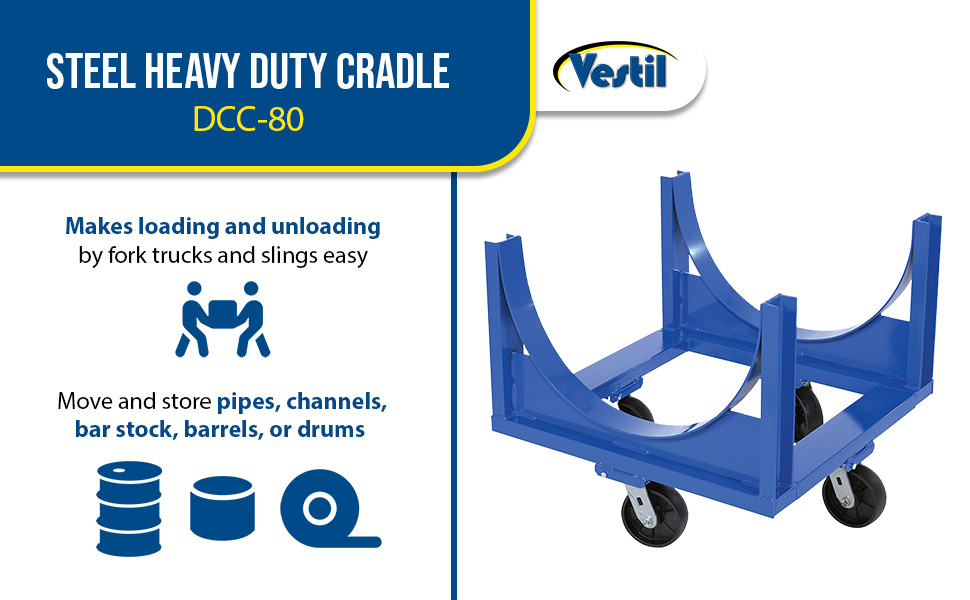

| DCC-80 |  | 90 Days Limited Warranty | Steel Heavy Duty Cradle 30-11/16 In. x 30-3/8 In. x 25-5/8 In. 4000 Lb. Capacity Blue | Uniform Capacity (lb.): 4,000 Caster Diameter (in.): 6 | 148 | ||

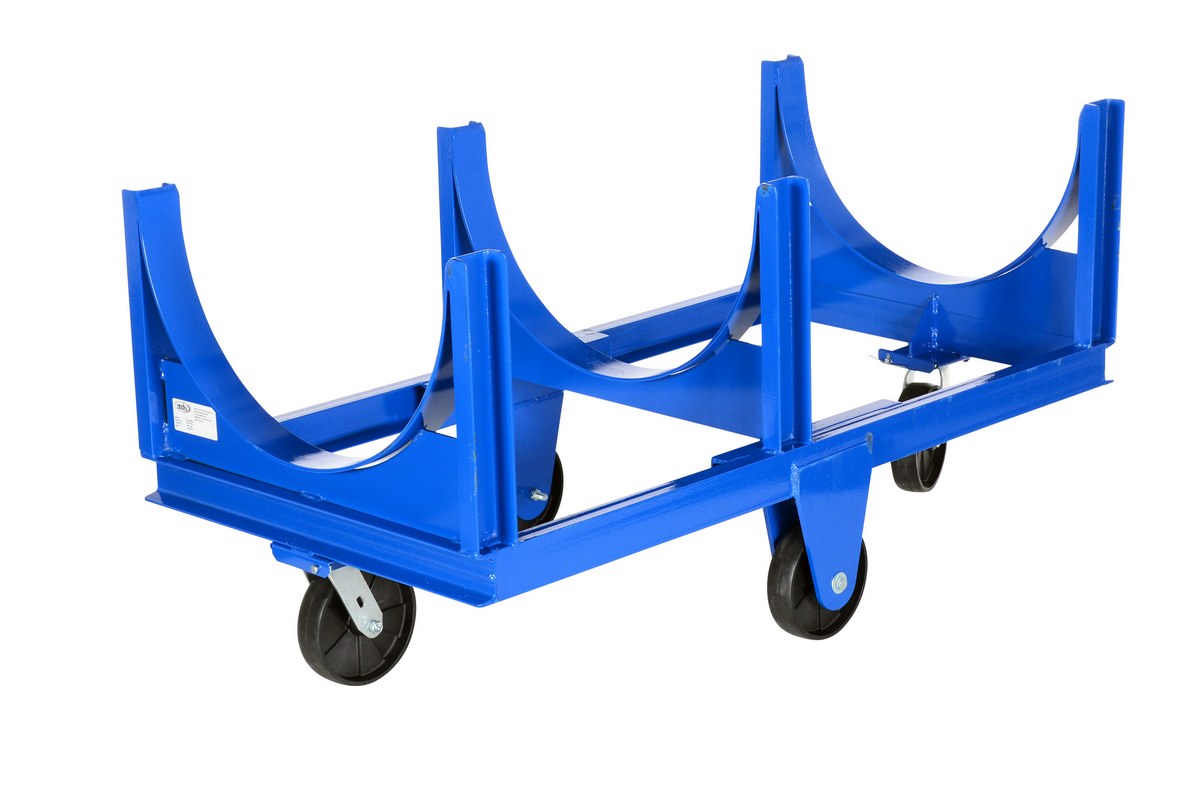

| DCC-2860-4 |  | 90 Days Limited Warranty | Steel Heavy Duty Cradle 60-5/16 In. x 31-1/2 In. x 30 In. 4000 Lb. Capacity Blue | Uniform Capacity (lb.): 4,000 Caster Quantity/Diameter/Width (in.): (4) 8 x 2 | 240 | ||
| DCC-2860-10 | | 90 Days Limited Warranty | Steel Heavy Duty Cradle 63-1/16 In. x 31-1/2 In. x 32-3/8 In. 10000 Lb. Capacity Blue | Uniform Capacity (lb.): 10,000 Caster Quantity/Diameter/Width (in.): (4) 8 x 3 | 362 | ||
| DCC-2896-4 | | 90 Days Limited Warranty | Steel Heavy Duty Cradle 96-5/16 In. x 31-1/2 In. x 30 In. 4000 Lb. Capacity Blue | Uniform Capacity (lb.): 4,000 Caster Quantity/Diameter/Width (in.): (4) 8 x 2 | 344 | ||

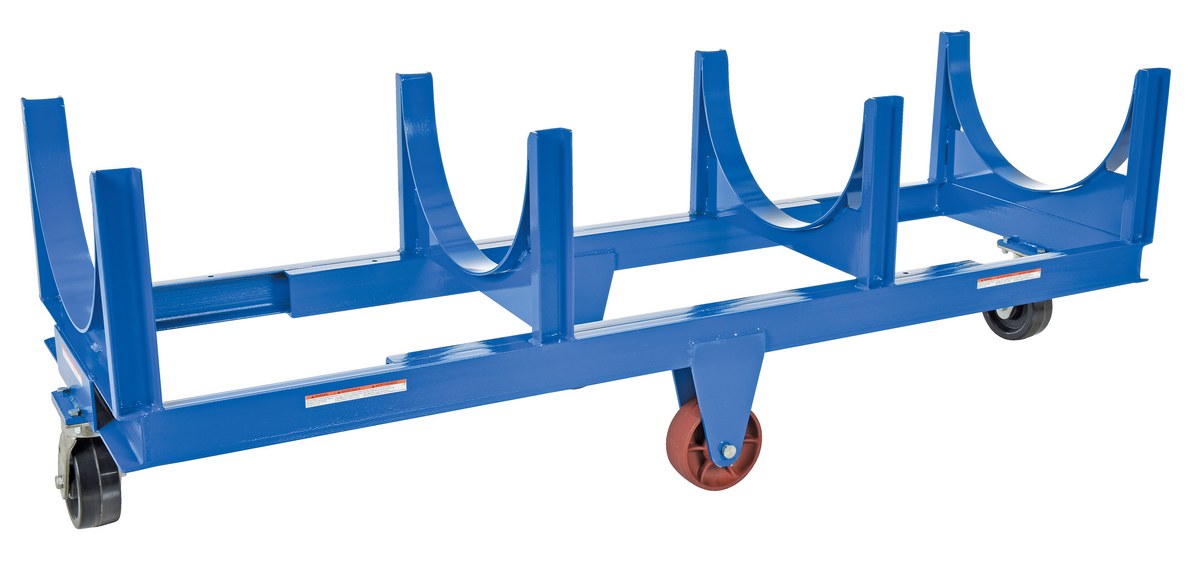

| DCC-2896-10 | | 90 Days Limited Warranty | Steel Heavy Duty Cradle 99-1/16 In. x 31-1/2 In. x 32-3/8 In. 10000 Lb. Capacity Blue | Uniform Capacity (lb.): 10,000 Caster Quantity/Diameter/Width (in.): (4) 8 x 3 | 550 | ||

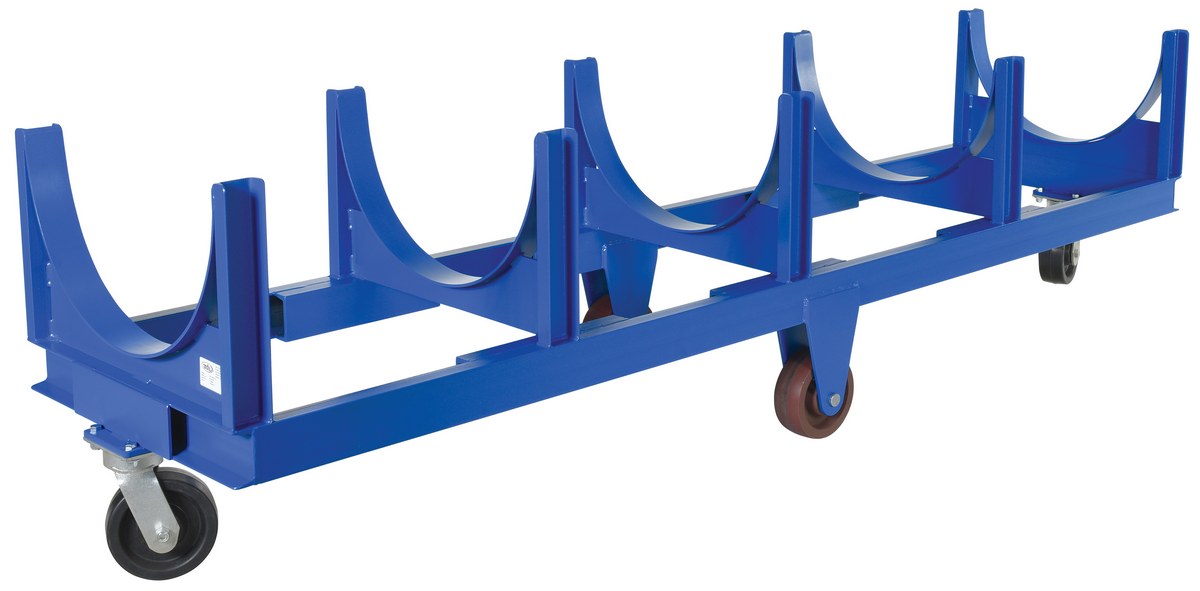

| DCC-28120-10 | | 90 Days Limited Warranty | Steel Heavy Duty Cradle 123-1/16 In. x 31-1/2 In. x 32-3/8 In. 10000 Lb. Capacity Blue | Uniform Capacity (lb.): 10,000 Caster Quantity/Diameter/Width (in.): (4) 8 x 3 | 601 |
KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,000
Caster Diameter (in.): 6
Uniform Capacity (lb.): 4,000
Caster Diameter (in.): 6
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,000
Caster Quantity/Diameter/Width (in.): (4) 8 x 2
Uniform Capacity (lb.): 4,000
Caster Quantity/Diameter/Width (in.): (4) 8 x 2
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 10,000
Caster Quantity/Diameter/Width (in.): (4) 8 x 3
Uniform Capacity (lb.): 10,000
Caster Quantity/Diameter/Width (in.): (4) 8 x 3
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,000
Caster Quantity/Diameter/Width (in.): (4) 8 x 2
Uniform Capacity (lb.): 4,000
Caster Quantity/Diameter/Width (in.): (4) 8 x 2
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 10,000
Caster Quantity/Diameter/Width (in.): (4) 8 x 3
Uniform Capacity (lb.): 10,000
Caster Quantity/Diameter/Width (in.): (4) 8 x 3
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 10,000
Caster Quantity/Diameter/Width (in.): (4) 8 x 3
Uniform Capacity (lb.): 10,000
Caster Quantity/Diameter/Width (in.): (4) 8 x 3
Manuals
Survey Sheets
Approval Drawings
Testing Certificates
SDS Sheets
Other PDF's
Directory Links Of Available PDF's For All Products
Q: How do you move the Heavy-Duty Cradle Carts (DCC) around?
A: These units are designed to be pushed as there is NOT a handle or a tow bar to pull it with.
Q: Are the DCCs hard to push around with a full load? How much force do I need to move them at capacity?
A: START PUSHING 4,000 LBS UNITS: LOAD: 30-40 LBS. pressure START PUSHING 10,000 LBS. LOAD: 75-100 LBS. pressure
 |
|||||||||||||||||||||||||||||||||||||
