Machinery SkatesSometimes moving heavy equipment can be a difficult process. But, with a machinery skate things get a whole lot easier! The high capacity design lets the user transfer large, heavy, and oversized loads without the need of costly industrial lifting equipment.These skates are designed to move heavy equipment and machinery. Nylon wheels are strong and will not mark floors. The top of each skate includes a rubber surface for extra grip. Steel construction with handle to carry and position.
| Four Styles To Choose From... | |
 |

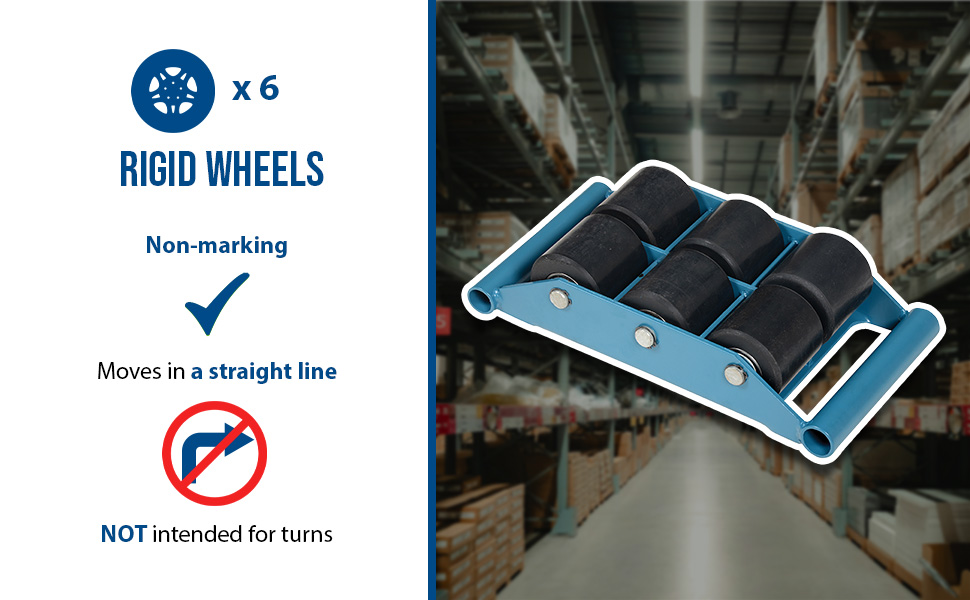

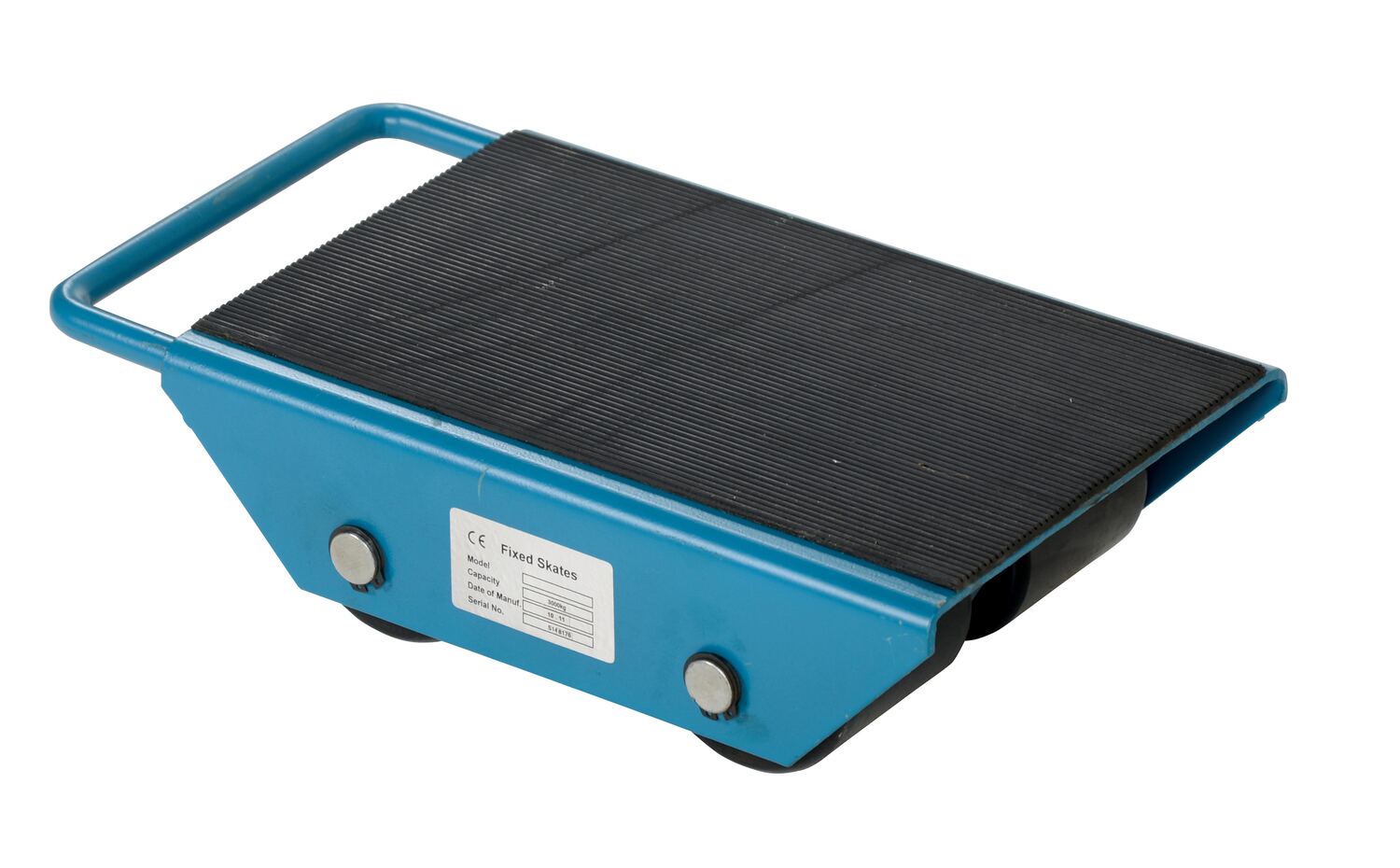

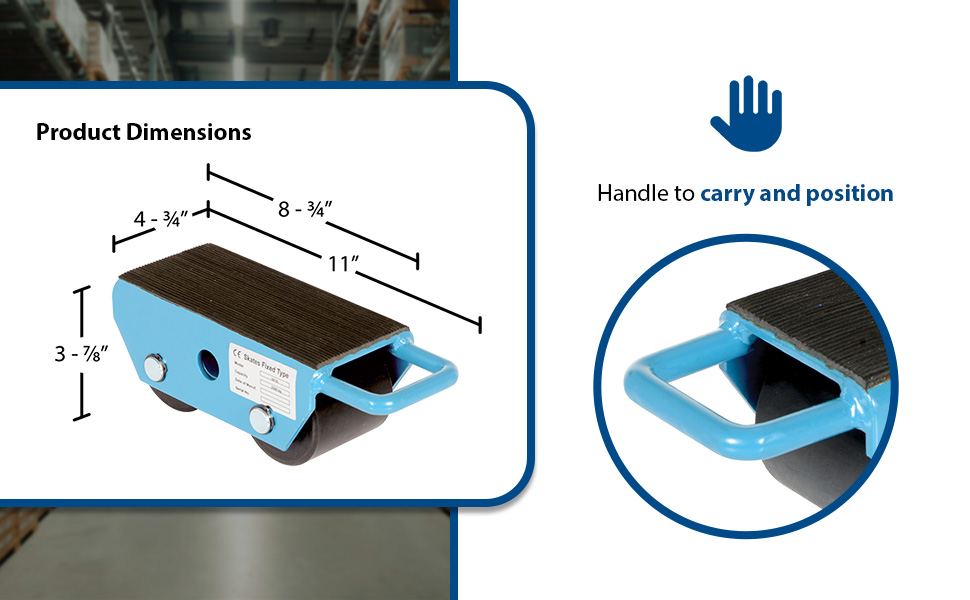

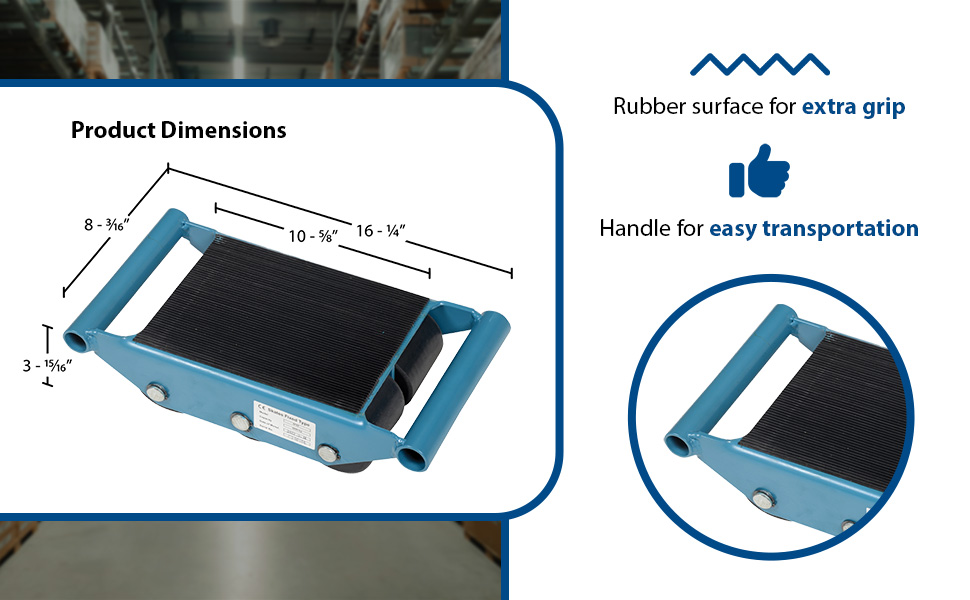

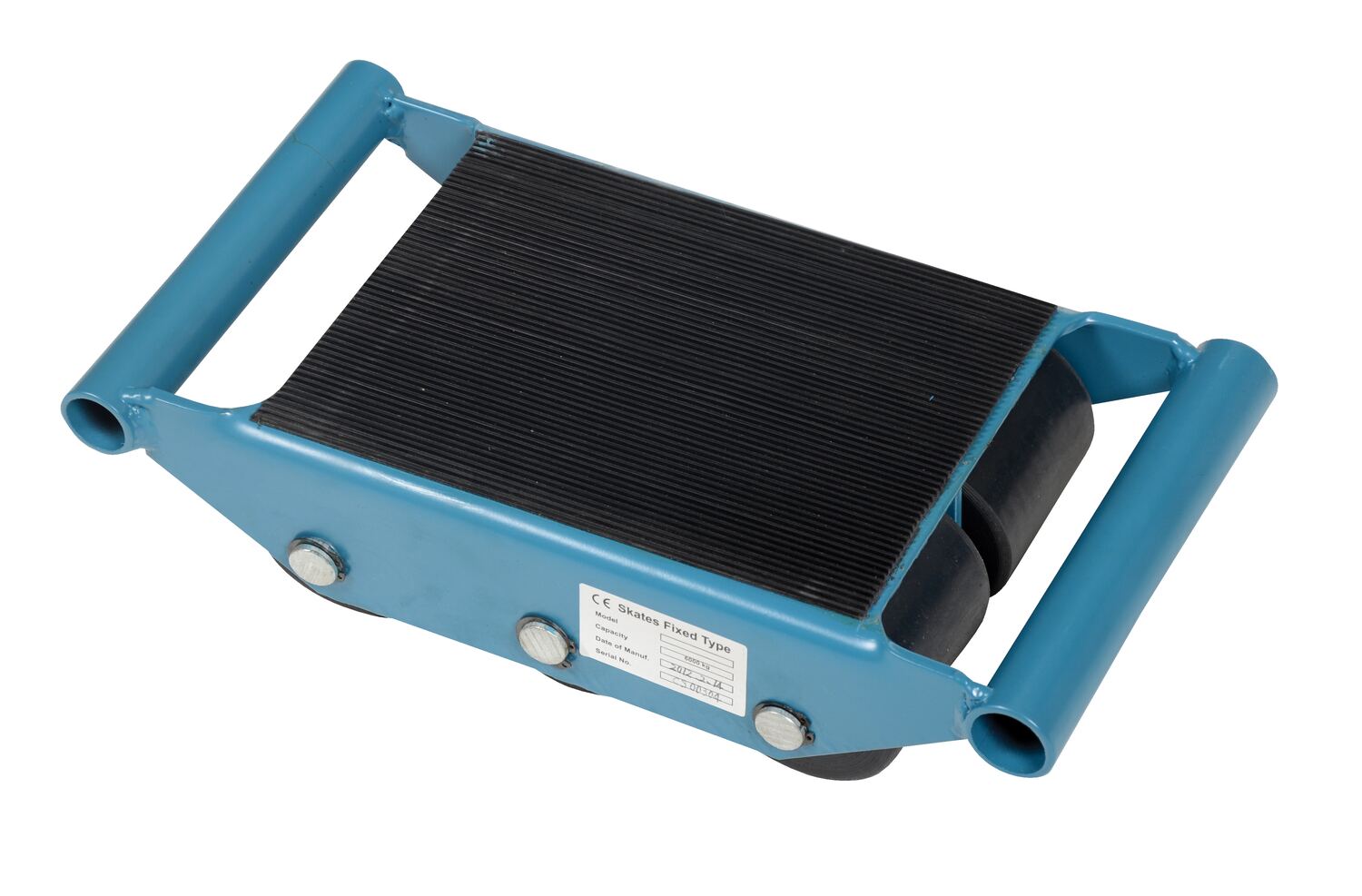

Fixed - series FMS: Dolly size is non-adjustable and wheels are rigid. Designed for moving in straight lines. |
 |

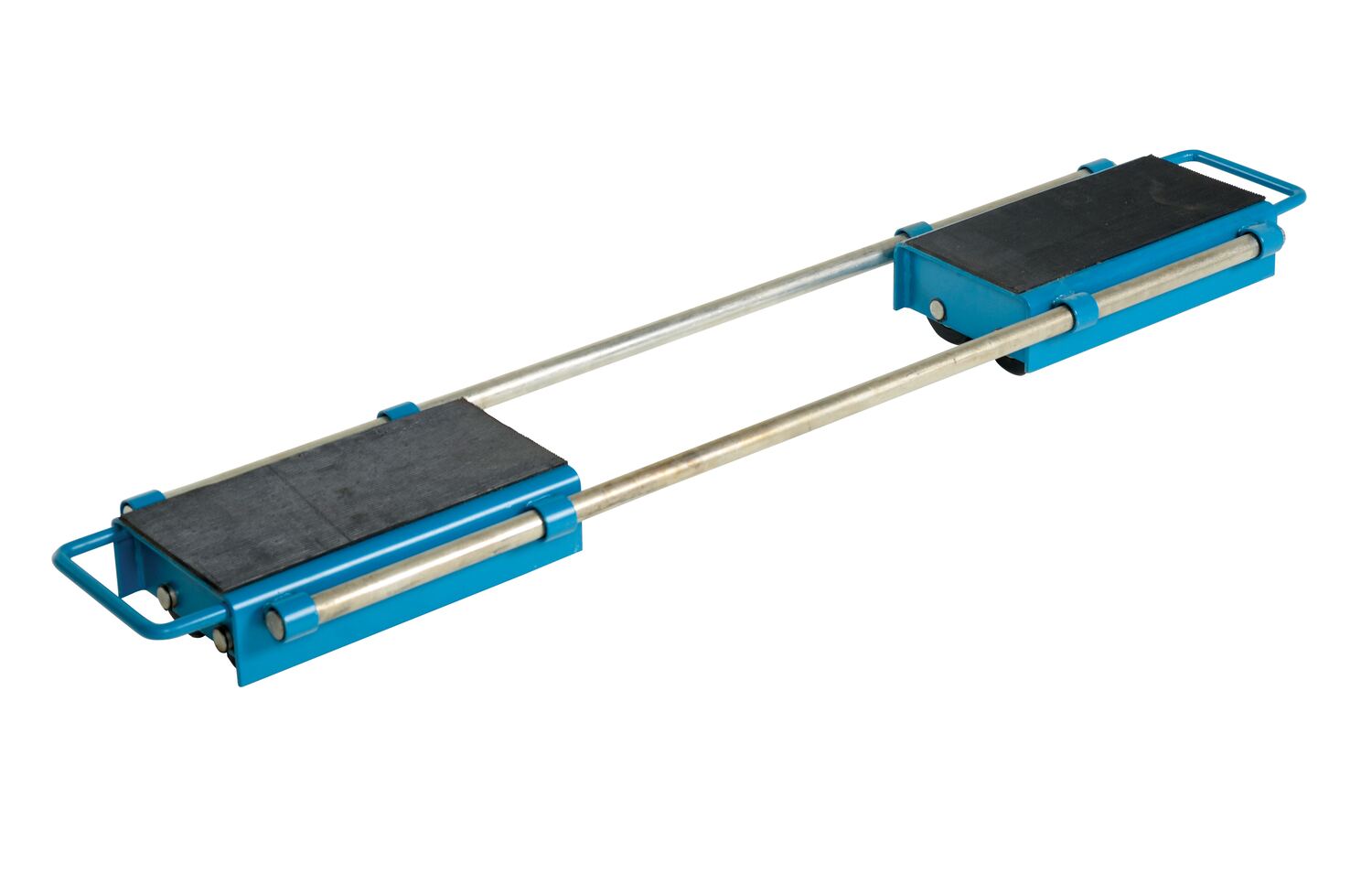

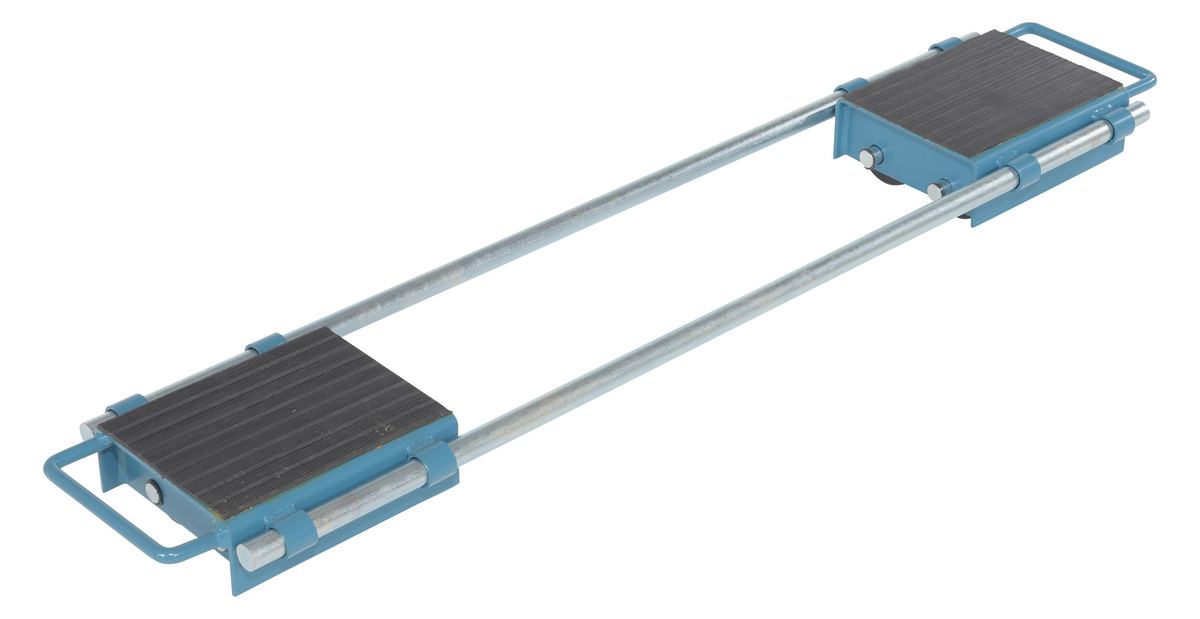

Adjustable - series ASKT: Includes two dollies connected with a slider bar to form one larger dolly. Slider bar allows for adjustable overall dolly width. Designed for moving in straight lines. |
 |

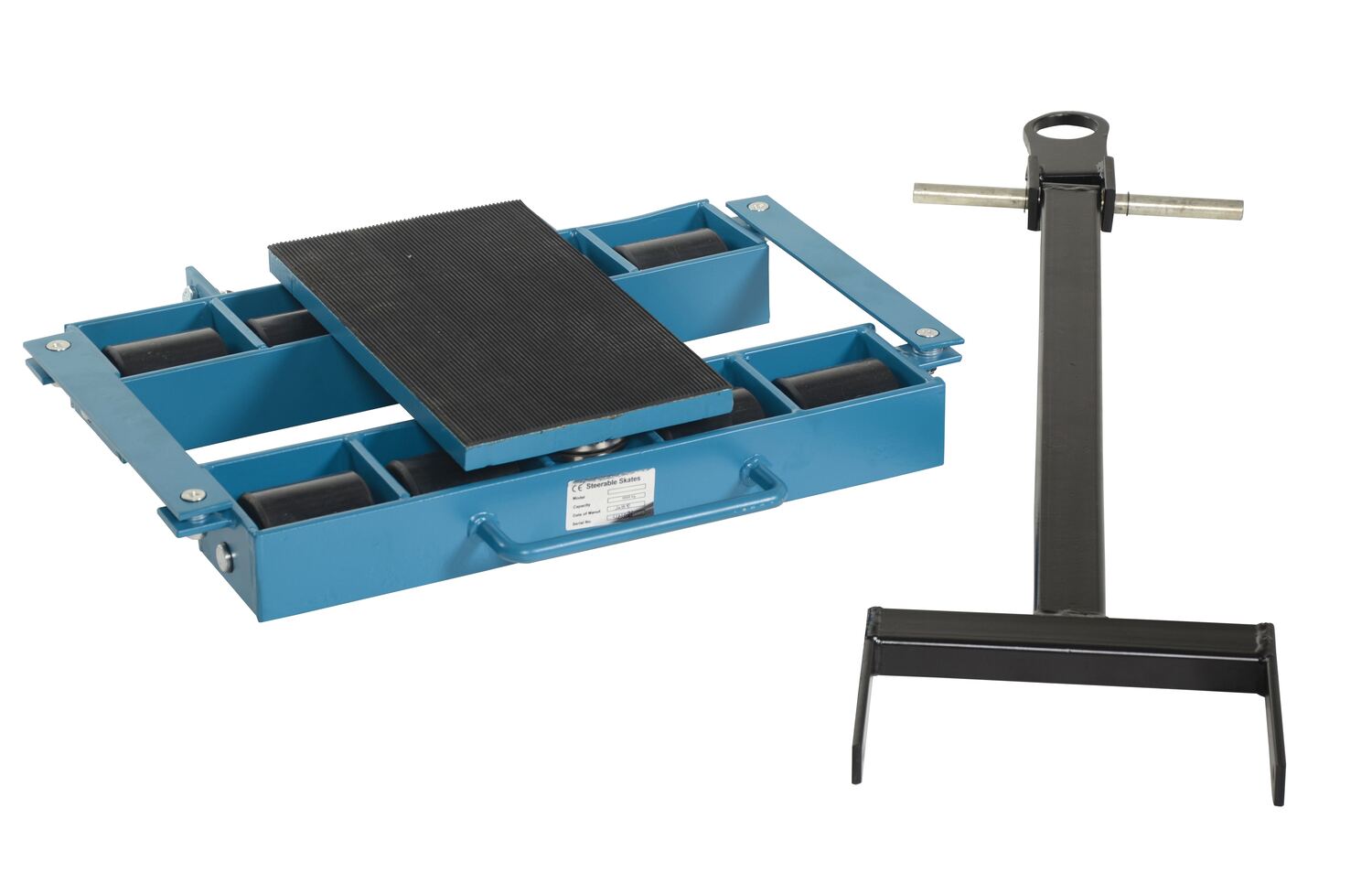

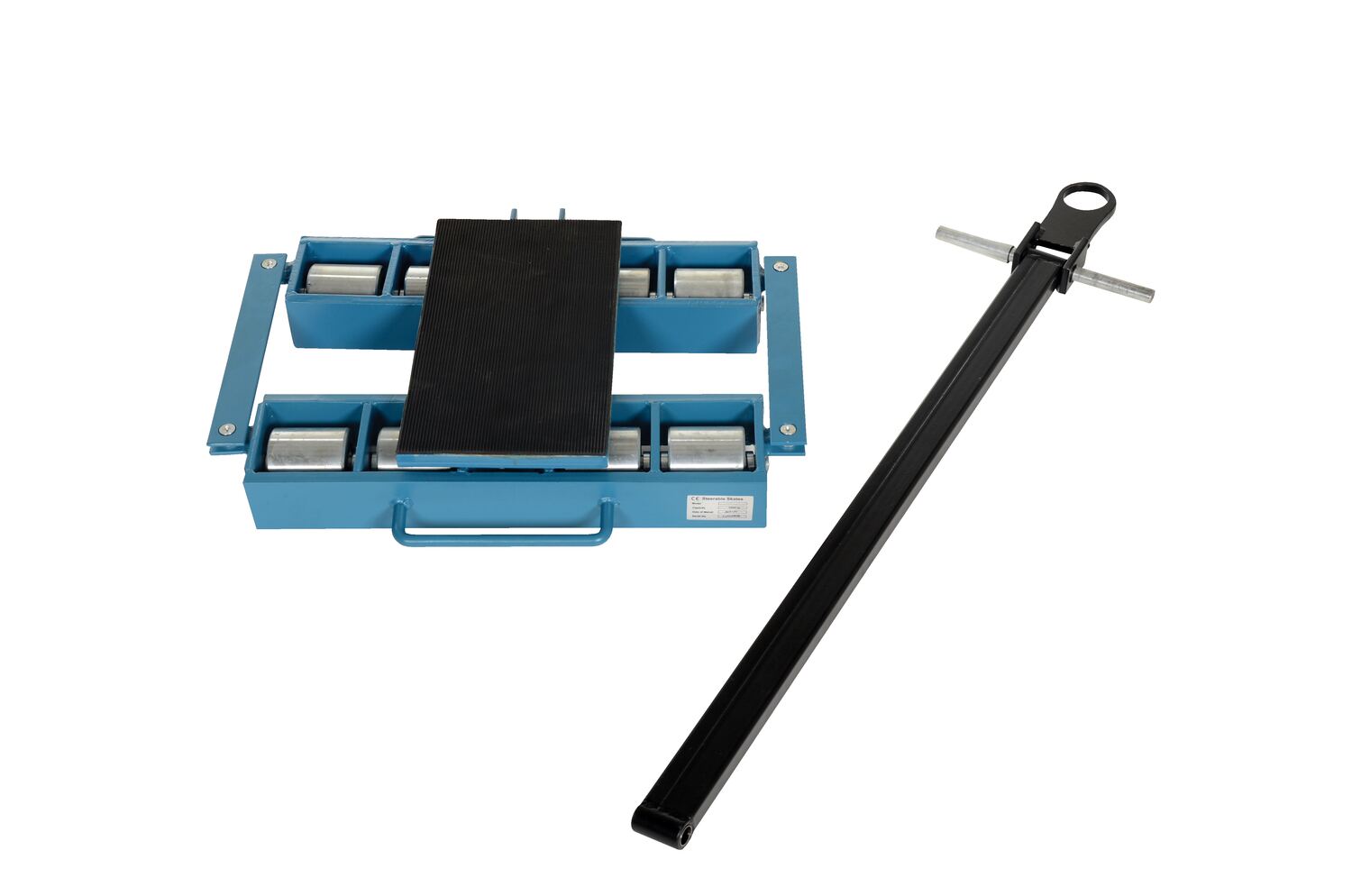

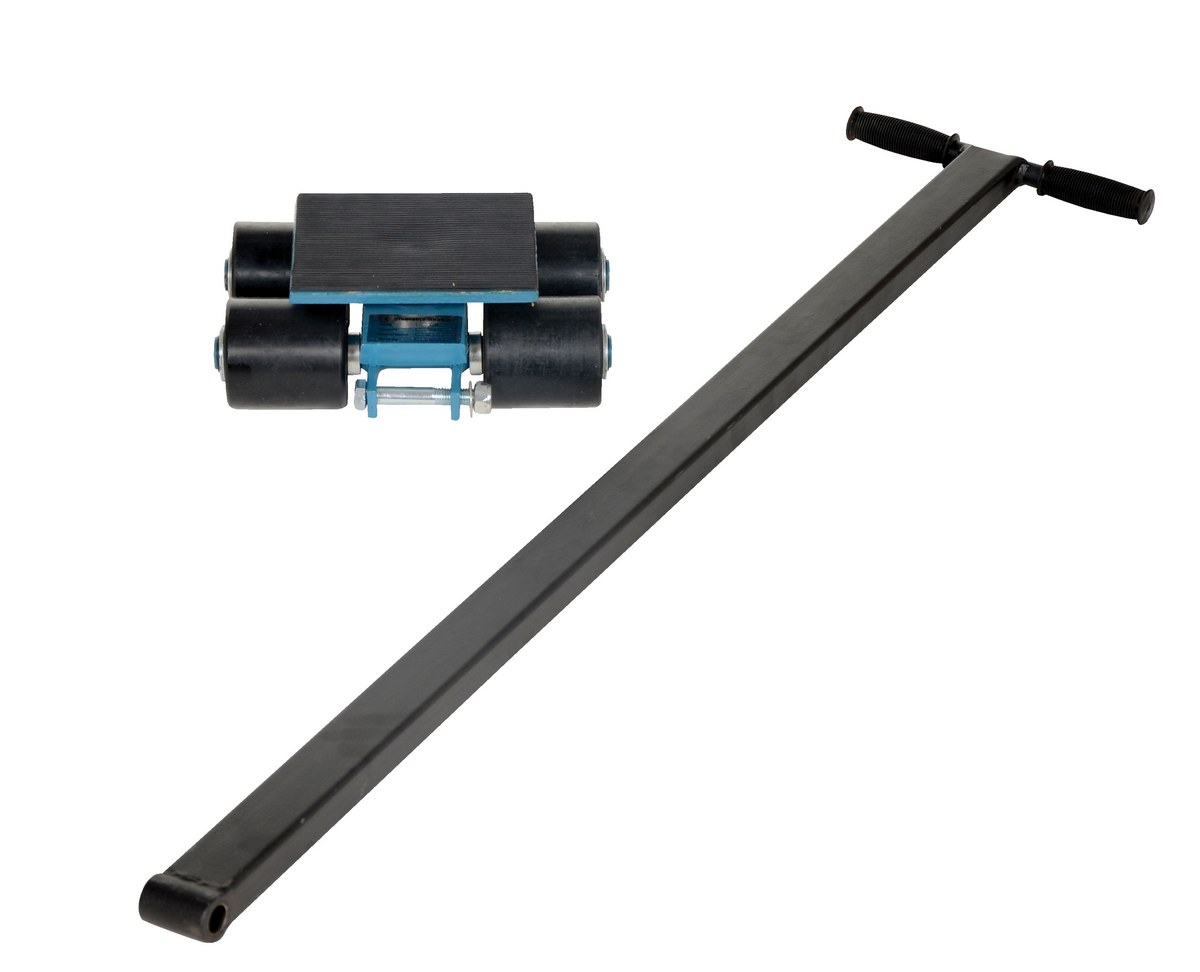

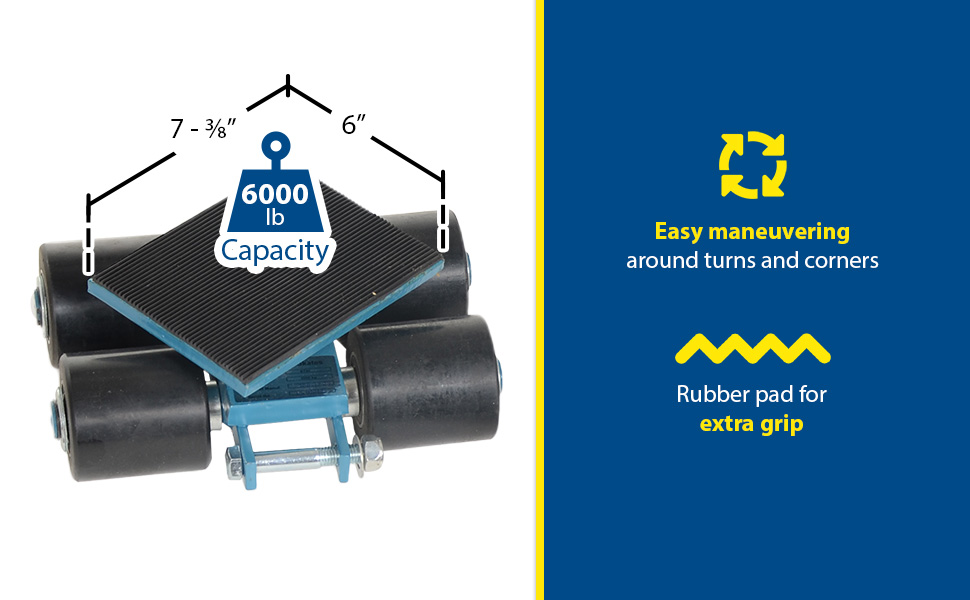

Steerable - series SSKT: Each dolly includes a swivel top plate and a pulling bar to allow for easy maneuvering around turns and corners. |
 |

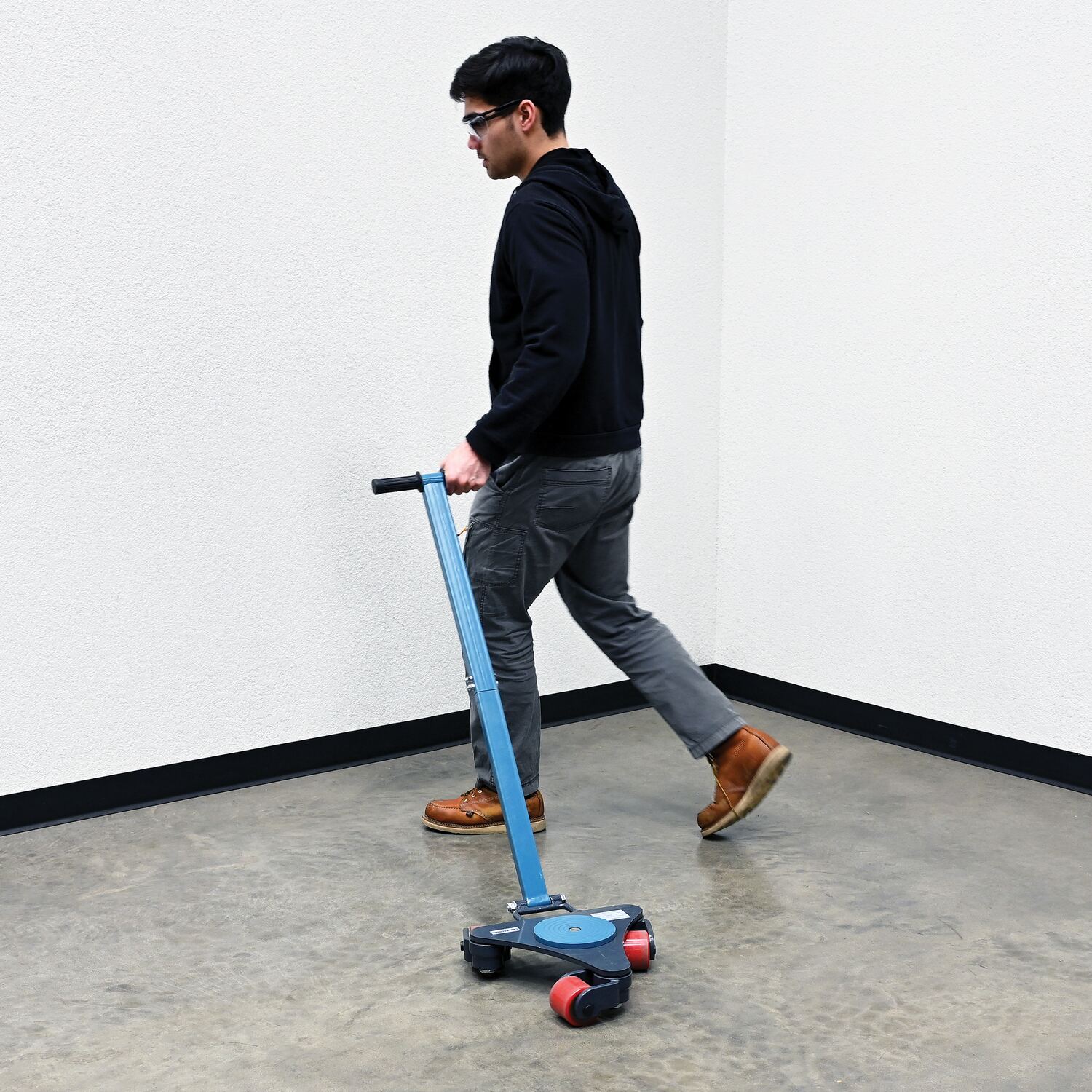

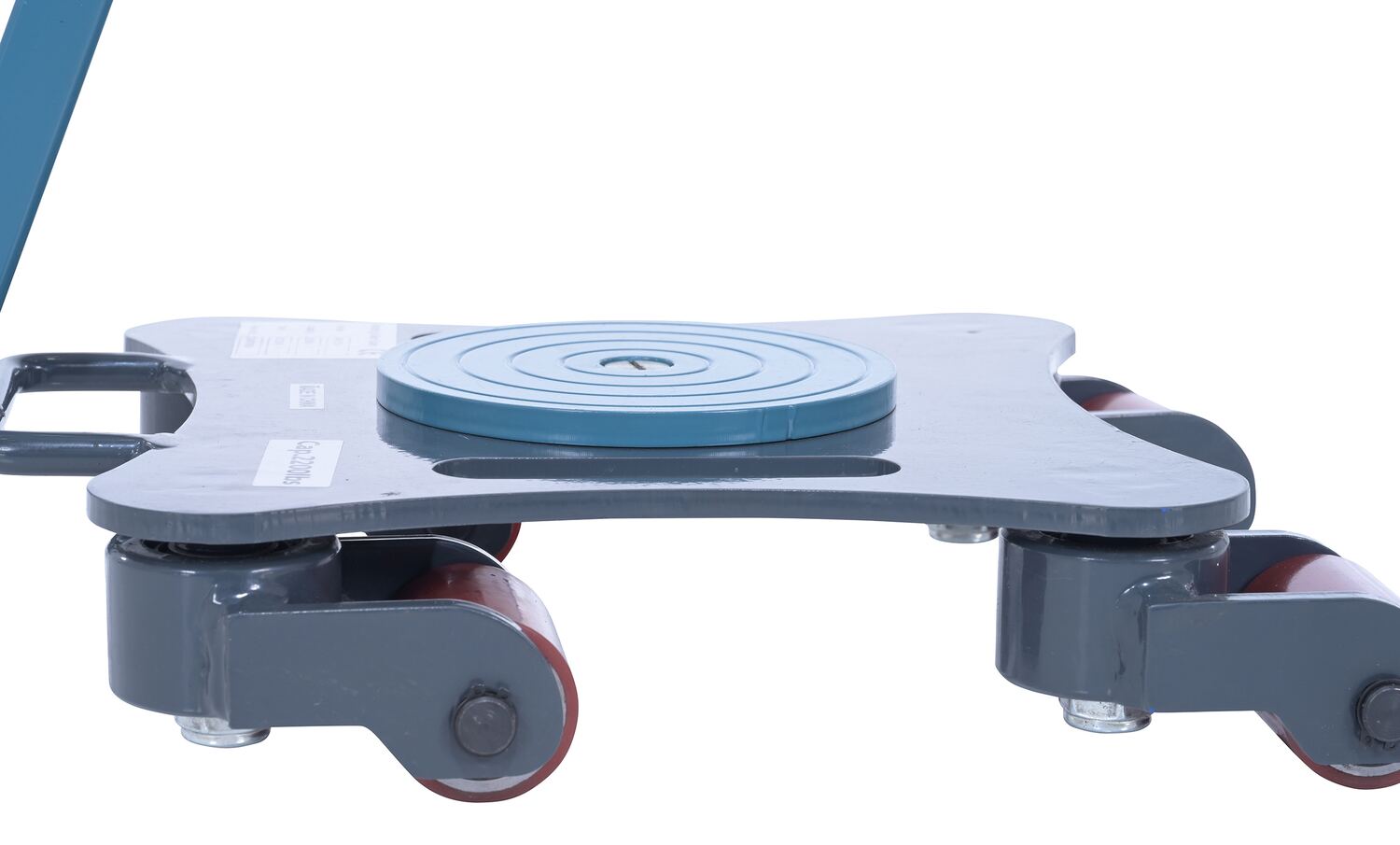

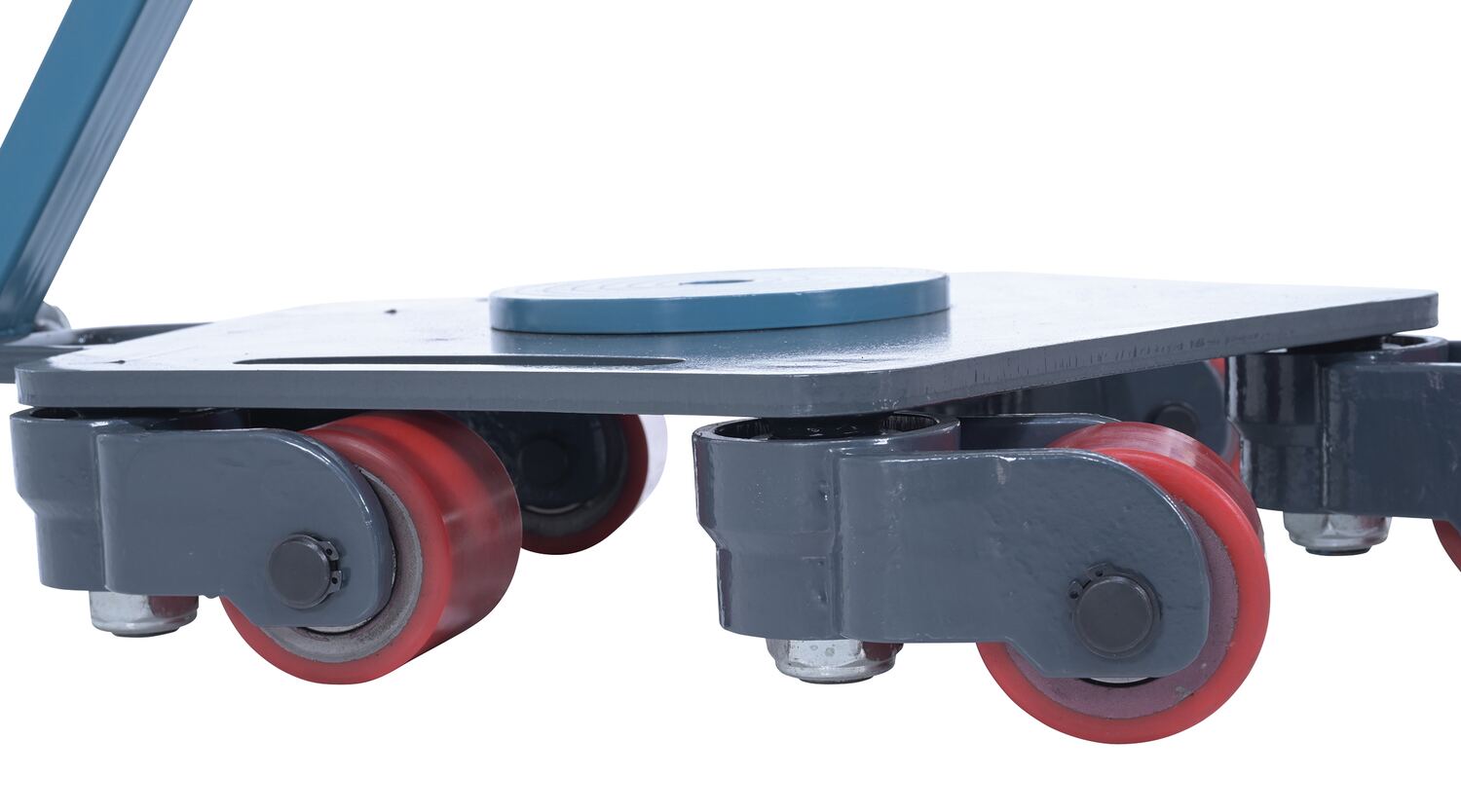

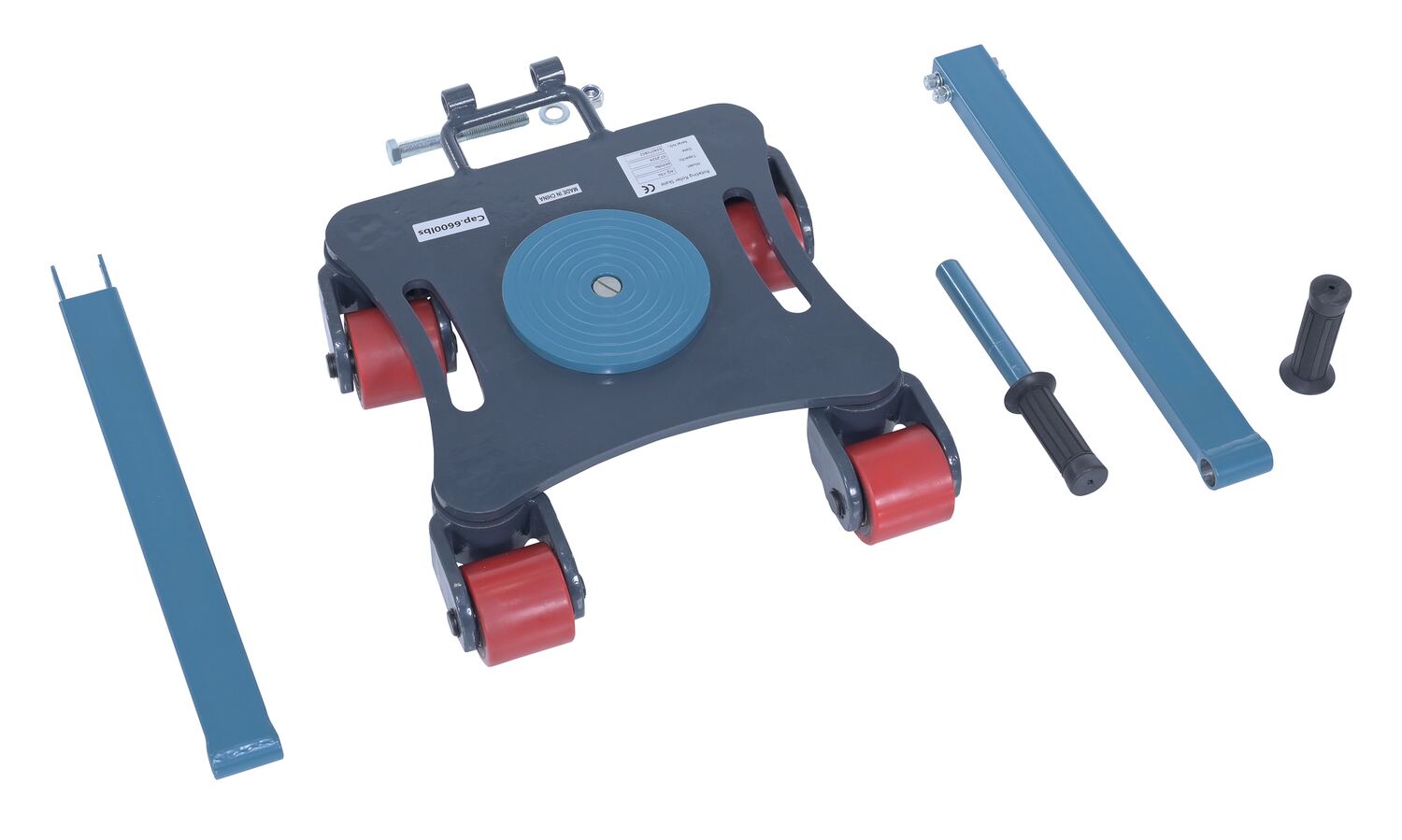

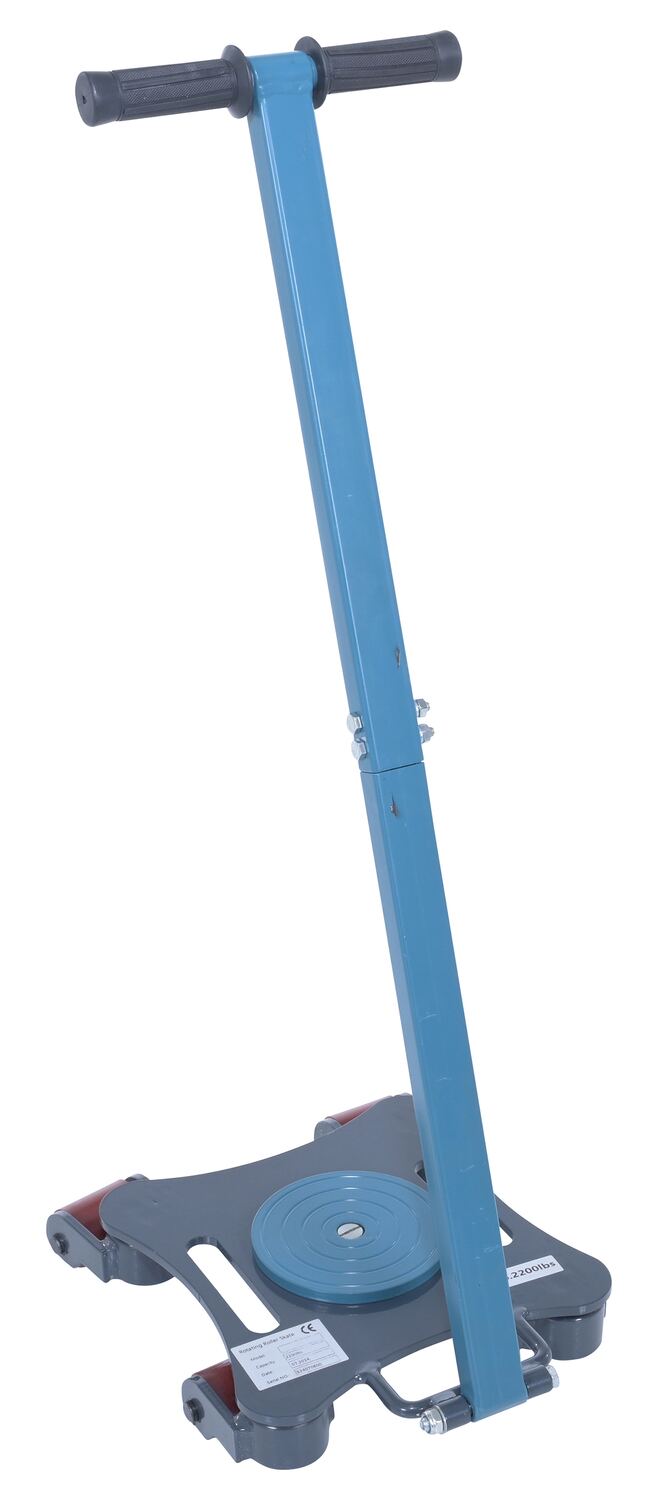

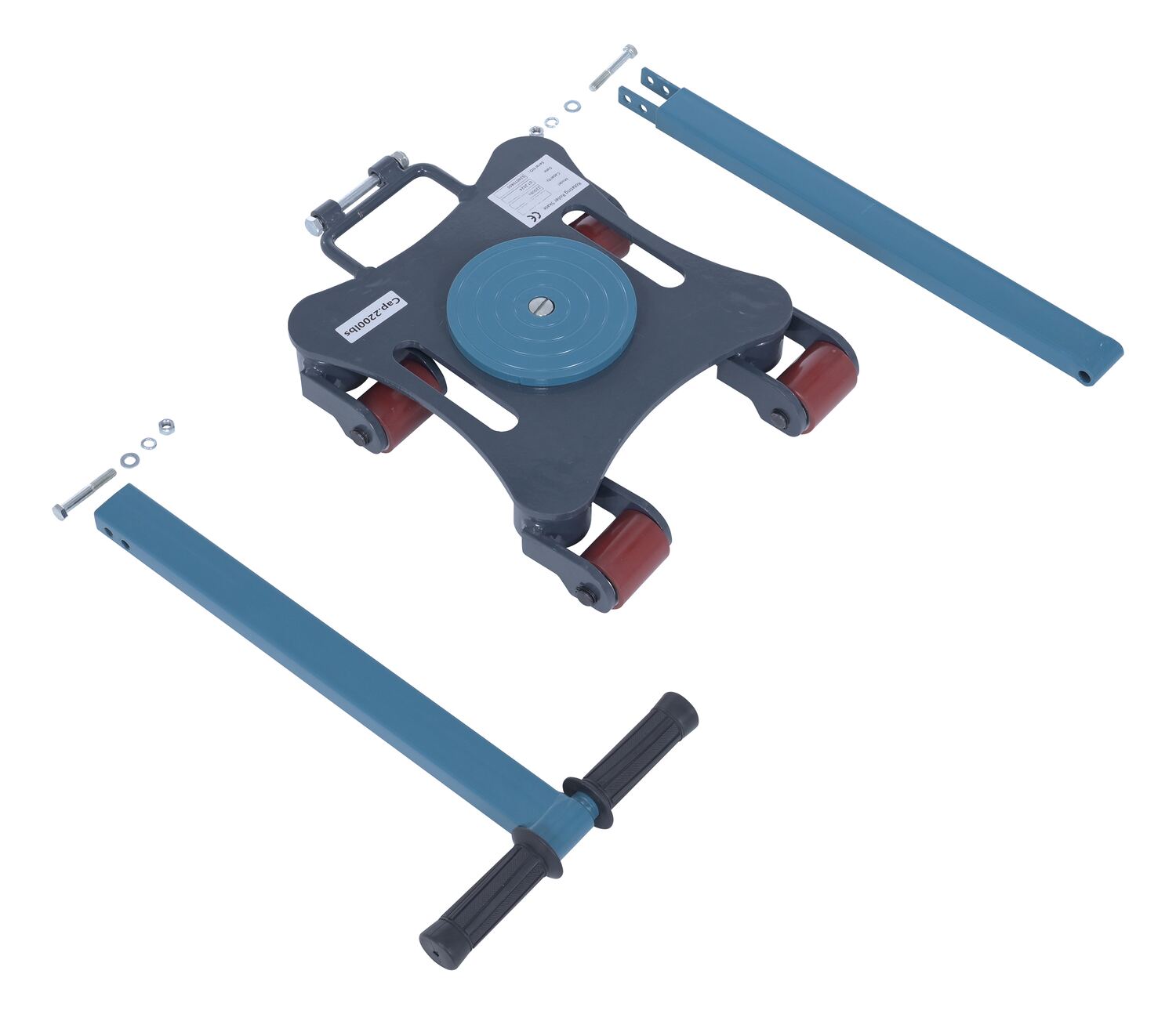

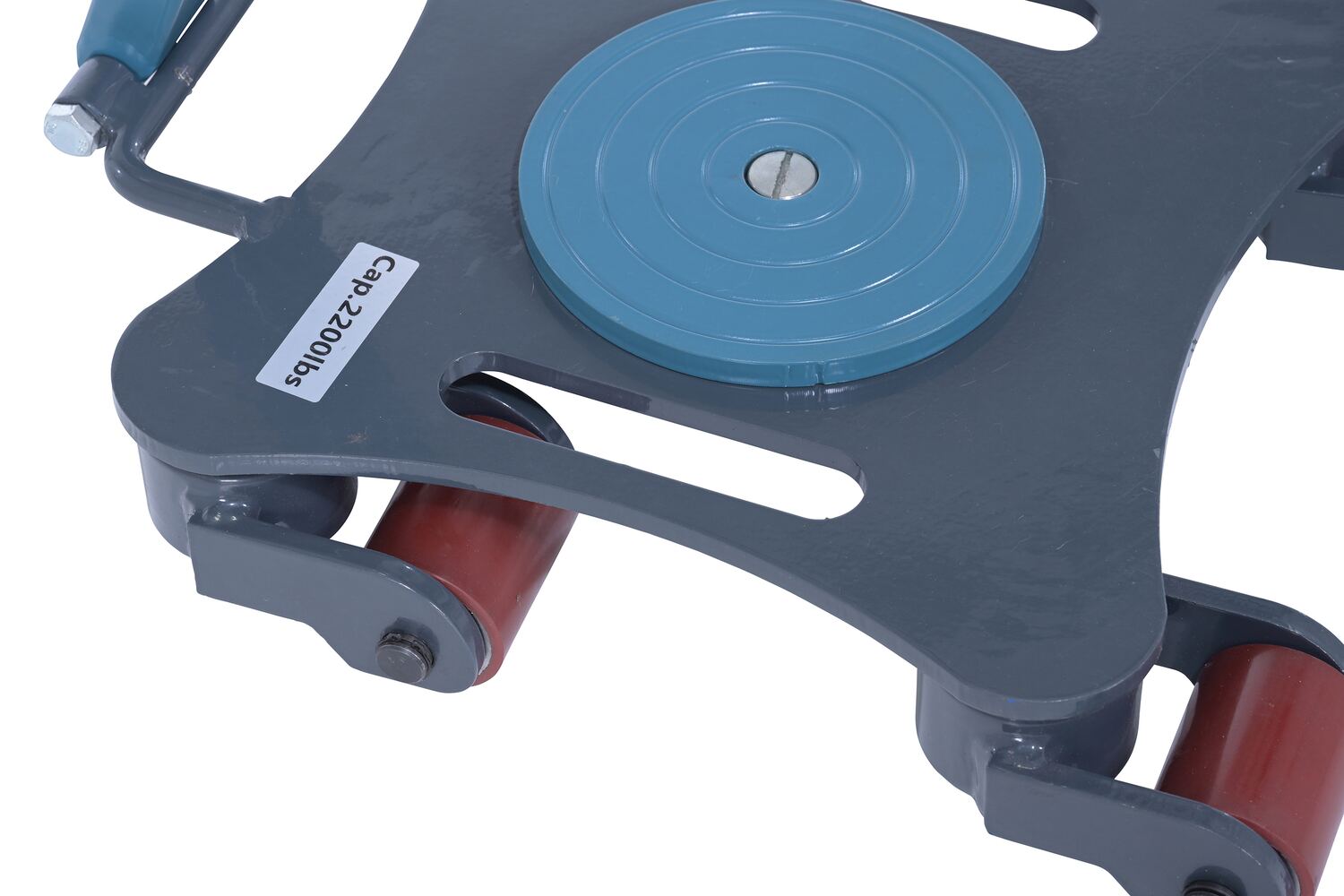

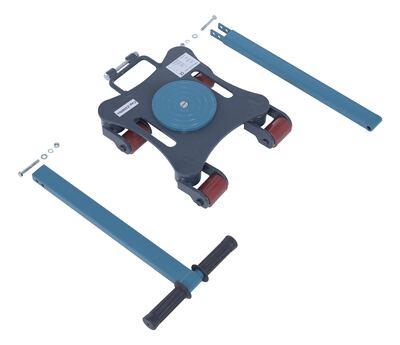

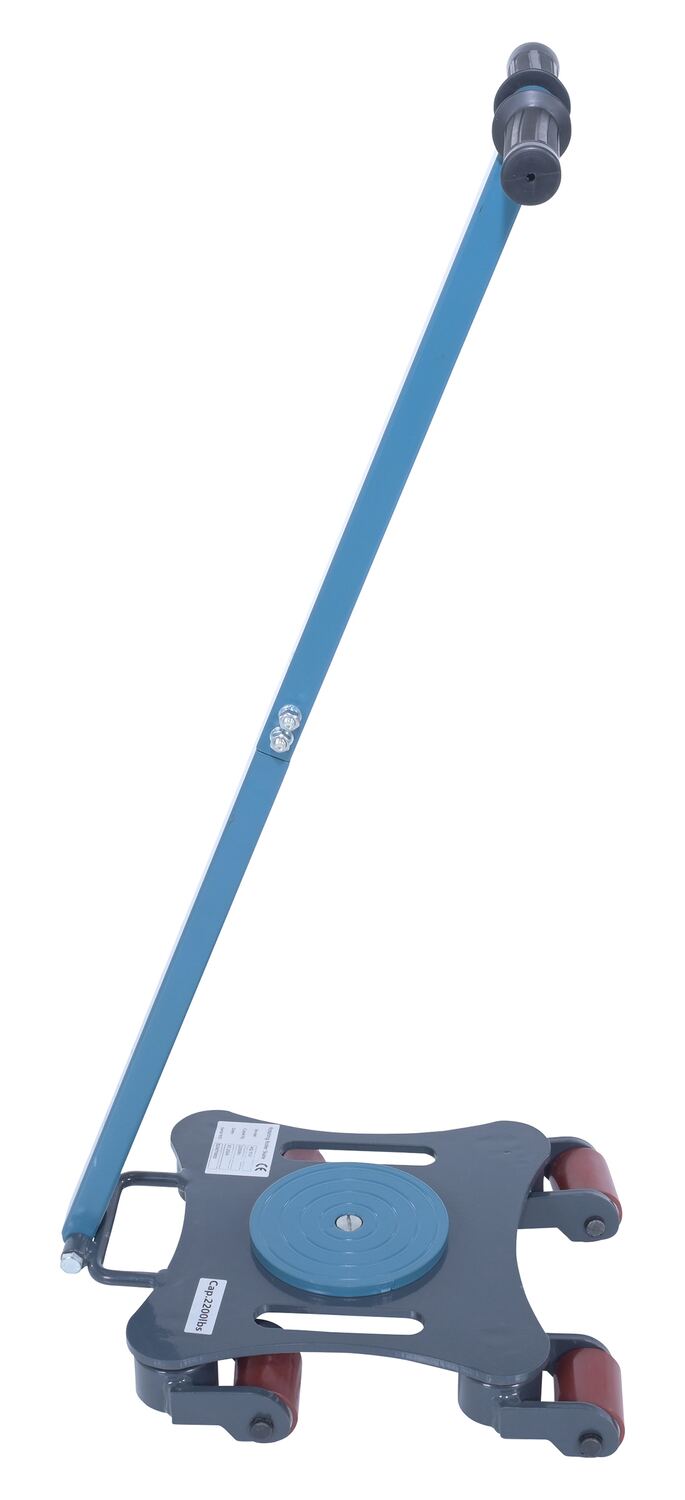

Multi-Directional - series MDSKT: All poly on steel swivel rollers for movement in any direction. They have a detachable handle to help steering. Top plate has a rubber surface to provide extra grip. |
Open Deck Machinery Dollies
Cast Aluminum Dollies
Mechanical Machinery JacksAdditional Models In This Family
MDSKT-6
ASKT-6

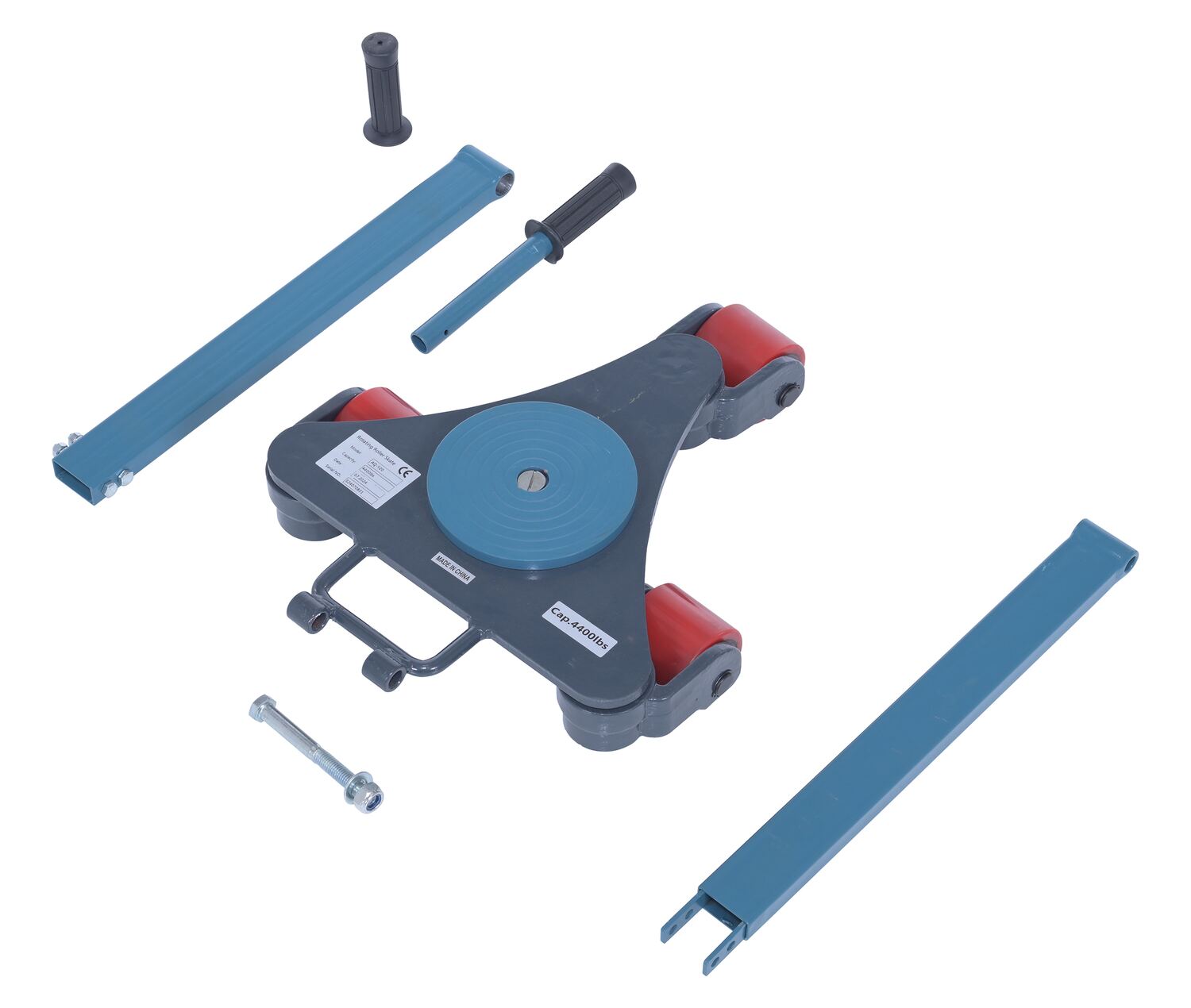

MDSKT-4
ASKT-6

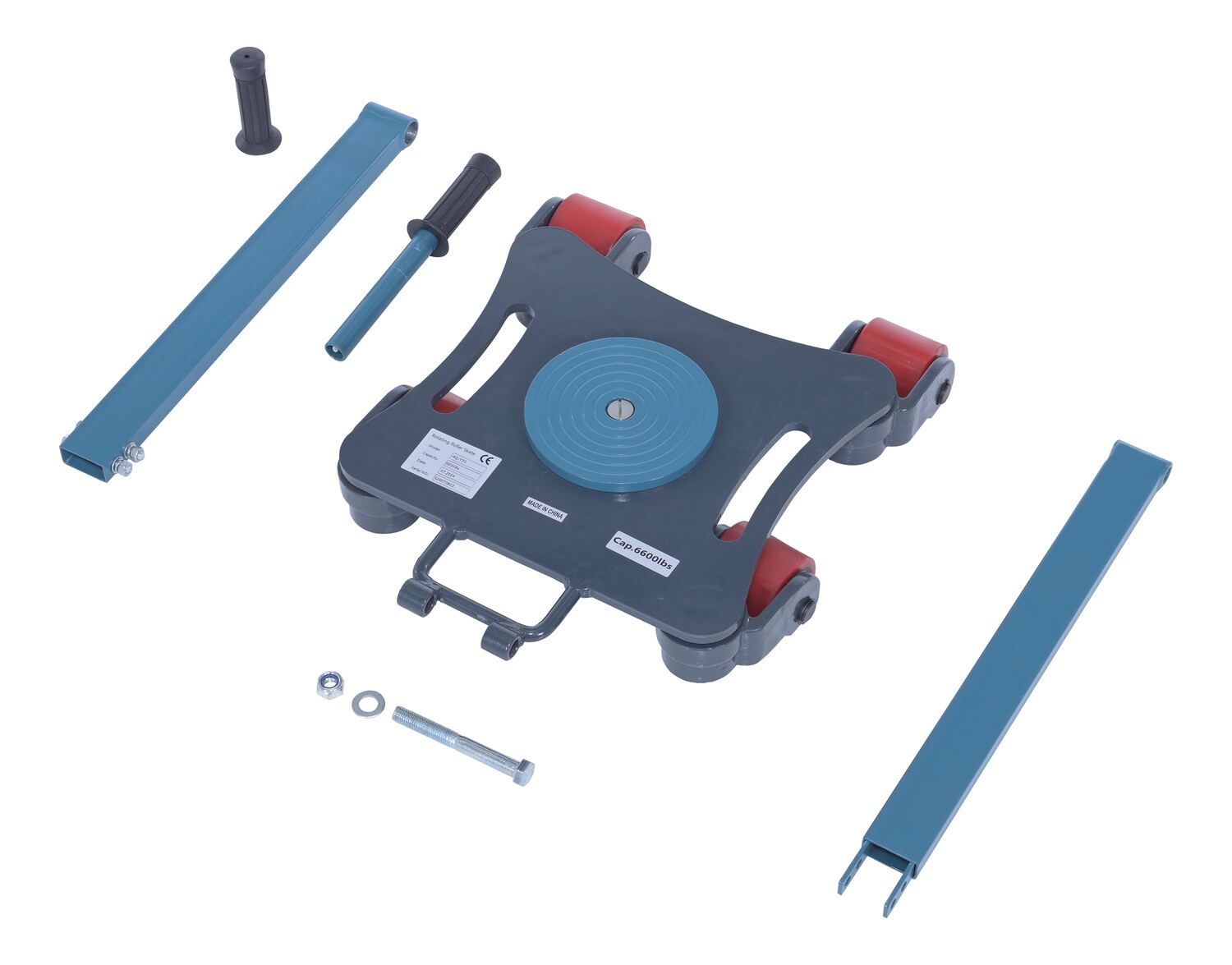

MDSKT-6

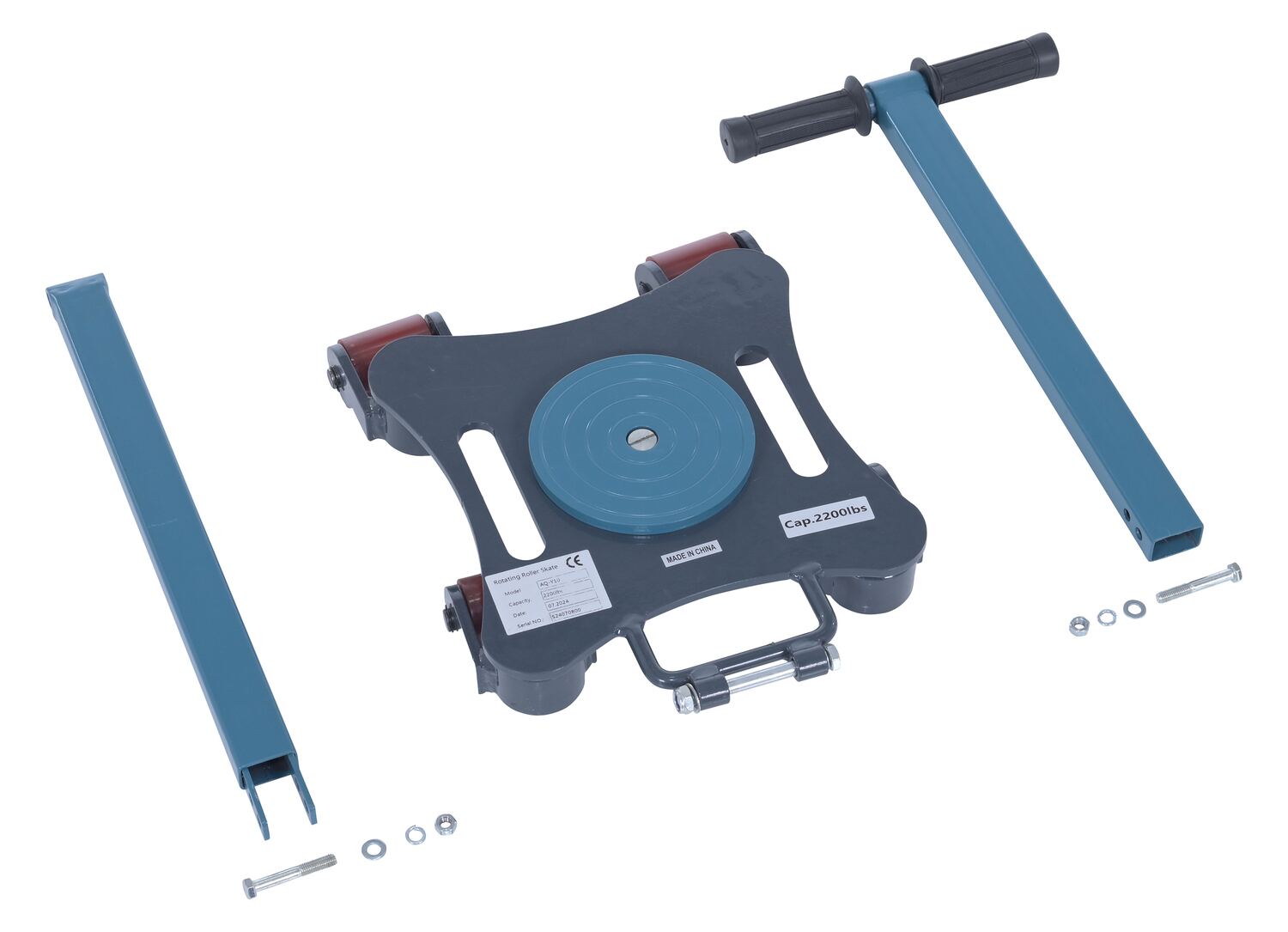

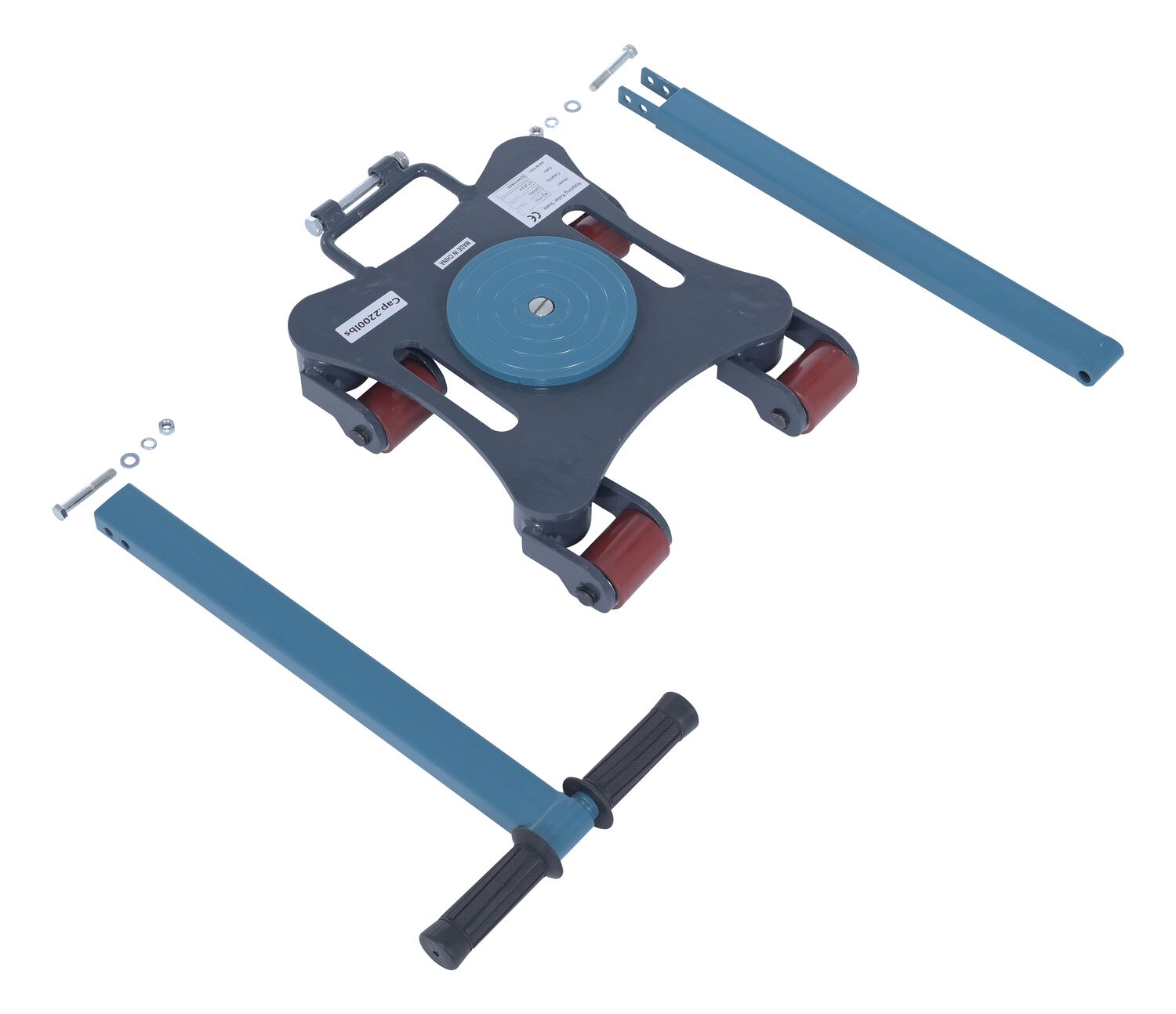

MDSKT-2
FMS-3
MDSKT-6
MDSKT-2
ASKT-6
MDSKT-8
MDSKT-2
MDSKT-8
MDSKT-4
MDSKT-8
All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
| Model # | Description | Attributes | Net Wt. (lbs) |
||||
|---|---|---|---|---|---|---|---|
| ASKT-6 |  | 90 Days Limited Warranty | Steel Adjustable Machinery Skates 10-1/2 In. x 12-13/16 In. x 4-3/8 In. 6 Ton Capacity Blue | Uniform Static Capacity (tons): 6 Roller Material: Nylon | 272 | ||
| ASKT-12 |  | 90 Days Limited Warranty | Steel Adjustable Machinery Skates 10-1/2 In. x 16-1/2 In. x 4-1/2 In. 12 Ton Capacity Blue | Uniform Static Capacity (tons): 12 Roller Material: Nylon | 130 | ||

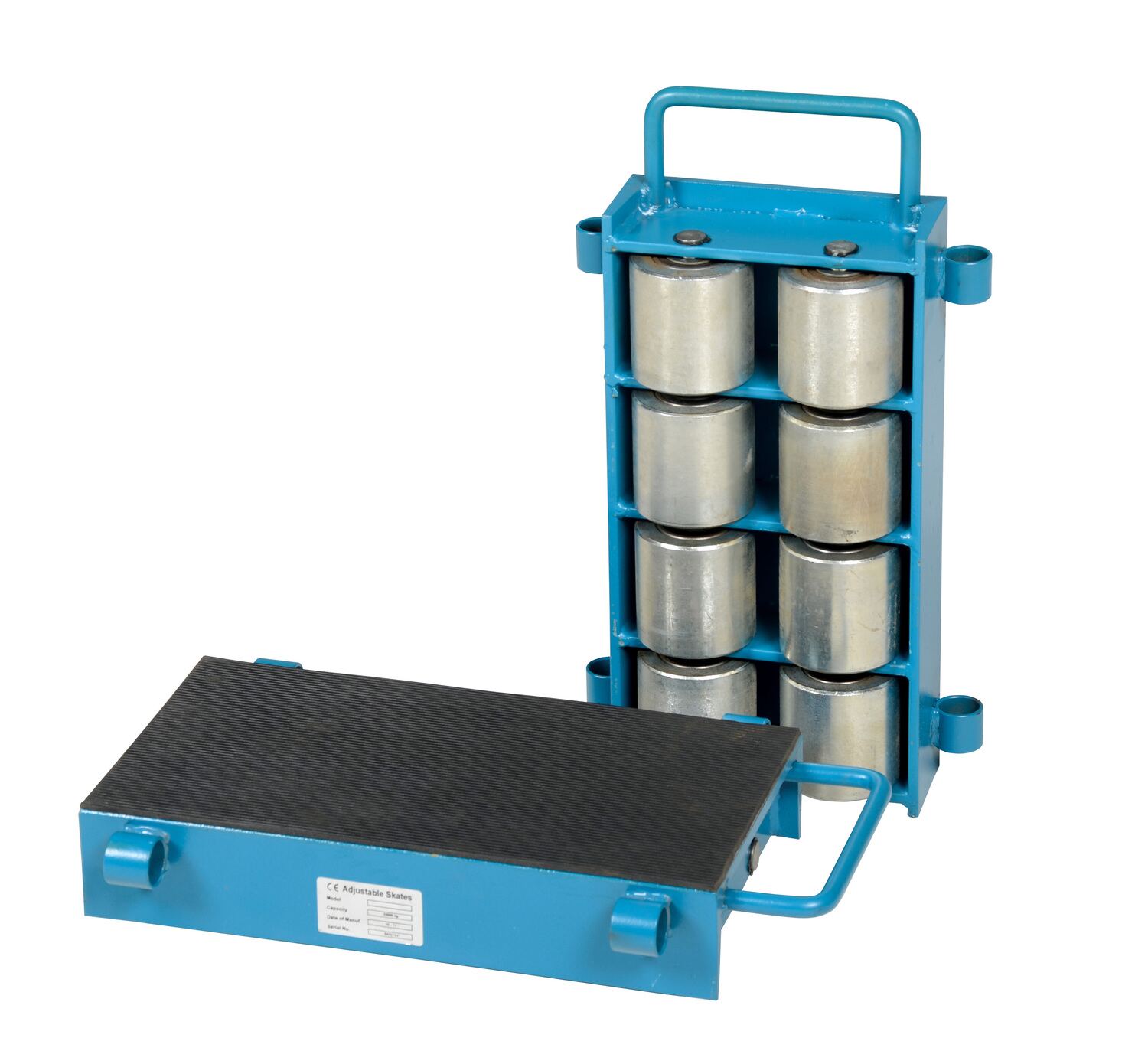

| ASKT-24 |  | 90 Days Limited Warranty | Steel Adjustable Machinery Skates 11-5/16 In. x 19-9/16 In. x 4-1/2 In. 24 Ton Capacity Blue | Uniform Static Capacity (tons): 24 Roller Material: Steel | 173 | ||

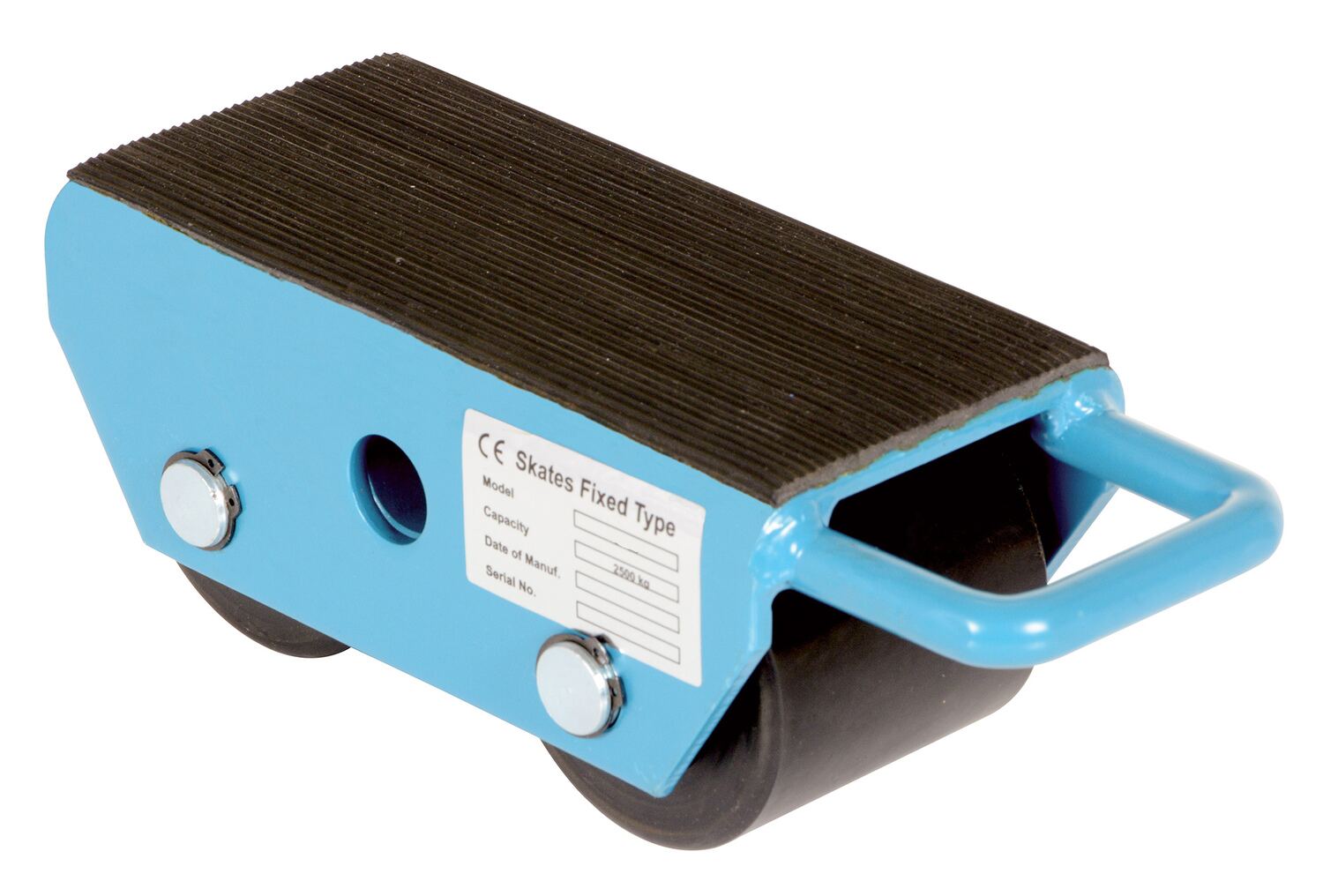

| FMS-2.5 |  | 30 Days Limited Warranty | Steel Fixed Machinery Skates 10-3/4 In. x 4-3/4 In. x 4 In. 5,000 Lb. Capacity Blue | Uniform Capacity (tons): 2.5 Roller Material: Nylon | 10 | ||
| FMS-3 |  | 30 Days Limited Warranty | Steel Fixed Machinery Skates 15-3/4 In. x 8 In. x 3-3/4 In. 6,000 Lb. Capacity Blue | Uniform Capacity (tons): 3 Roller Material: Nylon | 22 | ||
| FMS-6 |  | 30 Days Limited Warranty | Steel Fixed Machinery Skates 16-1/4 In. x 8-1/2 In. x 4 In. 12,000 Lb. Capacity Blue | Uniform Capacity (tons): 6 Roller Material: Nylon | 28 | ||
| SSKT-3 |  | 30 Days Limited Warranty | Steel Machinery Skates 4 Nylon Rollers 3 Ton Static Capacity Blue | Uniform Static Capacity (tons): 3 Roller Material: Nylon | 232 | ||
| SSKT-6 |  | 30 Days Limited Warranty | Steel Machinery Skates 8 Nylon Rollers 6 Ton Static Capacity Blue | Uniform Static Capacity (tons): 6 Roller Material: Nylon | 114 | ||
| SSKT-12 |  | 30 Days Limited Warranty | Steel Machinery Skates 8 Steel Rollers 12 Ton Static Capacity Blue | Uniform Static Capacity (tons): 12 Roller Material: Steel | 202 | ||

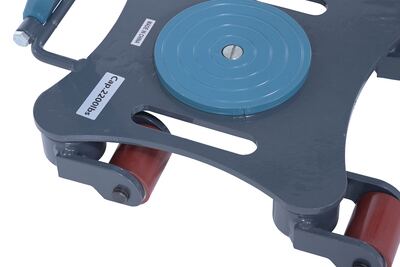

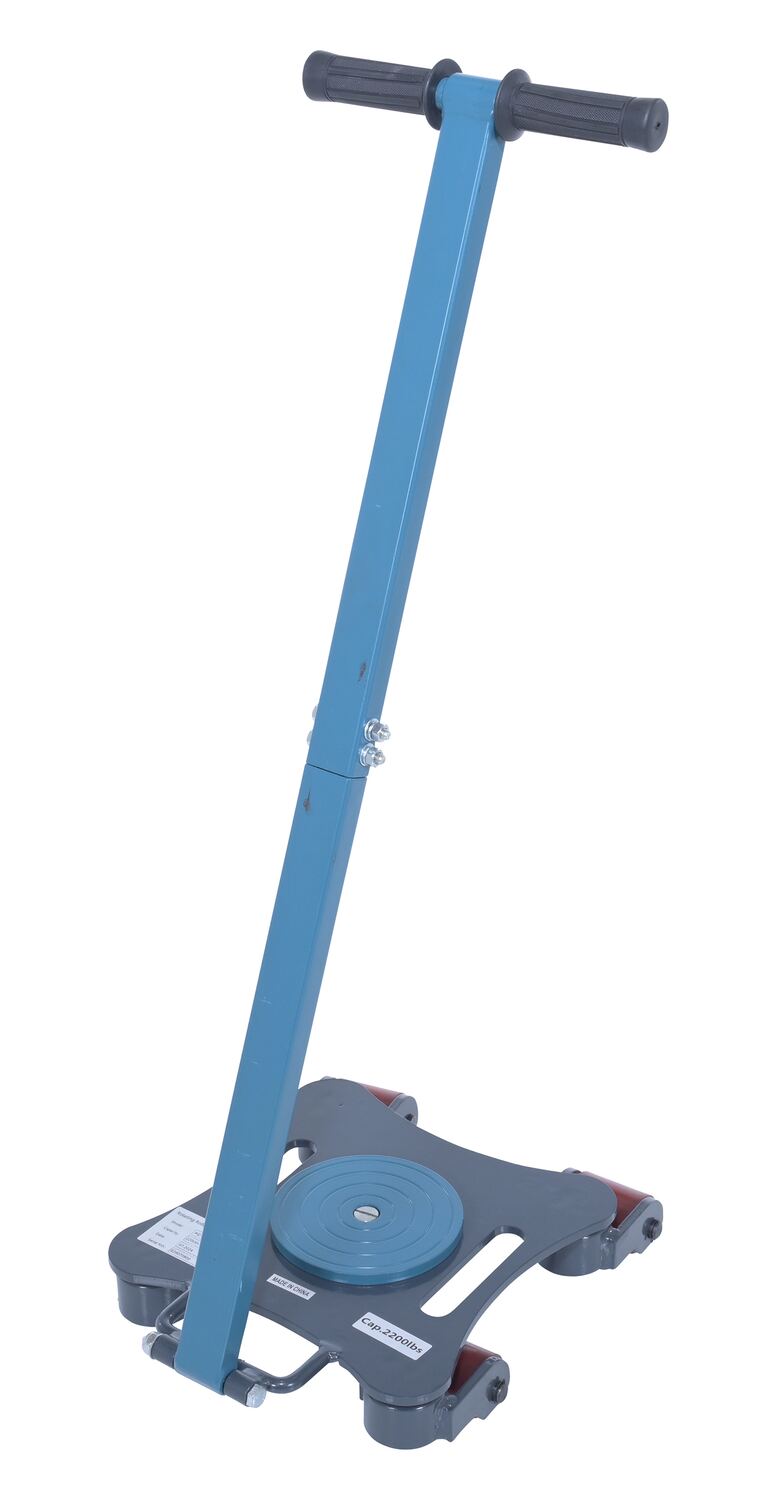

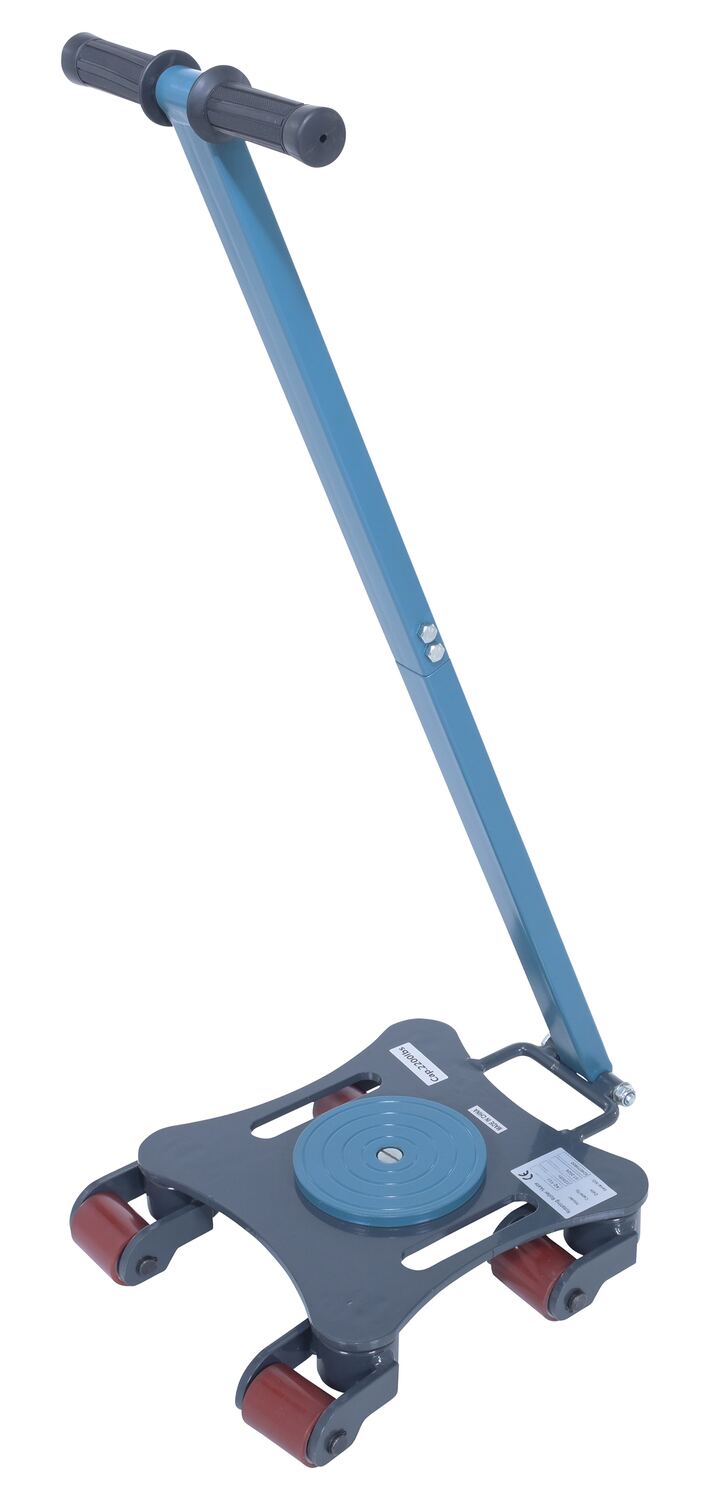

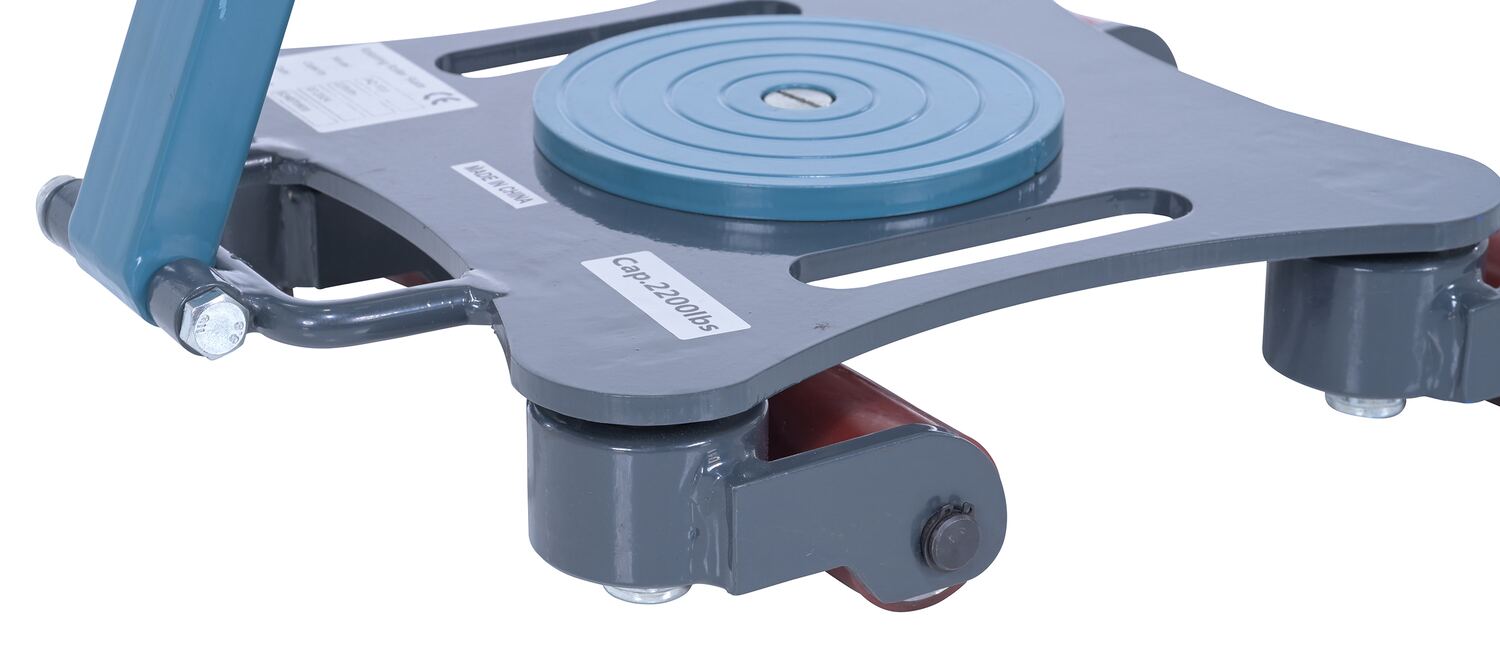

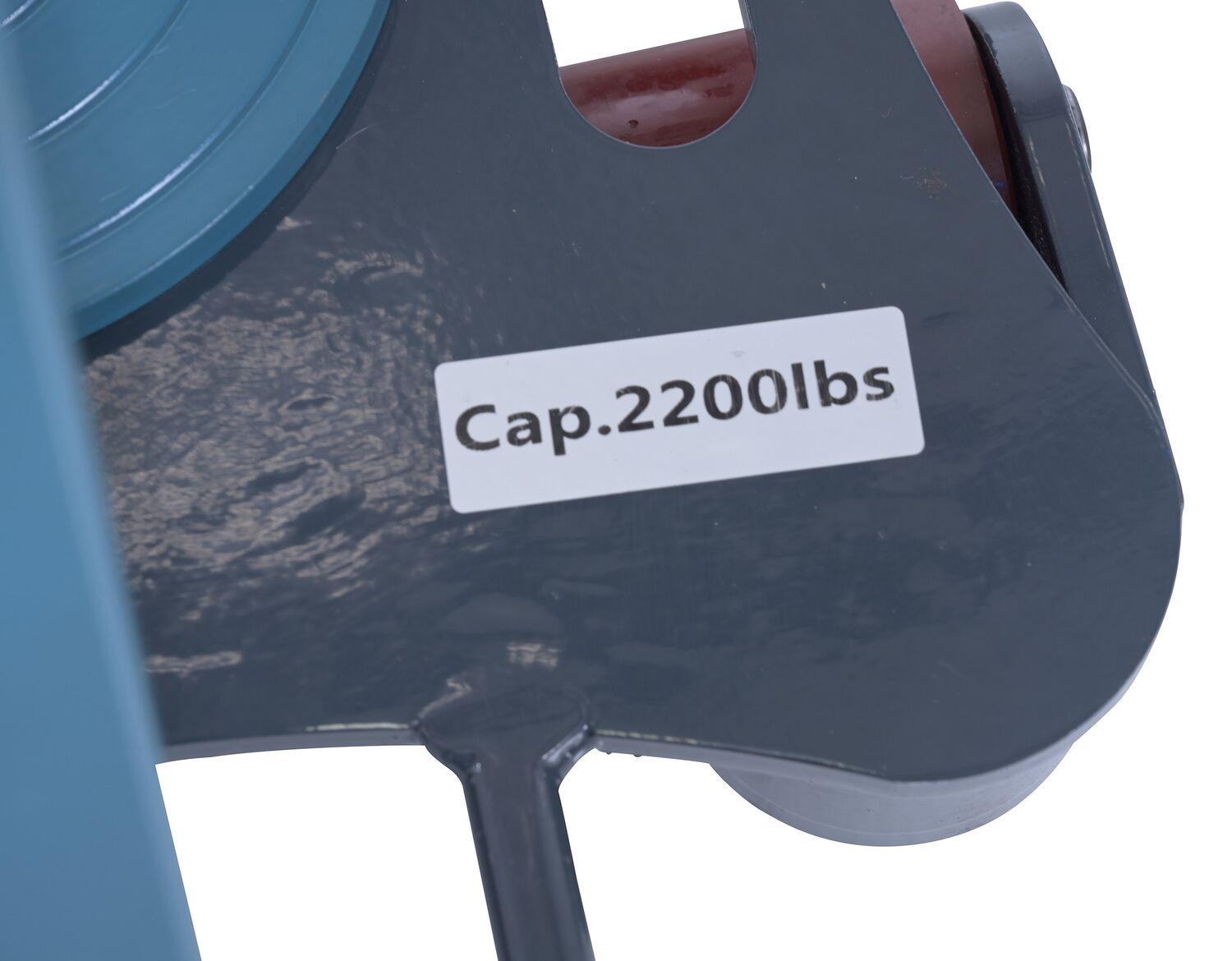

| MDSKT-2 | NEW |  | 90 Days Limited Warranty | Steel Multi Direction Machinery Skate 12 In. Length x 12 In. Width x 3-1/2 In. Height 2,200 Lb. Capacity Blue and Gray | Uniform Static Capacity (Lbs.): 2,200 Roller Material: Poly on Steel | 40 | |

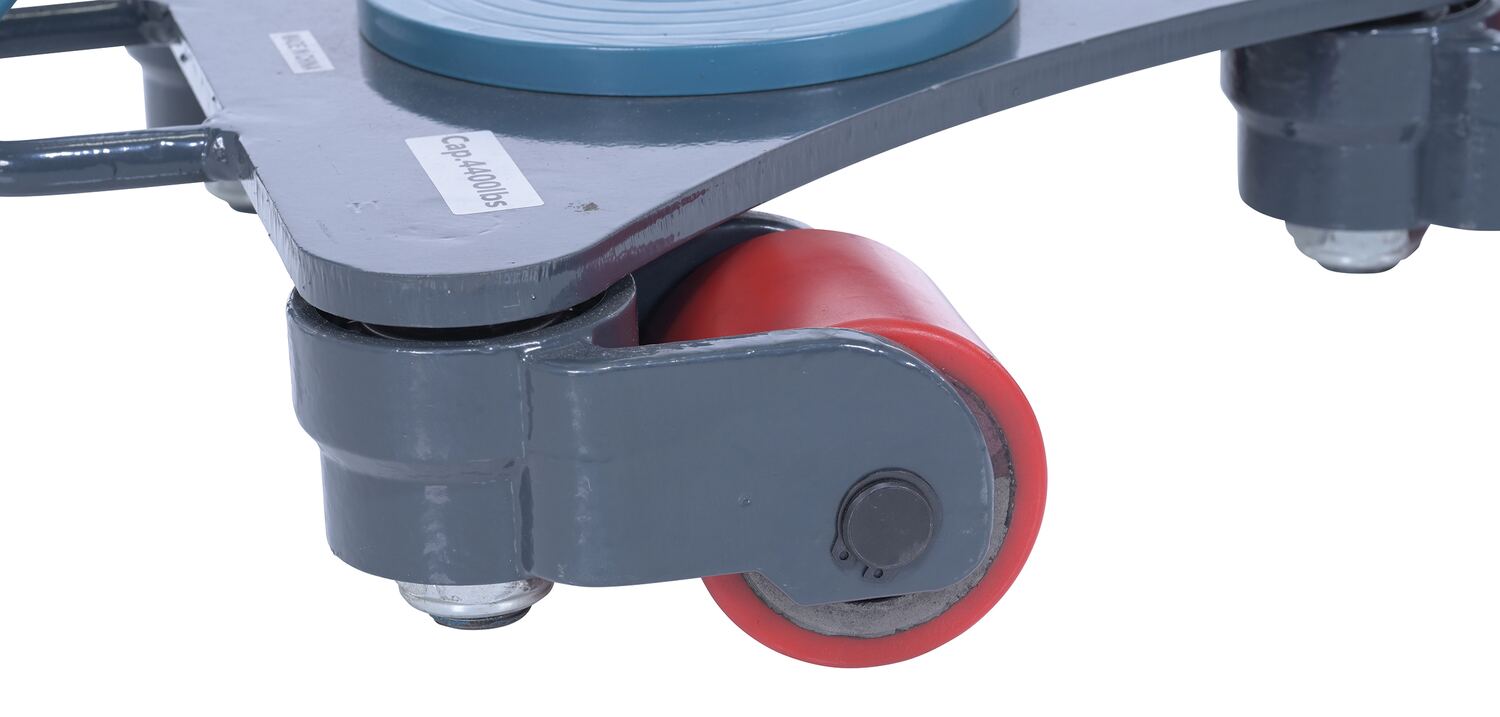

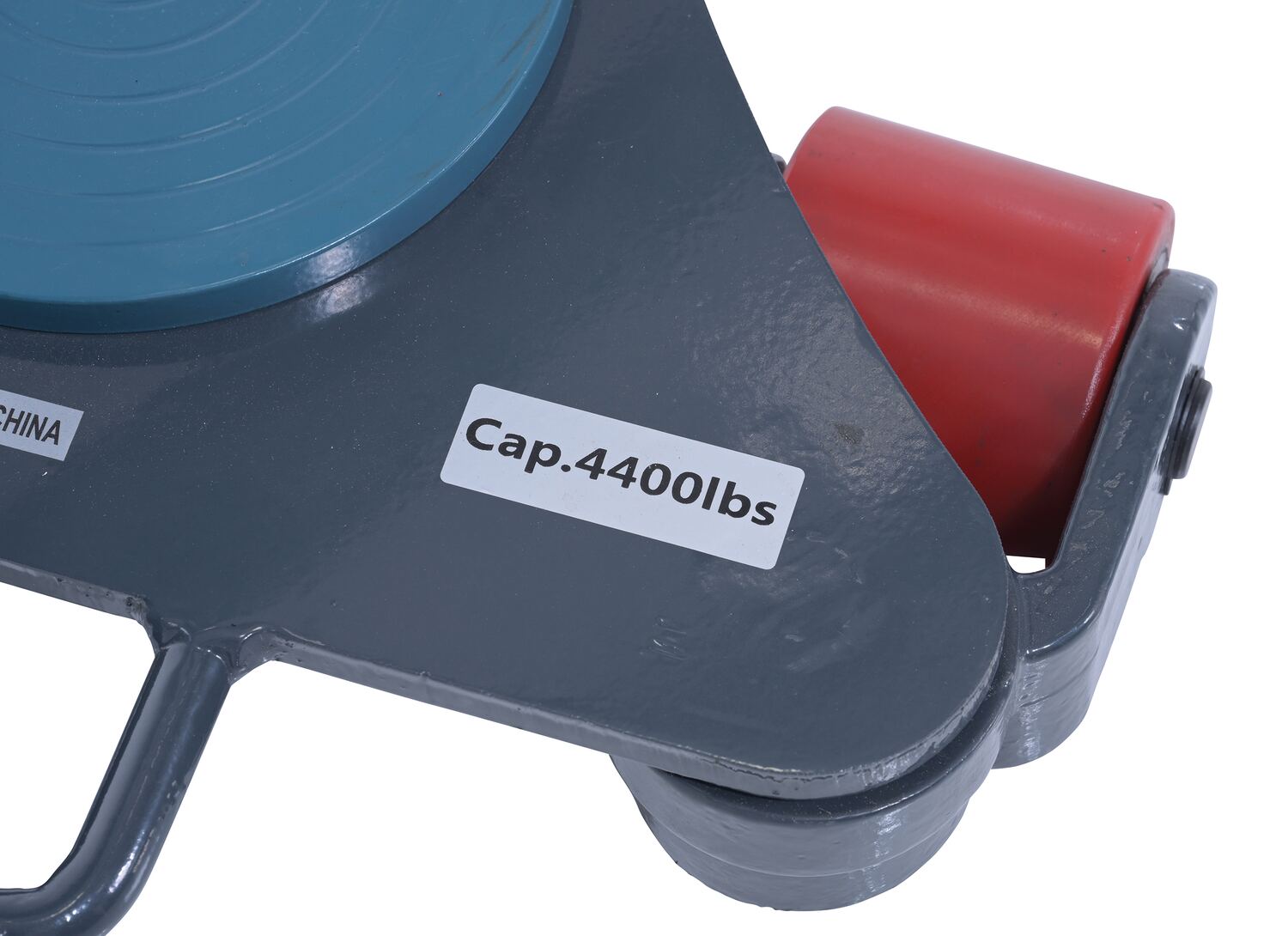

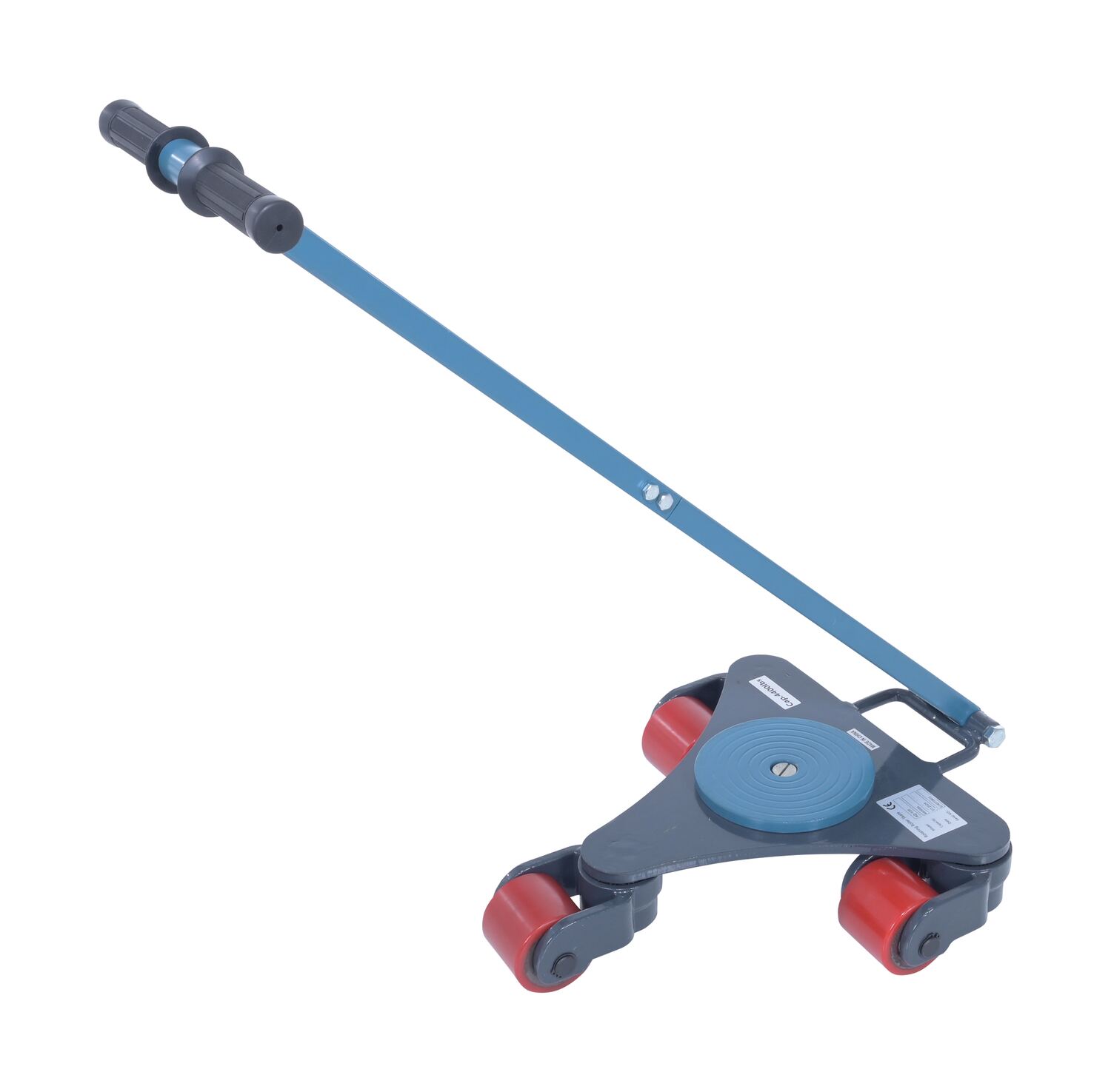

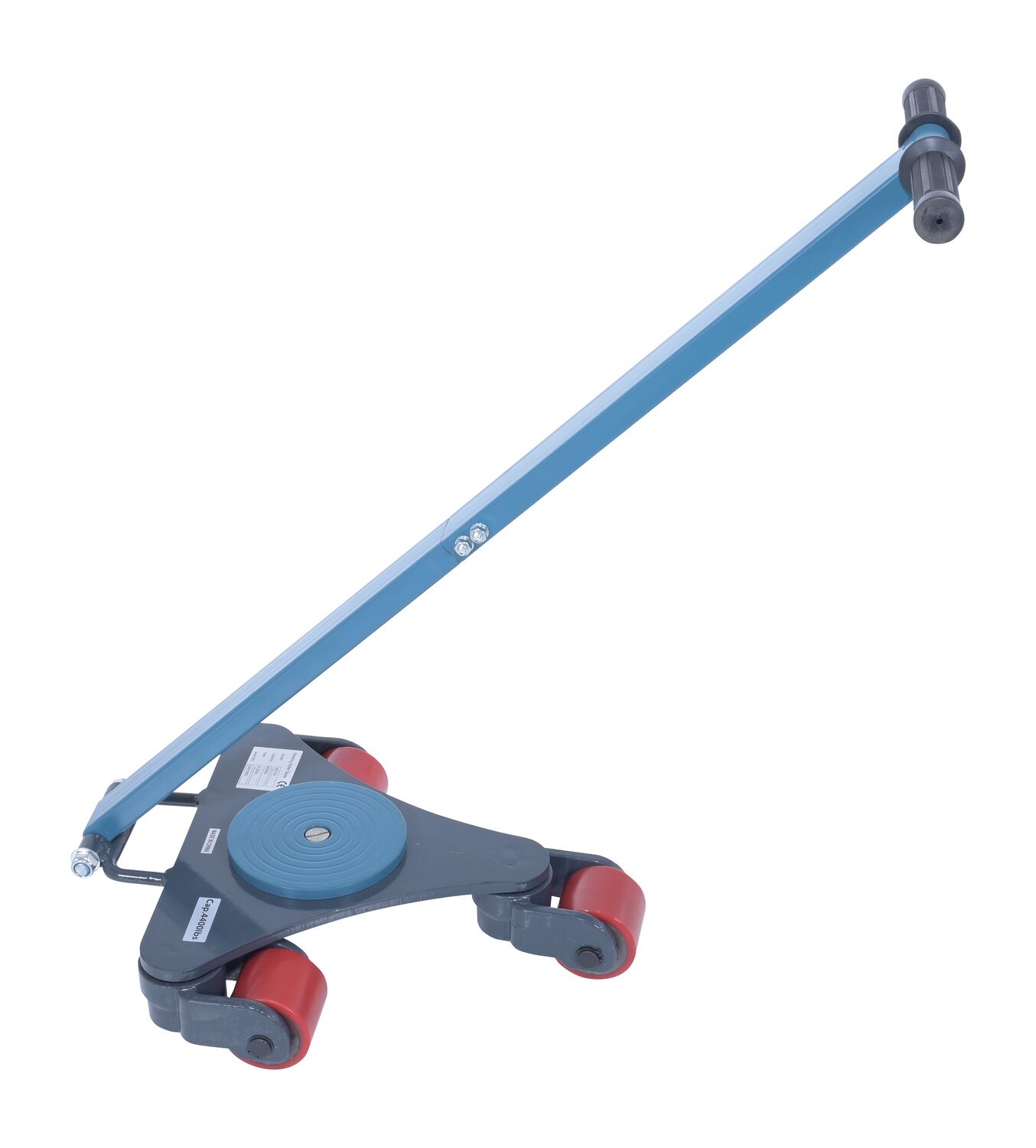

| MDSKT-4 | NEW |  | 90 Days Limited Warranty | Steel Multi Direction Machinery Skate 15 In. Length x 13 In. Width x 4-7/16 In. Height 4,400 Lb. Capacity Blue and Gray | Uniform Static Capacity (Lbs.): 4,400 Roller Material: Poly on Steel | 57 | |

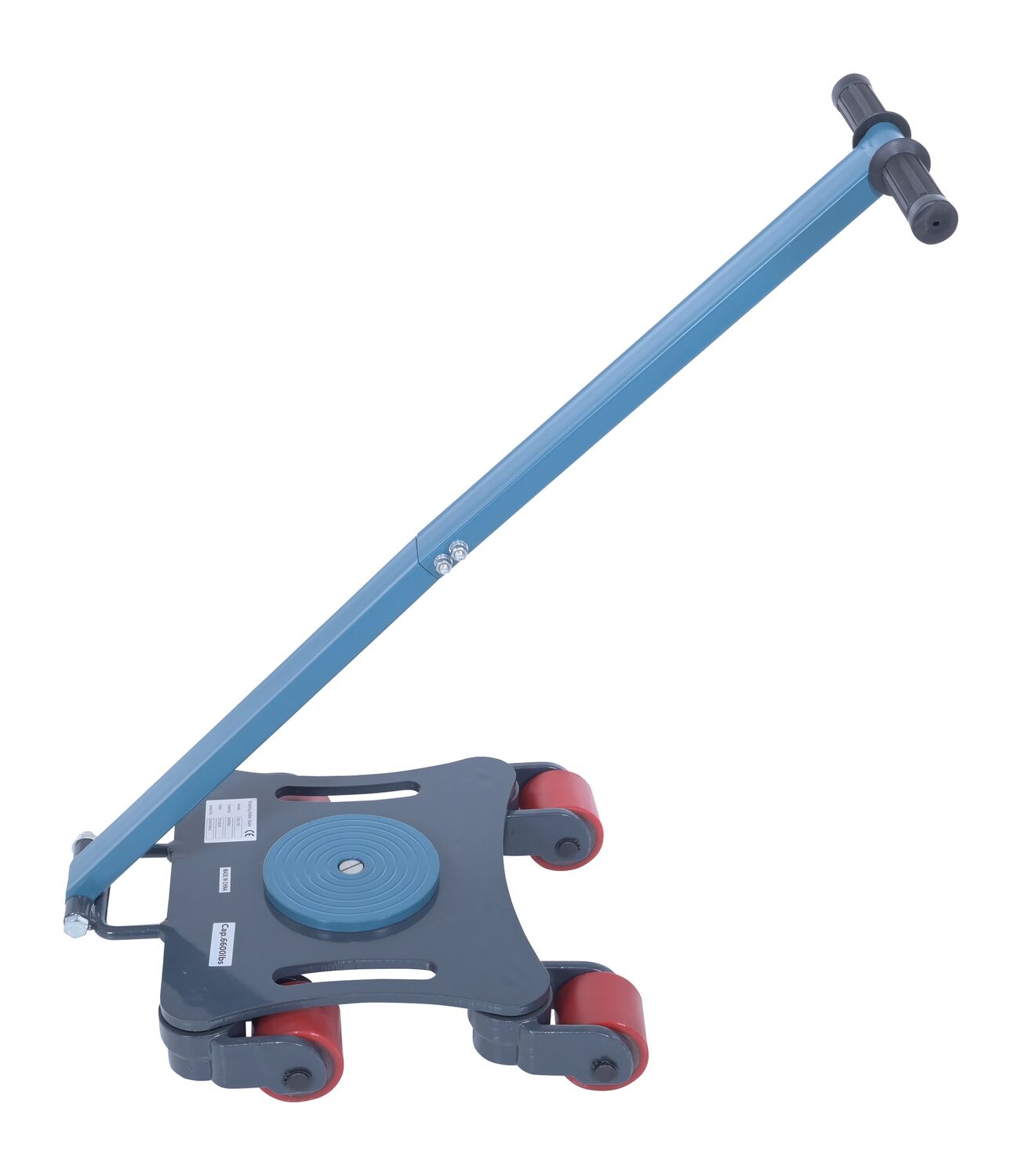

| MDSKT-6 | NEW |  | 90 Days Limited Warranty | Steel Multi Direction Machinery Skate 12 In. Length x 12 In. Width x 4-7/16 In. Height 6,600 Lb. Capacity Blue and Gray | Uniform Static Capacity (Lbs.): 6,600 Roller Material: Poly on Steel | 74 | |

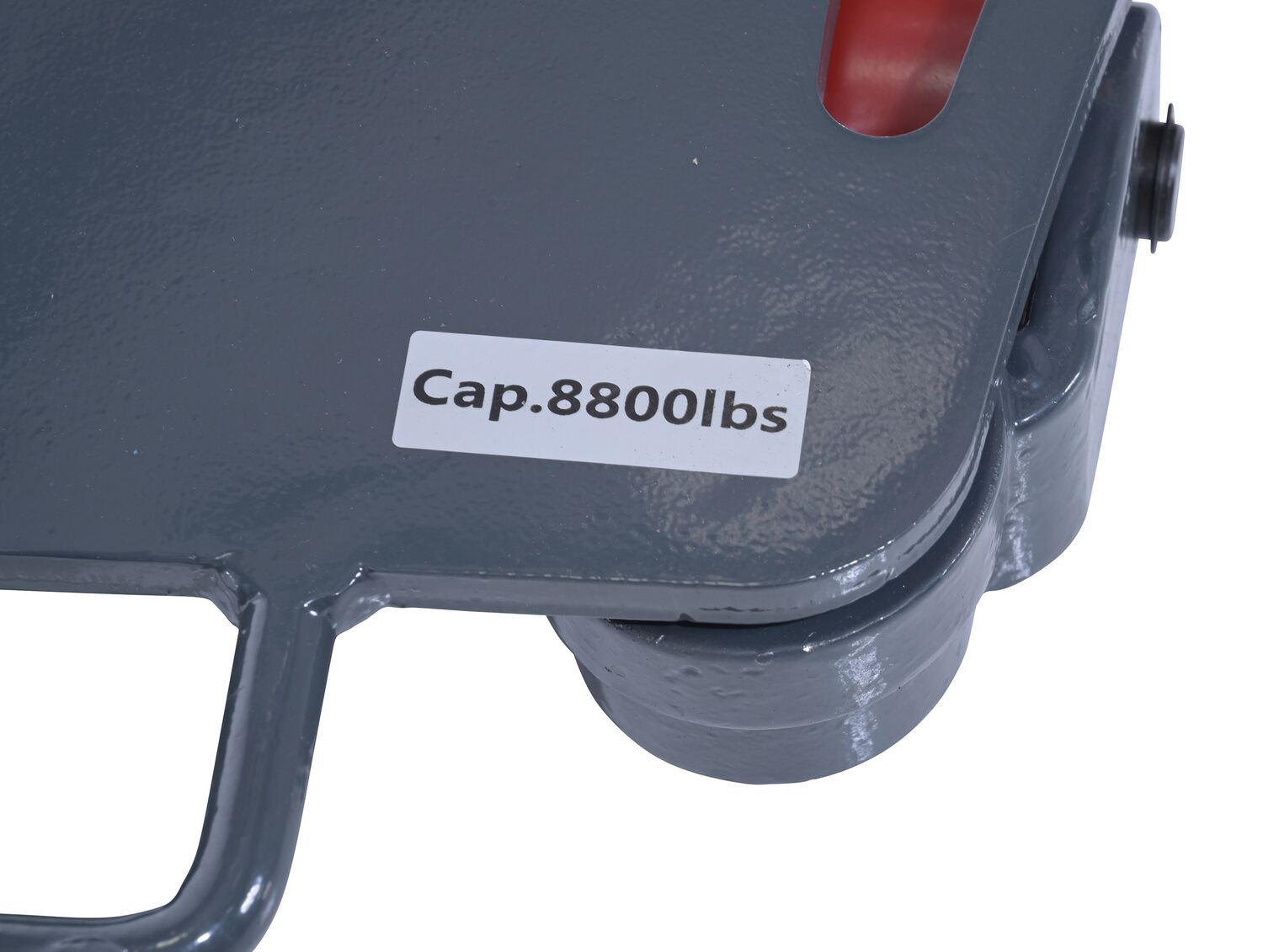

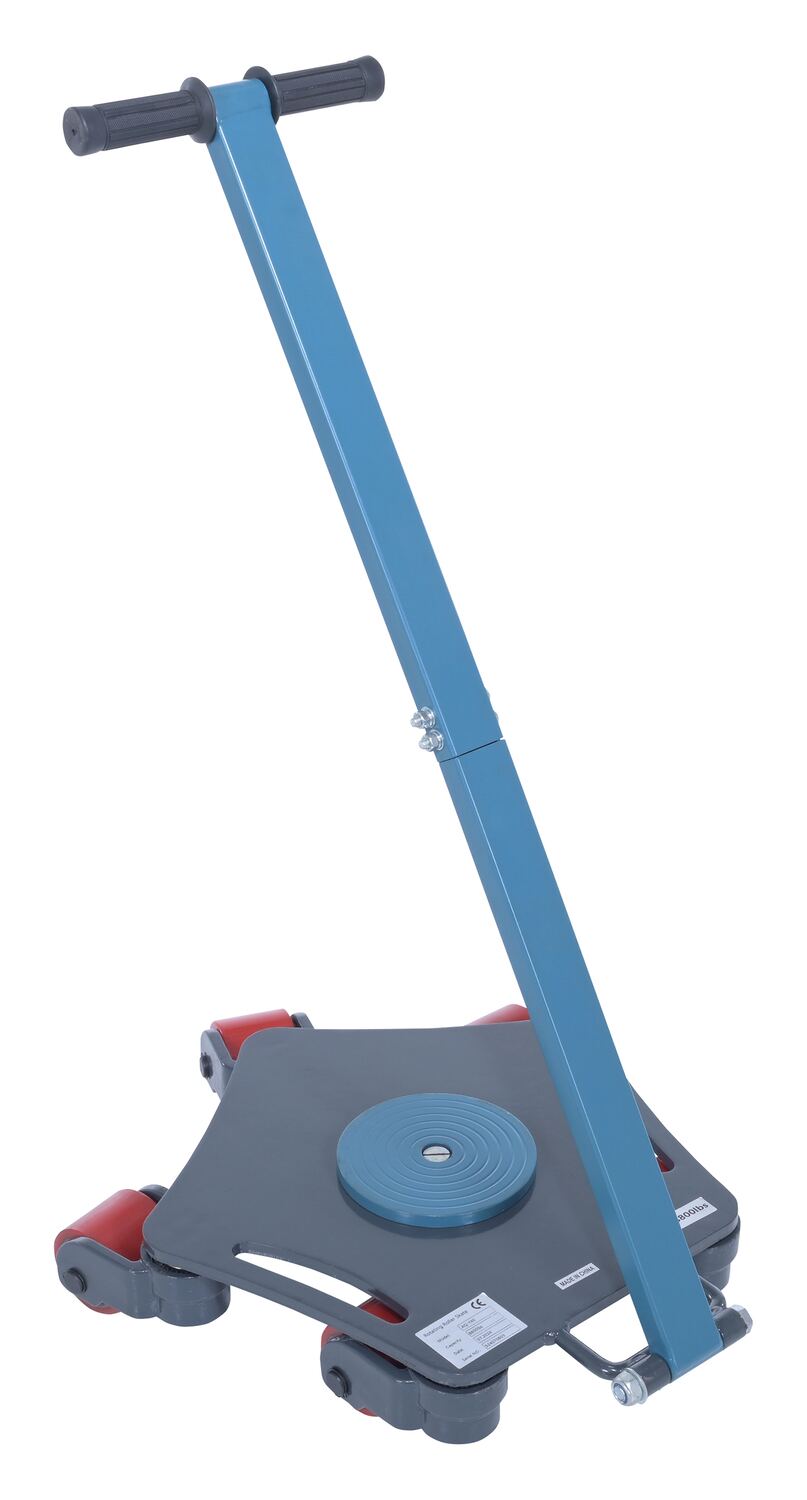

| MDSKT-8 | NEW |  | 90 Days Limited Warranty | Steel Multi Direction Machinery Skate 18 In. Length x 17-1/2 In. Width x 4-7/16 In. Height 8,800 Lb. Capacity Blue and Gray | Uniform Static Capacity (Lbs.): 8,800 Roller Material: Poly on Steel | 86 |
KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required
