Basement Floor Jacks

- - - -

Description
Model Chart
PDF's
Image Gallery
FJB-48_A.jpg FJB-48_B.jpg FJB-48_D.jpg FJB-48_E.jpg
FJB-48_C.jpg FJB-48_F.jpg FJB-48_G.jpg FJB-48_H.jpg
Basement Floor Jacks

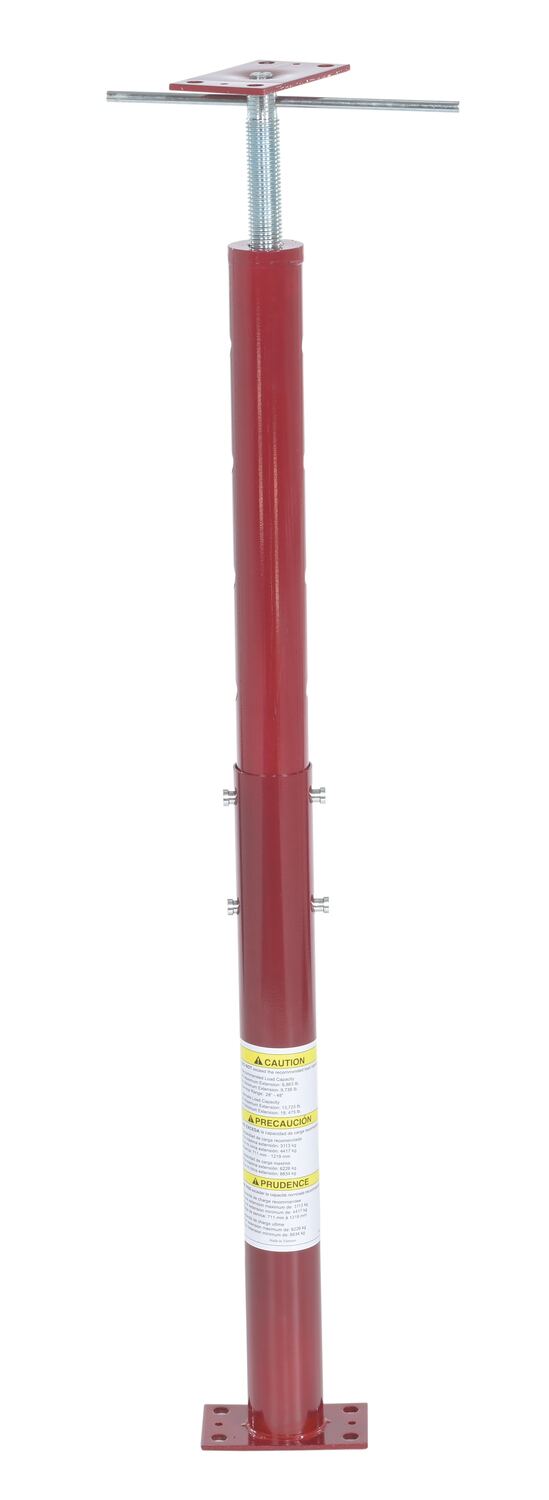

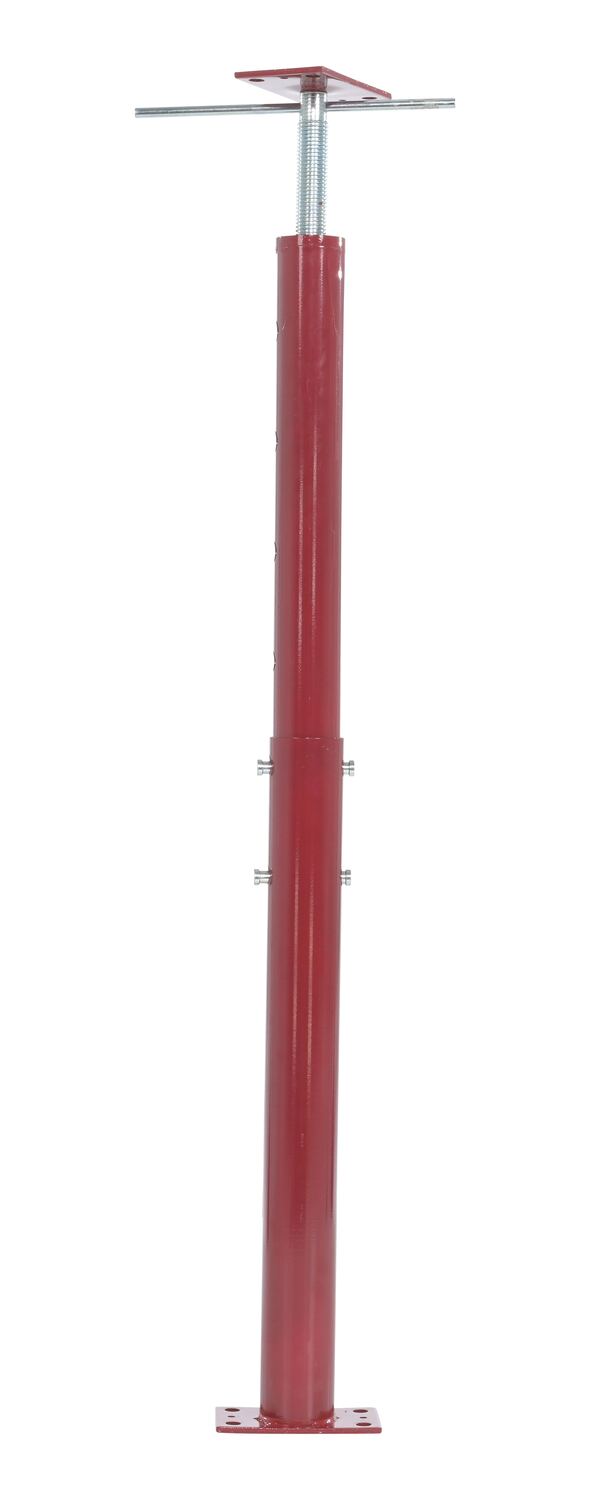

model: FJB-48



Featured Facilities Maintenance


Portable Electric Infrared Heaters
Storage Lockers
Wire Cages
Deluxe Spring Driven Low Pressure Hose Reels
Folding Safety Barricades
Buildings & Shelters
Skid Steer Grab Buckets
Aluminum Smokers Bollards
Sign Bases
model chart

Product Family Overview

Print Friendly
Basement Floor Jacks
SERIES: FJB

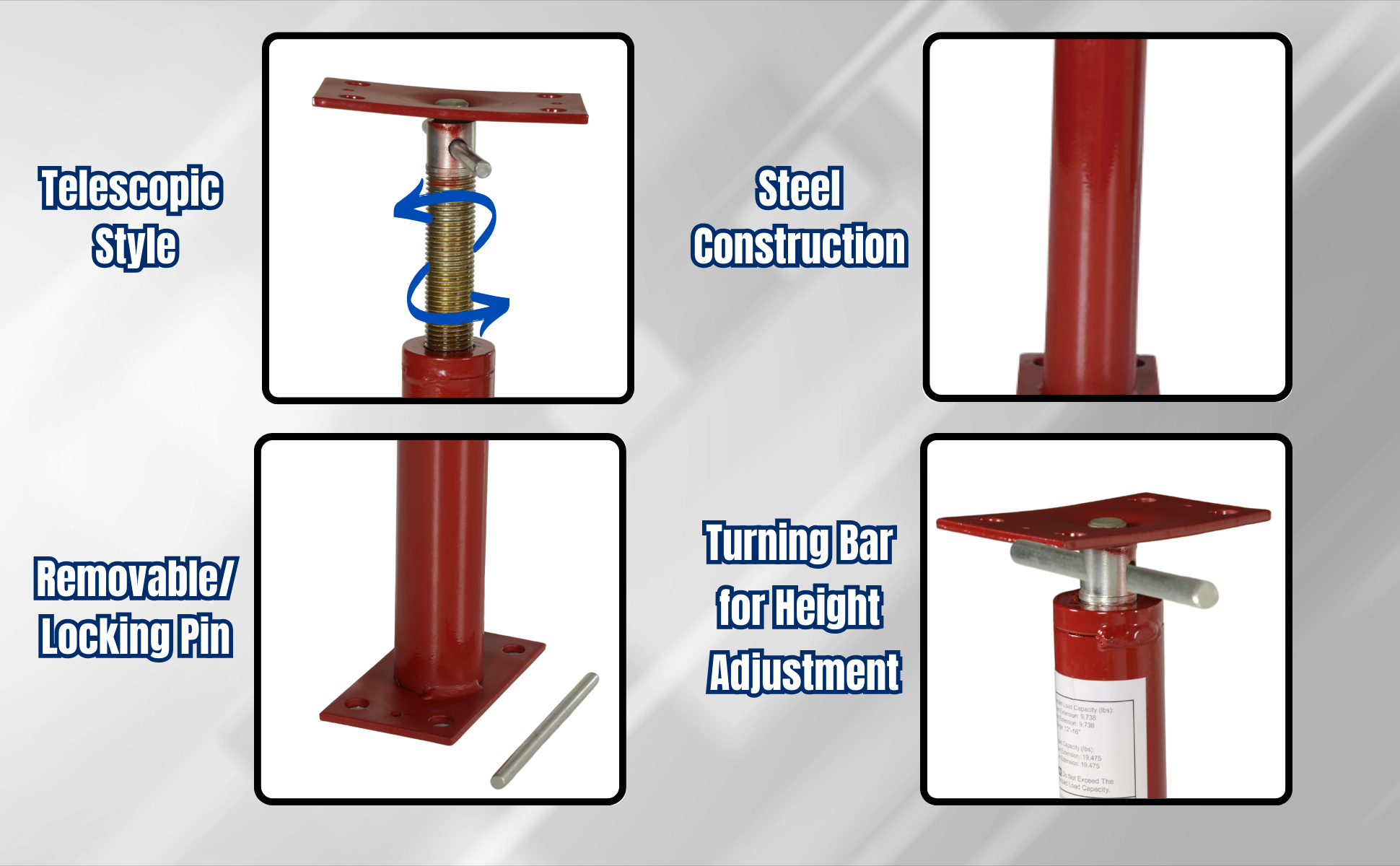

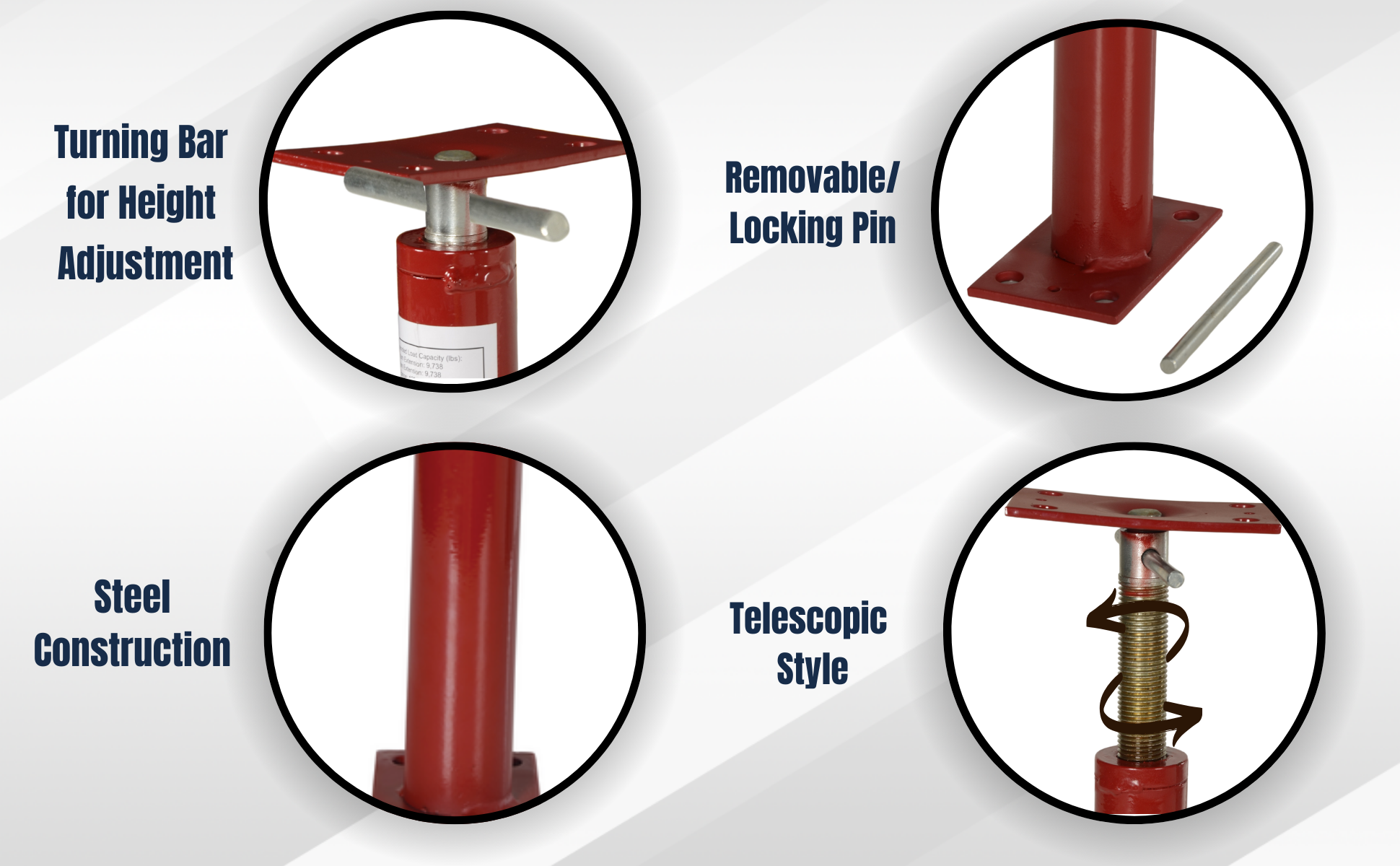

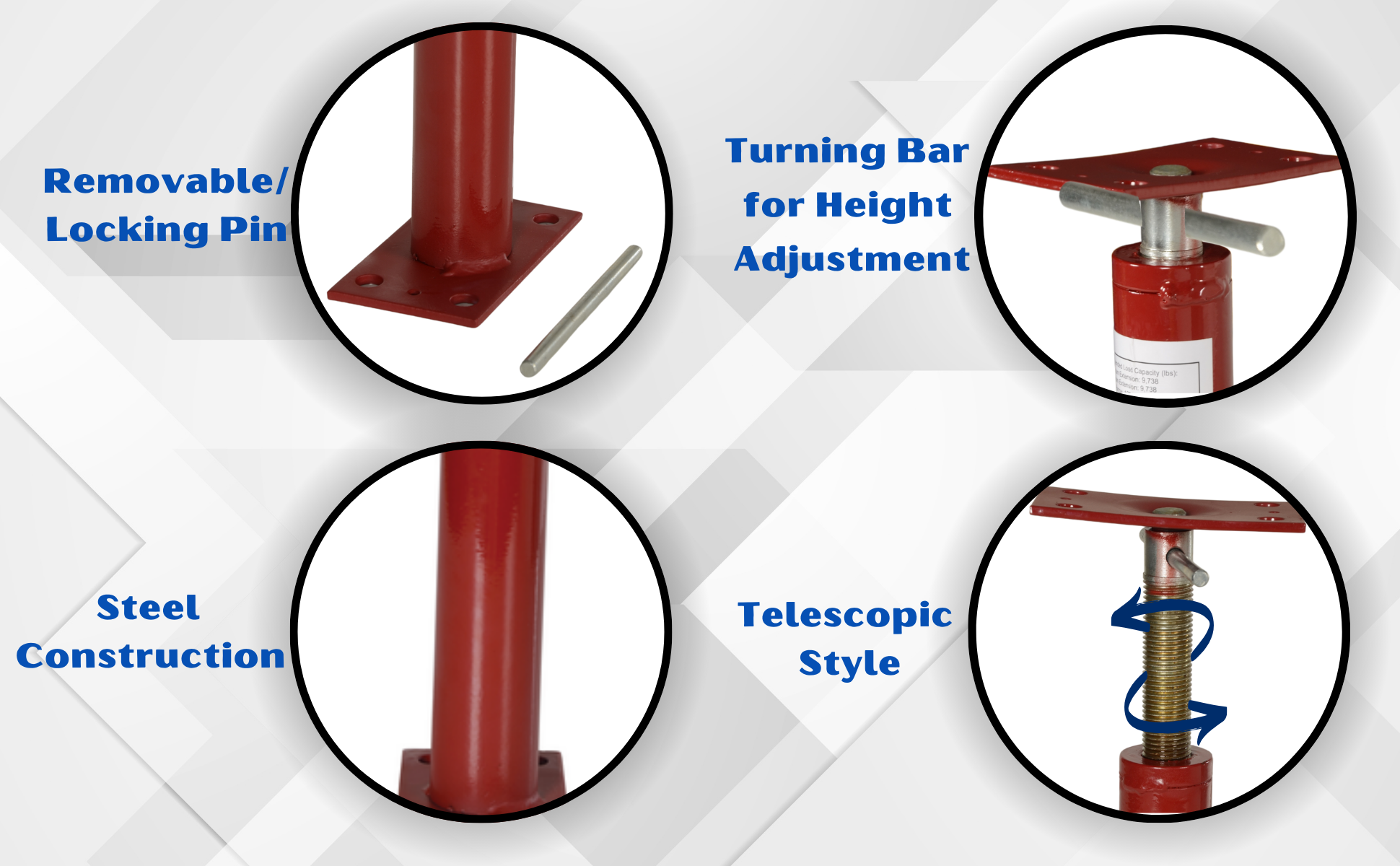

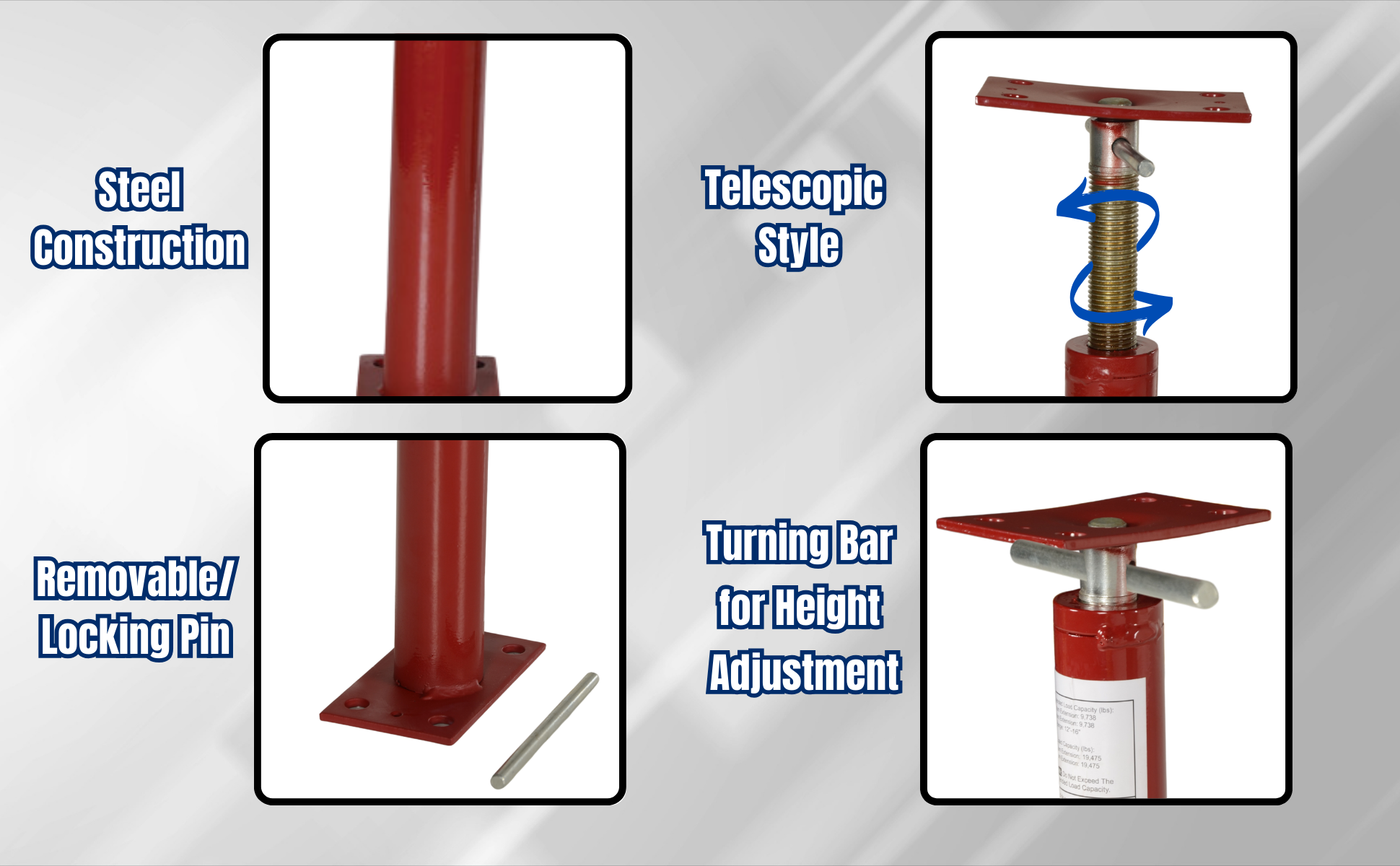

FJB-48Provide extra support for leveling and stabilizing floor beams and joists during construction and repairs. Telescopic style with removable pins lets you properly position the brace for better leveling. Includes turning bar for easy height adjustment. Rugged all welded steel construction. Red oxide finish.

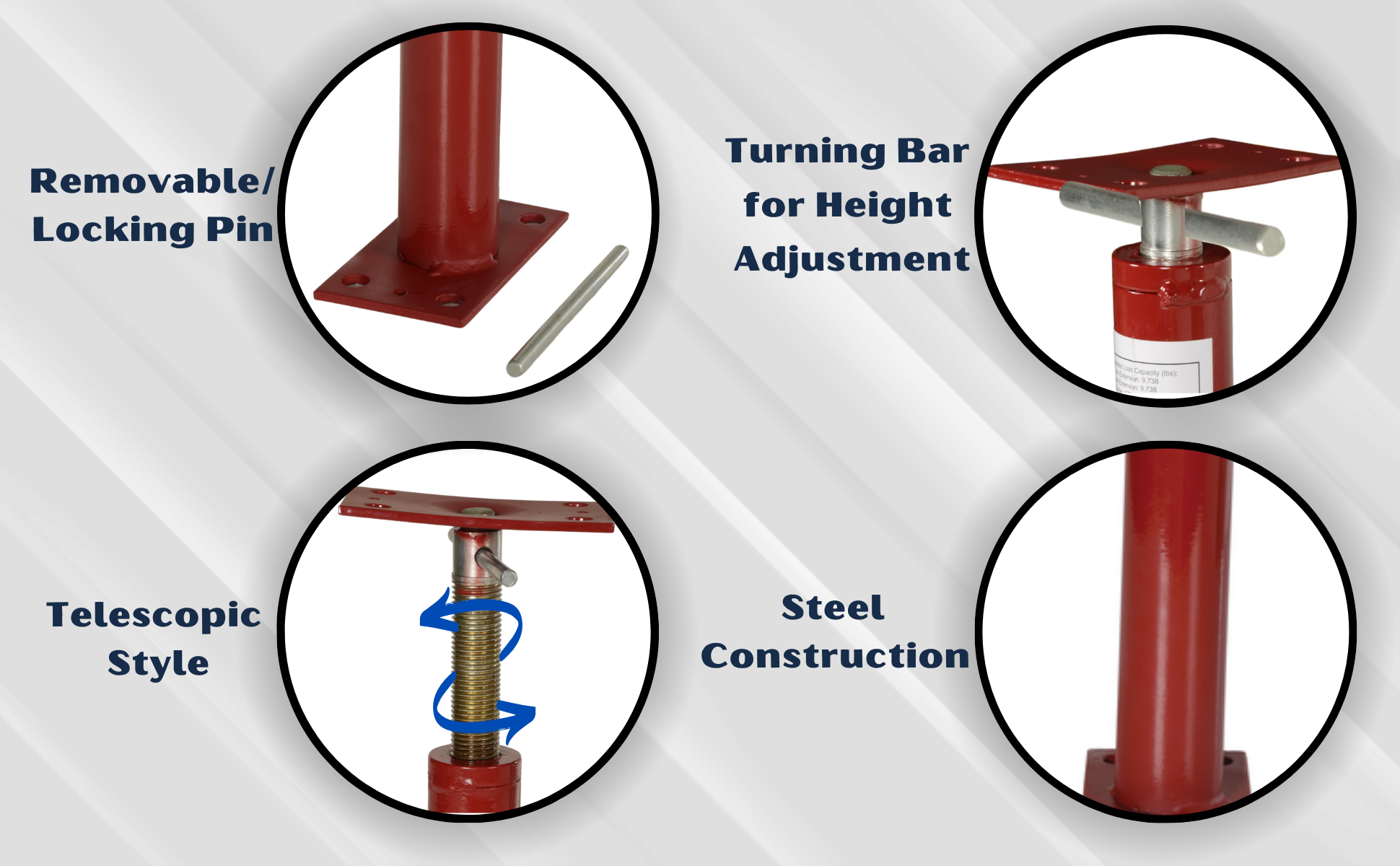

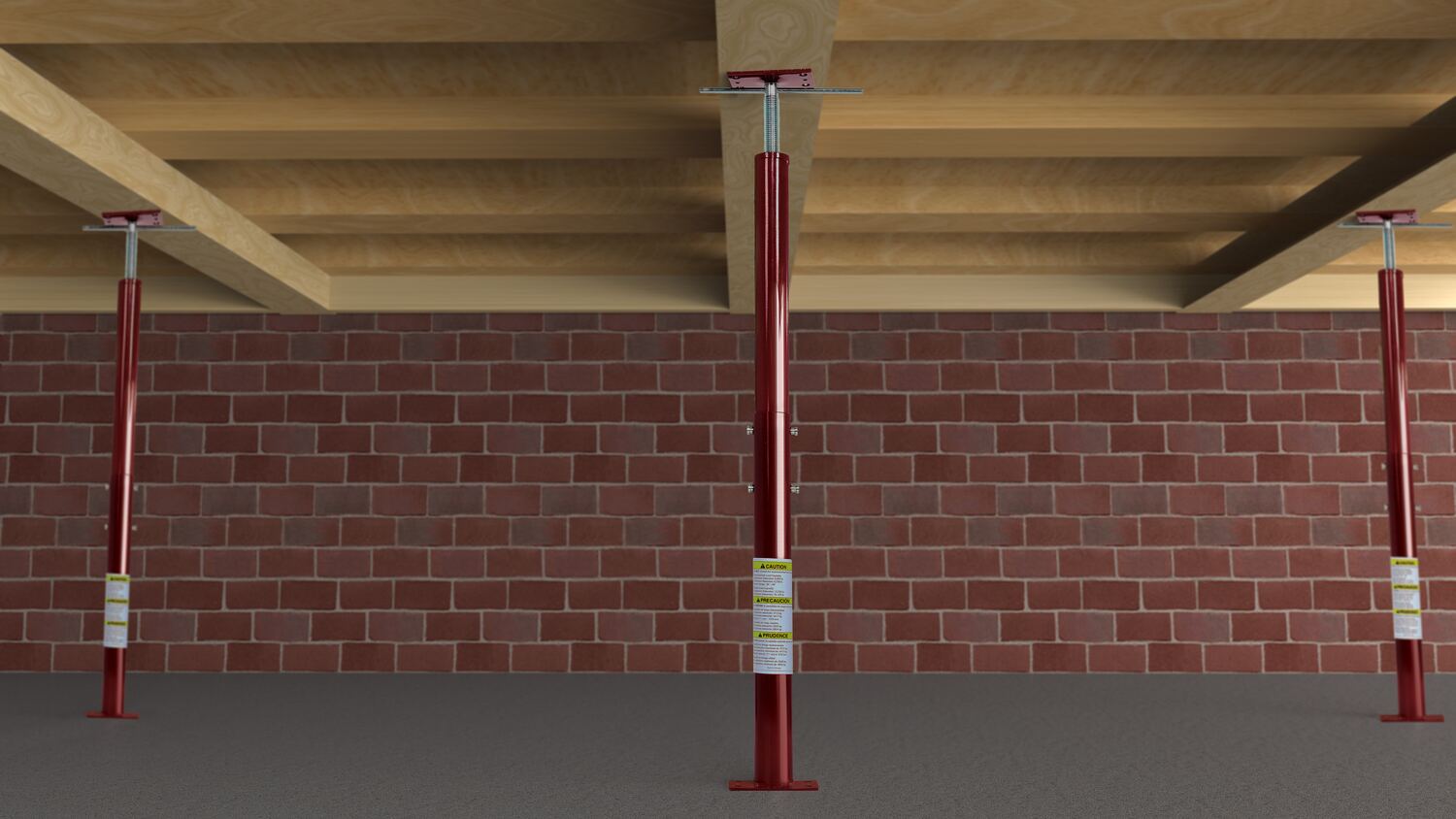

  • Jack provides support for leveling and stabilizing floor beams

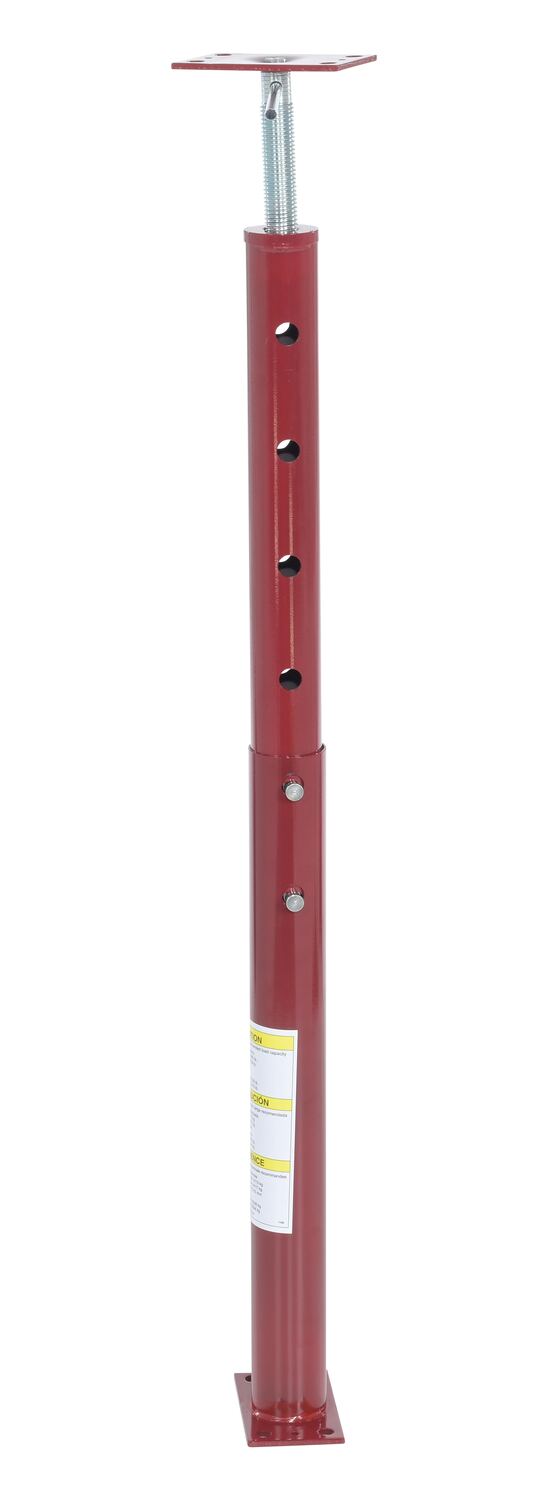

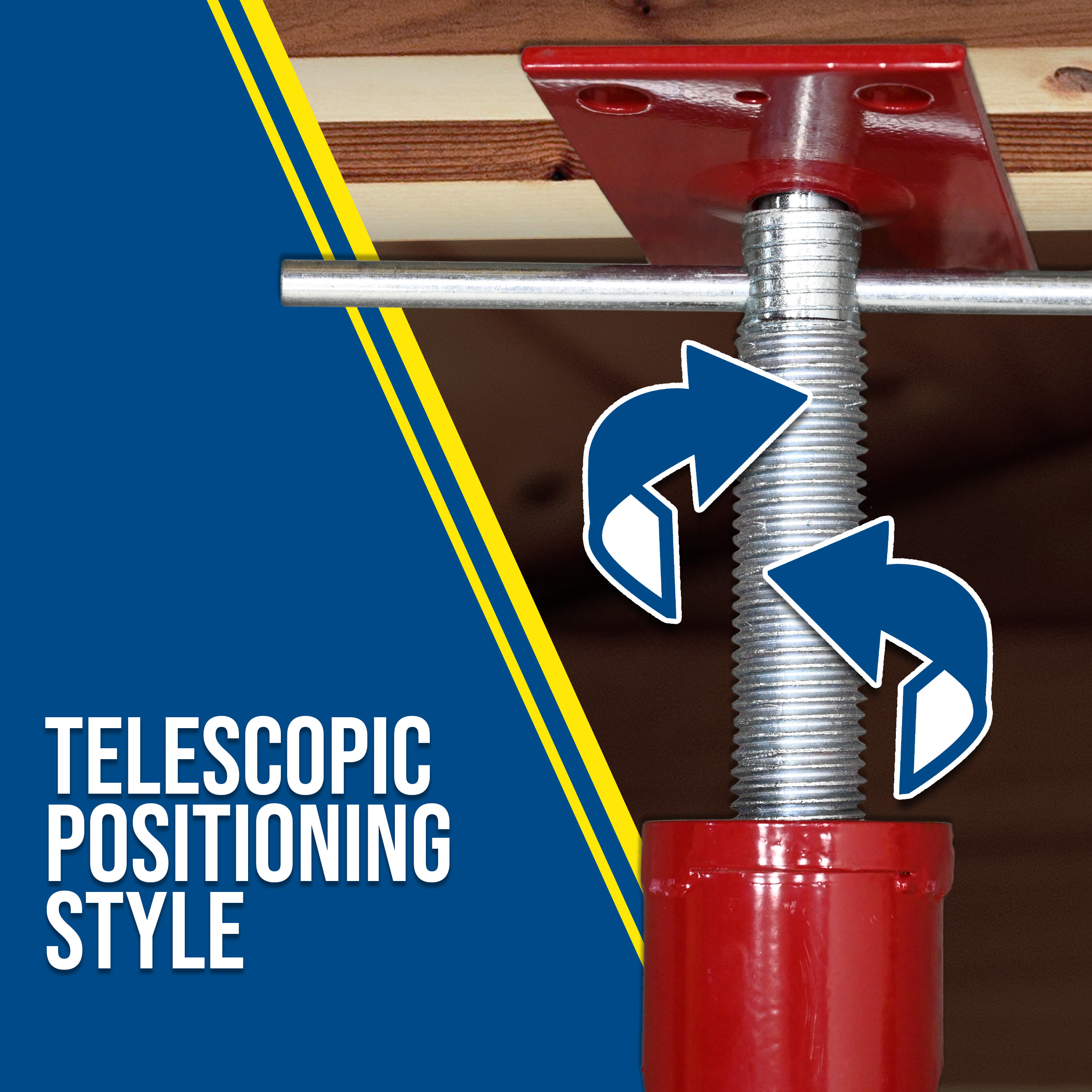

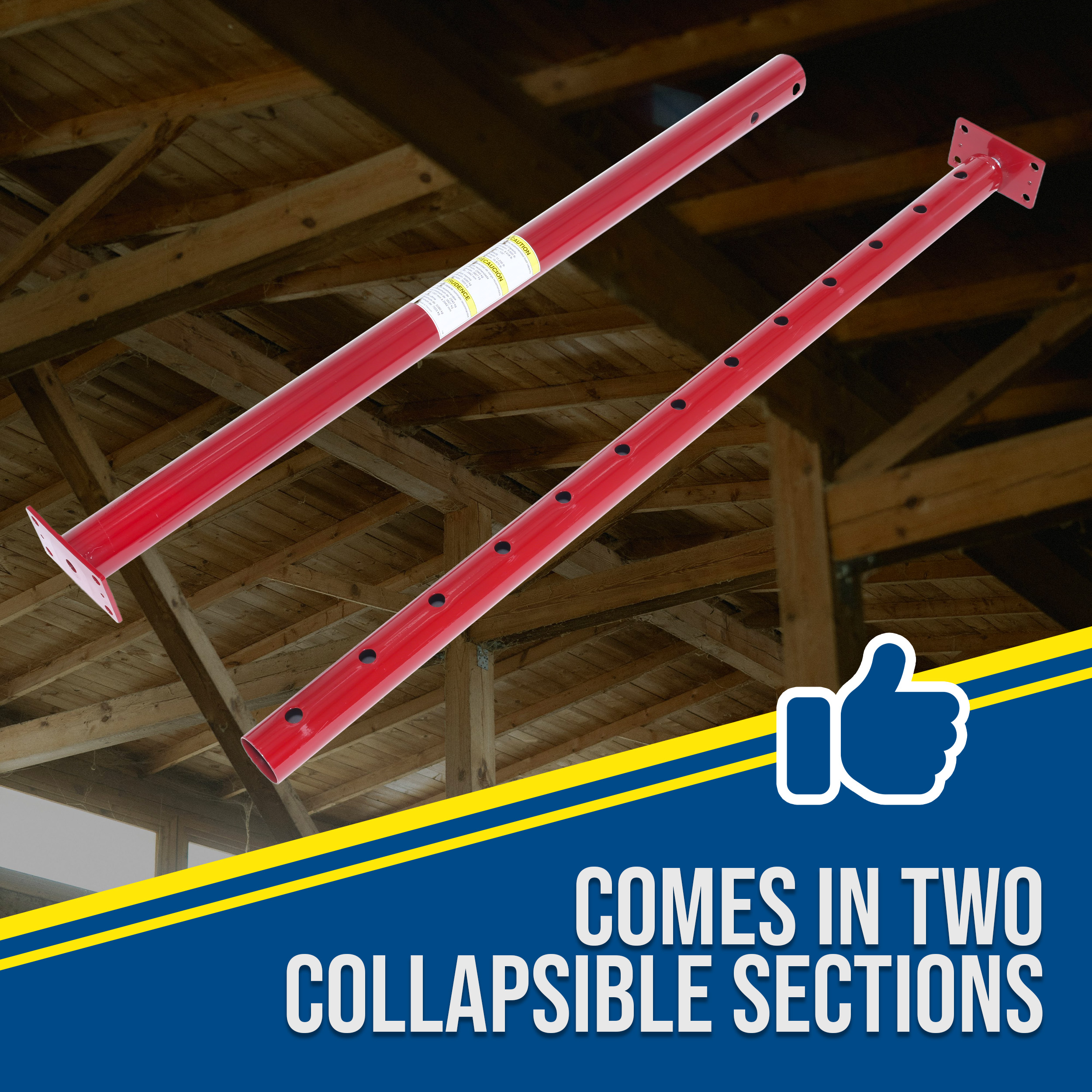

  • The telescopic style positions the brace for better leveling

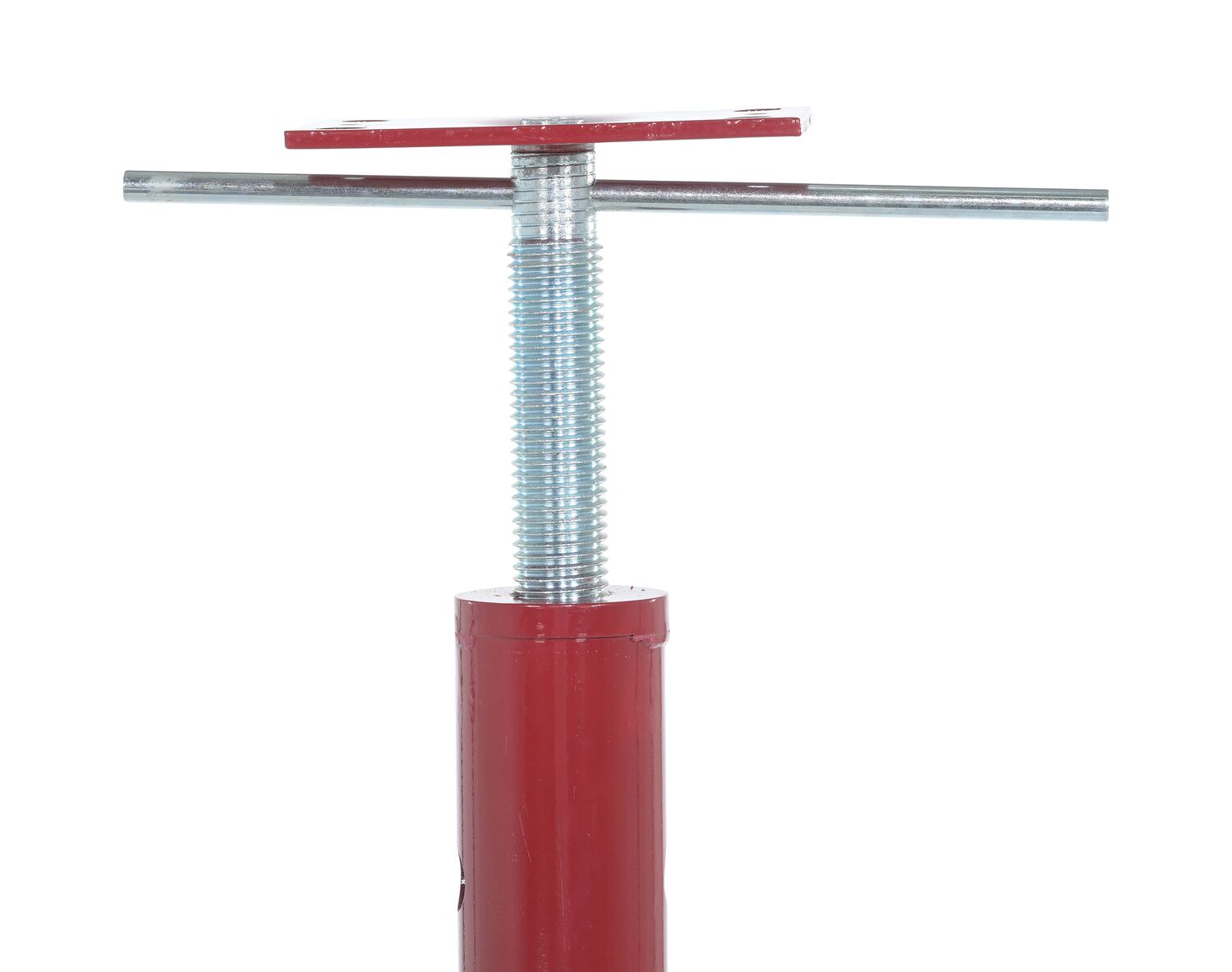

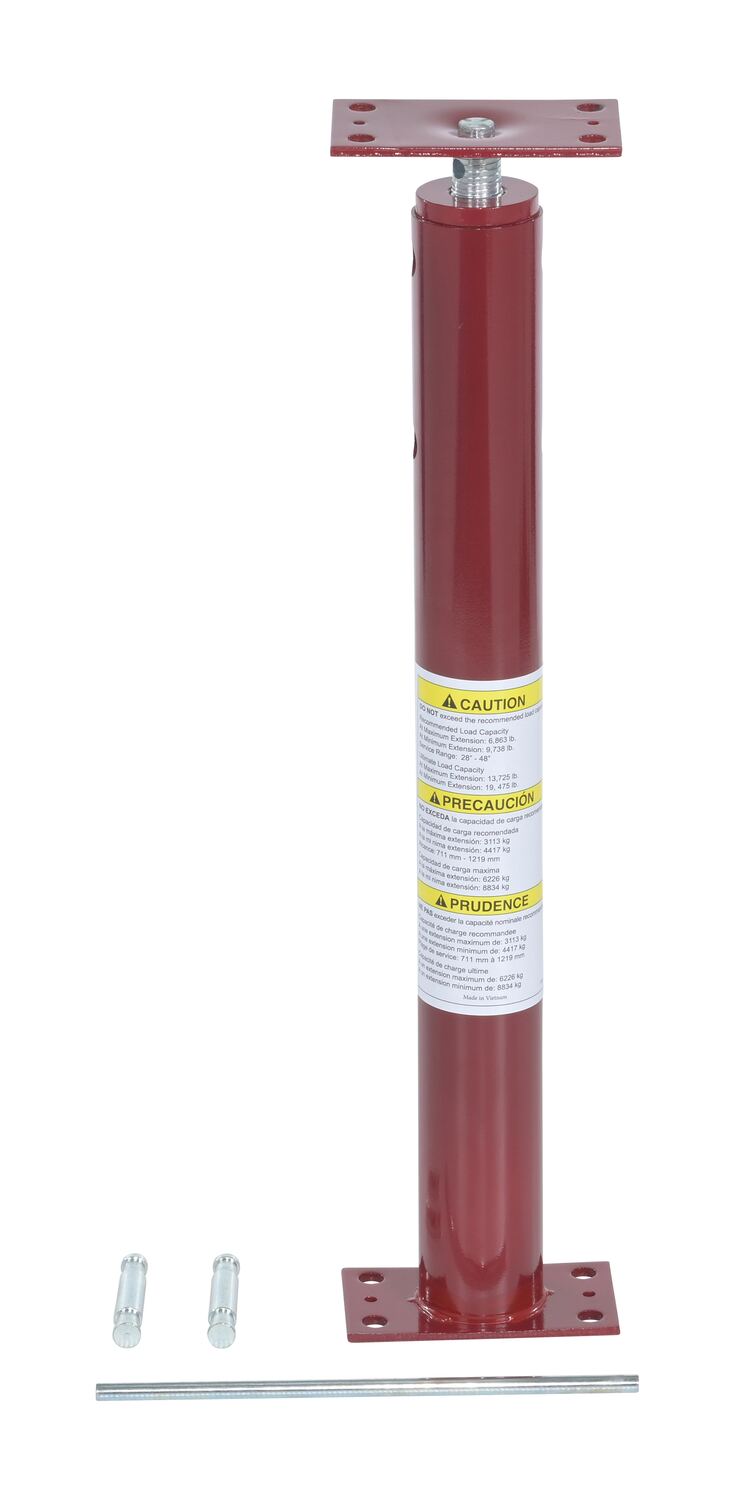

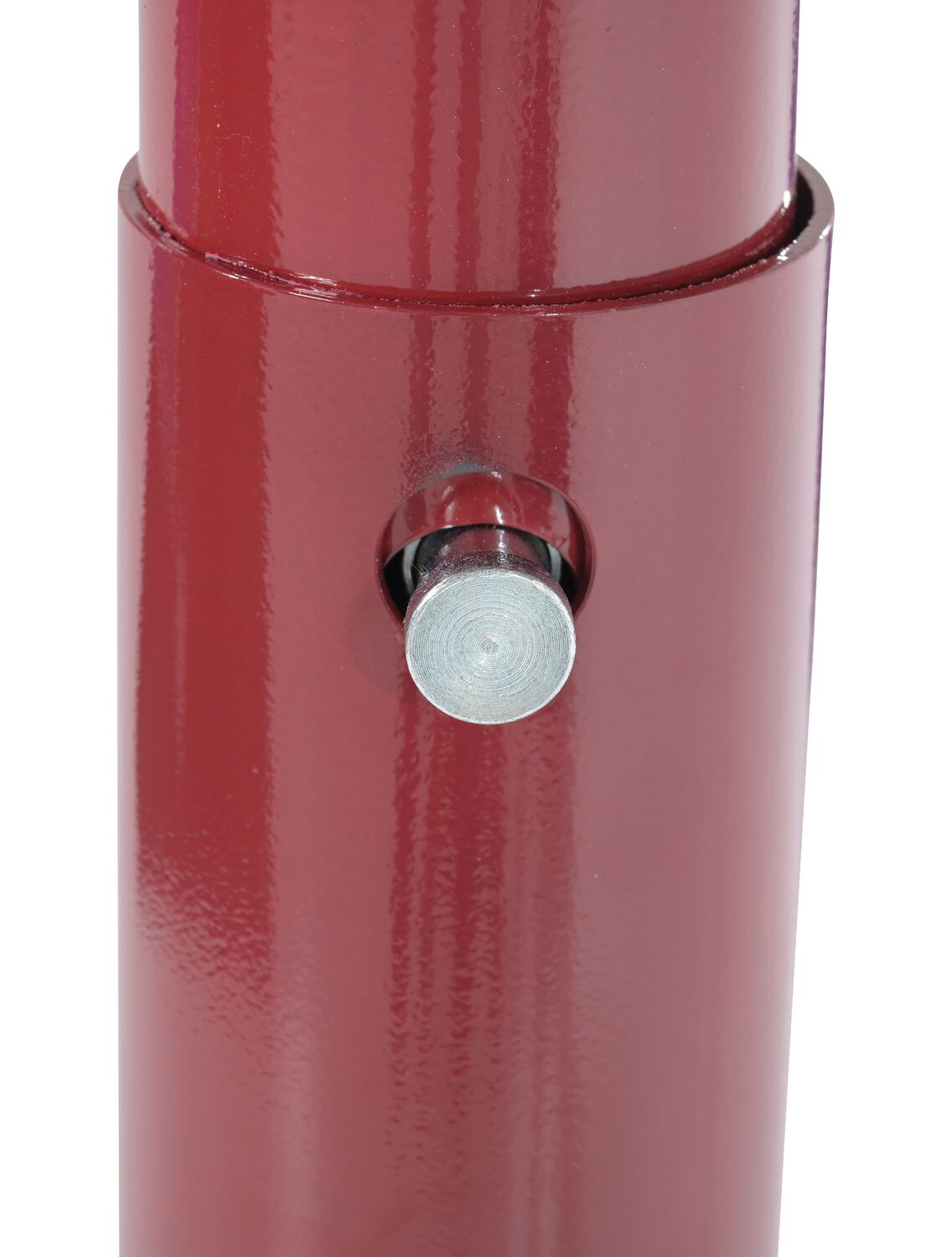

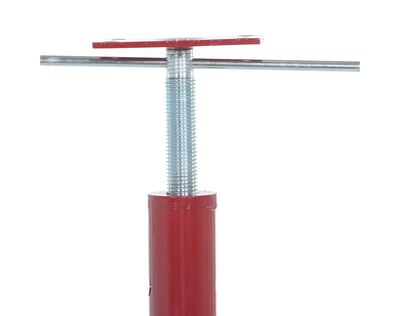

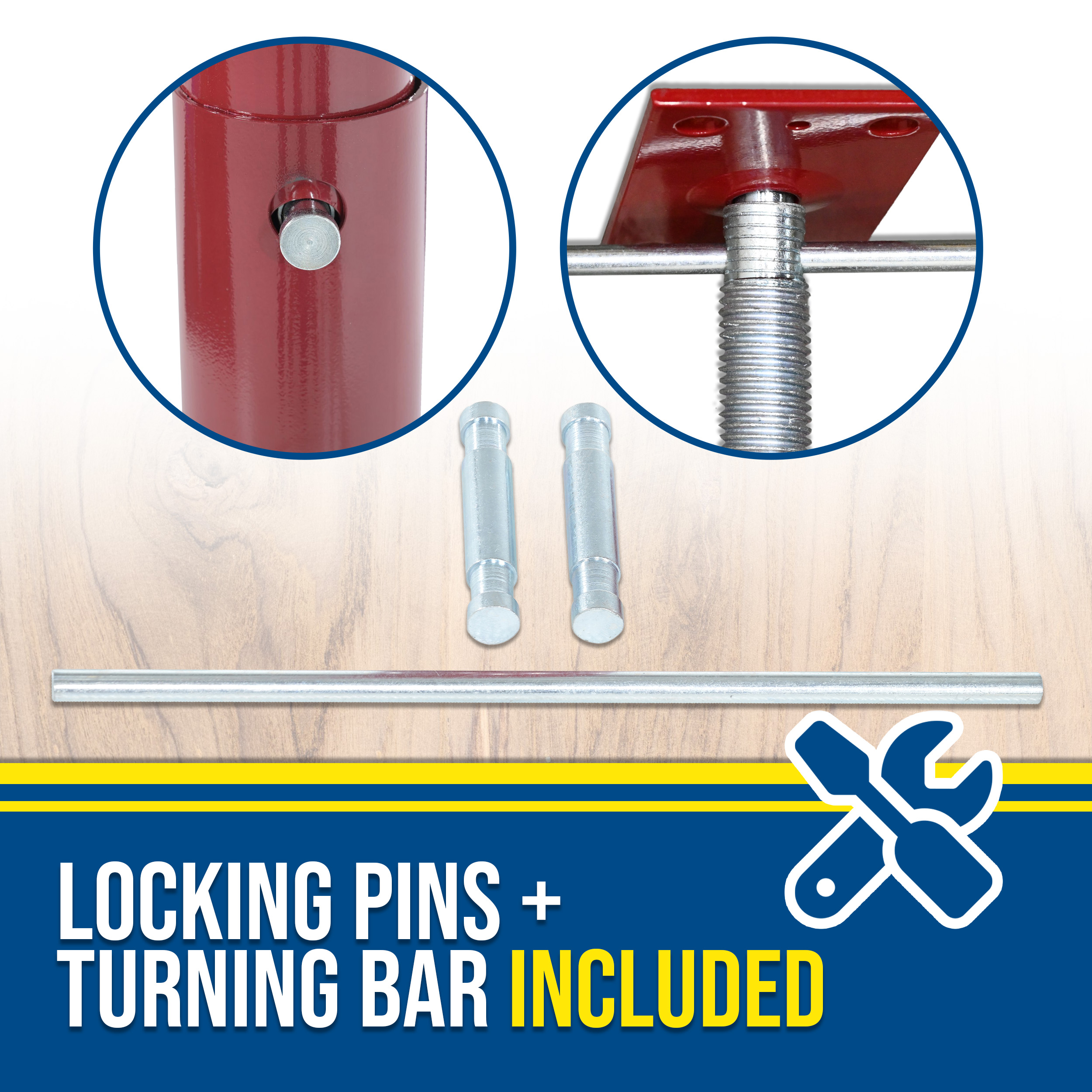

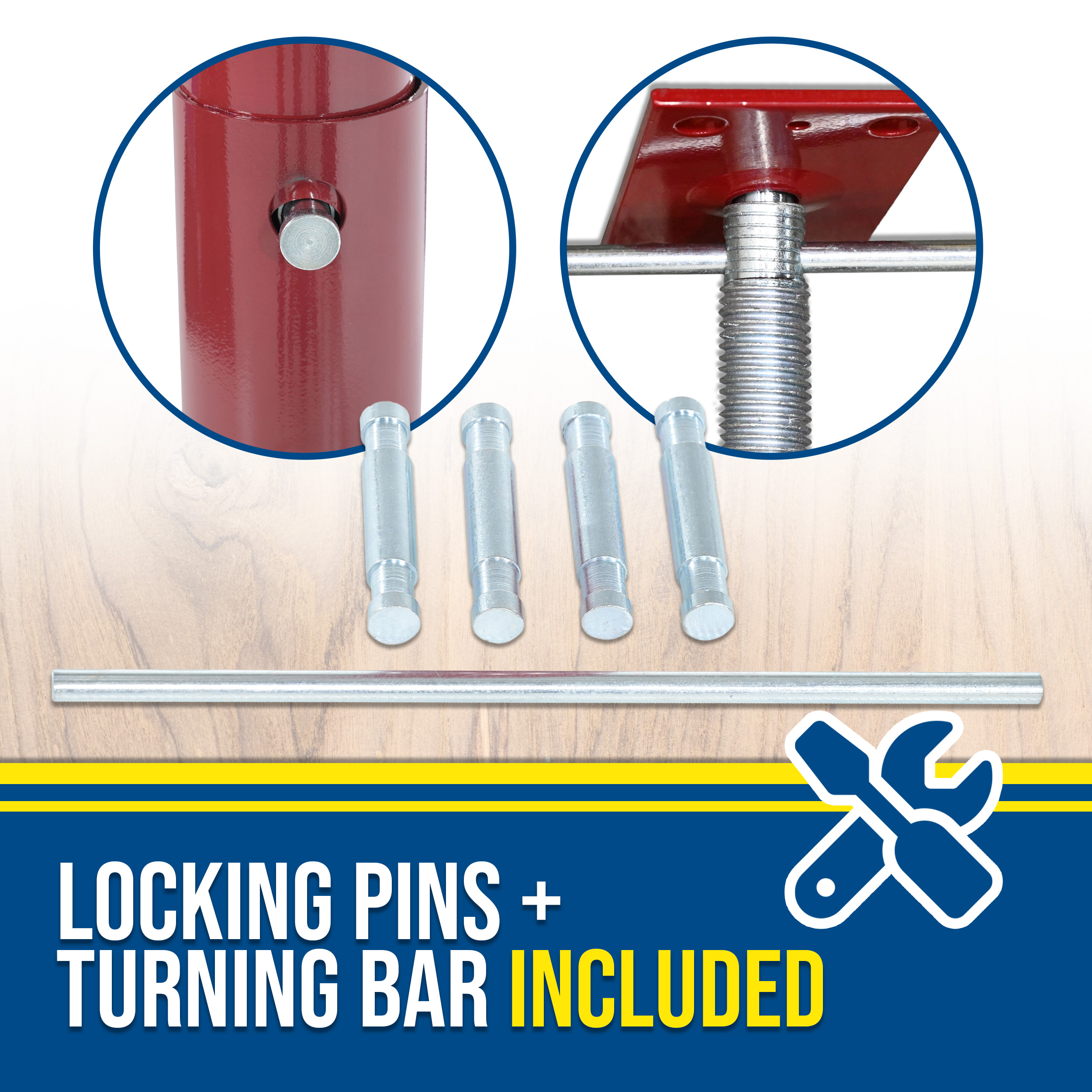

  • Includes locking pins and turning bar for easy height adjustment

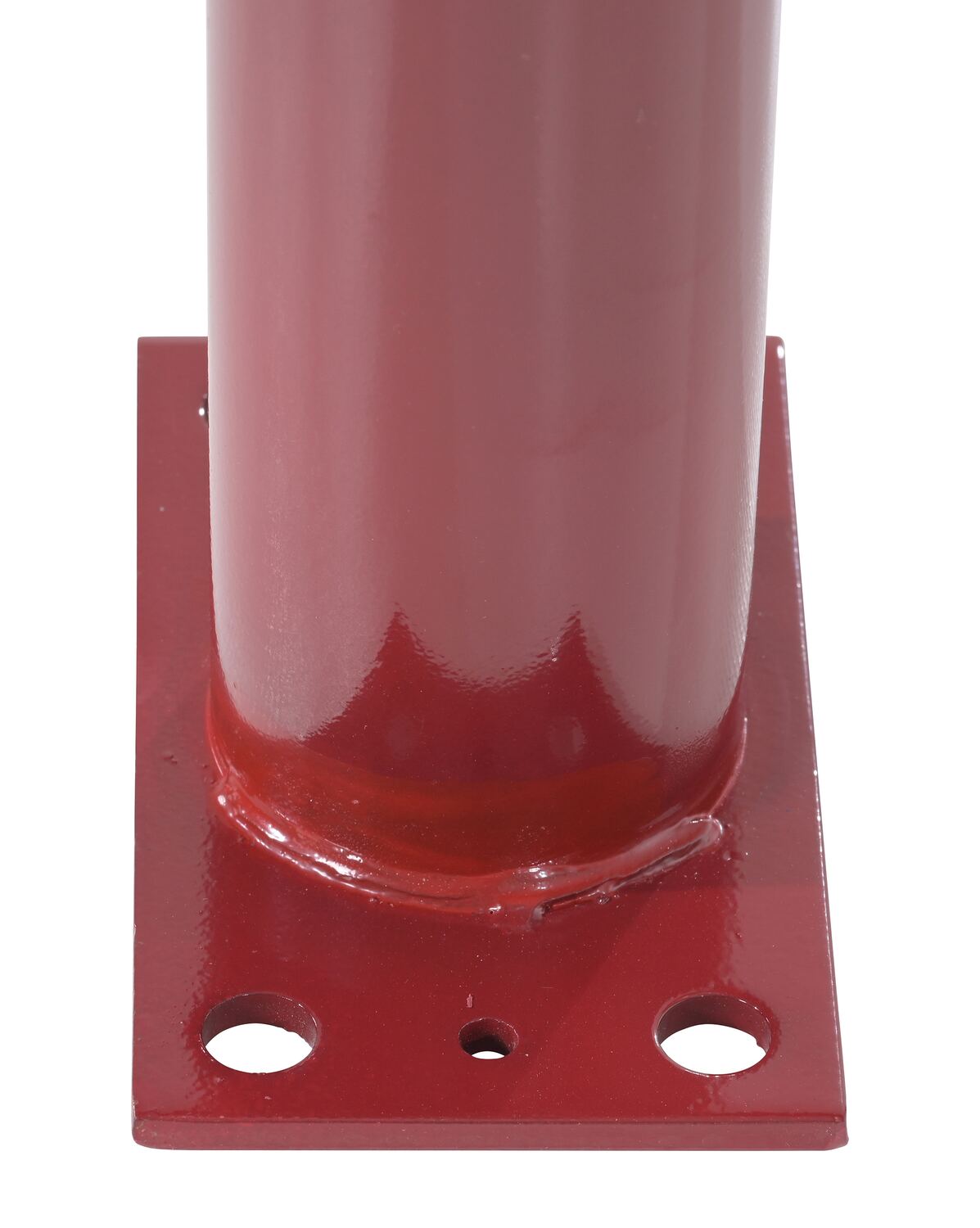

  • Steel construction with red oxide finish for optimal durability

FJB-48Provide extra support for leveling and stabilizing floor beams and joists during construction and repairs. Telescopic style with removable pins lets you properly position the brace for better leveling. Includes turning bar for easy height adjustment. Rugged all welded steel construction. Red oxide finish.

  • Jack provides support for leveling and stabilizing floor beams
  • The telescopic style positions the brace for better leveling
  • Includes locking pins and turning bar for easy height adjustment
  • Steel construction with red oxide finish for optimal durability

Other Jacks & Floor Locks

 Adjustable Height Floor Locks Basement Floor Jacks General Purpose Floor Locks Economical Floor Locks

Additional Models In This Family
view entire Image Gallery

FJB-16

model FJB-16

FJB-36

model FJB-36

FJB-100

model FJB-100

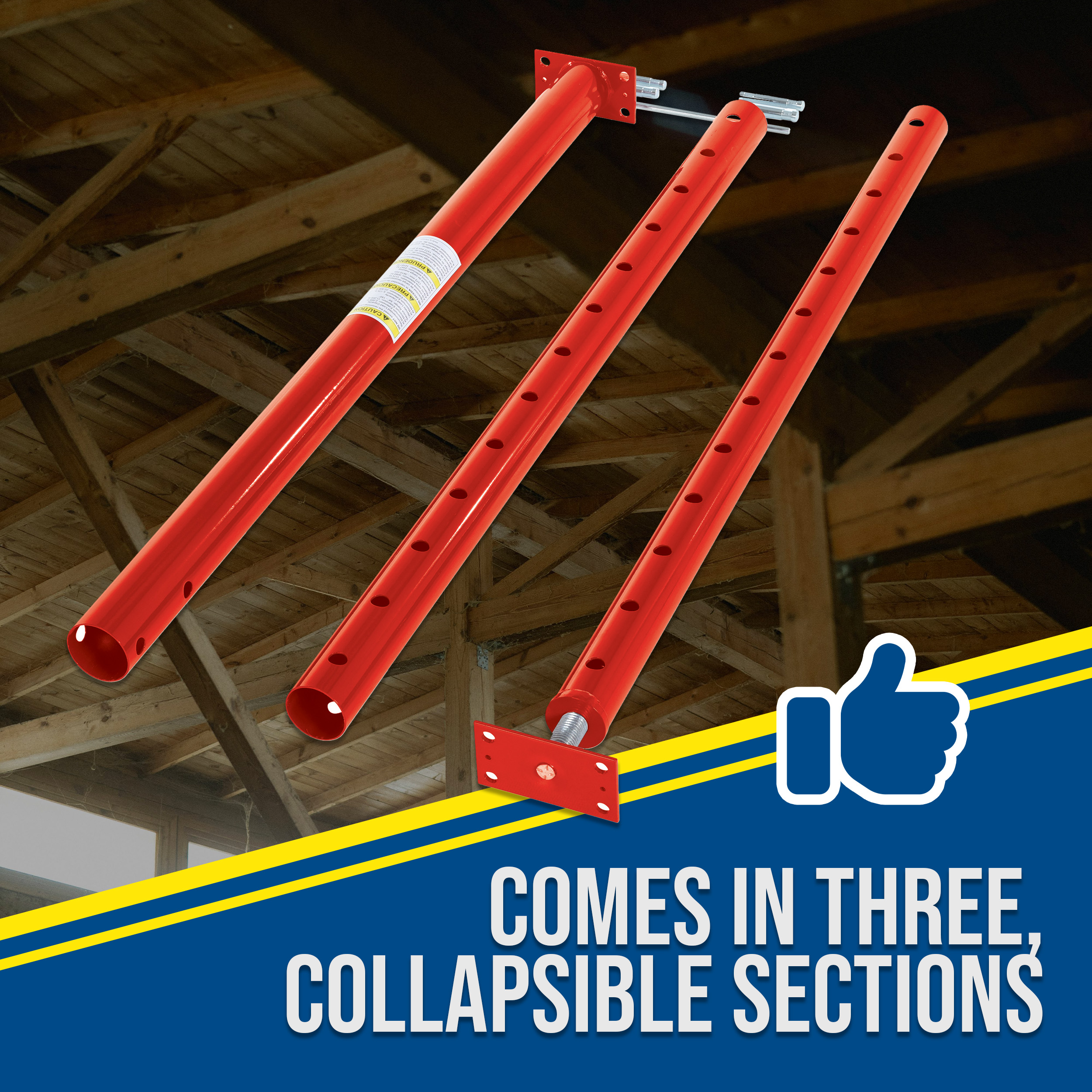

FJB-150

model FJB-150

Applications



Construction Projects

Municipalities

Hotels

Do It Yourself

Farming and Agriculture
model chart
How To Purchase

Model Specific Details

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)

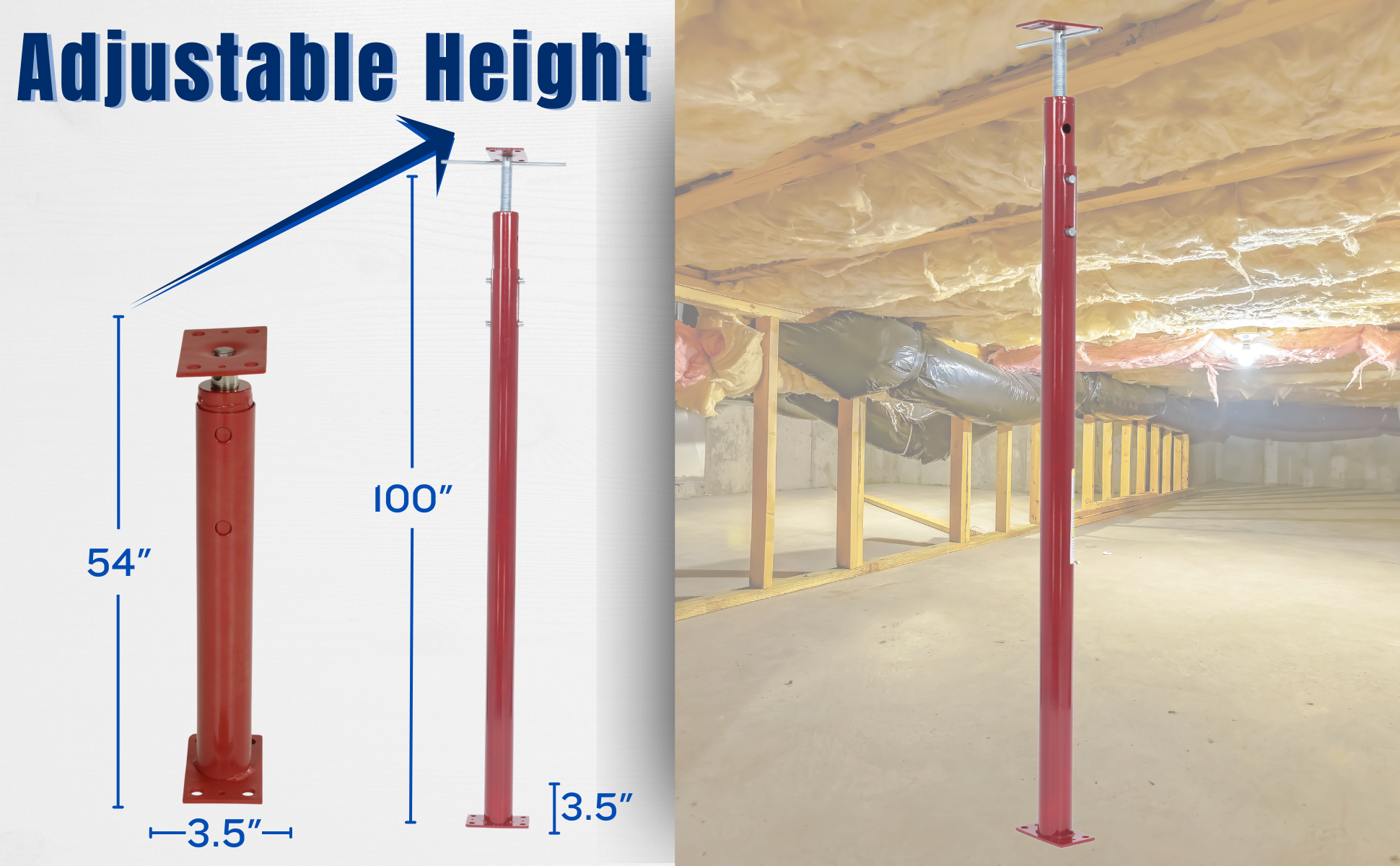

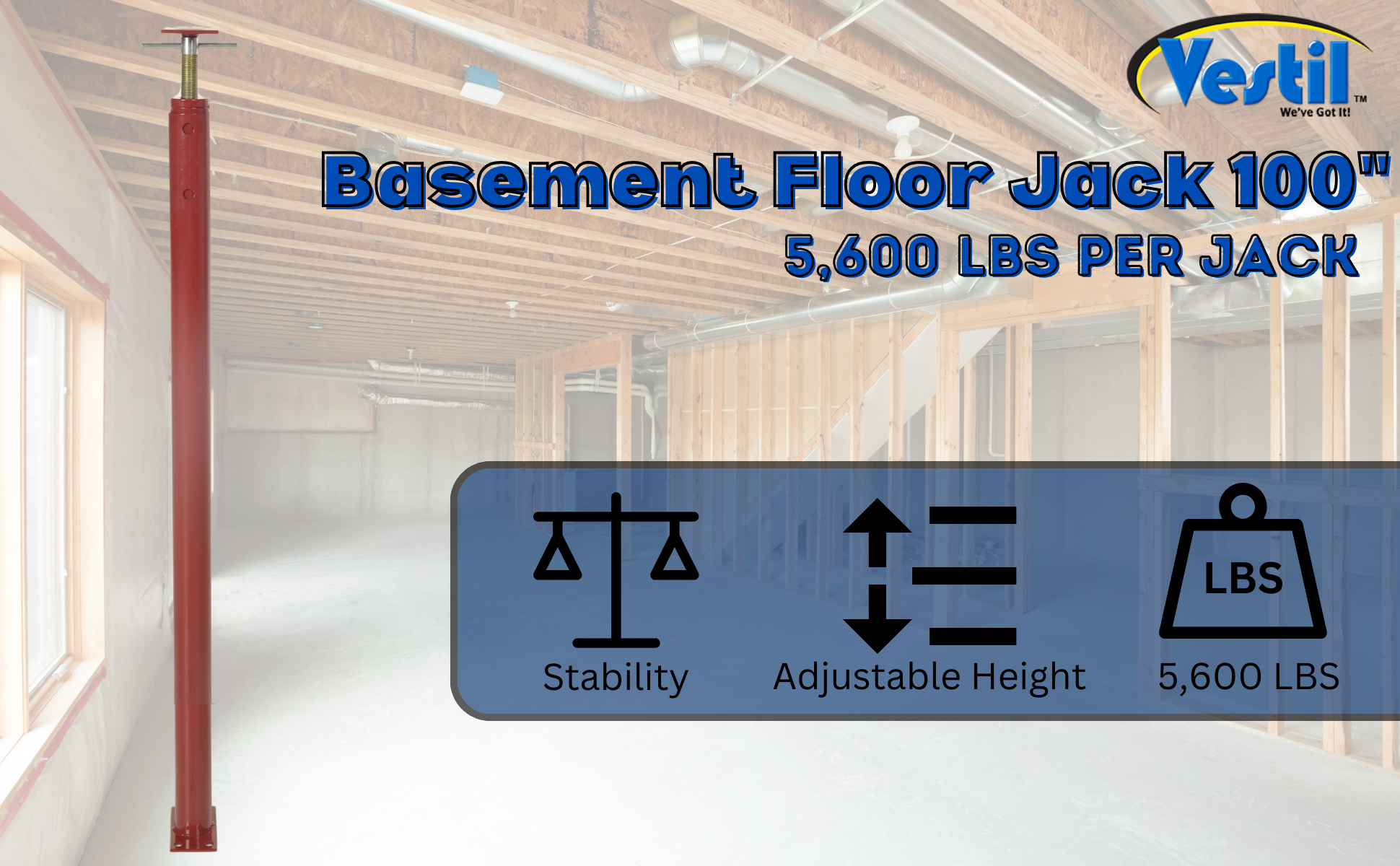

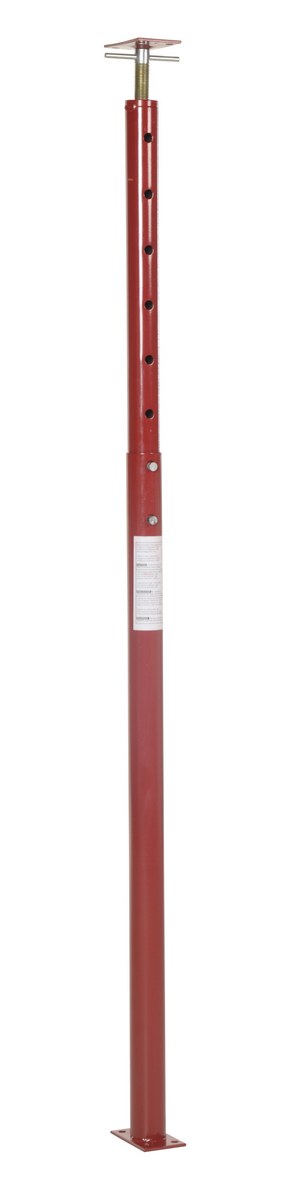

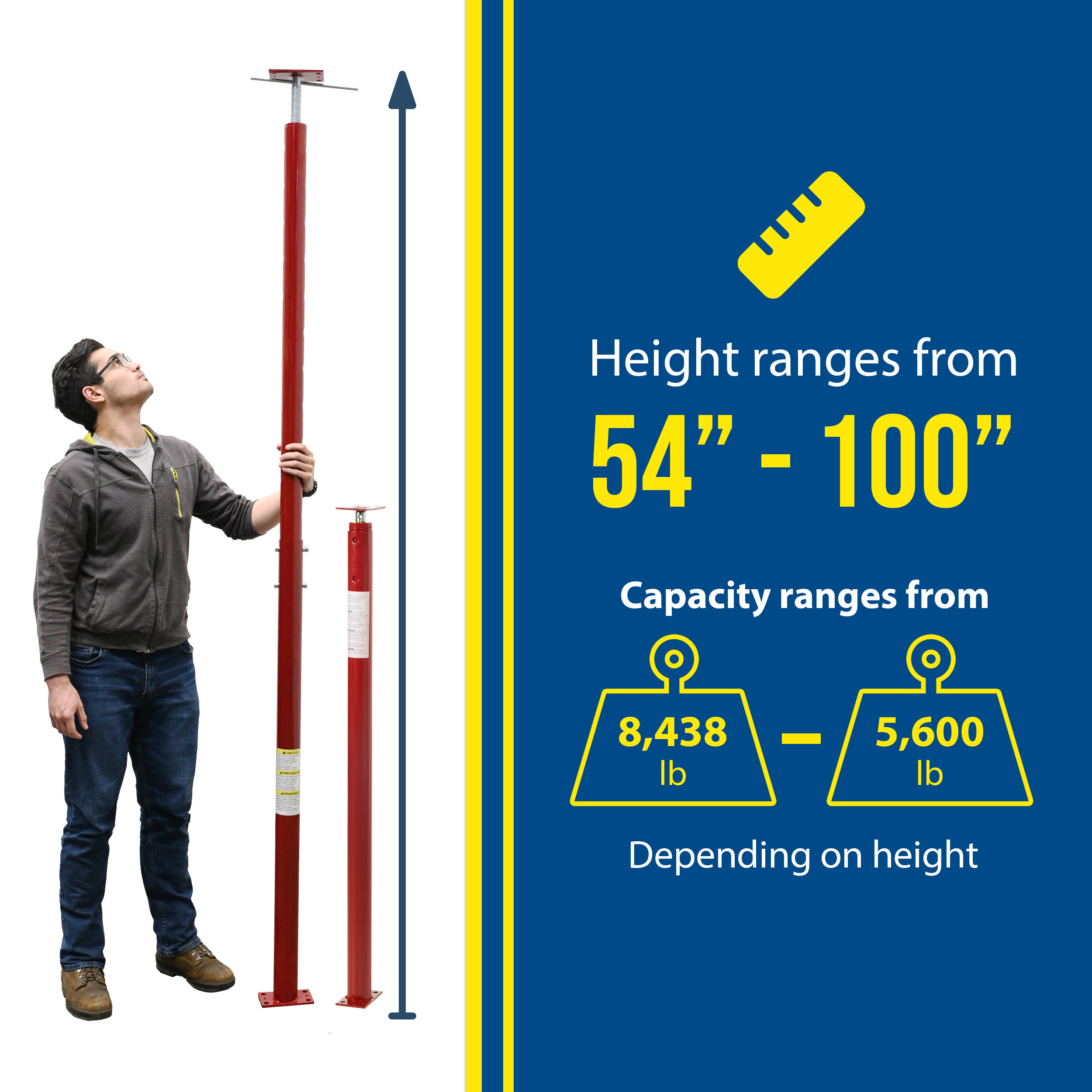

FJB-100 FJB-10090 Days Limited WarrantyBasement Floor Jack 100 In. Maximum Height 5,600 Lb. Capacity RedHeight Minimum/Maximum (in.): 54 to 100
Minimum Height Capacity (lb.): 8438		26

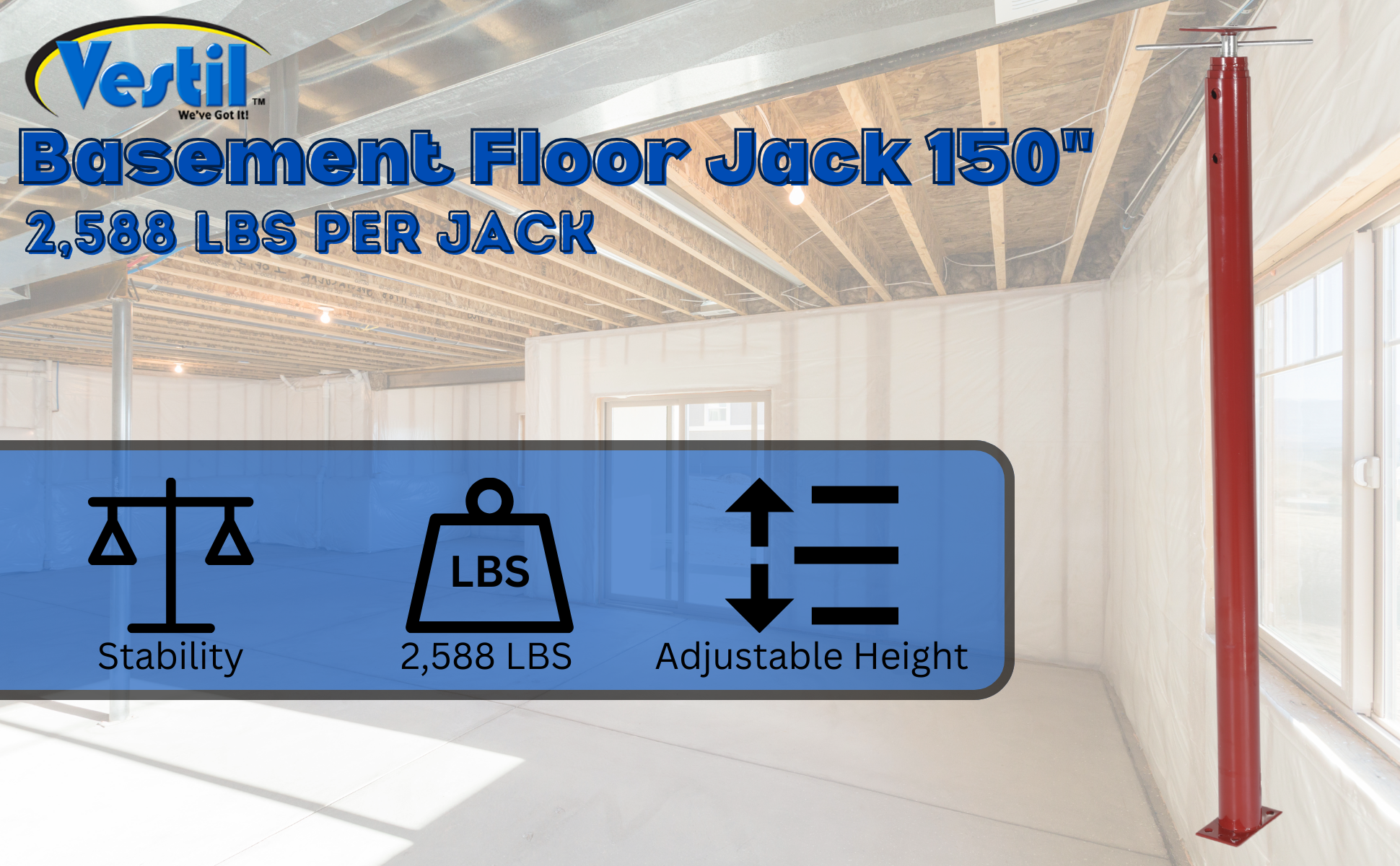

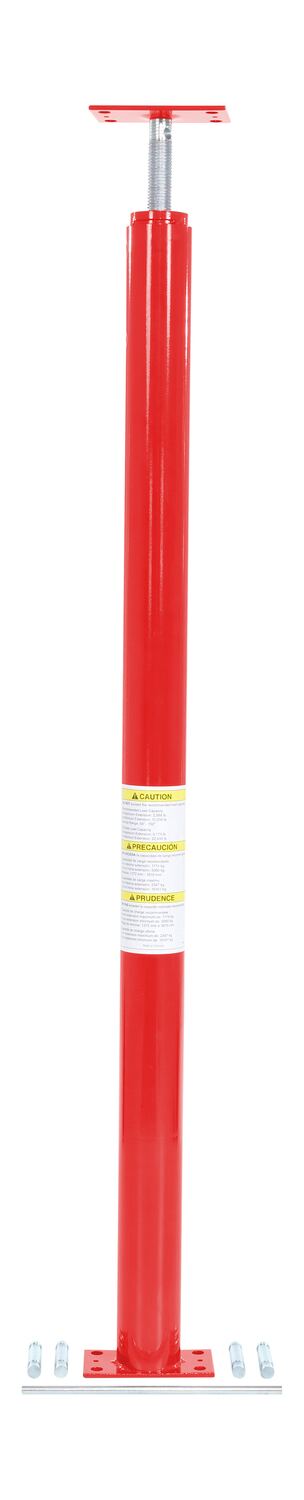

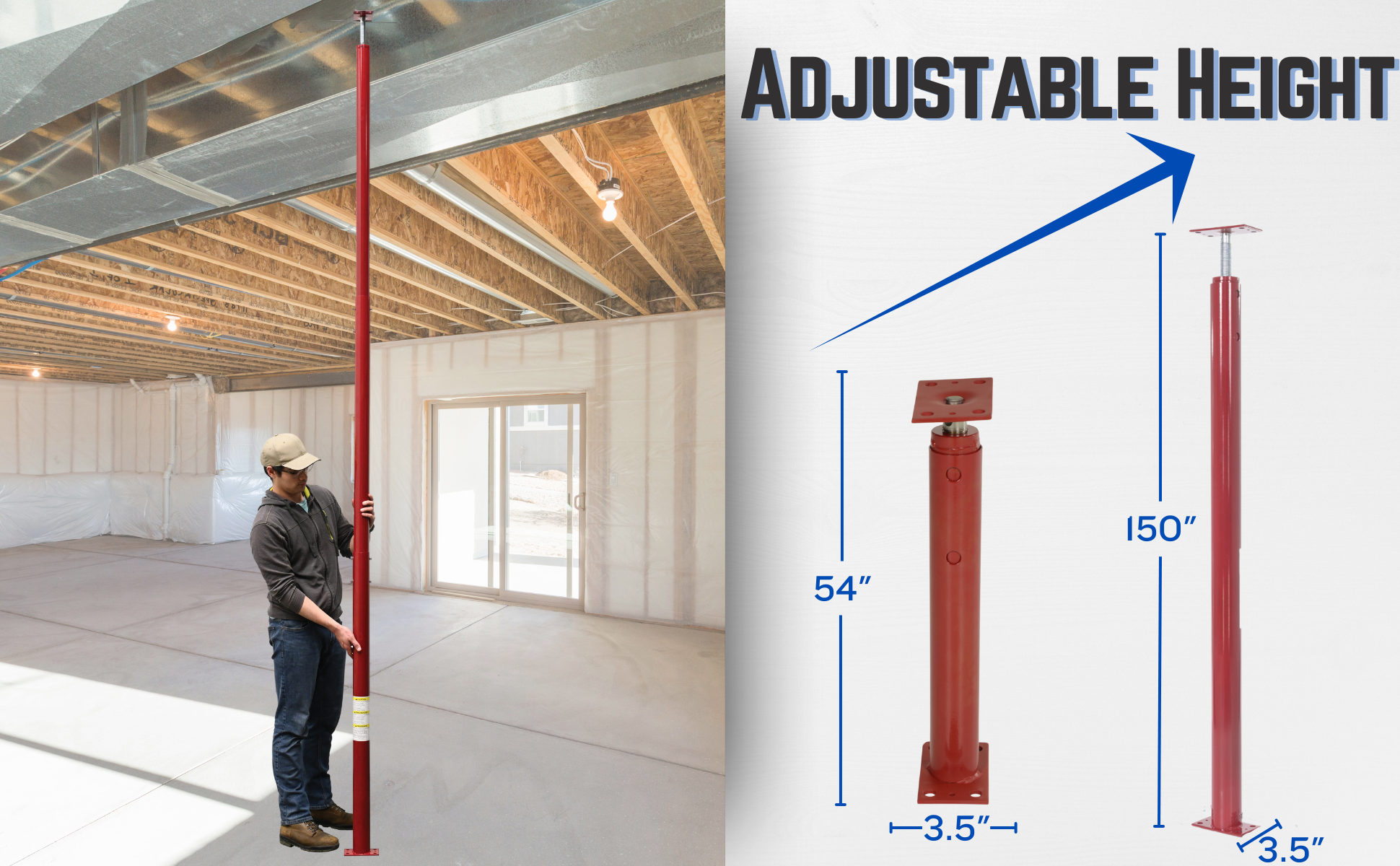

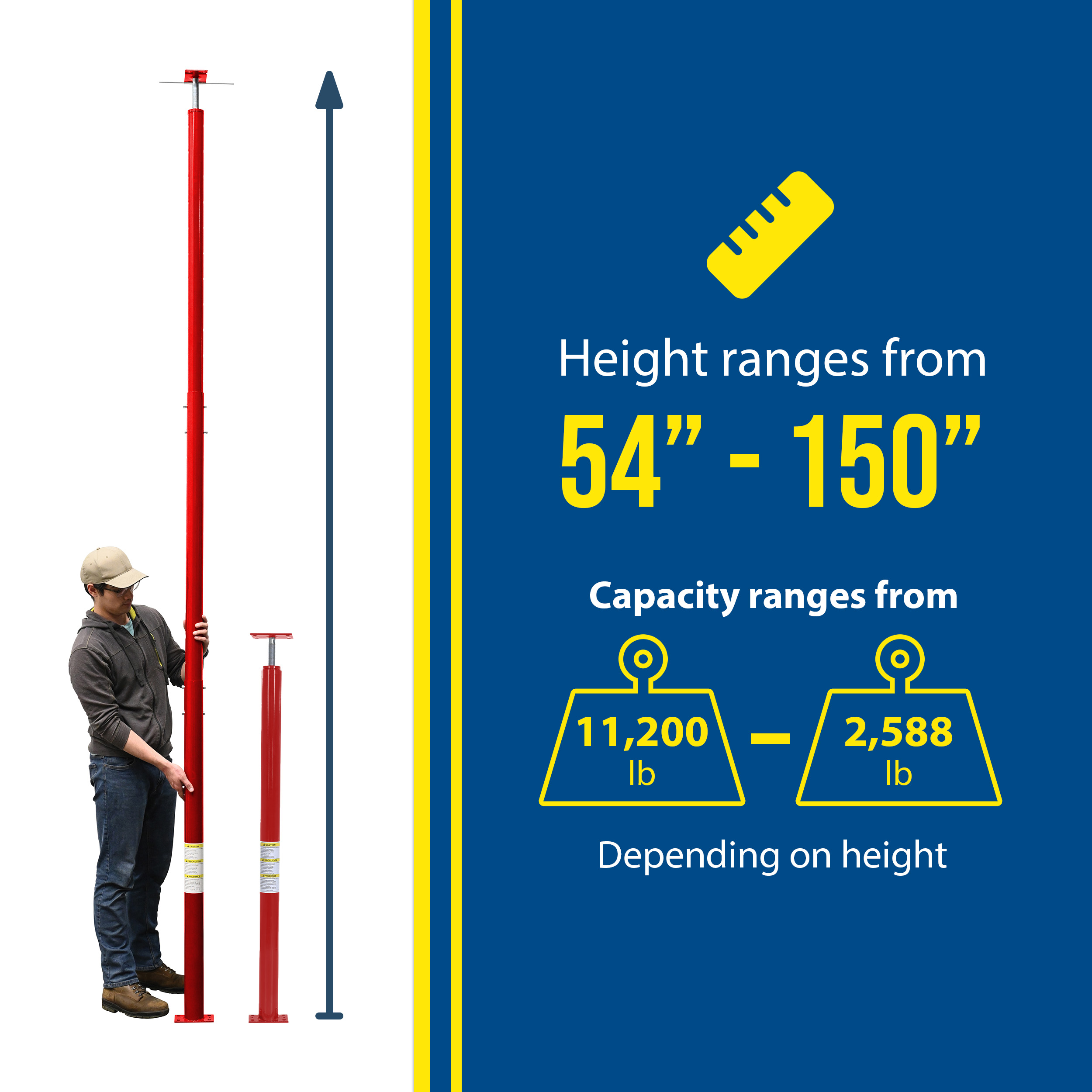

FJB-150 POPULAR FJB-15090 Days Limited WarrantyBasement Floor Jack 150 In. Maximum Height 2,588 Lb. Capacity RedHeight Minimum/Maximum (in.): 54 to 150
Minimum Height Capacity (lb.): 11200		39

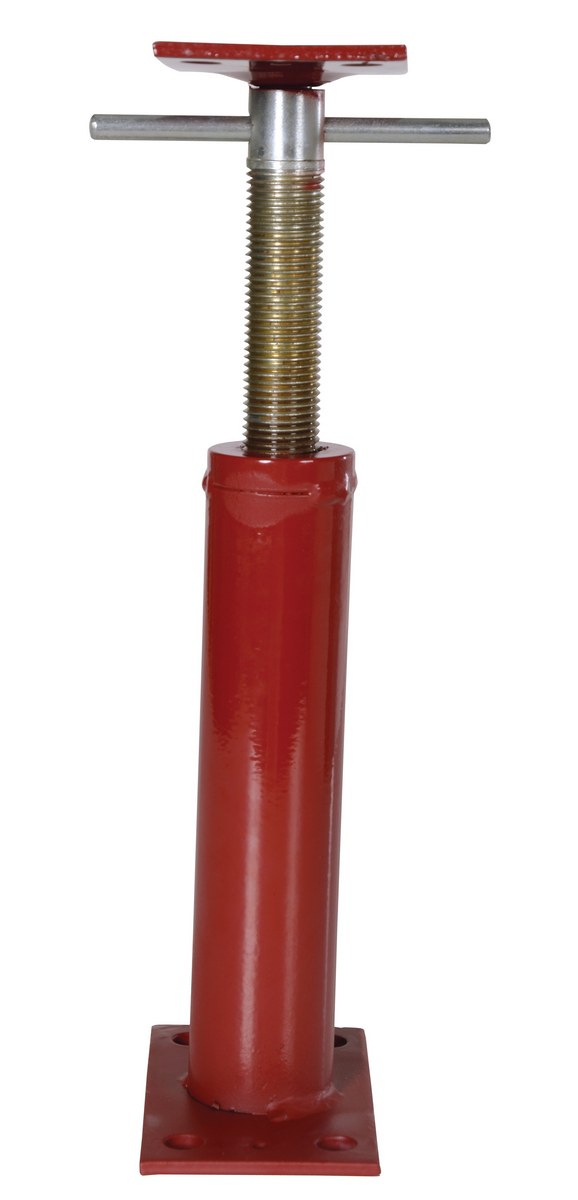

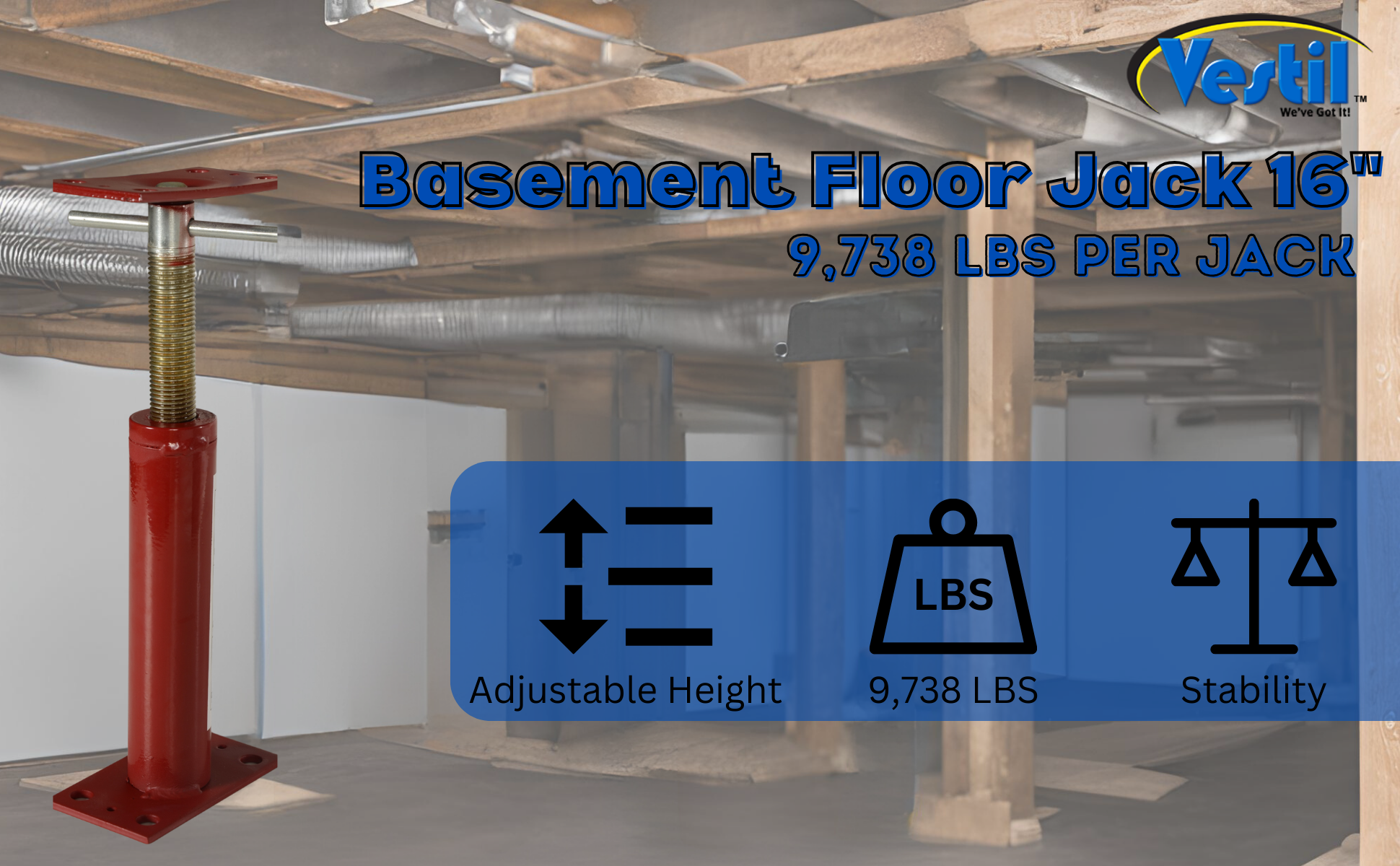

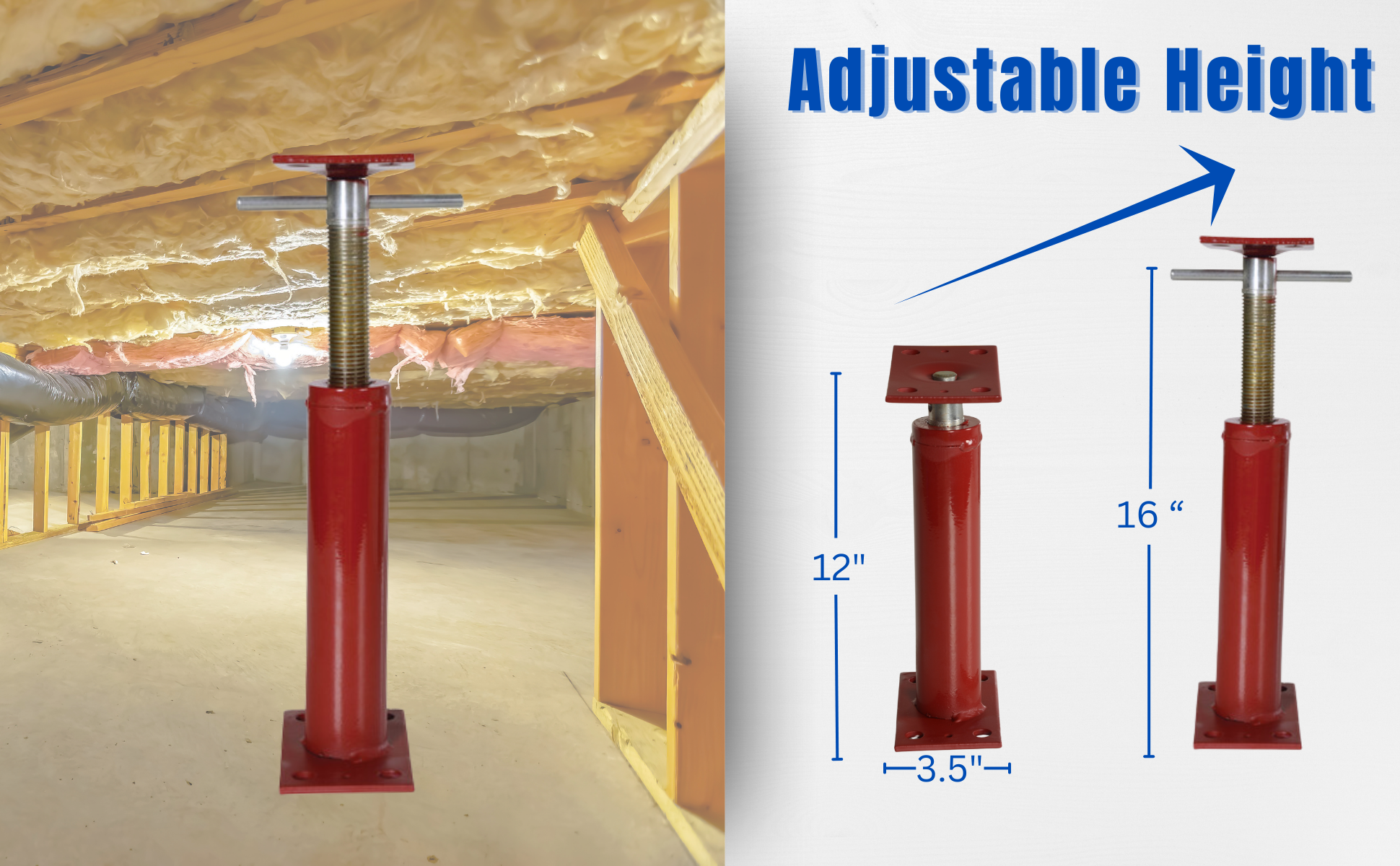

FJB-16 FJB-1690 Days Limited WarrantyBasement Floor Jack 16 In. Maximum Height 9,738 Lb. Capacity RedHeight Minimum/Maximum (in.): 12 to 16
Minimum Height Capacity (lb.): 9738		9

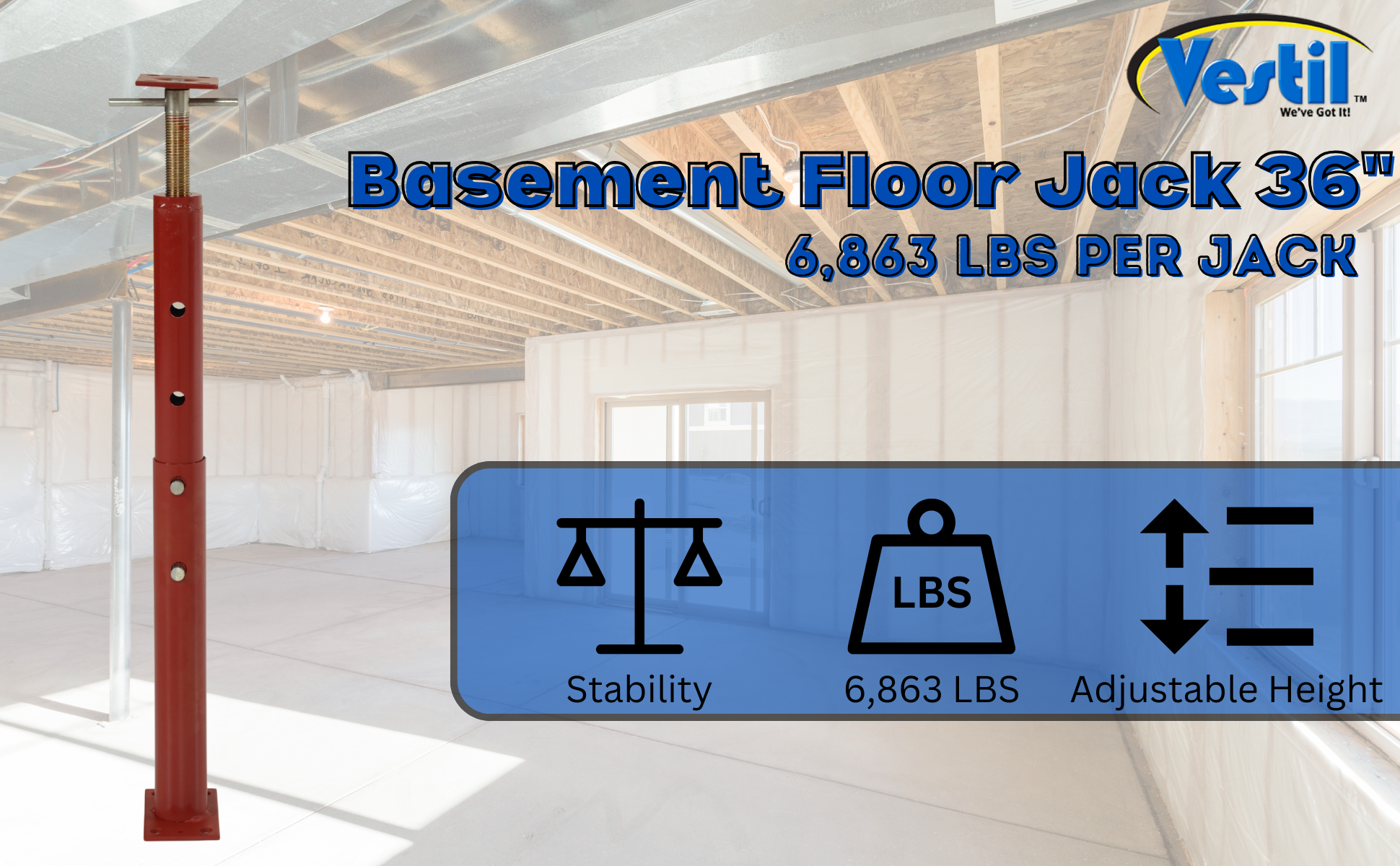

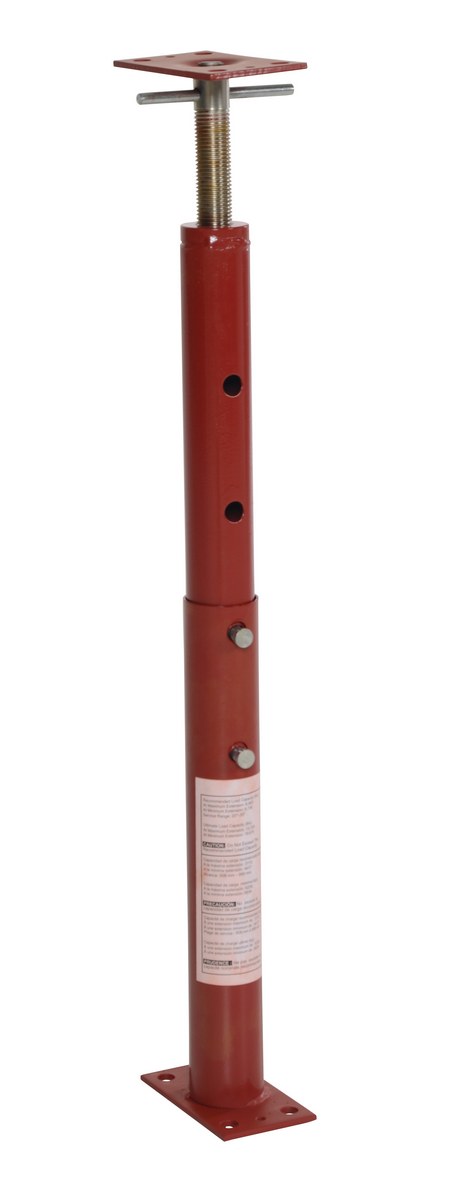

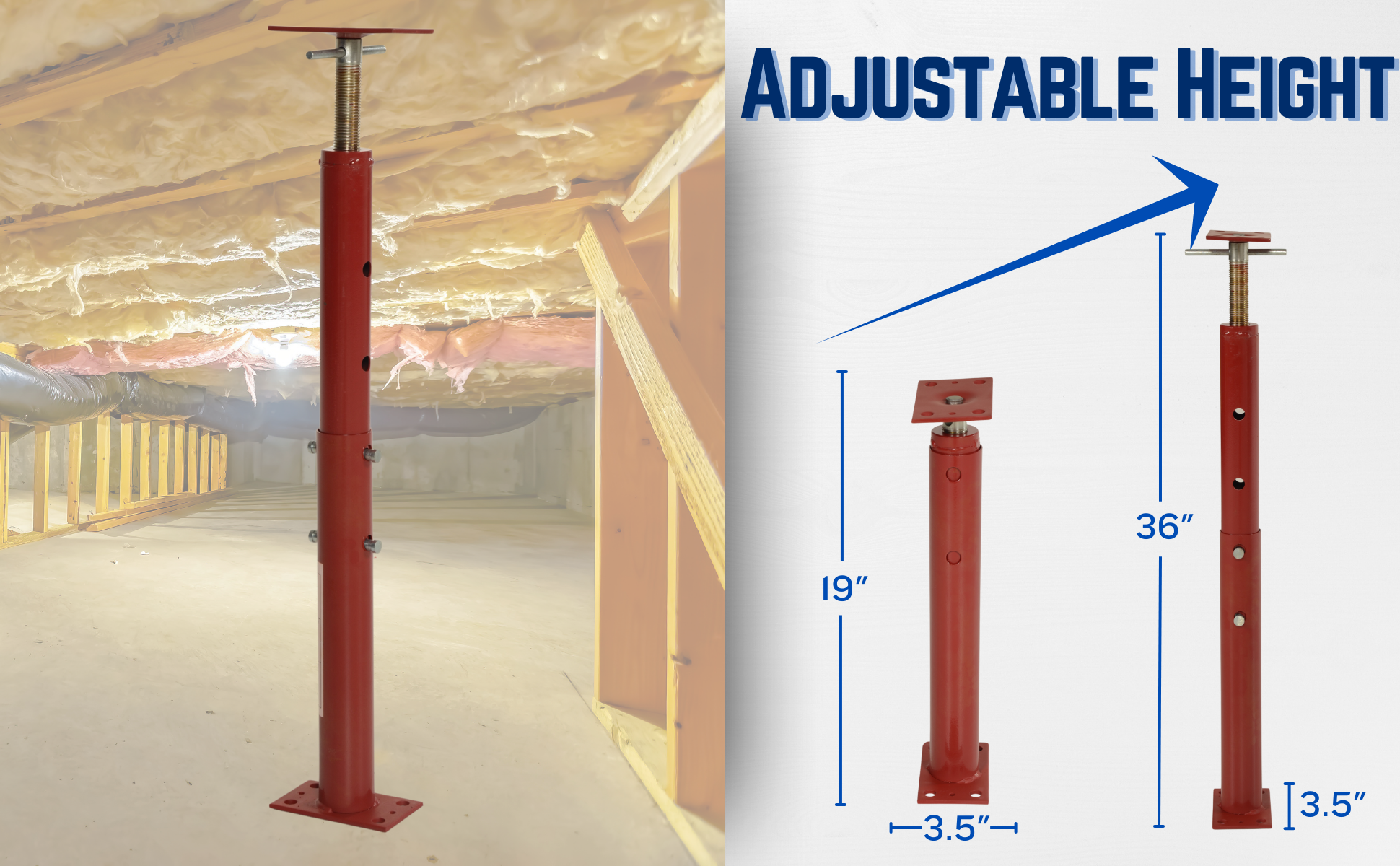

FJB-36 FJB-3690 Days Limited WarrantyBasement Floor Jack 36 In. Maximum Height 6,863 Lb. Capacity RedHeight Minimum/Maximum (in.): 19 to 36
Minimum Height Capacity (lb.): 9738		13

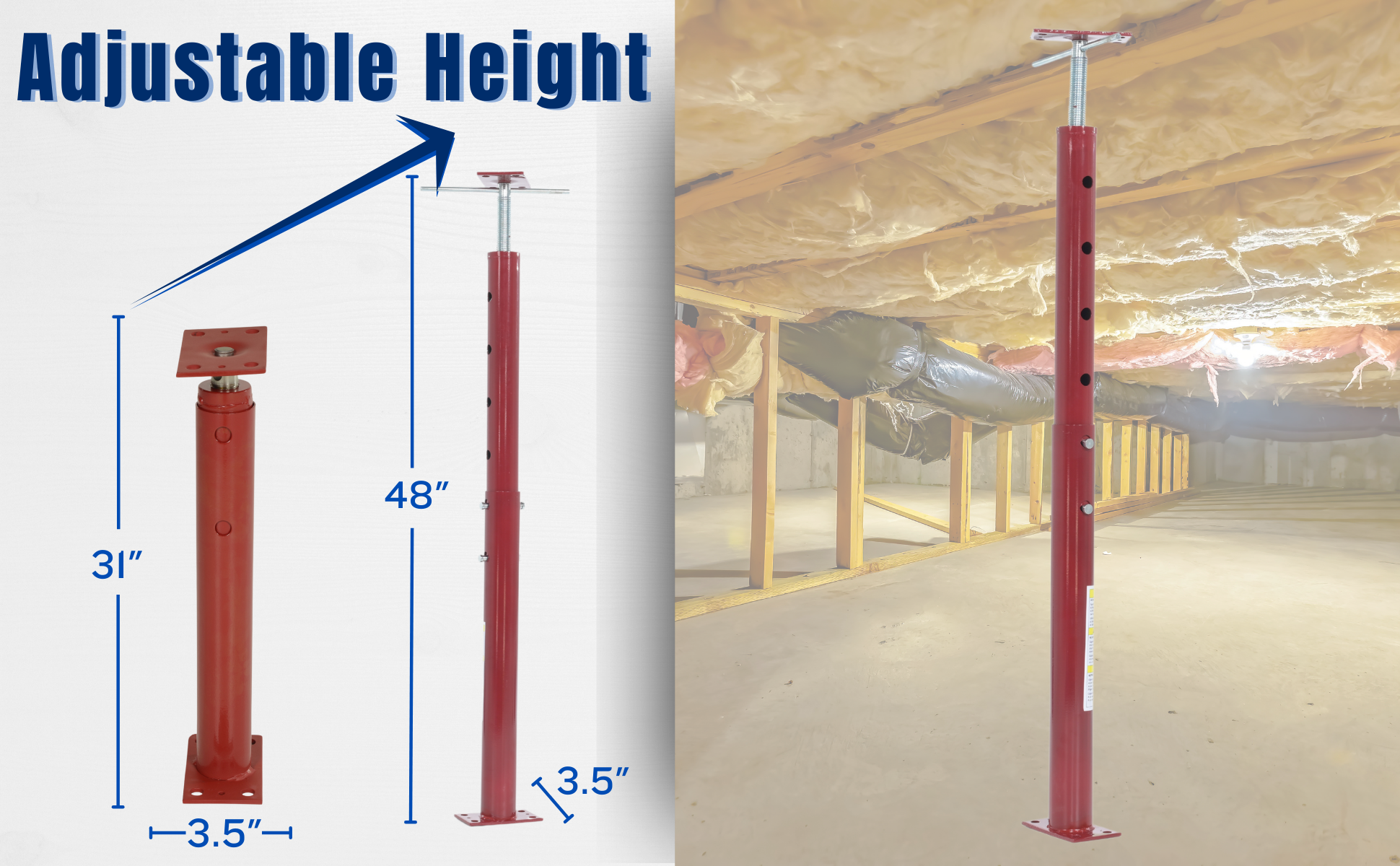

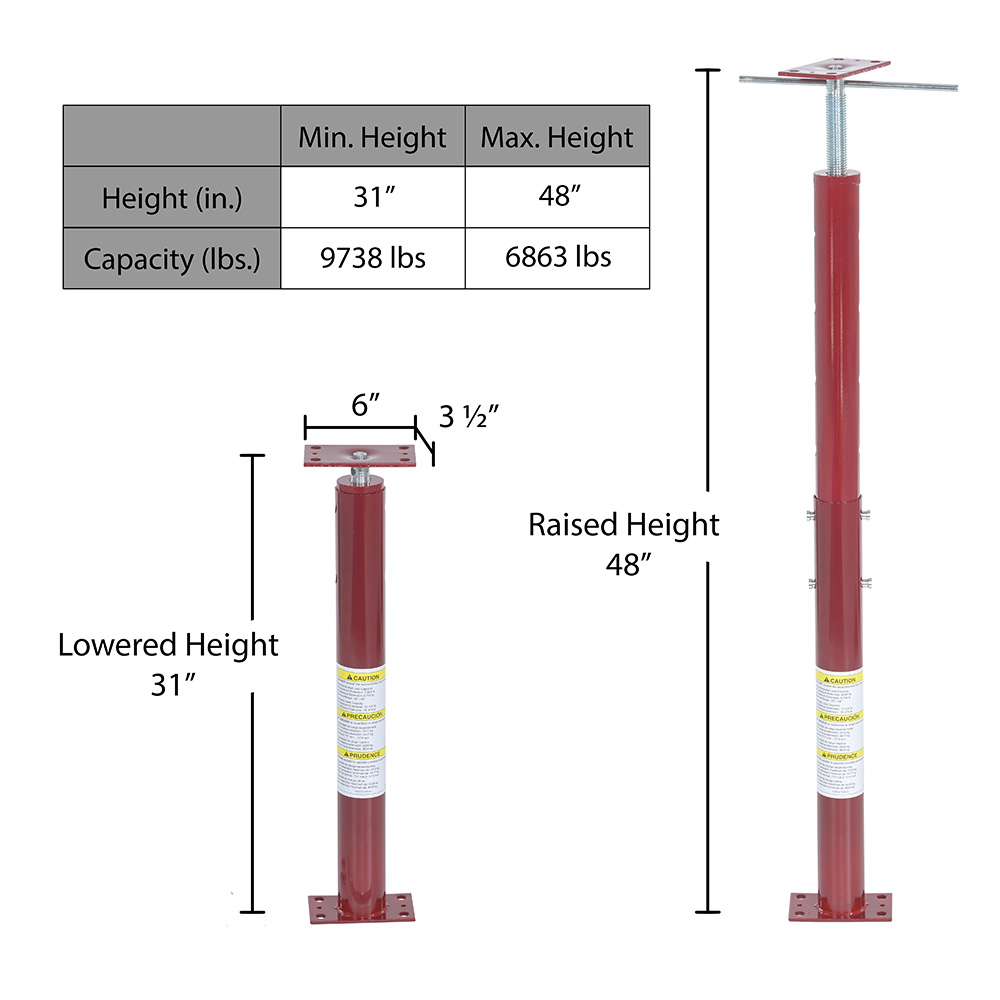

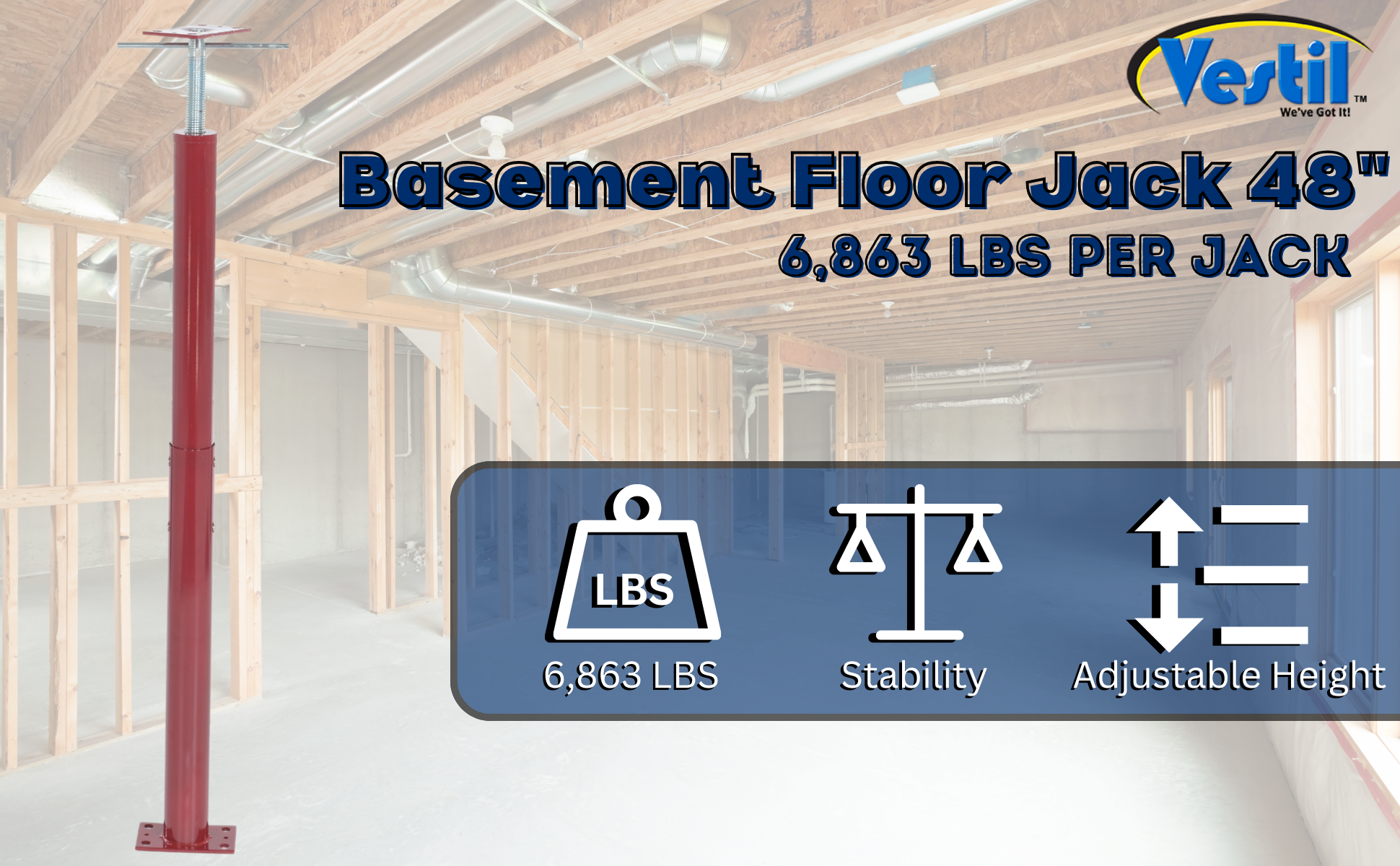

FJB-48 NEW FJB-4890 Days Limited WarrantySteel Basement Floor Jack 48 In. Maximum Height 6,863 Lb. Capacity RedHeight Minimum/Maximum (in.): 31 to 48
Minimum Height Capacity (lb.): 9738		16

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

FJB-100
Unit:
Size: W x L x H
Weight:
Limited Warranty
Height Minimum/Maximum (in.): 54 to 100
Minimum Height Capacity (lb.): 8438
Height Minimum/Maximum (in.): 54 to 100
Minimum Height Capacity (lb.): 8438

FJB-150
Unit:
Size: W x L x H
Weight:
Limited Warranty
Height Minimum/Maximum (in.): 54 to 150
Minimum Height Capacity (lb.): 11200
Height Minimum/Maximum (in.): 54 to 150
Minimum Height Capacity (lb.): 11200

FJB-16
Unit:
Size: W x L x H
Weight:
Limited Warranty
Height Minimum/Maximum (in.): 12 to 16
Minimum Height Capacity (lb.): 9738
Height Minimum/Maximum (in.): 12 to 16
Minimum Height Capacity (lb.): 9738

FJB-36
Unit:
Size: W x L x H
Weight:
Limited Warranty
Height Minimum/Maximum (in.): 19 to 36
Minimum Height Capacity (lb.): 9738
Height Minimum/Maximum (in.): 19 to 36
Minimum Height Capacity (lb.): 9738

FJB-48
Unit:
Size: W x L x H
Weight:
Limited Warranty
Height Minimum/Maximum (in.): 31 to 48
Minimum Height Capacity (lb.): 9738
Height Minimum/Maximum (in.): 31 to 48
Minimum Height Capacity (lb.): 9738
Basement Floor Jacks PDF's will open in a new window when clicked.

Manuals


FJB- Hardware Kit, Instructi
Owners Manual

Survey Sheets

No Survey Sheets For This Product


Approval Drawings


FJB-100

FJB-150

FJB-16

FJB-36

Testing Certificates


FJB-100

FJB-150

FJB-16

FJB-36

FJB-48

SDS Sheets

No SDS Sheets For This Product

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products

Manuals
Survey Sheets
Drawings
Certificates of Testing
Warranties
SDS Data Sheets







Visit Our Youtube Channel For All Available Videos For All Products

Q: Is this jack used to support a space after it has been lifted?

A: These jacks are not meant to be used to lift. Only to hold the load in place.

Q: What are the dimensions of the top plate?

A: The top plate is 3.5" x 6".

Q: What is the spacing between the holes on the top plate?

A: The holes are 2.25" and 4.75" apart with a diameter of .5".




Related or Similar Products:

Leveling Jacks
Product

Leveling Jacks

Mechanical Machinery Jacks
Product

Mechanical Machinery Jacks

Heavy Duty Farm Jacks
Product

Heavy Duty Farm Jacks

Adjustable Height Floor Locks
Product

Adjustable Height Floor Locks

Low Profile Floor Lock
Product

Low Profile Floor Lock

General Purpose Floor Locks
Product

General Purpose Floor Locks

Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





Basement Floor Jacks




FJB-48Provide extra support for leveling and stabilizing floor beams and joists during construction and repairs. Telescopic style with removable pins lets you properly position the brace for better leveling. Includes turning bar for easy height adjustment. Rugged all welded steel construction. Red oxide finish.

  • Jack provides support for leveling and stabilizing floor beams
  • The telescopic style positions the brace for better leveling
  • Includes locking pins and turning bar for easy height adjustment
  • Steel construction with red oxide finish for optimal durability

Model # Description Attributes Net Wt.
(lbs)
FJB-100 FJB-100Basement Floor Jack 100 In. Maximum Height 5,600 Lb. Capacity RedHeight Minimum/Maximum (in.): 54 to 100
Minimum Height Capacity (lb.): 8438		26
FJB-150 FJB-150Basement Floor Jack 150 In. Maximum Height 2,588 Lb. Capacity RedHeight Minimum/Maximum (in.): 54 to 150
Minimum Height Capacity (lb.): 11200		39
FJB-16 FJB-16Basement Floor Jack 16 In. Maximum Height 9,738 Lb. Capacity RedHeight Minimum/Maximum (in.): 12 to 16
Minimum Height Capacity (lb.): 9738		9
FJB-36 FJB-36Basement Floor Jack 36 In. Maximum Height 6,863 Lb. Capacity RedHeight Minimum/Maximum (in.): 19 to 36
Minimum Height Capacity (lb.): 9738		13
FJB-48 FJB-48Steel Basement Floor Jack 48 In. Maximum Height 6,863 Lb. Capacity RedHeight Minimum/Maximum (in.): 31 to 48
Minimum Height Capacity (lb.): 9738		16
