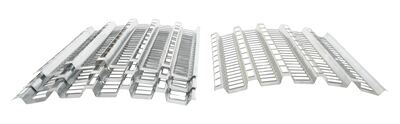

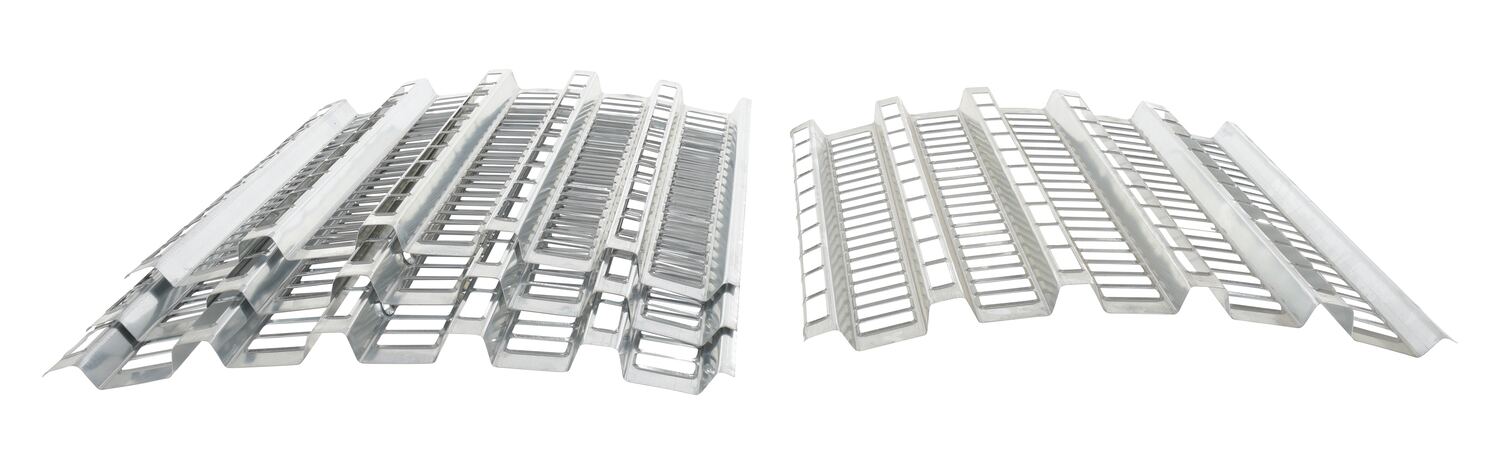

Open Area Rack DeckingIdeal for storing furniture, carpet, record files or products that require a uniform support. Fire protection friendly with 50% open design. Designed for pallet rack beam with 42" deep racking. The bright galvanized finish makes the 22 gauge steel rack appear more industrial. Fits 1-1/2." beam offset. The top hats are 3-1/2" wide with top slotted holes 1-1/4" x 2-1/2" and the valleys are 2-1/2" wide with slotted holes 1" x 3". Custom sizes available, contact factory.
- Ideal for storing furniture, carpet, record files or products that require a uniform support
- 50% Open design becomes fire protection friendly
- Designed for pallet rack beam with deep racking
- Galvanized finish provides a longer life for pallet racking
Pallet Rack Wire Decking
Polyethylene Rack Protector
Gravity Flow Inserts
Rack Guards with Rubber Bumper Insert
All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
| Model # | Description | Attributes | Net Wt. (lbs) |
||||
|---|---|---|---|---|---|---|---|

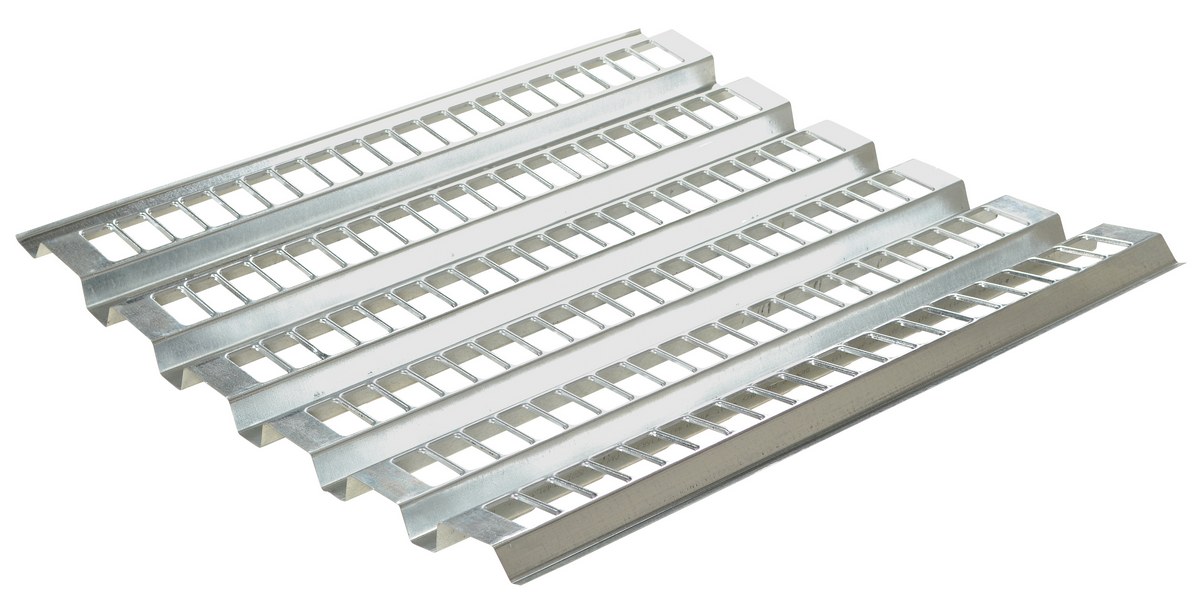

| PCH-96 |  | 30 Days Limited Warranty | Galvanized Open-Area Pallet Rack Decking 38-1/2 In. x 96 In. x 1-1/2 In. 3780 Lb. Capacity | Uniform Capacity (lb.): 3780 Fits Racking Depth (in.): 42 | 62 | ||

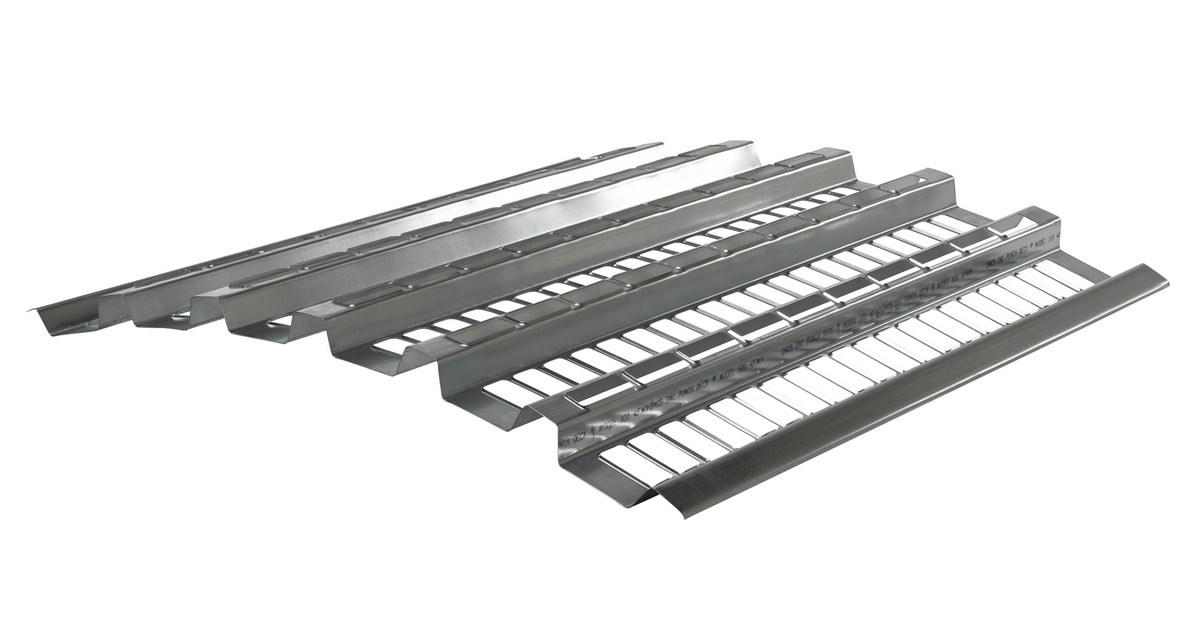

| PCH-108 |  | 30 Days Limited Warranty | Galvanized Open-Area Pallet Rack Decking 38-1/2 In. x 108 In. x 1-1/2 In. 3780 Lb. Capacity | Uniform Capacity (lb.): 3780 Fits Racking Depth (in.): 42 | 72 | ||

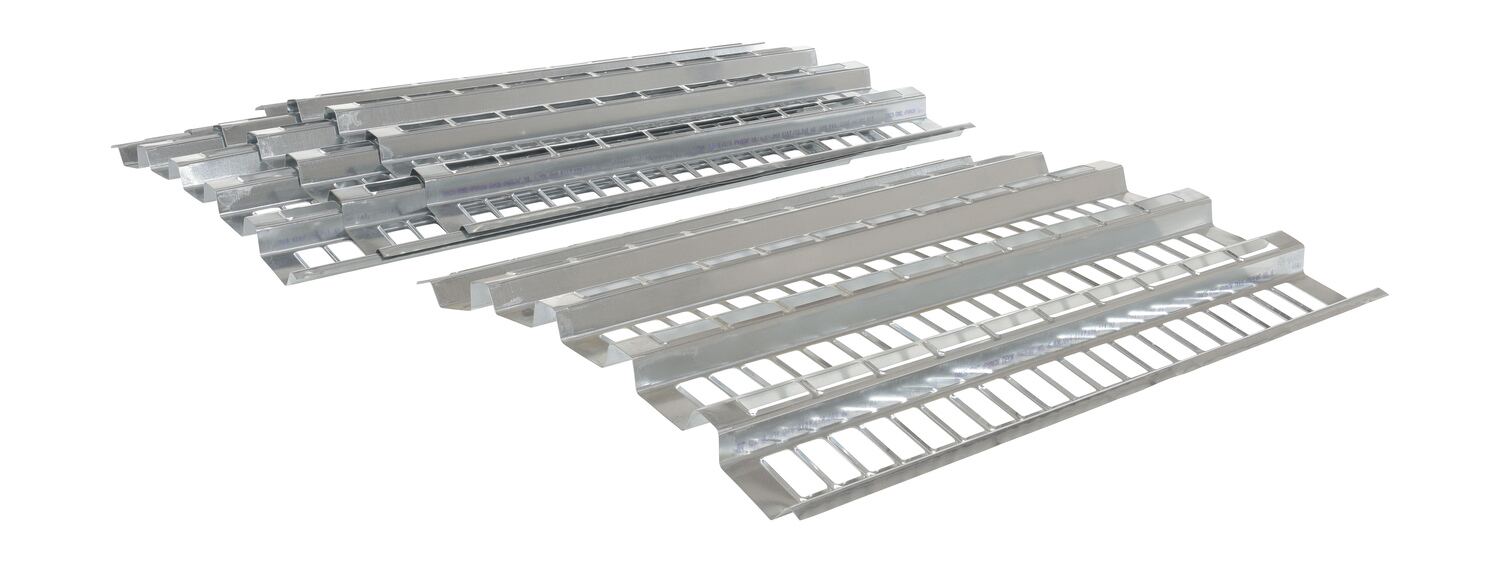

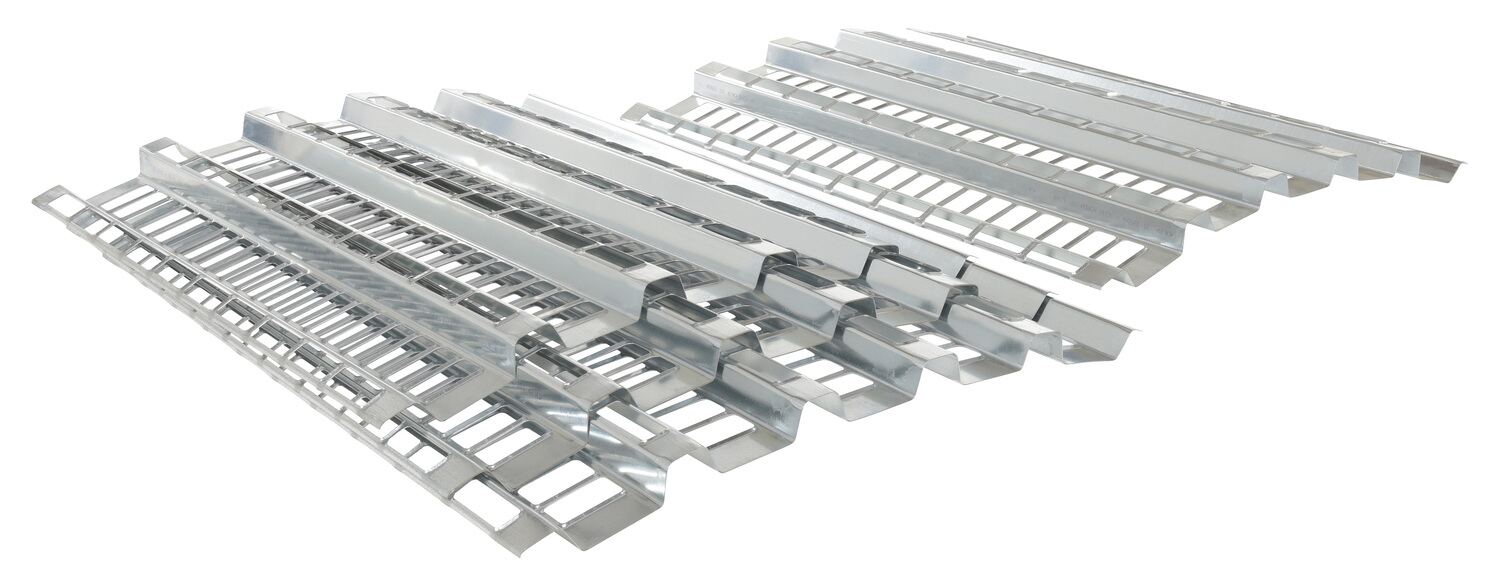

| PCH-120 |  | 30 Days Limited Warranty | Galvanized Open-Area Pallet Rack Decking 38-1/2 In. x 120 In. x 1-1/2 In. 3780 Lb. Capacity | Uniform Capacity (lb.): 3780 Fits Racking Depth (in.): 42 | 82 |
KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 3780
Fits Racking Depth (in.): 42
Uniform Capacity (lb.): 3780
Fits Racking Depth (in.): 42
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 3780
Fits Racking Depth (in.): 42
Uniform Capacity (lb.): 3780
Fits Racking Depth (in.): 42
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 3780
Fits Racking Depth (in.): 42
Uniform Capacity (lb.): 3780
Fits Racking Depth (in.): 42
