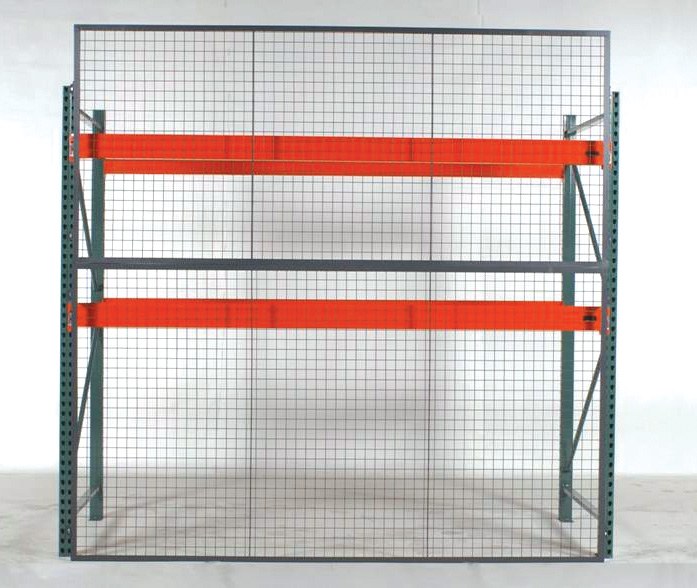

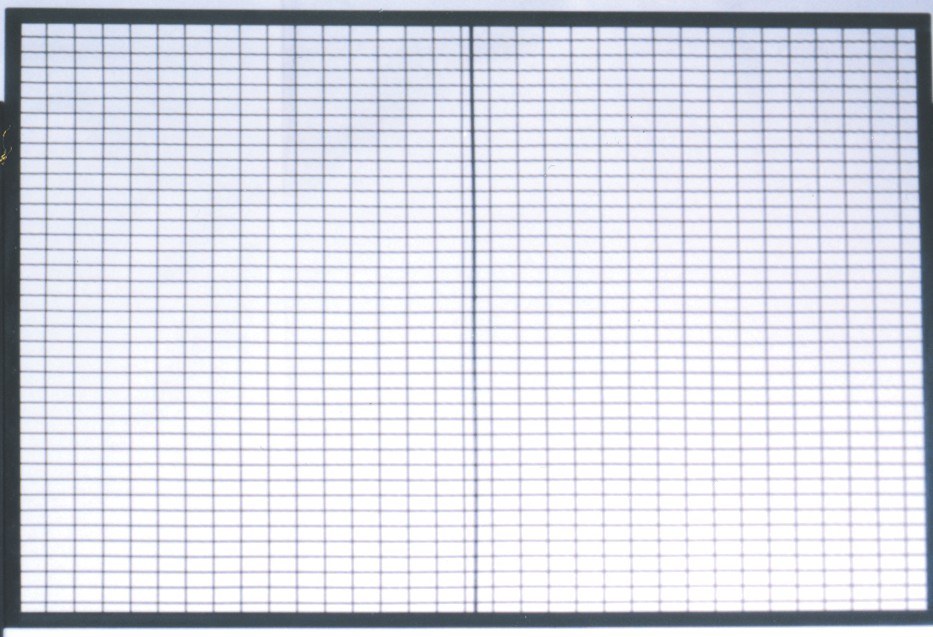

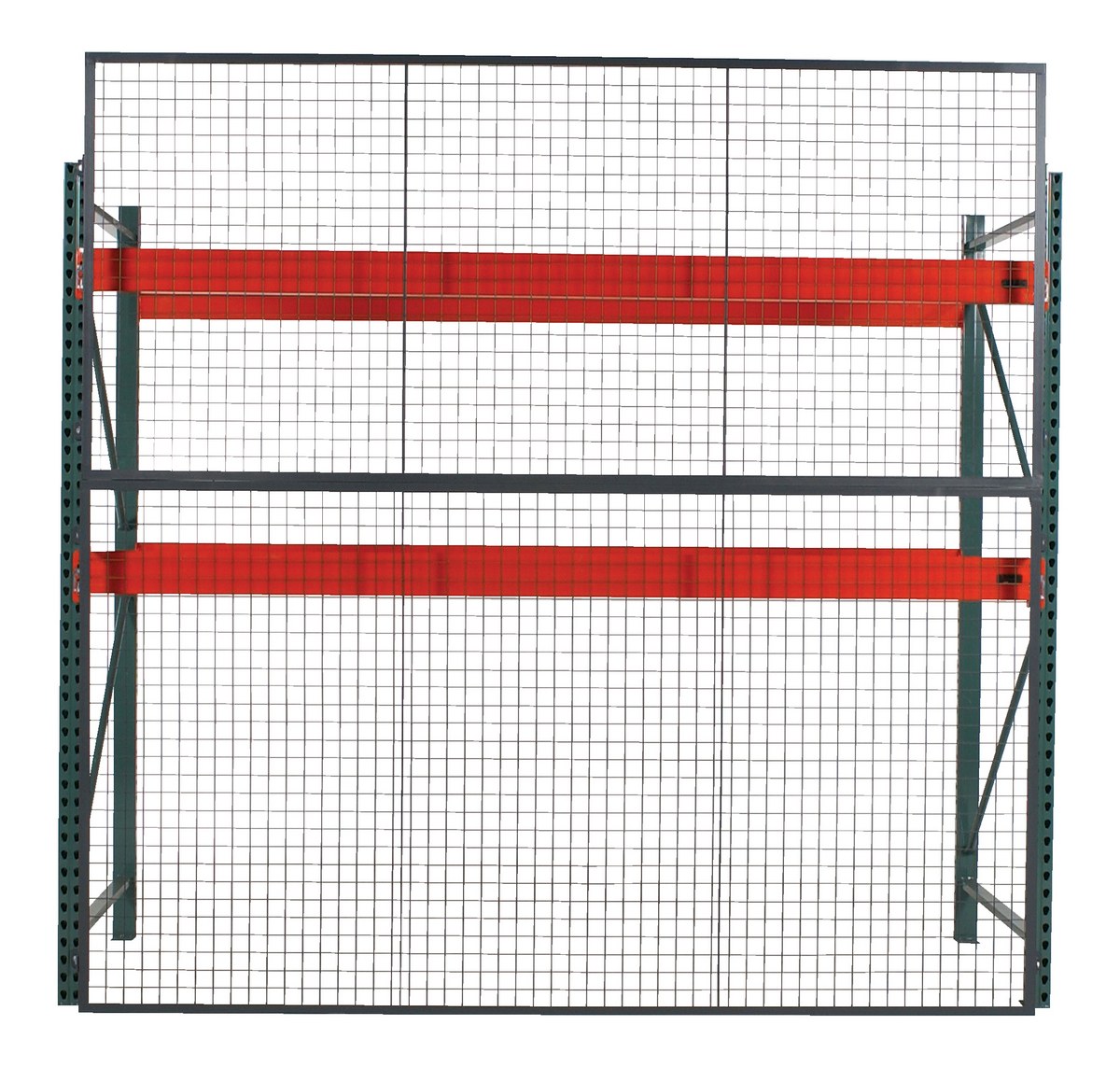

Back Guards for Pallet RackContain and minimize the potential hazard of falling items with Pallet Rack Back Guards. Modular sized panels mount directly to pallet rack system which installs quickly and provides safety. System is made of 2"x2"x 10 gauge steel welded wire mesh, welded into a 1-1/4" x 1-1/4" x 13 gauge steel angle frame. Panels have mounting holes on 6" centers and have the option of flush mount or offset brackets to allow for panels that overhang the beams.
- The RackBack panel bolts directly to your existing pallet rack uprights creating a sturdy barrier
- Between inventory and dangerous spills in order to protect personnel and contain inventory
- Netting style backing is easy to install and makes sure nothing can fall if a pallet breaks
- "Above the top" mounting allows panels to extend above top rack beam
Foam Edge Guards
Rack Shields
Pallet Rack Trash Bags
Pallet Guide StopAdditional Models In This Family
RBG-104
RBG-43-OC
RBG-1FMC
RBG-94
RBG-124
RBG-46-OC
RBG-84
RBG-95
RBG-125
RBG-105
RBG-85
All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
| Model # | Description | Attributes | Net Wt. (lbs) |
||||
|---|---|---|---|---|---|---|---|
| RBG-104 | | 1 Year Limited Warranty | Steel Welded Wire Panel 120 In. x 1-1/4 In. x 48 In. Gray | Mesh square dimension (in.): 2 x 2 Welded wire gauge: 10 | 102 | ||
| RBG-105 | | 1 Year Limited Warranty | Steel Welded Wire Panel 120 In. x 1-1/4 In. x 60 In. Gray | Mesh square dimension (in.): 2 x 2 Welded wire gauge: 10 | 111 | ||
| RBG-124 | | 1 Year Limited Warranty | Steel Welded Wire Panel 144 In. x 1-1/4 In. x 48 In. Gray | Mesh square dimension (in.): 2 x 2 Welded wire gauge: 10 | 115 | ||
| RBG-125 | | 1 Year Limited Warranty | Steel Welded Wire Panel 144 In. x 1-1/4 In. x 60 In. Gray | Mesh square dimension (in.): 2 x 2 Welded wire gauge: 10 | 125 | ||

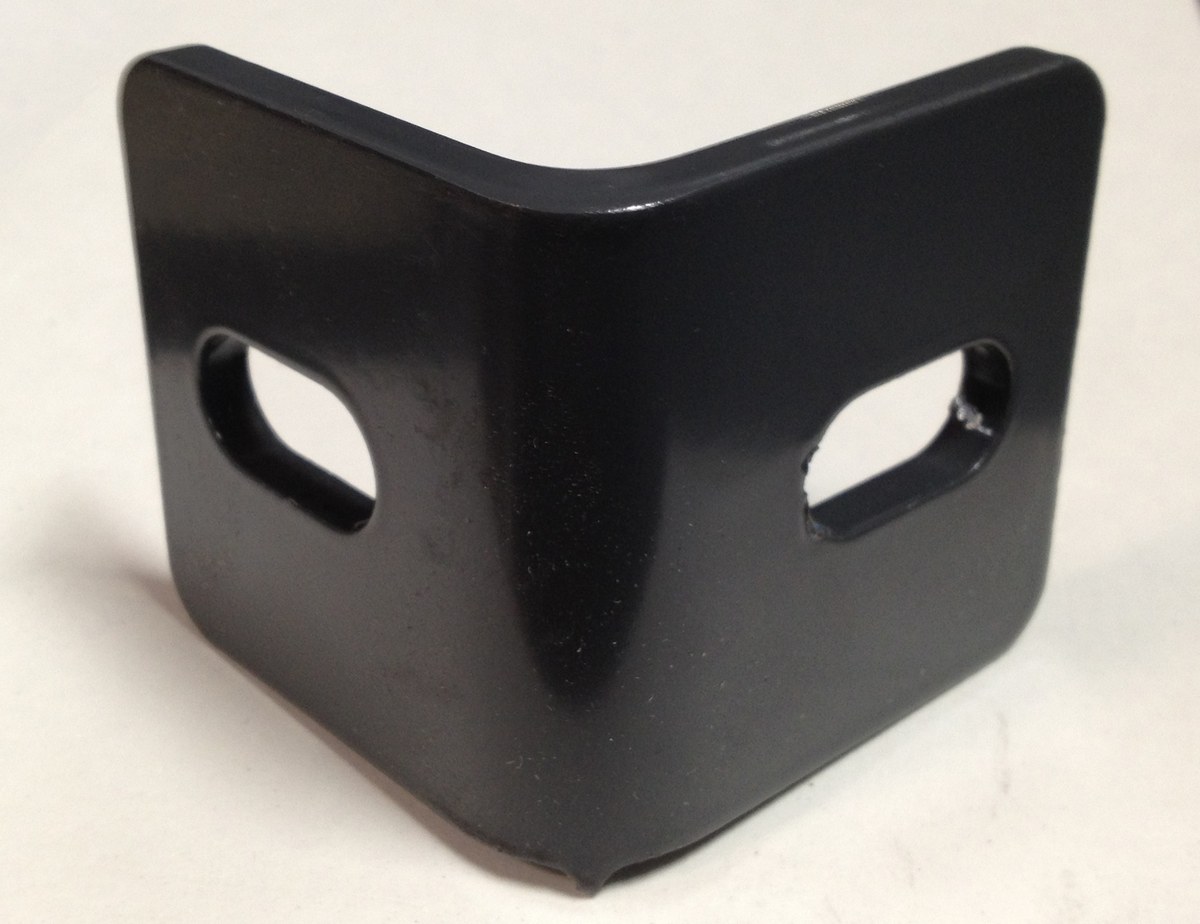

| RBG-1FMC | | 1 Year Limited Warranty | Steel Flush Mount Clips for Teardrop Uprights 1-1/4 In. x 1-1/4 In. x 1-1/4 In. Quantity of 4 Gray | Package Quantity: 4 | 3 | ||

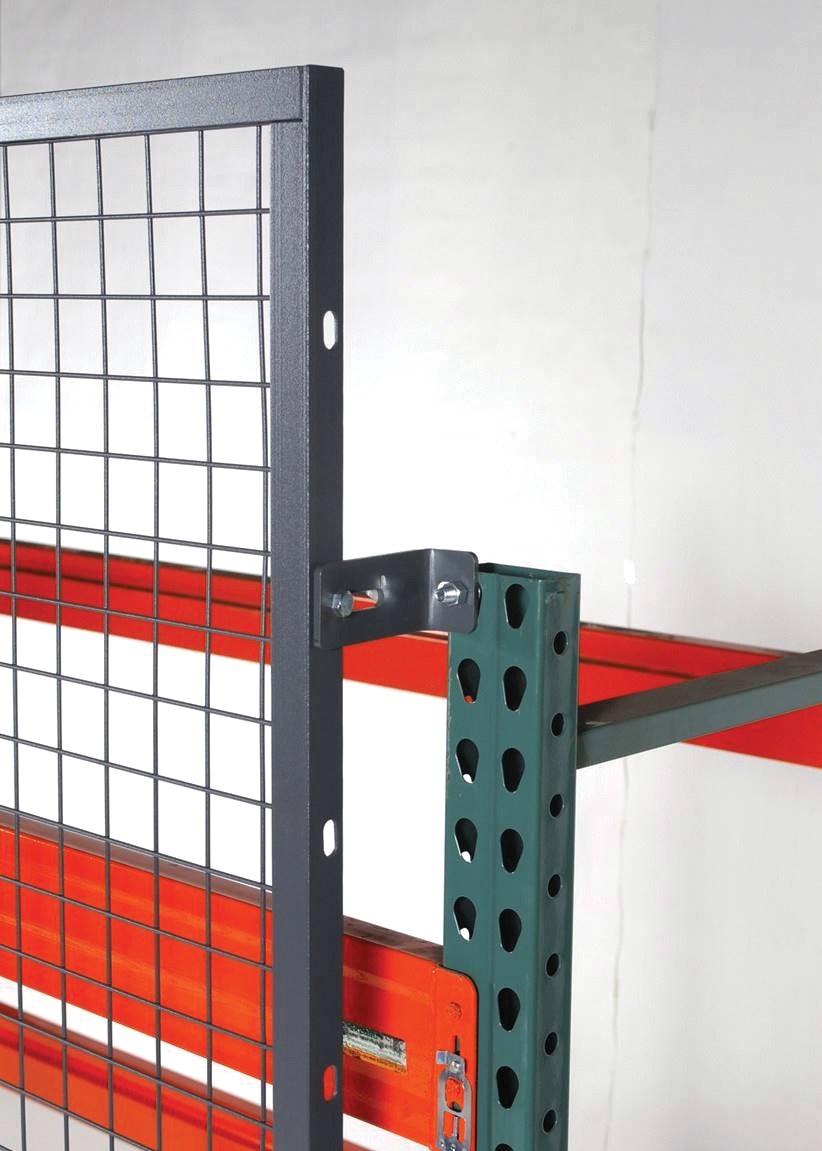

| RBG-43-OC | | 1 Year Limited Warranty | Steel 1 to 3 In. Offset Clips for Teardrop Uprights 1-1/2 In. x 4-1/2 In. x 2 In. Quantity of 4 Gray | Package Quantity: 4 Offset Range (in.): 1 to 3 | 5 | ||

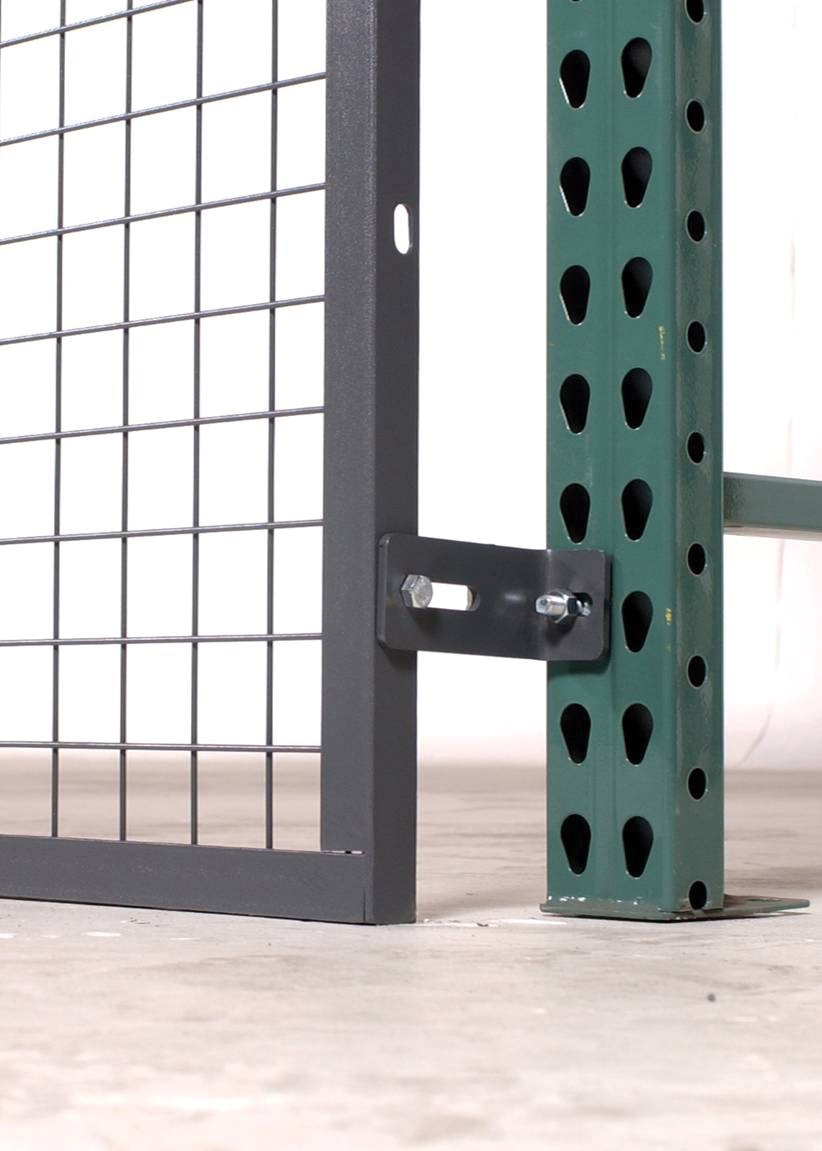

| RBG-46-OC | | 1 Year Limited Warranty | Steel 4 to 6 In. Offset Clips for Teardrop Uprights 1-1/2 In. x 7-1/4 In. x 2 In. Quantity of 4 Gray | Package Quantity: 4 Offset Range (in.): 4 to 6 | 6 | ||
| RBG-84 | | 1 Year Limited Warranty | Steel Welded Wire Rack Back Panel 96 In. x 1-1/4 In. x 48 In. Gray | Mesh square dimension (in.): 2 x 2 Welded wire gauge: 10 | 79 | ||
| RBG-85 | | 1 Year Limited Warranty | Steel Welded Wire Rack Back Panel 96 In. x 1-1/4 In. x 60 In. Gray | Mesh square dimension (in.): 2 x 2 Welded wire gauge: 10 | 85 | ||
| RBG-94 | | 1 Year Limited Warranty | Steel Welded Wire Rack Back Panel 108 In. x 1-1/4 In. x 48 In. Gray | Mesh square dimension (in.): 2 x 2 Welded wire gauge: 10 | 99 | ||
| RBG-95 | | 1 Year Limited Warranty | Steel Welded Wire Rack Back Panel 108 In. x 1-1/4 In. x 60 In. Gray | Mesh square dimension (in.): 2 x 2 Welded wire gauge: 10 | 107 |
