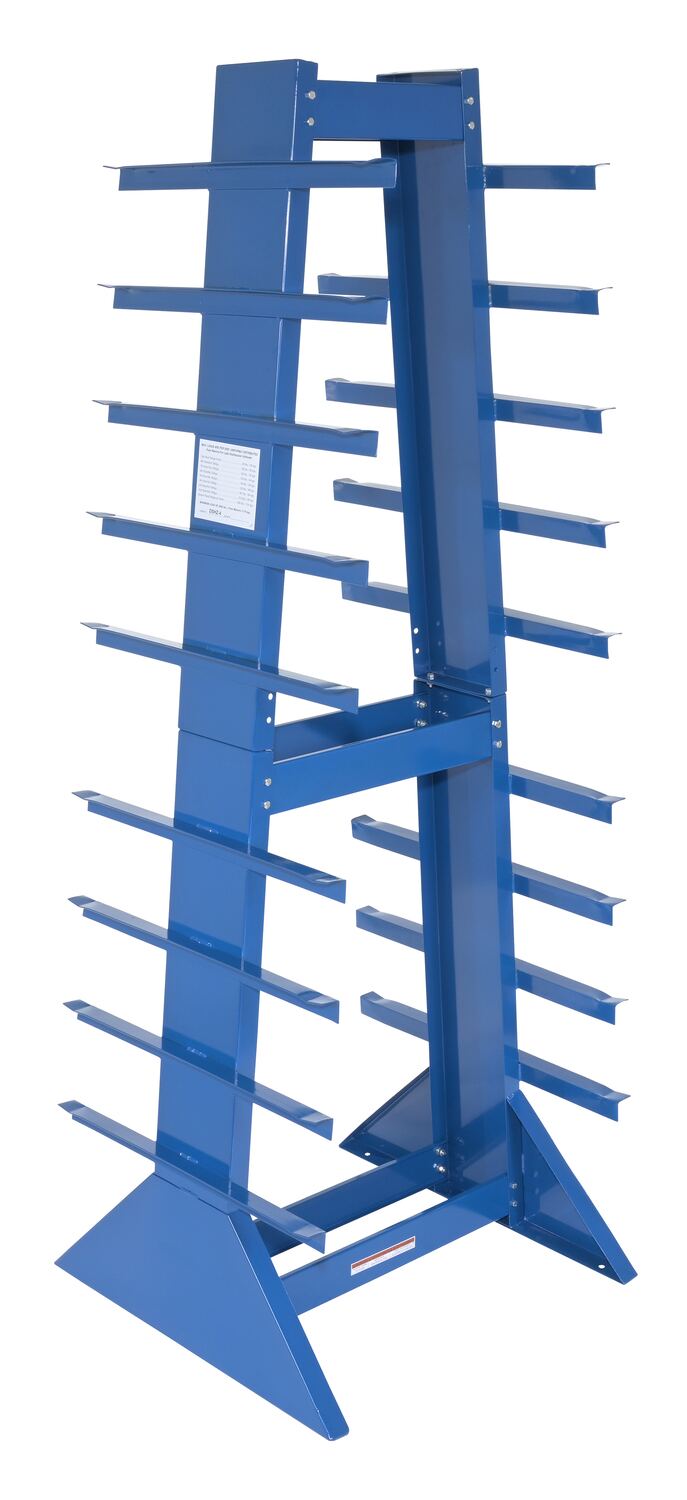

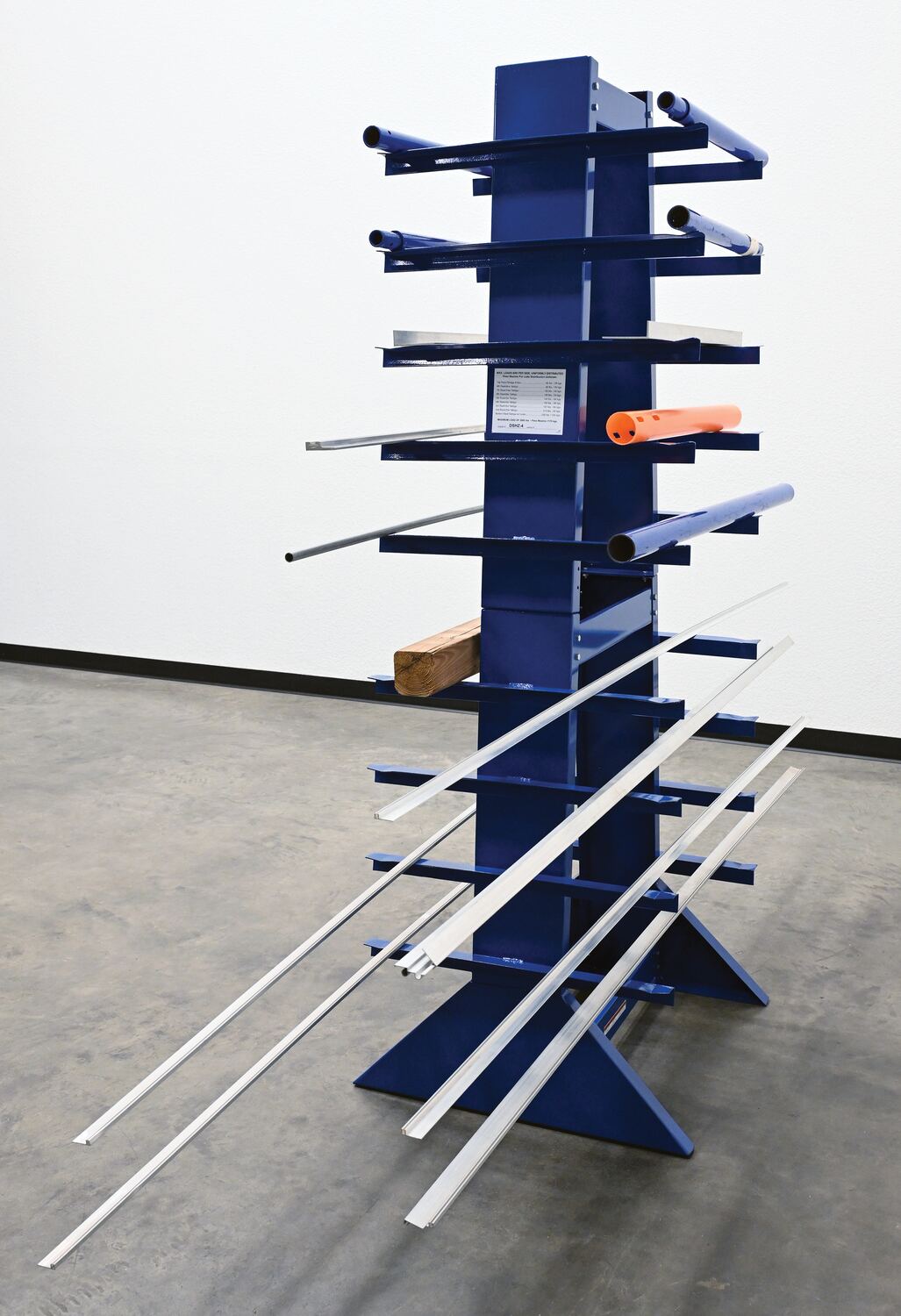

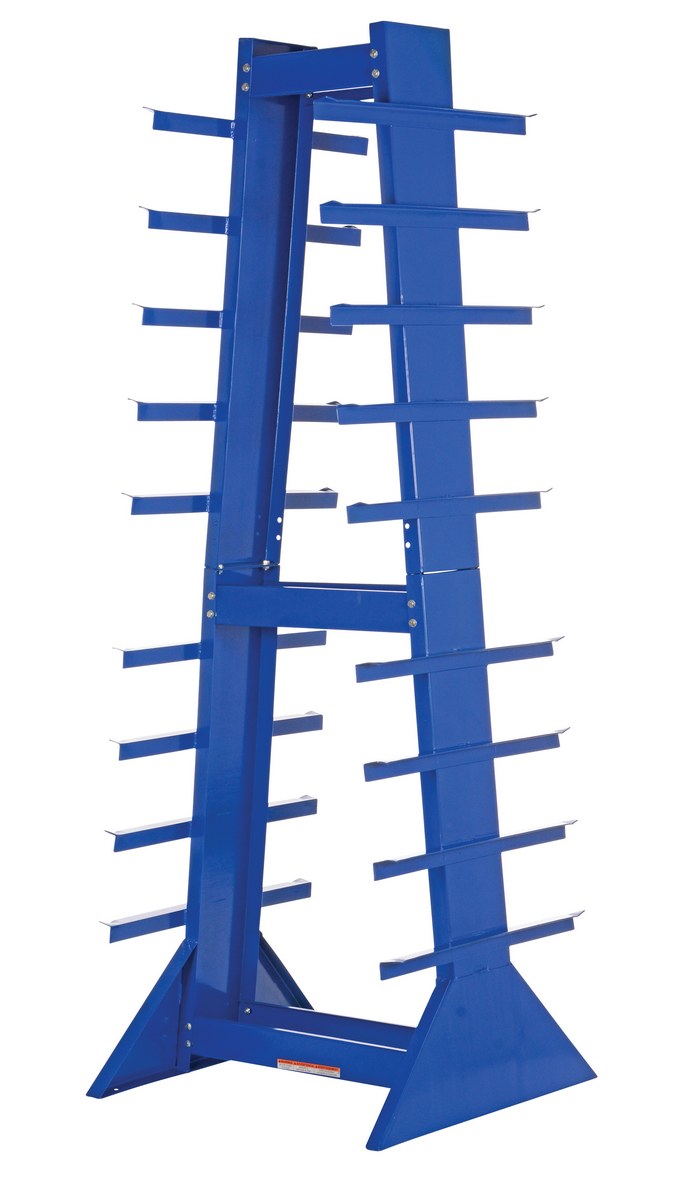

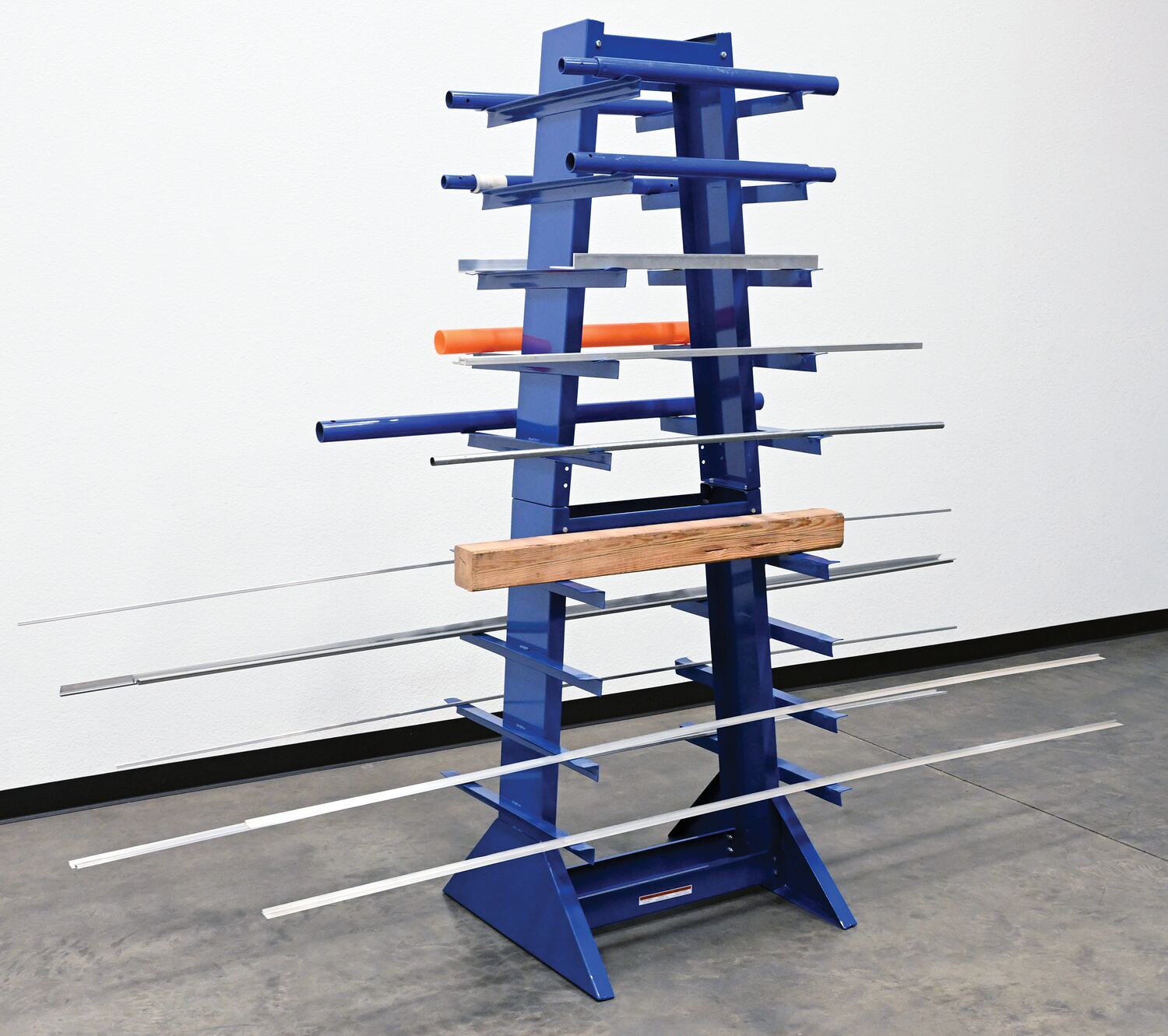

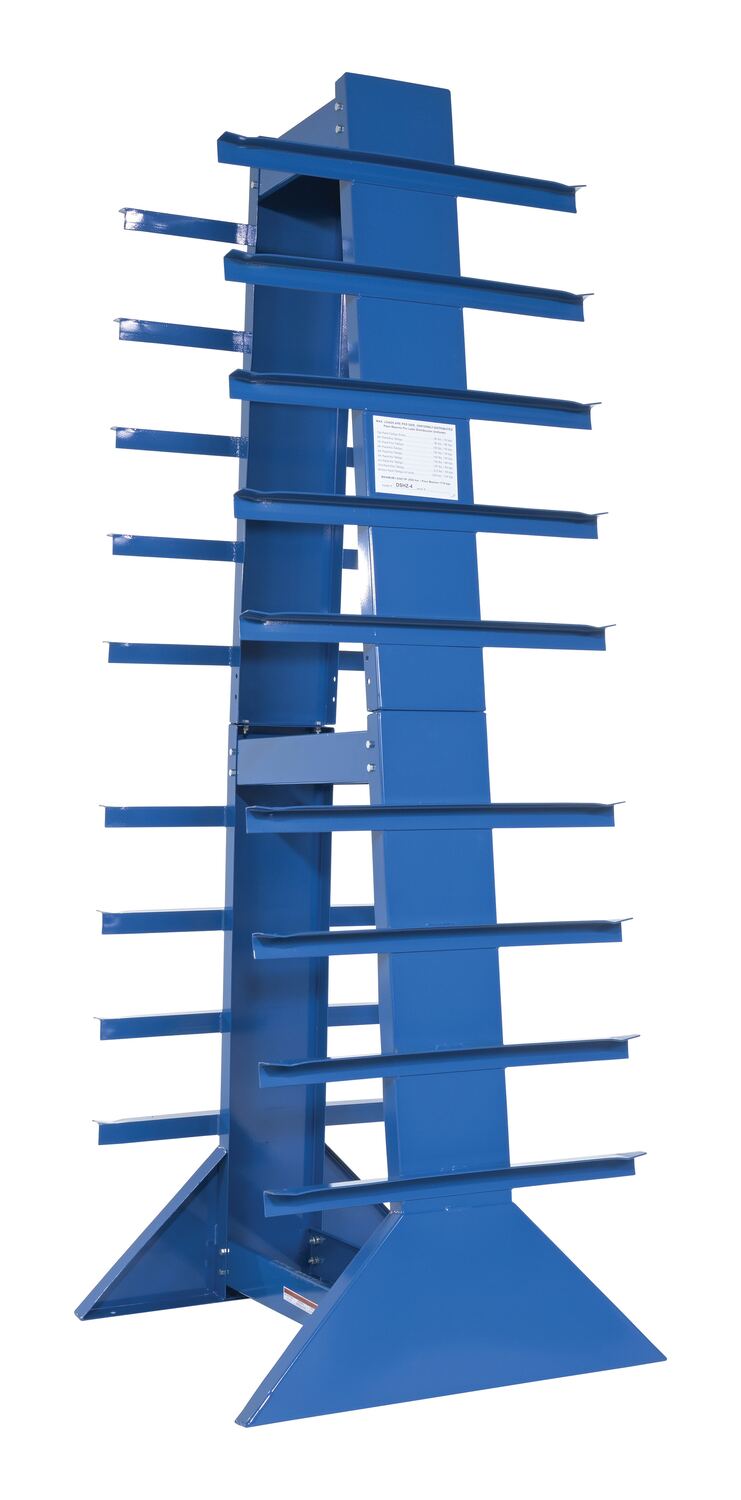

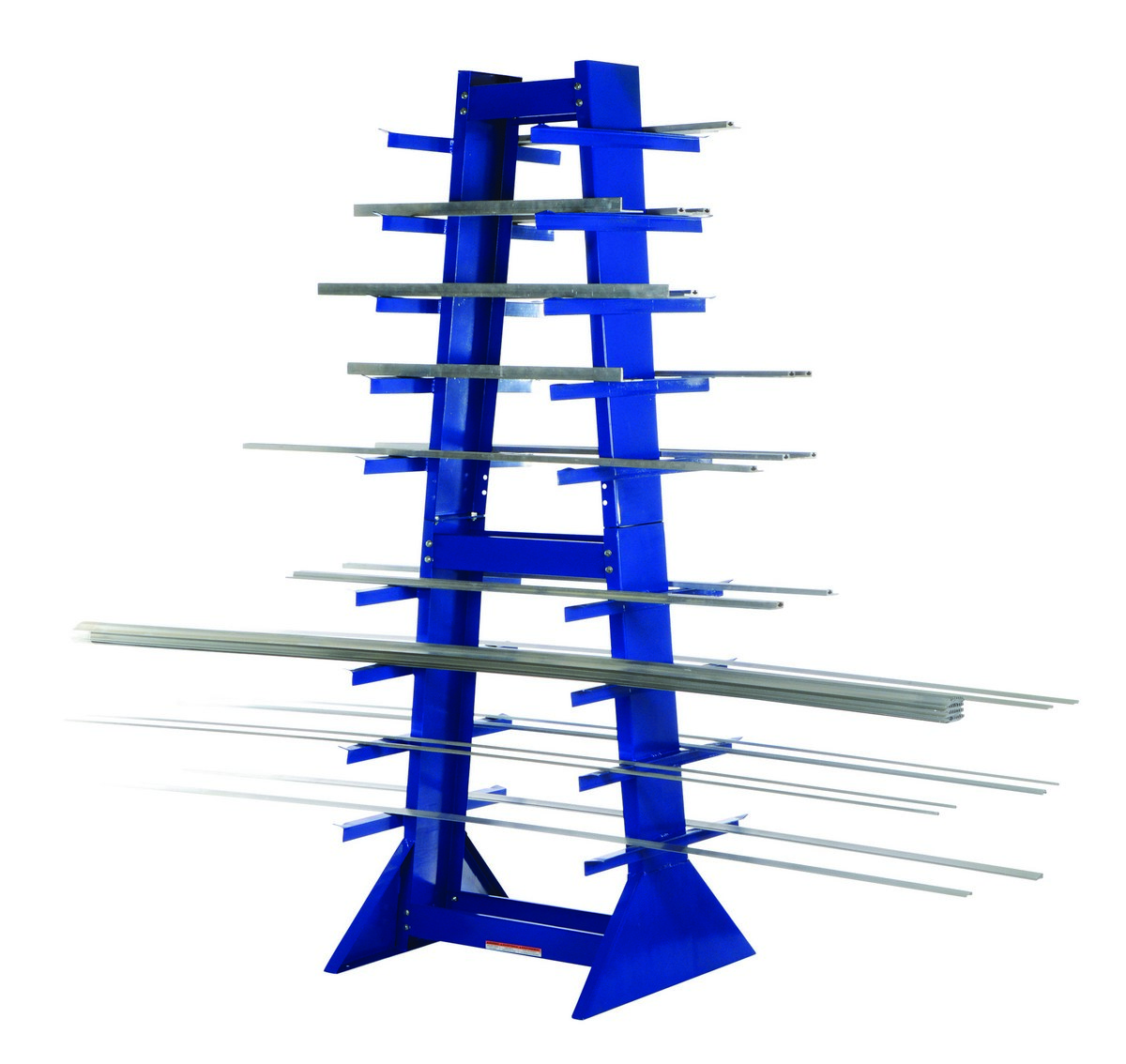

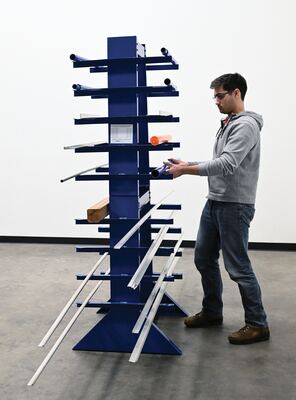

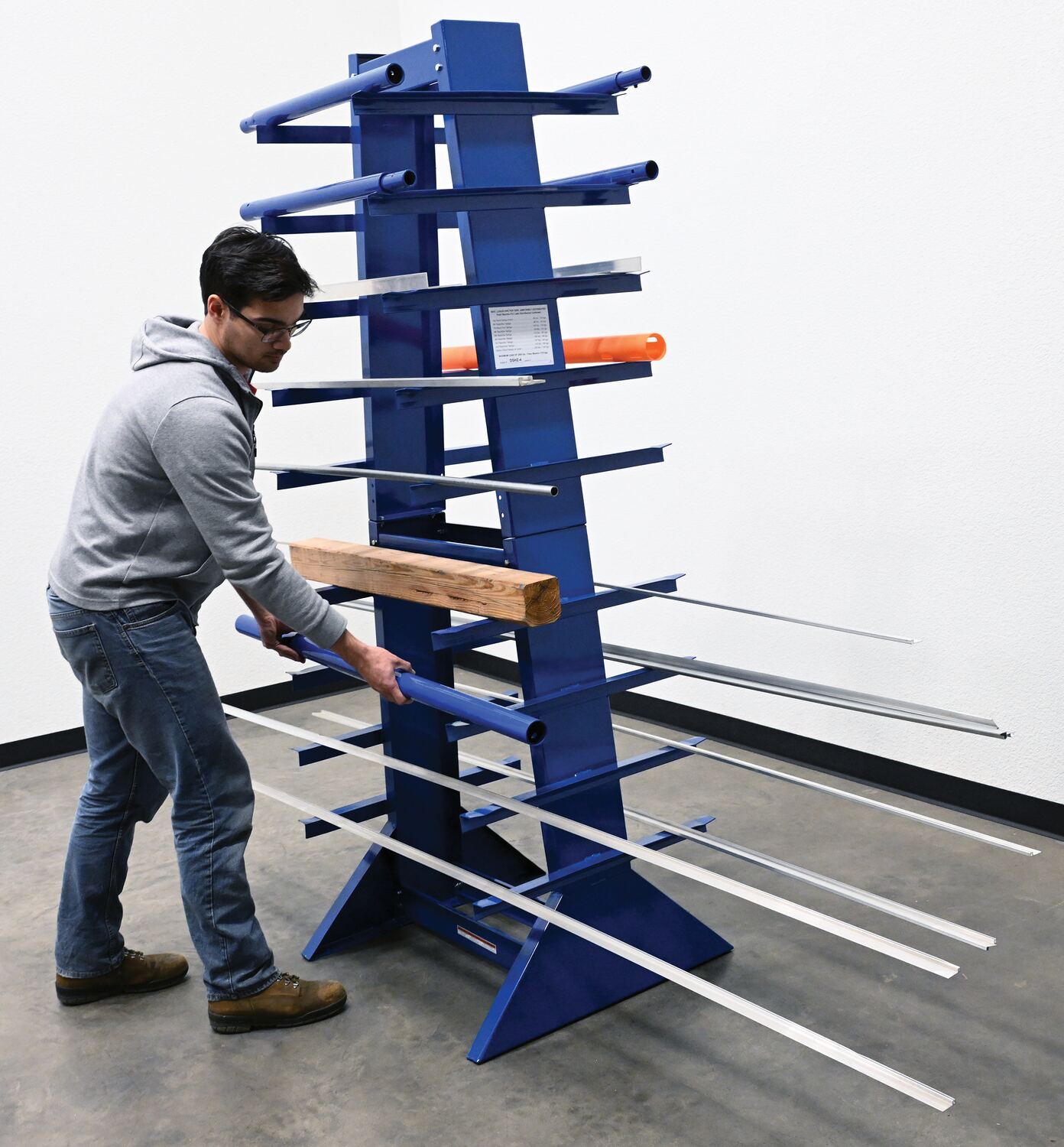

Double Sided Horizontal Bar RackIdeal for use in maintenance departments, tool rooms, machine shops, and storage areas. Arms extend and act as dividers creating bays of storage. Nine arm levels can store material up to 10 feet long. Aligning two units next to each other will allow for the storage of longer material. Arm edges are sloped upward to prevent roll off's. Arms are welded at 6" increments with 6" between levels. Total uniform rack capacity is 2,600 pounds evenly distributed. Unit has predrilled lag down points and ships knocked down. Steel construction with baked-in powder-coated toughness.
- Two sided arms provide additional storage capacity
- Slightly bent up arms prevent material roll off
- Pre-drilled lag down points make installation quick and easy
- Solid steel construction provides long lasting rugged use
| Rack Level (From Bottom) | Uniform Capacity Per Side (lbs.) |
| 1st | 230 |
| 2nd | 210 |
| 3rd | 187 |
| 4th | 150 |
| 5th | 142 |
| 6th | 120 |
| 7th | 100 |
| 8th | 80 |
| 9th | 65 |
| **Capacities listed above are per level and per side** | |
Economical Material Racks
Slab Transport Rack
Heavy Duty Roll-Out Shelving
Vertical Storage Racks
| Model # | Description | Attributes | Net Wt. (lbs) |
||||
|---|---|---|---|---|---|---|---|
| DSHZ-4 |  | 90 Days Limited Warranty | Steel Double Sided Horizontal Bar Rack 30-1/4 In. x 30 In. x 83-7/8 In. 2600 Lb. Capacity Blue | Uniform Capacity (lb.): 2,600 Distance Between Levels (in.): 6 | 145 |
KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,600
Distance Between Levels (in.): 6
Uniform Capacity (lb.): 2,600
Distance Between Levels (in.): 6
