Flat-Free (Foam-Filled) CastersThe foam-filled caster provides the same shock absorbent cushion ride a pneumatic does without the worry of flat tires and refilling air. Ideal for outdoor applications.
- Flat-free
- Absorbs shock
- Smooth cushion ride
- Quiet operation
- Anti-corrosive & rust resistant zinc plated finish
- Ball bearings
Glass Filled Nylon Casters
TPR(Thermoplastic Rubber) On Stainless Steel Casters
Pneumatic Casters
All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is for Casters within the Model Chart on this page. Not an entire site search.
| Model | Image | PDFs | Caster Size |
Type | Capacity (lbs.) |
Overall Height |
Top Plate Size |
Net Wt. (lbs) |
|---|---|---|---|---|---|---|---|---|

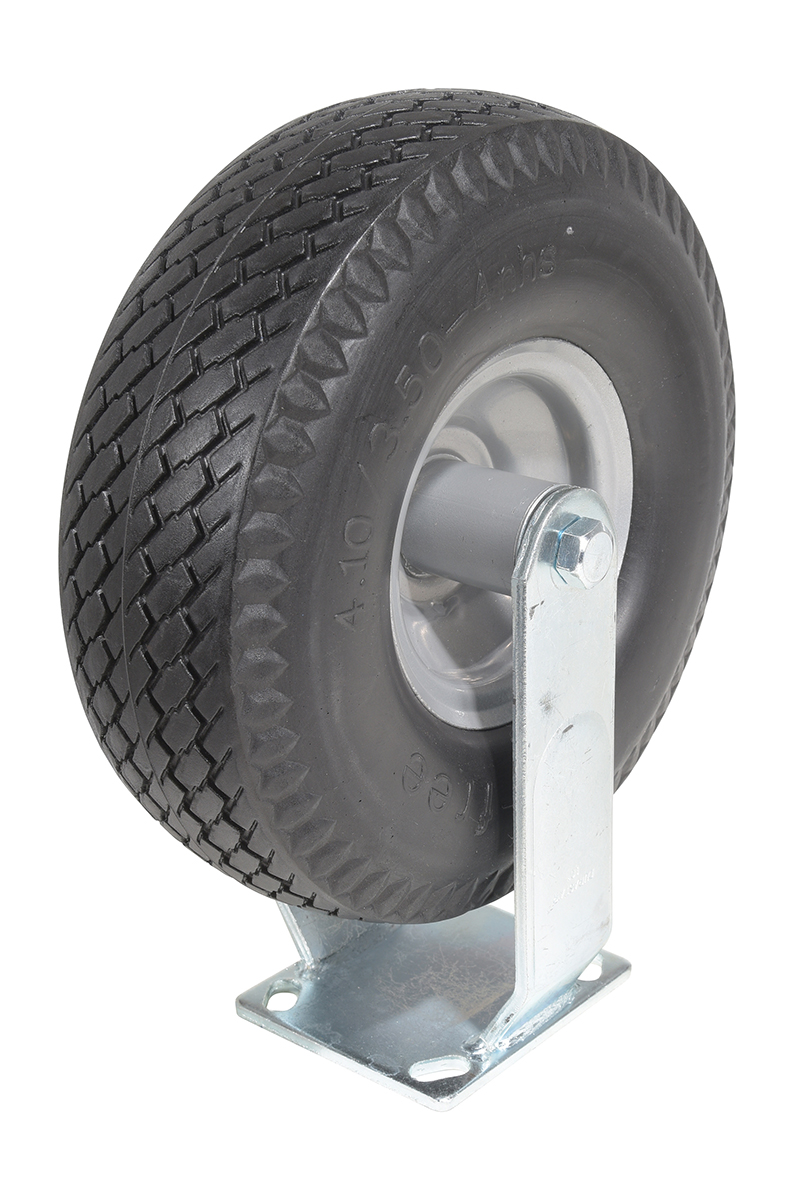

| CST-F-10X3FM-R |  | 1 YEAR Limited Warranty | 10 x 3-1/2 | RIGID | 300 | 12-1/2 | 4 x 4-1/2 | 8 |

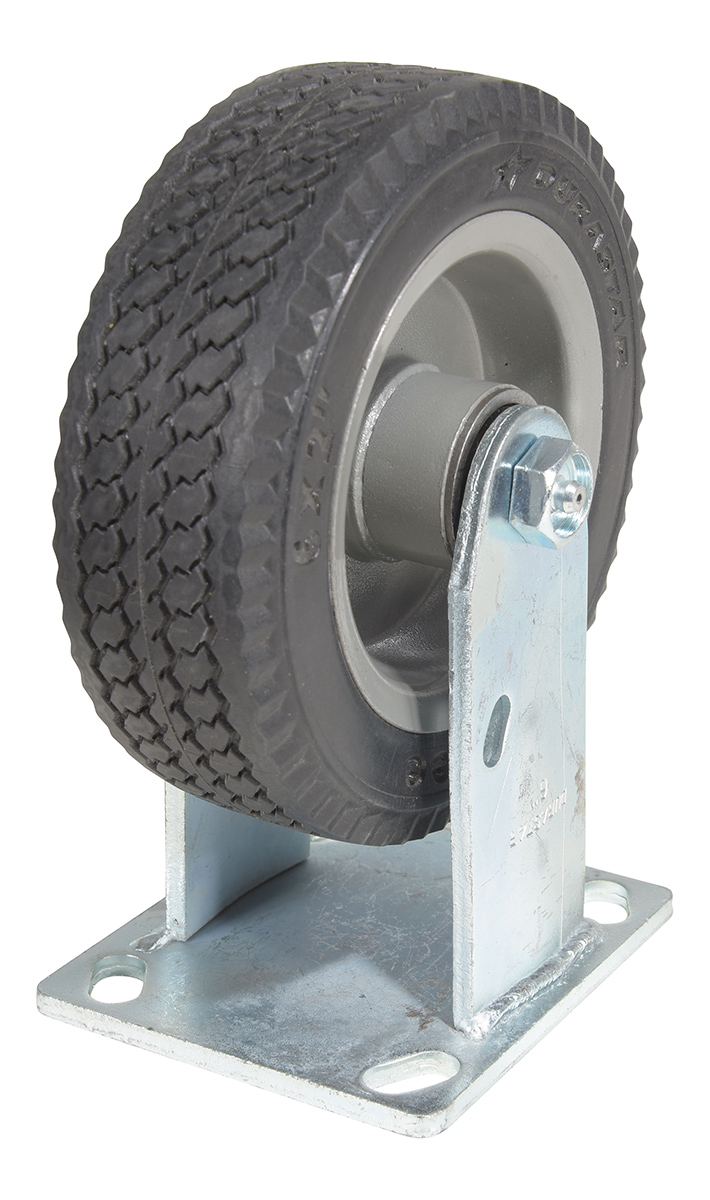

| CST-F-6X2FM-R |  | 1 YEAR Limited Warranty | 6 x 2 | RIGID | 250 | 7-1/2 | 4 x 4-1/2 | 5 |

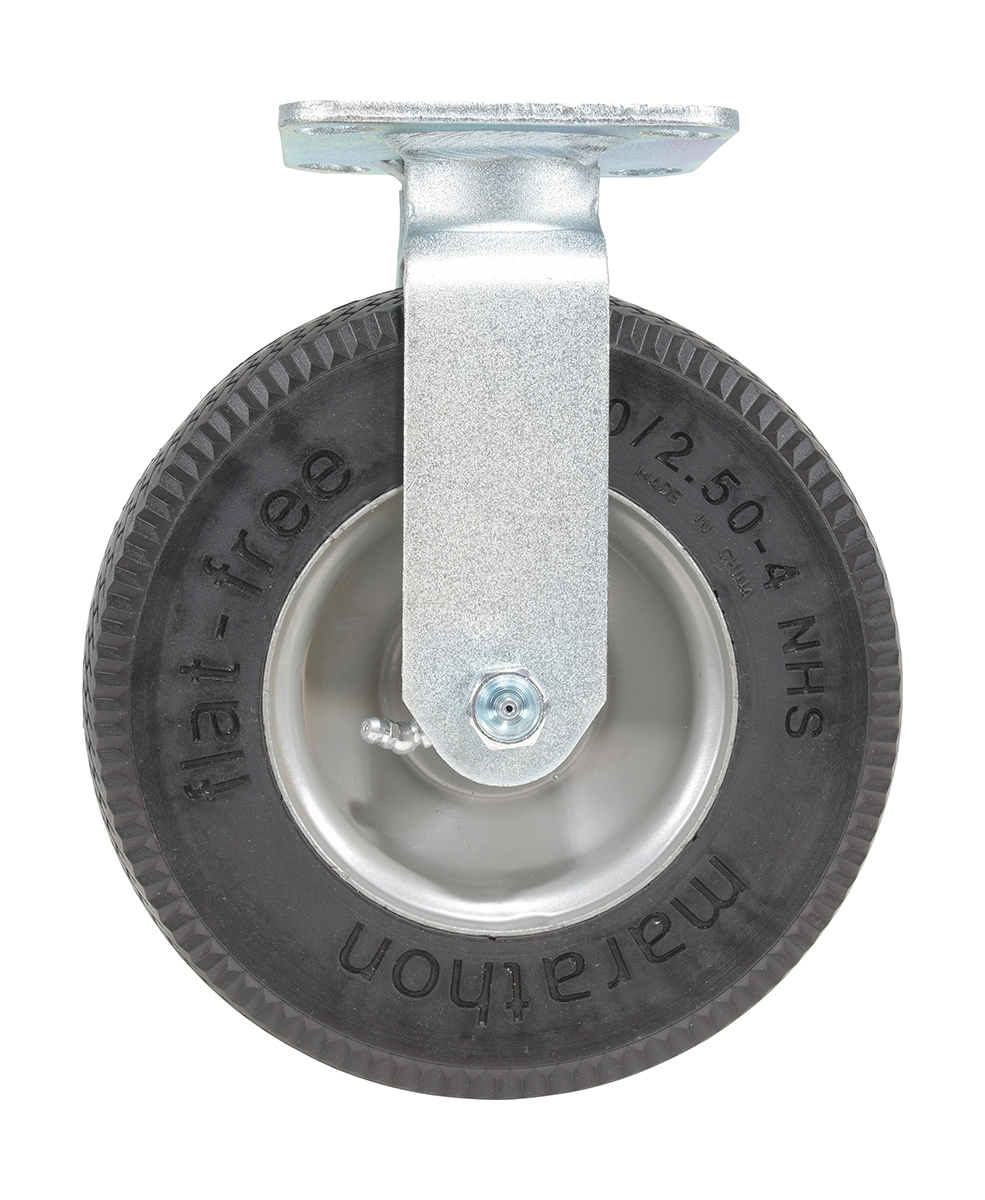

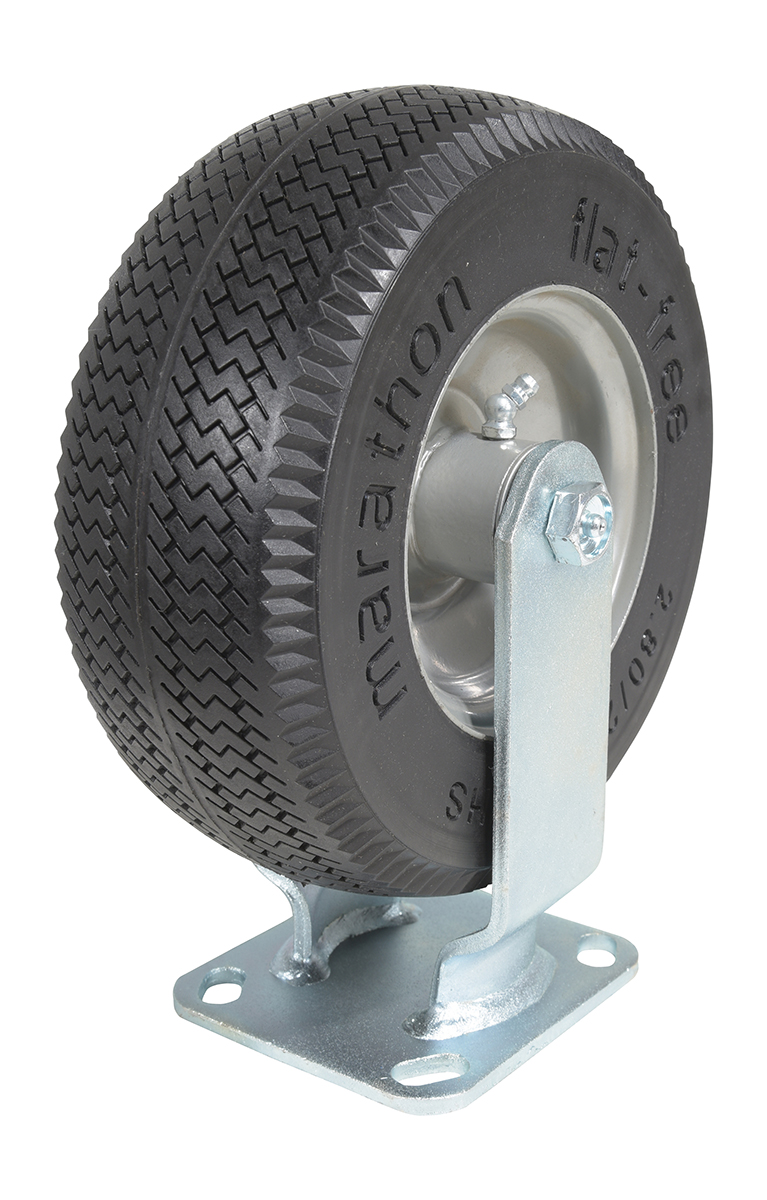

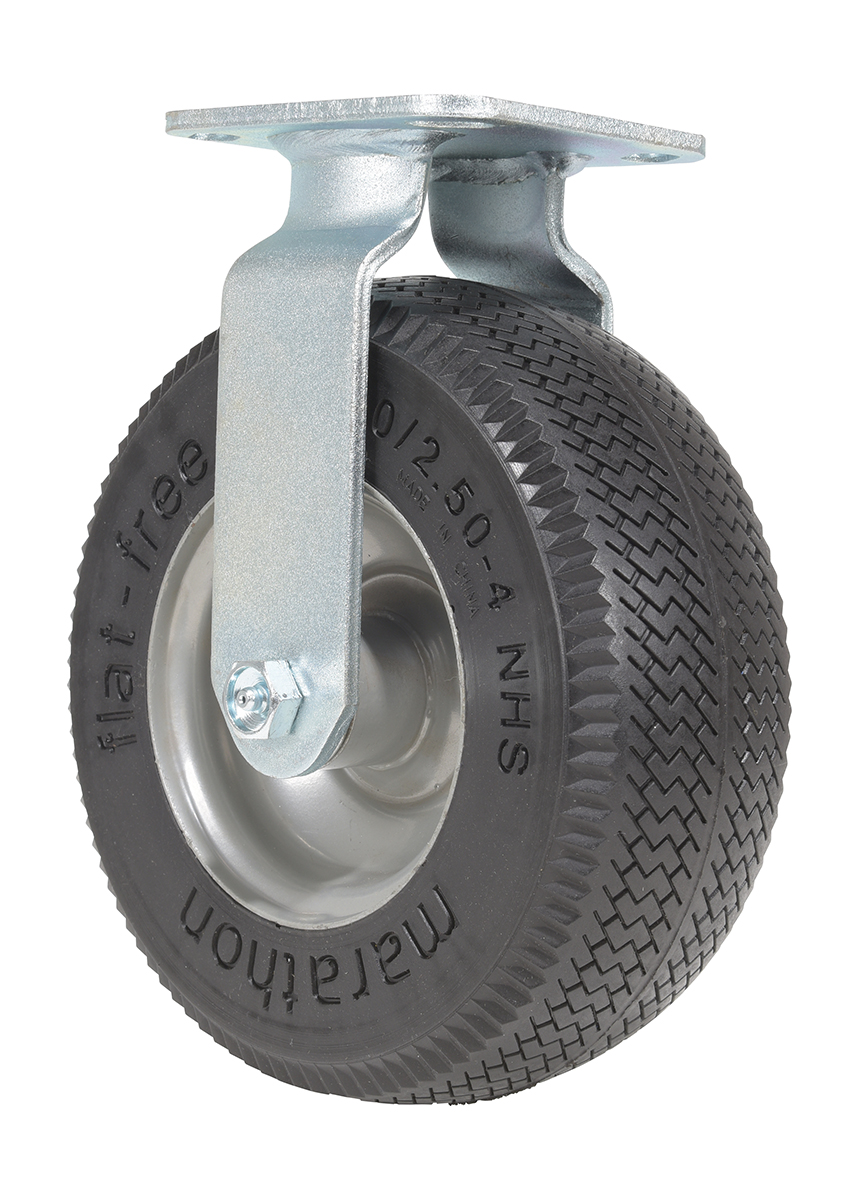

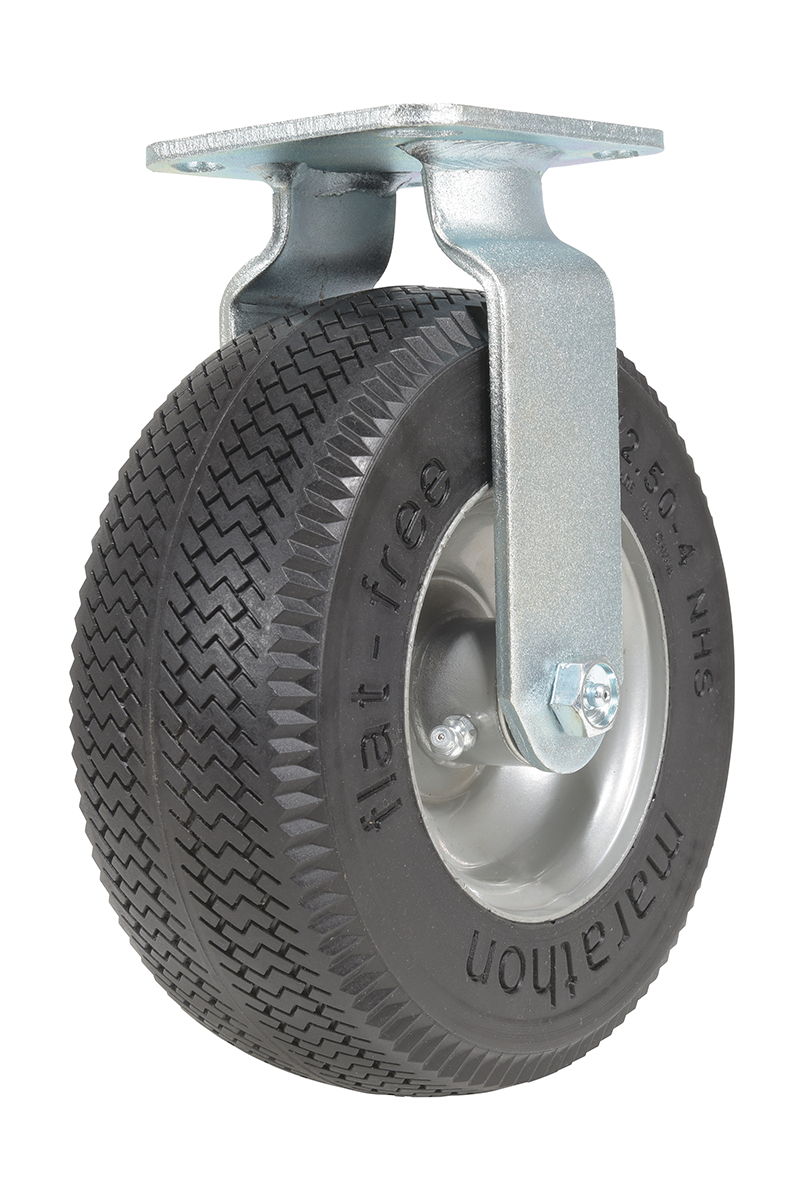

| CST-F-8X3FM-R |  | 1 YEAR Limited Warranty | 8 x 3 | RIGID | 275 | 9-1/2 | 4 x 4-1/2 | 7 |

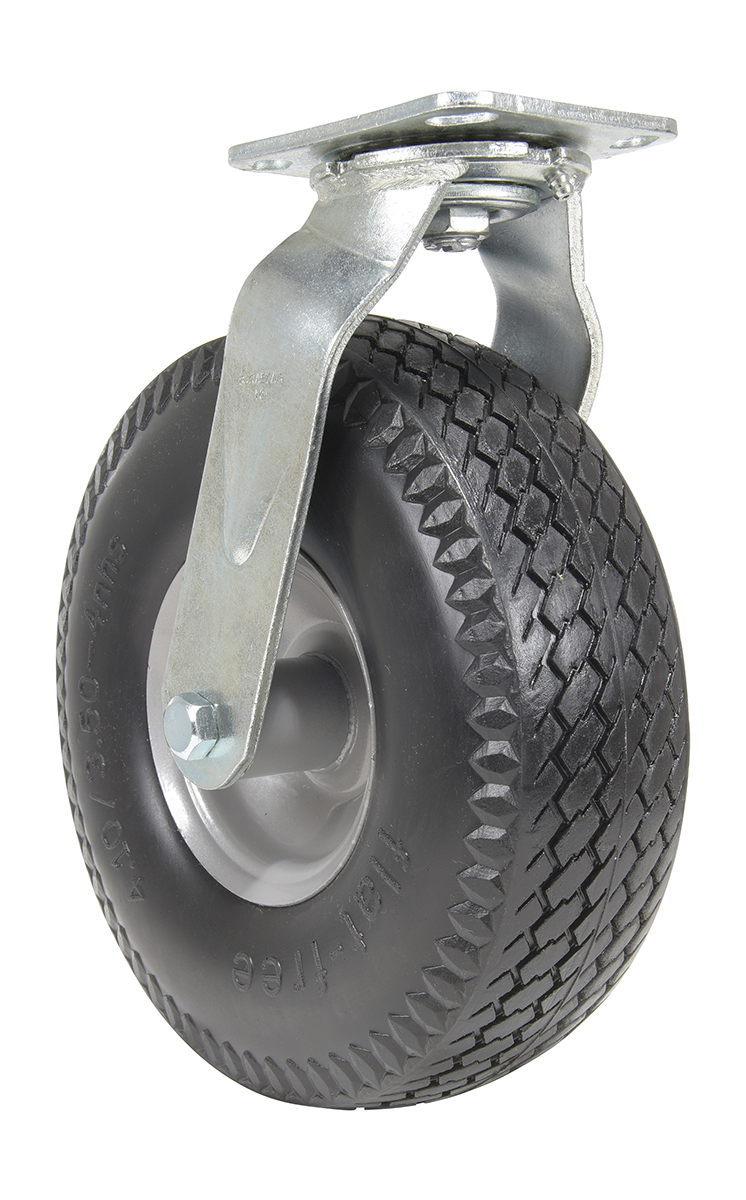

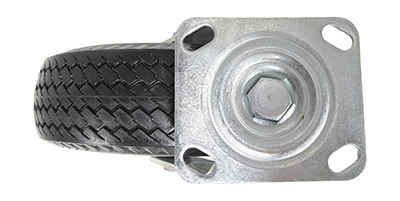

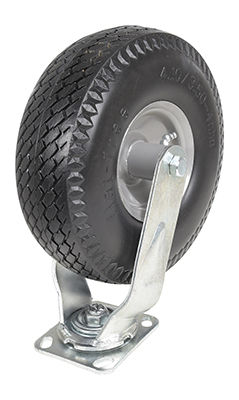

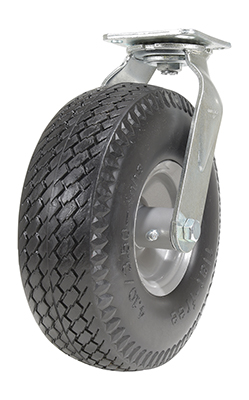

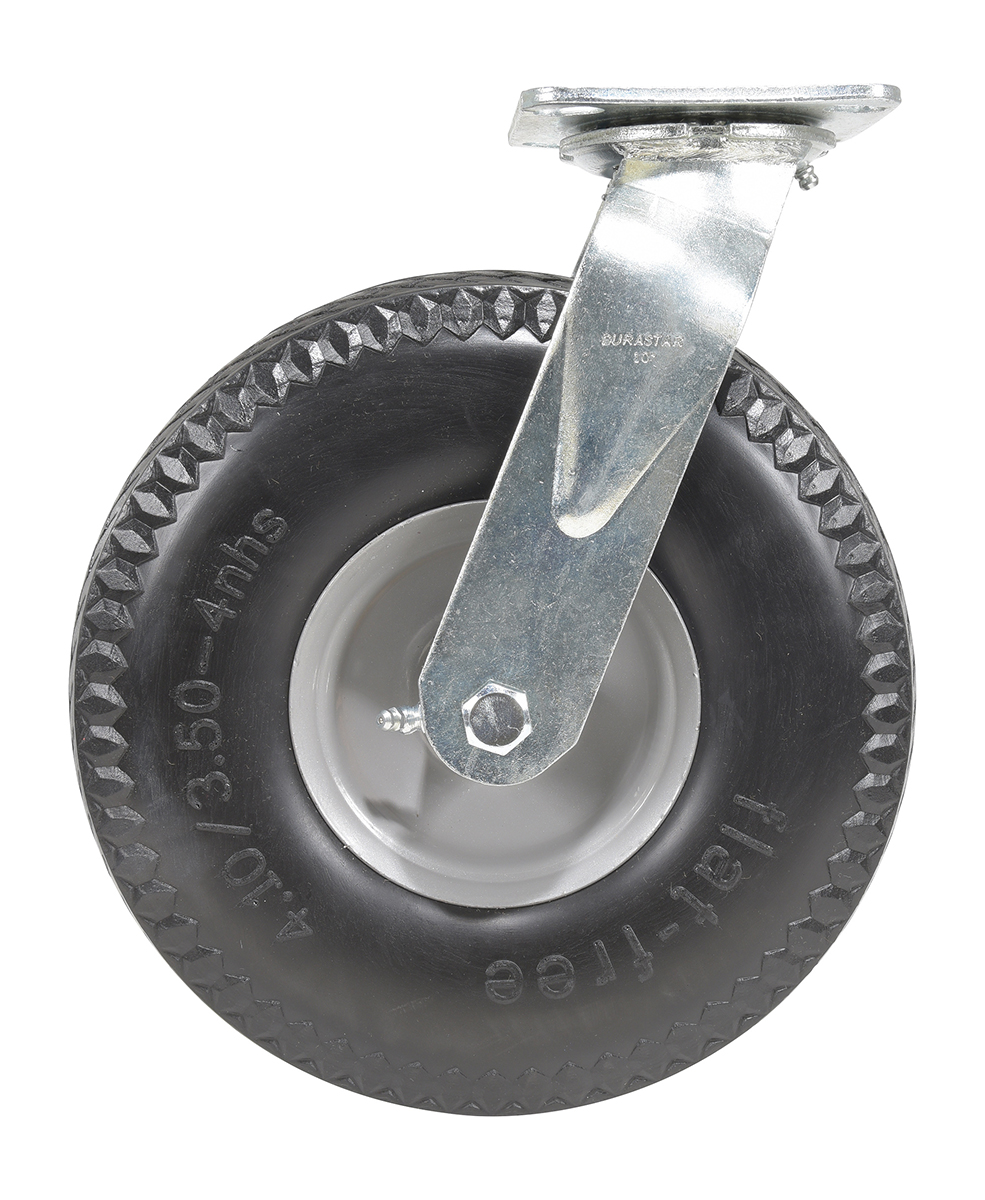

| CST-F-10X3FM-S |  | 1 YEAR Limited Warranty | 10 x 3-1/2 | SWIVEL | 300 | 12.25 | 4 x 4-1/2 | 9 |

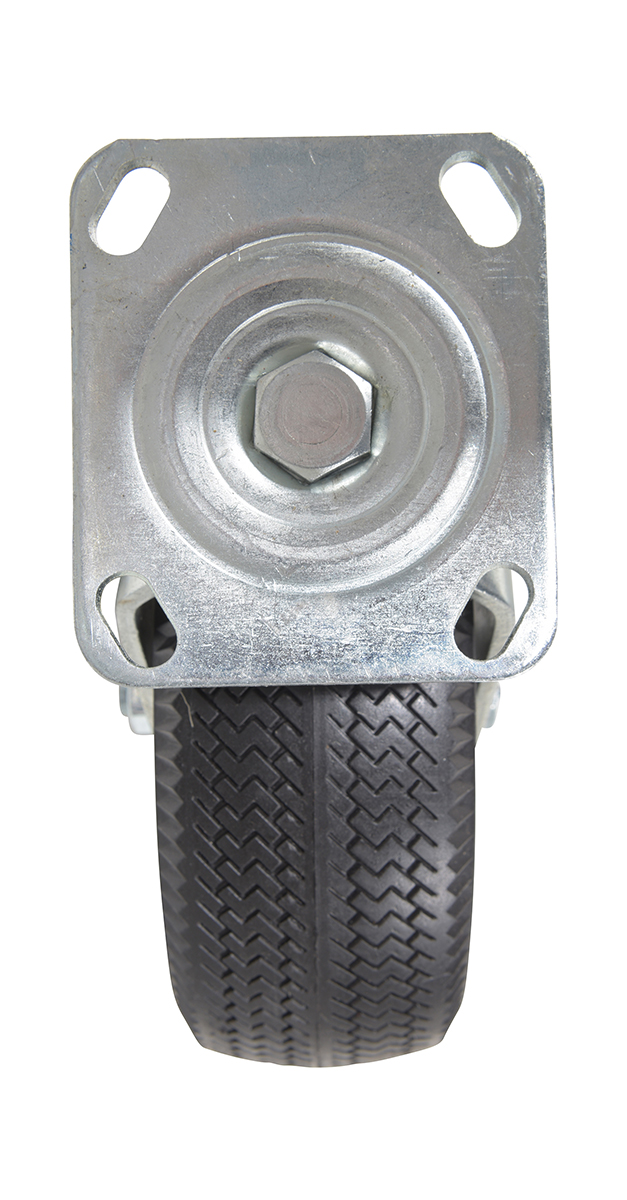

| CST-F-8X3FM-S |  | 1 YEAR Limited Warranty | 8 x 3 | SWIVEL | 275 | 9-1/2 | 4 x 4-1/2 | 8 |

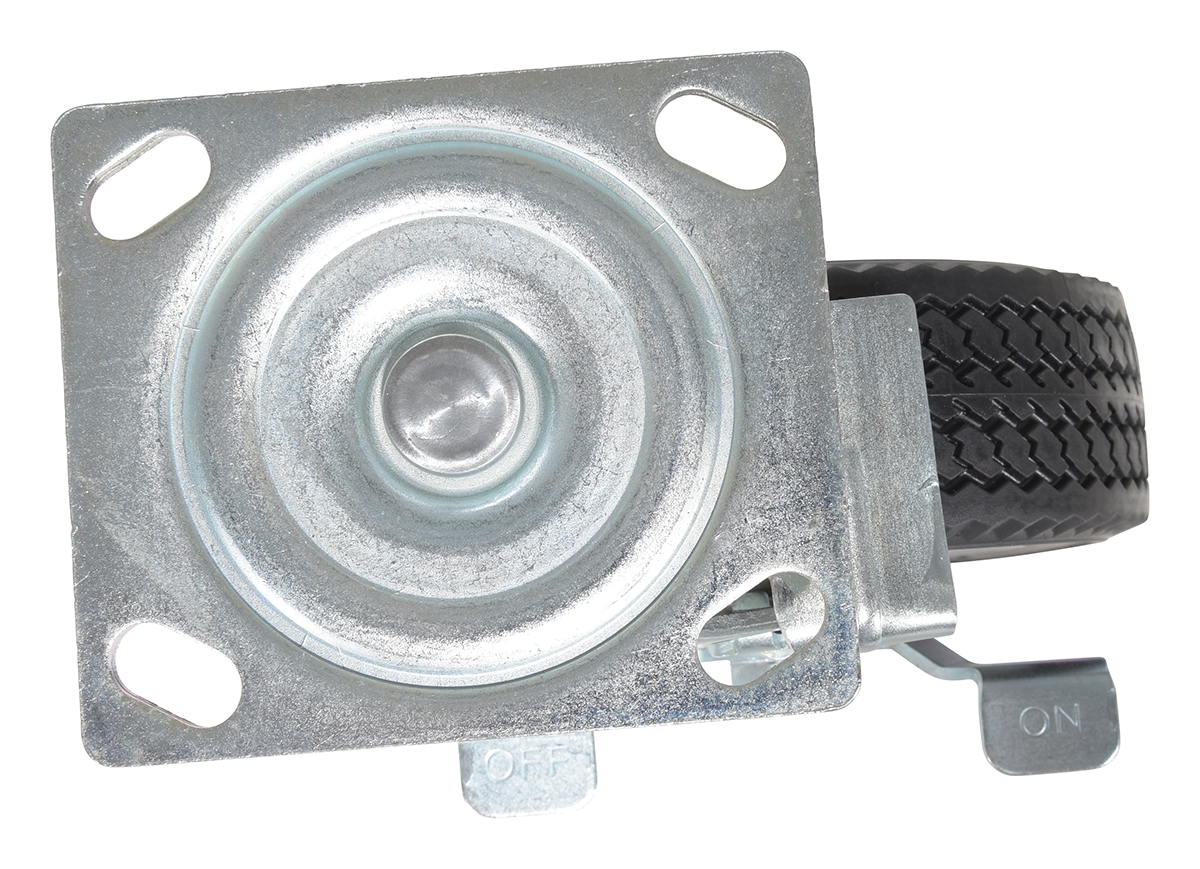

| CST-F-6X2FM-SWB |  | 1 YEAR Limited Warranty | 6 x 2 | SWIVEL W/BRAKE | 250 | 9-3/8 | 4 x 4-1/2 | 7 |

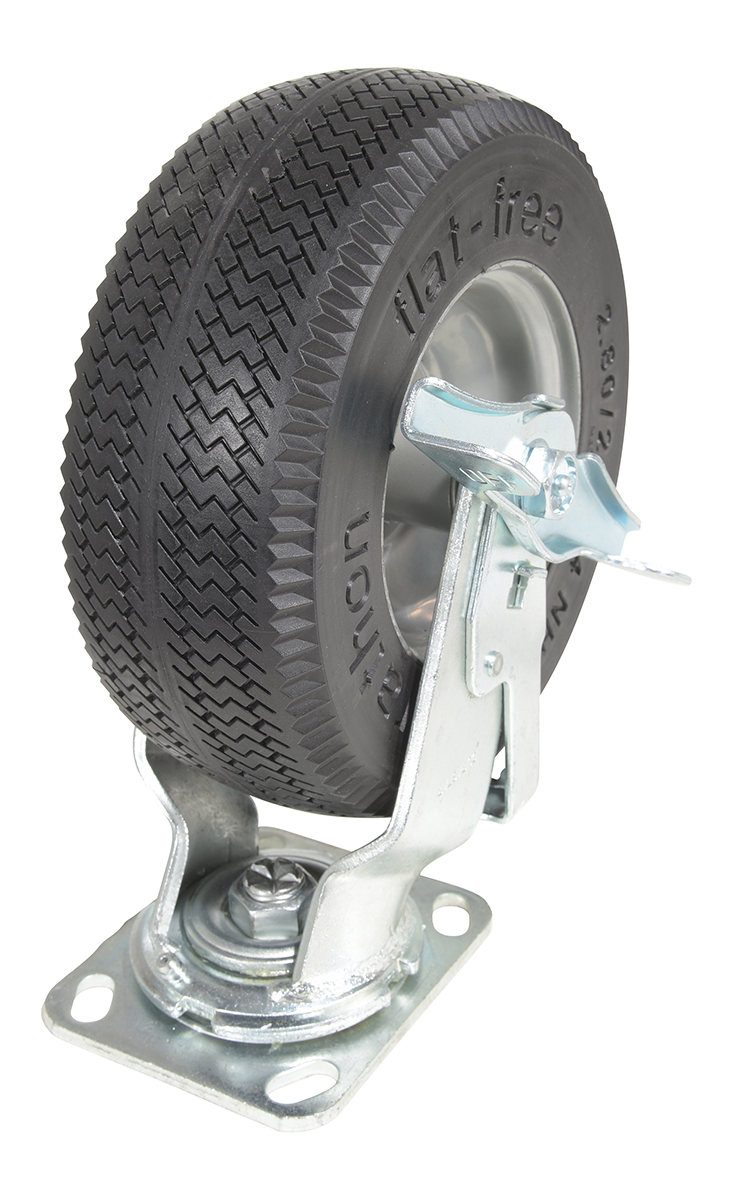

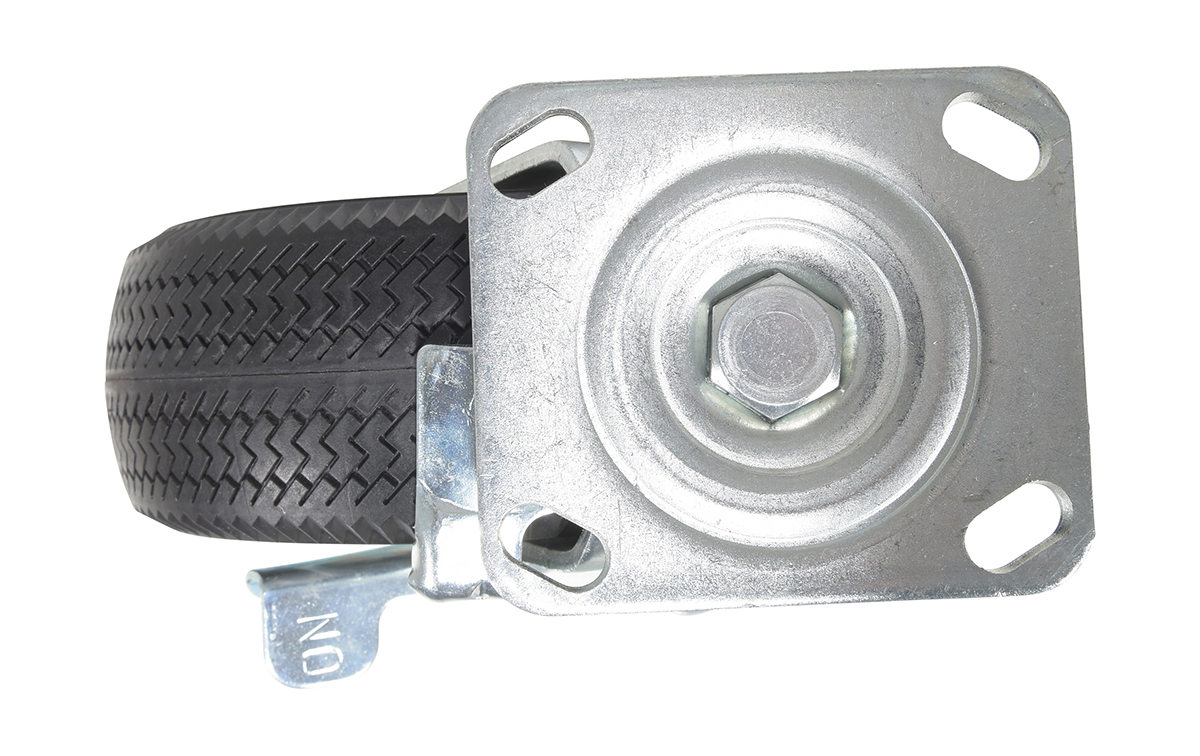

| CST-F-8X3FM-SWB |  | 1 YEAR Limited Warranty | 8 x 3 | SWIVEL W/BRAKE | 275 | 9-1/2 | 4 x 4-1/2 | 8 |
KEY: = Click For Expanded Model Details -- = Approval Drawing -- = Testing Certificate -- Warranty
Flat-Free (Foam-Filled) Casters PDF's will open in a new window when clicked.
