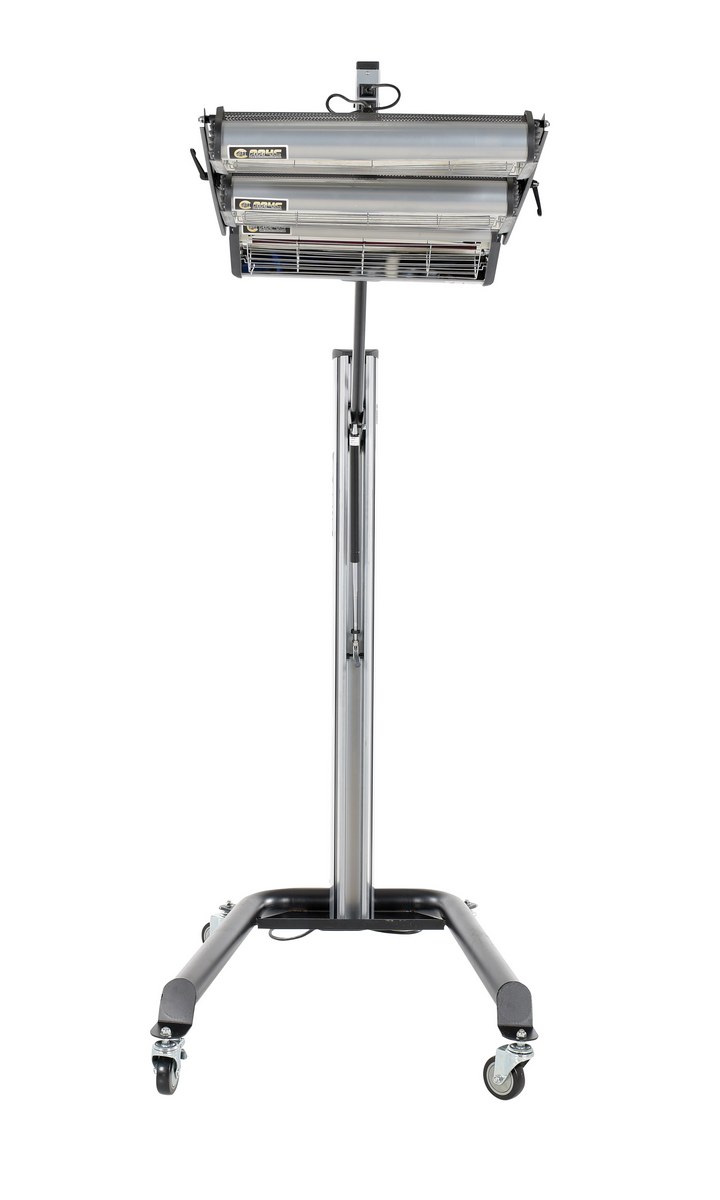

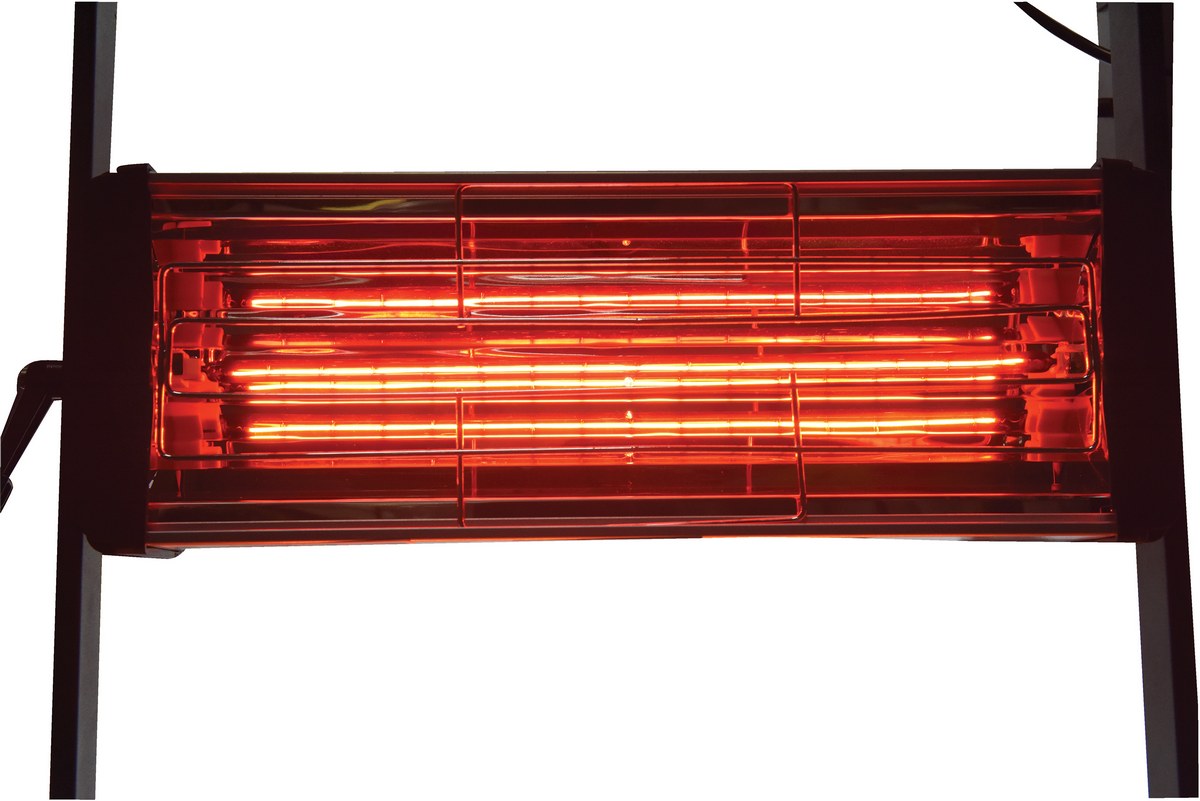

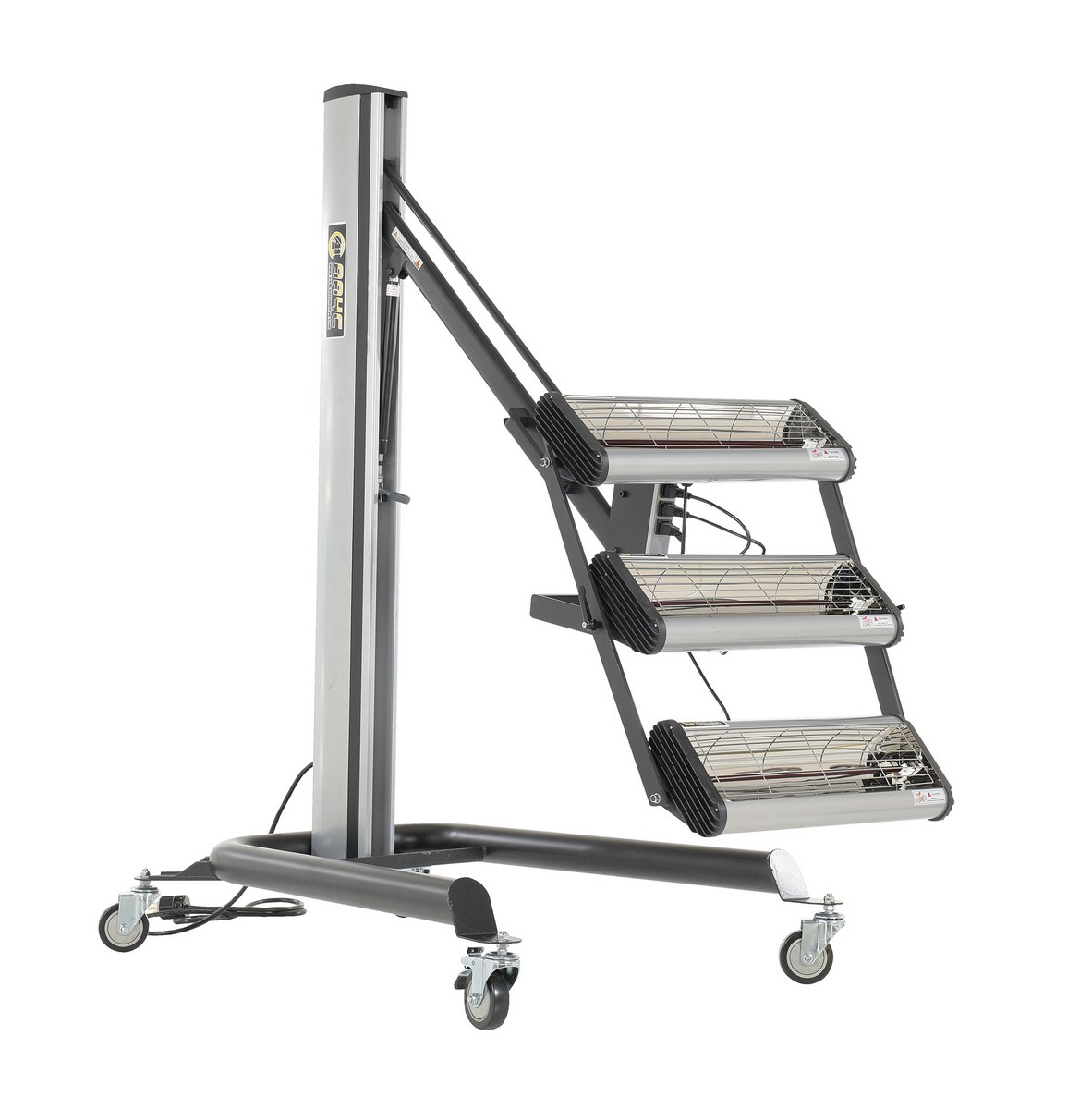

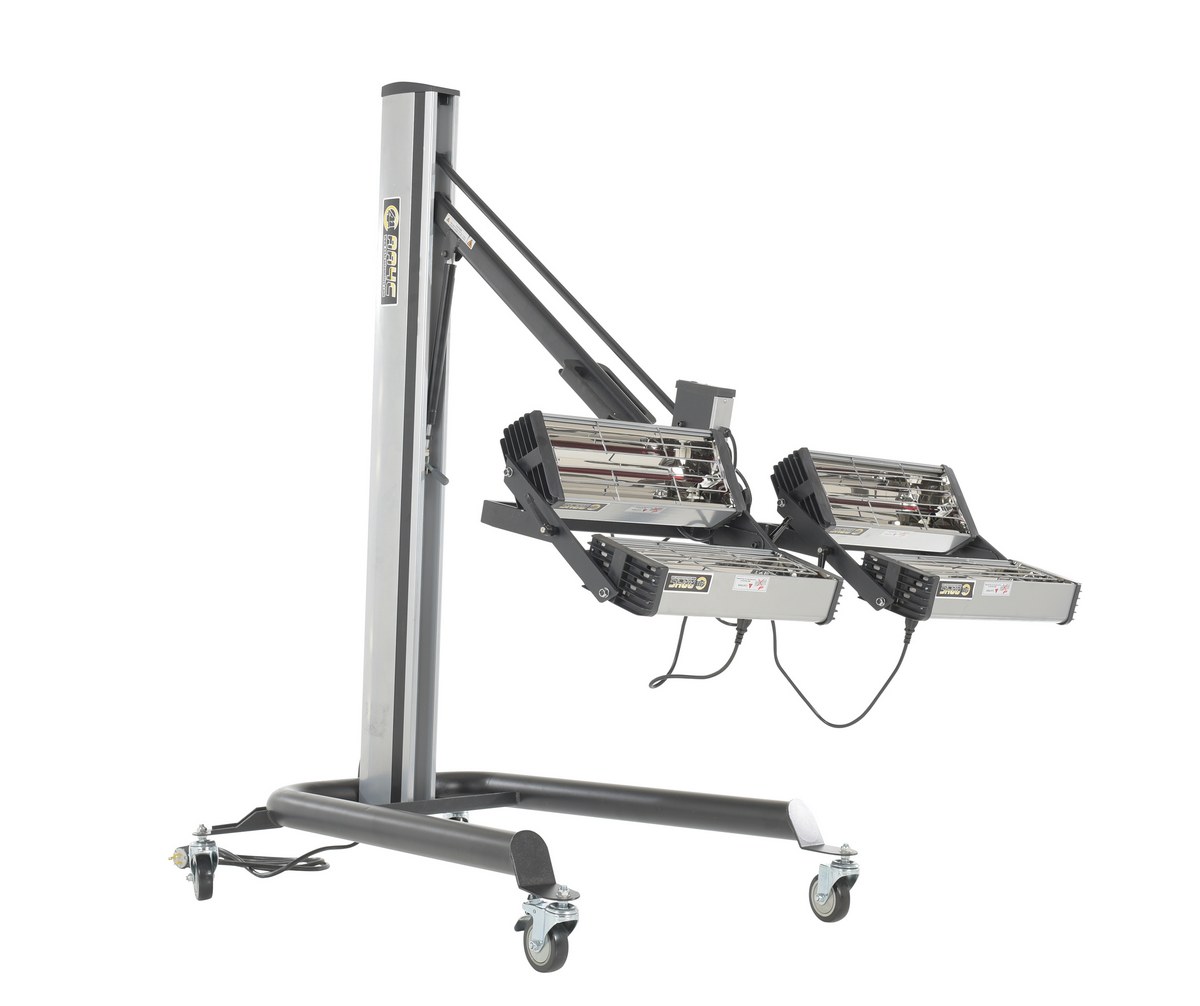

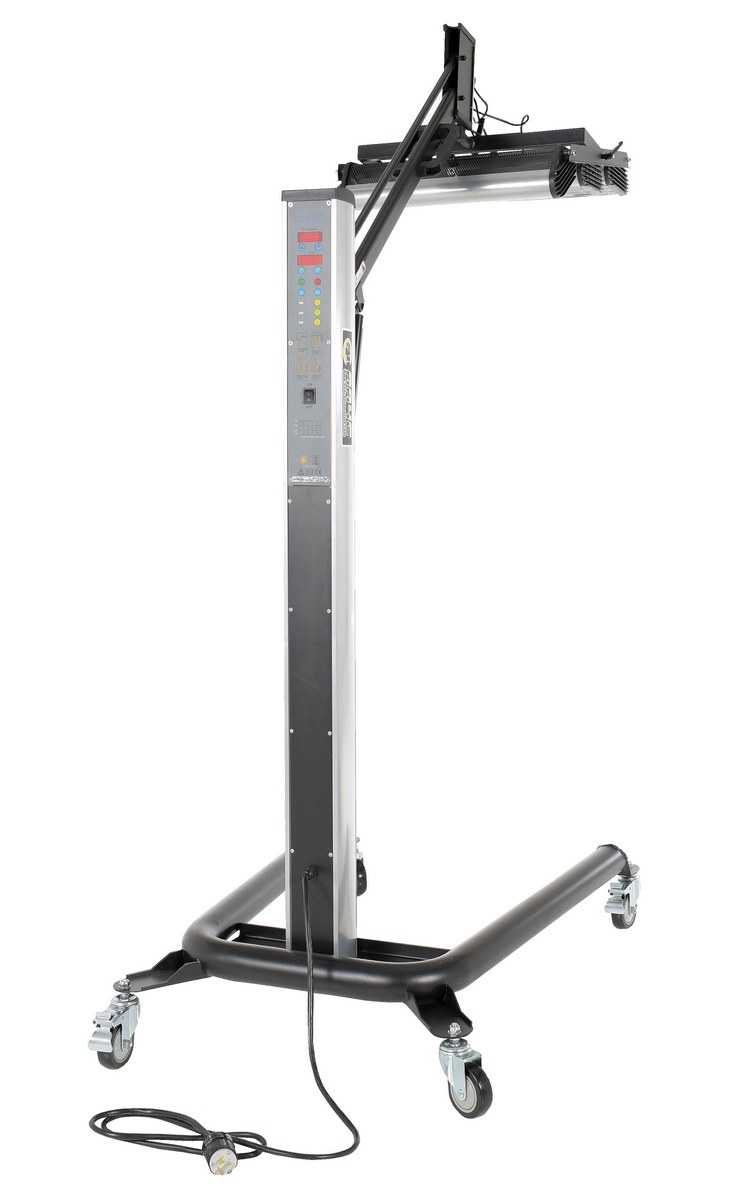

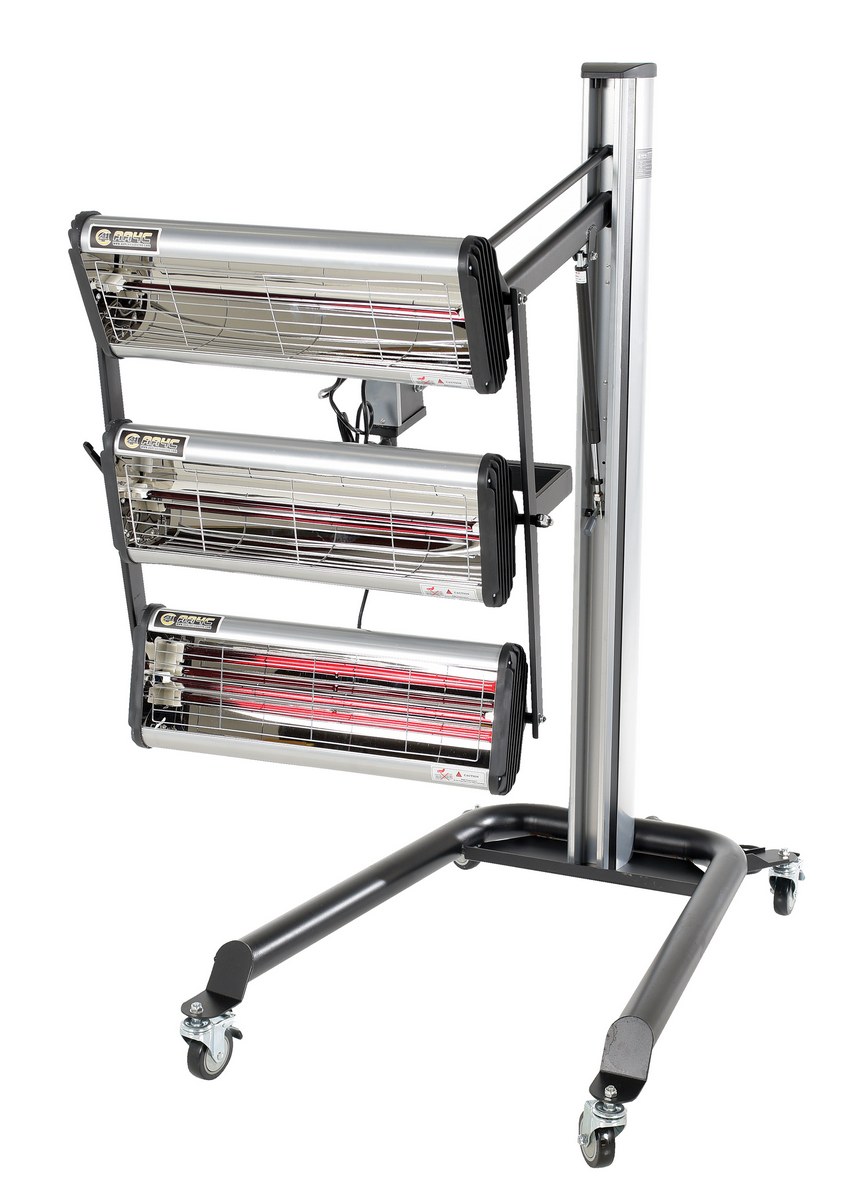

Infrared HeatersAn infrared heater provides beneficial warmth to a variety of industrial areas. A simple to use control panel allows the function and heat settings to be utilized in the best possible way for maximum efficiency. An adjustable heater arm gives the user the ability to maneuver the heating elements into a position that best fits the type of surface that is being heated. Unit includes casters to easily maneuver the unit to and around the work area. A robust structural construction endures work place conditions that are continually changing. HEAT-3P-230-1 has a 0-99 minute timer, while
HEAT-4P-230-1 and HEAT-6P-230-1 both have a 0-60 minute timer.
- (4)swivel 4"x1" poly on poly casters
- Cord Length: 7'
- HZ/Voltage/Phase: 60/220/1
High Performance Circulator Fans
Portable Infrared Heat Panels
Variable Speed Air Curtains
Commercial Circulator FansAdditional Models In This Family
HEAT-3P-230-1
HEAT-6P-230-1
HEAT-4P-230-1
HEAT-3P-230-1
HEAT-6P-230-1
HEAT-6P-230-1
HEAT-4P-230-1
HEAT-3P-230-1
HEAT-3P-230-1
HEAT-3P-230-1
HEAT-4P-230-1
HEAT-6P-230-1
HEAT-6P-230-1
HEAT-6P-230-1
HEAT-4P-230-1
| Model # | Description | Attributes | Net Wt. (lbs) |
||||
|---|---|---|---|---|---|---|---|
| HEAT-3P-230-1 | | 90 Days Limited Warranty | Steel Infrared Heater 3 Panel 230 Volt 1 Phase Black/Silver | Lowered Height (in.): 16-3/8 Raised Height (in.): 95-3/8 | 183 | ||
| HEAT-4P-230-1 | | 90 Days Limited Warranty | Steel Infrared Heater 4 Panel 230 Volt 1 Phase Black/Silver | Lowered Height (in.): 9-3/8 Raised Height (in.): 87-3/8 | 223 | ||
| HEAT-6P-230-1 | | 90 Days Limited Warranty | Steel Infrared Heater 6 Panel 230 Volt 1 Phase Black/Silver | Lowered Height (in.): 6-3/8 Raised Height (in.): 78-3/8 | 230 |
KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required
Unit:
Size: W x L x H
Weight:
Limited Warranty
Lowered Height (in.): 16-3/8
Raised Height (in.): 95-3/8
Lowered Height (in.): 16-3/8
Raised Height (in.): 95-3/8
Unit:
Size: W x L x H
Weight:
Limited Warranty
Lowered Height (in.): 9-3/8
Raised Height (in.): 87-3/8
Lowered Height (in.): 9-3/8
Raised Height (in.): 87-3/8
Unit:
Size: W x L x H
Weight:
Limited Warranty
Lowered Height (in.): 6-3/8
Raised Height (in.): 78-3/8
Lowered Height (in.): 6-3/8
Raised Height (in.): 78-3/8
Manuals
Survey Sheets
Approval Drawings
Testing Certificates
SDS Sheets
Other PDF's
Directory Links Of Available PDF's For All Products
Q: What is the temperature range for model HEAT-6P-230-1?
A: Temperature range HEAT-6P-230-1 is 113-167° F.
Q: How is the temperature controlled within a range for HEAT-6P-230-1?
A: The temperature is controlled through a light adjustment, the brighter the light, the higher the temperature.
Q: Can this heater run for longer than 50 hours continuously?
A: It is not recommended to run the heater continuously for 50 hours. Recommend continuous usage is one hour. The operation can be resumed after 15 minutes.
Q: What is the temperature range for model HEAT-3P-230-1?
A: Temperature range for HEAT-3P-230-1 is 104-158 degrees F.
Q: Will the Infrared Heaters heat an entire room?
A: The Infrared Heaters will only heat what is in front of them- not the whole room.
Q: How close does something have to be for the Infrared Heaters to be effective?
A: HEAT-3P-230-1: 32X48 sq.in / HEAT-6P-230-1: 48X63 sq.in
 |
||||||||||||||||||||||
Infrared Heaters |
||||||||||||||||||||||
 |
||||||||||||||||||||||
An infrared heater provides beneficial warmth to a variety of industrial areas. A simple to use control panel allows the function and heat settings to be utilized in the best possible way for maximum efficiency. An adjustable heater arm gives the user the ability to maneuver the heating elements into a position that best fits the type of surface that is being heated. Unit includes casters to easily maneuver the unit to and around the work area. A robust structural construction endures work place conditions that are continually changing. HEAT-3P-230-1 has a 0-99 minute timer, while
|
||||||||||||||||||||||
 |
||||||||||||||||||||||
|
||||||||||||||||||||||
