Truck Actuated Dock LevelersTruck Actuated Dock Levelers are designed to provide a seamless and automatic way to bridge the gap between a truck and a loading dock, ensuring a smooth transition for loading and unloading goods. They are a fully automatic loading ramp where there is no dock attendant needed. It consists of a lift by-pass for safety and toe guards on each side. As the truck backs against the twin actuating arms (bumpers) it pushes the carriage back. The dock and trailer must be raised for this process to work. As the carriage goes back the deck goes up. When the carriage bumpers contact the dock, the deck floats down to rest on the trailer. When the truck pulls out, the deck returns to level supported position automatically.
- 55,000 psi high strength checker plate deck
- 12" long lip (extends 6-1/2" into truck)
- Toeguards on each side
- (2) Molded Bumpers; 5"W x 16"H x 2"D
- Lift By-Pass for Safety
- Service range of 12" above through 8" below dock
Edge-O-Dock Levelers
Mechanical Dock Levelers
Weather Stripping (for pit mounted dock levelers)
All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
| Model # | Description | Attributes | Net Wt. (lbs) |
||||
|---|---|---|---|---|---|---|---|
| PU-600-SCB | |  | 1 Year Limited Warranty | Steel Truck Actuated Dock Leveler Front of Dock 6 Ft. Length 20000 Lb. Capacity Brown | Uniform Capacity (lb.): 20,000 Molded Bumper Width (in.): 5 | 2394 | |
| PU-800-SCB | |  | 1 Year Limited Warranty | Steel Truck Actuated Dock Leveler Front of Dock 8 Ft. Length 20000 Lb. Capacity Brown | Uniform Capacity (lb.): 20,000 Molded Bumper Width (in.): 5 | 2830 | |

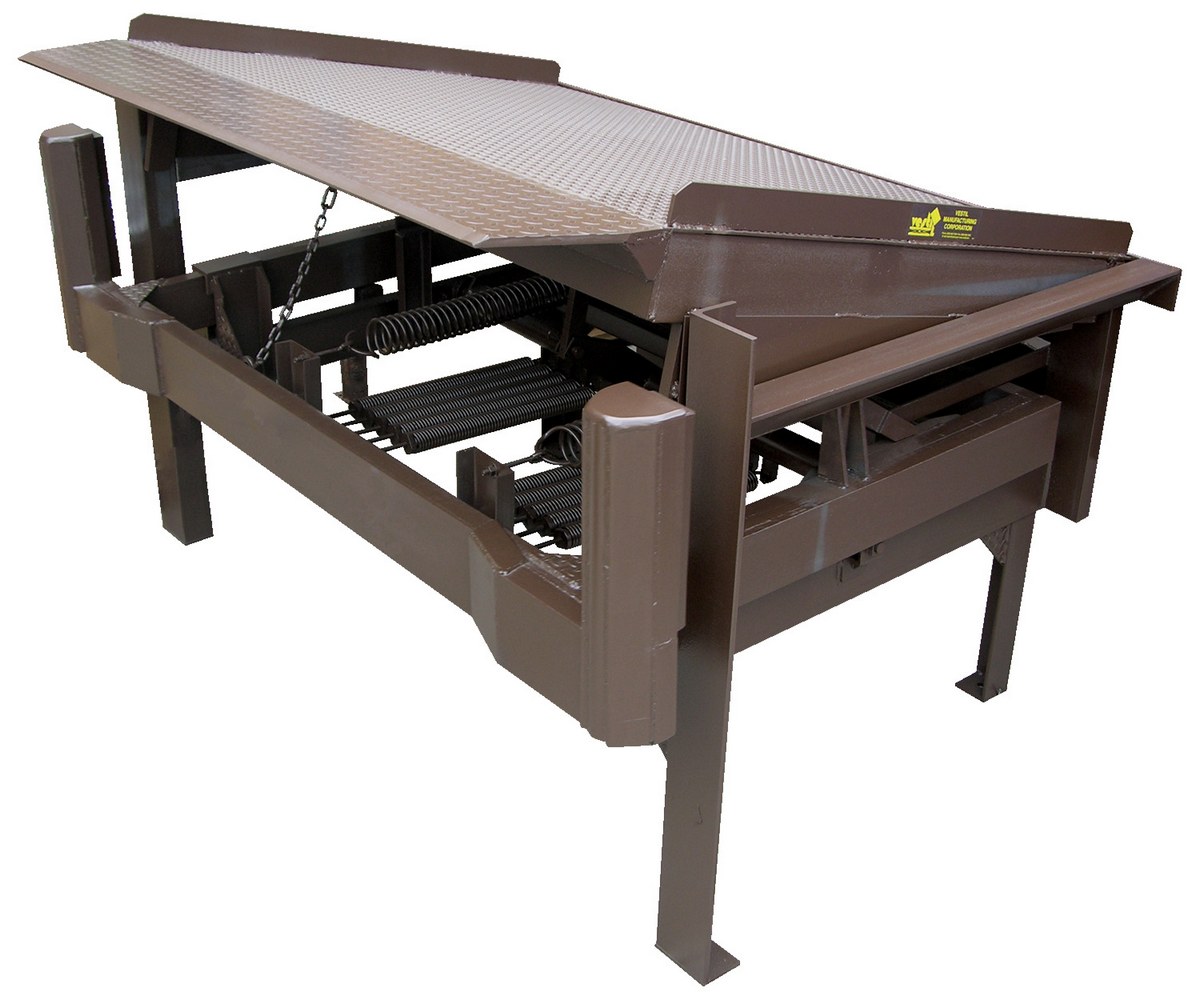

| PU-1000-SCB | |  | 1 Year Limited Warranty | Steel Truck Actuated Dock Leveler Front of Dock 10 Ft. Length 20000 Lb. Capacity Brown | Uniform Capacity (lb.): 20,000 Molded Bumper Width (in.): 5 | 3203 | |

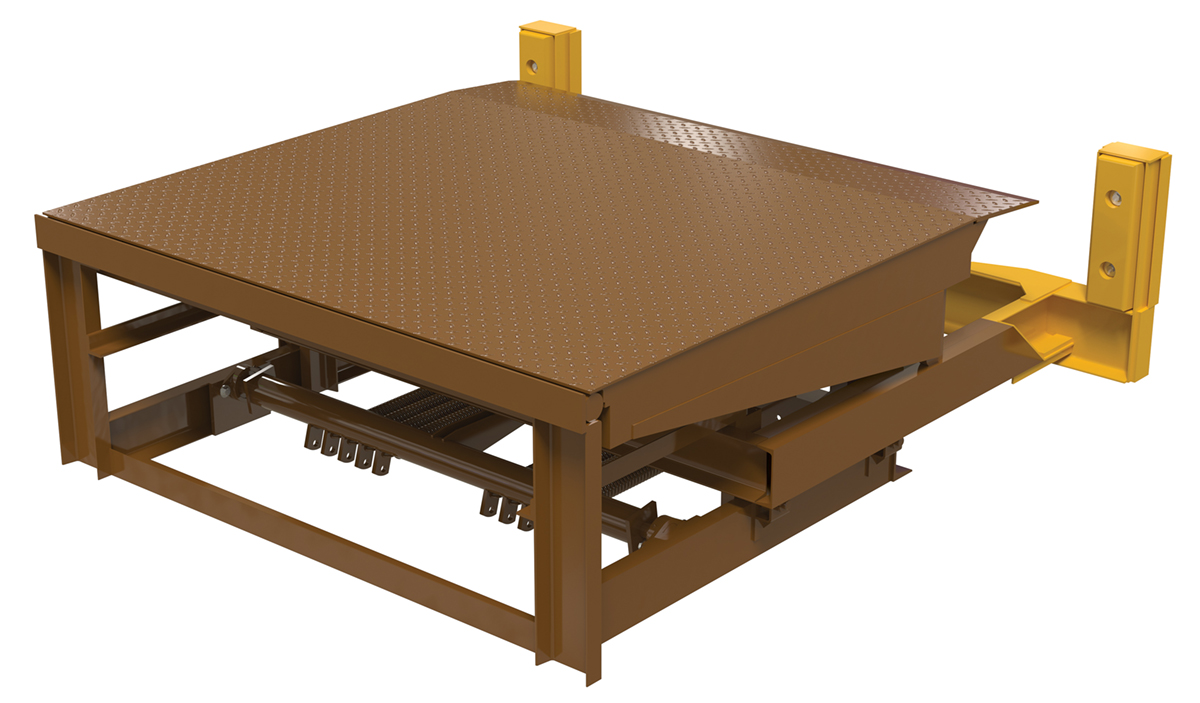

| RU-600-SCB | |  | 1 Year Limited Warranty | Steel Truck Actuated Dock Leveler 85-1/4 In. x 88 In. x 27-1/2 In. 20000 Lb. Capacity Brown | Uniform Capacity (lb.): 20,000 Molded Bumper Width (in.): 5 | 2056 | |

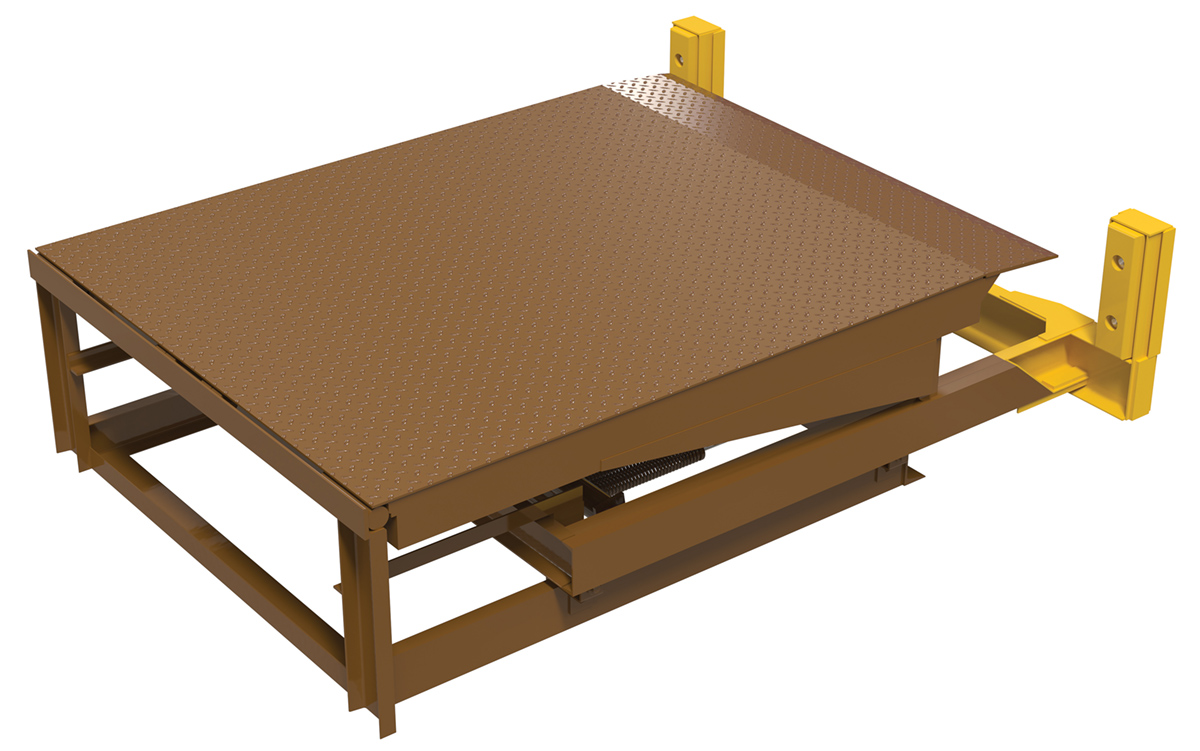

| RU-800-SCB | |  | 1 Year Limited Warranty | Steel Truck Actuated Dock Leveler 107-1/4 In. x 88 In. x 27-1/2 In. 20000 Lb. Capacity Brown | Uniform Capacity (lb.): 20,000 Molded Bumper Width (in.): 5 | 2425 | |

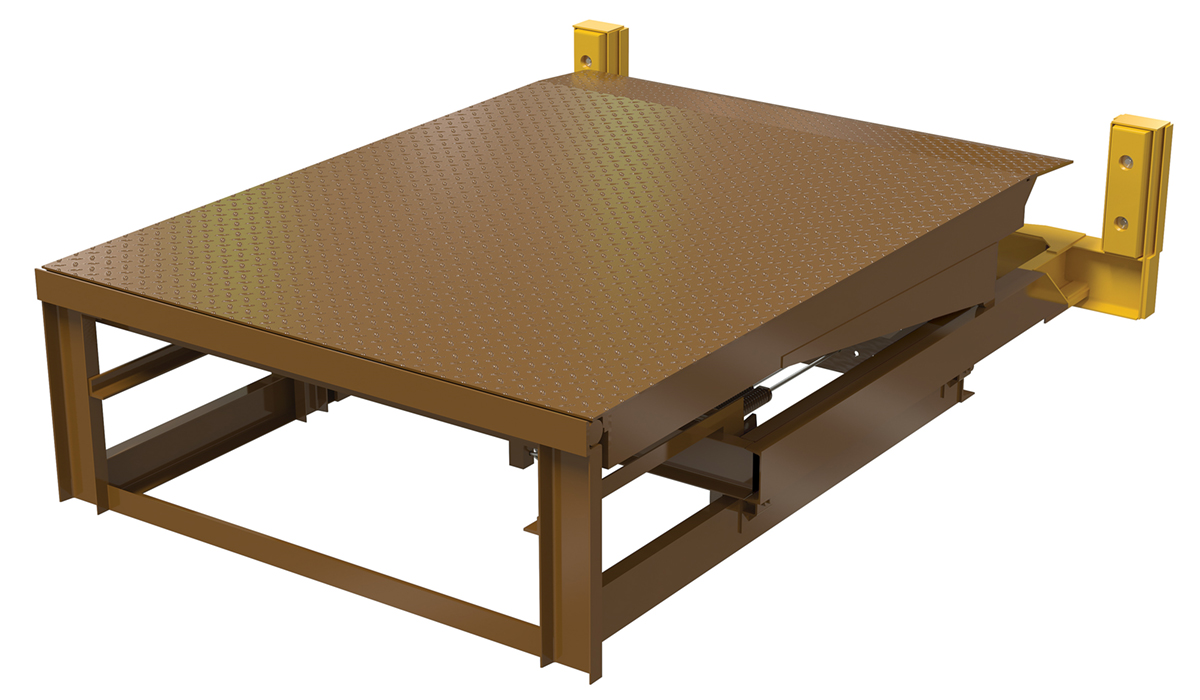

| RU-800-SCB-F | |  | 1 Year Limited Warranty | Steel Truck Actuated Dock Leveler 113-1/4 In. x 88 In. x 27-1/2 In. 20000 Lb. Capacity Brown | Uniform Capacity (lb.): 20,000 Molded Bumper Width (in.): 5 | 2475 | |

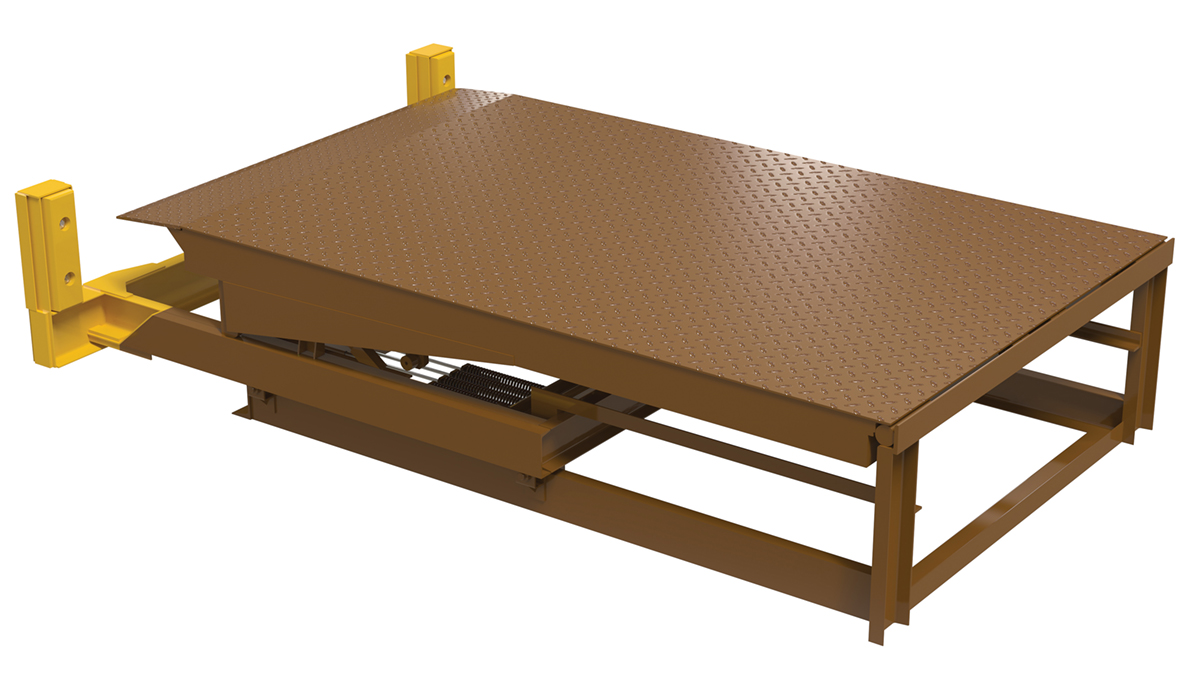

| RU-1000-SCB | |  | 1 Year Limited Warranty | Steel Truck Actuated Dock Leveler 131-1/16 In. x 88 In. x 27-1/2 In. 20000 Lb. Capacity Brown | Uniform Capacity (lb.): 20,000 Molded Bumper Width (in.): 5 | 2730 | |
| SU-600-SCB | |  | 1 Year Limited Warranty | Steel Actuated Dock Leveler with Legs 84-1/2 In. x 88 In. 20,000 Lb. Capacity Brown | Uniform Capacity (lb.): 20,000 Molded Bumper Width (in.): 5 | 2147 | |
| SU-800-SCB | |  | 1 Year Limited Warranty | Steel Actuated Dock Leveler with Legs 107-1/4 In. x 88 In. 20,000 Lb. Capacity Brown | Uniform Capacity (lb.): 20,000 Molded Bumper Width (in.): 5 | 2516 | |
| SU-800-SCB-F | |  | 1 Year Limited Warranty | Steel Actuated Dock Leveler with Legs 113-1/4 In. x 88 In. 20,000 Lb. Capacity Brown | Uniform Capacity (lb.): 20,000 Molded Bumper Width (in.): 5 | 2592 | |

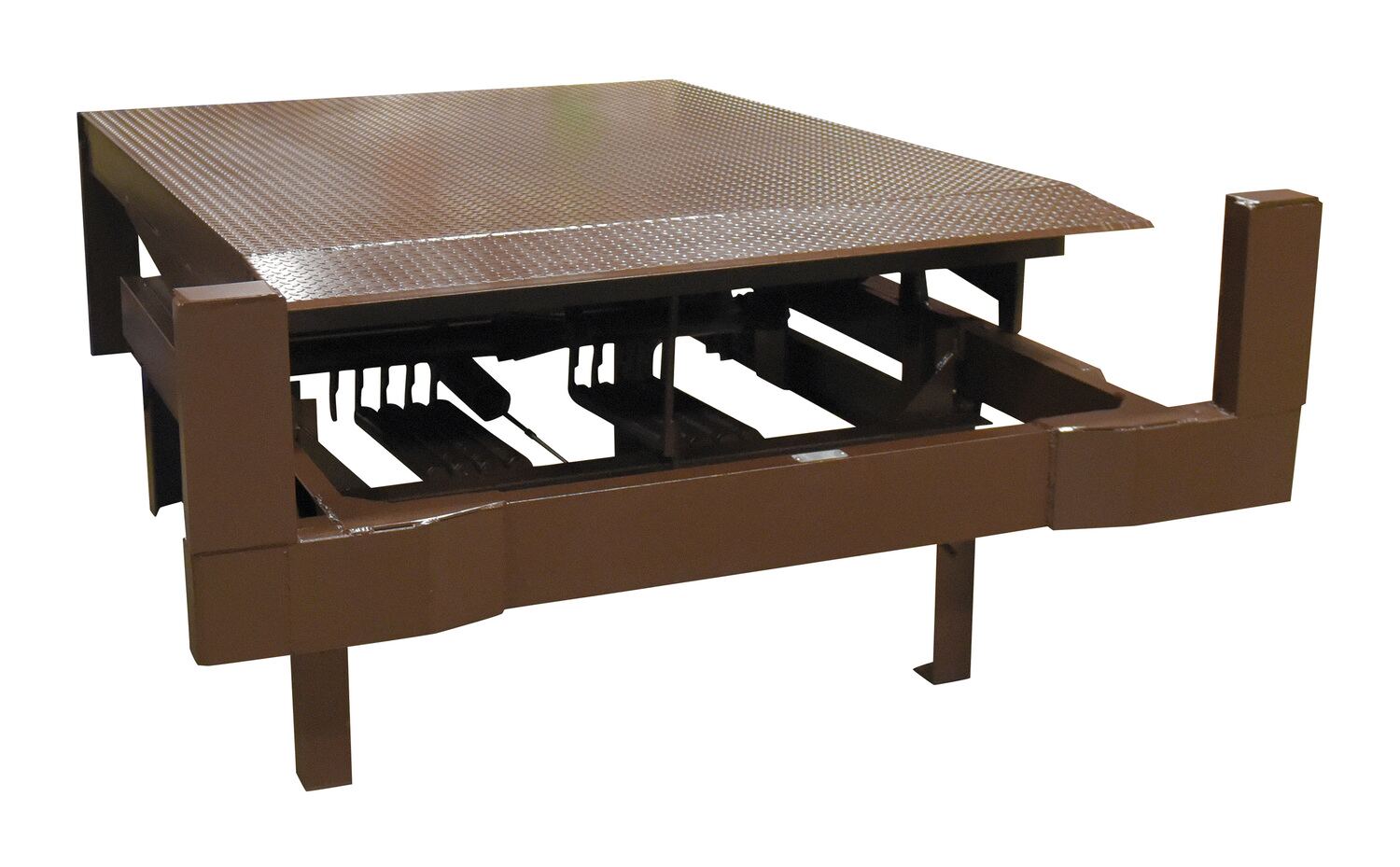

| SU-1000-SCB | |  | 1 Year Limited Warranty | Steel Actuated Dock Leveler with Legs 131 In. x 88 In. 20,000 Lb. Capacity Brown | Uniform Capacity (lb.): 20,000 Molded Bumper Width (in.): 5 | 2821 |
KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required
If you did not find an expected Model or SKU # in the table, try the Options Section Below
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 20,000
Molded Bumper Width (in.): 5
Uniform Capacity (lb.): 20,000
Molded Bumper Width (in.): 5
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 20,000
Molded Bumper Width (in.): 5
Uniform Capacity (lb.): 20,000
Molded Bumper Width (in.): 5
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 20,000
Molded Bumper Width (in.): 5
Uniform Capacity (lb.): 20,000
Molded Bumper Width (in.): 5
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 20,000
Molded Bumper Width (in.): 5
Uniform Capacity (lb.): 20,000
Molded Bumper Width (in.): 5
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 20,000
Molded Bumper Width (in.): 5
Uniform Capacity (lb.): 20,000
Molded Bumper Width (in.): 5
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 20,000
Molded Bumper Width (in.): 5
Uniform Capacity (lb.): 20,000
Molded Bumper Width (in.): 5
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 20,000
Molded Bumper Width (in.): 5
Uniform Capacity (lb.): 20,000
Molded Bumper Width (in.): 5
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 20,000
Molded Bumper Width (in.): 5
Uniform Capacity (lb.): 20,000
Molded Bumper Width (in.): 5
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 20,000
Molded Bumper Width (in.): 5
Uniform Capacity (lb.): 20,000
Molded Bumper Width (in.): 5
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 20,000
Molded Bumper Width (in.): 5
Uniform Capacity (lb.): 20,000
Molded Bumper Width (in.): 5
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 20,000
Molded Bumper Width (in.): 5
Uniform Capacity (lb.): 20,000
Molded Bumper Width (in.): 5
For More Details of the Option Click the Red Model Button
| BE |  | 30 Days Limited Warranty | Factory Installed Welded Bumper Extension For Truck Actuated Dock Levelers | Size: Fabricated to Fit Unit | 48 | |

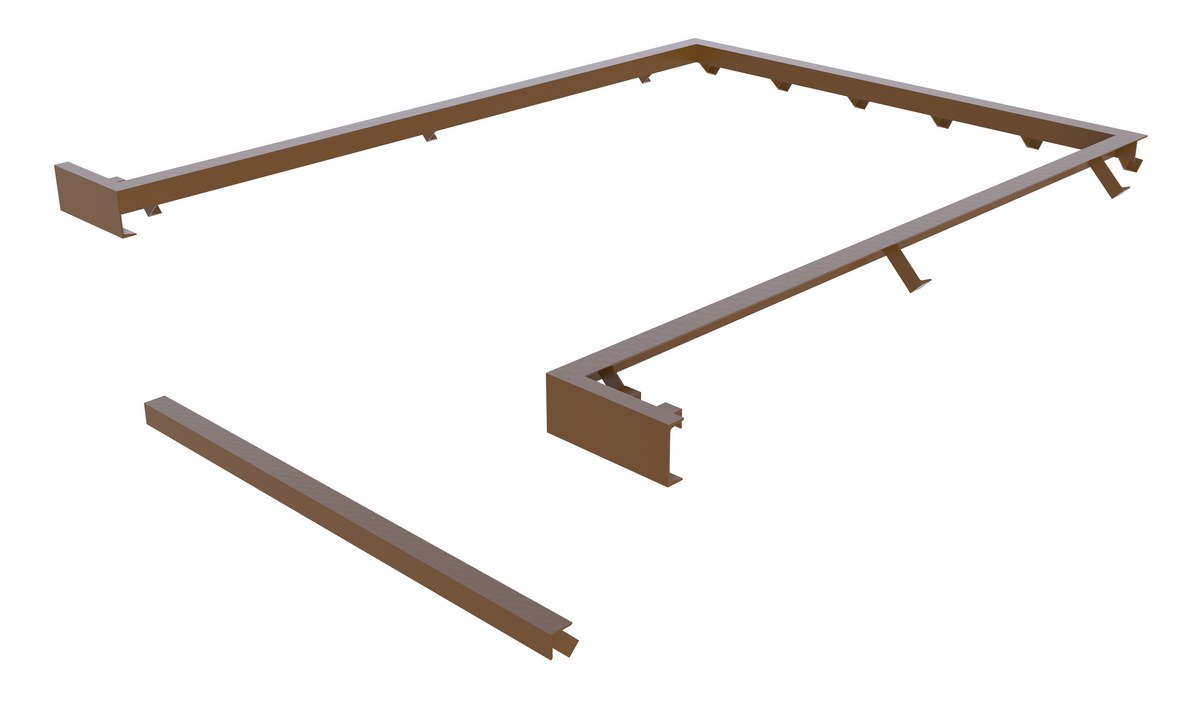

| CAS-RU-1000 |  | 90 Days Limited Warranty | Factory Installed Steel Curb Angle Set Usable Dimensions 104-1/2 In. x 74 In. x 28 In. For RU-1000-SCB | Usable Width (in.): 74 Usable Length (in.): 104-1/2 | 233 | |

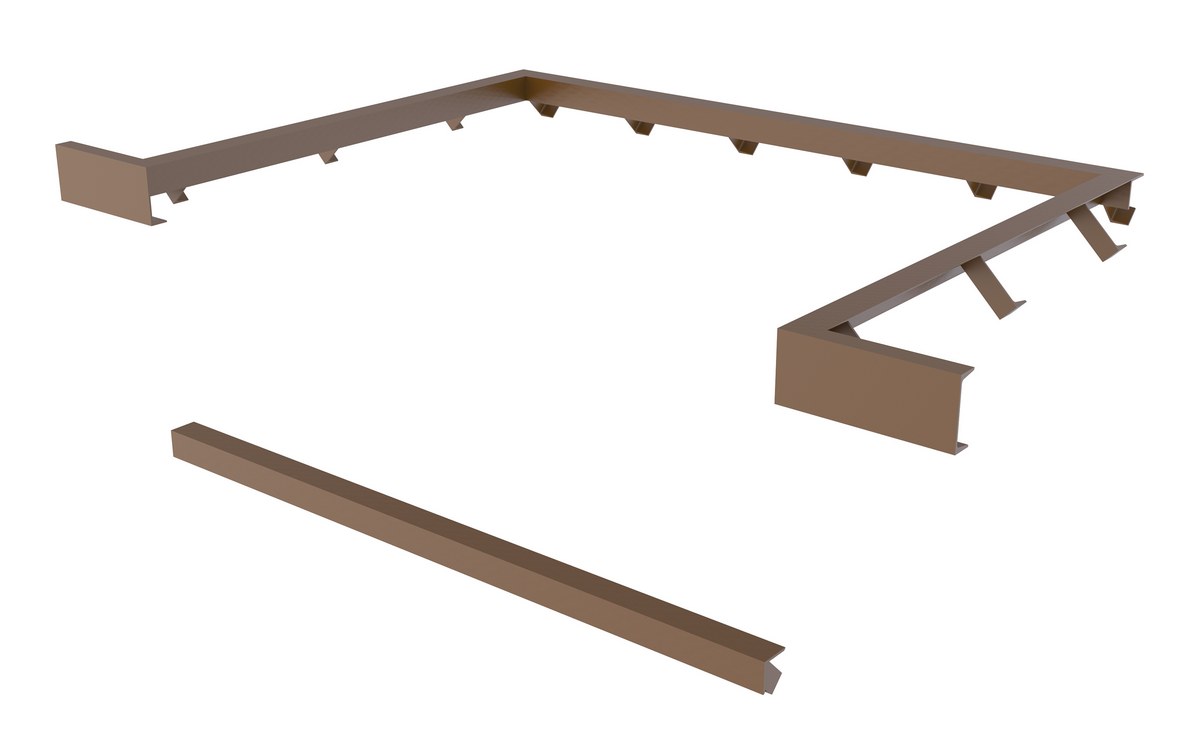

| CAS-RU-600 |  | 90 Days Limited Warranty | Factory Installed Steel Curb Angle Set Usable Dimensions 56-1/2 In. x 74 In. x 28 In. For RU-600-SCB | Usable Width (in.): 74 Usable Length (in.): 56-1/2 | 196 | |

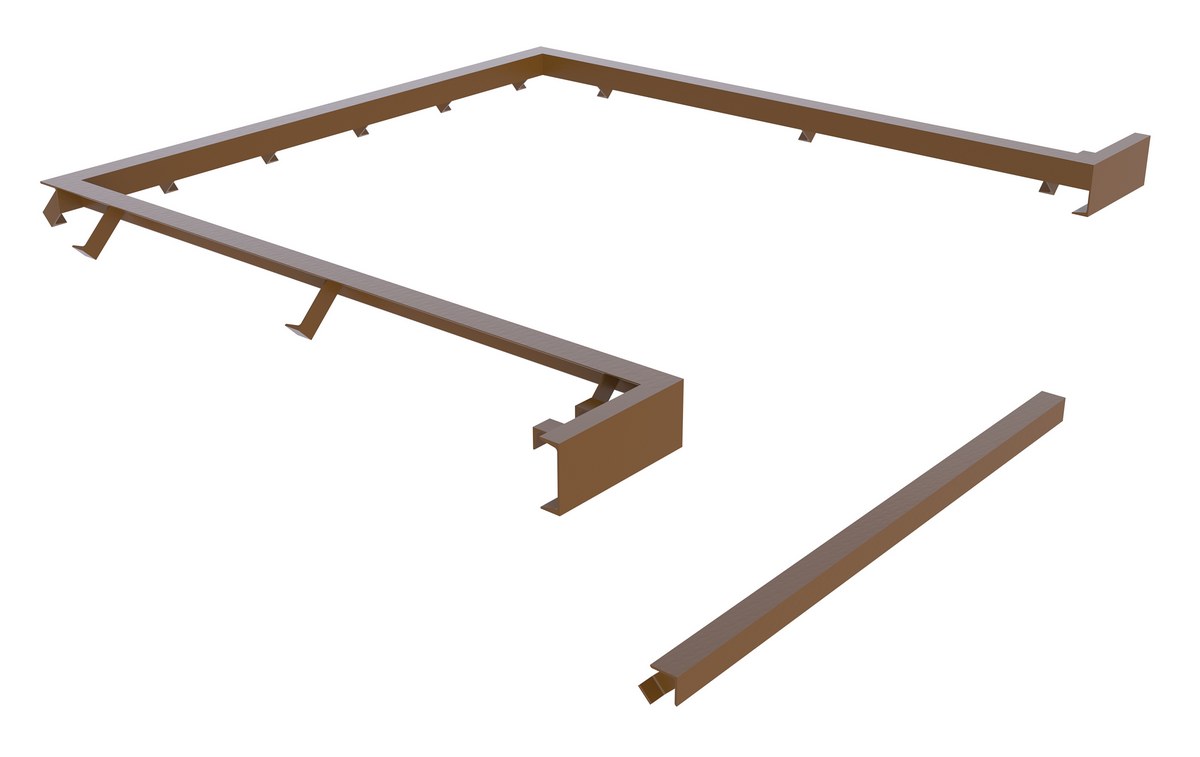

| CAS-RU-800 |  | 90 Days Limited Warranty | Factory Installed Steel Curb Angle Set Usable Dimensions 80-1/2 In. x 74 In. x 28 In. For RU-800-SCB | Usable Width (in.): 74 Usable Length (in.): 80-1/2 | 214 | |

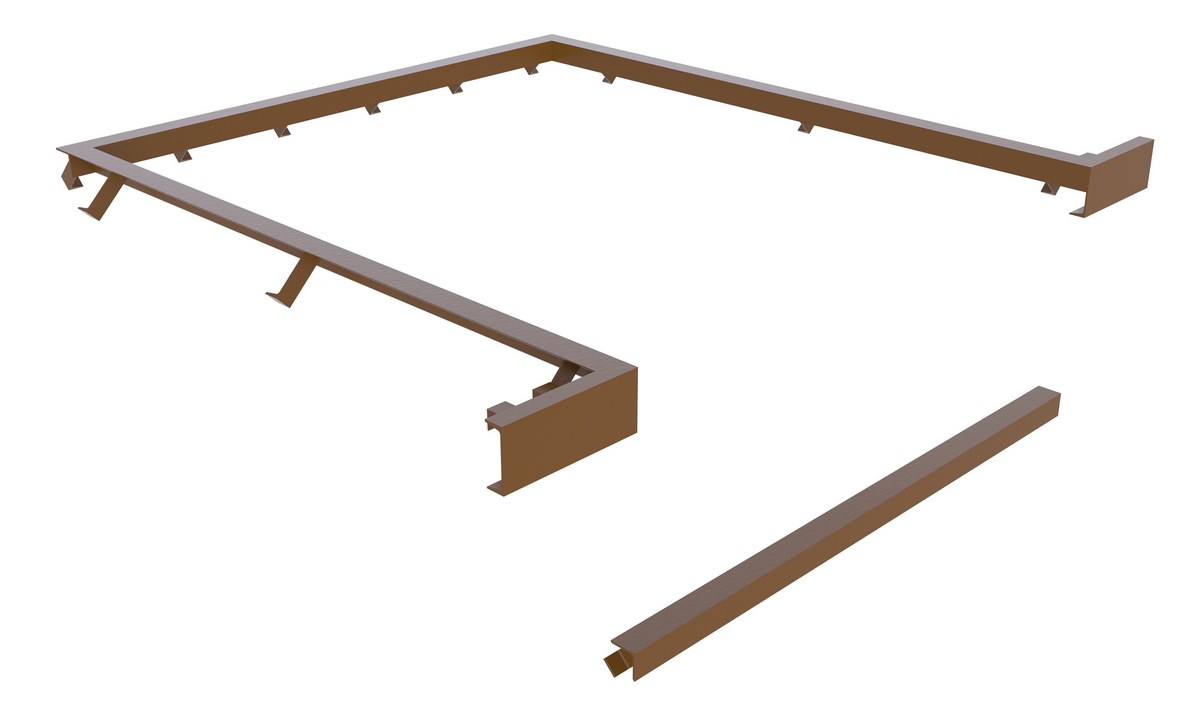

| CAS-RU-800-F |  | 90 Days Limited Warranty | Factory Installed Steel Curb Angle Set Usable Dimensions 86-1/2 In. x 74 In. x 28 In. For RU-800-SCB-F | Usable Width (in.): 74 Usable Length (in.): 86-1/2 | 318 | |
| SPO | | 30 Days Limited Warranty | Factory Installed Fabricated Shallow Pit To Fit Dock Leveler Units | Sizes: Fabricated to Fit Unit | ||
| SPO-RU | | 30 Days Limited Warranty | Factory Installed/Fabricated Shallow Pit 24 In. Minimum Depth To Fit Fully Automatic Loading Ramp Units | Sizes: Fabricated to Fit Unit Minimum Depth (in.): 24 | ||
| TA-30K/10 | | 30 Days Limited Warranty | Factory Installed Additional 30,000 Lb. Capacity for 10' Length Truck Actuated Dock Leveler | Additional Capacity Amount (lb.): 10000 | ||
| TA-30K/6 | | 30 Days Limited Warranty | Factory Installed Additional 30,000 Lb. Capacity for 6' Length Truck Actuated Dock Leveler | Additional Capacity Amount (lb.): 10000 | ||
| TA-30K/8 | | 30 Days Limited Warranty | Factory Installed Additional 30,000 Lb. Capacity for 8' Length Truck Actuated Dock Leveler | Additional Capacity Amount (lb.): 10000 |
| Model | Image | Description | Wt. (lbs.) |
||
| WS-DV |  |
Dual vinyl weather stripping (factory installed) | - | ||
| FI | |
Foam Insulation | 6 | ||
| Capacities to 100,000 pounds available - contact factory | |||||
