Dock Seal/Shelter Combinations

model: D-150-650-14

D-150-650-14_A.jpg D-150-650-15_A.jpg More Images +
Dock Seal/Shelter Combinations
SERIES: D-150/650

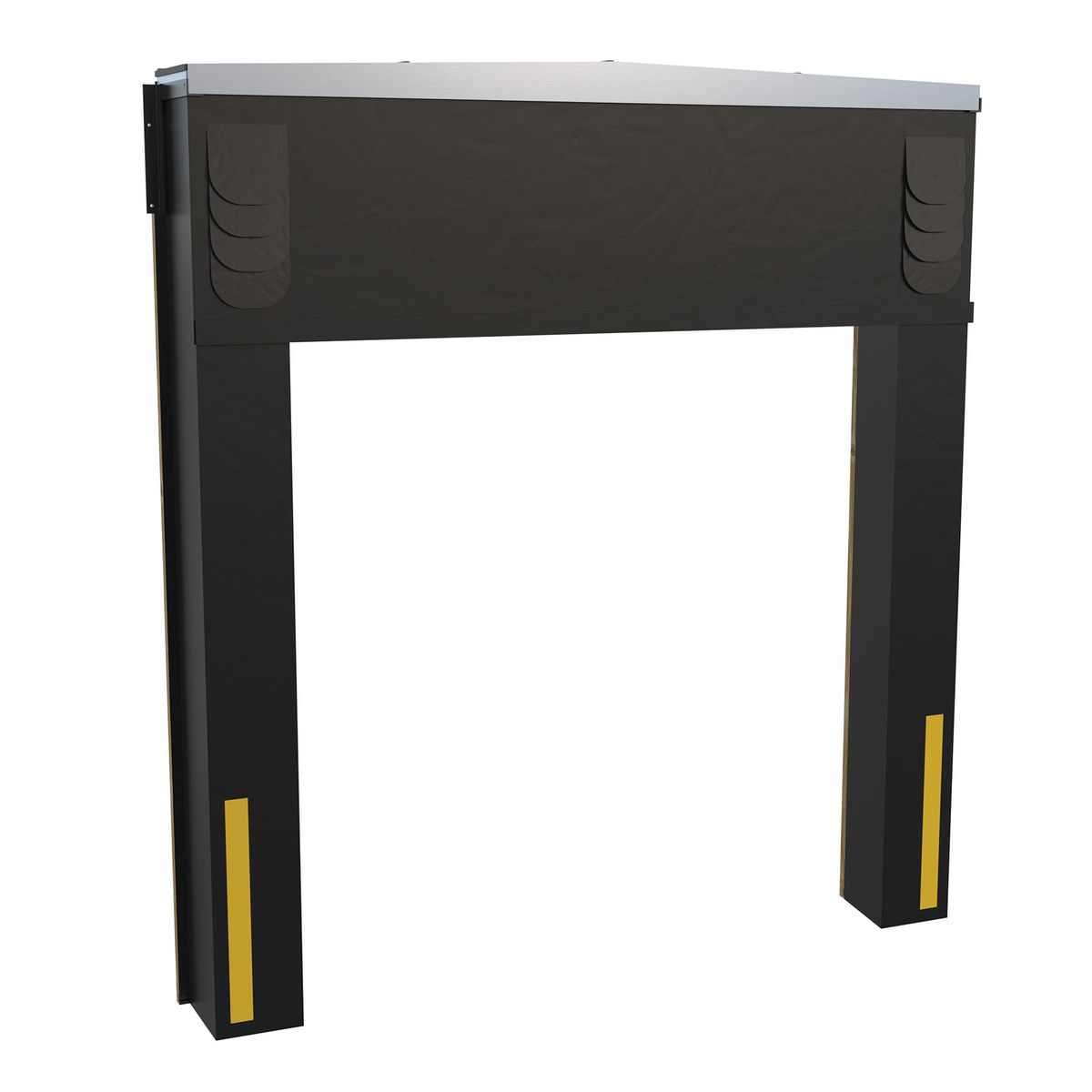

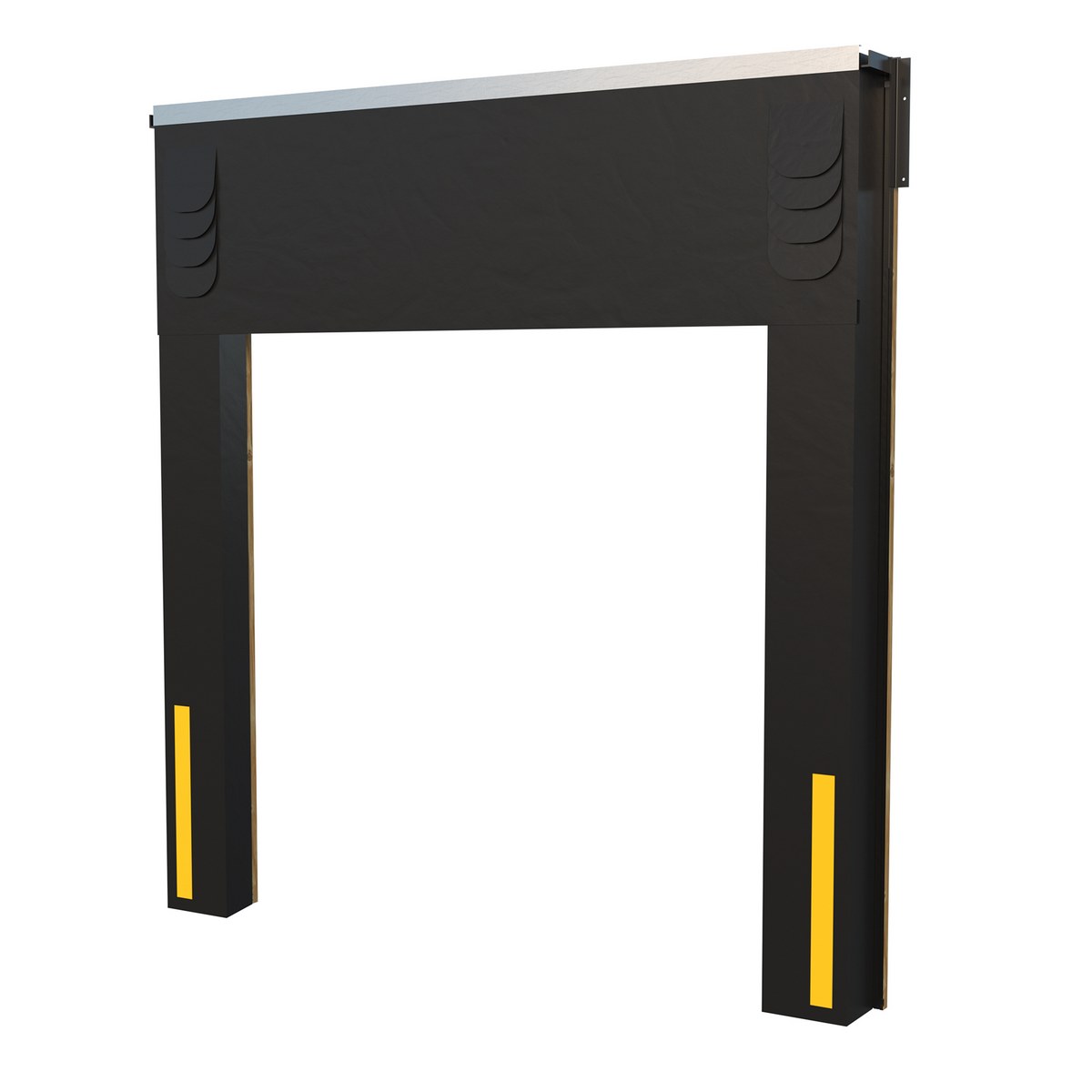

Dock Seal/Shelter Combinations are designed to provide both sealing and sheltering functions at loading docks, ensuring energy efficiency and protection from the elements. The Dock Seal/Shelter Combination is used with a 96"W x 120"H door. The top header is constructed of wolmanized lumber and is built with a slope to allow for water run-off. Header measures 114"W with a 30"L drop curtain. Side (verticals) measure 120" tall and contain high density foam mounted to treated lumber. The verticals are mounted on wooden boards (the face of the vertical measures 12"W and tapers to 9-1/2" at wall) allowing wall mounting down the length of the vertical pieces. Application with flush dock to building in conjunction with an Edge-O-Dock use a 20" projection Dock Seal. To ensure proper size complete and fax the survey sheet shown below. Units are non-returnable.

Dock Seals & Shelters Survey Sheet

  • Unique two-in-one design provides a dock seal & dock shelter
  • Maximum compression design offers the maximum protection
  • Built-in air tunnels allow air to escape when contacted by a trailer
  • Mounting hardware and installation instructions make installation quick and easy

Heat Lost

Dock Seal/Shelter Combinations

model: D-150-650-14

Model # Description Attributes Net Wt.
(lbs)

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= New Images Coming Soon! = Dimension Image = Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below
D-12F
D-150/650-10
D-150/650-11
D-150/650-12
D-150/650-13
D-150/650-14
D-150/650-15
D-150/650-16
D-150/650-17
D-150/650-18
D-150/650-19
D-150/650-20
D-18H
D-54OZ
D-AP
D-BBF
D-FHPFS
D-FHPS
D-GS
D-SV
For More Details of the Option Click the Red Model Button
Model Image Details Icons Wt.

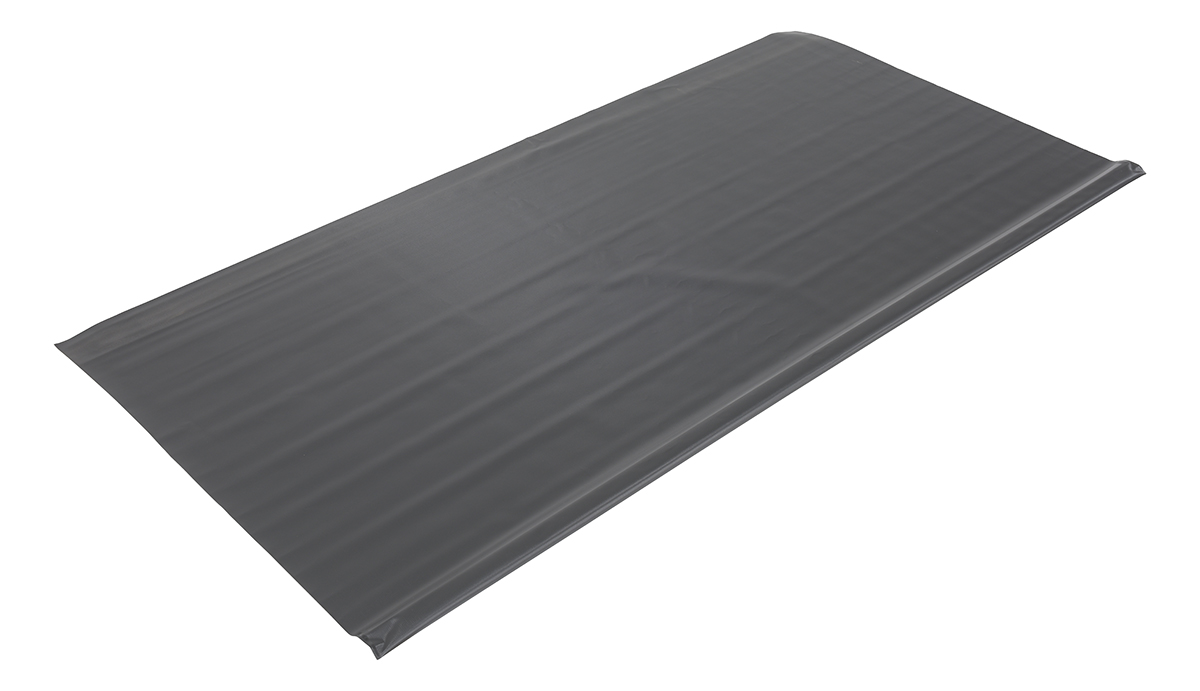

D-12F D-12F Factory Installed Vinyl Additional 12 In. Long Flap For Dock… 90 Days Limited Warranty 3
D-18H D-18H Factory Installed Vinyl Additional 10 Ft. Width Header For D… 90 Days Limited Warranty
D-54OZ D-54OZ Factory Installed 54 Ounce Vinyl Material Face Only For Dock… 90 Days Limited Warranty 1

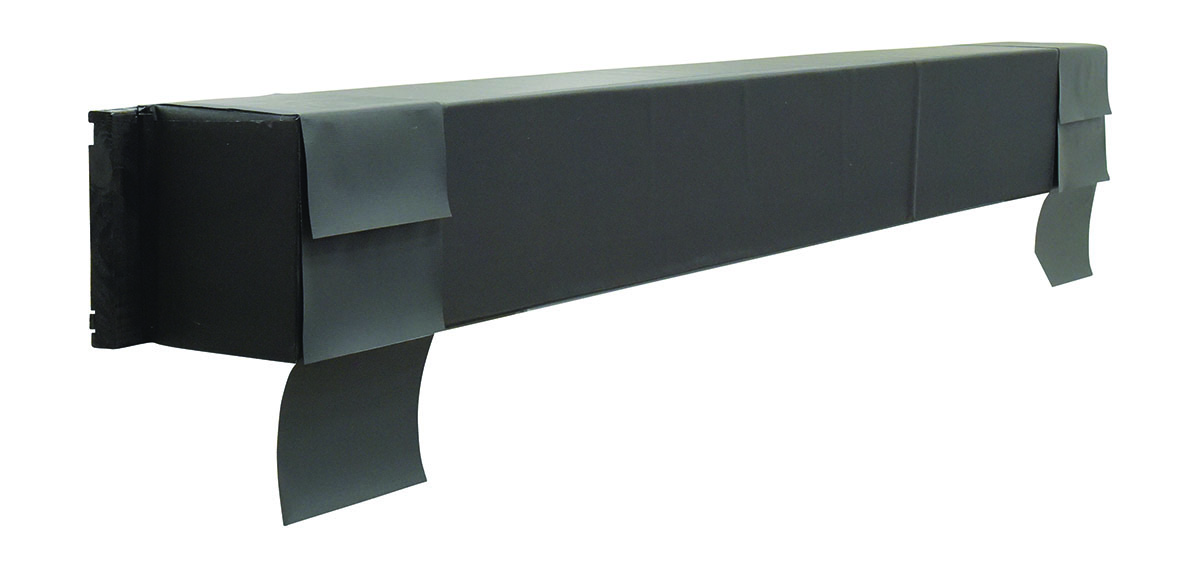

D-AP D-AP Factory Installed Armor Pleats Top 24 In. Only For Dock Seal… 90 Days Limited Warranty 2
D-BBF D-BBF Factory Installed Bottom Bun For Dock Seals 90 Days Limited Warranty

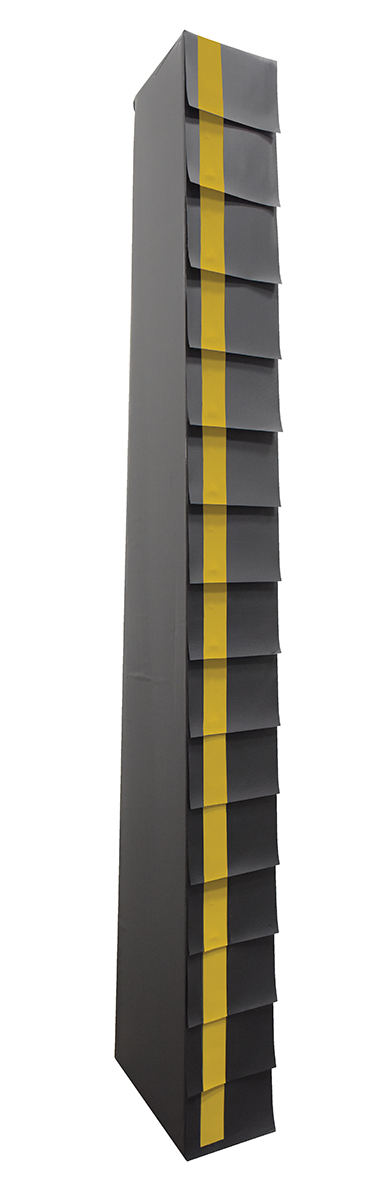

D-FHPFS D-FHPFS Factory Installed Full Height Pleats and Guide Strips For Do… 90 Days Limited Warranty

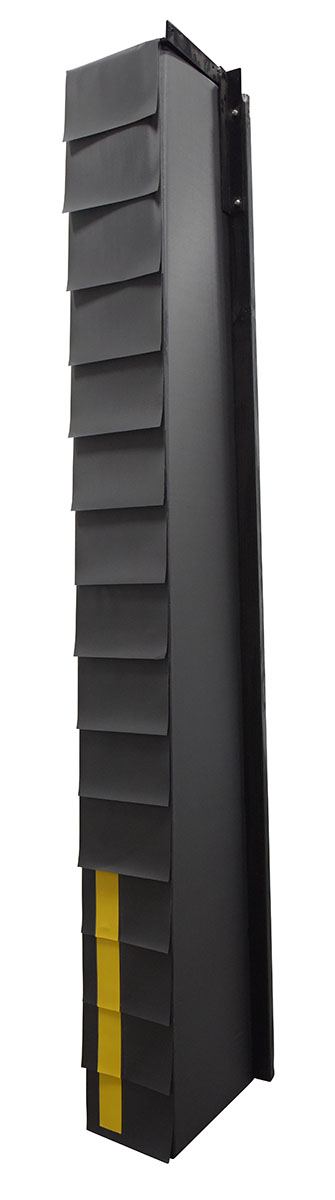

D-FHPS D-FHPS Factory Installed Full Height Pleats and Standard Guide 24 I… 90 Days Limited Warranty
D-GS D-GS Factory Installed Full Height Guide Strips For Dock Seal/She… 90 Days Limited Warranty

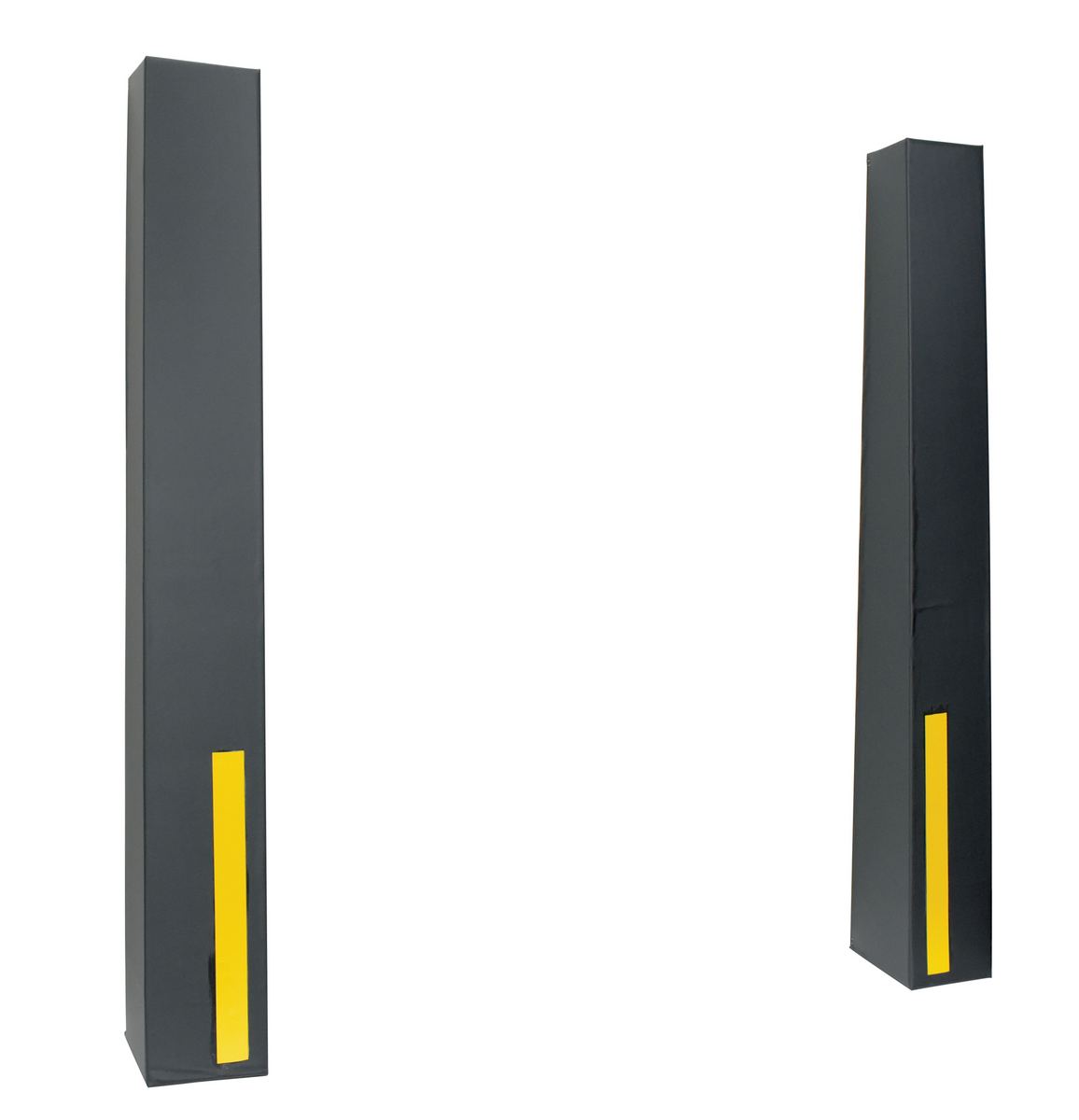

D-SV D-SV Factory Installed Sloped Verticals For Dock Seal/Shelter Com… 90 Days Limited Warranty
