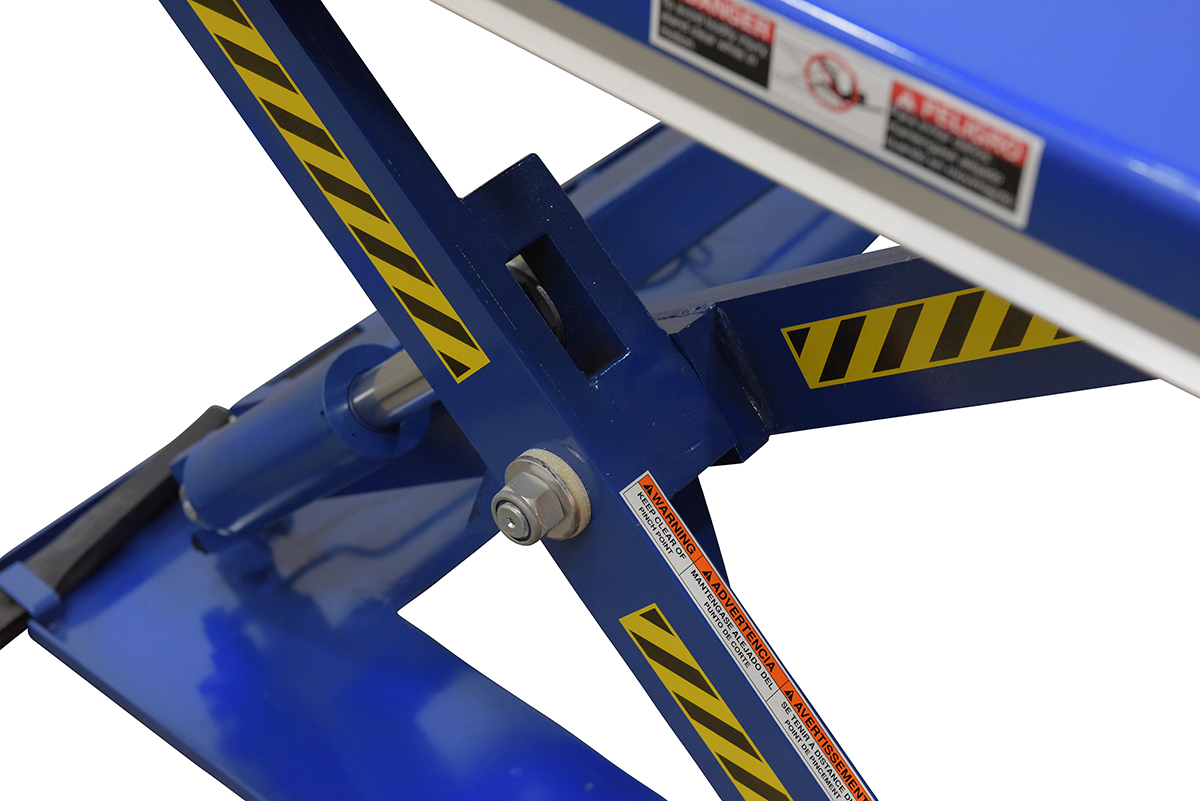

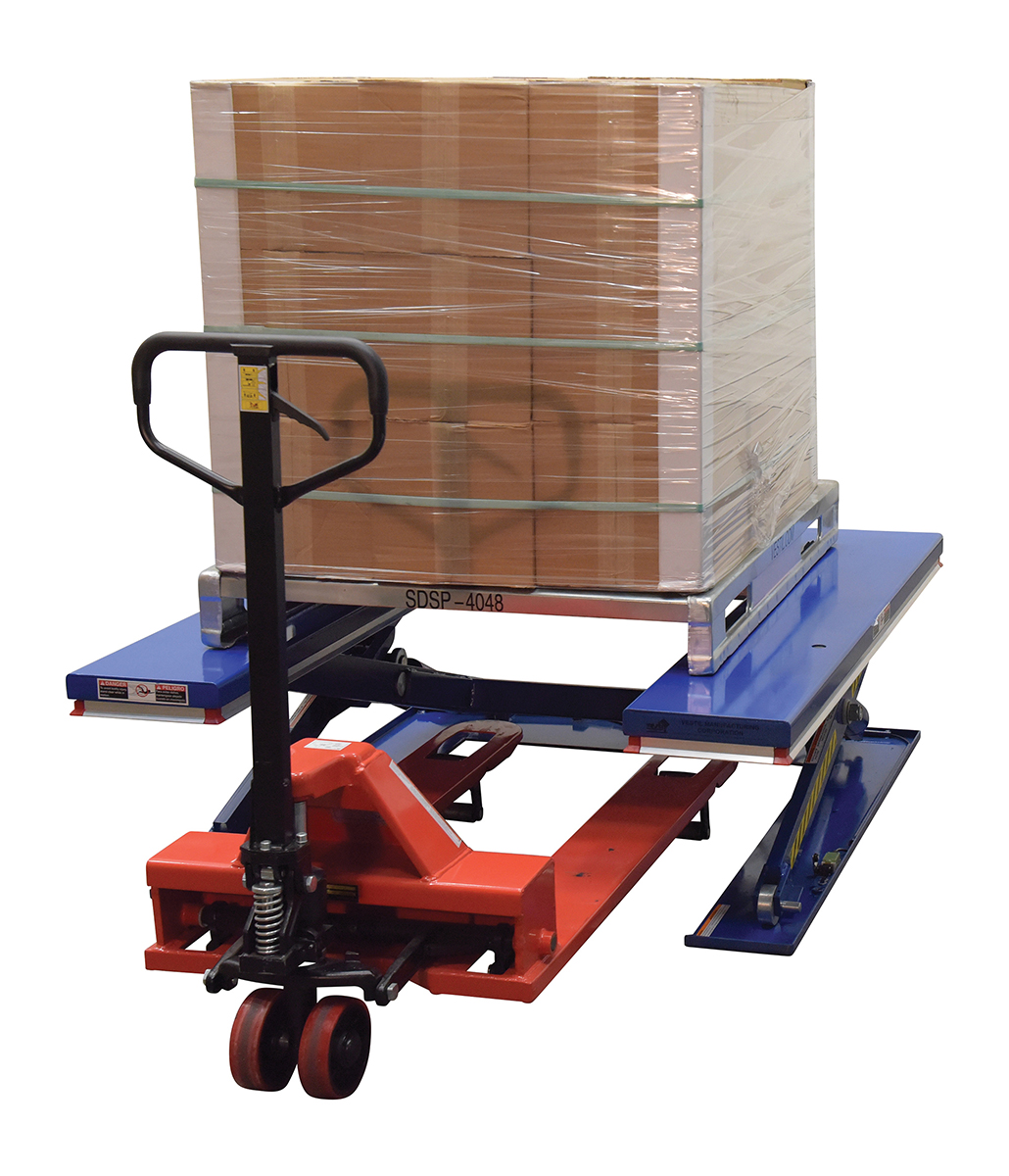

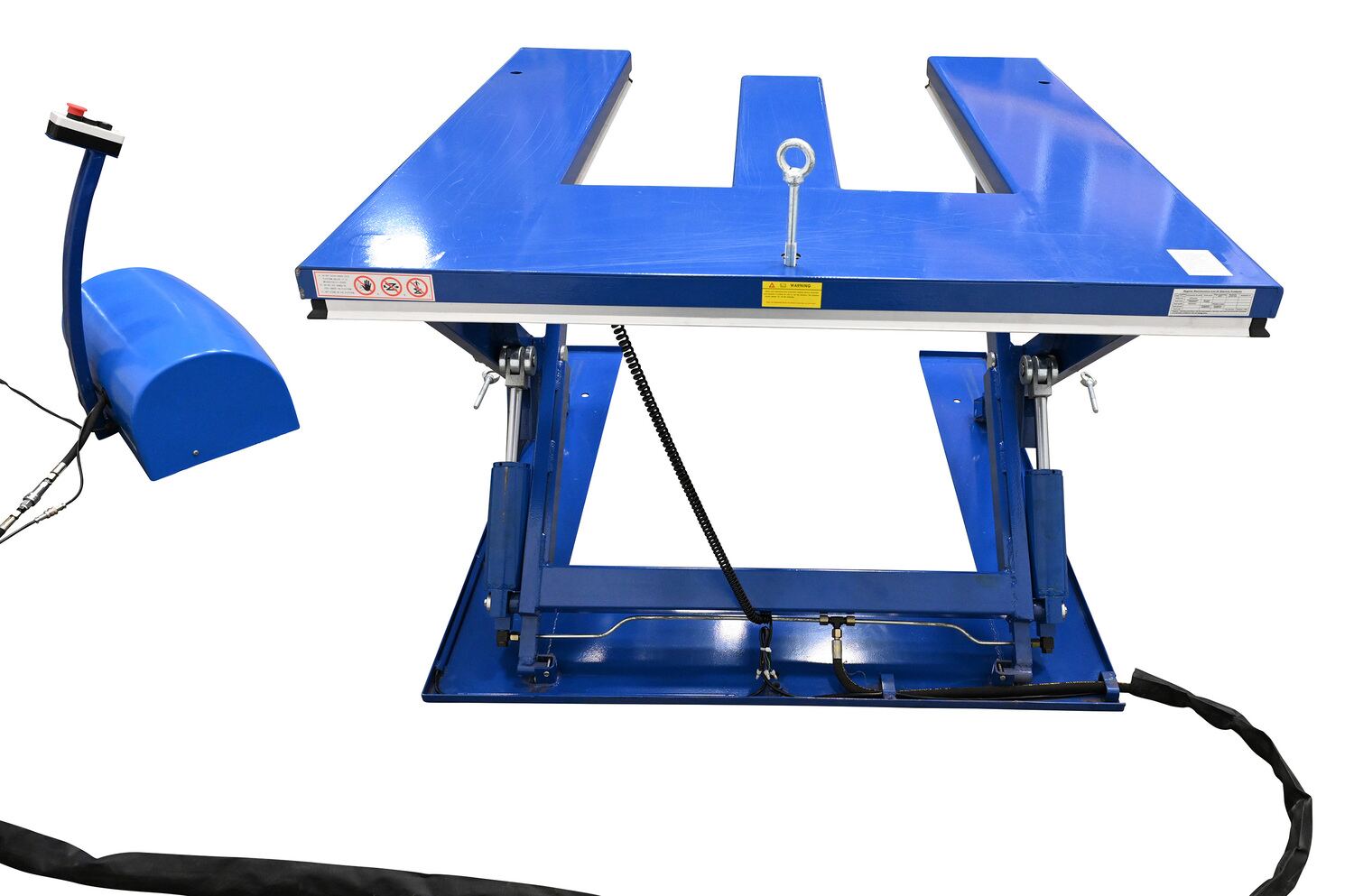

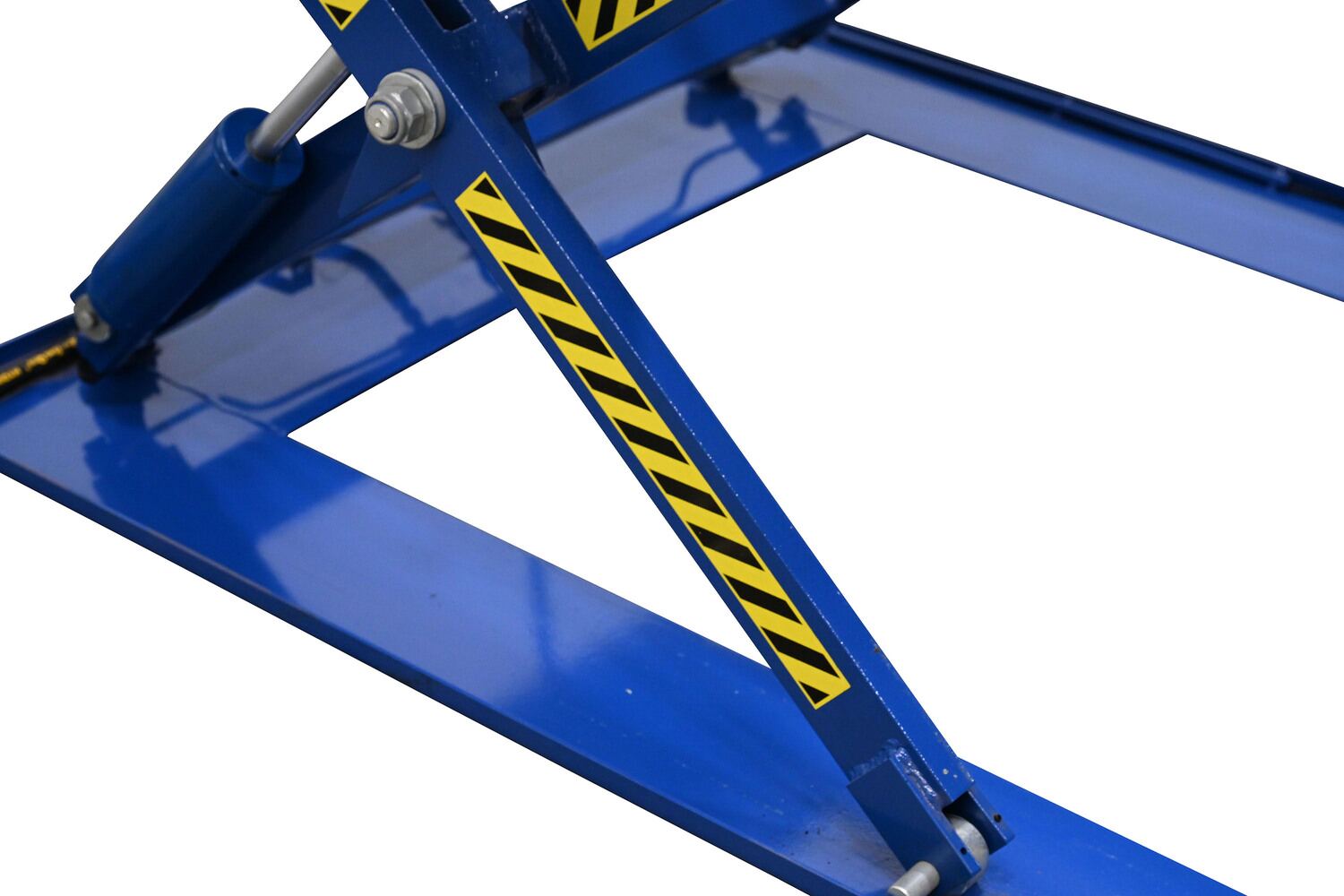

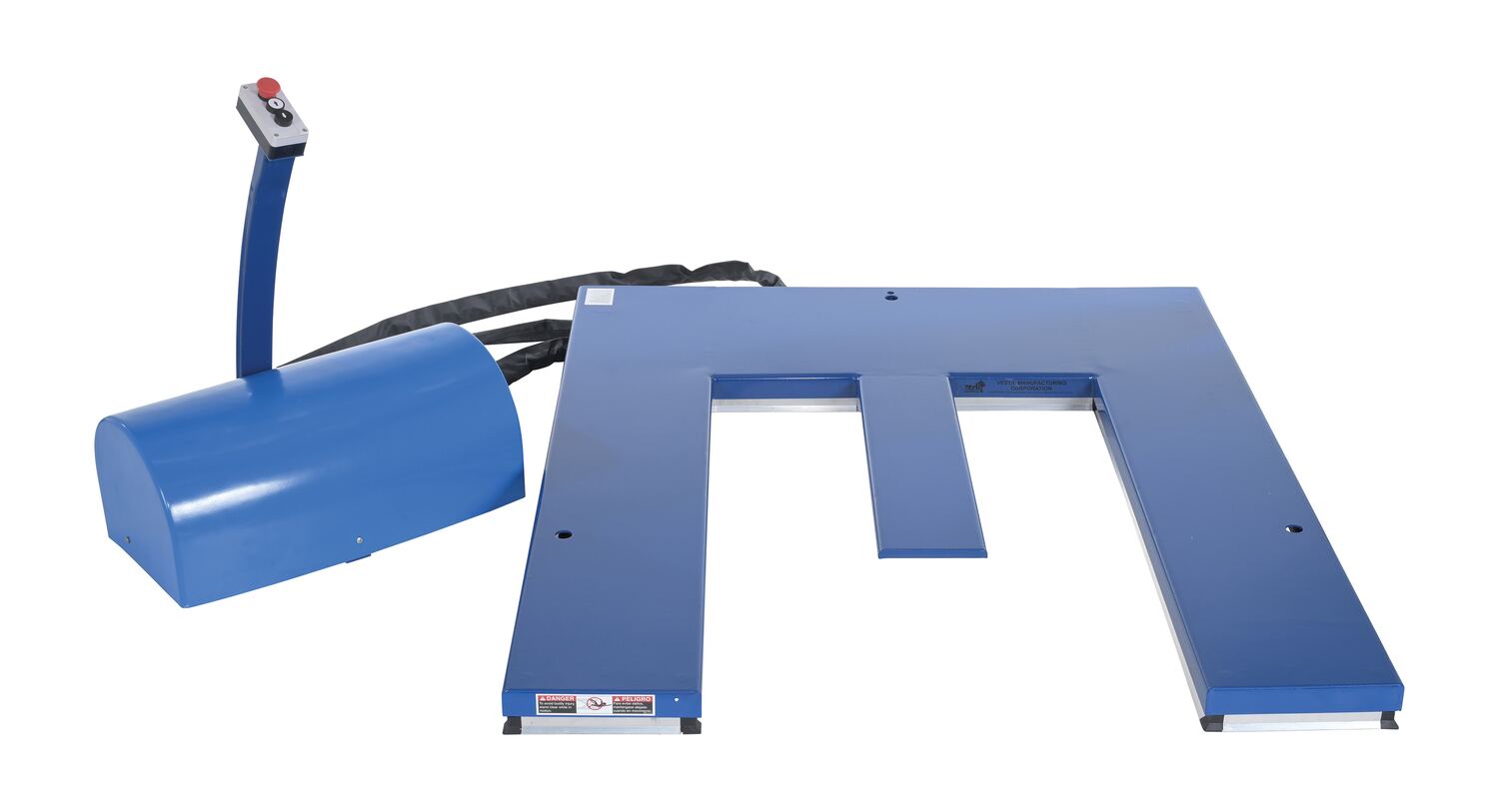

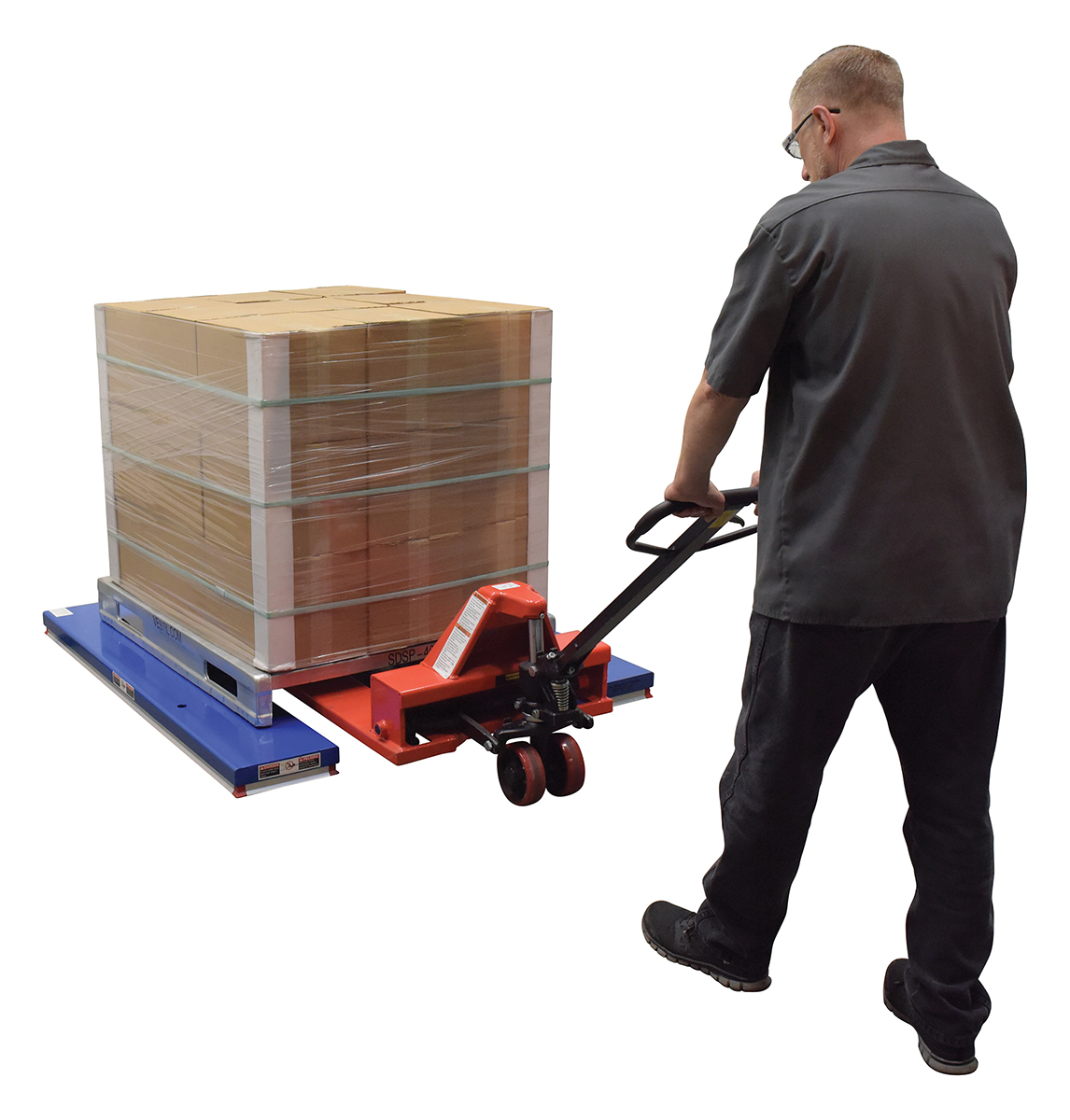

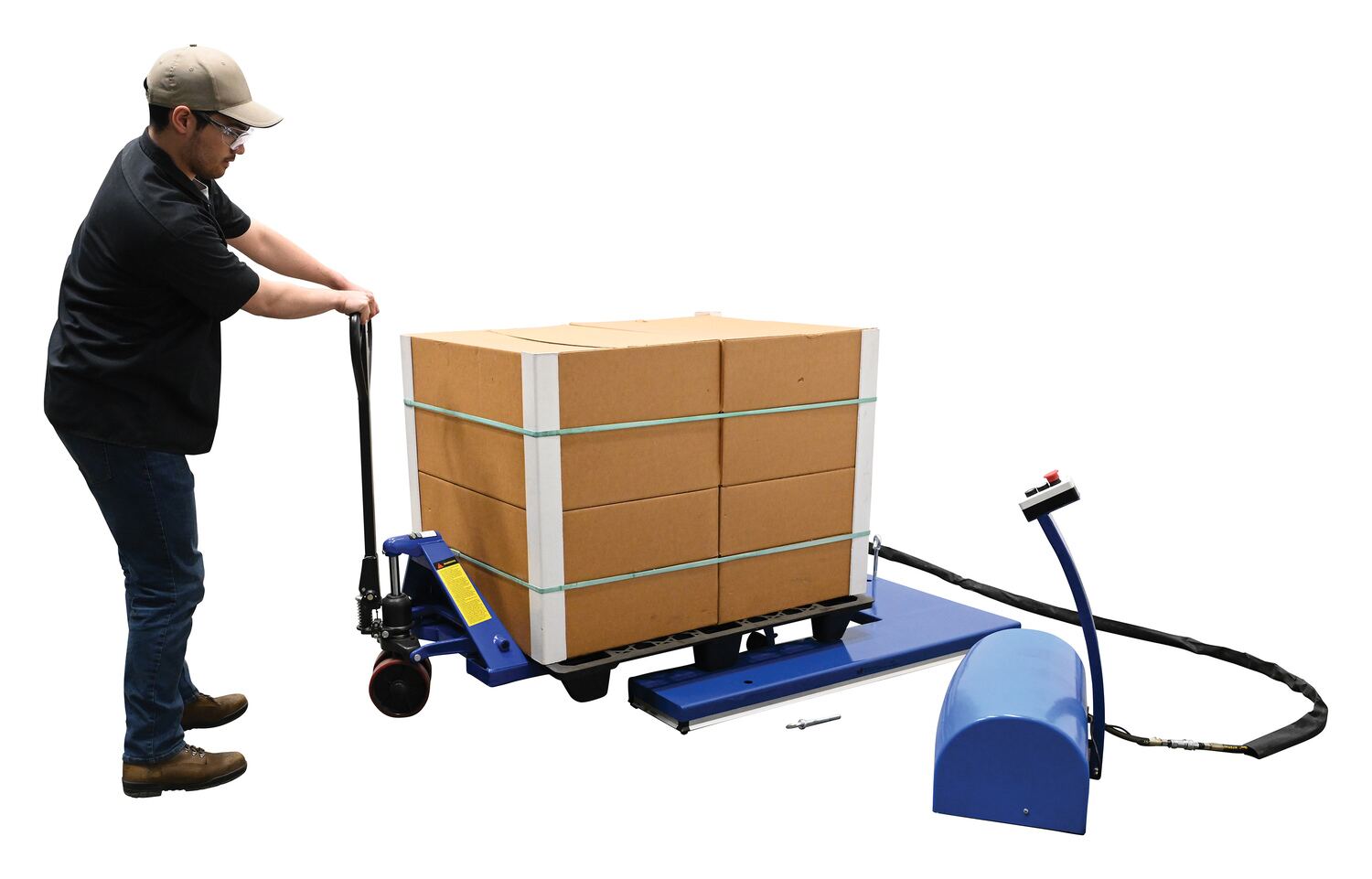

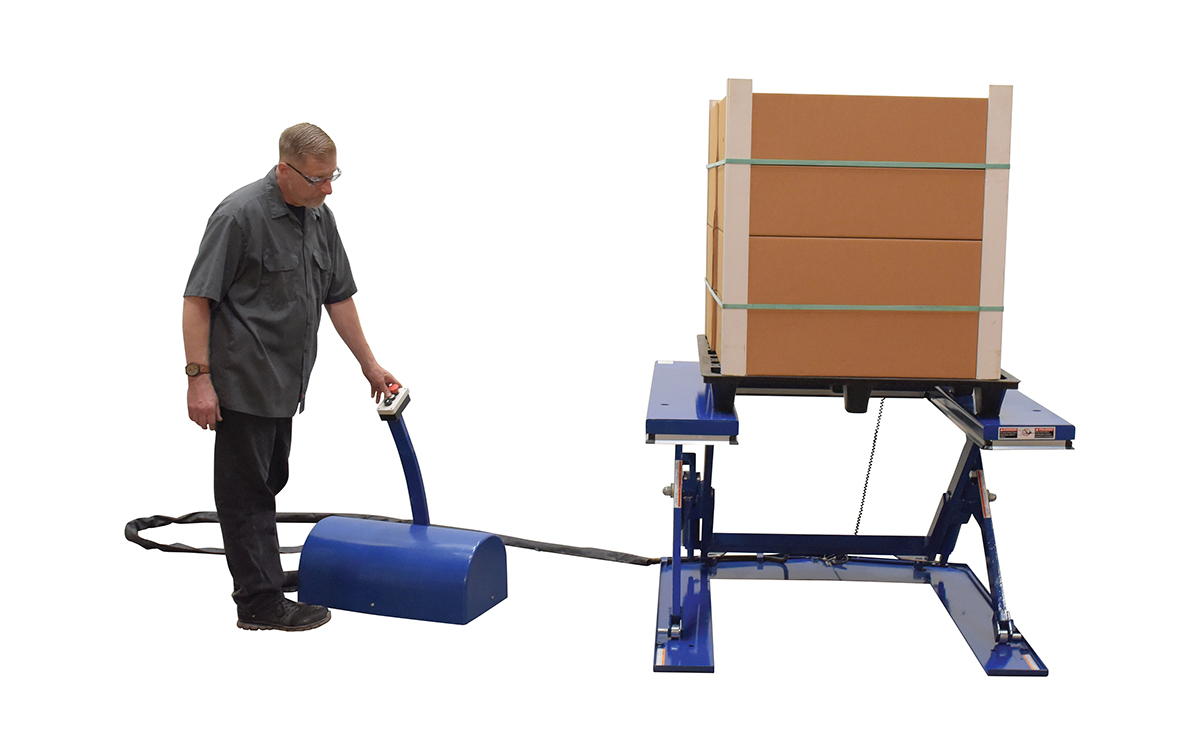

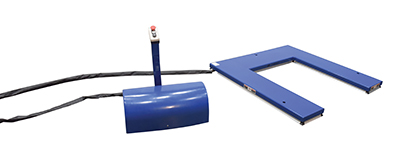

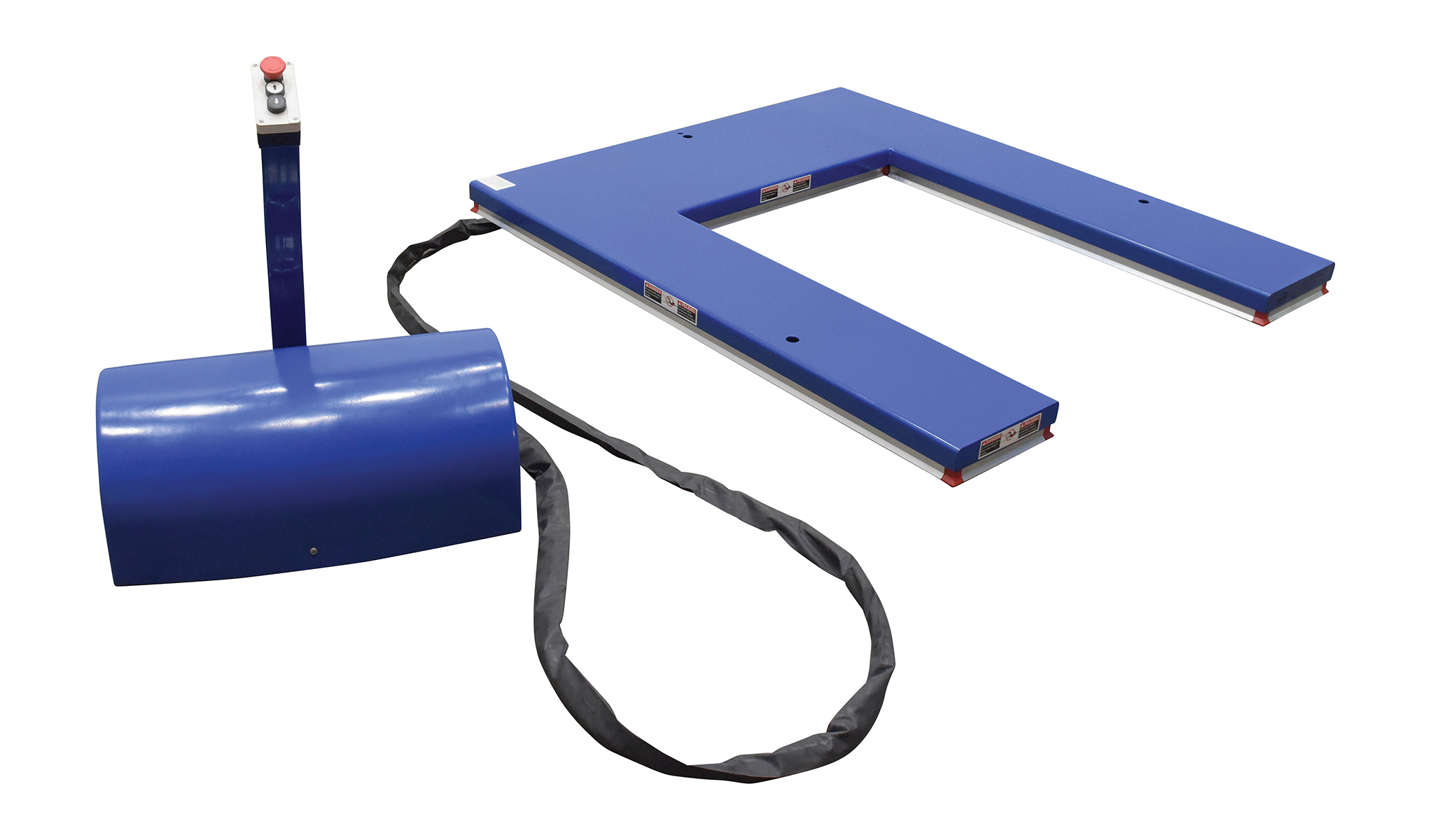

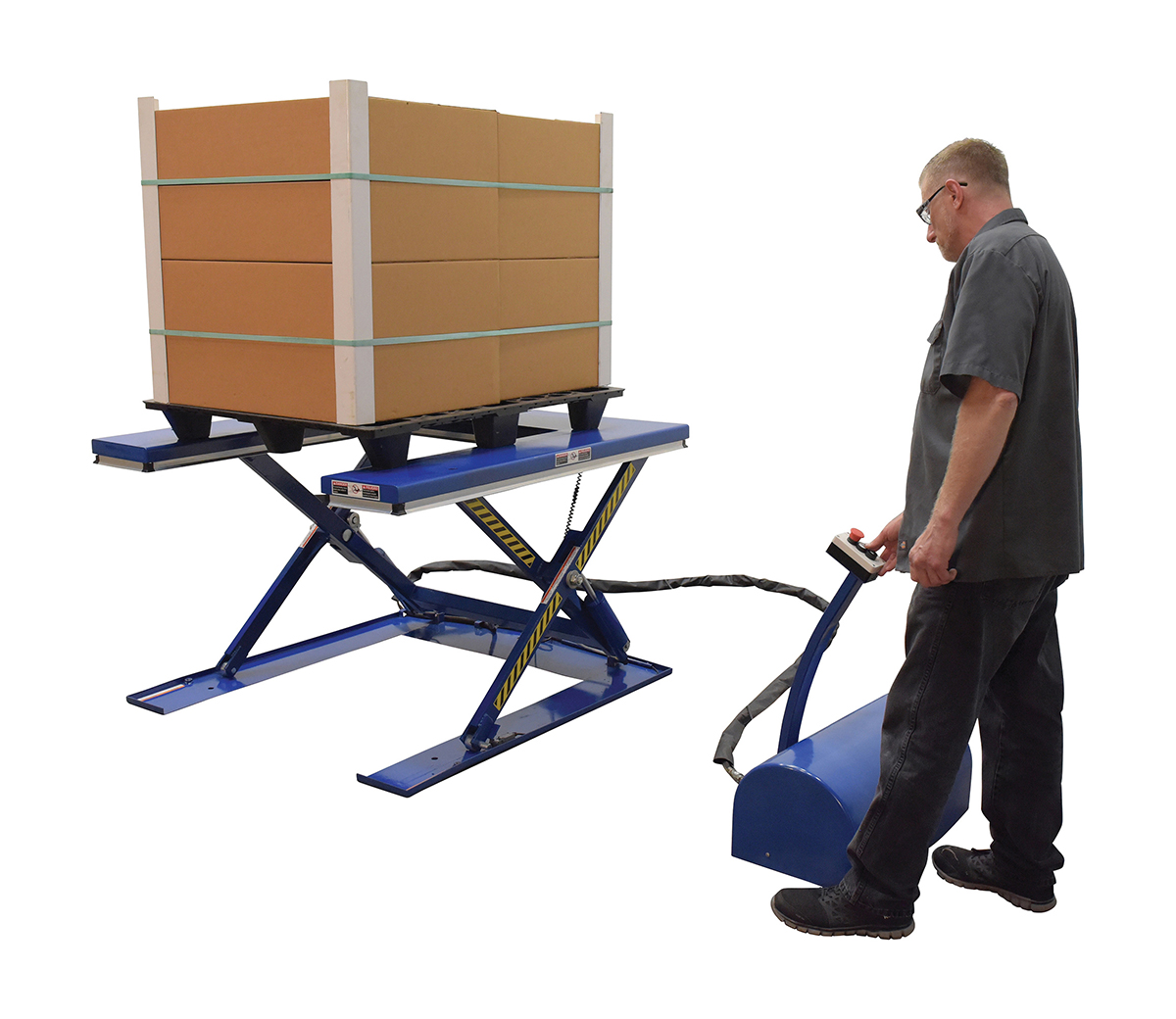

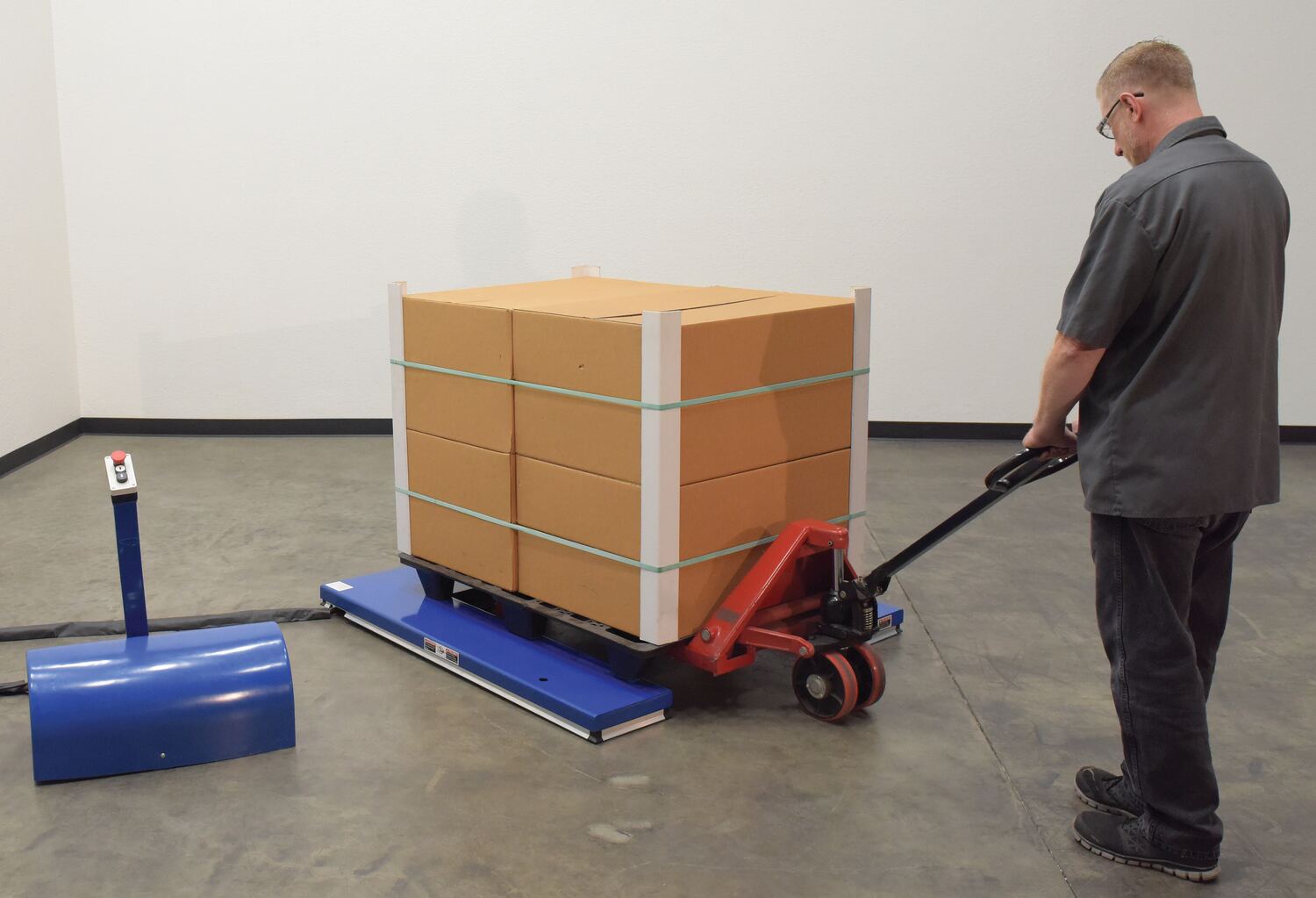

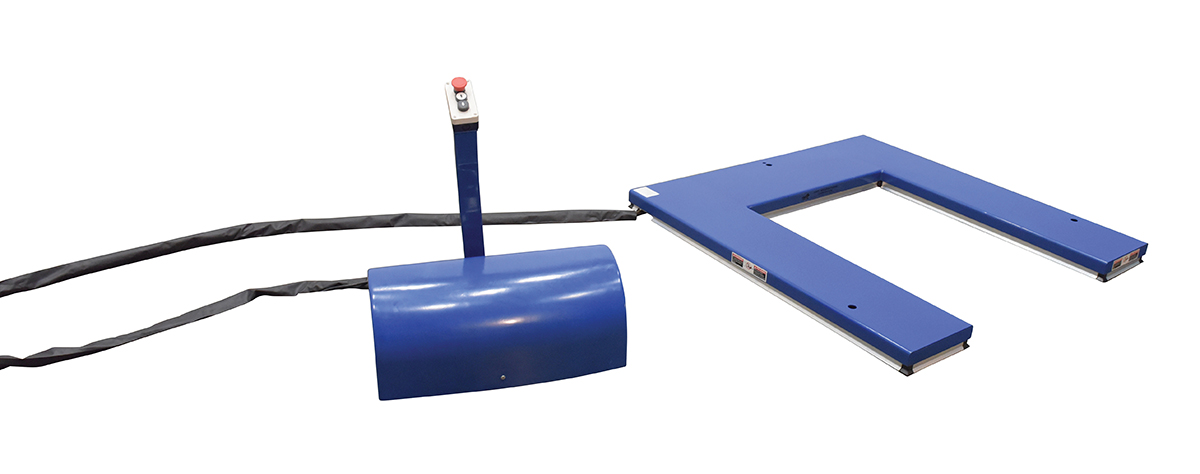

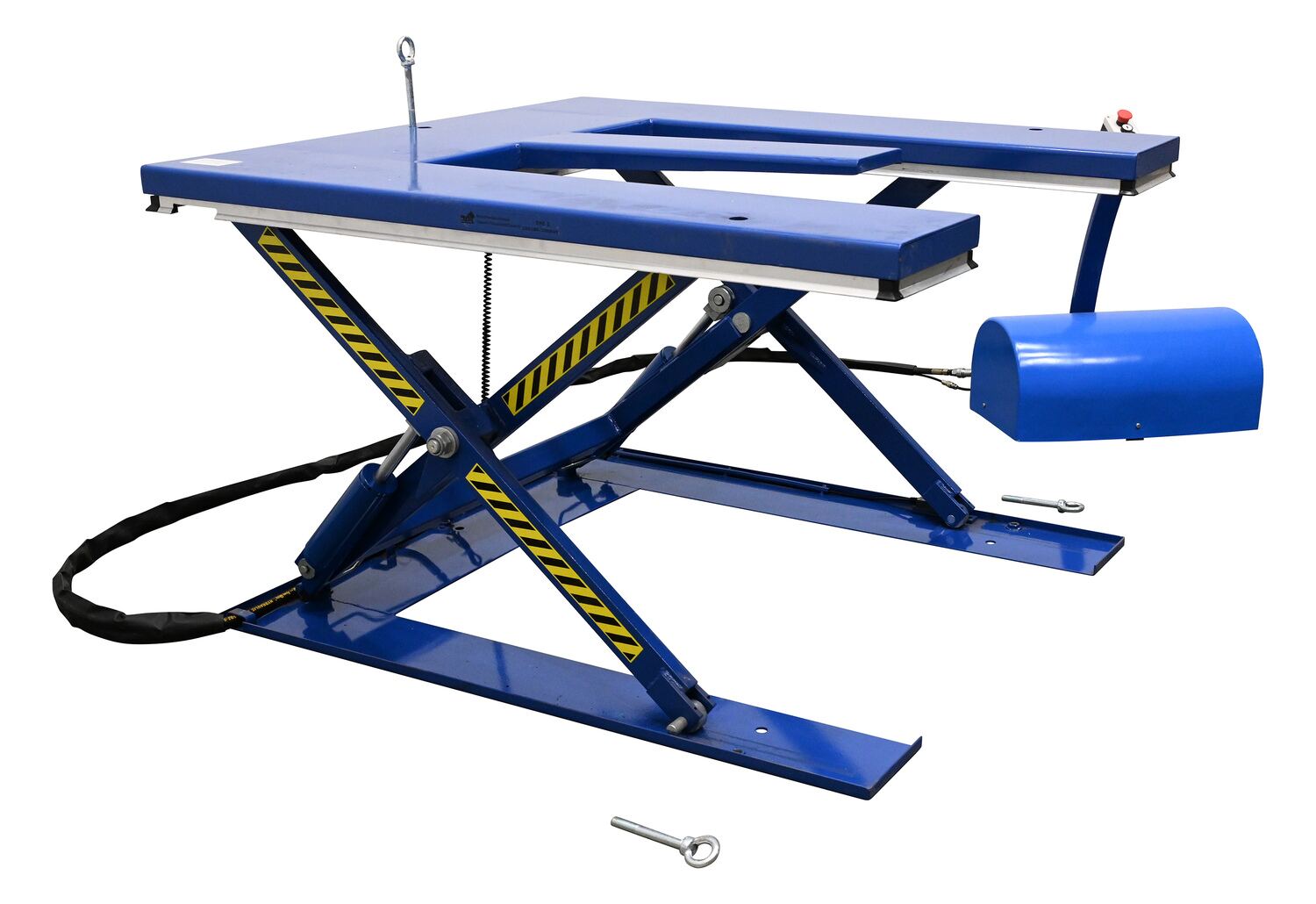

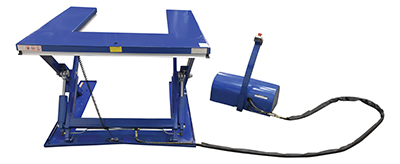

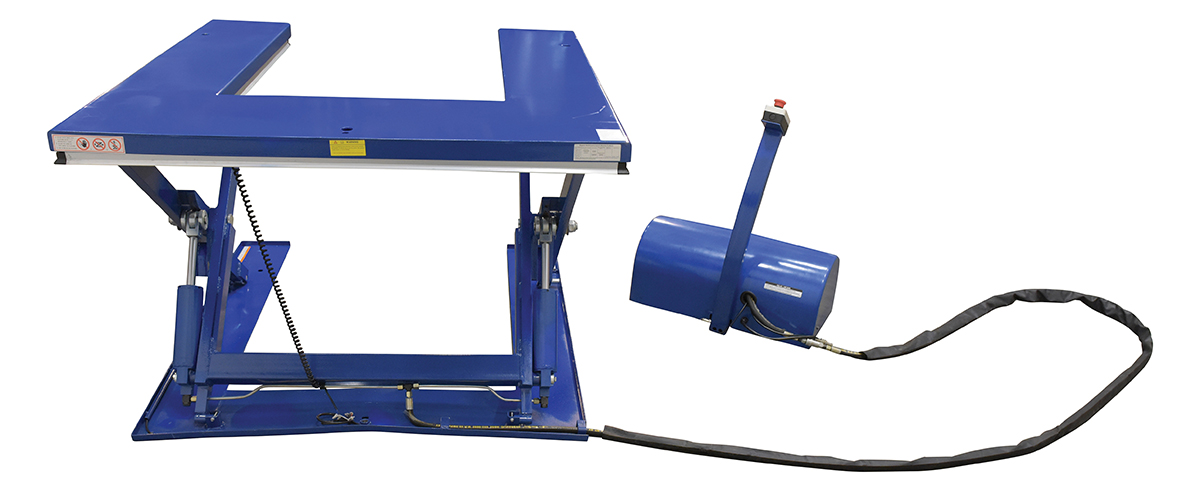

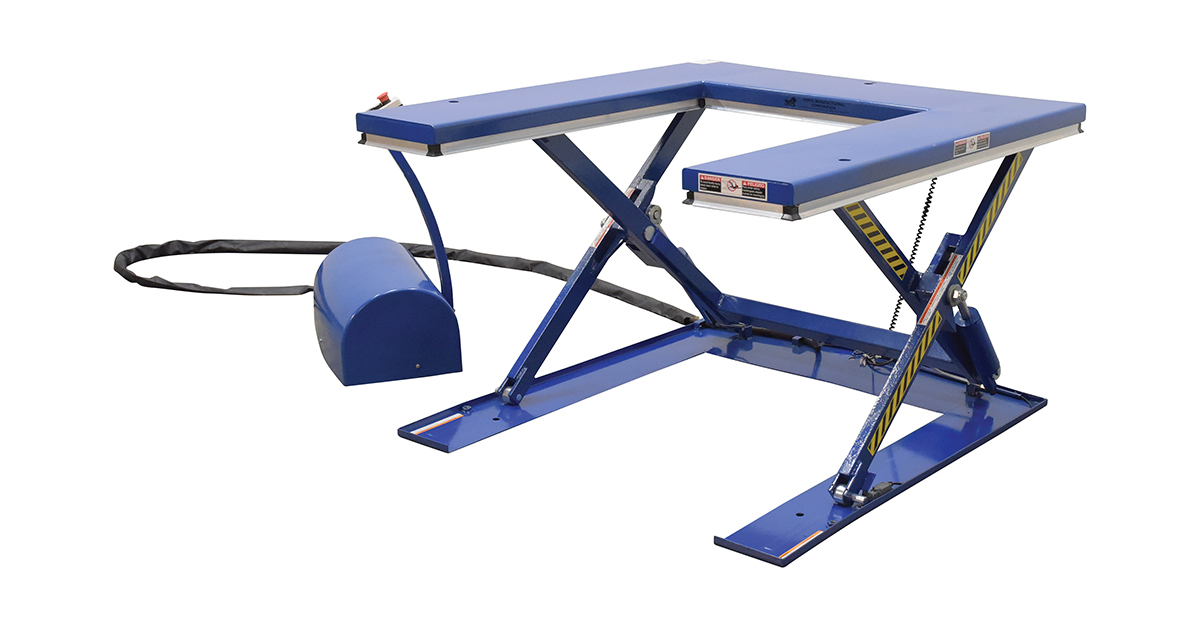

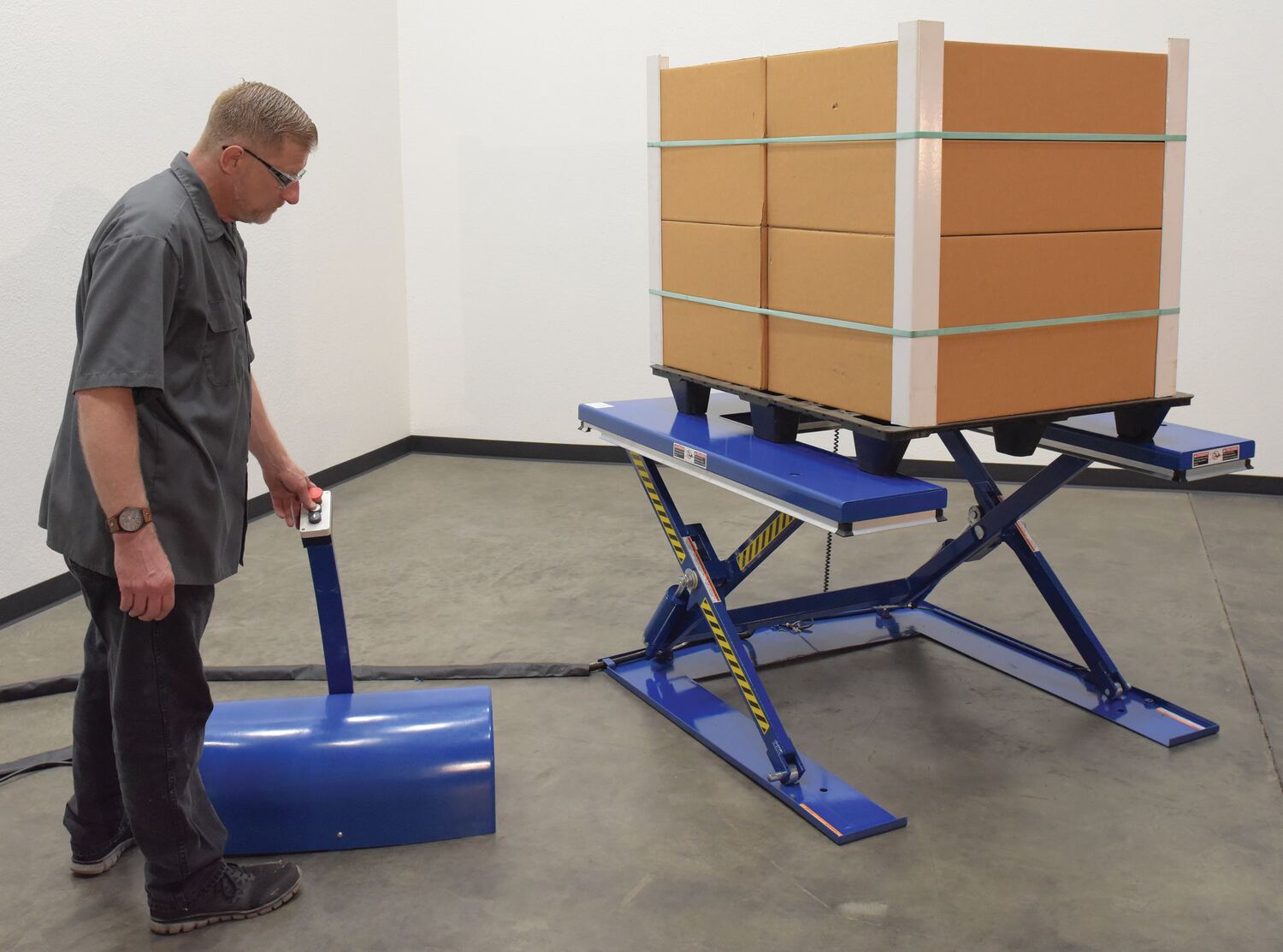

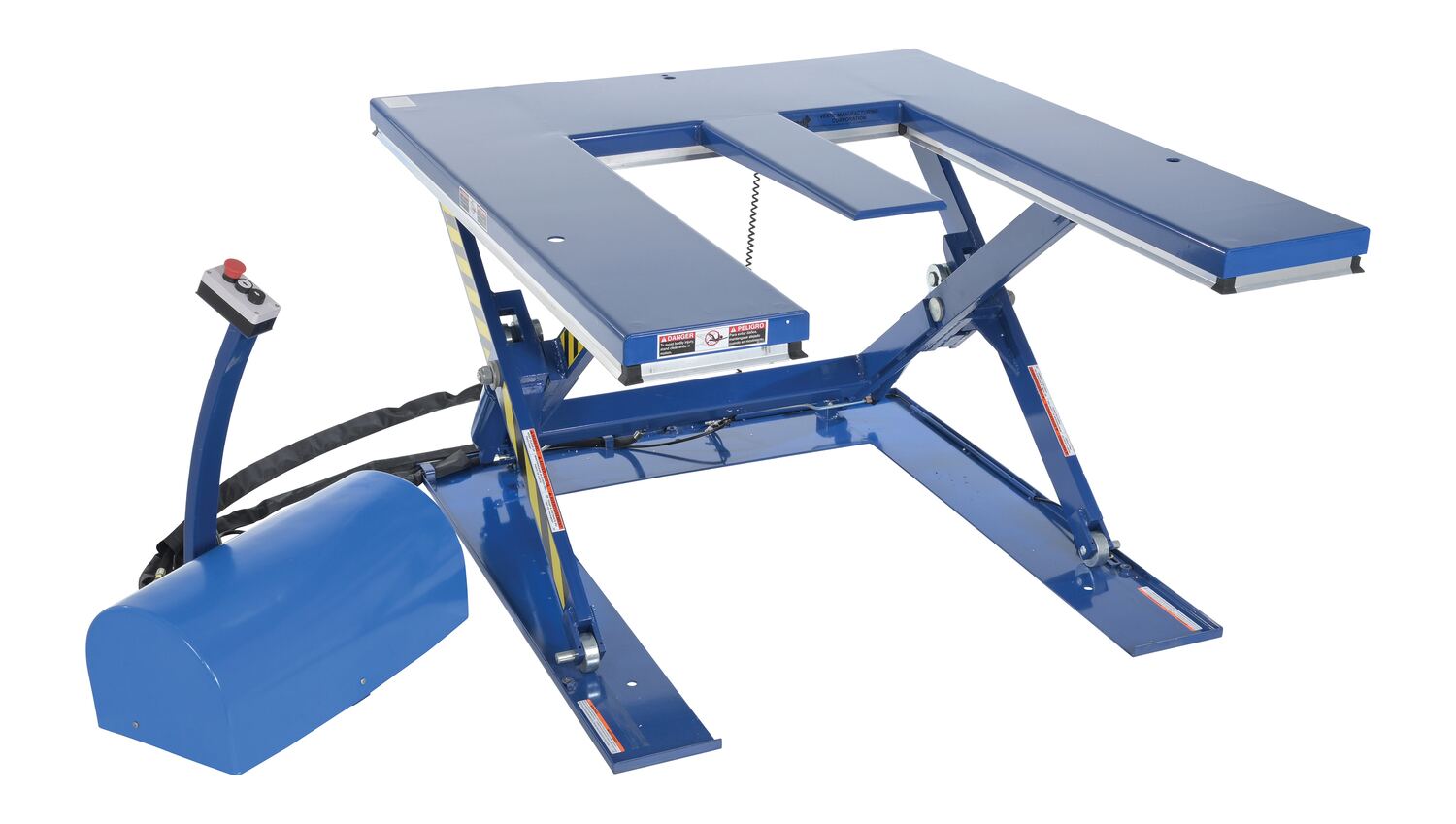

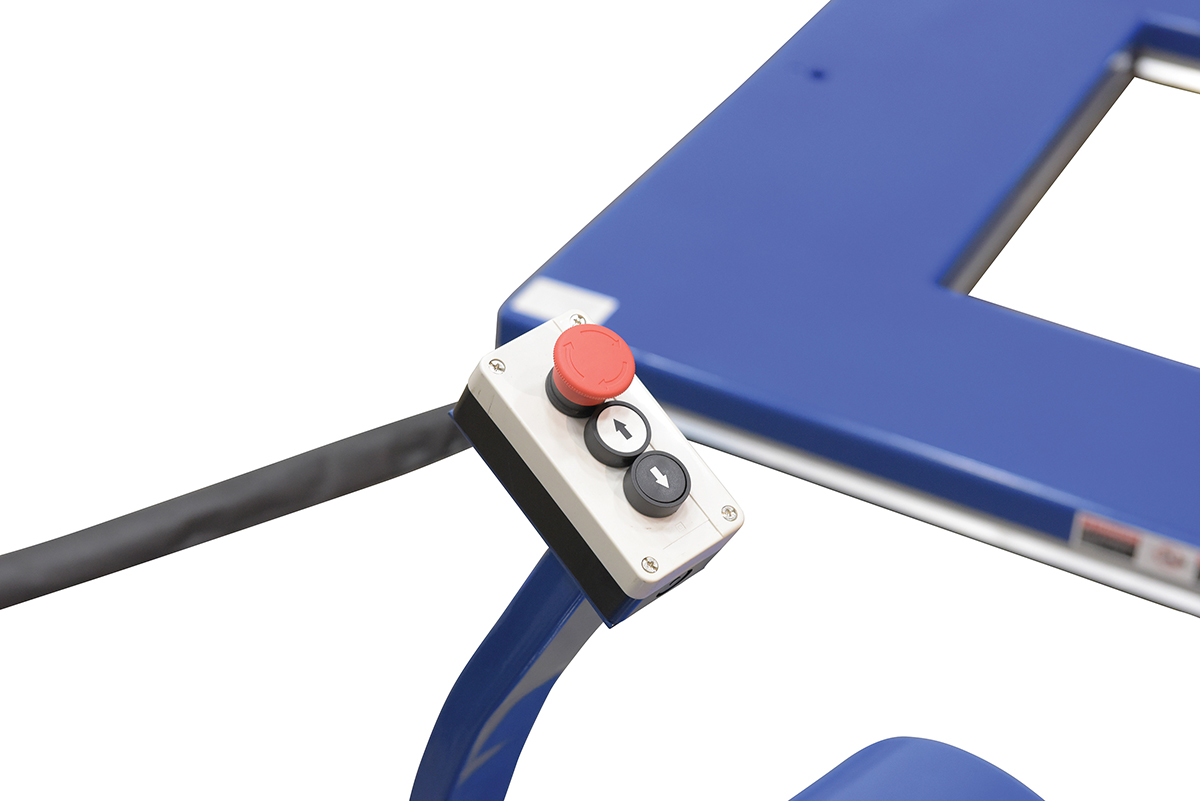

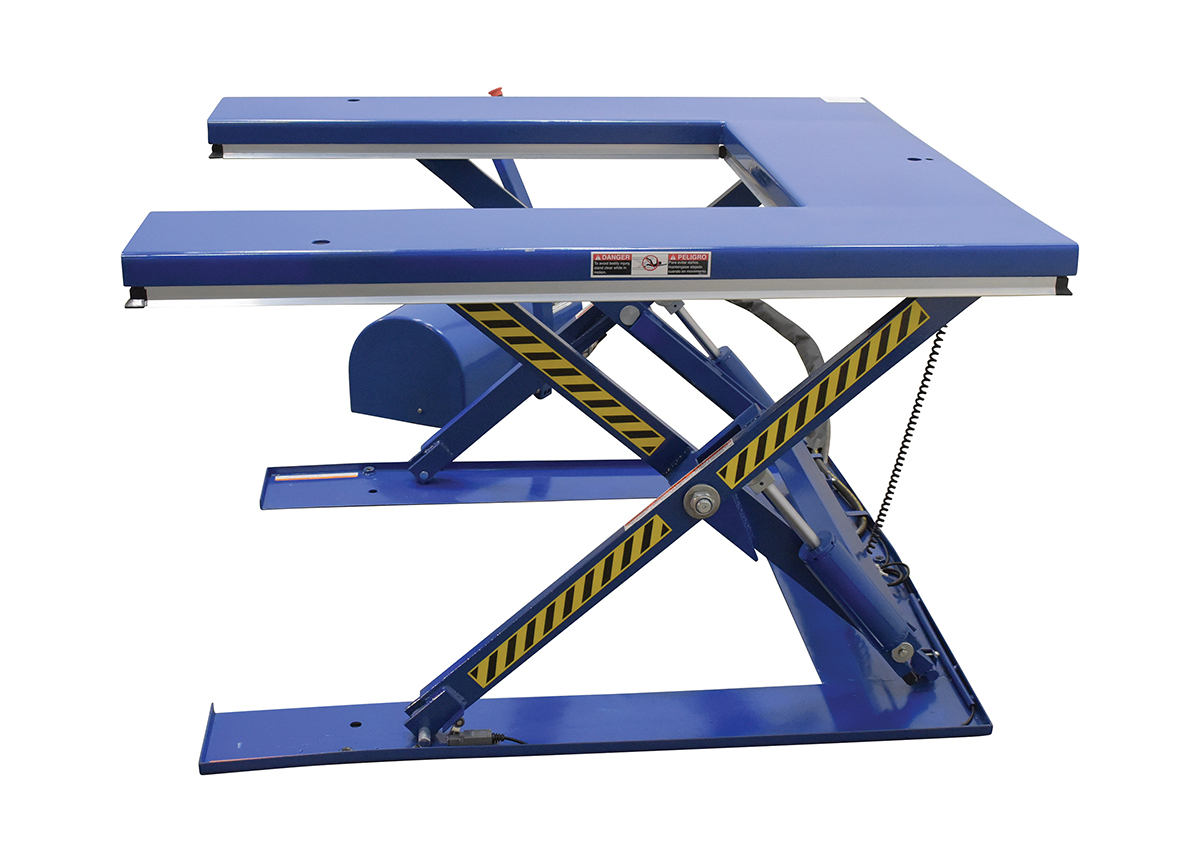

Low Profile Electric Lift TablesThe open center on the "U" Type Electric Lift Tables, series EHU, enable a pallet truck to place a load on the platform. Series "EHE" center support beam helps to prevent the pallet from deflecting downward in the center. Units feature an external power pack equipped with a pressure relief valve that prevents overloading and a flow control valve that controls the lowering speed. Remote power pack comes complete with a cover to protect the motor from dust and debris. Raise and lower the unit using the UP and DOWN push buttons on the 24V control box. Safety features include electric toe guards, safety velocity fuse in cylinders, safety maintenance props, and an emergency stop button on the control box. Power supply is 115V single phase with pedestal mounted push buttons. When used in conjunction with a standard pallet jack, only open bottom pallets are to be used.
Electric Linear Actuated Table Top Scissor Lift Table
Portable Electric Hydraulic Lift Table
Manual Built-In Carousel for Scissor Tables
Ground Lift Scissor TablesAdditional Models In This Family
EHU-2
EHE-2
EHU-3
EHU-3
EHE-3
EHU-12-SS
EHE-2
EHE-2
EHU-2
EHU-2
EHU-3
EHU-2
EHU-2
EHE-2
EHU-3
| Model # | Description | Attributes | Net Wt. (lbs) |
||||
|---|---|---|---|---|---|---|---|
| EHE-2 |  | 1 Year Limited Warranty | Steel Low Profile Electric Lift Table E Type 56 In. x 52-3/4 In. x 3-1/2 In. 2000 Lb. Capacity Blue | Uniform Capacity (lb.): 2000 Raised Height (in.): 33-1/2 | 718 | ||
| EHE-3 |  | 1 Year Limited Warranty | Steel Low Profile Electric Lift Table E Type 63 In. x 53-1/2 In. x 4-1/4 In. 3000 Lb. Capacity Blue | Uniform Capacity (lb.): 3000 Raised Height (in.): 33-1/2 | 805 | ||
| EHU-2 | | 1 Year Limited Warranty | Steel U Type Electric Lift Table 2000 Lb. Capacity Blue | Uniform Capacity (lb.): 2000 Raised Height (in.): 33-1/2 | 690 | ||
| EHU-3 | POPULAR | | 1 Year Limited Warranty | Steel U Type Electric Lift Table 3000 Lb. Capacity Blue | Uniform Capacity (lb.): 3000 Raised Height (in.): 33-1/2 | 832 | |
| EHU-12-SS | | | 1 Year Limited Warranty | Stainless Steel Low Profile Electric U 1200 lb. Capacity Table Silver | Uniform Capacity (lbs): 1,200 Maximum Height (in): 33.375 | 592 |
KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2000
Raised Height (in.): 33-1/2
Uniform Capacity (lb.): 2000
Raised Height (in.): 33-1/2
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 3000
Raised Height (in.): 33-1/2
Uniform Capacity (lb.): 3000
Raised Height (in.): 33-1/2
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2000
Raised Height (in.): 33-1/2
Uniform Capacity (lb.): 2000
Raised Height (in.): 33-1/2
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 3000
Raised Height (in.): 33-1/2
Uniform Capacity (lb.): 3000
Raised Height (in.): 33-1/2
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lbs): 1,200
Maximum Height (in): 33.375
Uniform Capacity (lbs): 1,200
Maximum Height (in): 33.375
Manuals
Survey Sheets
Approval Drawings
Testing Certificates
SDS Sheets
Hydraulic Oil SDS Sheet for: EHE-2
Hydraulic Oil SDS Sheet for: EHU-2
Hydraulic Oil SDS Sheet for: EHU-3
Other PDF's
Directory Links Of Available PDF's For All Products
Q: Is the EHU-2 CSA compliant?
A: No. The EHU-2 is not CSA compliant.
Q: Can an accordion skirt be added to these tables?
A: No. Accordion skirts are no available for these tables.

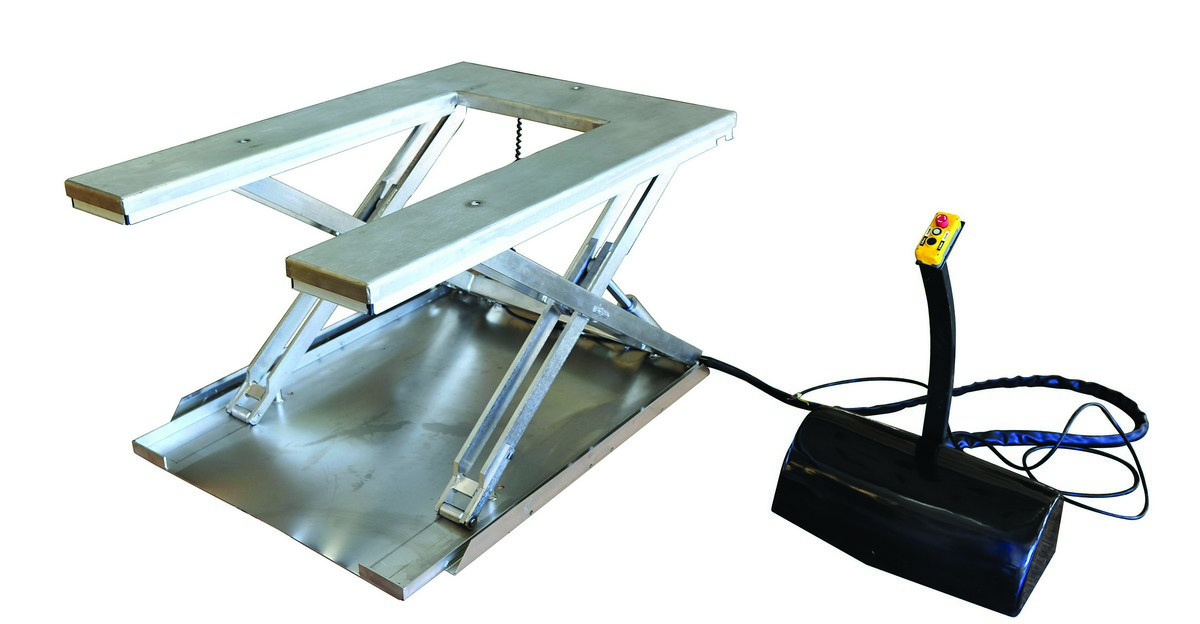

Q: What type of stainless steel is the EHU-12-SS?
A: 304 stainless steel
Q: What parts of model EHU-12-SS are NOT stainless steel?
A: The Power unit and the Hydraulic Hoses are not stainless steel.
Q: What is the Amp draw for the EHU-3?
A: 18.5 Amps
Q: Can we order a Foot Control for any of the EHE or EHU tables?
A: No different controllers can be used for the EHE or EHU tables.
Q: Can EHE models be used in cold weather or a refrigerated warehouse?
A: No, EHE models cannot be used in cold weather or refrigerated warehouses.
 |
||||||||||||||||||||||||||||||||
