Air Corner Tilters

model: AIR-THL

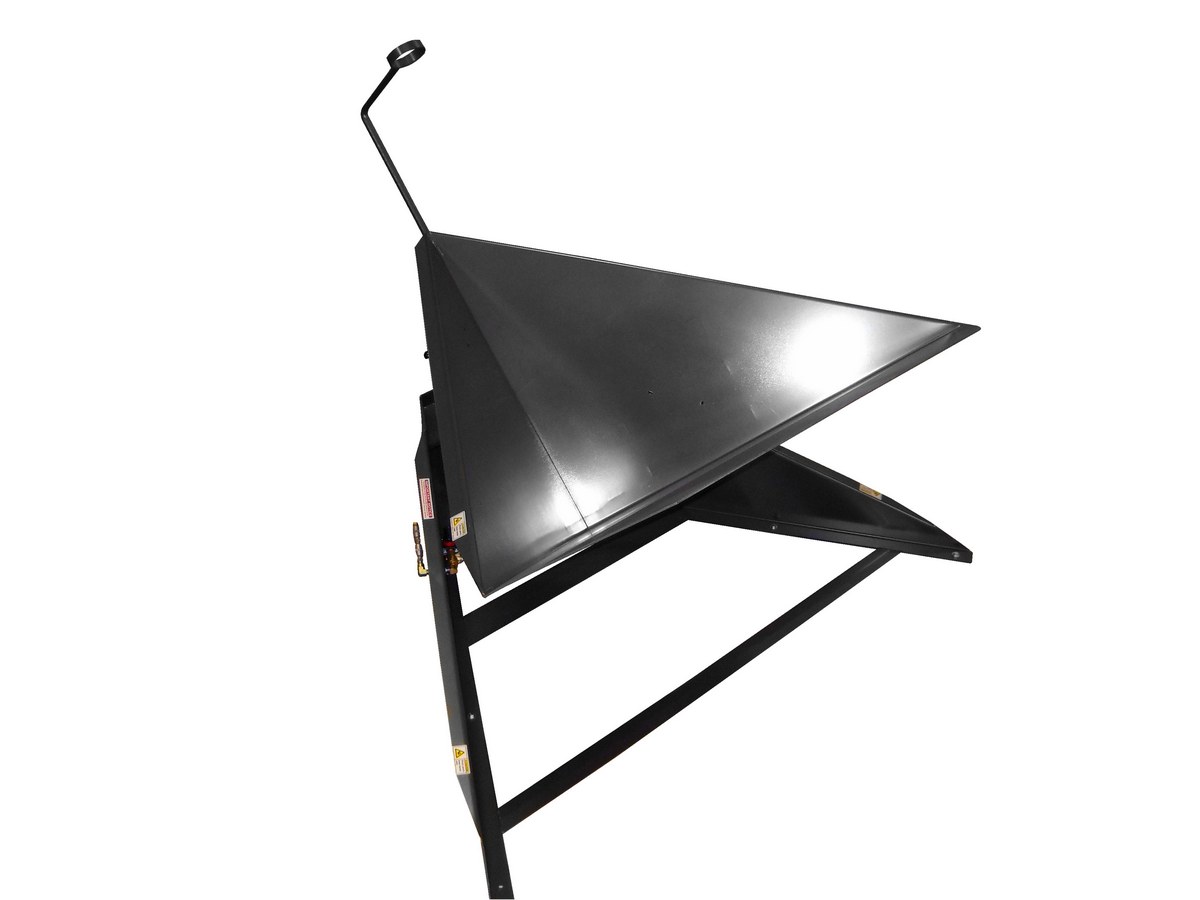

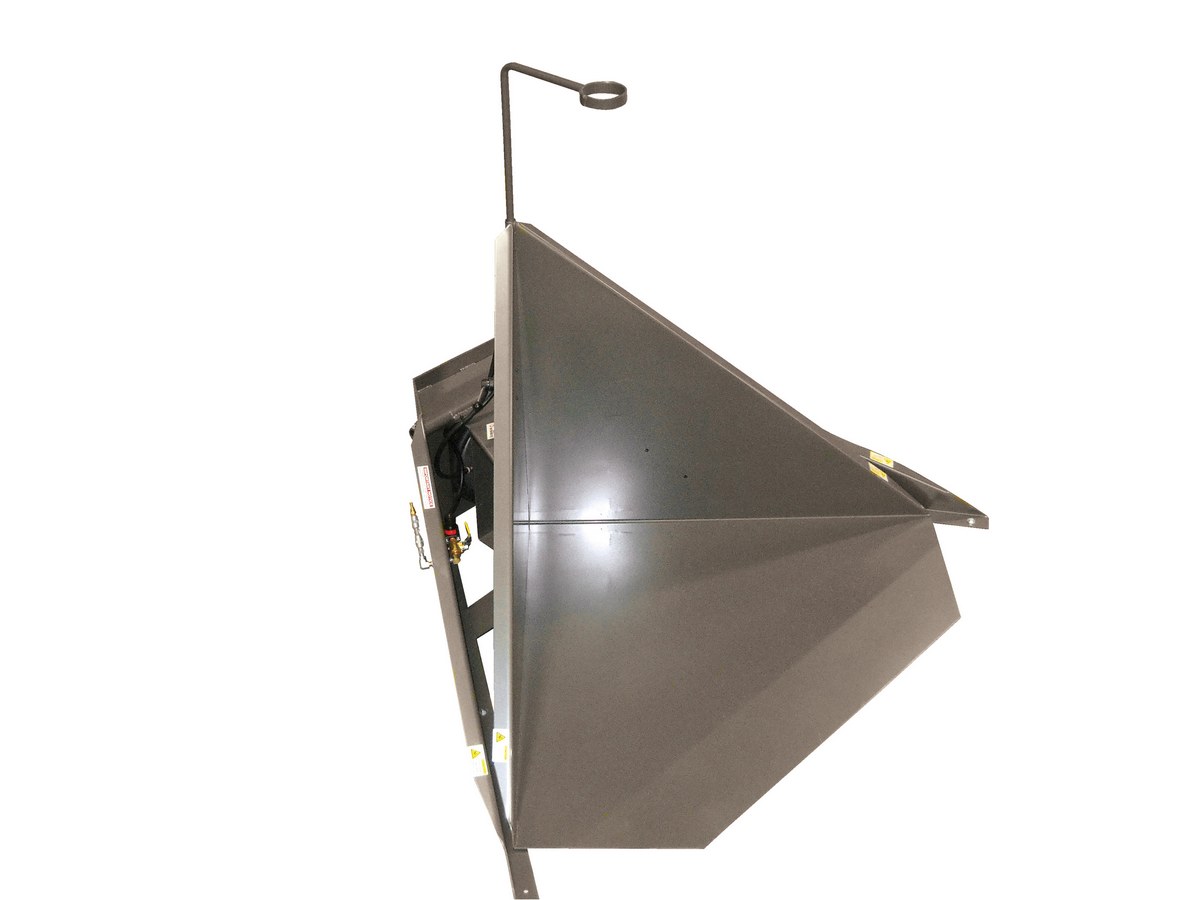

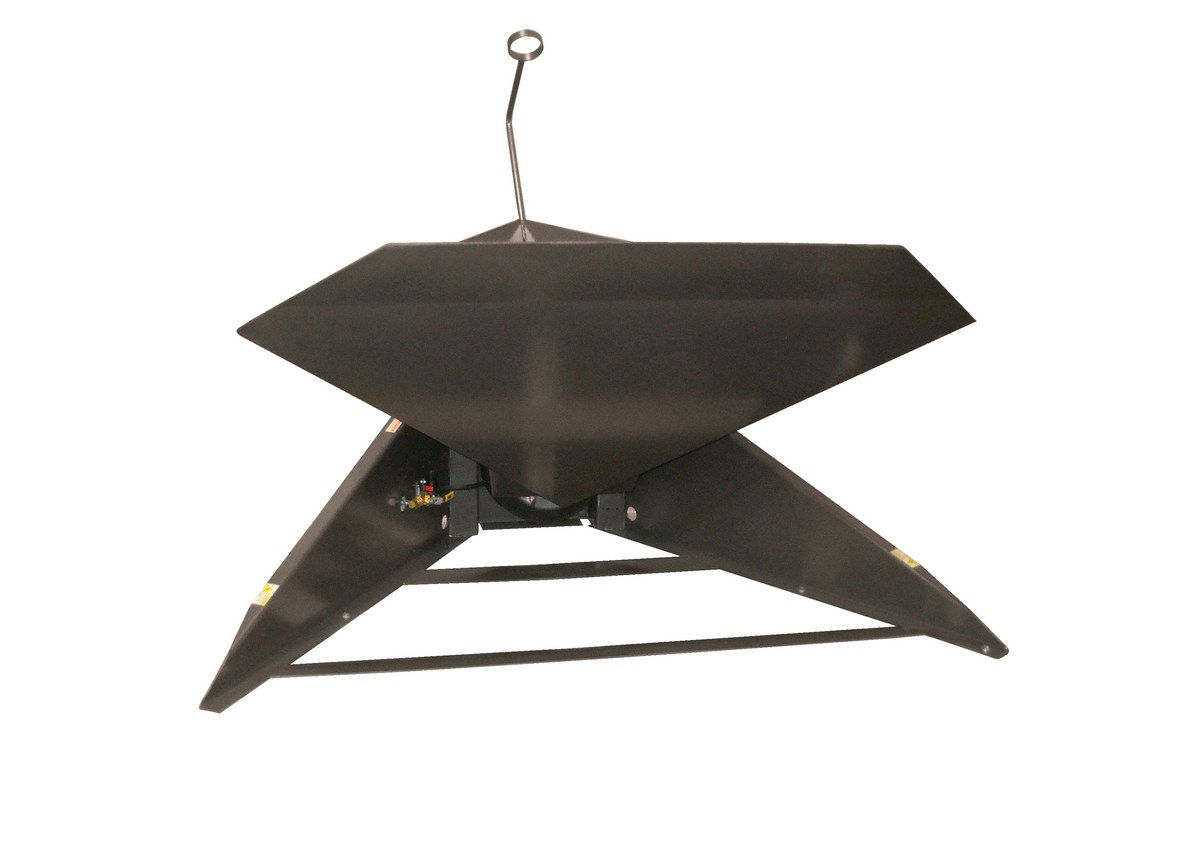

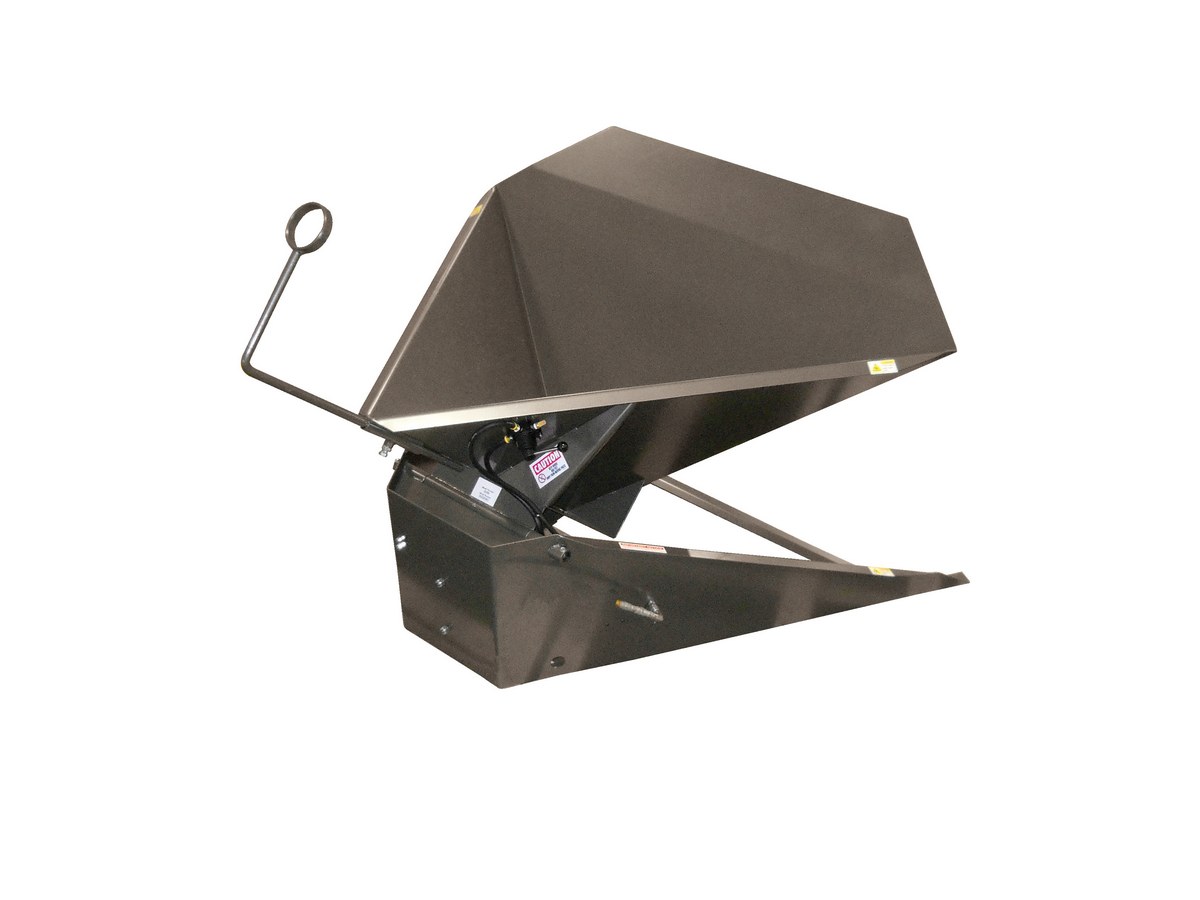

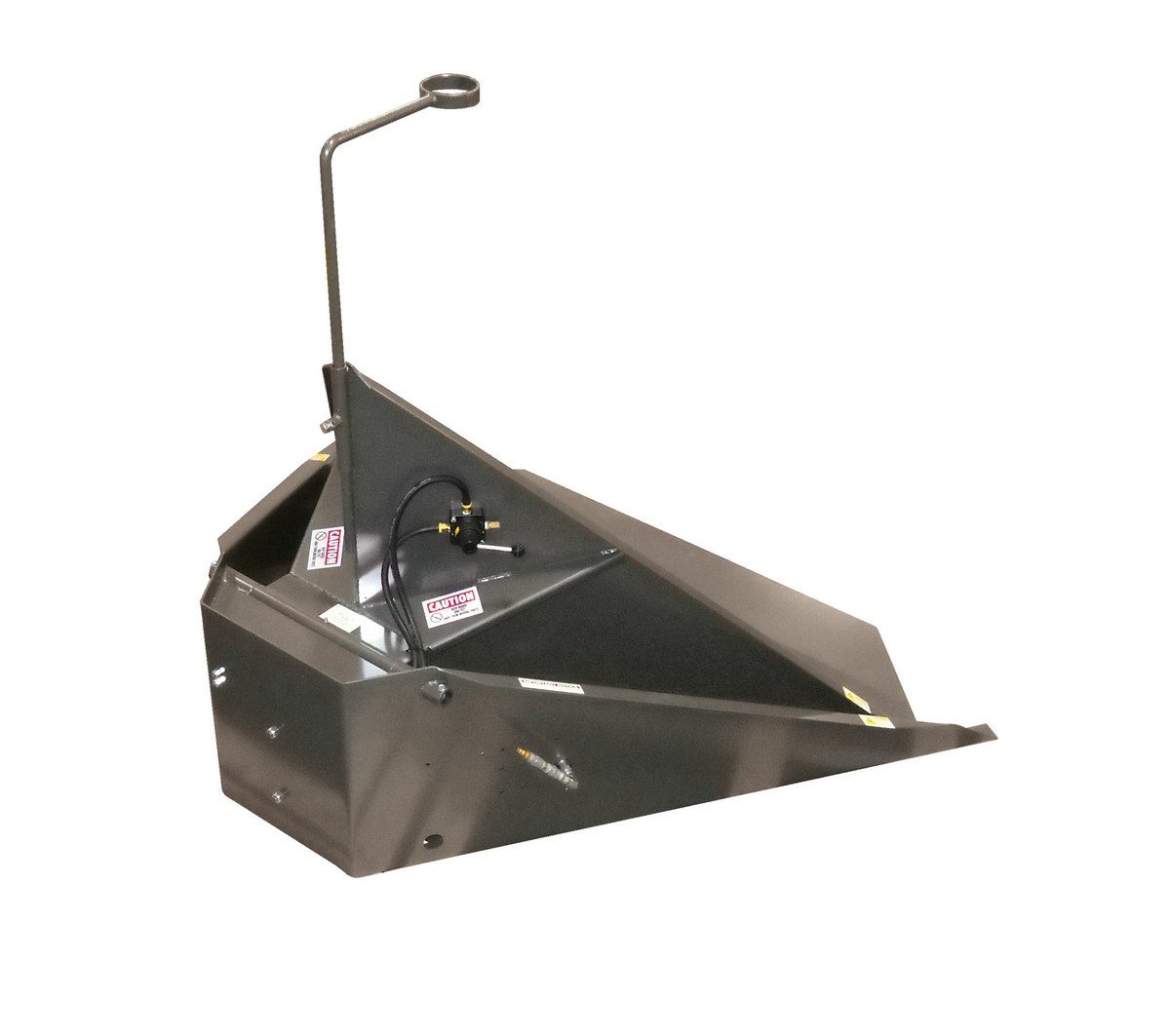

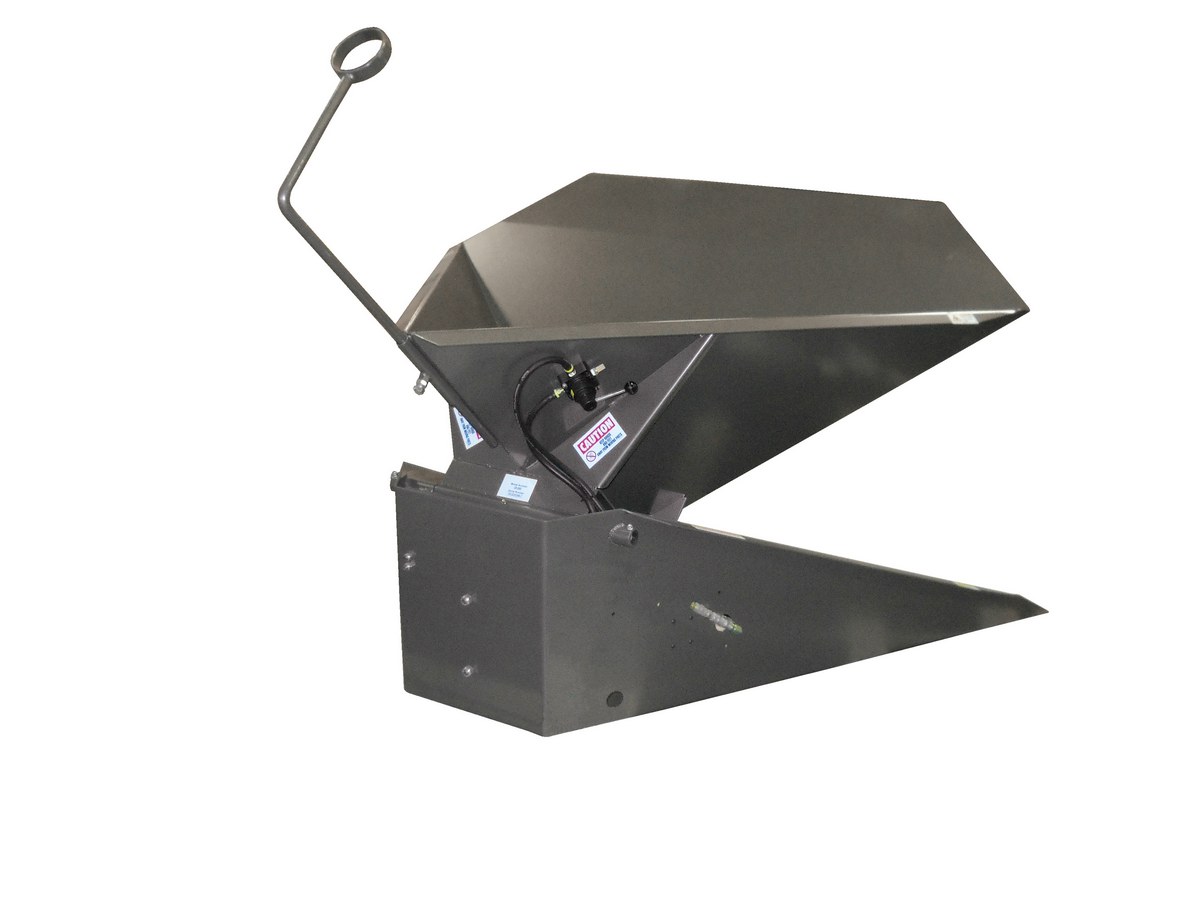

AIR-THL_A.jpg AIR-THL_D.jpg AIR-THL_B.jpg AIR-THL_C.jpg AIR-THL_E.jpg More Images +
Air Corner Tilters
SERIES: AIR

FACTORY AIR POWERED

The Air Corner Tilter provides ergonomic loading and unloading of bulk containers, gaylords or crates. Allows two-wall accessibility with both pallet jacks and fork trucks. Constructed of 7 gauge steel, this heavy duty unit has a maximum rated capacity of 1,500 lbs. and can tilt up to 45 degrees. The tilter is activated by a hand operated control lever or foot pedal. The air bag inflates tilting the container automatically as it is unloaded. As the container becomes lighter, it automatically tilts and the material shifts to the corner of the container where it can be easily removed by manual or mechanical means. The regulator is factory preset to begin rotating the container when the weight reaches approximately 900 lbs.

Features

  • 45 Degree Tilt
  • Base Size 71"W x 52"D
  • Multi-ply air bag
  • Three position manually operated air valve to activate air bag \
  • Adjustable air line filter/regulator assembly
  • Adjustable vacuum wand holder (3-1/2" ID) (not shown)
Air Corner Tilters

model: AIR-THL

Model # Description Attributes Net Wt.
(lbs)

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= New Images Coming Soon! = Dimension Image = Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below
AIR-PVO
AIR-TFP
AIR-THL
AIR-THL-SS
For More Details of the Option Click the Red Model Button
Model Image Details Icons Wt.

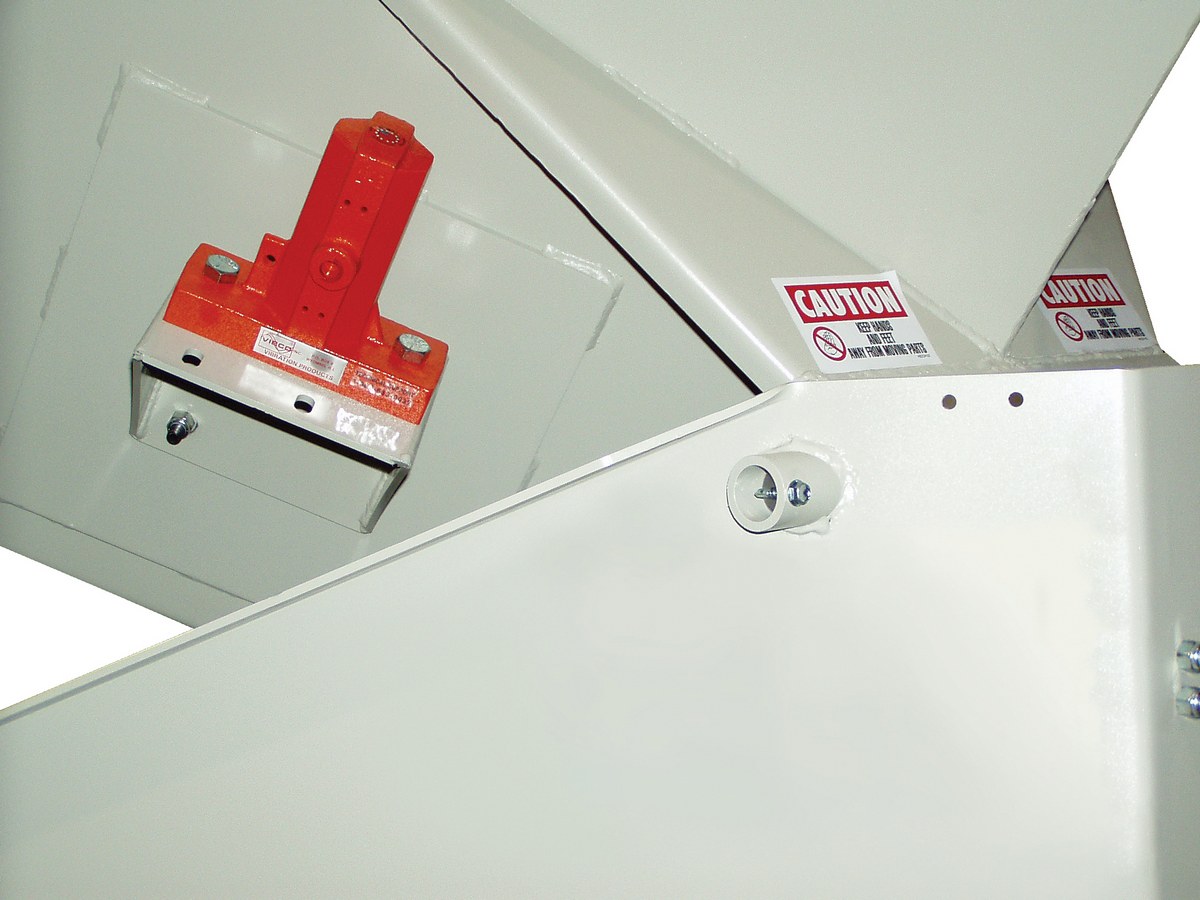

AIR-PVO AIR-PVO Factory Installed Pneumatic Vibrator Option for AIR-THL. 90 Days Limited Warranty 35
AIR-TFP AIR-TFP Steel Foot Pedal Control Option for AIR-THL 90 Days Limited Warranty 550

.

If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above
PDFs will open in a new window when clicked.

Manuals

AIR-THL

Survey Sheets

No Survey Sheets For This Product

Engineering Drawings

AIR-TFP

AIR-THL

Testing Certificates

AIR-THL-SS

SDS Sheets


Hydraulic Oil
AIR-TFP SDS

Other PDFs

No "Other PDFs" For This Product

Related or Similar Products:

More From Tilters





Air Corner Tilters




FACTORY AIR POWERED

The Air Corner Tilter provides ergonomic loading and unloading of bulk containers, gaylords or crates. Allows two-wall accessibility with both pallet jacks and fork trucks. Constructed of 7 gauge steel, this heavy duty unit has a maximum rated capacity of 1,500 lbs. and can tilt up to 45 degrees. The tilter is activated by a hand operated control lever or foot pedal. The air bag inflates tilting the container automatically as it is unloaded. As the container becomes lighter, it automatically tilts and the material shifts to the corner of the container where it can be easily removed by manual or mechanical means. The regulator is factory preset to begin rotating the container when the weight reaches approximately 900 lbs.

Features

  • 45 Degree Tilt
  • Base Size 71"W x 52"D
  • Multi-ply air bag
  • Three position manually operated air valve to activate air bag \
  • Adjustable air line filter/regulator assembly
  • Adjustable vacuum wand holder (3-1/2" ID) (not shown)

Model # Description Attributes Net Wt.
(lbs)
AIR-THL AIR-THLSteel Hand Lever Operated Air Corner Tilter 50-7/8 In. x 78-1/2 In. x 35-1/4 In. 1,500 Lb. Capacity GrayUniform Capacity (lb.): 1,500
Maximum Tilt (degree): 45		500

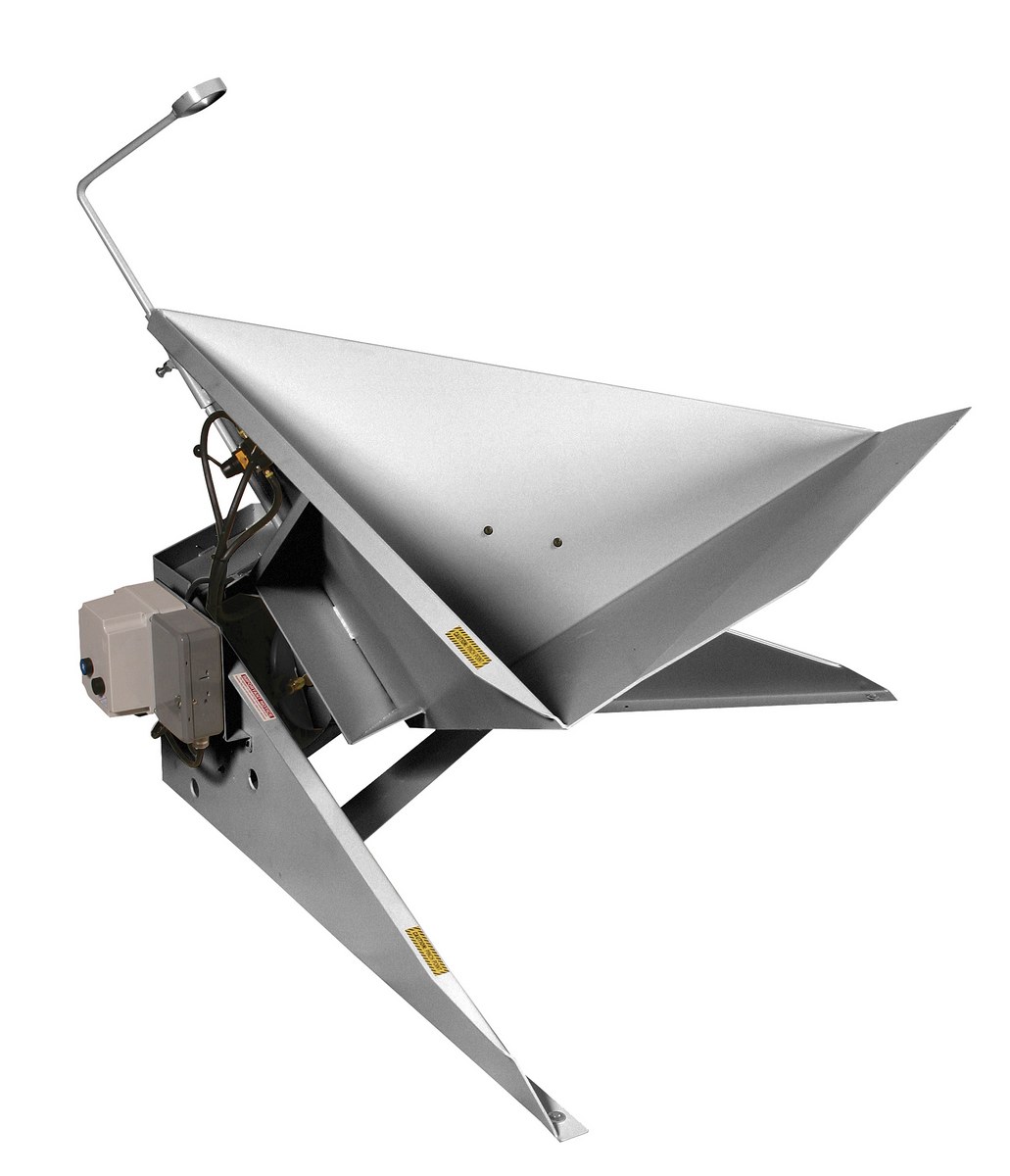

AIR-THL-SS AIR-THL-SSStainless Steel Hand Lever Operated Air Corner Tilter 50-7/8 In. x 78-1/2 In. x 35-1/4 In. 1,500 Lb. Capacity SilverUniform Capacity (lb.): 1,500
Maximum Tilt (degree): 45		550
