Tote-A-LoadsFor models ending in -HD, the manually operated lift is easy to operate. The foot pump operated lift travels approximately 1/2" per stroke. To lower the -HD units, depress on the bicycle style grip located on the white push bar.

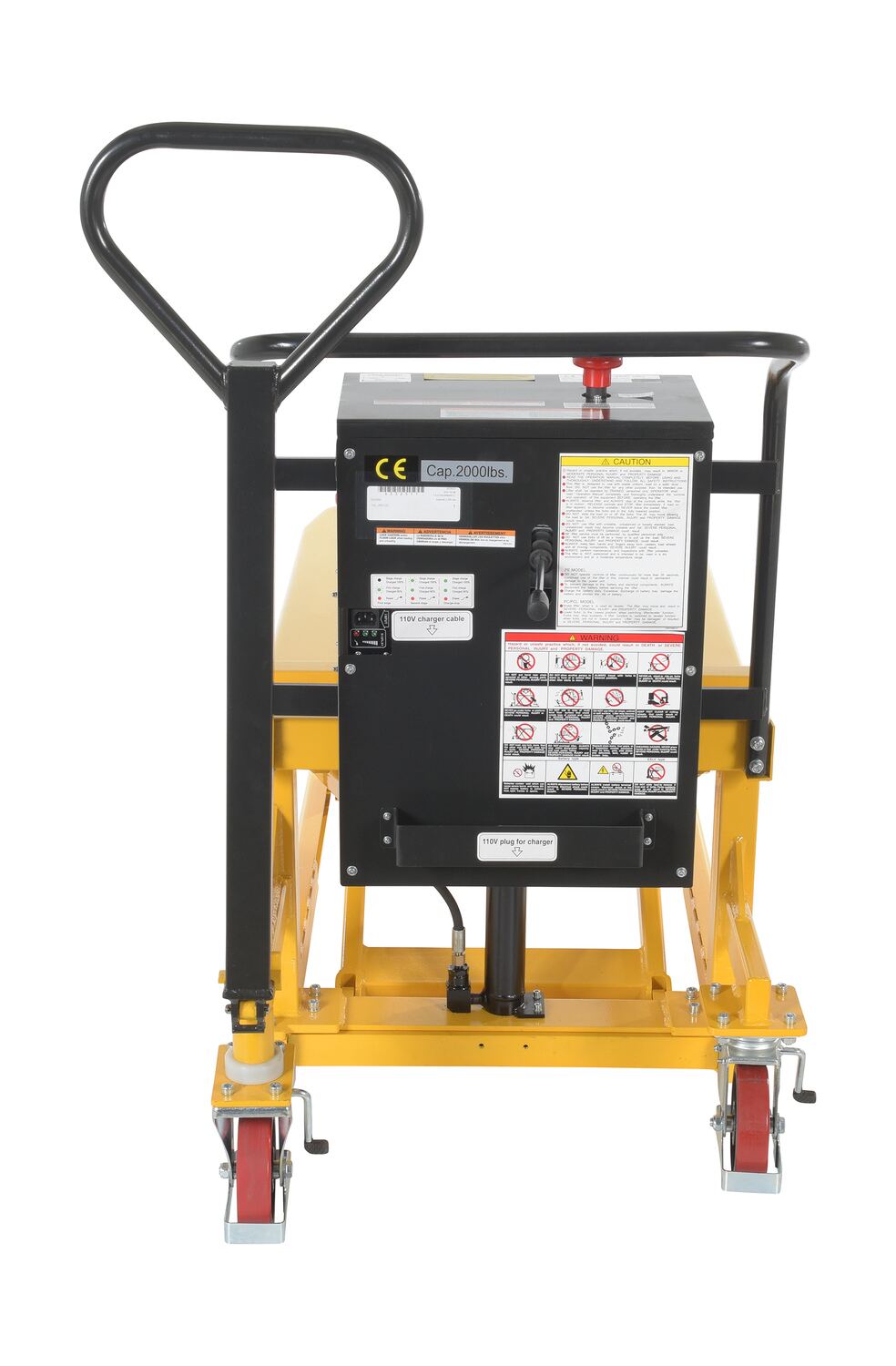

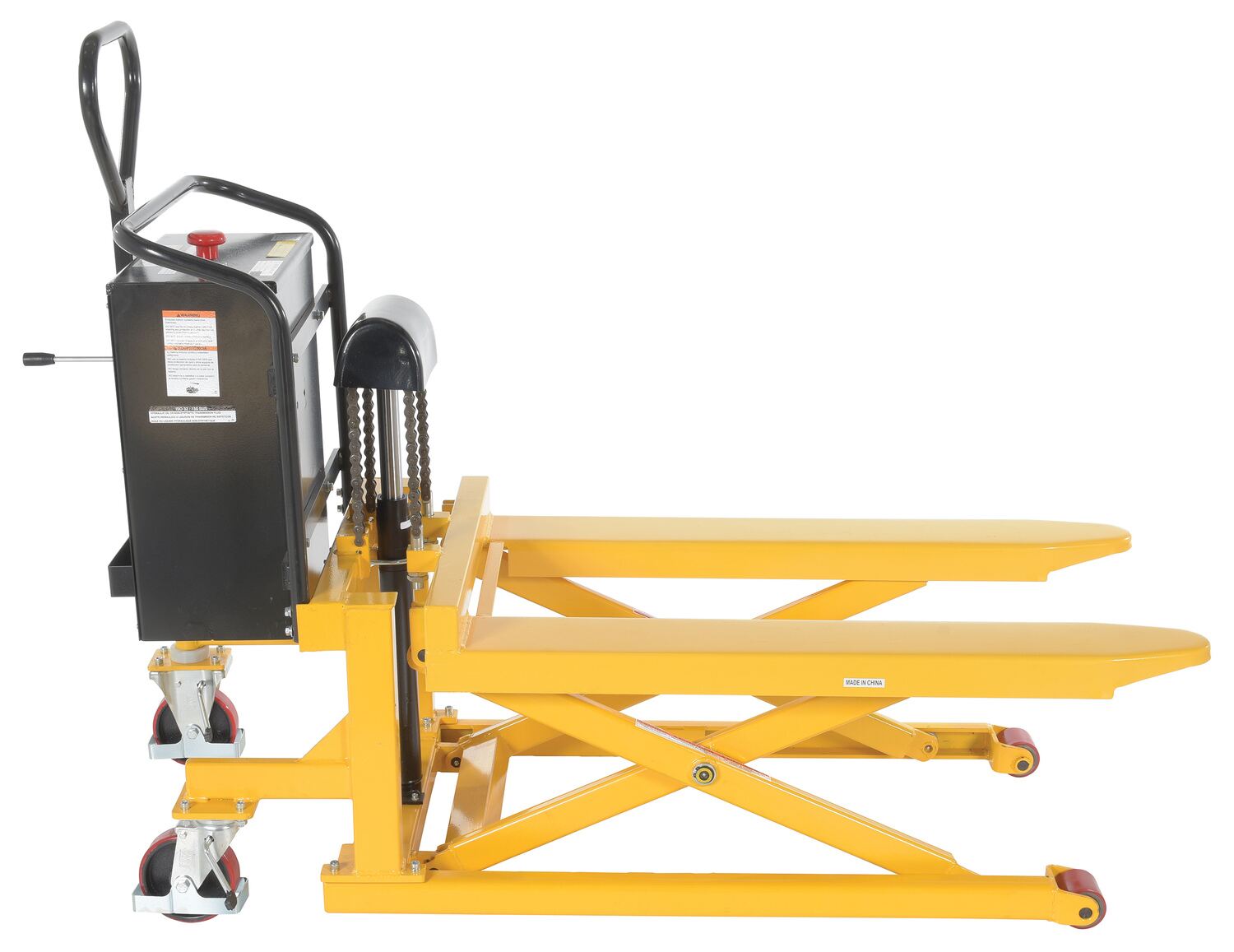

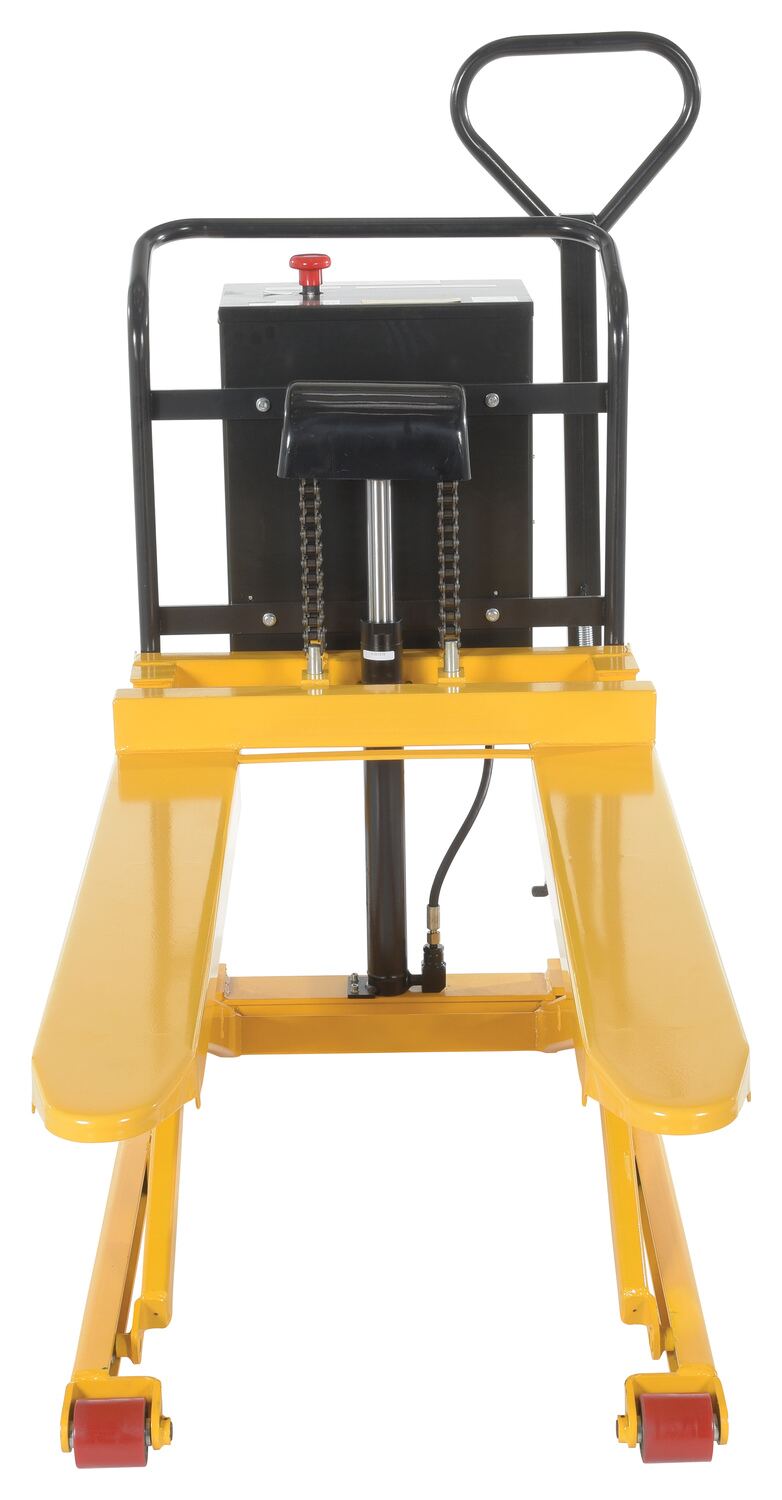

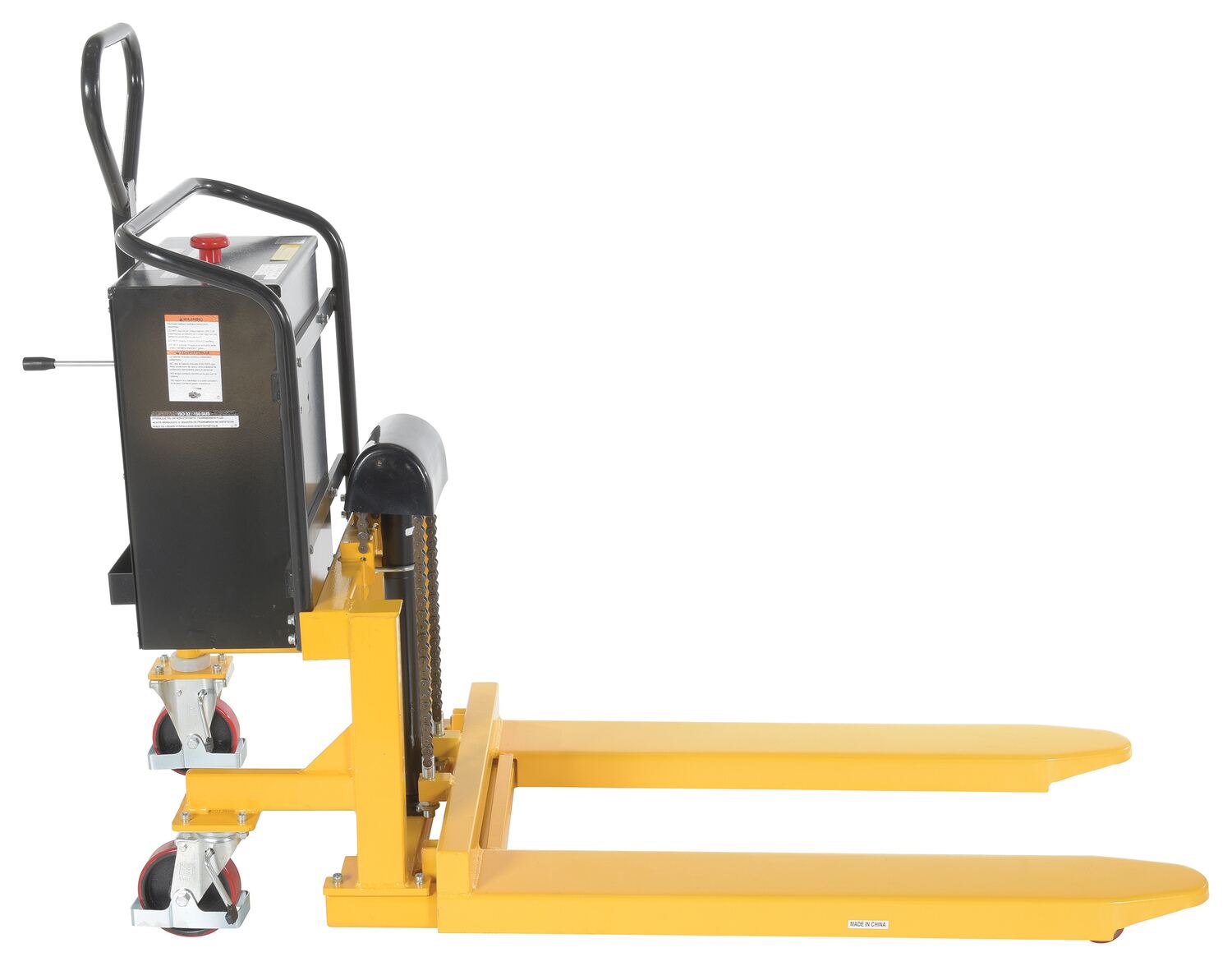

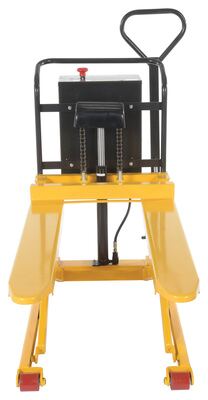

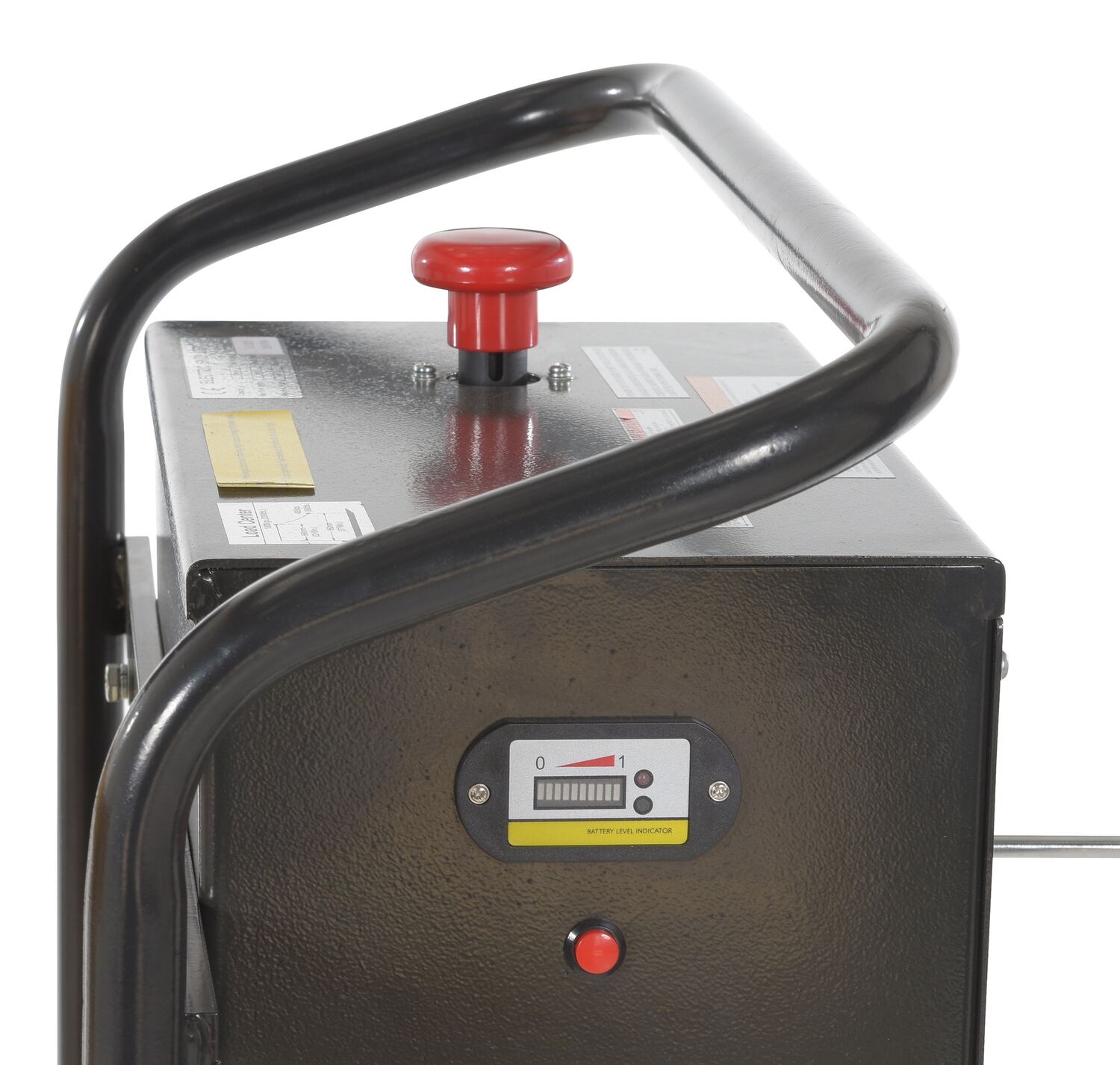

The battery operated lift on -DC unit's is ideal for positioning products at workstation height for increased productivity. -DC powered units include one (1) 12V battery, an on-board charger and battery charge indicator gauge. The up/down lever control is located on power unit.

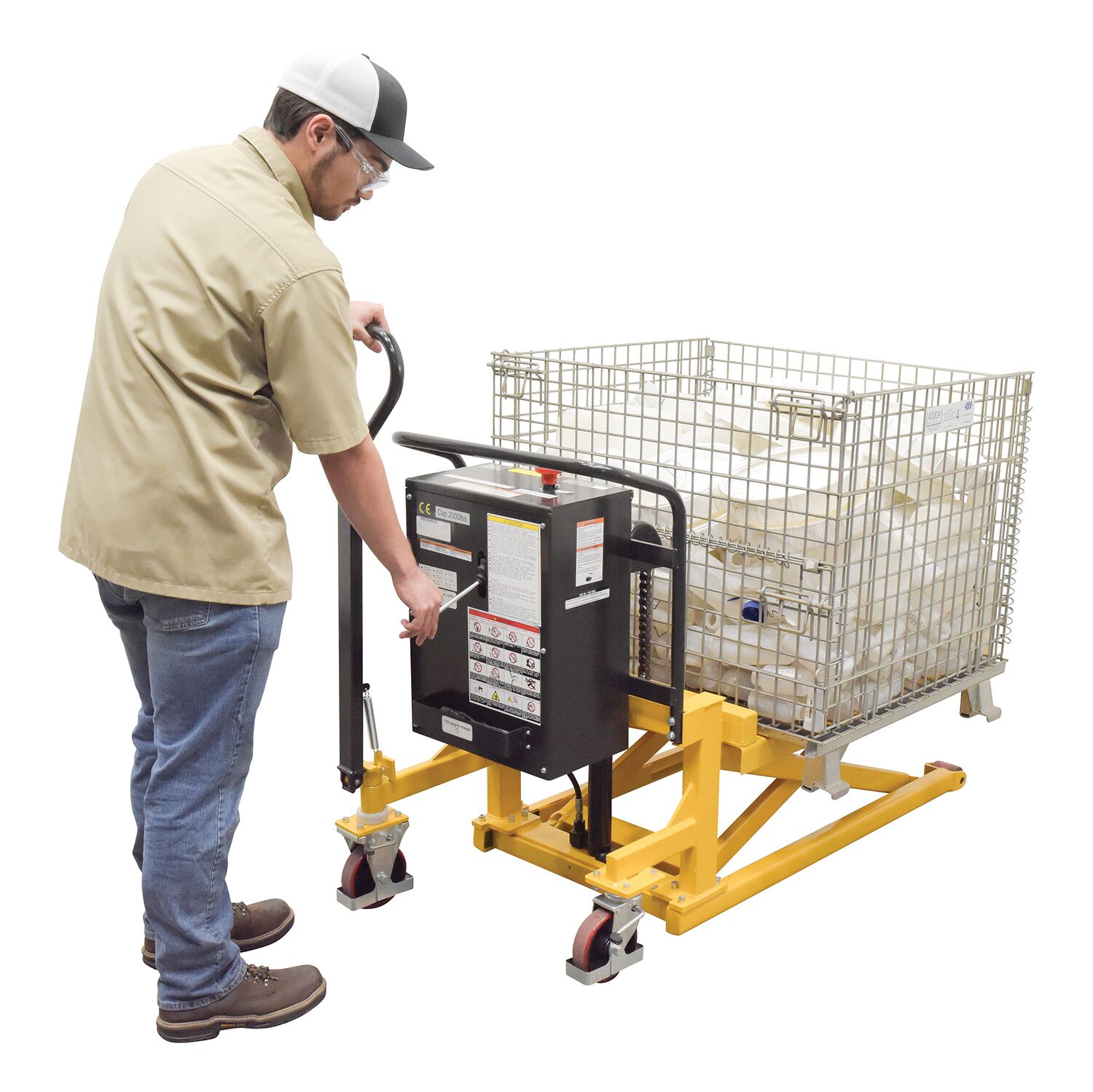

- Designed to lift open bottom skids, boxes, and baskets
- Position products at work heights for increased productivity

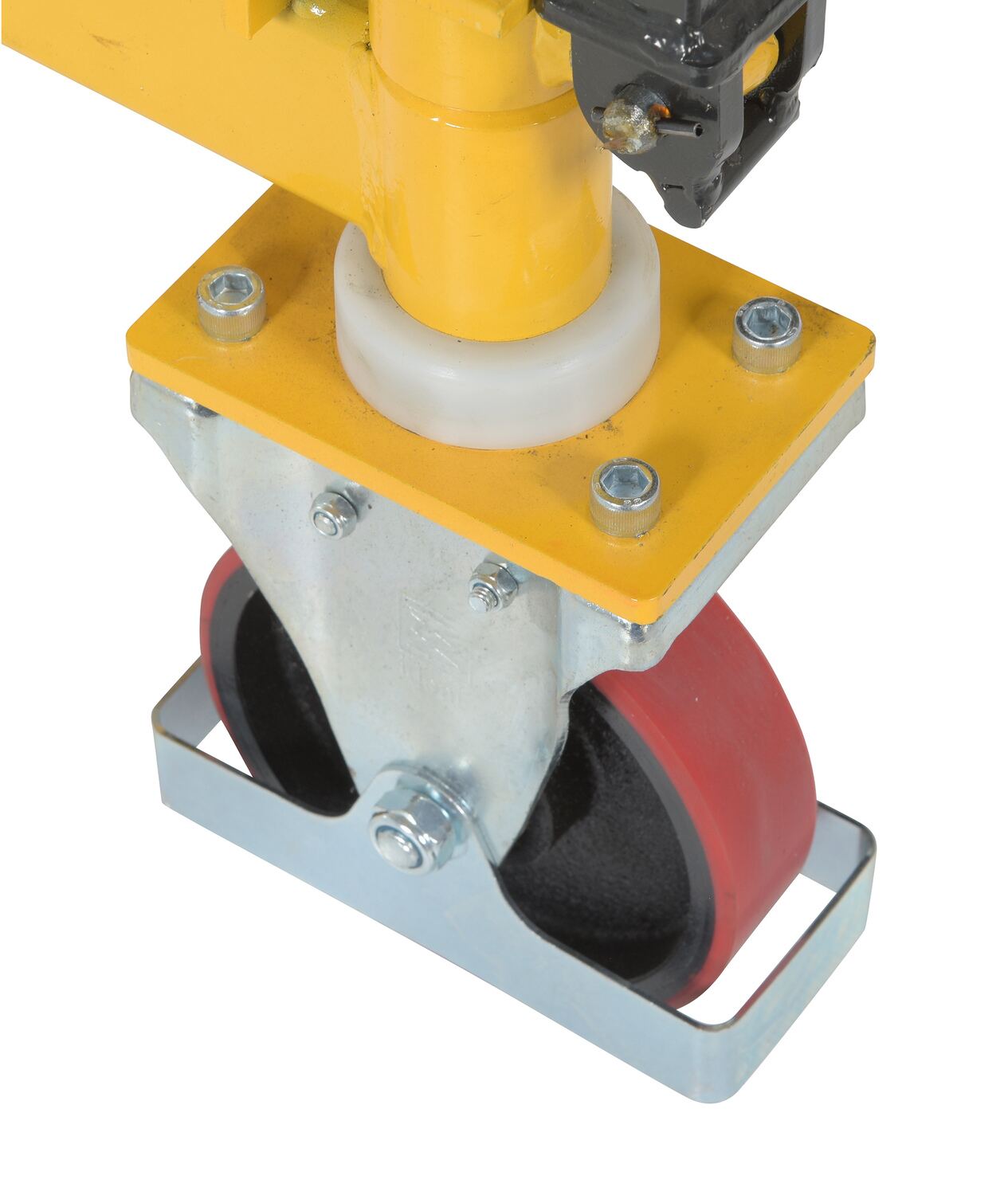

- Polyurethane swivel casters with brake are standard one all units
- Open design is accessible from all three sides
High Tote Lifter
Tote Lifters
High Rise Lift Trucks
| Model # | Description | Attributes | Net Wt. (lbs) |
||||
|---|---|---|---|---|---|---|---|

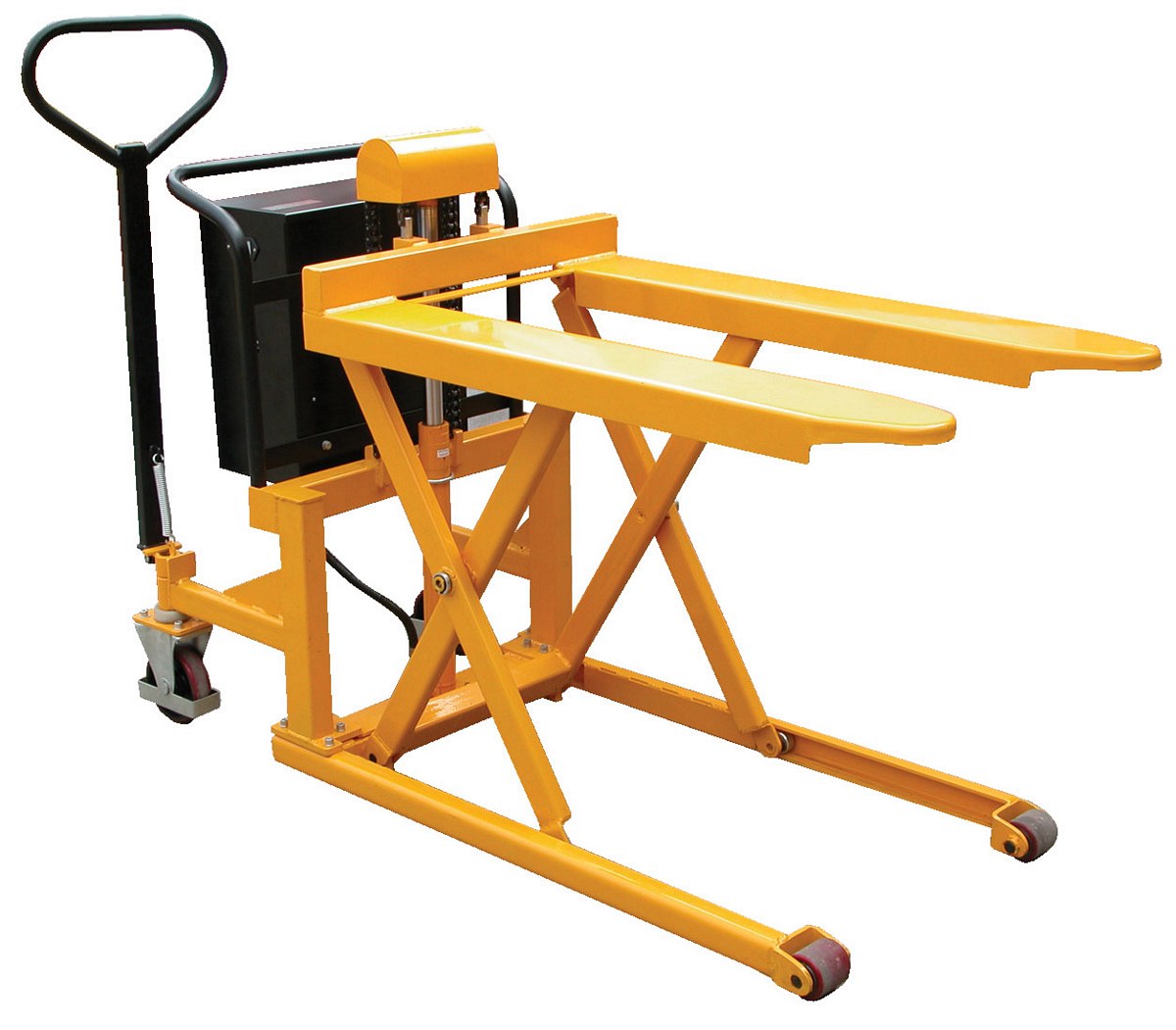

| TAL-220-DC |  | 1 Year Limited Warranty | Steel Tote-A-Load DC Powered Fork Size 21 In. x 43 In. 2,200 Lb. Capacity Yellow | Uniform Capacity (lb.): 2200 Operation: 12 Volt DC Power | 428 | ||

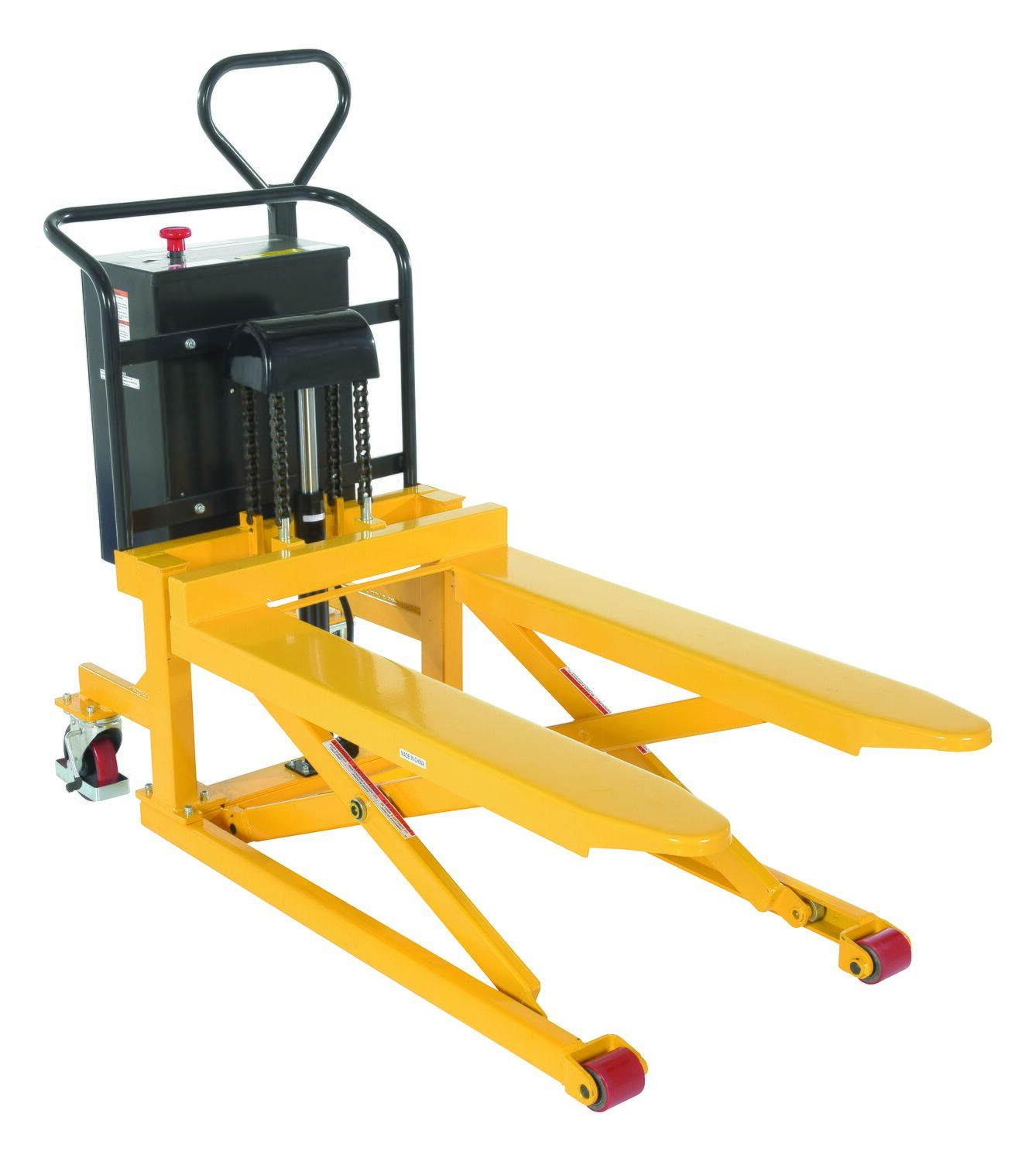

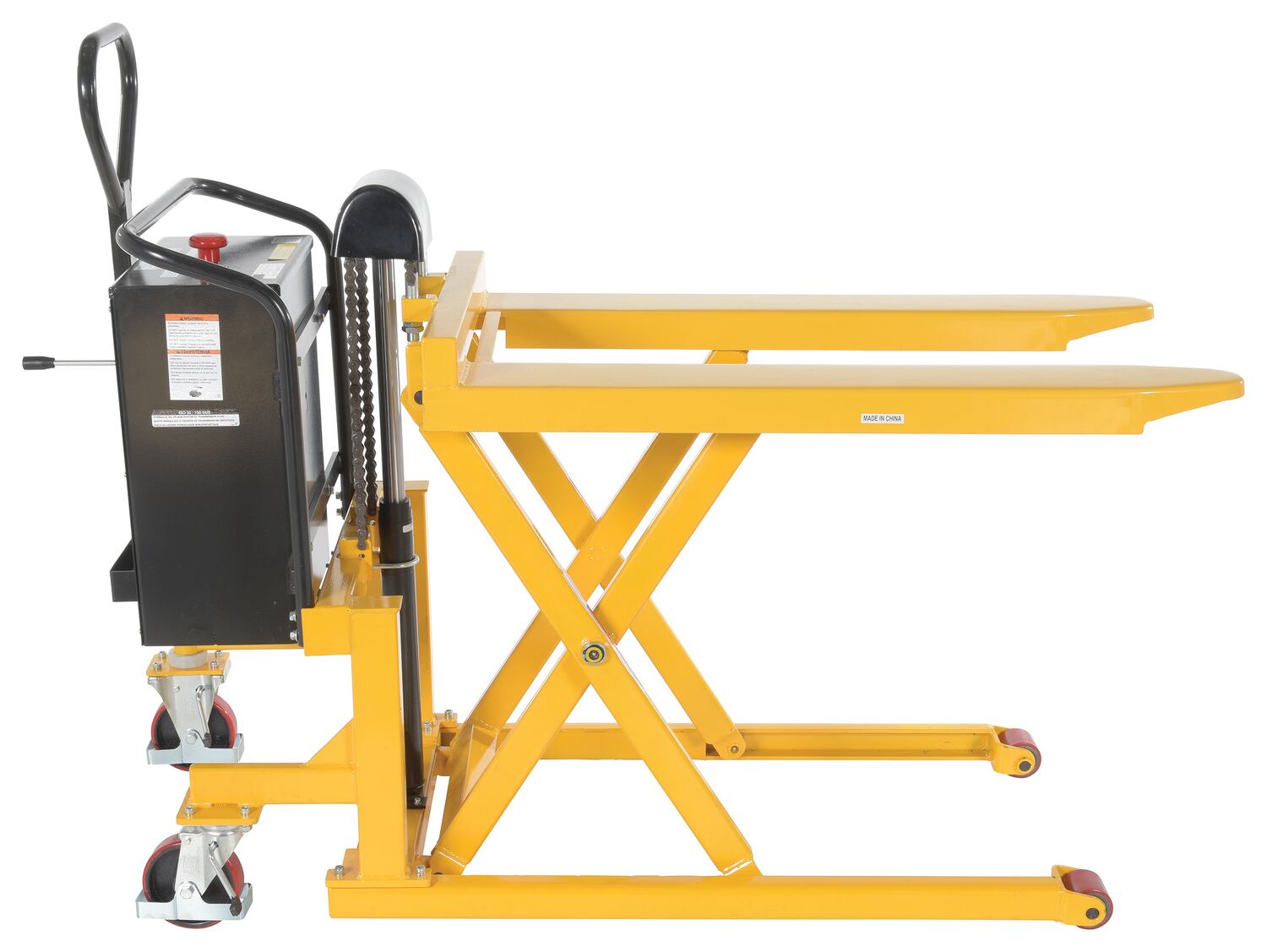

| TAL-260-DC |  | 1 Year Limited Warranty | Steel Tote-A-Load DC Powered Fork Size 27 In. x 43 In. 2,200 Lb. Capacity Yellow | Uniform Capacity (lb.): 2200 Operation: 12 Volt DC Power | 512 | ||

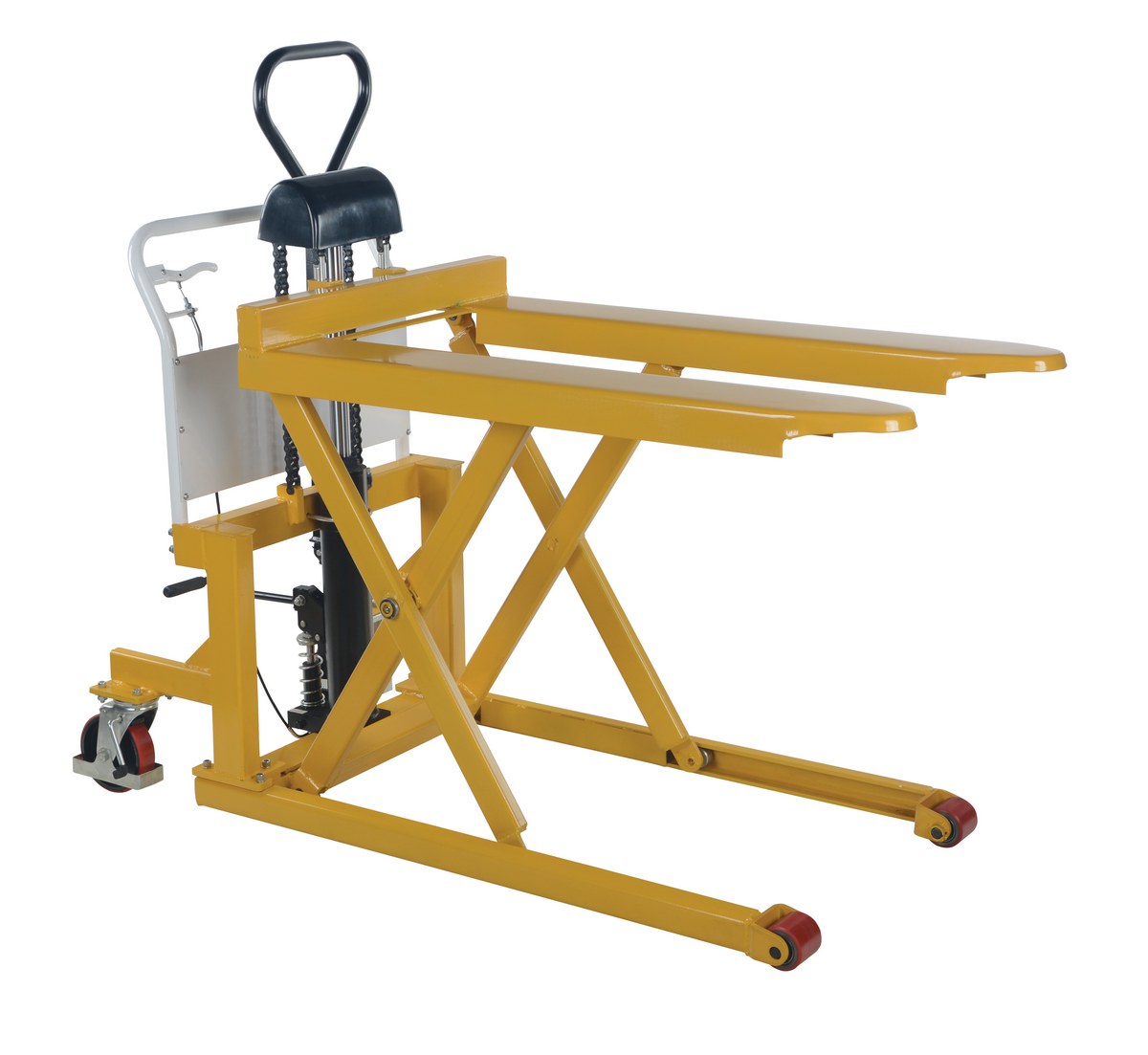

| TAL-260-HD | POPULAR |  | 1 Year Limited Warranty | Steel Tote-A-Load Ergonomic Foot Pump Hydraulic Power Fork Size 27 In. x 43 In. 2,200 Lb. Capacity Yellow | Uniform Capacity (lb.): 2200 Operation: Foot Pump | 385 | |

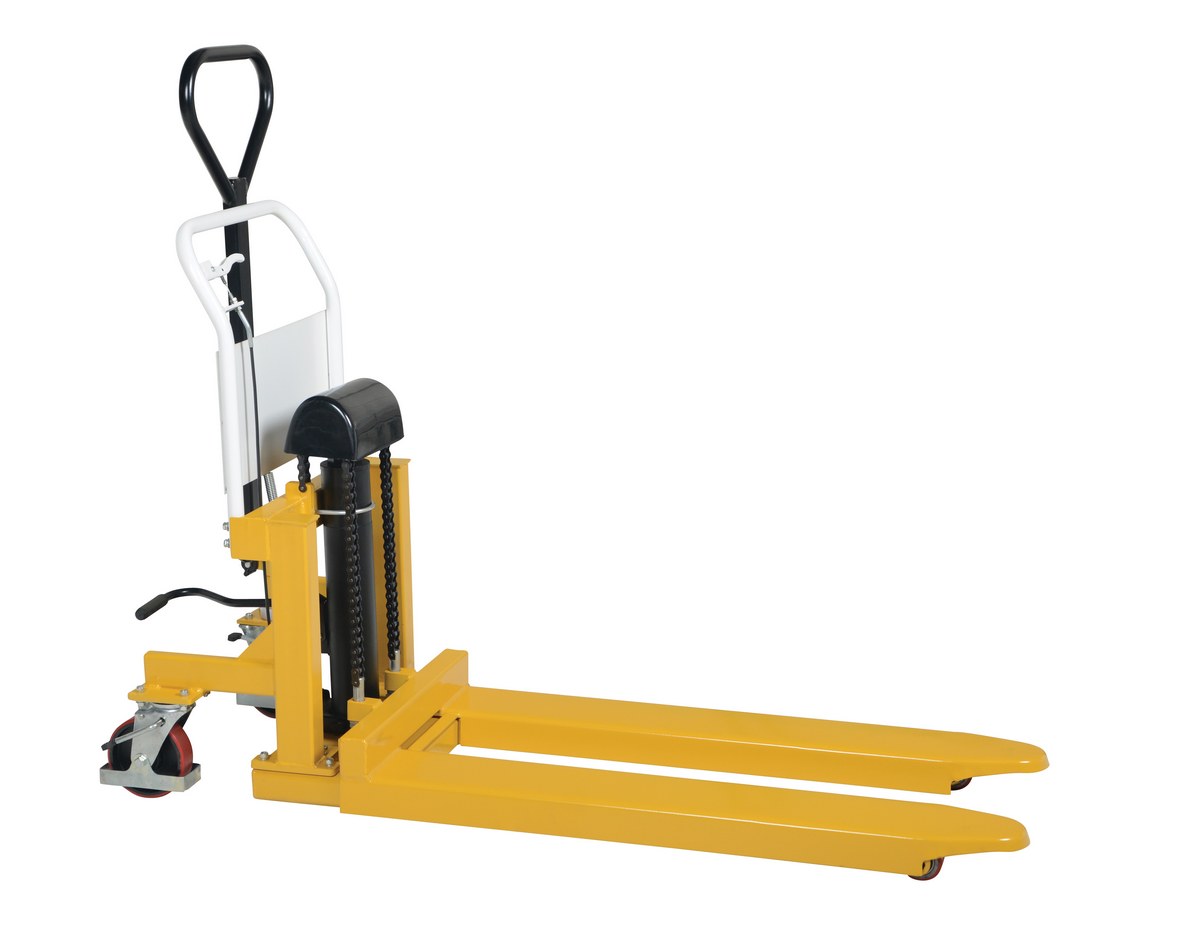

| TAL-220-HD |  | 1 Year Limited Warranty | Steel Tote-A-Load Ergonomic Foot Pump Hydraulic Power Fork Size 21 In. x 43 In. 2,200 Lb. Capacity Yellow | Uniform Capacity (lb.): 2200 Operation: Foot Pump | 356 |
KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2200
Operation: 12 Volt DC Power
Uniform Capacity (lb.): 2200
Operation: 12 Volt DC Power
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2200
Operation: 12 Volt DC Power
Uniform Capacity (lb.): 2200
Operation: 12 Volt DC Power
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2200
Operation: Foot Pump
Uniform Capacity (lb.): 2200
Operation: Foot Pump
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2200
Operation: Foot Pump
Uniform Capacity (lb.): 2200
Operation: Foot Pump
For More Details of the Option Click the Red Model Button

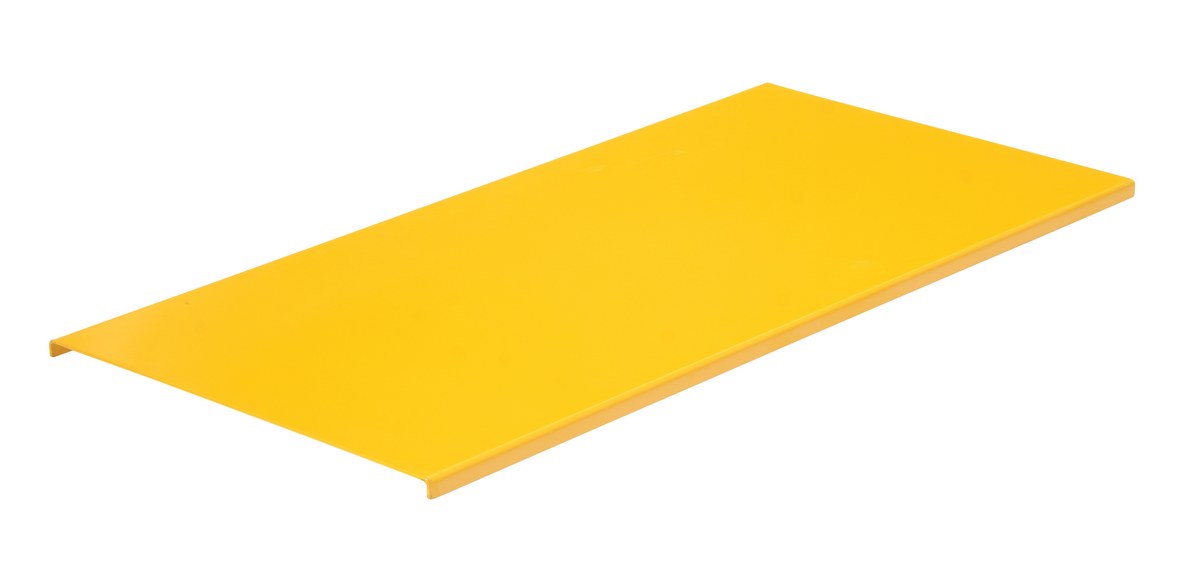

| TAL-PLATE-21 |  | 30 Days Limited Warranty | Steel Solid Platform 44 In. x 21-1/4 In. For Tote-A-Load Forks Yellow | Weight Capacity (lbs): 2200 Attachment Method: Bolt on | 36 | |

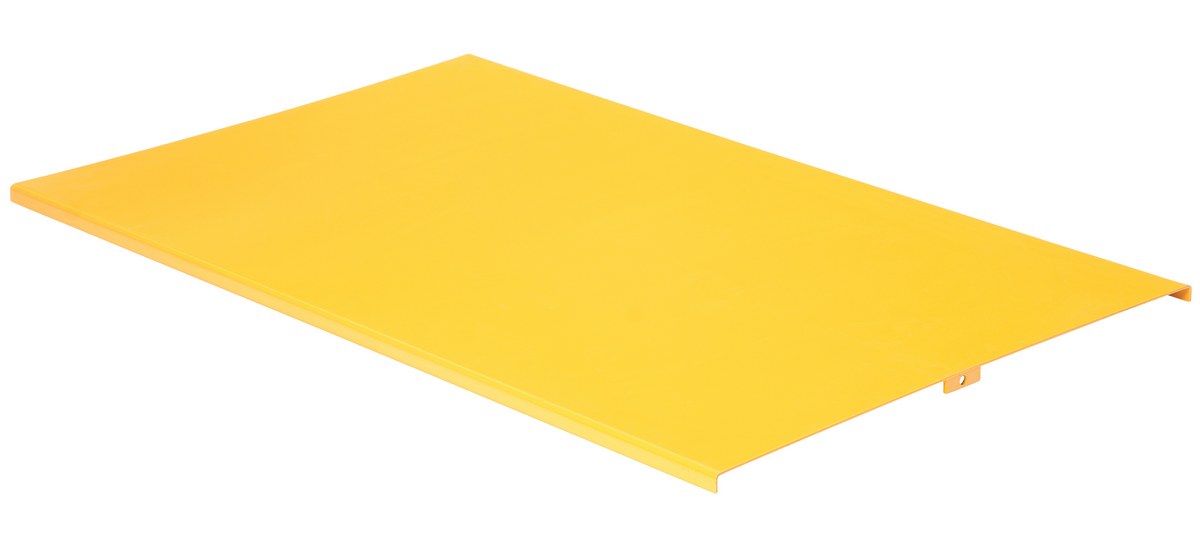

| TAL-PLATE-27 |  | 30 Days Limited Warranty | Steel Solid Platform 44 In. x 27-3/4 In. For Tote-A-Load Forks Yellow | Weight Capacity (lbs): 2200 Attachment Method: Bolt on | 36 |
.
Manuals
Survey Sheets
Approval Drawings
Testing Certificates
SDS Sheets
Valve-Regulated Lead Acid Batteries SDS Sheet for: TAL-220-DC
Hydraulic Oil SDS Sheet for: TAL-220-DC
Hydraulic Oil SDS Sheet for: TAL-220-HD
Valve-Regulated Lead Acid Batteries SDS Sheet for: TAL-260-DC
Hydraulic Oil SDS Sheet for: TAL-260-DC
Hydraulic Oil SDS Sheet for: TAL-260-HD
Other PDF's
Directory Links Of Available PDF's For All Products
Q: What is the thickness of the plate?
A: The plate is 1/8" thick.
Q: Can the TAL products be pushed while in the up position?
A: Yes they can be pushed when in the raised height position.
 |
|||||||||||||||||||||||||||
Tote-A-Loads |
|||||||||||||||||||||||||||
 |
|||||||||||||||||||||||||||
For models ending in -HD, the manually operated lift is easy to operate. The foot pump operated lift travels approximately 1/2" per stroke. To lower the -HD units, depress on the bicycle style grip located on the white push bar. The battery operated lift on -DC unit's is ideal for positioning products at workstation height for increased productivity. -DC powered units include one (1) 12V battery, an on-board charger and battery charge indicator gauge. The up/down lever control is located on power unit.
|
|||||||||||||||||||||||||||
 |
|||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||
