Stackers with Powered Drive and Powered LiftFully powered electric stacker transports loads throughout warehouse facilities quickly and with less effort. High torque 24VDC drive and lift motor handles heavy-duty jobs. Ergonomic handle features easy-to-operate throttle with infinite adjustment of forward and reverse speeds, lift/lower controls, proprietary safety-enhancing emergency reverse function, and horn. Includes an electromagnetic disc brake with automatic dead-man feature that activates when user releases the handle. Powered lifter has two 12V lead acid deep cycle batteries, integral battery charger, and battery level gauge. Stacker rolls smoothly on poly-on-steel steer & load wheels. Features 0.7 KW drive and 2.0 KW lift motor. 3-4 hour operation at full charge - 8 hours when used intermittently.
Proprietary safety-enhancing emergency reverse function When actuated, the emergency reverse belly switch instantly reverses direction and moves the unit forward (away from the operator) until the switch is released or after five seconds have elapsed. The built-in safety circuit will automatically disable the entire unit if the emergency reverse belly switch is activated for more than 5 seconds after which the unit must be re-set to return to normal operating conditions. This state-of-the-art safety device provides a high degree of operator protection. Battery options available; Absorbed Glass Matt, suffix AGM. Batteries are maintenance free. Sealed construction eliminates periodic watering and corrosive acid fume spills.
Check Out Vestil's Other Stackers:
Stacker with Powered Lift | Specialty Stackers | Pallet Master/Servers | Manual & Electric Stackers | Counter-Balanced Powered Drive Lifts | Rough Terrain Stacker | Narrow Mast Stackers with Powered Lift | Double Mast Stackers with Powered Drive and Powered Lift | Fully Powered Bale Clamp & Lift Stackers | Stackers with Lithium Ion Battery | Combination Hand Pump and Electric Stackers | Variable Speed Drive Double Mast Fully Powered Stacker | Narrow Mast Stackers with Powered Drive and Powered Lift | Gas Powered All Terrain Pallet Trucks & Stackers | Semi-Electric Powered Drum Gripper | Powered Stacker with Power Drive, Power Lift, & Power Fork Reach | Electric Stackers (Pramac) | Manual & Electric Stackers (Pramac)
Powered Stacker with Power Drive, Power Lift, & Power Fork Reach
Stackers with Lithium Ion Battery
Manual & Electric StackersAdditional Models In This Family
S-62-FF
S-62-AA
S-DK
S-150-AA
S-62-FA
S-118-AA
S-150-AA
S-118-FF

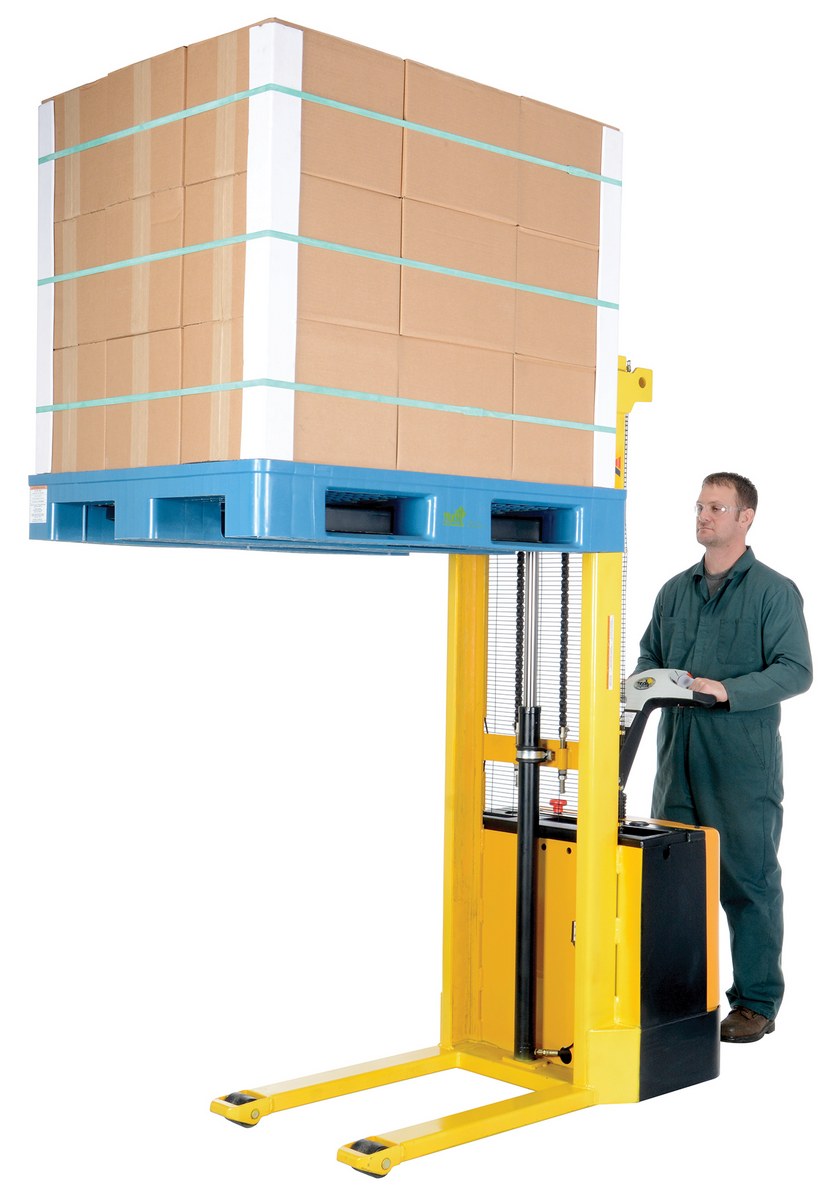

S-62-FF
S-62-FF
S-62-FA
S-DK
S-62-FF
S-118-AA
S-62-FA
| Model # | Description | Attributes | Net Wt. (lbs) |
||||
|---|---|---|---|---|---|---|---|

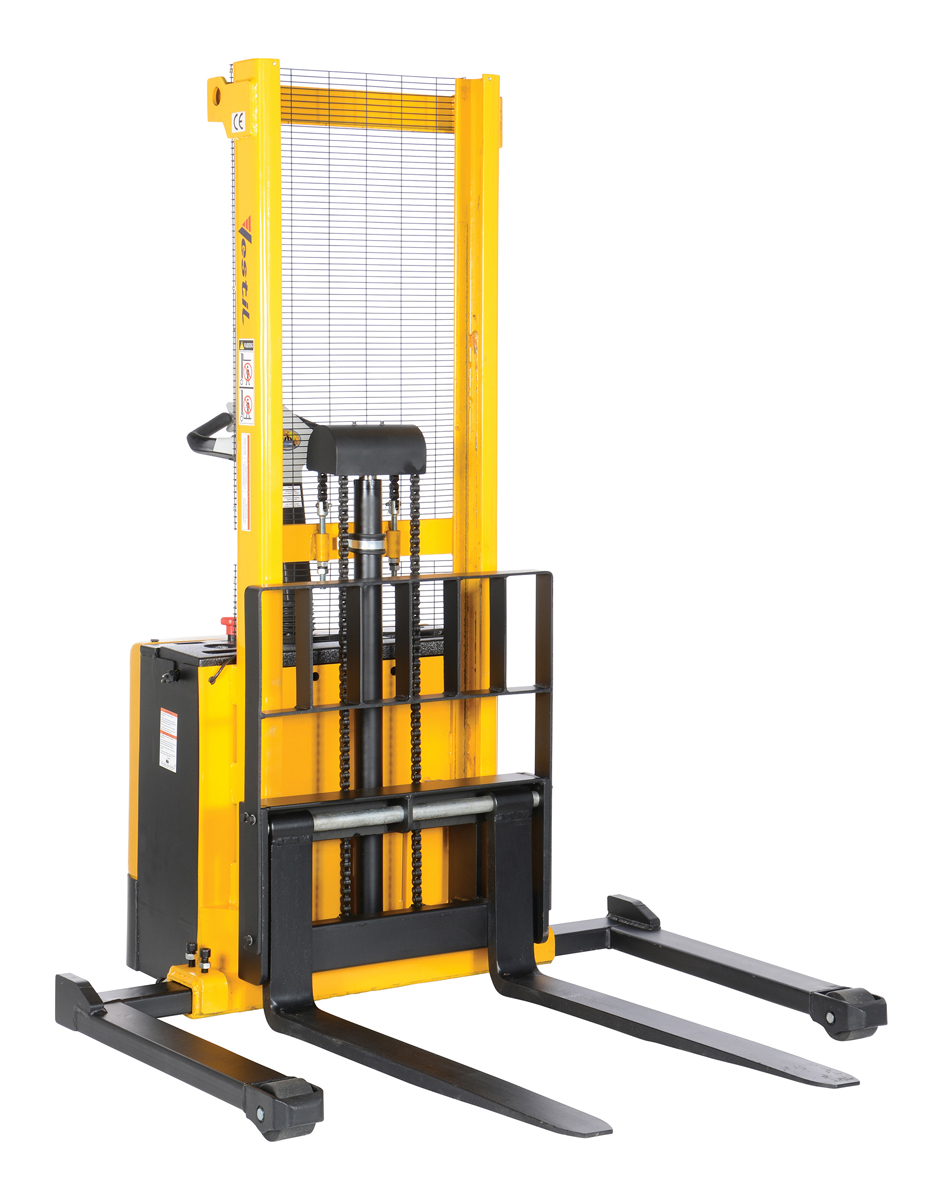

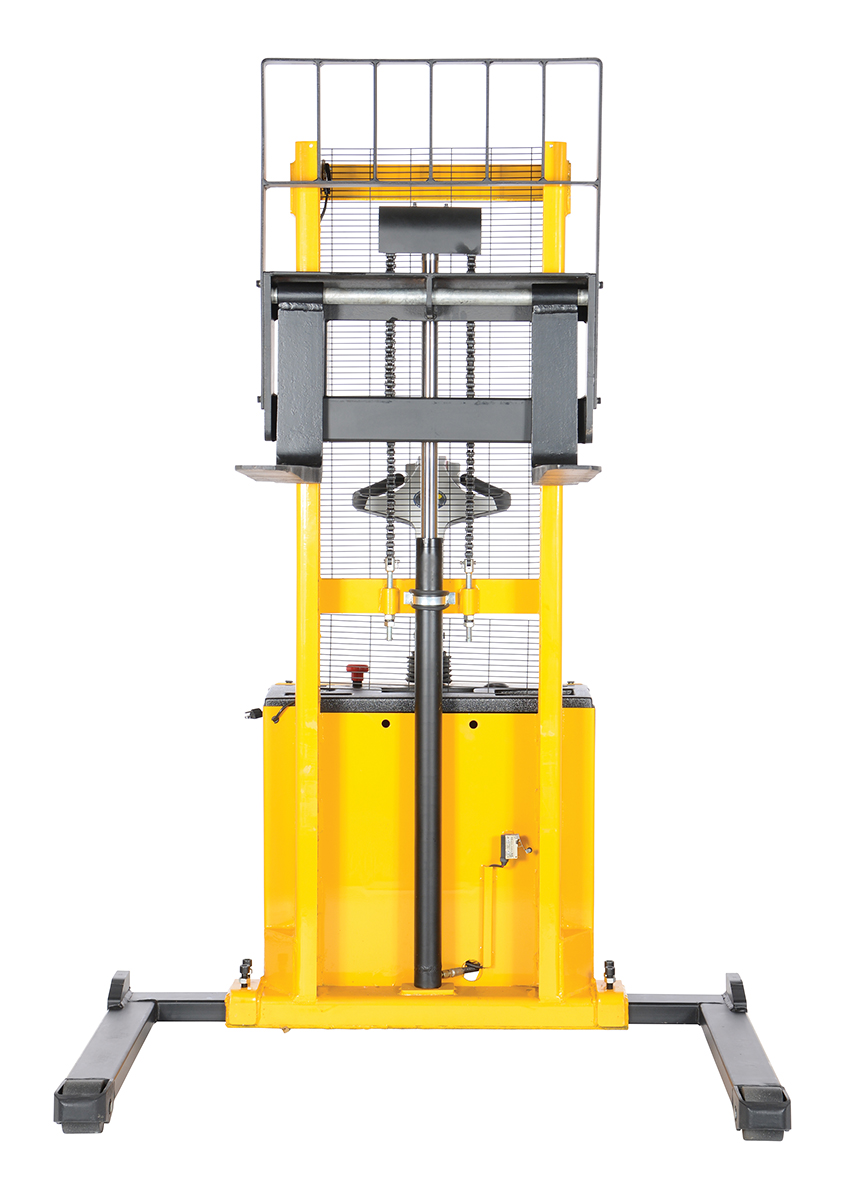

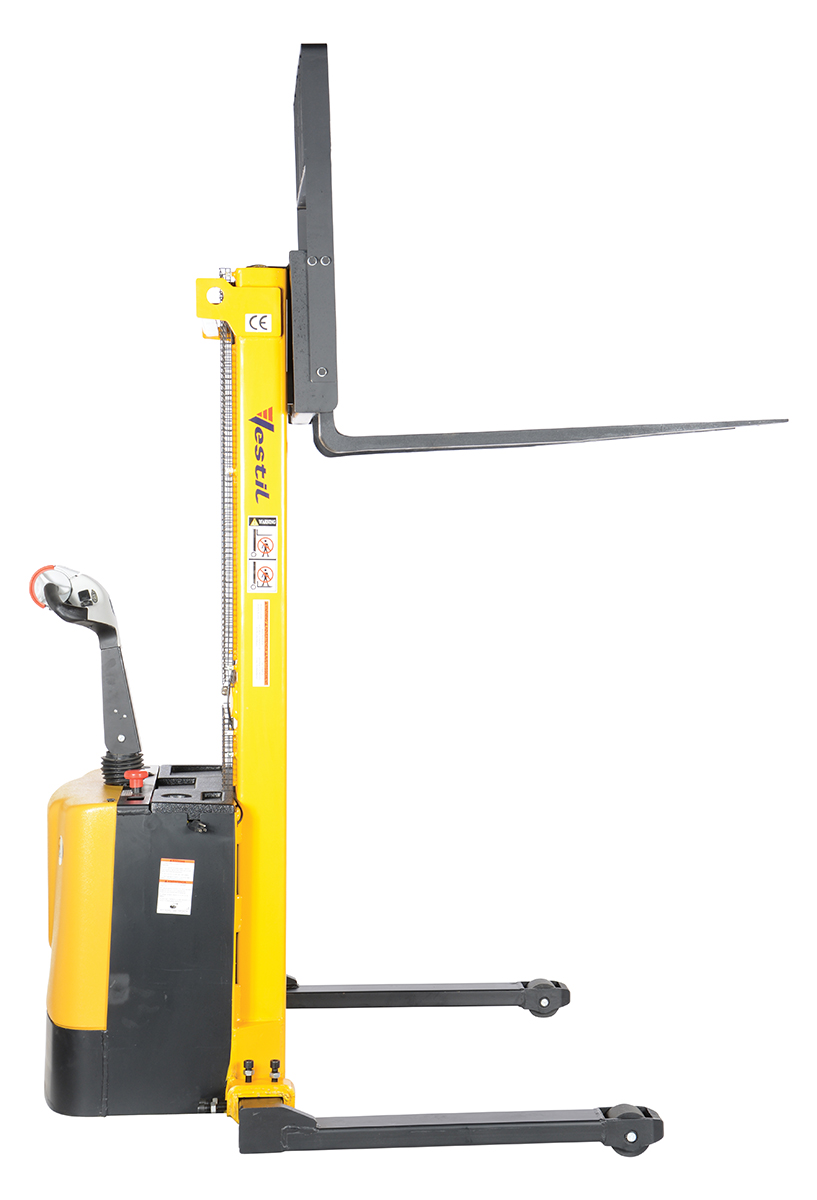

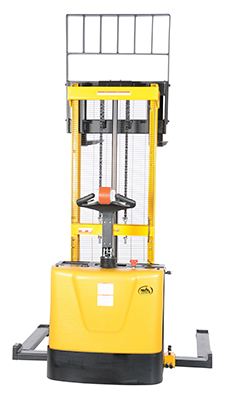

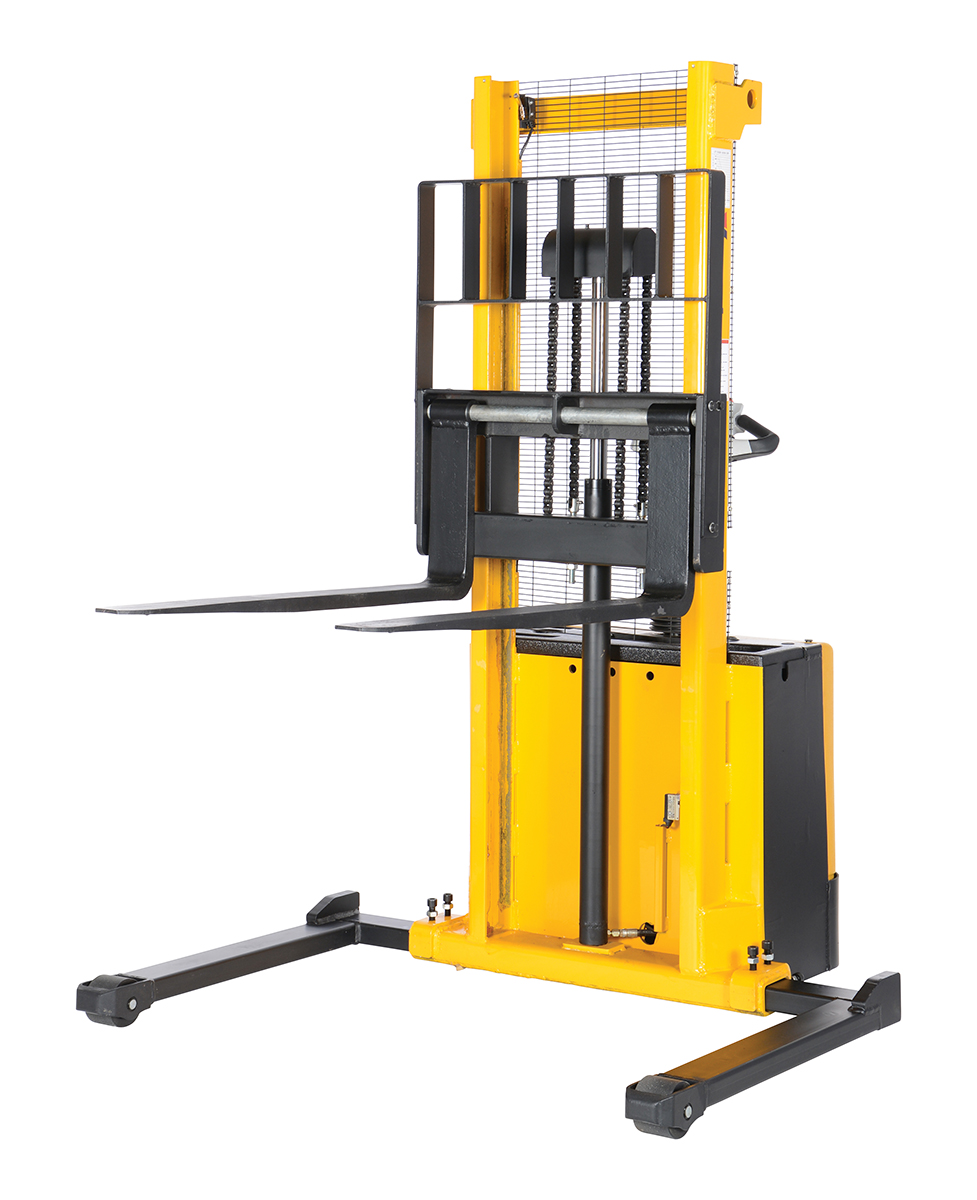

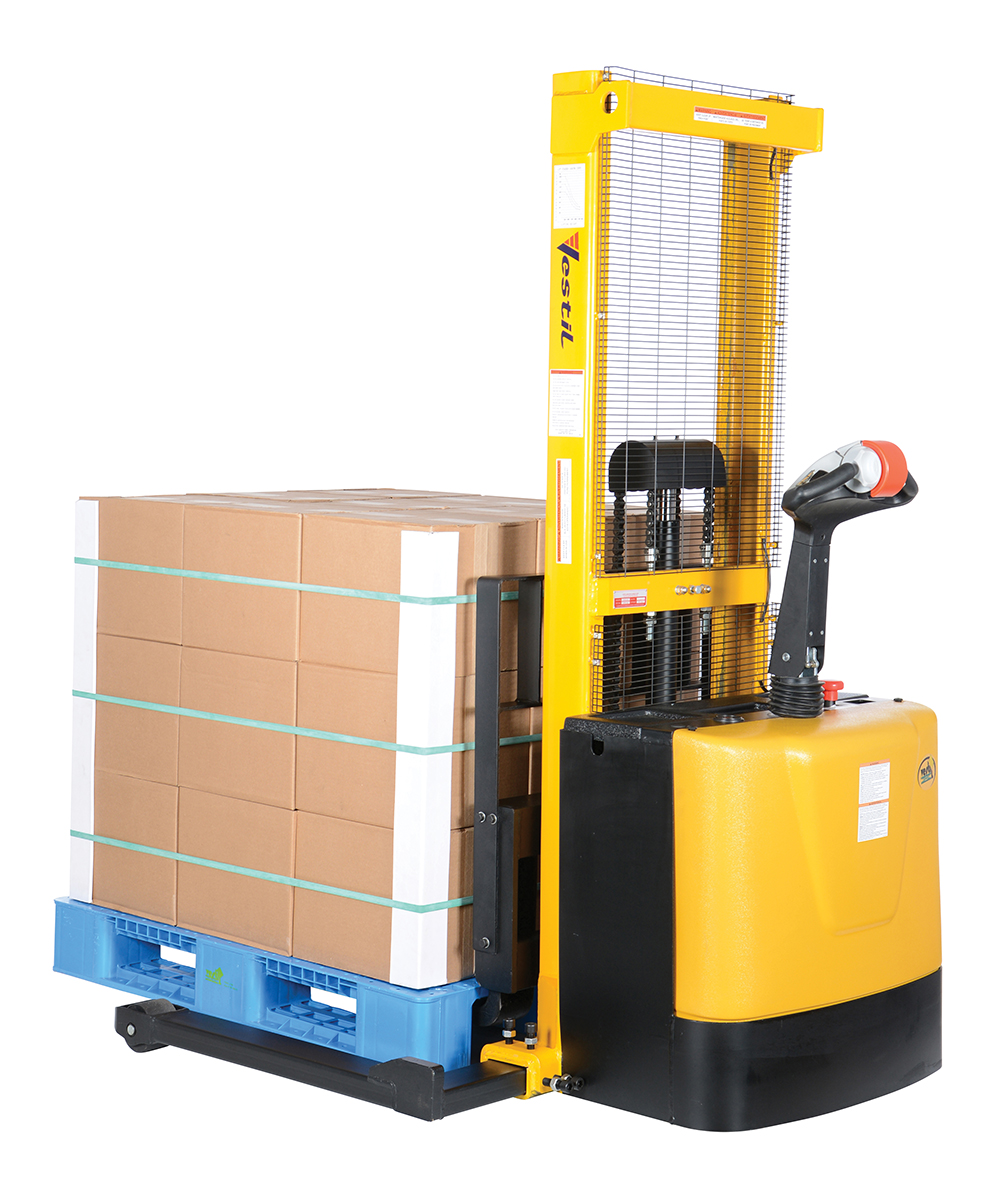

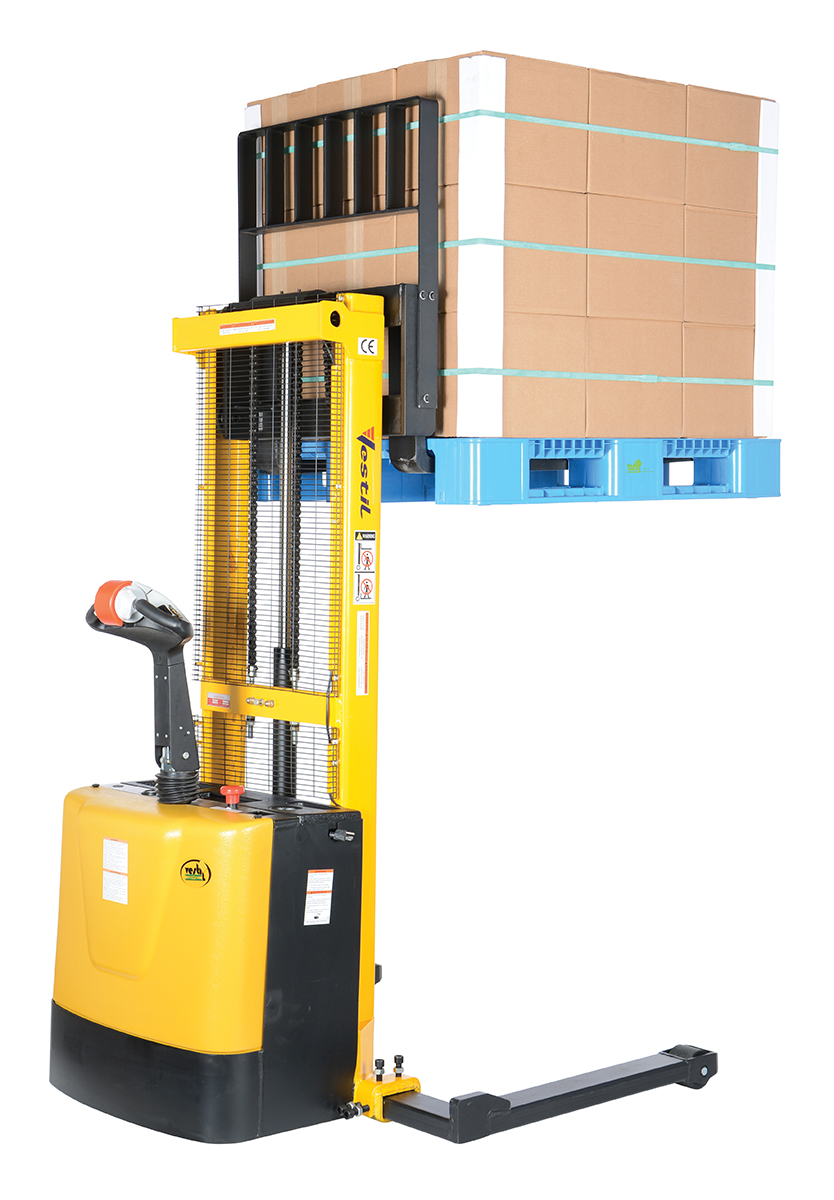

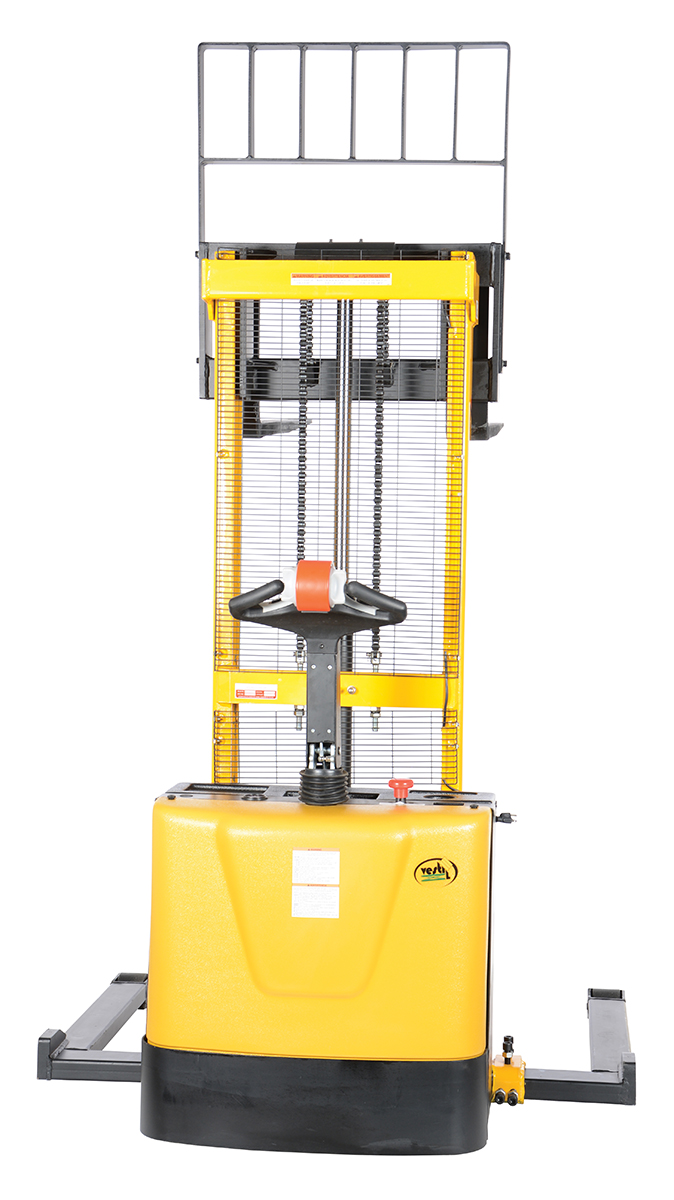

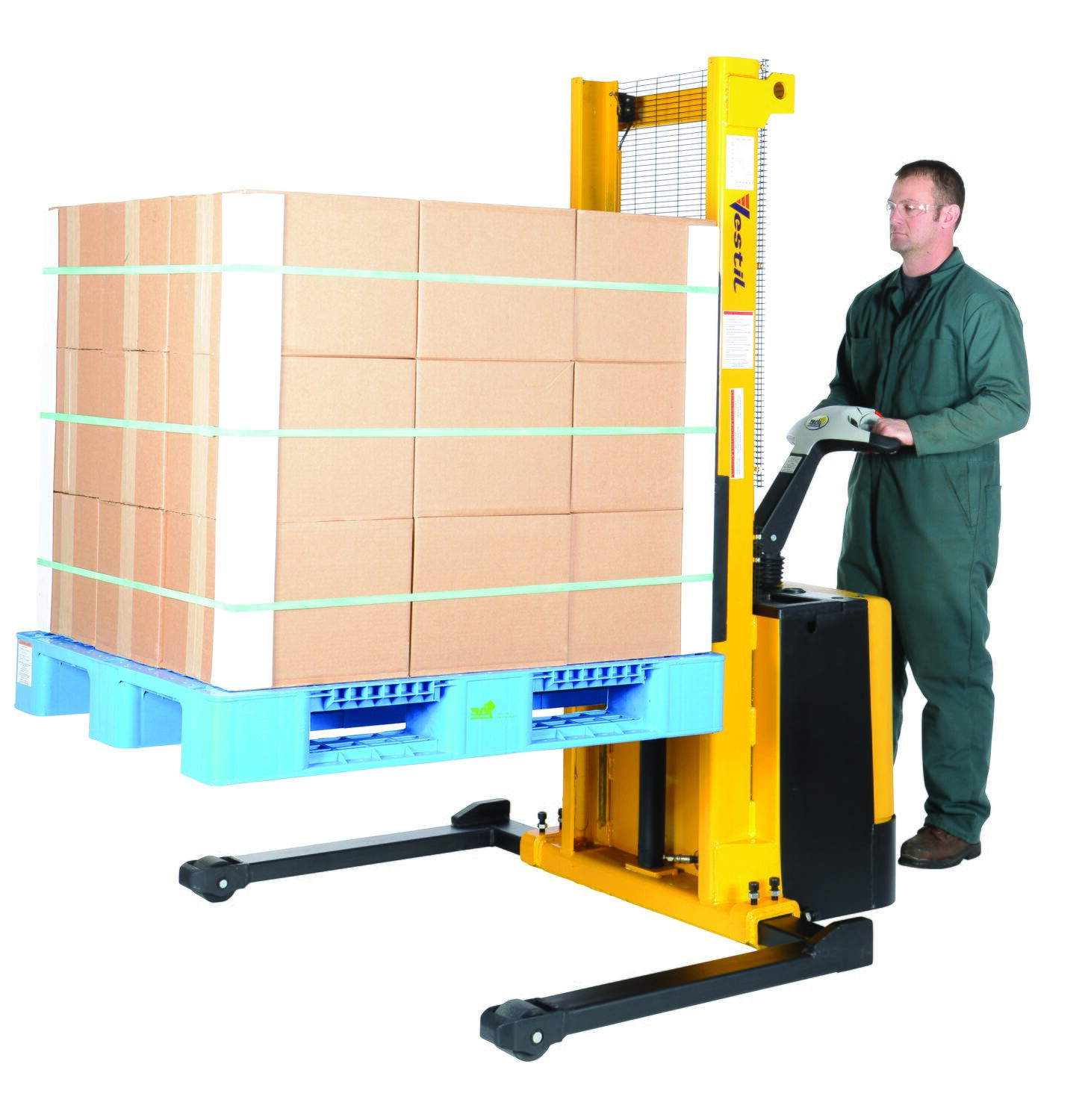

| S-62-AA | POPULAR |  | 1 Year Limited Warranty | Steel Adjustable Powered Lift Stacker 62 In. Raised Height 2,000 Lb. Capacity Black / Yellow | Uniform Capacity at 0" to 62" Raised Height (lb.): 2000 Fork Width Min./Max. (in.): 8 - 26-3/4 | 1306 | |

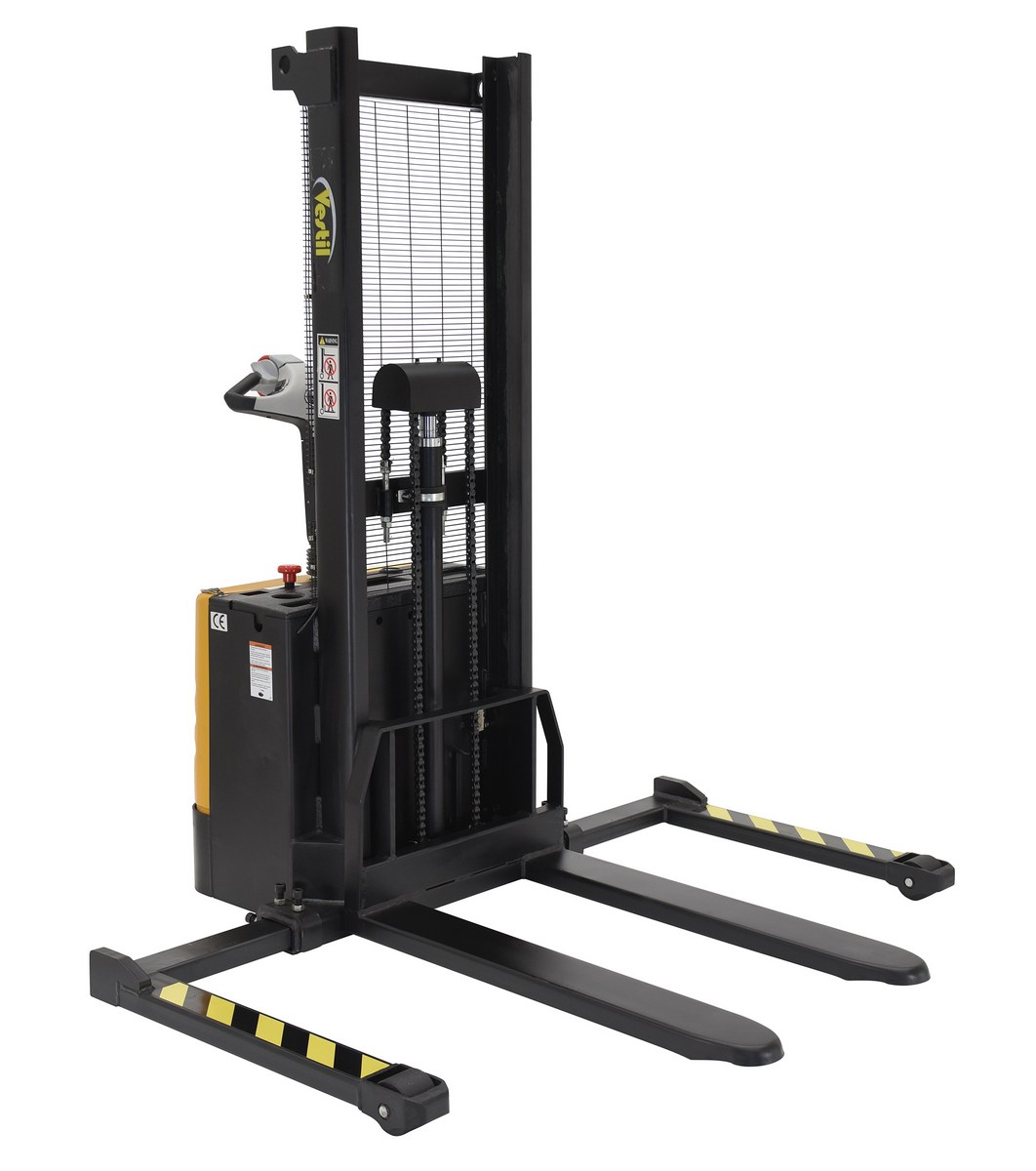

| S-62-FA | | 1 Year Limited Warranty | Steel Fixed Fork Lift Stacker 62 In. Raised Height 2,000 Lb. Capacity Black / Yellow | Uniform Capacity at 0" to 62" Raised Height (lb.): 2000 Fork Width (in.): 26-3/4 | 1075 | ||

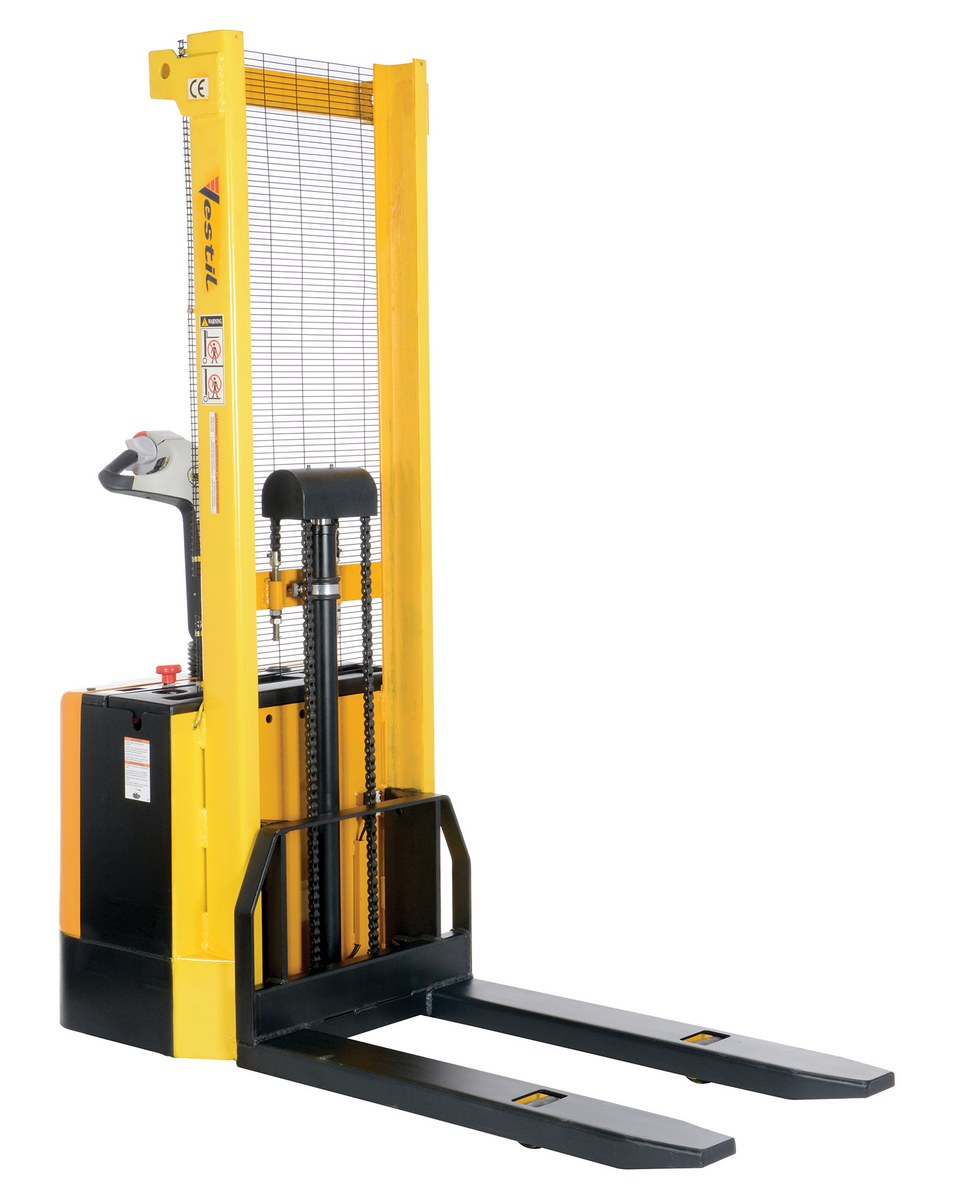

| S-62-FF | | | 1 Year Limited Warranty | Steel Fixed Powered Lift Stacker 62 In. Raised Height 2,000 Lb. Capacity Black / Yellow | Uniform Capacity at 0" to 62" Raised Height (lb.): 2000 Fork Width (in.): 26-3/4 | 997 | |

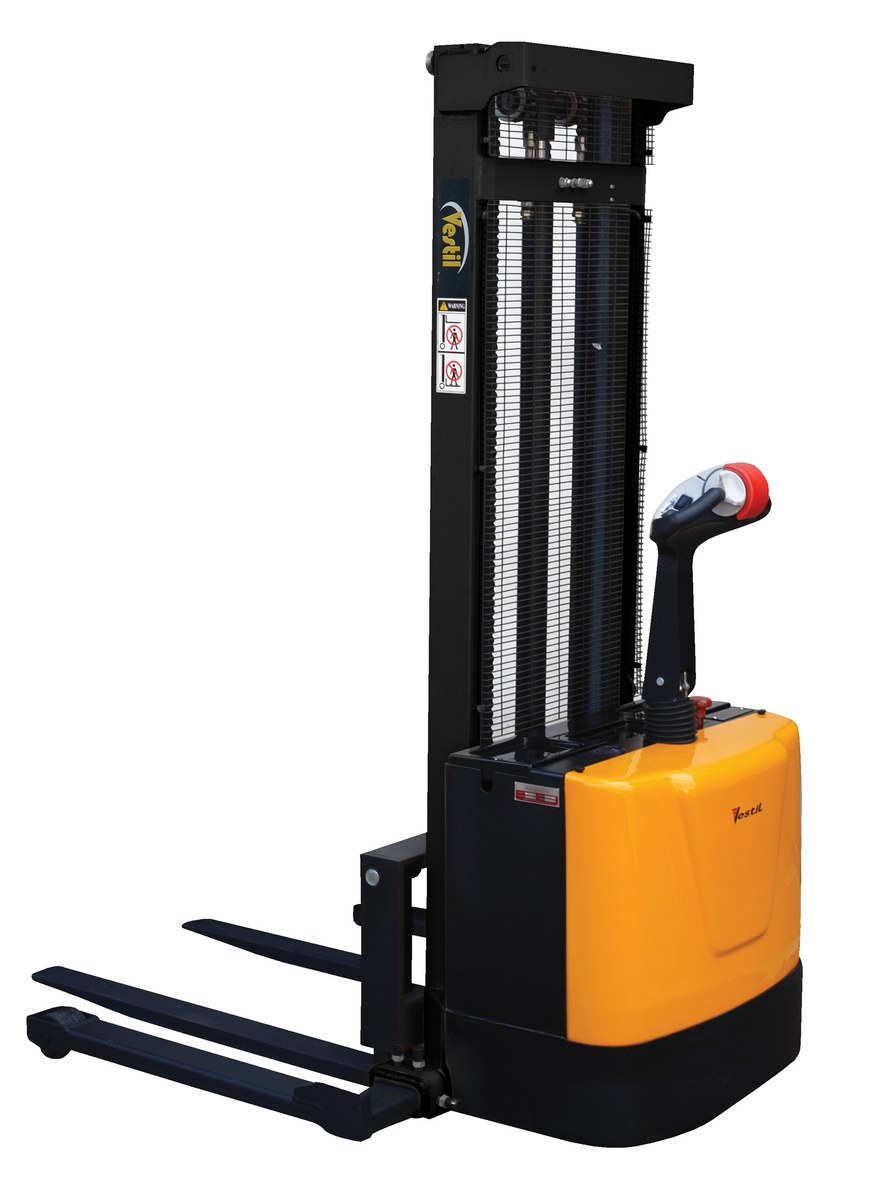

| S-118-AA | | 1 Year Limited Warranty | Steel Adjustable Powered Lift Stacker 118 In. Raised Height 2000 Lb. Capacity Black / Yellow | Uniform Capacity at 0" to 62" Raised Height (lb.): 2000 Uniform Capacity at 62" to 118" Raised Height (lb.): 1500 | 1556 | ||

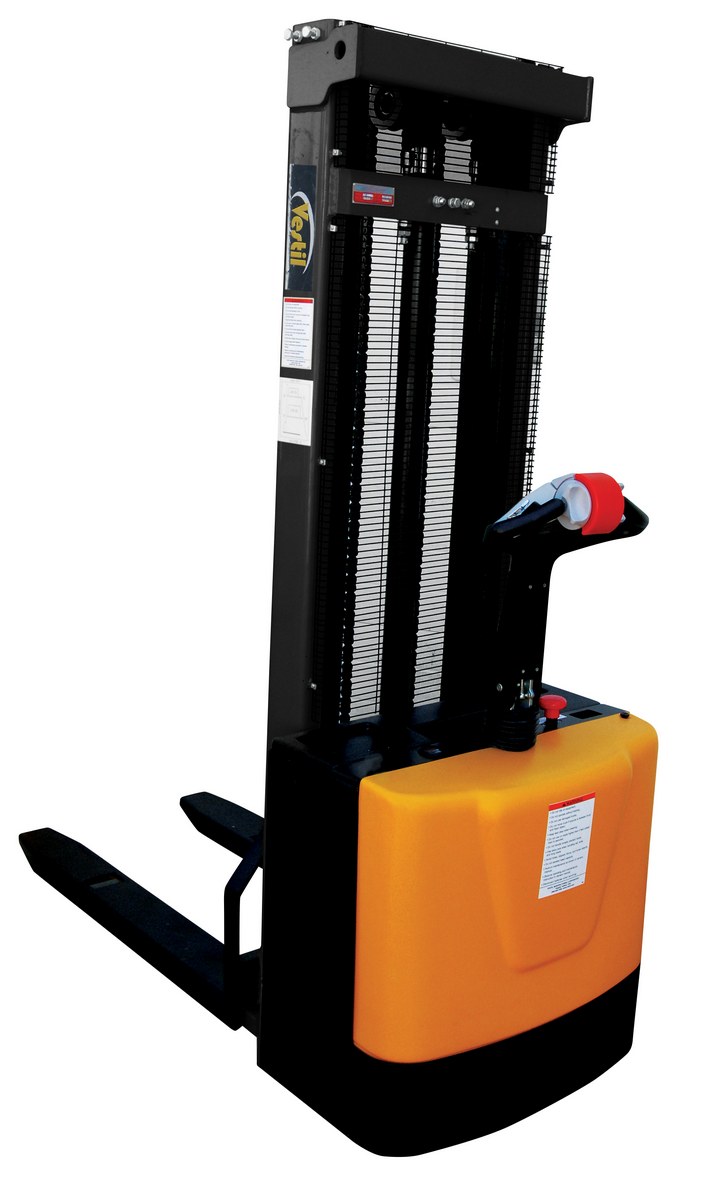

| S-118-FF | | | 1 Year Limited Warranty | Steel Fixed Forks Powered Lift Stacker 118 In. Raised Height 2000 Lb. Capacity Black / Yellow | Uniform Capacity at 0" to 62" Raised Height (lb.): 2000 Uniform Capacity at 62" to 118" Raised Height (lb.): 1500 | 1249 | |

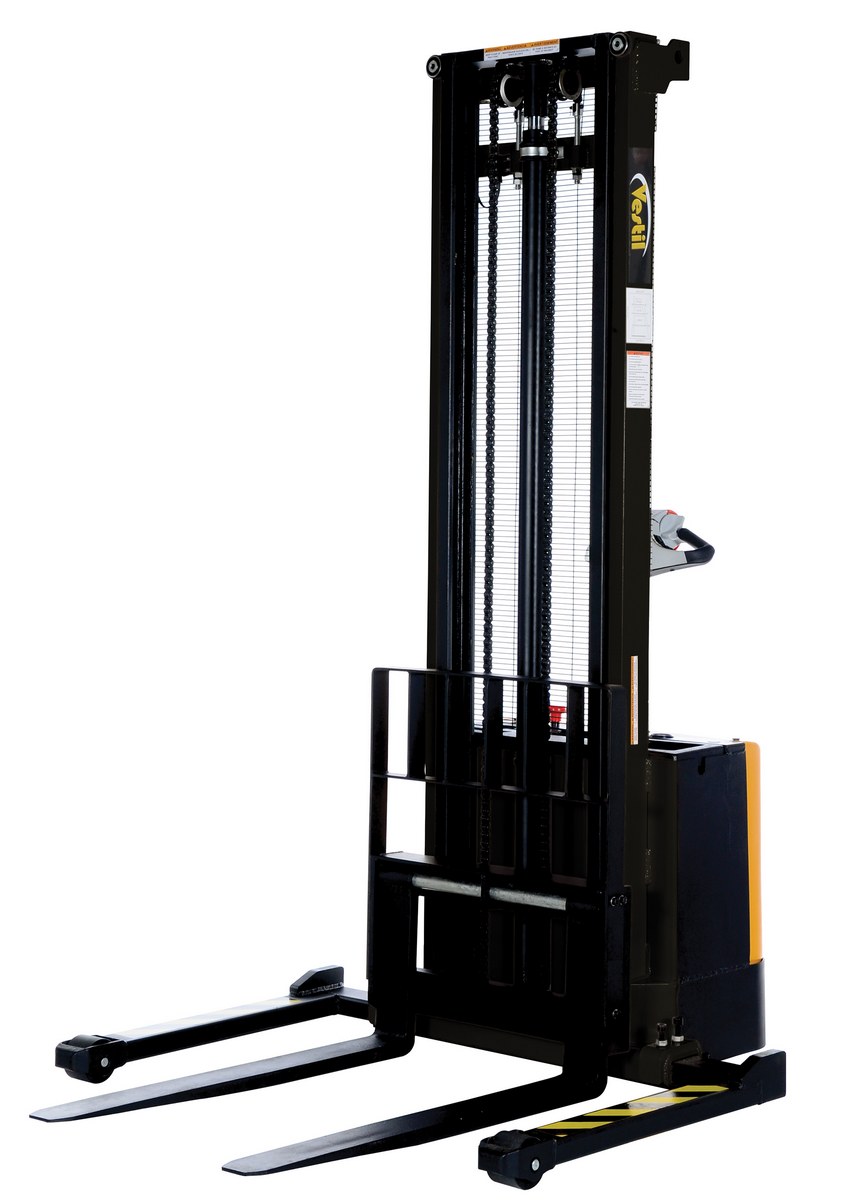

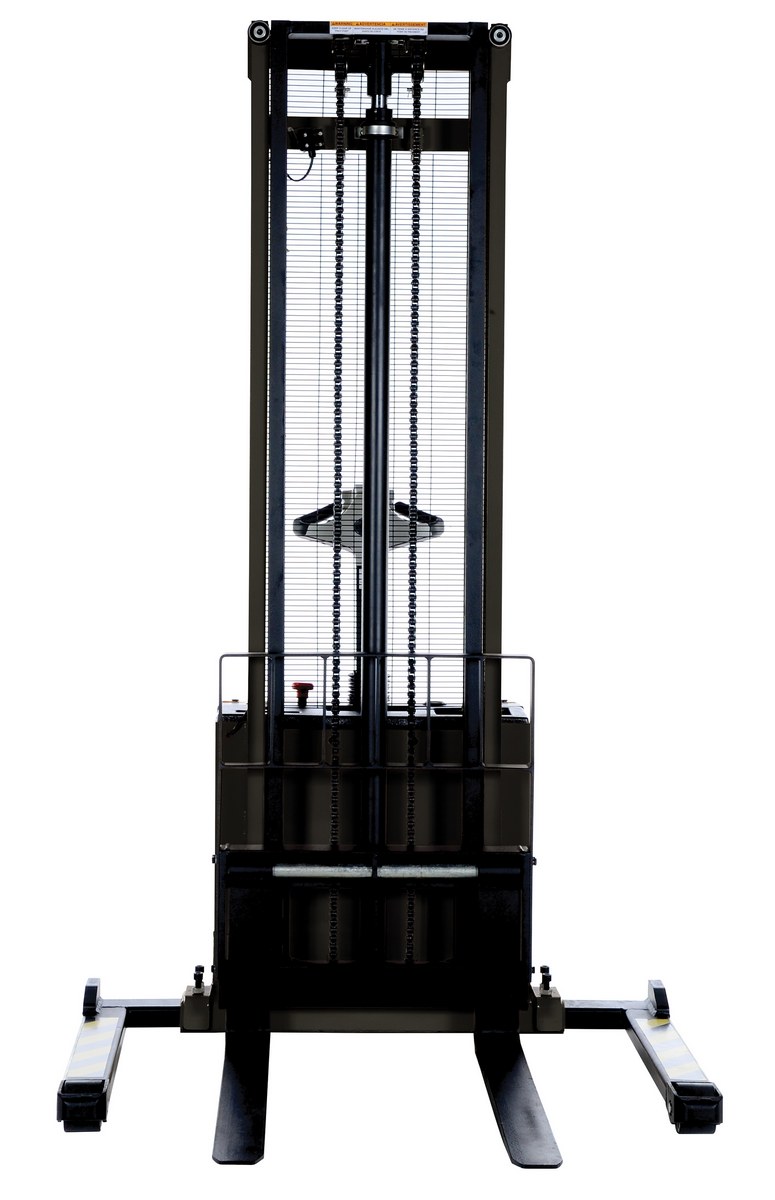

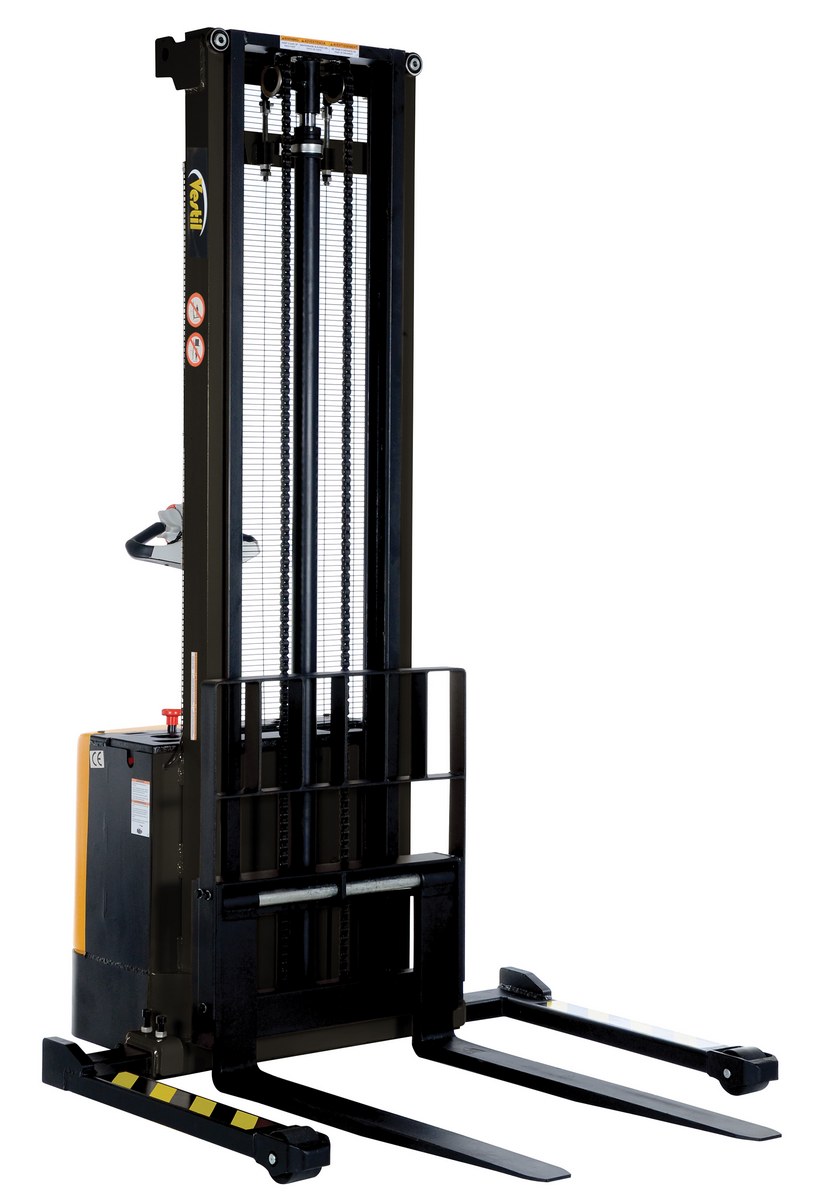

| S-150-AA | | 1 Year Limited Warranty | Steel Adjustable Powered Lift Stacker 150 In. Raised Height 2000 Lb. Capacity Black / Yellow | Uniform Capacity at 0" to 62" Raised Height (lb.): 2000 Uniform Capacity at 62" to 118" Raised Height (lb.): 1500 | 1548 |
KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity at 0" to 62" Raised Height (lb.): 2000
Fork Width Min./Max. (in.): 8 - 26-3/4
Uniform Capacity at 0" to 62" Raised Height (lb.): 2000
Fork Width Min./Max. (in.): 8 - 26-3/4
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity at 0" to 62" Raised Height (lb.): 2000
Fork Width (in.): 26-3/4
Uniform Capacity at 0" to 62" Raised Height (lb.): 2000
Fork Width (in.): 26-3/4
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity at 0" to 62" Raised Height (lb.): 2000
Fork Width (in.): 26-3/4
Uniform Capacity at 0" to 62" Raised Height (lb.): 2000
Fork Width (in.): 26-3/4
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity at 0" to 62" Raised Height (lb.): 2000
Uniform Capacity at 62" to 118" Raised Height (lb.): 1500
Uniform Capacity at 0" to 62" Raised Height (lb.): 2000
Uniform Capacity at 62" to 118" Raised Height (lb.): 1500
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity at 0" to 62" Raised Height (lb.): 2000
Uniform Capacity at 62" to 118" Raised Height (lb.): 1500
Uniform Capacity at 0" to 62" Raised Height (lb.): 2000
Uniform Capacity at 62" to 118" Raised Height (lb.): 1500
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity at 0" to 62" Raised Height (lb.): 2000
Uniform Capacity at 62" to 118" Raised Height (lb.): 1500
Uniform Capacity at 0" to 62" Raised Height (lb.): 2000
Uniform Capacity at 62" to 118" Raised Height (lb.): 1500
For More Details of the Option Click the Red Model Button

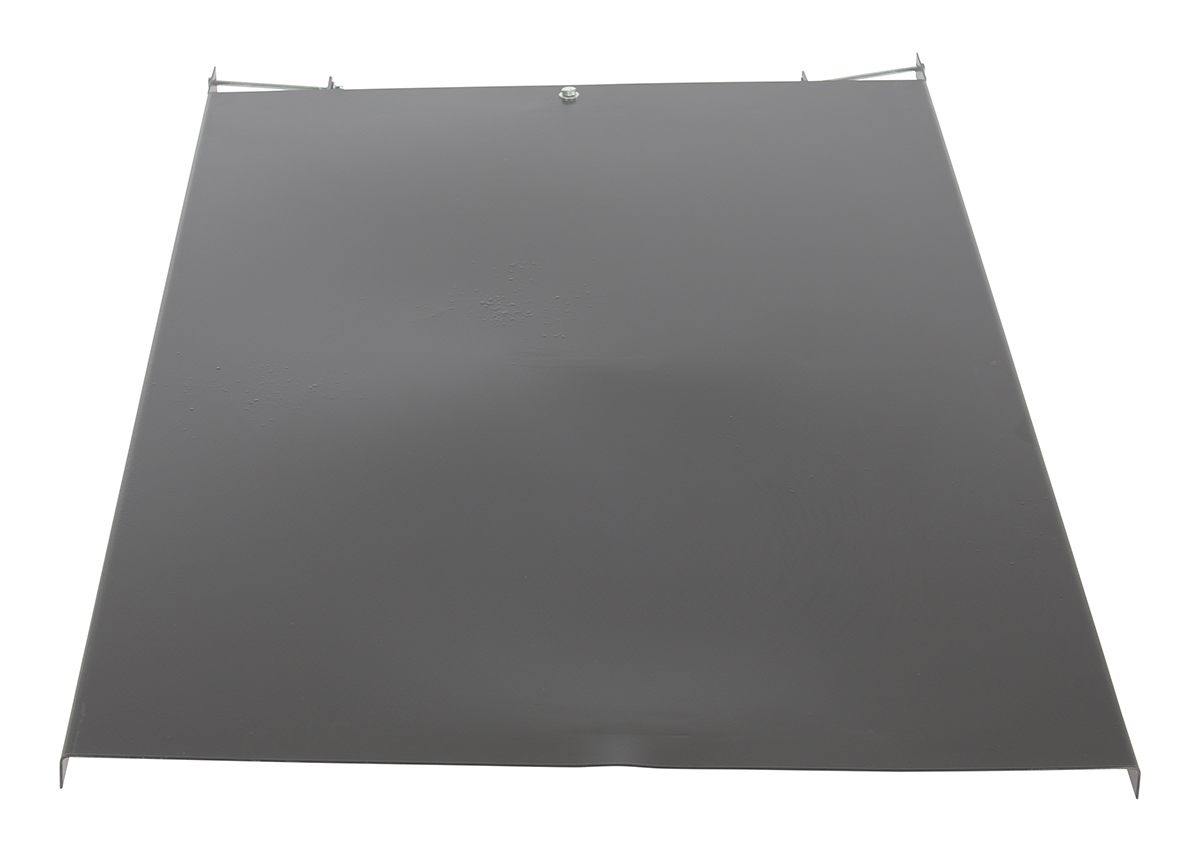

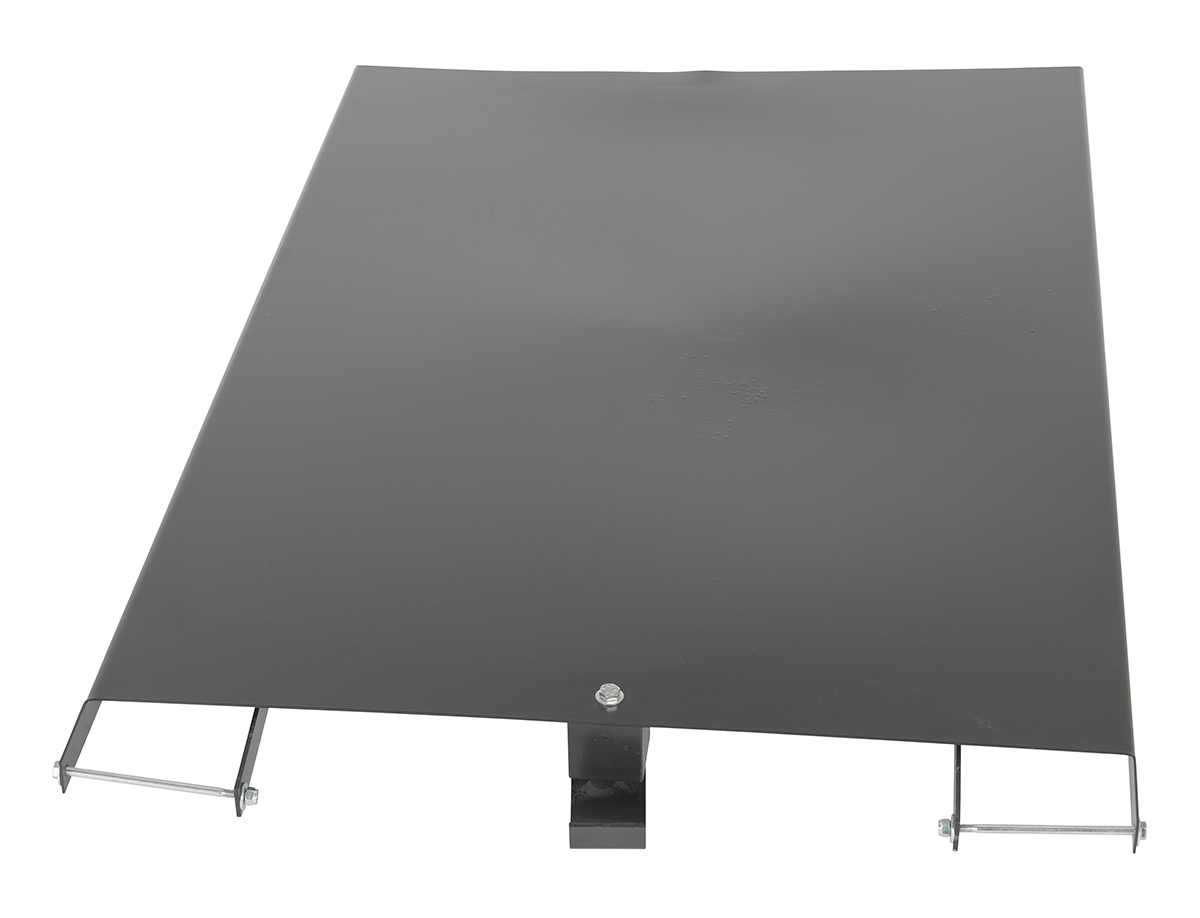

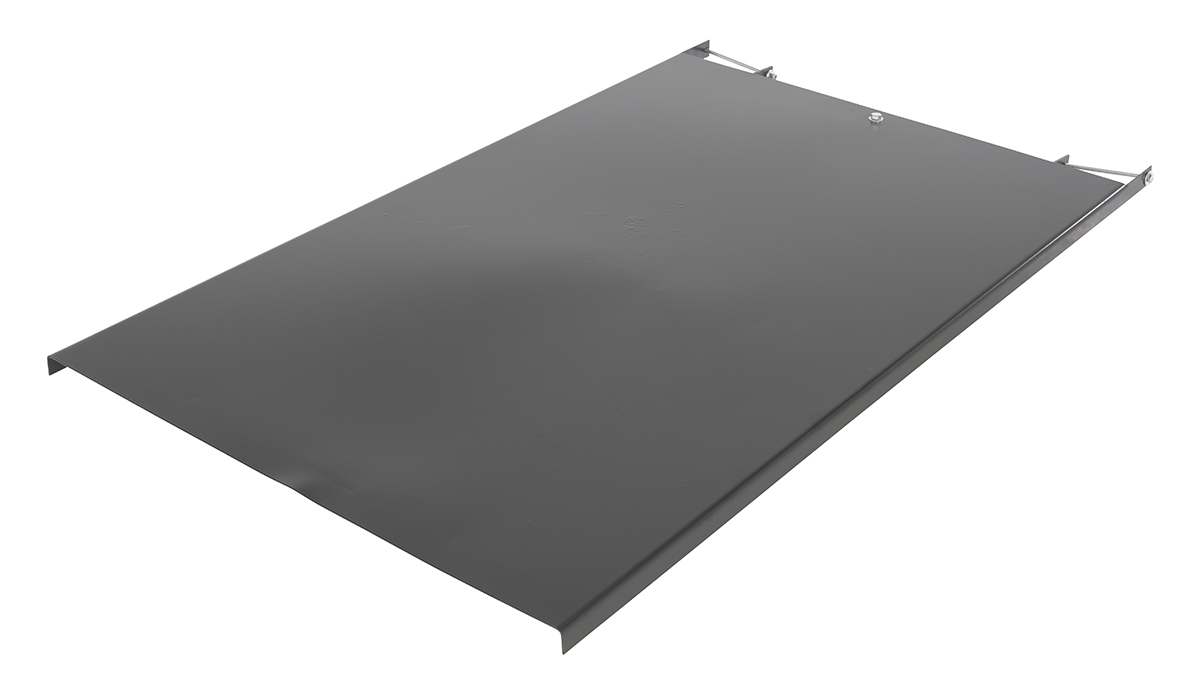

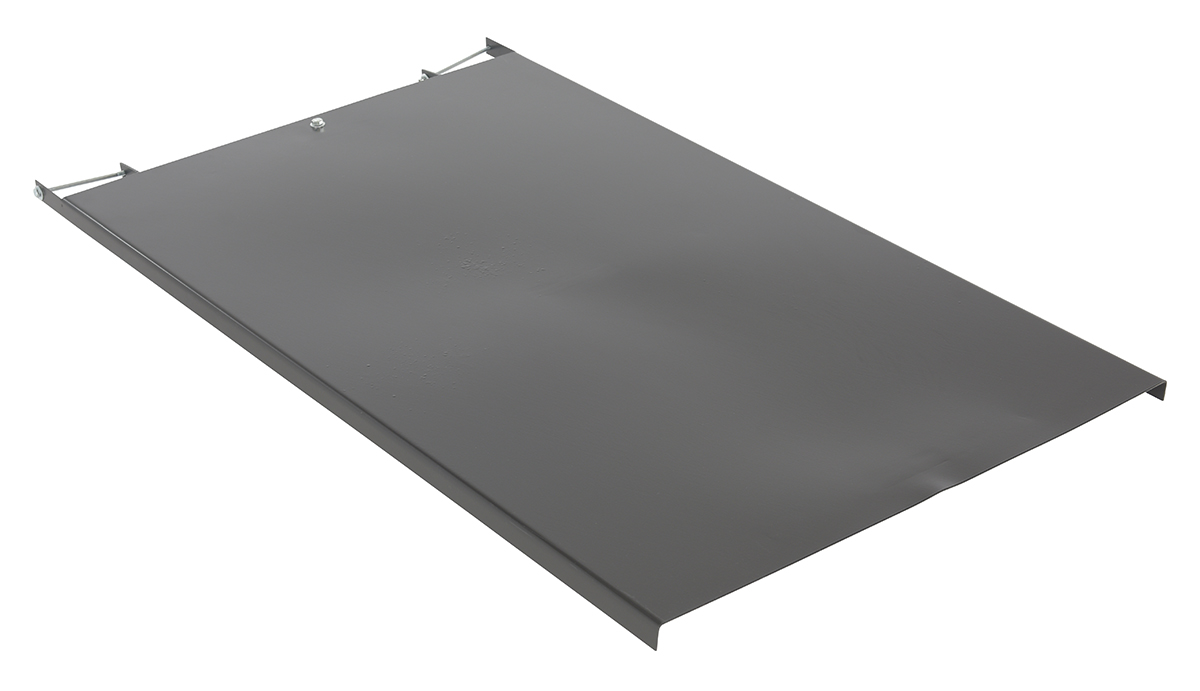

| S-DK |  | 30 Days Limited Warranty | Factory Installed Steel Removable Platform 46 In. x 28 In. x 2 In. For Powered Drive/Lift Units | Weight Capacity (lbs): 2000 Attachment Method: Factory Installed | 40 |
| Model | Image | Description | Wt (lbs.) | ||||||
| AGM-UPG-2-12V |  |
AGM Battery (2x12V) must be purchased with new unit | 80 | ||||||
| S-AA-DRR-FK |  |
Drum/Roll/Reel Forks | 140 | ||||||
Manuals
Survey Sheets
Approval Drawings
Testing Certificates
SDS Sheets
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: S-118-AA
Hydraulic Oil SDS Sheet for: S-118-AA
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: S-118-FF
Hydraulic Oil SDS Sheet for: S-118-FF
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: S-150-AA
Hydraulic Oil SDS Sheet for: S-150-AA
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: S-62-AA
Hydraulic Oil SDS Sheet for: S-62-AA
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: S-62-FA
Hydraulic Oil SDS Sheet for: S-62-FA
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: S-62-FF
Hydraulic Oil SDS Sheet for: S-62-FF
Hydraulic Oil SDS Sheet for: S-DK
Other PDF's
Directory Links Of Available PDF's For All Products
Q: Do these stackers have a FREE LIFT (the forks are raised higher than the mast)?
A: We currently do not have a stacker in our product inventory with a free lift.
Q: What is the travel speed for this powered drive unit?
A: This unit comes with variable travel speed. Customer can adjust the speed by rotating the throttle from 0 mph to 1.8 mph.
Q: Do you have fork extensions for the stacker?
A: We do not. Fork extensions are NOT recommended for use with the stackers.
Q: What is the 24" load center rating on the S-62-AA?
A: 1,300 lbs. at 24" load center.
