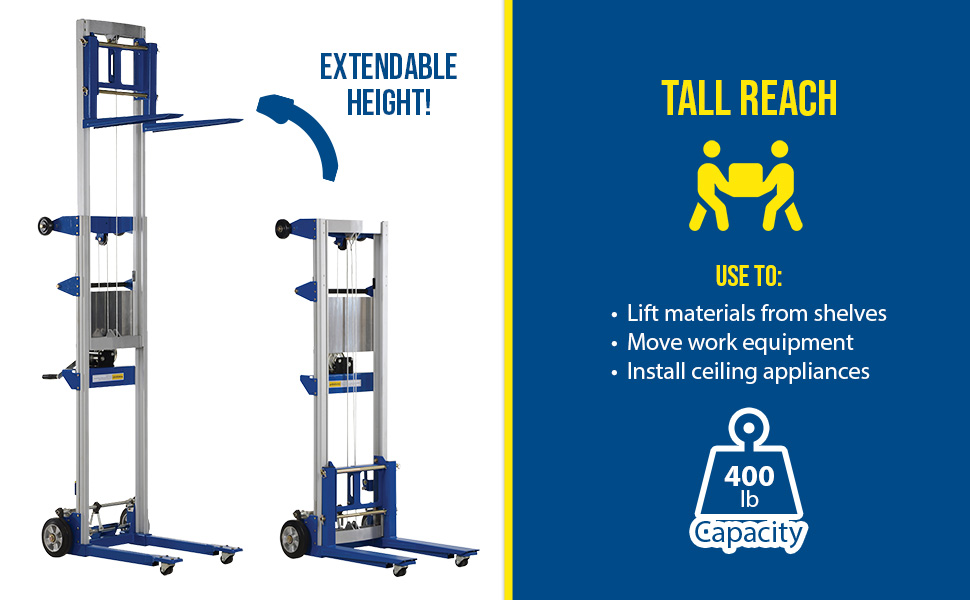

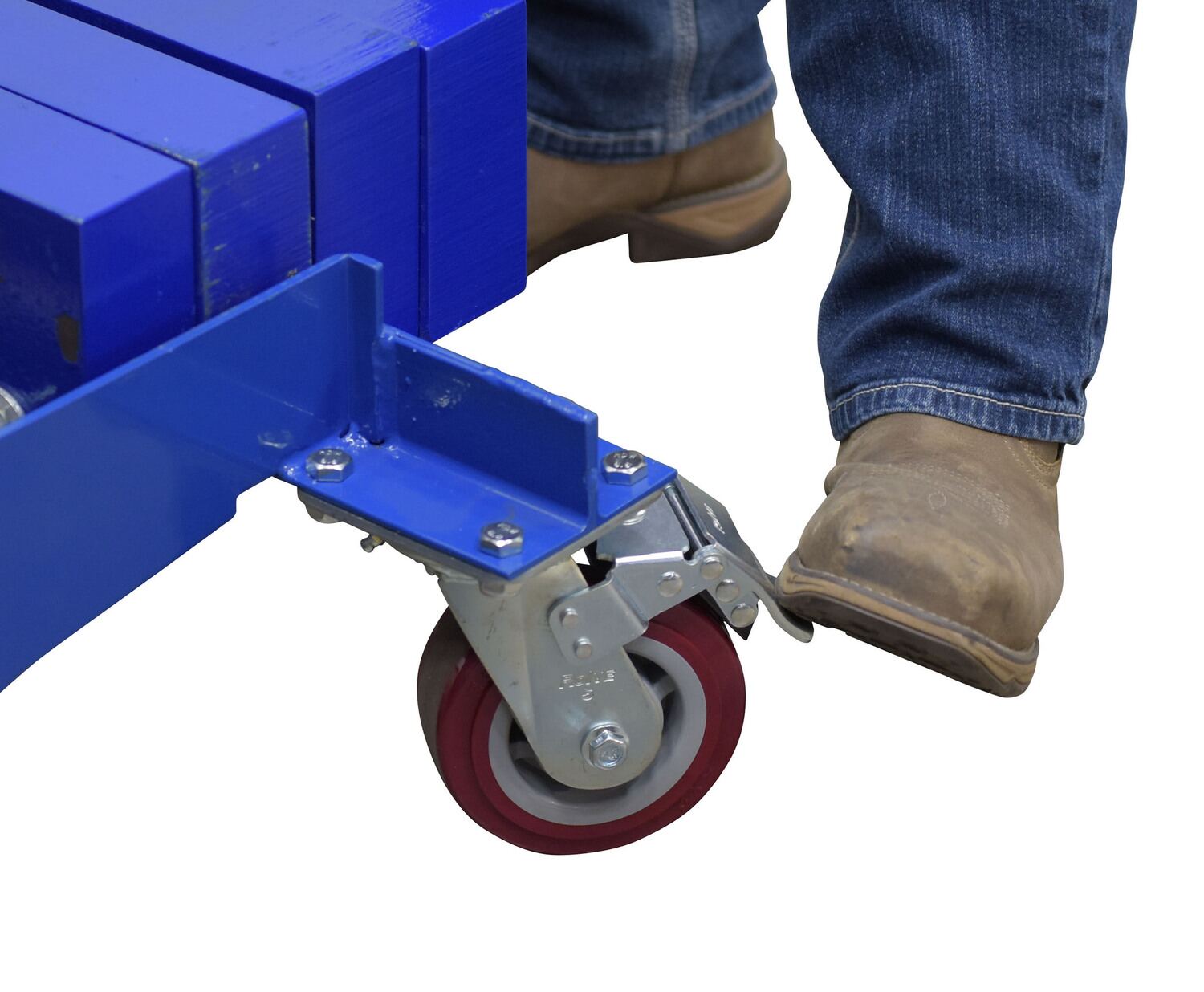

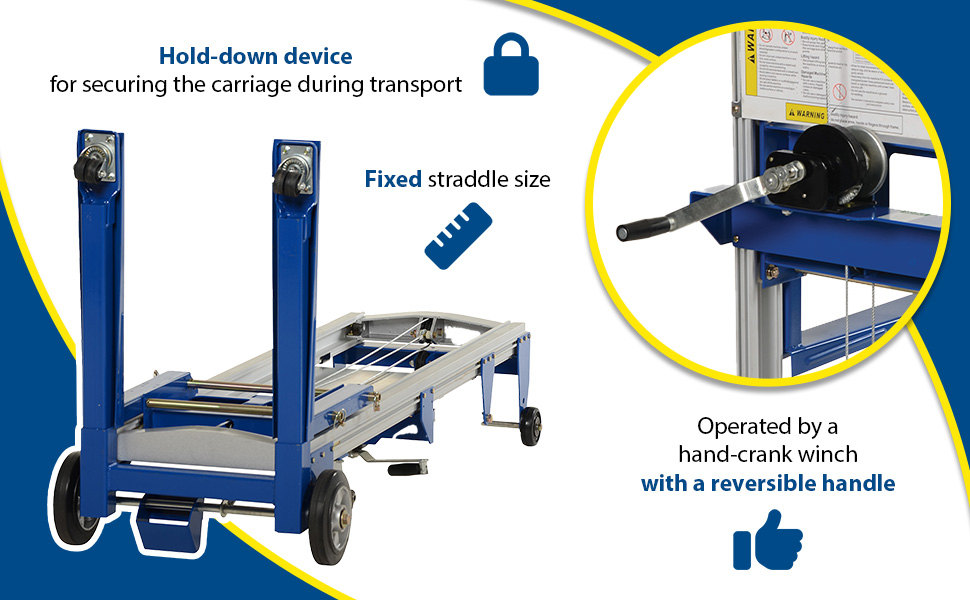

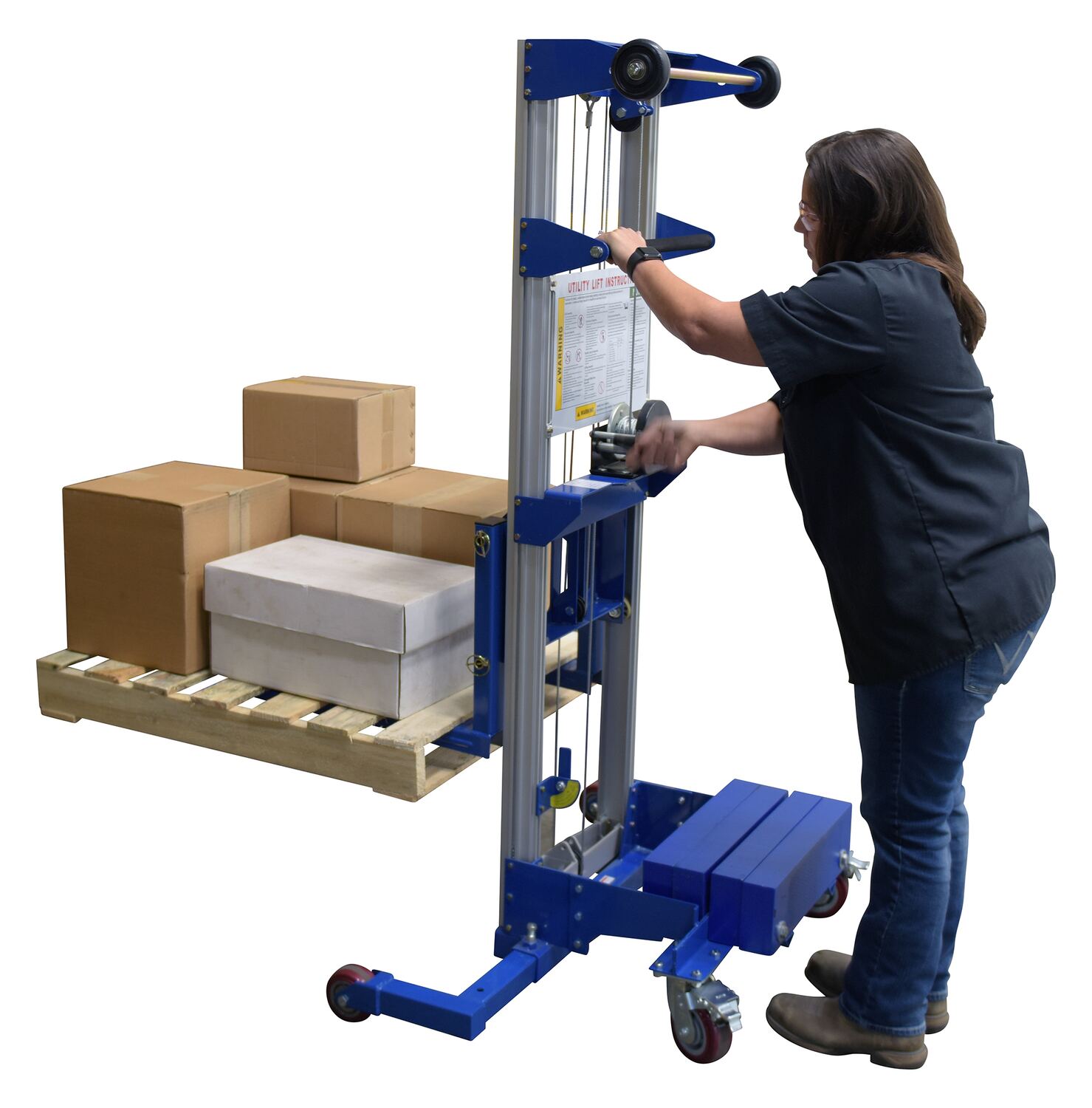

Hand Winch Lift TrucksCompact lift trucks are designed to lift material to and from shelves, move office equipment, and install ceiling/wall appliances. Constructed of durable steel-and-aluminum. The rugged 4" wide by 1-3/4" thick steel forks measure 22" long (20-1/2." O.D.). Operated by a hand-crank winch that features a reversible handle and a hold-down device for securing the carriage during transport. Forks raise 1" per complete hand crank rotation. The non-adjustable forks can be inverted to provide different height ranges. Two 8" non-marking rear wheels, two 2" front swivel casters. Counter balanced design has poly-on-poly wheels, (2) 5" rear swivel wheels, (2) 4" front wheels. Models ending with 'HP' and 'EHP' suffixes have extended height capabilities. These units have a 2 stage mast system and a telescoping inner mast frame, giving the user the ability to extend the forks above the height of the first mast.

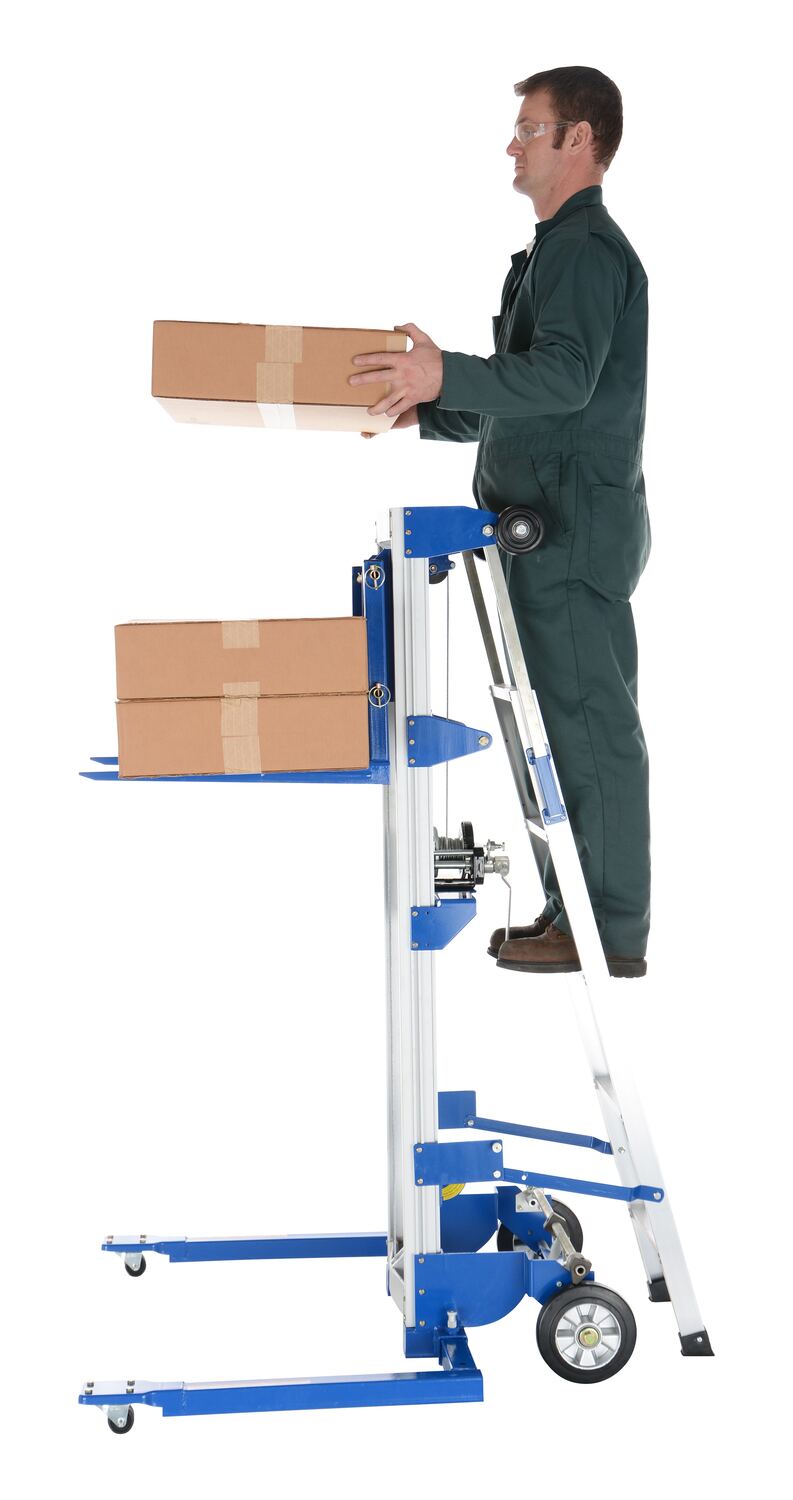

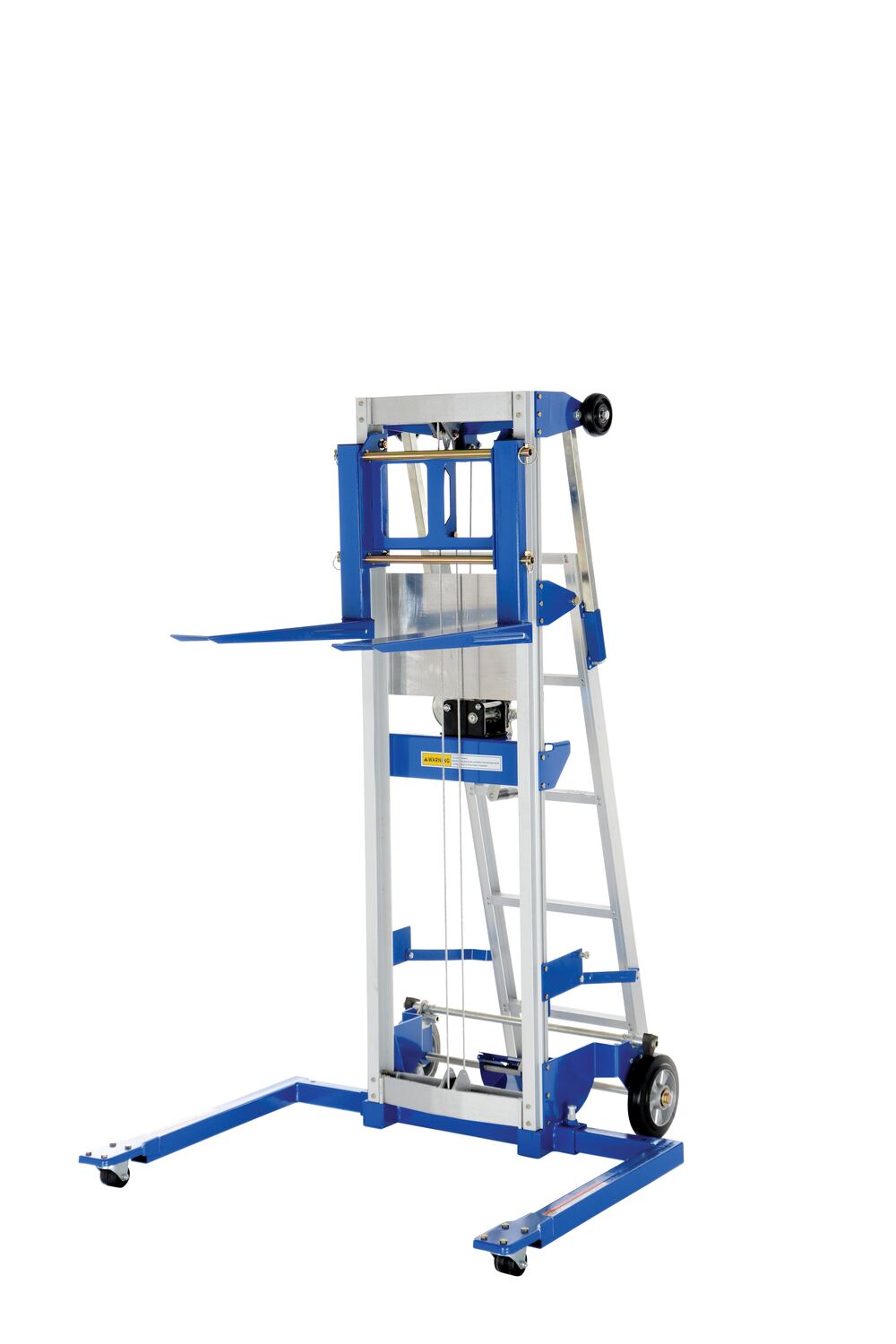

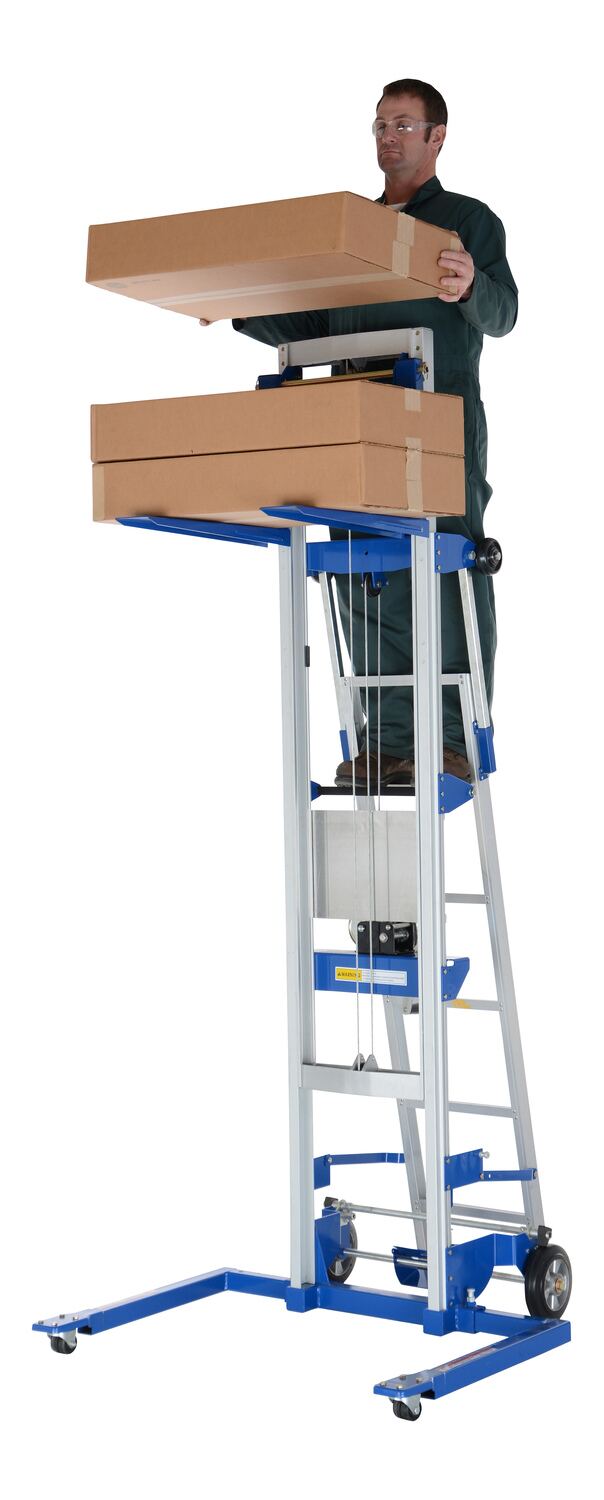

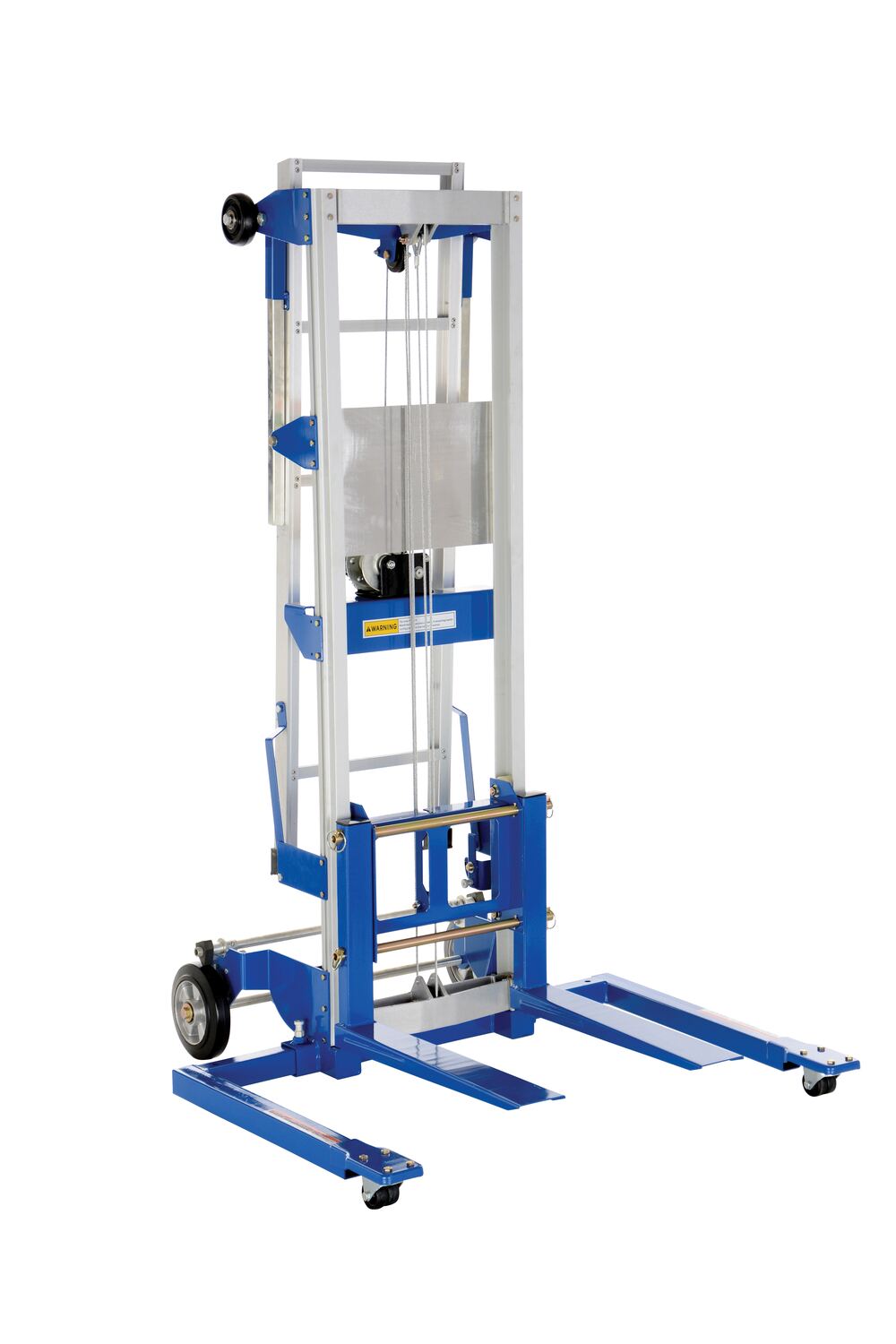

Optional aluminum ladder can be retrofitted or ordered with A-LIFT. Ladder retracts into unit upright when not in use. Model A-LIFT-LAD is 20-1/2"W x 57-1/2"H, while model A-LIFT-EHP-LAD is 20-5/8"W x 69-1/2"H with 11-3/4 rung spacing. Ladder capacity is 250 lbs.
- Lightweight portable lifts are great for hundreds of applications

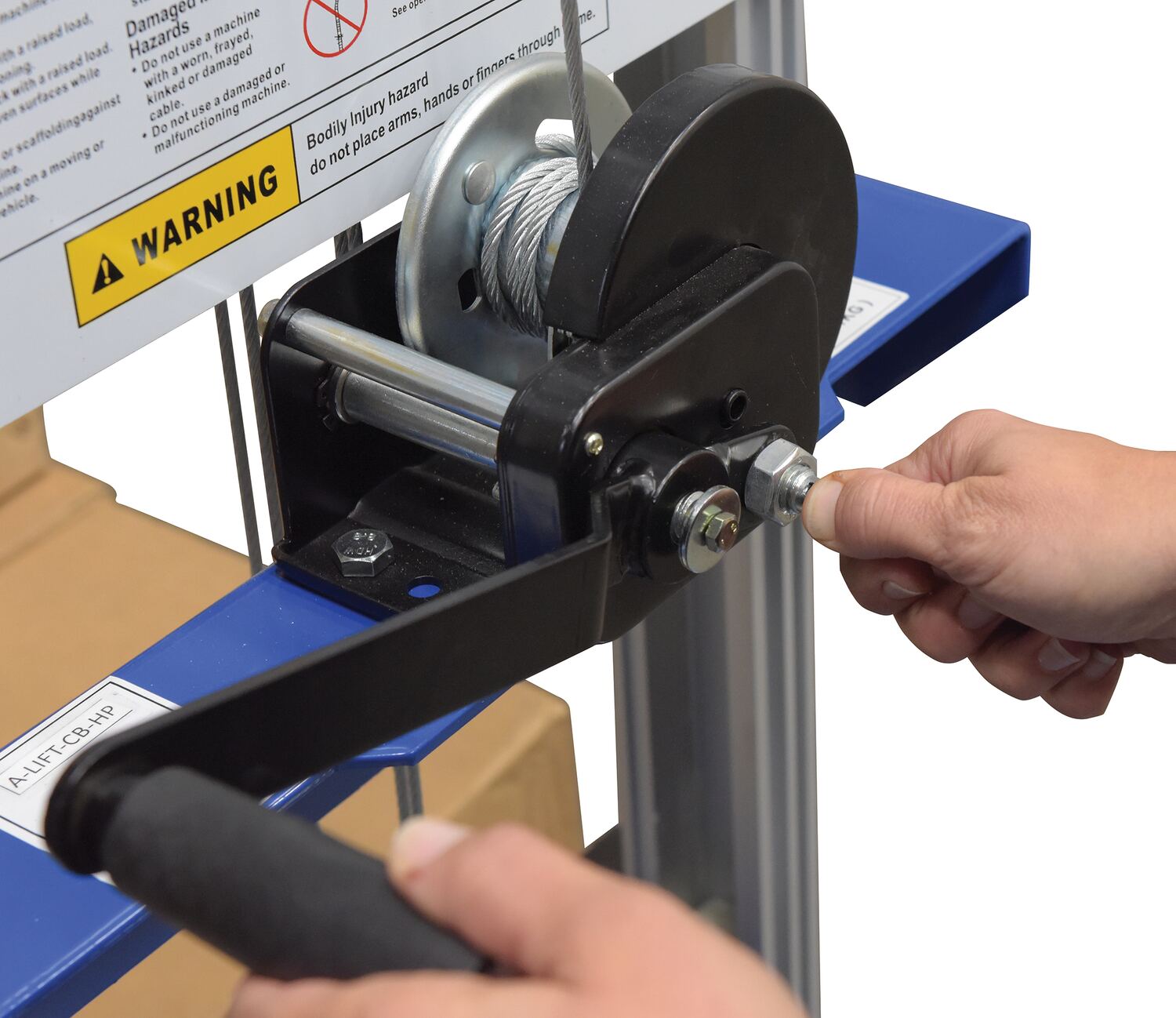

- Manual cable winch easily raises and lowers forks
- Counterbalance weight design keeps unit from tipping with heavy loads
- Hold-down device secures carriage during transport
Hydra Carts
Heater Tank Lift Truck
Manual & DC Work Positioners
Lite Load LiftsAdditional Models In This Family
A-LIFT-R-HP
A-LIFT-R
A-LIFT-R

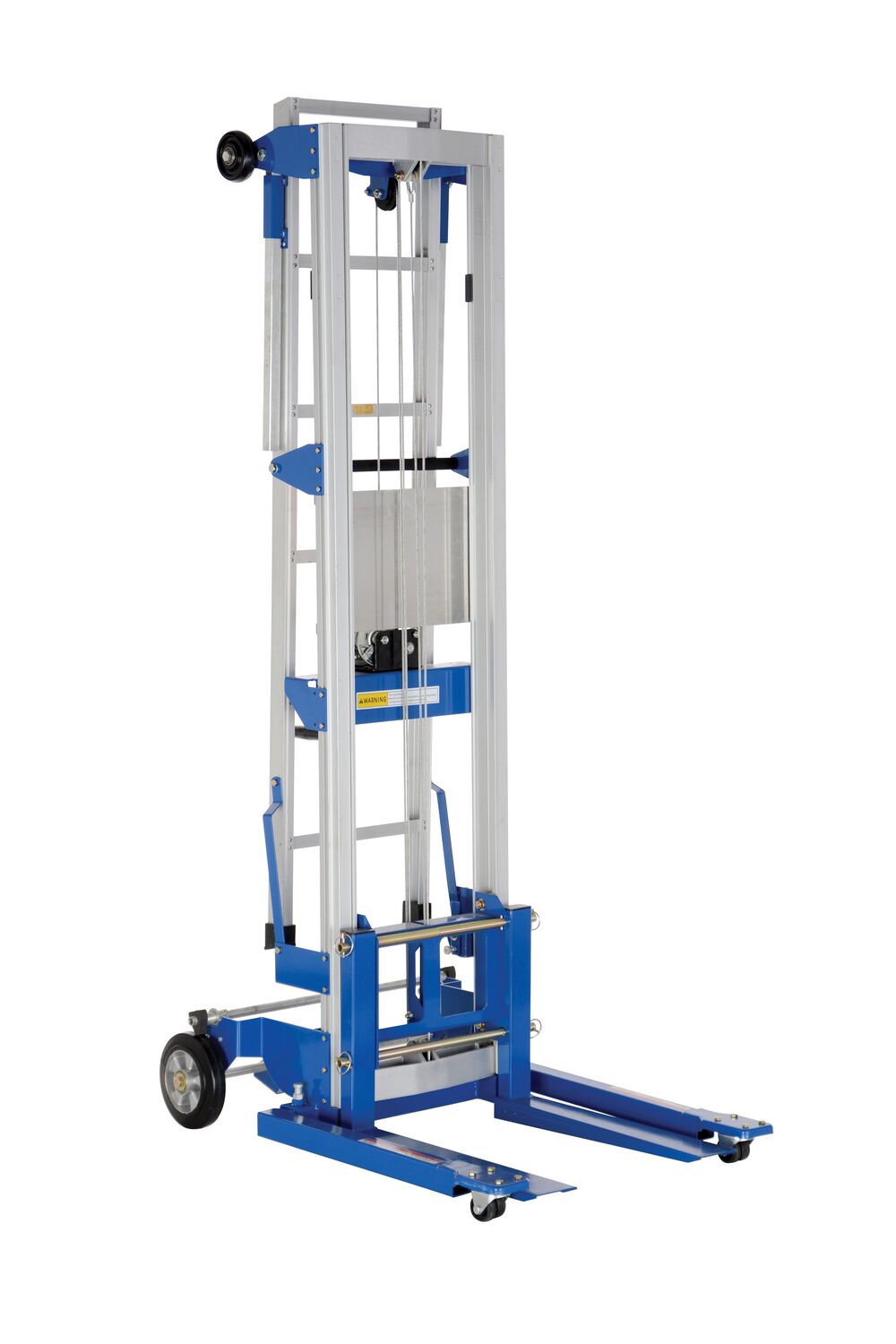

A-LIFT-EHP-LAD
A-LIFT-CB-HP
A-LIFT-DK
A-LIFT-CB-HP
A-LIFT-LAD
A-LIFT-CB

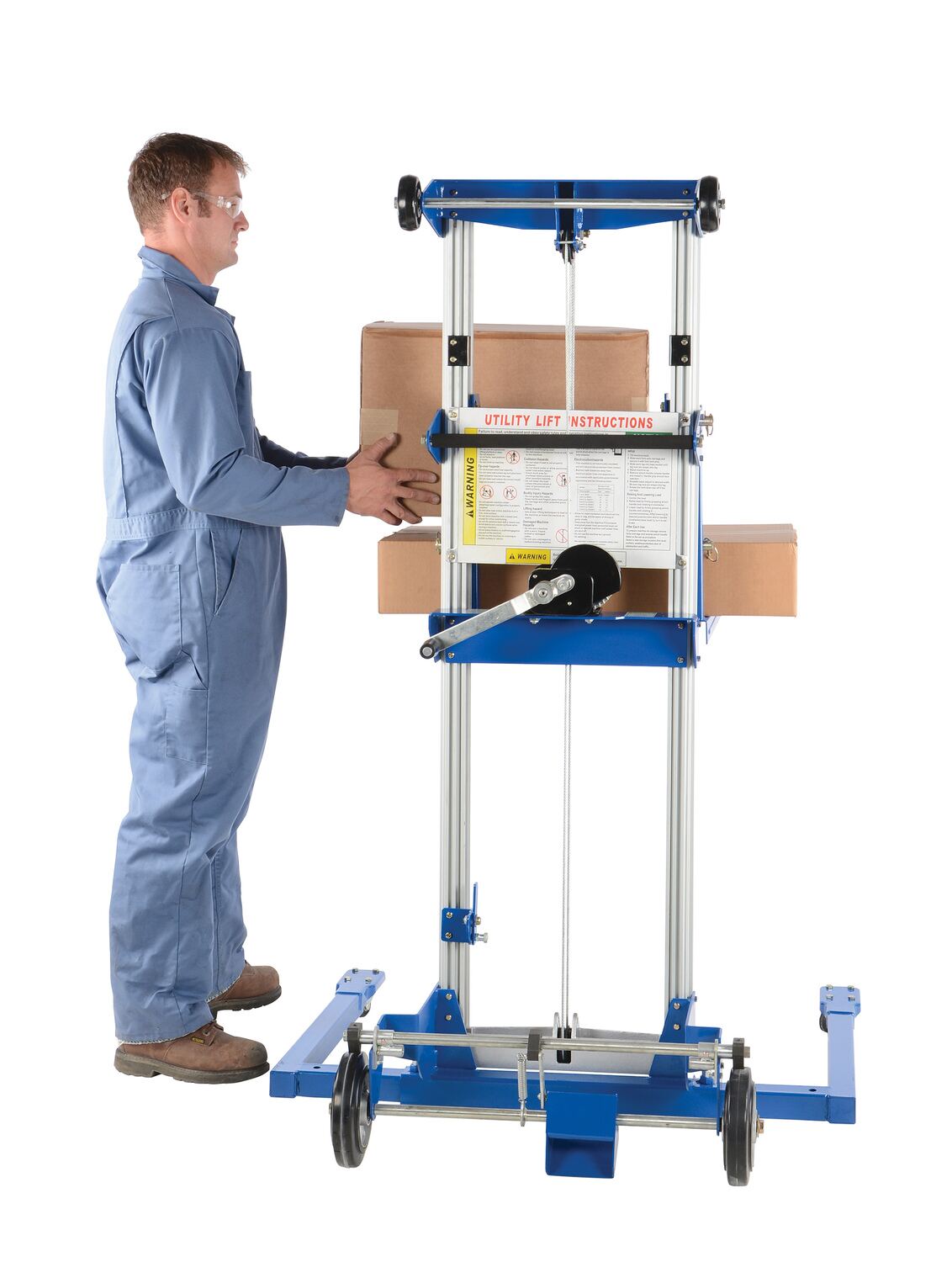

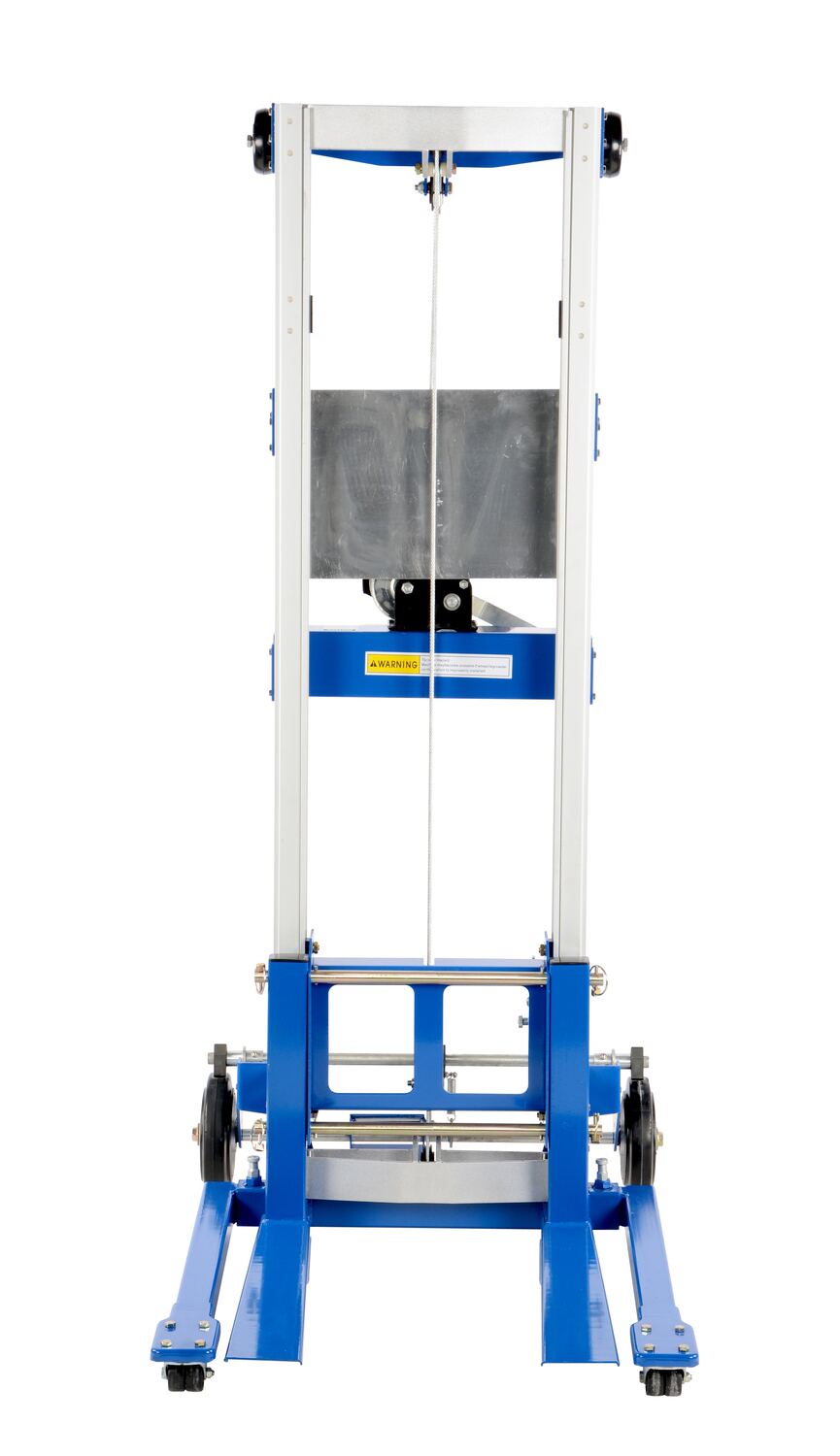

A-LIFT-S-HP

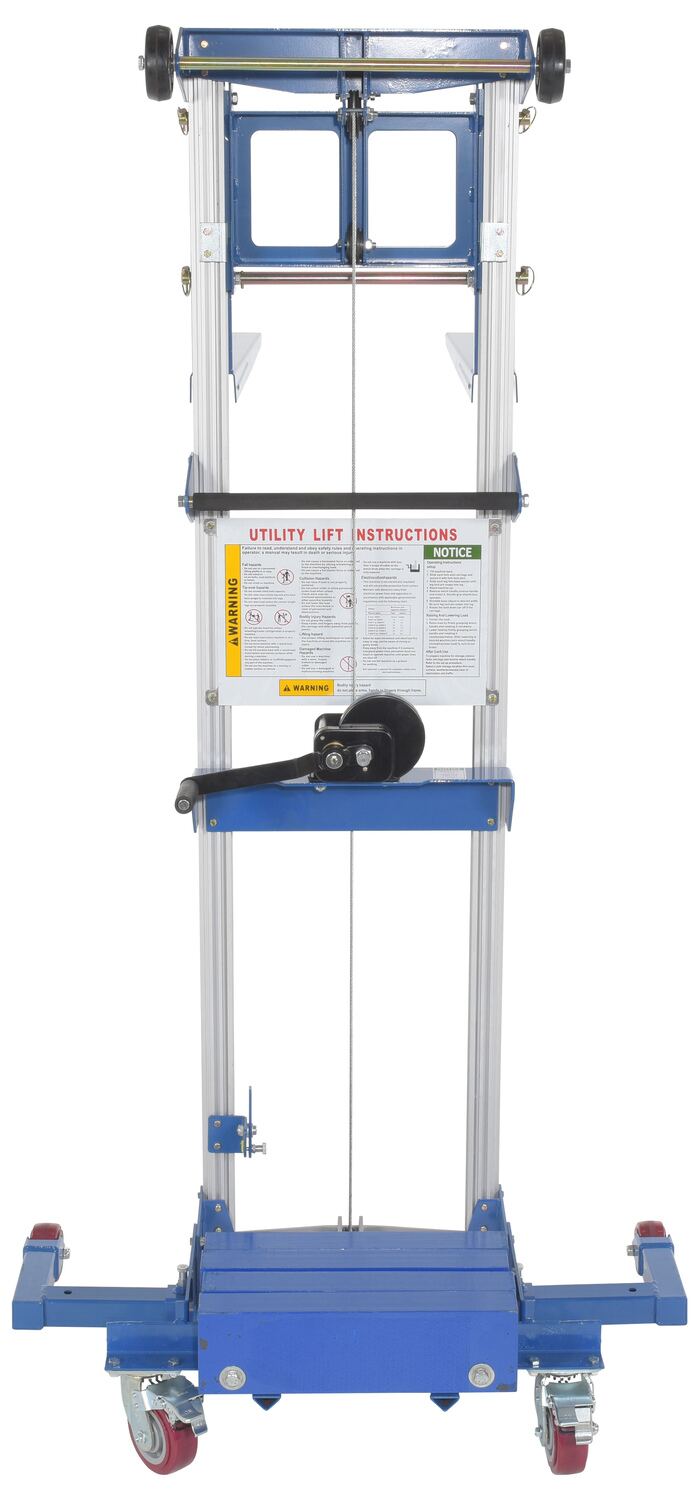

A-LIFT-CB-EHP
A-LIFT-CB-HP
A-LIFT-R

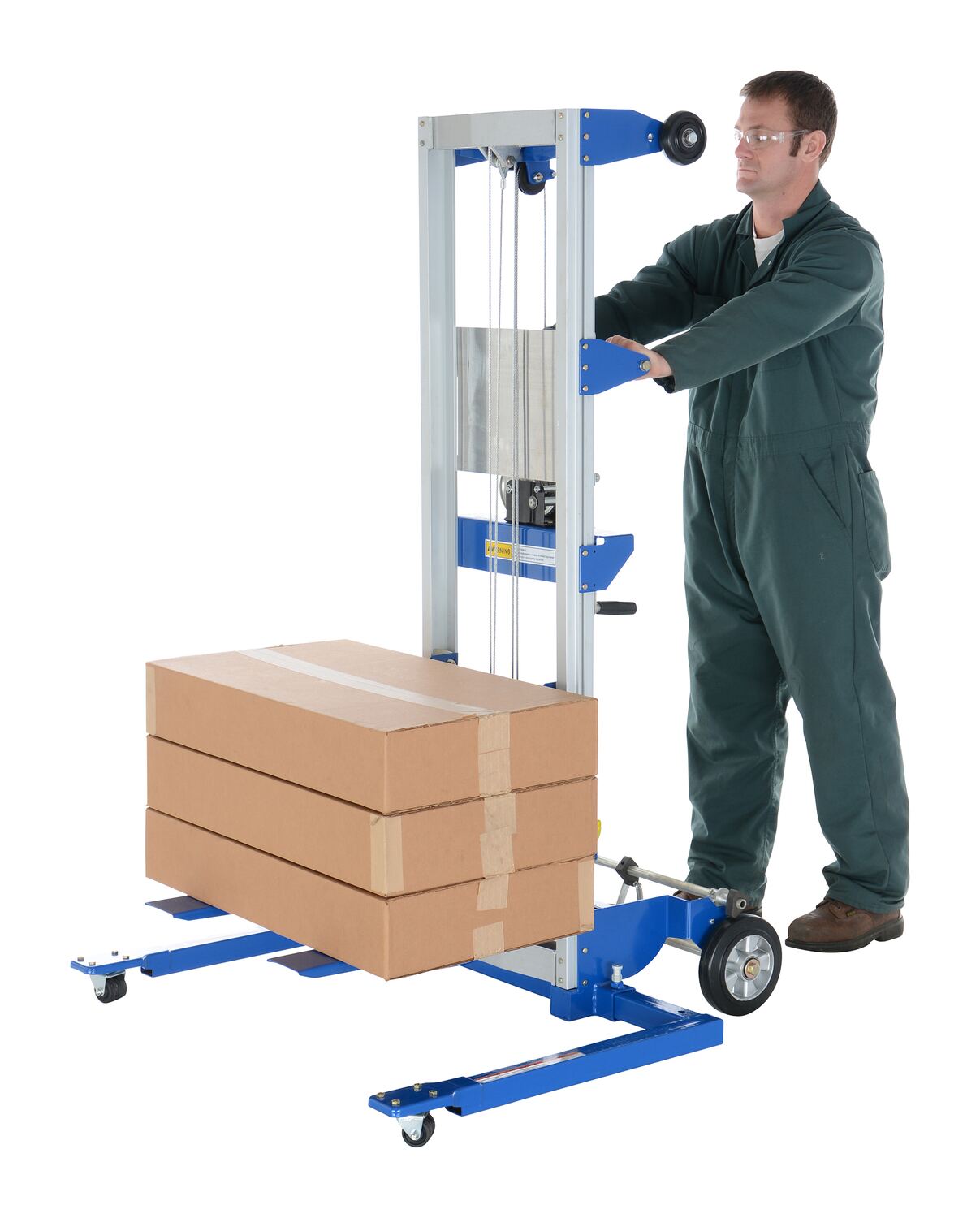

A-LIFT-S

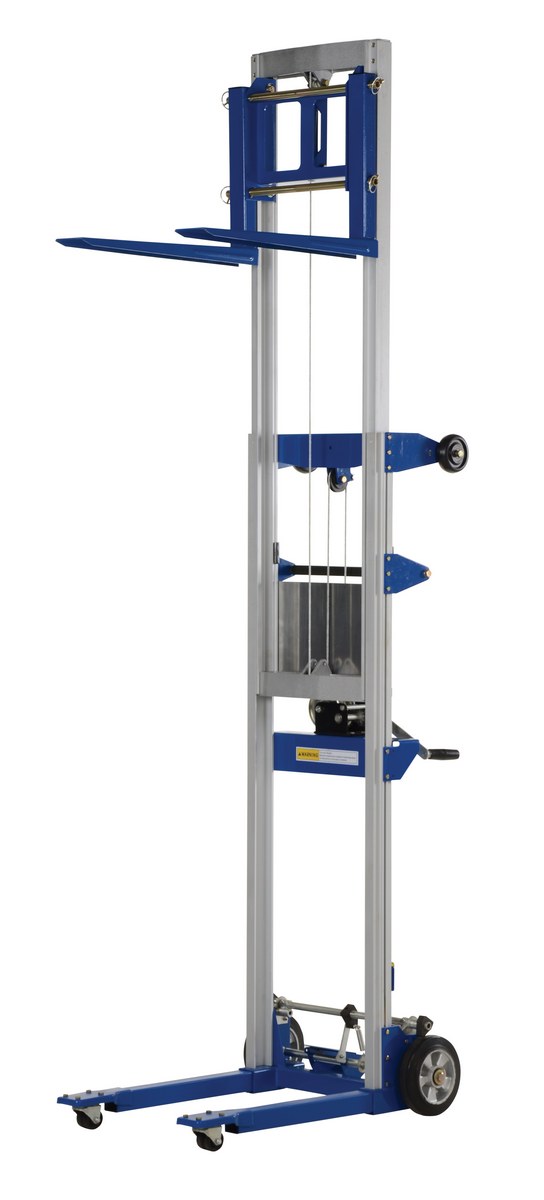

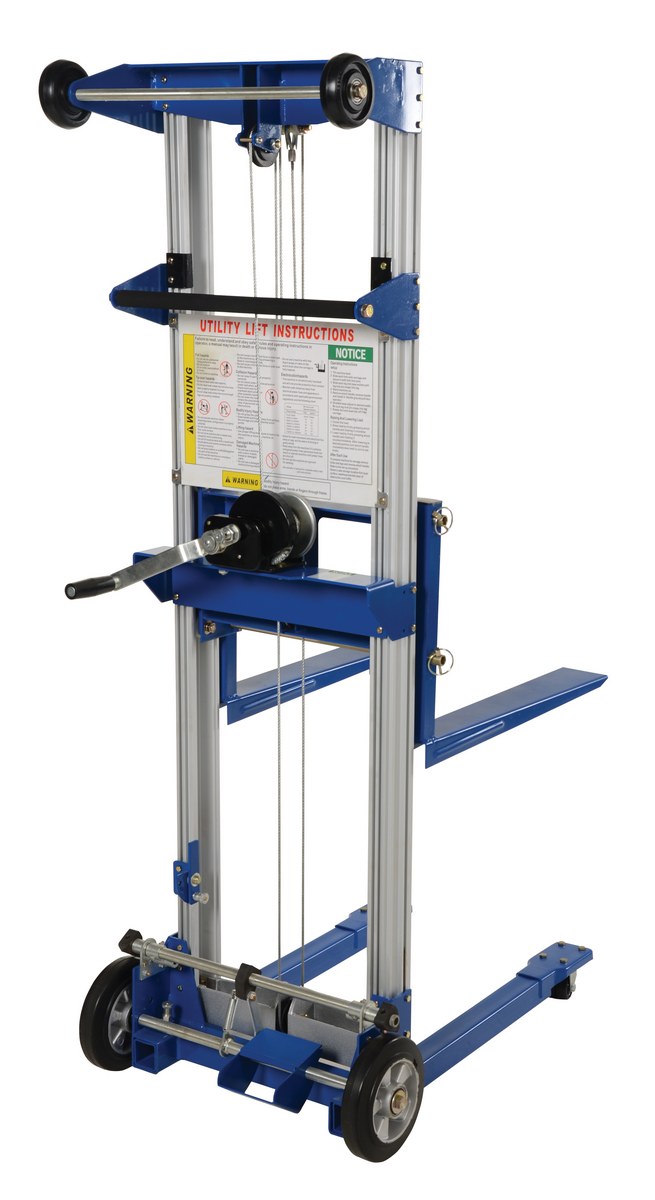

A-LIFT-R-HP
| Model # | Description | Attributes | Net Wt. (lbs) |
||||
|---|---|---|---|---|---|---|---|

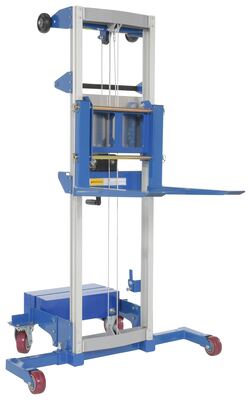

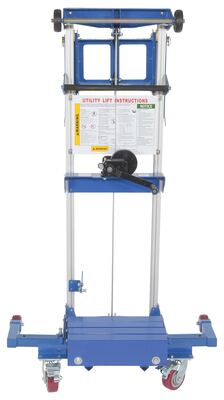

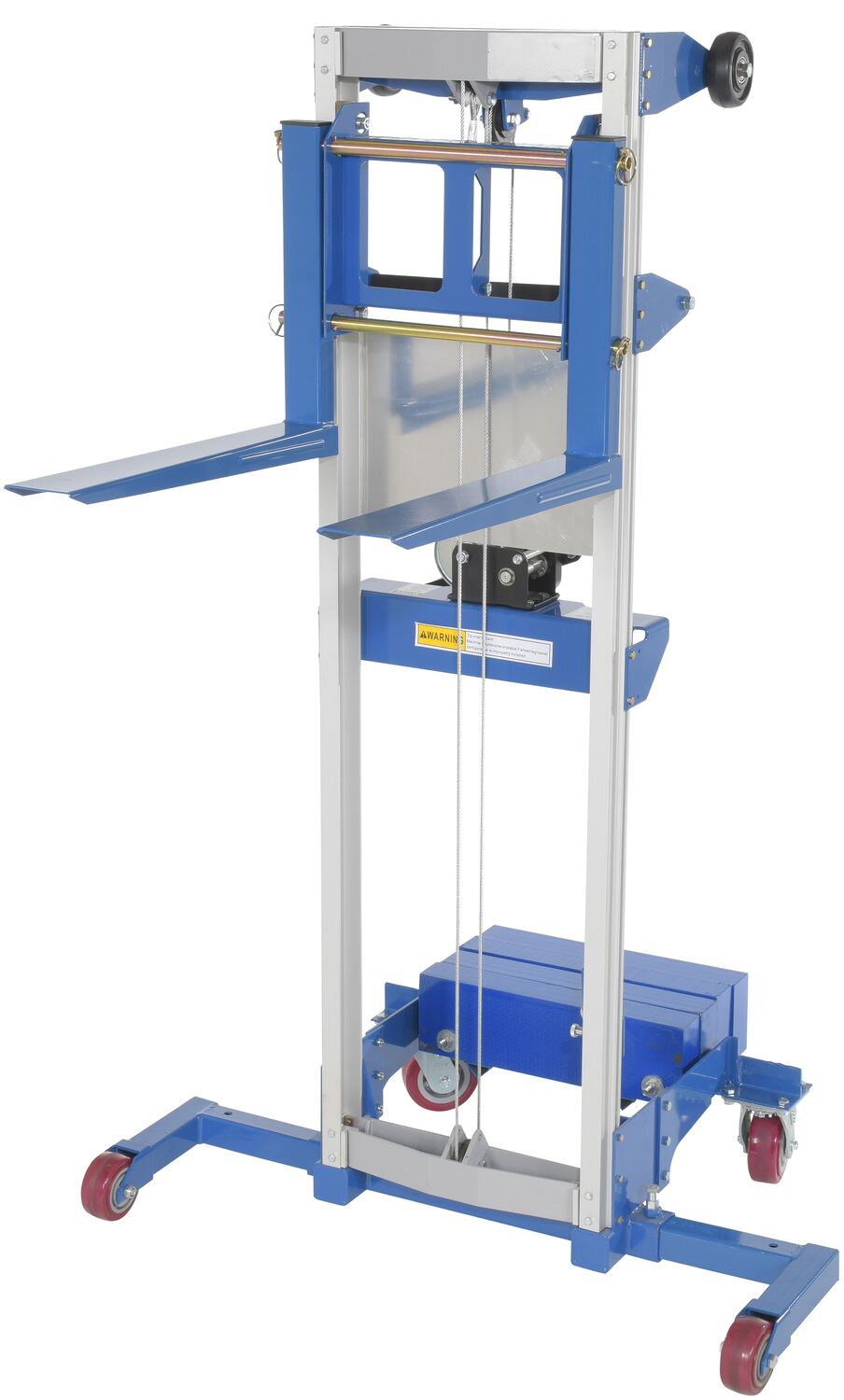

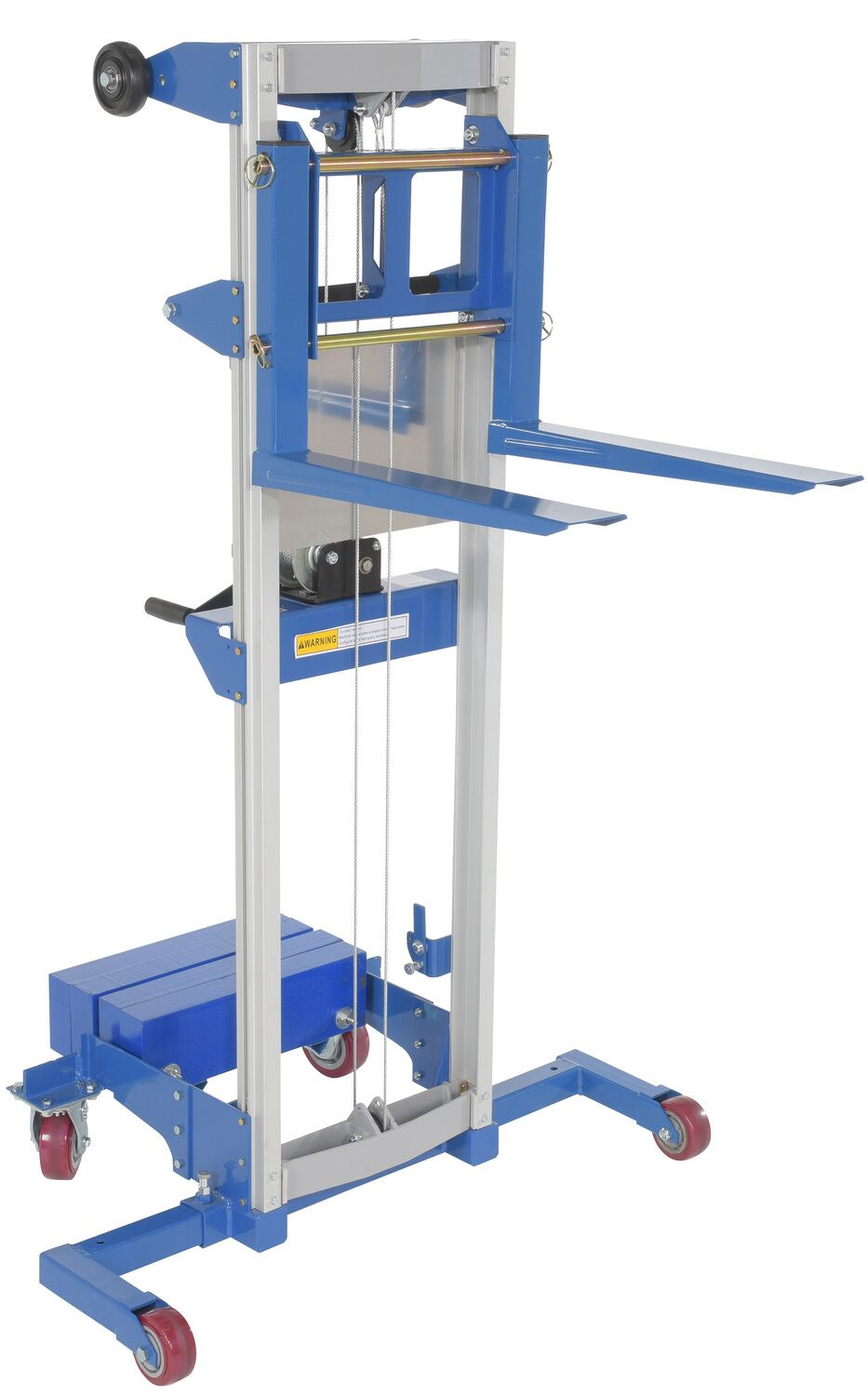

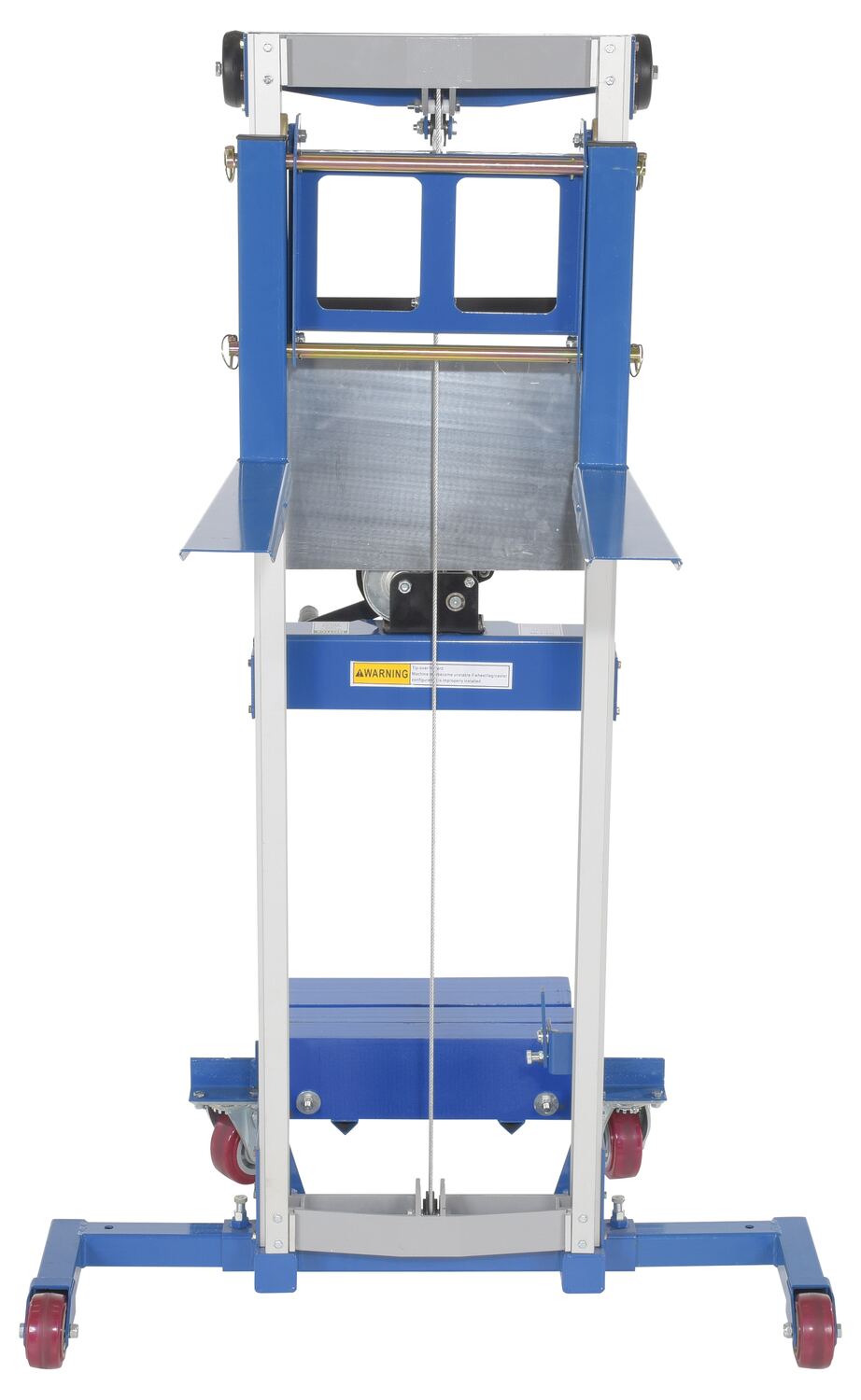

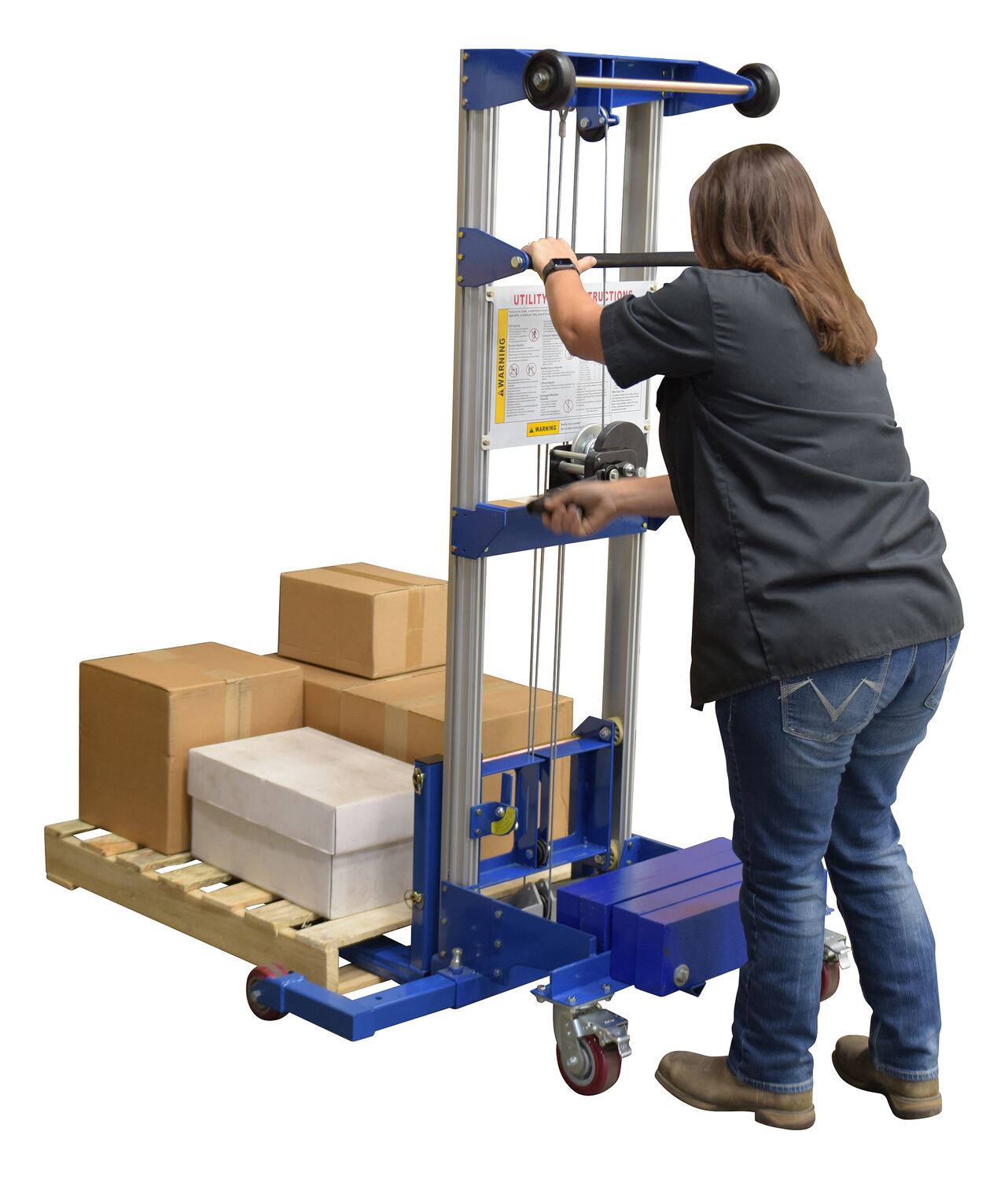

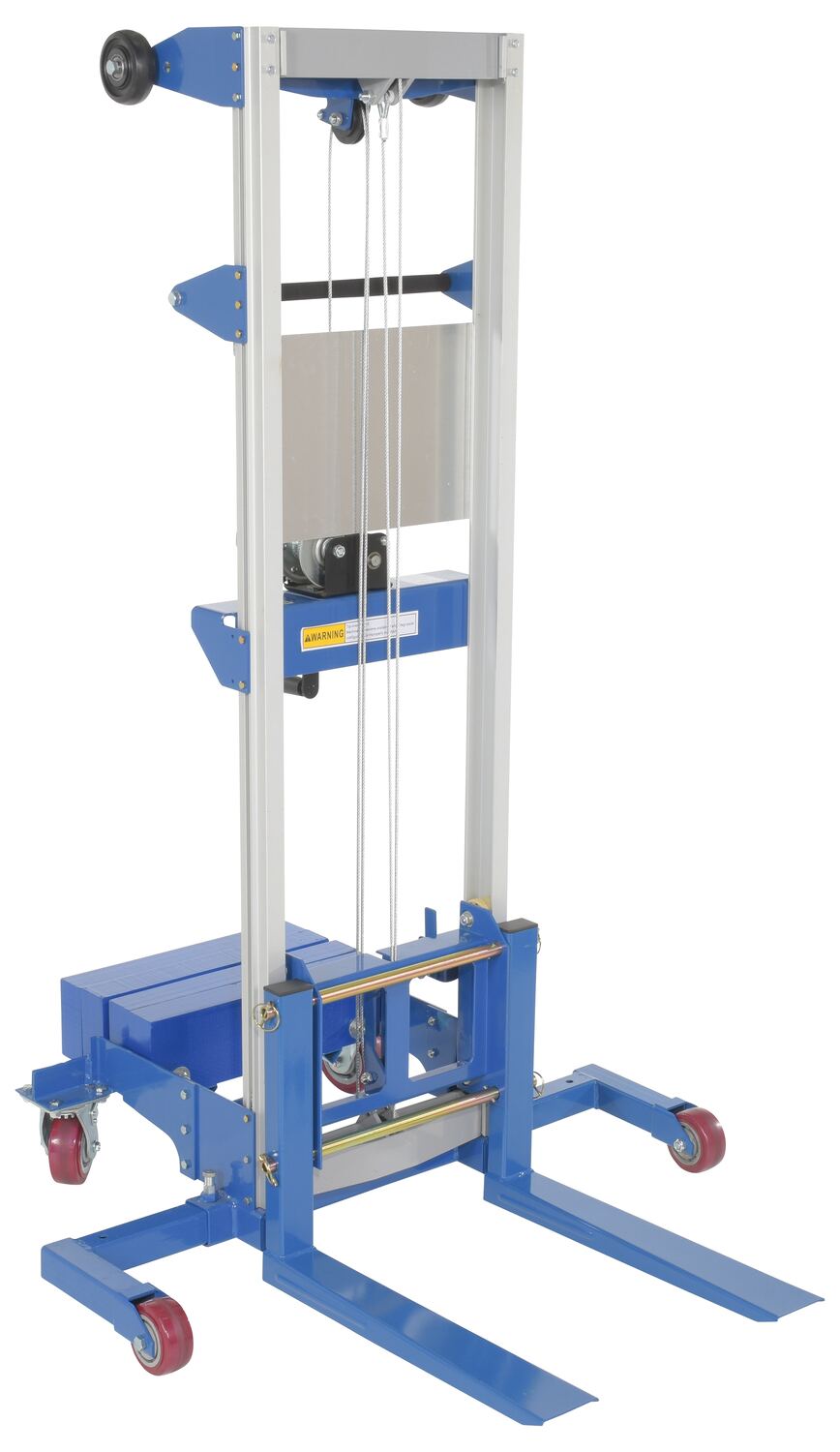

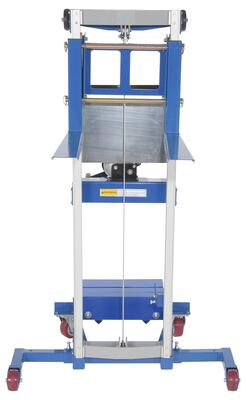

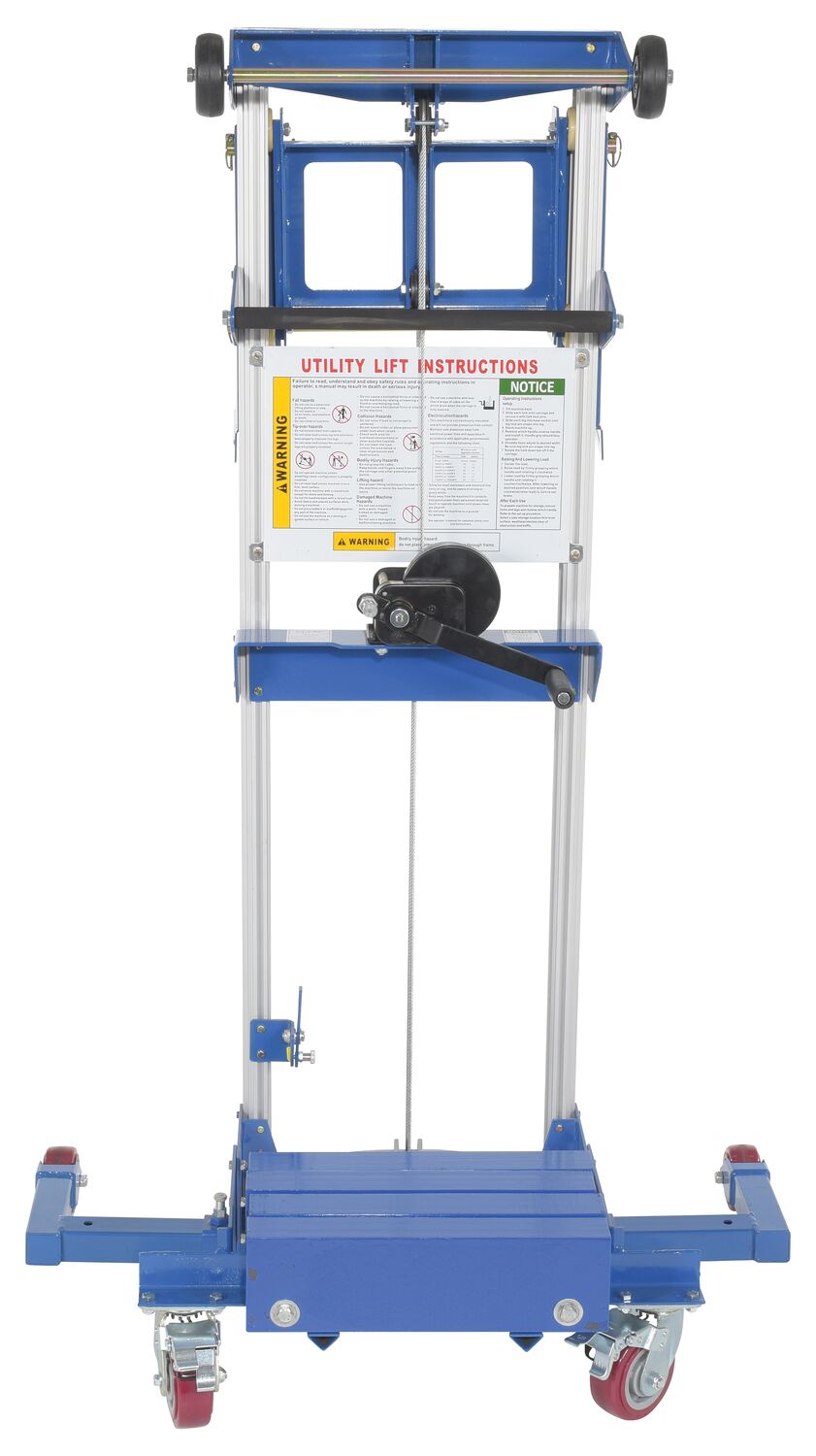

| A-LIFT-CB |  | 1 Year Limited Warranty | Aluminum/Steel Manual Hand Winch Lift Truck With Counter Balance 500 Lb. Capacity Silver/Blue | Uniform Capacity (lb.): 500 Lowered Height with Forks Down (in.): 2 | 437 | ||

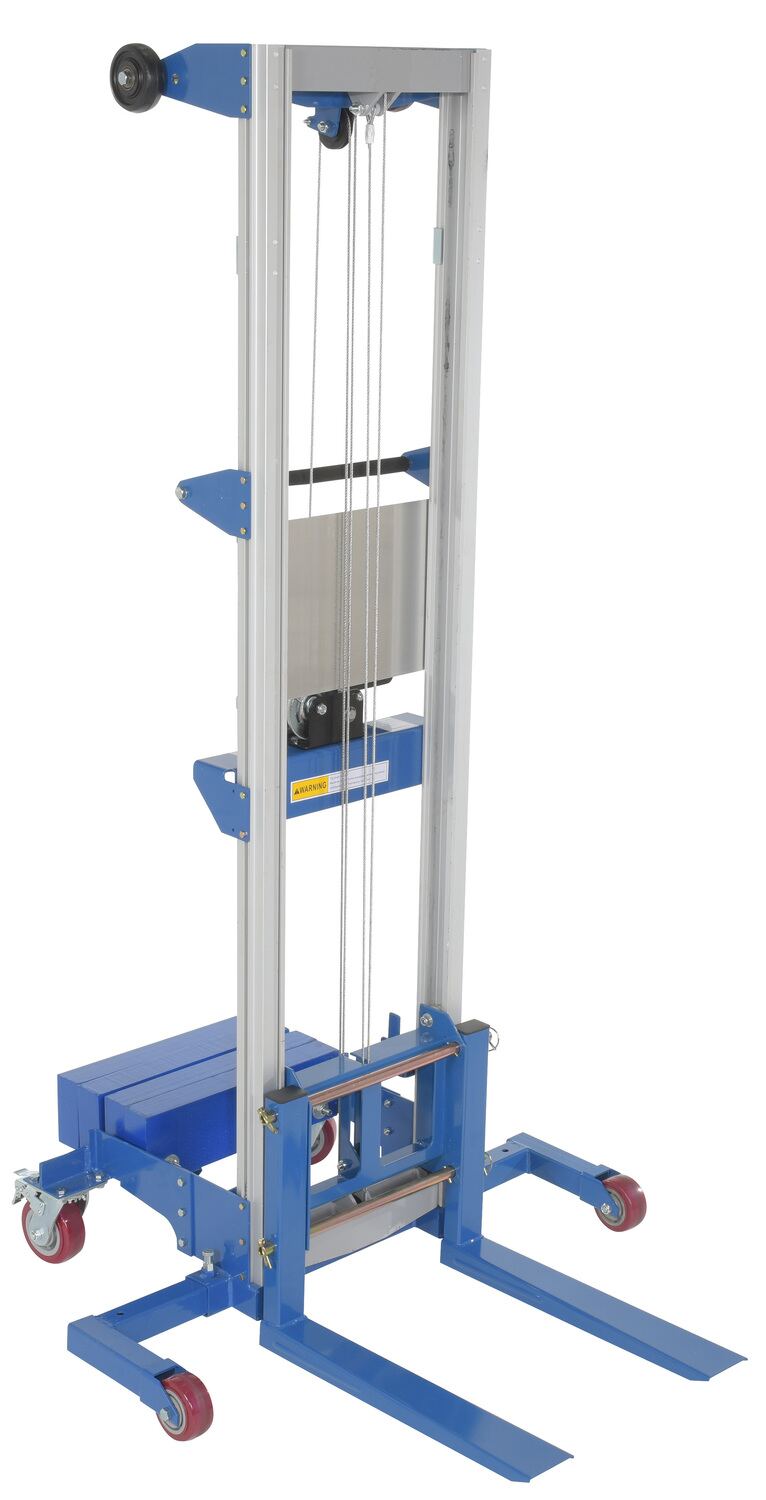

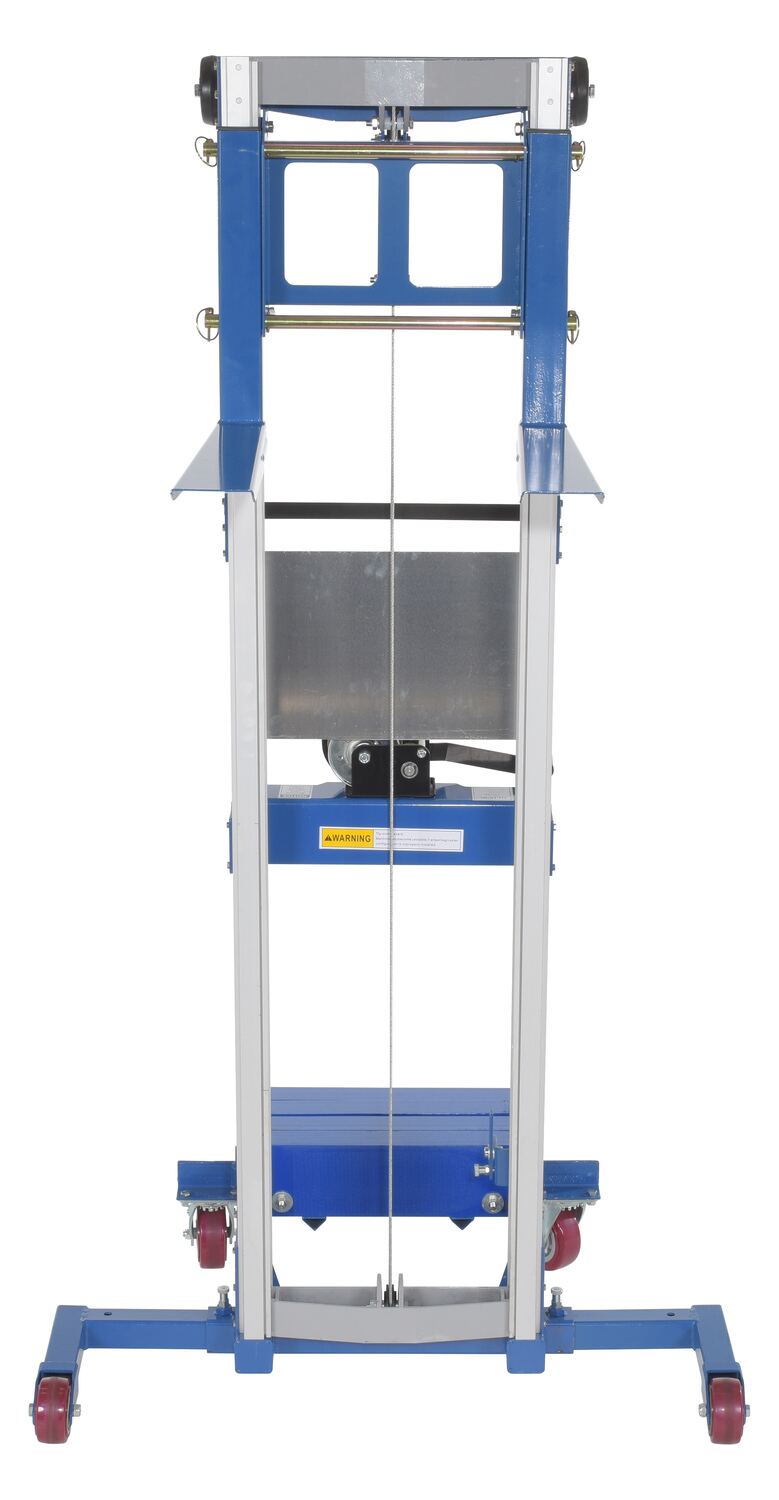

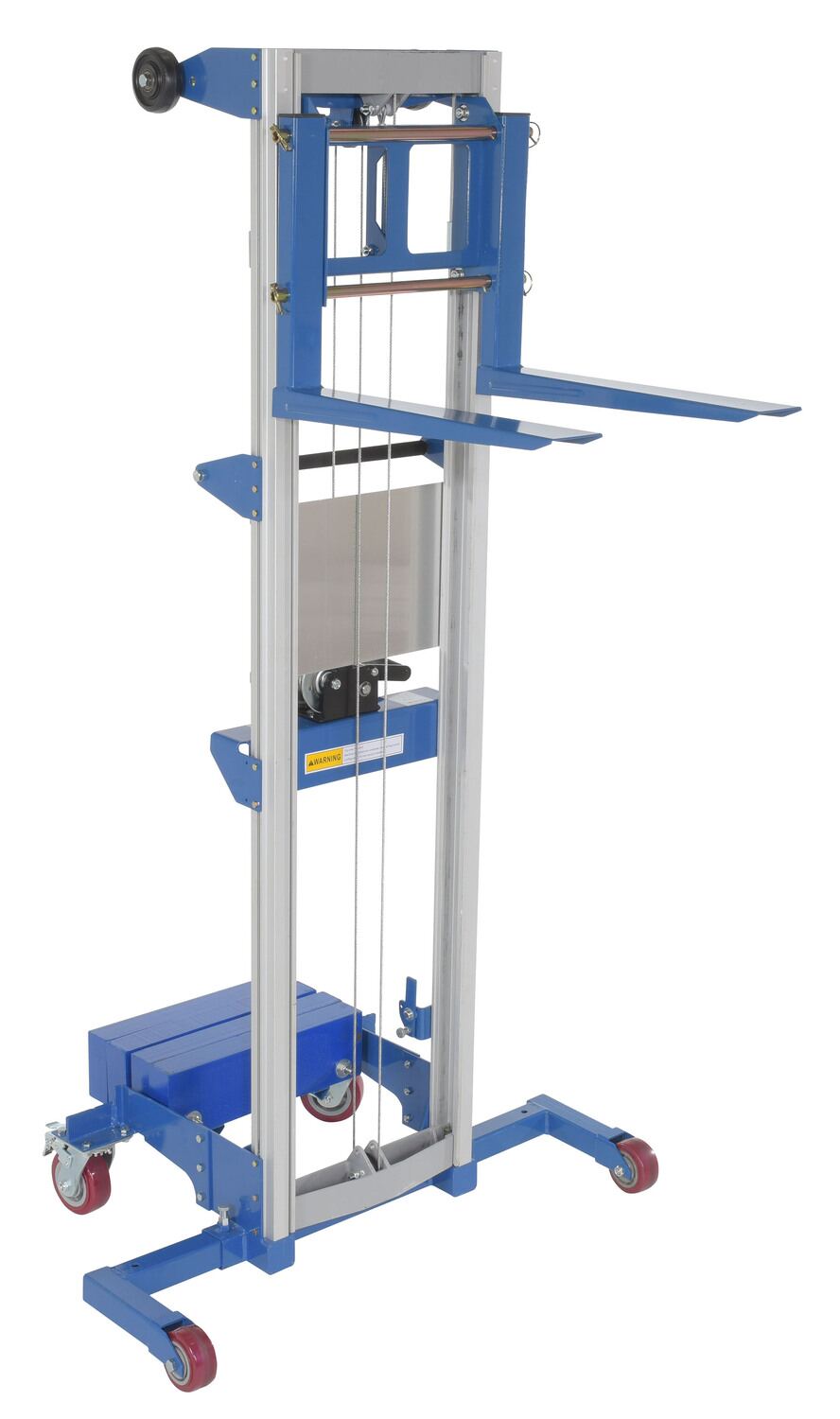

| A-LIFT-CB-EHP |  | 1 Year Limited Warranty | Aluminum/Steel Manual Hand Winch Lift Truck With Counter Balance 350 Lb. Capacity Silver/Blue | Uniform Capacity (lb.): 350 Lowered Height with Forks Down (in.): 2 / 21-1/4 | 454 | ||

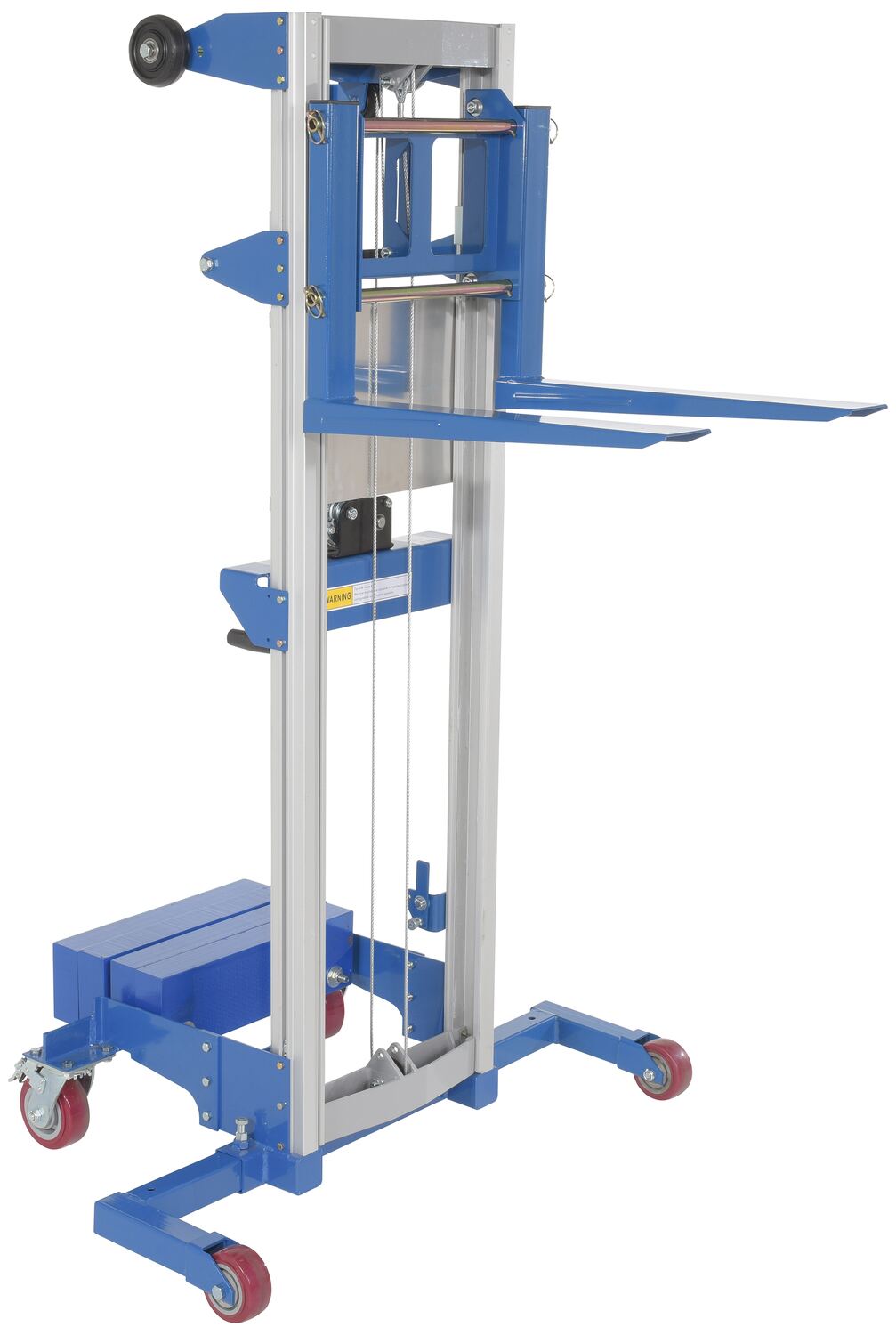

| A-LIFT-CB-HP |  | 1 Year Limited Warranty | Aluminum/Steel Manual Hand Winch Lift Truck With Counter Balance 400 Lb. Capacity Silver/Blue | Uniform Capacity (lb.): 400 Lowered Height with Forks Down (in.): 2 / 21-1/4 | 445 | ||

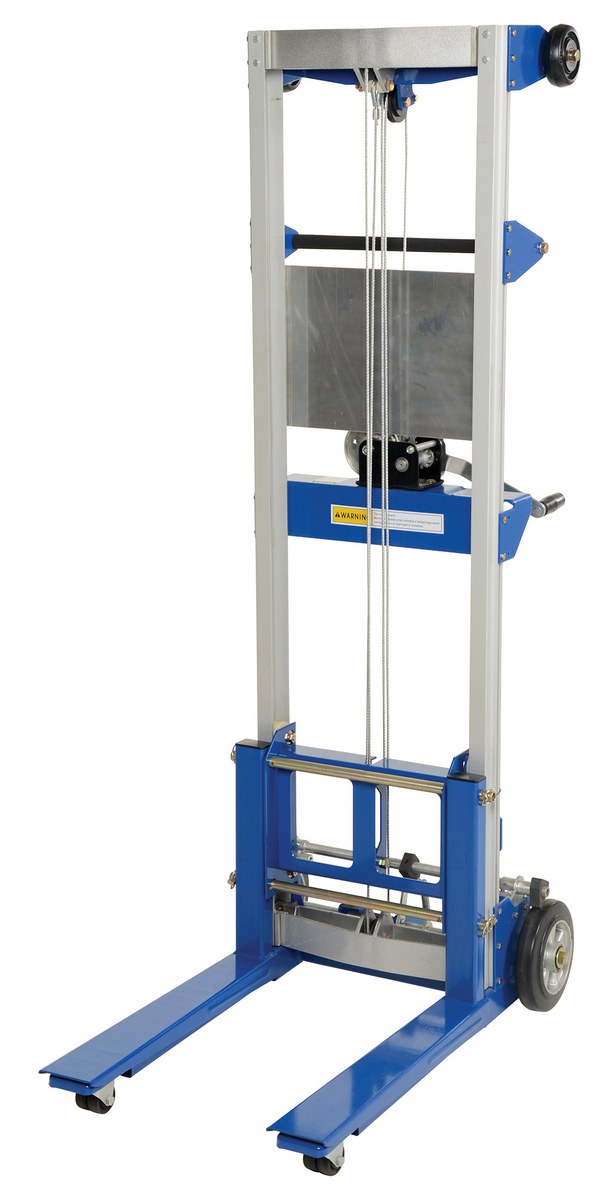

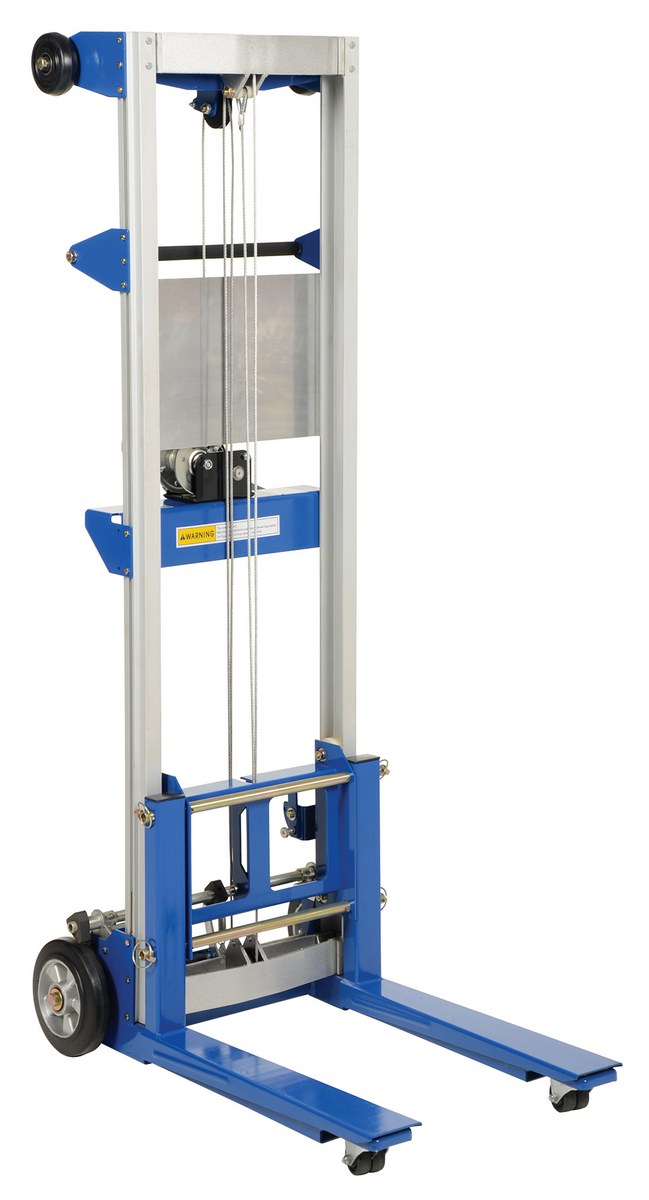

| A-LIFT-R | | 1 Year Limited Warranty | Aluminum/Steel Fixed Straddle Manual Hand Winch Lift Trucks 500 Lb. Capacity Silver/Blue | Uniform Capacity (lb.): 500 Lowered Height (in.): 3-1/2 / 23-1/2 | 191 | ||

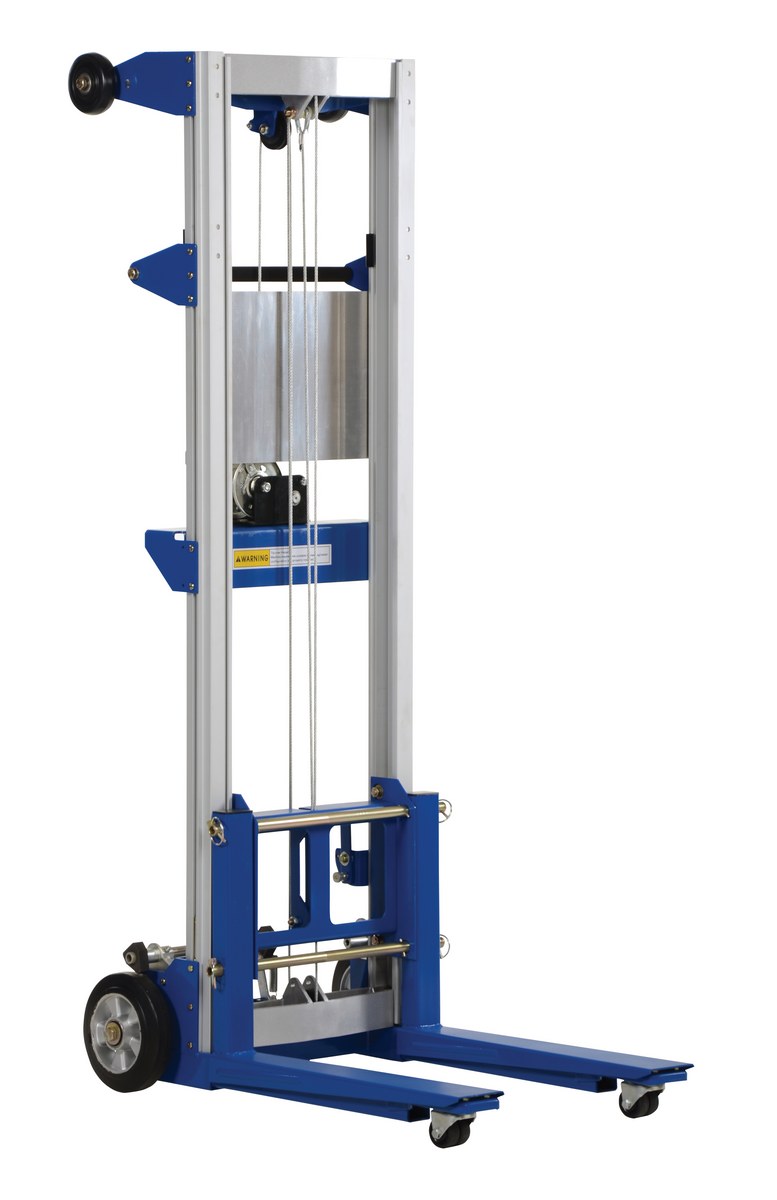

| A-LIFT-R-HP | POPULAR |  | 1 Year Limited Warranty | Aluminum/Steel Fixed Straddle Manual Hand Winch Lift Trucks 400 Lb. Capacity Silver/Blue | Uniform Capacity (lb.): 400 Lowered Height (in.): 3-1/2 / 23-1/2 | 203 | |

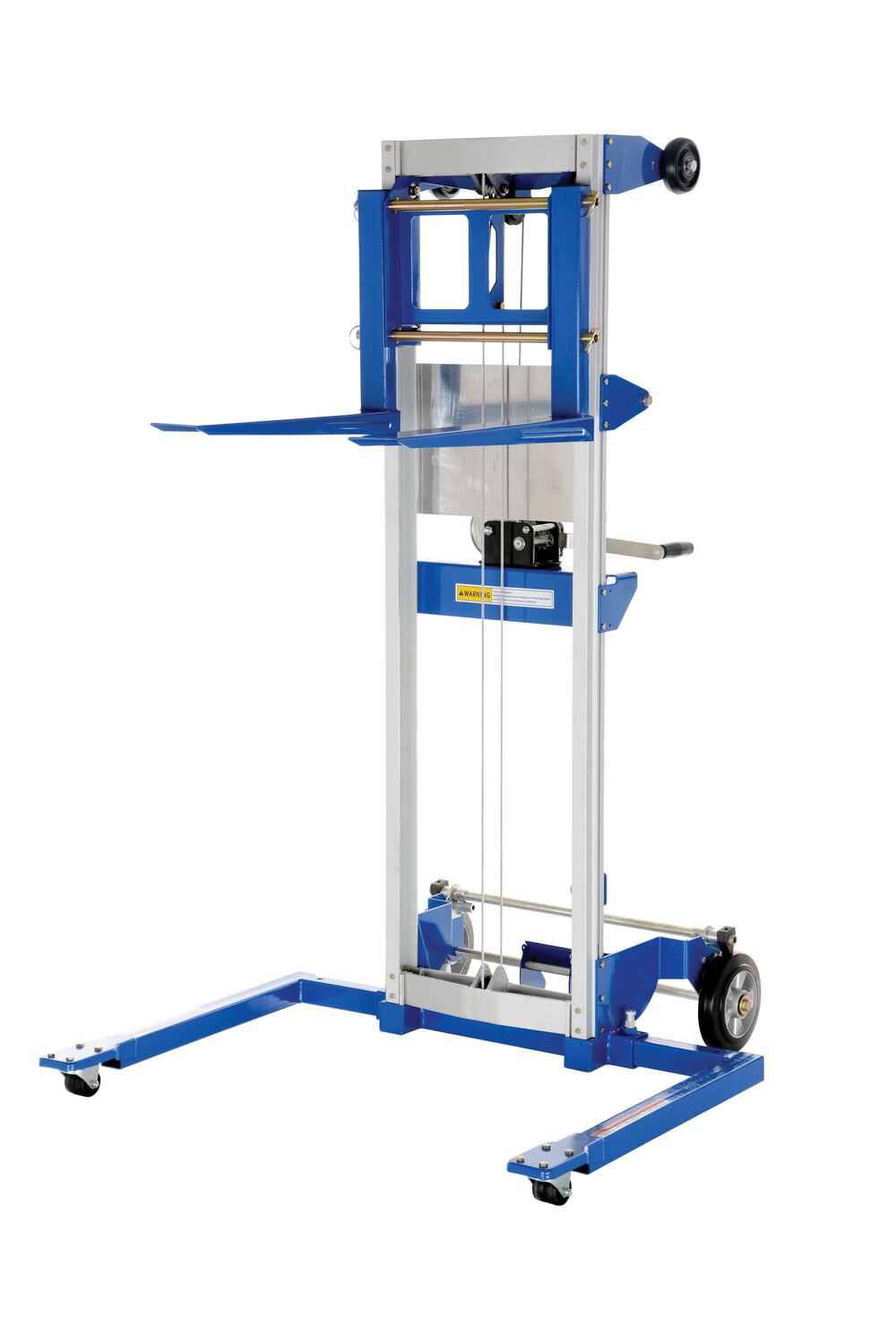

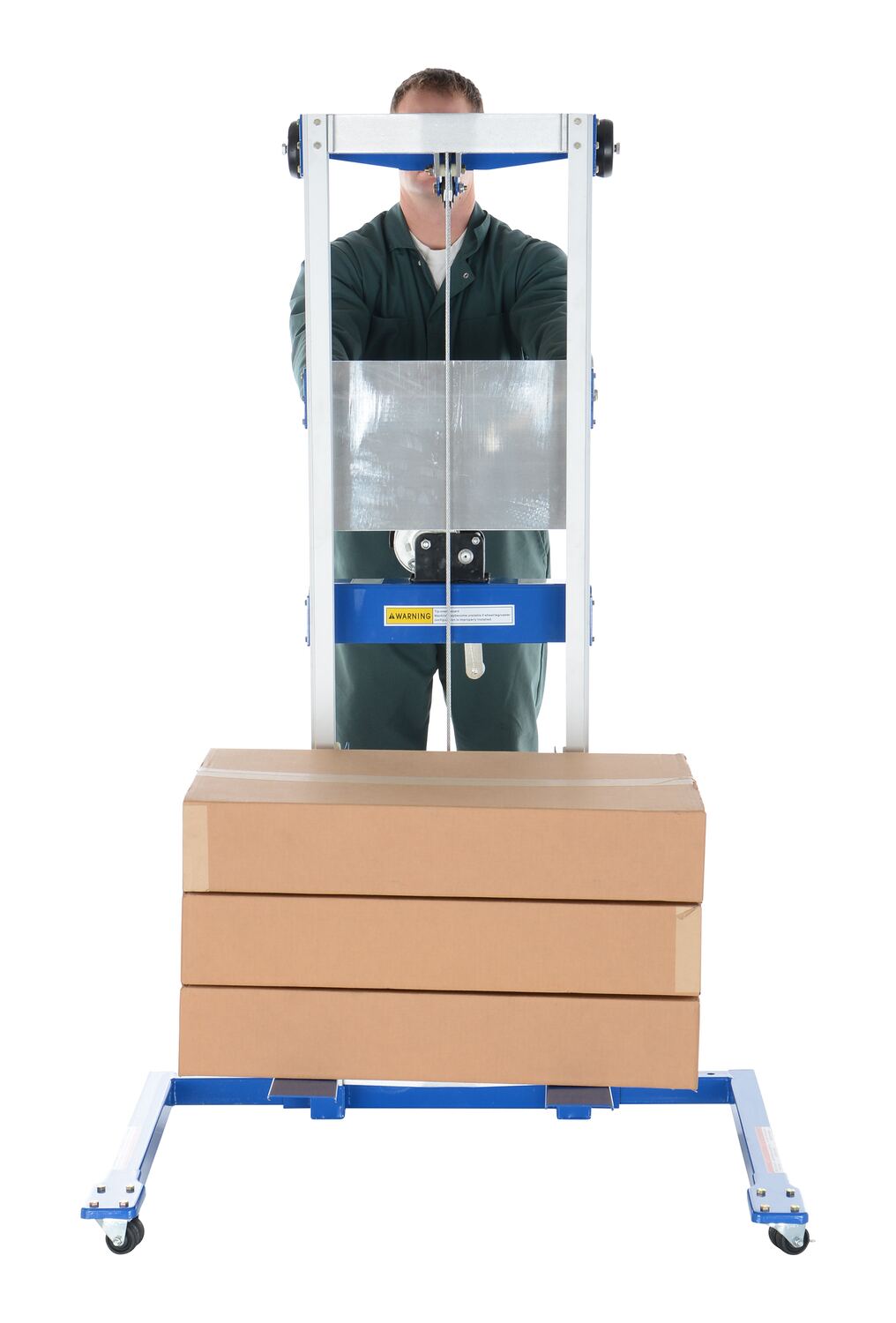

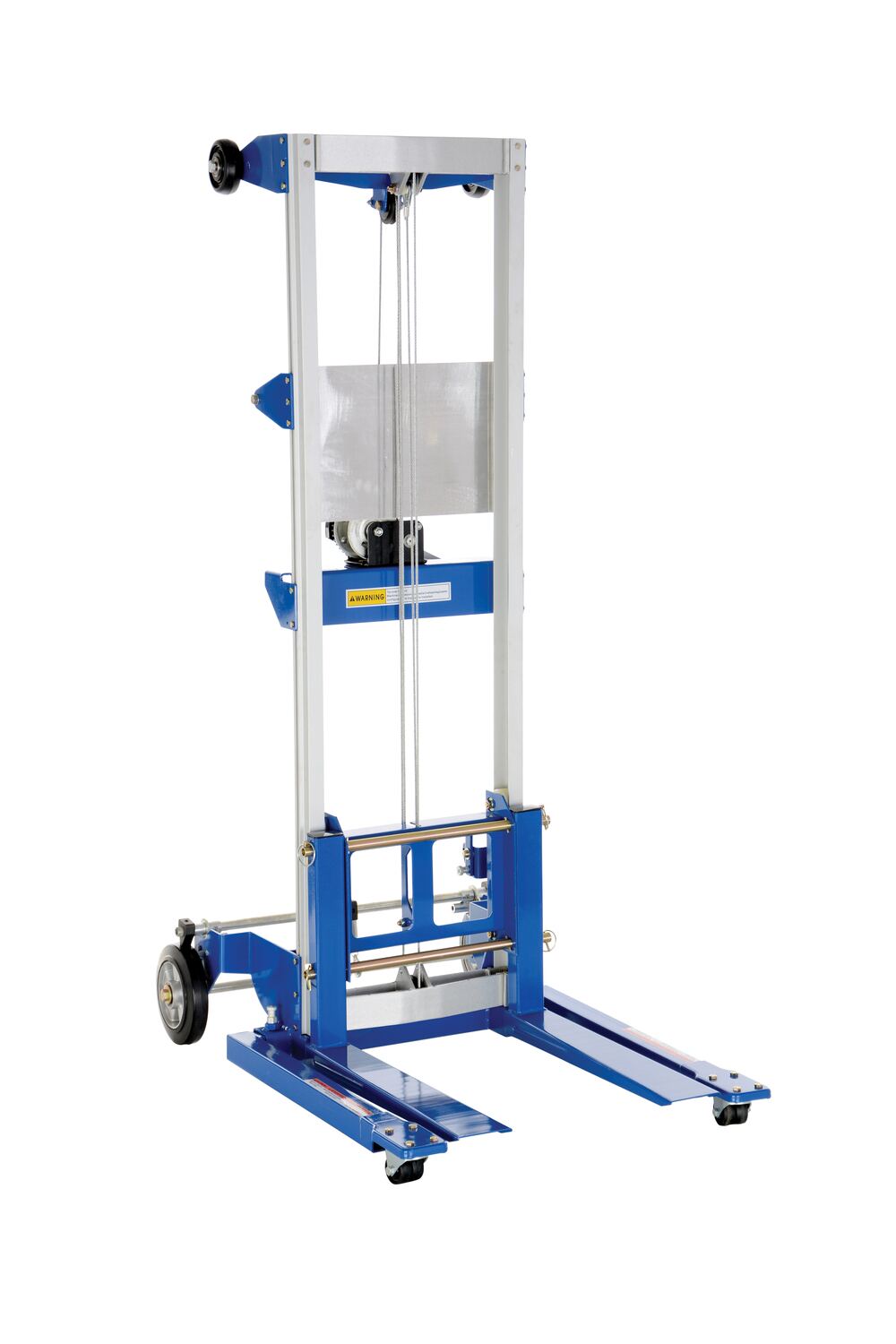

| A-LIFT-S |  | 1 Year Limited Warranty | Aluminum/Steel Adjustable Straddle Manual Hand Winch Lift Trucks 500 Lb. Capacity Silver/Blue | Uniform Capacity (lb.): 500 Lowered Height (in.): 1-1/4 / 21-1/4 | 200 | ||

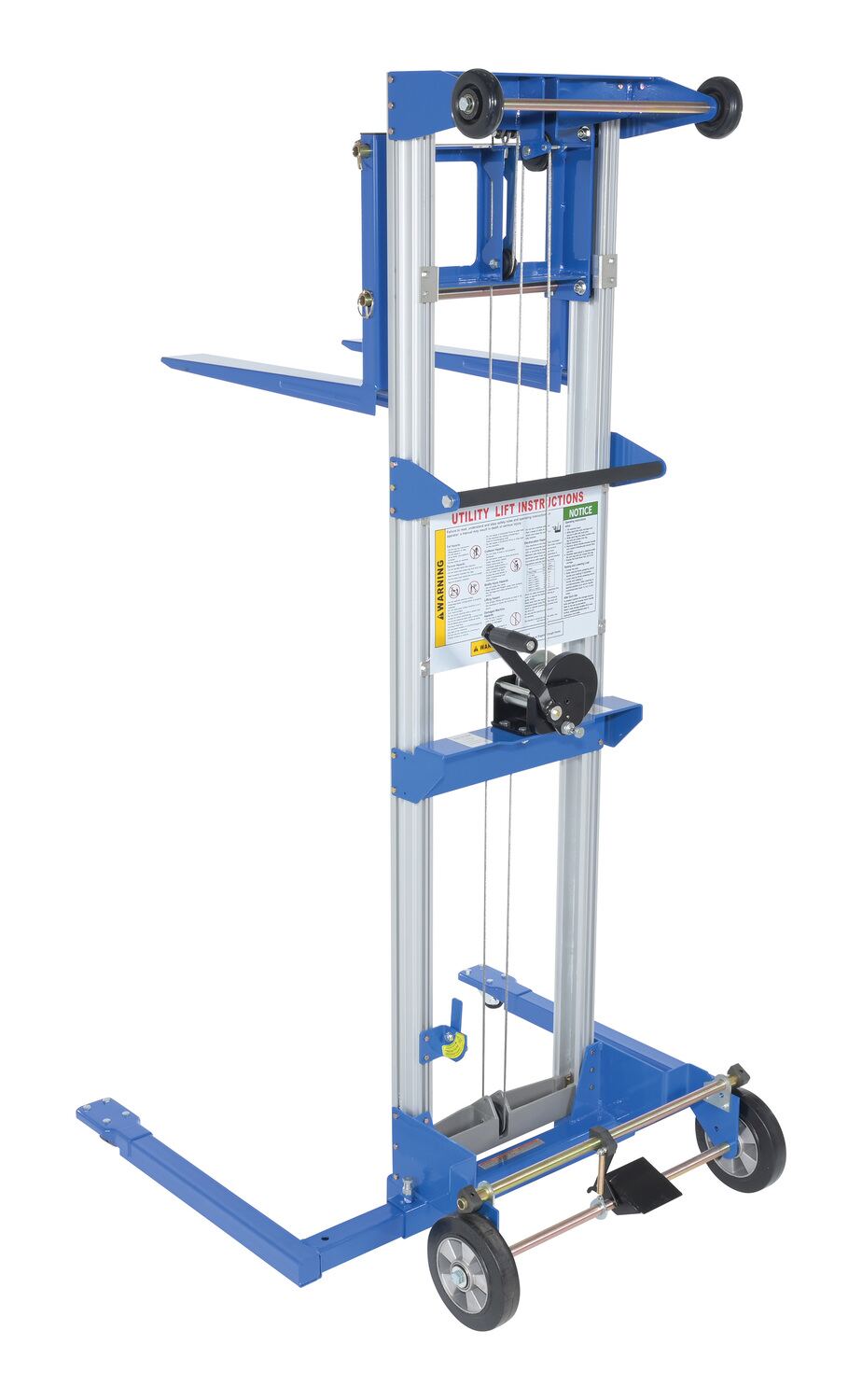

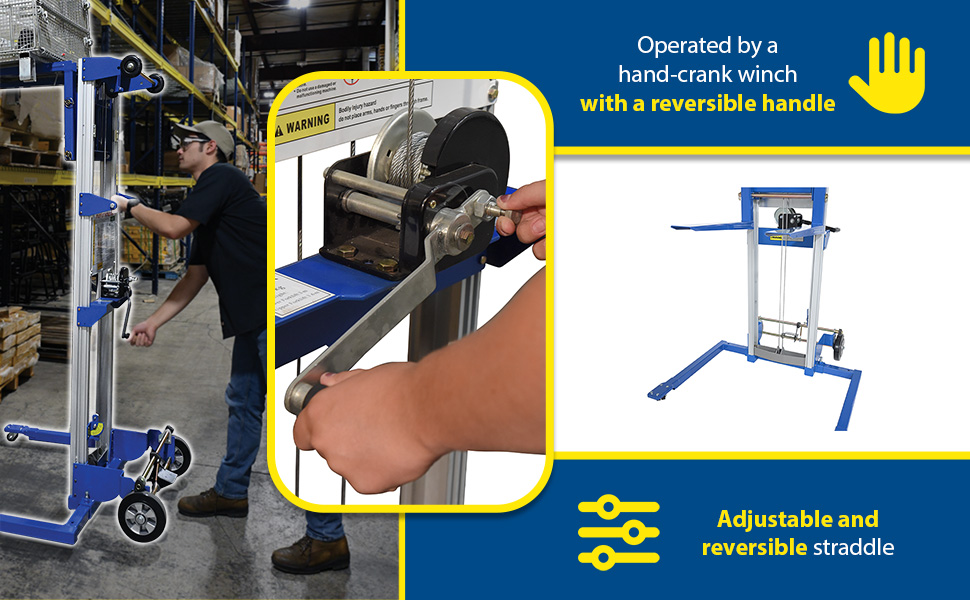

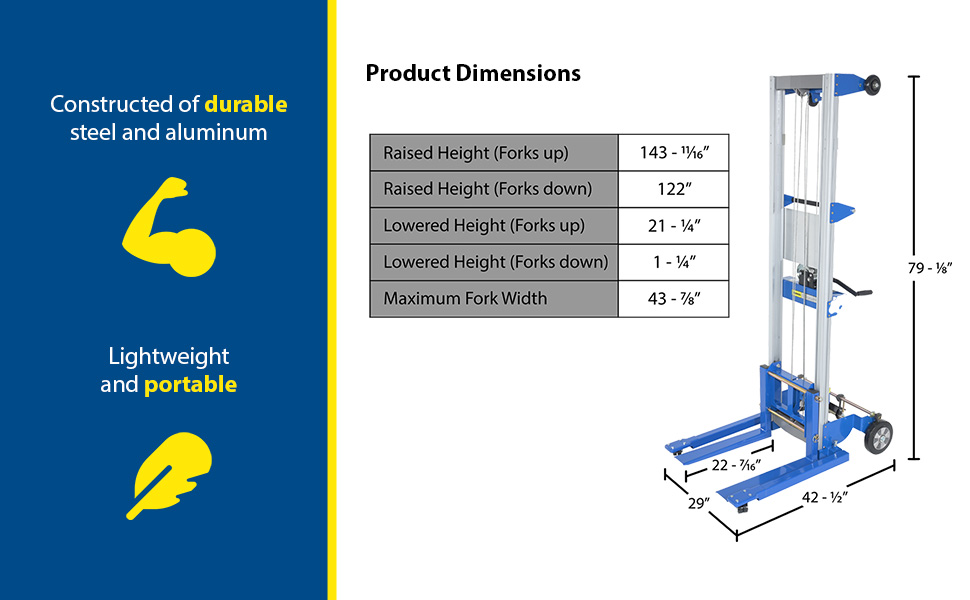

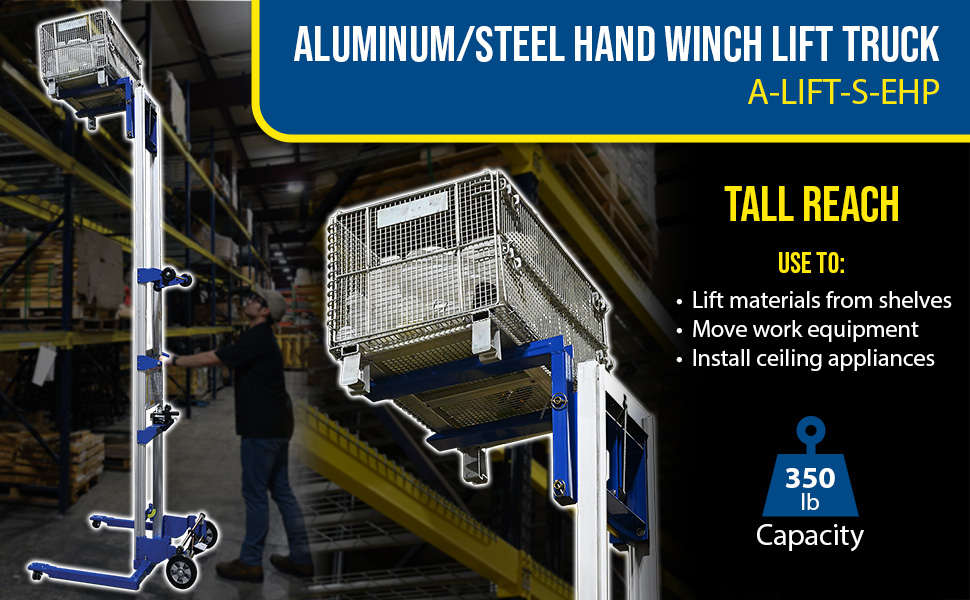

| A-LIFT-S-EHP |  | 1 Year Limited Warranty | Aluminum/Steel Adjustable Straddle Manual Hand Winch Lift Trucks 350 Lb. Capacity Silver/Blue | Uniform Capacity (lb.): 350 Lowered Height (in.): 1-1/4 / 21-1/4 | 226 | ||

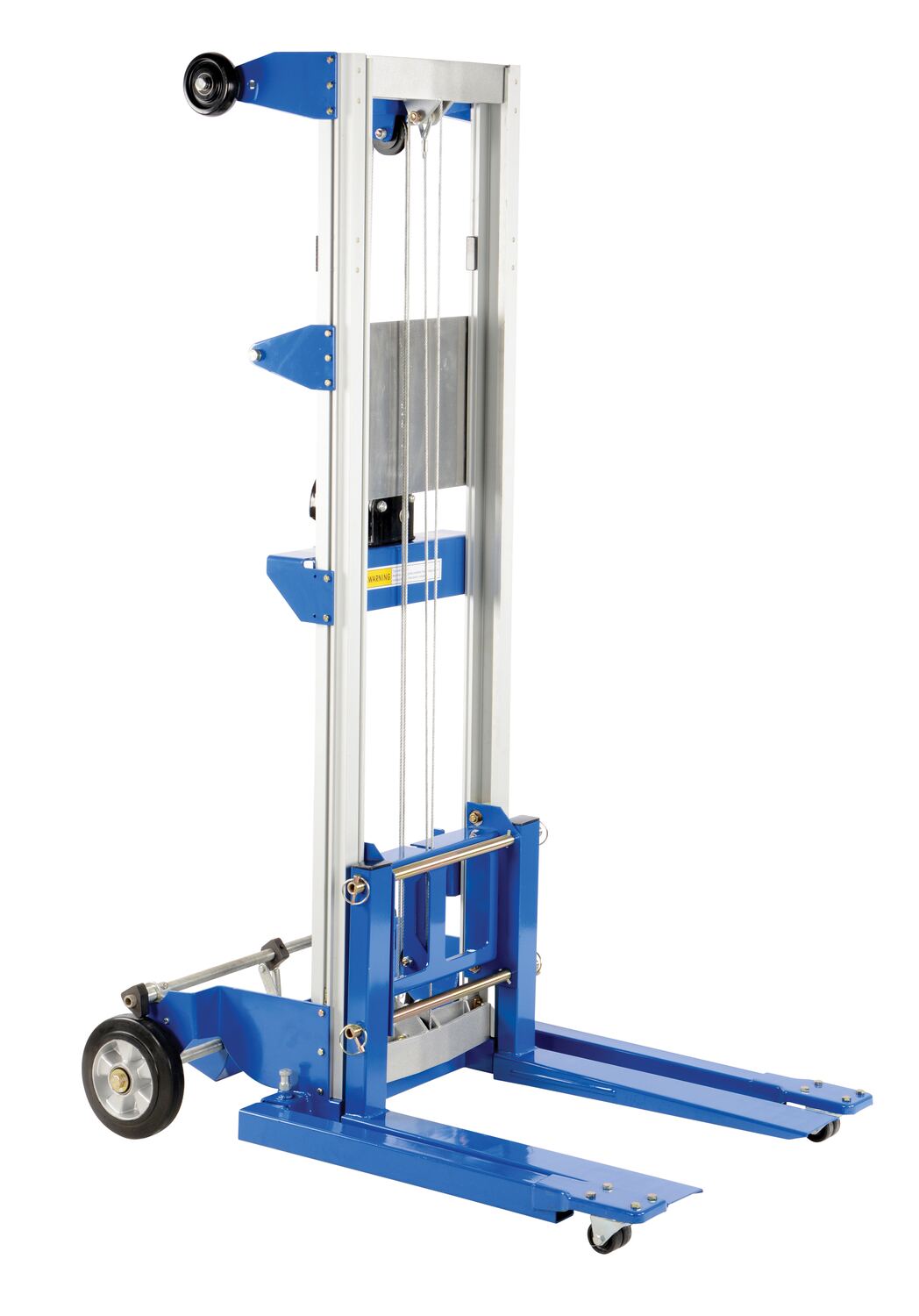

| A-LIFT-S-HP |  | 1 Year Limited Warranty | Aluminum/Steel Adjustable Straddle Manual Hand Winch Lift Trucks 400 Lb. Capacity Silver/Blue | Uniform Capacity (lb.): 400 Lowered Height (in.): 1-1/4 / 21-1/4 | 219 |
KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 500
Lowered Height with Forks Down (in.): 2
Uniform Capacity (lb.): 500
Lowered Height with Forks Down (in.): 2
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 350
Lowered Height with Forks Down (in.): 2 / 21-1/4
Uniform Capacity (lb.): 350
Lowered Height with Forks Down (in.): 2 / 21-1/4
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 400
Lowered Height with Forks Down (in.): 2 / 21-1/4
Uniform Capacity (lb.): 400
Lowered Height with Forks Down (in.): 2 / 21-1/4
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 500
Lowered Height (in.): 3-1/2 / 23-1/2
Uniform Capacity (lb.): 500
Lowered Height (in.): 3-1/2 / 23-1/2
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 400
Lowered Height (in.): 3-1/2 / 23-1/2
Uniform Capacity (lb.): 400
Lowered Height (in.): 3-1/2 / 23-1/2
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 500
Lowered Height (in.): 1-1/4 / 21-1/4
Uniform Capacity (lb.): 500
Lowered Height (in.): 1-1/4 / 21-1/4
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 350
Lowered Height (in.): 1-1/4 / 21-1/4
Uniform Capacity (lb.): 350
Lowered Height (in.): 1-1/4 / 21-1/4
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 400
Lowered Height (in.): 1-1/4 / 21-1/4
Uniform Capacity (lb.): 400
Lowered Height (in.): 1-1/4 / 21-1/4
For More Details of the Option Click the Red Model Button

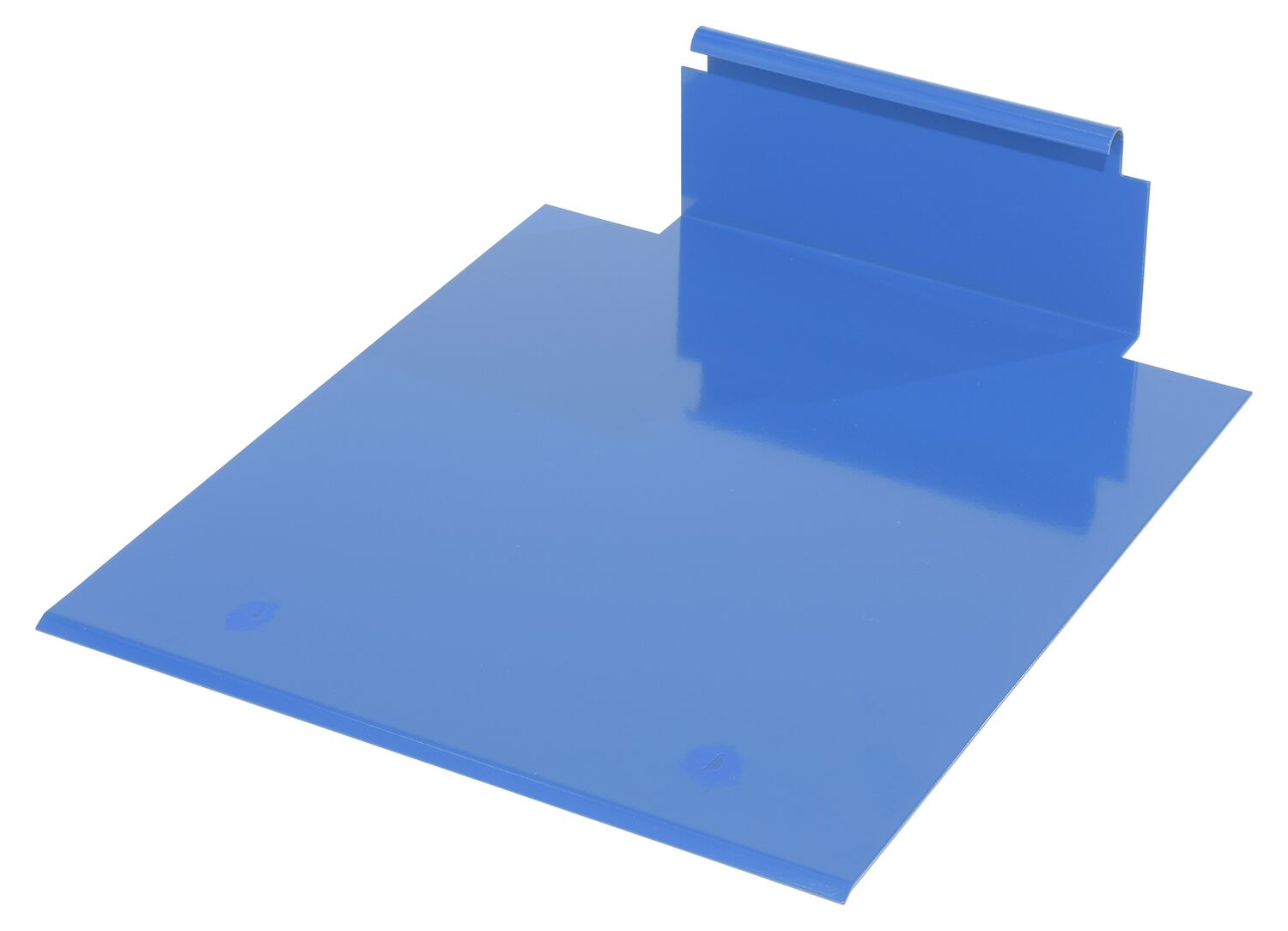

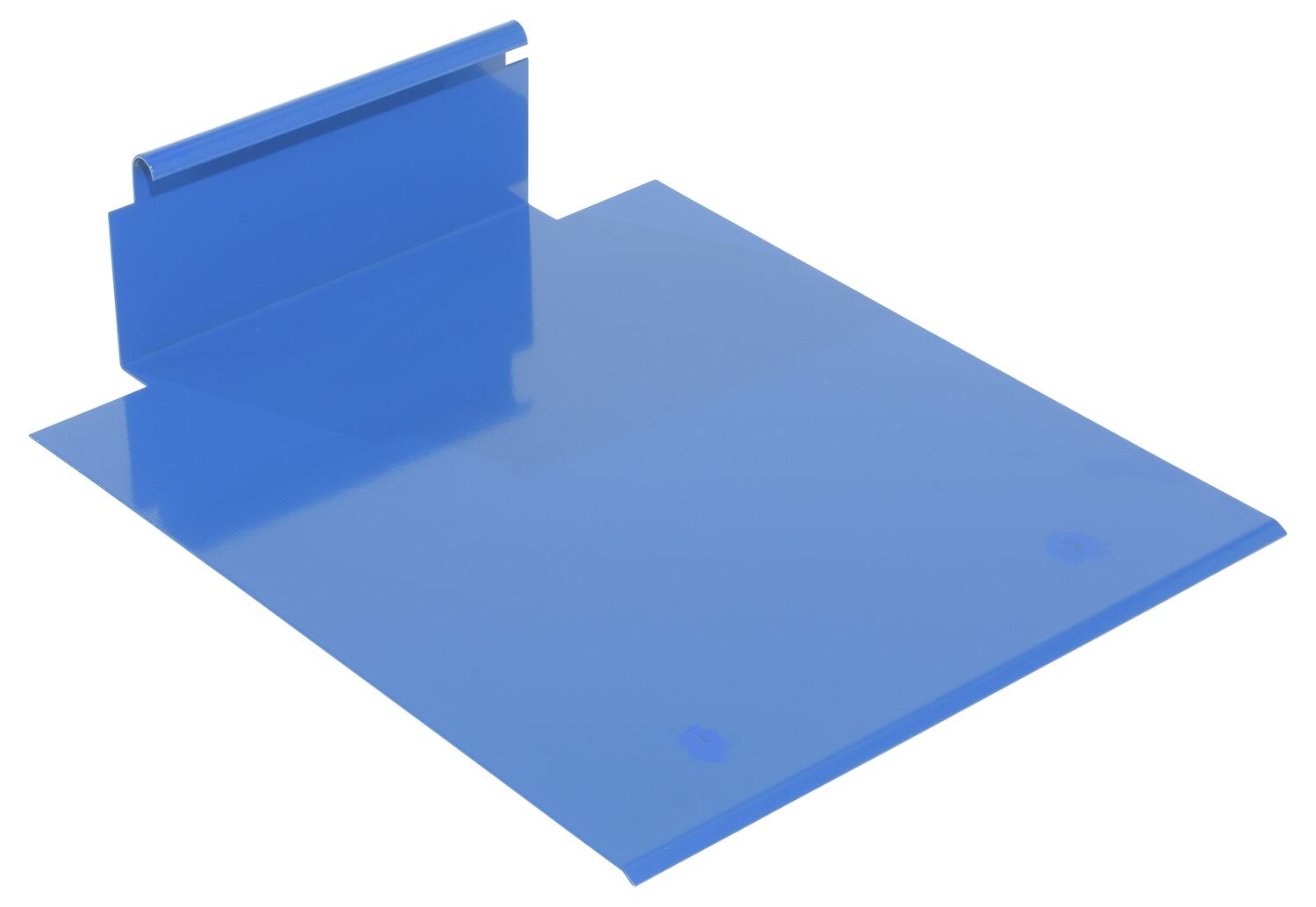

| A-LIFT-DK |  | 1 Year Limited Warranty | Steel Deck Platform For Hand Winch Lifts 24-1/4 In. x 20-1/2 In. 500 Lb. Capacity Blue | Uniform Capacity (lbs): 500 Overall Length (in.): 24-1/4 | 18 | |
| A-LIFT-EHP-LAD |  | 90 Days Limited Warranty | Factory Installed Aluminum/Steel Retractable Ladder For A-LIFT-EHP Models 250 Lb. Capacity Silver | Ladder Uniform Capacity (lb.): 250 Rung Spacing (in.): 11-3/4 | 19 | |
| A-LIFT-LAD |  | 90 Days Limited Warranty | Factory Installed Aluminum/Steel Retractable Ladder For A-LIFT Models 250 Lb. Capacity Silver | Ladder Uniform Capacity (lb.): 250 Rung Spacing (in.): 11-3/4 | 17 | |

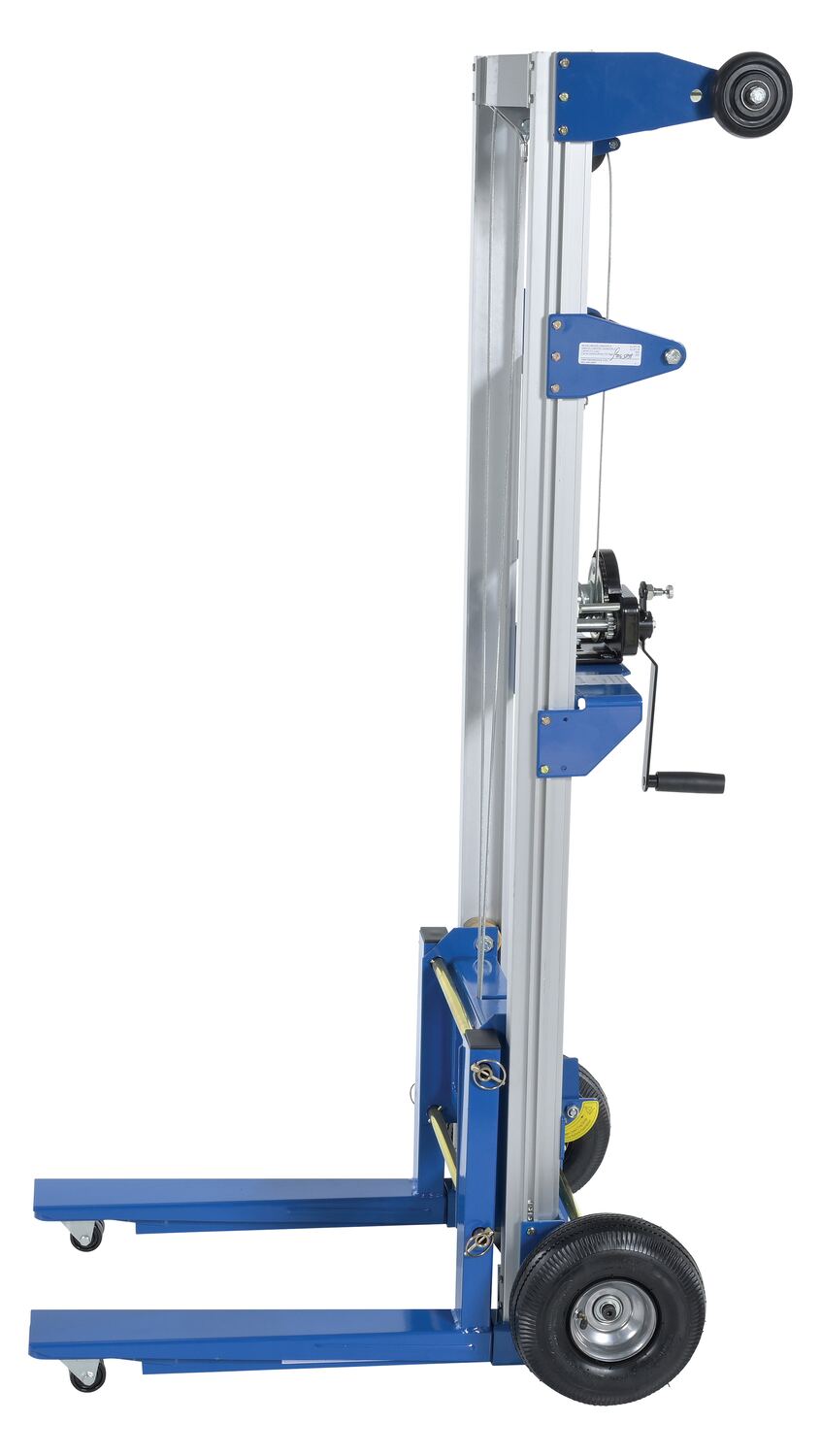

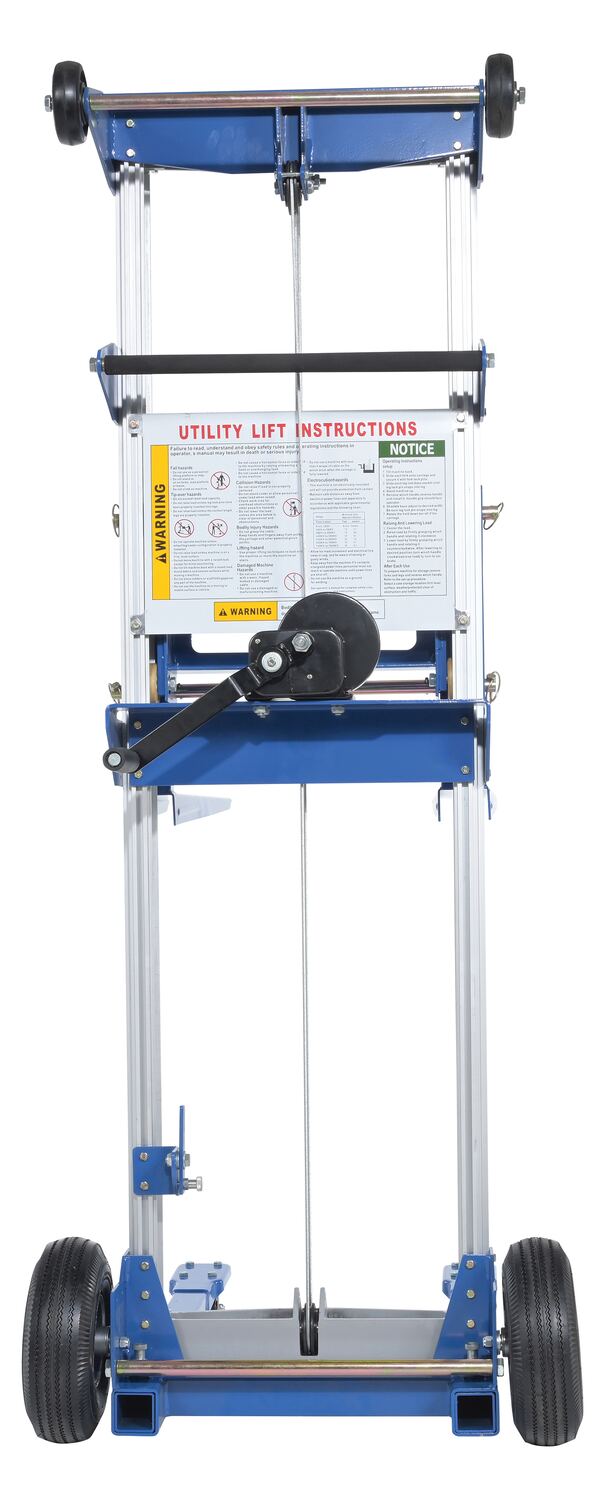

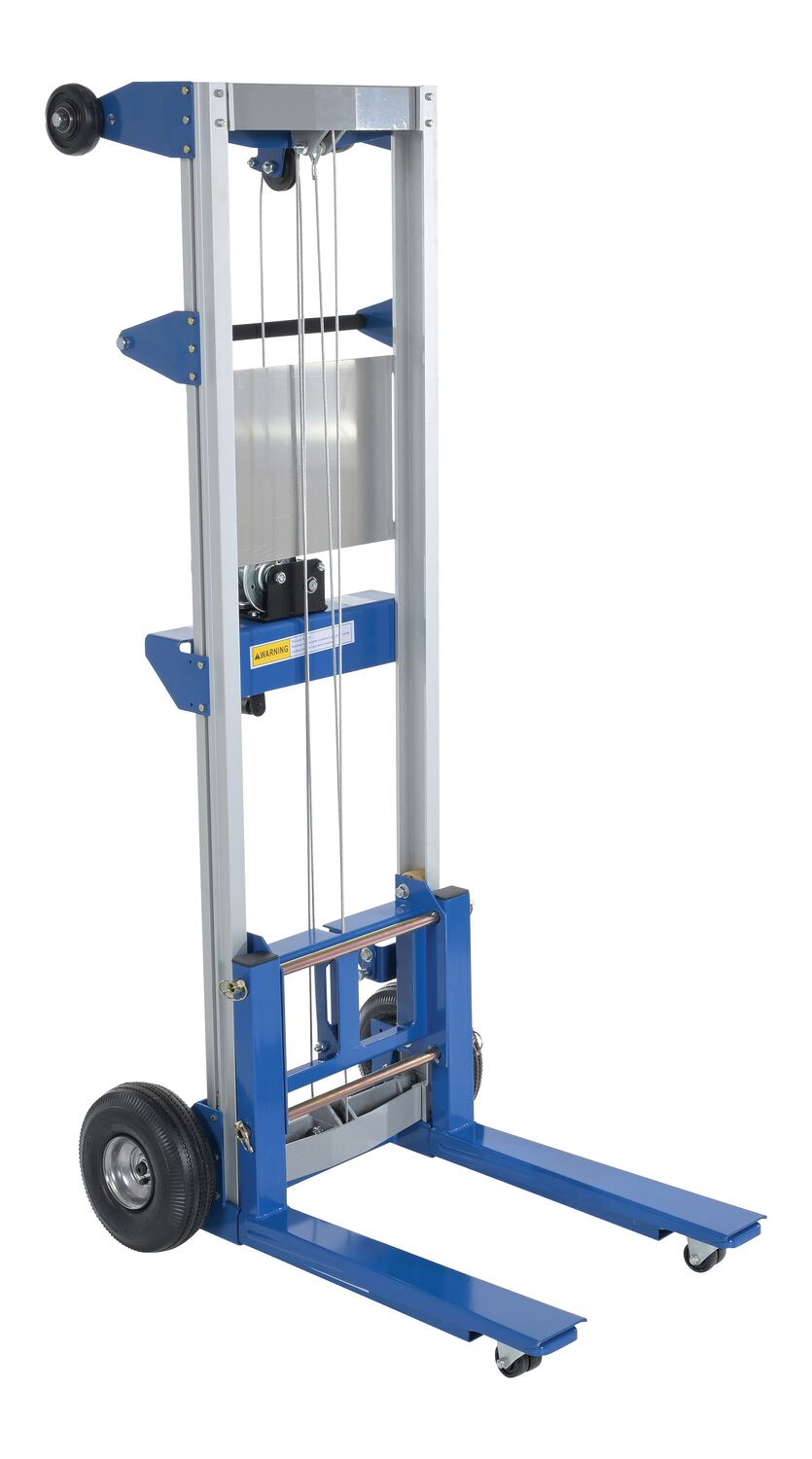

| A-LIFT-PN |  | 90 Days Limited Warranty | Pneumatic Rear Wheels For Hand Winch Lift Trucks 10 In. x 4 In. Black | Wheel Diameter (in.): 10 Wheel Width (in.): 4 | 11 |
.
Manuals
Survey Sheets
Approval Drawings
Testing Certificates
SDS Sheets
Other PDF's
Directory Links Of Available PDF's For All Products

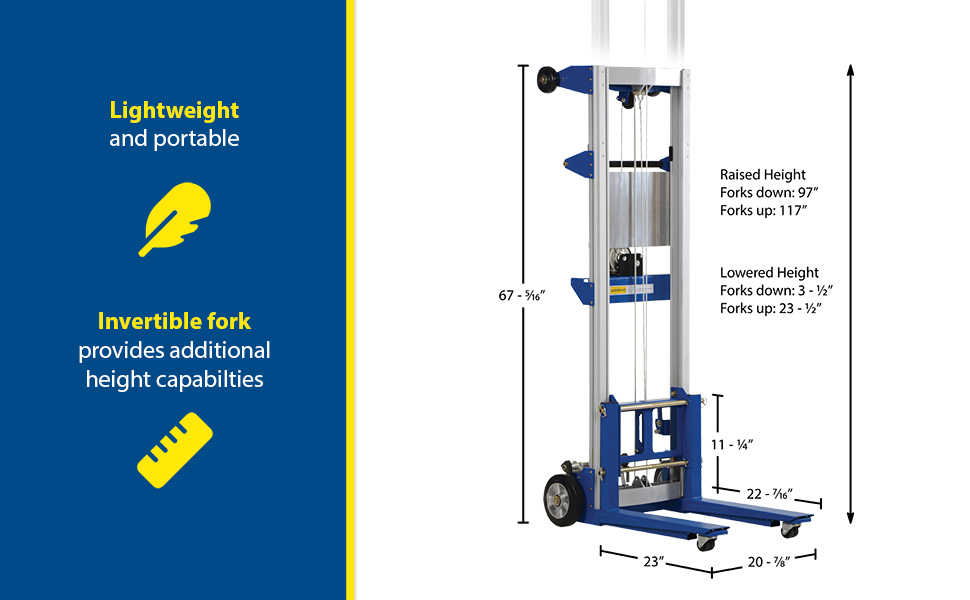

Q: What is the overall height with the forks raised for A-LIFT-R-HP?
A: The raised forks are 3" above the frame.
Q: At what point does the frame raise?
A: The frame of the A-LIFT-R-HP telescopes up when it hits 68".
Q: What is the maximum working height or the top step height on the A-LIFT-EHP-LAD option?
A: The top step height is 66.5"
Q: Can the ladder be installed on a counter balance lift?
A: No the ladder cannot be installed on the A-LIFT-CB.
Q: Can a ladder be added to an existing lift truck?
A: Yes a ladder can be added to an existing lift truck in the field. Choose appropriate model number that corresponds with for your lift truck, or contact sales with your lift truck serial number.
Q: Do the Hand Winch Lift Trucks have a brake?

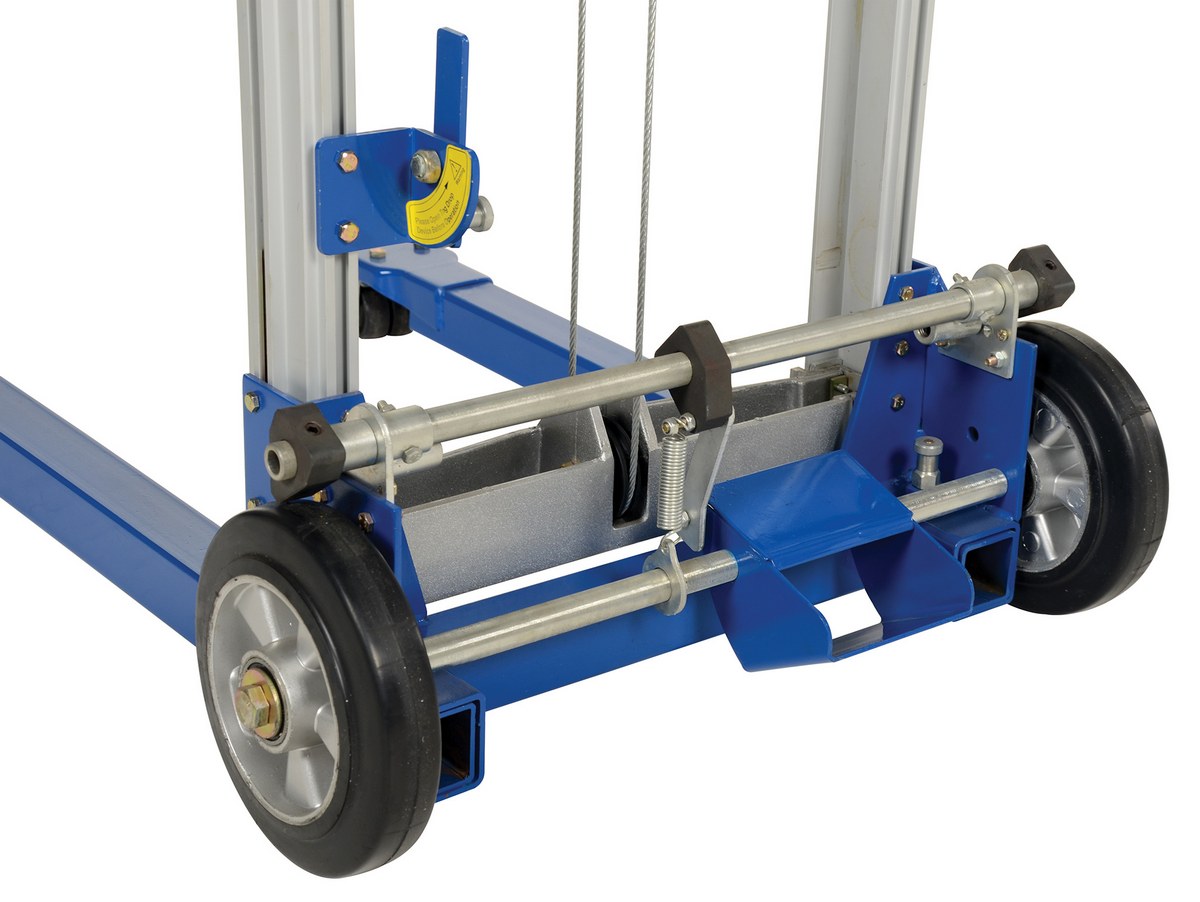

A: The A-LIFT-R series and the A-LIFT-S series both have a foot break that is connected to the axle of the rear wheels.
 |
|||||||||||||||||||||||||||||||||||||||||||||||
