Air Hydraulic CartsUtilize the two speed foot pump for minor height adjustments and the factory air/oil power for effortless lifting up to 2,000 uniform pounds. Partially stainless steel carts are available. On suffix PSS, the platform, handle, base frame, caster brackets, and hardware are all stainless steel. Air pump, hydraulic cylinder, scissor legs, and foot pedal are zinc plated. Wheels are poly-on-poly.
- Reciprocating air/oil conveniently raises platform with ease

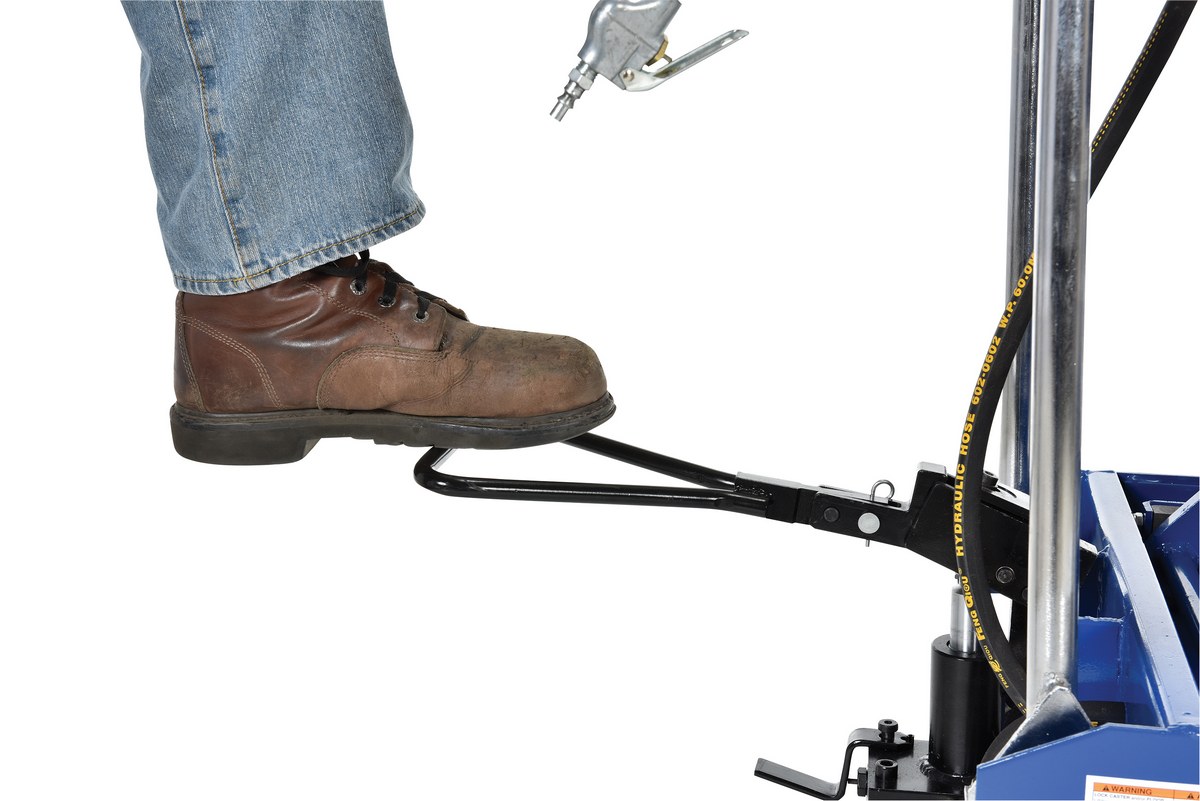

- Two speed foot pump raises platform when air is not available

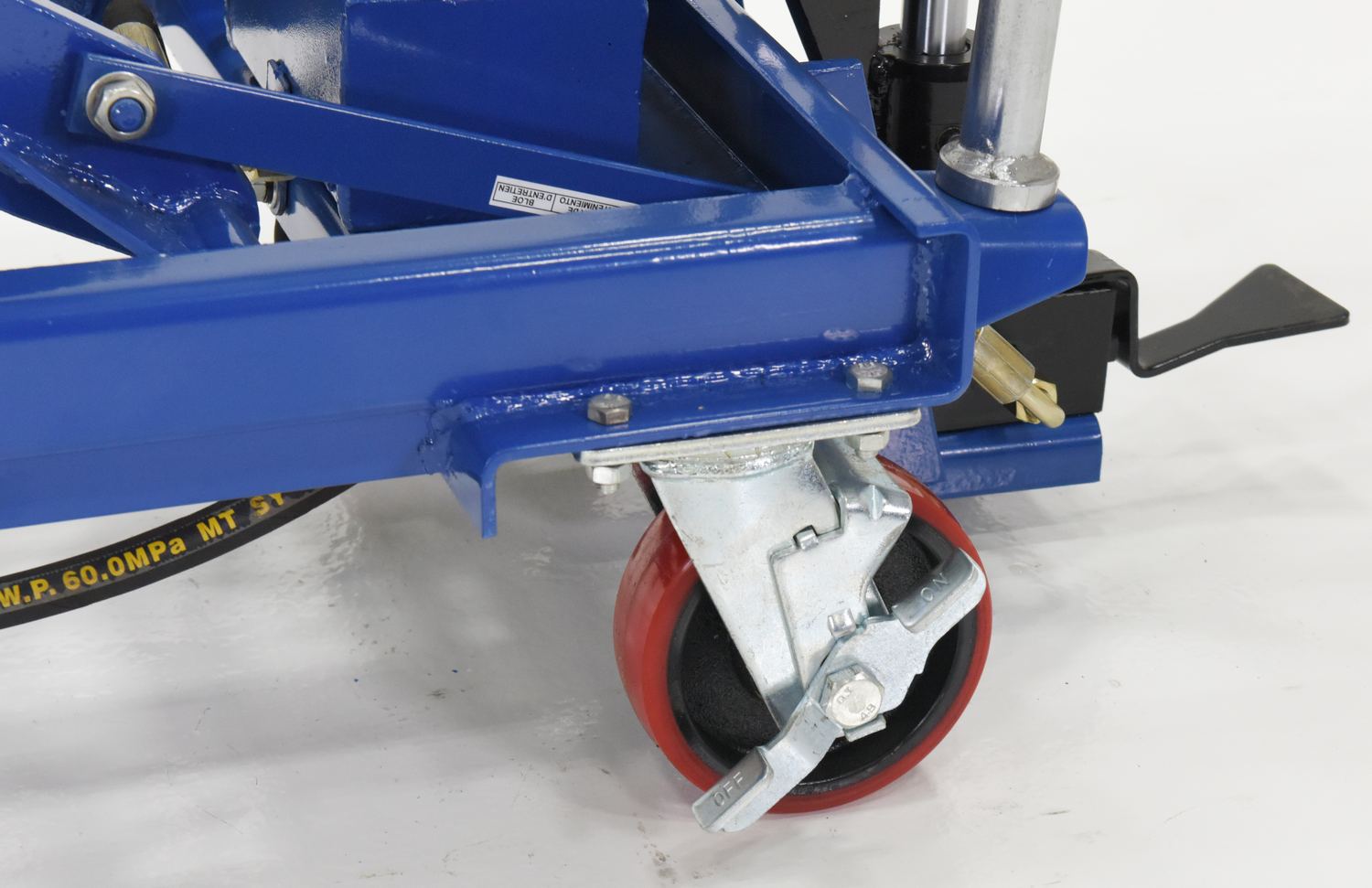

- Poly-on-poly wheels roll smoothly when loaded down
- Steel construction provides solid long lasting use
Low Profile Scissor Lift Cart
Lift & Tilt Carts with Sequence Select
Portable Electric Hydraulic Lift Table w/ Attached HoistAdditional Models In This Family
AIR-1750-PSS
AIR-2000
AIR-1500-D-PSS
AIR-1500-D
AIR-1500-D-PSS
AIR-1000
AIR-1000-LD-PSS
AIR-800-D
AIR-1500-D
AIR-2000-PSS
AIR-2000
AIR-1750
AIR-1750-PSS
AIR-1000-LD
AIR-1500-D
All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
| Model # | Description | Attributes | Net Wt. (lbs) |
||||
|---|---|---|---|---|---|---|---|

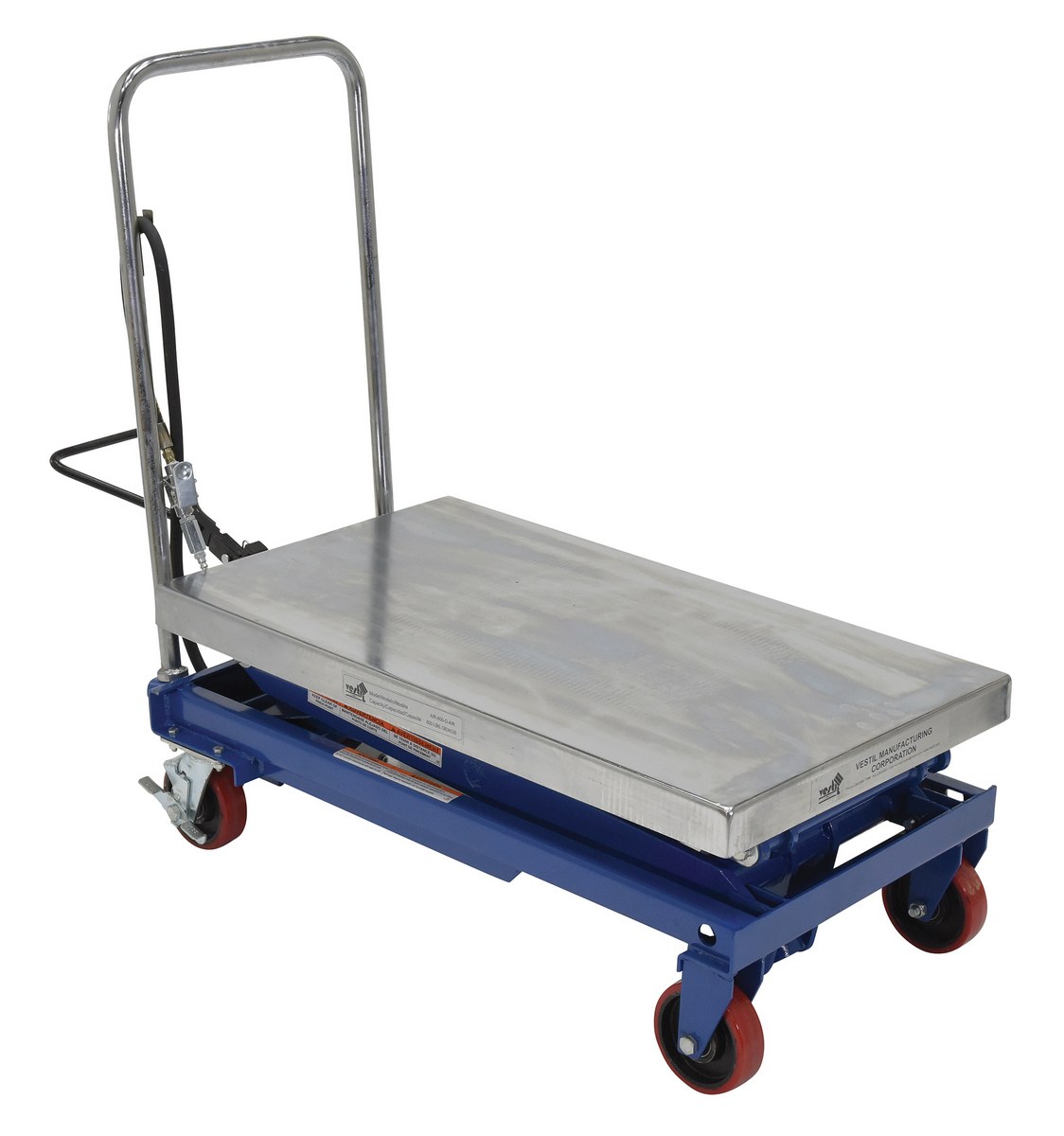

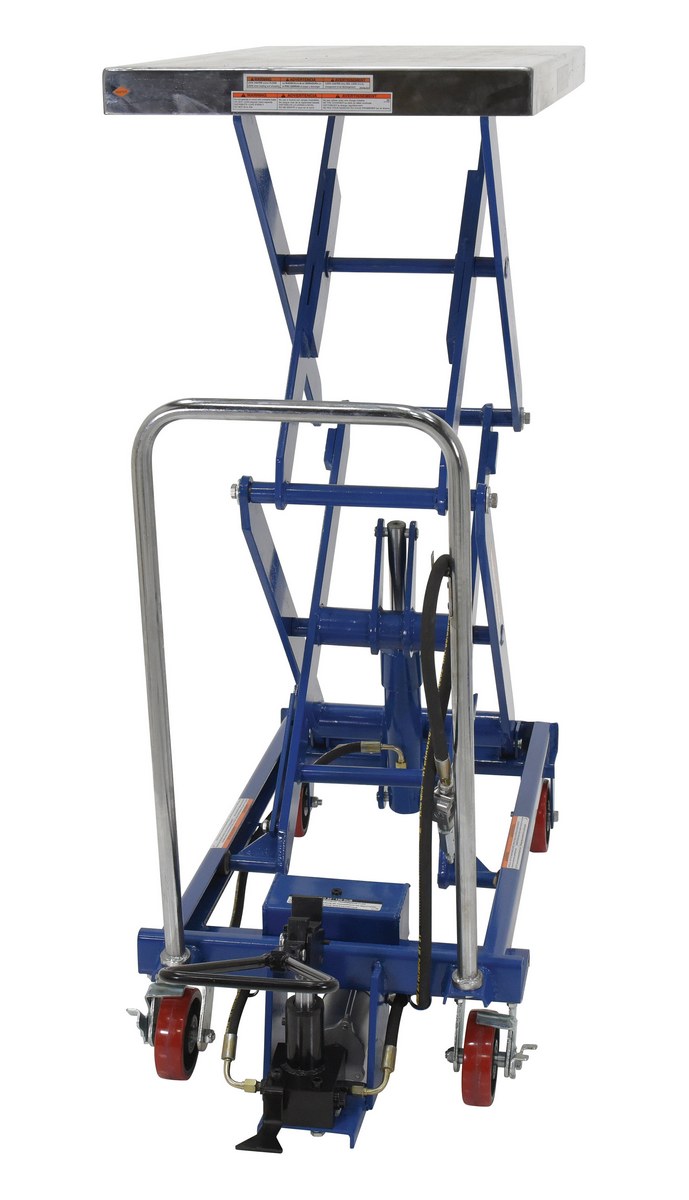

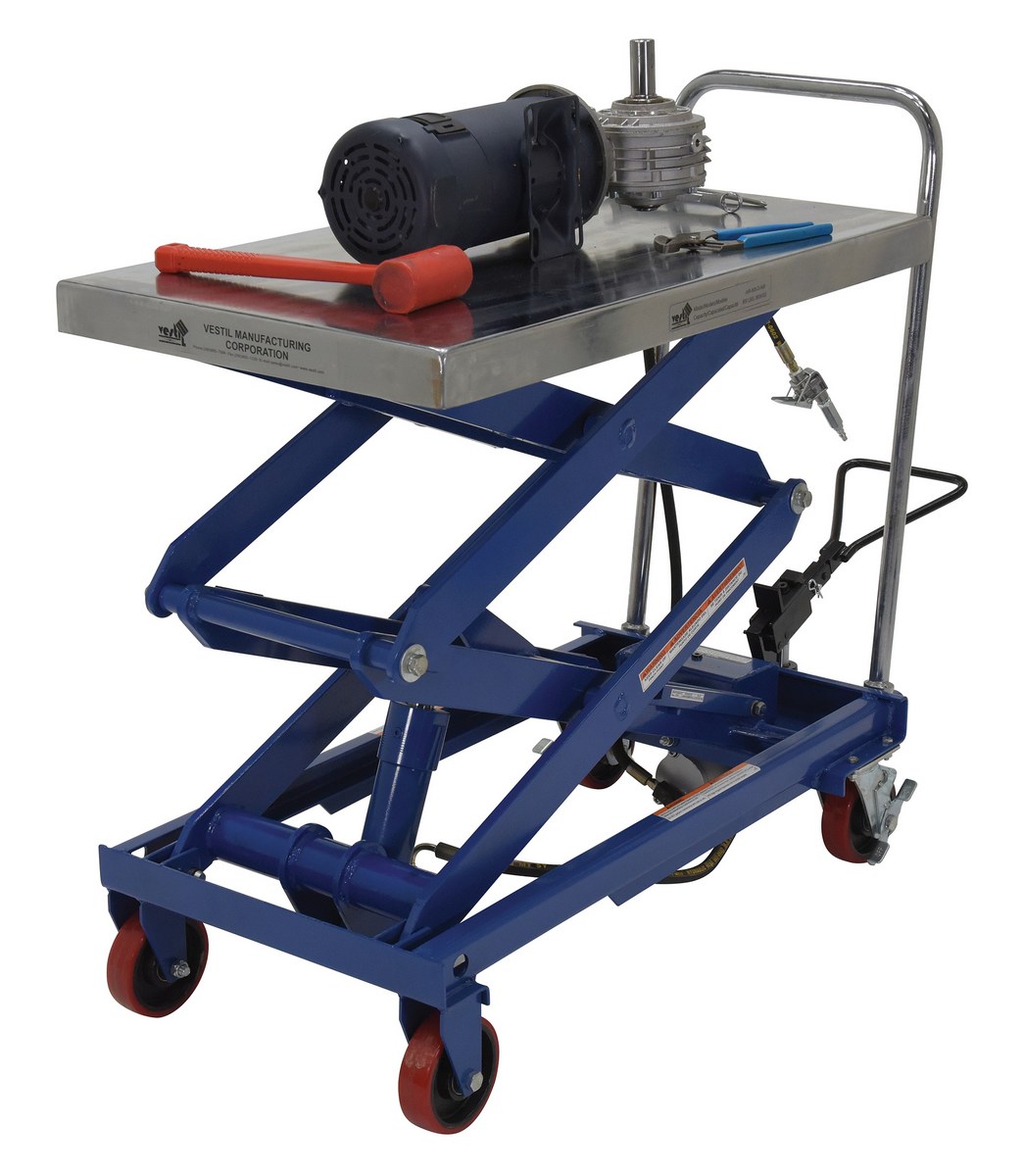

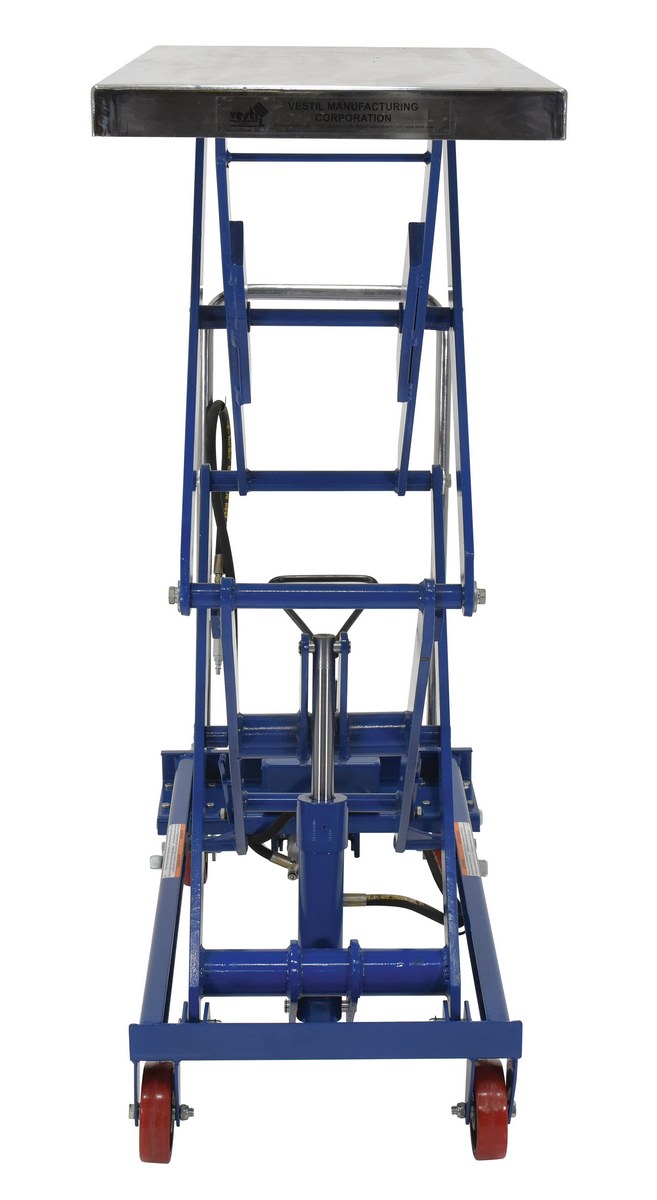

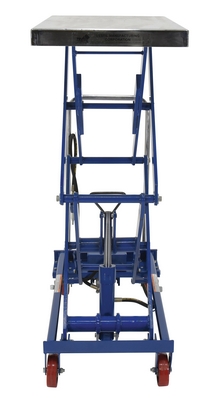

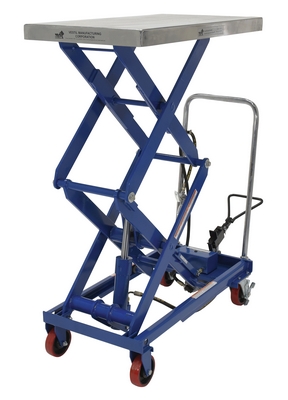

| AIR-800-D |  | 1 Year Limited Warranty | Carbon Steel Air/Hydraulic Scissor Lift Cart 35-1/2 In. x 20 In. Platform With Poly-On-Poly Casters 800 Lb. Capacity Blue/Silver | Uniform Capacity (lb.): 800 Platform Width (in.): 20 | 317 | ||

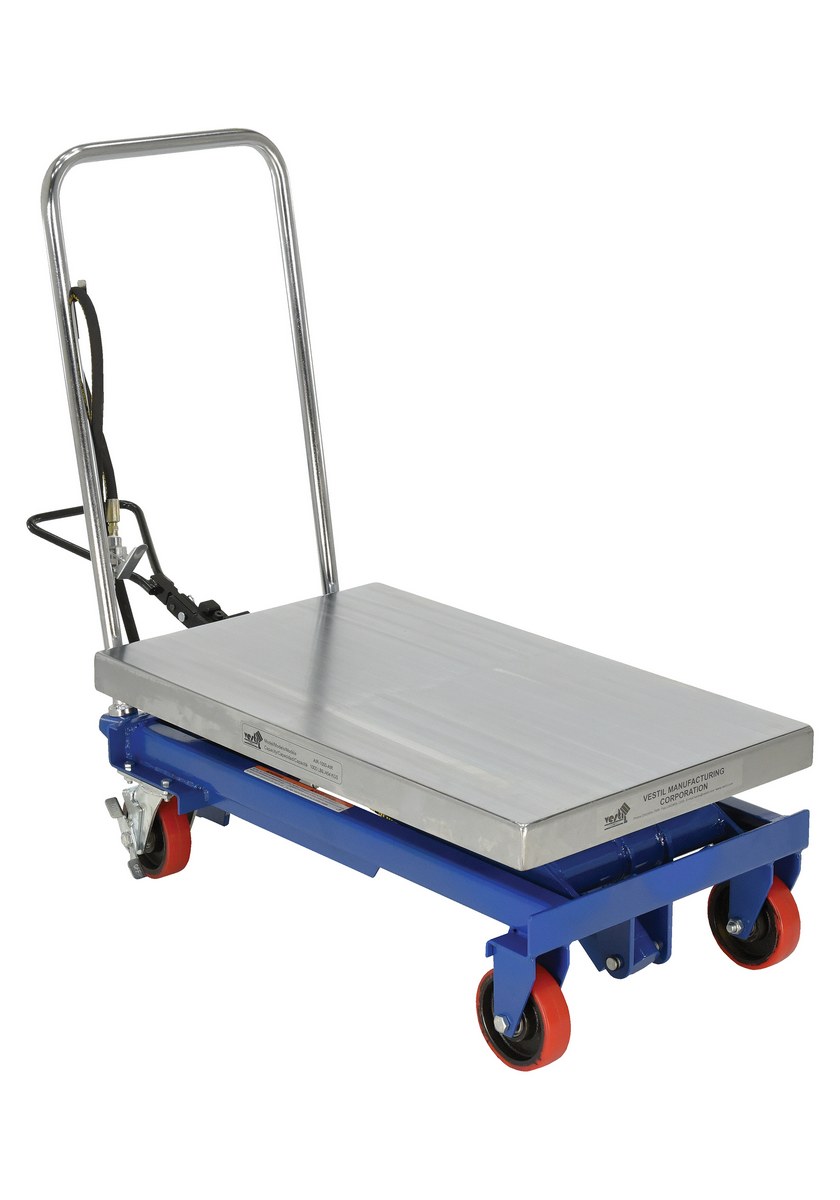

| AIR-1000 |  | 1 Year Limited Warranty | Carbon Steel Air/Hydraulic Scissor Lift Cart 32-1/2 In. x 20 In. Platform With Poly-On-Poly Casters 1,000 Lb. Capacity Blue/Silver | Uniform Capacity (lb.): 1,000 Platform Width (in.): 19-11/16 | 225 | ||

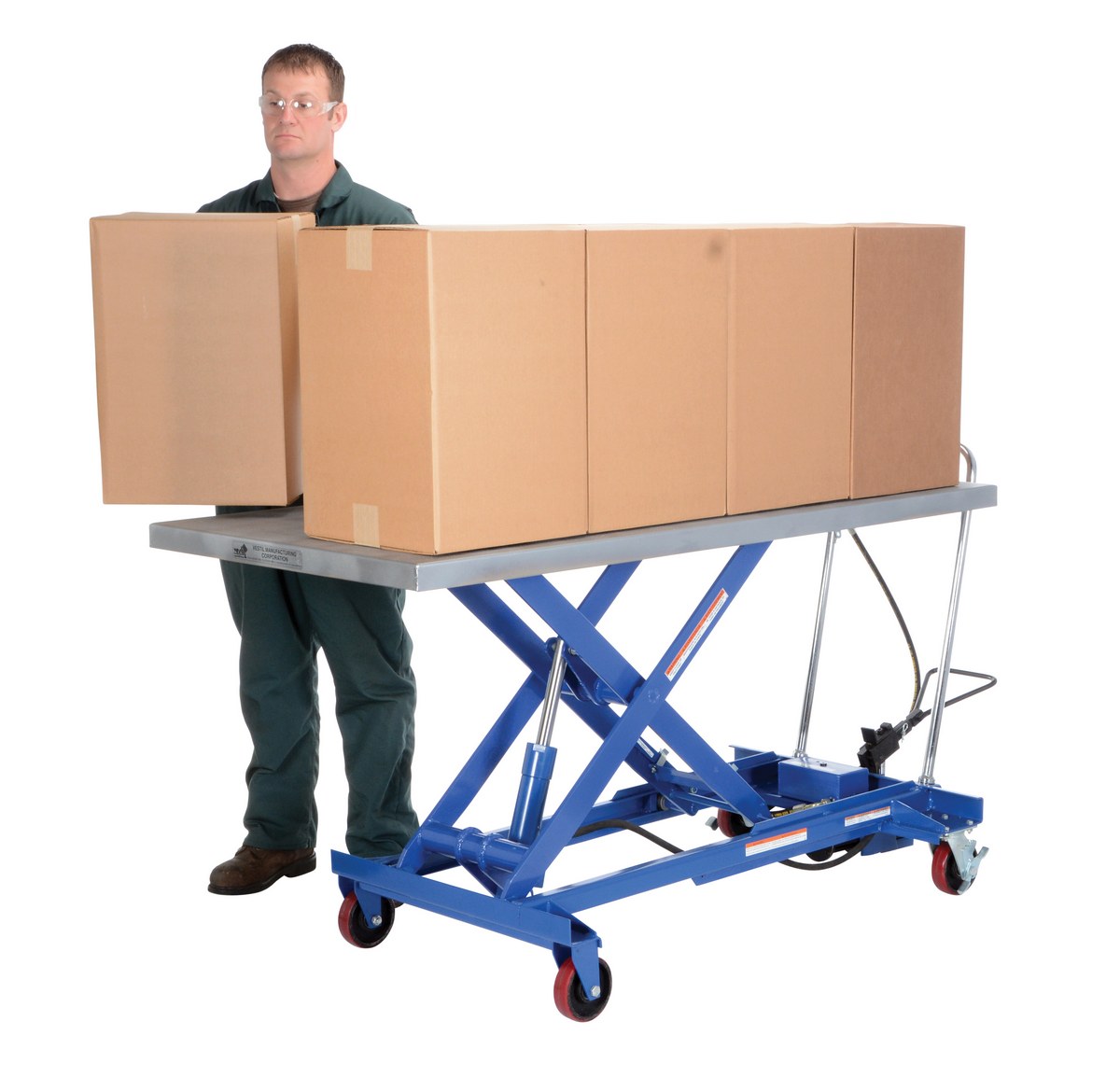

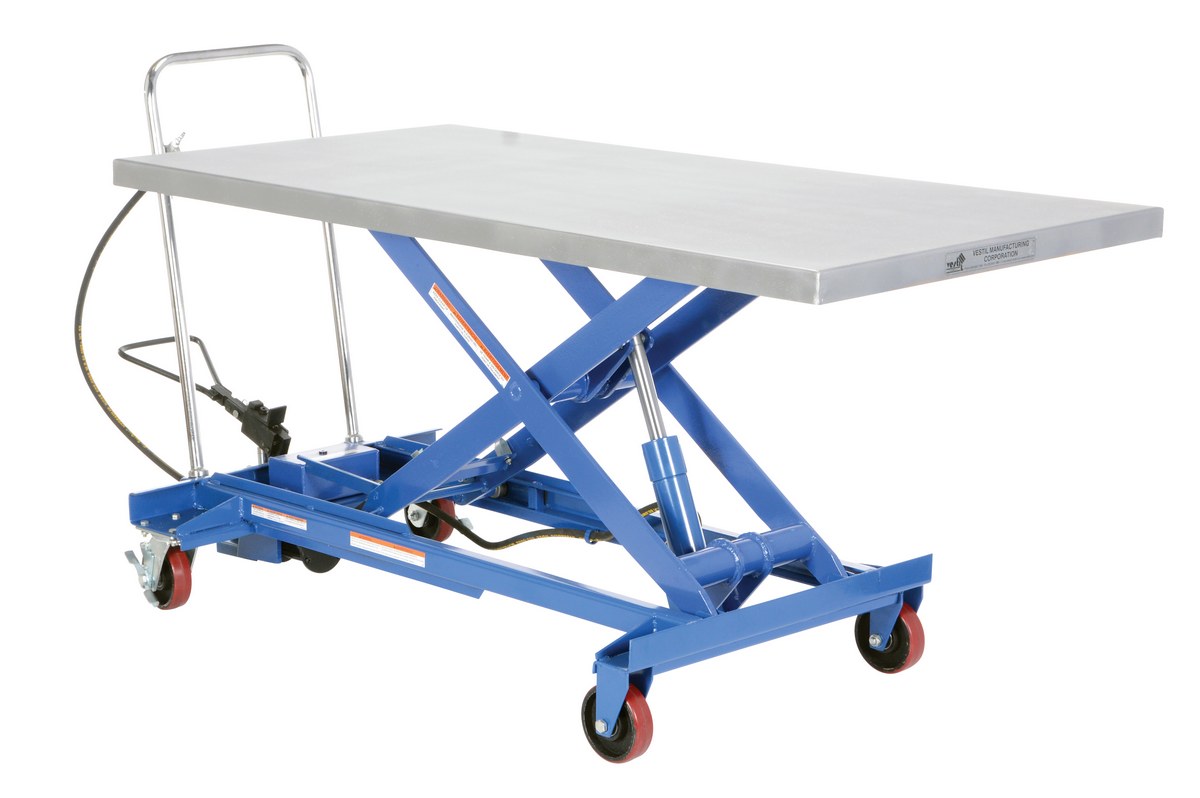

| AIR-1000-LD | | 1 Year Limited Warranty | Carbon Steel Air/Hydraulic Light Duty Scissor Lift Cart 63 In. x 31-1/2 In. Platform With Poly-On-Poly Casters 1,000 Lb. Capacity Blue/Silver | Uniform Capacity (lb.): 1,000 Platform Width (in.): 31-1/2 | 359 | ||

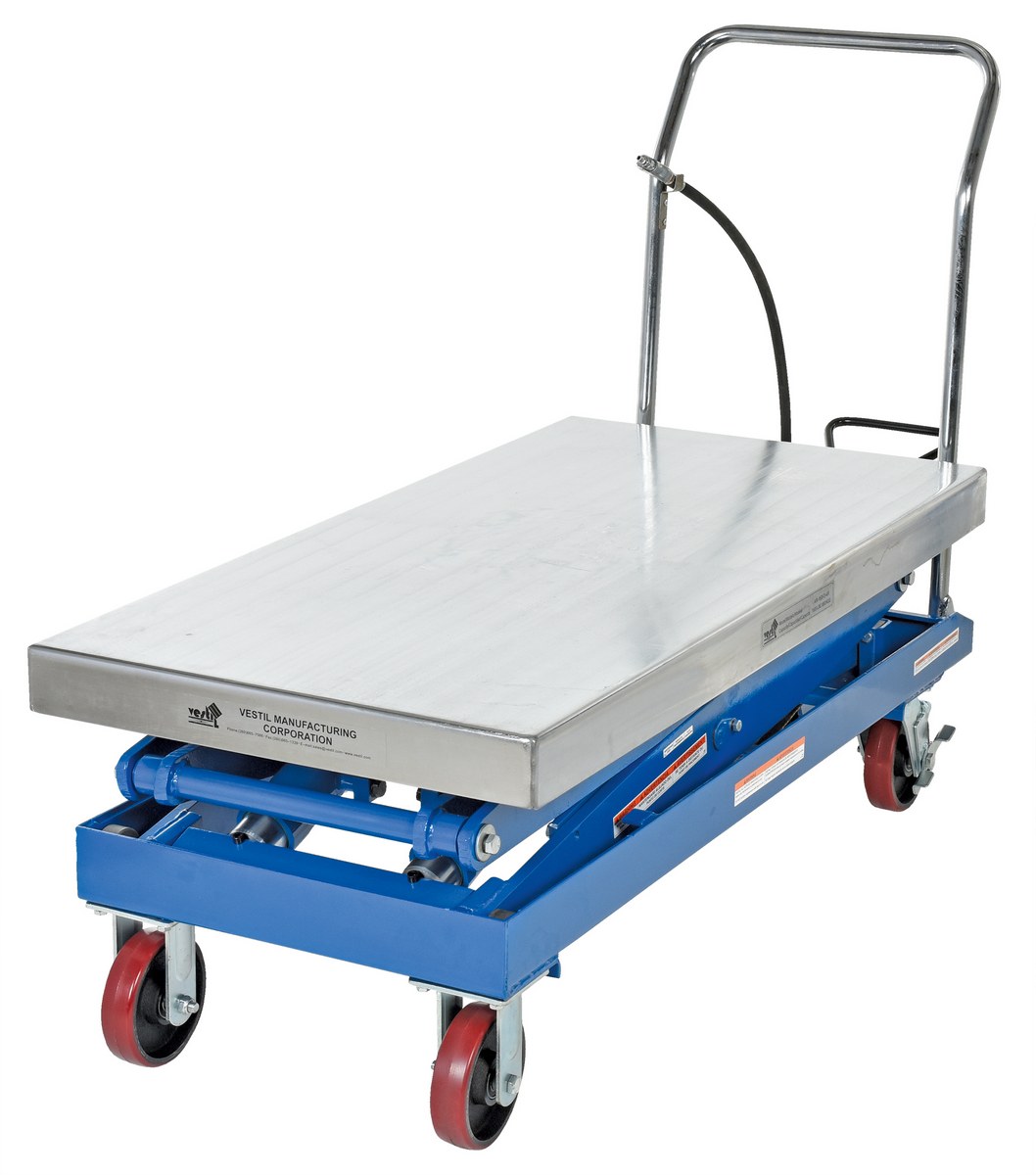

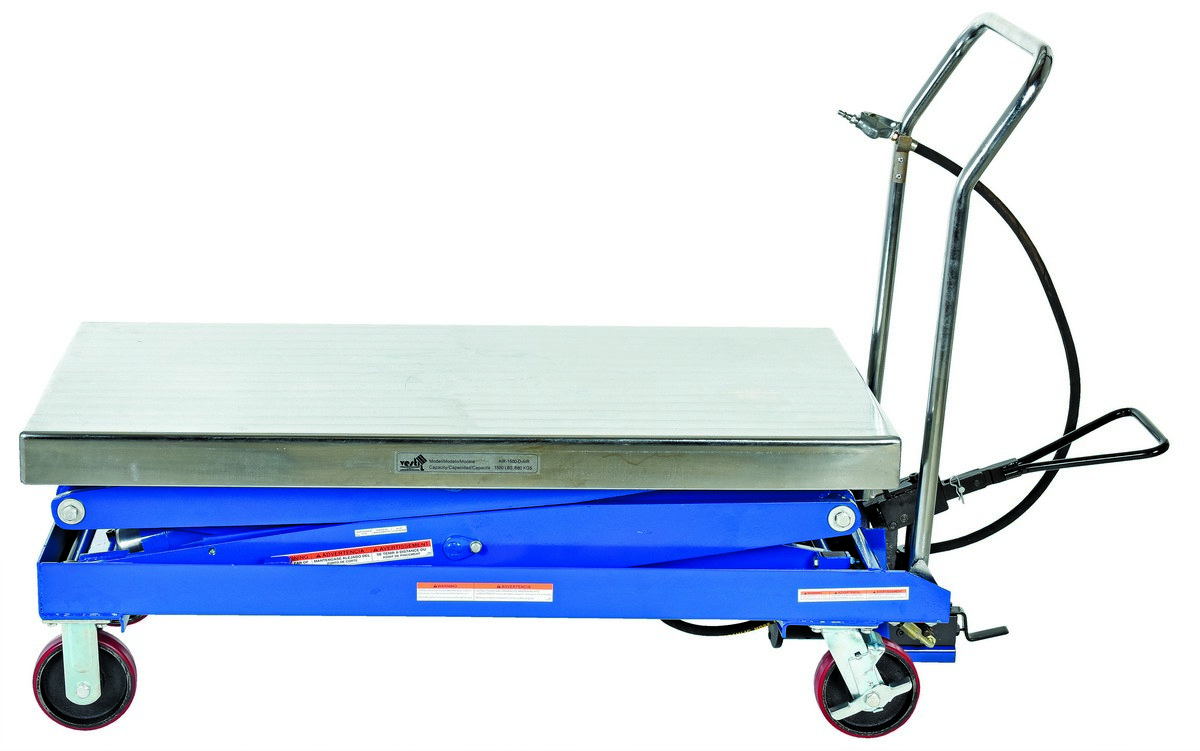

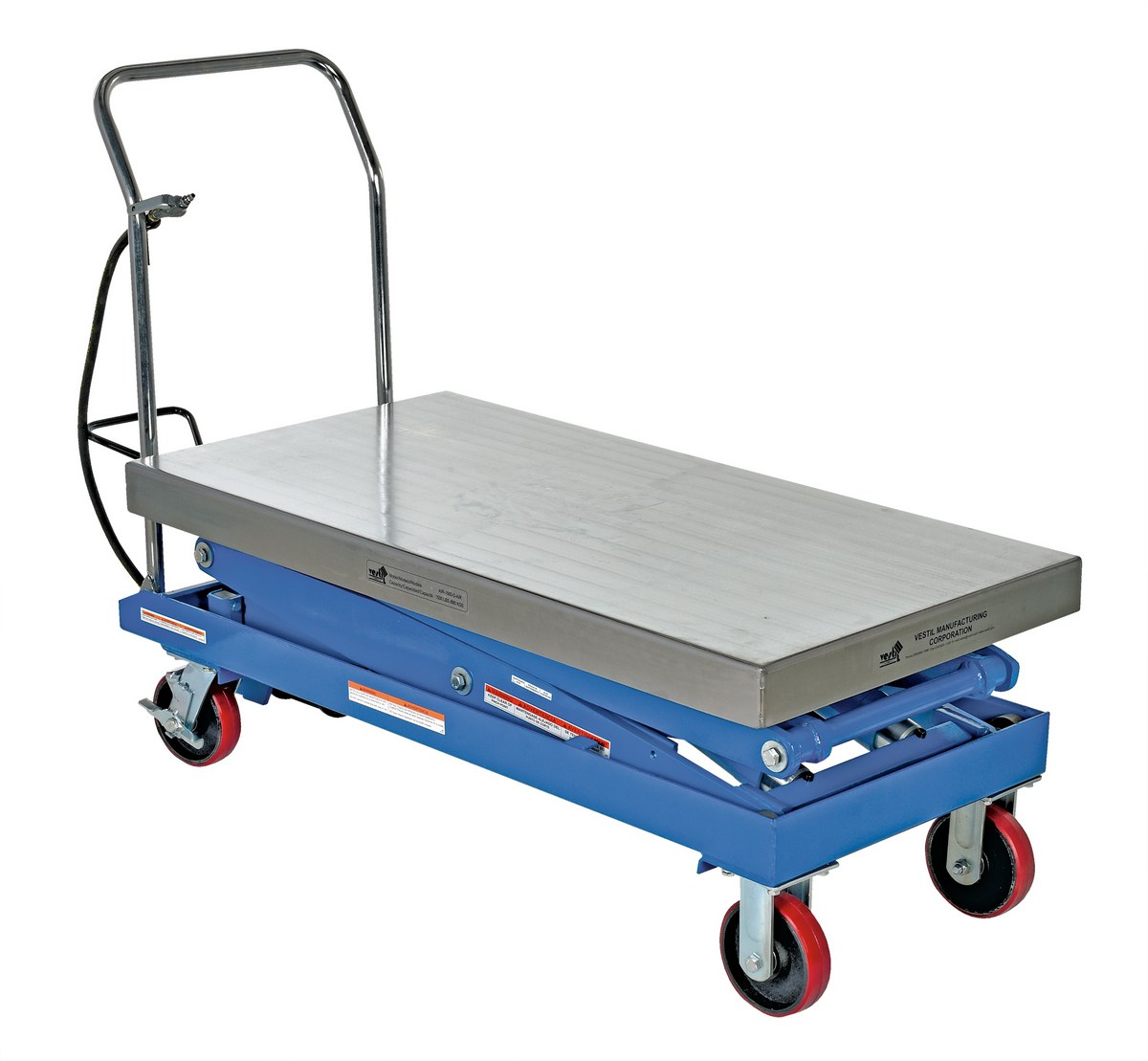

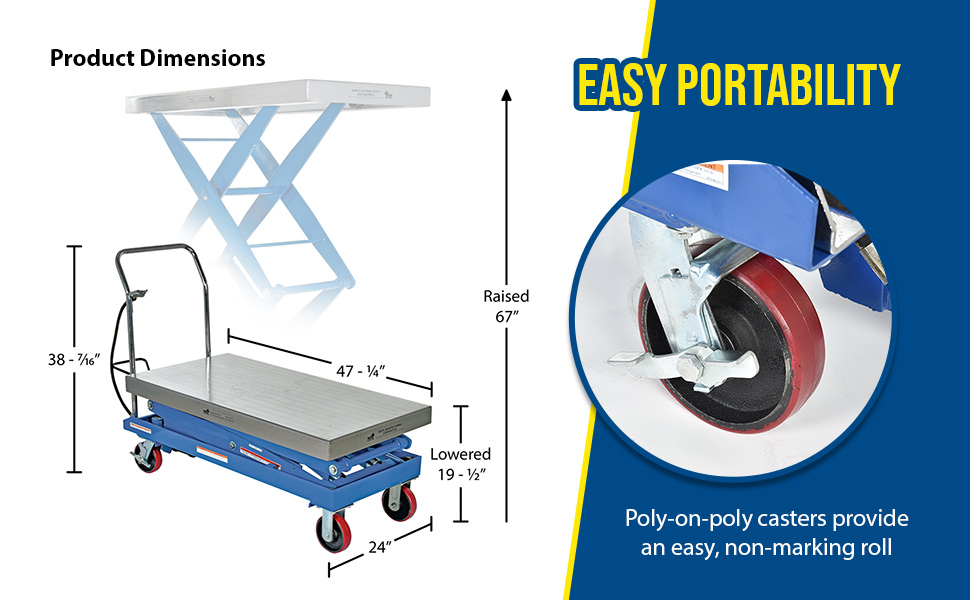

| AIR-1500-D | POPULAR | | 1 Year Limited Warranty | Carbon Steel Air/Hydraulic Scissor Lift Cart 47-1/2 In. x 24 In. Platform With Poly-On-Poly Casters 1,500 Lb. Capacity Blue/Silver | Uniform Capacity (lb.): 1,500 Platform Width (in.): 24 | 601 | |

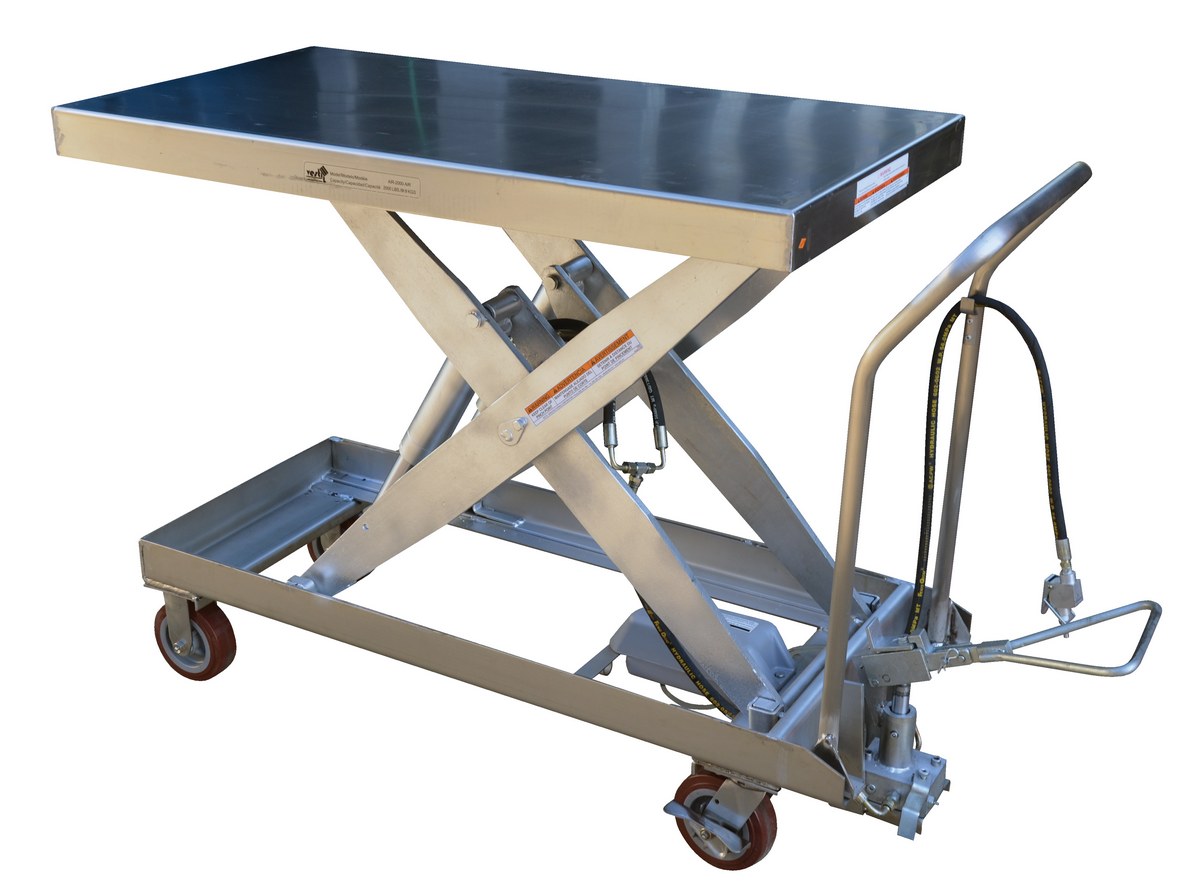

| AIR-2000-PSS | | 1 Year Limited Warranty | Partially Stainless Steel Air/Hydraulic Scissor Lift Cart 47-1/4 In. x 24 In. Platform With Poly-On-Poly Casters 2,000 Lb. Capacity Silver | Uniform Capacity (lb.): 2,000 Platform Width (in.): 24 | 441 | ||

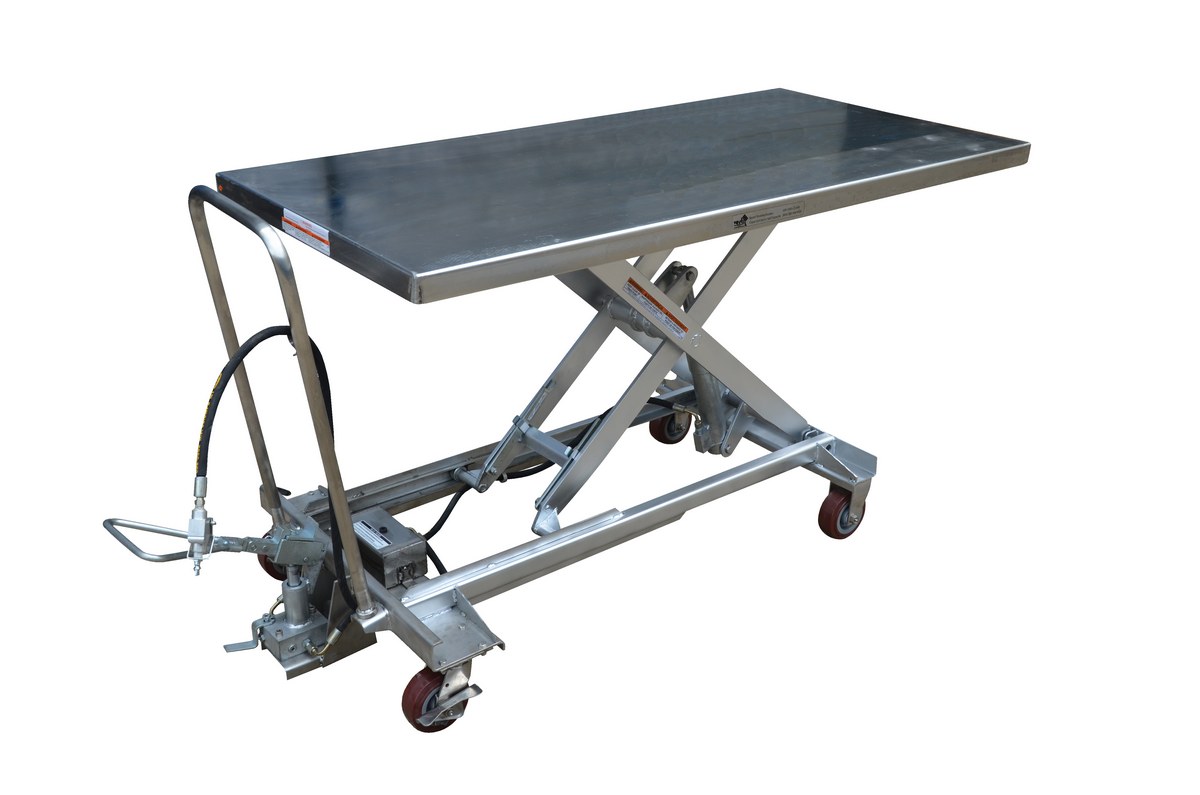

| AIR-1000-LD-PSS | | 1 Year Limited Warranty | Partially Stainless Steel Air/Hydraulic Light Duty Scissor Lift Cart 63 In. x 31-1/2 In. Platform With Poly-On-Poly Casters 1,000 Lb. Capacity Silver | Uniform Capacity (lb.): 1,000 Platform Width (in.): 31-1/2 | 340 | ||

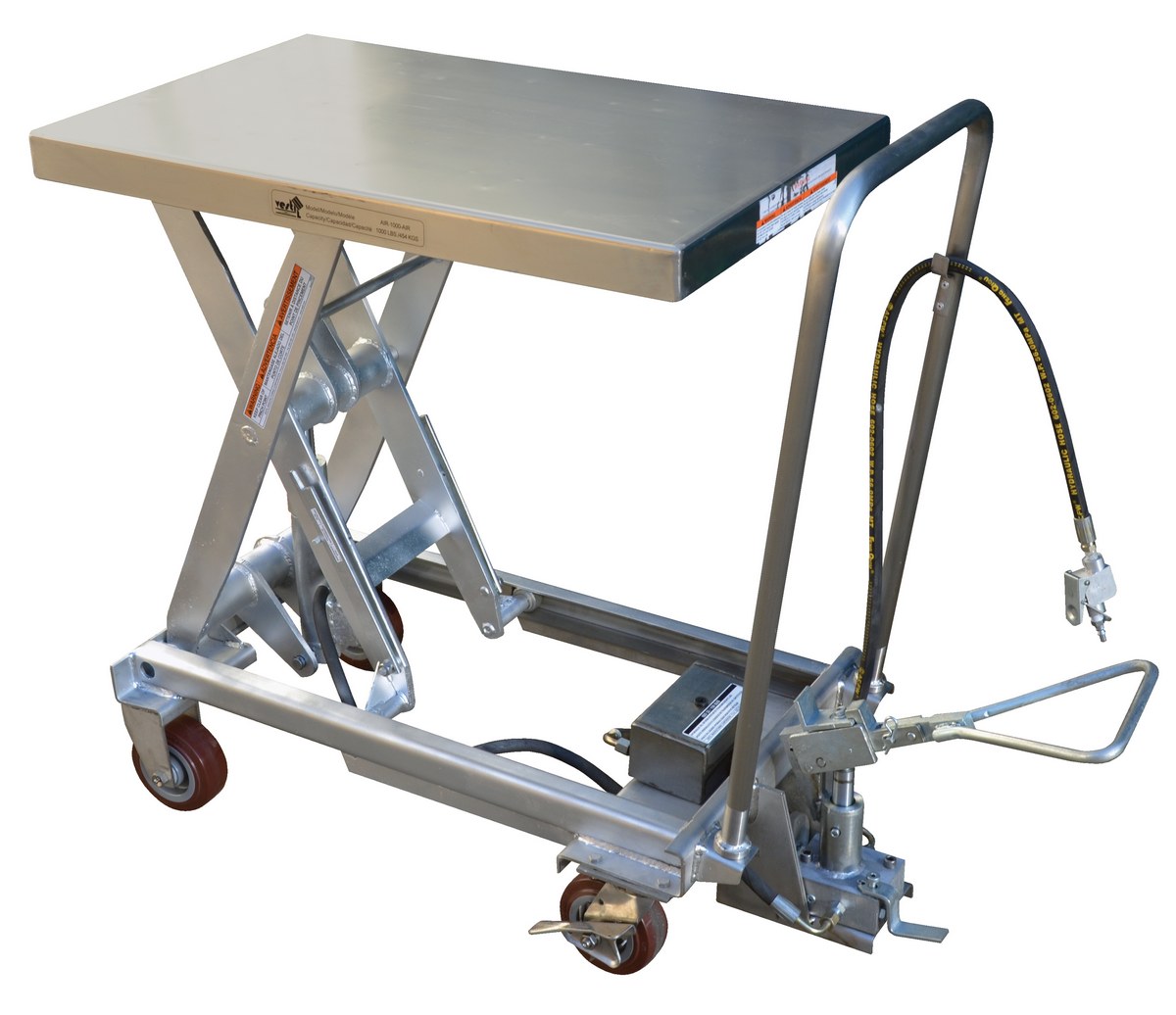

| AIR-1000-PSS |  | 1 Year Limited Warranty | Partially Stainless Steel Air/Hydraulic Scissor Lift Cart 32-1/2 In. x 20 In. Platform With Poly-On-Poly Casters 1,000 Lb. Capacity Silver | Uniform Capacity (lb.): 1,000 Platform Width (in.): 19-11/16 | 340 | ||

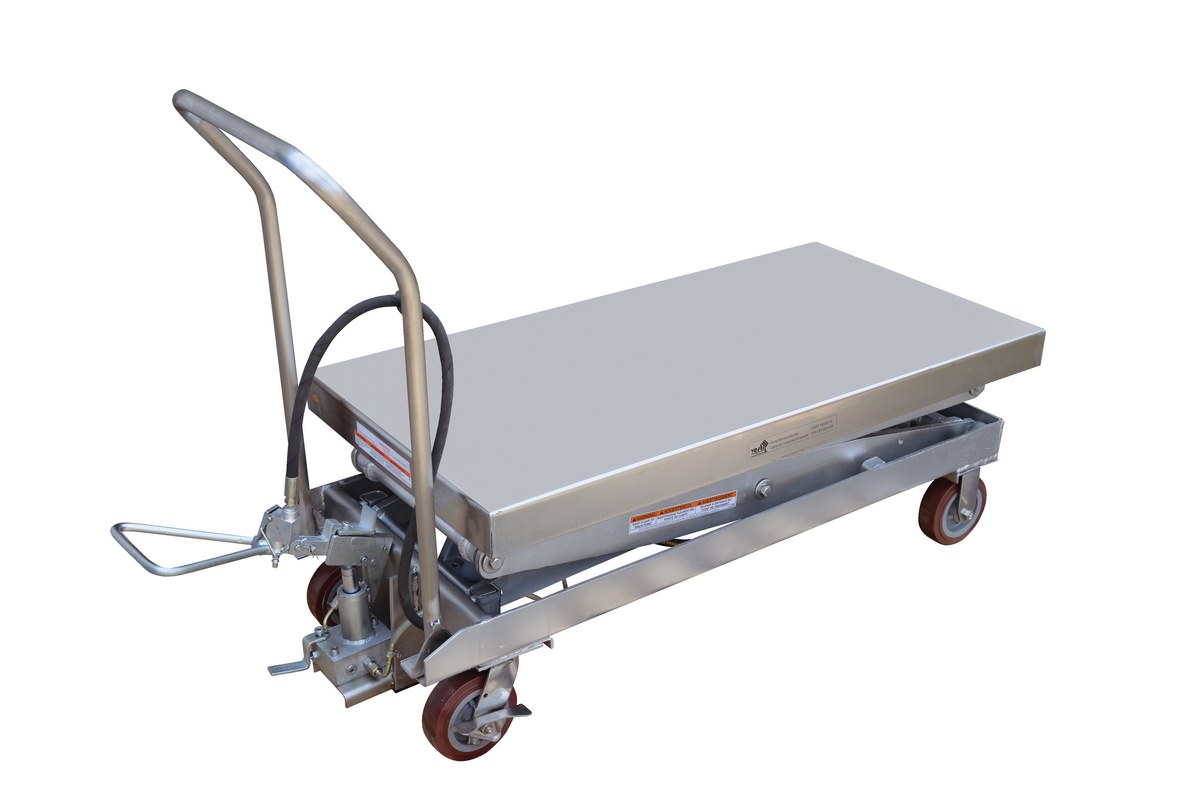

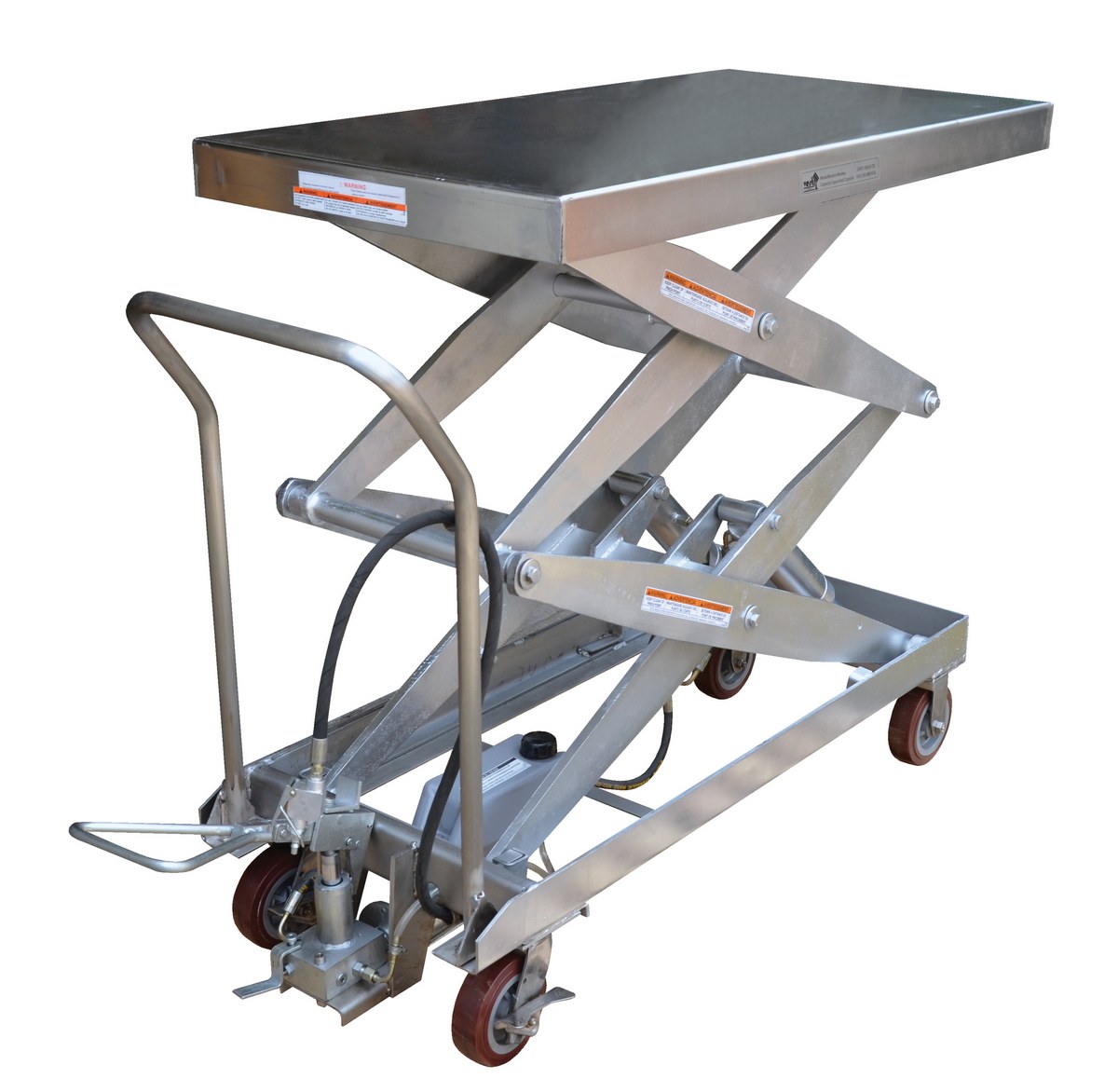

| AIR-1500-D-PSS | | 1 Year Limited Warranty | Partially Stainless Steel Air/Hydraulic Scissor Lift Cart 47-1/2 In. x 24 In. Platform With Poly-On-Poly Casters 1,500 Lb. Capacity Silver | Uniform Capacity (lb.): 1,500 Platform Width (in.): 24 | 586 | ||

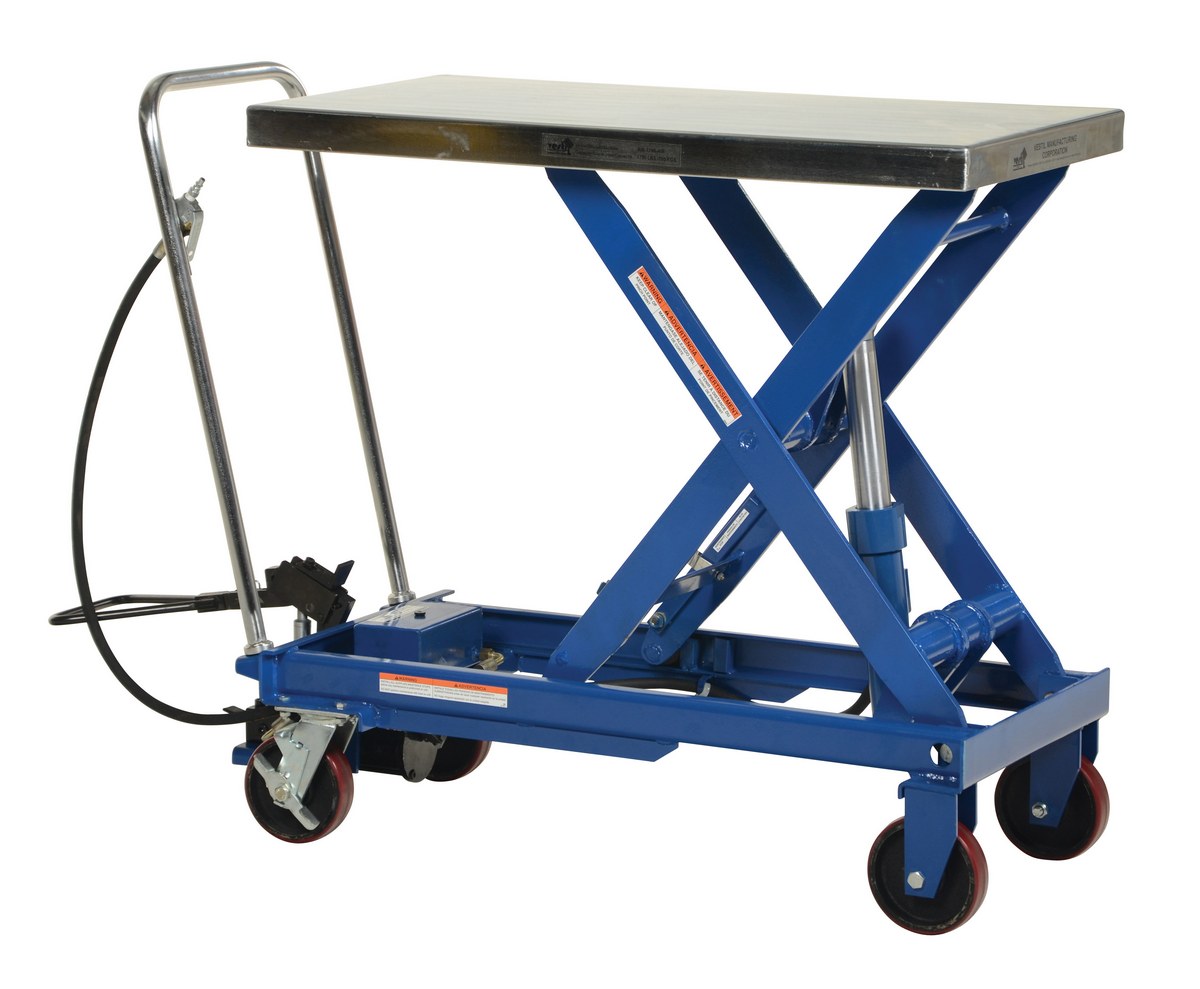

| AIR-1750 | | 1 Year Limited Warranty | Carbon Steel Air/Hydraulic Scissor Lift Cart 39-1/2 In. x 20 In. Platform With Poly-On-Poly Casters 1,750 Lb. Capacity Blue/Silver | Uniform Capacity (lb.): 1,750 Platform Width (in.): 20 | 324 | ||

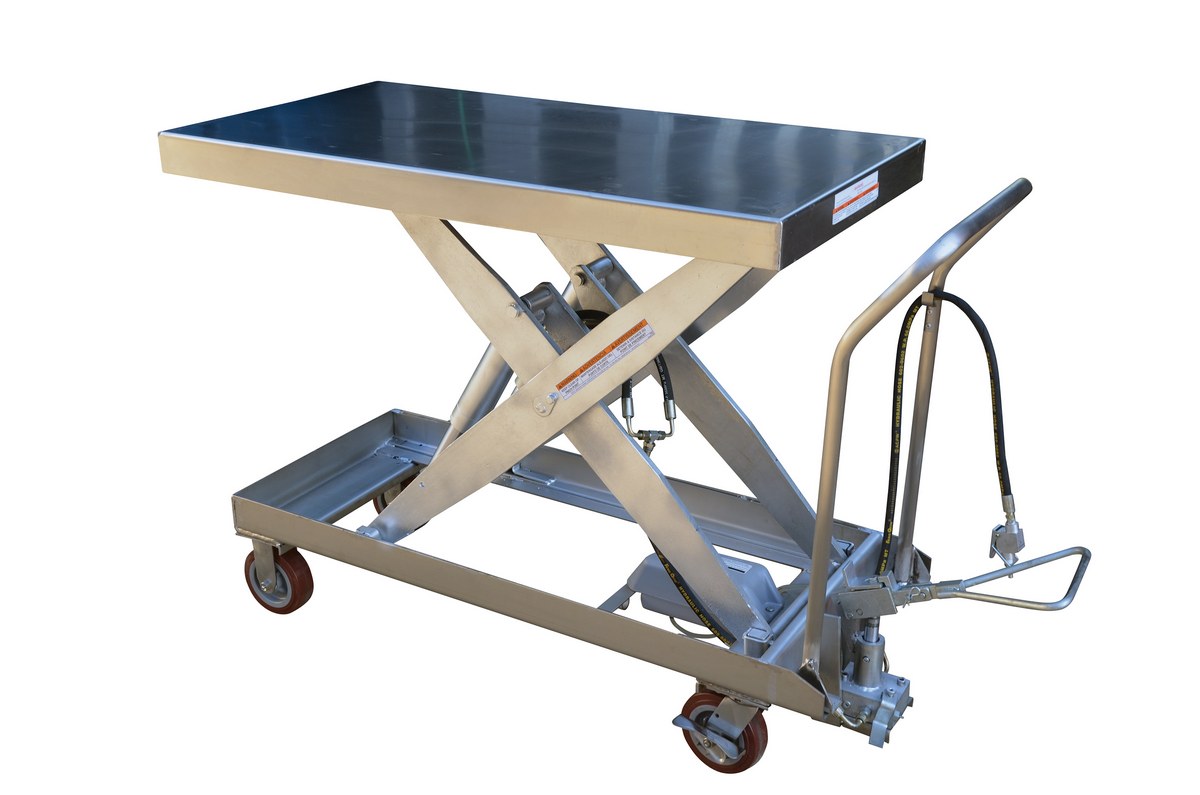

| AIR-1750-PSS | | 1 Year Limited Warranty | Partially Stainless Steel Air/Hydraulic Scissor Lift Cart 39-1/2 In. x 20 In. Platform With Poly-On-Poly Casters 1,750 Lb. Capacity Silver | Uniform Capacity (lb.): 1,750 Platform Width (in.): 20 | 324 | ||

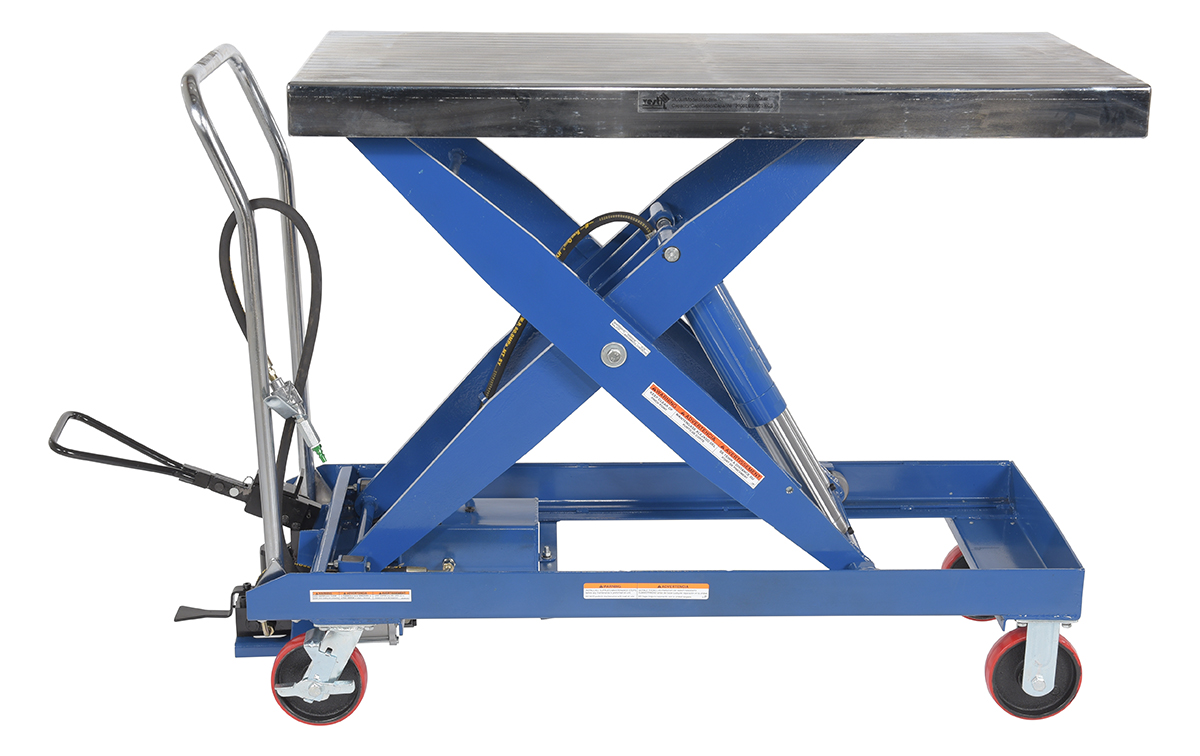

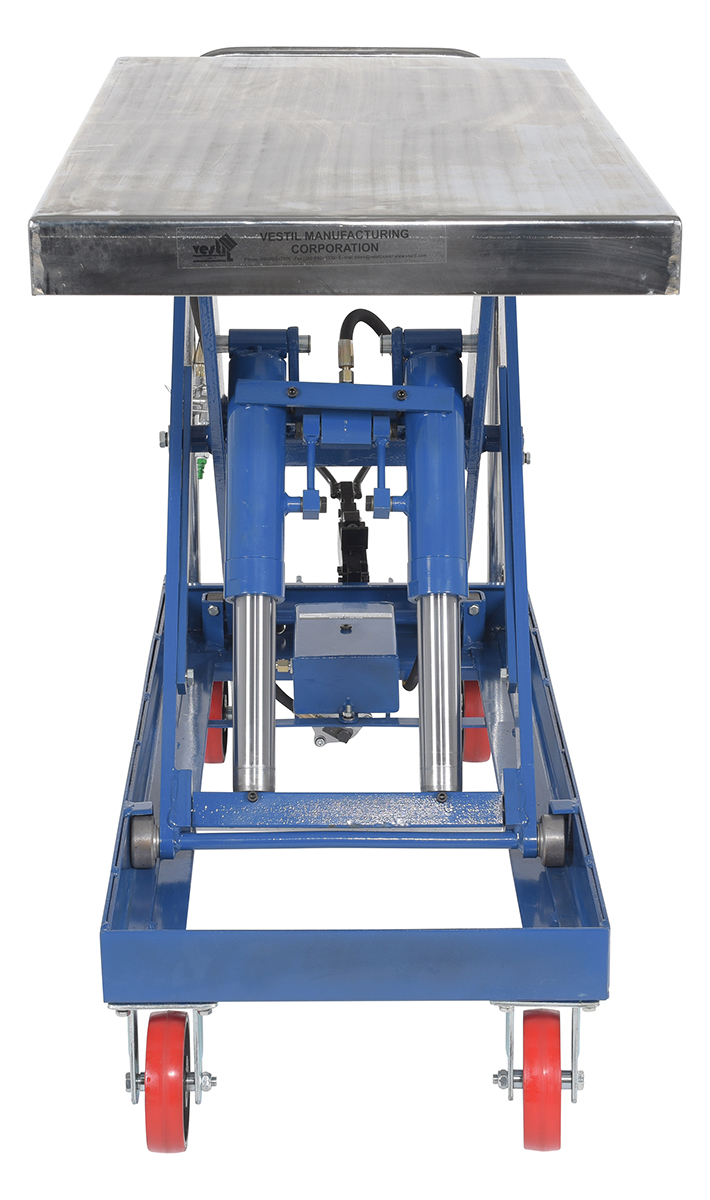

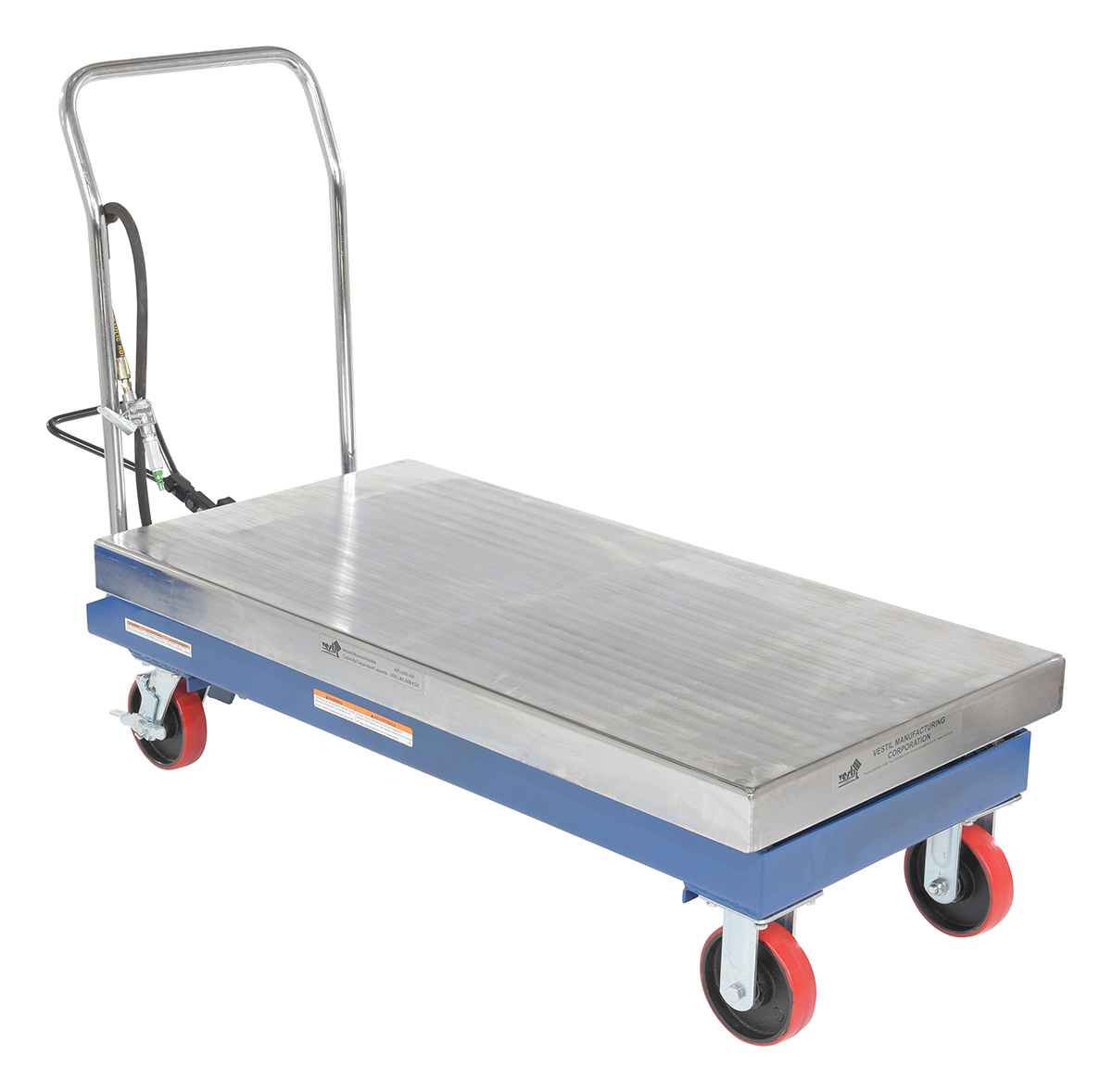

| AIR-2000 |  | 1 Year Limited Warranty | Carbon Steel Air/Hydraulic Scissor Lift Cart 47-1/4 In. x 24 In. Platform With Poly-On-Poly Casters 2,000 Lb. Capacity Blue/Silver | Uniform Capacity (lb.): 2,000 Platform Width (in.): 24 | 441 | ||

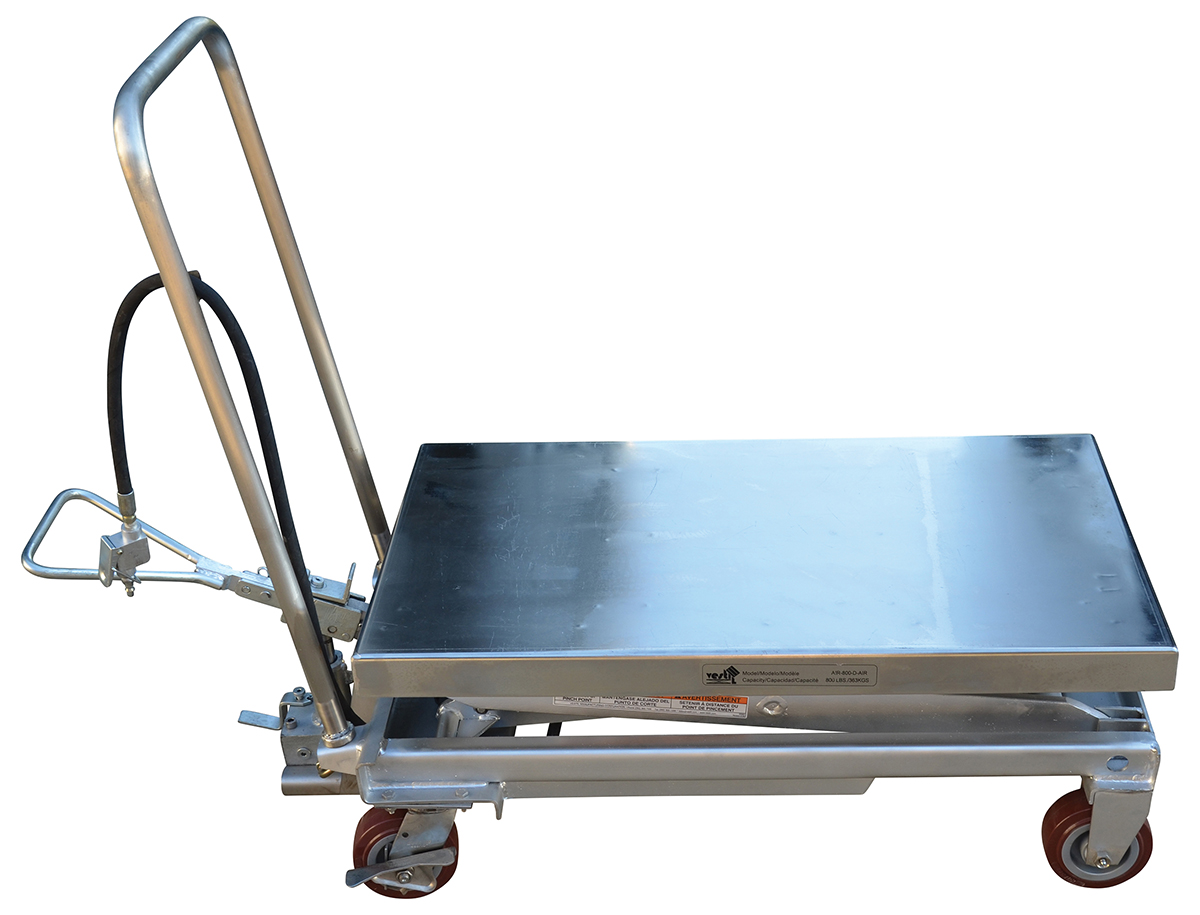

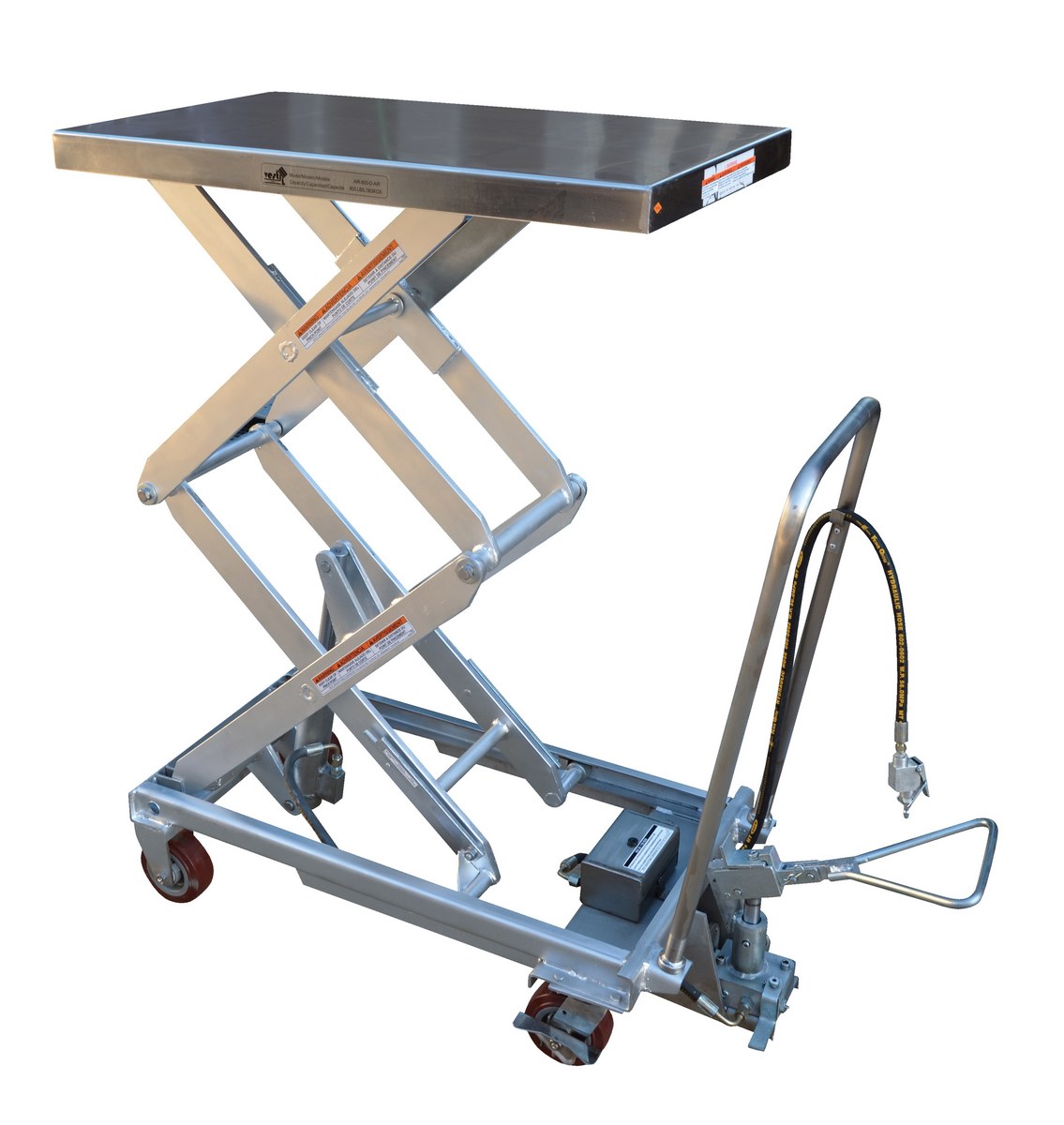

| AIR-800-D-PSS |  | 1 Year Limited Warranty | Partially Stainless Steel Air/Hydraulic Scissor Lift Cart 35-1/2 In. x 20 In. Platform With Poly-On-Poly Casters 800 Lb. Capacity Silver | Uniform Capacity (lb.): 800 Platform Width (in.): 20 | 317 |
KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 800
Platform Width (in.): 20
Uniform Capacity (lb.): 800
Platform Width (in.): 20
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1,000
Platform Width (in.): 19-11/16
Uniform Capacity (lb.): 1,000
Platform Width (in.): 19-11/16
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1,000
Platform Width (in.): 31-1/2
Uniform Capacity (lb.): 1,000
Platform Width (in.): 31-1/2
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1,500
Platform Width (in.): 24
Uniform Capacity (lb.): 1,500
Platform Width (in.): 24
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,000
Platform Width (in.): 24
Uniform Capacity (lb.): 2,000
Platform Width (in.): 24
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1,000
Platform Width (in.): 31-1/2
Uniform Capacity (lb.): 1,000
Platform Width (in.): 31-1/2
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1,000
Platform Width (in.): 19-11/16
Uniform Capacity (lb.): 1,000
Platform Width (in.): 19-11/16
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1,500
Platform Width (in.): 24
Uniform Capacity (lb.): 1,500
Platform Width (in.): 24
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1,750
Platform Width (in.): 20
Uniform Capacity (lb.): 1,750
Platform Width (in.): 20
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1,750
Platform Width (in.): 20
Uniform Capacity (lb.): 1,750
Platform Width (in.): 20
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,000
Platform Width (in.): 24
Uniform Capacity (lb.): 2,000
Platform Width (in.): 24
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 800
Platform Width (in.): 20
Uniform Capacity (lb.): 800
Platform Width (in.): 20
Air Hydraulic Carts PDF's will open in a new window when clicked.
Manuals
Survey Sheets
No Survey Sheets For This Product
Approval Drawings
Testing Certificates
SDS Sheets
Hydraulic Oil SDS Sheet for: AIR-1000
Hydraulic Oil SDS Sheet for: AIR-1000-LD
Hydraulic Oil SDS Sheet for: AIR-1000-LD-PSS
Hydraulic Oil SDS Sheet for: AIR-1000-PSS
Hydraulic Oil SDS Sheet for: AIR-1500-D
Hydraulic Oil SDS Sheet for: AIR-1500-D-PSS
Hydraulic Oil SDS Sheet for: AIR-1750
Hydraulic Oil SDS Sheet for: AIR-1750-PSS
Hydraulic Oil SDS Sheet for: AIR-2000
Hydraulic Oil SDS Sheet for: AIR-800-D
Hydraulic Oil SDS Sheet for: AIR-800-D-PSS
Other PDF's
Directory Links Of Available PDF's For All Products
Q: How long does it take to raise the cart?
A: It takes approximately 36 seconds to raise the Air-800-D cart to 51".
Q: How many cylinders does the AIR-1500-D-PSS have?
A: The cart has 2 cylinders
Q: What is the safety factor for the AIR-1500-D cart?
A: 125 percent of the rated load (1:1.25)
 |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
