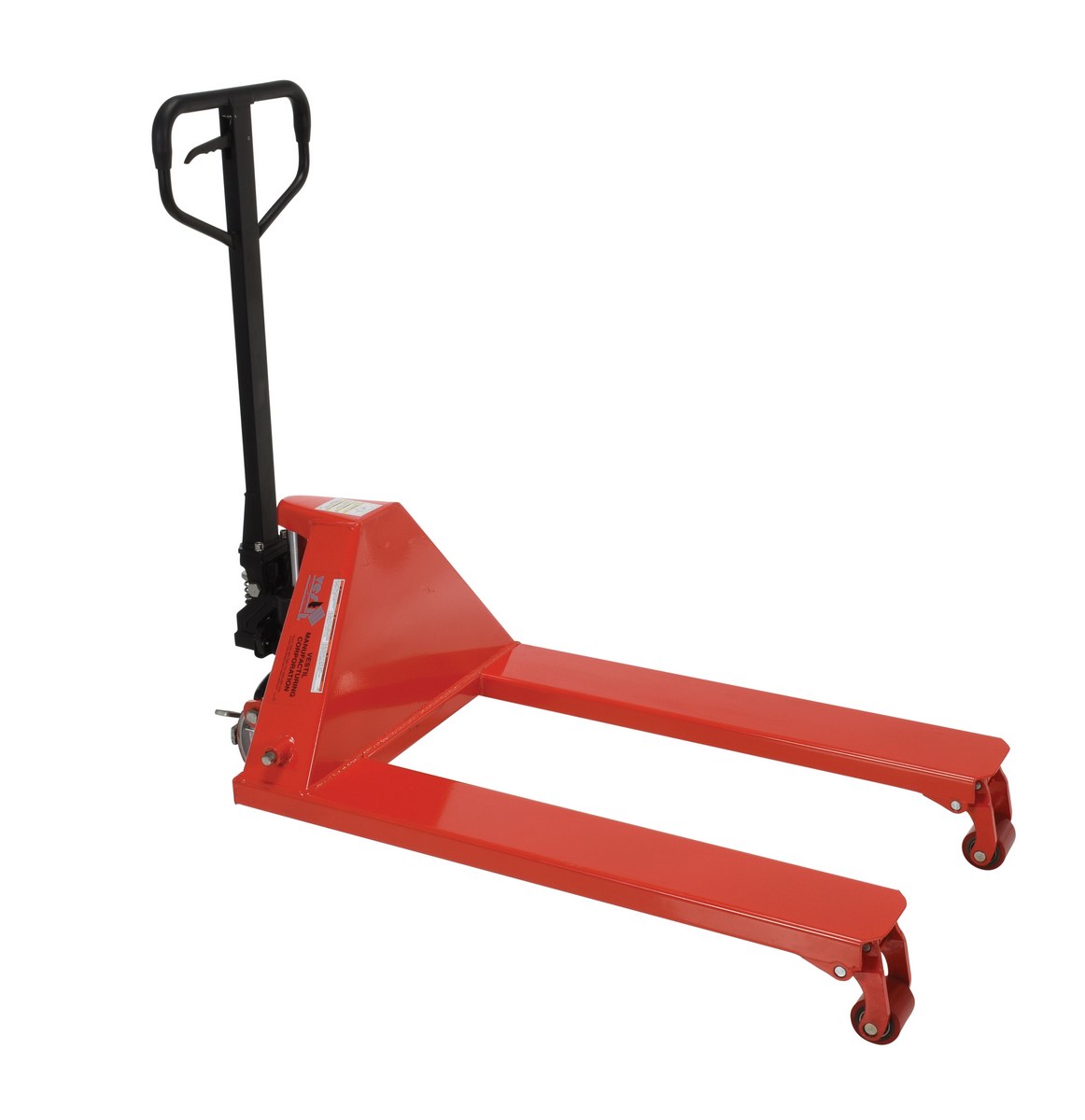

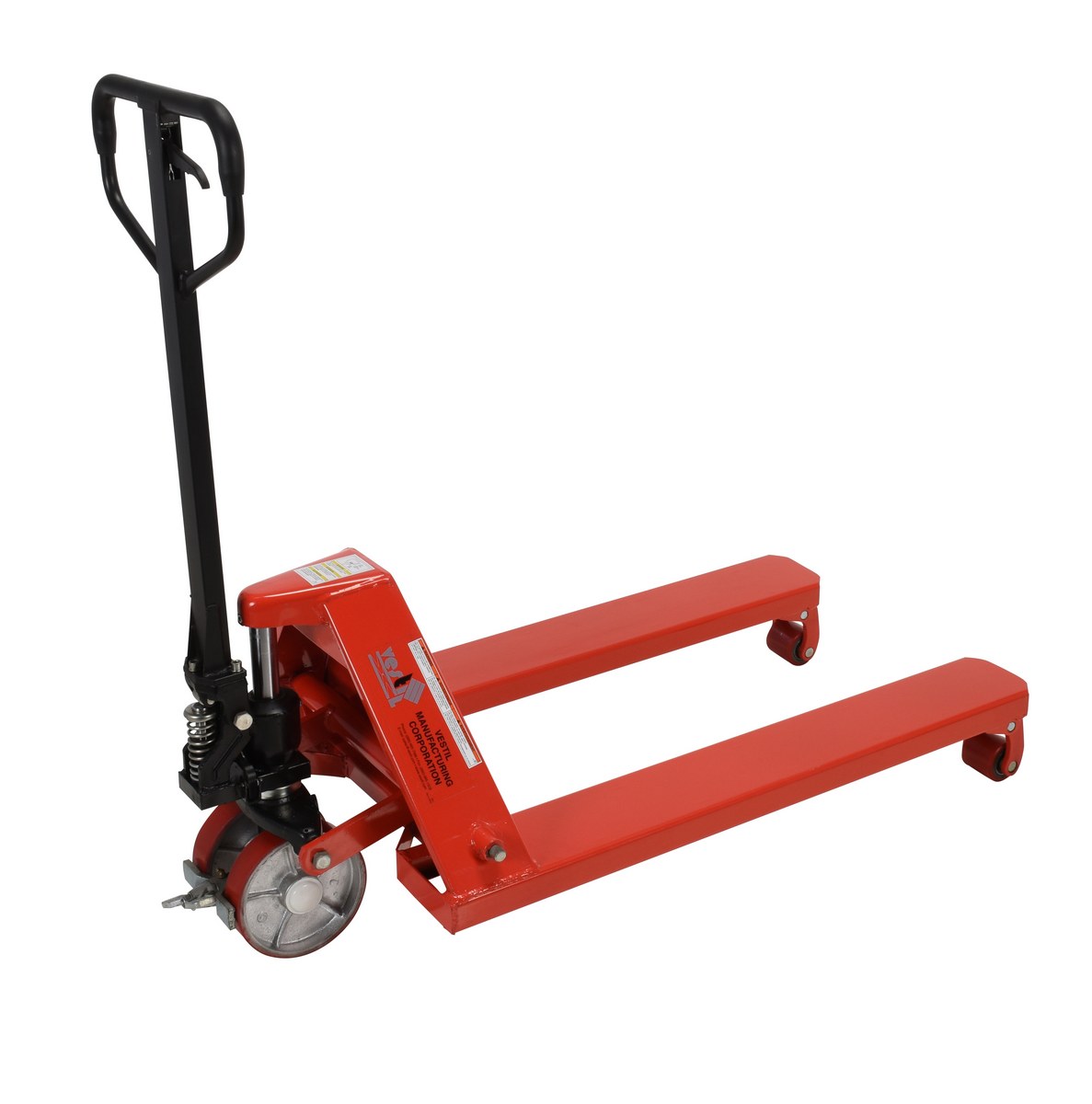

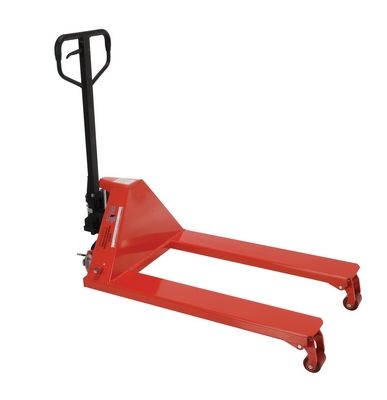

Wheel Nose Pallet Trucks

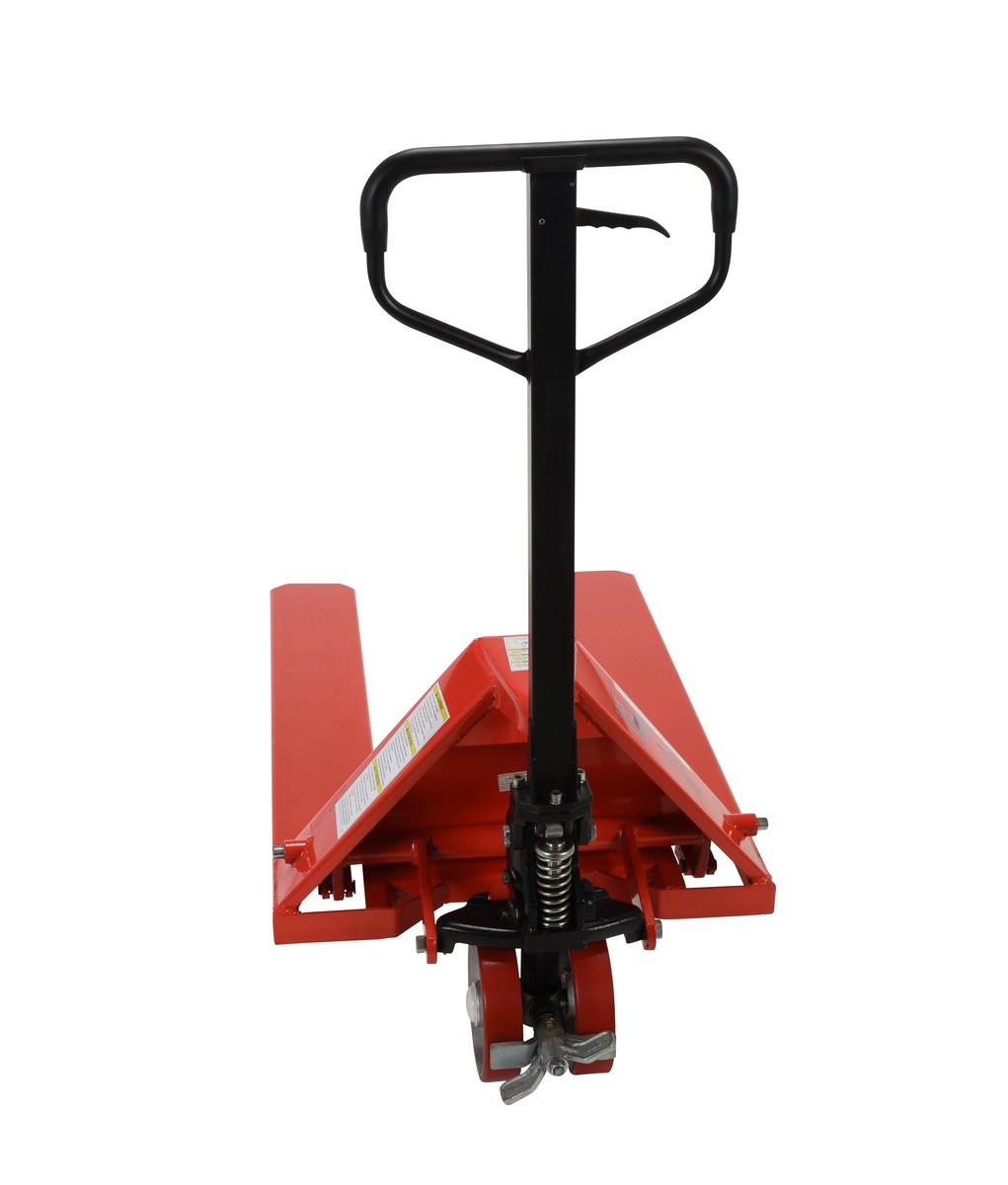

The Wheel Nose Pallet Truck is designed to position pallets or skids closely together. The fork end is set back from the front rollers allowing for one pallet pick up at a time. The unit has a rubber grip handle with a three position lever for easy operation and maneuvering. This heavy-duty unit is rated at 5,000 pounds capacity and has a service range from 3-1/2" to 8". Units include two articulating steering wheels and two front load rollers. Spring loaded loop handle automatically returns to vertical position when not in use. 6-1/2"W x 38"L forks are used for maneuvering in tight spaces.
- Ergonomic design requires only seventy-five (75) pounds of pulling force when fully loaded
- Steering wheels include bearing dust covers for added life
- Nose wheels are located on the front edge of each fork to assist in clean pallet entrance and exit
- Chrome-plated hydraulic pump piston for long seal life
Quick Lift Pallet Trucks
Specialized Pallet Trucks
Ergonomic Power Assist Pallet Trucks
Pallet Trucks with P-CADDY
| Model # | Description | Attributes | Net Wt. (lbs) |
||||
|---|---|---|---|---|---|---|---|
| PM5-2738-WN |  | 1 Year Limited Warranty | Steel Heavy Duty Wheel Nose Pallet Truck 63 In. x 27 In. x 42 In. 5000 Lb. Capacity Red | Uniform Capacity (lb.): 5000 Overall Fork Width (in.): 27 | 258 |
KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 5000
Overall Fork Width (in.): 27
Uniform Capacity (lb.): 5000
Overall Fork Width (in.): 27
For More Details of the Option Click the Red Model Button
| Model | Image | Description | WT. | ||||
| PM-FE-7-48 |  |
Steel Pallet Master Fork Extensions 7"W x 48"L x 2"H | 19 | ||||
Manuals
Survey Sheets
Approval Drawings
Testing Certificates
SDS Sheets
Hydraulic Oil SDS Sheet for: PM5-2738-WN
