Stainless Steel Manual CarouselsThe Manual Carousels rotate materials with the assistance of an operator. Now loading and unloading operations can be done more efficiently; minimizing fatigue and risk of back injury. The carousel may be added to an existing work bench, scissor table, or placed on the floor. Constructed of two (2) pieces of rolled structural angle (3/16" thick). A series of sealed ball bearings transfer the load smoothly and evenly to the supporting surface. Guide rollers keep the rings aligned.
- Manually rotating top ring will rotate 360 degrees
- Stainless Steel rings are flat for precision
- Internally sealed roller bearings and guide rollers provide long lasting use
- Four guide rollers keep the rings aligned
Aluminum Mini Carousels
Powered Turntables
Heavy Duty Precision Turret Bearings
Low-Profile Powered Carousels
| Model # | Description | Attributes | Net Wt. (lbs) |
||||
|---|---|---|---|---|---|---|---|

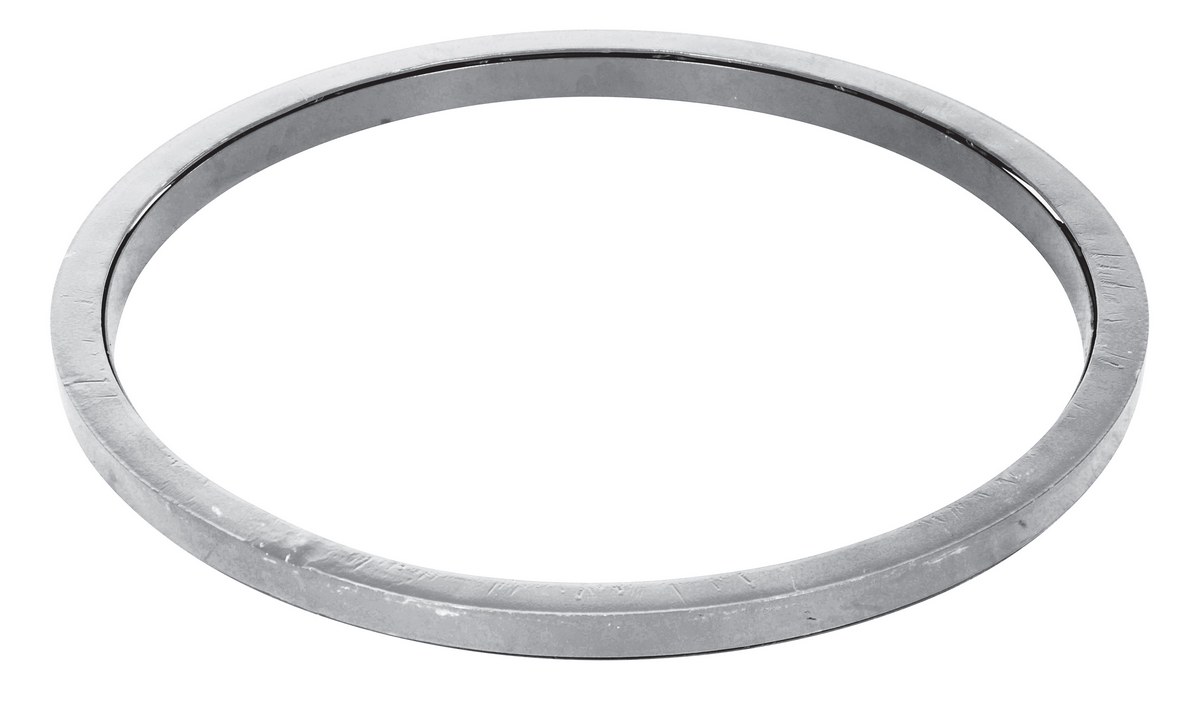

| CA-40-2-SS |  | 90 Days Limited Warranty | Stainless Steel Manual Carousel 40 In. Diameter 2000 Lb. Capacity Silver | Uniform Capacity (lb.): 2000 Rotation (degrees): 360 | 47 | ||

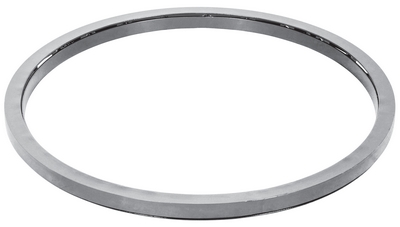

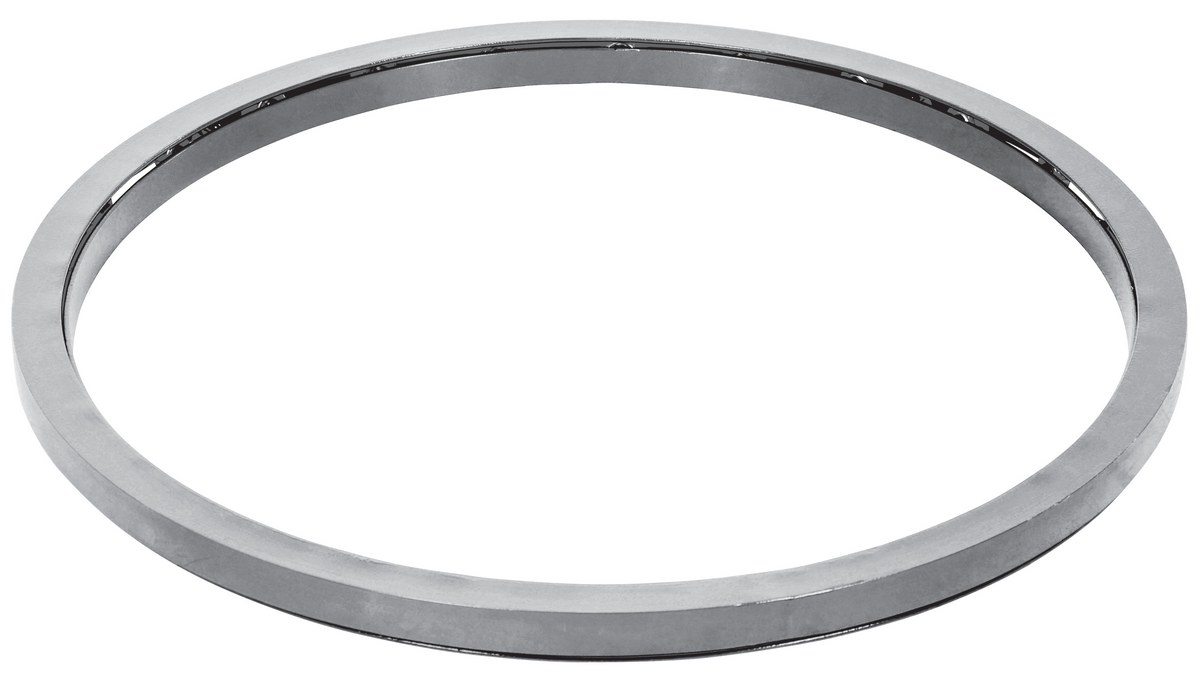

| CA-40-4-SS |  | 90 Days Limited Warranty | Stainless Steel Manual Carousel 40 In. Diameter 4000 Lb. Capacity Silver | Uniform Capacity (lb.): 4000 Rotation (degrees): 360 | 49 | ||

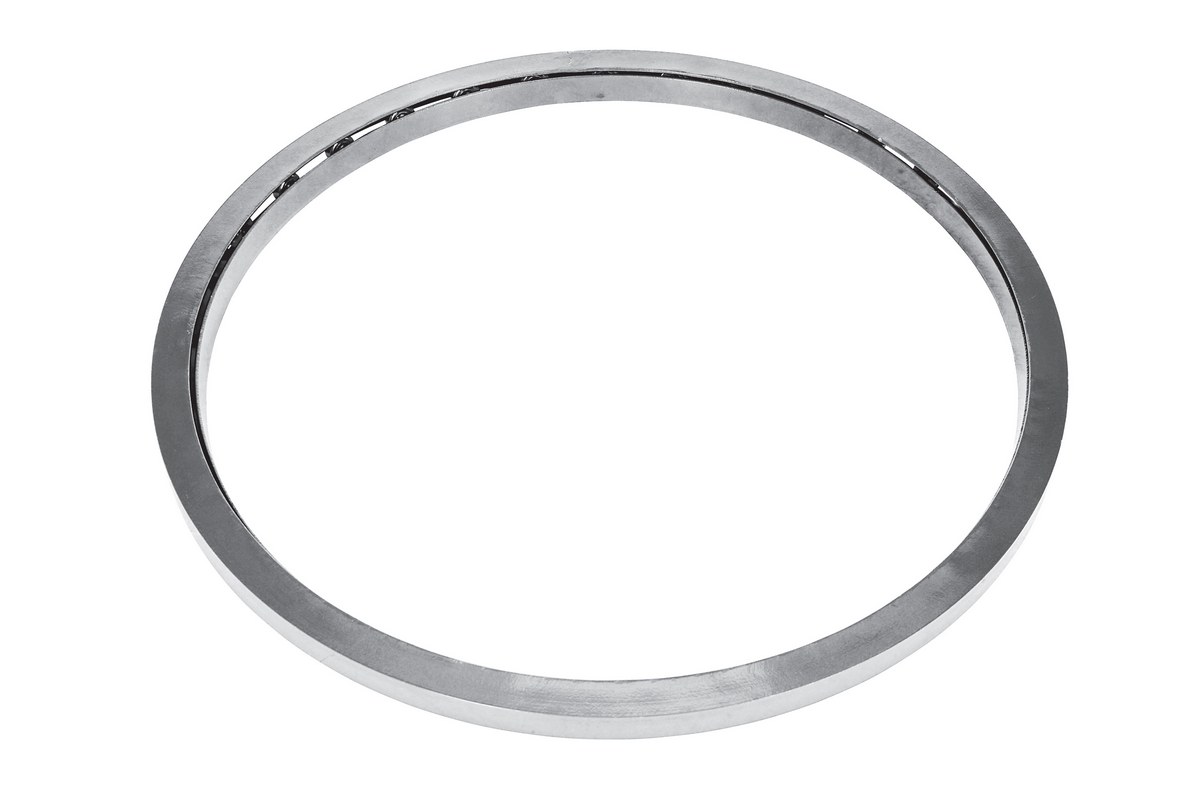

| CA-40-6-SS |  | 90 Days Limited Warranty | Stainless Steel Manual Carousel 40 In. Diameter 6000 Lb. Capacity Silver | Uniform Capacity (lb.): 6000 Rotation (degrees): 360 | 51 |
KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2000
Rotation (degrees): 360
Uniform Capacity (lb.): 2000
Rotation (degrees): 360
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4000
Rotation (degrees): 360
Uniform Capacity (lb.): 4000
Rotation (degrees): 360
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 6000
Rotation (degrees): 360
Uniform Capacity (lb.): 6000
Rotation (degrees): 360
Manuals
Survey Sheets
Approval Drawings
Testing Certificates
SDS Sheets
Other PDF's
Directory Links Of Available PDF's For All Products
Q: What is the material of the ring? What is the material of the ball bearings?
A: Both the ring and the ball bearings are AISI 304 stainless steel.
 |
||||||||||||||||||||||
Stainless Steel Manual Carousels |
||||||||||||||||||||||
 |
||||||||||||||||||||||
The Manual Carousels rotate materials with the assistance of an operator. Now loading and unloading operations can be done more efficiently; minimizing fatigue and risk of back injury. The carousel may be added to an existing work bench, scissor table, or placed on the floor. Constructed of two (2) pieces of rolled structural angle (3/16" thick). A series of sealed ball bearings transfer the load smoothly and evenly to the supporting surface. Guide rollers keep the rings aligned.
|
||||||||||||||||||||||
 |
||||||||||||||||||||||
|
||||||||||||||||||||||
