Low Profile Hoppers

SERIES: SLPT

Low profile design (top chute only 22" high) allows for use under machinery and conveyors. Tapered side allows for easy loading and unloading. Designed for containment of scrap, chips and waste. Constructed of welded 14-gauge steel for strength and lighter weight. Unit rolls smoothly on (2) rigid and (2) swivel with brakes 5" x 2" poly-on-steel casters. Push handle is removable and may be used at either end. Blue baked-in powder coat finish for added toughness.Options, including welded leak proof seams, model LEKP, 3/4" drainage plug, model H-DPLG-75, and 2" drain plug model H-DPLG-2, leak proof seams included with drainage plugs, available.

Special low-profile design catches parts under machinery dispensing chutes
Unique design returns to upright & locked position when lowered to floor
Tapered side allow for easy loading and unloading
Two rigid and one locking swivel casters make the unit portable

Low profile design (top chute only 22" high) allows for use under machinery and conveyors. Tapered side allows for easy loading and unloading. Designed for containment of scrap, chips and waste. Constructed of welded 14-gauge steel for strength and lighter weight. Unit rolls smoothly on (2) rigid and (2) swivel with brakes 5" x 2" poly-on-steel casters. Push handle is removable and may be used at either end. Blue baked-in powder coat finish for added toughness.Options, including welded leak proof seams, model LEKP, 3/4" drainage plug, model H-DPLG-75, and 2" drain plug model H-DPLG-2, leak proof seams included with drainage plugs, available.

Special low-profile design catches parts under machinery dispensing chutes
Unique design returns to upright & locked position when lowered to floor
Tapered side allow for easy loading and unloading
Two rigid and one locking swivel casters make the unit portable

Other Hoppers

Low Profile D-Style Self Dumping Hoppers

D-Style Hoppers, No Bump & Dump

Open Side Hopper

Steel Self-Dumping Hoppers

Follow @vestilmfg

Additional Models In This Family
view entire Image Gallery

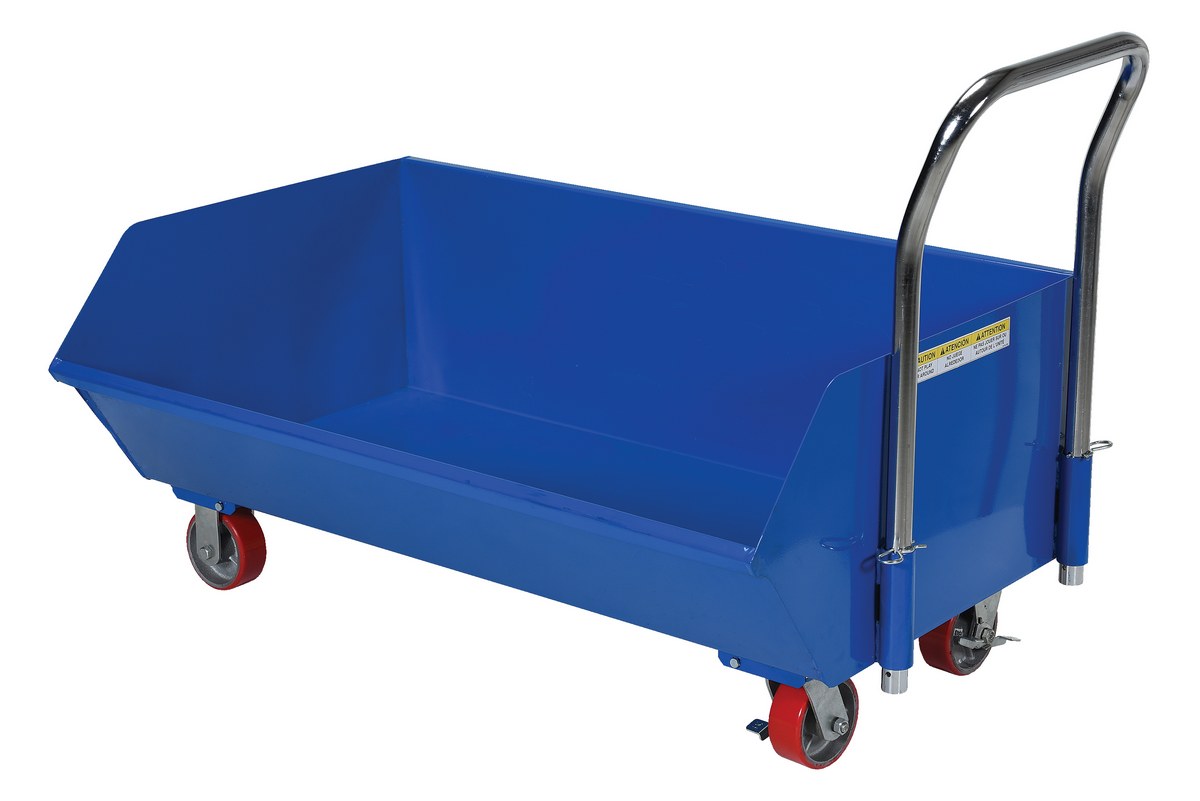

model SLPT-33

model chart

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.

The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.

	Model #				Description	Attributes	Net Wt. (lbs)
	SLPT-24			90 Days Limited Warranty	Steel Low Profile Hopper 1/4 Cubic Yard 1,000 Lb. Capacity Blue	Uniform Capacity (lb.): 1,000 Volume (cu. yrd.): 1/4	156
	SLPT-33			90 Days Limited Warranty	Steel Low Profile Hopper 1/3 Cubic Yard 1,000 Lb. Capacity Blue	Uniform Capacity (lb.): 1,000 Volume (cu. yrd.): 1/3	154

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

SLPT-24

Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1,000
Volume (cu. yrd.): 1/4
Uniform Capacity (lb.): 1,000
Volume (cu. yrd.): 1/4

SLPT-33

Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1,000
Volume (cu. yrd.): 1/3
Uniform Capacity (lb.): 1,000
Volume (cu. yrd.): 1/3
