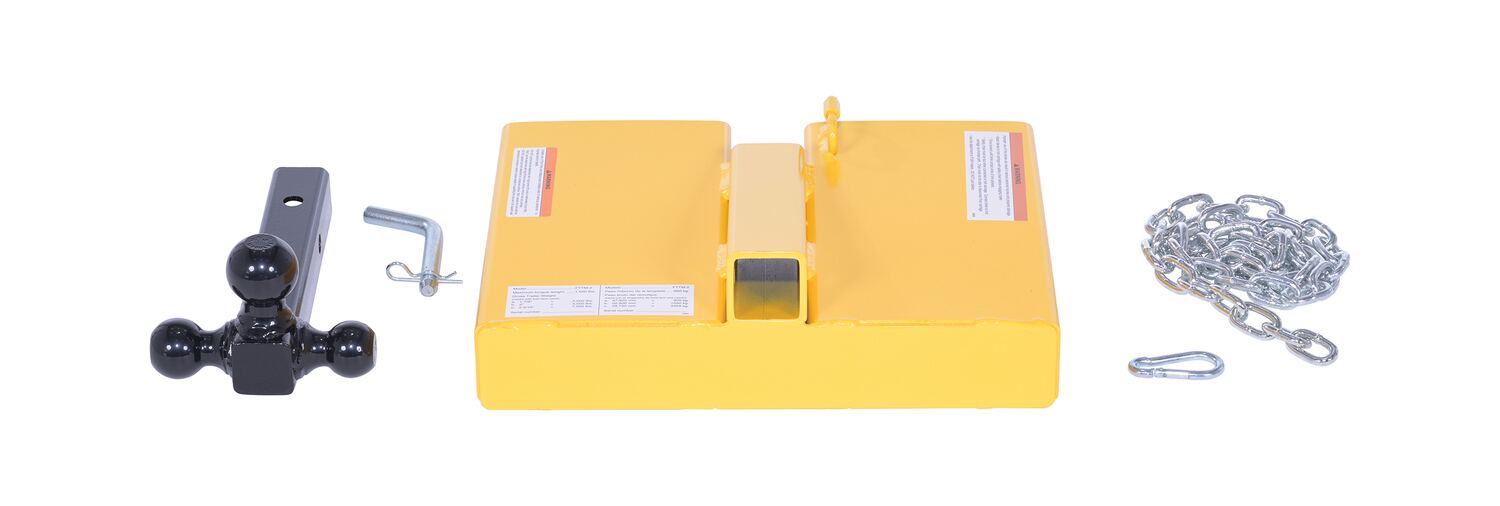

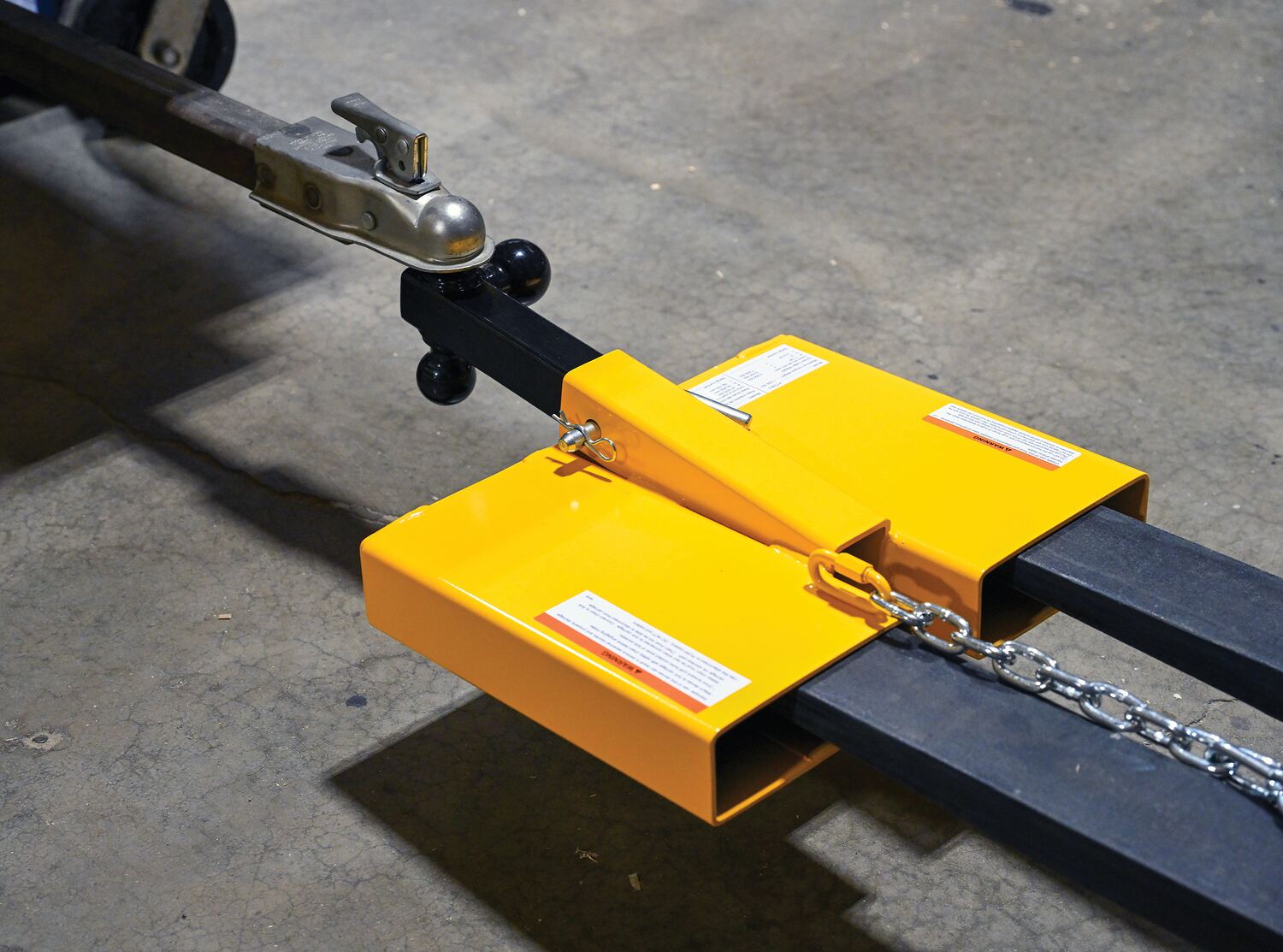

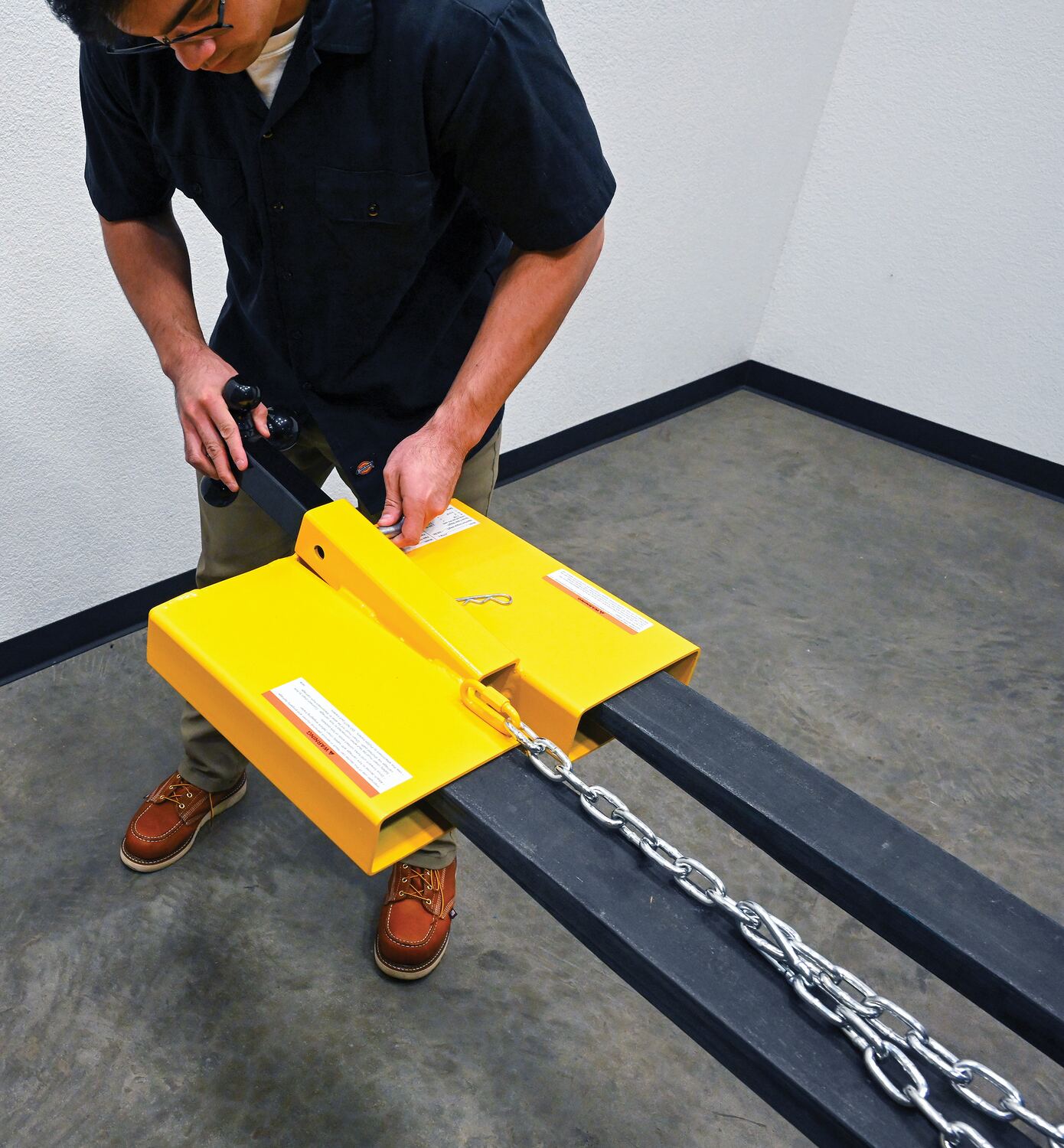

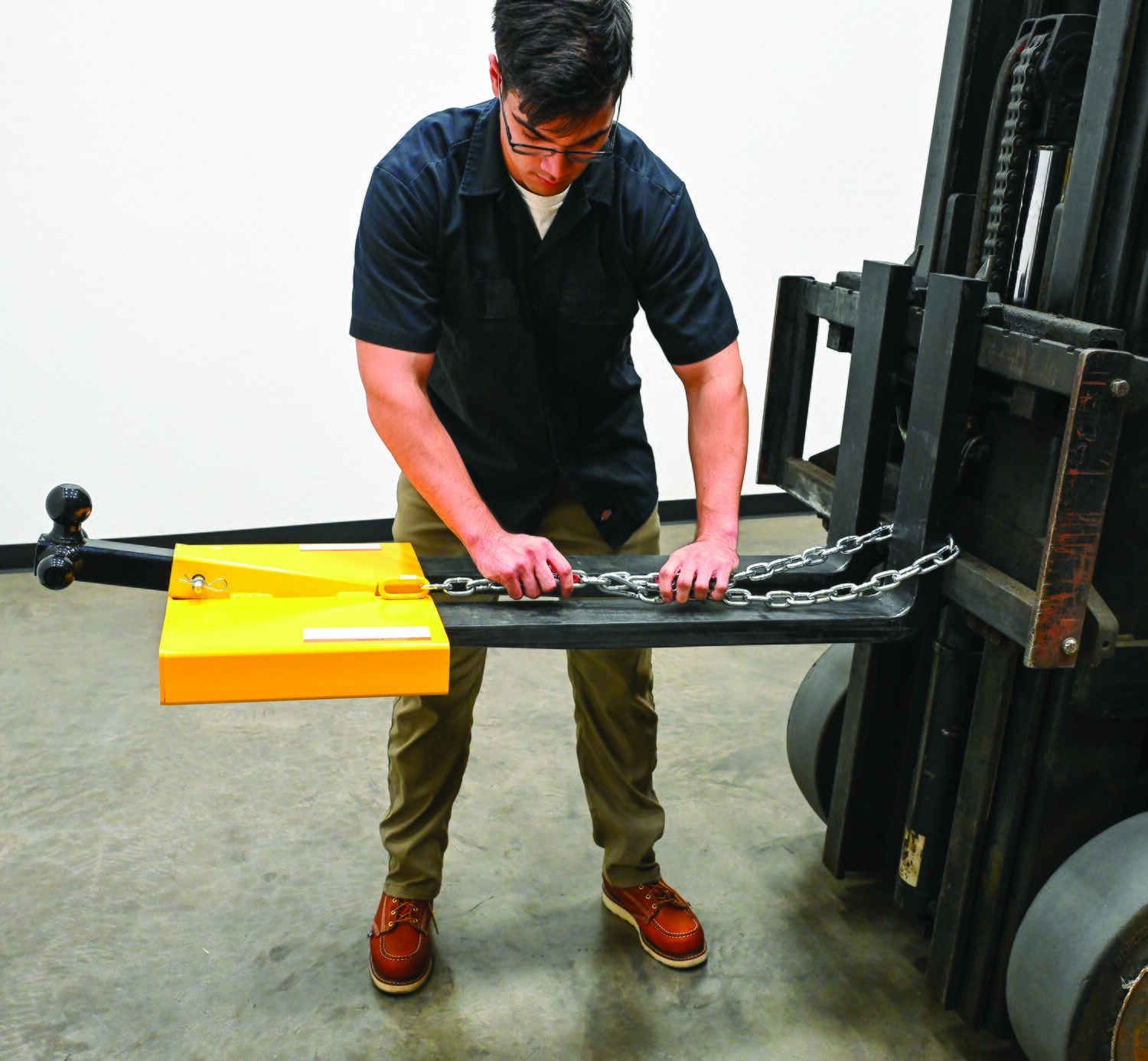

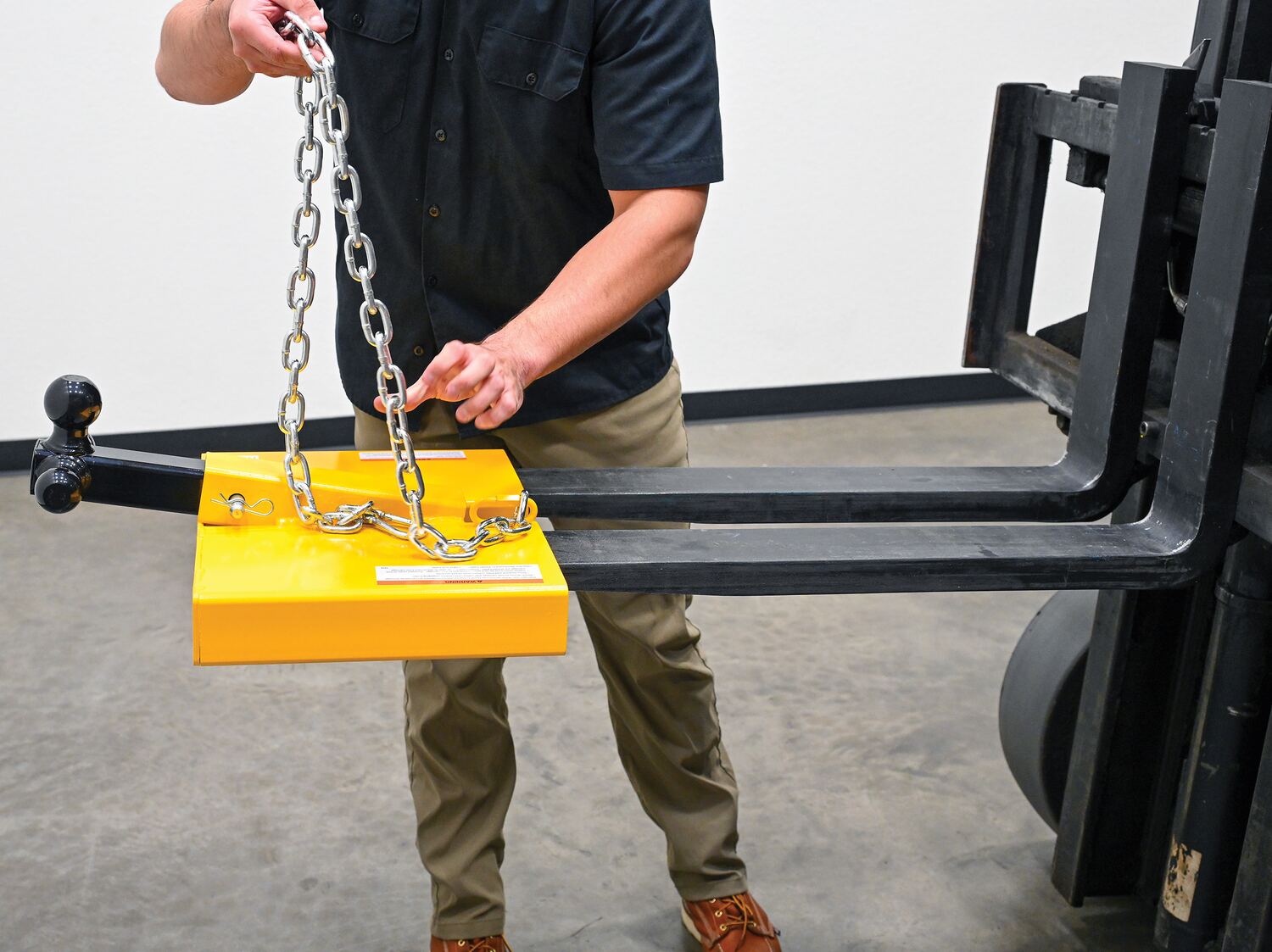

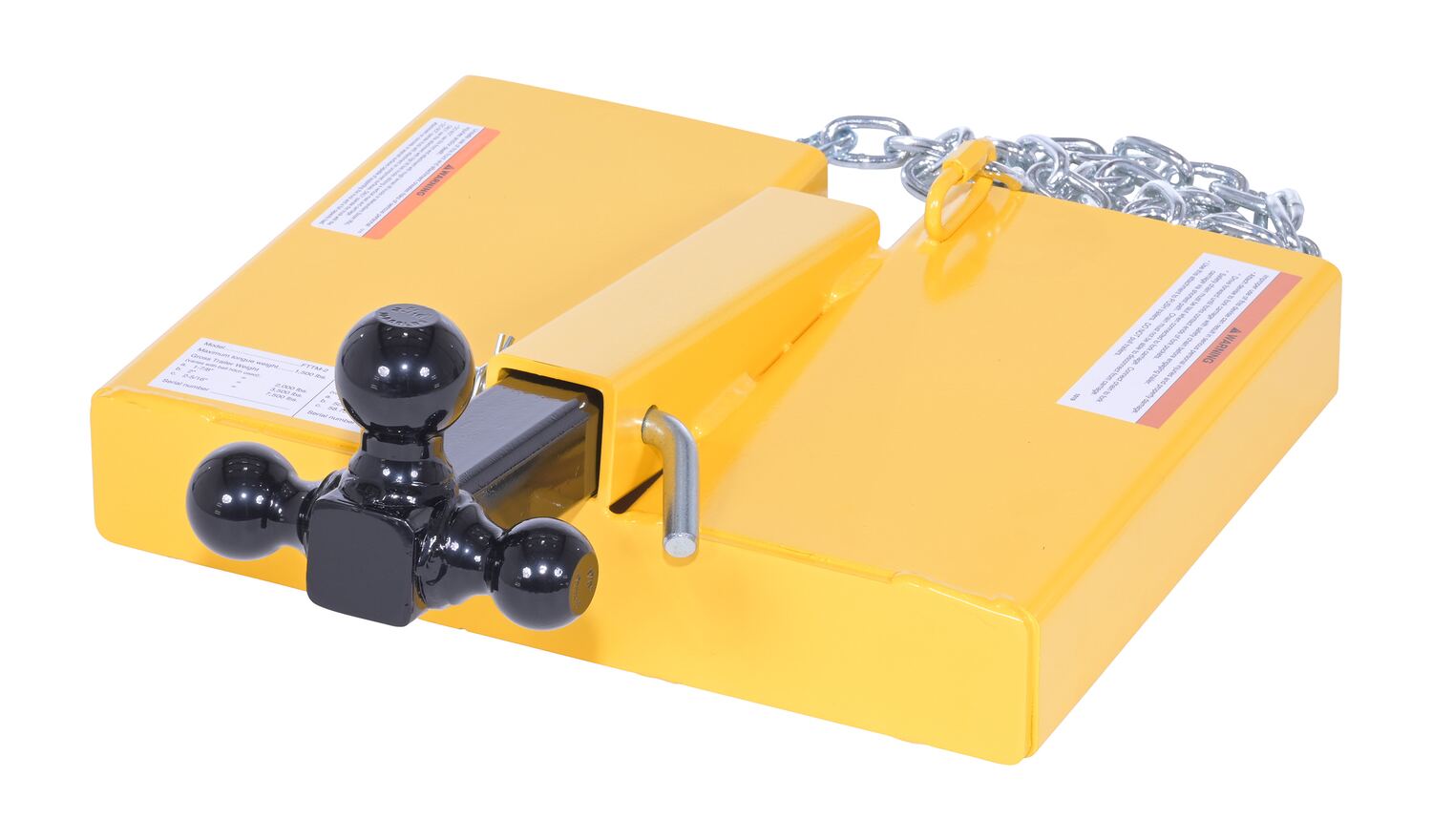

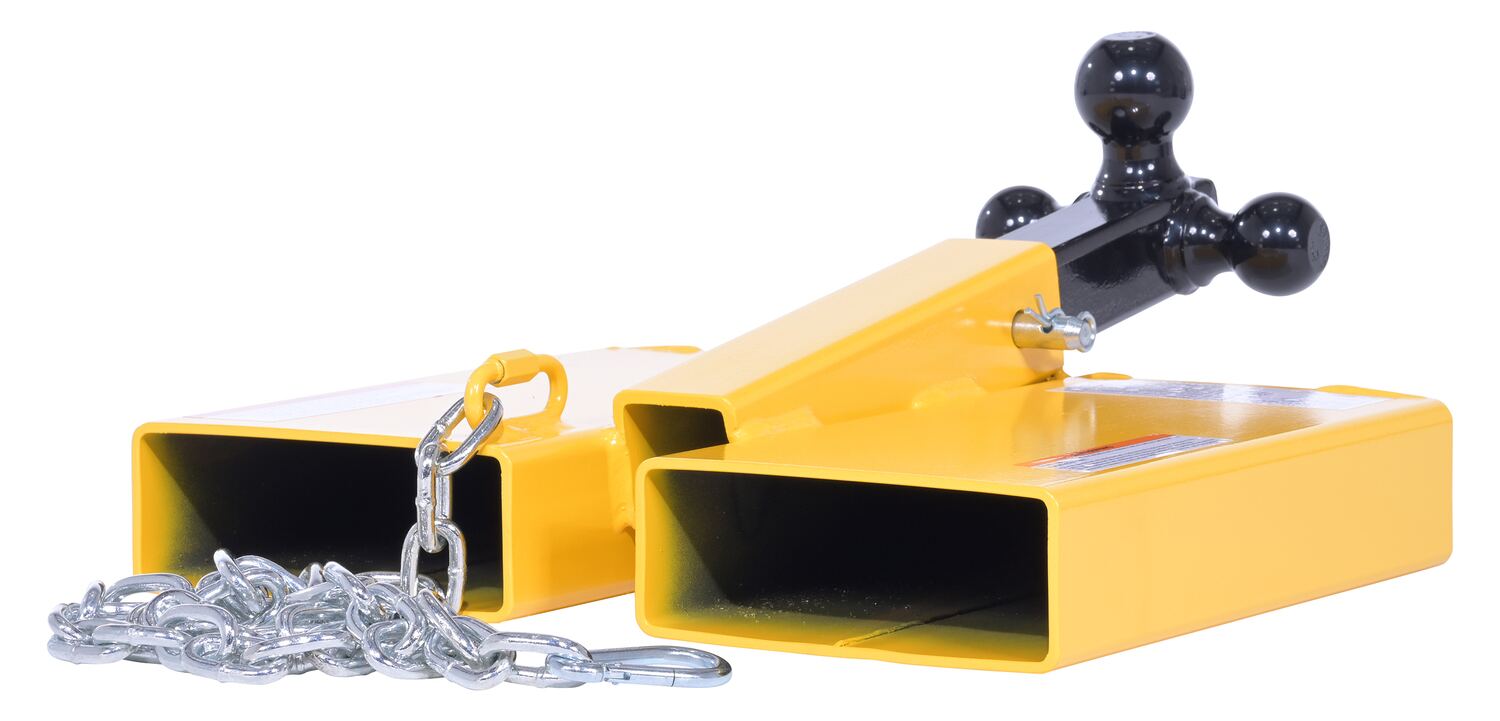

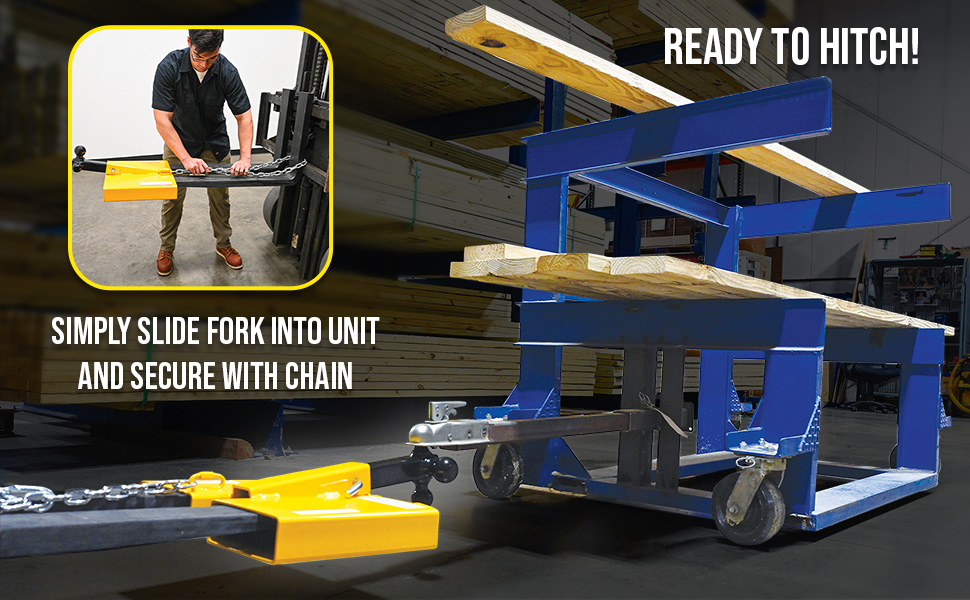

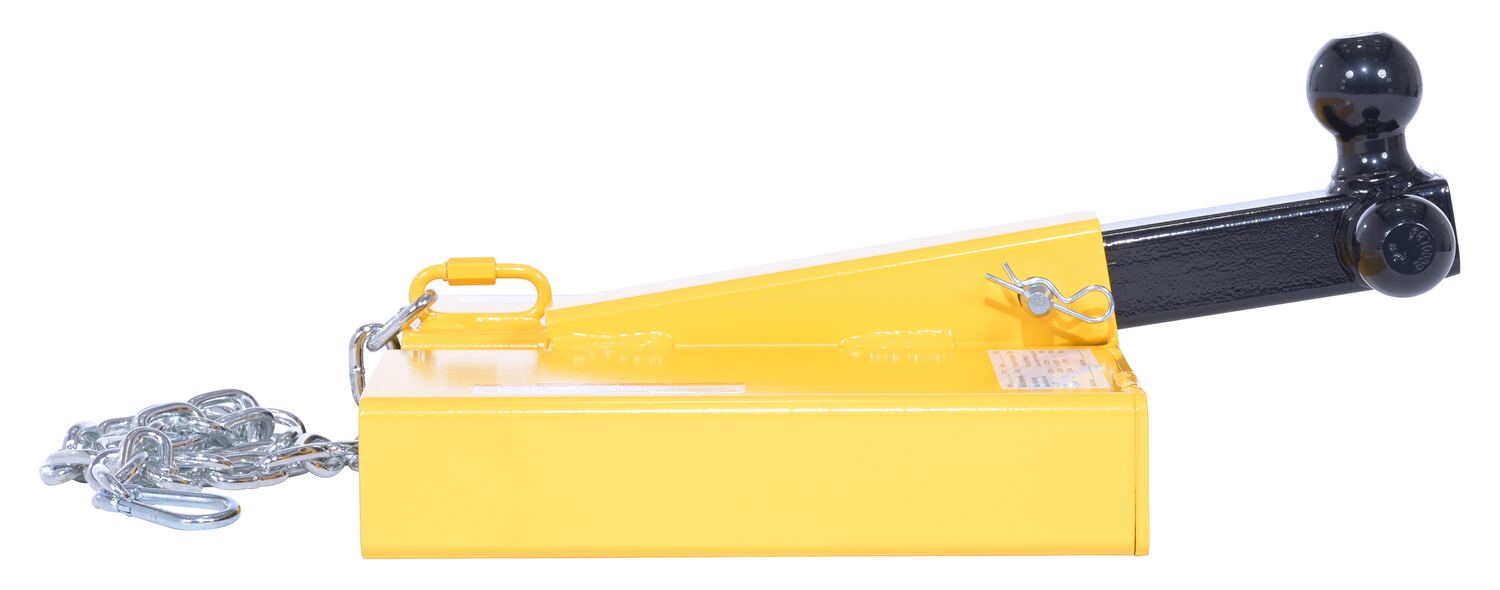

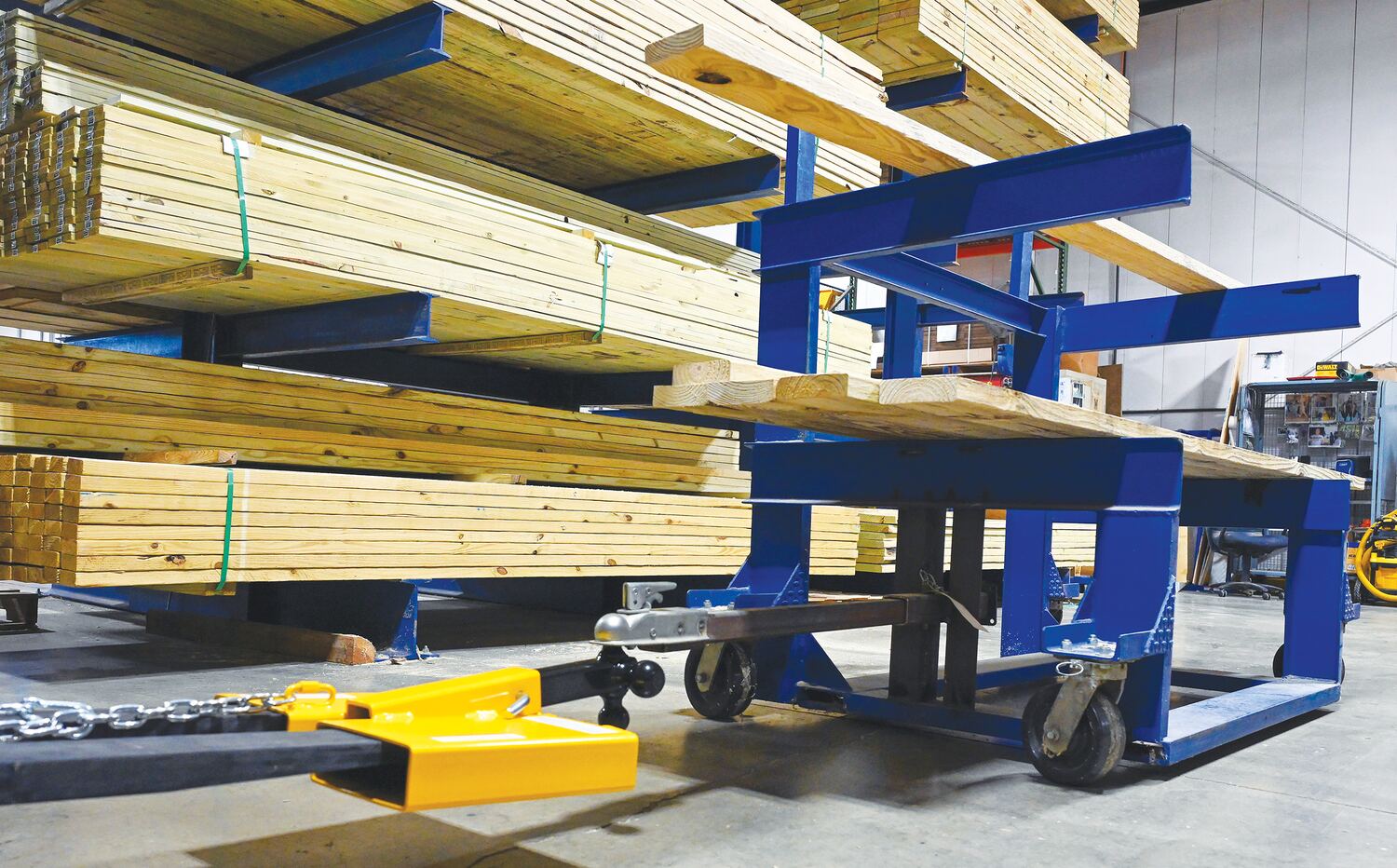

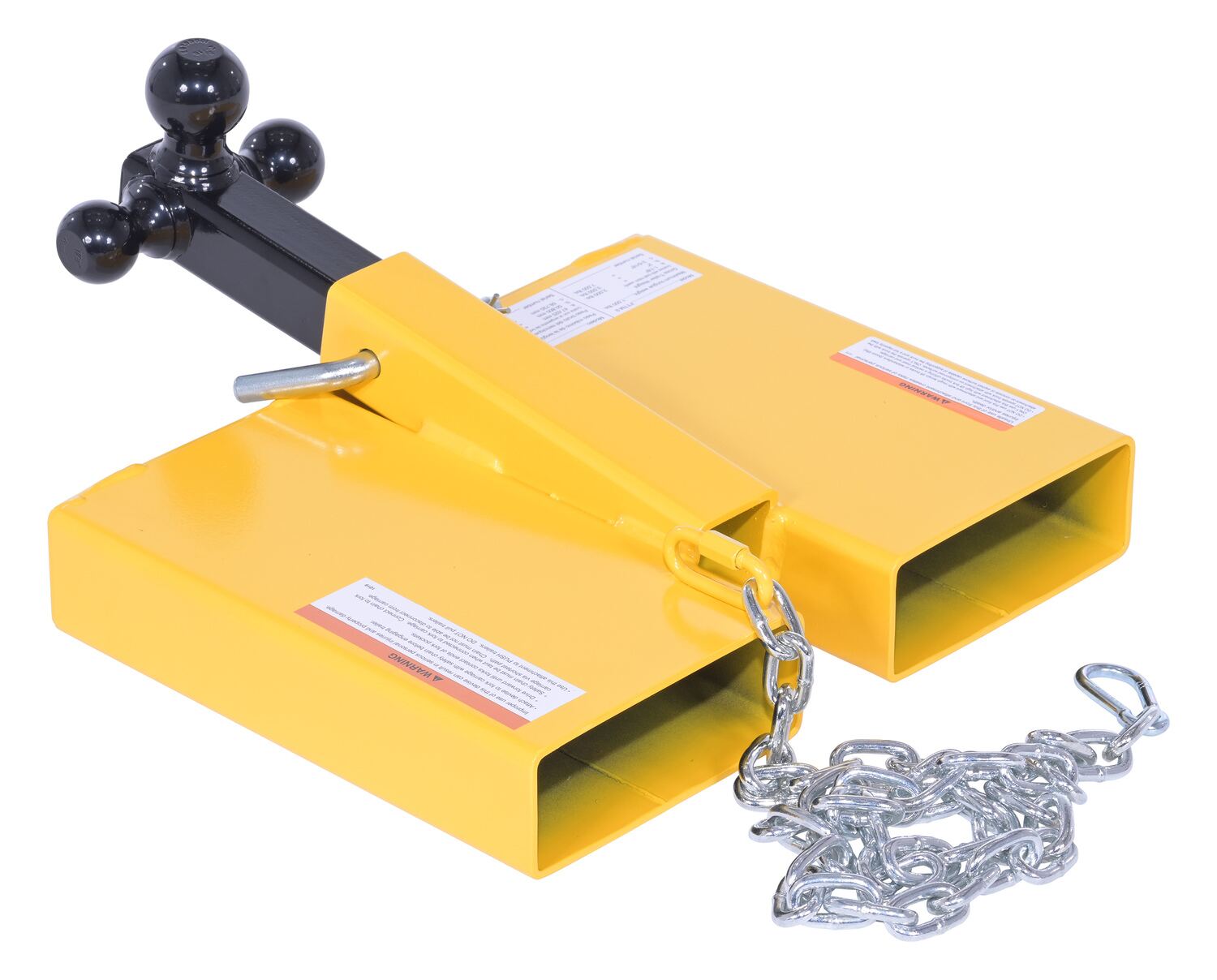

Forklift HitchThe Fork Lift Hitch is a superb addition to most manufacturing and maintenance facilities. Strong steel construction allows for long term use, even in the harshest of conditions. The hitch includes a yellow finish for clear visibility. To use slide the fork lift forks in to the unit and secure safety chain to fork lift. Once in place, the unit is ready to be hitched to the desired equipment. Includes 56" long chain to secure to fork lift.
Standard Features:
- Strong steel construction
- Yellow finish for clear visibility

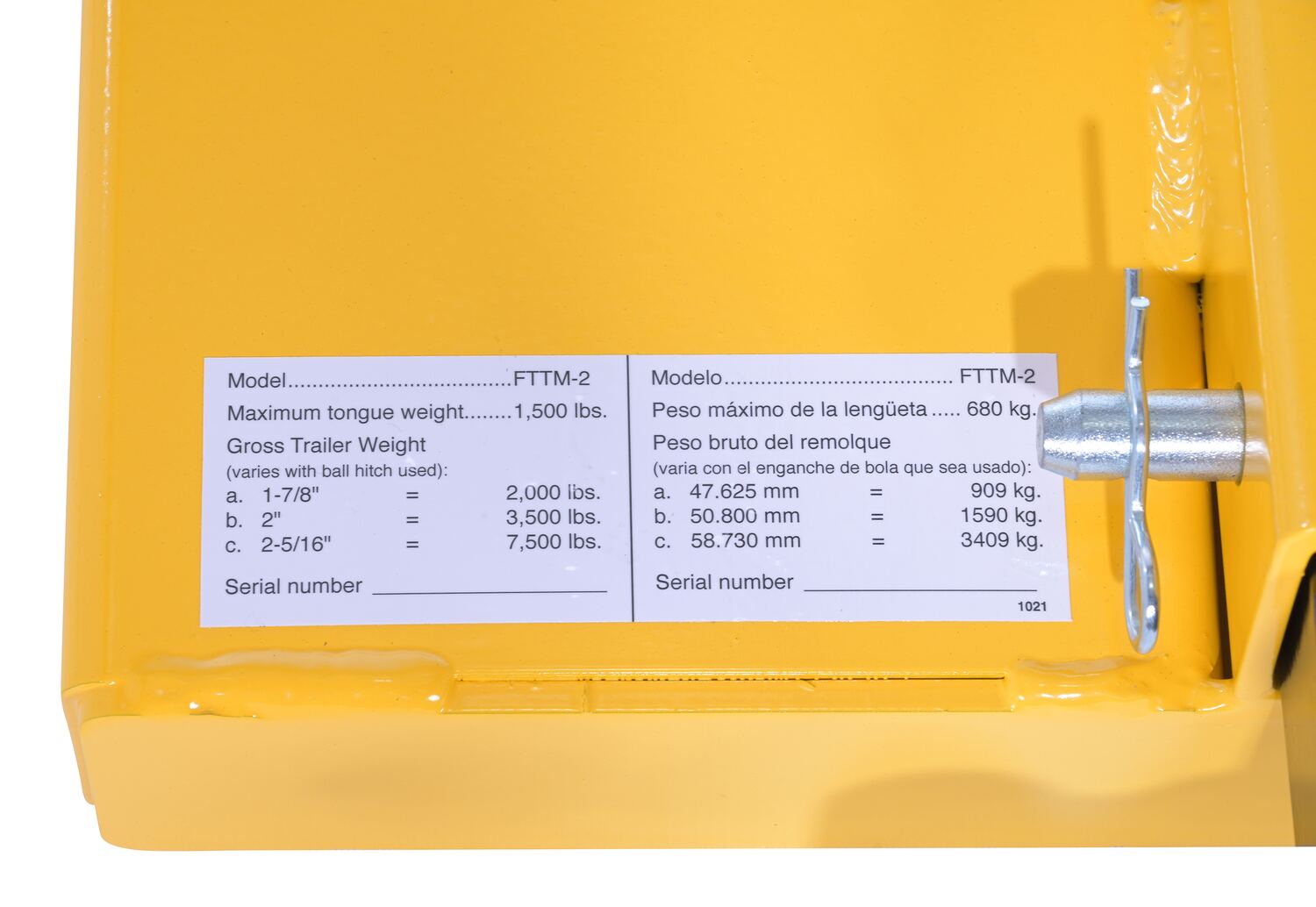

- Maximum tongue load: 1,500 lbs.
- Maximum push capacity for 1-7/8" ball: 2,000 lbs.
- Maximum push capacity for 2" ball: 3,500 lbs.
- Maximum push capacity for 2-5/16" ball: 7,500 lbs.

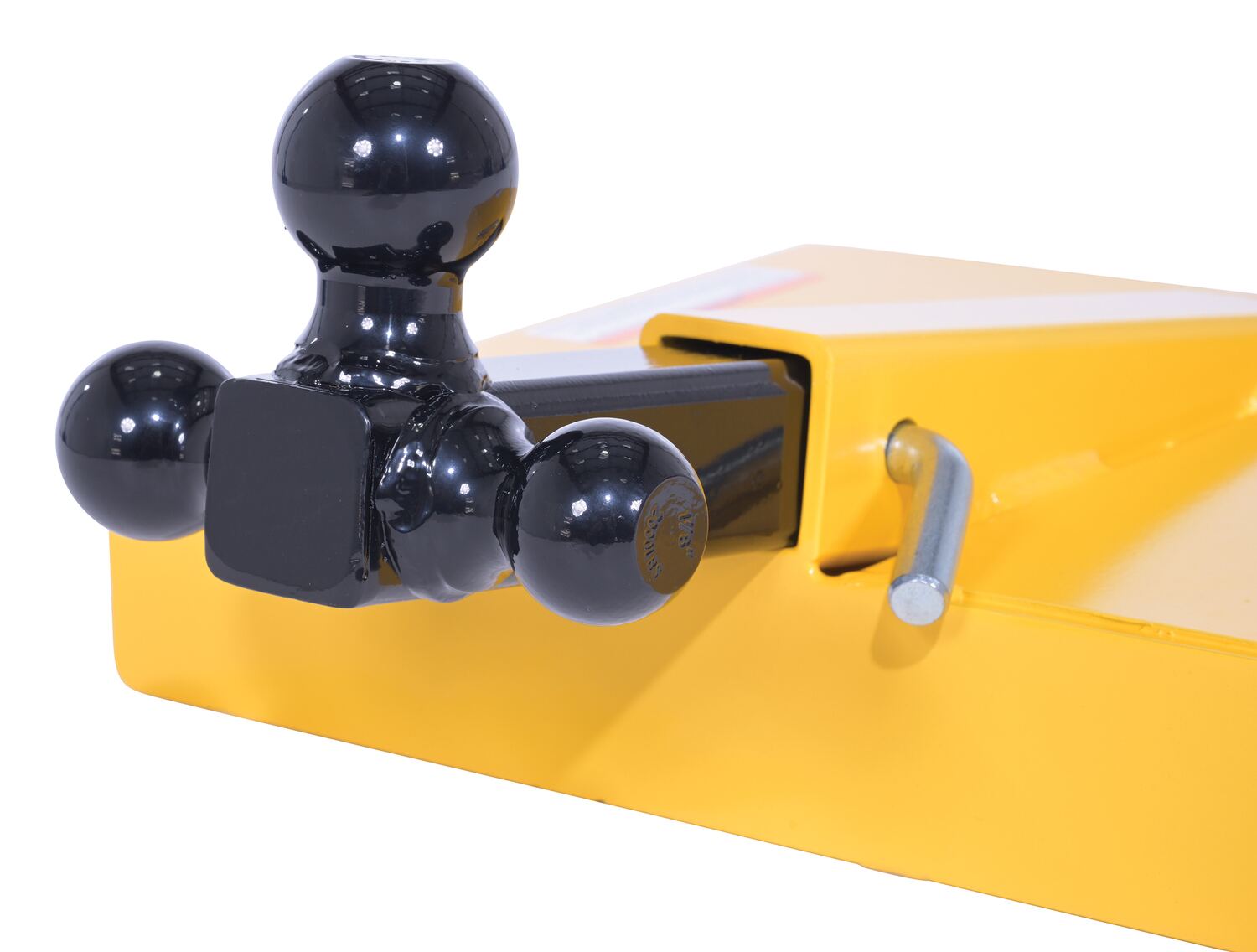

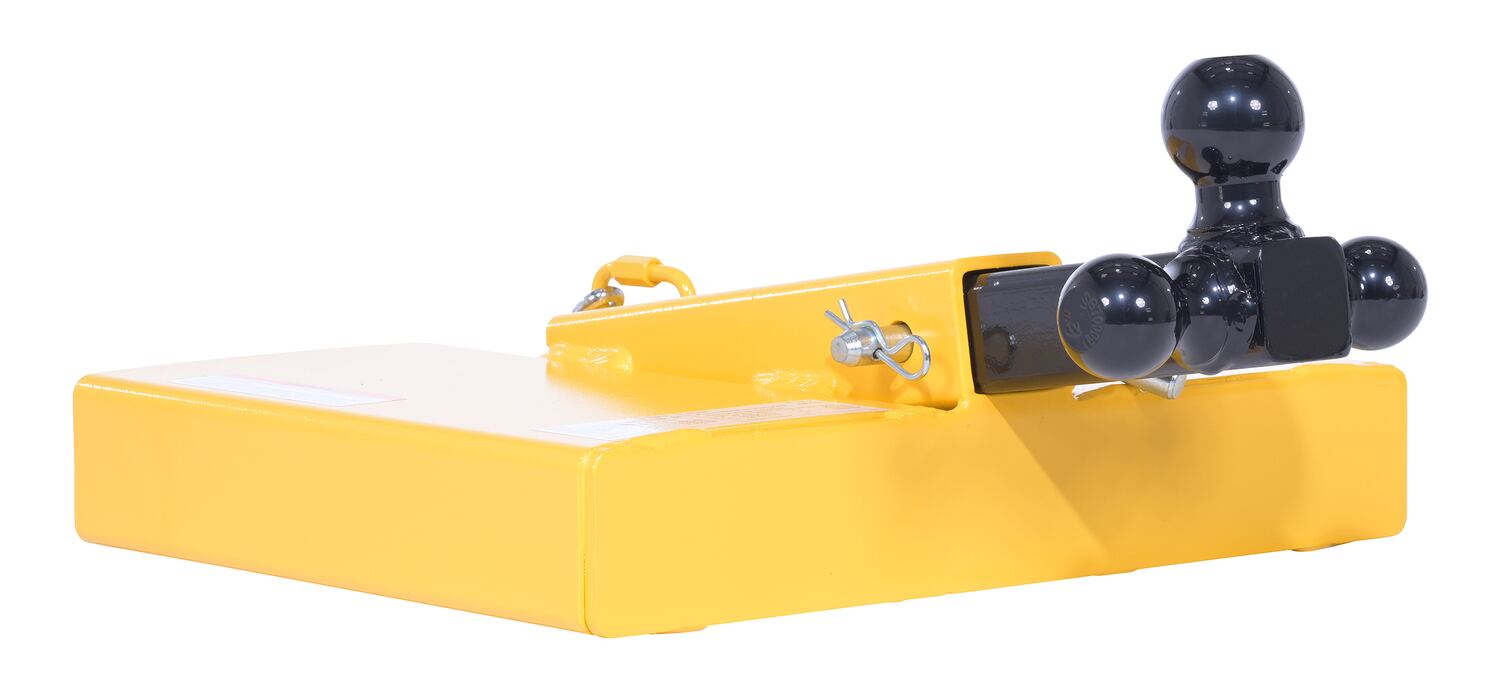

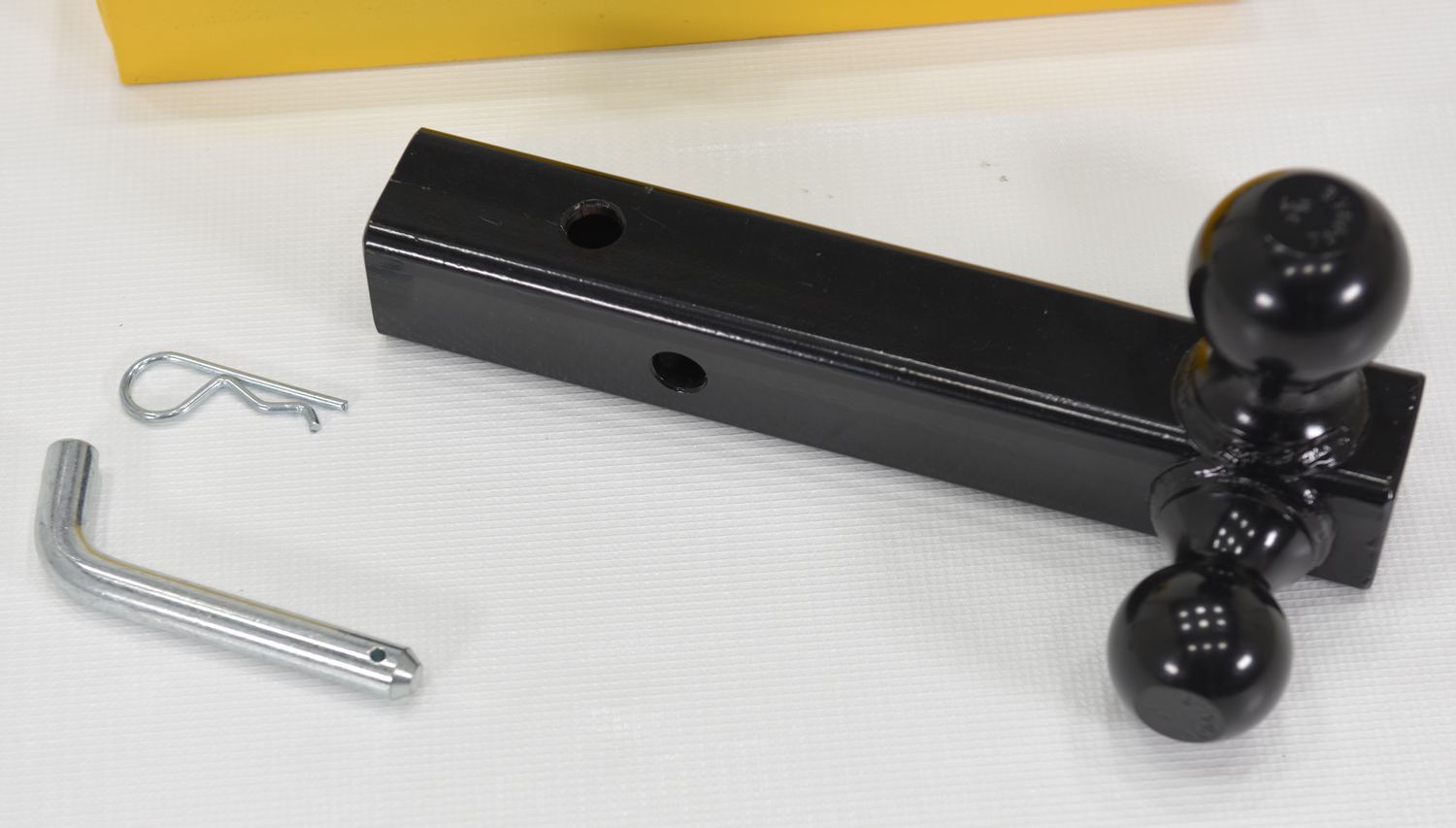

- 3-ball hitch attachment can be removed & rotated to desired ball.

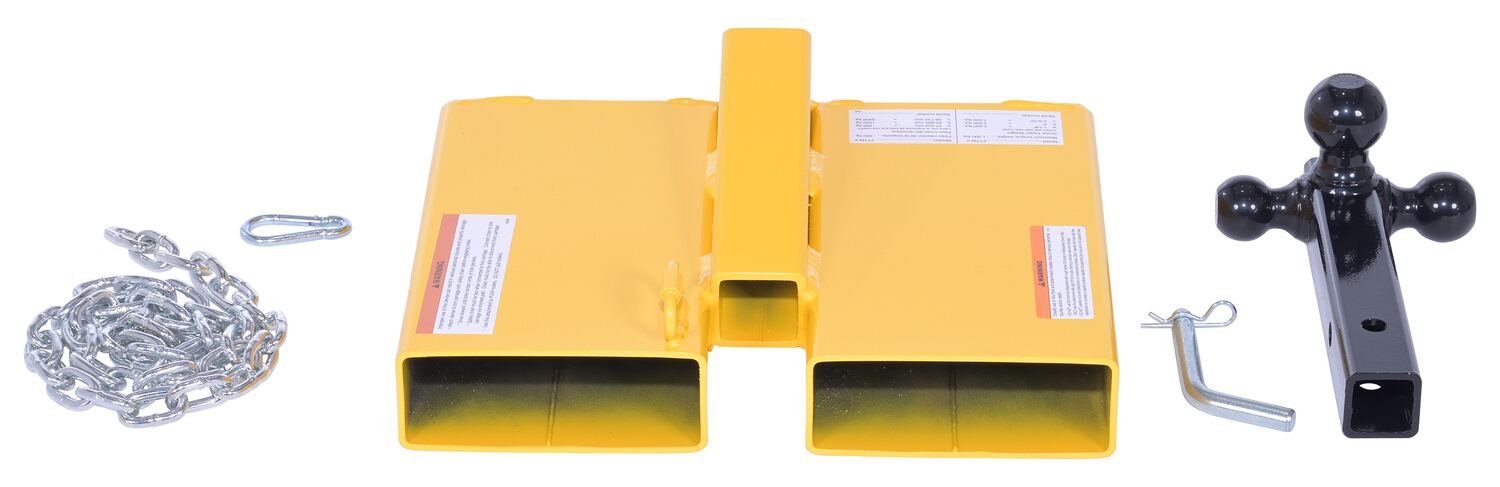

- Includes a 56" long chain to secure to forklift.
Unit Not Intended For Pulling!
Hooks with Shackle
Hoisting Hooks
Three Ball Tow Hitch
Hook Plates
| Model # | Description | Attributes | Net Wt. (lbs) |
||||
|---|---|---|---|---|---|---|---|

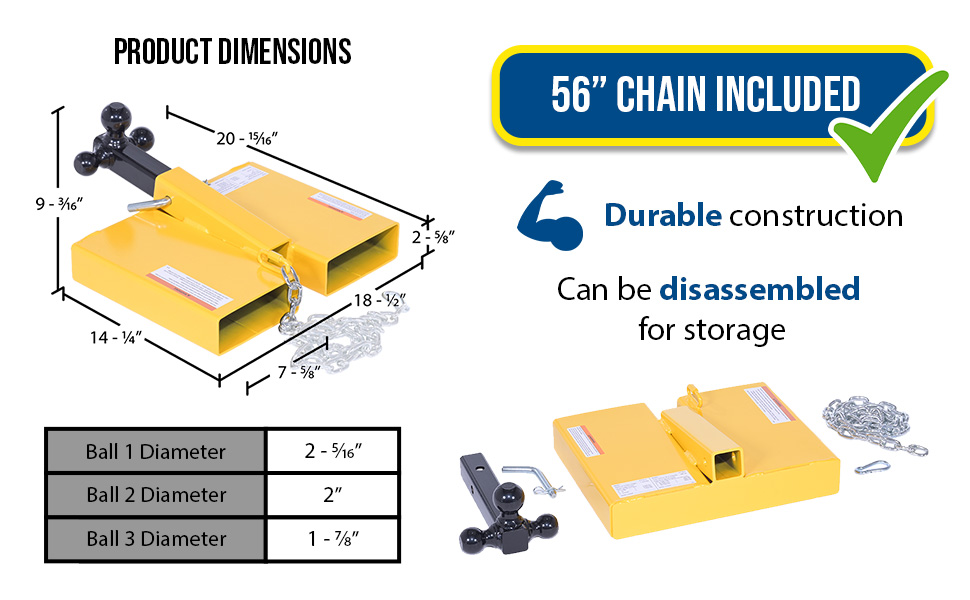

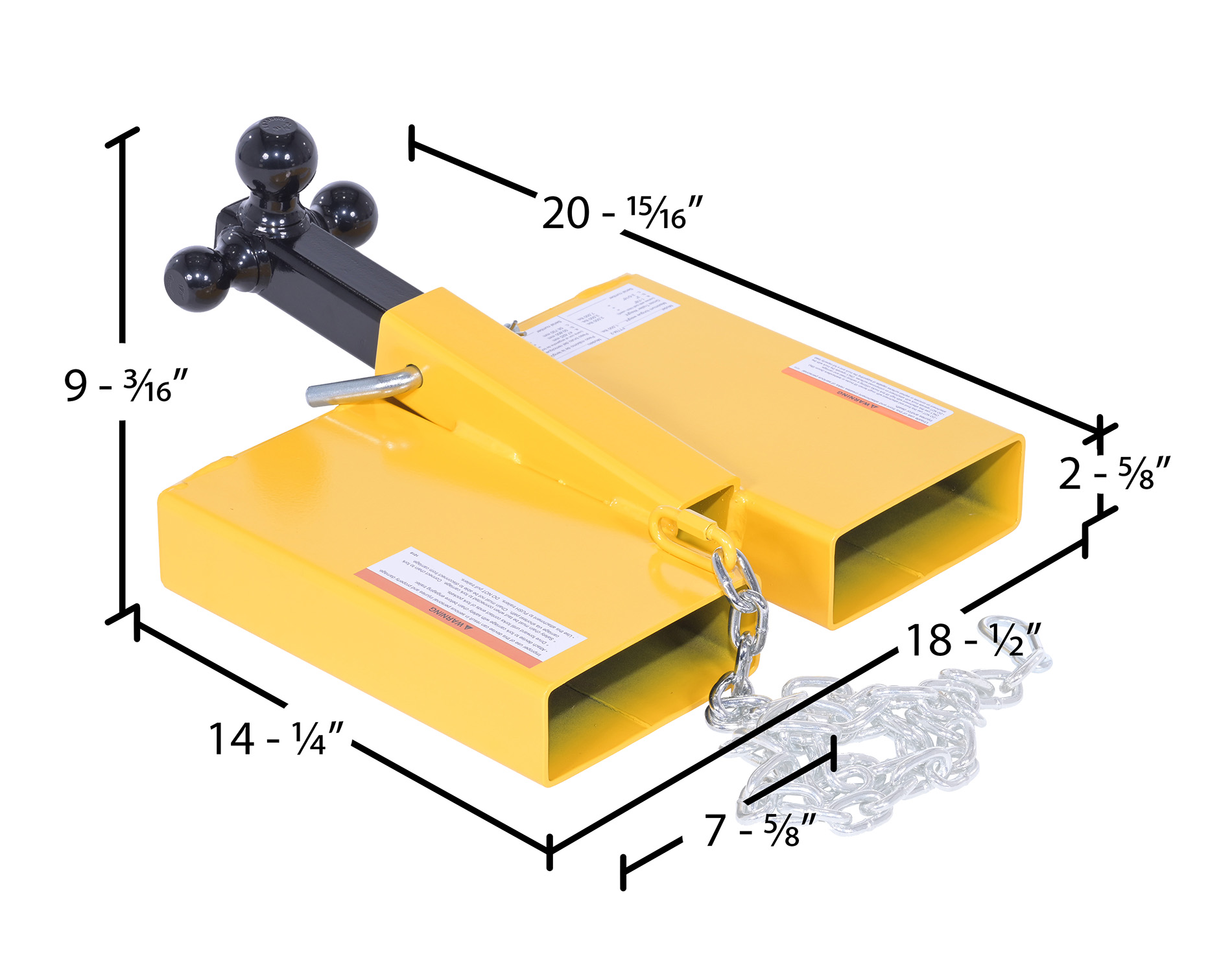

| FTTM-2 | POPULAR |  | 30 Days Limited Warranty | Steel Fork Lift Hitch Attachment 20-15/16 In x 18-1/2 In x 9-3/16 In 1500 Lb. Capacity Yellow | Maximum Tongue Load (lb.): 1,500 Usable Fork Pockets Width/Height (in.): 7-5/8 x 2-5/8 | 52 |
KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required
Unit:
Size: W x L x H
Weight:
Limited Warranty
Maximum Tongue Load (lb.): 1,500
Usable Fork Pockets Width/Height (in.): 7-5/8 x 2-5/8
Maximum Tongue Load (lb.): 1,500
Usable Fork Pockets Width/Height (in.): 7-5/8 x 2-5/8
Manuals
Survey Sheets
Approval Drawings
Testing Certificates
SDS Sheets
Other PDF's
Directory Links Of Available PDF's For All Products

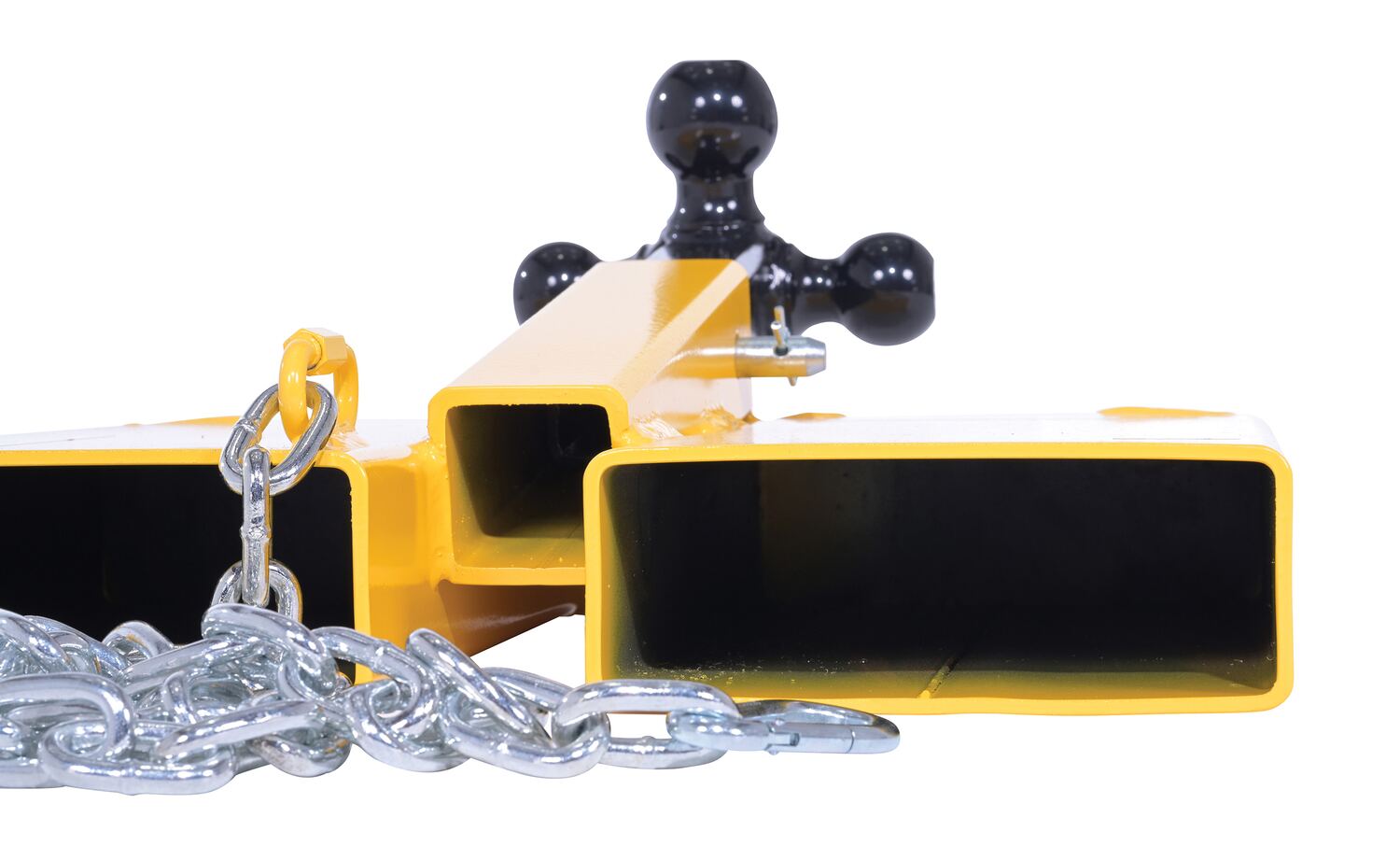

Q: What is the thickness of the metal where the fork pockets slide in?
A: The fork pockets are 3/16" thick.
 |
||||||||||||
