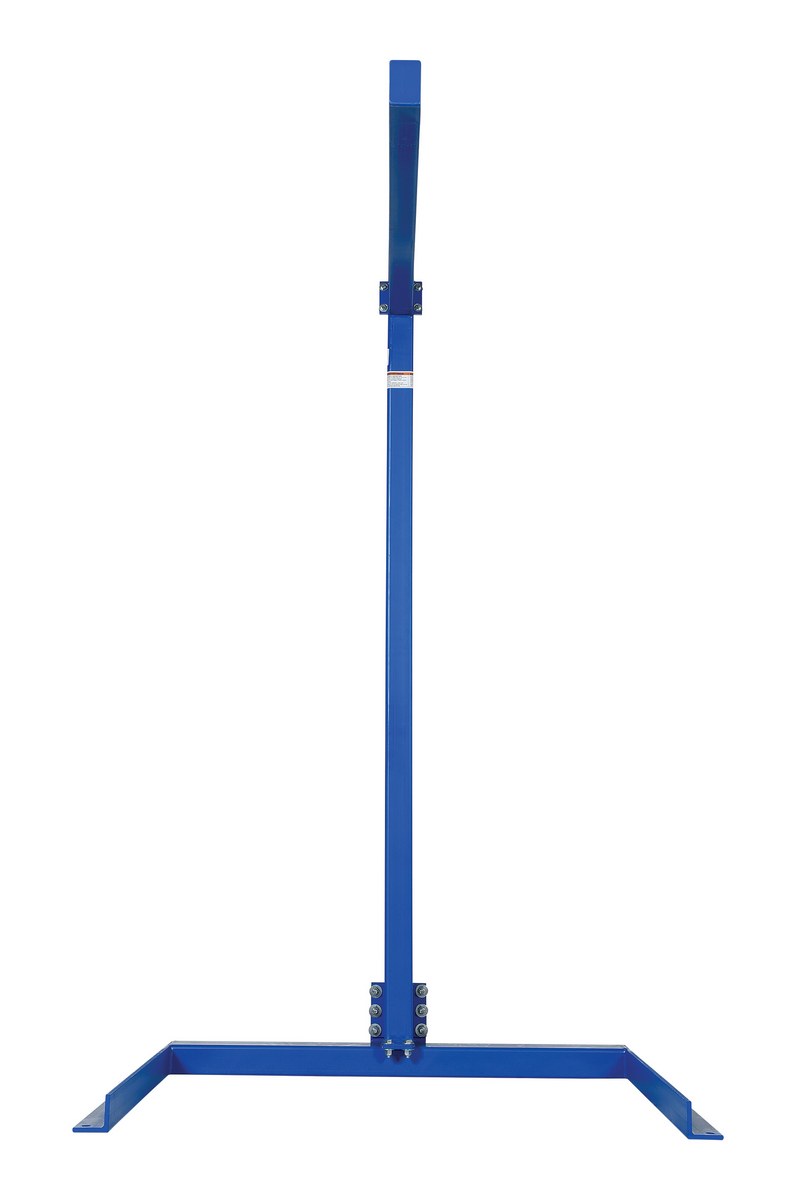

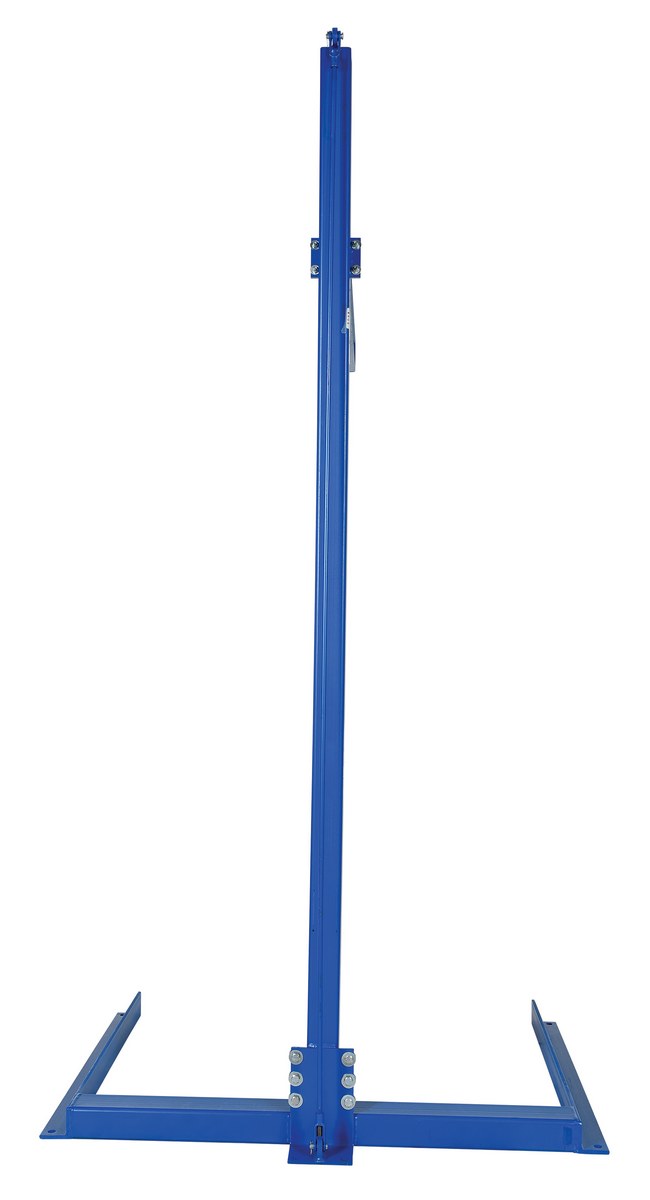

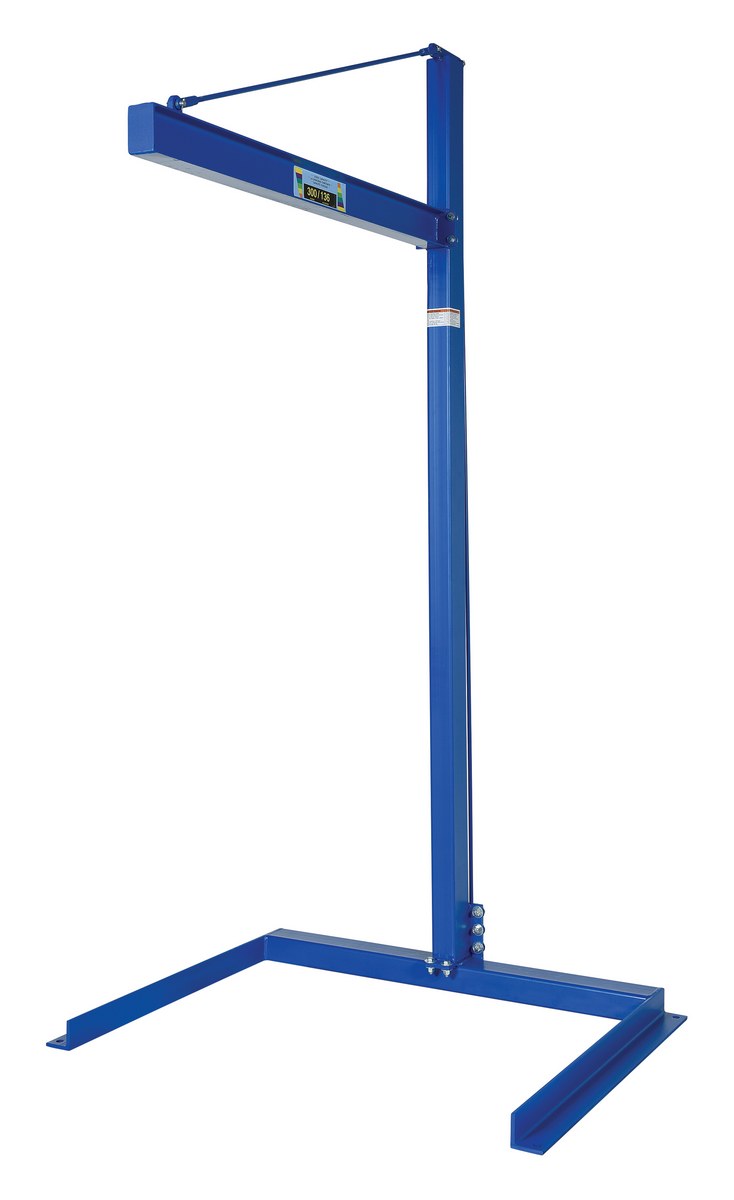

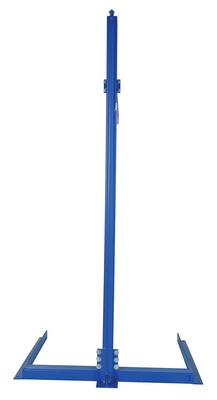

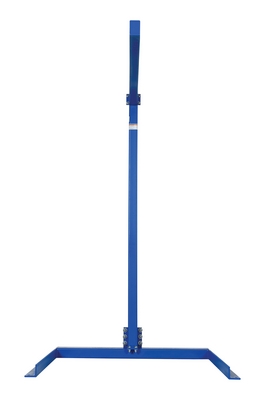

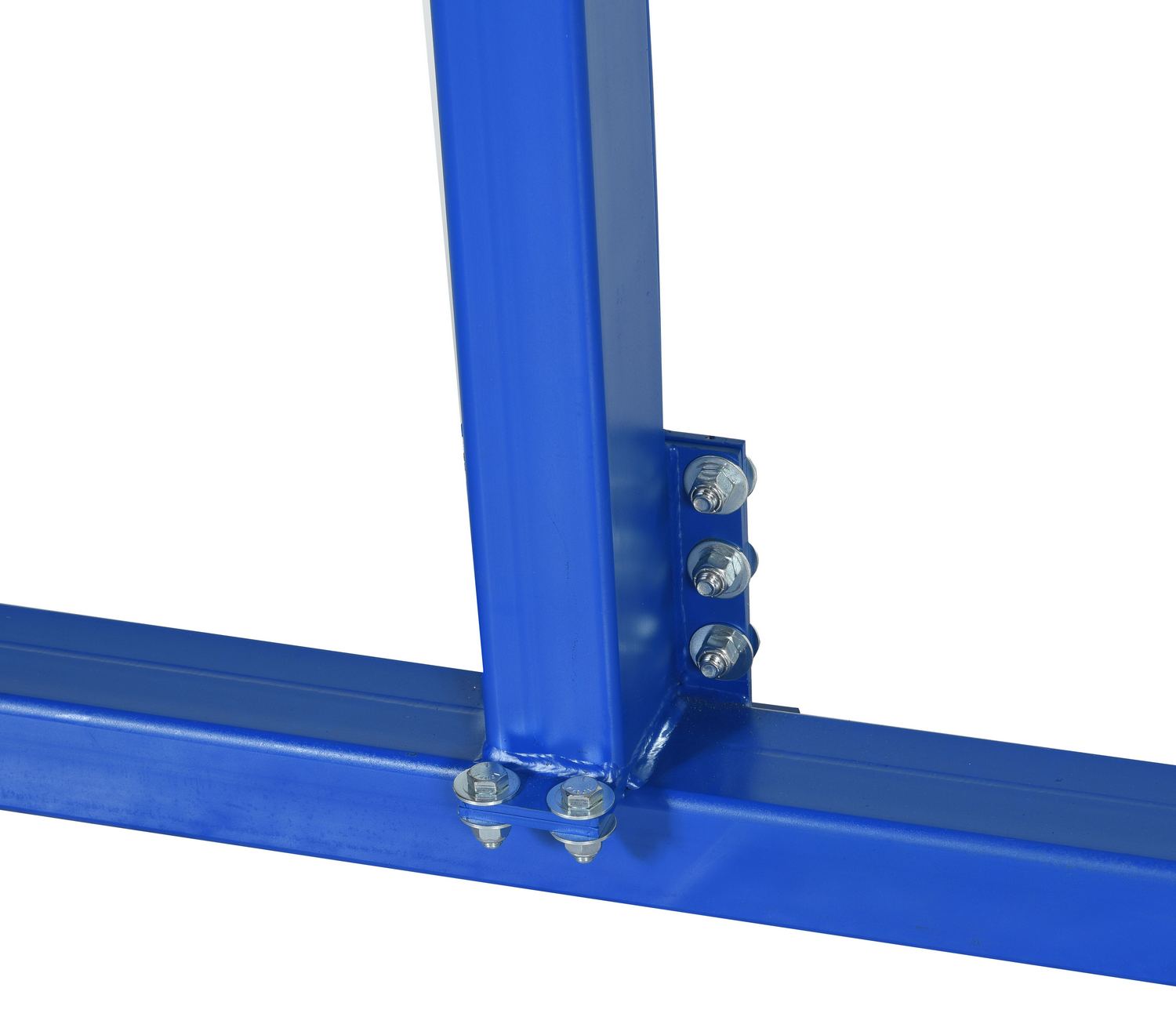

Mini Overhead Cantilever JibsUtilize this unique jib in work cells and work areas. Unique fixed-height design allows for the 39-3/4" long outriggers to be mounted underneath a work bench. Easily lift product from cart to workbench. Straddle width is 47-3/4" (ID). Hoist, trolley and cart not included. Steel construction. Durable blue powder coat finish. Hoists & Trollies sold seperately.
- Works well in cells and work areas

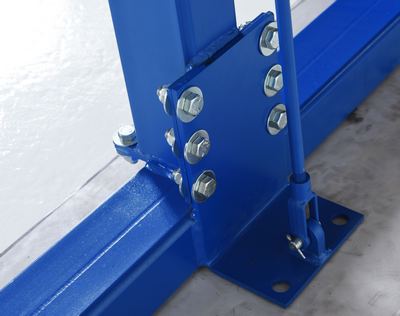

- Design allows to be mounted underneath a work bench
- Easily lift product from cart to workbench
- Steel construction with a painted blue finish
Multi-Station Transportable Jib Cranes
Extra Travel Tri-Post Jibs
Portable Jib Cranes
All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
| Model # | Description | Attributes | Net Wt. (lbs) |
||||
|---|---|---|---|---|---|---|---|

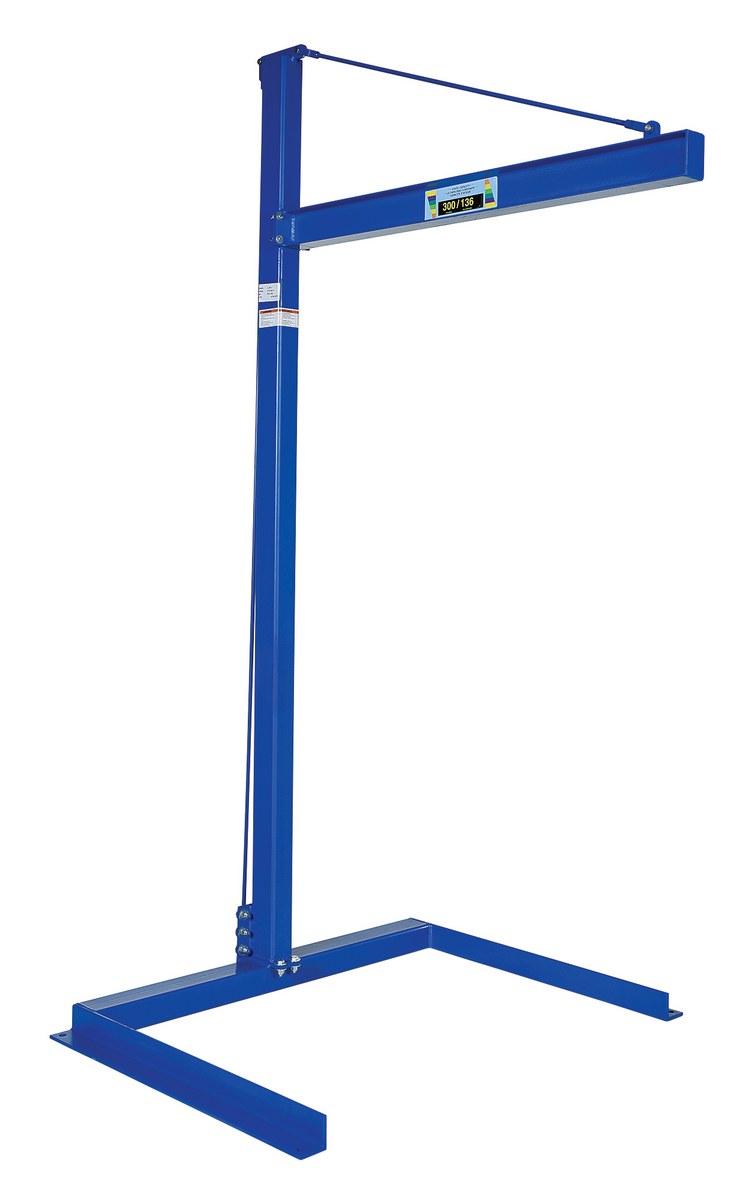

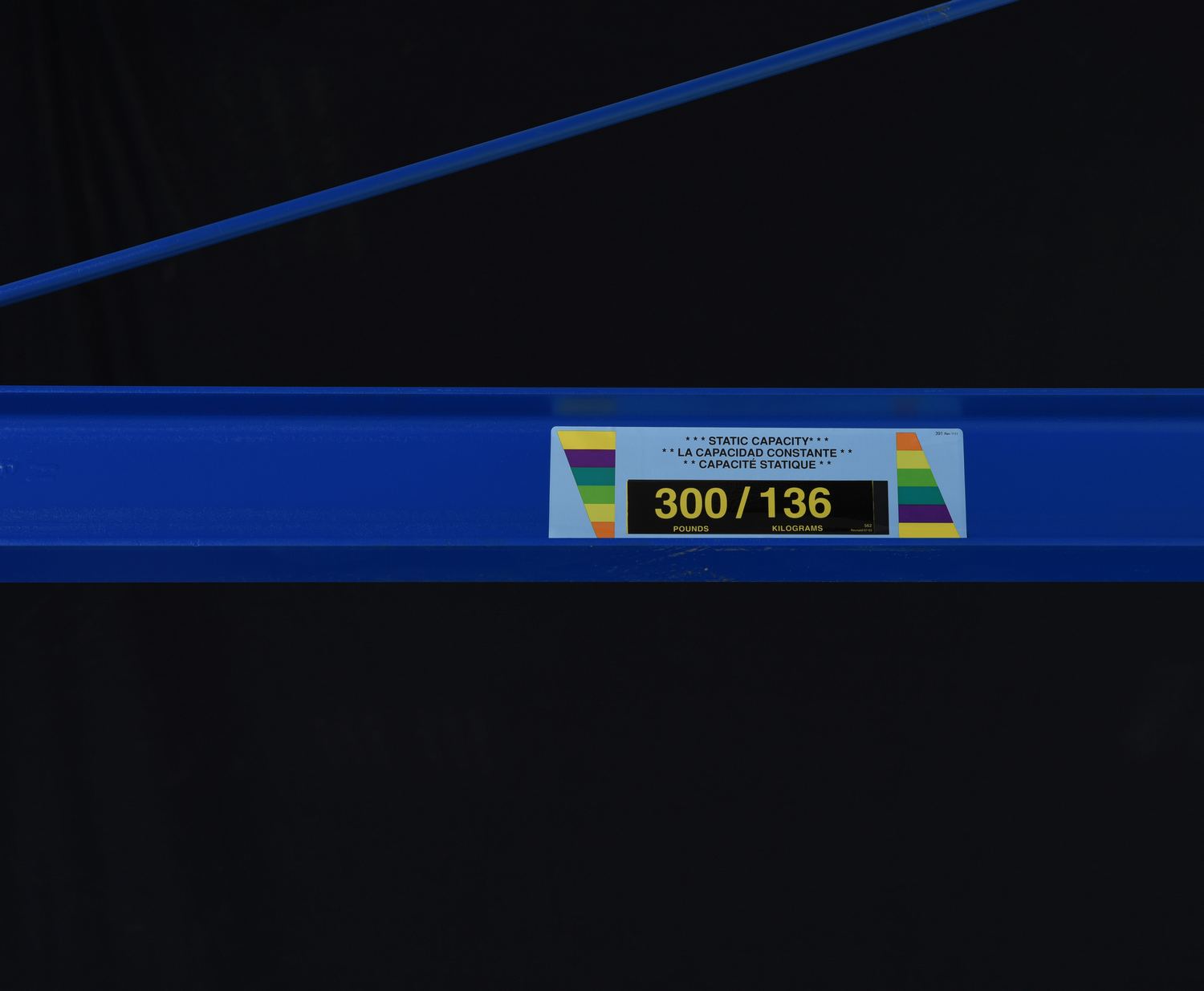

| CJIB-3 |  | 1 Year Limited Warranty | Steel Mini Overhead Cantilever Jib 300 Lb. Capacity Blue | Uniform Capacity (lb.): 300 Under I-Beam to Ground Length (in.): 84 | 318 | ||

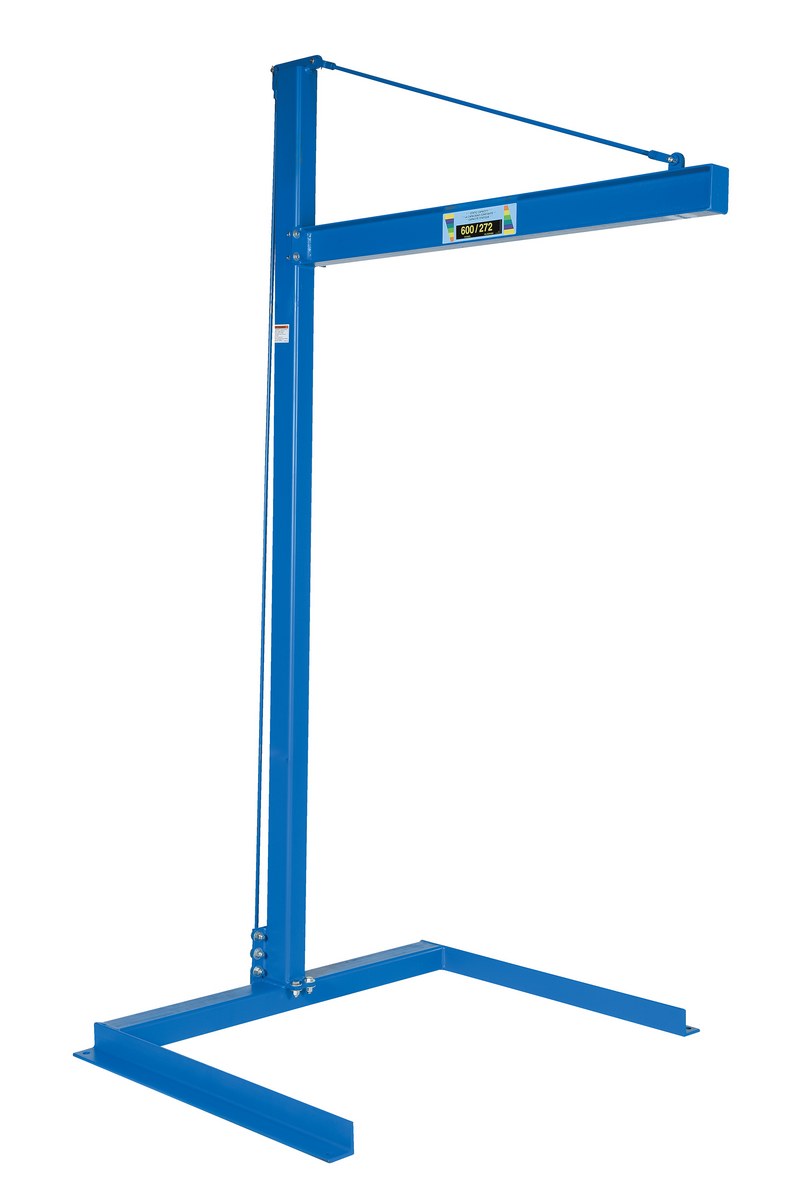

| CJIB-6 |  | 1 Year Limited Warranty | Steel Mini Overhead Cantilever Jib 600 Lb. Capacity Blue | Uniform Capacity (lb.): 600 Under I-Beam to Ground Length (in.): 84 | 327 | ||

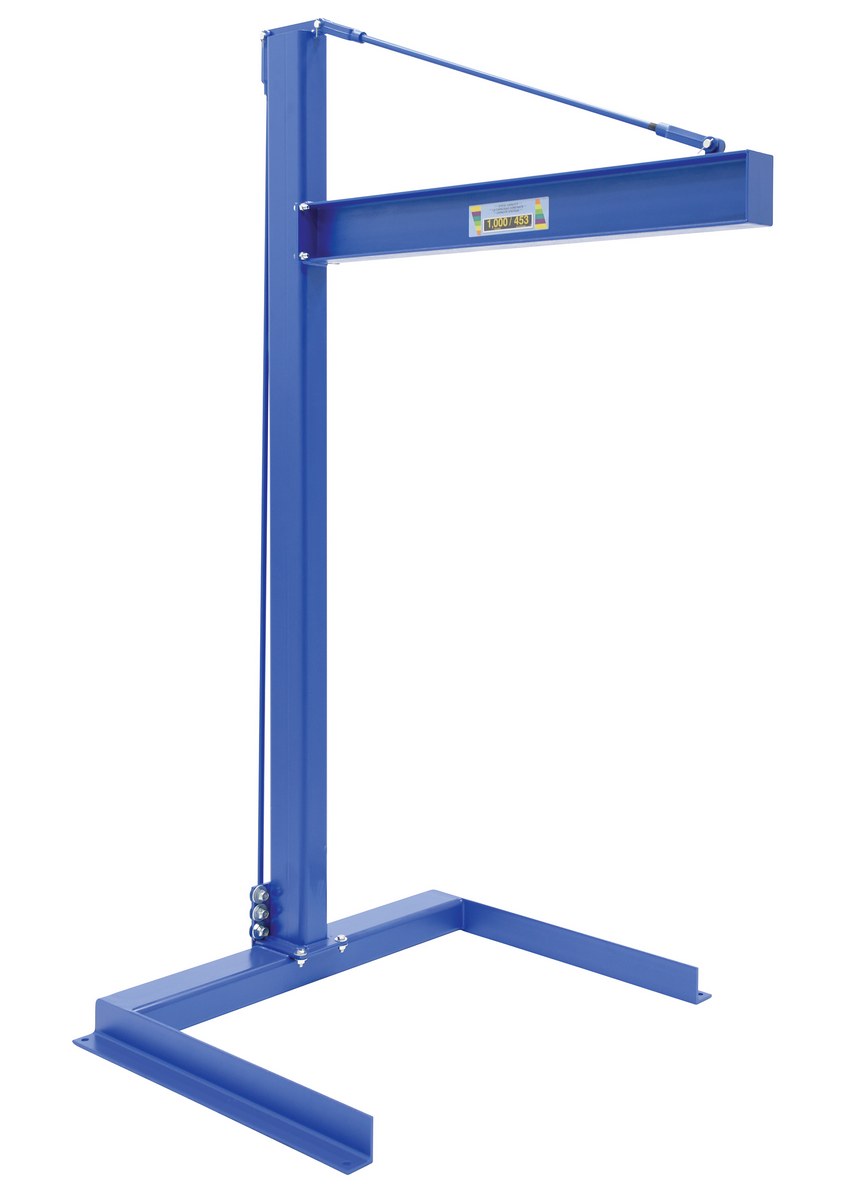

| CJIB-10 |  | 1 Year Limited Warranty | Steel Mini Overhead Cantilever Jib 1000 Lb. Capacity Blue | Uniform Capacity (lb.): 1,000 Under I-Beam to Ground Length (in.): 78-1/2 | 496 | ||
| CJIB-20 |  | 1 Year Limited Warranty | Steel Mini Overhead Cantilever Jib 2000 Lb. Capacity Blue | Uniform Capacity (lb.): 2,000 Under I-Beam to Ground Length (in.): 78-1/2 | 512 |
KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 300
Under I-Beam to Ground Length (in.): 84
Uniform Capacity (lb.): 300
Under I-Beam to Ground Length (in.): 84
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 600
Under I-Beam to Ground Length (in.): 84
Uniform Capacity (lb.): 600
Under I-Beam to Ground Length (in.): 84
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1,000
Under I-Beam to Ground Length (in.): 78-1/2
Uniform Capacity (lb.): 1,000
Under I-Beam to Ground Length (in.): 78-1/2
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,000
Under I-Beam to Ground Length (in.): 78-1/2
Uniform Capacity (lb.): 2,000
Under I-Beam to Ground Length (in.): 78-1/2
