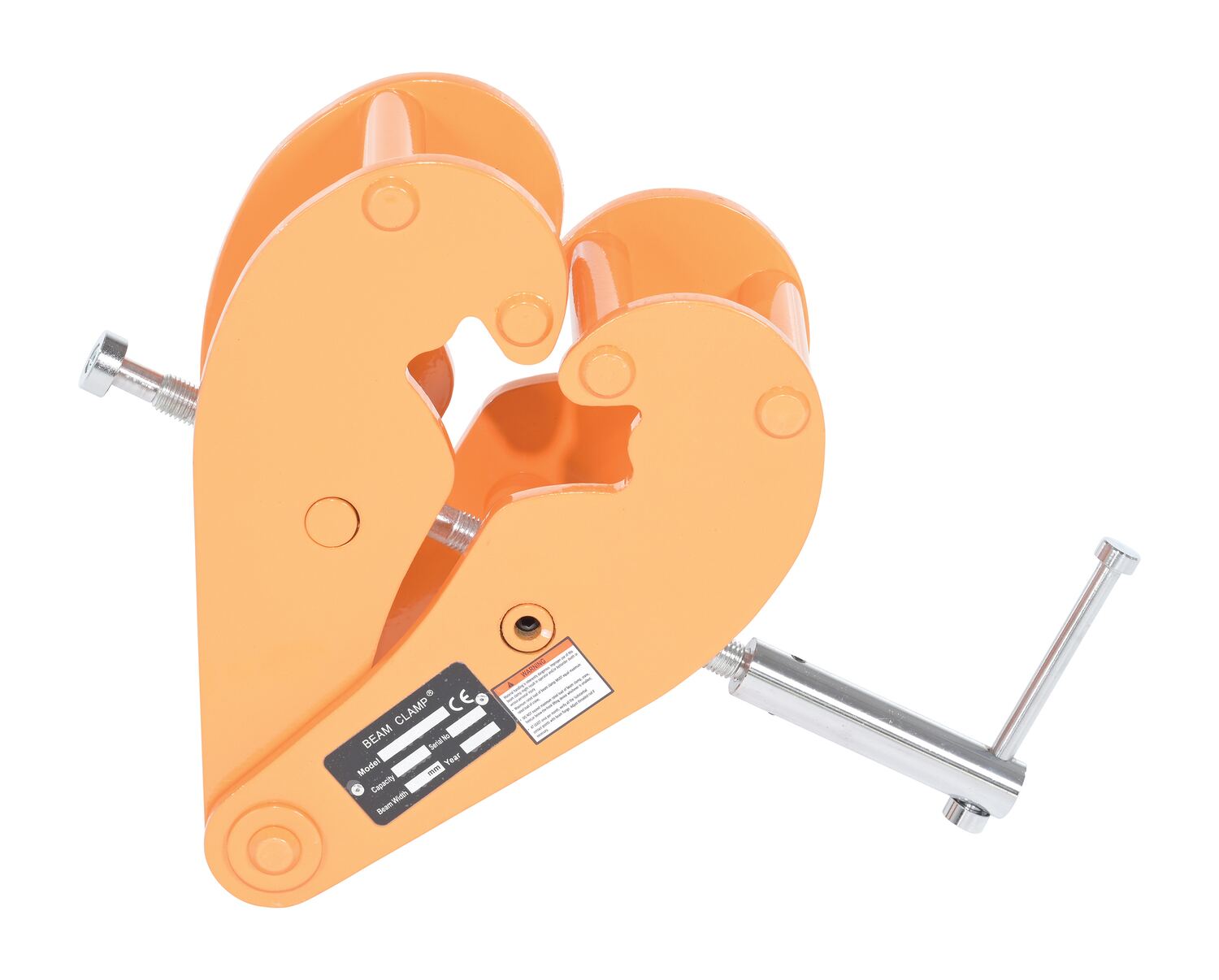

Beam Clamps

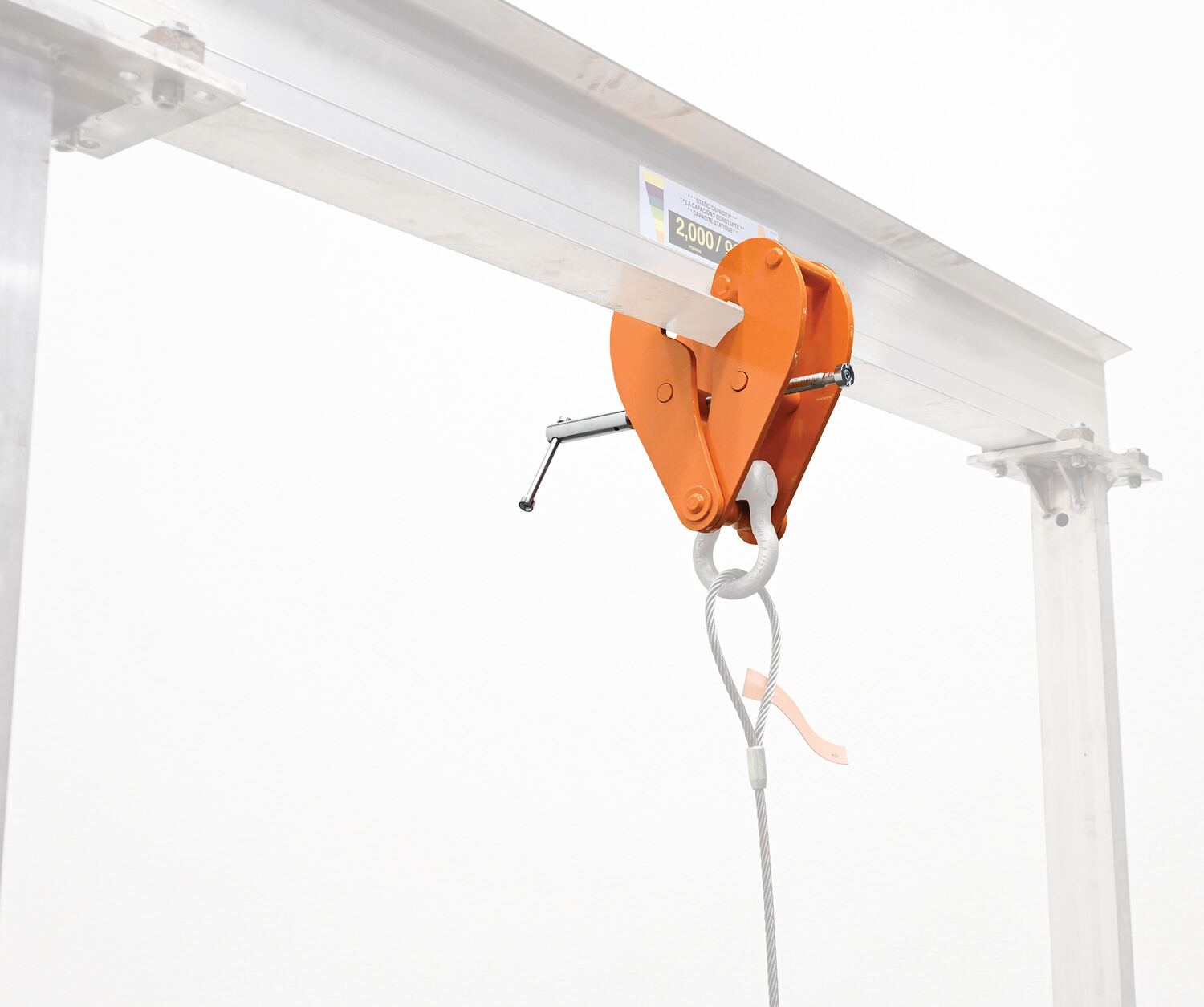

Designed to reduce the I-beam flange stress by distributing loads away from the flange edges during overhead lifting applications. These versatile units can be interchanged from one gantry to another in a matter of seconds with its easy mechanical adjustment mechanism. A bar is located at the bottom of the beam clamp for attaching a hoist (sold separately). Steel construction and painted finish.
- Manual locking screw mechanism easily adjusts width
- Unique design provides a fixed-position lifting point
- Mechanical adjustment allows interchanging between gantry cranes
- Solid steel construction provides long lasting rugged use
Mighty Mini Lever Hoists (disc brake)
Electric Chain Hoists
Hand Chain HoistsAdditional Models In This Family
BC-8
BC-1
BC-4
BC-8
BC-2
BC-2
BC-10
BC-8
BC-10
BC-2
BC-1
BC-10
BC-4
BC-1
BC-8
| Model # | Description | Attributes | Net Wt. (lbs) |
||||
|---|---|---|---|---|---|---|---|

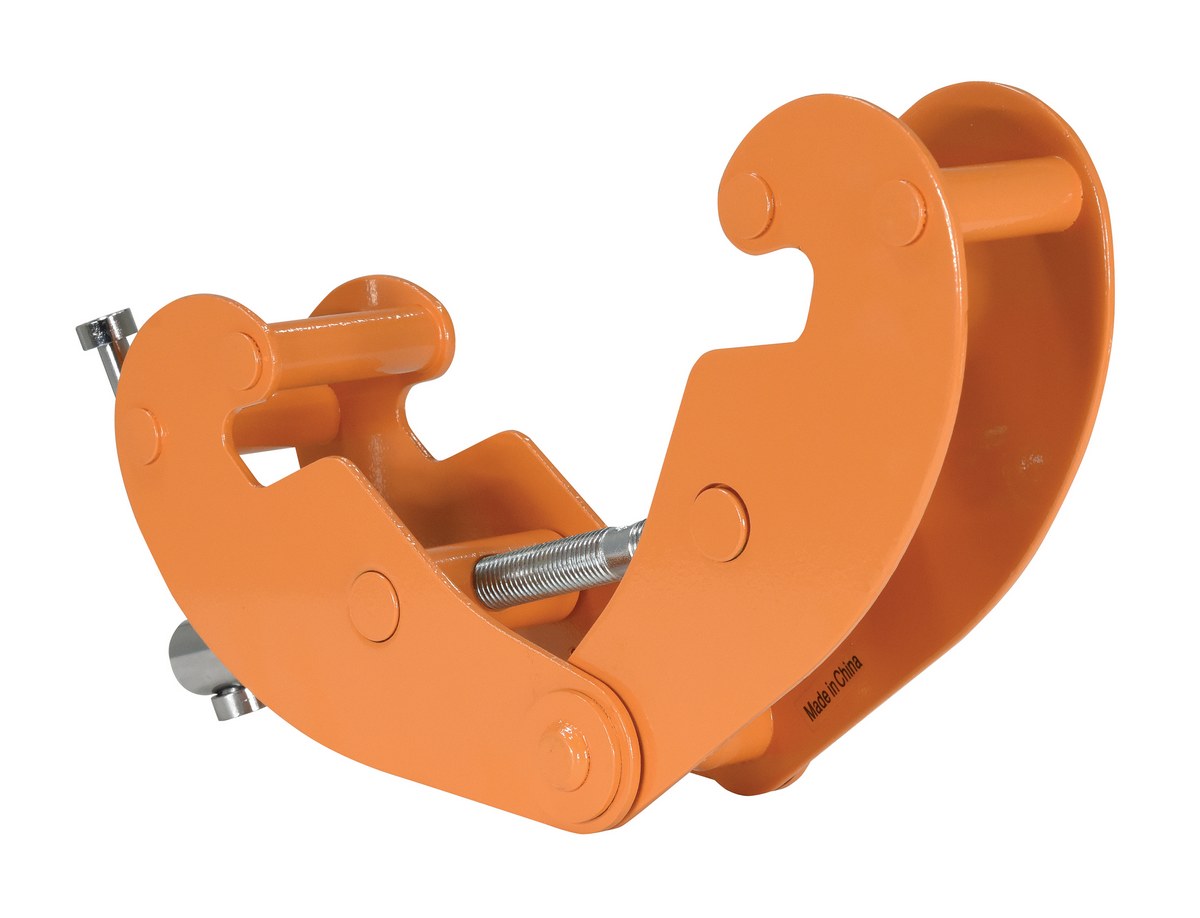

| BC-1 |  | 90 Days Limited Warranty | Steel Beam Clamp Horizontal Lift Style 16-1/2 In. x 3-1/2 In. x 6-1/4 In. 1000 Lb. Capacity Orange | Uniform Capacity (lb.): 1,000 Fits Beam Flange Width (in.): 3-1/8 to 9-5/8 | 10 | ||

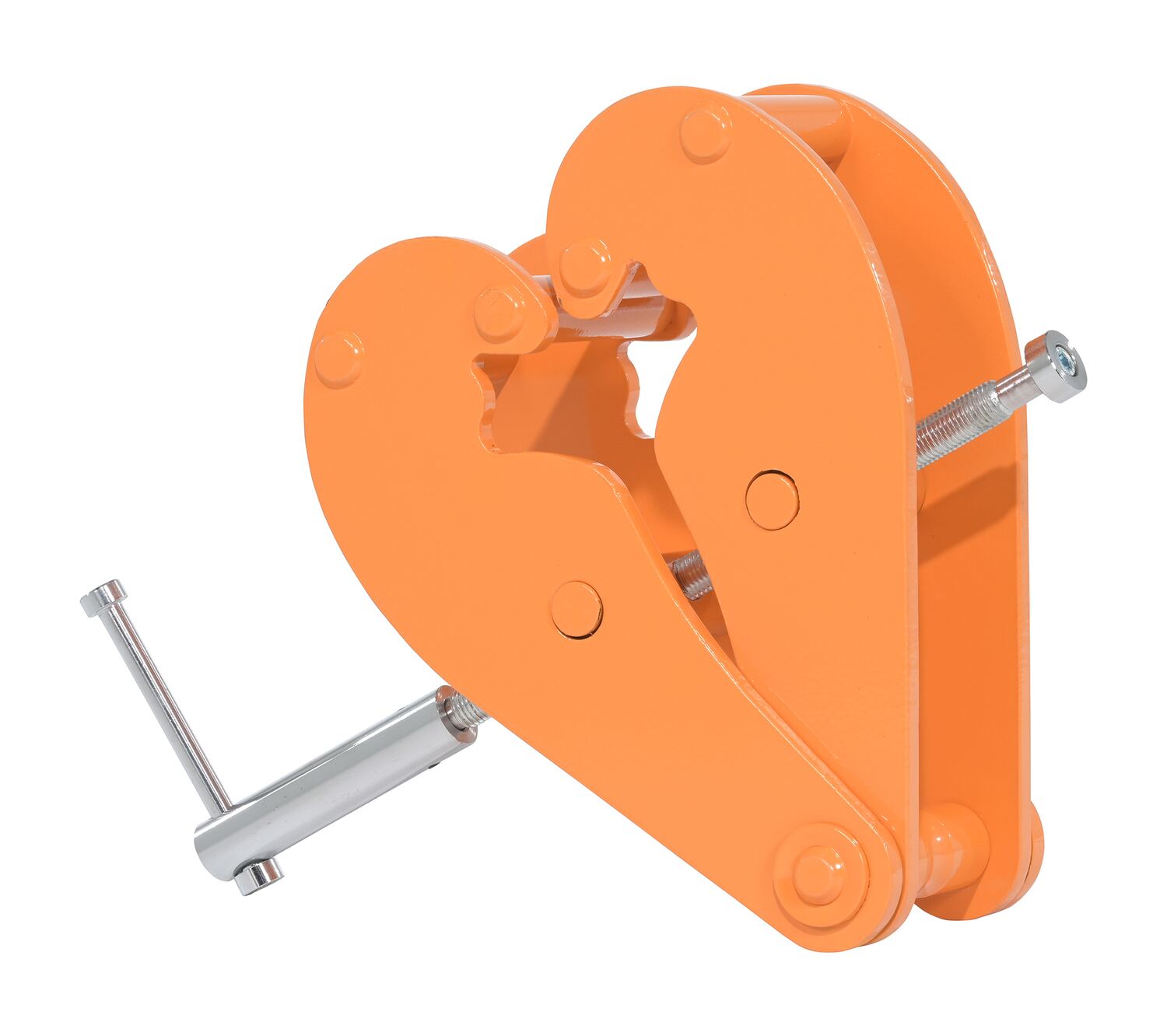

| BC-10 | | 90 Days Limited Warranty | Steel Beam Clamp Horizontal Lift Style 21-1/4 In. x 5-1/4 In. x 7-3/4 In. 10000 Lb. Capacity Orange | Uniform Capacity (lb.): 10000 Fits Beam Flange Width (in.): 3-1/2 to 12-1/4 | 38 | ||

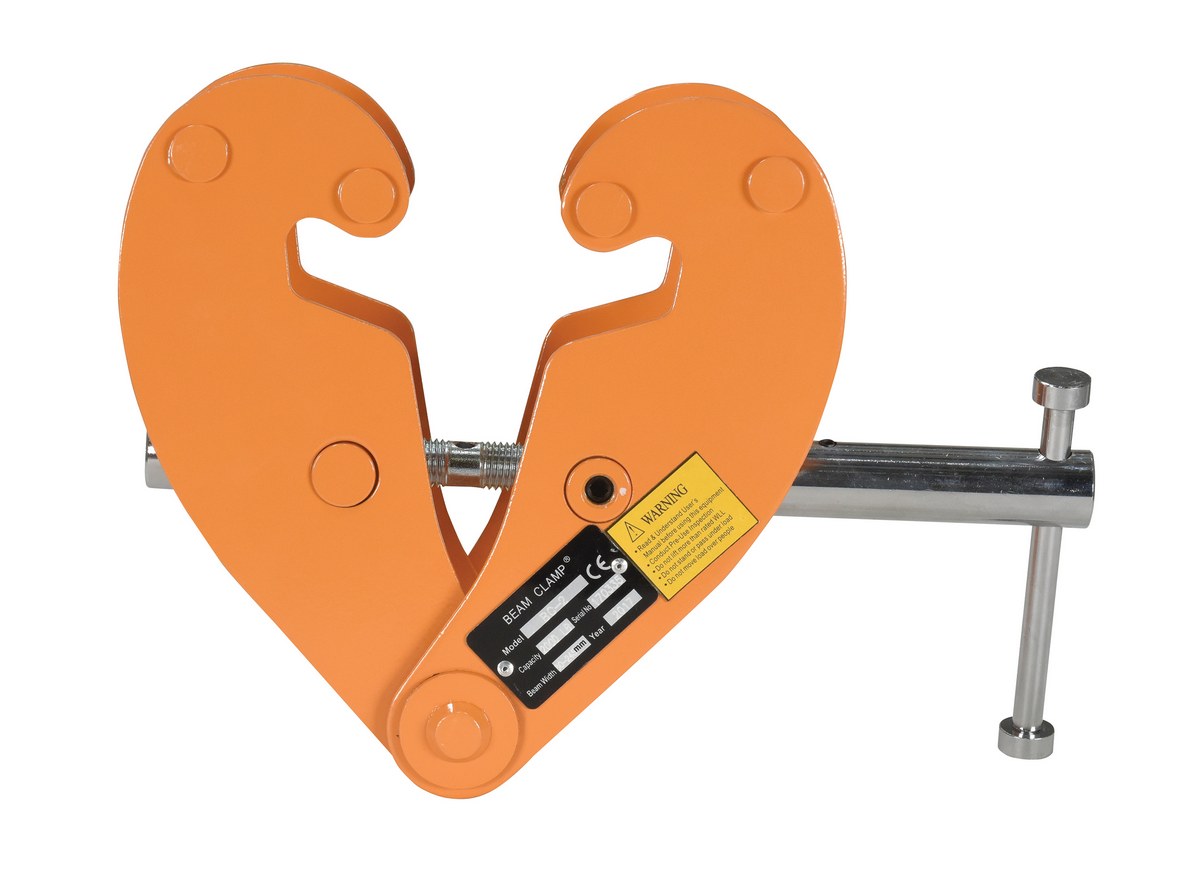

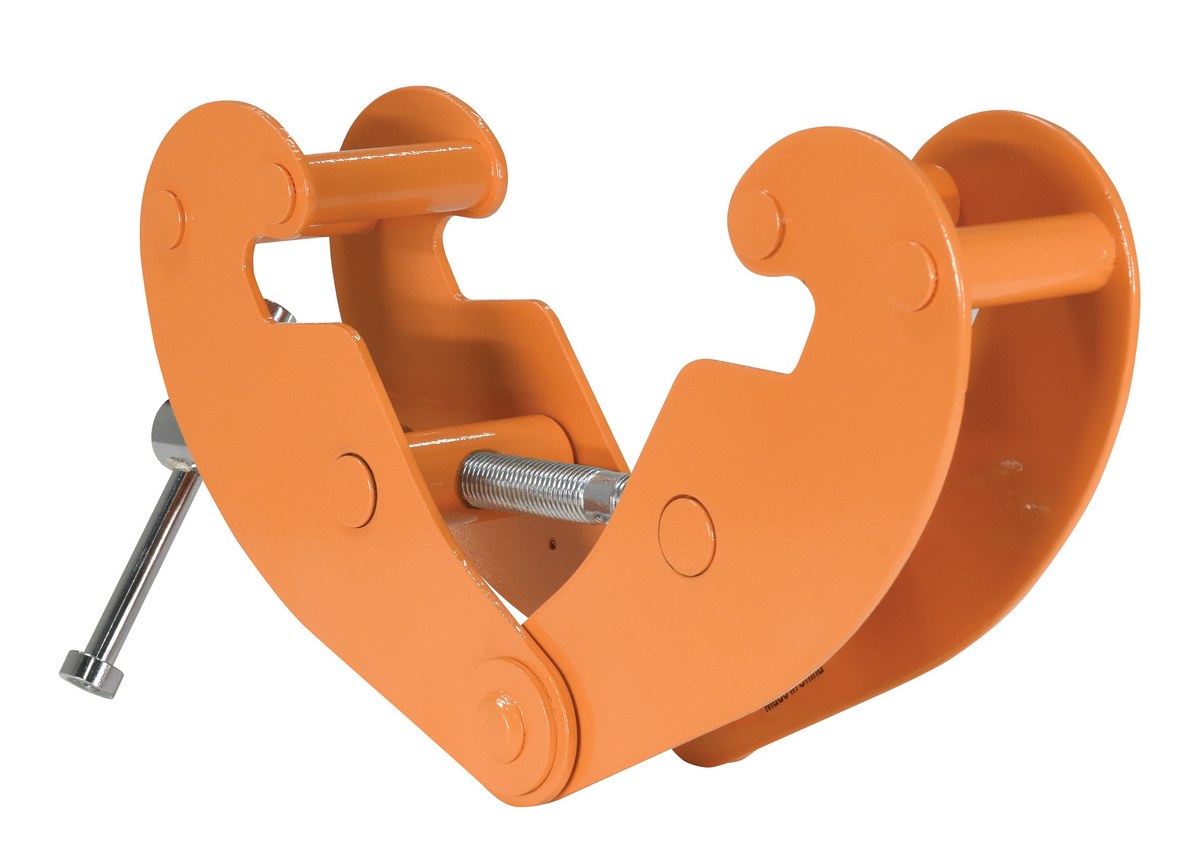

| BC-2 | | 90 Days Limited Warranty | Steel Beam Clamp Horizontal Lift Style 16-1/2 In. x 3-1/2 In. x 6-1/4 In. 2000 Lb. Capacity Orange | Uniform Capacity (lb.): 2,000 Fits Beam Flange Width (in.): 3-1/8 to 9-5/8 | 10 | ||

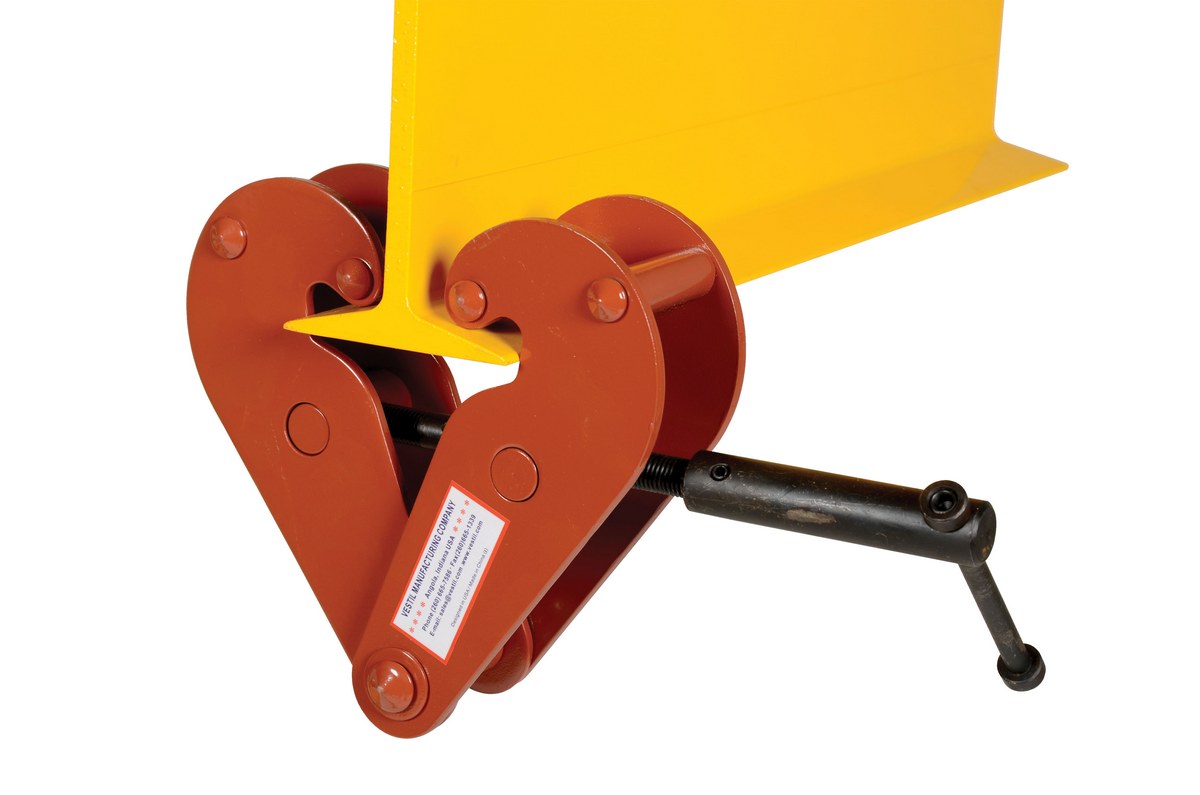

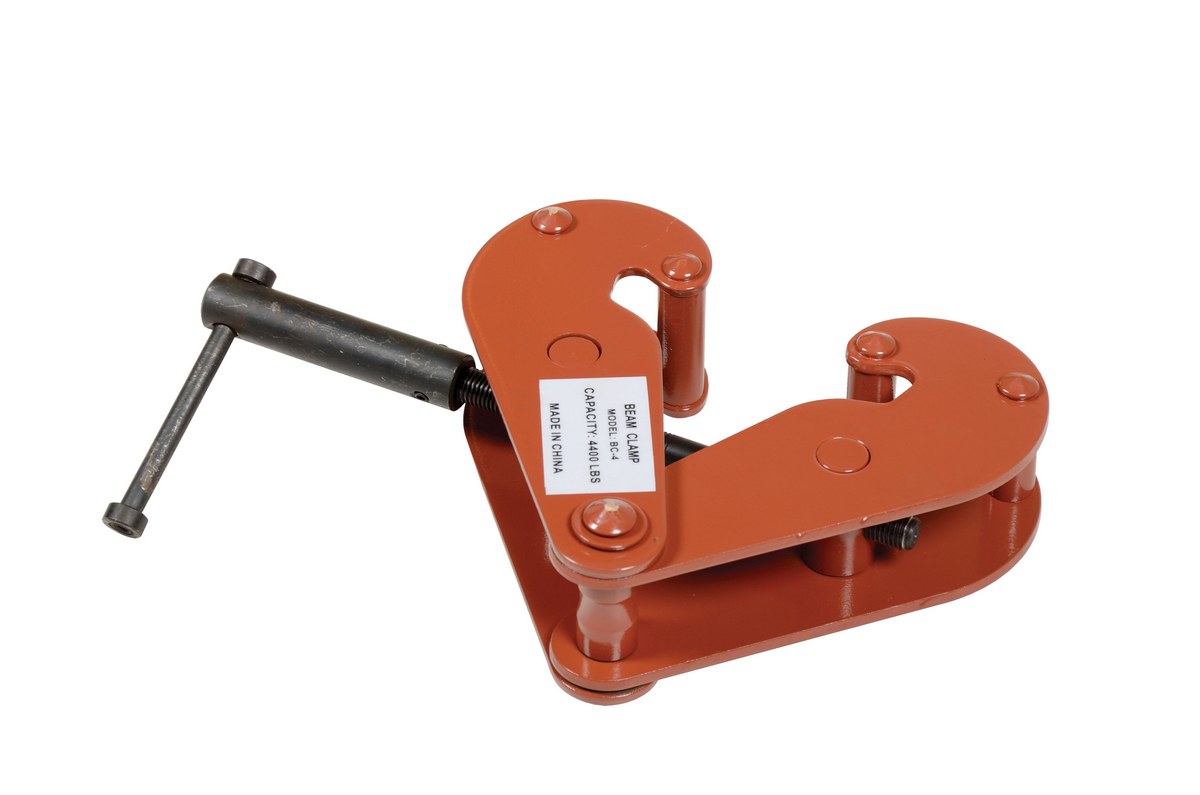

| BC-4 | | 90 Days Limited Warranty | Steel Beam Clamp Horizontal Lift Style 16 In. x 4 In. x 6-1/2 In. 4000 Lb. Capacity Orange | Uniform Capacity (lb.): 4,000 Fits Beam Flange Width (in.): 3-1/8 to 9-5/8 | 12 | ||

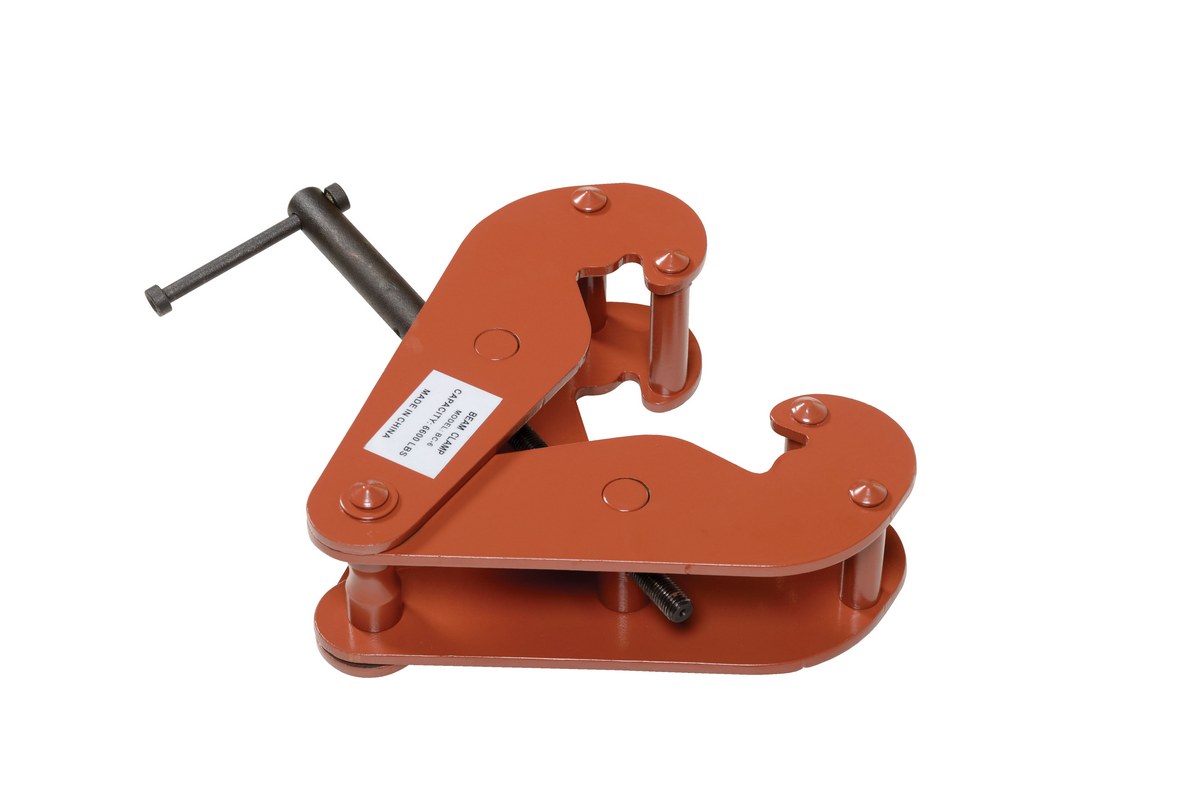

| BC-6 |  | 90 Days Limited Warranty | Steel Beam Clamp Horizontal Lift Style 20-1/4 In. x 5-1/4 In. x 7-3/4 In. 6000 Lb. Capacity Orange | Uniform Capacity (lb.): 6,000 Fits Beam Flange Width (in.): 3-1/2 to 12-1/4 | 28 | ||

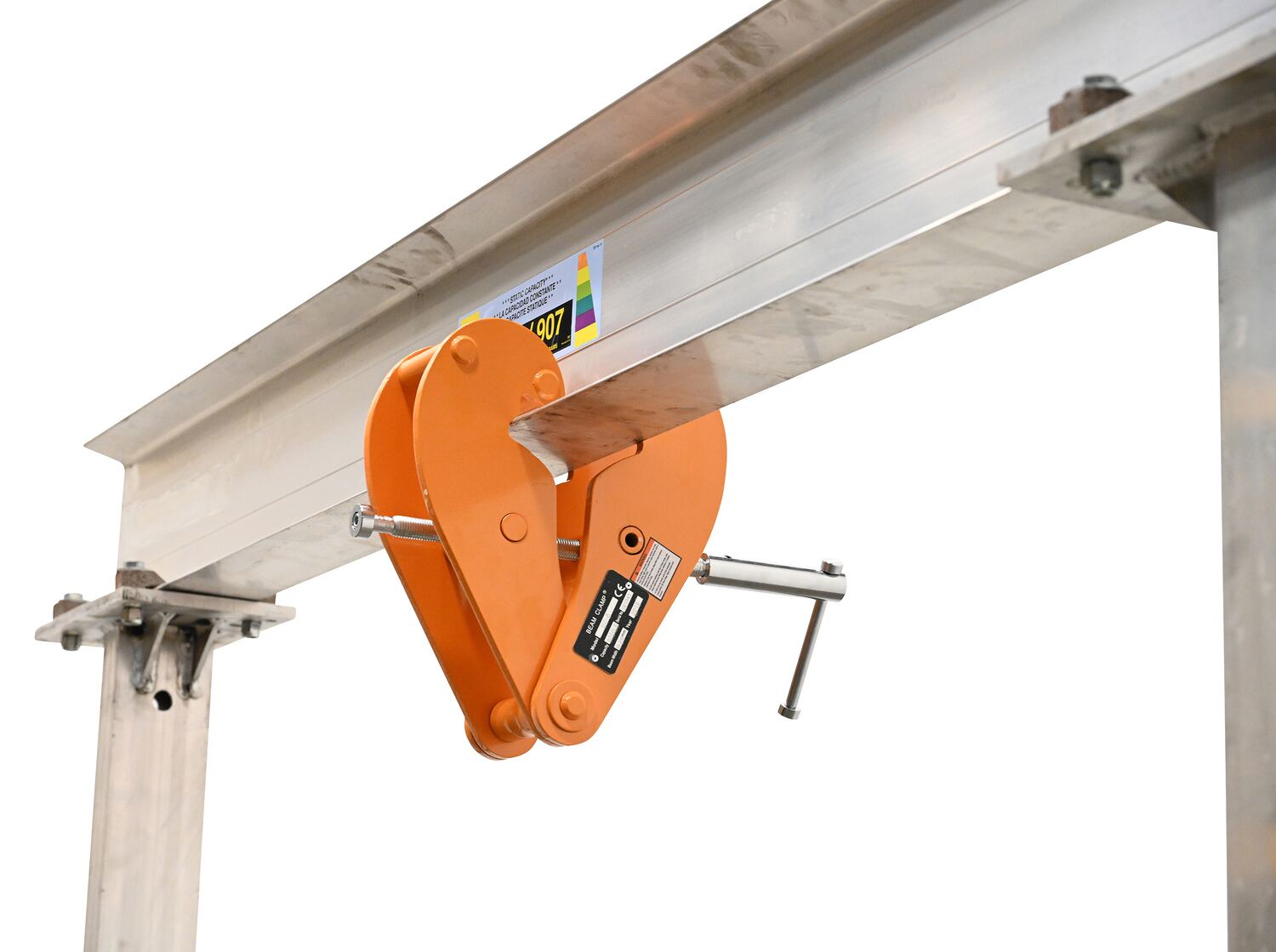

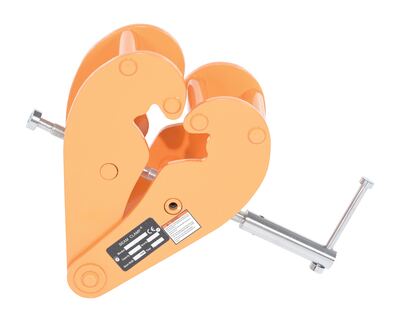

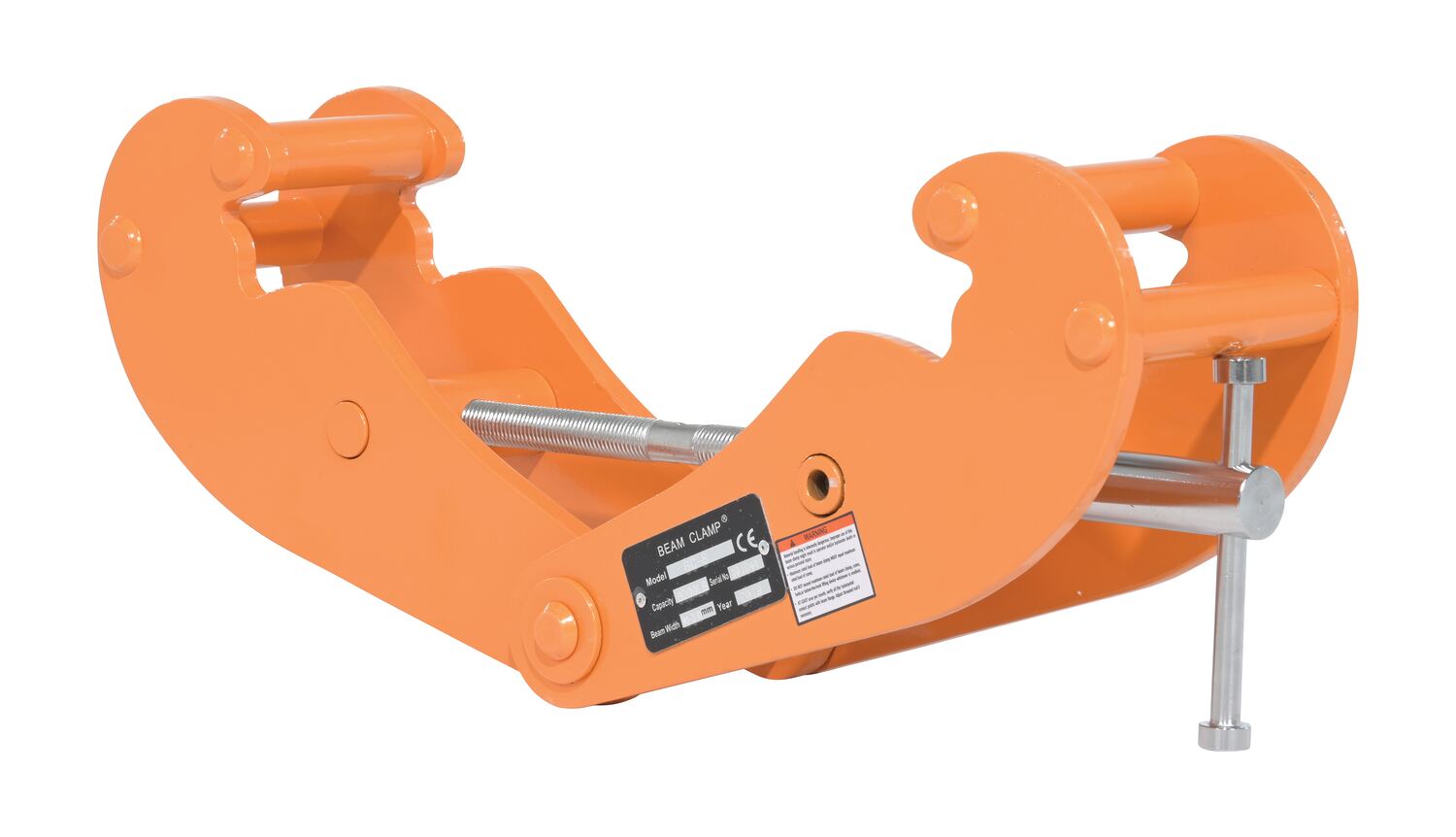

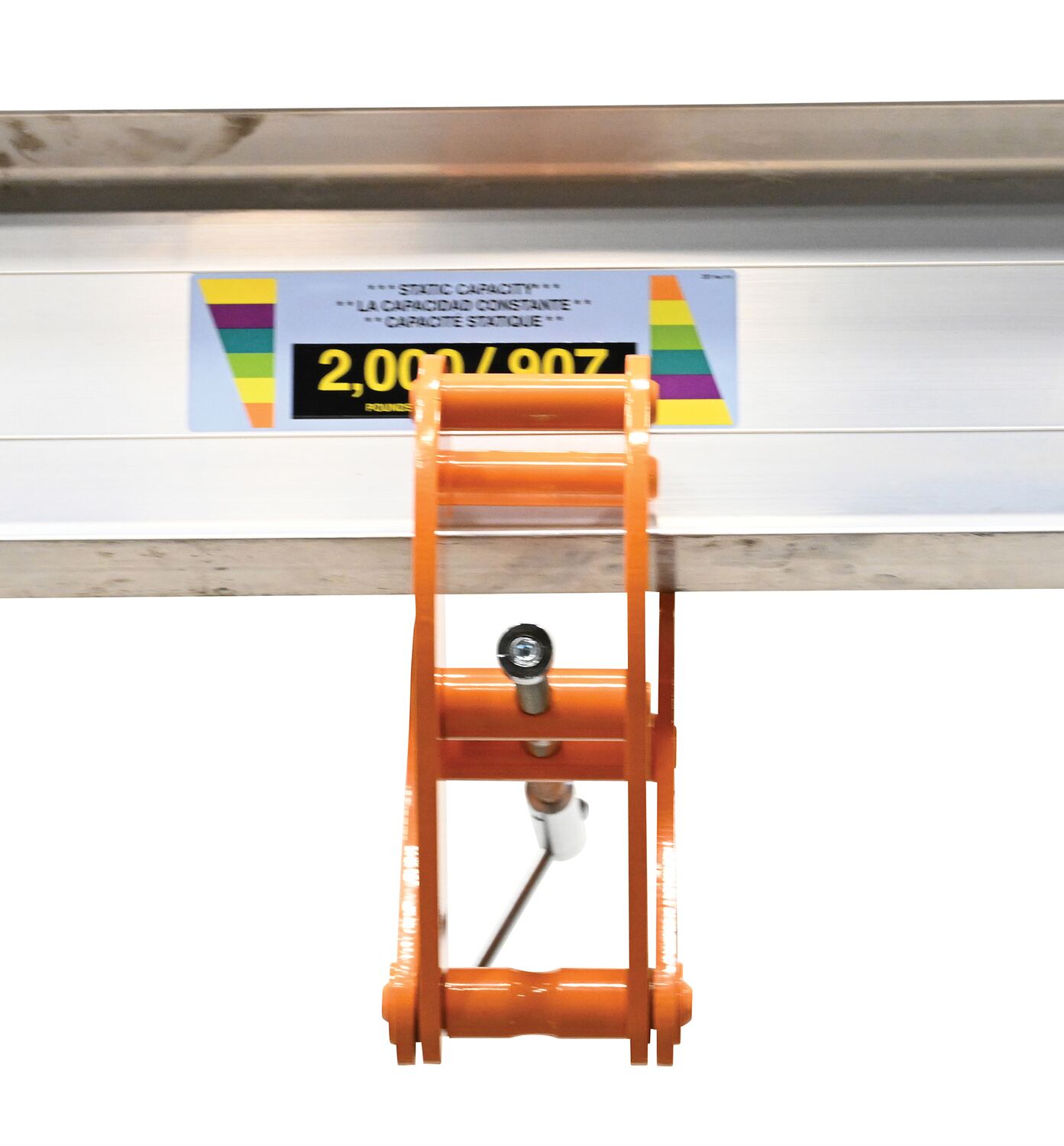

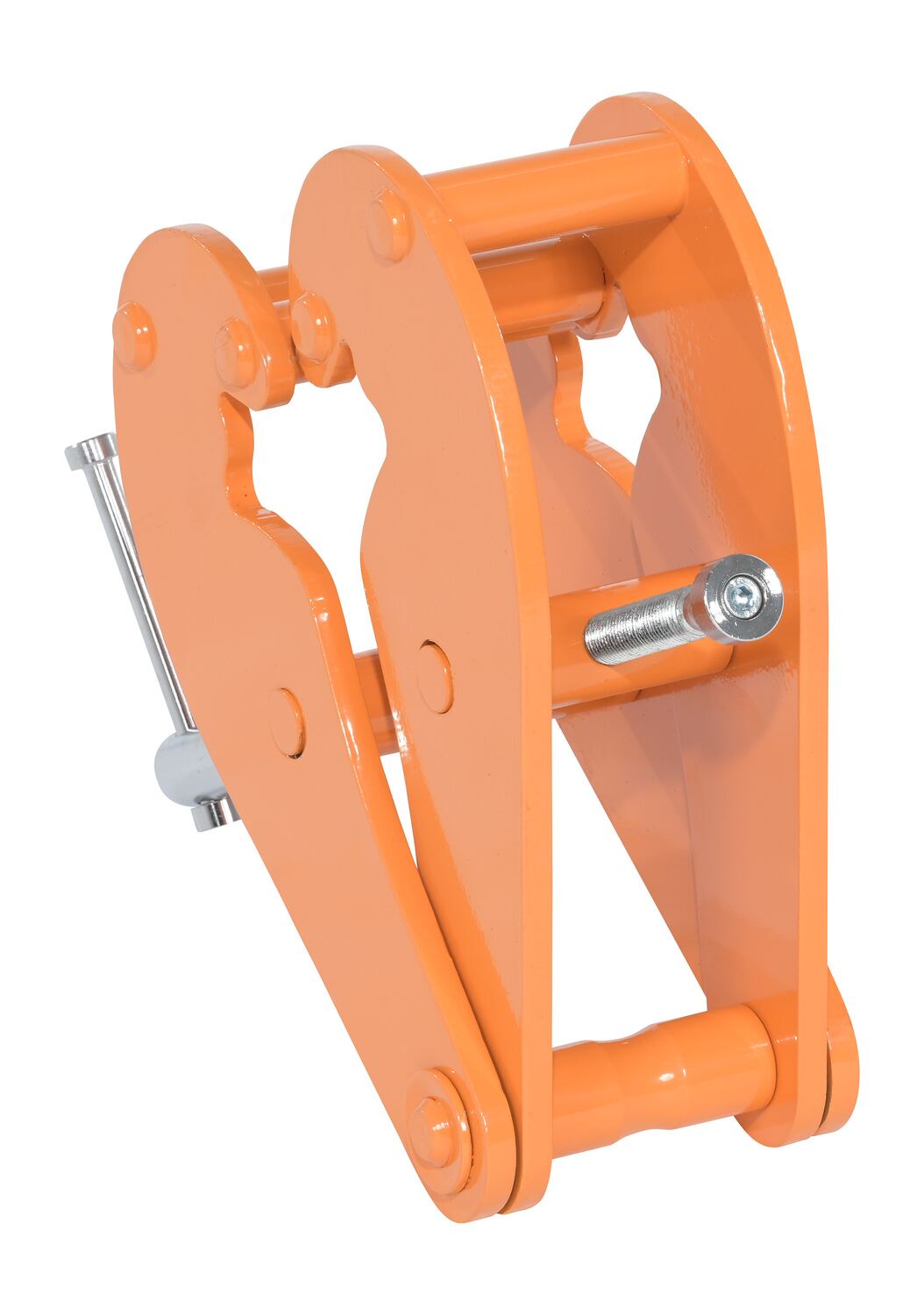

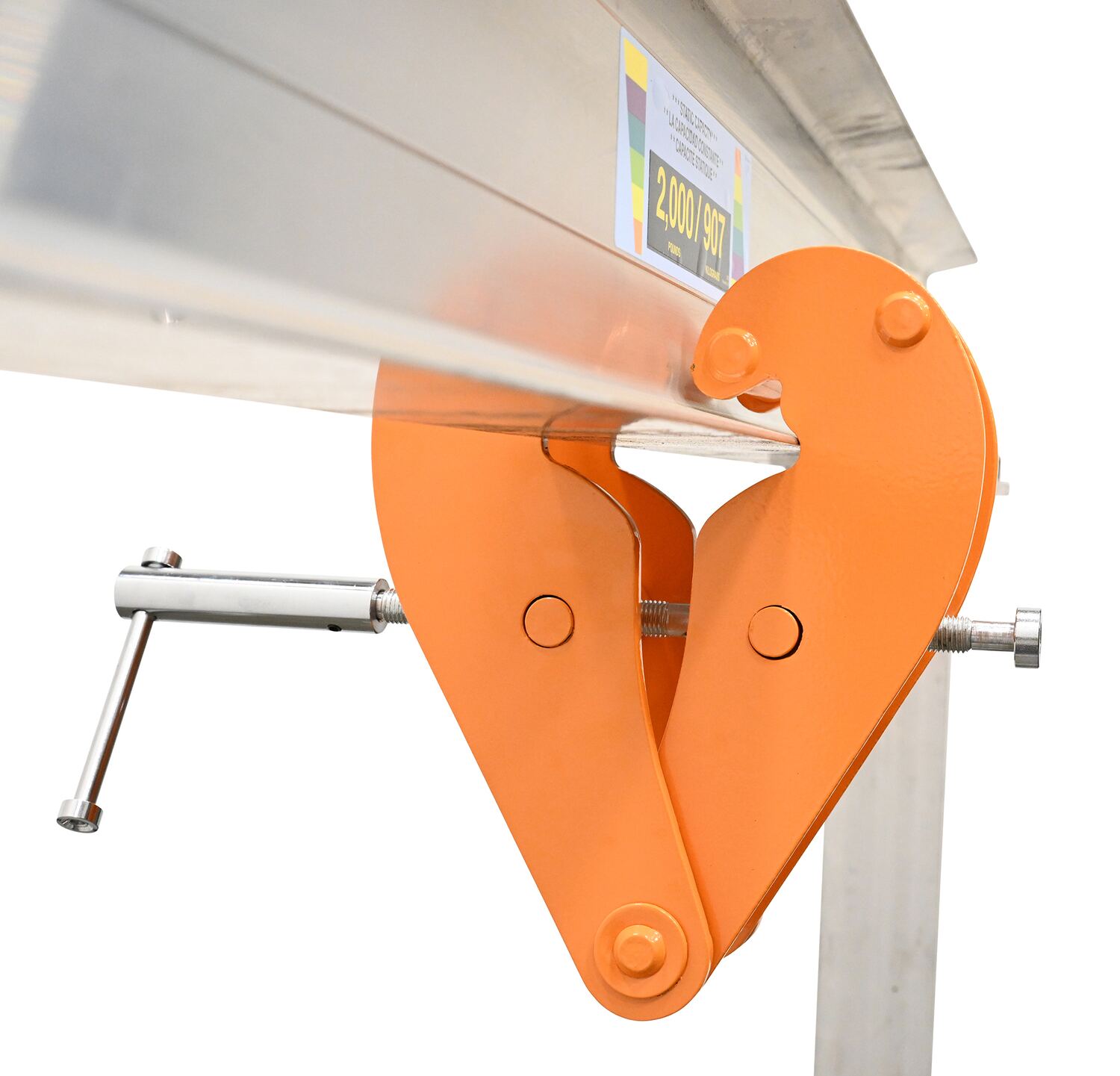

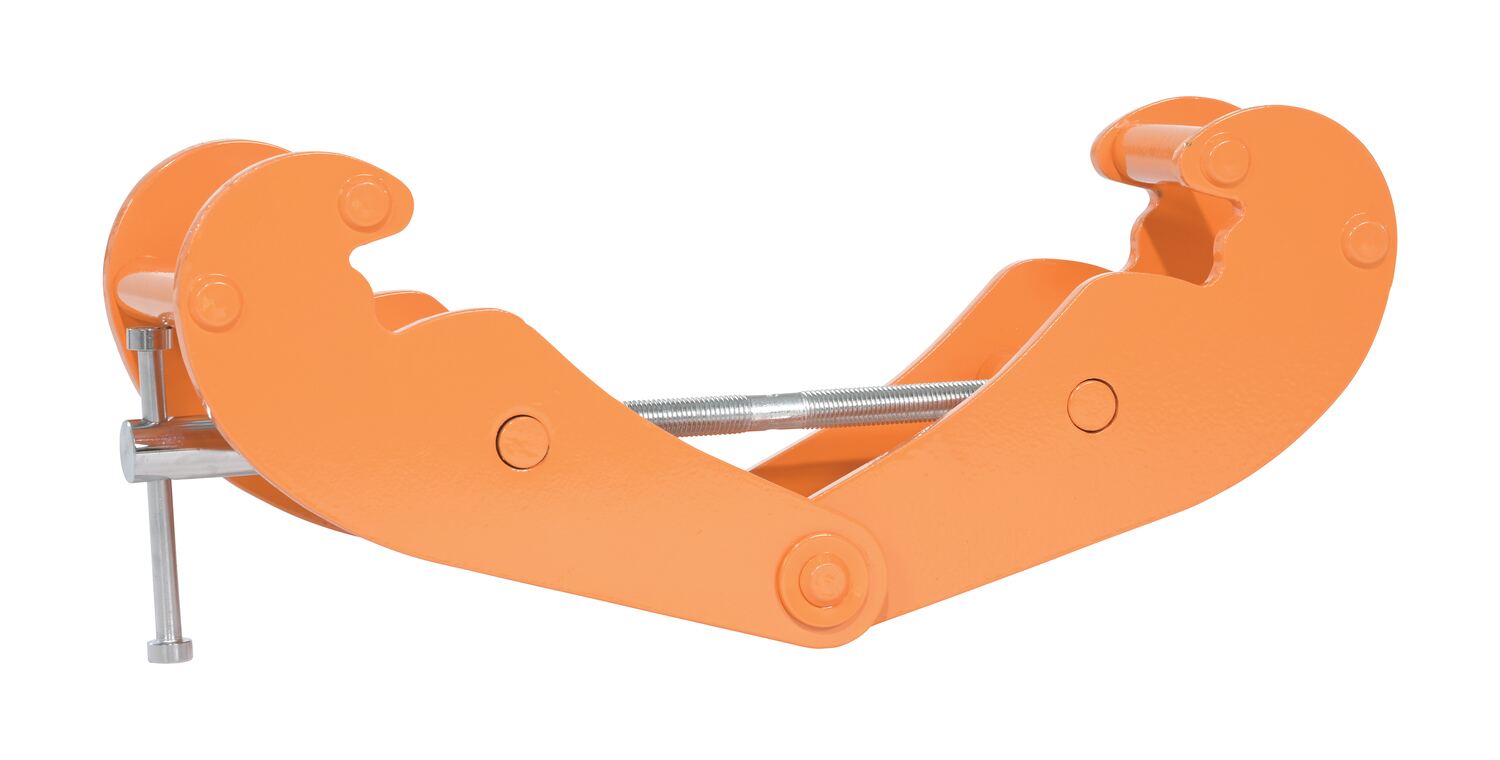

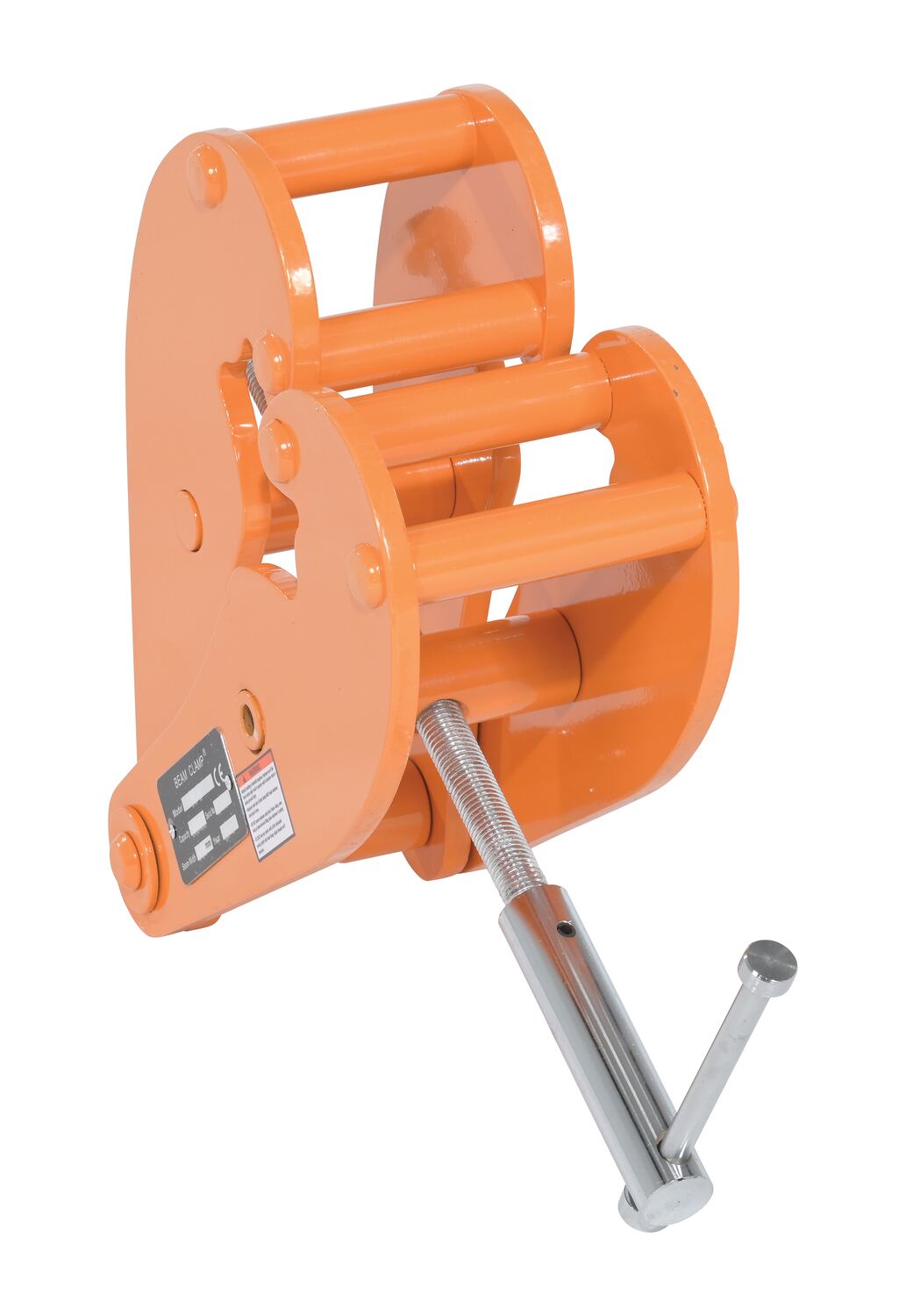

| BC-8 | | 90 Days Limited Warranty | Steel Beam Clamp Horizontal Lift Style 21-1/4 In. x 5-1/4 In. x 7-3/4 In. 8000 Lb. Capacity Orange | Uniform Capacity (lb.): 8,000 Fits Beam Flange Width (in.): 3-1/2 to 12-1/4 | 38 |
KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1,000
Fits Beam Flange Width (in.): 3-1/8 to 9-5/8
Uniform Capacity (lb.): 1,000
Fits Beam Flange Width (in.): 3-1/8 to 9-5/8
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 10000
Fits Beam Flange Width (in.): 3-1/2 to 12-1/4
Uniform Capacity (lb.): 10000
Fits Beam Flange Width (in.): 3-1/2 to 12-1/4
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,000
Fits Beam Flange Width (in.): 3-1/8 to 9-5/8
Uniform Capacity (lb.): 2,000
Fits Beam Flange Width (in.): 3-1/8 to 9-5/8
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,000
Fits Beam Flange Width (in.): 3-1/8 to 9-5/8
Uniform Capacity (lb.): 4,000
Fits Beam Flange Width (in.): 3-1/8 to 9-5/8
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 6,000
Fits Beam Flange Width (in.): 3-1/2 to 12-1/4
Uniform Capacity (lb.): 6,000
Fits Beam Flange Width (in.): 3-1/2 to 12-1/4
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 8,000
Fits Beam Flange Width (in.): 3-1/2 to 12-1/4
Uniform Capacity (lb.): 8,000
Fits Beam Flange Width (in.): 3-1/2 to 12-1/4
Manuals
Survey Sheets
Approval Drawings
Testing Certificates
SDS Sheets
Other PDF's
Directory Links Of Available PDF's For All Products
Q: What is the length dimension of a BC-1 from the I-beam clamping point to the bottom of the clamp?
A: The dimension is dependent on the width of beam that it is installed on. Here are some measurements as reference. Closed end of range 6". In the middle of its range 5". Open end of range 4".
 |
|||||||||||||||||||||||||||||||||||||
