Overhead Coil HooksDesigned for lifting heavy coils with overhead lifting device. Easy position coils from horizontal to vertical position. Steel construction with a yellow baked-in powder coated finish for added toughness.

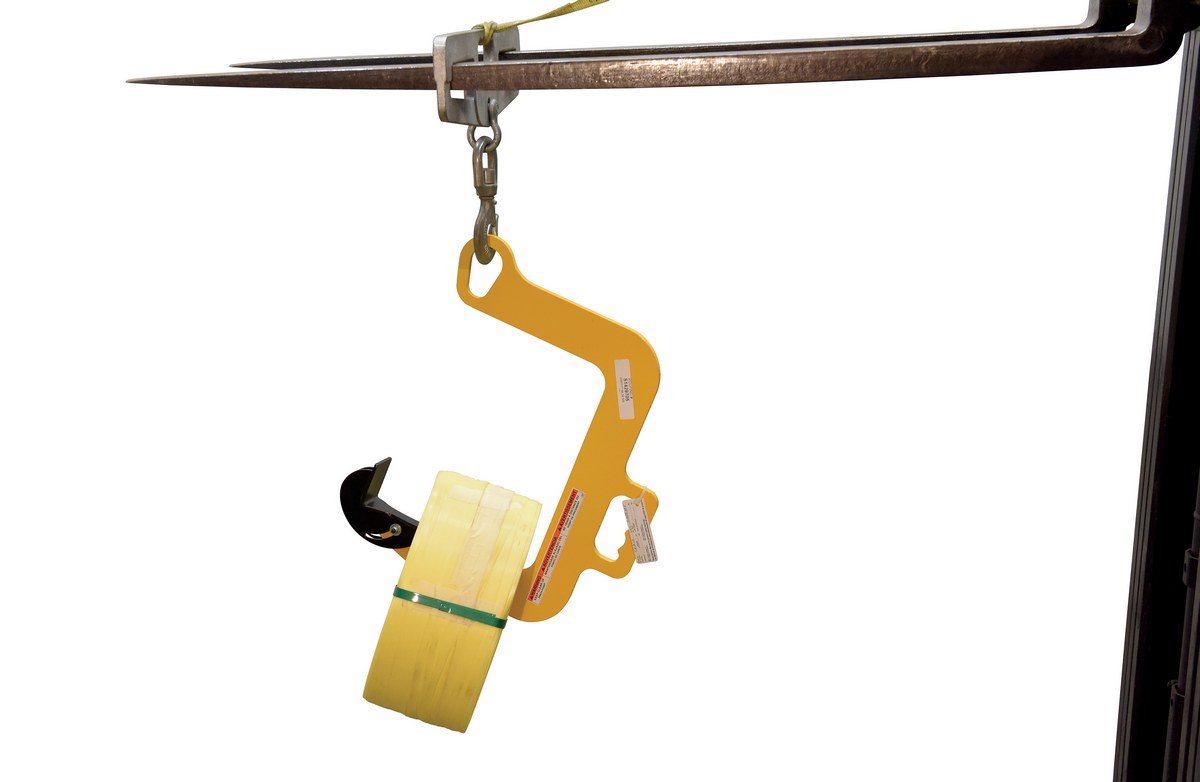

- Overhead coil hook is designed for lifting heavy coils with overhead lifting device
- The sole purpose is for easy positioning of coils from horizontal to vertical position
- May also be used as a beam clamp for smaller, less heavier beams
- Made from steel and powder coated yellow for durability and easy visibility
Heavy Duty Load Lifter
Heavy-Duty Pipe Grabs
Steel Sheet Lifter
Deluxe Drywall/Panel Hoist
All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
| Model # | Description | Attributes | Net Wt. (lbs) |
||||
|---|---|---|---|---|---|---|---|

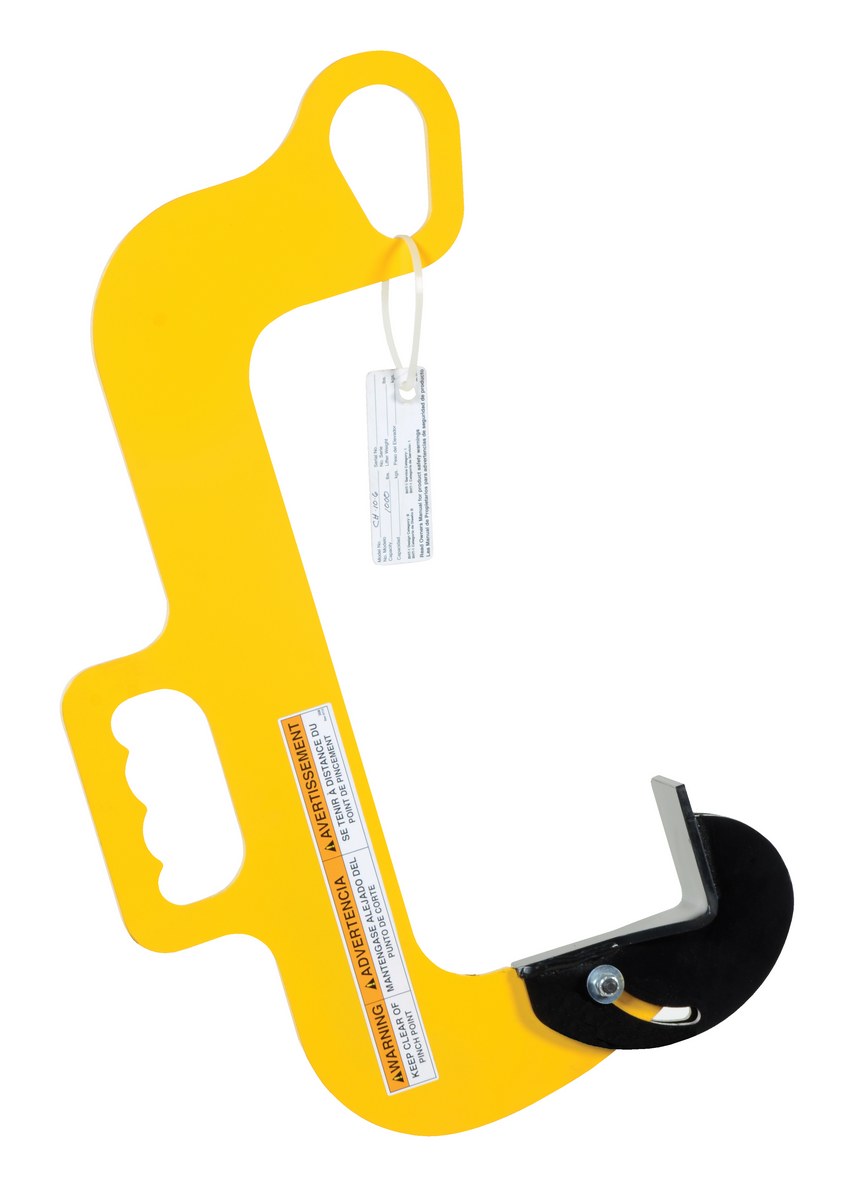

| CH-10-6 |  | 90 Days Limited Warranty | Steel Overhead Coil Hook 6 In. 1000 Lb. Capacity Yellow | Lifting Capacity (lb.): 1,000 Maximum Coil Width (in.): 6 | 22 | ||

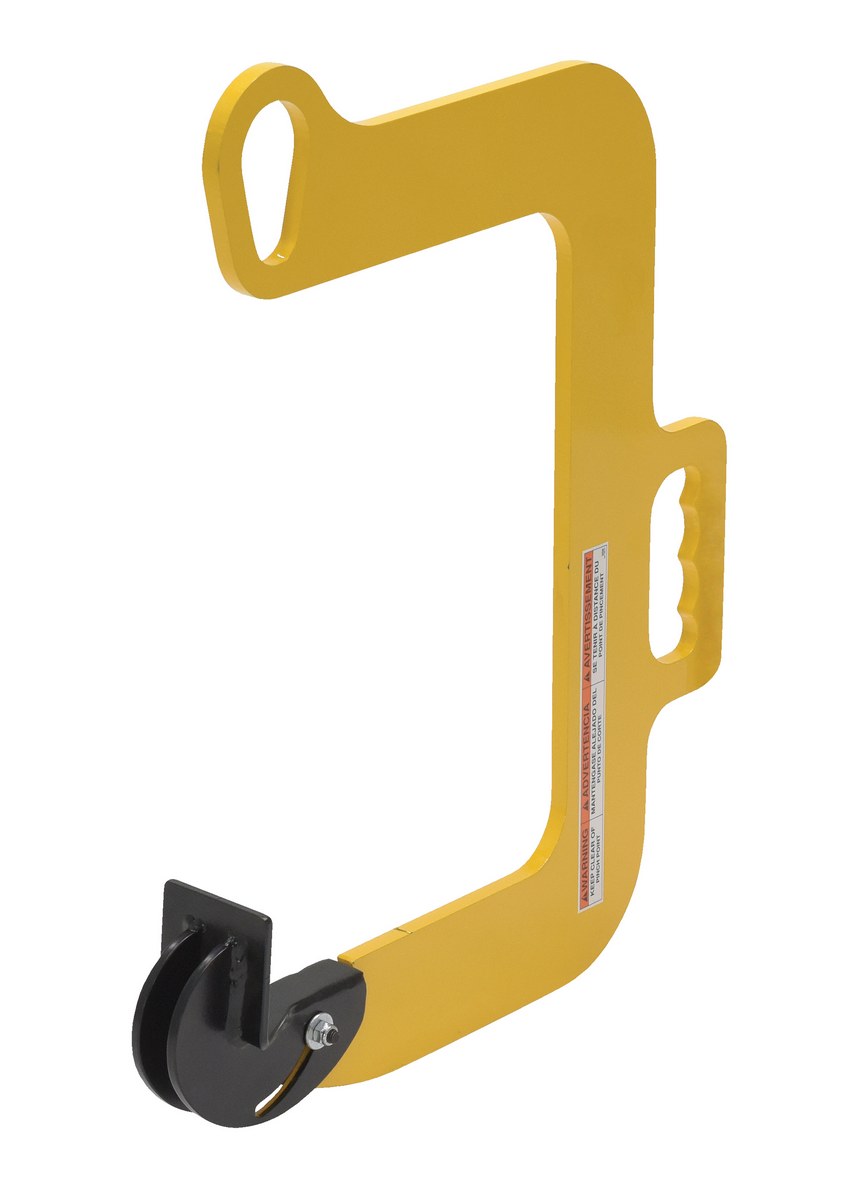

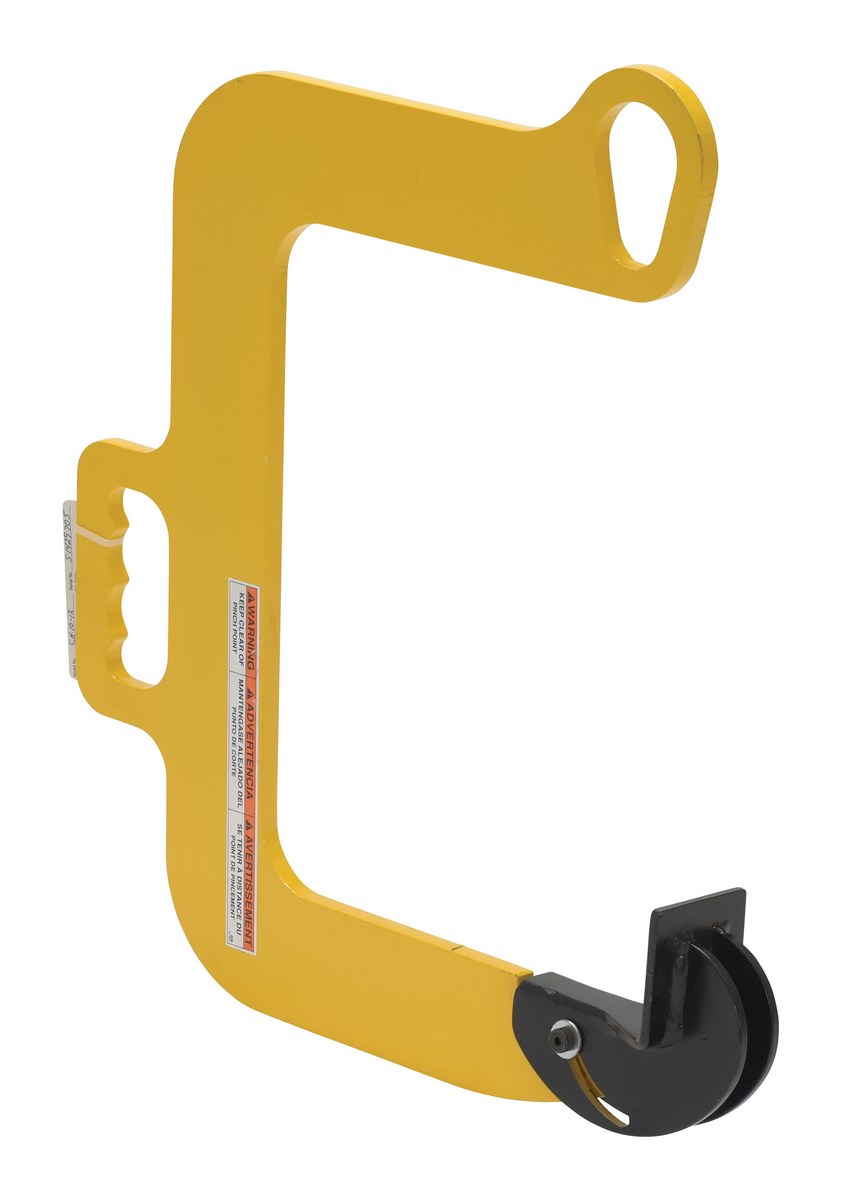

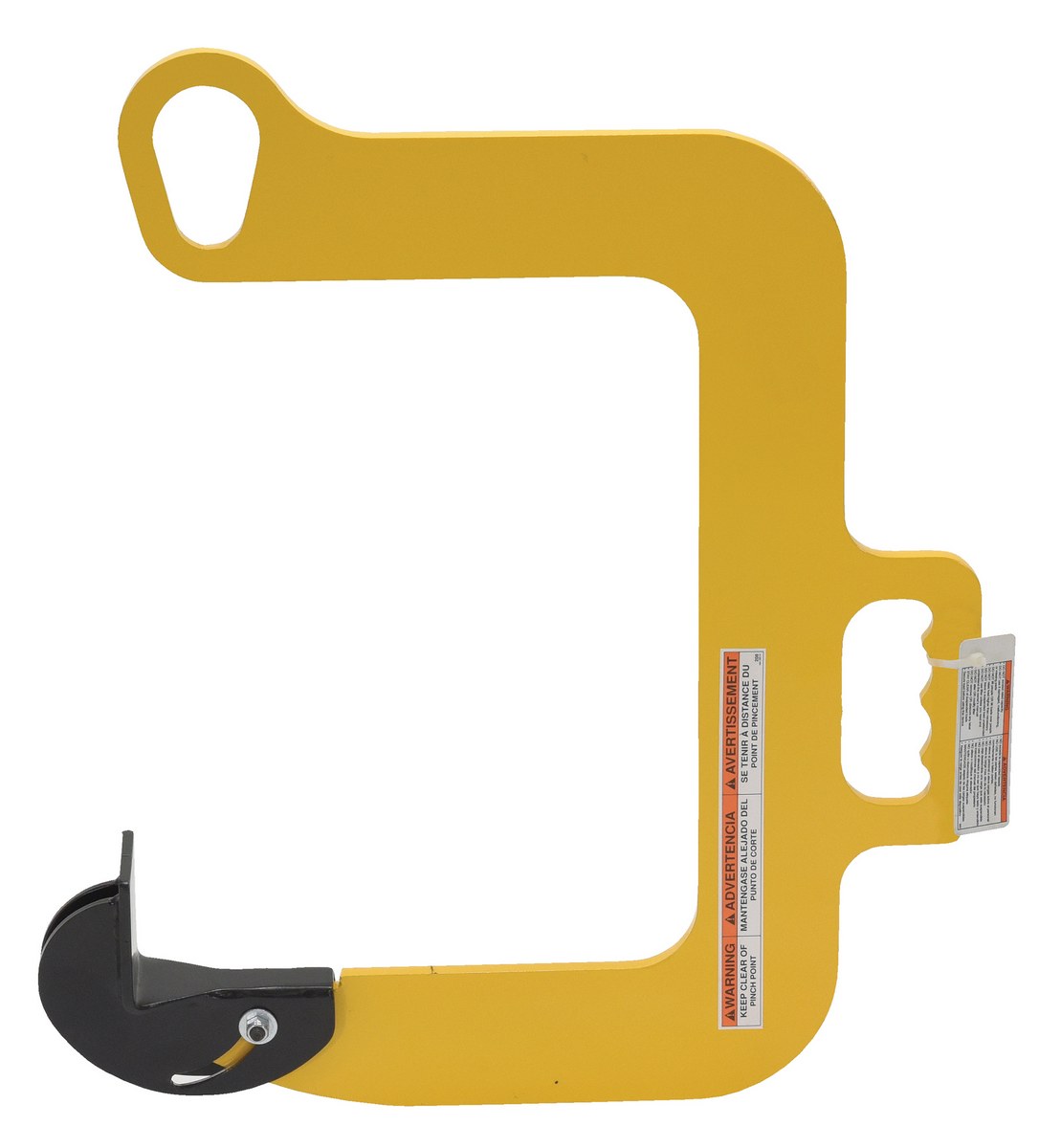

| CH-10-12 |  | 90 Days Limited Warranty | Steel Overhead Coil Hook 12 In. 1000 Lb. Capacity Yellow | Lifting Capacity (lb.): 1,000 Maximum Coil Width (in.): 12 | 28 | ||

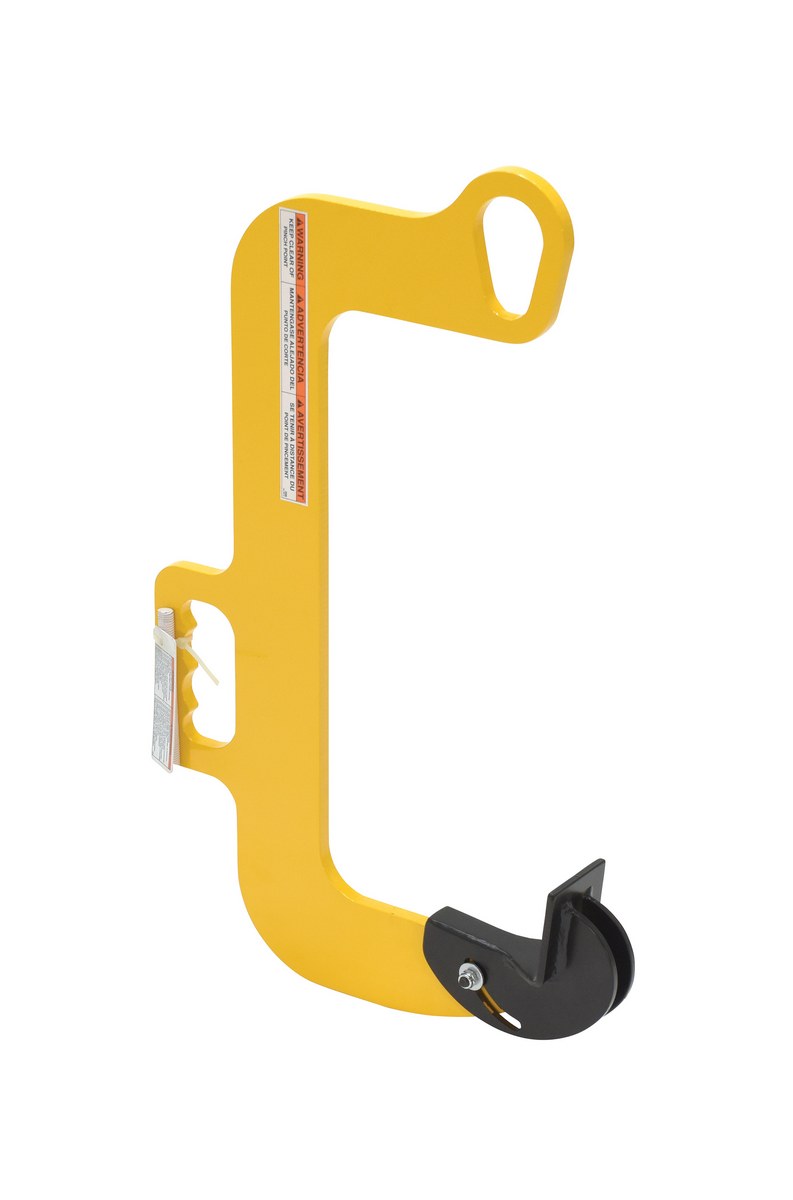

| CH-20-8 |  | 90 Days Limited Warranty | Steel Overhead Coil Hook 8 In. 2000 Lb. Capacity Yellow | Lifting Capacity (lb.): 2,000 Maximum Coil Width (in.): 8 | 25 |
KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required
Unit:
Size: W x L x H
Weight:
Limited Warranty
Lifting Capacity (lb.): 1,000
Maximum Coil Width (in.): 6
Lifting Capacity (lb.): 1,000
Maximum Coil Width (in.): 6
Unit:
Size: W x L x H
Weight:
Limited Warranty
Lifting Capacity (lb.): 1,000
Maximum Coil Width (in.): 12
Lifting Capacity (lb.): 1,000
Maximum Coil Width (in.): 12
Unit:
Size: W x L x H
Weight:
Limited Warranty
Lifting Capacity (lb.): 2,000
Maximum Coil Width (in.): 8
Lifting Capacity (lb.): 2,000
Maximum Coil Width (in.): 8
