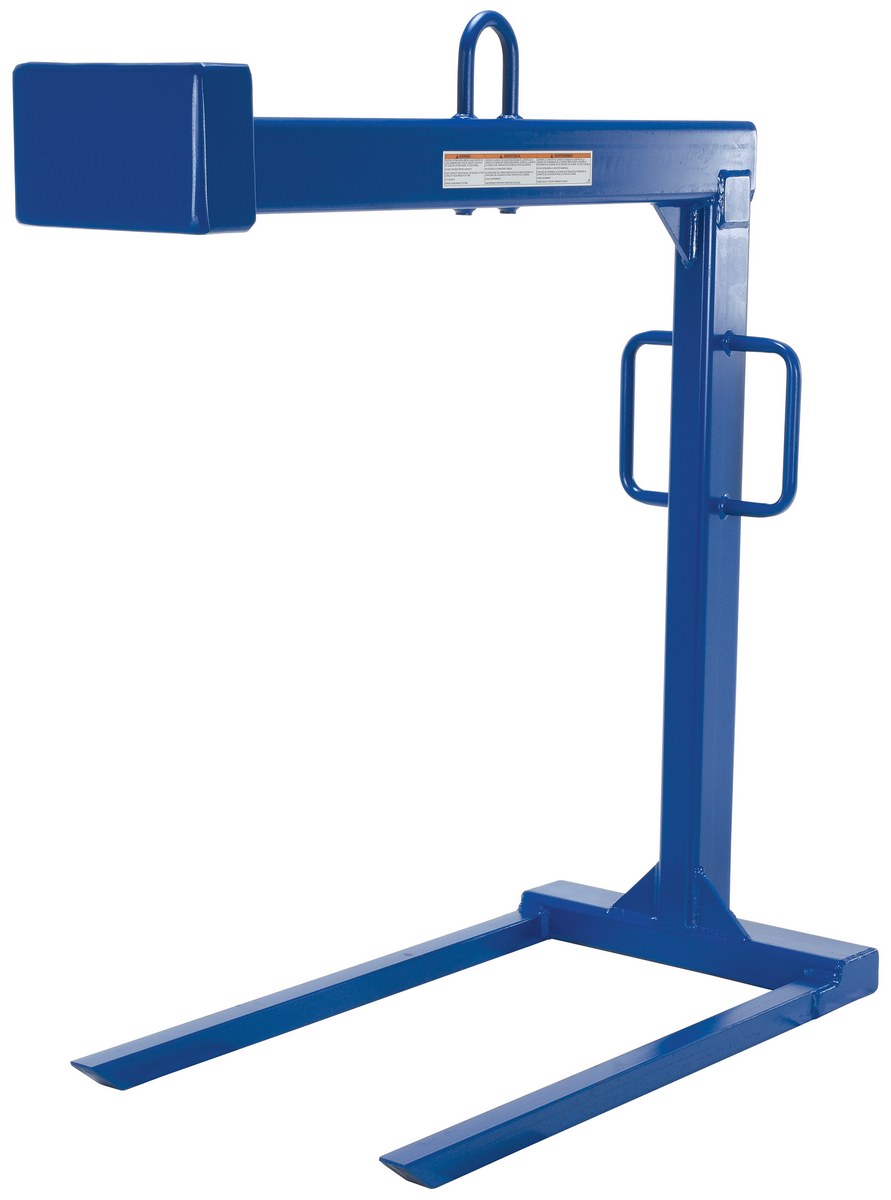

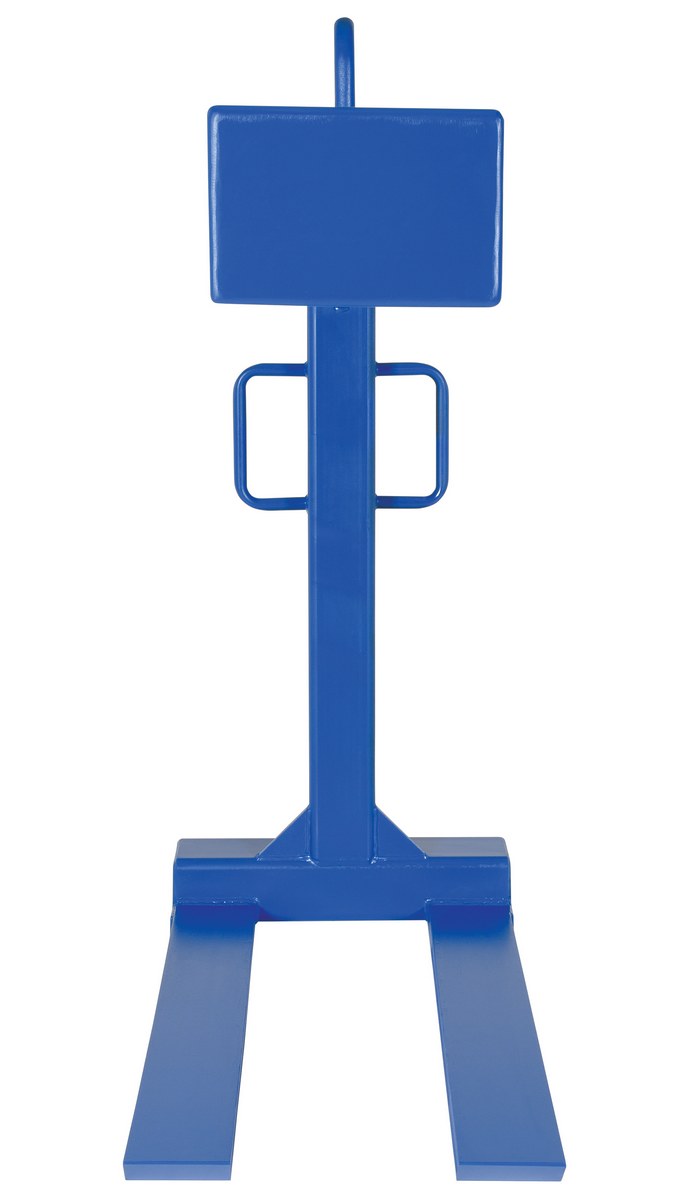

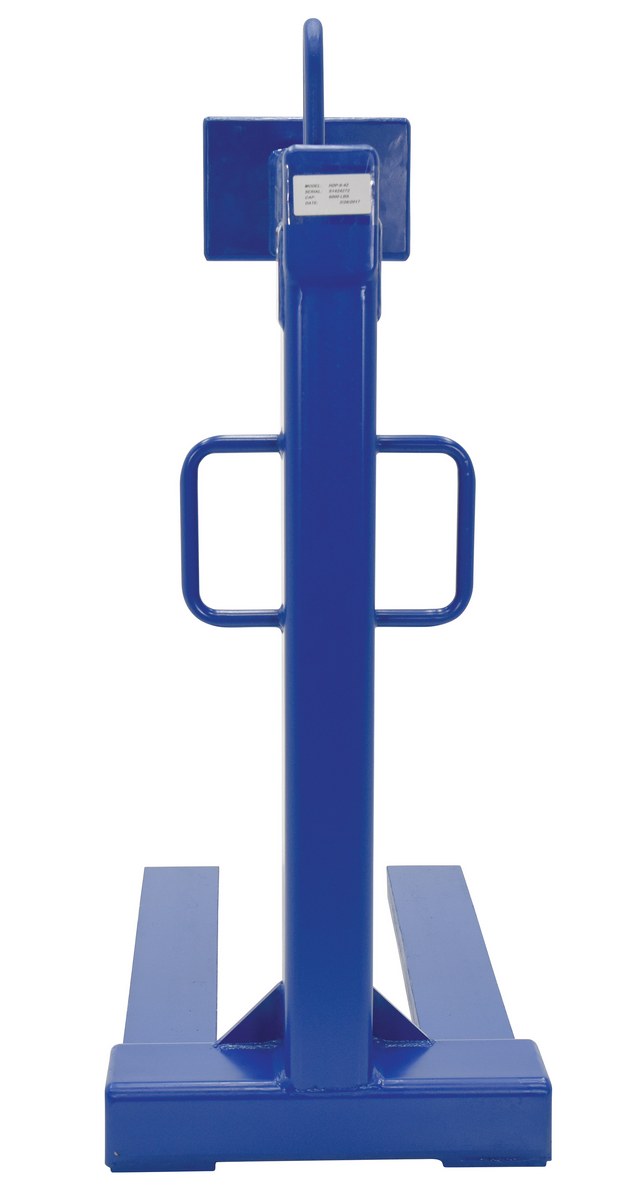

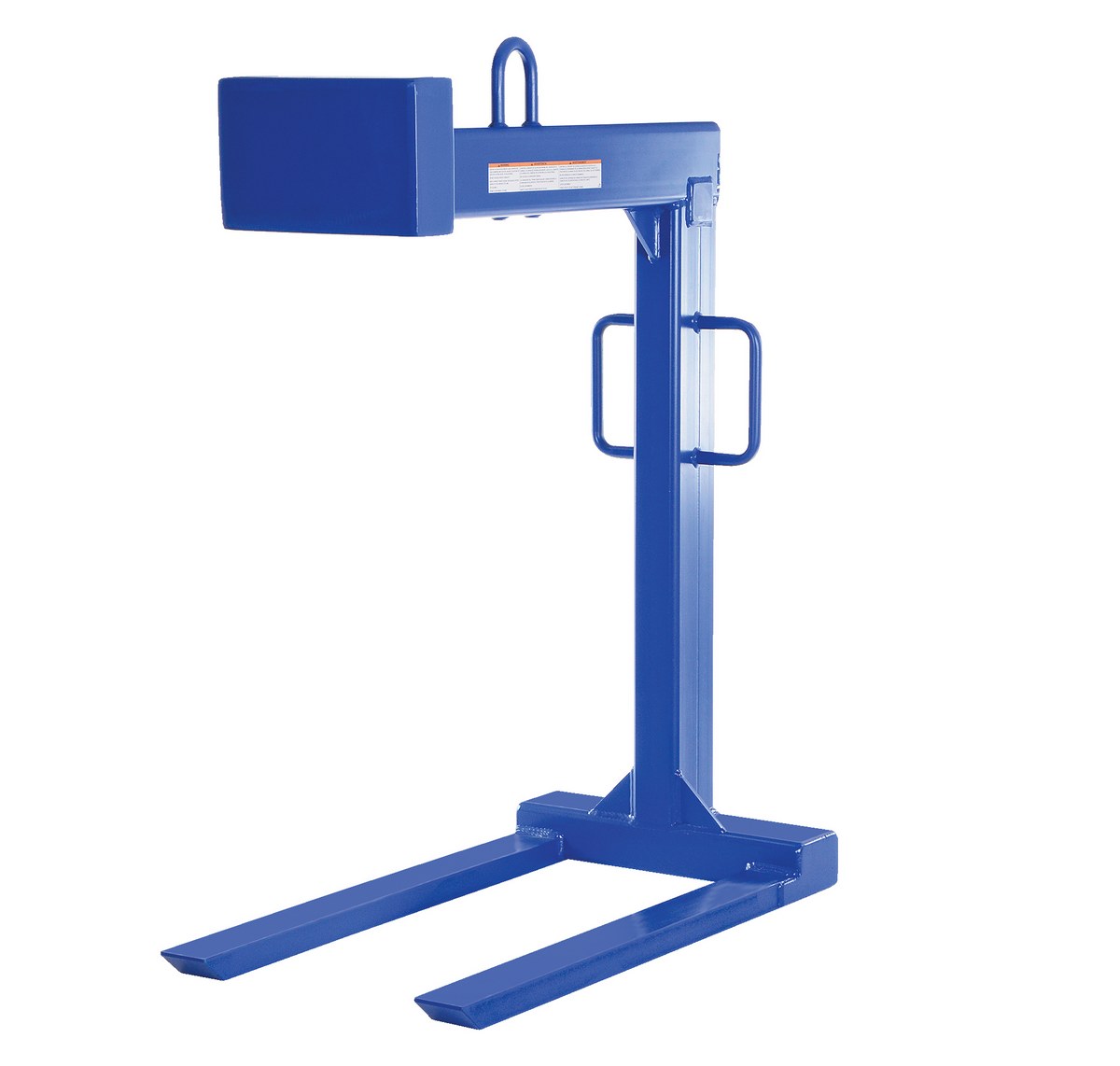

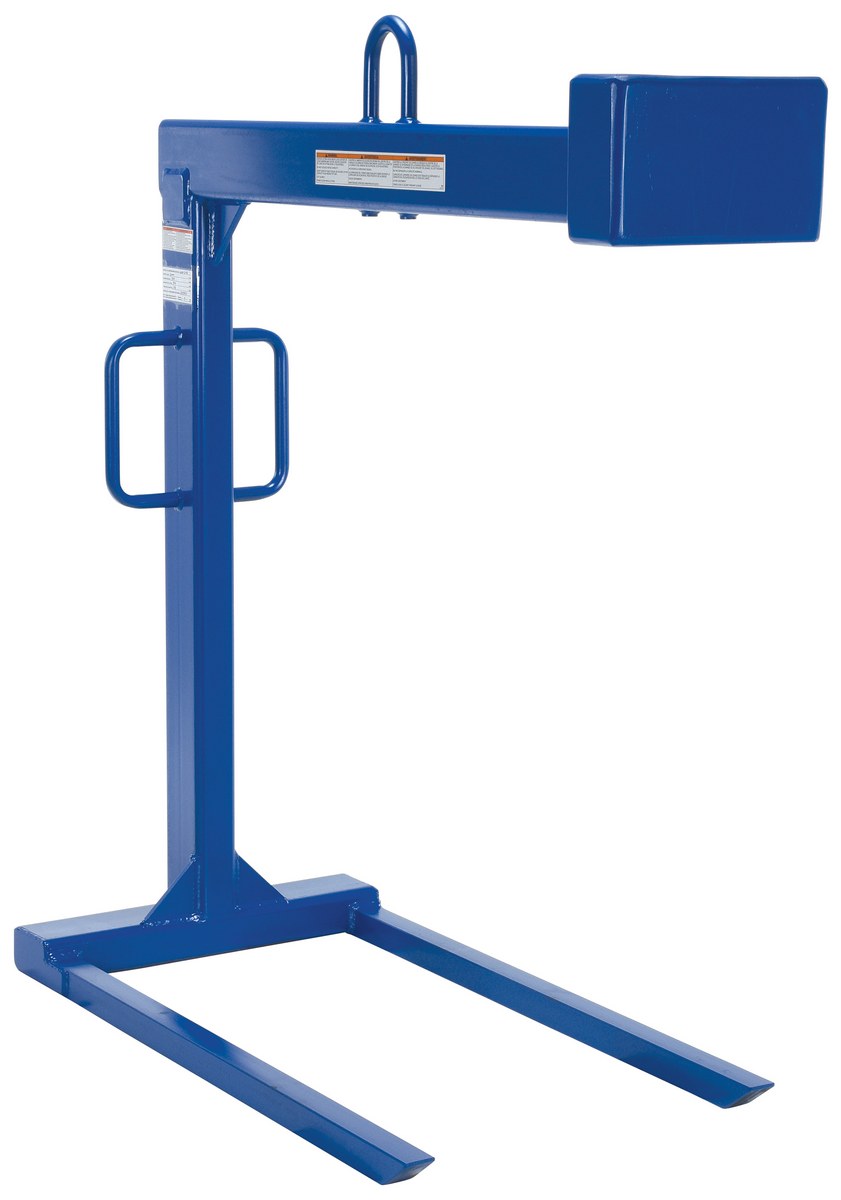

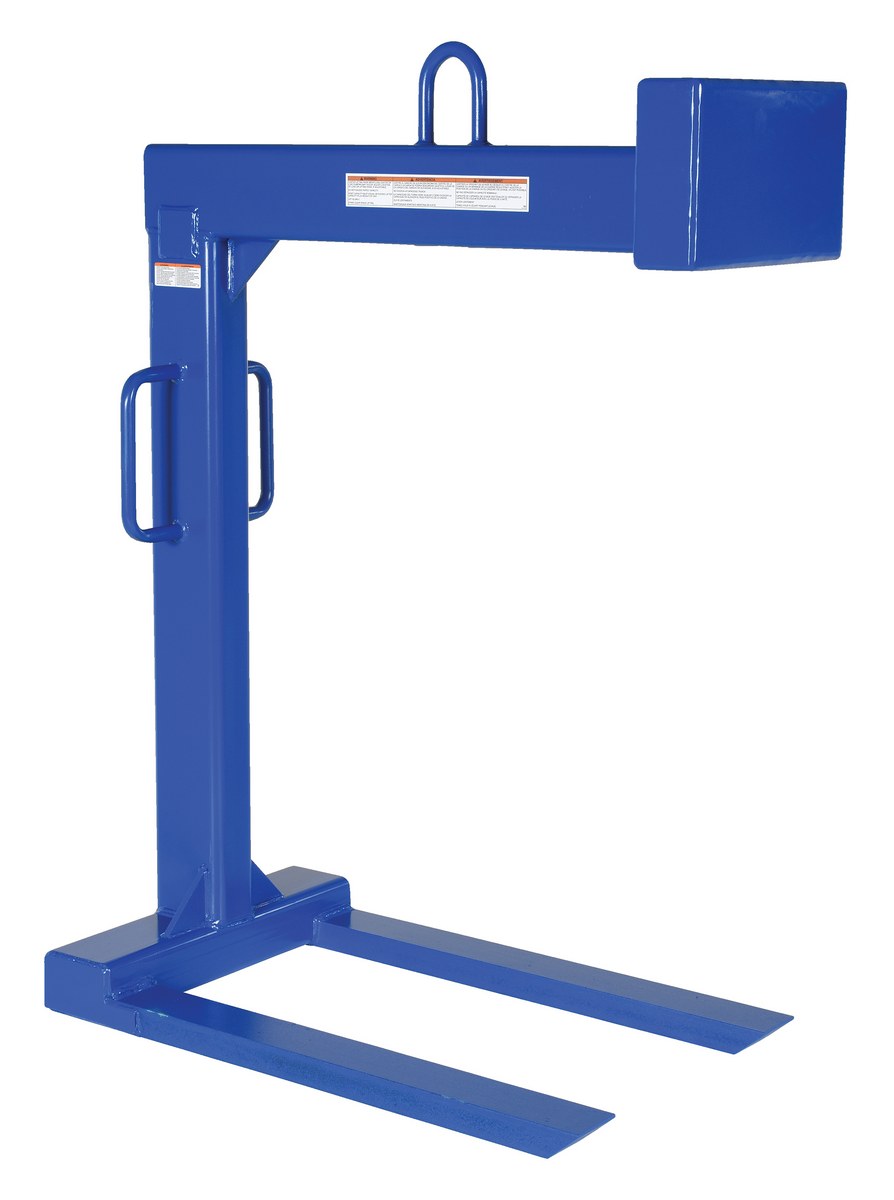

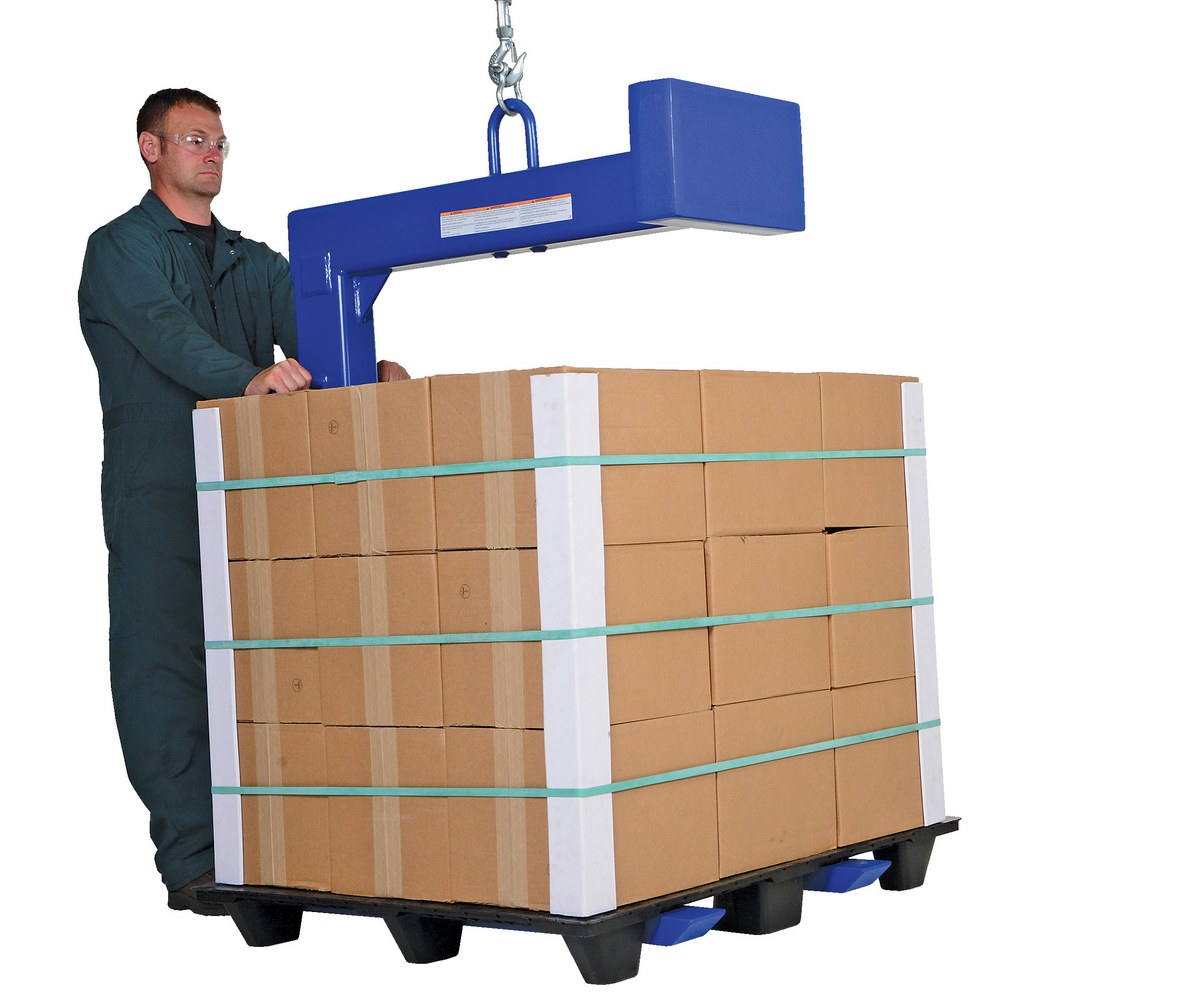

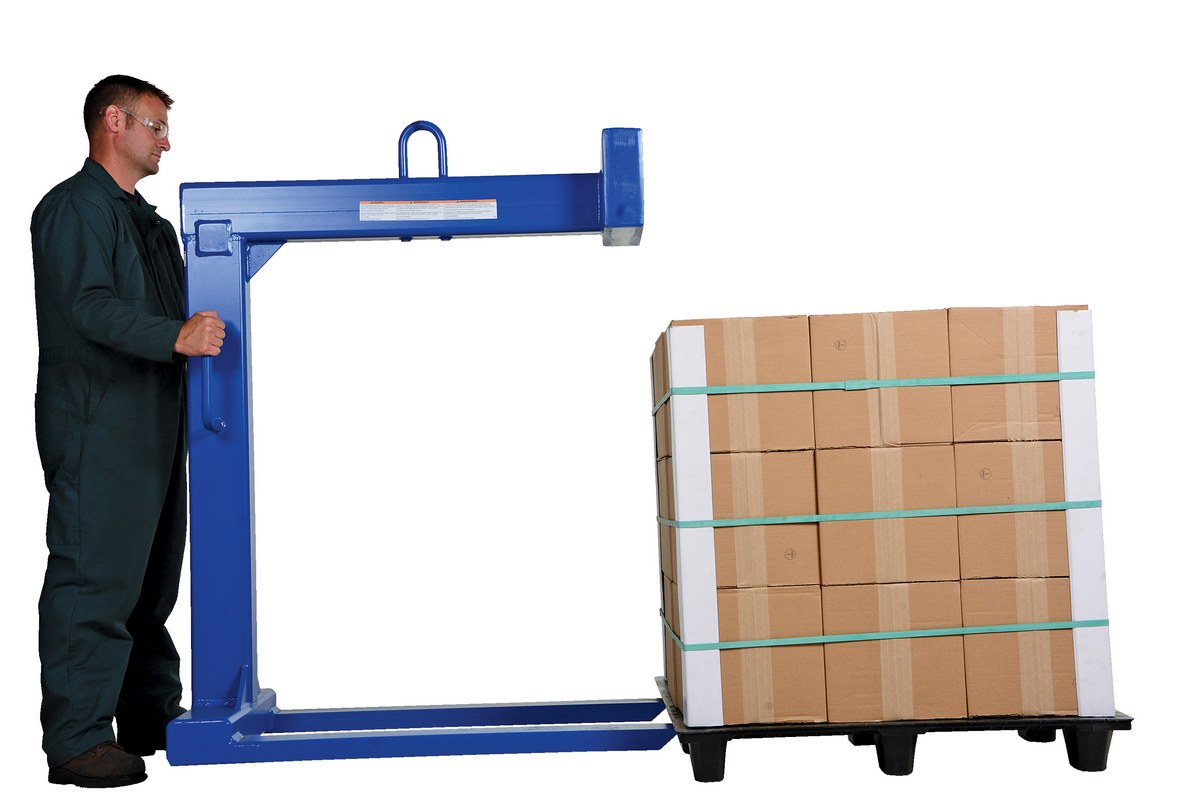

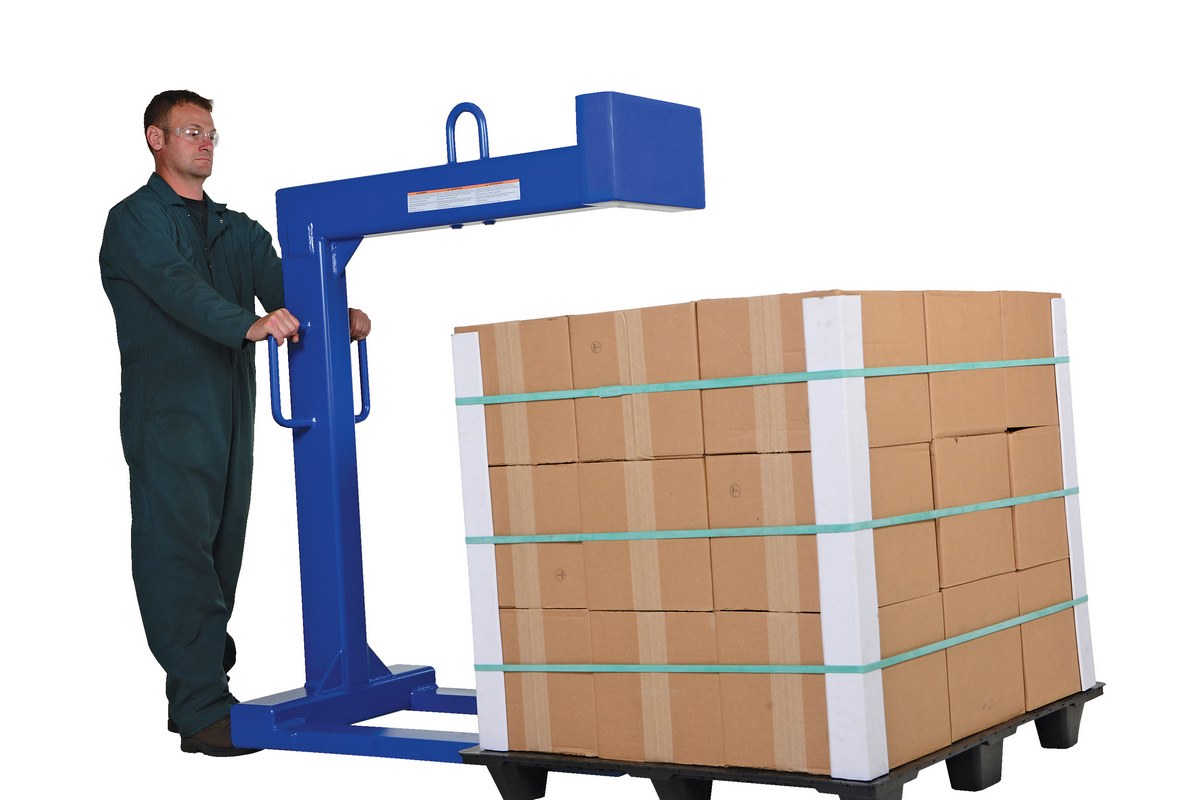

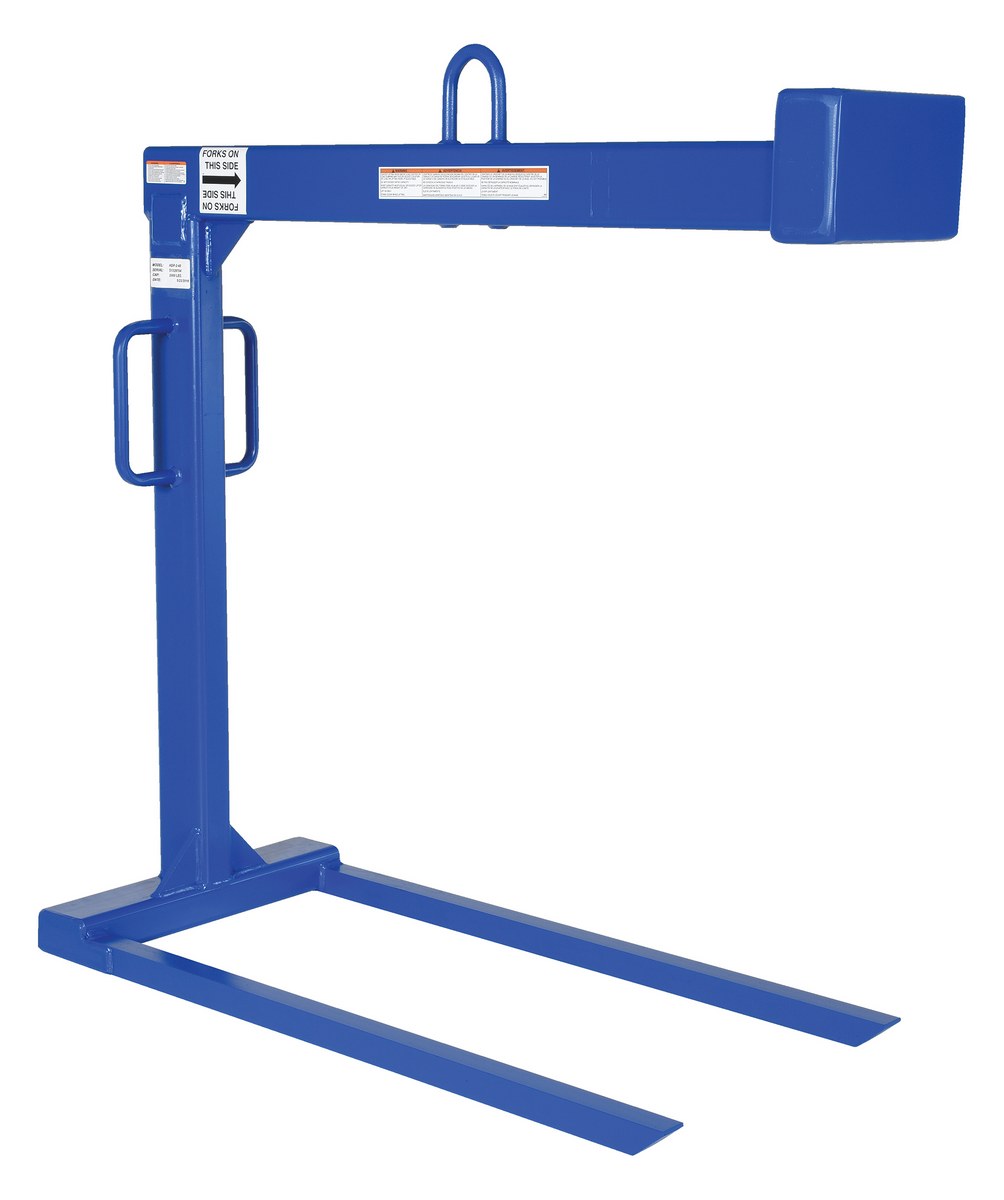

Pallet LiftersEasily convert a crane or hoist to an aerial-like fork truck. These Pallet Lifters are designed to assist during construction work, ship loading, unpaved storage areas, open-top trucks and even barges. This solid steel construction lifters contains tapered forks to allow easy access under pallets. Main support contains handles to allow personnel to handle the unit. Large square head acts as a counterweight to keep the unit level without a load. Unit meets ASME B30.20 Standard 1993. Painted Finish.
- Tapered forks allow easy access under pallets
- Main support contains handles to allow positioning

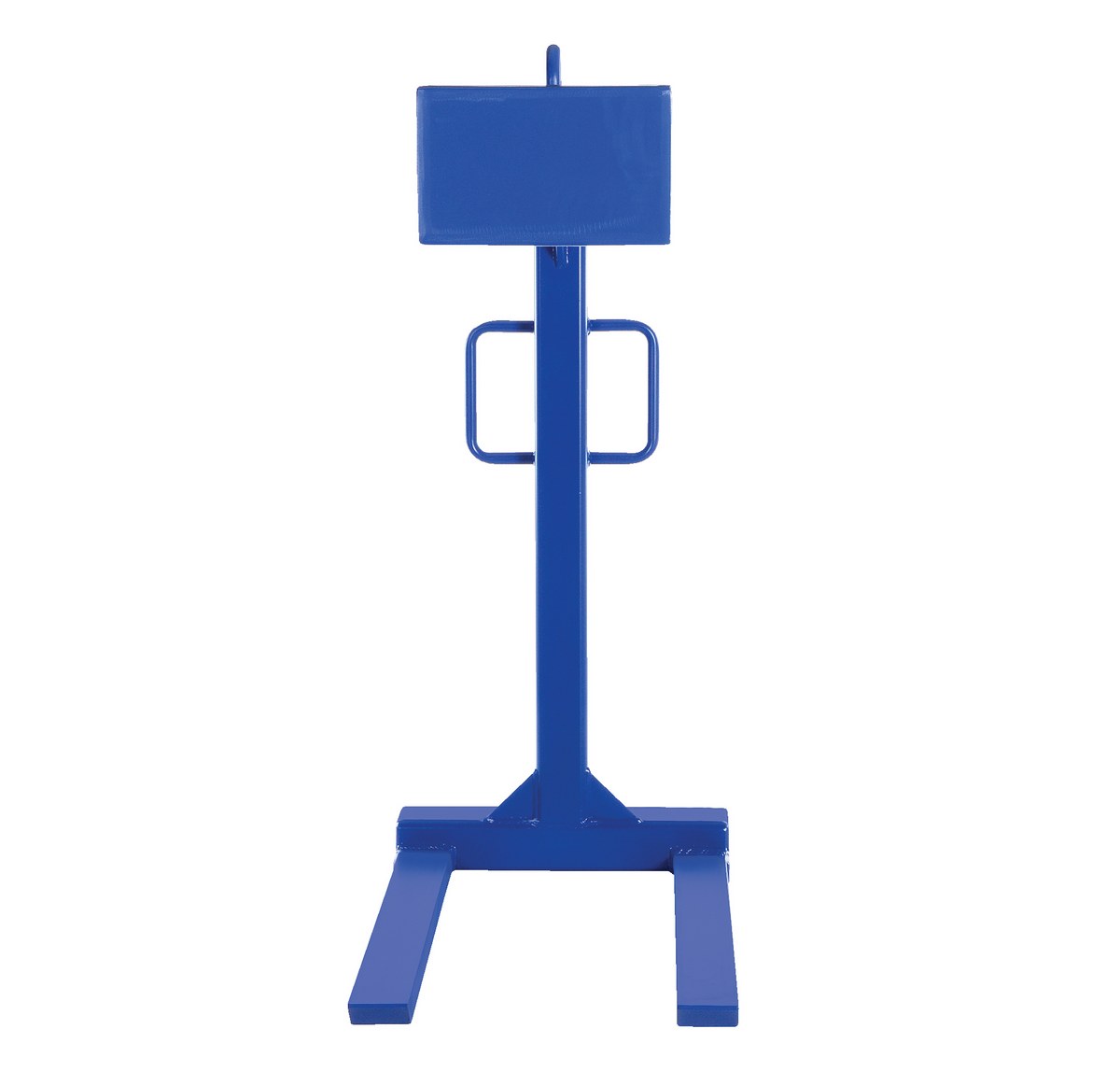

- Large square head serves as a counterweight to keep level without a load
- Unit meets ASME B30.20 standard 1993

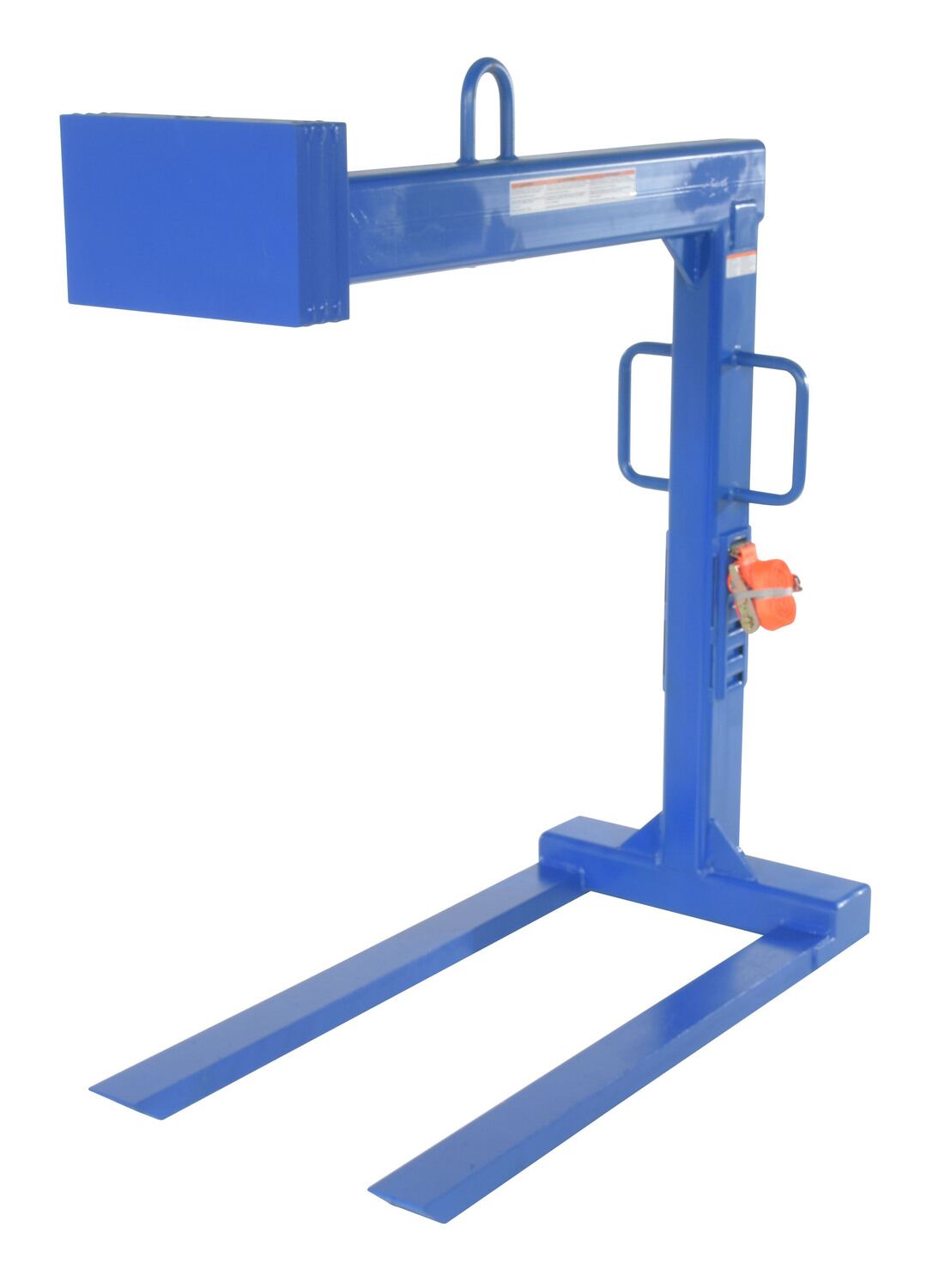

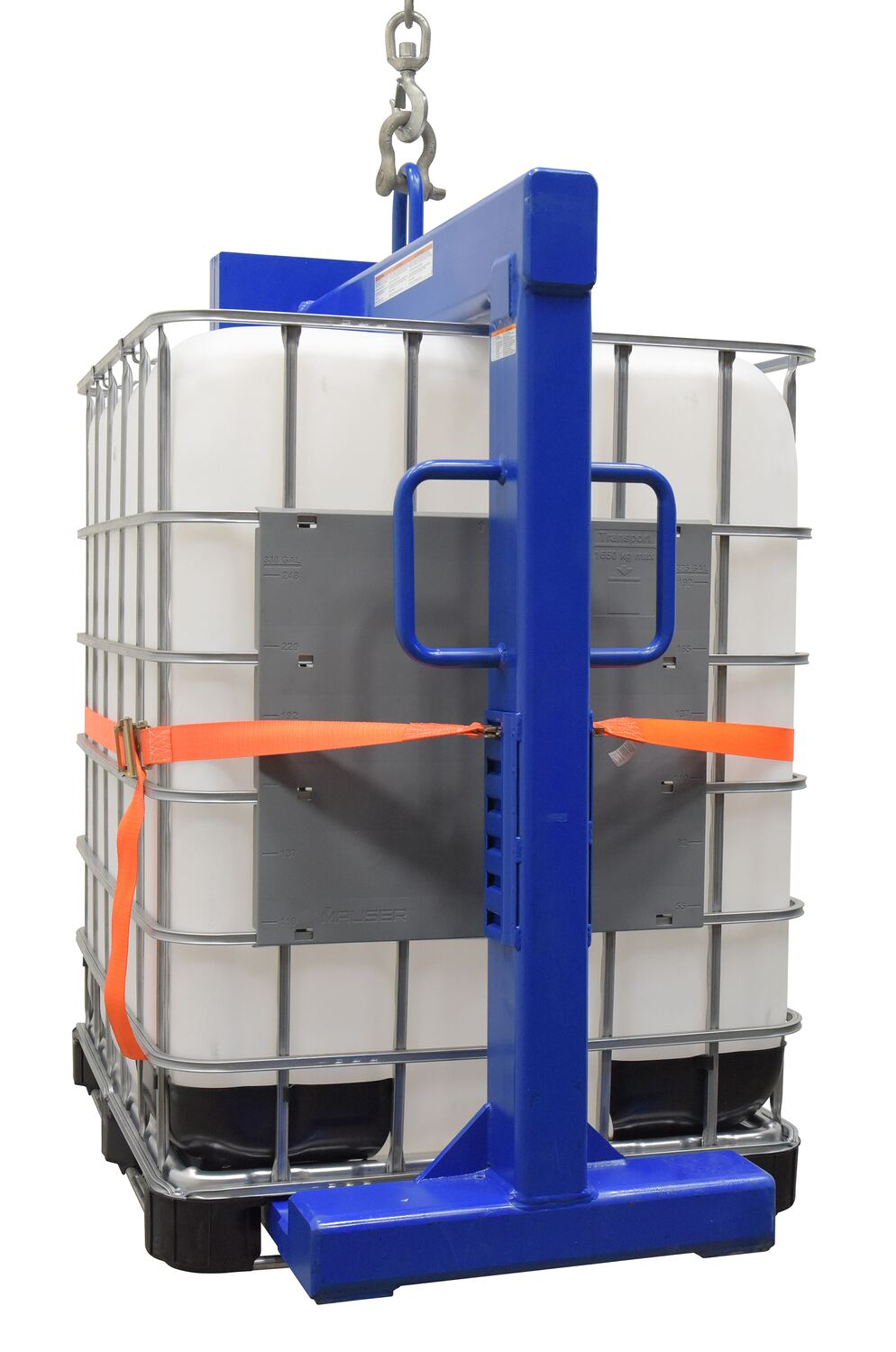

Optional Tie Down Track for HDP's - Factory Installed Option Only

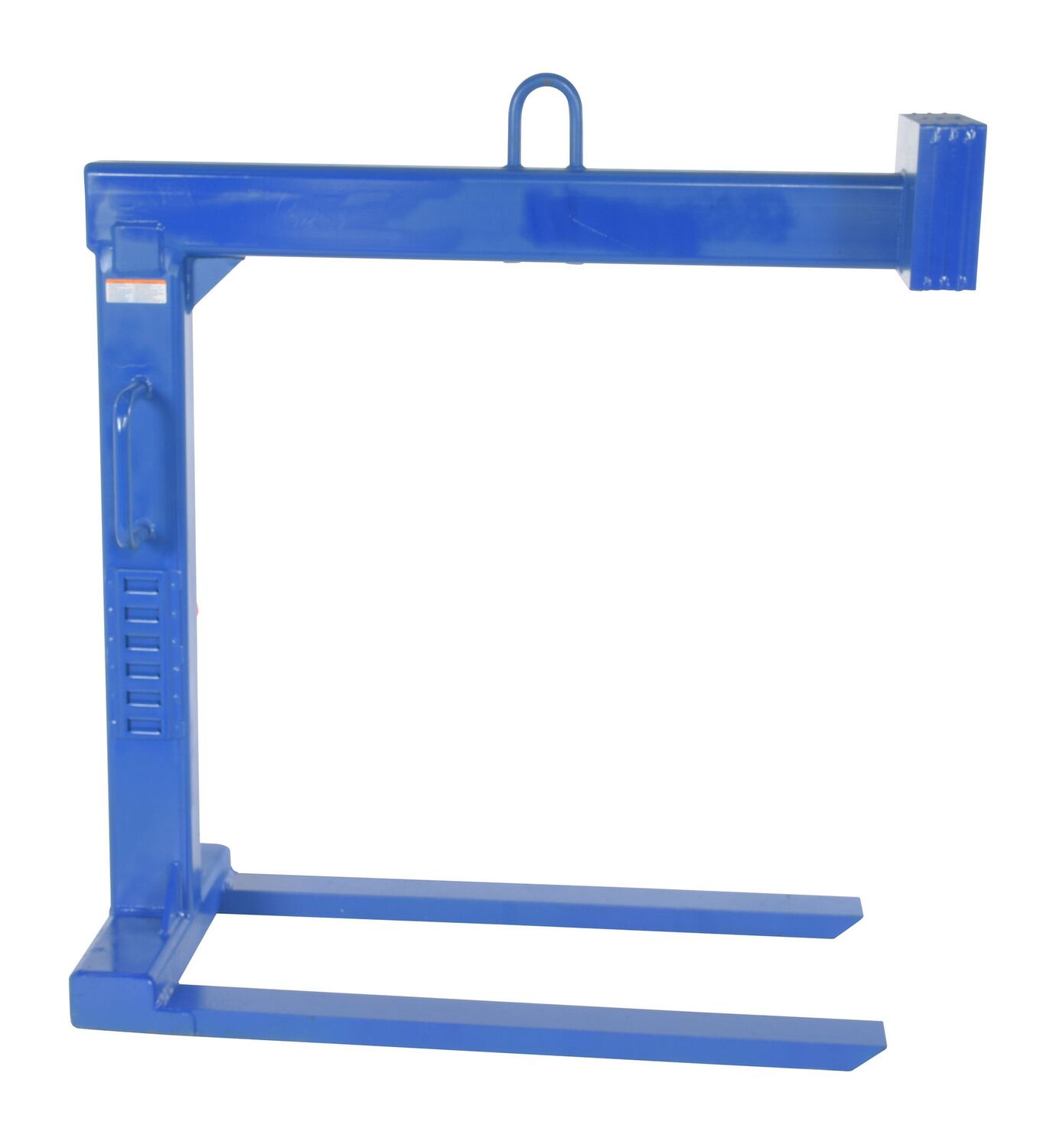

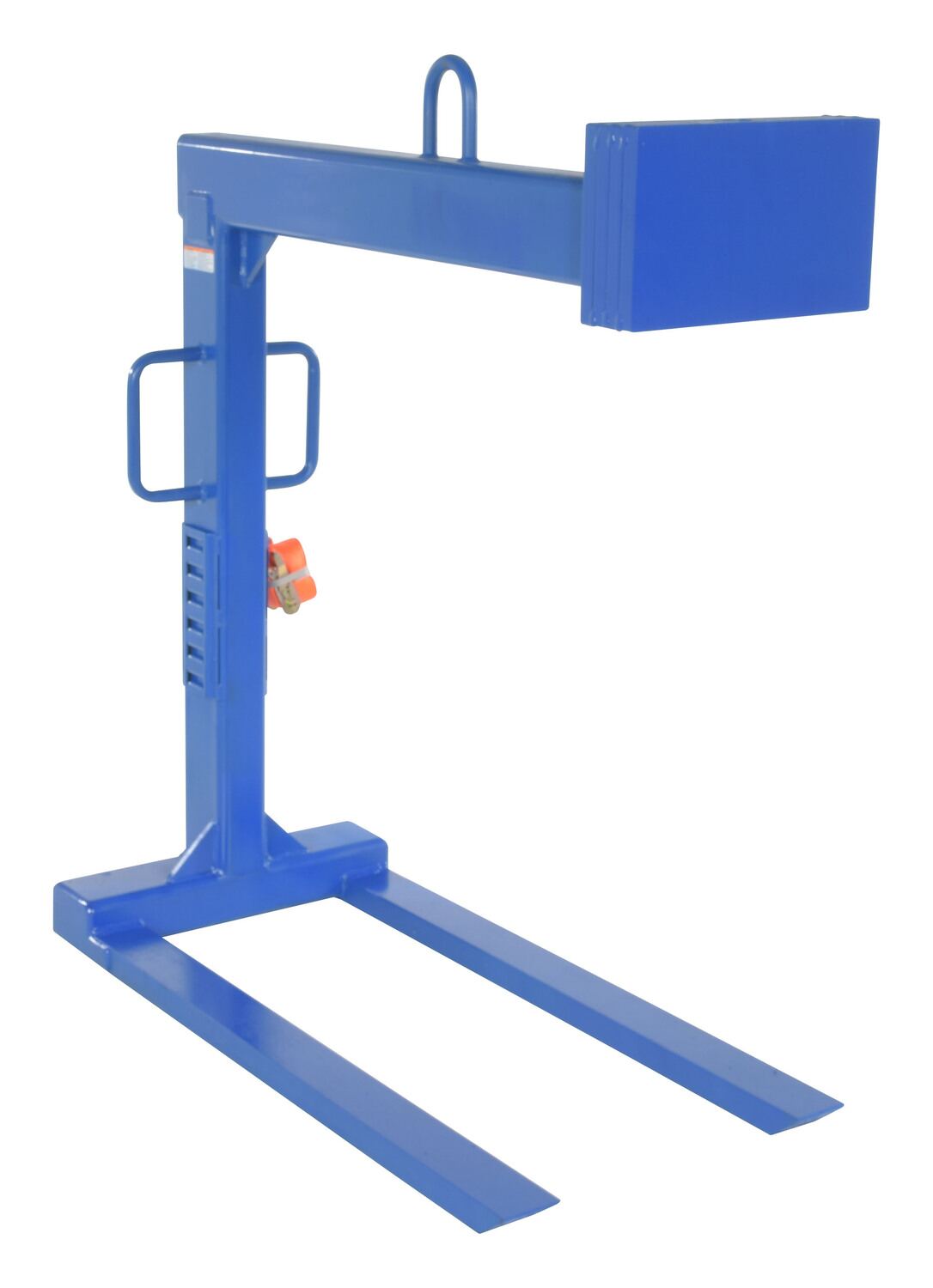

Give your products more security with the addition of the optional tie down track. The track is constructed of steel and includes six slots, allowing the user to position the (included) strap at varying heights. The design minimizes set up time, while increasing user safety. With the track welded to the vertical post of the pallet lifter, straps can then be quickly secured to the track and around many products.
Steel Sheet Lifter
Coil Lifter
Polyester Lifting Slings - Double PlyAdditional Models In This Family
HDP-4-42
HDP-4-48
HDP-6-48
HDP-2-36
HDP-2-42
HDP-4-48
HDP-TIE-DOWN
HDP-4-36
HDP-4-48
HDP-TIE-DOWN
HDP-2-AB
HDP-TIE-DOWN
HDP-4-48
HDP-4-42
HDP-2-36
| Model # | Description | Attributes | Net Wt. (lbs) |
||||
|---|---|---|---|---|---|---|---|

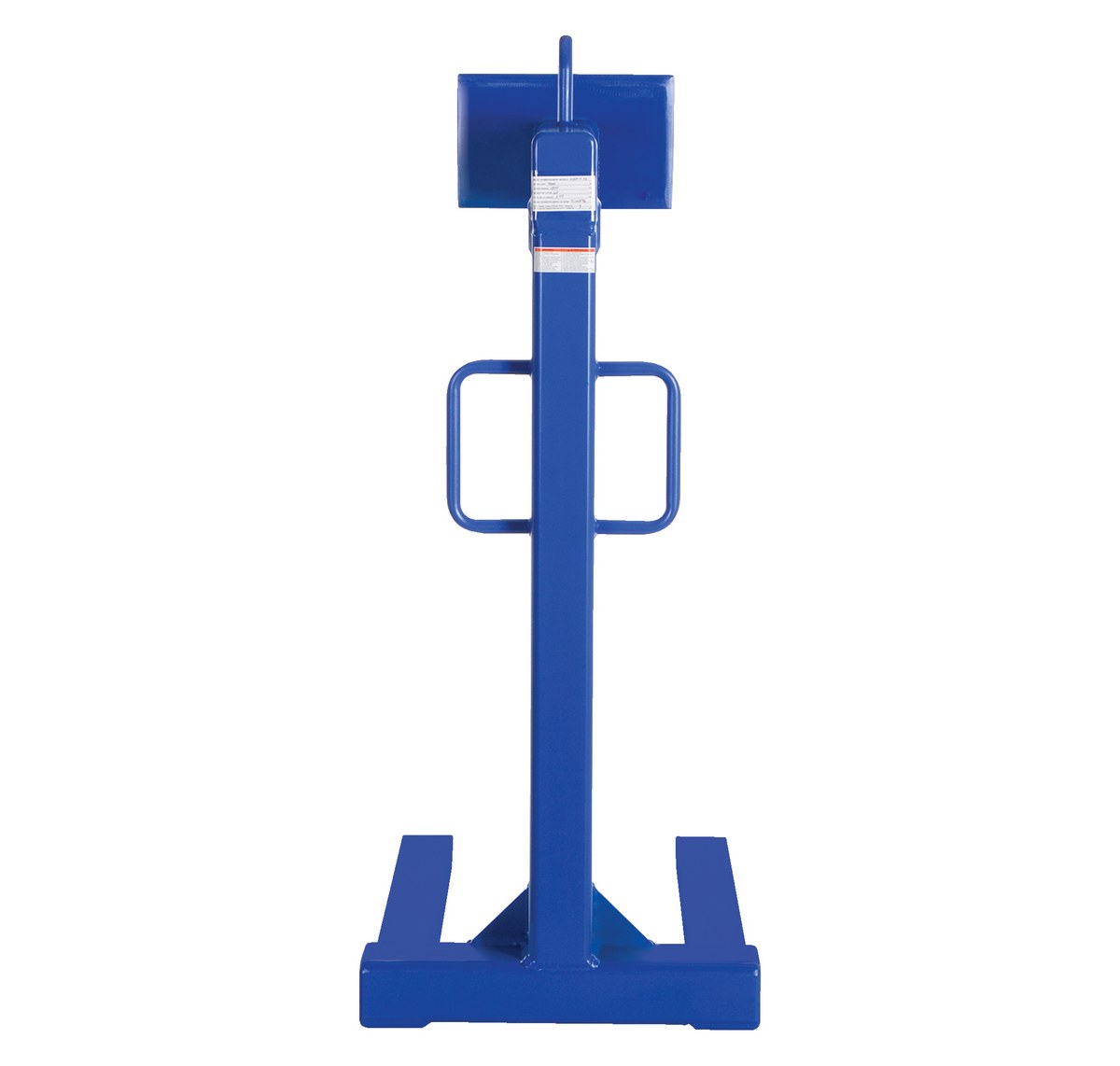

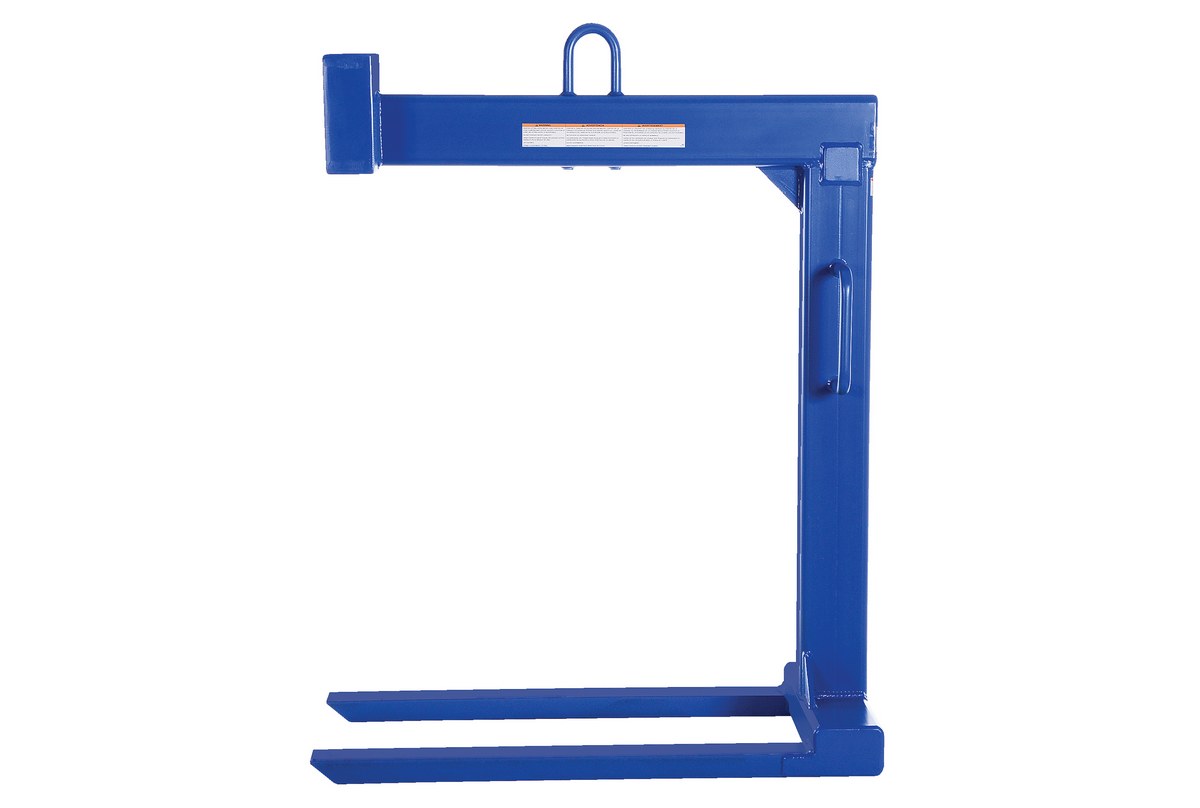

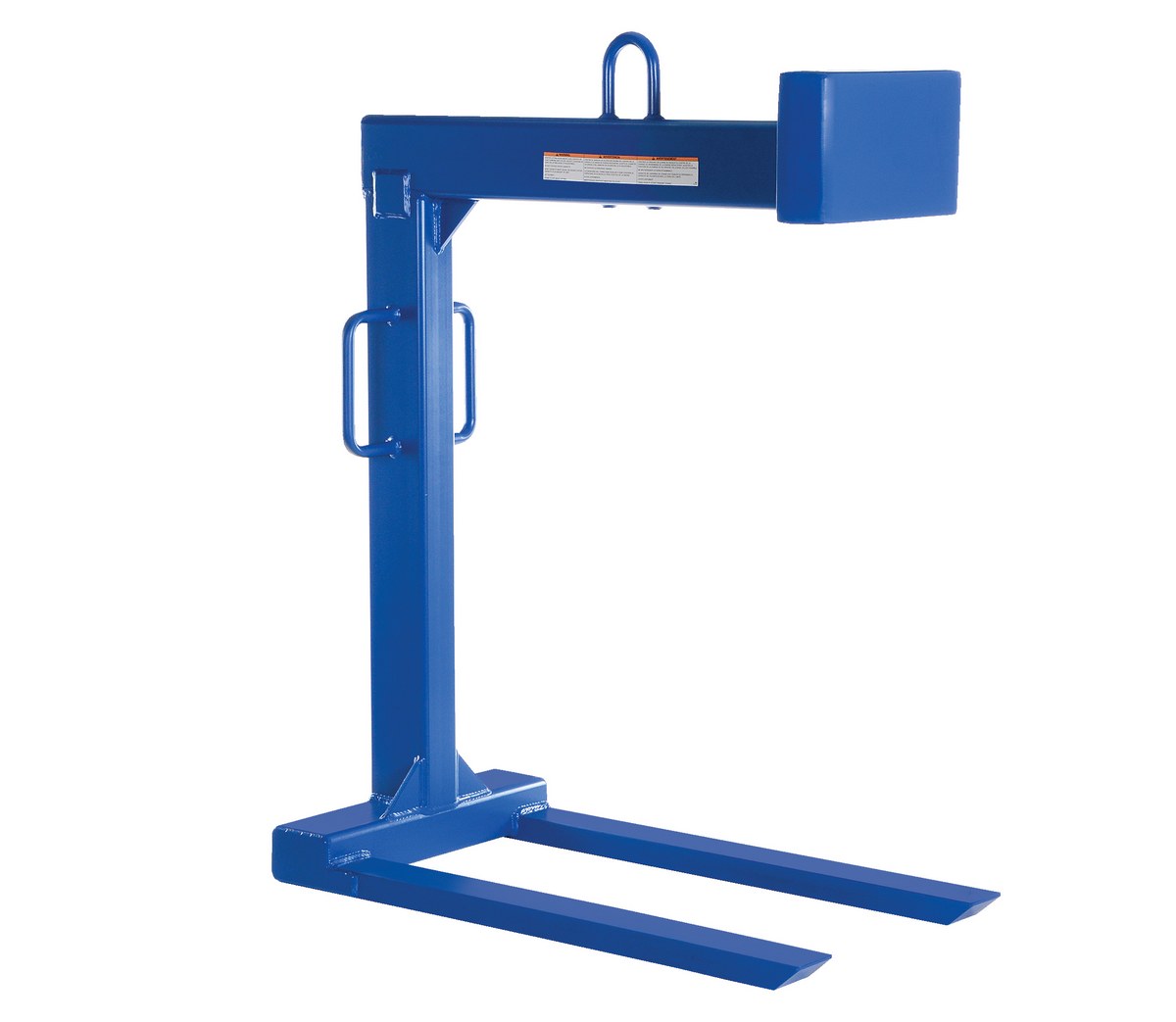

| HDP-4-42 | | 1 Year Limited Warranty | Steel Pallet Lifter 42 In. Fork 4000 Lb. Capacity Blue | Uniform Capacity (lb.): 4,000 Fork Spacing (in.): 17 | 658 | ||

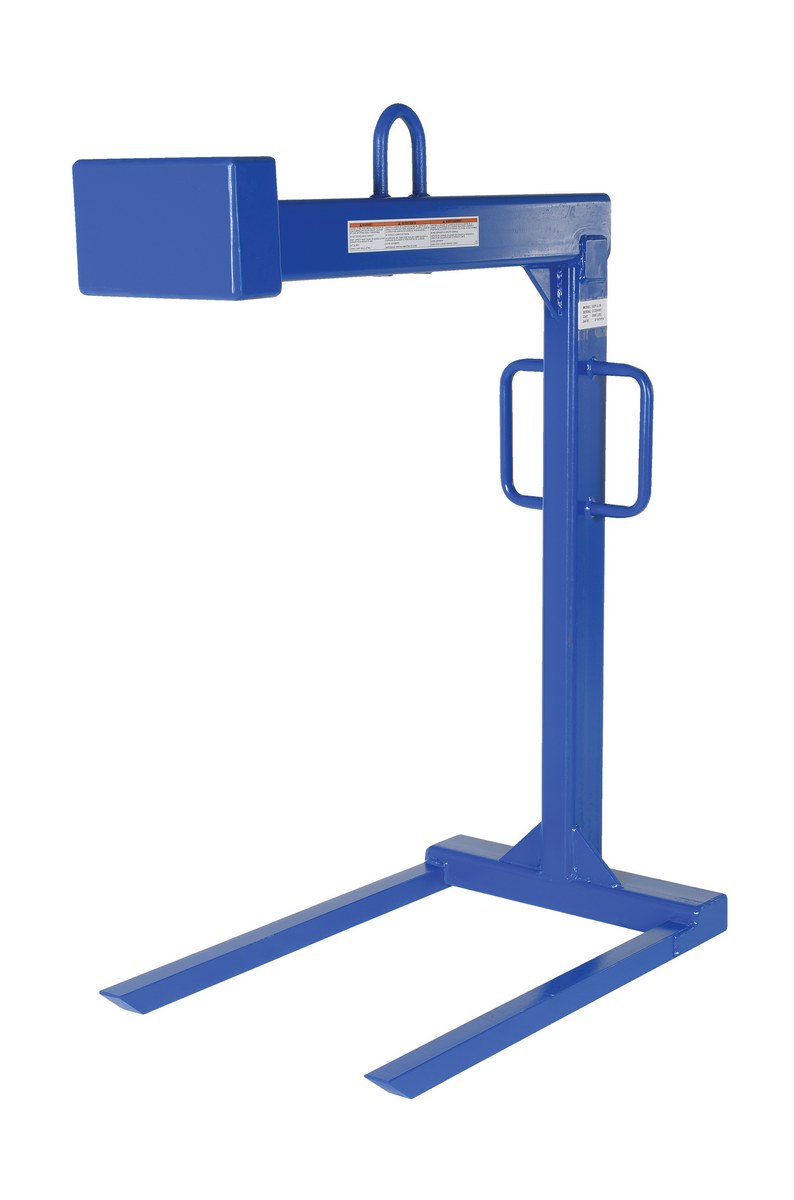

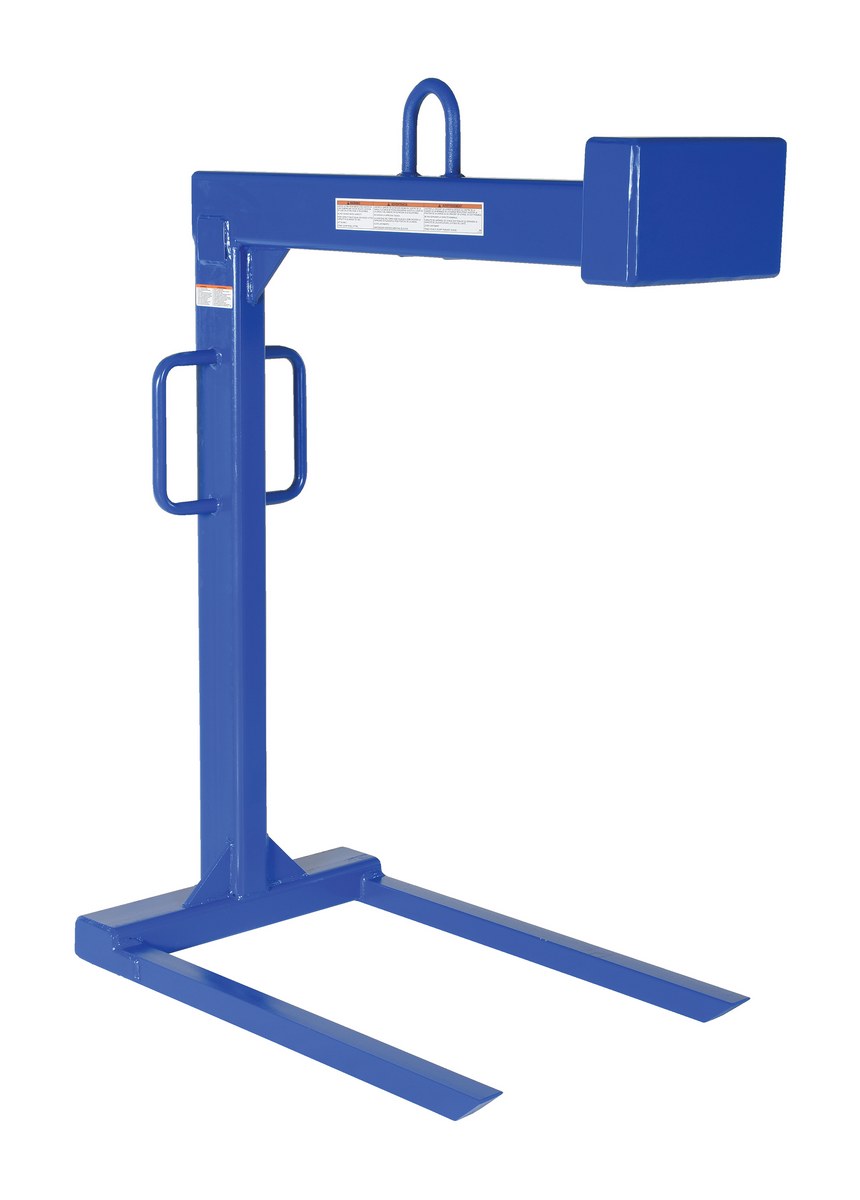

| HDP-2-36 | | 1 Year Limited Warranty | Steel Pallet Lifter 36 In. Fork 2000 Lb. Capacity Blue | Uniform Capacity (lb.): 2,000 Fork Spacing (in.): 21 | 436 | ||

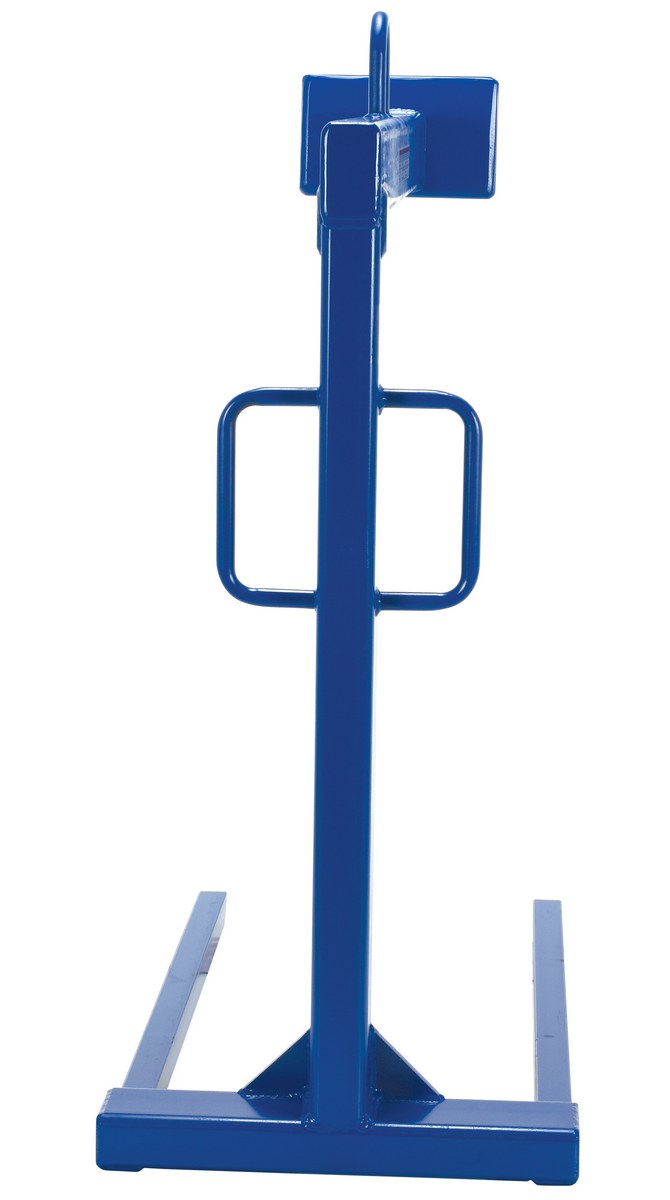

| HDP-2-42 | | 1 Year Limited Warranty | Steel Pallet Lifter 42 In. Fork 2000 Lb. Capacity Blue | Uniform Capacity (lb.): 2,000 Fork Spacing (in.): 21 | 470 | ||
| HDP-2-48 |  | 1 Year Limited Warranty | Steel Pallet Lifter 48 In. Fork 2000 Lb. Capacity Blue | Uniform Capacity (lb.): 2,000 Fork Spacing (in.): 21 | 474 | ||
| HDP-4-36 |  | 1 Year Limited Warranty | Steel Pallet Lifter 36 In. Fork 4000 Lb. Capacity Blue | Uniform Capacity (lb.): 4,000 Fork Spacing (in.): 17 | 629 | ||

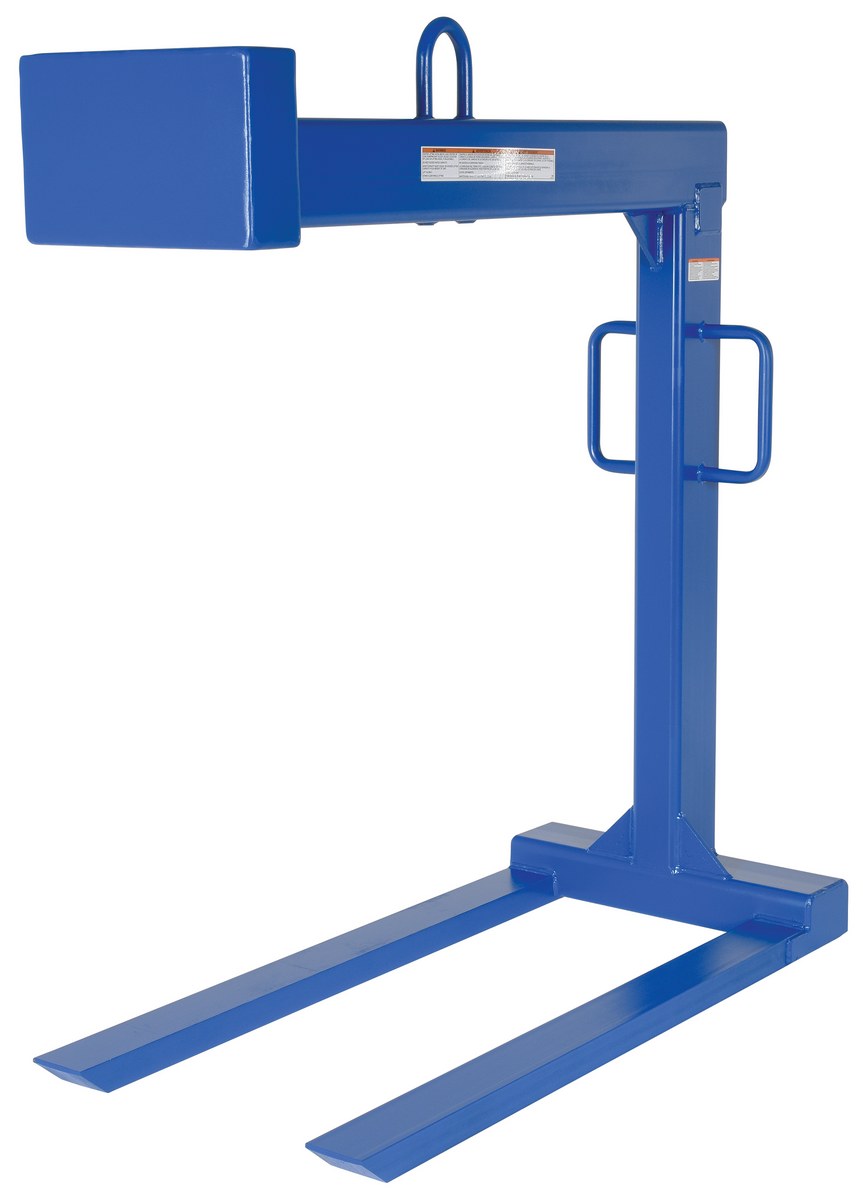

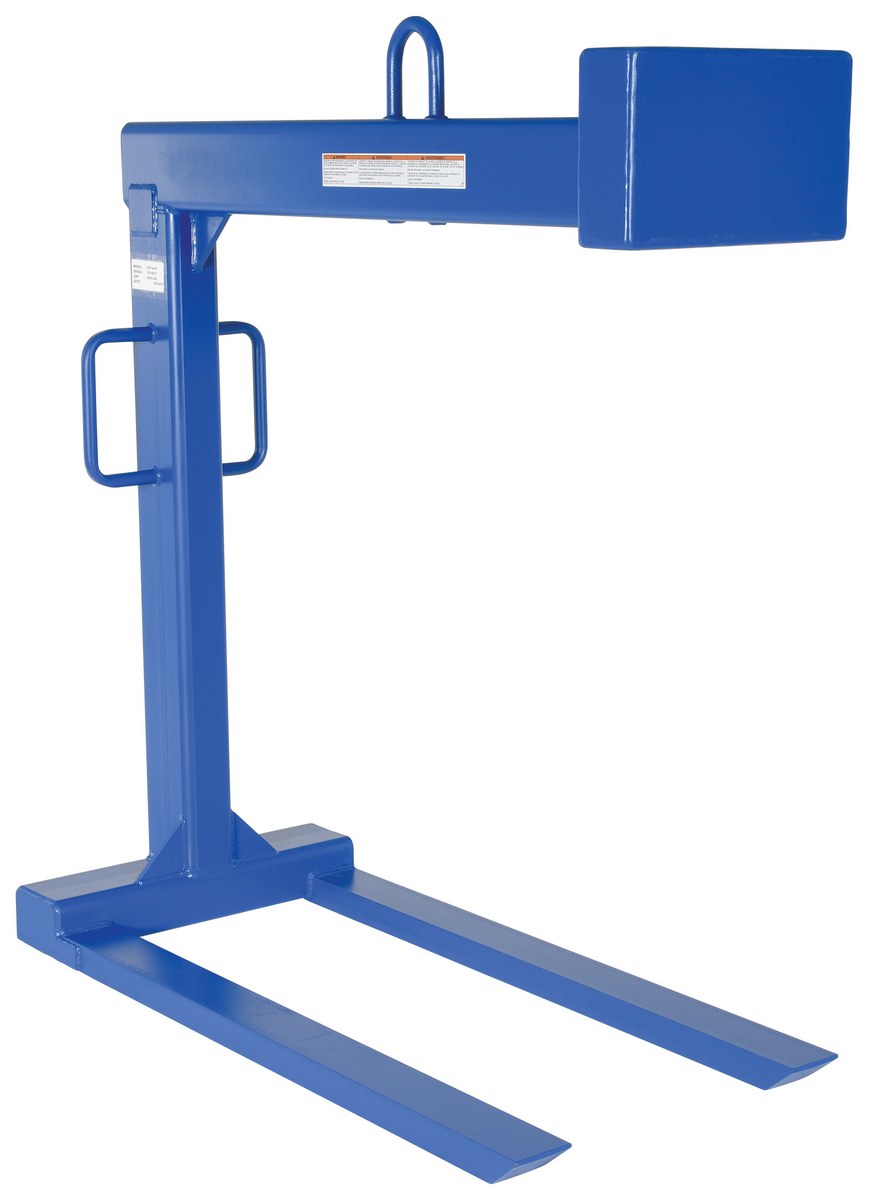

| HDP-4-48 |  | 1 Year Limited Warranty | Steel Pallet Lifter 48 In. Fork 4000 Lb. Capacity Blue | Uniform Capacity (lb.): 4,000 Fork Spacing (in.): 17 | 693 | ||

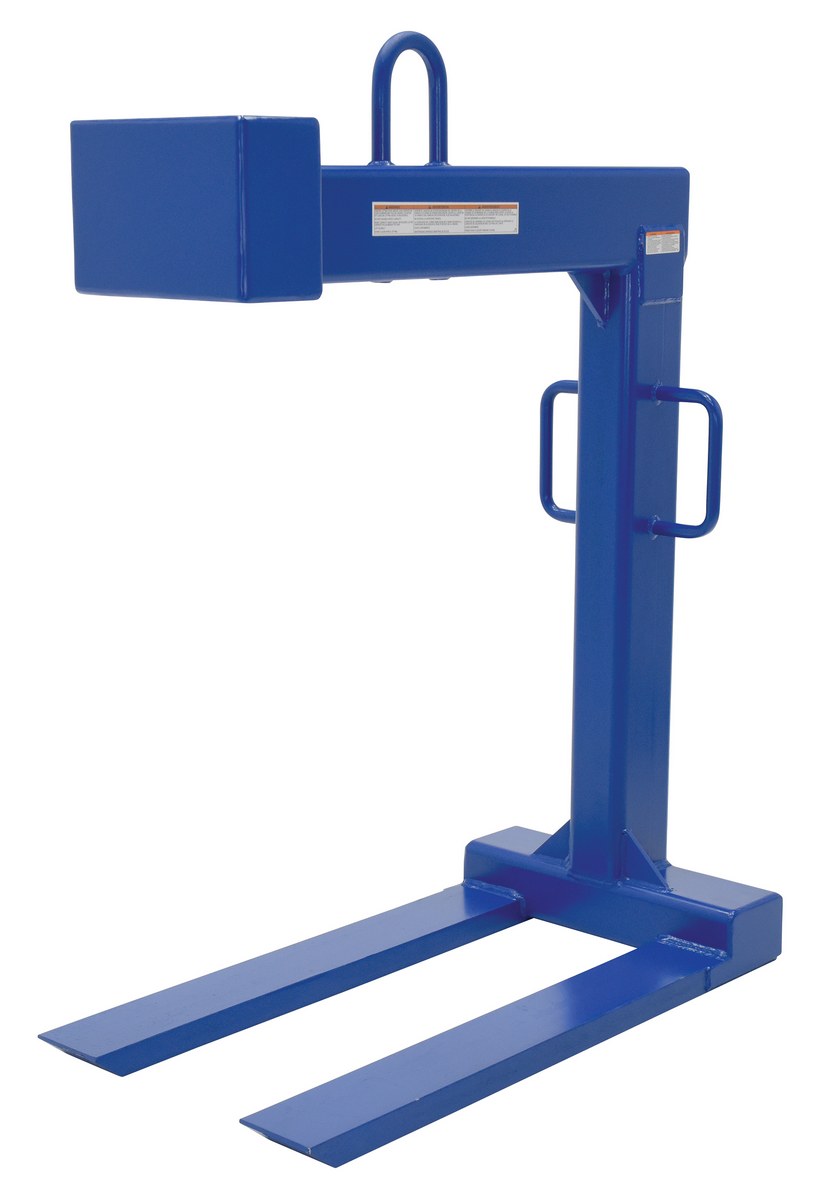

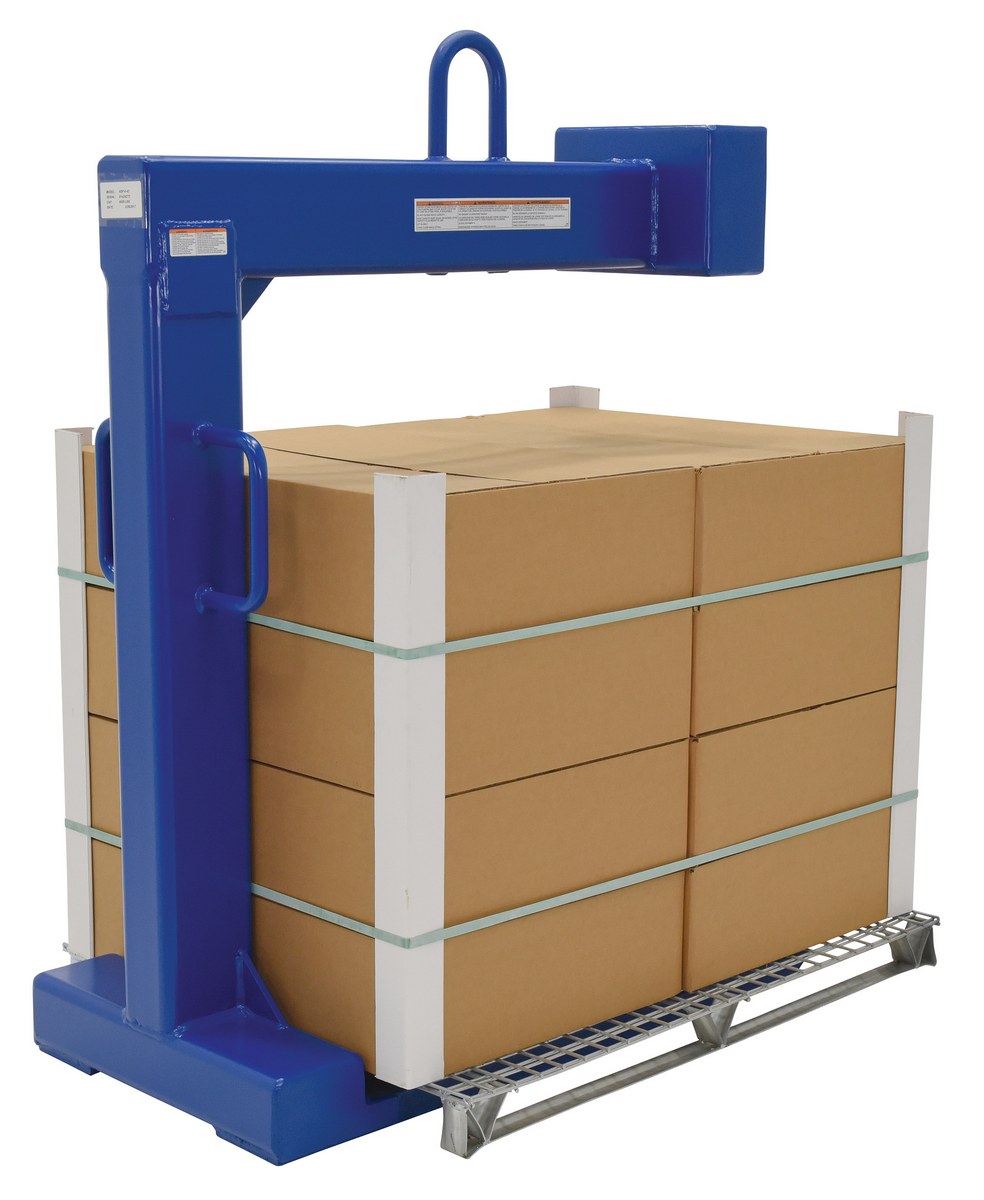

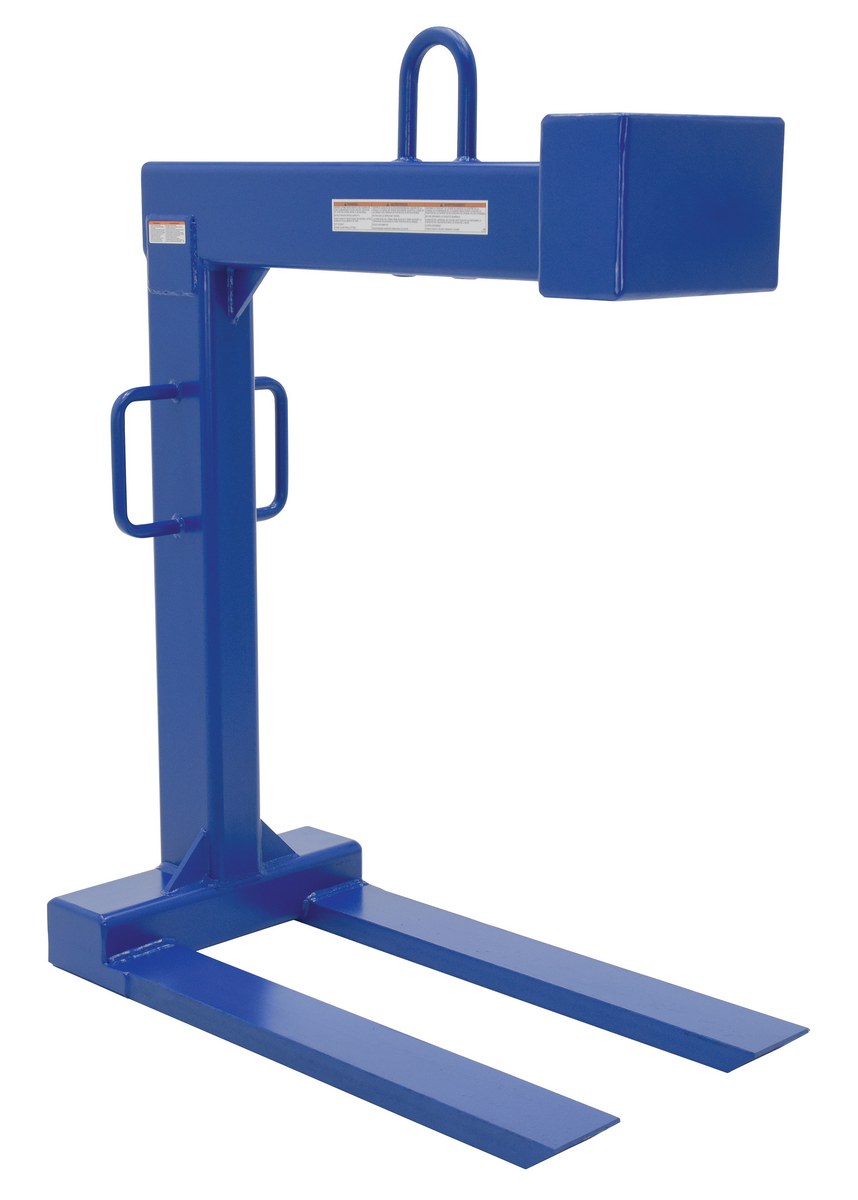

| HDP-6-42 |  | 1 Year Limited Warranty | Steel Pallet Lifter 42 In. Fork 6000 Lb. Capacity Blue | Uniform Capacity (lb.): 6,000 Fork Spacing (in.): 13 | 675 | ||

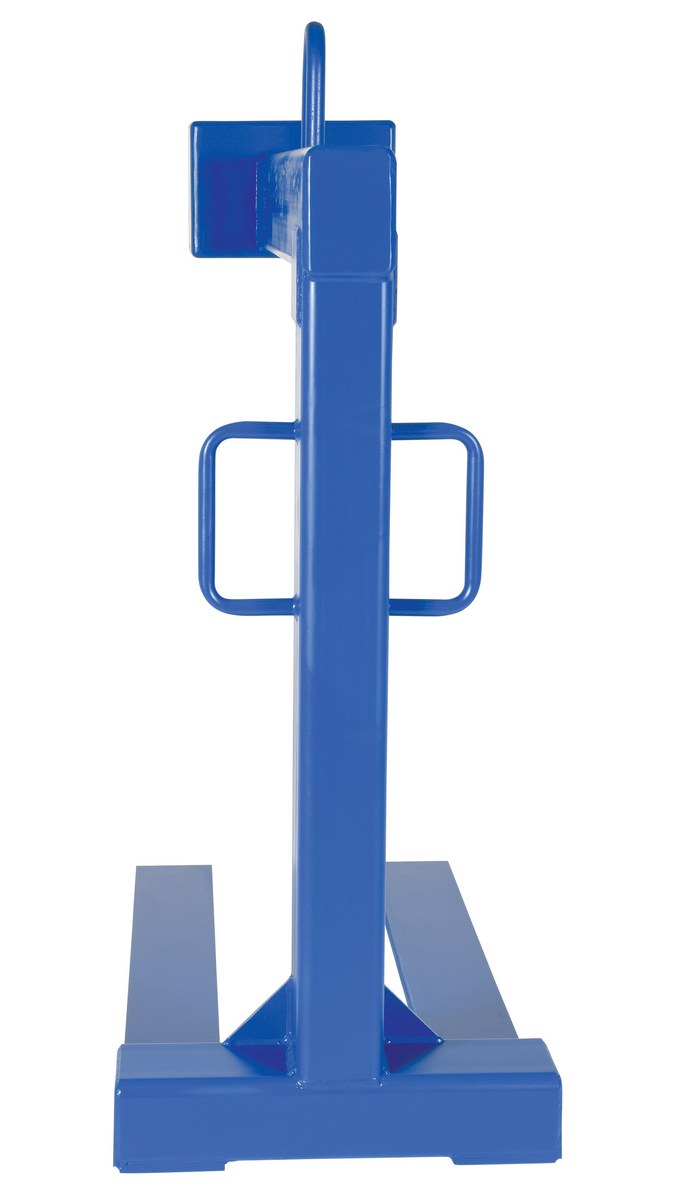

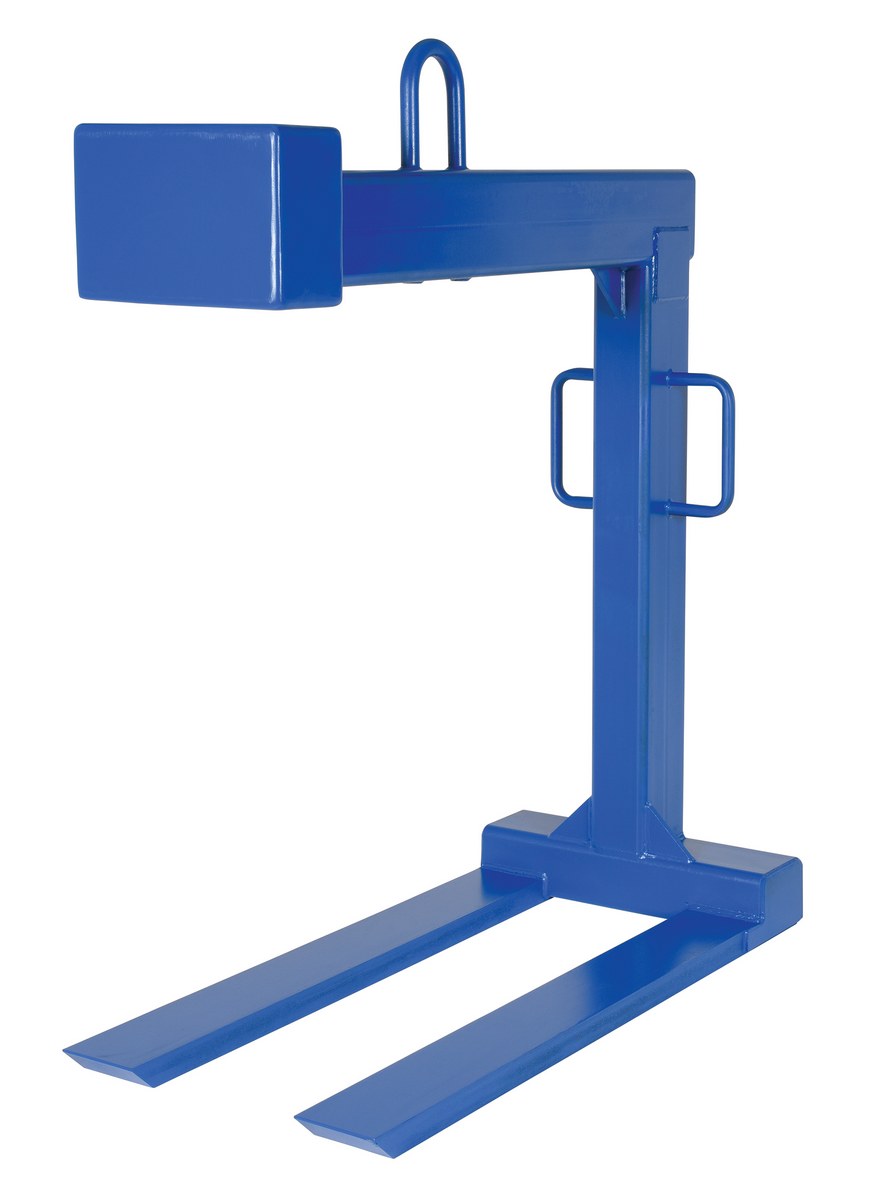

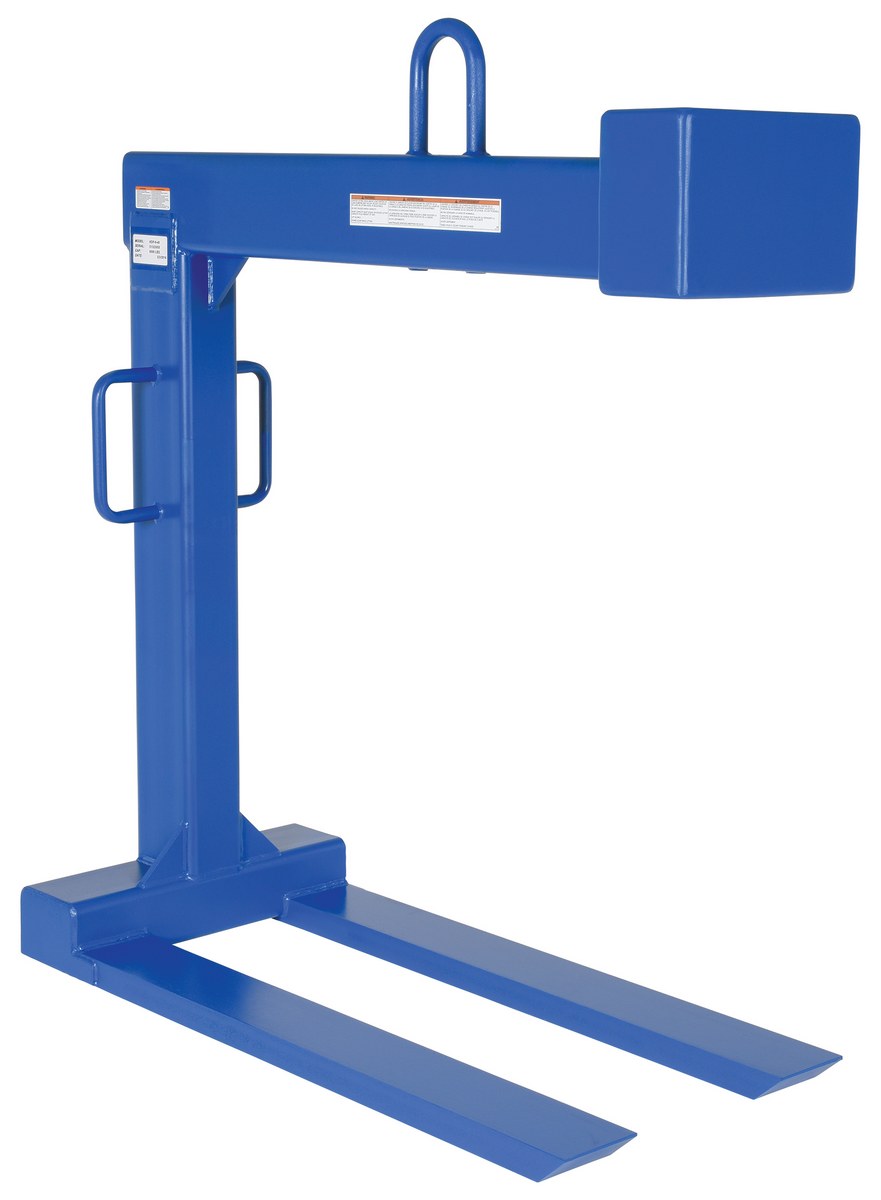

| HDP-6-48 |  | 1 Year Limited Warranty | Steel Pallet Lifter 48 In. Fork 6000 Lb. Capacity Blue | Uniform Capacity (lb.): 6,000 Fork Spacing (in.): 13 | 1005 | ||
| HDP-6-54 |  | 1 Year Limited Warranty | Steel Pallet Lifter 54 In. Fork 6000 Lb. Capacity Blue | Uniform Capacity (lb.): 6,000 Fork Spacing (in.): 13 | 1006 |
KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,000
Fork Spacing (in.): 17
Uniform Capacity (lb.): 4,000
Fork Spacing (in.): 17
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,000
Fork Spacing (in.): 21
Uniform Capacity (lb.): 2,000
Fork Spacing (in.): 21
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,000
Fork Spacing (in.): 21
Uniform Capacity (lb.): 2,000
Fork Spacing (in.): 21
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,000
Fork Spacing (in.): 21
Uniform Capacity (lb.): 2,000
Fork Spacing (in.): 21
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,000
Fork Spacing (in.): 17
Uniform Capacity (lb.): 4,000
Fork Spacing (in.): 17
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,000
Fork Spacing (in.): 17
Uniform Capacity (lb.): 4,000
Fork Spacing (in.): 17
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 6,000
Fork Spacing (in.): 13
Uniform Capacity (lb.): 6,000
Fork Spacing (in.): 13
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 6,000
Fork Spacing (in.): 13
Uniform Capacity (lb.): 6,000
Fork Spacing (in.): 13
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 6,000
Fork Spacing (in.): 13
Uniform Capacity (lb.): 6,000
Fork Spacing (in.): 13
For More Details of the Option Click the Red Model Button

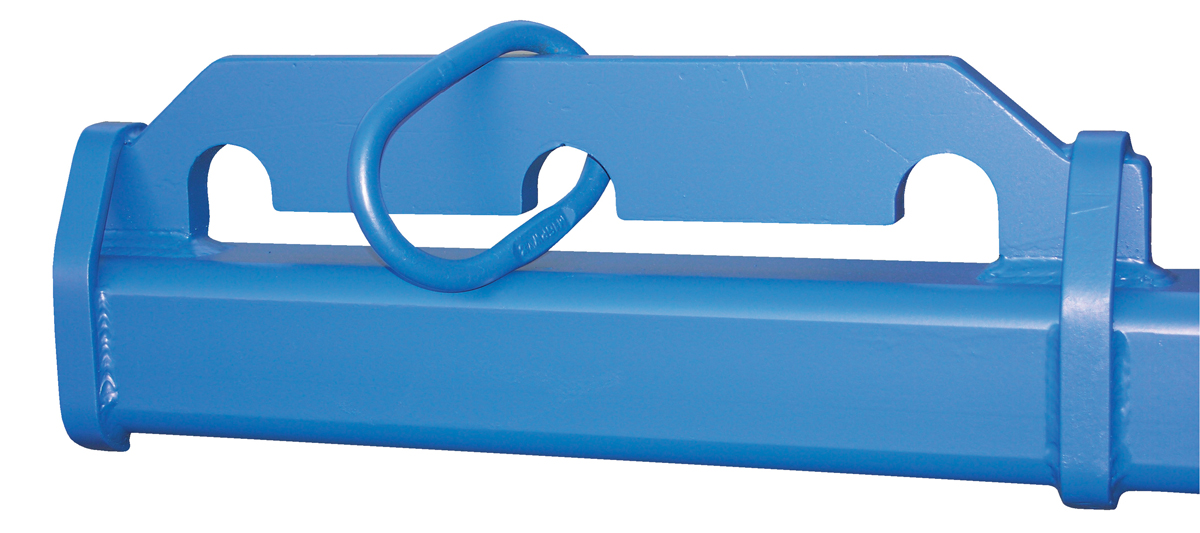

| HDP-2-AB | | 90 Days Limited Warranty | Factory Installed Steel Adjustable Bail For 2000 Lb. Capacity Solid Steel Pallet Lifters | Sizes: Fabricated to Fit 2000 Unit | ||
| HDP-4-AB |  | 90 Days Limited Warranty | Factory Installed Steel Adjustable Bail For 4000 Lb. Capacity Solid Steel Pallet Lifters | Sizes: Fabricated to Fit 4000 Unit | ||
| HDP-6-AB |  | 90 Days Limited Warranty | Factory Installed Steel Adjustable Bail For 6000 Lb. Capacity Solid Steel Pallet Lifters | Sizes: Fabricated to Fit 6000 Unit | ||
| HDP-TIE-DOWN | NEW | | 90 Days Limited Warranty | Steel Factory Installed Optional HDP Tie Down Blue | Break Strength (lbs): Strap Length (ft): | 3 |
.
