Winch Operated Truck Jib Cranes

- - - -

Description
Model Chart
PDF's
Image Gallery

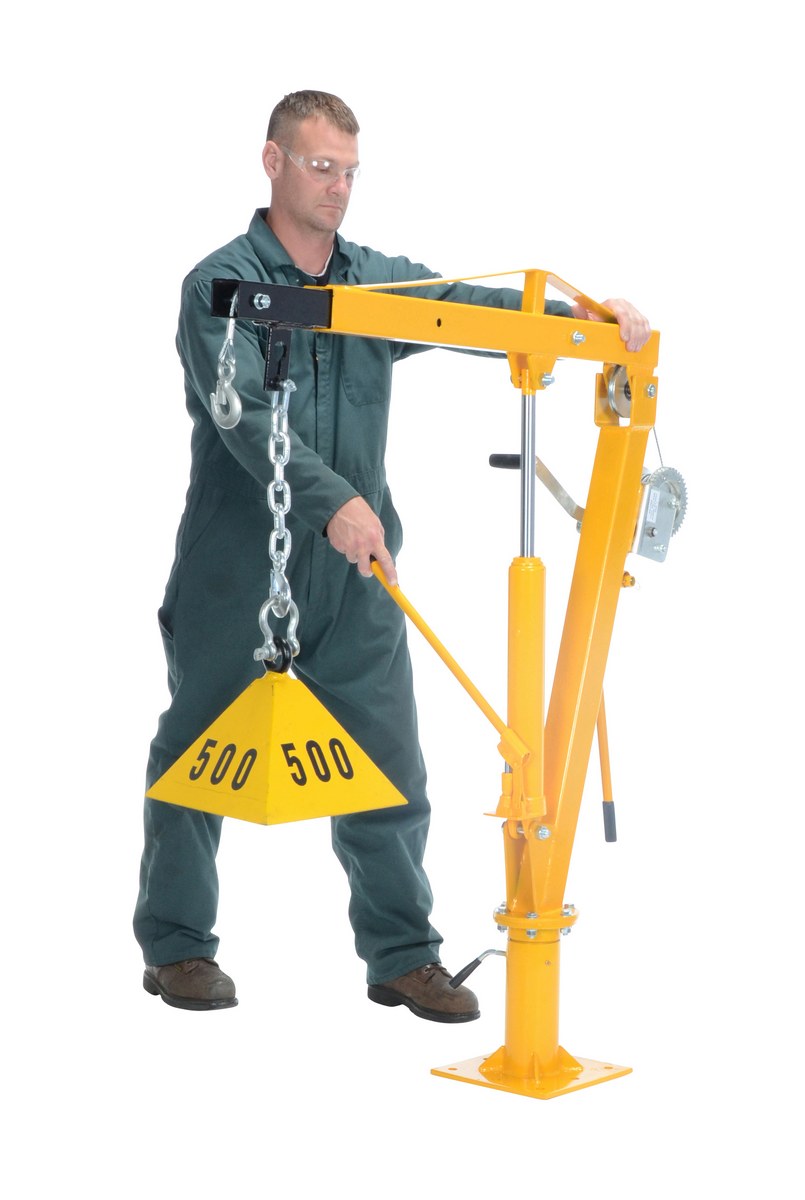

WTJ-4_E.jpg WTJ-4_A.jpg WTJ-4_B.jpg WTJ-4_C.jpg

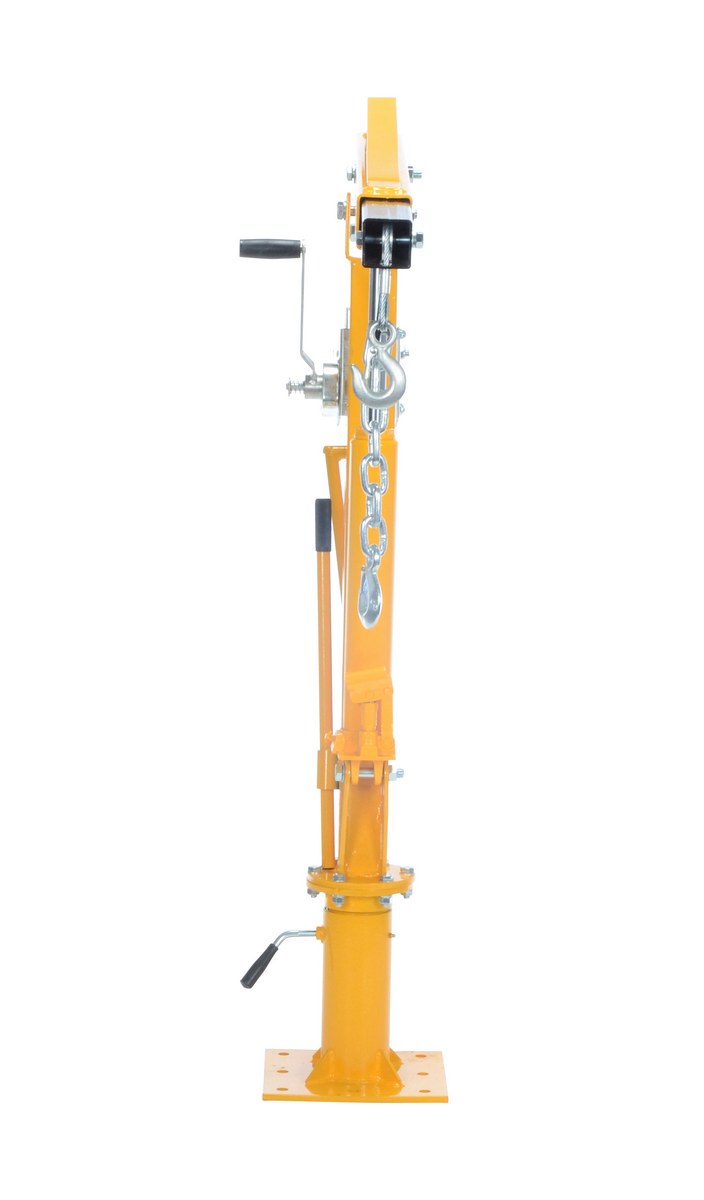

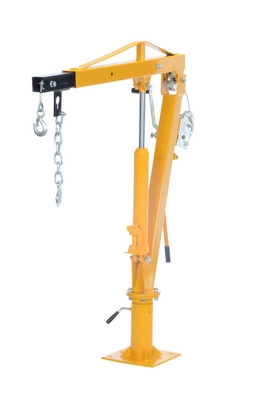

Winch Operated Truck Jib Cranes

model: WTJ-4



Featured Overhead Lifting


Air Balance Jib Lifters
Manual and Worm Gear Hand Winches
Adjustable Height Aluminum Gantry Cranes with Total Locking Casters
Hoists & Trollies
Heavy-Duty Die Lifting Tongs
Beam Clamps
Deluxe Drywall/Panel Hoist
Compact & Lightweight Lever Hoist (disc brake)
Electric Mini Hanging Cable Hoists
model chart

Product Family Overview

Print Friendly
Winch Operated Truck Jib Cranes
SERIES: WTJ

WTJ-2%20B.jpgInstalled in your pick-up truck bed, this winch operated jib crane will help lift loads. Lift items from ground to truck bed height, then rotate into cargo area. Includes telescopic boom design with manual hydraulic hand pump to pivot boom up and down. Cable usable length for all models is 24', except WTJ-2 (9' model WTJ-2). Unit comes with one fixed hook, one chain slot lock, and one cable hook with latch. The crane swivels on a 360 degree base. Safety yellow, galvanized or stainless steel finish available. Manual cable winch and 12V DC power cable winch styles available.

WTJ-2%20B.jpgInstalled in your pick-up truck bed, this winch operated jib crane will help lift loads. Lift items from ground to truck bed height, then rotate into cargo area. Includes telescopic boom design with manual hydraulic hand pump to pivot boom up and down. Cable usable length for all models is 24', except WTJ-2 (9' model WTJ-2). Unit comes with one fixed hook, one chain slot lock, and one cable hook with latch. The crane swivels on a 360 degree base. Safety yellow, galvanized or stainless steel finish available. Manual cable winch and 12V DC power cable winch styles available.

Other Engine Hoists & Floor Cranes

 Lifter Jibs Shop Crane Engine Hoists Winch Operated Truck Jib Cranes Portable Cantilever Hoists

Additional Models In This Family
view entire Image Gallery

WTJ-4-G-DC

WTJ-4-G-DC

WTJ-4-G-DC

WTJ-4-G-DC

WTJ-2-G-DC

WTJ-2-G-DC

WTJ-2-G

WTJ-2-G

WTJ-2-G-DC

WTJ-2-G-DC

WTJ-4-G-DC

WTJ-4-G-DC

WTJ-2-G-DC

WTJ-2-G-DC

WTJ-4-SS

WTJ-4-SS

WTJ-2-G

WTJ-2-G

WTJ-4-SS

WTJ-4-SS

WTJ-4-DC

WTJ-4-DC

WTJ-4-G-DC

WTJ-4-G-DC

WTJ-4-G

WTJ-4-G

WTJ-2-G-DC

WTJ-2-G-DC

WTJ-2

WTJ-2

model chart
How To Purchase

Model Specific Details

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)

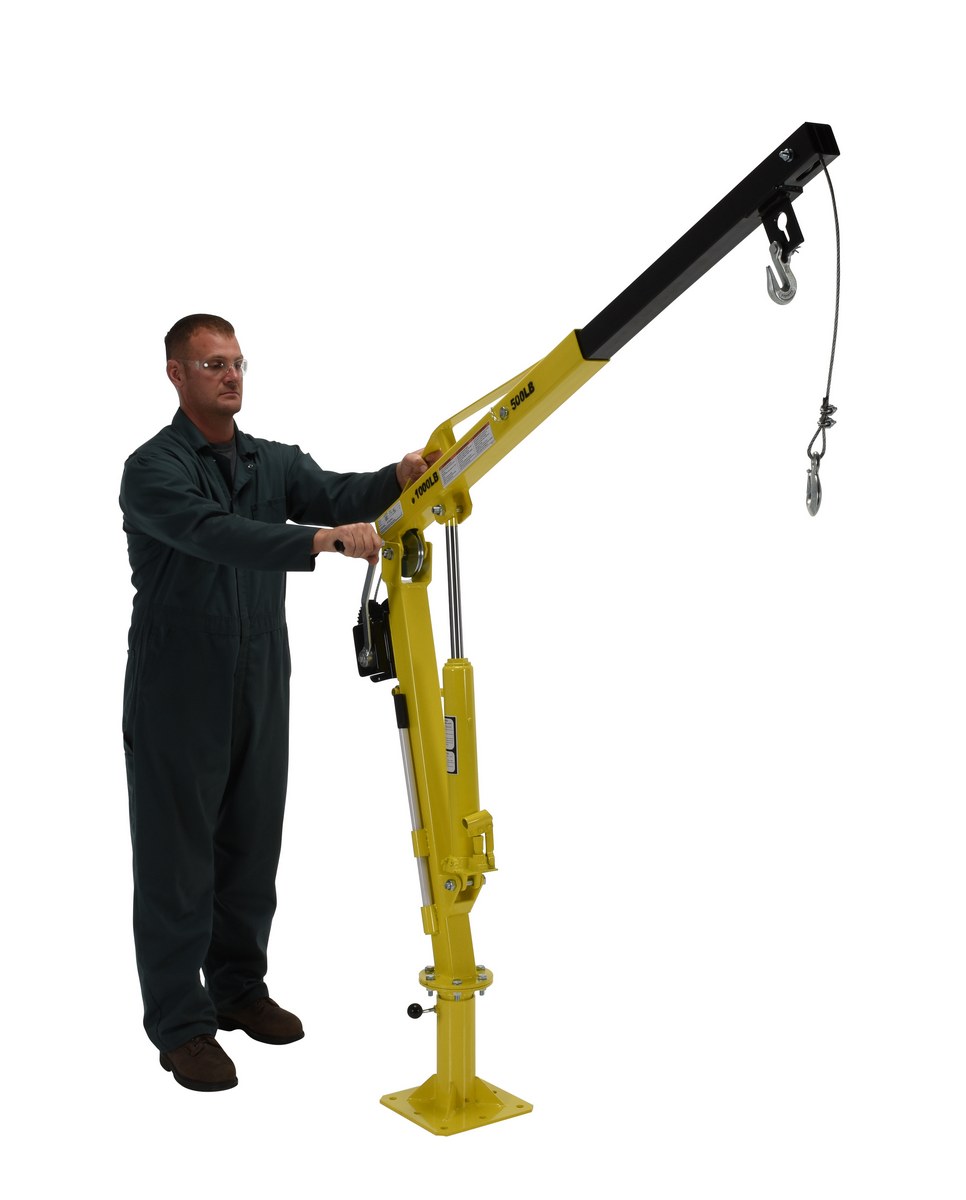

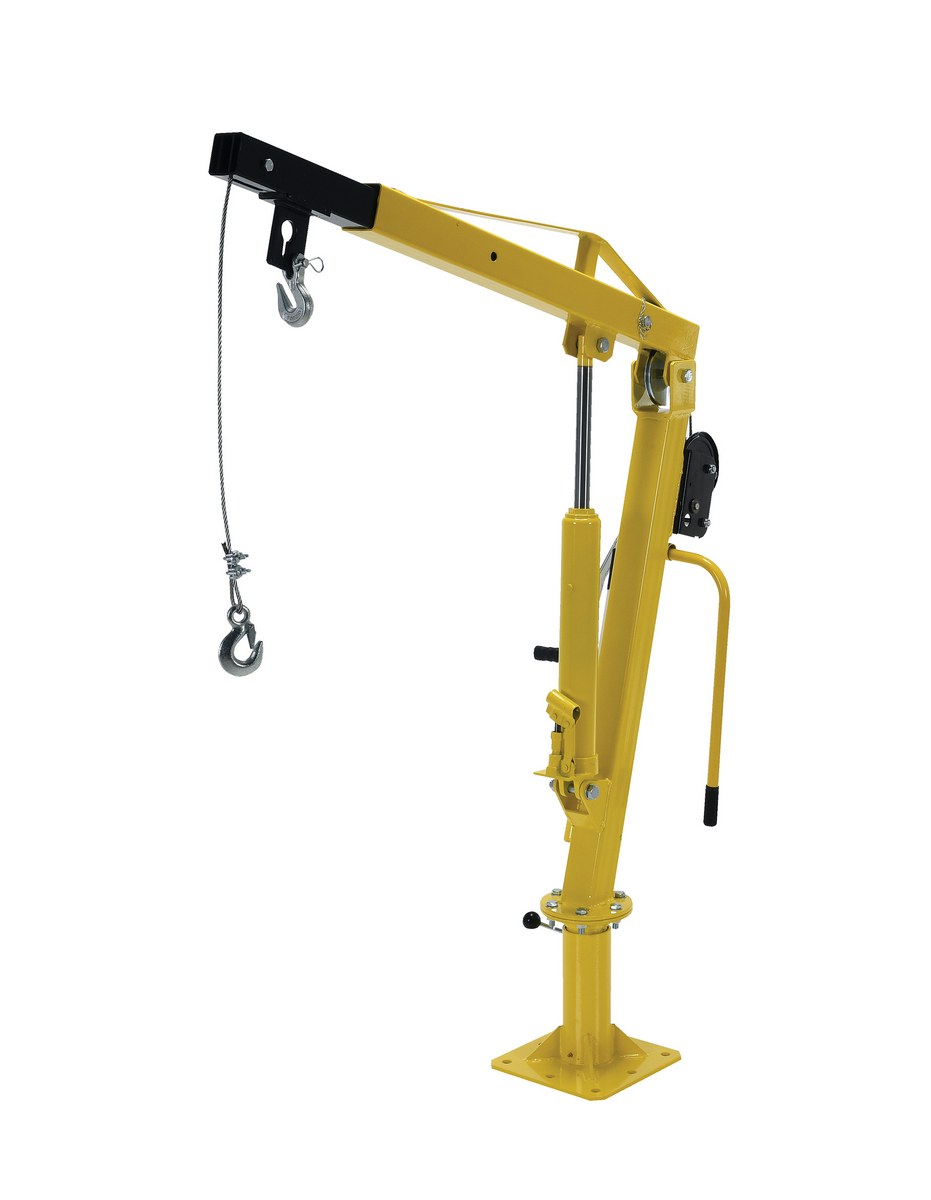

WTJ-2 WTJ-290 Days Limited WarrantySteel Winch Truck Jib Crane 500 Lb. Extended Capacity YellowUniform Cable Winch Capacity (lb.): 500
Extended Fixed Hook Capacity (lb.): 500		135

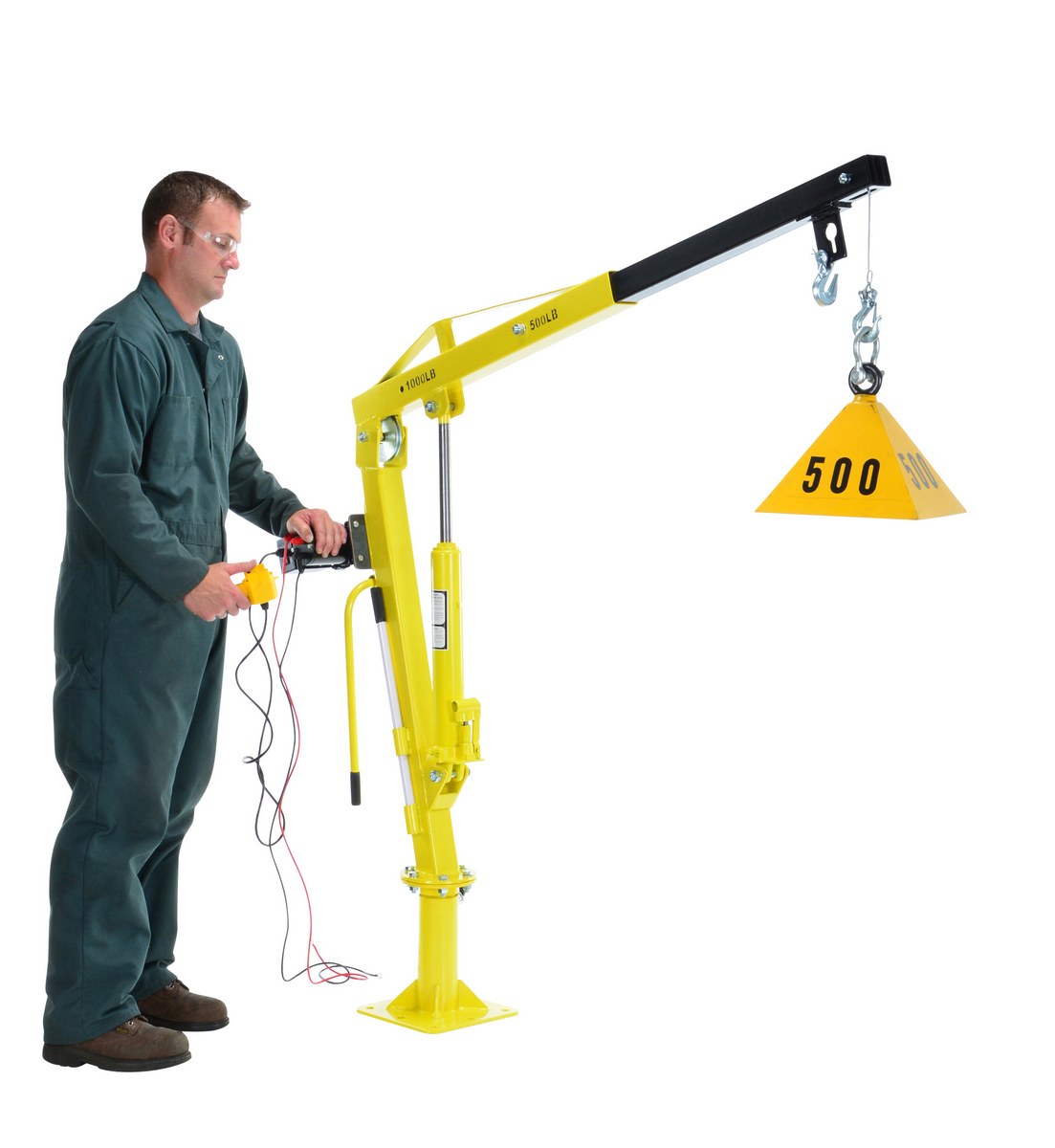

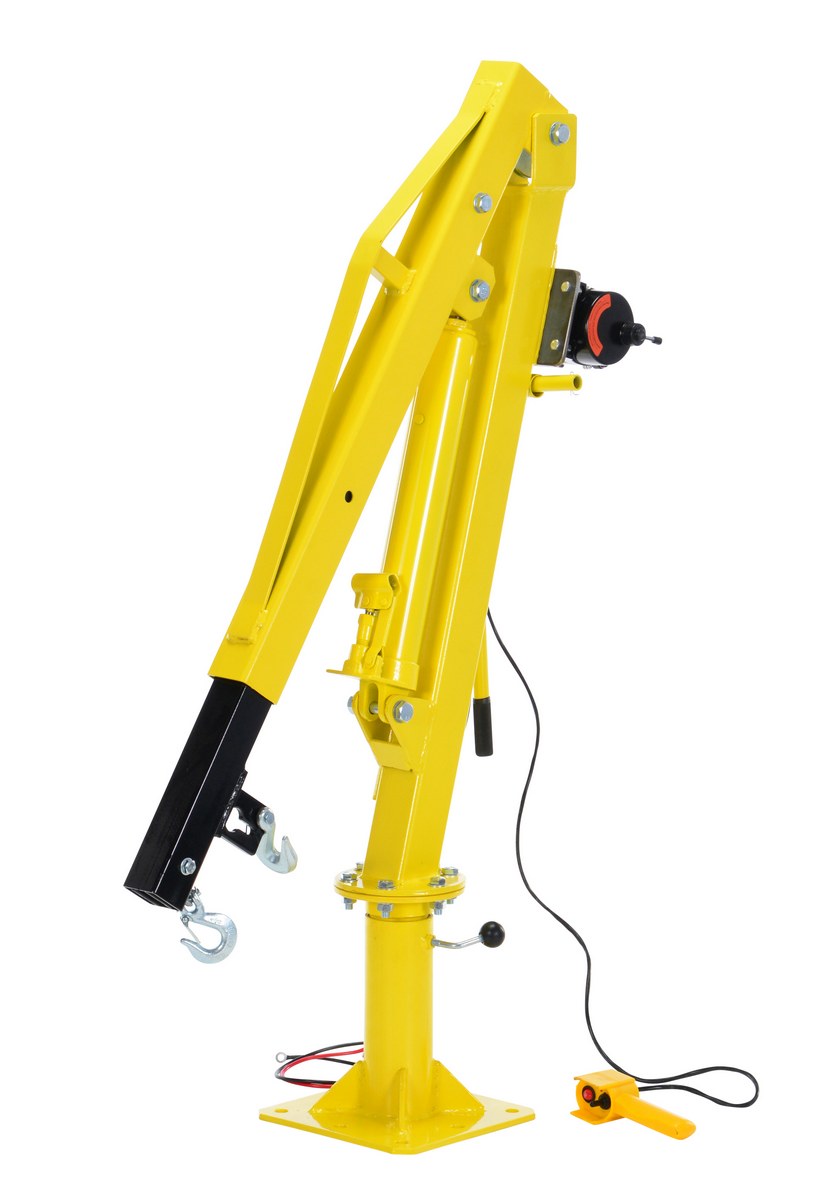

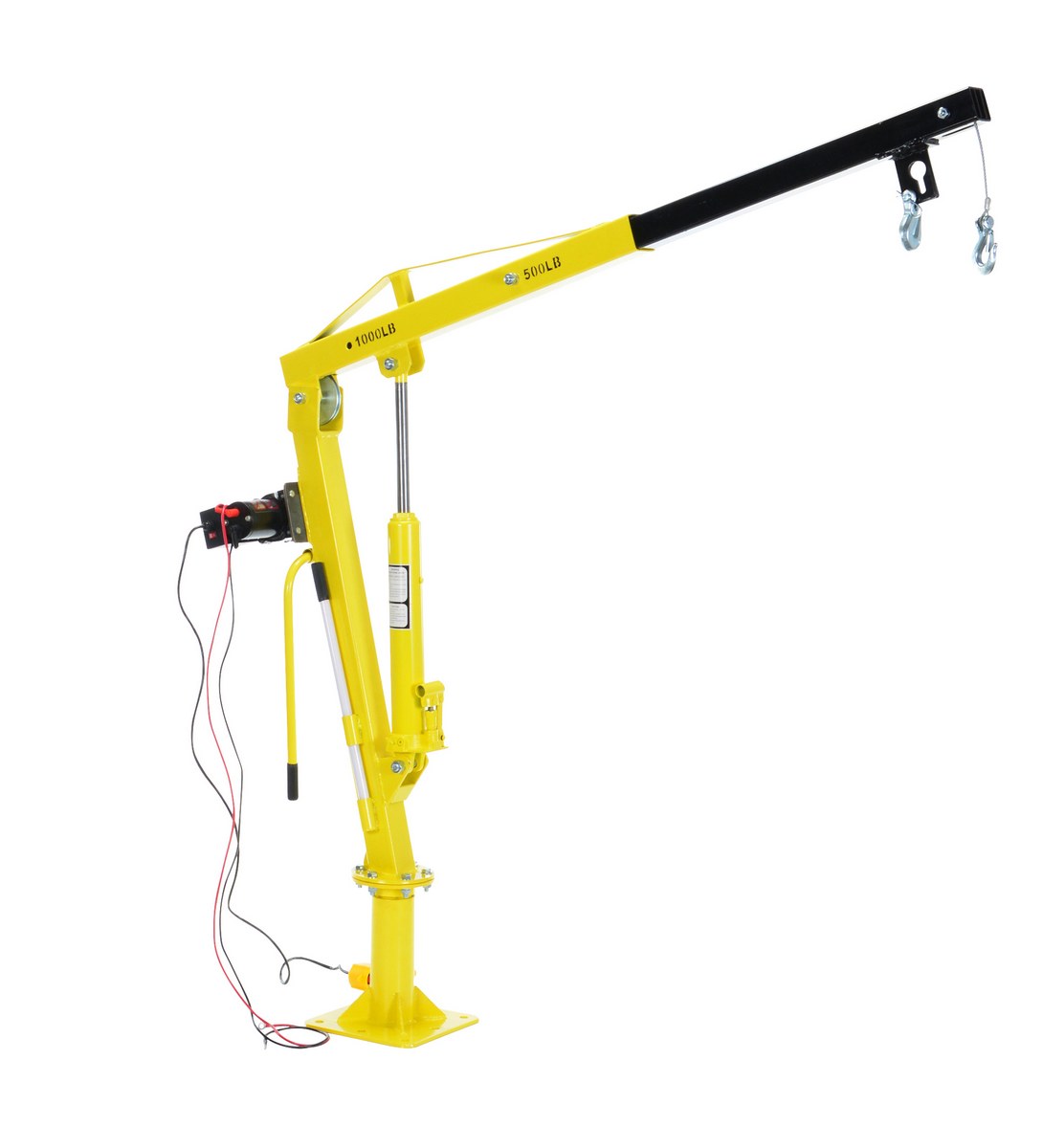

WTJ-2-DC WTJ-2-DC90 Days Limited WarrantySteel DC Powered Winch Truck Jib Crane 500 Lb. Extended Capacity YellowUniform Cable Winch Capacity (lb.): 500
Extended Fixed Hook Capacity (lb.): 500		160

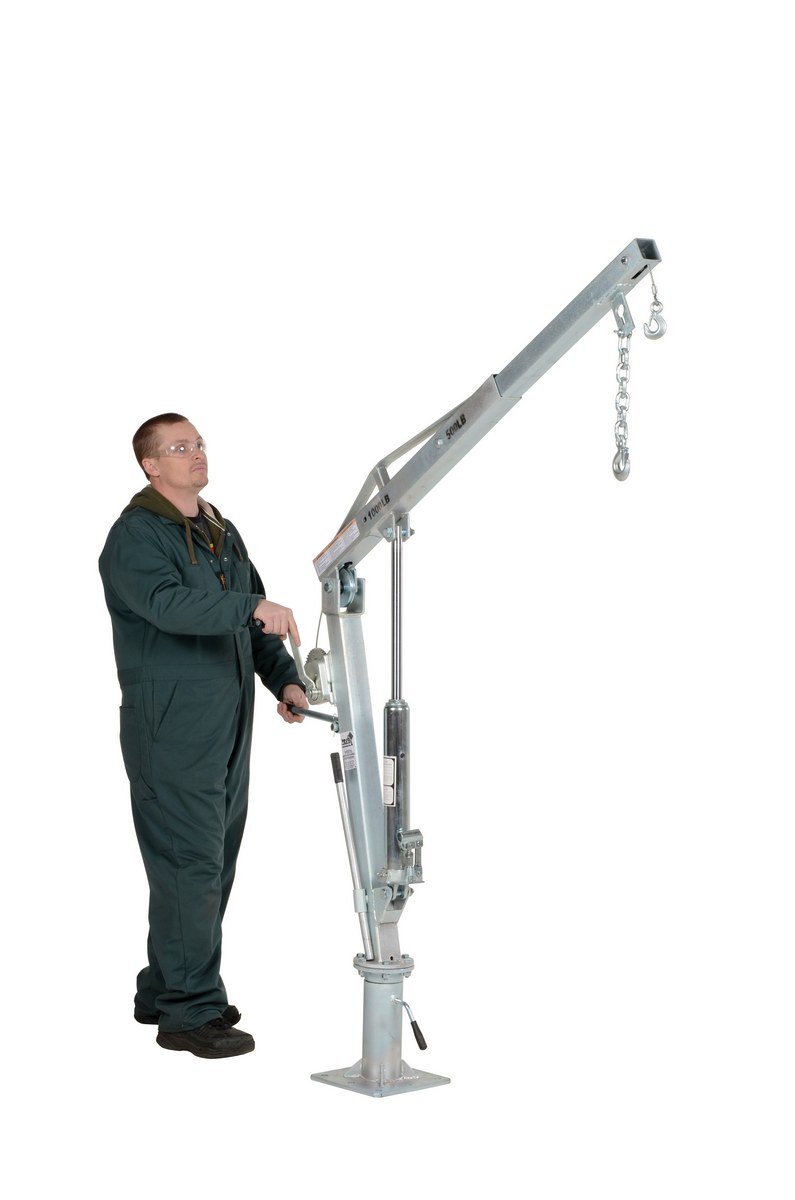

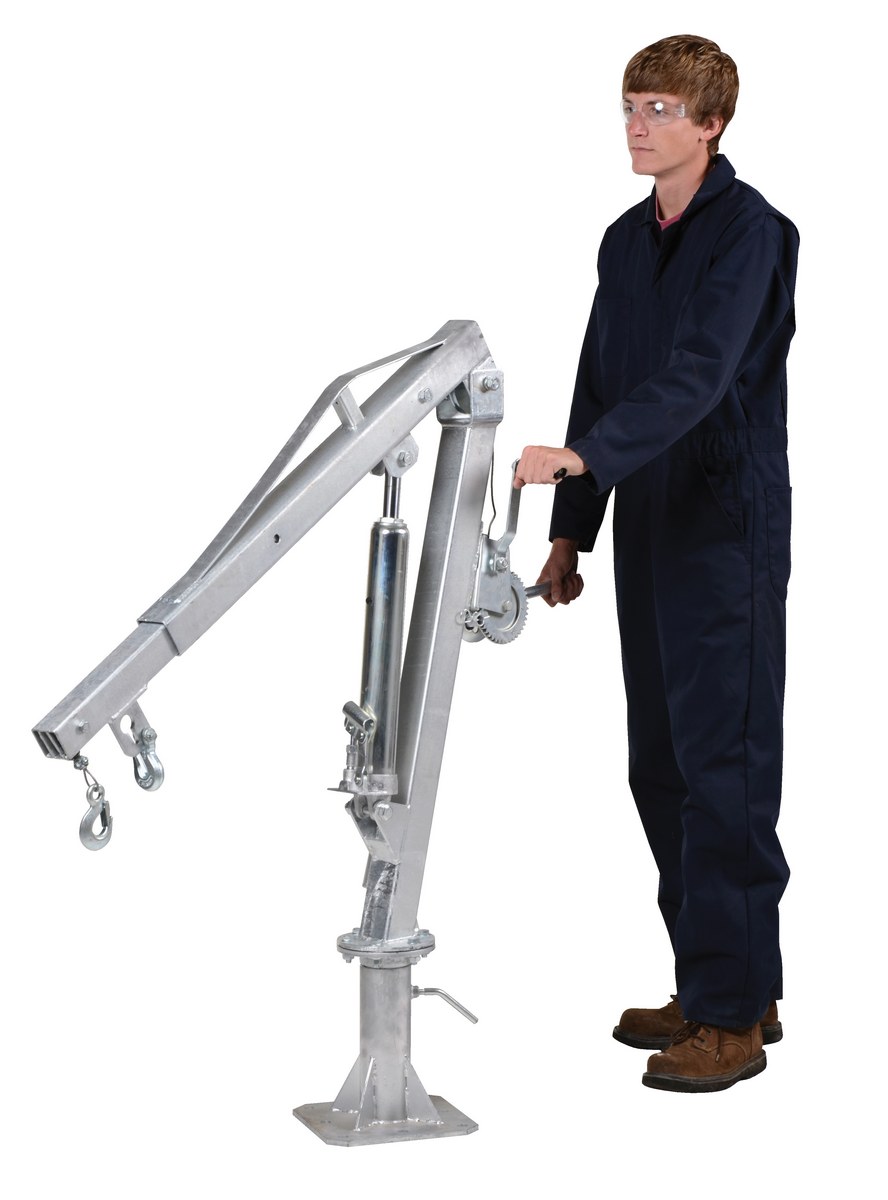

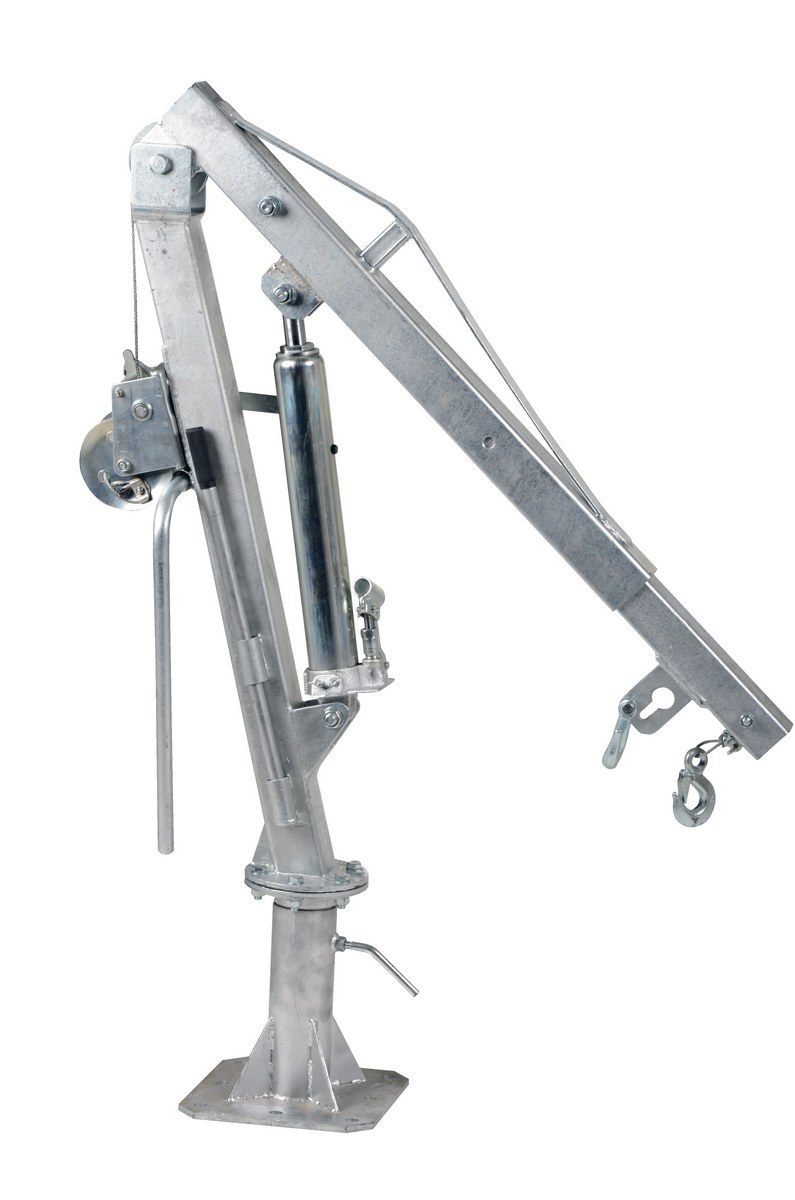

WTJ-2-G POPULAR WTJ-2-G90 Days Limited WarrantyGalvanized Steel Winch Truck Jib Crane 500 Lb. Extended Capacity GrayUniform Cable Winch Capacity (lb.): 500
Extended Fixed Hook Capacity (lb.): 500		134

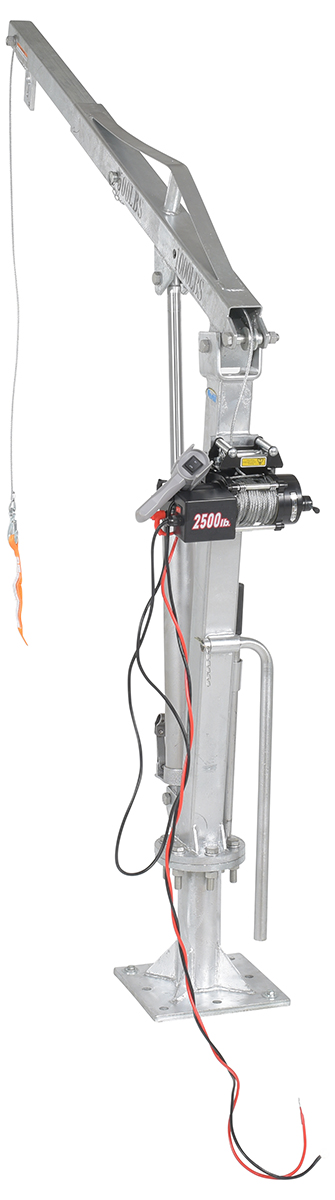

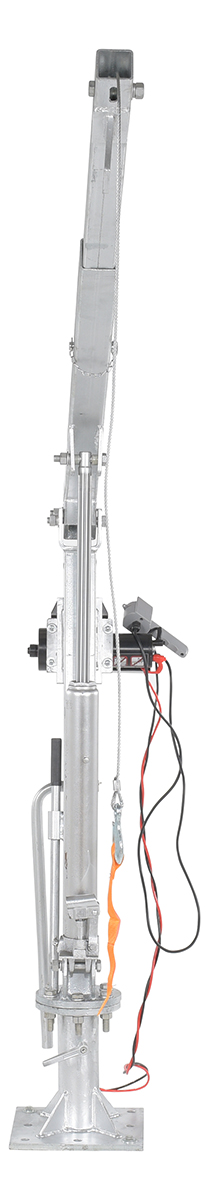

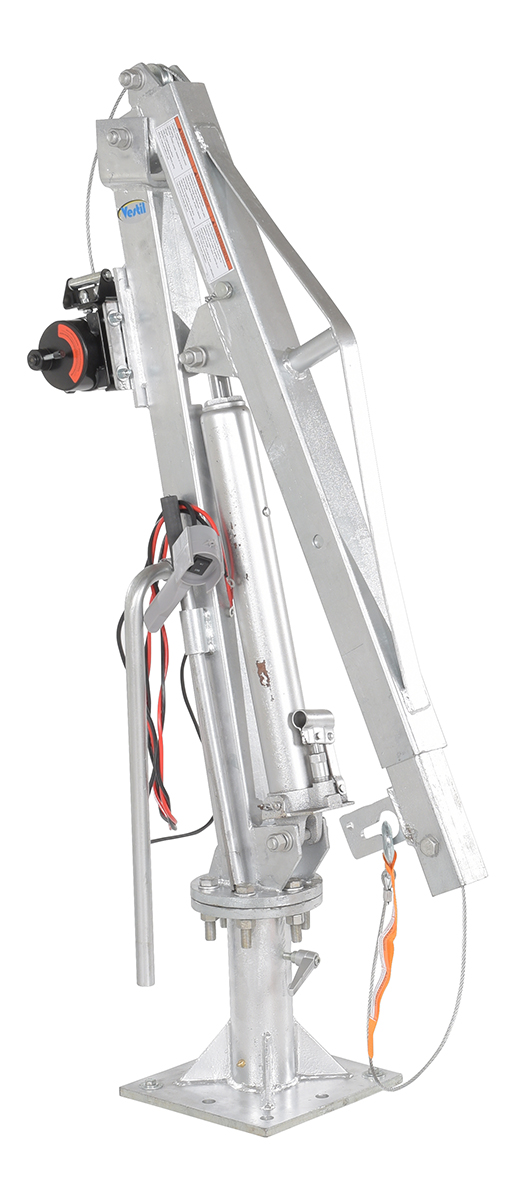

WTJ-2-G-DC WTJ-2-G-DC90 Days Limited WarrantyGalvanized Steel DC Powered Winch Truck Jib Crane 500 Lb. Extended Capacity GrayUniform Cable Winch Capacity (lb.): 500
Extended Fixed Hook Capacity (lb.): 500		165

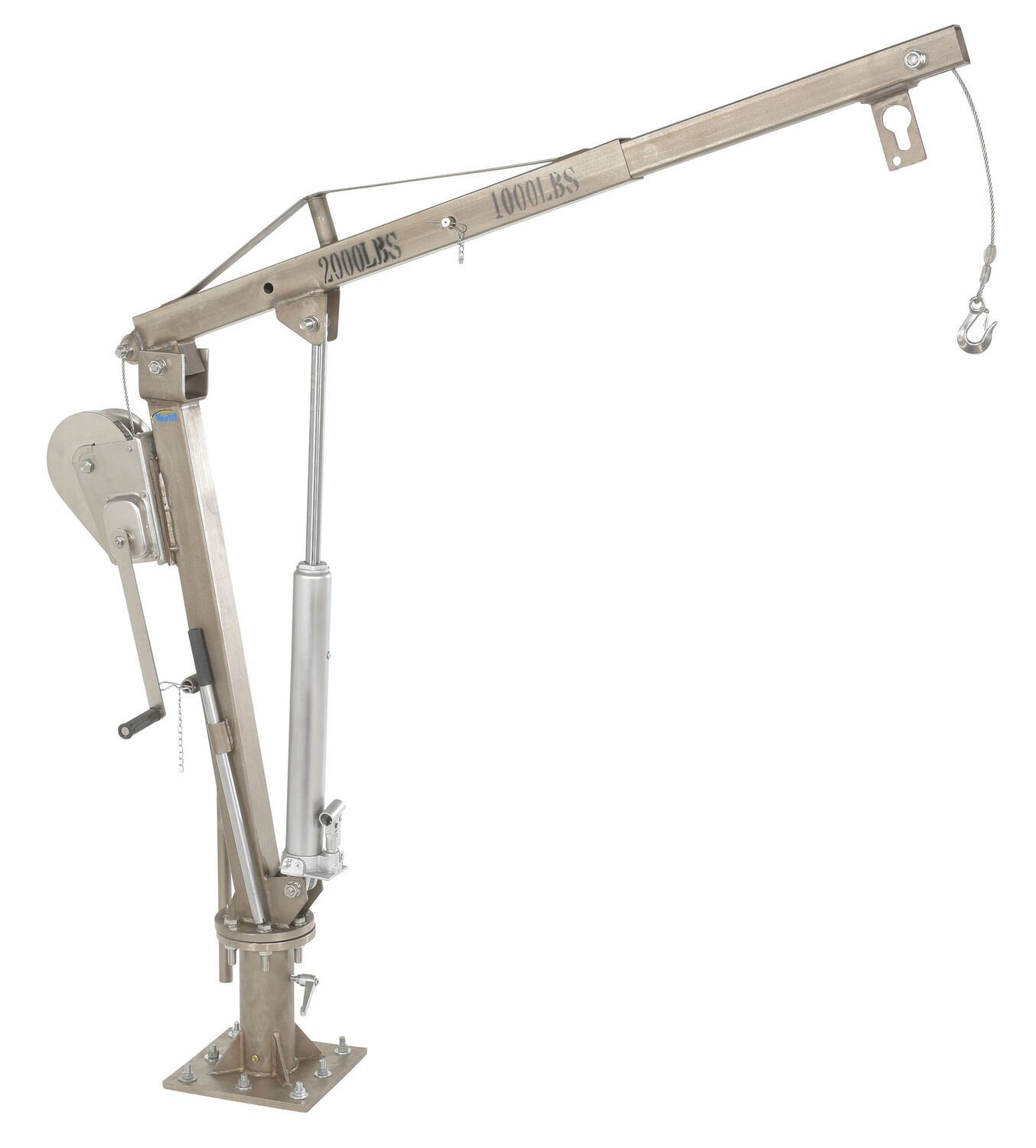

WTJ-2-SS WTJ-2-SS90 Days Limited WarrantyStainless Steel Winch Truck Jib Crane 550 Lb. Extended Capacity SilverUniform Cable Winch Capacity (lb.): 500
Extended Fixed Hook Capacity (lb.): 500		134

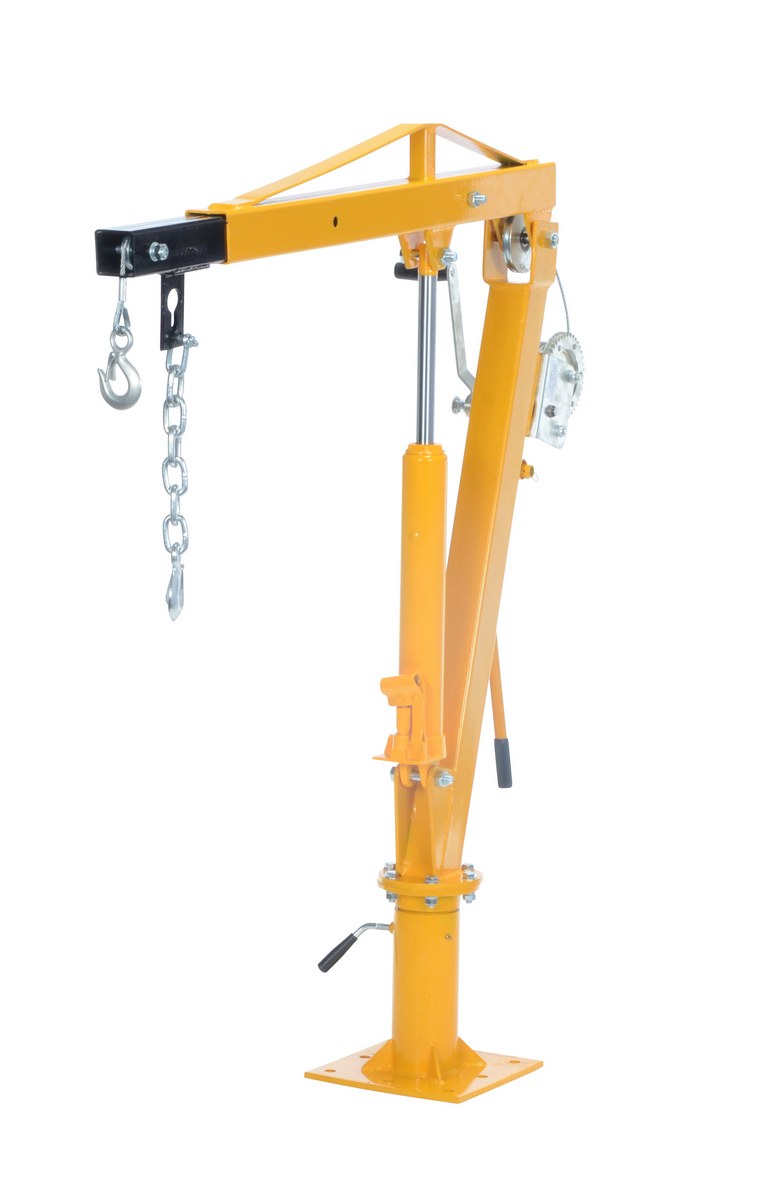

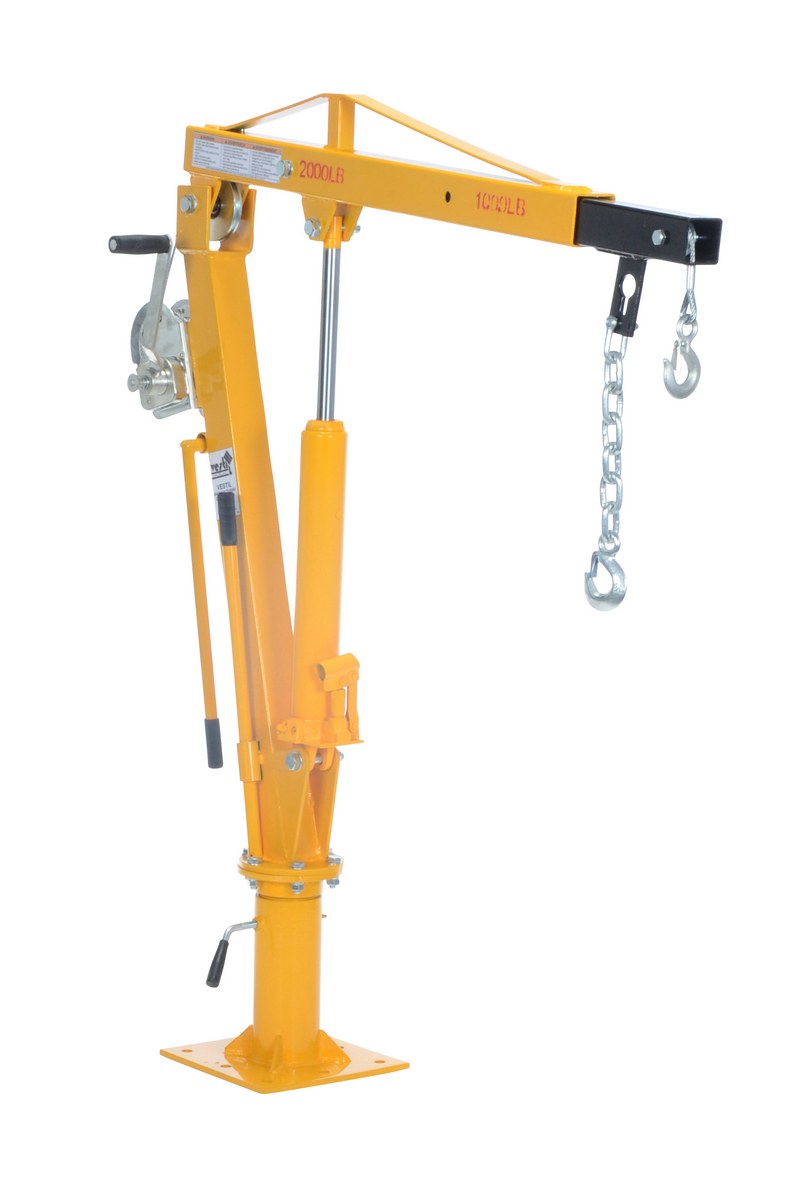

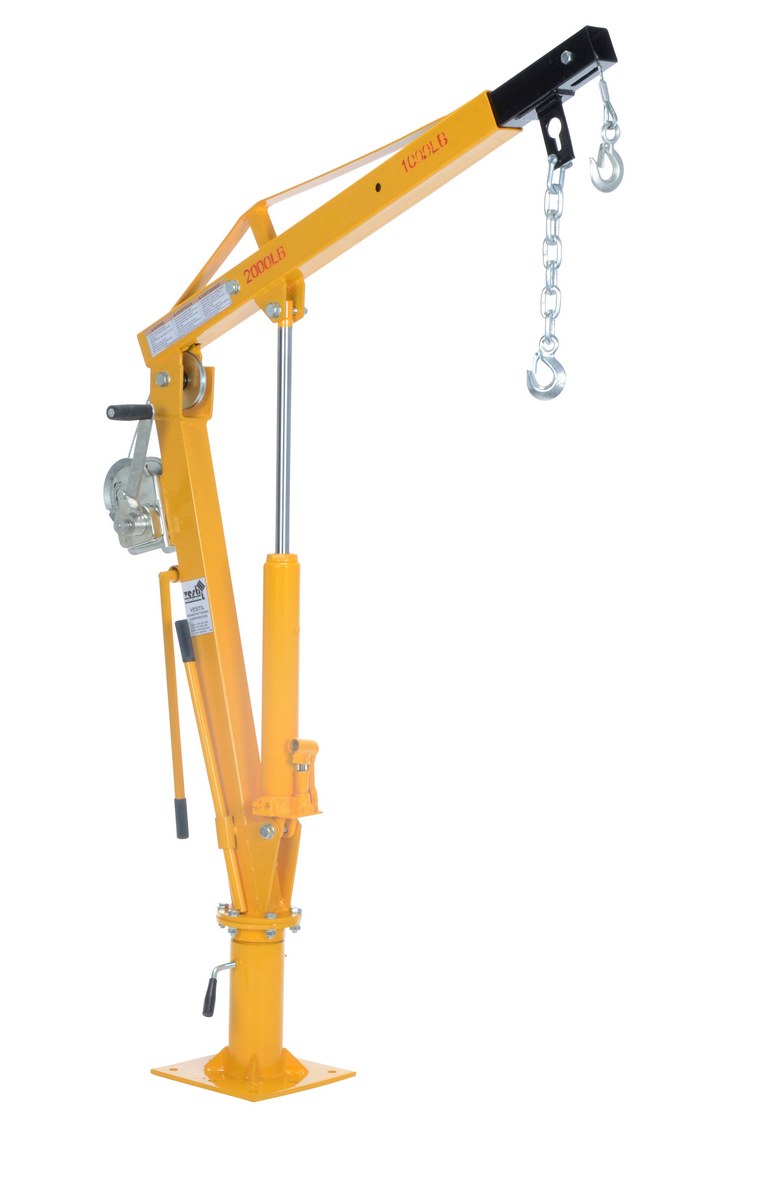

WTJ-4 POPULAR WTJ-490 Days Limited WarrantySteel Winch Truck Jib Crane 44 In. Reach 1,000 Lb. Extended Capacity YellowUniform Cable Winch Capacity (lb.): 500
Extended Fixed Hook Capacity (lb.): 1,000		145

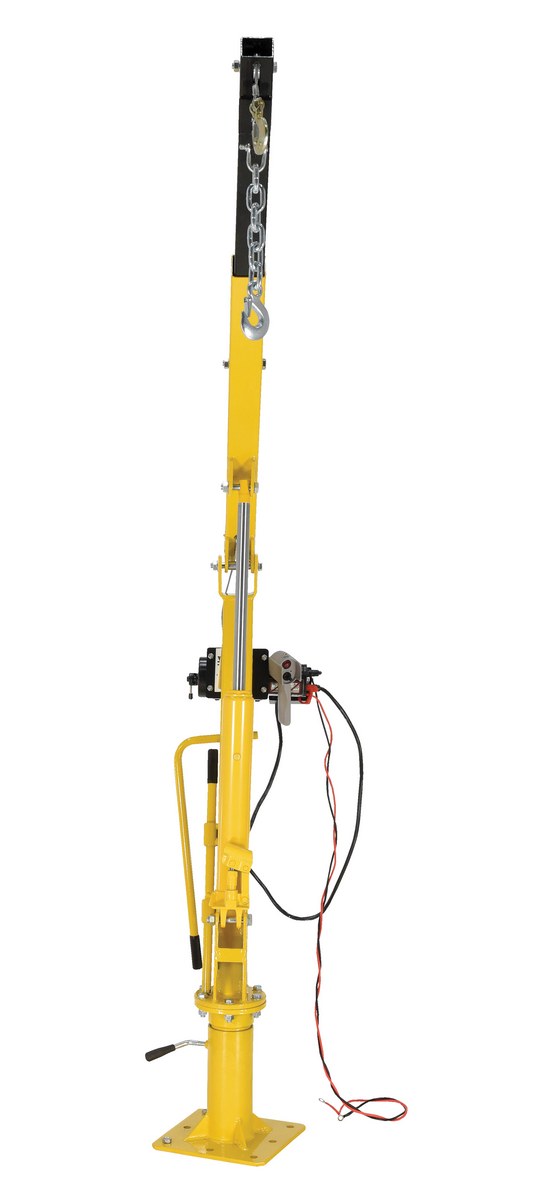

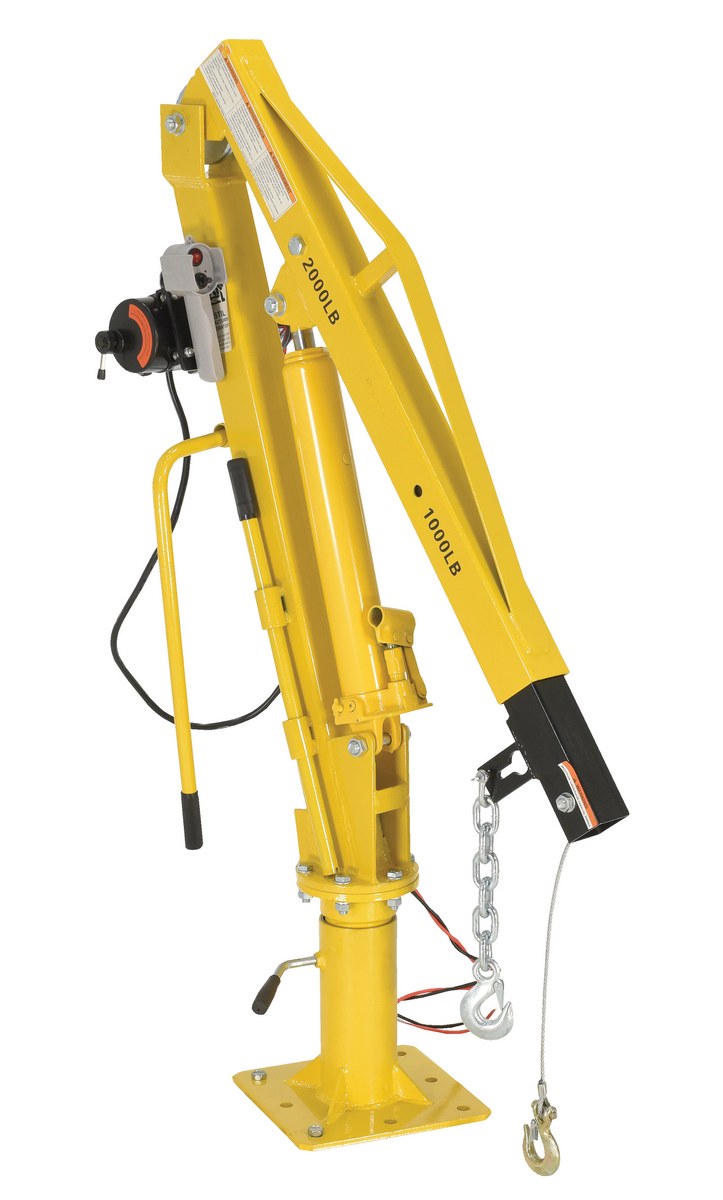

WTJ-4-DC WTJ-4-DC90 Days Limited WarrantySteel DC Powered Winch Truck Jib Crane 44 In. Reach 1,000 Lb. Extended Capacity YellowUniform Capacity (lb.): 1000
Raised Height (in.): 86-1/2		204

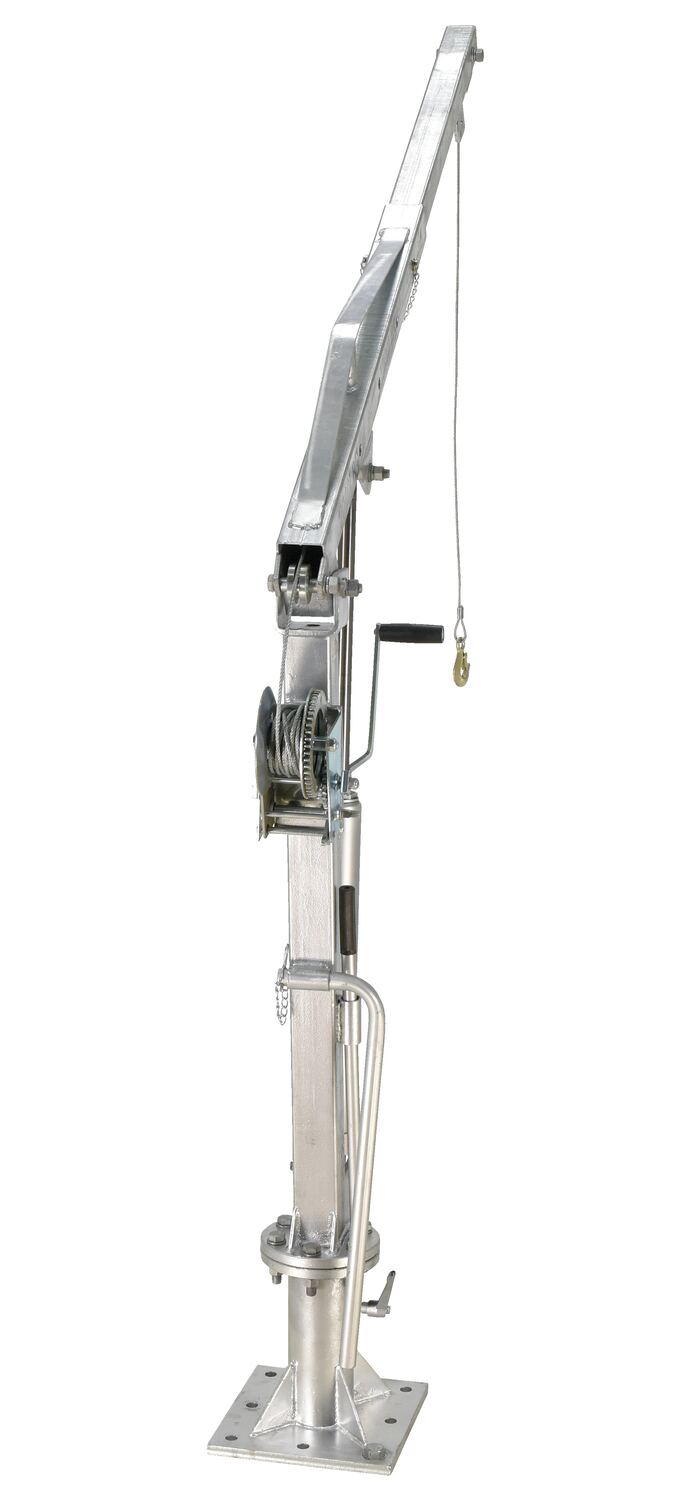

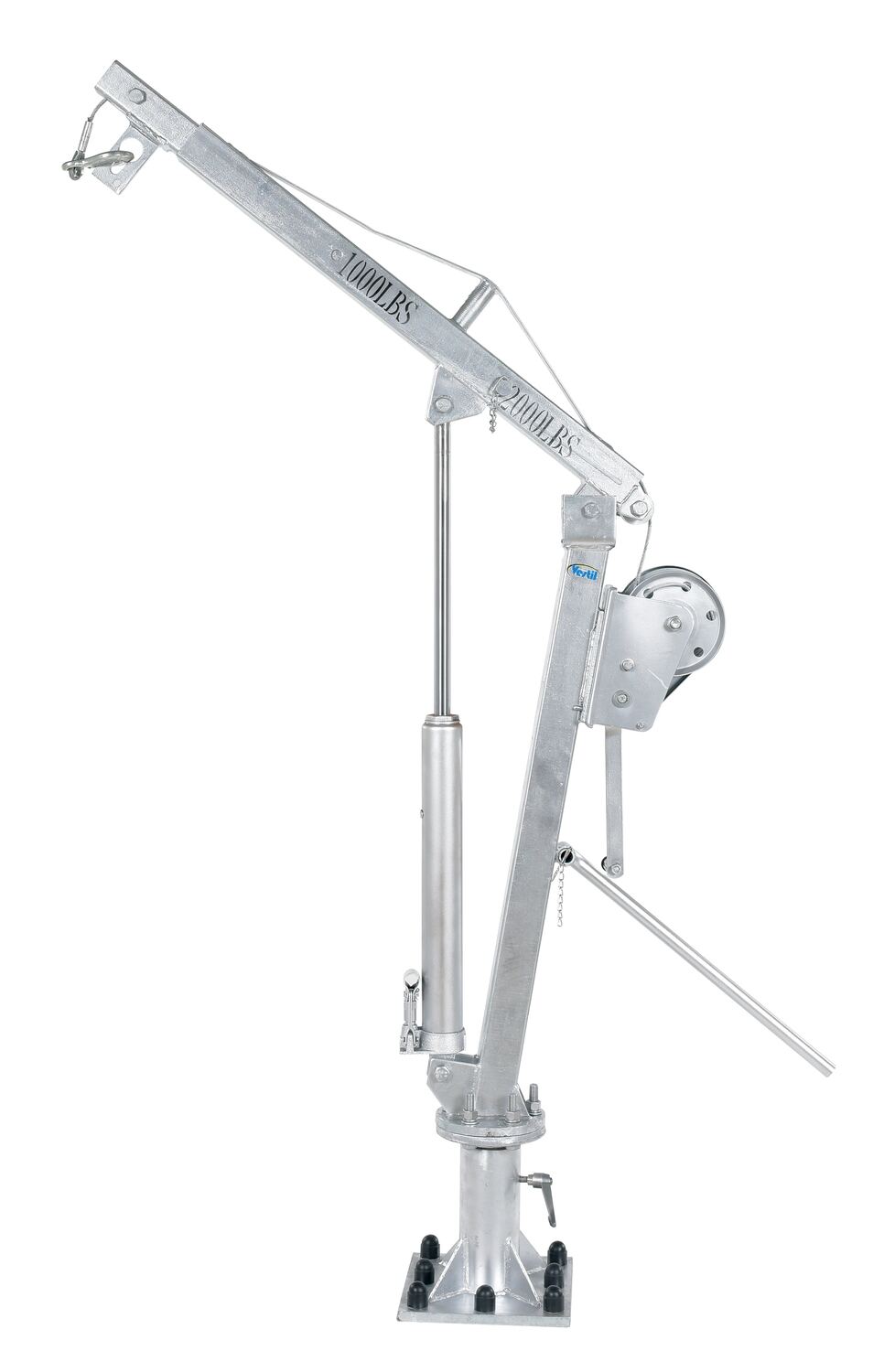

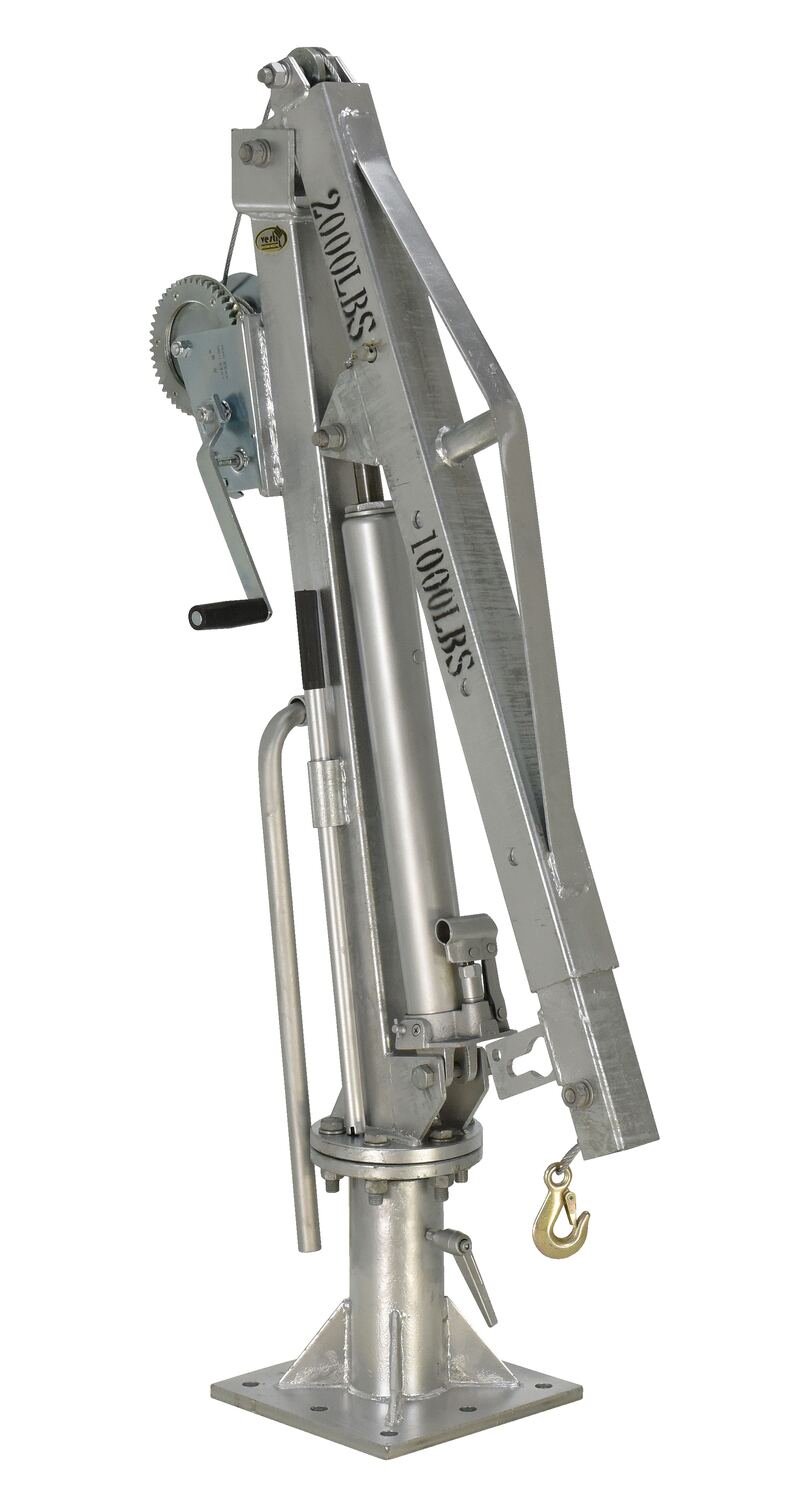

WTJ-4-G WTJ-4-G90 Days Limited WarrantyGalvanized Steel Winch Truck Jib Crane 52 In. Reach 1,000 Lb. Extended Capacity GrayUniform Cable Winch Capacity (lb.): 500
Extended Fixed Hook Capacity (lb.): 1,000		218

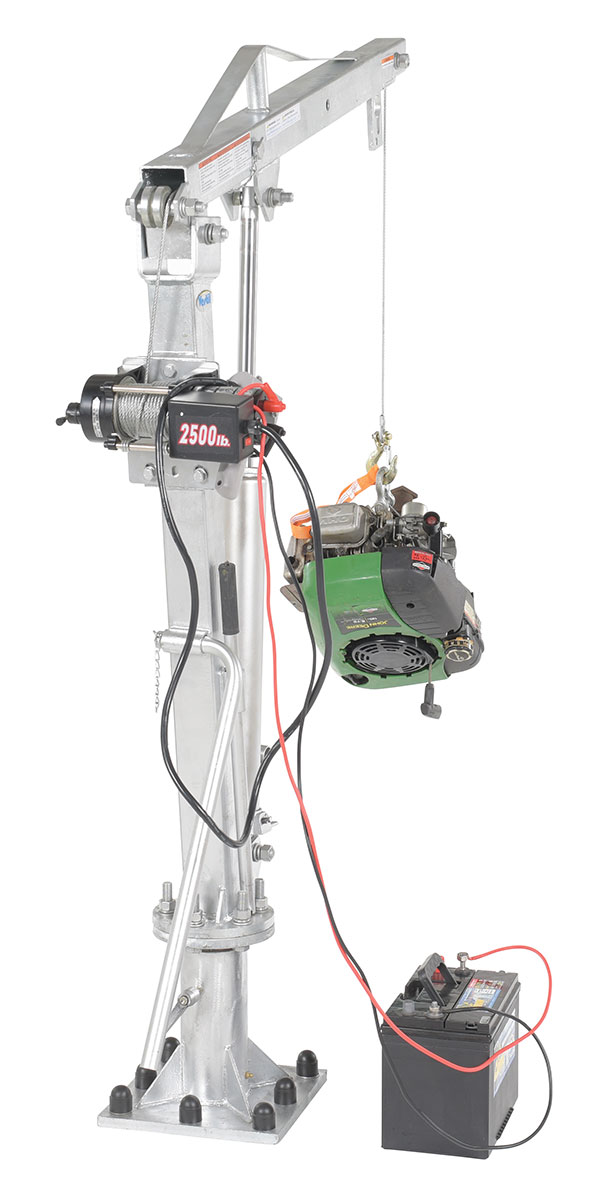

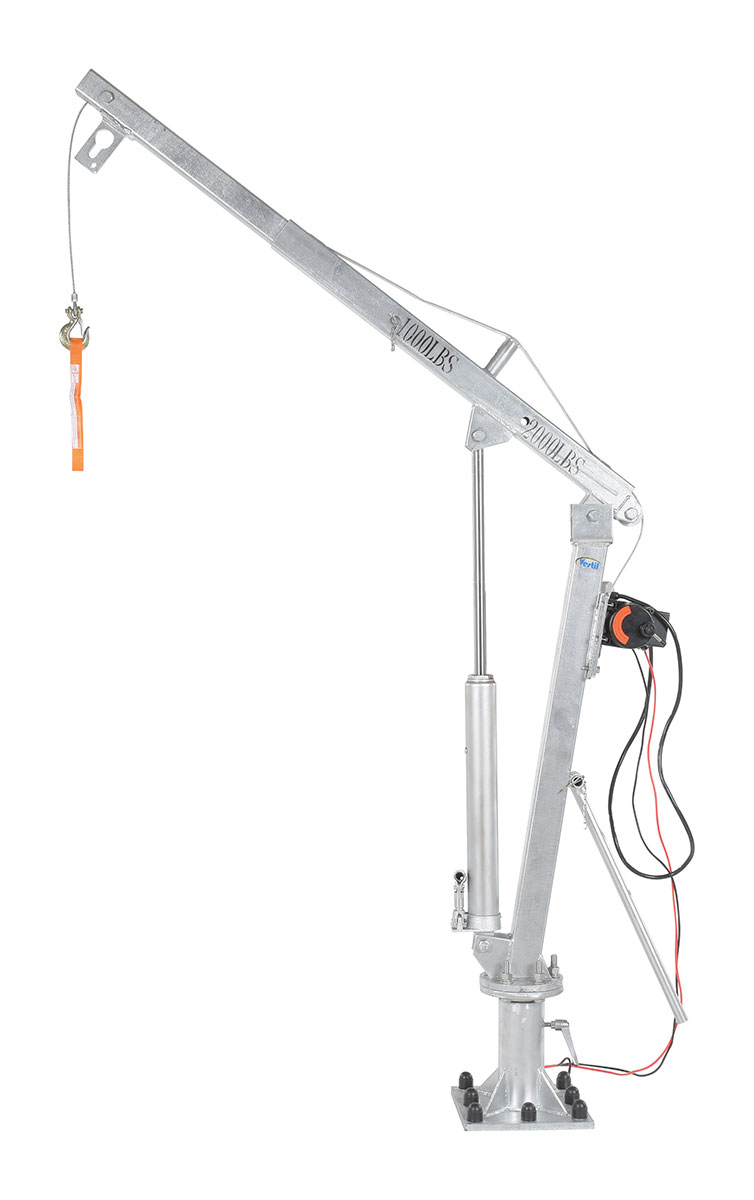

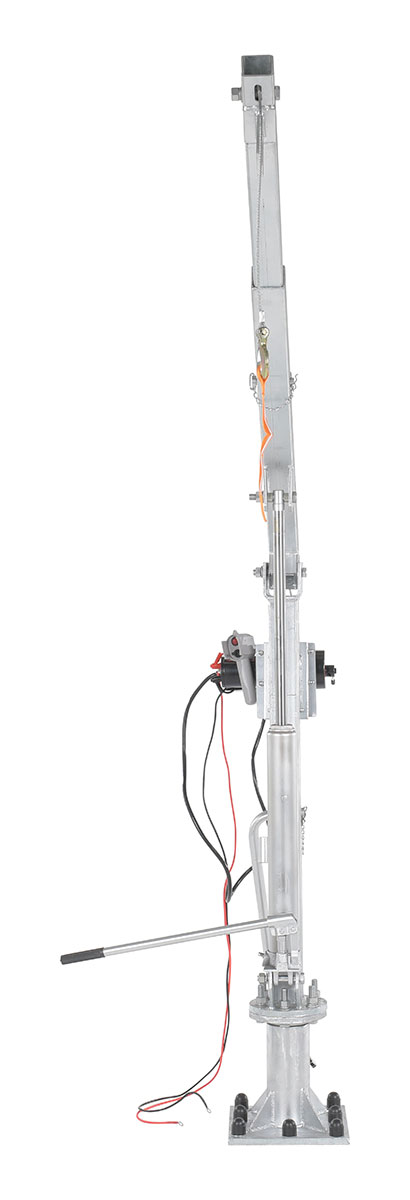

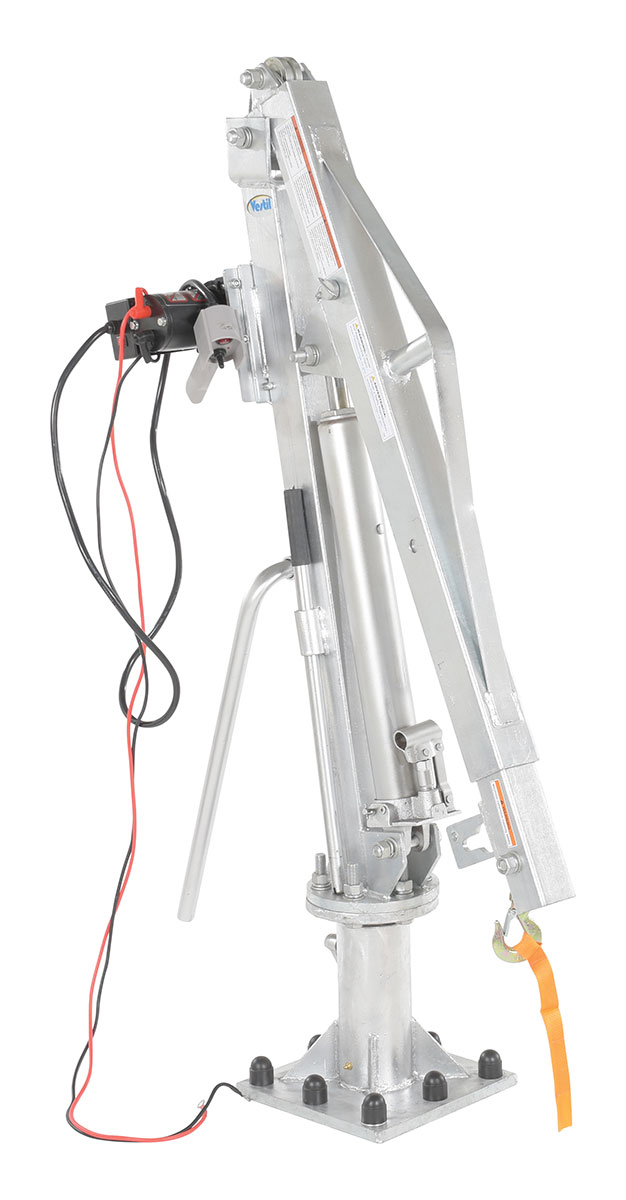

WTJ-4-G-DC WTJ-4-G-DC90 Days Limited WarrantyGalvanized Steel DC Powered Winch Truck Jib Crane 52 In. Reach 1,000 Lb. Extended Capacity GrayExtended Maximum Hook Height (in.): 97
Extended Minimum Hook Height (in.): Zero		245

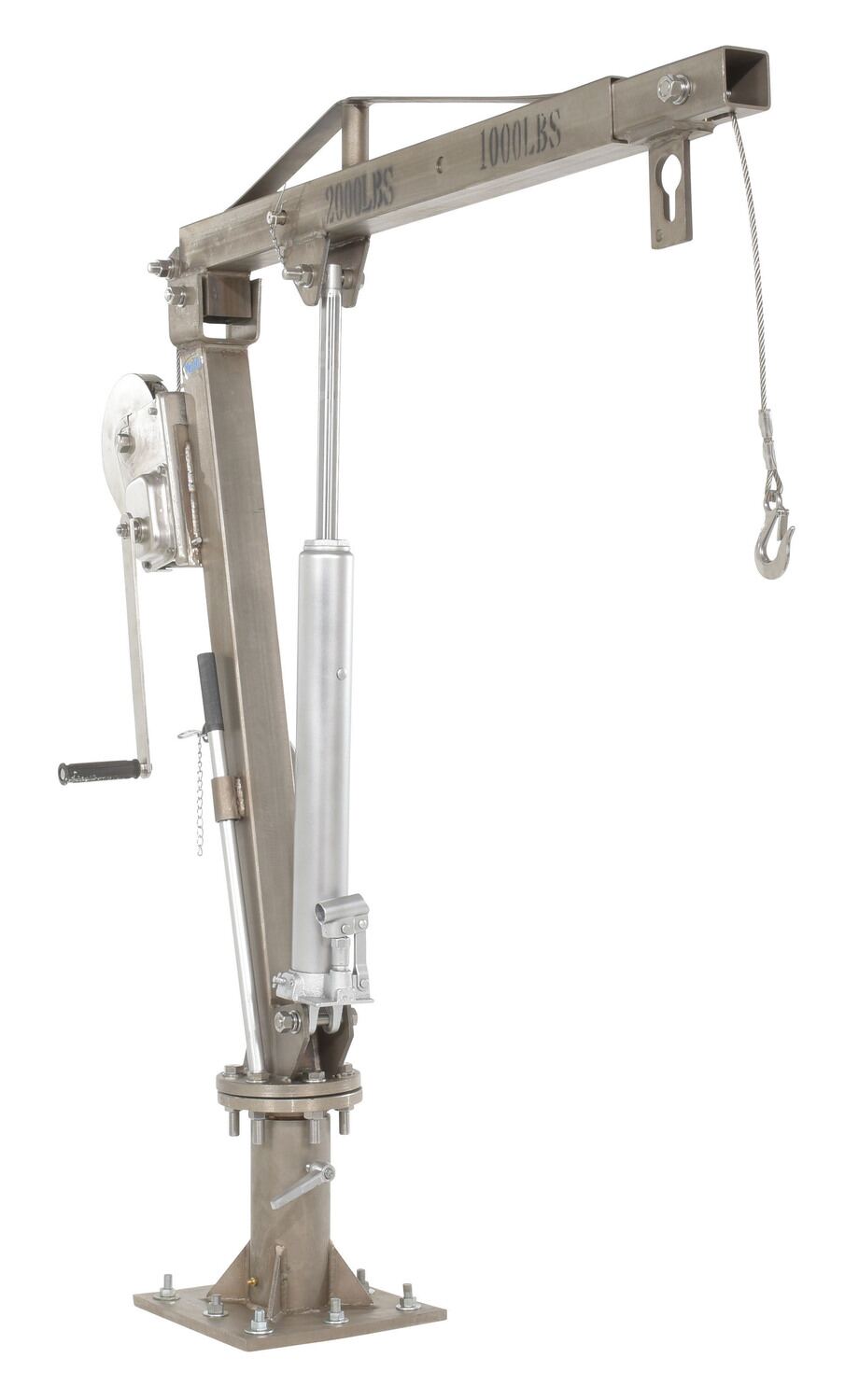

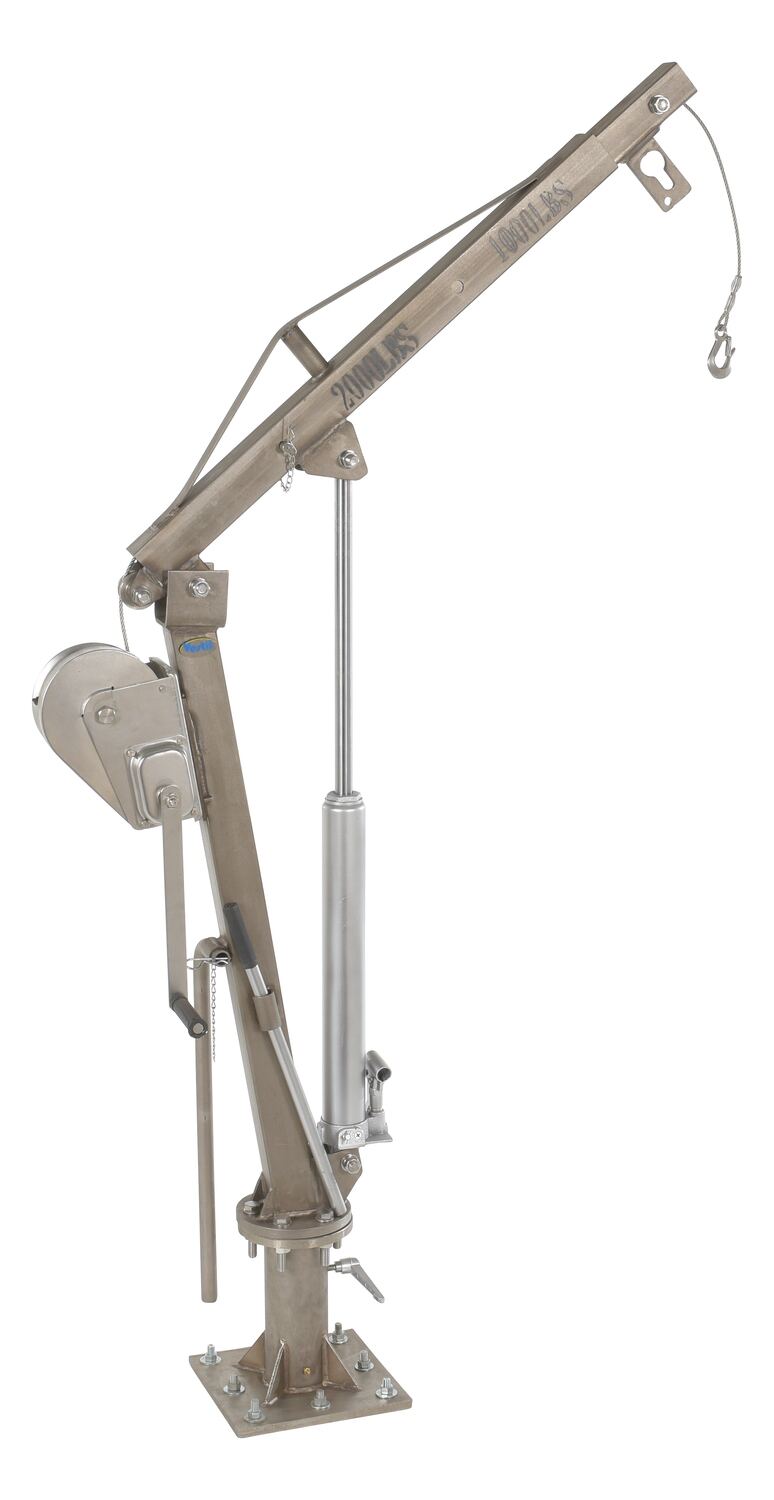

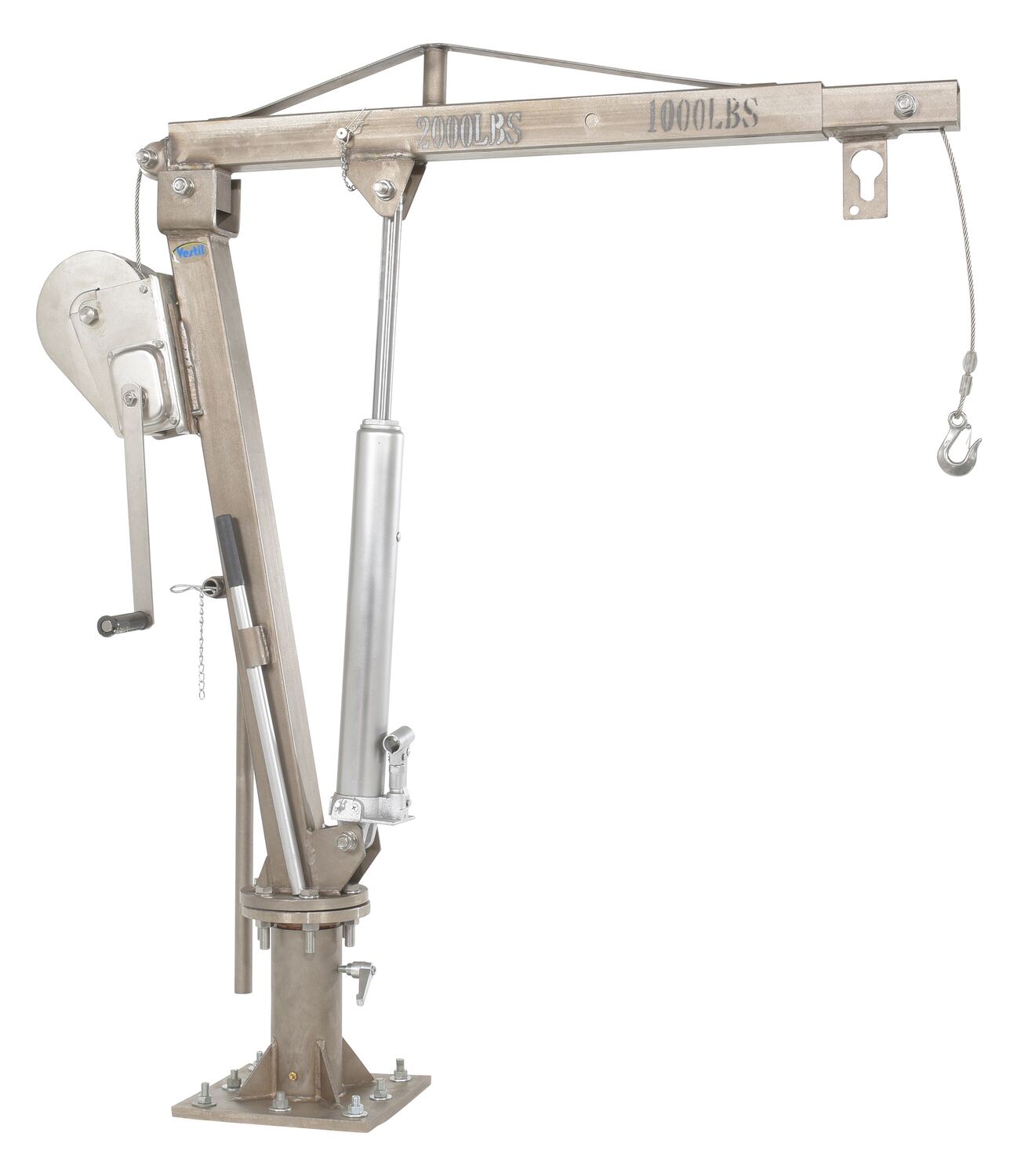

WTJ-4-SS WTJ-4-SS90 Days Limited WarrantyStainless Steel Winch Truck Jib Crane 52 In. Reach 1,000 Lb. Extended Capacity SilverUniform Cable Winch Capacity (lb.): 500
Extended Fixed Hook Capacity (lb.): 1,000		218

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

WTJ-2
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Cable Winch Capacity (lb.): 500
Extended Fixed Hook Capacity (lb.): 500
Uniform Cable Winch Capacity (lb.): 500
Extended Fixed Hook Capacity (lb.): 500

WTJ-2-DC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Cable Winch Capacity (lb.): 500
Extended Fixed Hook Capacity (lb.): 500
Uniform Cable Winch Capacity (lb.): 500
Extended Fixed Hook Capacity (lb.): 500

WTJ-2-G
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Cable Winch Capacity (lb.): 500
Extended Fixed Hook Capacity (lb.): 500
Uniform Cable Winch Capacity (lb.): 500
Extended Fixed Hook Capacity (lb.): 500

WTJ-2-G-DC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Cable Winch Capacity (lb.): 500
Extended Fixed Hook Capacity (lb.): 500
Uniform Cable Winch Capacity (lb.): 500
Extended Fixed Hook Capacity (lb.): 500

WTJ-2-SS
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Cable Winch Capacity (lb.): 500
Extended Fixed Hook Capacity (lb.): 500
Uniform Cable Winch Capacity (lb.): 500
Extended Fixed Hook Capacity (lb.): 500

WTJ-4
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Cable Winch Capacity (lb.): 500
Extended Fixed Hook Capacity (lb.): 1,000
Uniform Cable Winch Capacity (lb.): 500
Extended Fixed Hook Capacity (lb.): 1,000

WTJ-4-DC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1000
Raised Height (in.): 86-1/2
Uniform Capacity (lb.): 1000
Raised Height (in.): 86-1/2

WTJ-4-G
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Cable Winch Capacity (lb.): 500
Extended Fixed Hook Capacity (lb.): 1,000
Uniform Cable Winch Capacity (lb.): 500
Extended Fixed Hook Capacity (lb.): 1,000

WTJ-4-G-DC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Extended Maximum Hook Height (in.): 97
Extended Minimum Hook Height (in.): Zero
Extended Maximum Hook Height (in.): 97
Extended Minimum Hook Height (in.): Zero

WTJ-4-SS
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Cable Winch Capacity (lb.): 500
Extended Fixed Hook Capacity (lb.): 1,000
Uniform Cable Winch Capacity (lb.): 500
Extended Fixed Hook Capacity (lb.): 1,000
Winch Operated Truck Jib Cranes PDF's will open in a new window when clicked.

Manuals


WTJ-2
Owners Manual

WTJ-4
Owners Manual

WTJ-4-G
Owners Manual

WTJ-2-G
Owners Manual

Survey Sheets

No Survey Sheets For This Product


Approval Drawings


WTJ-2

WTJ-2-G

WTJ-4

WTJ-4-G

Testing Certificates


WTJ-2

WTJ-2-DC

WTJ-2-G

WTJ-2-G-DC

WTJ-2-SS

WTJ-4

WTJ-4-DC

WTJ-4-G

WTJ-4-G-DC

WTJ-4-SS

SDS Sheets

Hydraulic Oil SDS Sheet for: WTJ-2
Hydraulic Oil SDS Sheet for: WTJ-2-DC
Hydraulic Oil SDS Sheet for: WTJ-2-G
Hydraulic Oil SDS Sheet for: WTJ-2-G-DC
Hydraulic Oil SDS Sheet for: WTJ-2-SS
Hydraulic Oil SDS Sheet for: WTJ-4
Hydraulic Oil SDS Sheet for: WTJ-4-DC
Hydraulic Oil SDS Sheet for: WTJ-4-G
Hydraulic Oil SDS Sheet for: WTJ-4-G-DC
Hydraulic Oil SDS Sheet for: WTJ-4-SS

Other PDF's


Truck Jib Cranes Mailing Brochure

Directory Links Of Available PDF's For All Products

Manuals
Survey Sheets
Drawings
Certificates of Testing
Warranties
SDS Data Sheets







Visit Our Youtube Channel For All Available Videos For All Products

Q: Does the truck jib come with a charger?

A: The WTJ is intended to be hooked up to a truck battery. If using the jib in some other application other than mounting on a truck, we suggest a 12V car battery that can be purchased at most stores locally. If the jib is hooked up to truck, a charger is not needed. If using in some other application, a charger can be purchased with the battery.

Q: What material is the cable made of?

A: The cable is stainless steel

Q: What type of anchor should be used when installing jib on concrete?

A: Because this is a lifting crane type product, we would recommend J-Anchors be poured into the concreate pad. Because we do not know the current condition, density, age, etc. of the concreate, we cannot recommend a standard anchor bolt.
