Magnetic Lifters

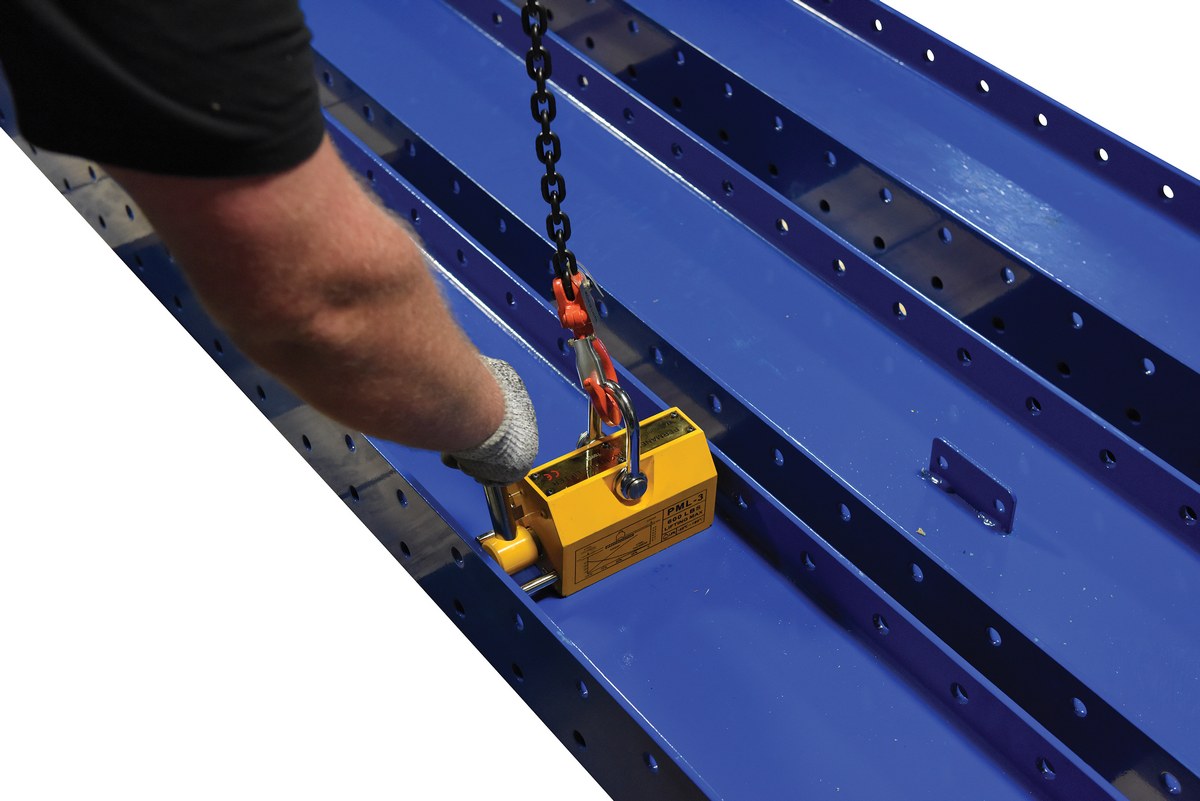

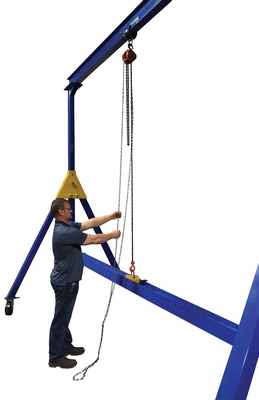

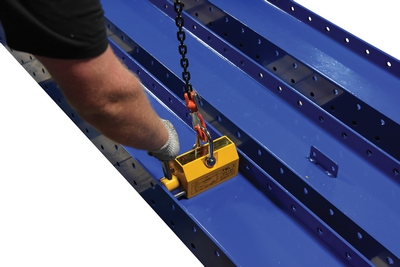

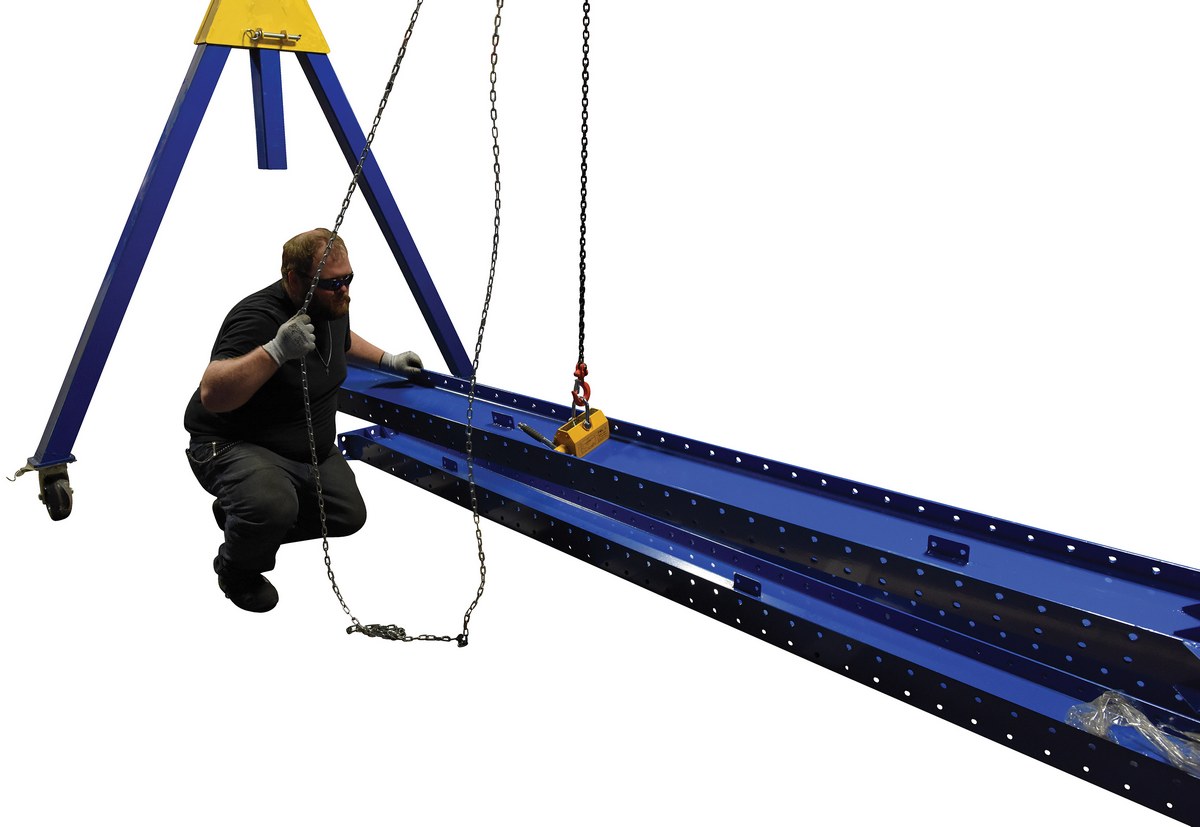

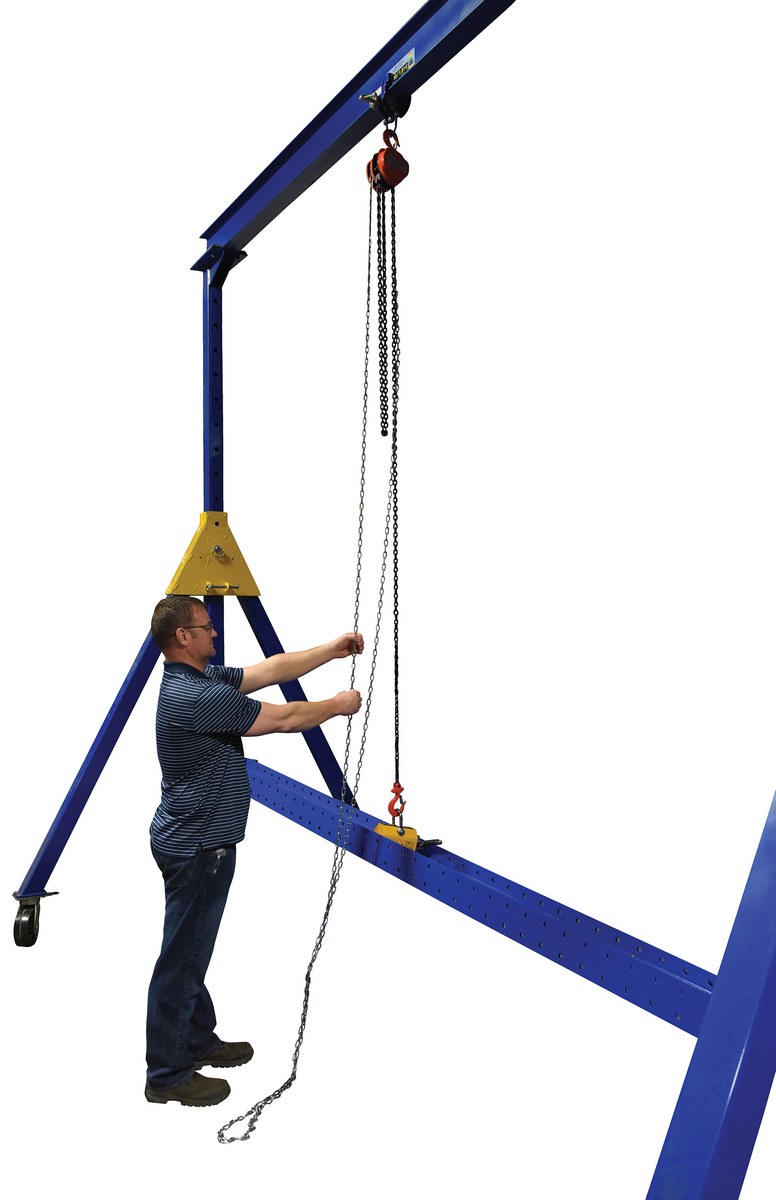

Pick up sheets of material by use of overhead crane or chain with the permanent Magnetic Lifter. Magnet is activated or deactivated by simply rotating the lever. Units are lightweight, so transporting from work area to work area is convenient.
- Pick up sheets of material by use of overhead crane or chain
- Magnet is activated or deactivated by simply rotating the lever
- Transporting from work area to work area is convenient
- Lifter is permanent lightweight

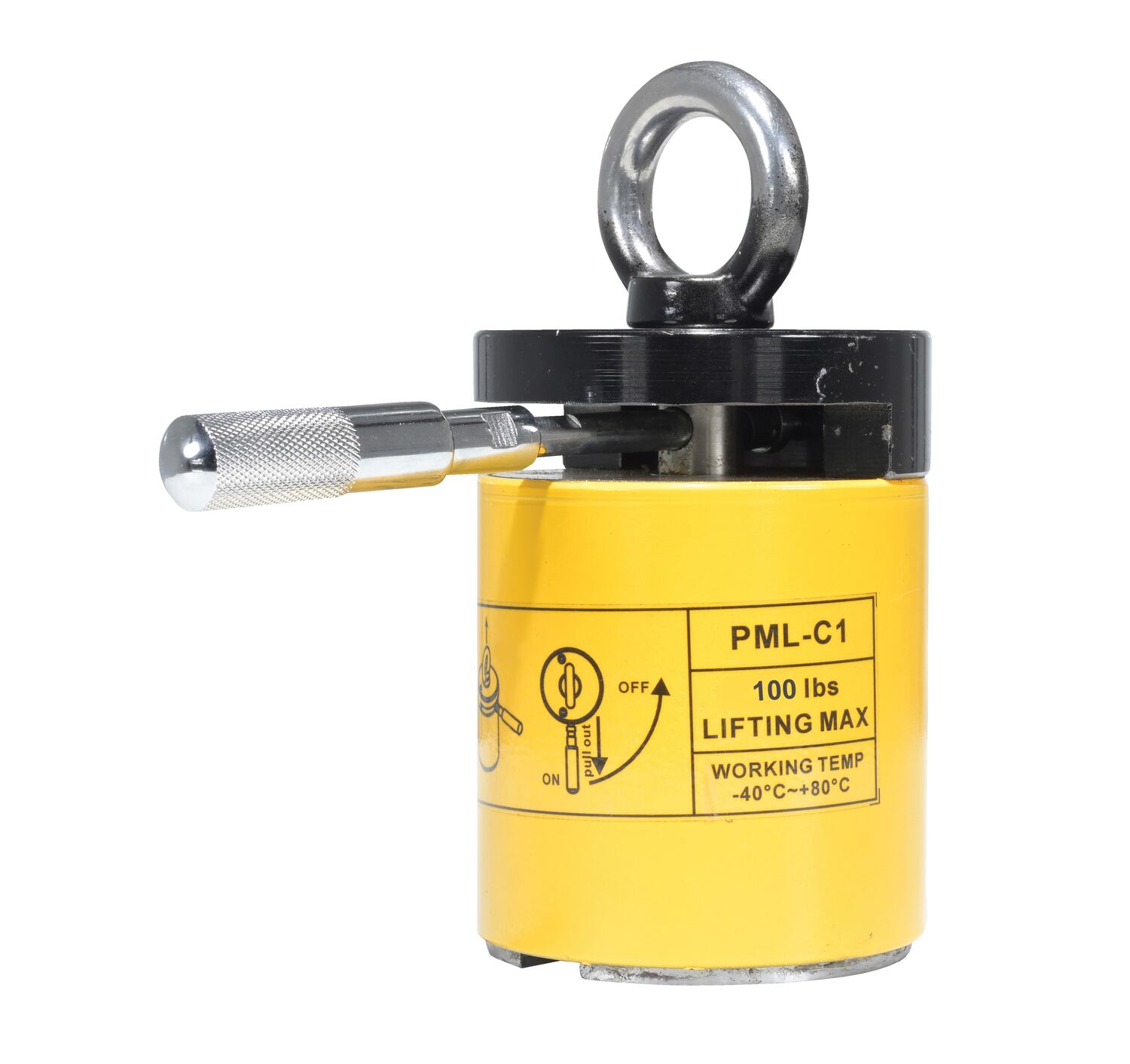

Cylindrical Magnetic Lifter
Model ML-C-2 is a 3.5" cylinder diameter providing a substantial lifting force in a condensed area, making it a convenient choice for lifting large and small items with an overhead lift. This magnet is built of steel with a yellow powder coat finish.
| Model | Description Chart | ||||||
| Rated lifting Capacity (lbs) | Size (in.) | Weight (lbs) |
|||||
| Flat Steel |
Round Steel |
L | B | H | R | ||

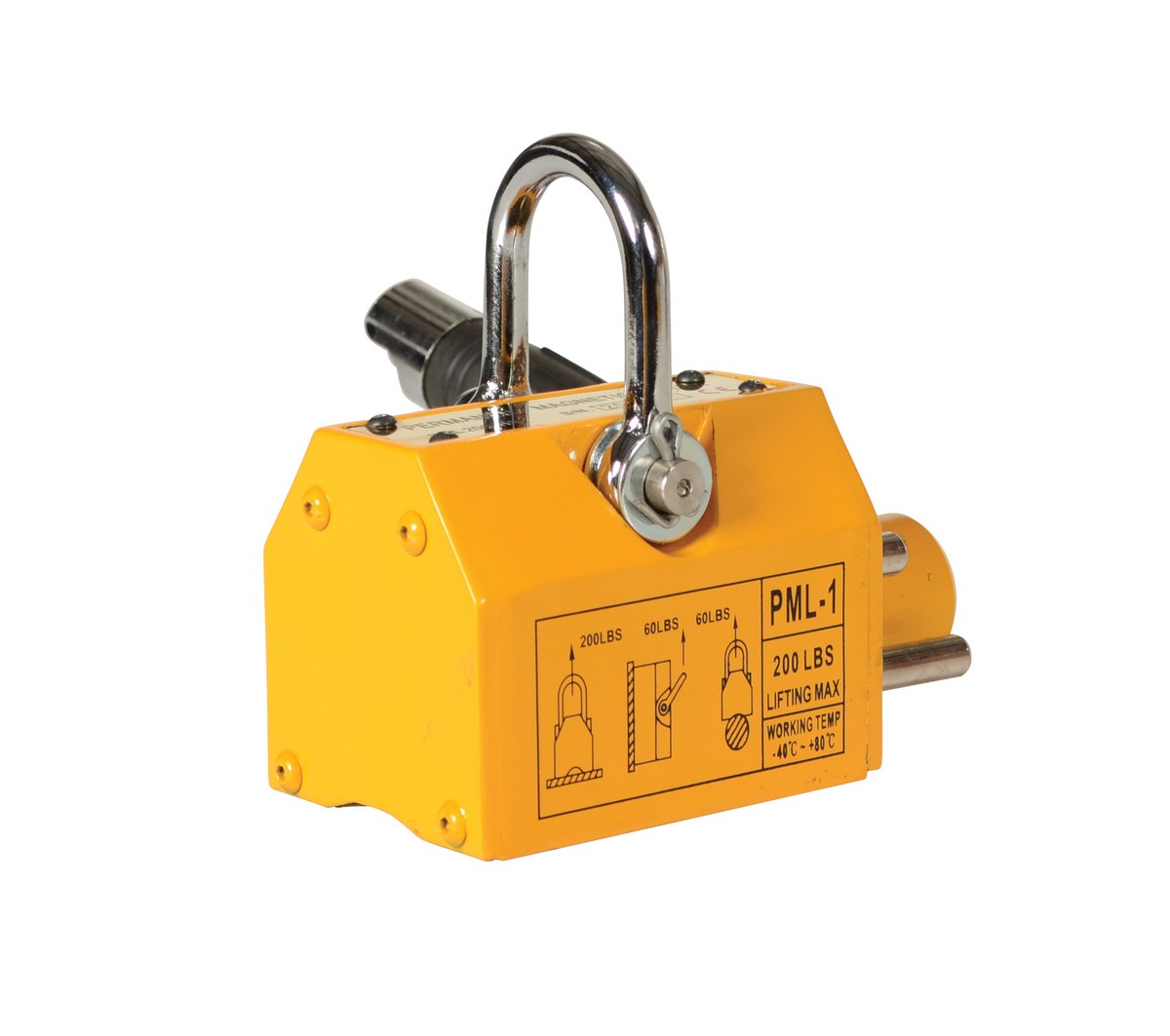

| ML-2 | 200 | 60 | 3.5 | 2.5 | 2.7 | 5.7 | 6 |

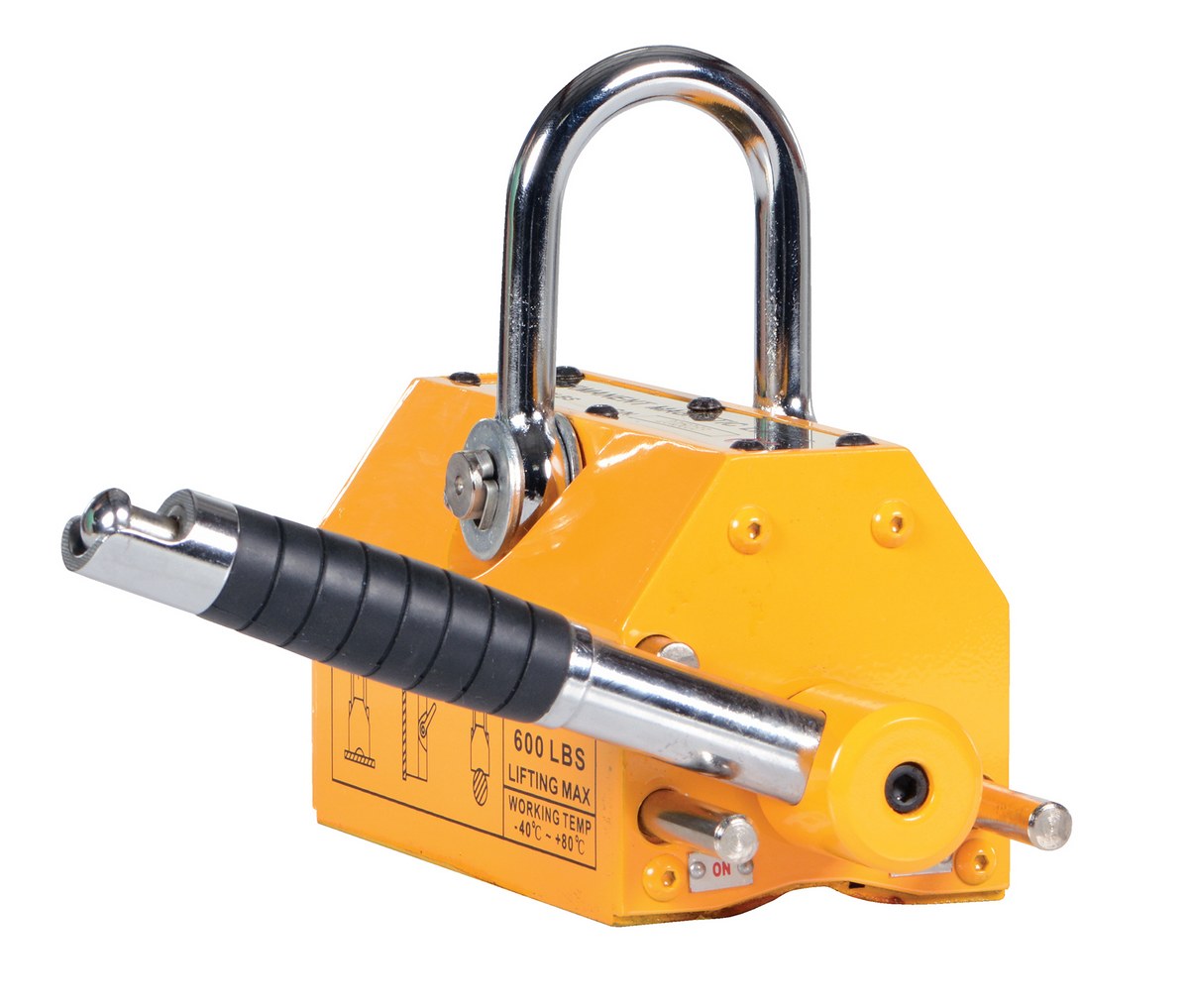

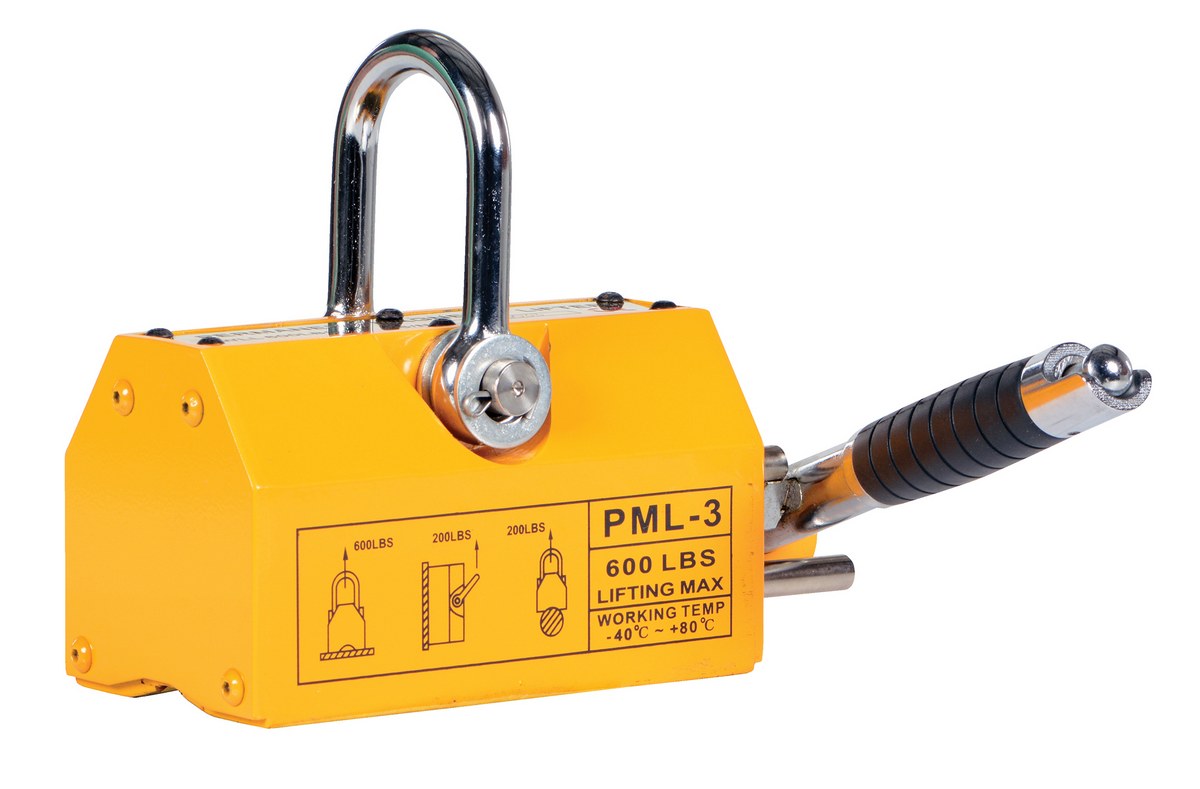

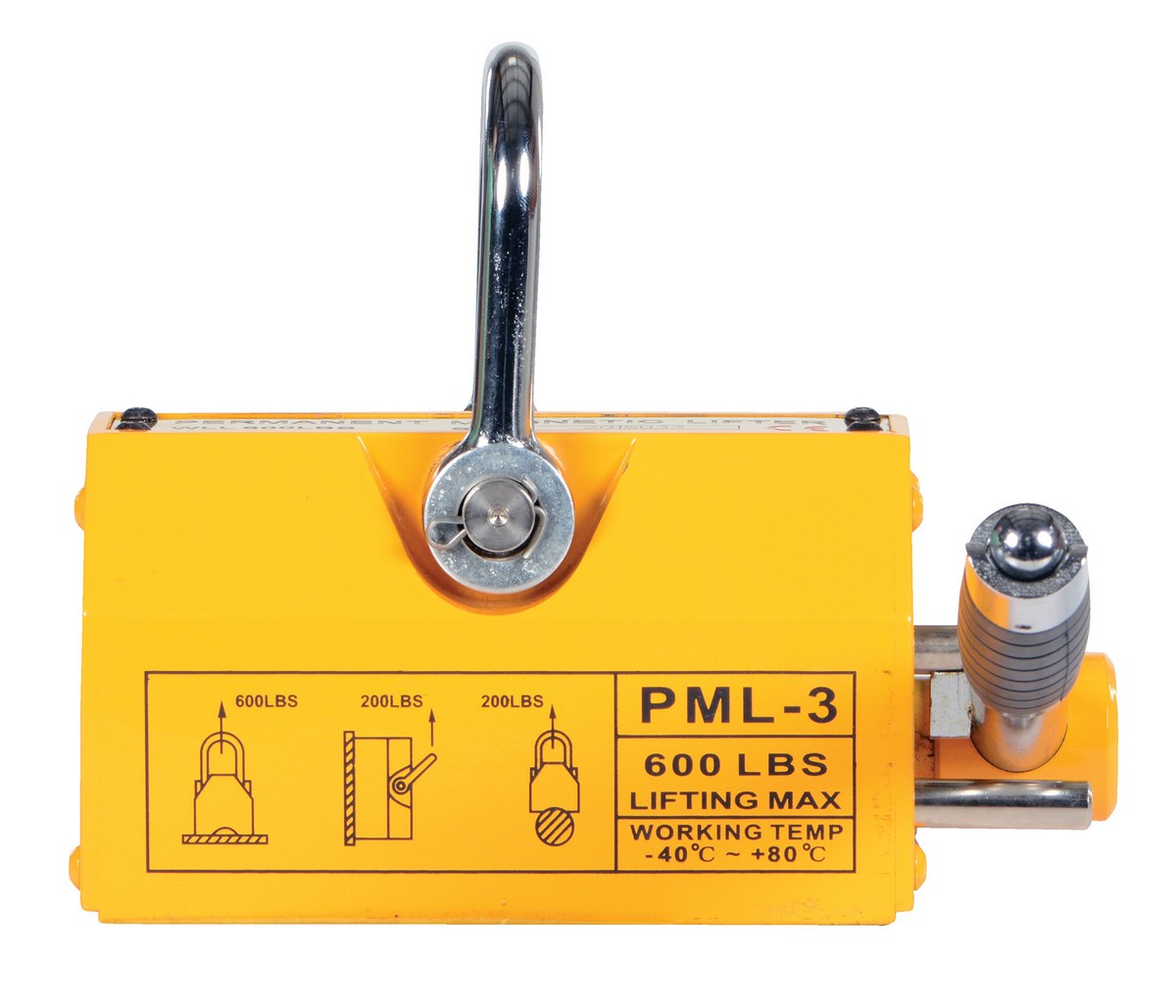

| ML-6 | 600 | 200 | 6.7 | 3.7 | 3.9 | 6.3 | 22 |

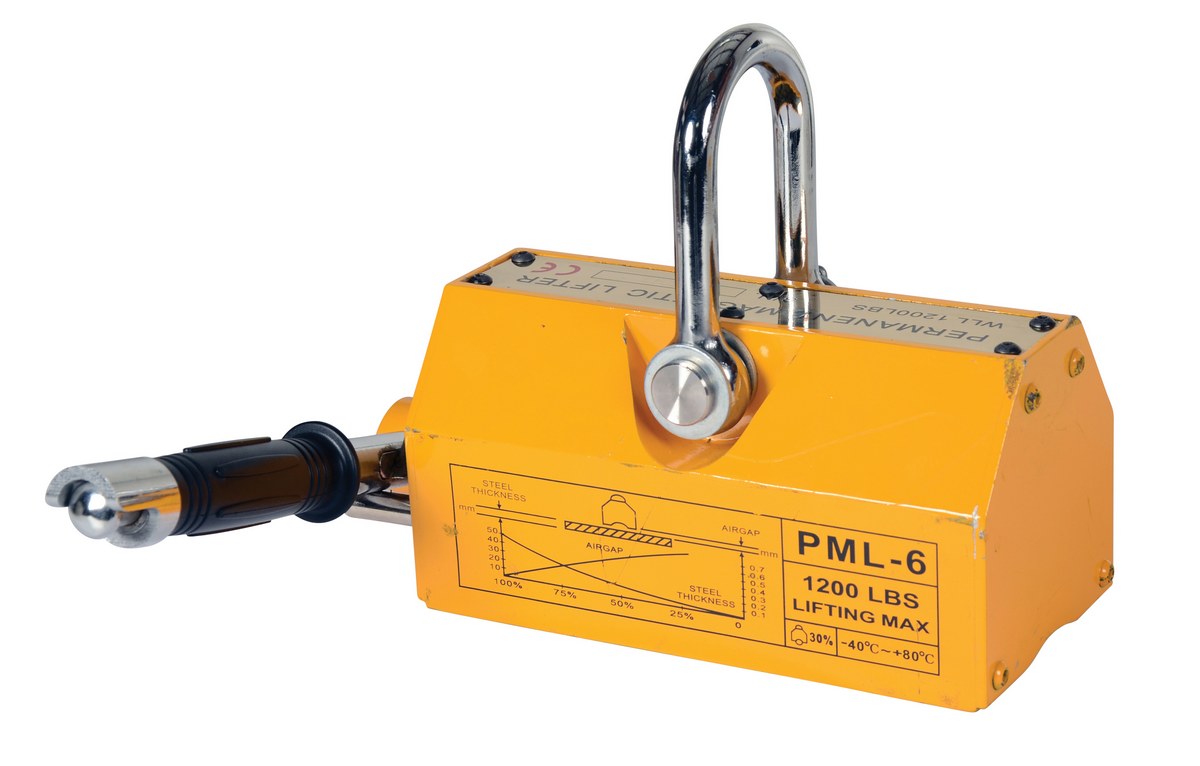

| ML-12 | 1200 | 400 | 8.7 | 5.5 | 4.9 | 9.1 | 52 |

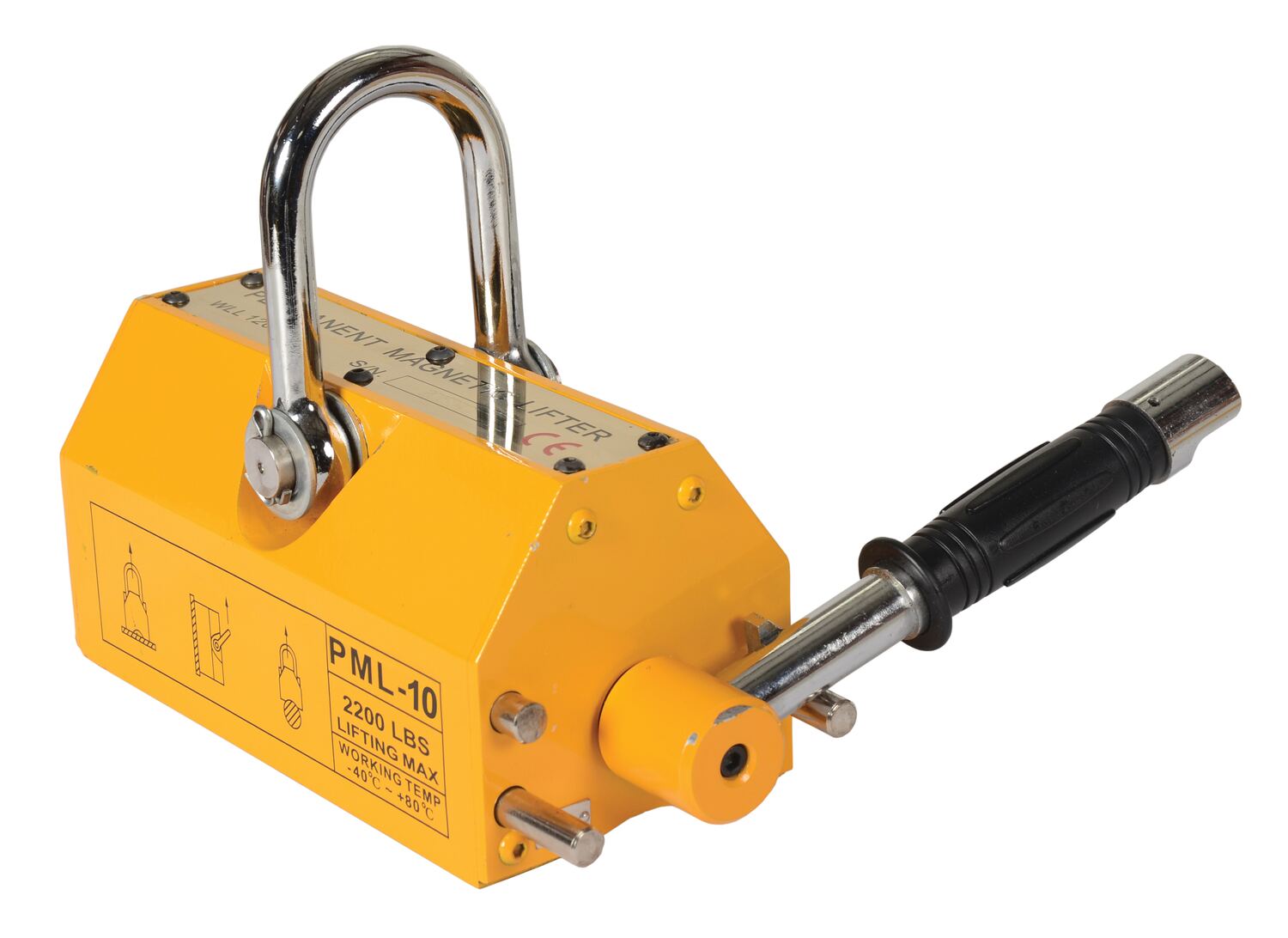

| ML-22 | 2200 | 990 | 10.2 | 5.7 | 5.7 | 11 | 110 |
|
KEY |
|||||||
Magnetic Easy Lift
Magnetic Catcher
Sheet Handlers
| Model # | Description | Attributes | Net Wt. (lbs) |
||||
|---|---|---|---|---|---|---|---|
| ML-2 |  | 90 Days Limited Warranty | Steel and Neodymium Magnetic Lifter 5-15/16 In. x 6-3/4 In. x 4-29/32 In. 200 Lb. Capacity Yellow | Uniform Flat Surface Capacity (lb.): 200 Uniform Round Surface Capacity (lb.): 60 | 7 | ||
| ML-6 |  | 90 Days Limited Warranty | Steel and Neodymium Magnetic Lifter 8 In. x 8-11/16 In. x 6-13/16 In. 600 Lb. Capacity Yellow | Uniform Flat Surface Capacity (lb.): 600 Uniform Round Surface Capacity (lb.): 200 | 22 | ||
| ML-12 | POPULAR |  | 90 Days Limited Warranty | Steel and Neodymium Magnetic Lifter 10-3/4 In. x 11 In. x 8-1/2 In. 1,200 Lb. Capacity Yellow | Uniform Flat Surface Capacity (lb.): 1,200 Uniform Round Surface Capacity (lb.): 400 | 52 | |
| ML-22 | NEW |  | 90 Days Limited Warranty | Steel and Neodymium Magnetic Lifter 10-3/8 In. x 6-5/8 In. x 6-5/8 In. 2,200 Lb. Capacity Yellow | Uniform Flat Surface Capacity (lbs): 2,200 Uniform Round Surface Capacity (lbs): 990 | 115 | |
| ML-C-2 | NEW |  | 90 Days Limited Warranty | Steel Magnetic Lifter Cylindrical 3-1/2 x 6-7/8 x6-7/8 100 Lb. Capacity Yellow | Uniform Flat Surface Capacity (lb.): 100 Uniform Round Surface Capacity (lb.): 40 | 11 |
KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Flat Surface Capacity (lb.): 200
Uniform Round Surface Capacity (lb.): 60
Uniform Flat Surface Capacity (lb.): 200
Uniform Round Surface Capacity (lb.): 60
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Flat Surface Capacity (lb.): 600
Uniform Round Surface Capacity (lb.): 200
Uniform Flat Surface Capacity (lb.): 600
Uniform Round Surface Capacity (lb.): 200
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Flat Surface Capacity (lb.): 1,200
Uniform Round Surface Capacity (lb.): 400
Uniform Flat Surface Capacity (lb.): 1,200
Uniform Round Surface Capacity (lb.): 400
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Flat Surface Capacity (lbs): 2,200
Uniform Round Surface Capacity (lbs): 990
Uniform Flat Surface Capacity (lbs): 2,200
Uniform Round Surface Capacity (lbs): 990
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Flat Surface Capacity (lb.): 100
Uniform Round Surface Capacity (lb.): 40
Uniform Flat Surface Capacity (lb.): 100
Uniform Round Surface Capacity (lb.): 40
Manuals
Survey Sheets
Approval Drawings
Testing Certificates
SDS Sheets
Other PDF's
Directory Links Of Available PDF's For All Products
Q: I am looking for the safety factor on the magnetic lifter. ASME uses a 3:1 but I didn't see that.
A: The safety factor on the magnetic lifters depends on the material thickness of the plate.
Q: What does uniform round capacity mean?
A: Uniform round capacity is the total capacity of the unit when lifting round steel. Because there is less surface contact with a round pipe the capacity is depleted.
 |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
