Cross-Over Vertical LaddersMount where you need permanent access at crossover points. The upper platform features removable two sided 42-5/8" high handrail with 21" mid-rail and fixed 4" toeboards to prevent objects from rolling off. Serrated platform for extra grip is 23-9/16" wide. Top half of steps covered in grip material for safety are 23-9/16" wide with step spacing of 12". Ground legs include floor mounting pads. Units must be anchored to the floor. Units are all steel construction and can be knockdown for storage and shipping. Uniform capacity is 500 pounds. Meets OSHA 29 CFR 1910.27. Baked-in powder-coated toughness.
- High handrail for supreme safety
- Serrated platform for additional foot control
- Powder coated finish for long term use
- Easy to deconstruct for storage
Folding Ladders with Wheels
Tip-N-Roll FDA Ladders
Alternating Step Cross-Over LaddersAdditional Models In This Family

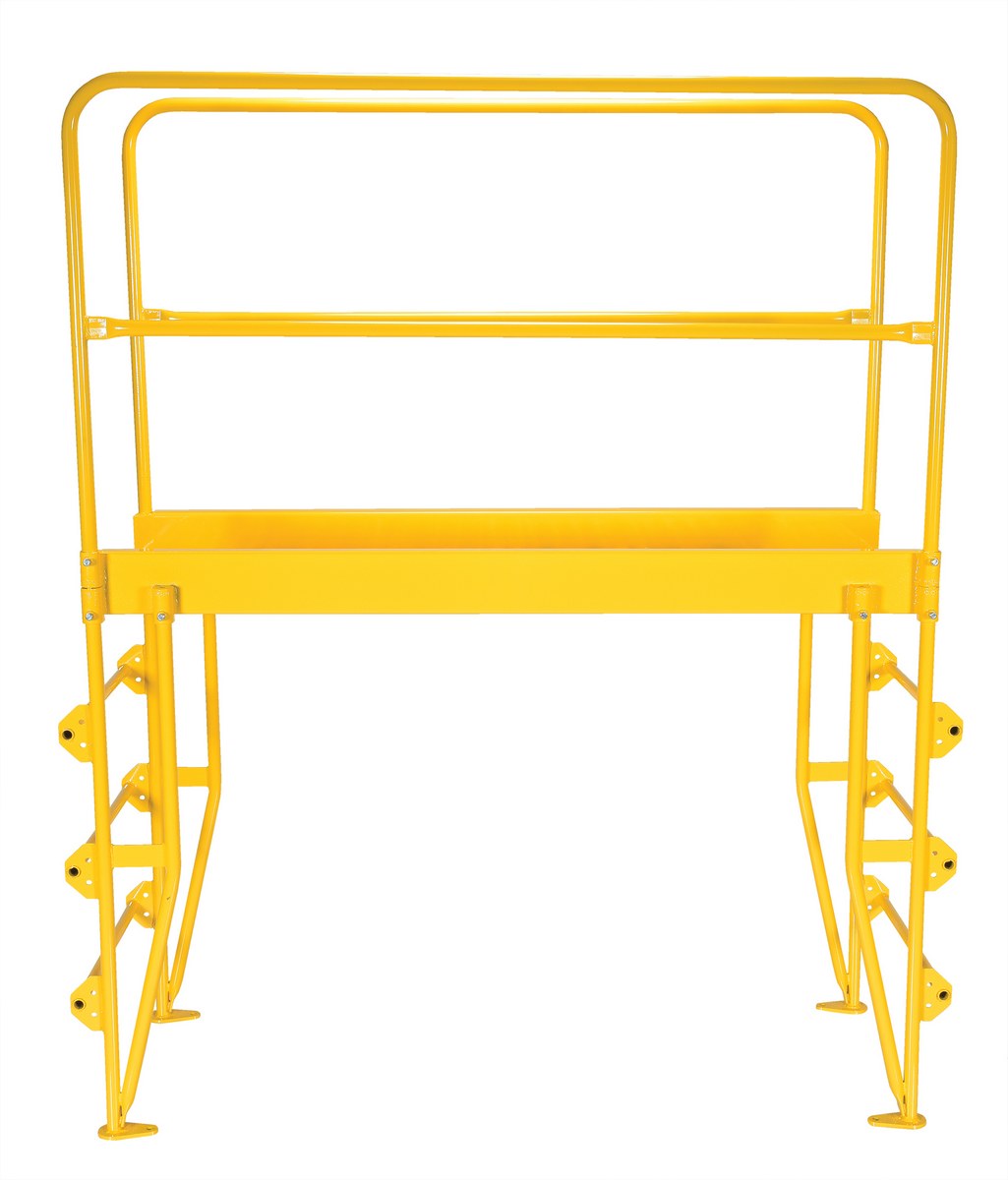

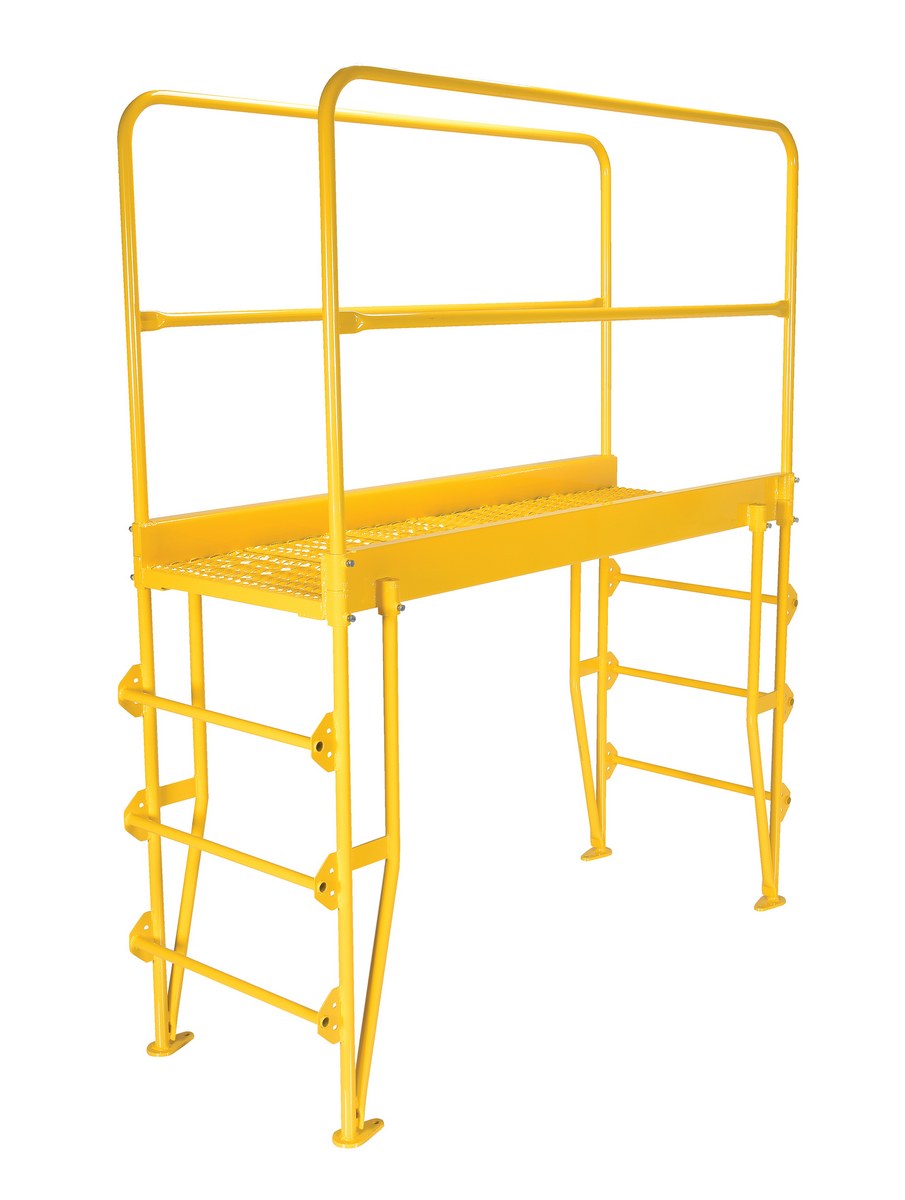

COLV-4-46-56
COLV-4-46-44
COLV-7-82-32
COLV-6-70-56
COLV-7-82-8
COLV-5-58-8
COLV-5-58-44

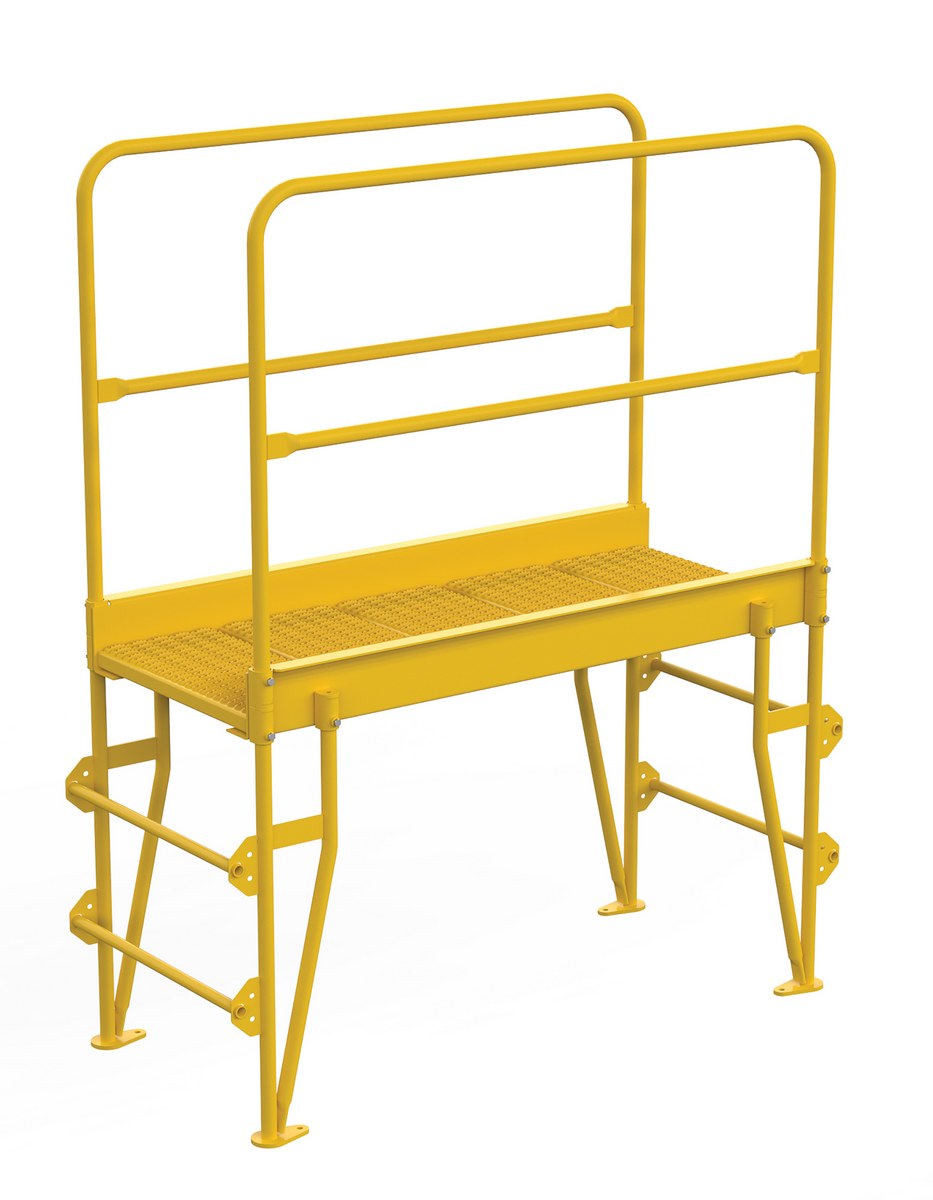

COLV-3-34-44

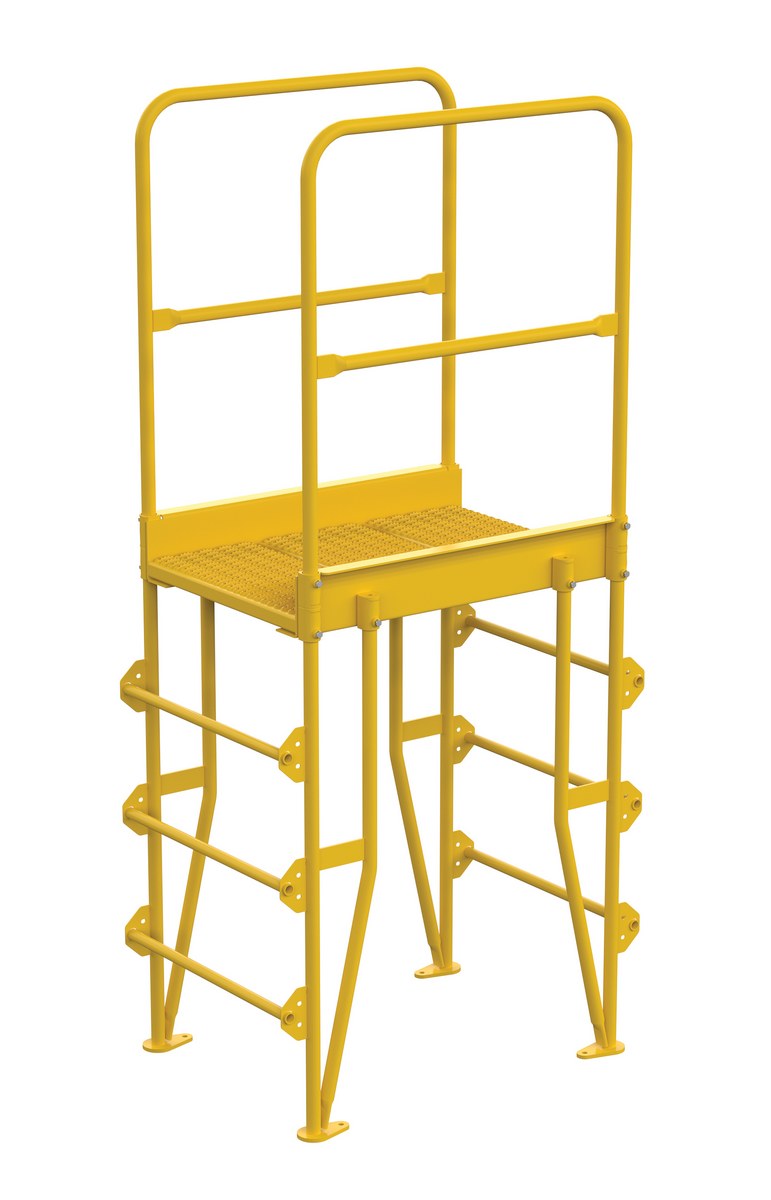

COLV-4-46-20
COLV-4-46-56

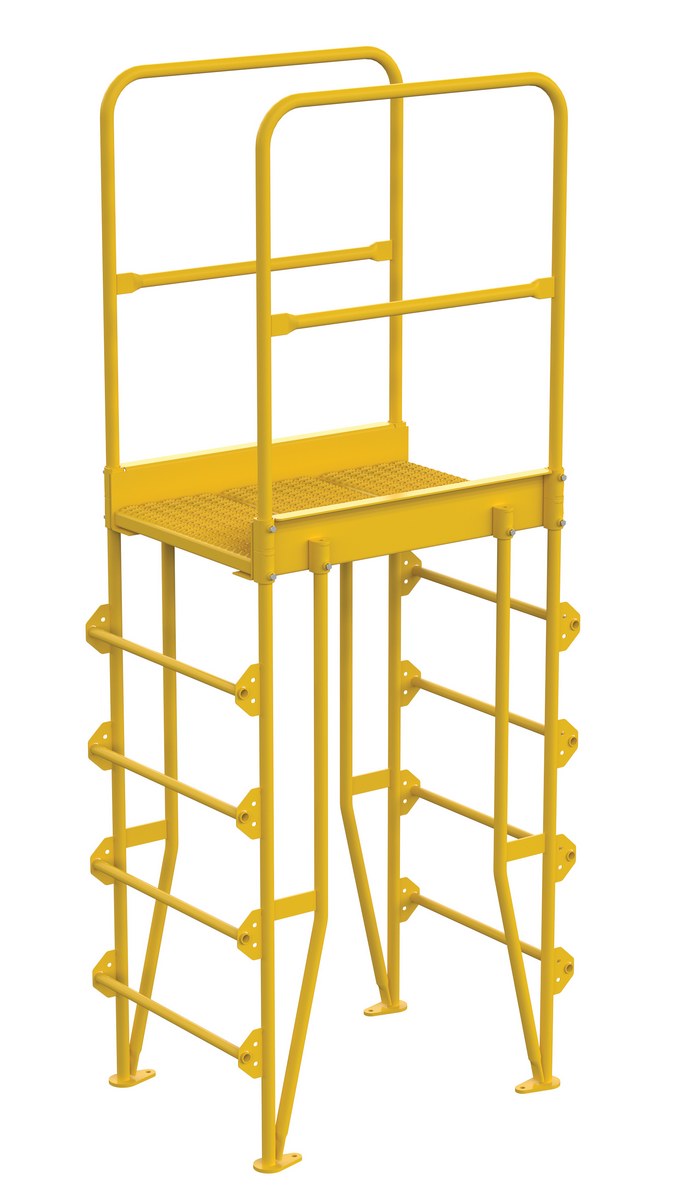

COLV-5-58-20
COLV-4-46-32
COLV-5-58-56
COLV-7-82-44

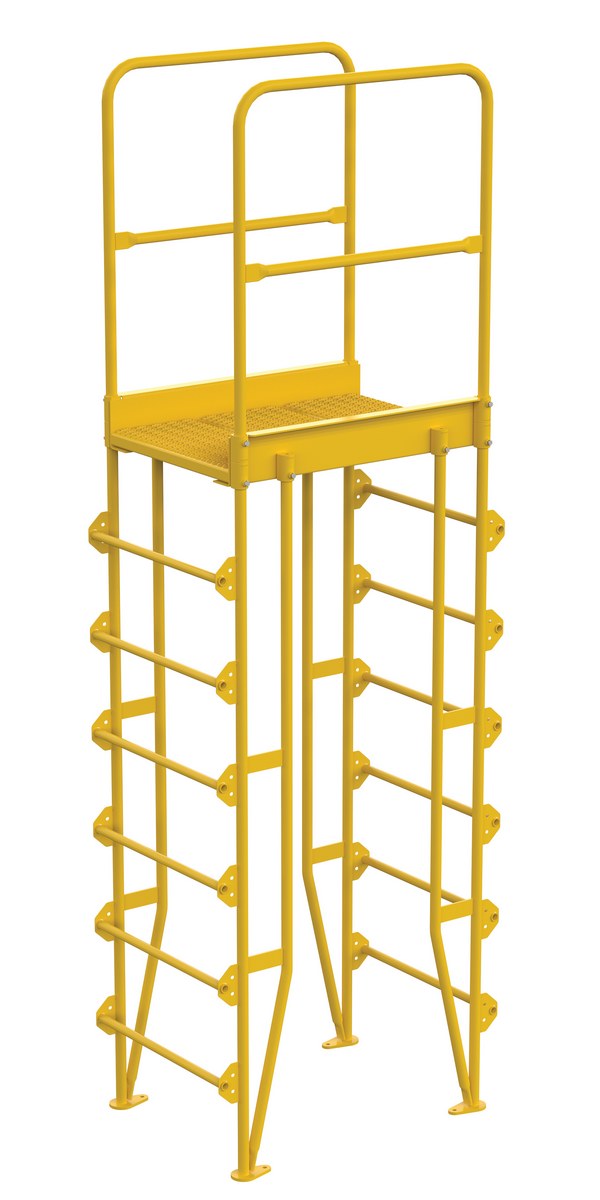

COLV-7-82-20
All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
| Model # | Description | Attributes | Net Wt. (lbs) |
||||
|---|---|---|---|---|---|---|---|

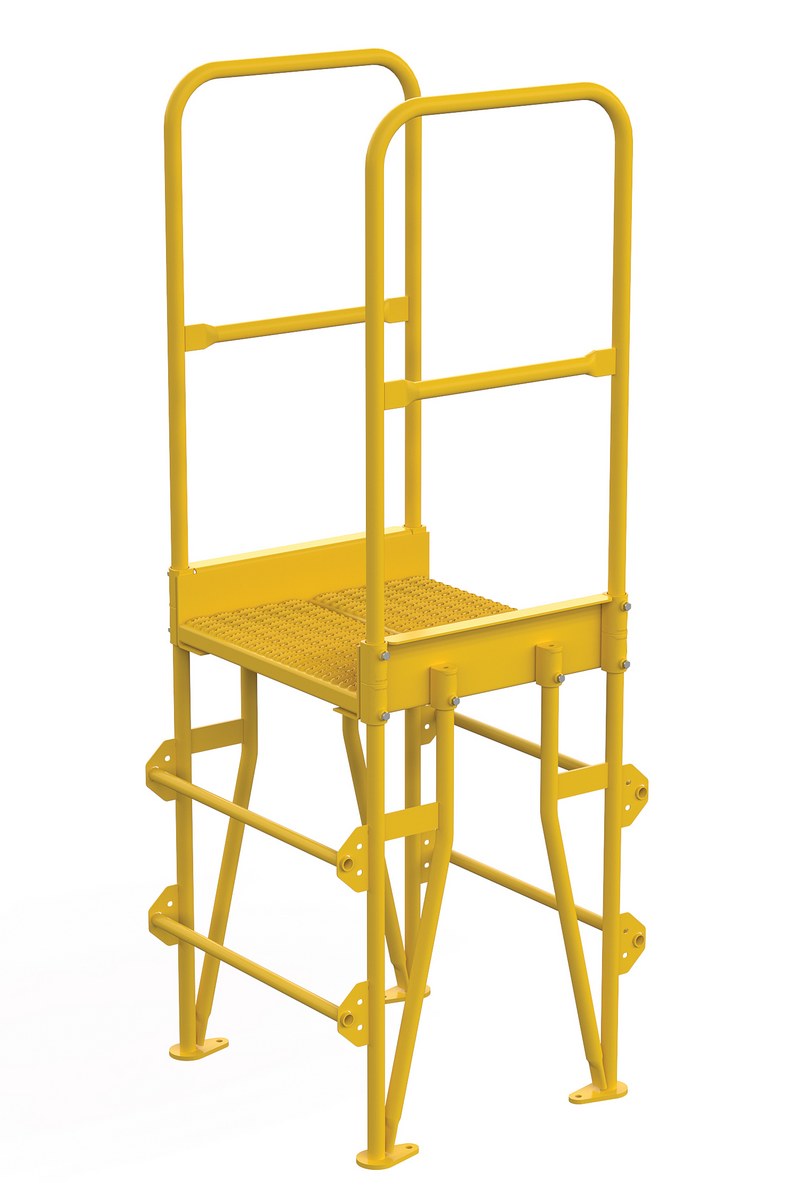

| COLV-3-34-8 | |  | 1 Year Limited Warranty | Steel Vertical Crossover Ladder 3 Step 8 In. Width 500 Lb. Capacity Yellow | Uniform Capacity (lb.): 500 Platform Height (in.): 36 | 198 | |

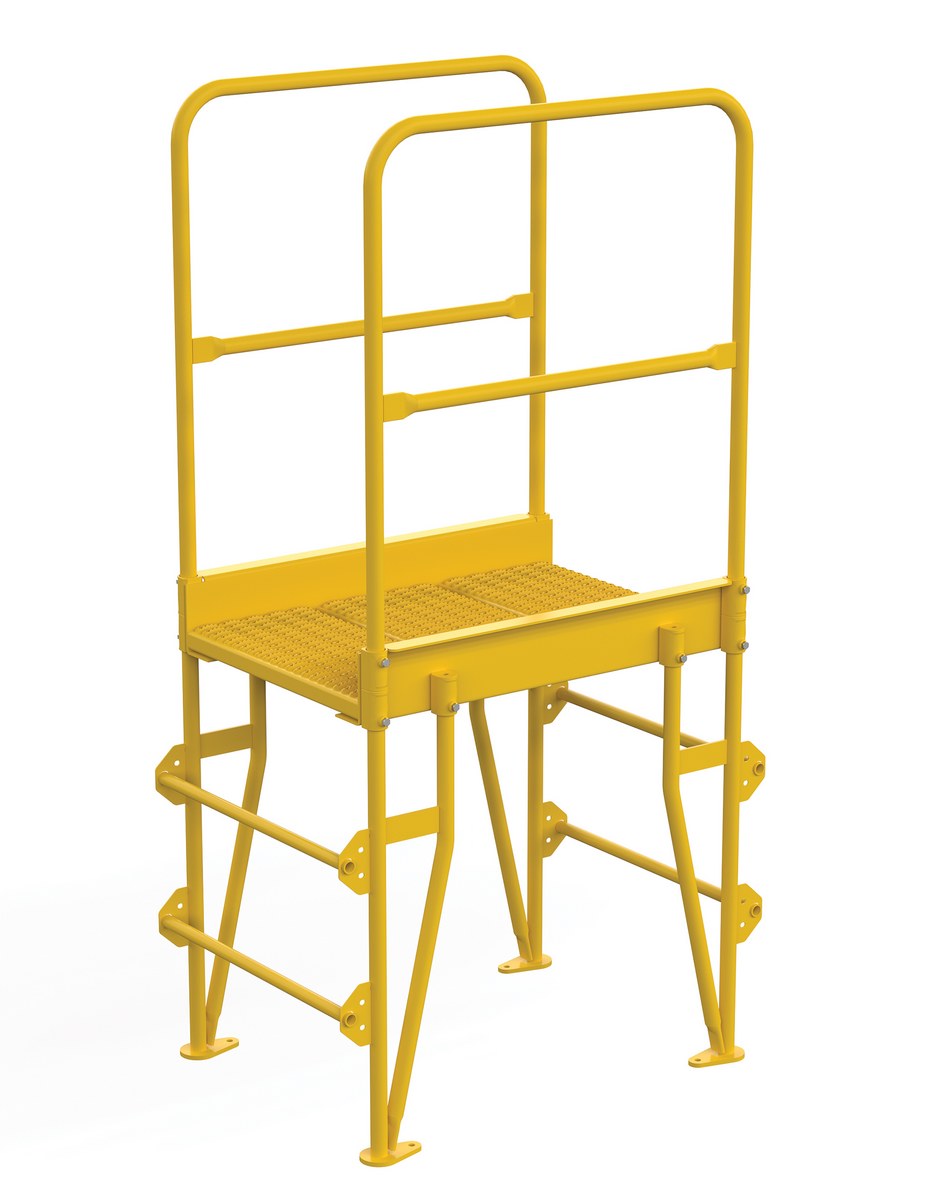

| COLV-3-34-20 | |  | 1 Year Limited Warranty | Steel Vertical Crossover Ladder 3 Step 20 In. Width 500 Lb. Capacity Yellow | Uniform Capacity (lb.): 500 Platform Height (in.): 36 | 232 | |

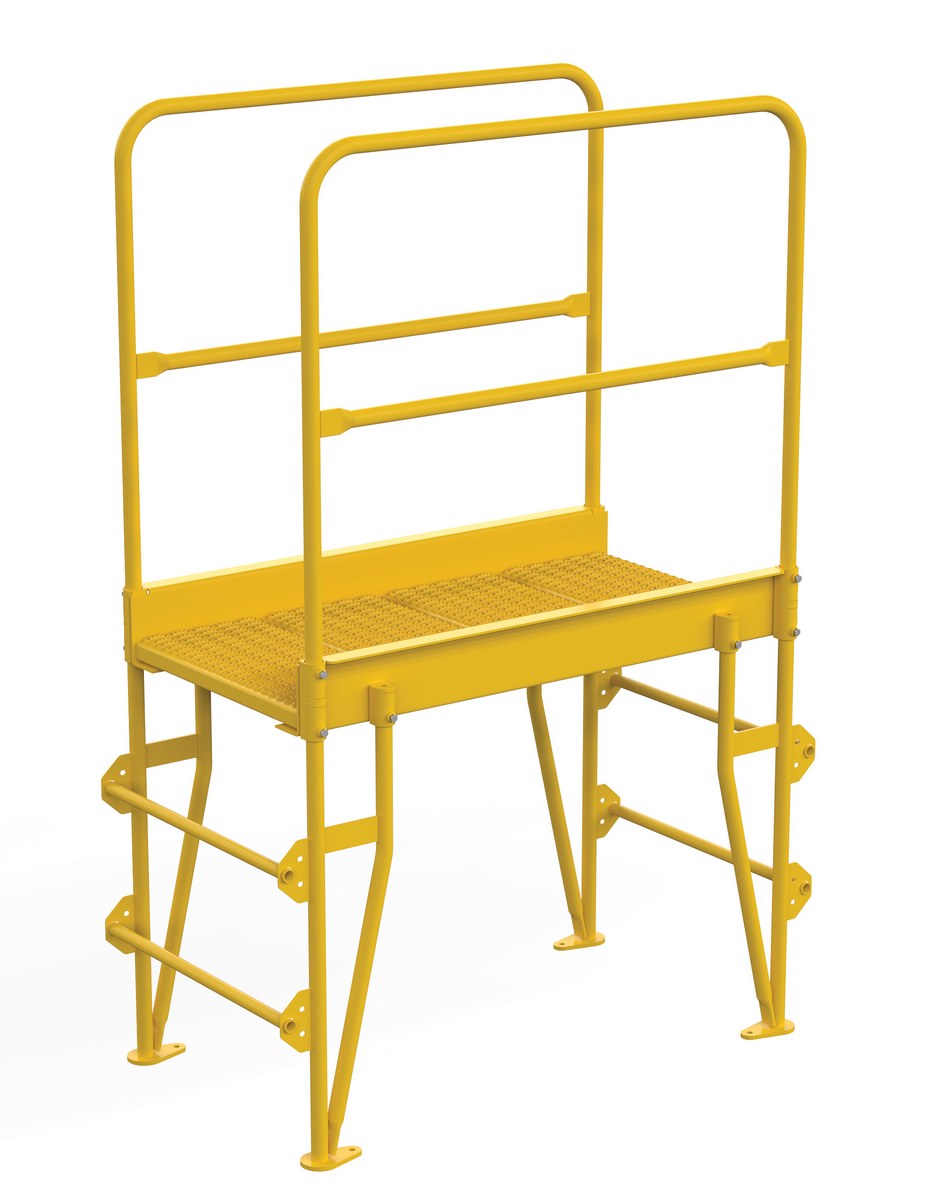

| COLV-3-34-32 | |  | 1 Year Limited Warranty | Steel Vertical Crossover Ladder 3 Step 32 In. Width 500 Lb. Capacity Yellow | Uniform Capacity (lb.): 500 Platform Height (in.): 36 | 267 | |
| COLV-3-34-44 | | | 1 Year Limited Warranty | Steel Vertical Crossover Ladder 3 Step 44 In. Width 500 Lb. Capacity Yellow | Uniform Capacity (lb.): 500 Platform Height (in.): 36 | 274 | |

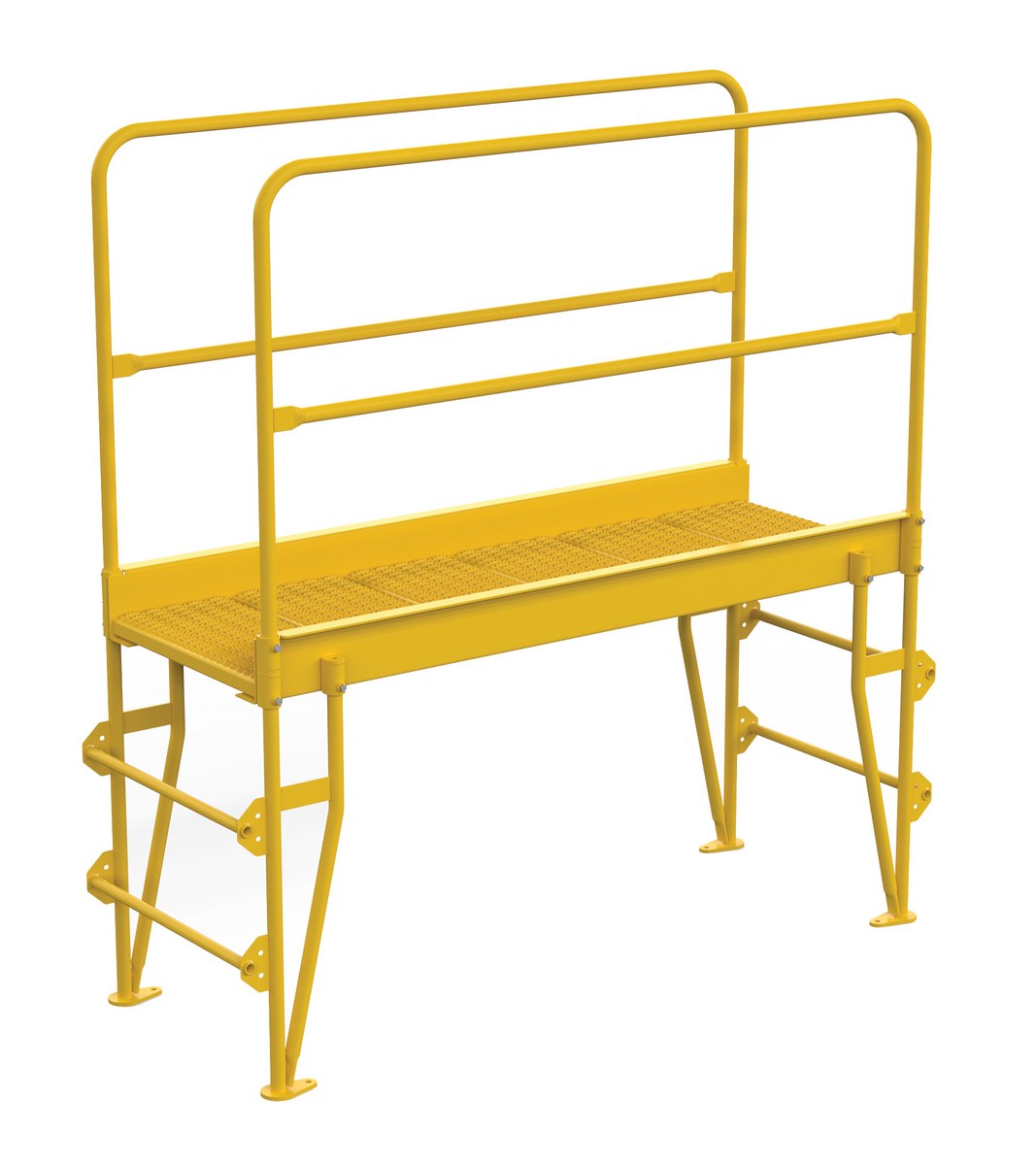

| COLV-3-34-56 | |  | 1 Year Limited Warranty | Steel Vertical Crossover Ladder 3 Step 56 In. Width 500 Lb. Capacity Yellow | Uniform Capacity (lb.): 500 Platform Height (in.): 36 | 336 | |

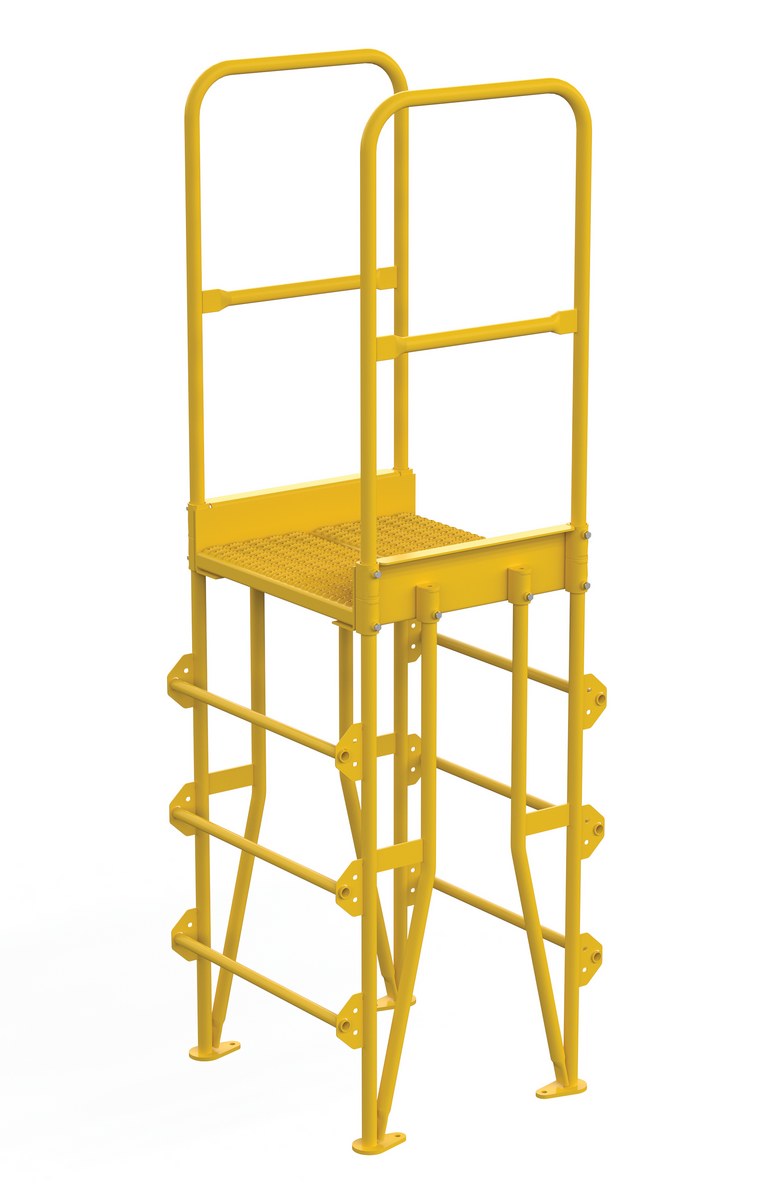

| COLV-4-46-8 | |  | 1 Year Limited Warranty | Steel Vertical Crossover Ladder 4 Step 8 In. Width 500 Lb. Capacity Yellow | Uniform Capacity (lb.): 500 Platform Height (in.): 48 | 183 | |
| COLV-4-46-20 | | | 1 Year Limited Warranty | Steel Vertical Crossover Ladder 4 Step 20 In. Width 500 Lb. Capacity Yellow | Uniform Capacity (lb.): 500 Platform Height (in.): 48 | 232 | |

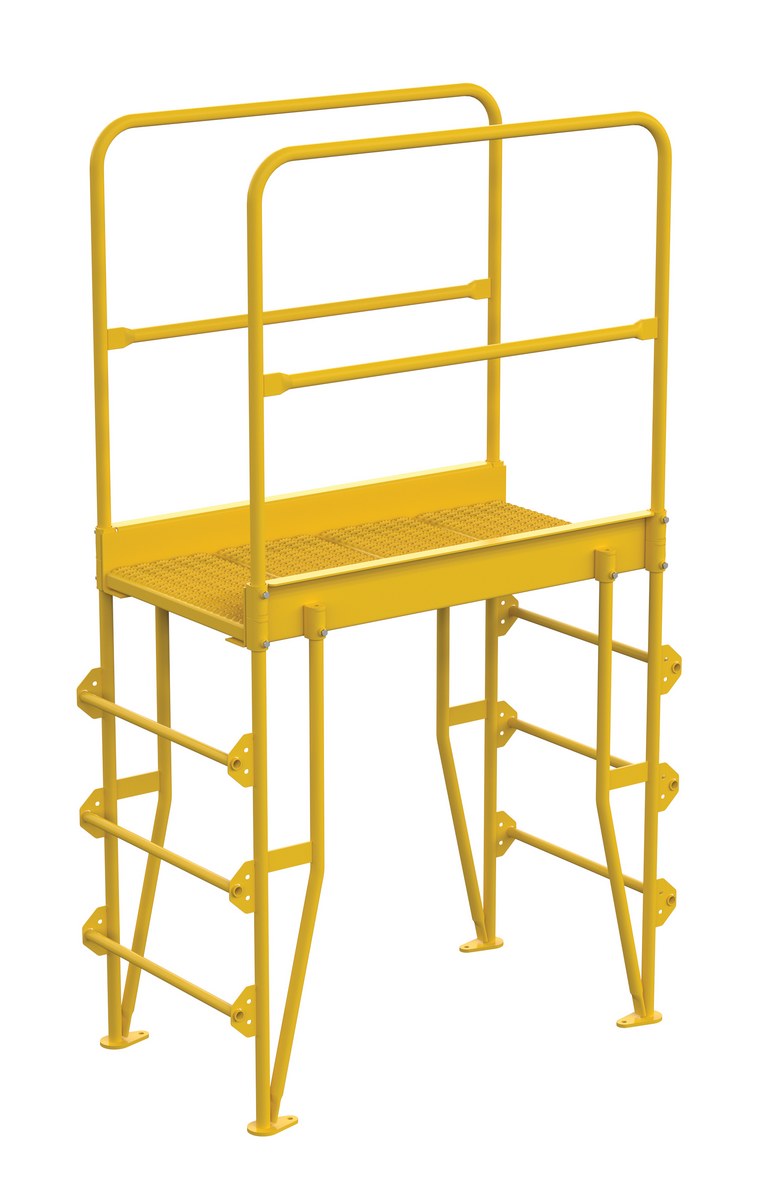

| COLV-4-46-32 | | | 1 Year Limited Warranty | Steel Vertical Crossover Ladder 4 Step 32 In. Width 500 Lb. Capacity Yellow | Uniform Capacity (lb.): 500 Platform Height (in.): 48 | 244 | |

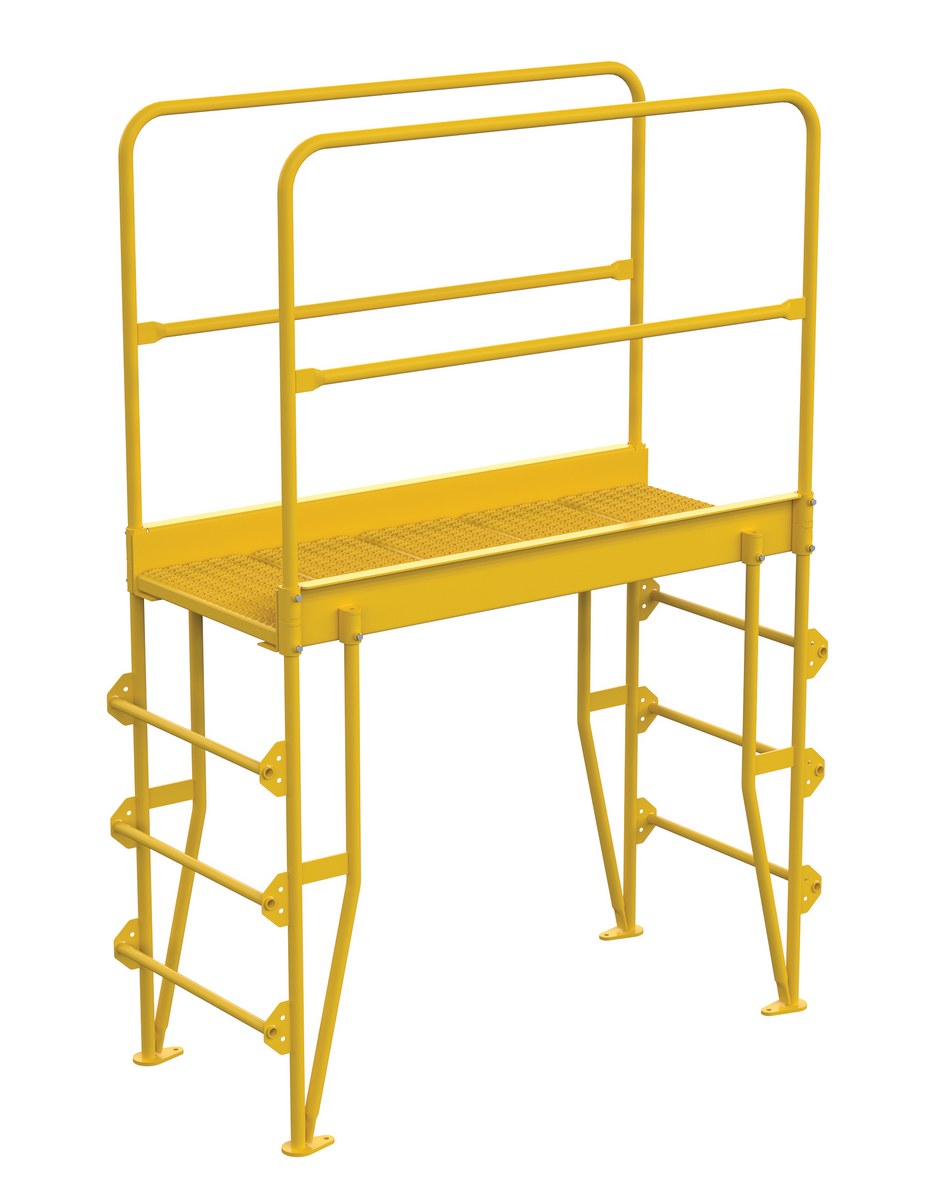

| COLV-4-46-44 | | | 1 Year Limited Warranty | Steel Vertical Crossover Ladder 4 Step 44 In. Width 500 Lb. Capacity Yellow | Uniform Capacity (lb.): 500 Platform Height (in.): 48 | 265 | |

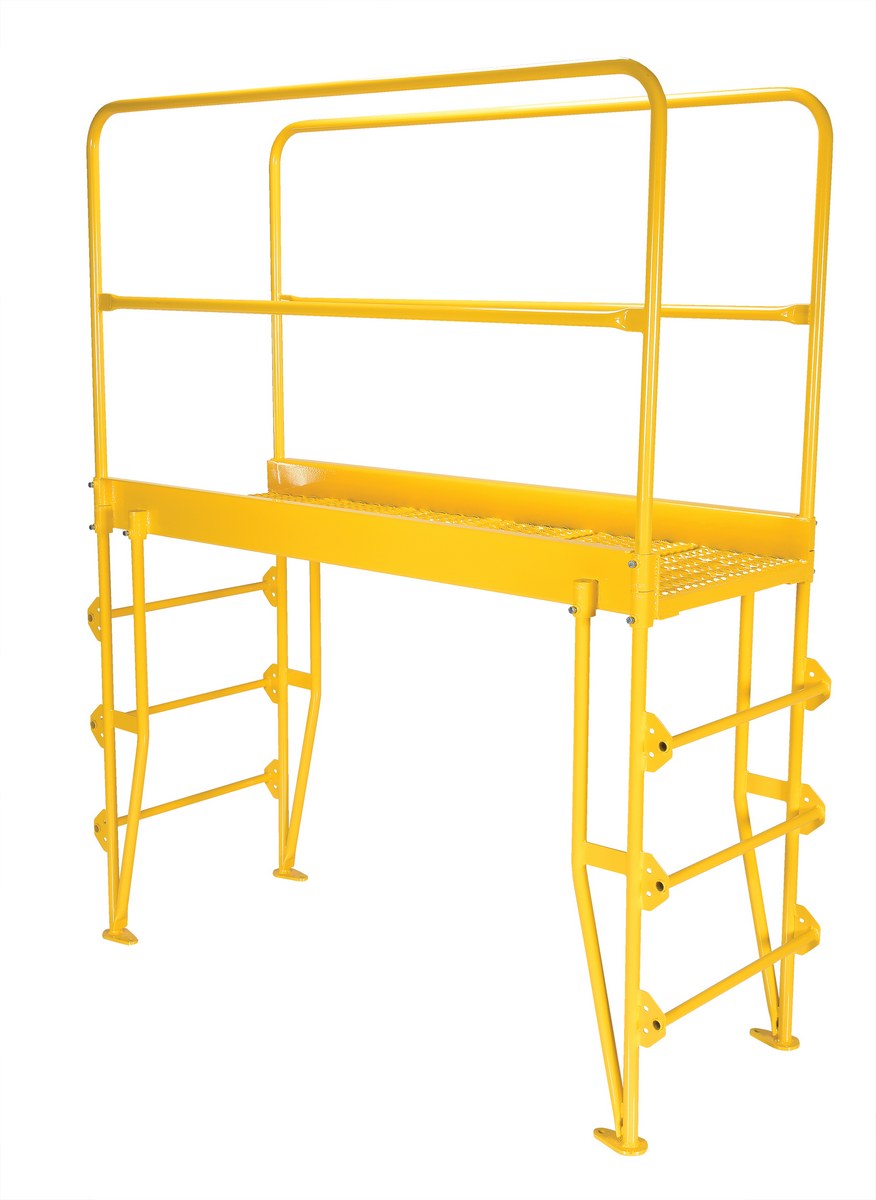

| COLV-4-46-56 | | | 1 Year Limited Warranty | Steel Vertical Crossover Ladder 4 Step 56 In. Width 500 Lb. Capacity Yellow | Uniform Capacity (lb.): 500 Platform Height (in.): 48 | 304 | |

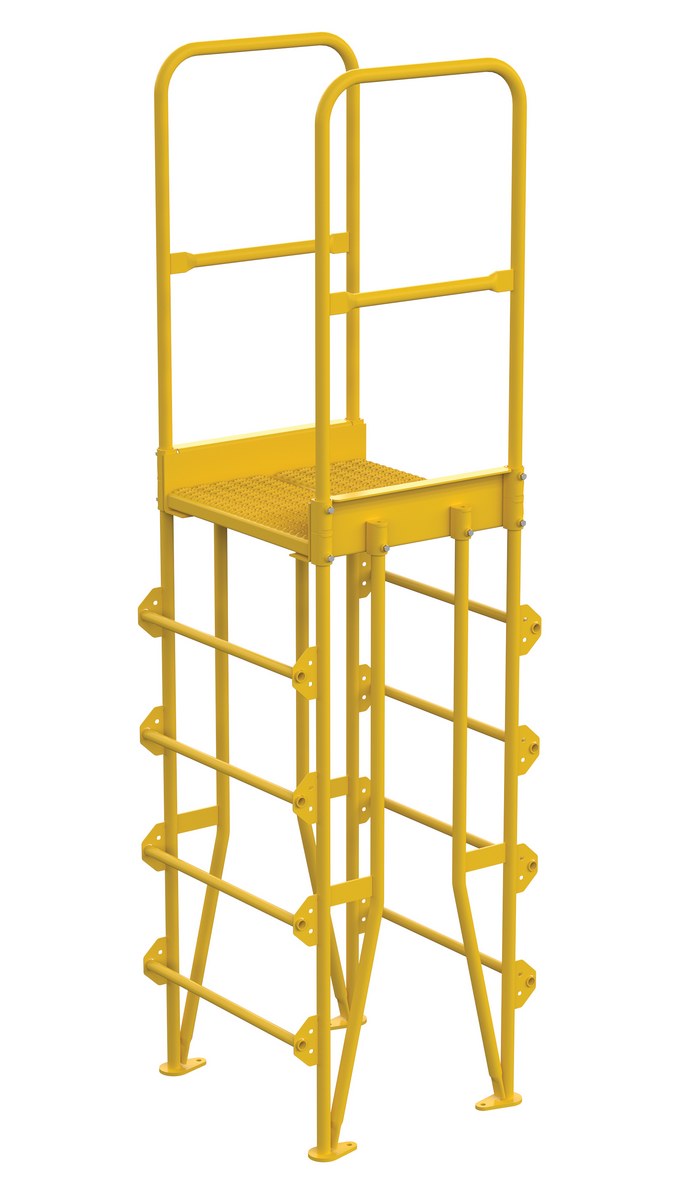

| COLV-5-58-8 | | | 1 Year Limited Warranty | Steel Vertical Crossover Ladder 5 Step 8 In. Width 500 Lb. Capacity Yellow | Uniform Capacity (lb.): 500 Platform Height (in.): 60 | 202 | |
| COLV-5-58-20 | | | 1 Year Limited Warranty | Steel Vertical Crossover Ladder 5 Step 20 In. Width 500 Lb. Capacity Yellow | Uniform Capacity (lb.): 500 Platform Height (in.): 60 | 242 | |

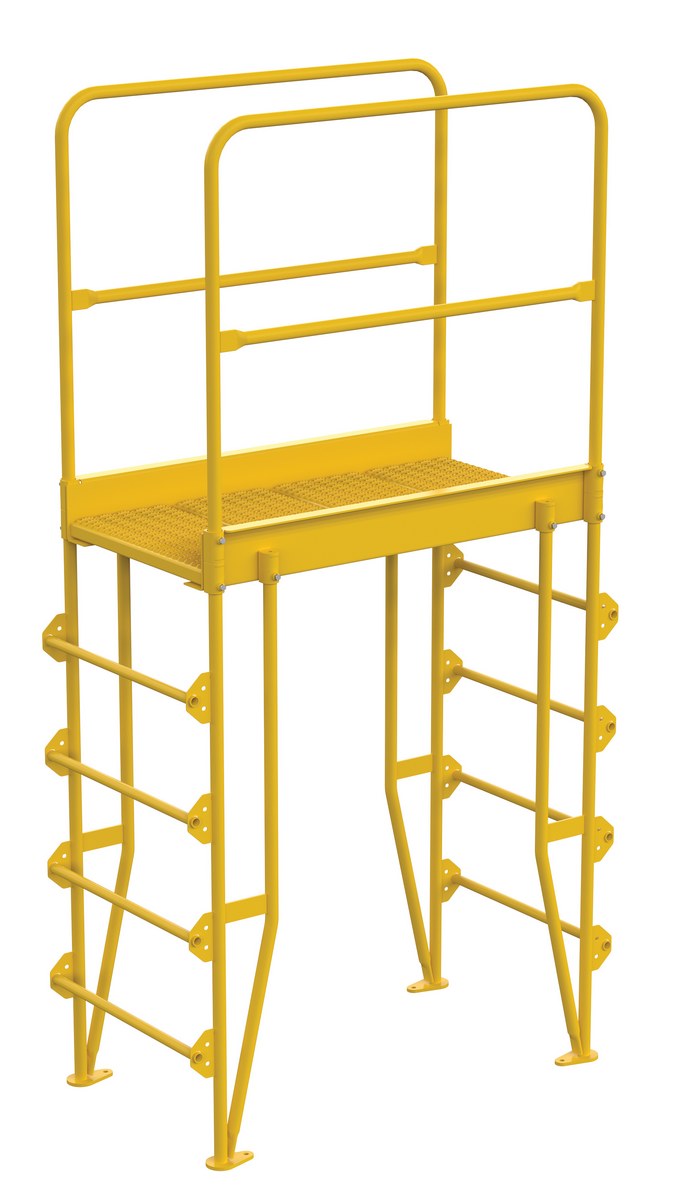

| COLV-5-58-32 | |  | 1 Year Limited Warranty | Steel Vertical Crossover Ladder 5 Step 32 In. Width 500 Lb. Capacity Yellow | Uniform Capacity (lb.): 500 Platform Height (in.): 60 | 264 | |

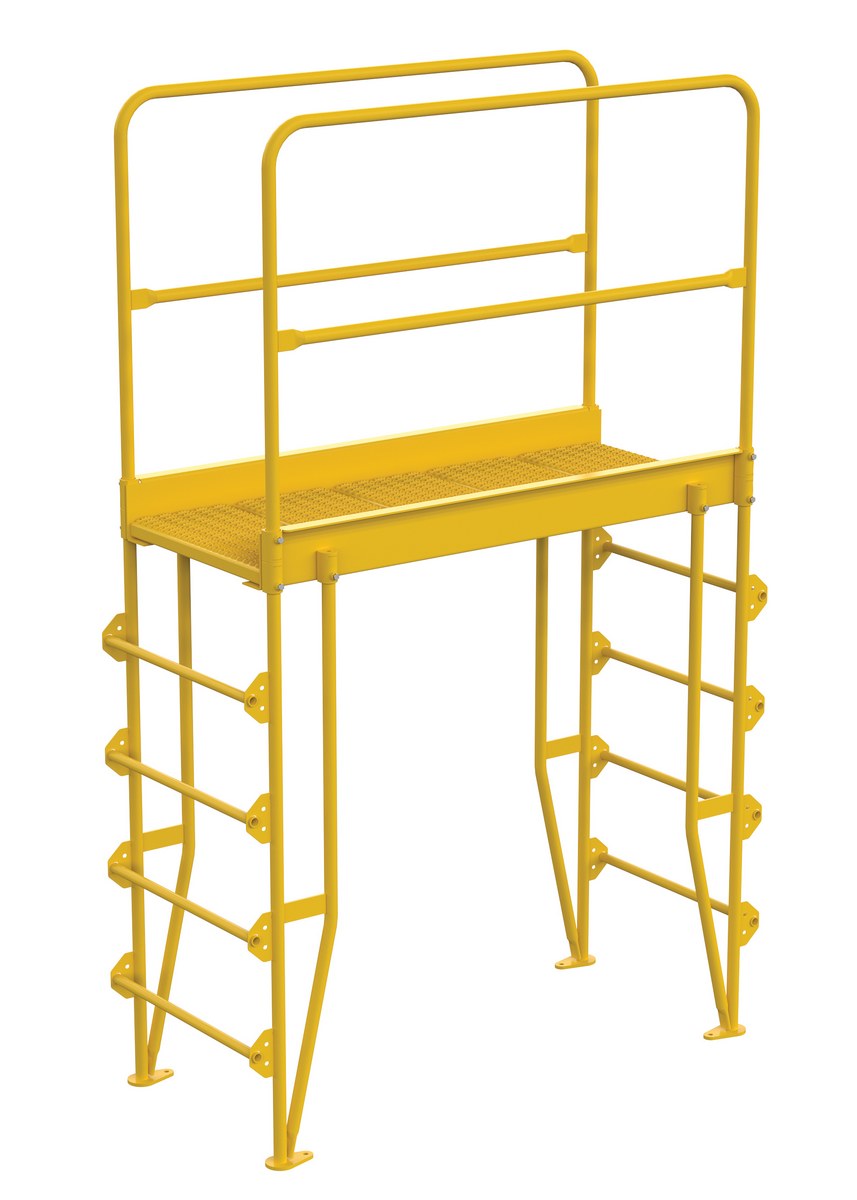

| COLV-5-58-44 | | | 1 Year Limited Warranty | Steel Vertical Crossover Ladder 5 Step 44 In. Width 500 Lb. Capacity Yellow | Uniform Capacity (lb.): 500 Platform Height (in.): 60 | 310 | |

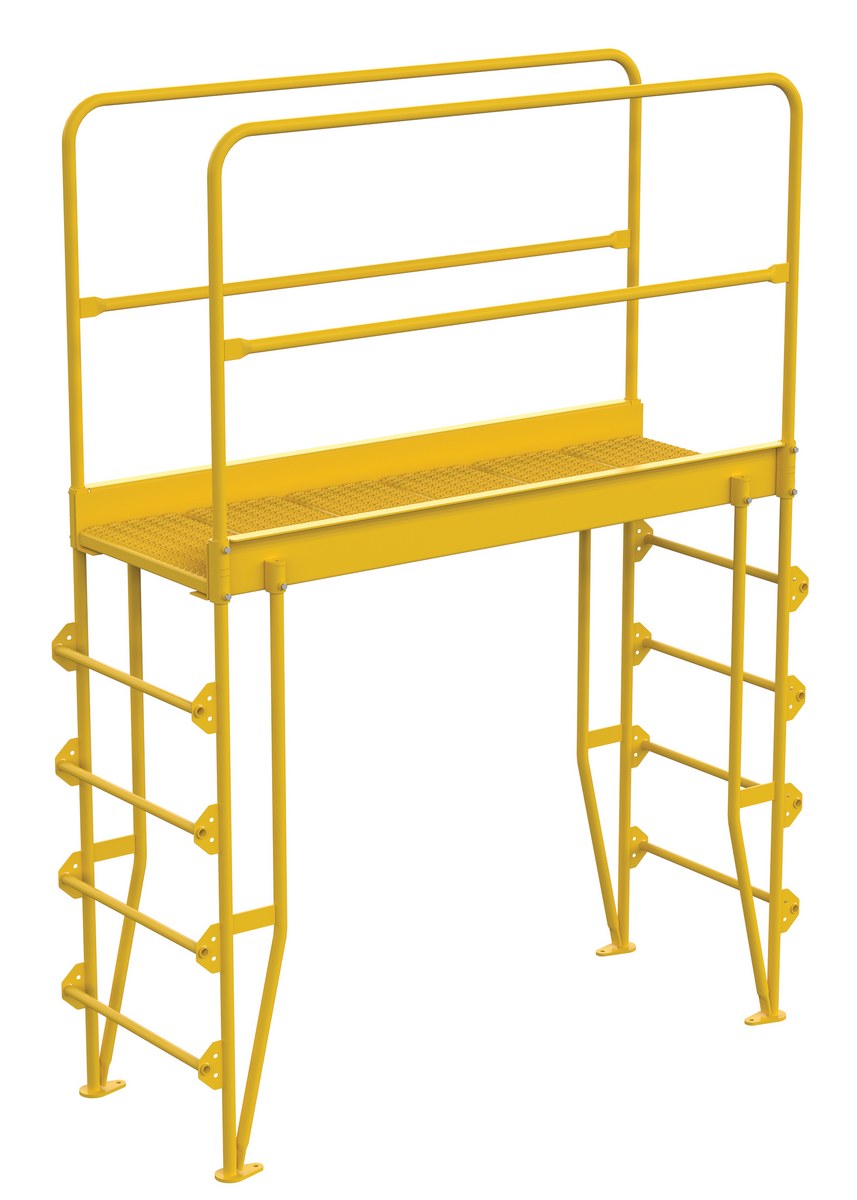

| COLV-5-58-56 | | | 1 Year Limited Warranty | Steel Vertical Crossover Ladder 5 Step 56 In. Width 500 Lb. Capacity Yellow | Uniform Capacity (lb.): 500 Platform Height (in.): 60 | 320 | |

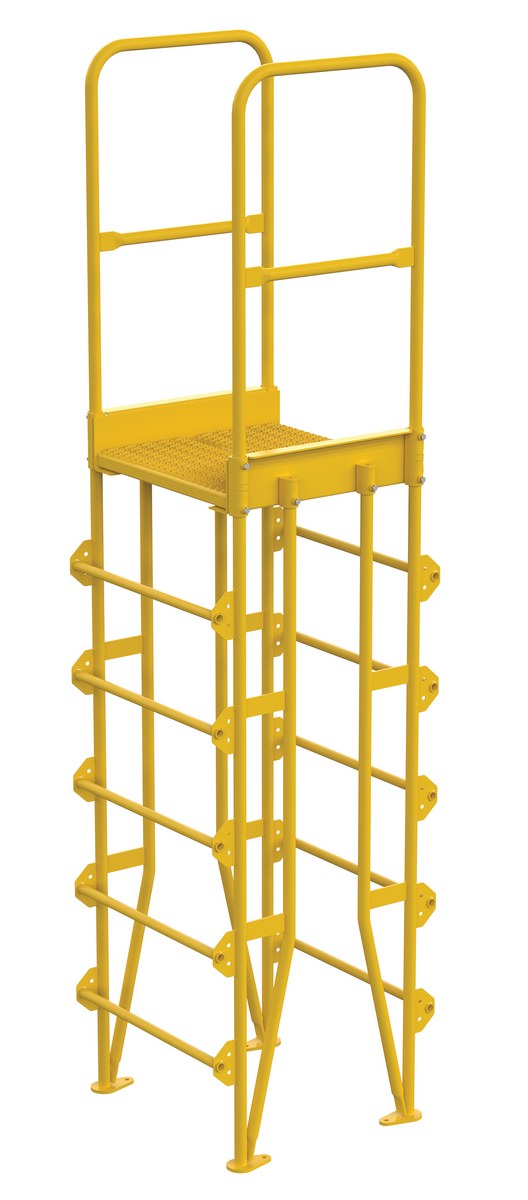

| COLV-6-70-8 | |  | 1 Year Limited Warranty | Steel Vertical Crossover Ladder 6 Step 8 In. Width 500 Lb. Capacity Yellow | Uniform Capacity (lb.): 500 Platform Height (in.): 72 | 266 | |

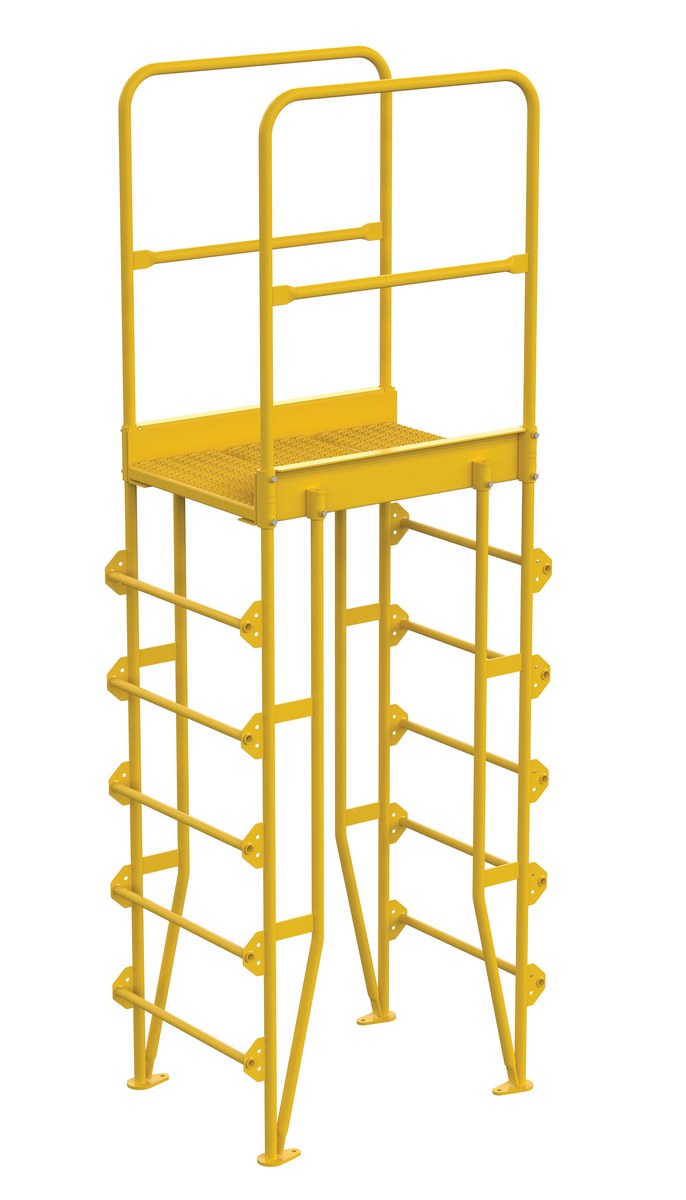

| COLV-6-70-20 | |  | 1 Year Limited Warranty | Steel Vertical Crossover Ladder 6 Step 20 In. Width 500 Lb. Capacity Yellow | Uniform Capacity (lb.): 500 Platform Height (in.): 72 | 256 | |

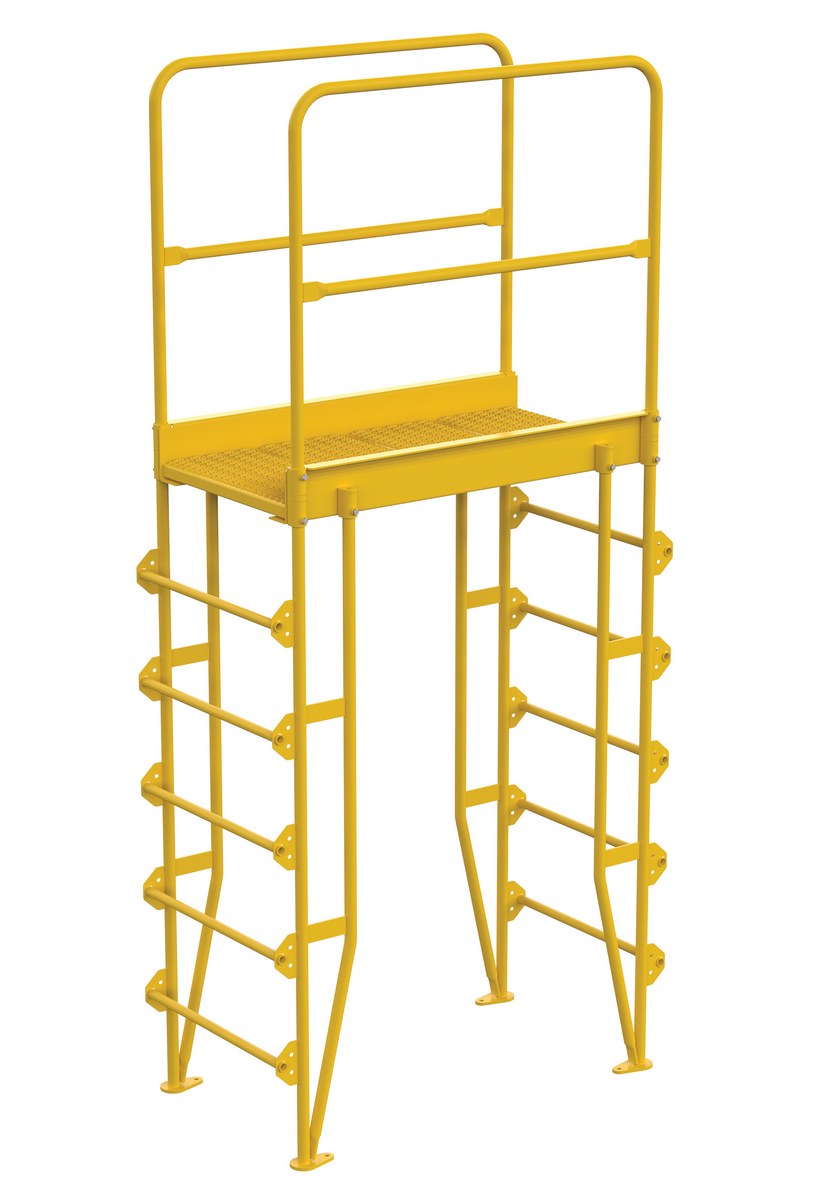

| COLV-6-70-32 | |  | 1 Year Limited Warranty | Steel Vertical Crossover Ladder 6 Step 32 In. Width 500 Lb. Capacity Yellow | Uniform Capacity (lb.): 500 Platform Height (in.): 72 | 294 | |

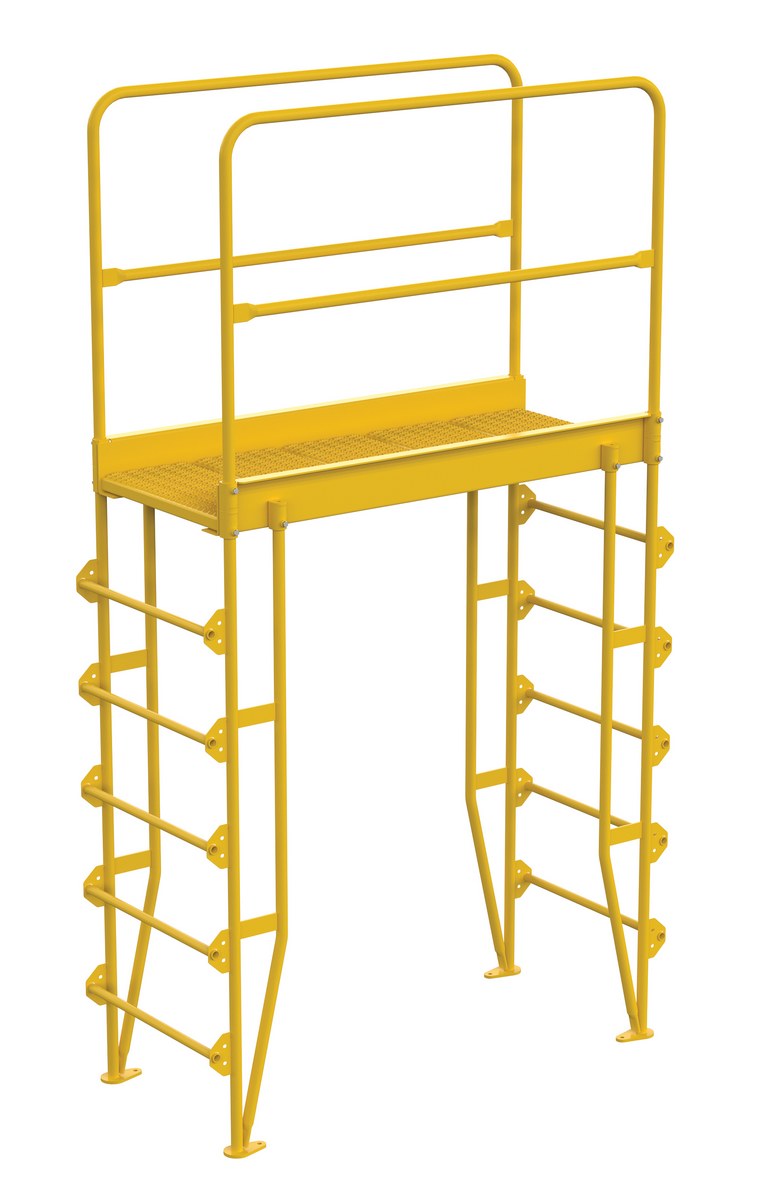

| COLV-6-70-44 | |  | 1 Year Limited Warranty | Steel Vertical Crossover Ladder 6 Step 44 In. Width 500 Lb. Capacity Yellow | Uniform Capacity (lb.): 500 Platform Height (in.): 72 | 340 | |

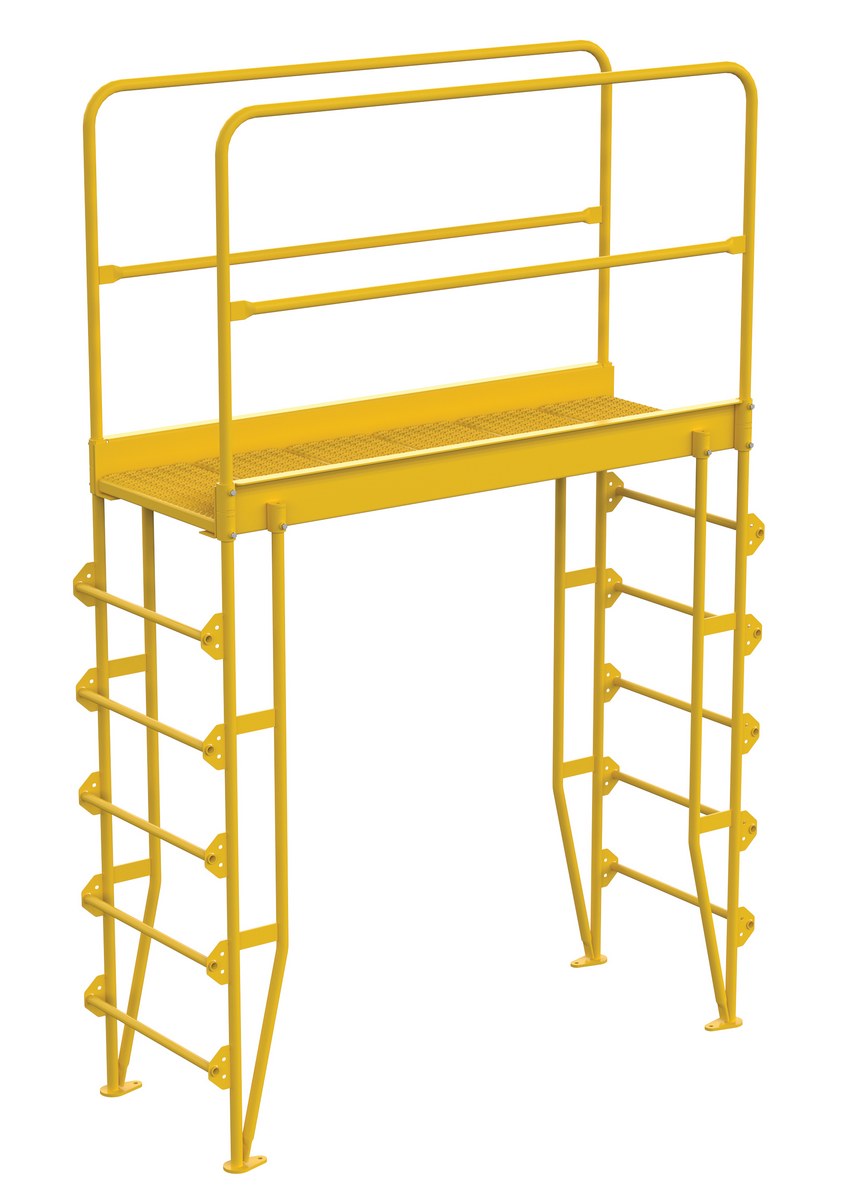

| COLV-6-70-56 | | | 1 Year Limited Warranty | Steel Vertical Crossover Ladder 6 Step 56 In. Width 500 Lb. Capacity Yellow | Uniform Capacity (lb.): 500 Platform Height (in.): 72 | 370 | |

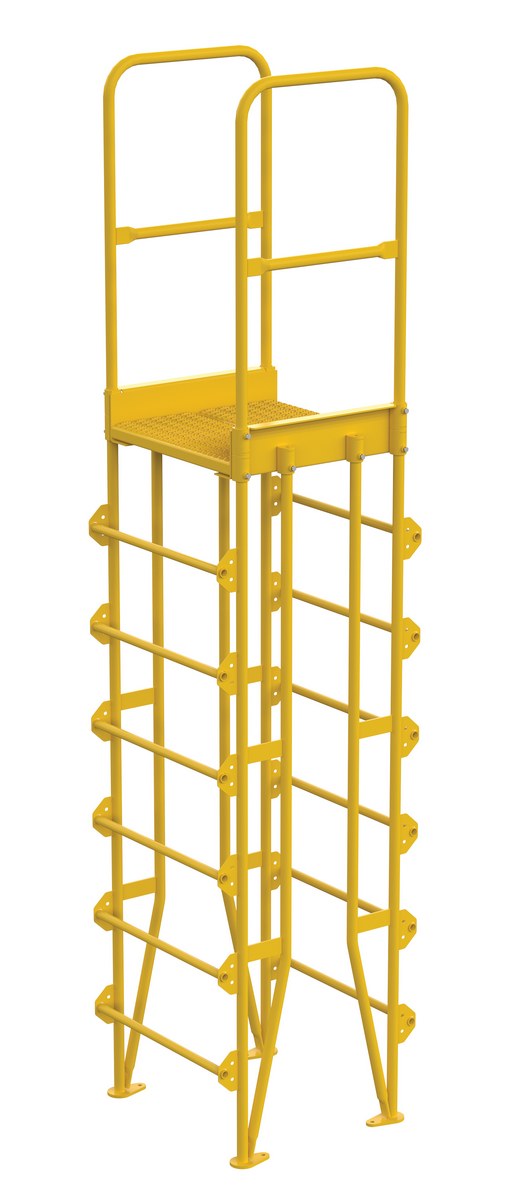

| COLV-7-82-8 | | | 1 Year Limited Warranty | Steel Vertical Crossover Ladder 7 Step 8 In. Width 500 Lb. Capacity Yellow | Uniform Capacity (lb.): 500 Platform Height (in.): 84 | 244 | |
| COLV-7-82-20 | | | 1 Year Limited Warranty | Steel Vertical Crossover Ladder 7 Step 20 In. Width 500 Lb. Capacity Yellow | Uniform Capacity (lb.): 500 Platform Height (in.): 84 | 279 | |

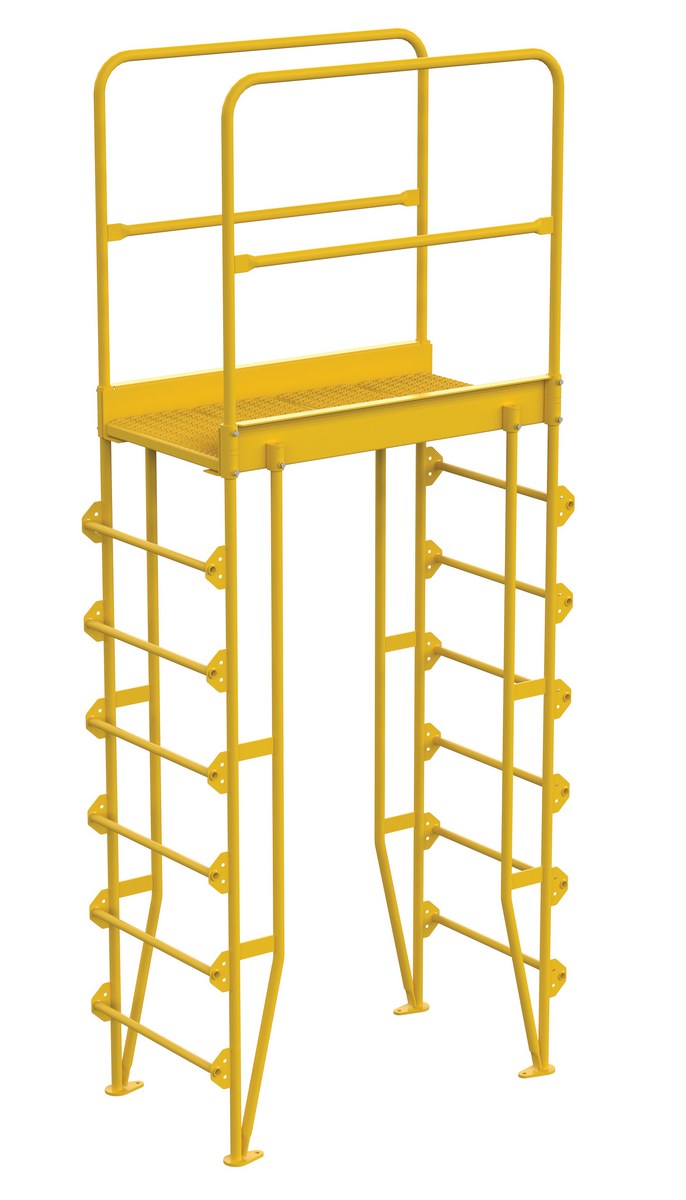

| COLV-7-82-32 | | | 1 Year Limited Warranty | Steel Vertical Crossover Ladder 7 Step 32 In. Width 500 Lb. Capacity Yellow | Uniform Capacity (lb.): 500 Platform Height (in.): 84 | 313 | |

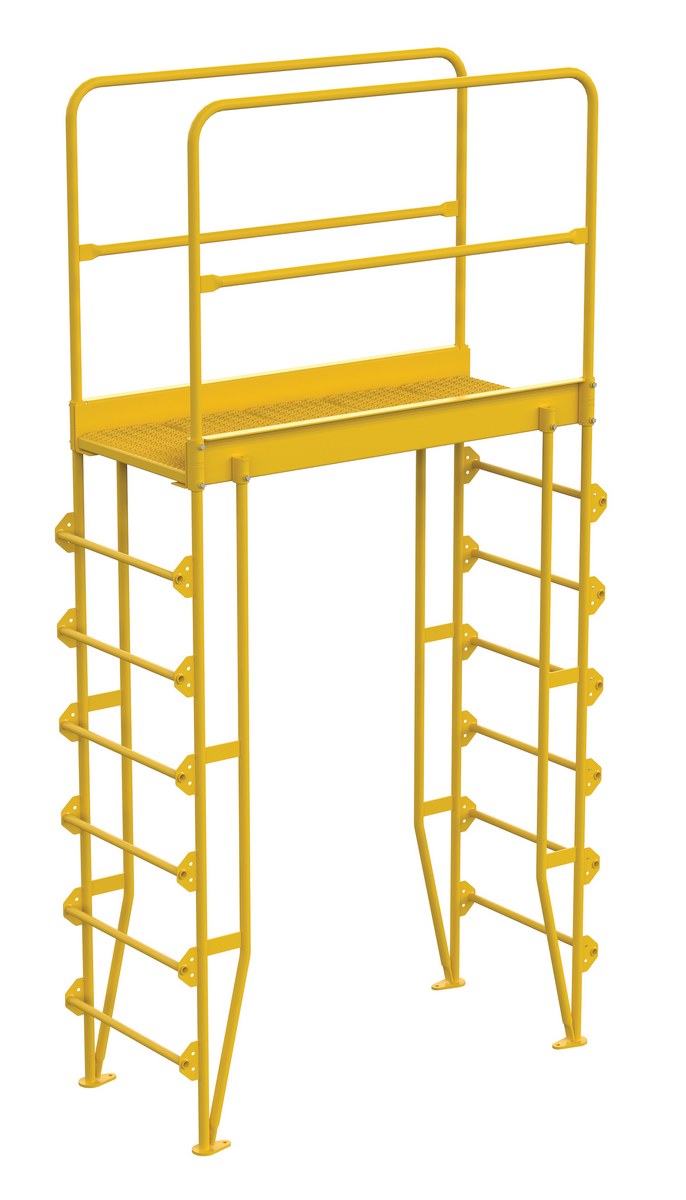

| COLV-7-82-44 | | | 1 Year Limited Warranty | Steel Vertical Crossover Ladder 7 Step 44 In. Width 500 Lb. Capacity Yellow | Uniform Capacity (lb.): 500 Platform Height (in.): 84 | 348 | |

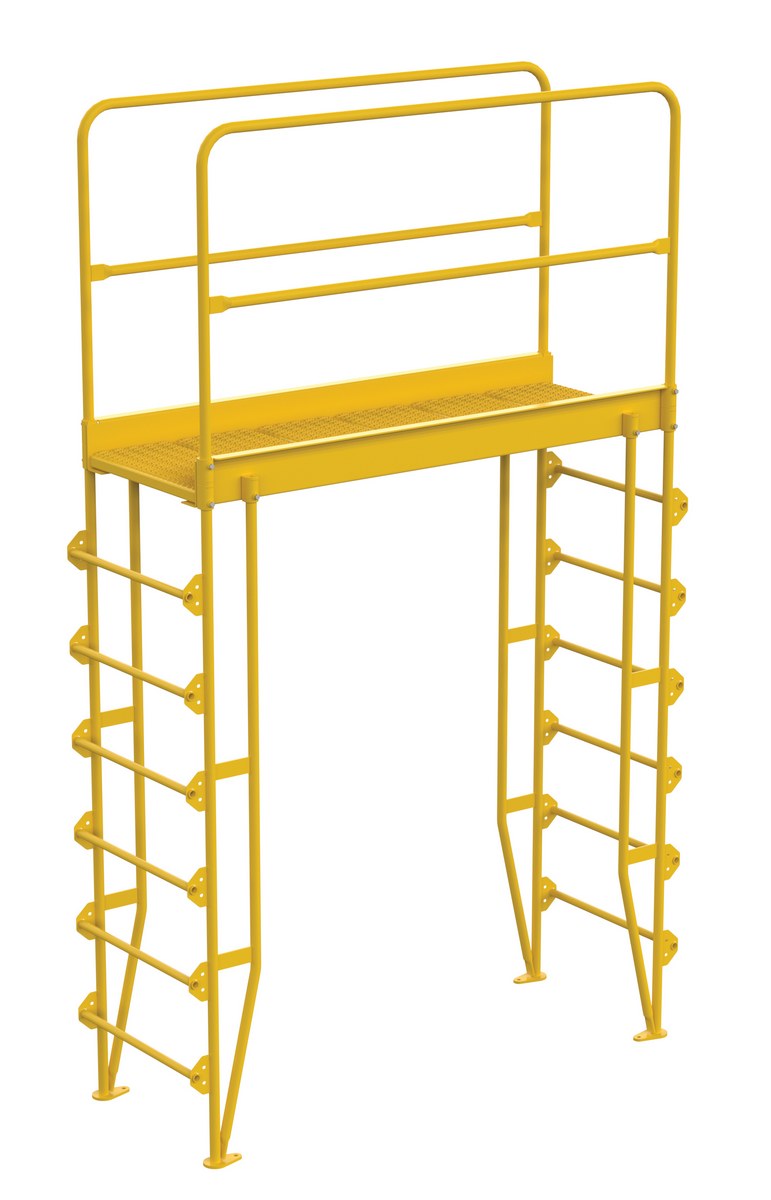

| COLV-7-82-56 | |  | 1 Year Limited Warranty | Steel Vertical Crossover Ladder 7 Step 56 In. Width 500 Lb. Capacity Yellow | Uniform Capacity (lb.): 500 Platform Height (in.): 84 | 364 |
KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required
