Adjustable Step Stands with Handrail

- - - -

Description
Model Chart
PDF's
Image Gallery

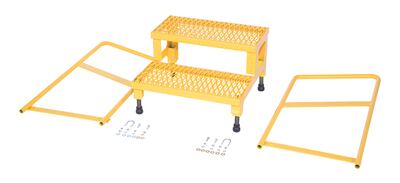

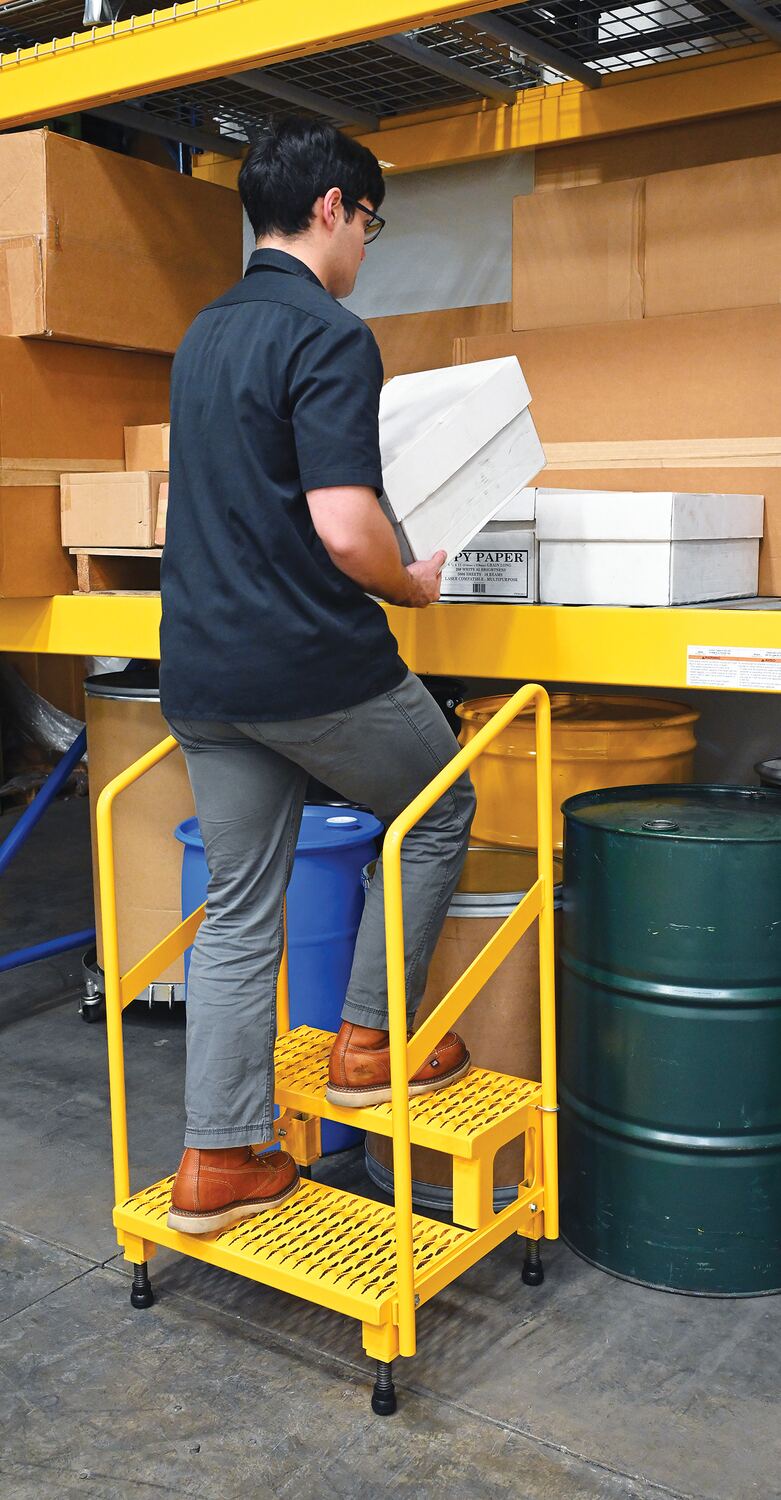

ASP-24-HR_A.jpg ASP-24-HR_C.jpg ASP-24-HR_F.jpg ASP-24-HR_J.jpg

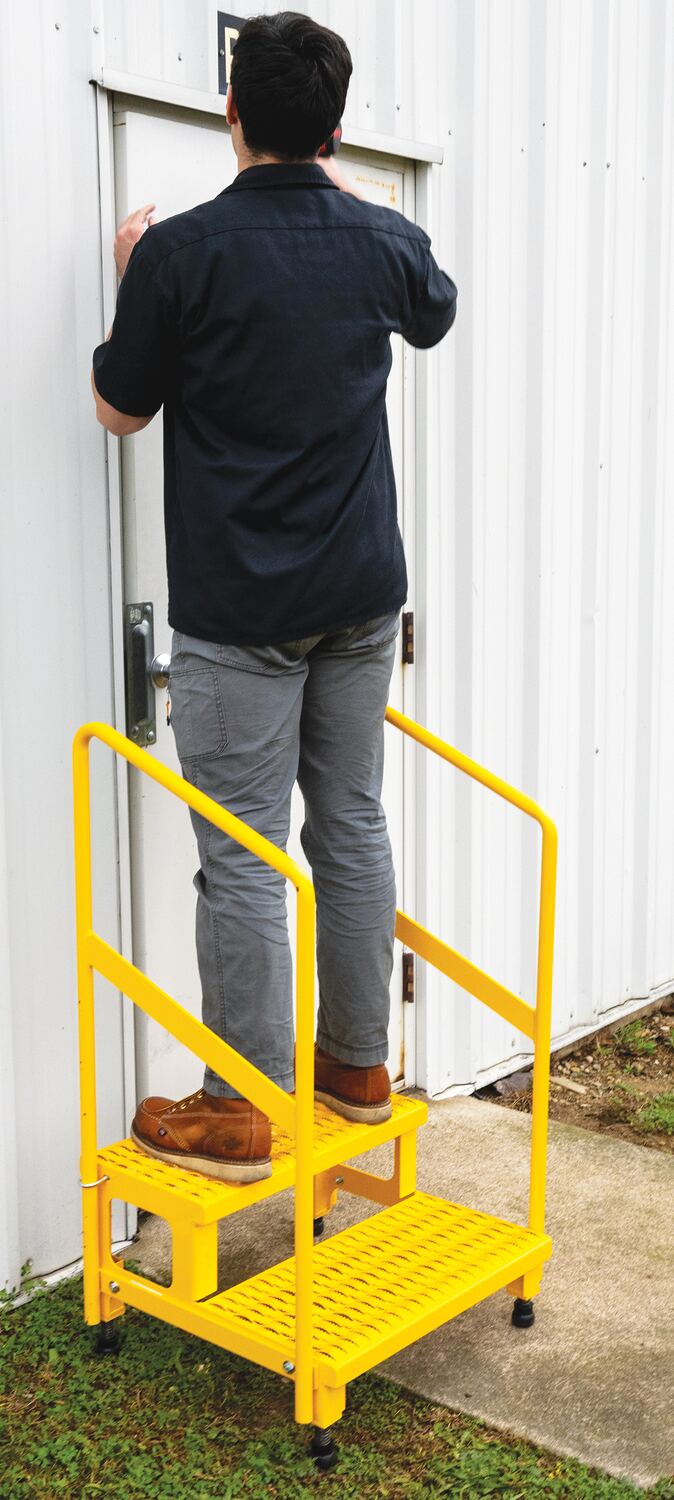

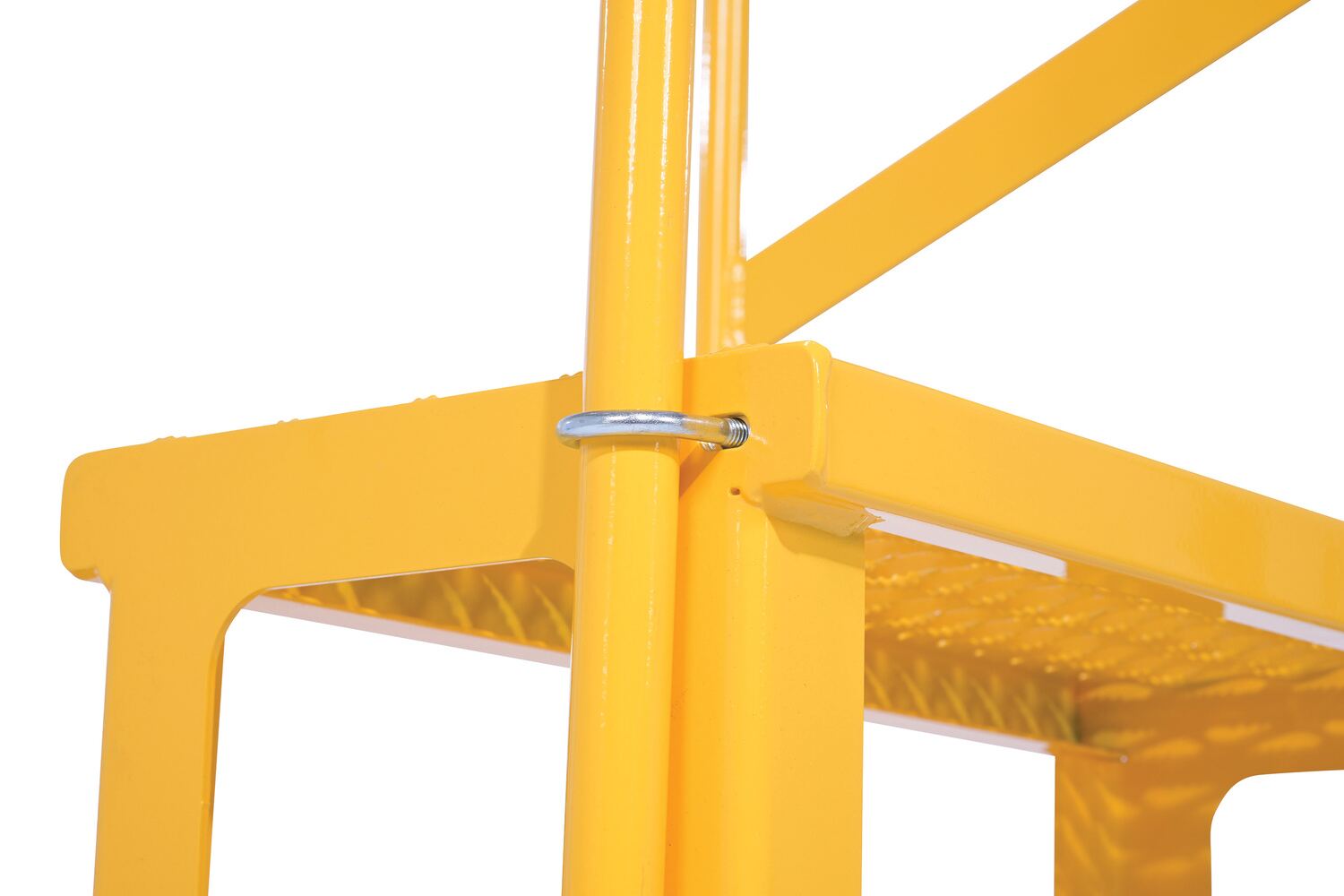

ASP-24-HR_G.jpg ASP-24-HR_H.jpg ASP-24-HR_I.jpg ASP-24-HR_K.jpg
Adjustable Step Stands with Handrail

model: ASP-24-HR



Adjustable Step Stands with Handrail

model: ASP-24-HR

Featured Industrial Ladders


Alternating-Tread Stairs
Ladder Transporter
Rolling Warehouse Ladders (6-11 Step)
Modular Style Stairways
Stainless Steel Adjustable Work-Mate Stands
Fiberglass Step Ladders
Step Stools
Fiberglass Industrial Step Stands
Fiberglass Extension Ladders with Aluminum Rungs
model chart
Print Friendly
Adjustable Step Stands with Handrail
SERIES: ASP-HR

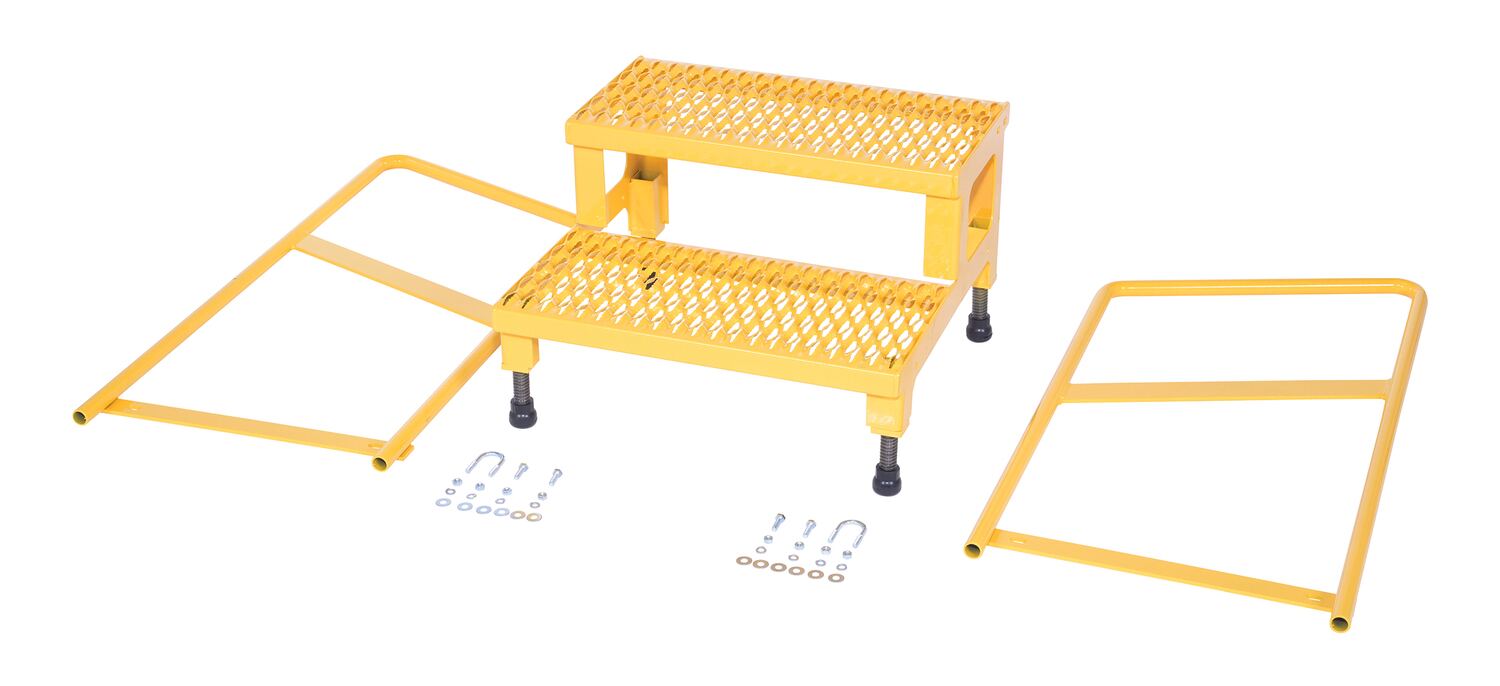

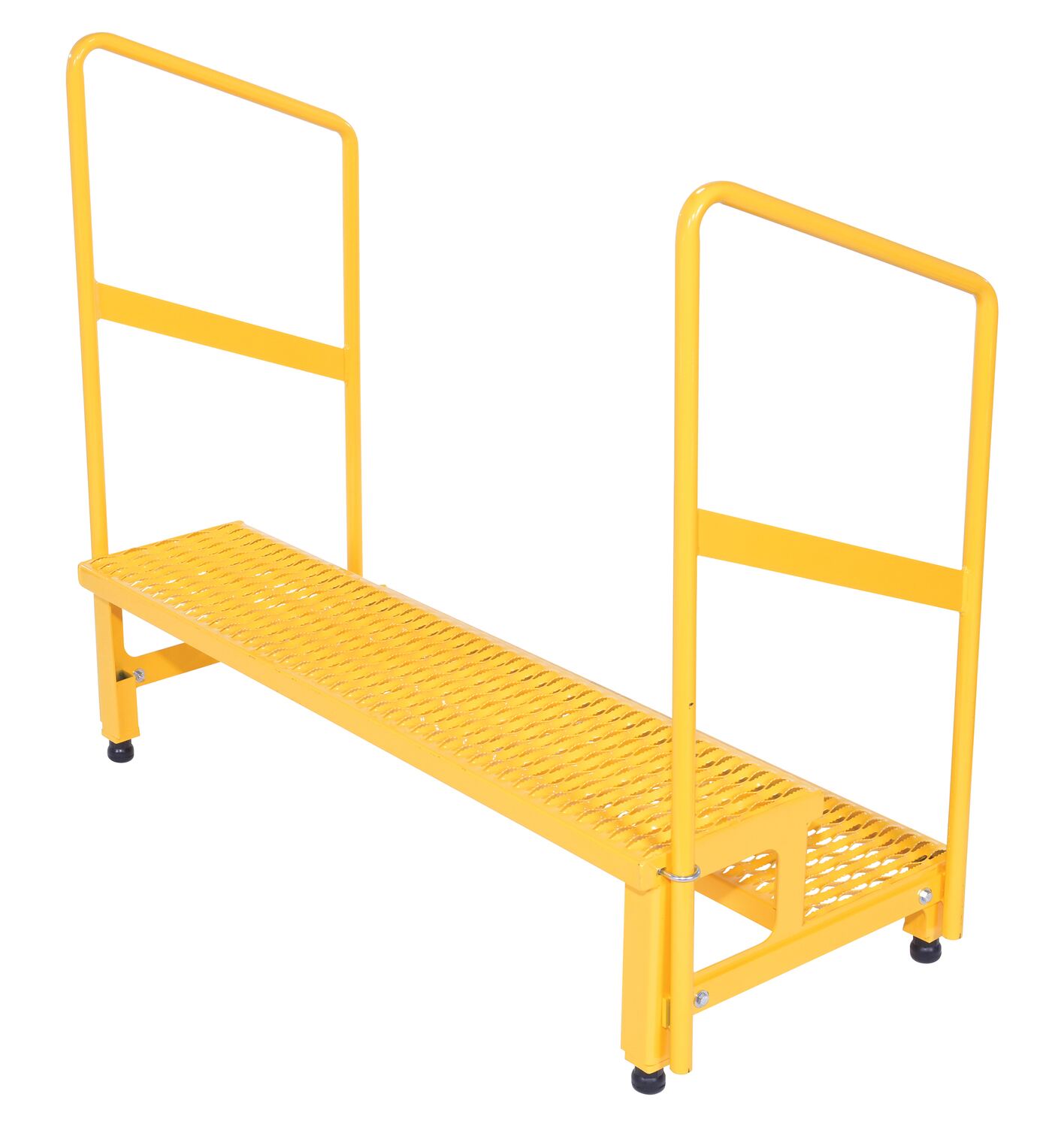

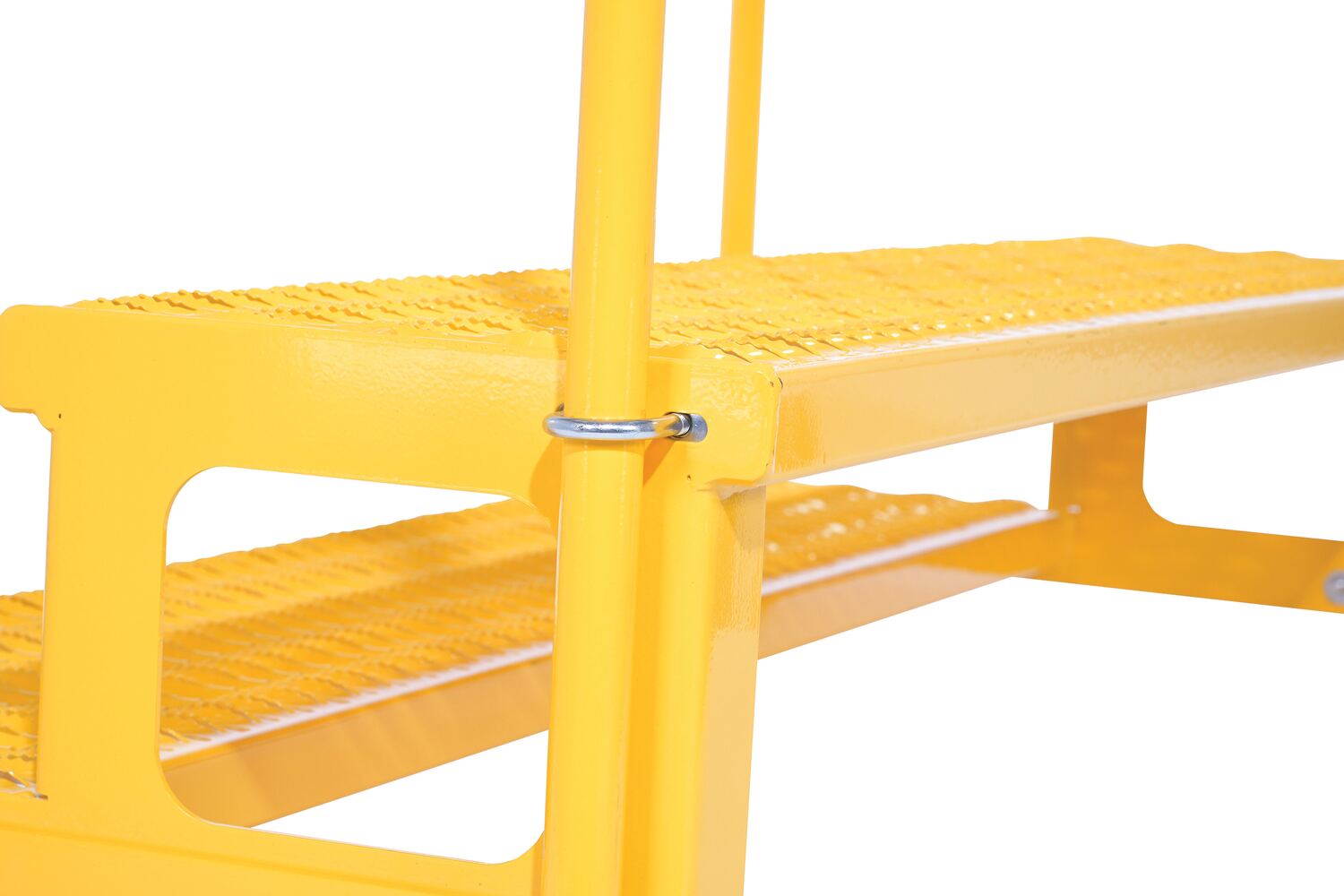

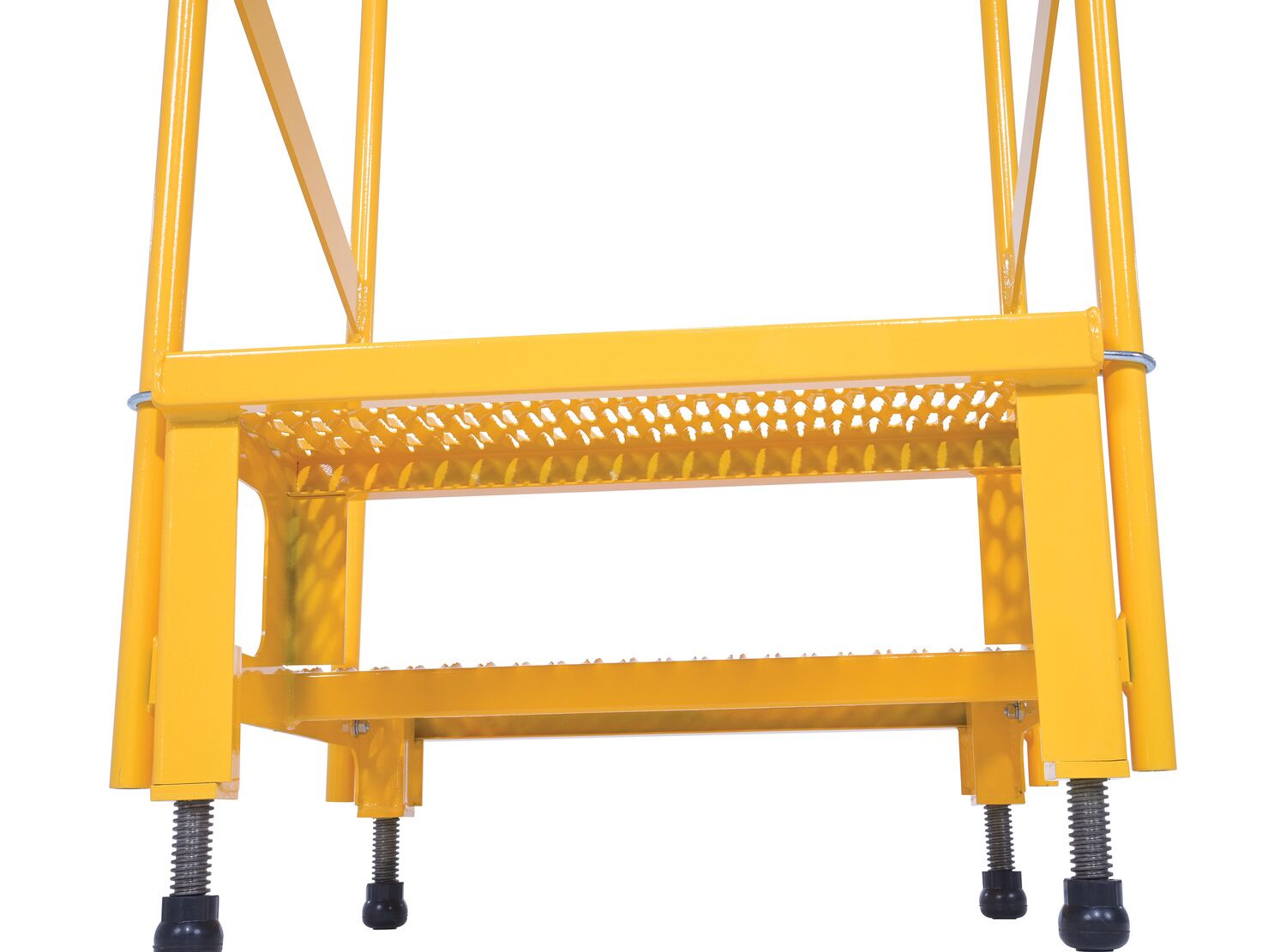

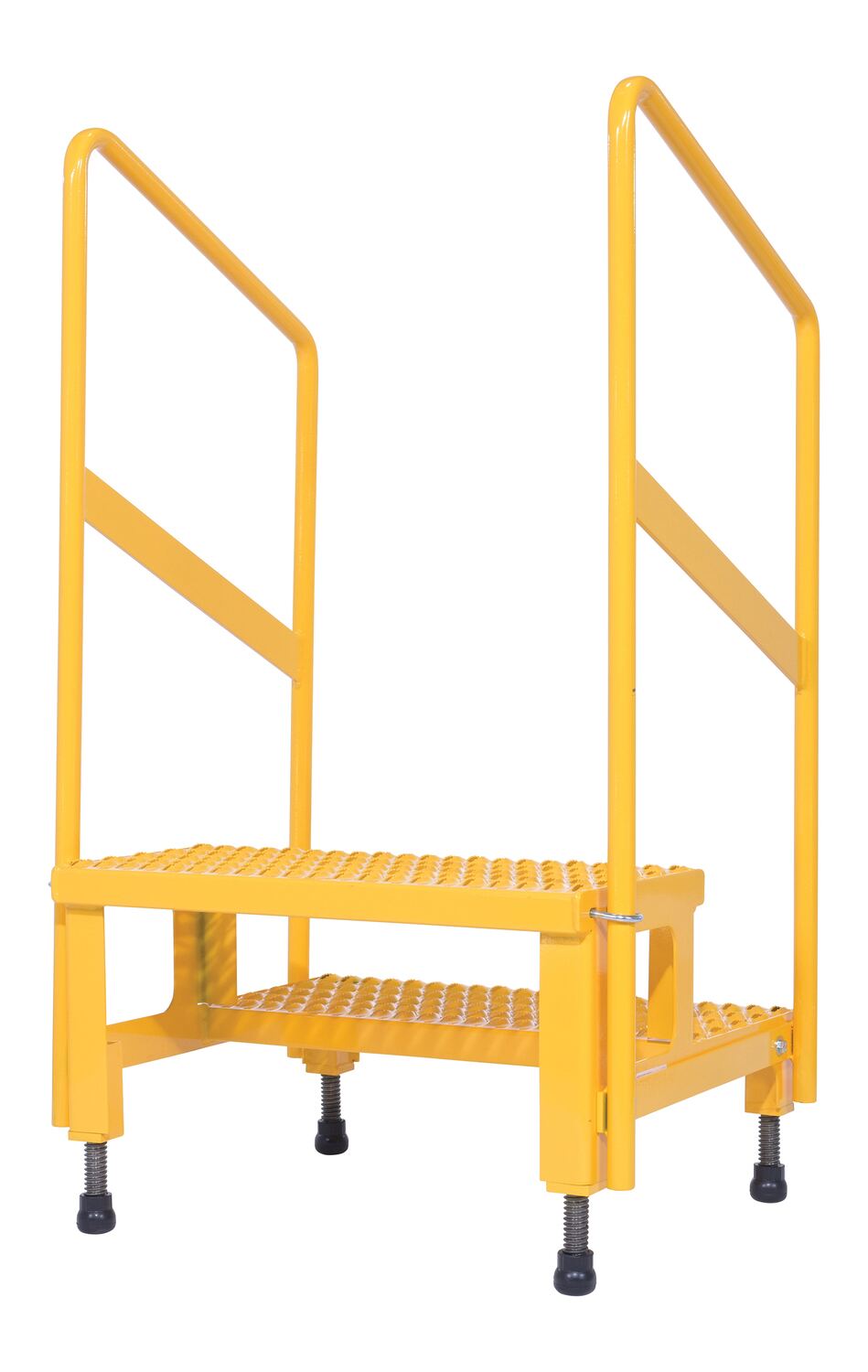

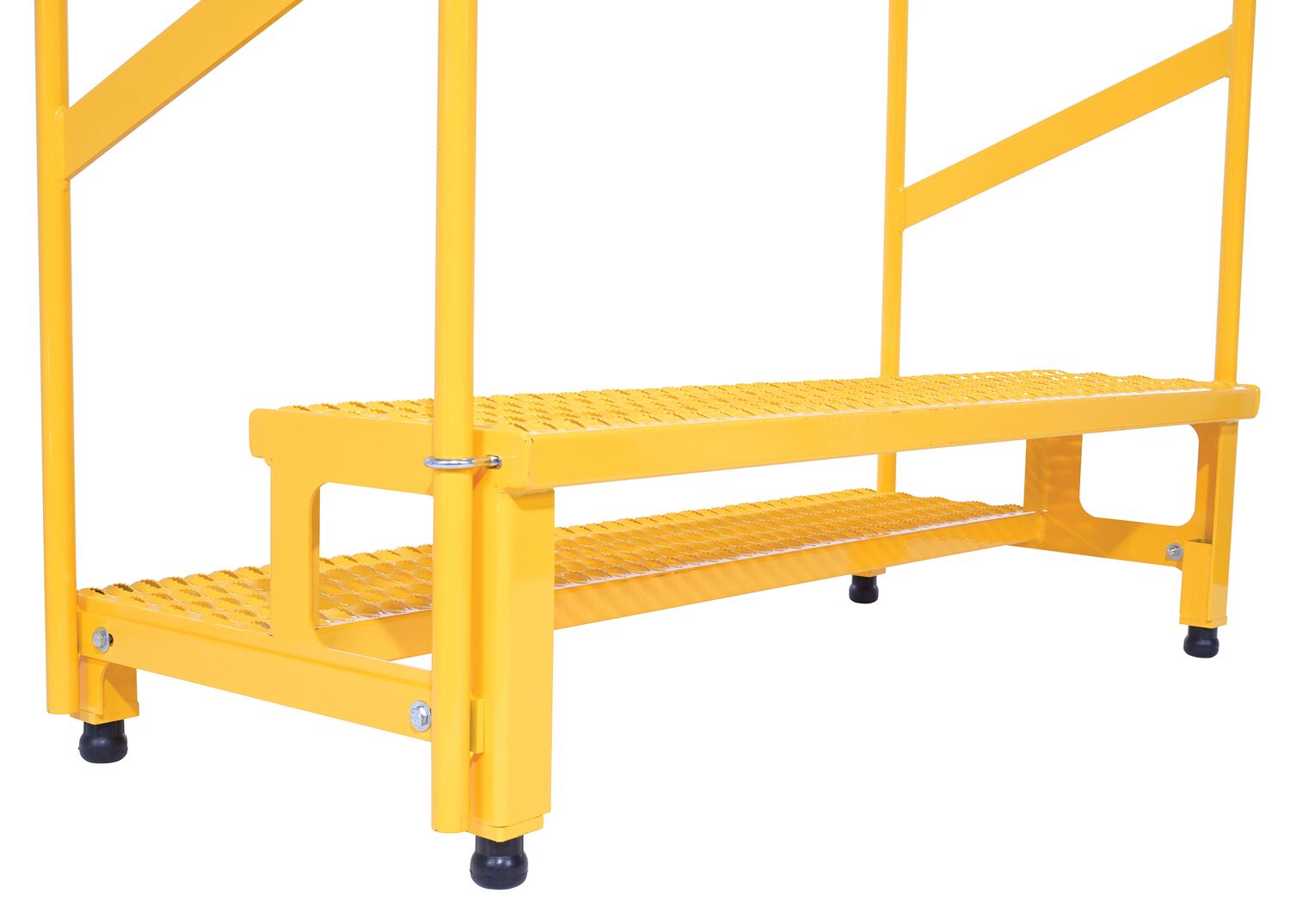

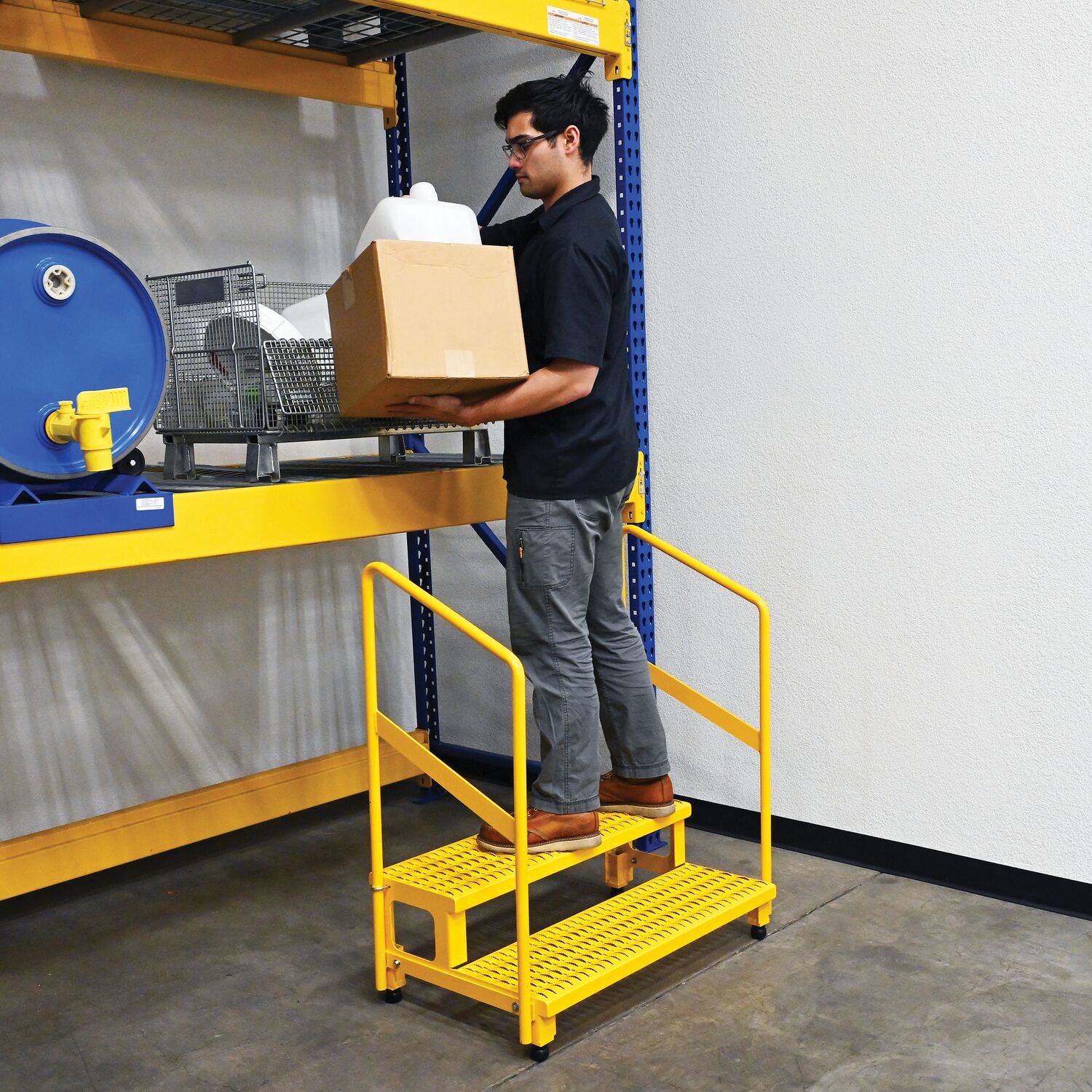

ASP-36-HR_L.jpgThe Adjustable Step-Mate Stand can be used as either a comfortable worker platform or a semi-permanent step. The serrated surface provides extra traction to reduce the potential for slipping. Individual step depth is 11-3/4". Models feature two bolt-on handrails for added stability during use. Handrail measure 20-1/4"D x 40-7/8"H when installed. The legs adjust individually, by screwing them into or out of the leg base, so the unit can be leveled on uneven floors. Each leg fitted with rubber tip for better grip. Uniform capacity is 500 pounds.The unit has a welded construction with yellow baked in powder coated finish for superior toughness.

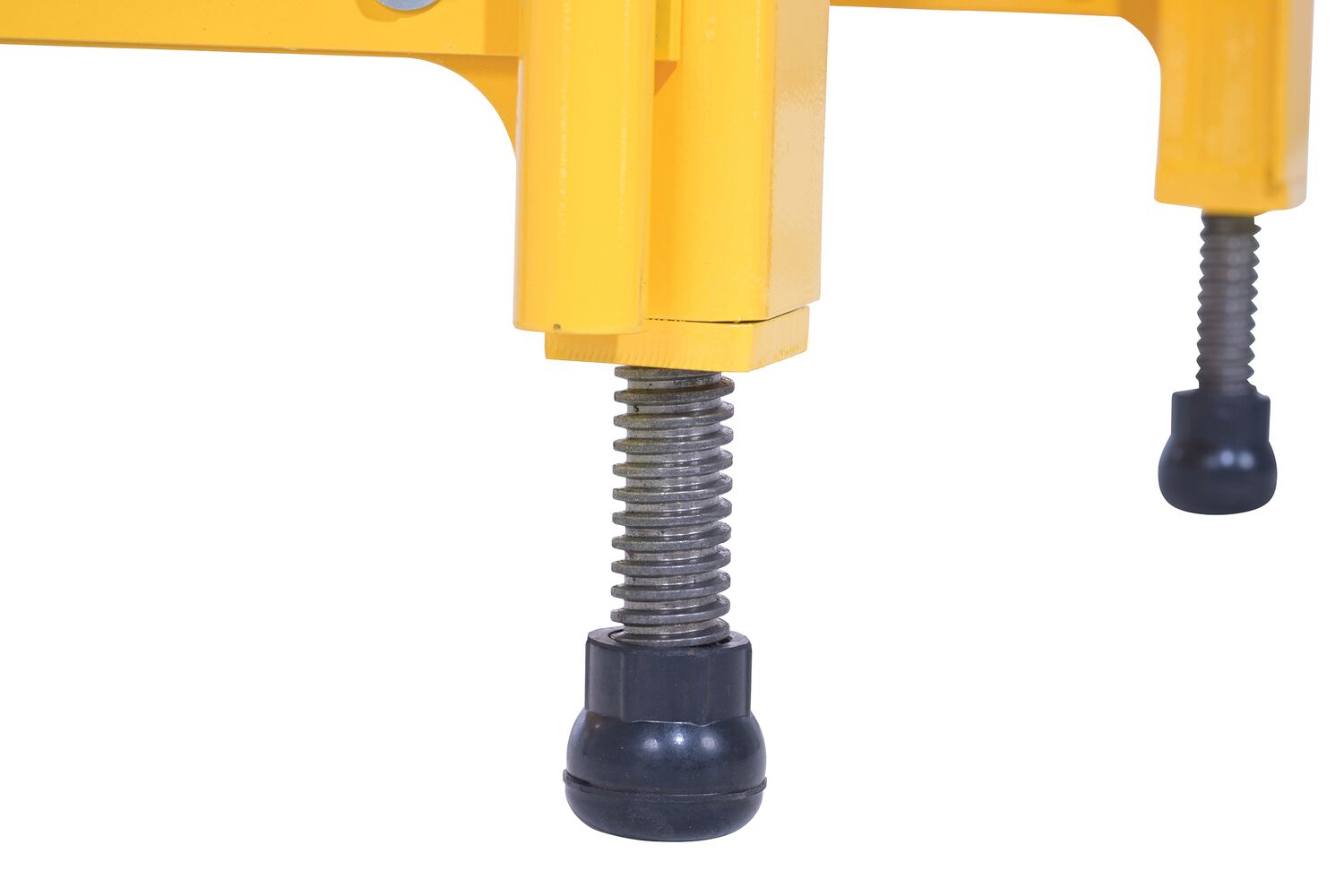

  • Independently adjustable height legs may be set to level unit on uneven floors

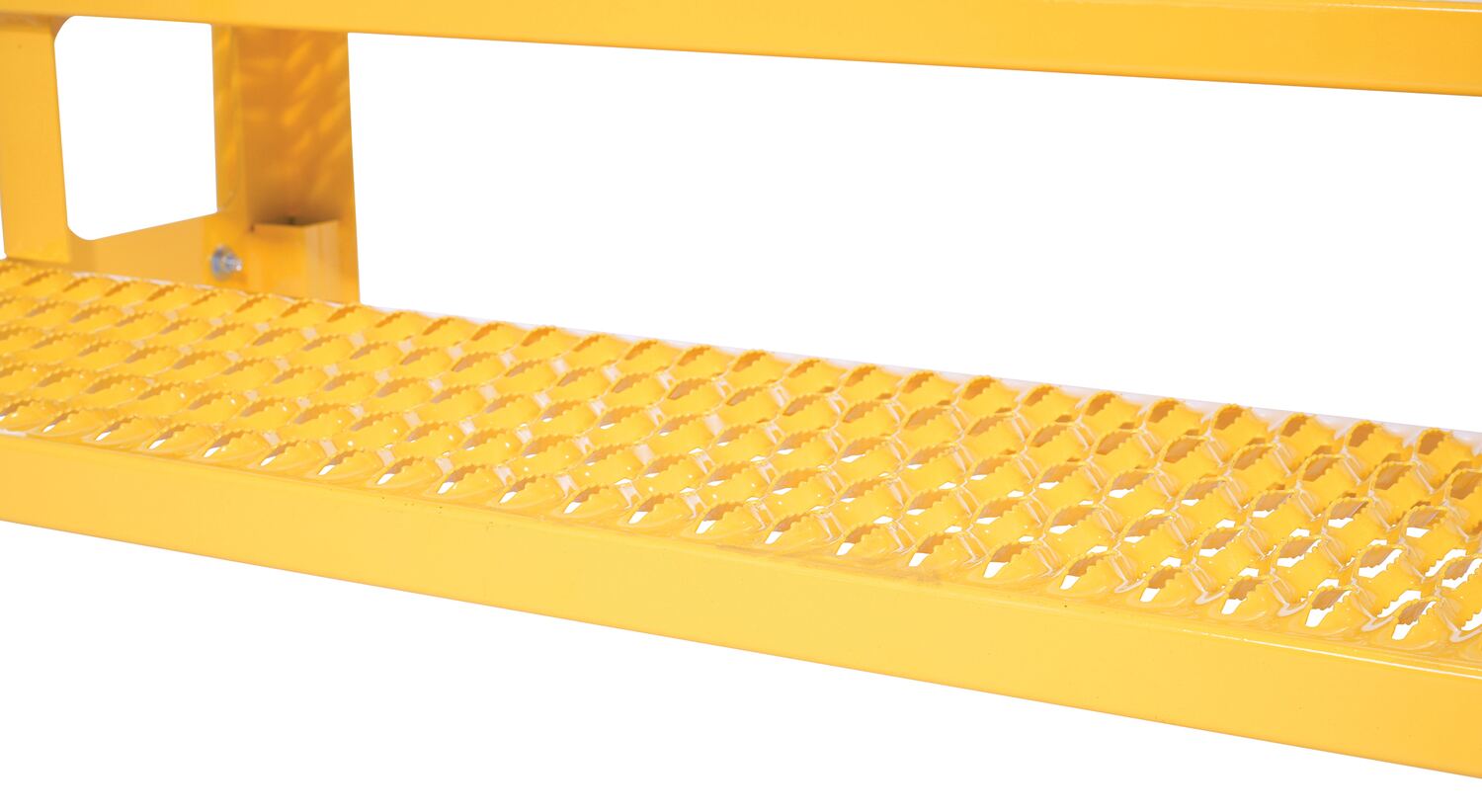

  • Serrated step surface provides excellent traction even in wet environments
  • Each leg fitted with rubber tip for better grip & traction
  • Models feature handrails for added stability during use

See Our Standard Adjustable Step-Mate Stands

ASP-36-HR_L.jpgThe Adjustable Step-Mate Stand can be used as either a comfortable worker platform or a semi-permanent step. The serrated surface provides extra traction to reduce the potential for slipping. Individual step depth is 11-3/4". Models feature two bolt-on handrails for added stability during use. Handrail measure 20-1/4"D x 40-7/8"H when installed. The legs adjust individually, by screwing them into or out of the leg base, so the unit can be leveled on uneven floors. Each leg fitted with rubber tip for better grip. Uniform capacity is 500 pounds.The unit has a welded construction with yellow baked in powder coated finish for superior toughness.

  • Independently adjustable height legs may be set to level unit on uneven floors
  • Serrated step surface provides excellent traction even in wet environments
  • Each leg fitted with rubber tip for better grip & traction
  • Models feature handrails for added stability during use

See Our Standard Adjustable Step-Mate Stands

Other Step Stands

 Adjustable Step Stands with Handrail Serrated Steel Fold-Up Steps Stainless Steel Adjustable Work-Mate Stands Portable Adjustable Height Worker Stands

Additional Models In This Family
view entire Image Gallery

ASP-24-HR

ASP-24-HR

ASP-24-HR

ASP-24-HR

ASP-48-HR

ASP-48-HR

ASP-48-HR

ASP-48-HR

ASP-48-HR

ASP-48-HR

ASP-36-HR

ASP-36-HR

ASP-60-HR

ASP-60-HR

ASP-48-HR

ASP-48-HR

ASP-24-HR

ASP-24-HR

ASP-48-HR

ASP-48-HR

ASP-48-HR

ASP-48-HR

ASP-48-HR

ASP-48-HR

ASP-48-3-HR

ASP-48-3-HR

ASP-48-HR

ASP-48-HR

ASP-36-HR

ASP-36-HR

model chart
All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)

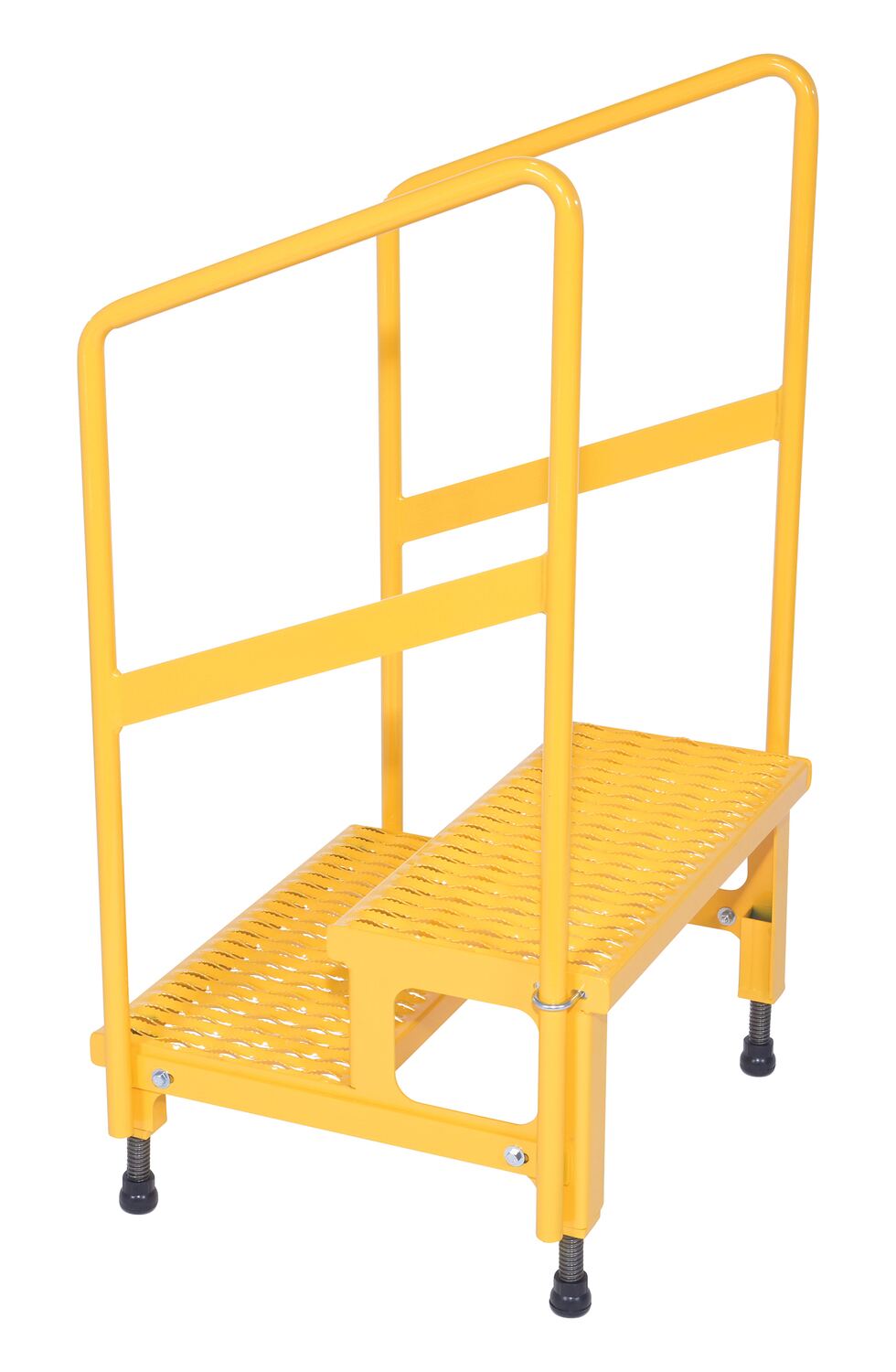

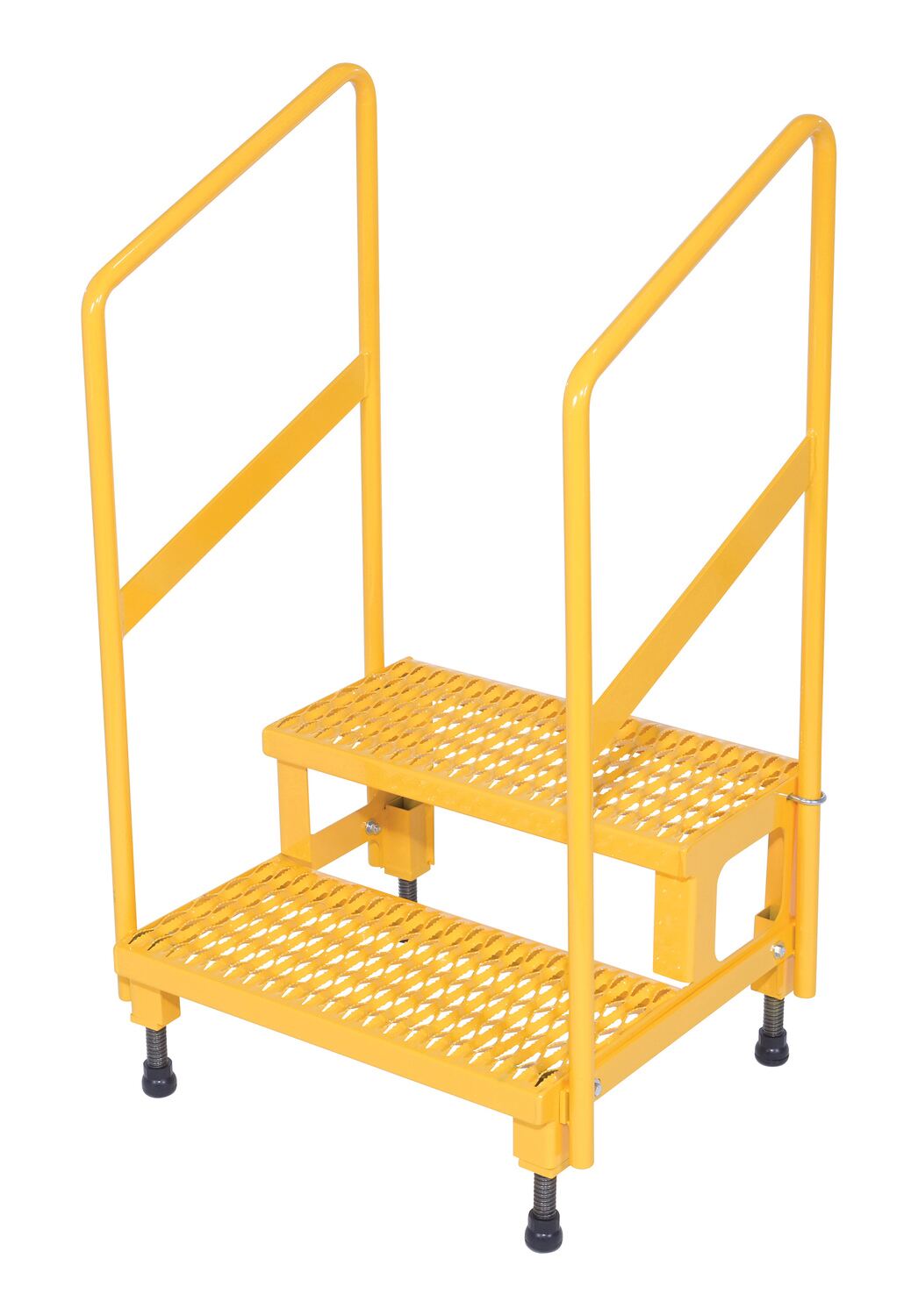

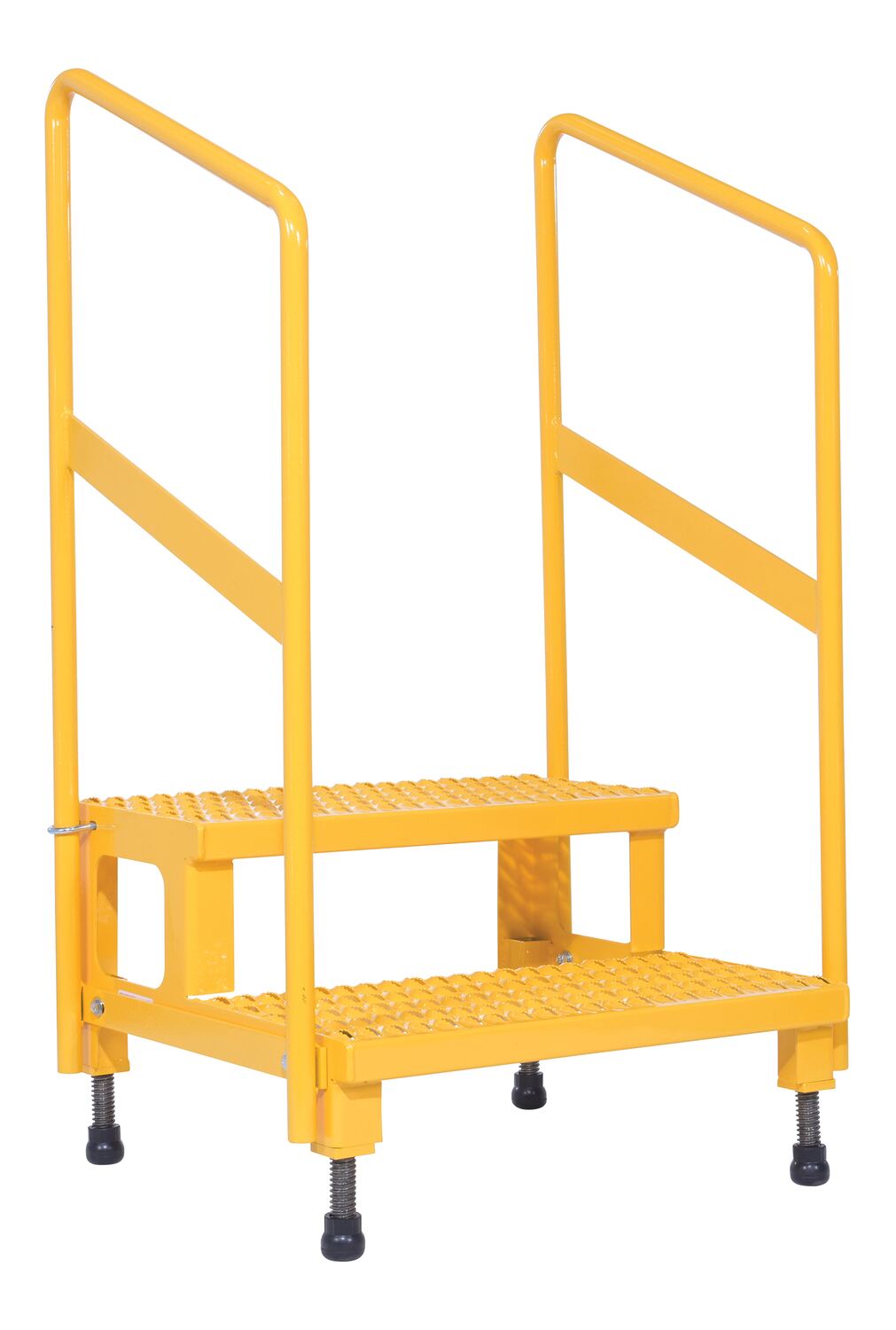

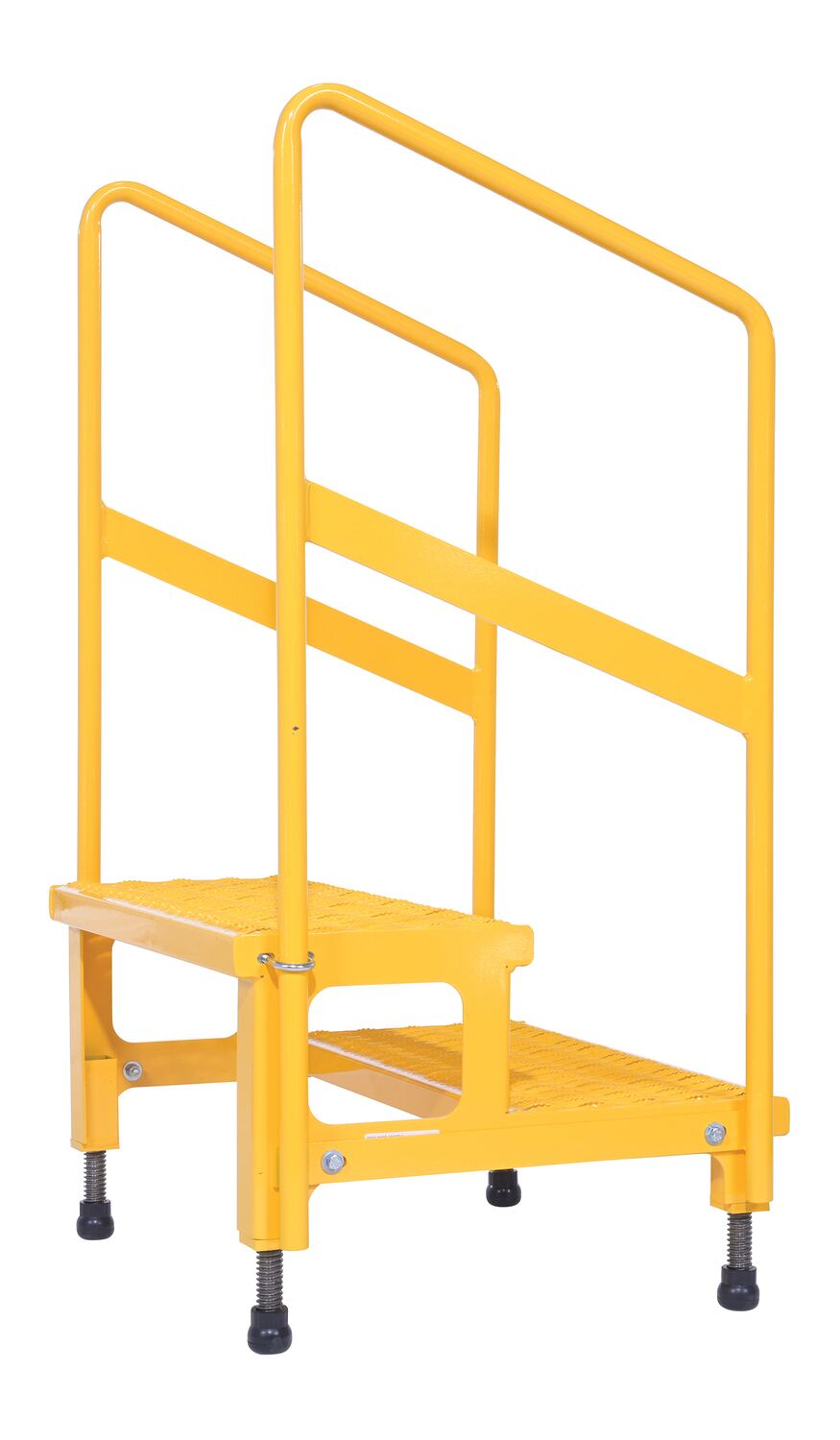

ASP-24-HR ASP-24-HR90 Days Limited WarrantySteel Adjustable Step Mate Stand 2 Step with Handrails 22-7/8 In. x 25-15/16 In. x 43-1/8 In. 500 Lb. Capacity YellowUniform Capacity (lb.): 500
Individual Step Depth (in.): 11-3/4		98

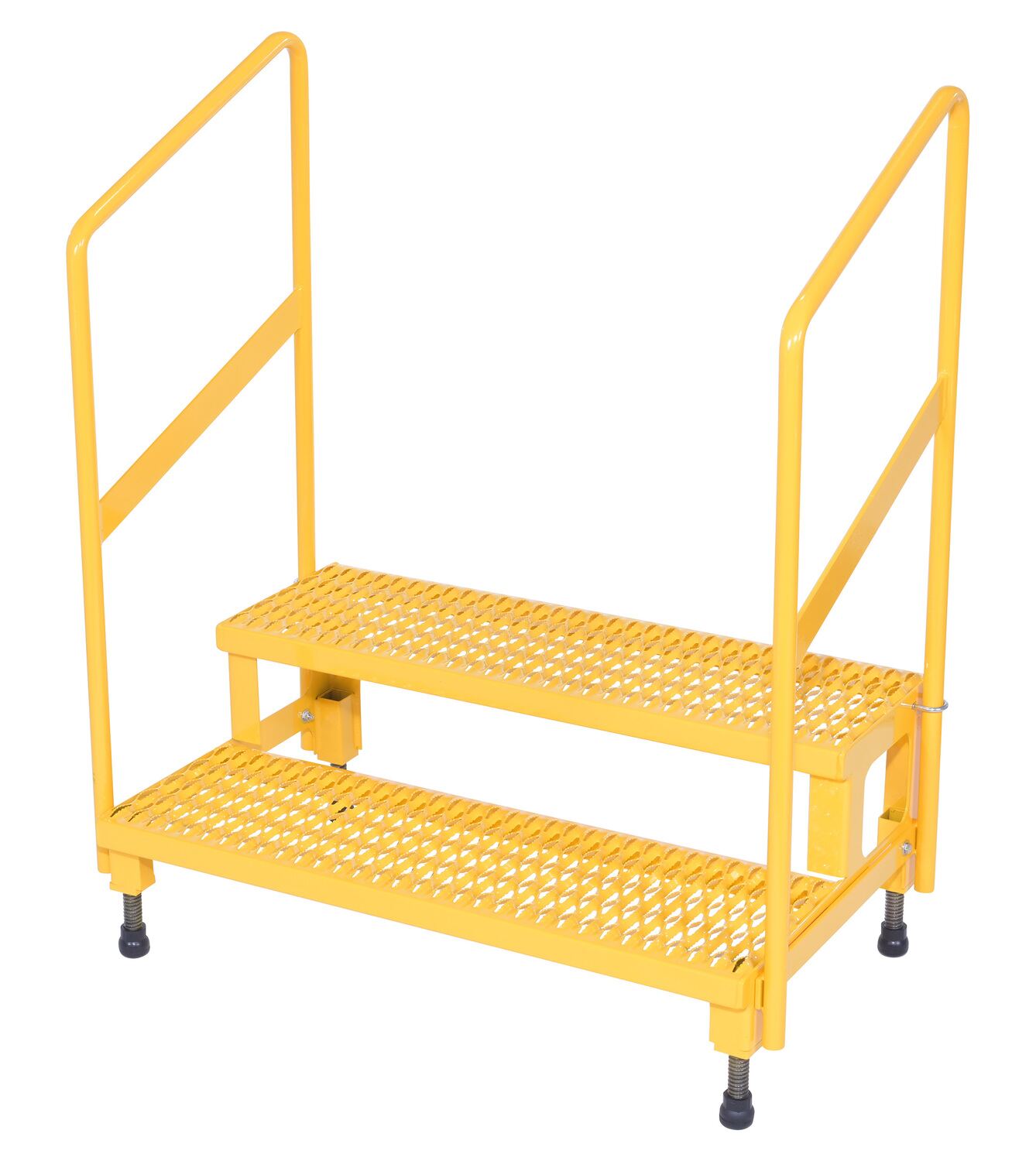

ASP-36-HR ASP-36-HR90 Days Limited WarrantySteel Adjustable Step Mate Stand 2 Step with Handrails 22-7/8 In. x 38-3/16 In. x 43-1/8 In. 500 Lb. Capacity YellowUniform Capacity (lb.): 500
Individual Step Depth (in.): 11-3/4		110

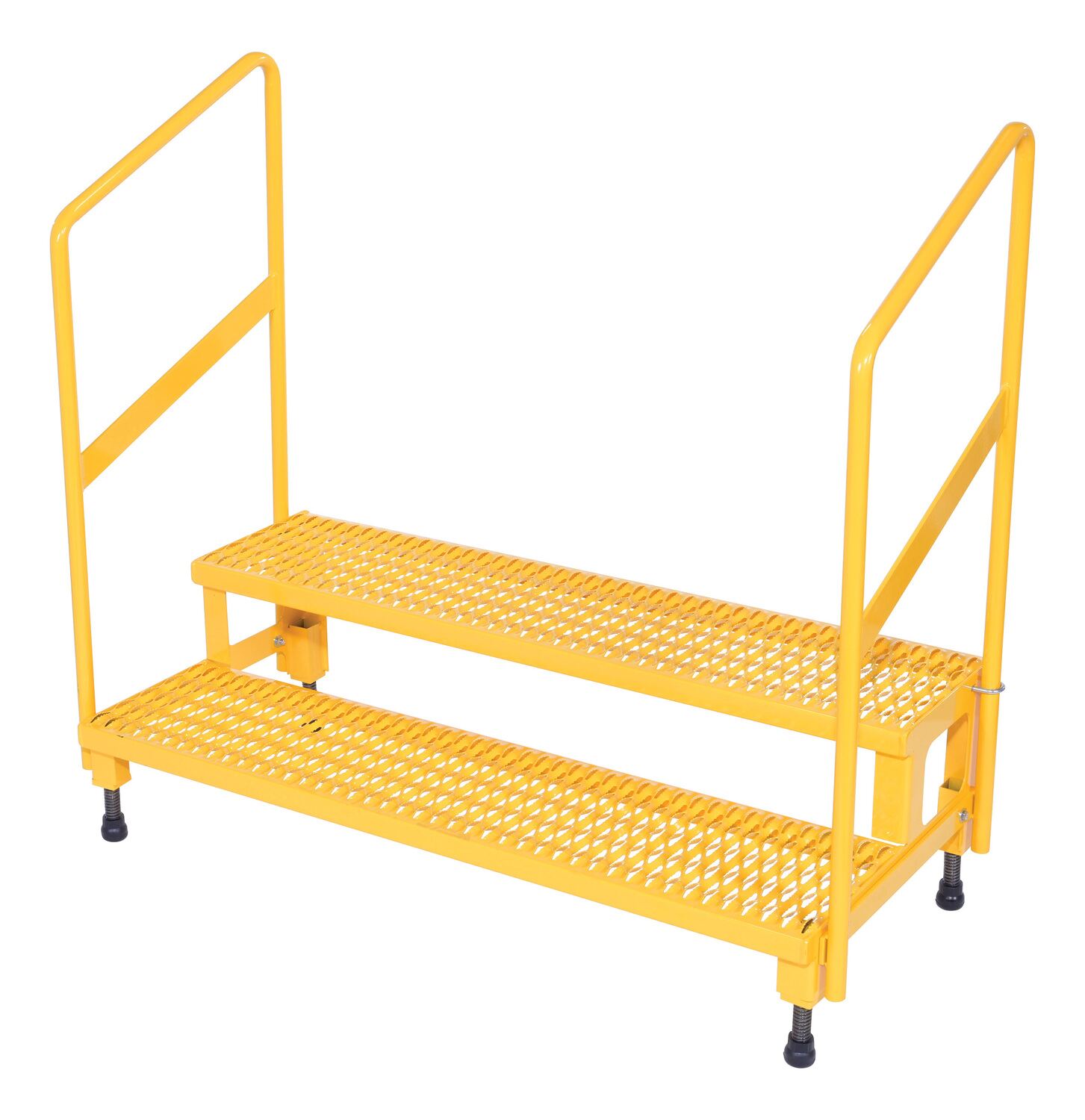

ASP-48-HR ASP-48-HR90 Days Limited WarrantySteel Adjustable Step Mate Stand 2 Step with Handrails 22-7/8 In. x 50-1/2 In. x 43-1/8 In. 500 Lb. Capacity YellowUniform Capacity (lb.): 500
Individual Step Depth (in.): 11-3/4		122

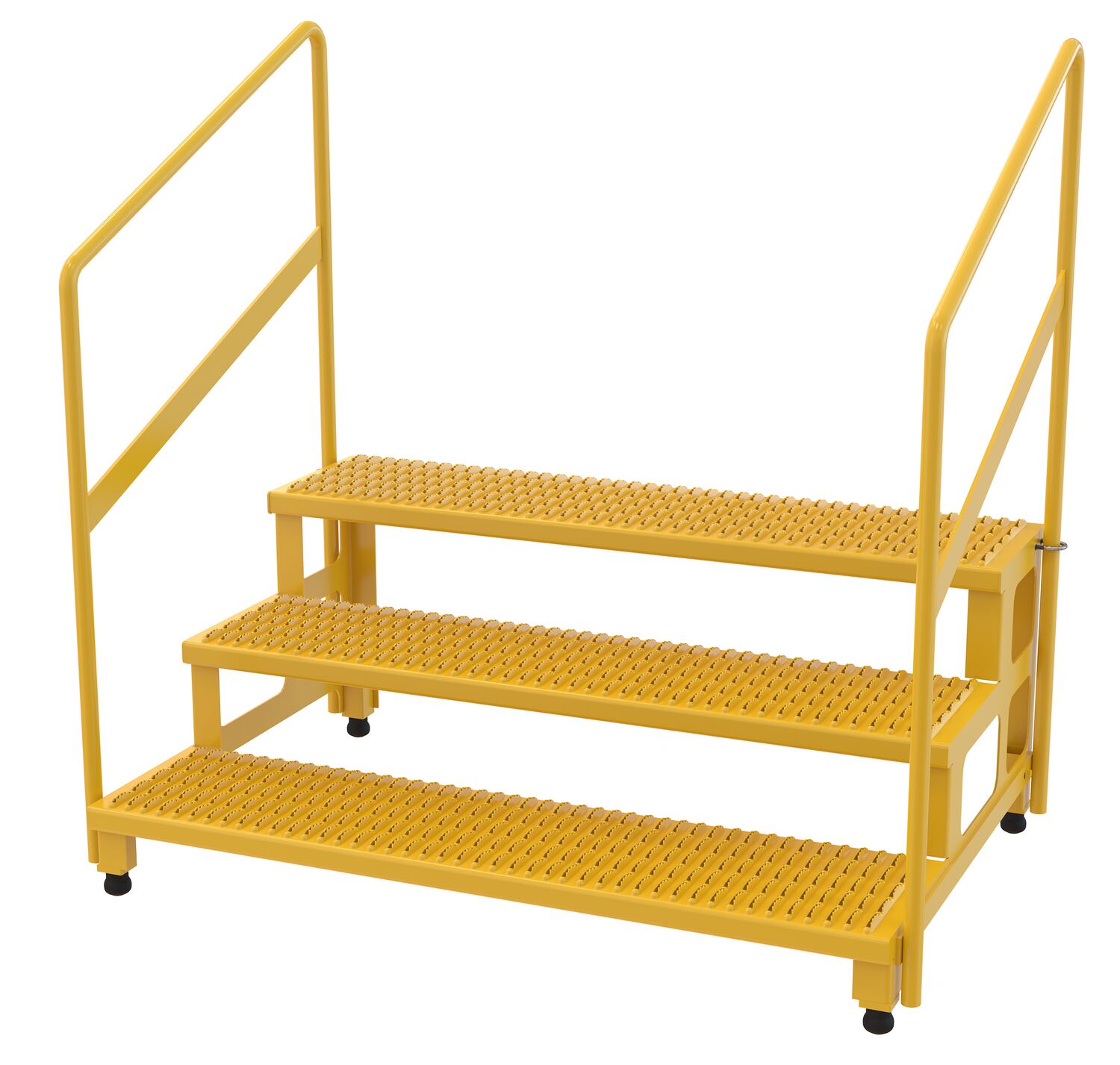

ASP-48-3-HR NEW ASP-48-3-HR90 Days Limited WarrantySteel Adjustable Step Stand 48 Inches Wide 3-Step with Handrails 500 Lb Capacity YellowHandrail Construction: Steel Tubing Sch 40
Handle Height (in.): 52		169
ASP-36-3-HR NEW ASP-36-3-HR90 Days Limited WarrantySteel Adjustable Step Stand 36 inches Wide 3-Step with Handrails 500 Lb. Capacity YellowHandle Construction: Steel Tubing Sch 40
Handle Height (in.): 52		148

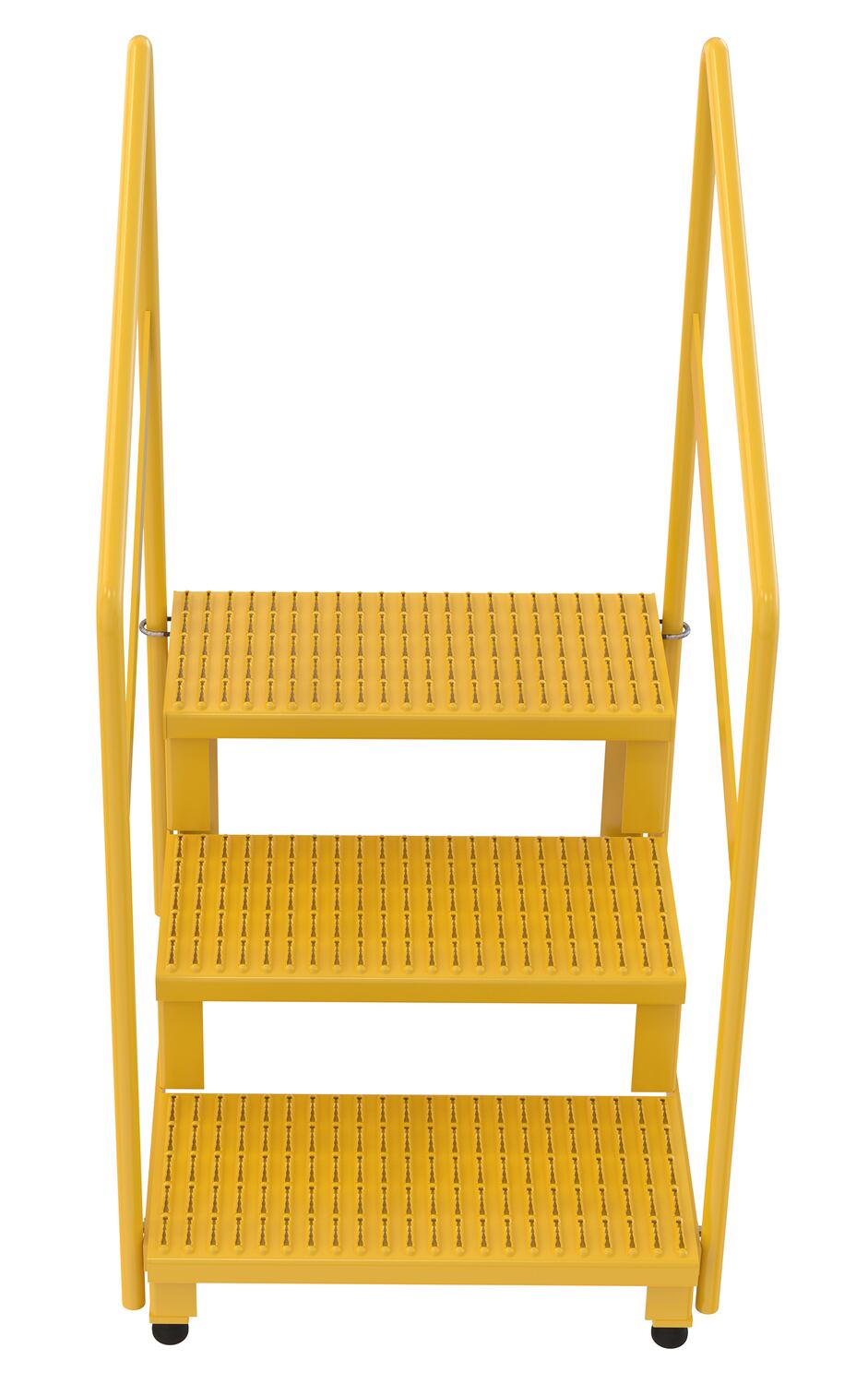

ASP-24-3-HR NEW ASP-24-3-HR90 Days Limited WarrantySteel Adjustable Step Stand 24 inches Wide 3-Step with Handrails 500 Lbs. Capacity YellowHandrail Construction: Steel Tubing Sch 40
Number of Steps: 3		128

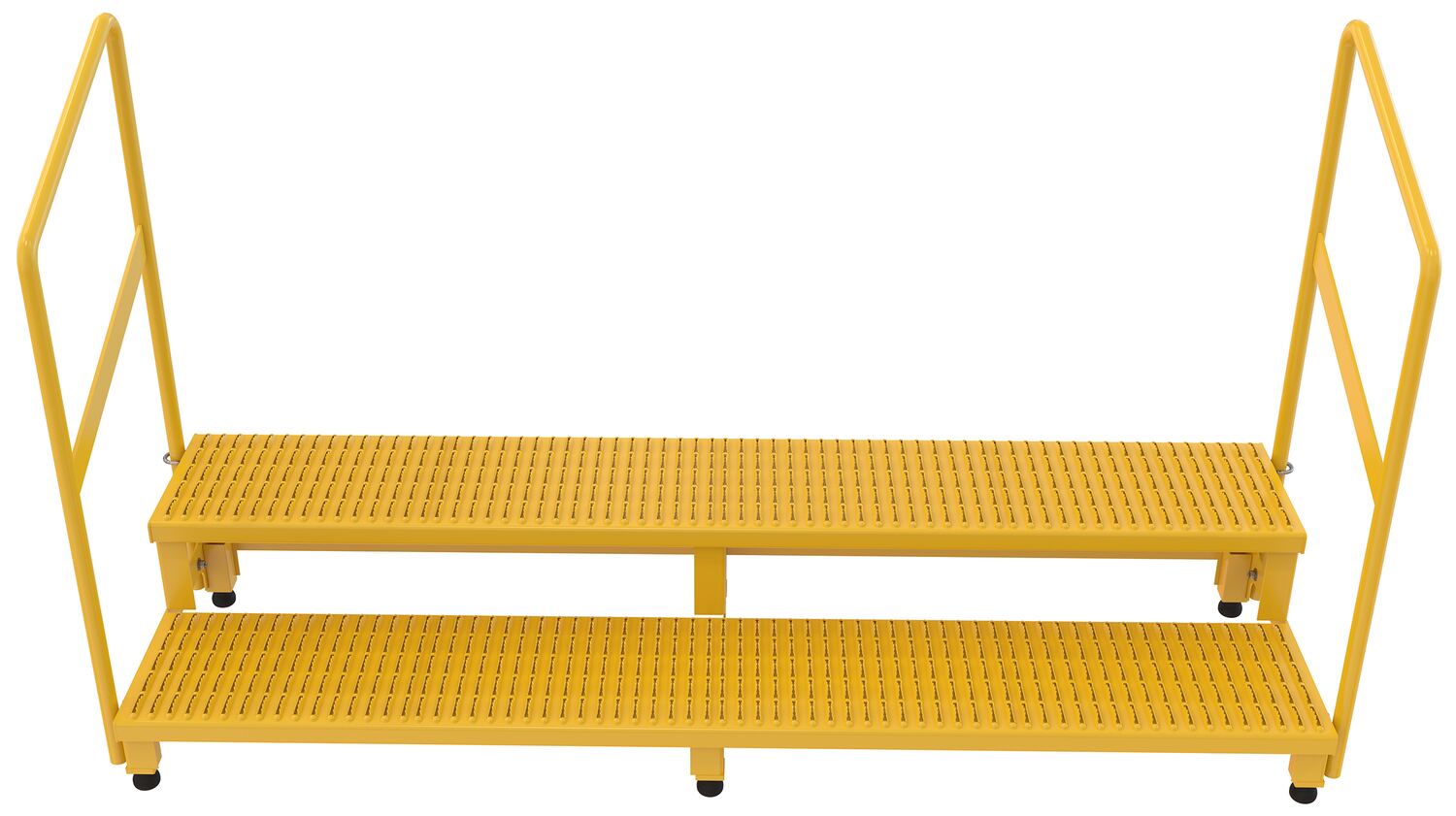

ASP-72-HR NEW ASP-72-HR90 Days Limited WarrantySteel Adjustable Step Stand 72 inch Wide 2-Step with Handrails 500 Lb. Capacity YellowHandrail Construction: Steel Tubing Sch 40
Handrail Height (in.): 45-1/4		172

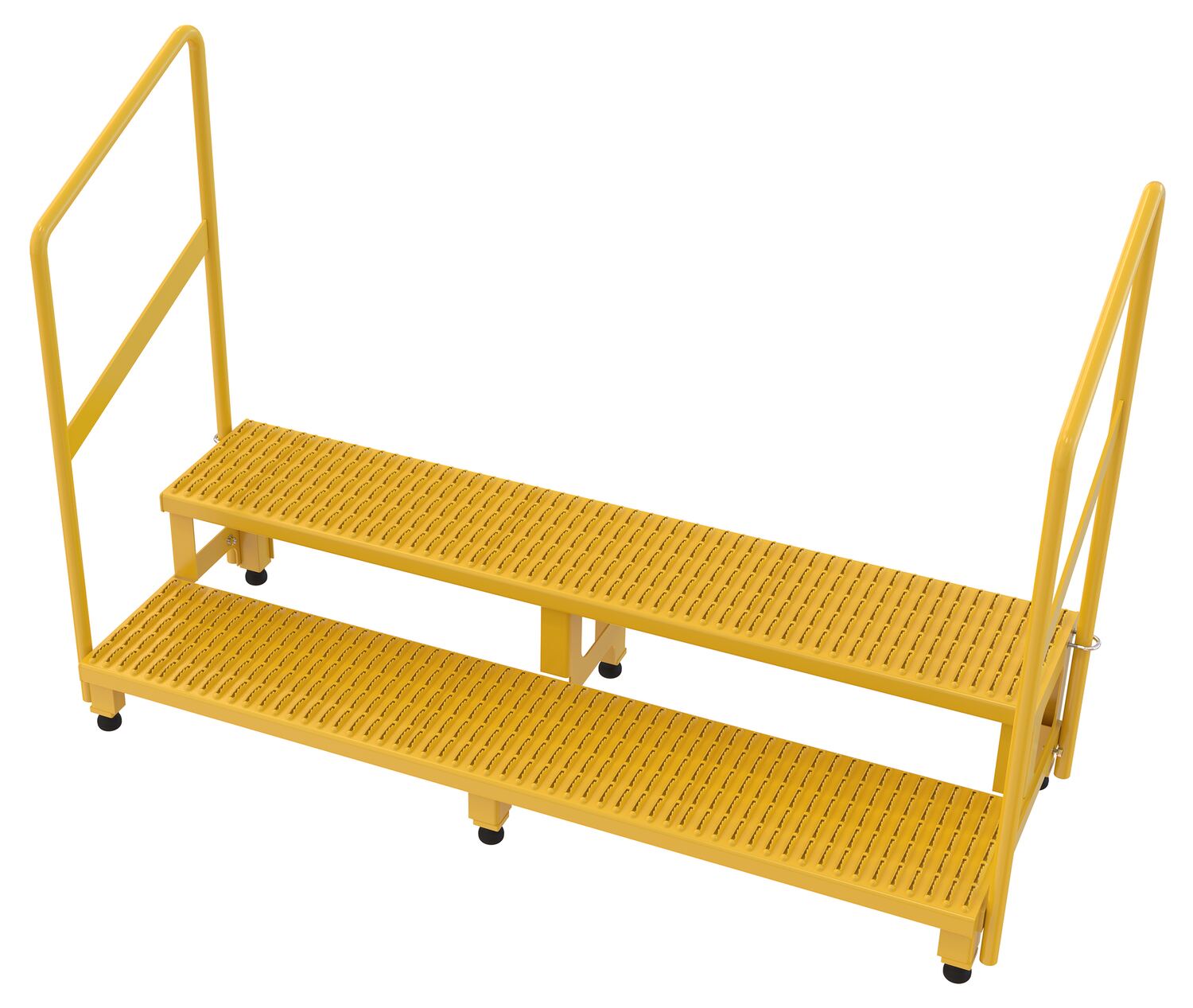

ASP-60-HR NEW ASP-60-HR90 Days Limited WarrantySteel Adjustable Step Stand 60 Inches Wide 2-Step with Handrails 500 Lb. Capacity YellowHandrail Construction: Steel Tubing Sch 40
Handrail Height (in.): 45-1/4		157

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

ASP-24-HR
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 500
Individual Step Depth (in.): 11-3/4
Uniform Capacity (lb.): 500
Individual Step Depth (in.): 11-3/4

ASP-36-HR
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 500
Individual Step Depth (in.): 11-3/4
Uniform Capacity (lb.): 500
Individual Step Depth (in.): 11-3/4

ASP-48-HR
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 500
Individual Step Depth (in.): 11-3/4
Uniform Capacity (lb.): 500
Individual Step Depth (in.): 11-3/4

ASP-48-3-HR
Unit:
Size: W x L x H
Weight:
Limited Warranty
Handrail Construction: Steel Tubing Sch 40
Handle Height (in.): 52
Handrail Construction: Steel Tubing Sch 40
Handle Height (in.): 52

ASP-36-3-HR
Unit:
Size: W x L x H
Weight:
Limited Warranty
Handle Construction: Steel Tubing Sch 40
Handle Height (in.): 52
Handle Construction: Steel Tubing Sch 40
Handle Height (in.): 52

ASP-24-3-HR
Unit:
Size: W x L x H
Weight:
Limited Warranty
Handrail Construction: Steel Tubing Sch 40
Number of Steps: 3
Handrail Construction: Steel Tubing Sch 40
Number of Steps: 3

ASP-72-HR
Unit:
Size: W x L x H
Weight:
Limited Warranty
Handrail Construction: Steel Tubing Sch 40
Handrail Height (in.): 45-1/4
Handrail Construction: Steel Tubing Sch 40
Handrail Height (in.): 45-1/4

ASP-60-HR
Unit:
Size: W x L x H
Weight:
Limited Warranty
Handrail Construction: Steel Tubing Sch 40
Handrail Height (in.): 45-1/4
Handrail Construction: Steel Tubing Sch 40
Handrail Height (in.): 45-1/4
