Pallet Rack Drum Cradles

model: PRDC-42-R

Pallet Rack Drum Cradles

SERIES: PRDC

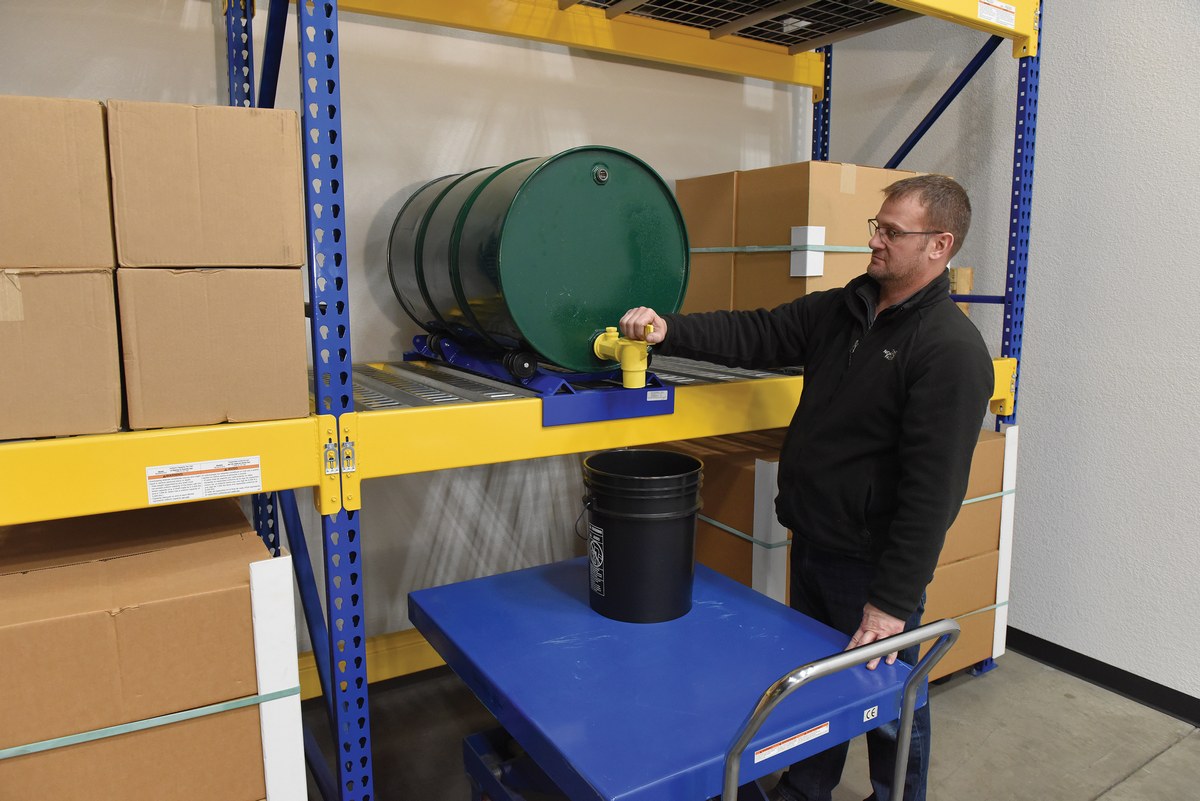

The Pallet Rack Drum Cradle converts standard (42 inch) pallet racks into a versatile horizontal drum cradle. The unit works with either box beams and/or step beams. Accepts 30- and 55-gallon steel drums. The drum angle is adjustable by using the height-adjustment turn knobs (sloping drum allows user to get 3% more fluid out. Works well with the Hydraulic Drum Stacker and the Drum Positioner. Steel construction with baked in powder coat finish for added toughness.

Unique design converts standard pallet rack into a horizontal drum cradle

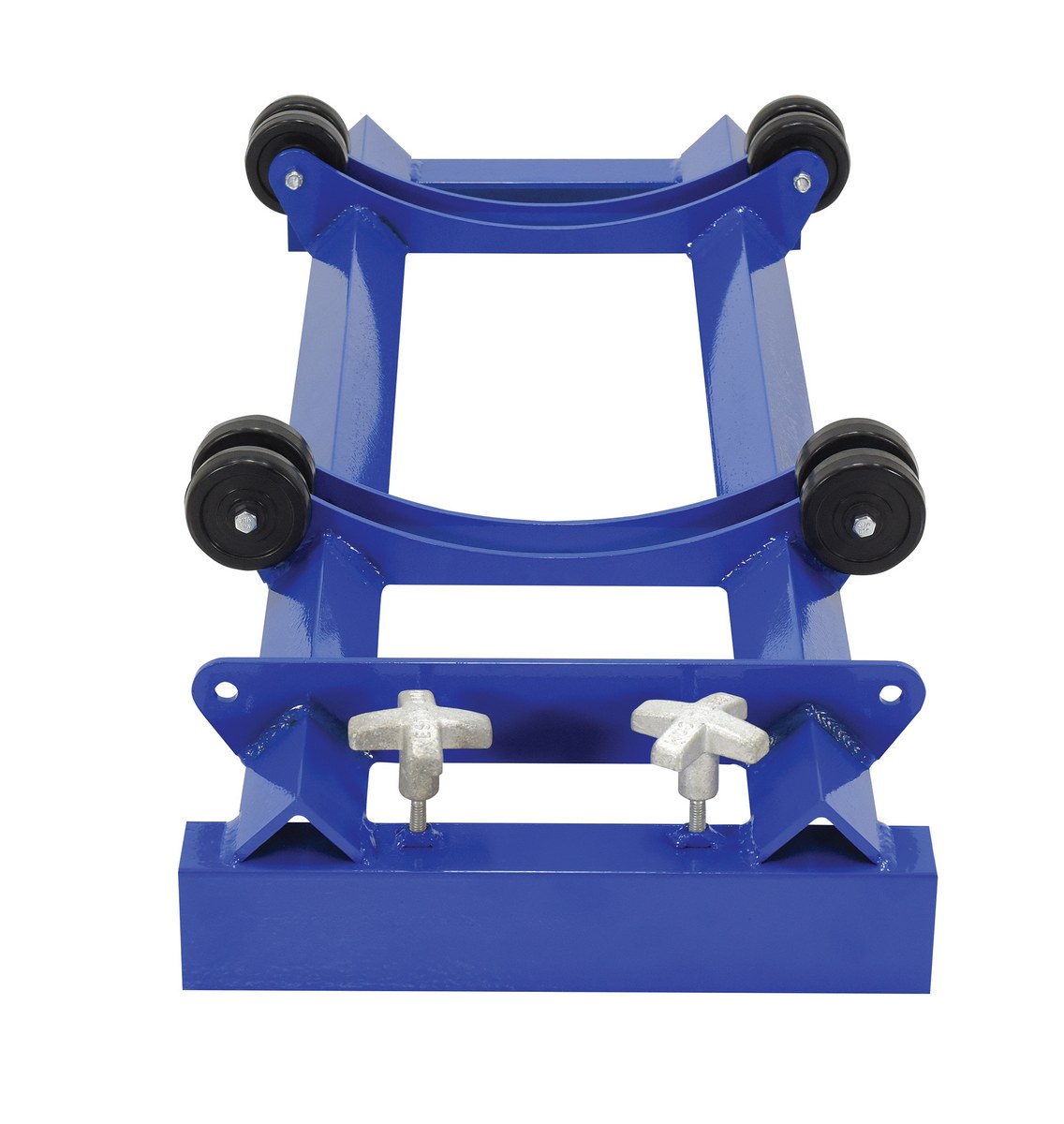

Adjustable angle bolts tilt drum into desired position
Universal design work with box or step beams
Solid steel construction provides long lasting rugged use

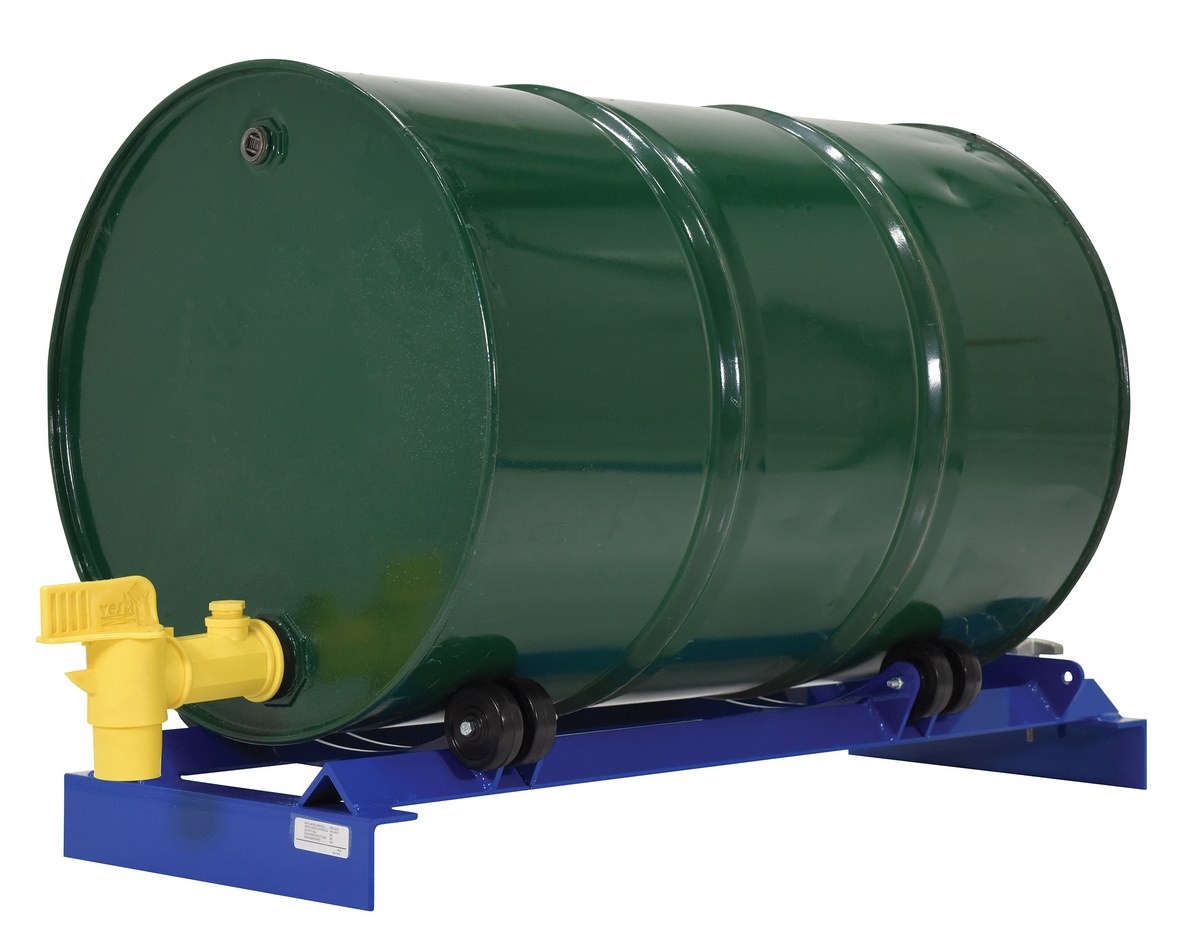

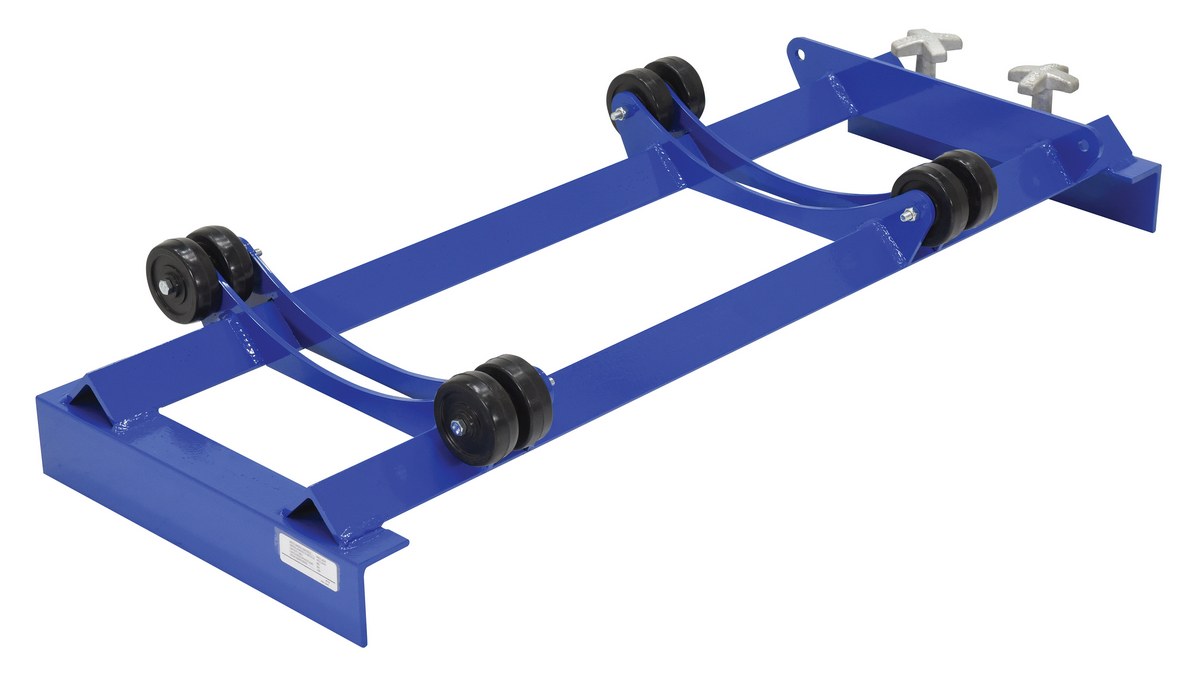

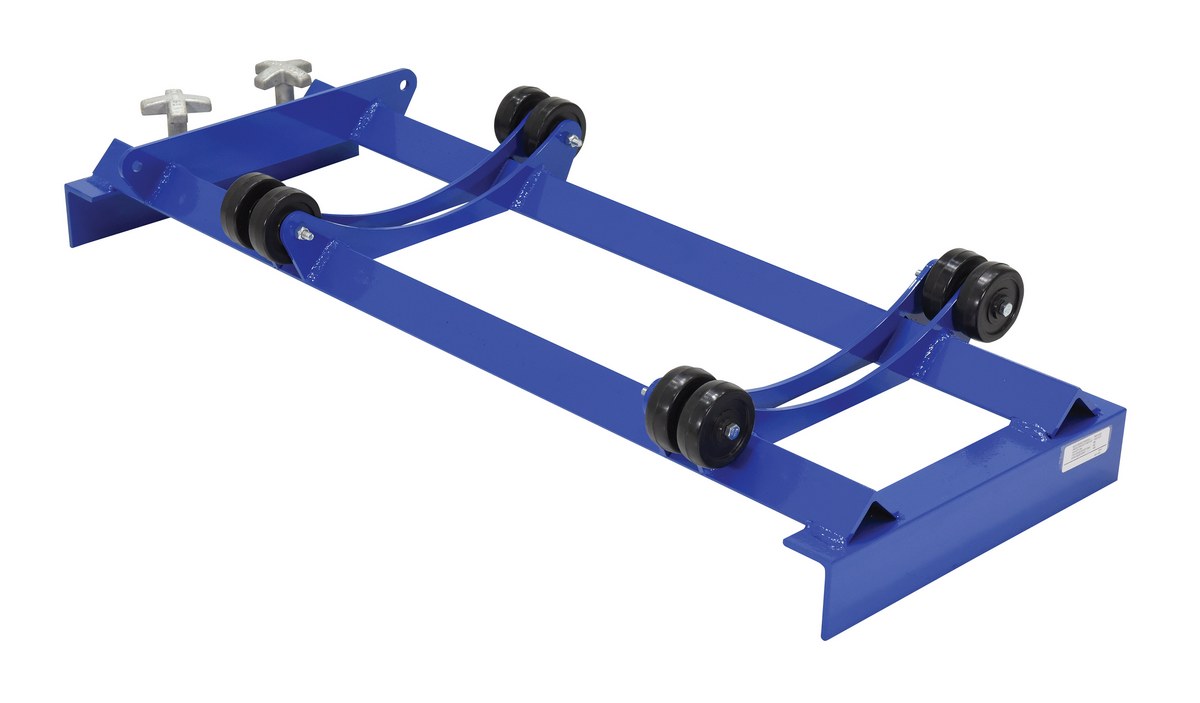

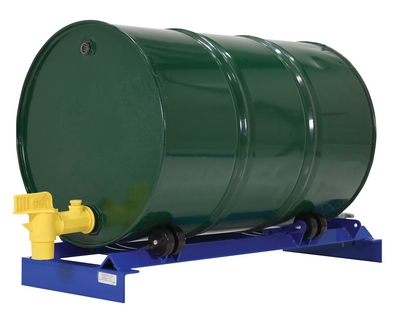

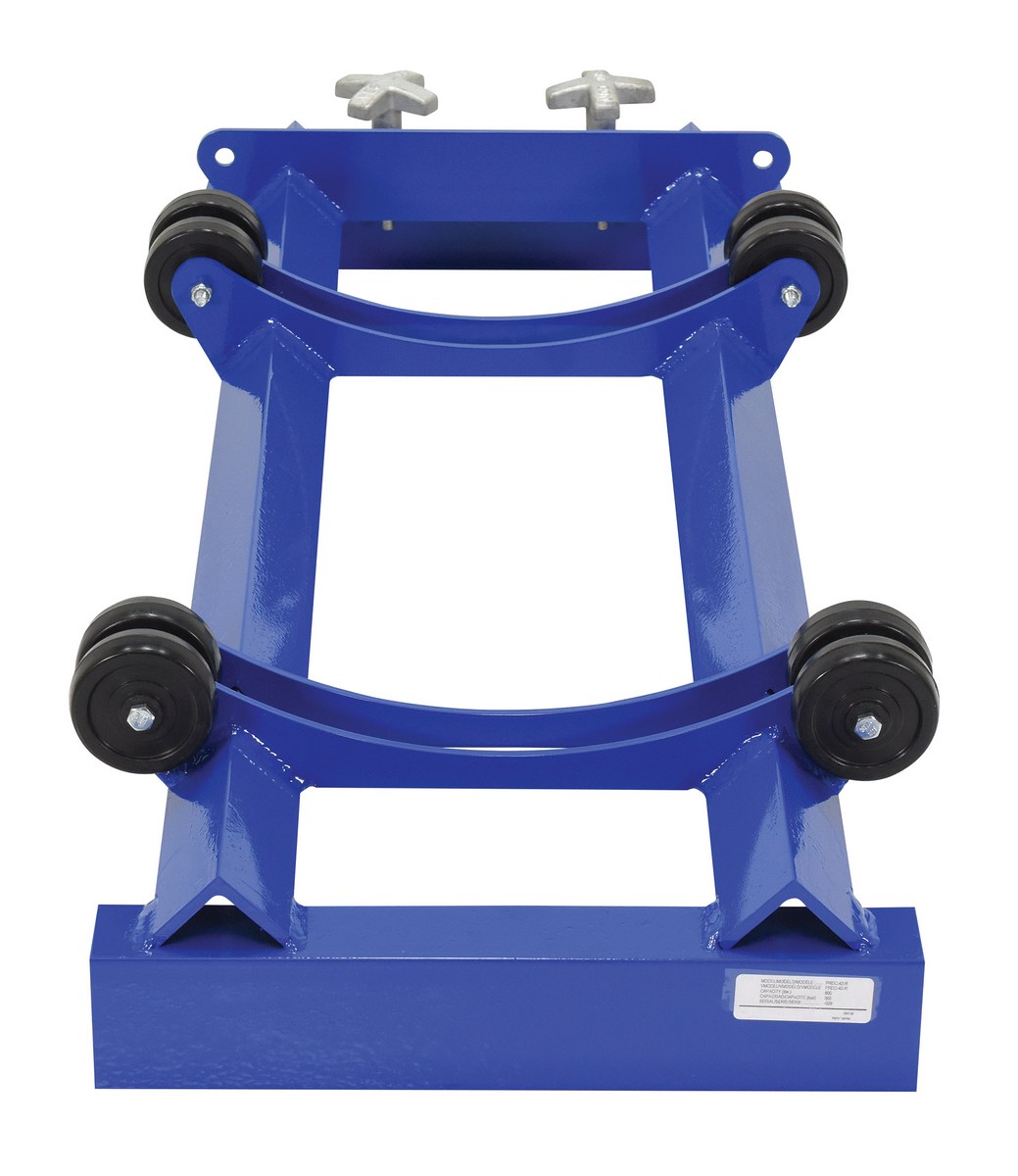

Model PRDC-42-R features 3" diameter poly rollers that allow manual drum rotation, making faucet and vent installation more convenient.

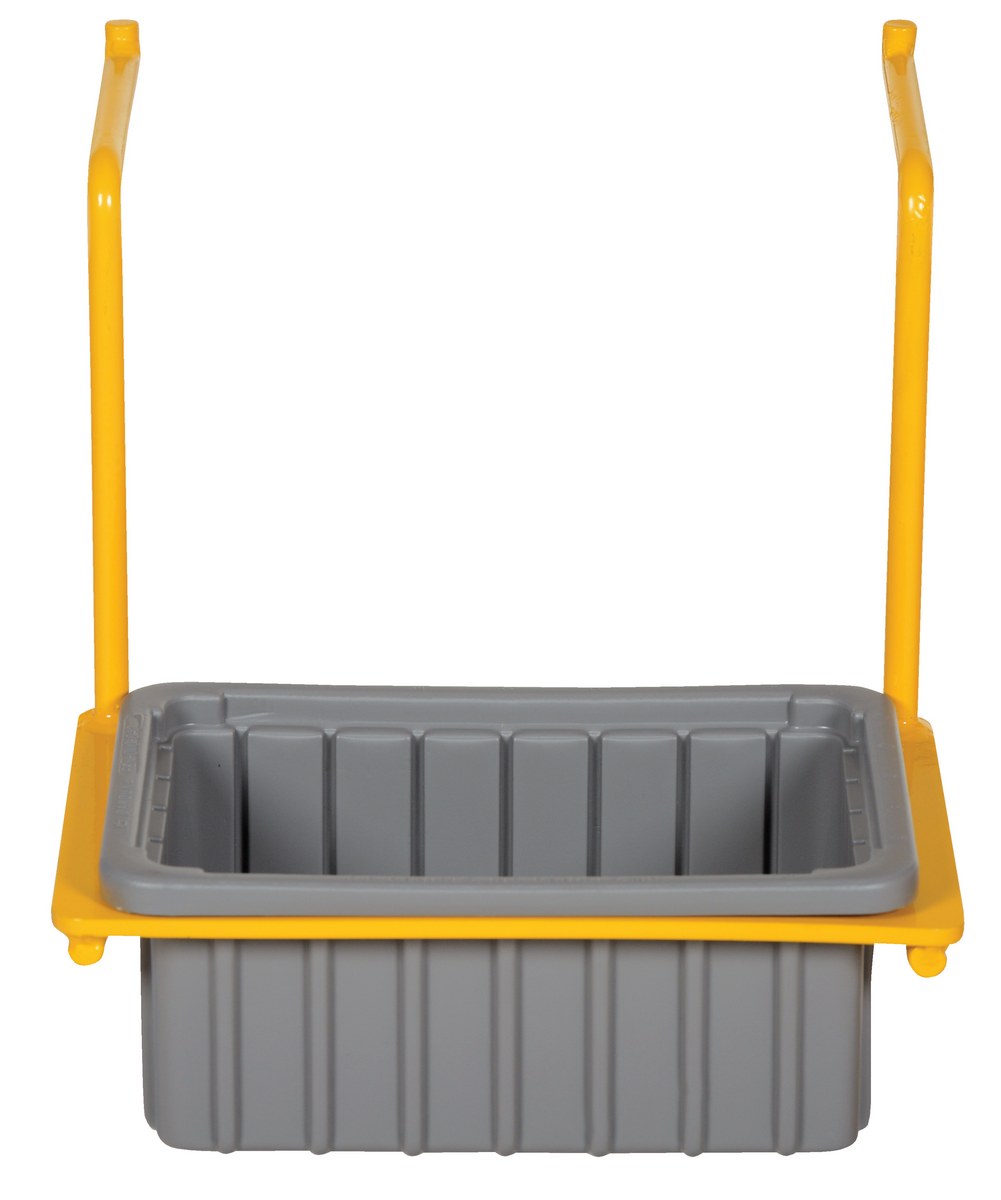

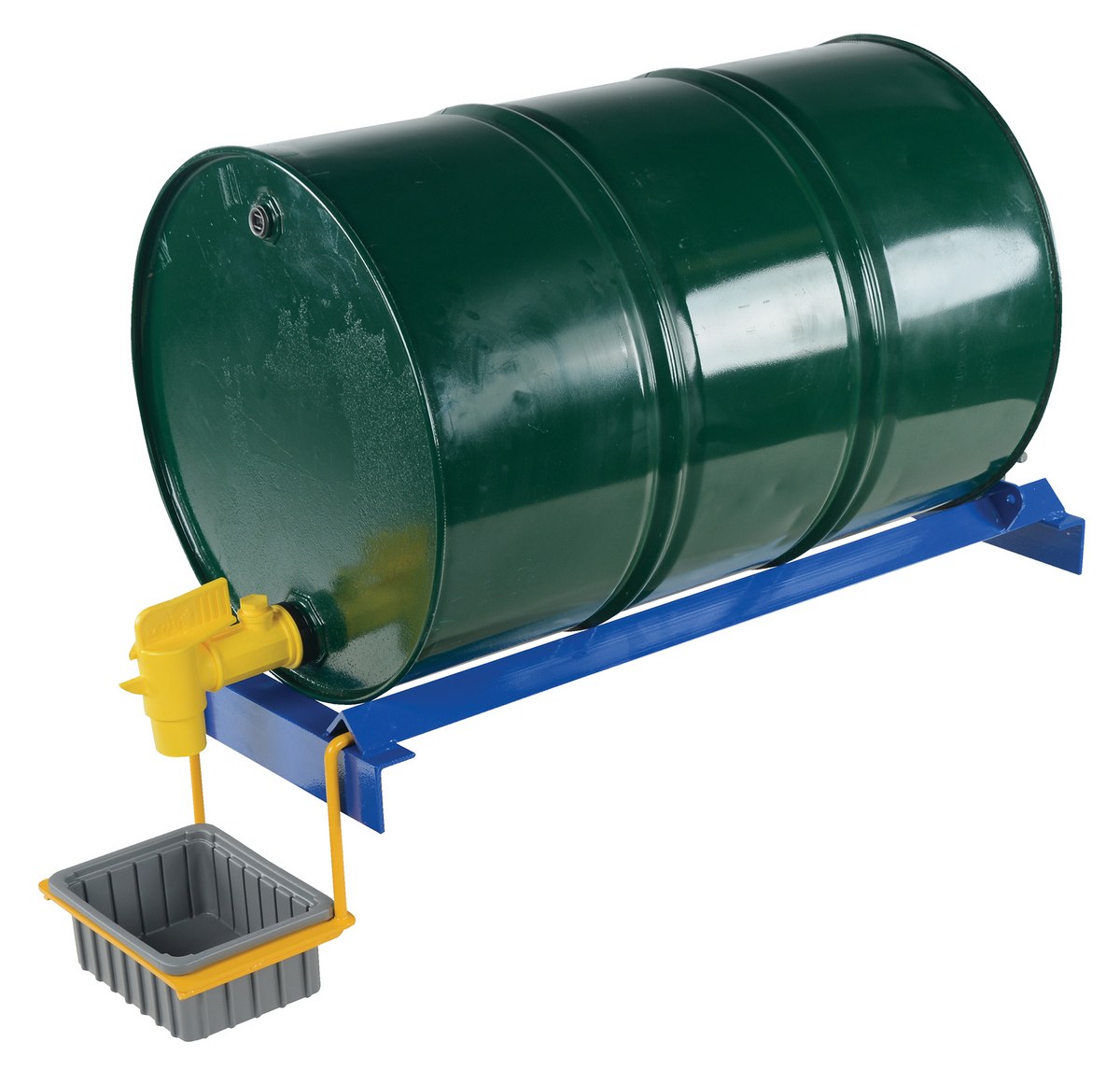

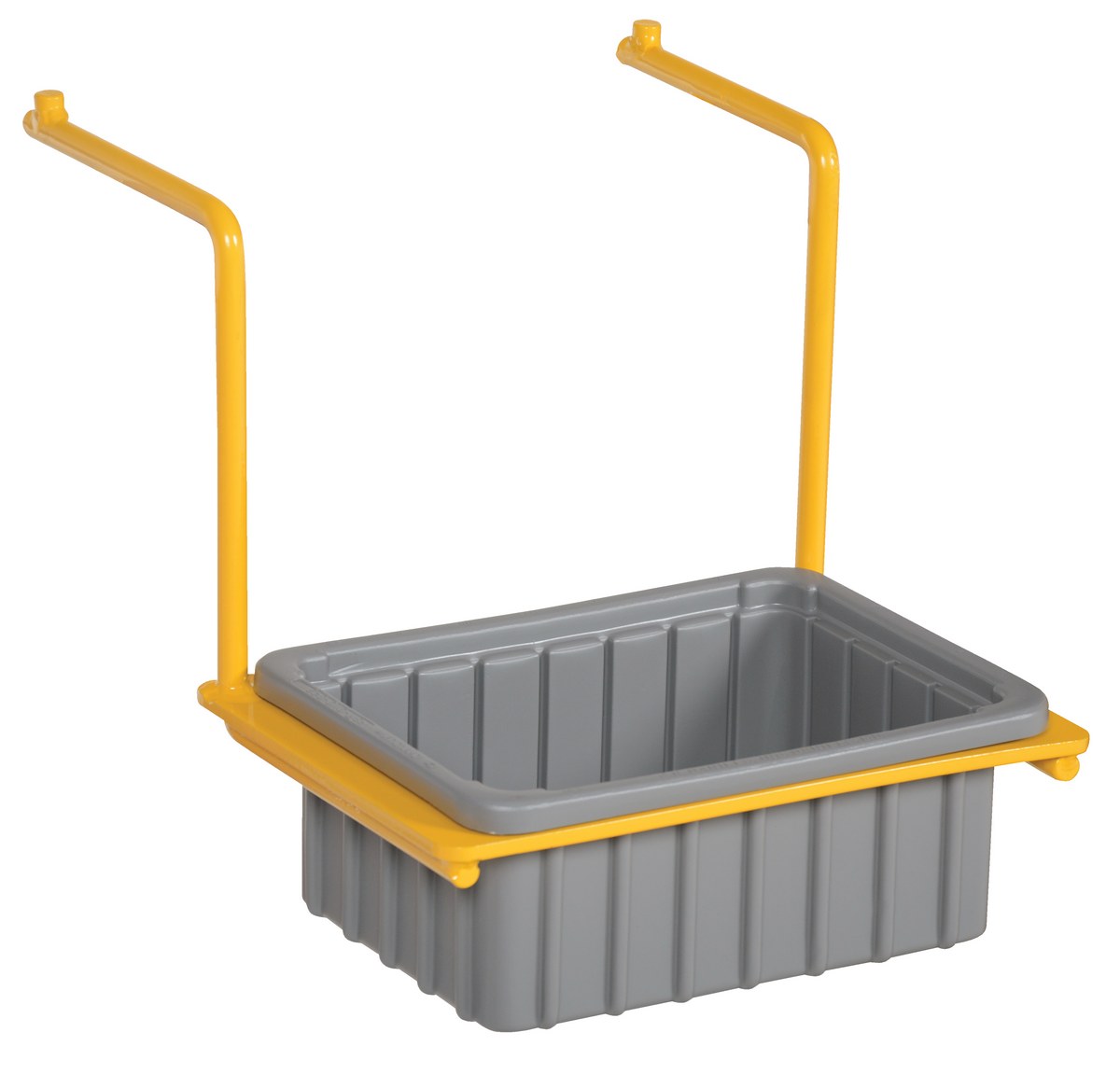

Model PRD-DPN includes brackets and prevents leaks from going to the floor. Usable dimensions: 9-3/4"W x 7-1/8"L x 4-3/16"H.

Pallet Rack Drum Cradles

model: PRDC-42-R

	Model #				Description	Attributes	Net Wt. (lbs)

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= New Images Coming Soon! = Dimension Image = Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below

For More Details of the Option Click the Red Model Button

Model	Image	Details	Icons	Wt.
PRDC-DPN		Steel Drip Pan For PRDC Models Yellow	30 Days Limited Warranty	5

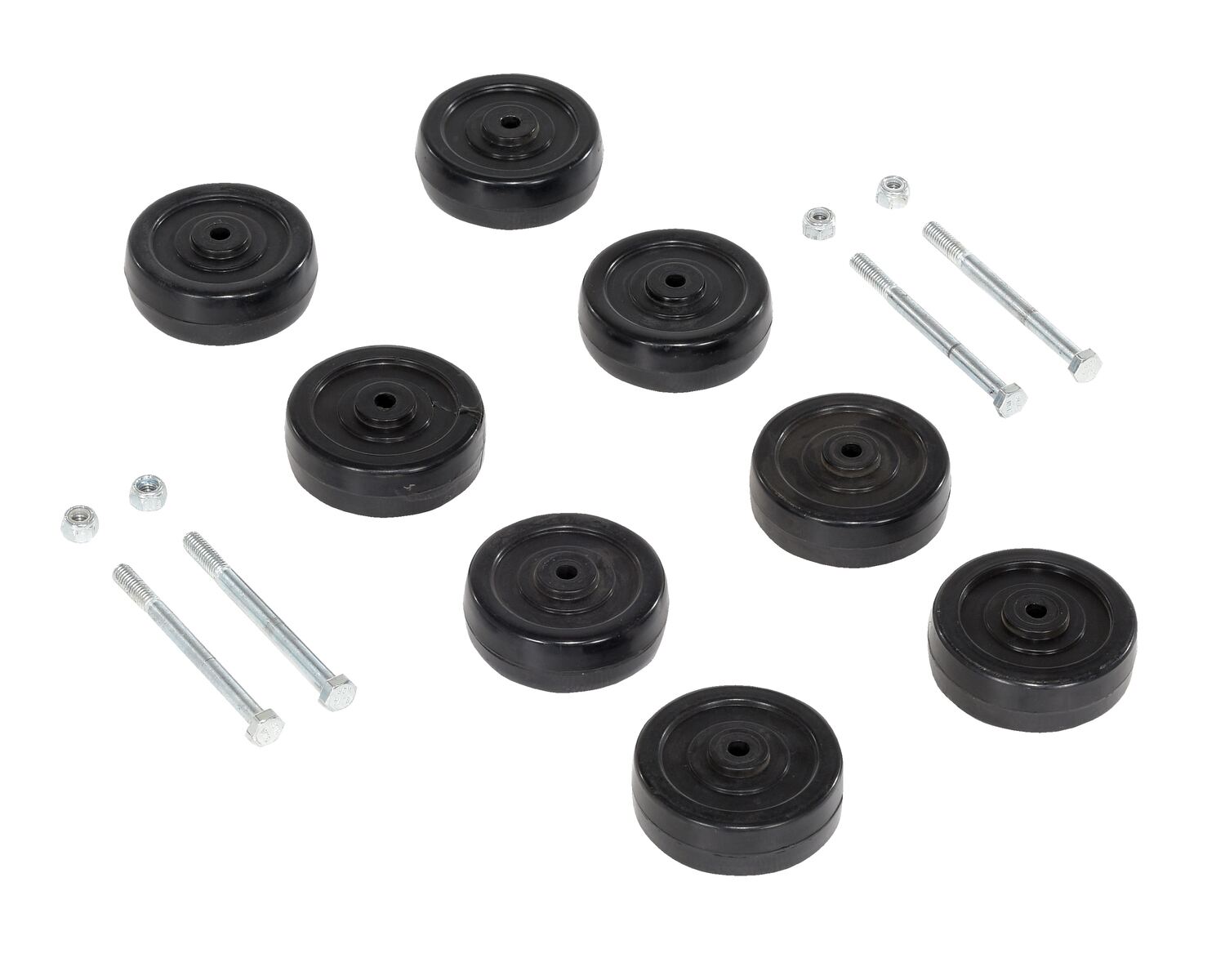

PRDC-RK-RF		Hard Rubber Retro Fit Roller Kit 3 In. x 1 In. For PRDC Mode…	90 Days Limited Warranty	4

.

If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above

PDFs will open in a new window when clicked.

Manuals

PRDC

Survey Sheets

No Survey Sheets For This Product

Engineering Drawings

PRDC-36

PRDC-36-R

PRDC-42

PRDC-42-R

PRDC-DPN

Testing Certificates

PRDC-36

PRDC-36-R

PRDC-42

PRDC-42-R

PRDC-DPN

SDS Sheets

No SDS Sheets For This Product

Other PDFs

Pallet Rack Drum Cradle Mailing Brochure

Print Friendly

Related or Similar Products:

More From Drum Racks

Drum Rack With Fork Pockets

Drum Rack With Fork Pockets

Drum Stand

Stackable Horizontal Drum Storage Racks

Stackable Horizontal Drum Storage Racks

Drum Tie Down

Drum Tiers

Pallet Rack Drum Cradles

The Pallet Rack Drum Cradle converts standard (42 inch) pallet racks into a versatile horizontal drum cradle. The unit works with either box beams and/or step beams. Accepts 30- and 55-gallon steel drums. The drum angle is adjustable by using the height-adjustment turn knobs (sloping drum allows user to get 3% more fluid out. Works well with the Hydraulic Drum Stacker and the Drum Positioner. Steel construction with baked in powder coat finish for added toughness.

Unique design converts standard pallet rack into a horizontal drum cradle
Adjustable angle bolts tilt drum into desired position
Universal design work with box or step beams
Solid steel construction provides long lasting rugged use

Model PRDC-42-R features 3" diameter poly rollers that allow manual drum rotation, making faucet and vent installation more convenient.

Model PRD-DPN includes brackets and prevents leaks from going to the floor. Usable dimensions: 9-3/4"W x 7-1/8"L x 4-3/16"H.

Model #		Description	Attributes	Net Wt. (lbs)
PRDC-36		Steel Pallet Rack Drum Cradle 36-1/2 In. x 15-7/8 In. x 5-5/8 In. 800 Lb. Capacity Blue	Uniform Capacity (lb.): 800 Acceptable Drum Size (gal.): 30 & 55	61
PRDC-36-R		Steel Pallet Rack Drum Roller Cradle 36-1/2 In. x 17-3/8 In. x 6-15/16 In. 800 Lb. Capacity Blue	Uniform Capacity (lb.): 800 Acceptable Drum Size (gal.): 30 & 55	52

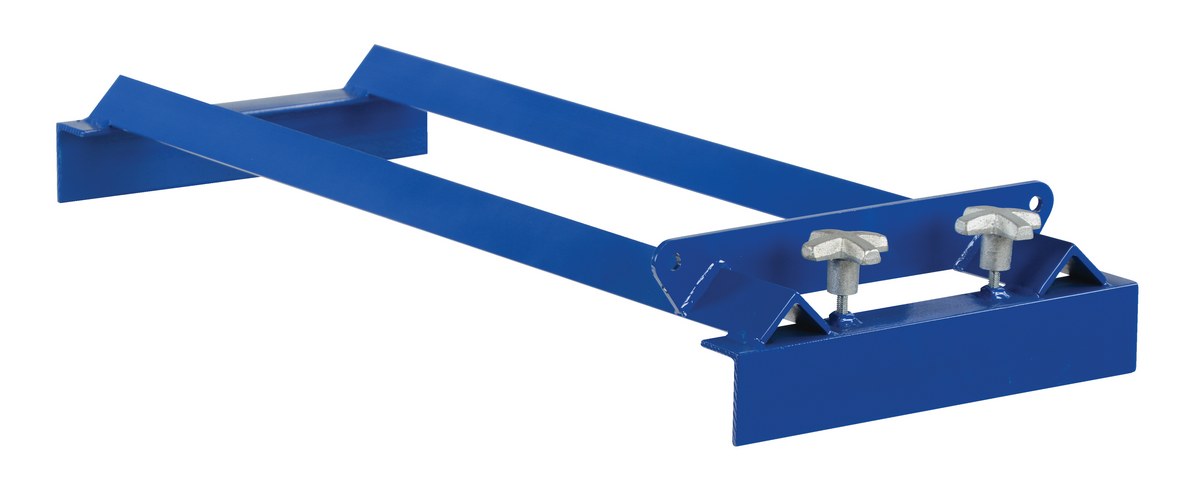

PRDC-42		Steel Pallet Rack Drum Cradle 42-1/2 In. x 15-7/8 In. x 5-5/8 In. 800 Lb. Capacity Blue	Uniform Capacity (lb.): 800 Acceptable Drum Size (gal.): 30 & 55	36
PRDC-42-R		Steel Pallet Rack Drum Roller Cradle 42-1/2 In. x 17-3/8 In. x 6-15/16 In. 800 Lb. Capacity Blue	Uniform Capacity (lb.): 800 Acceptable Drum Size (gal.): 30 & 55	58
