Fork Mounted Poly Drum HandlersThese easy to use plastic drum handlers are constructed of all welded steel. Includes safety chains for securing unit to the fork truck. Durable powder coat finish.
- Unique design handles odd-shaped plastic drums
- Simple design allows user to grab and go quickly
- Safety restraint secures unit to the fork truck
- Solid steel construction offer lasting rugged use

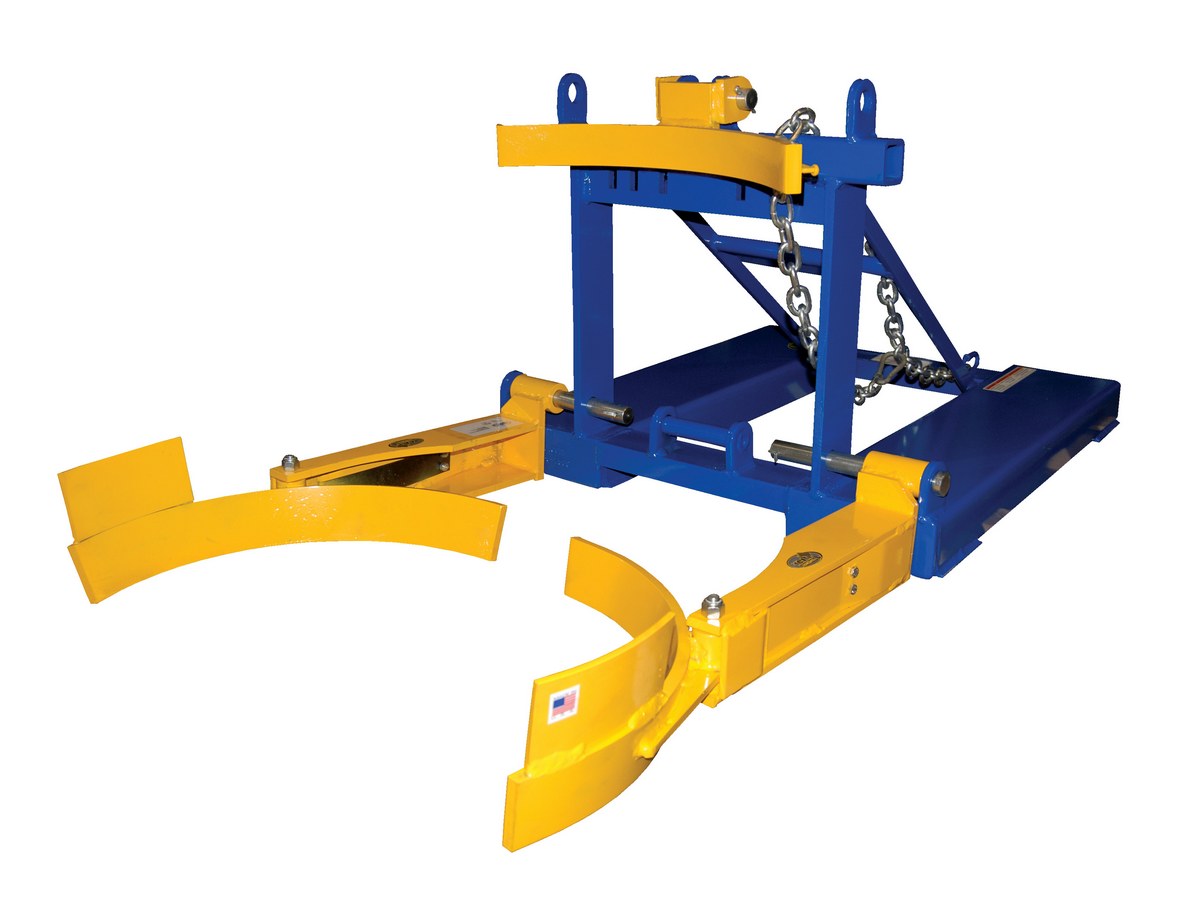

Model FPDL-8-L Adjustable arms are designed to fit 55 gallon tapered round bottom plastic drums. Low drum attachment point allows for use of both open and closed head drums. A ratchet strap is supplied to secure the drum to the unit when traveling over rough terrain.

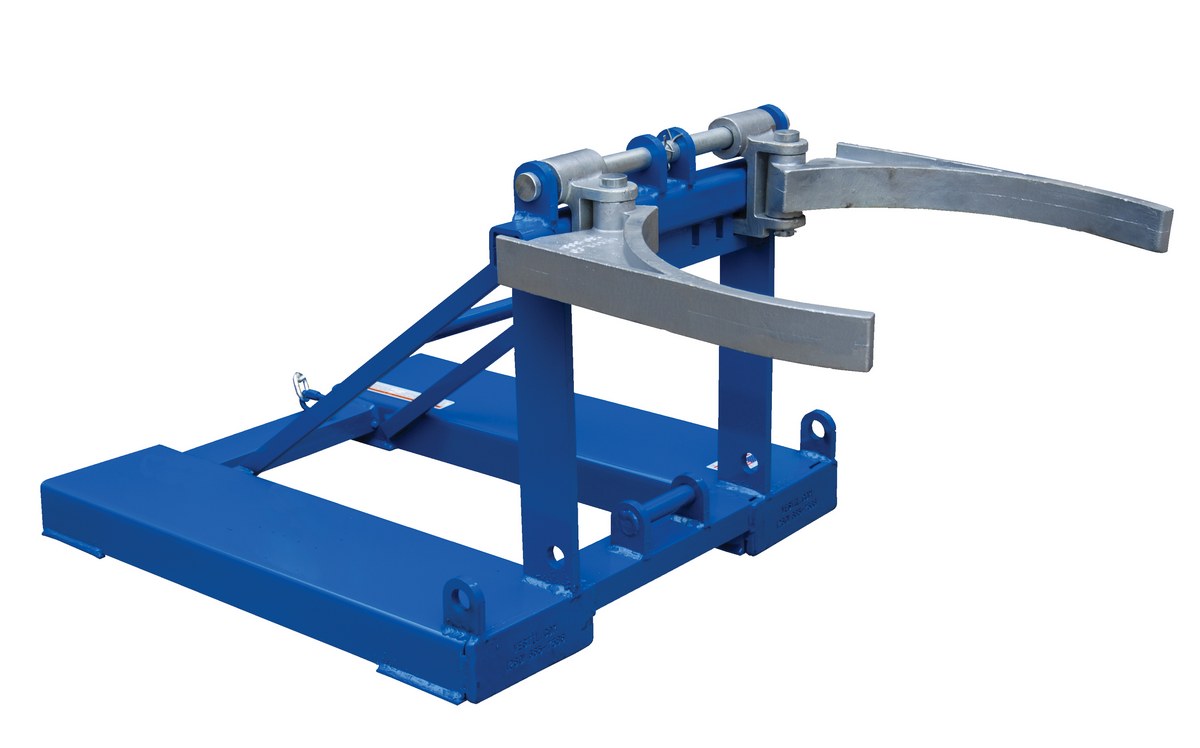

Model FPDL-11-H A top lip plastic drum lifter for use with 30 and 55-gallon plastic closed head drums. 7-1/2" wide x 2-1/2" high usable fork pockets on 20-1/2" centers. High drum attachment point for use with top lip at least 3/16" high. Will also work with steel and fiber drums, with open (lid installed and secured) and closed head drums.
Fork Mounted Drum Gripper w/ Digital Scale
Horizontal Drum Positioner
Fork Mounted Drum Lifters
Drum Grippers
| Model # | Description | Attributes | Net Wt. (lbs) |
||||
|---|---|---|---|---|---|---|---|
| FPDL-8-L |  | 90 Days Limited Warranty | Steel Fork Mounted Poly Drum Handler 56-1/4 In. x 28-1/2 In. x 22-3/8 In. 800 Lb. Capacity Blue/Yellow | Uniform Capacity (lb.): 800 Drum Size: 55-gallon drum | 242 | ||
| FPDL-11-H |  | 90 Days Limited Warranty | Steel Fork Mounted Poly Drum Handler 48-3/8 In. x 28-1/2 In. x 22-3/8 In. 1,100 Lb. Capacity Blue | Uniform Capacity (lb.): 1,100 Drum Size: 30 & 55-gallon drum | 200 |
KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 800
Drum Size: 55-gallon drum
Uniform Capacity (lb.): 800
Drum Size: 55-gallon drum
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1,100
Drum Size: 30 & 55-gallon drum
Uniform Capacity (lb.): 1,100
Drum Size: 30 & 55-gallon drum
