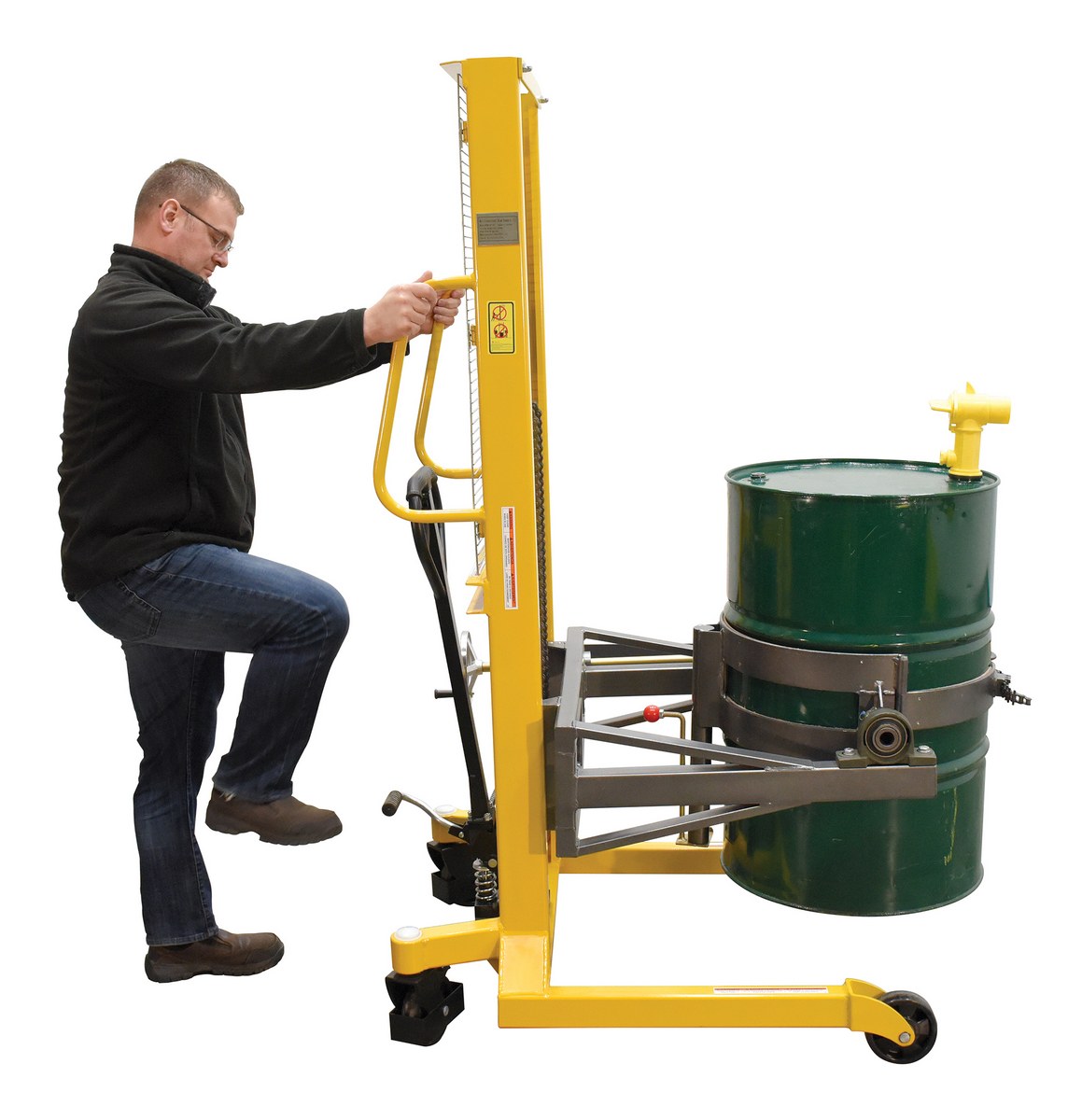

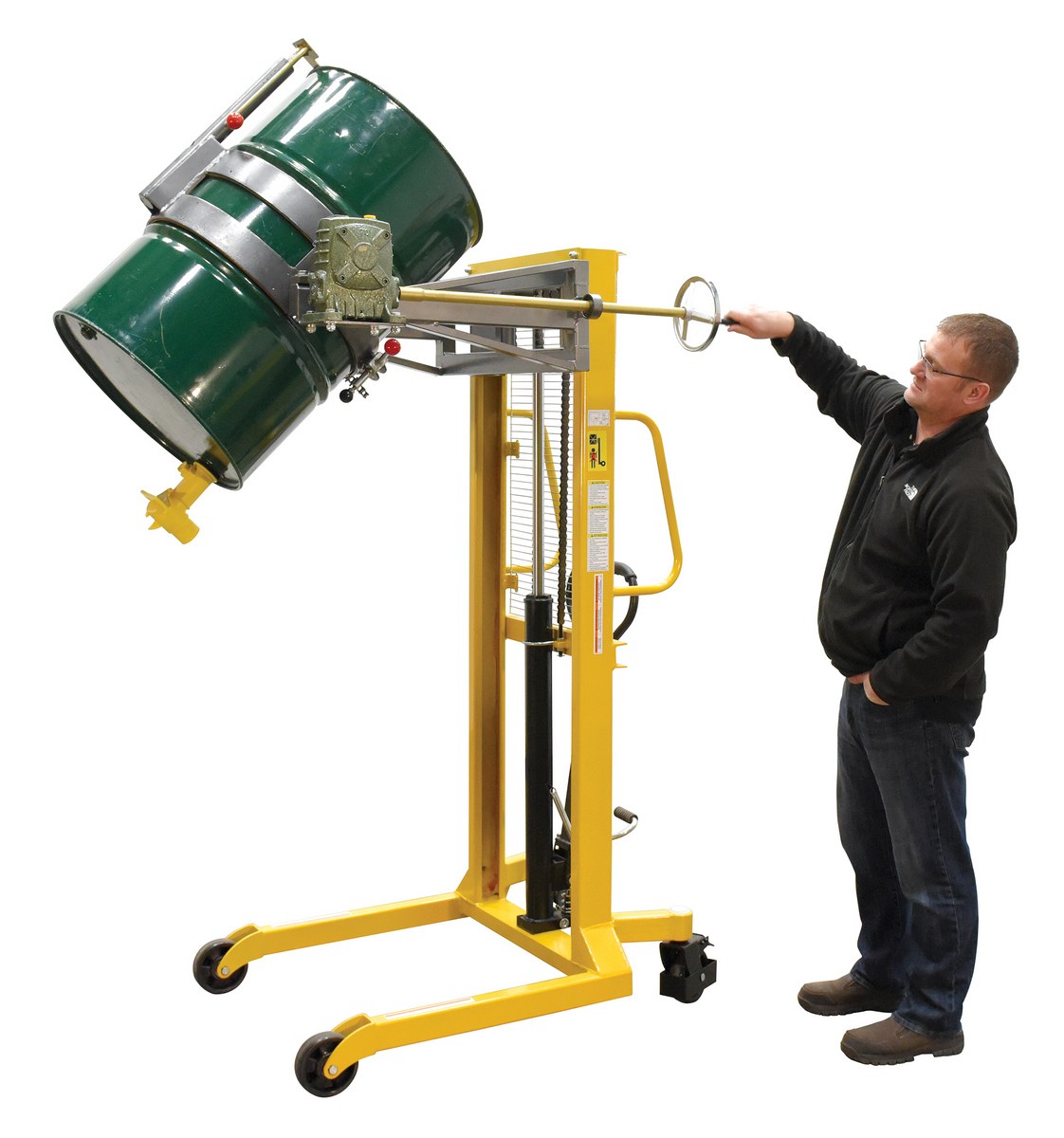

Economy Portable Drum Lifter/Rotator/TransportersEasy to lift, transport and tilt 55 gallon steel drums. Ideal for use in warehouse environments when moving drums to and from racks. Drums can be locked in a vertical position to avoid spills or a horizontal position for draining through a faucet. A manual hand crank allows the drum to tilt up to 120 degrees. Vertically raise the drums up to 53" with a manual hand or foot pump operation. Horizontal dump height is 58" from floor to bottom of drum.
- Unique design works with 55 gallon drums
- Caster style rolls smoothly when loaded
- Solid steel construction offers long lasting rugged use
- Drum lifter design lifts, rotates & transports drums easily
 |

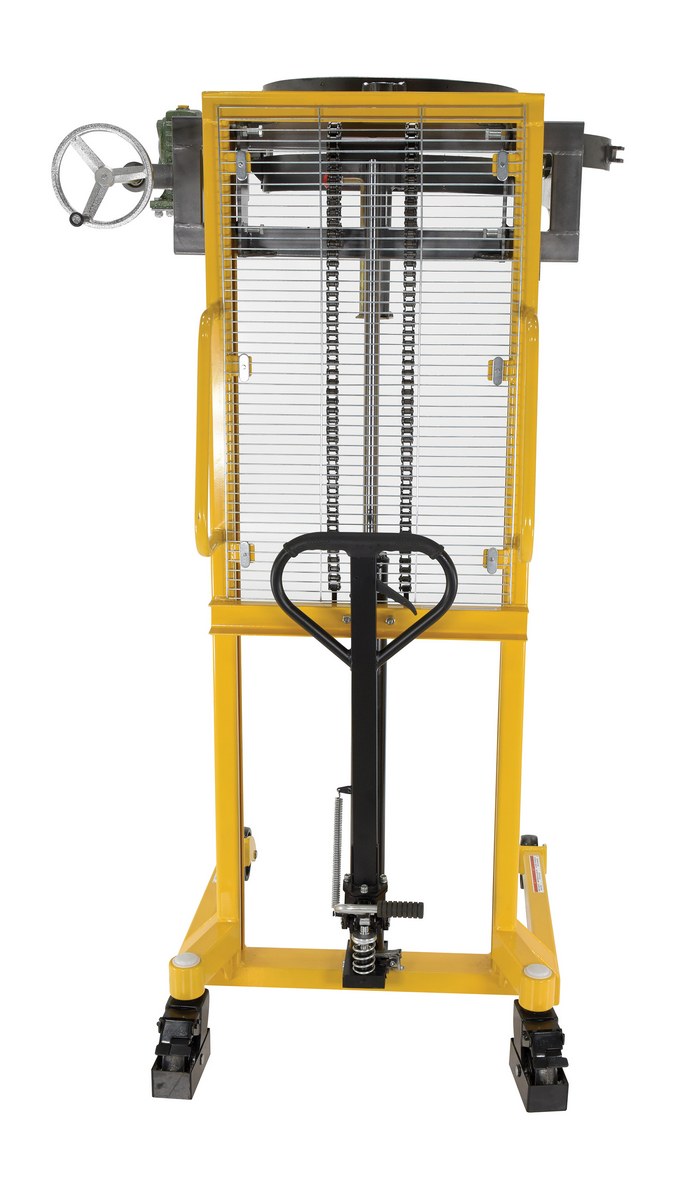

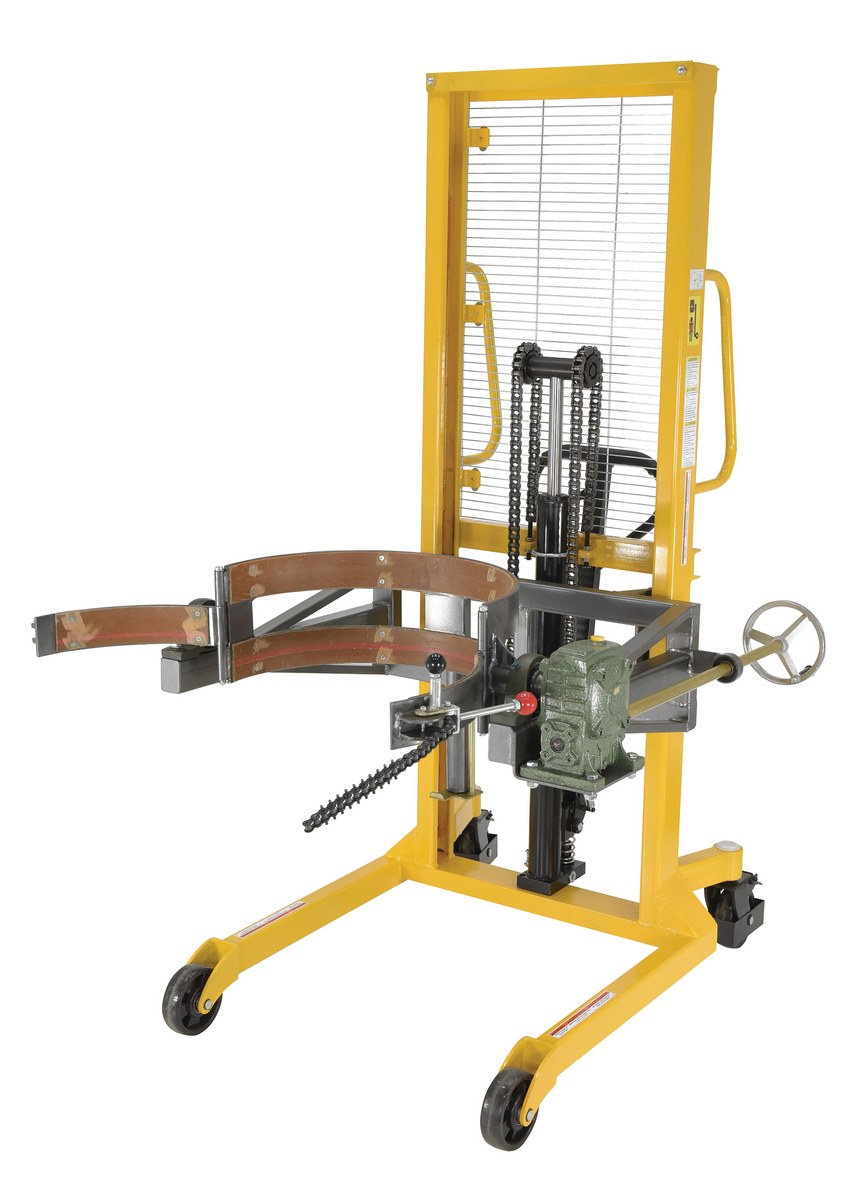

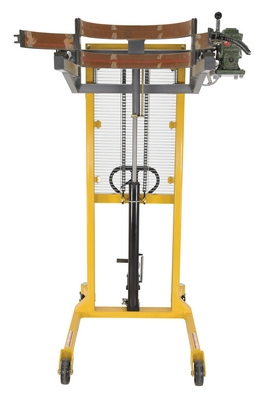

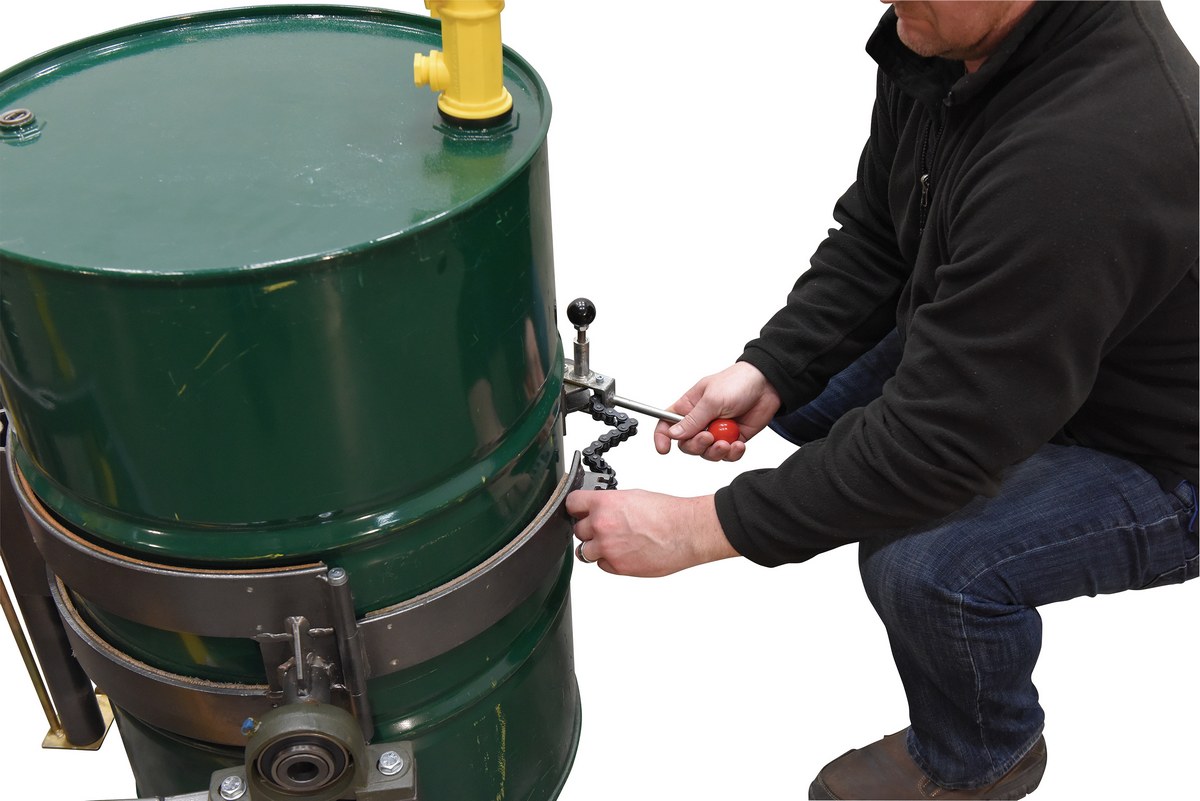

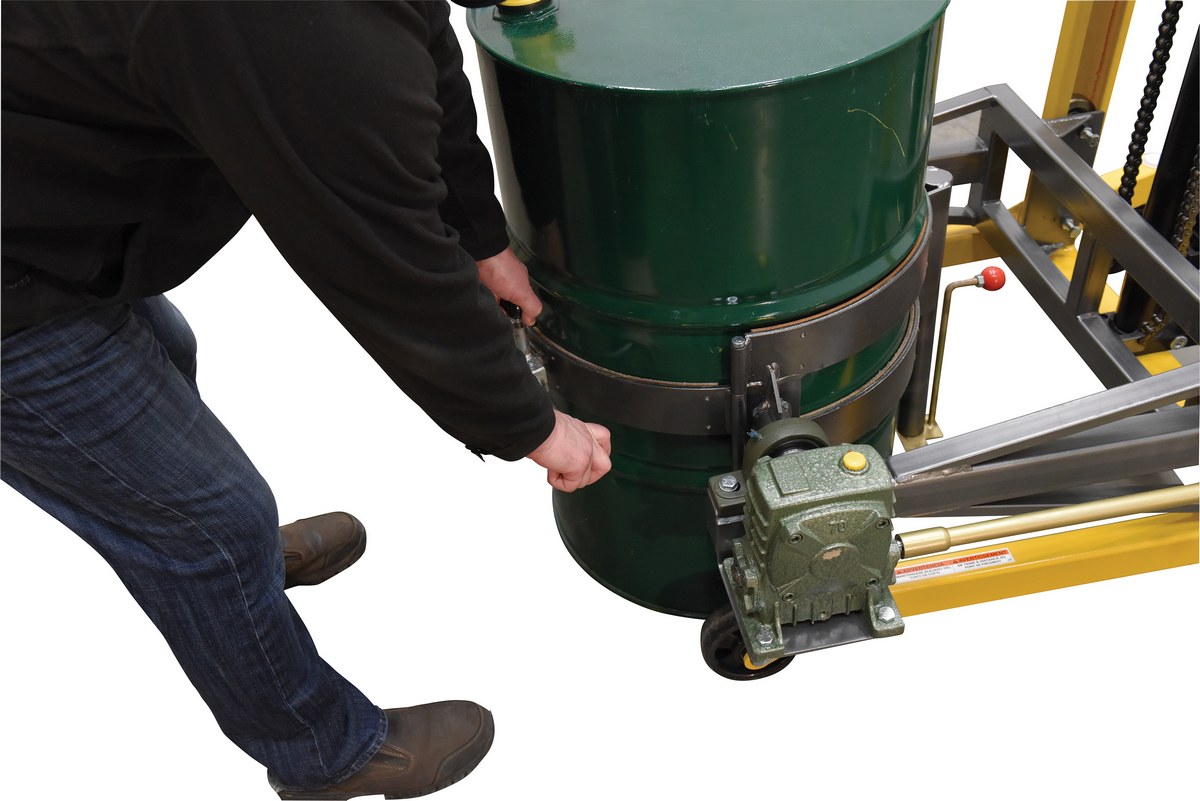

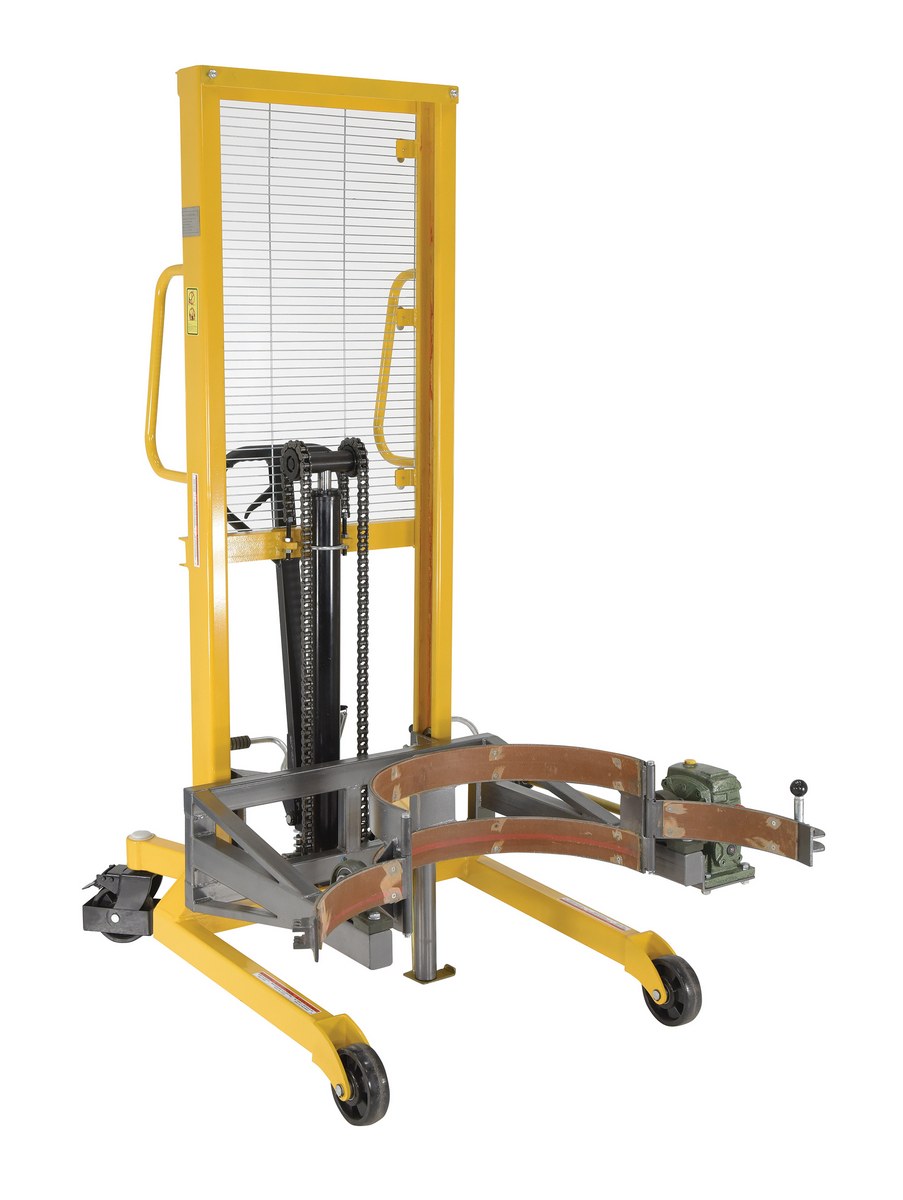

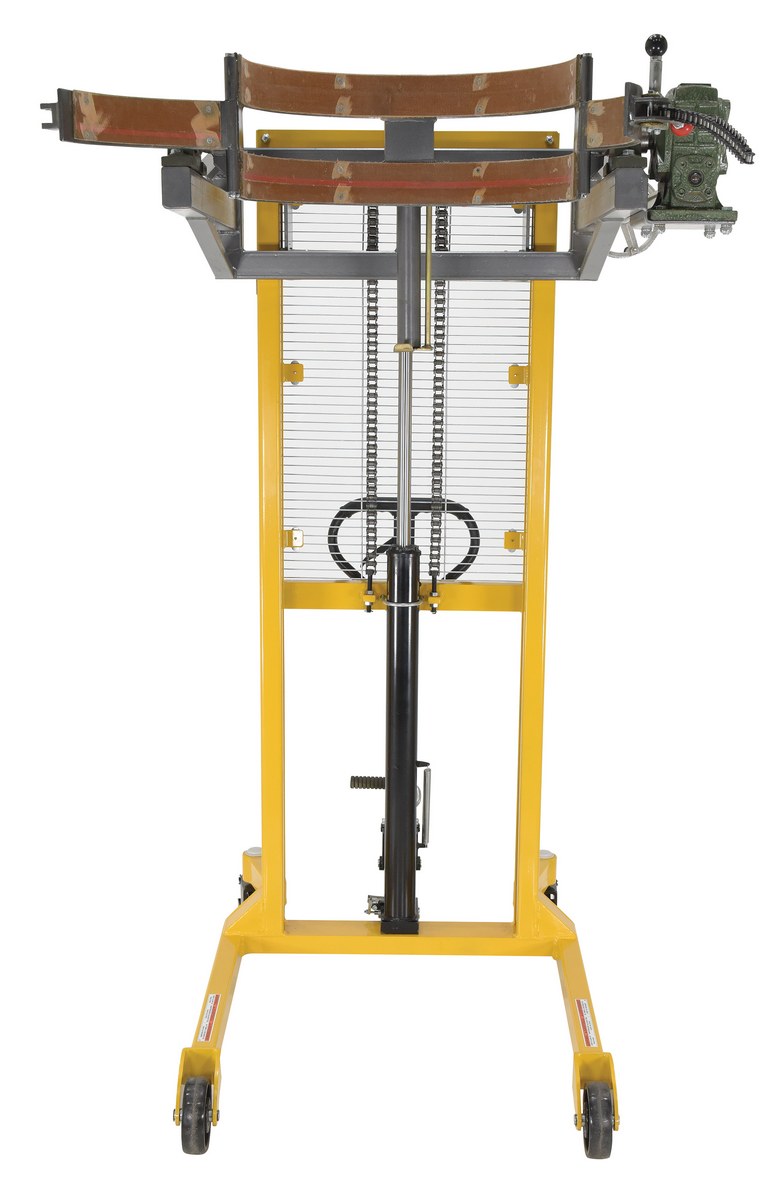

Model DRUM-LRT-EC has a clamp style cradle which securely grips around the drum. |

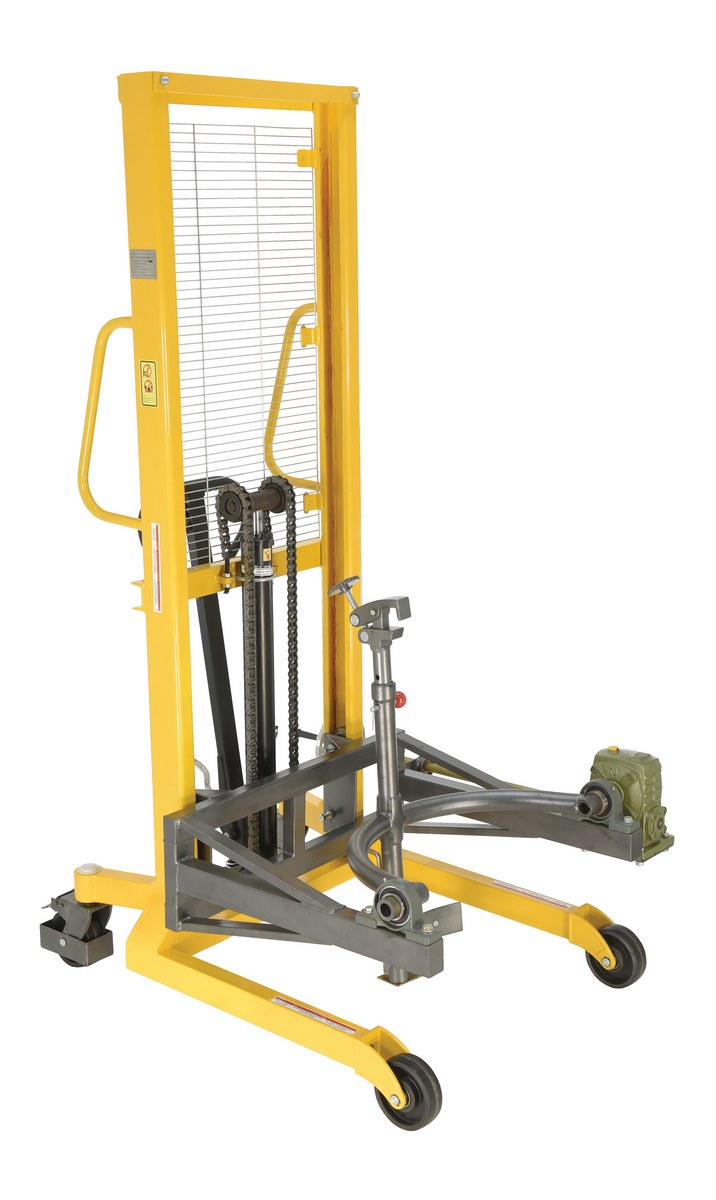

| Model DRUM-LRT-ESJ features a steel jaw which securely grips the top lip of the drum. |  |
Manual Low Profile Hydraulic Drum Truck
Semi-Electric Powered Drum Gripper
Dispensing Containment Cart
| Model # | Description | Attributes | Net Wt. (lbs) |
||||
|---|---|---|---|---|---|---|---|
| DRUM-LRT-EC | POPULAR |  | 90 Days Limited Warranty | Steel Economy Portable Drum Lifter/Rotator/Transporter 44 In. x 40 In. x 82 In. 550 Lb. Capacity Yellow | Uniform Capacity (lb.): 550 Drum Size: 55-gallon | 470 | |
| DRUM-LRT-ESJ |  | 90 Days Limited Warranty | Steel Economy Portable Drum Lifter/Rotator/Transporter with Steel Jaw 44 In. x 40 In. x 78 In. 550 Lb. Capacity Yellow | Uniform Capacity (lb.): 550 Drum Size: 55-gallon | 450 |
KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 550
Drum Size: 55-gallon
Uniform Capacity (lb.): 550
Drum Size: 55-gallon
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 550
Drum Size: 55-gallon
Uniform Capacity (lb.): 550
Drum Size: 55-gallon
For More Details of the Option Click the Red Model Button

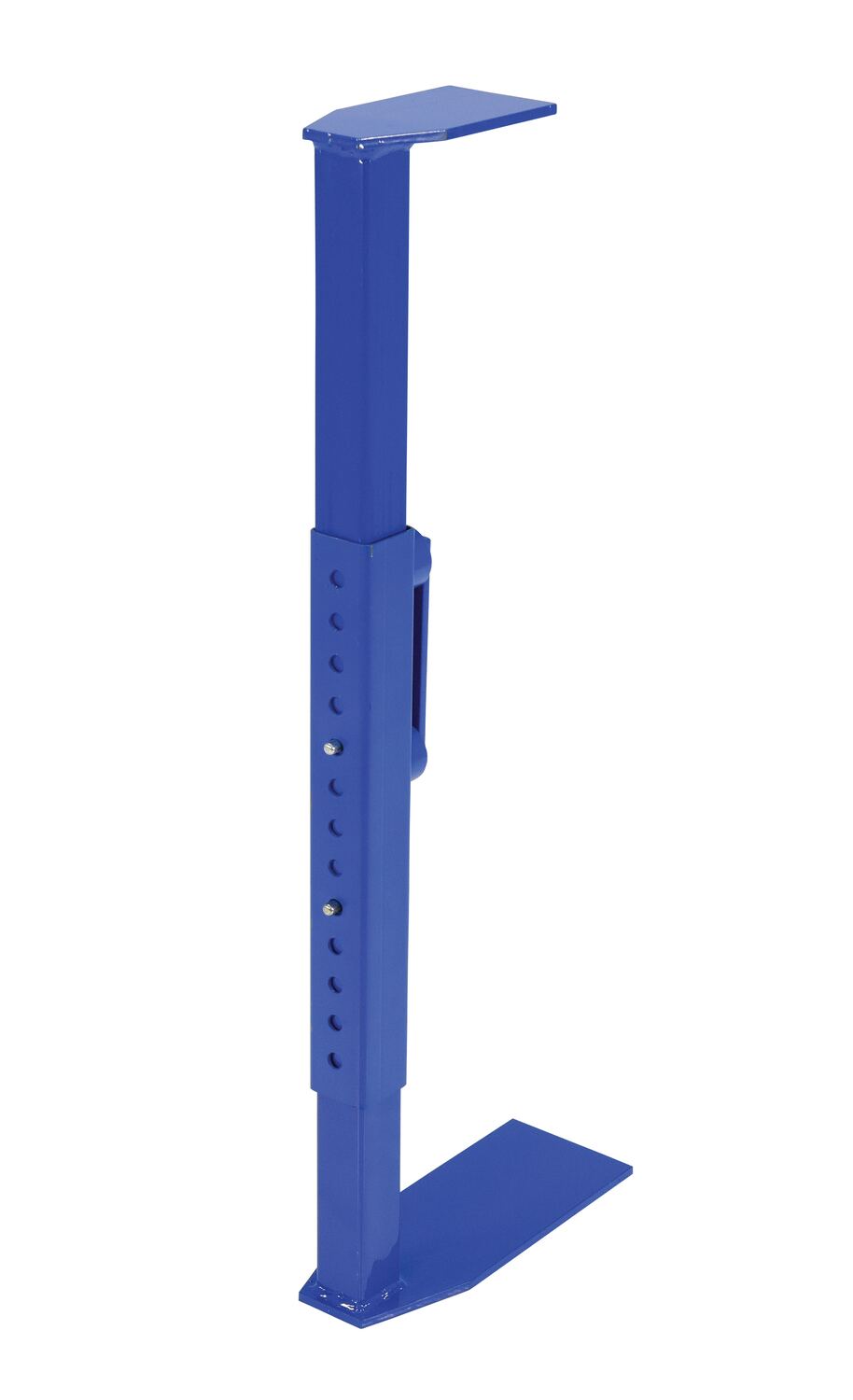

| FDA-550-DR-LRT-ECPF | NEW |  | 90 Days Limited Warranty | Steel Factory Installed Special Drum Adapter For DRUM-LRT-EC Blue | - | 37 |
.
Manuals
Survey Sheets
Approval Drawings
Testing Certificates
SDS Sheets
Hydraulic Oil SDS Sheet for: DRUM-LRT-EC
Hydraulic Oil SDS Sheet for: DRUM-LRT-ESJ
Other PDF's
Directory Links Of Available PDF's For All Products
Q: When the drum is lifted vertically , how far above the floor is the drum?
A: From the floor to the bottom of the drum is 53".
Q: Does the FDA-550 work with the DRUM-LRT-EC for a fiber drum?
A: Yes the FDA-550 with the DRUM-LRT-EC will work for a fiber drum.
Q: How many pumps does it take to raise DRUM-LRT-ESJ to 53"?
A: It takes 56 pumps without load to raise DRUM-LRT-ESJ to 53".
Q: How long does it take to turn the wheel for DRUM-LRT-ESJ to be able to dump?
A: It takes about 1 to 1-1/2 minutes to rotate the DRUM-LRT-ESJ to be able to dump.
 |
|||||||||||||||||
